Microwave Oven
User manual
MS23K3513
**
MS23K3513AS_TC_DE68-04431B-00_EN.indd 1 2016-02-12 �� 11:20:30
Contents
Using this user manual 3
Contents
The following symbols are used in this User Manual: 3
Safety instructions 3
Important safety instructions 3
Installation 8
Accessories 8
Installation site 8
Turntable 8
Maintenance 9
Cleaning 9
Replacement (repair) 9
Care against an extended period of disuse 9
Oven use 11
How a microwave oven works 11
Checking that your oven is operating correctly 12
Cooking/Reheating 12
Setting the time 13
Power levels and time variations 13
Adjusting the cooking time 14
Stopping the cooking 14
Setting the energy save mode 14
Using the auto cook features 15
Using the quick defrost features 17
Using the soften/melt features 18
Using the favorite features 19
To use the favorite setting 19
Using the deodorization features 19
Using the child lock features 20
Switching the beeper off 20
Quick look-up guide 10
Cookware guide 20
Oven features 10
Oven 10
Control panel 11
Cooking guide 21
Troubleshooting and information code 23
Troubleshooting 23
Information code 25
Technical specifications 26
2 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 2 2016-02-12 �� 11:20:30
Using this user manual
You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions
contains valuable information on cooking with your microwave oven:
•Safety precautions
•Suitable accessories and cookware
•Useful cooking tips
•Cooking tips
The following symbols are used in this User Manual:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
NOTE
Useful tips, recommendations, or information that helps users manipulate the product.
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
WARNING: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that
involves the removal of a cover which gives protection against
exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and
Using this user manual
understands the hazards of improper use.
This appliance is intended to be used in household only and it
is not intended to be used such as:
•staff kitchen areas in shops, offices and other working
environments;
•farm houses;
•by clients in hotels, motels and other residential environments;
•bed and breakfast type environments.
English 3
MS23K3513AS_TC_DE68-04431B-00_EN.indd 3 2016-02-12 �� 11:20:30
Safety instructions
Safety instructions
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
Metallic containers for food and beverages are not allowed
during microwave cooking.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to risk
of injury, ignition or fire.
If smoke is observed (emitted), switch off or unplug the
appliance and keep the door closed in order to stifle any
flames.
Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container.
The contents of feeding bottles and baby food jars shall
The oven should be cleaned regularly and any food deposits
removed.
Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
The microwave oven is intended to be used on the counter top
(freestanding) use only, the microwave oven shall not be placed
in a cabinet.
The appliance should not be cleaned with a water jet.
The appliance is not intended for installing in road vehicles,
caravans and similar vehicles etc.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
Children should be supervised to ensure that they do not play
with the appliance.
Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
4 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 4 2016-02-12 �� 11:20:30
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
This oven should be positioned proper direction and height
permitting easy access to cavity and control area.
Before using the your oven first time, oven should be operated
with the water during 10 minute and then used.
If the oven generates a strange noise, a burning smell, or smoke
is emitted, unplug the power plug immediately and contact
your nearest service center.
The microwave oven has to be positioned so that plug is
accessible.
General safety
Any modifications or repairs must be performed by qualified personnel only.
Do not heat food or liquids sealed in containers for the microwave function.
Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean
the oven.
Do not install the oven: near a heater or flammable material; locations that are
humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak;
or an uneven surface.
This oven must be properly grounded in accordance with local and national codes.
Regularly use a dry cloth to remove foreign substances from the power plug
terminals and contacts.
Do not pull, excessively bend, or place heavy objects on the power cord.
If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the
power cord.
Do not touch the power cord with wet hands.
While the oven is operating, do not turn it off by unplugging the power cord.
Do not insert fingers or foreign substances. If foreign substances enter the oven,
unplug the power cord and contact a local Samsung service centre.
Do not apply excessive pressure or impact to the oven.
Do not place the oven over fragile objects.
Ensure the power voltage, frequency, and current matches the product
specifications.
Firmly plug the power plug into the wall socket. Do not use multiple plug adapters,
extension cords, or electric transformers.
Do not hook the power cord on metal objects. Make sure the cord is between
objects or behind the oven.
Do not use a damaged power plug, power cord, or loose wall socket. For damaged
power plugs or cords, contact a local Samsung service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside, or on the oven door.
Do not spray volatile materials such as insecticide on the oven.
Safety instructions
English 5
MS23K3513AS_TC_DE68-04431B-00_EN.indd 5 2016-02-12 �� 11:20:31
Safety instructions
Safety instructions
Do not store flammable materials in the oven. Because alcohol vapours can contact
hot parts of the oven, use caution when heating food or drinks containing alcohol.
Children may bump themselves or catch their fingers on the door. When opening/
closing the door, keep children away.
Microwave warning
Microwave heating of beverages may result in delayed eruptive boiling; always
use caution when handling the container. Always allow beverages to stand at least
20 seconds before handling. If necessary, stir during heating. Always stir after
heating.
In the event of scalding, follow these First Aid instructions:
1. Immerse the scalded area in cold water for at least 10 minutes.
2. Cover with a clean, dry dressing.
3. Do not apply any creams, oils, or lotions.
To avoid damaging the tray or rack, do not put the tray or rack in water shortly
after cooking.
Do not use the oven for deep fat frying because the oil temperature cannot be
controlled. This could result in a sudden boil over of hot oils.
Microwave oven precautions
Only use microwave-safe utensils. Do not use metallic containers, gold or silver
trimmed dinnerware, skewers, etc.
Remove wire twist ties. Electric arcing may occur.
Do not use the oven to dry papers or clothes.
Use shorter times for small amounts of food to prevent overheating or burning.
Keep the power cord and power plug away from water and heat sources.
To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do
not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.
Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The
oven may overheat and turn off automatically and will remain off until it cools
sufficiently.
Always use oven mitts when removing a dish.
Stir liquids halfway during heating or after heating ends and allow the liquid stand
at least 20 seconds after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening the door to avoid getting
scalded by escaping hot air or steam.
Do not operate the oven when it is empty. The oven will automatically shut down
for 30 minutes for safety purposes. We recommend placing a glass of water inside
the oven at all times to absorb microwave energy in case the oven is started
accidentally.
Install the oven in compliance with the clearances in this manual. (See Installing
your microwave oven.)
Use caution when connecting other electrical appliances to sockets near the oven.
Microwave operation precautions
Failure to observe the following safety precautions may result in harmful exposure
to microwave energy.
•Do not operate the oven with the door open. Do not tamper with the safety
interlocks (door latches). Do not insert anything into the safety interlock holes.
•Do not place any object between the oven door and front face or allow food
or cleaner residue to accumulate on sealing surfaces. Keep the door and door
sealing surfaces clean by wiping with a damp cloth and then with a soft, dry
cloth after each use.
•Do not operate the oven if it is damaged. Only operate after it has been repaired
by a qualified technician.
Important: the oven door must close properly. The door must not be bent; the
door hinges must not be broken or loose; the door seals and sealing surfaces
must not be damaged.
•All adjustments or repairs must be done by a qualified technician.
6 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 6 2016-02-12 �� 11:20:31
Limited warranty
GROUNDING INSTRUCTIONS
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic
defect if the damage to the unit or accessory was caused by the customer. Items
this stipulation covers include:
•Door, handles, out-panel, or control panel that are dented, scratched, or broken.
•A broken or missing tray, guide roller, coupler, or wire rack.
Use this oven only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating your
oven.
Because these following operating instructions cover various models, the
characteristics of your microwave oven may differ slightly from those described in
this manual and not all warning signs may be applicable. If you have any questions
or concerns, contact a local Samsung service centre or find help and information
online at www.samsung.com.
Use this oven for heating food only. It is intended for domestic use only. Do not
heat any type of textiles or cushions filled with grains. The manufacturer cannot
be held liable for damage caused by improper or incorrect use of the oven.
To avoid deterioration of the oven surface and hazardous situations, always keep
the oven clean and well maintained.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electrical current. This appliance is equipped with a cord that includes a grounding
wire and a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING
As shown, connect the earth wire between
earthing port on the rear of the product
and metal water pipe or wall outlet (if the
earthing port is provided).
Do not connect the earth wire to a gas pipe,
phone line, or plastic water pipe.
Safety instructions
English 7
MS23K3513AS_TC_DE68-04431B-00_EN.indd 7 2016-02-12 �� 11:20:31
Installation
Installation
Accessories
Depending on the model that you have purchased, you are supplied with several
accessories that can be used in a variety of ways.
01
02
IMPORTANT
DO NOT operate the microwave oven without the roller ring and turntable.
01 Roller ring, to be placed in the centre of
the oven.
Purpose: The roller ring supports the
turntable.
02 Turntable, to be placed on the roller
ring with the centre fitting to the
coupler.
Purpose: The turntable serves as the
main cooking surface; it
can be easily removed for
cleaning.
Installation site
20 cm
above
85 cm of the
floor
Turntable
10 cm
behind
10 cm on
the side
•Select a flat, level surface approx. 85 cm
above the floor. The surface must support
the weight of the oven.
•Secure room for ventilation, at least 10 cm
from the rear wall and both sides, and
20 cm from above.
•Do not install the oven in hot or damp
surroundings, such as next to other
microwave ovens or radiators.
•Conform to the power supply
specifications of this oven. Use only
approved extension cables if you need to
use.
•Wipe the interior and the door seal with a
damp cloth before using your oven for the
first time.
Remove all packing materials inside the
oven. Install the roller ring and turntable.
Check that the turntable rotates freely.
8 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 8 2016-02-12 �� 11:20:31
Maintenance
Cleaning
Clean the oven regularly to prevent impurities from building up on or inside the
oven. Also pay special attention to the door, door sealing, and turntable and roller
ring (applicable models only).
If the door won’t open or close smoothly, first check if the door seals have built up
impurities. Use a soft cloth in soapy water to clean both the inner and outer sides
of the oven. Rinse and dry well.
To remove stubborn impurities with bad smells from inside the oven
1. With an empty oven, put a cup of diluted lemon juice on the centre of the
turntable.
2. Heat the oven for 10 minutes at max power.
3. When the cycle is complete, wait until the oven cools down. Then, open the door
and clean the cooking chamber.
To clean inside swing-heater models
To clean the upper area of the cooking
chamber, lower the top heating element by
45° as shown. This will help clean the upper
area. When done, reposition the top heating
element.
CAUTION
•Keep the door and door sealing clean and ensure the door opens and closes
smoothly. Otherwise, the oven’s lifecycle may be shortened.
•Take caution not to spill water into the oven vents.
•Do not use any abrasive or chemical substances for cleaning.
•After each use of the oven, use a mild detergent to clean the cooking chamber
after waiting for the oven to cool down.
Replacement (repair)
WARNING
This oven has no user-removable parts inside. Do not try to replace or repair the
oven yourself.
•If you encounter a problem with hinges, sealing, and/or the door, contact a
qualified technician or a local Samsung service centre for technical assistance.
•If you want to replace the light bulb, contact a local Samsung service centre. Do
not replace it yourself.
•If you encounter a problem with the outer housing of the oven, first unplug the
power cord from the power source, and then contact a local Samsung service
centre.
Care against an extended period of disuse
•If you don’t use the oven for an extended period of time, unplug the power cord
and move the oven to a dry, dust-free location. Dust and moisture that builds up
inside the oven may affect the performance of the oven.
Maintenance
English 9
MS23K3513AS_TC_DE68-04431B-00_EN.indd 9 2016-02-12 �� 11:20:31
Quick look-up guide
Oven features
Quick look-up guide
If you want to cook some food.
If you want to add an extra 30 seconds.
2
1
Place the food in the oven. Press the
START/+30s button.
Result: Cooking starts. When it has
finished.
1) The oven beeps 4 times.
2) The end reminder signal will beep
3 times (once every minute).
3) The current time is displayed again.
1. Press the START/+30s button one or
more times for each extra 30 seconds
that you wish to add.
2. By pressing the Up or Down button, you
can set the time as you want.
Oven
01 02 04
01 Door handle 02 Door 03 Ventilation holes
04 Light 05 Door latches 06 Turntable
03
0805
09 100706
07 Coupler
10 Control panel
10 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 10 2016-02-12 �� 11:20:32
08 Roller ring
09 Safety interlock holes
Oven use
Control panel
01
03
05
07
09
11
02
04
06
08
10
12
01 Auto Cook Button
02 Quick Defrost Button
03 Soften/Melt Button
04 Favorite Button
05 Microwave Button
06 Deodorization Button
07 Child Lock Button
08 Select/Clock Button
09 Down Button
10 Up Button
11 Stop/Eco Button
12 Start/+30s Button
How a microwave oven works
Microwaves are high-frequency electromagnetic waves; the energy released
enables food to be cooked or reheated without changing either the form or the
colour.
You can use your microwave oven to:
•Defrost
•Reheat
•Cook
Cooking principle.
1. The microwaves generated by the
magnetron reflected at cavity and are
distributed uniformly as the food rotates
on the turntable. The food is thus cooked
evenly.
2. The microwaves are absorbed by the
food up to a depth of about 1 inch
(2.5 cm). Cooking then continues as the
heat is dissipated within the food.
3. Cooking times vary according to the
container used and the properties of the
food:
•Quantity and density
•Water content
•Initial temperature (refrigerated or not)
IMPORTANT
As the centre of the food is cooked by heat dissipation, cooking continues even when
you have taken the food out of the oven. Standing times specified in recipes and in
this booklet must therefore be respected to ensure:
•Even cooking of the food right to the centre.
•The same temperature throughout the food.
Oven features
English 11
MS23K3513AS_TC_DE68-04431B-00_EN.indd 11 2016-02-12 �� 11:20:32
Oven use
Oven use
Checking that your oven is operating correctly
The following simple procedure enables you to check that your oven is
working correctly at all times. If you are in doubt, refer to the section entitled
“Troubleshooting” on the page 23 to 25.
NOTE
The oven must be plugged into an appropriate wall socket. The turntable must be
in position in the oven. If a power level other than the maximum (100 % - 750 W)
is used, the water takes longer to boil.
Open the oven door by pulling the handle on the upper side of the door.
Place a glass of water on the turntable. Close the door.
Press the START/+30s button and set the
time to 4 or 5 minutes, by pressing the
START/+30s button the appropriate number
of times.
Result: The oven heats the water for 4 or
5 minutes.
The water should then be boiling.
Cooking/Reheating
The following procedure explains how to cook or reheat food.
IMPORTANT
ALWAYS check your cooking settings before leaving the oven unattended.
Open the door. Place the food in the centre of the turntable. Close the door. Never
switch the microwave oven on when it is empty.
1. Press the Microwave button.
Result: The 750 W (Maximum cooking
1
2. Select the appropriate power level by
pressing the Up or Down button. (Refer to
the power level table.) And then press the
2
Select/Clock button.
3. Set the cooking time by pressing the Up
3
or Down button.
Result: The cooking time is displayed.
4. Press the START/+30s button.
Result: The oven light comes on and the
4
1) The oven beeps 4 times.
2) The end reminder signal will beep
3) The current time is displayed again.
power) indications are displayed:
(microwave mode)
turntable starts rotating. Cooking
starts and when it has finished.
3 times (once every minute).
12 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 12 2016-02-12 �� 11:20:33
Setting the time
When power is supplied, “88:88” and then “12:00” is automatically displayed on
the display.
Please set the current time. The time can be displayed in either the 24-hour or 12hour notation. You must set the clock:
•When you first install your microwave oven
•After a power failure
NOTE
Do not forget to reset the clock when you switch to and from summer and winter
time.
1. Press the Select/Clock button.
1
2. Set the 24-hour or 12-hour notation by
pressing the Up or Down button. And
2
3
4
5
then press the Select/Clock button.
3. Press the Up or Down button to set the
hour. And then press the Select/Clock
button.
4. Press the Up or Down button to set the
minute.
5. When the right time is displayed, press
the Select/Clock button to start the clock.
Result: The time is displayed whenever
you are not using the microwave
oven.
Power levels and time variations
The power level function enables you to adapt the amount of energy dissipated
and thus the time required to cook or reheat your food, according to its type and
quantity. You can choose between six power levels.
Power level Percentage Output
HIGH 100 % 750 W
MEDIUM HIGH 80 % 600 W
MEDIUM 60 % 450 W
MEDIUM LOW 40 % 300 W
DEFROST 24 % 180 W
LOW 13 % 100 W
The cooking times given in recipes and in this booklet correspond to the specific
power level indicated.
If you select a... Then the cooking time must be...
Higher power level
Lower power level
Decreased
Increased
Oven use
English 13
MS23K3513AS_TC_DE68-04431B-00_EN.indd 13 2016-02-12 �� 11:20:33
Oven use
Oven use

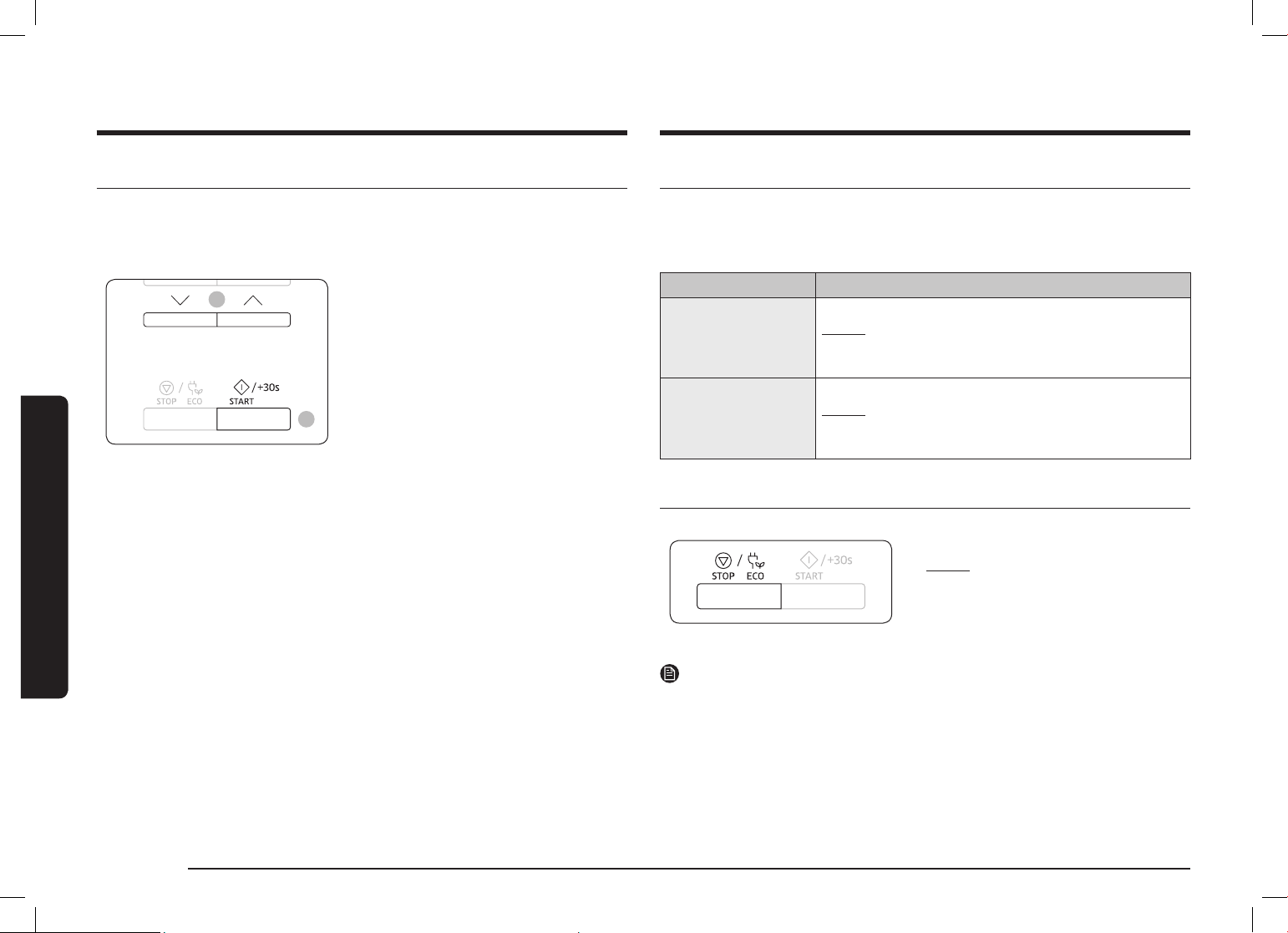

Adjusting the cooking time
You can increase the cooking time by pressing the START/+30s button once for
each 30 seconds to be added.
•Check how cooking is progressing at any time simply by opening the door
•Increase the remaining cooking time
2
Method 1
To increase the cooking time of your food
during cooking, press the START/+30s
button once for each 30 seconds that you
wish to add.
•Example: To add three minutes, press the
START/+30s button six times.
1
Method 2
Just pressing the Up or Down button to
adjust cooking time.
Stopping the cooking
You can stop cooking at any time so that you can:
•Check the food
•Turn the food over or stir it
•Leave it to stand
To stop the cooking... Then...
Temporarily Open the door or press the STOP/ECO button once.
Result: Cooking stops.
To resume cooking, close the door again and press the
START/+30s button.
Completely Press the STOP/ECO button once.
Result: Cooking stops.
If you wish to cancel the cooking settings, press the
STOP/ECO button again.
Setting the energy save mode
The oven has an energy save mode.
•Press the STOP/ECO button.
Result: Display off.
•To remove energy save mode, open the
door or press the STOP/ECO button and
then display shows current time. The oven
is ready for use.
NOTE
Auto energy saving function
If you do not select any function when appliance is in the middle of setting or
operating with temporary stop condition, function is canceled and clock will be
displayed after 25 minutes.
Oven Lamp will be turned off after 5 minutes with door open condition.
14 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 14 2016-02-12 �� 11:20:33
Using the auto cook features
The Auto Cook features has 20 pre-programmed cooking times. You do not need to
set either the cooking times or the power level.
You can adjust the type of the serving by pressing the Up or Down button.
IMPORTANT
Use only recipients that are microwave-safe.
First, place the food in the centre of the turntable and close the door.
1. Press the Auto Cook button.
1
2. Select the type of food that you are
cooking by pressing the Up or Down
button. And then press the Select/Clock
2
3
button.
3. Press the START/+30s button.
Result: The food is cooked according
to the pre-programmed setting
selected.
1) The oven beeps 4 times.
2) The end reminder signal will beep
3 times (once every minute).
3) The current time is displayed again.
The following table presents quantities and appropriate instructions about 20
pre-programmed cooking options. Those programmes are running with microwave
energy only.
Code/
Food
1
Chilled
Ready Meal
2
Chilled
Serving
size
300-350 g
400-450 g
Instructions
Put on a ceramic plate and cover with microwave
cling film. This programme is suitable for meals
consisting of 3 components (e.g. meat with sauce,
vegetables and a side dishes like potatoes, rice or
pasta). Stand for 2-3 minutes.
Ready Meal
3
Chilled
Vegetarian Meal
4
Chilled
300-350 g
400-450 g
Put meal on a ceramic plate and cover with
microwave cling film. This programme is suitable
for meals consisting of 2 components (e.g.
spaghetti with sauce or rice with vegetables).
Stand for 2-3 minutes.
Vegetarian Meal
5
Broccoli
250 g
Rinse and clean fresh broccoli and prepare florets.
Put them evenly into a glass bowl with lid. Add
30 ml (2 tbsp) water when cooking for 250 g.
Put bowl in the centre of turntable. Cook covered.
Stir after cooking. Stand for 1-2 minutes.
6
Carrots
250 g
Rinse and clean carrots and prepare even slices.
Put them evenly into a glass bowl with lid. Add
30 ml (2 tbsp) water when cooking for 250 g.
Put bowl in the centre of turntable. Cook covered.
Stir after cooking. Stand for 1-2 minutes.
7
Green Beans
250 g
Rinse and clean green beans. Put them evenly
into a glass bowl with lid. Add 30 ml (2 tbsp)
water when cooking 250 g.
Put bowl in the centre of turntable. Cook covered.
Stir after cooking. Stand for 1-2 minutes.
Oven use
English 15
MS23K3513AS_TC_DE68-04431B-00_EN.indd 15 2016-02-12 �� 11:20:34
Oven use
Oven use
Code/
Food
8
Spinach
9
Corn on the Cob
10
Peeled
Potatoes
11
Brown Rice
12
Wholemeal
Macaroni
13
Quinoa
14
Bulgur
Serving
size
150 g
250 g
250 g
125 g
125 g
125 g
125 g
Instructions
Rinse and clean spinach. Put into a glass bowl
with lid. Do not add water. Put bowl in the centre
of turntable. Cook covered. Stir after cooking.
Stand for 1-2 minutes.
Rinse and clean corn on the cob and put into an
oval glass dish. Cover with microwave cling film
and pierce film. Stand for 1-2 minutes.
Wash and peel the potatoes and cut into a similar
size. Put them into a glass bowl with lid.
Add 45-60 ml (3-4 tbsp) water. Put bowl in the
centre of turntable. Cook covered. Stand for
2-3 minutes.
Use a large glass ovenware dish with lid.
Add double quantity of cold water (250 ml).
Cook covered. Stir before standing time and add
salt and herbs. Stand for 5-10 minutes.
Use a large glass ovenware dish with lid.
Add 500 ml hot boiling water, a pinch of salt and
stir well. Cook uncovered. Stir before standing
time and drain thoroughly afterwards. Stand for
1 minutes.
Use a large glass ovenware dish with lid.
Add double quantity of cold water (250 ml).
Cook covered. Stir before standing time and add
salt and herbs. Stand for 1-3 minutes.
Use a large glass ovenware dish with lid.
Add double quantity of cold water (250 ml).
Cook covered. Stir before standing time and add
salt and herbs. Stand for 2-5 minutes.
Code/
Food
15
Chicken Breasts
16
Turkey Breasts
17
Fresh Fish
Fillets
18
Fresh Salmon
Fillets
19
Fresh Prawns
20
Fresh Trout
Serving
size
300 g
300 g
300 g
300 g
250 g
200 g
Instructions
Rinse pieces and put on a ceramic plate.
Cover with microwave cling film. Pierce film.
Put dish on turntable. Stand for 2 minutes.
Rinse pieces and put on a ceramic plate.
Cover with microwave cling film. Pierce film.
Put dish on turntable. Stand for 2 minutes.
Rinse fish and put on a ceramic plate, add 1 tbsp
lemon juice. Cover with microwave cling film.
Pierce film. Put dish on turntable.
Stand for 1-2 minutes.
Rinse fish and put on a ceramic plate, add 1 tbsp
lemon juice. Cover with microwave cling film.
Pierce film. Put dish on turntable.
Stand for 1-2 minutes.
Rinse prawns on a ceramic plate, add 1 tbsp
lemon juice. Cover with microwave cling film.
Pierce film. Put dish on turntable.
Stand for 1-2 minutes.
Put 1 fresh whole fish into an ovenproof dish.
Add a pinch salt, 1 tbsp lemon juice and herbs.
Cover with microwave cling film. Pierce film.
Put dish on turntable. Stand for 2 minutes.
16 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 16 2016-02-12 �� 11:20:34
Using the quick defrost features
The Quick Defrost features enable you to defrost meat, poultry, fish, frozen
vegetable and frozen bread. The defrost time and power level are set
automatically. You simply select the programme and the weight.
NOTE
Use only containers that are microwave-safe.
Open the door. Place the frozen food on a ceramic in the centre of the turntable.
Close the door.
1. Press the Quick Defrost button.
1
2. Select the type of food that you are
cooking by pressing the Up or Down
button. And then press the Select/Clock
2
3
4
5
button.
3. Select the size of the serving by pressing
the Up or Down button. (Refer to the
table on the side.)
4. Press the START/+30s button.
Result:
•Defrosting begins.
•The oven beeps through defrosting to
remind you to turn the food over.
5. Press the START/+30s button again to
finish defrosting.
Result:
1) The oven beeps 4 times.
2) The end reminder signal will beep
3 times (once every minute).
3)
The current time is displayed again.
The following table presents the various Quick Defrost programmes, serving size,
standing times and appropriate instructions. Remove all kind of package material
before defrosting. Place meat, poultry, fish, vegetable and bread on a flat glass
dish or ceramic plate.
Code/
Food
1
Meat
Serving size
200-1500 g
Instructions
Shield the edges with aluminium foil. Turn the meat
over, when the oven beeps. This programme is suitable
for beef, lamb, pork, steaks, chops, minced meat.
Stand for 20-60 minutes.
2
Poultry
200-1500 g
Shield the leg and wing tips with aluminium foil.
Turn the poultry over, when the oven beeps. This
programme is suitable for whole chicken as well as
for chicken portions.
Stand for 20-60 minutes.
3
Fish
200-1500 g
Shield the tail of a whole fish with aluminium foil. Turn
the fish over, when the oven beeps. This programme is
suitable for whole fishes as well as for fish fillets.
Stand for 20-60 minutes.
4
Vegetable
200-1500 g
Spread frozen vegetable evenly into a flat glass
dish. Turn over or stir the frozen vegetable, when
the oven beeps.
This programme is suitable for all kind of frozen
vegetable. Stand for 5-20 minutes.
5
Bread
200-1500 g
Put bread horizontally on a piece of kitchen paper
and turn over, as soon as the oven beeps. Place cake
on a ceramic plate and if possible, turn over, as soon
as the oven beeps. (Oven keeps operating and is
stopped, when you open the door.) This programme
is suitable for all kinds of bread, sliced or whole, as
well as for bread rolls and baguettes. Arrange bread
rolls in a circle. This programme is suitable for all
kinds of yeast cake, biscuit, cheese cake and puff
pastry. It is not suitable for short/ crust pastry, fruit
and cream cakes as well as for cake with chocolate
topping. Stand for 10- 30 minutes.
Oven use
English 17
MS23K3513AS_TC_DE68-04431B-00_EN.indd 17 2016-02-12 �� 11:20:34
Oven use
Oven use
Using the soften/melt features
The Soften/Melt features has 4 pre-programmed cooking times. You do not need
to set either the cooking times or the power level. You can adjust the number of
servings by pressing the Up or Down button.
First, place the food in the centre of the turntable and close the door.
NOTE
Use only containers that are microwave safe.
1. Press the Soften/Melt button.
1
2. Select the type of food that you are
cooking by pressing the Up or Down
button. And then press the Select/Clock
2
3
4
button.
3. Select the size of the serving by pressing
the Up or Down button.
(Refer to the table on the side.)
4. Press the START/+30s button.
Result: The food is cooked according
to the preprogrammed setting
selected.
1) The oven beeps 4 times.
2) The end reminder signal will beep
3 times (once every minute).
3) The current time is displayed again.
The following table presents the Soften/Melt programmes, quantities and appropriate
instructions. Those programmes are running with microwave energy only.
Code/Food Serving Size Instructions
1
Melt Butter
50 g
100 g
Cut butter into 3 or 4 pieces and Put them on
small glass bowl. Melt uncovered. Stir after
cooking. Stand for 1-2 minutes.
2
Melt Dark
Chocolate
3
Melt Sugar
50 g
100 g
25 g
50 g
Grate dark chocolate and put in small glass bowl.
Melt uncovered. Stir after melting. Stand for
1-2 minutes.
Put sugar on small glass bowl. Add 10 ml water
for 25 g and add 20 ml water for 50 g.
Melt uncovered. Take out carefully, use oven
gloves! Use spoon or fork and pour caramel
decorations on baking paper. Let stand for
10 minutes until dry and remove from paper.
4
Soften Butter
50 g
100 g
Cut butter into 3 or 4 pieces and Put them in
small glass bowl. Soften uncovered. Stand for
1-2 minutes.
18 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 18 2016-02-12 �� 11:20:34
Using the favorite features
If you often cook or reheat the same types of dishes, you can store the cooking
times and power levels in the oven’s memory, so that you do not have to reset
them each order.
You can store two different setting.
1. Set your cooking programme as usual
(cooking time and power level) see
Cooking/Reheating page again if
necessary.
2. Press Favorite button, then select the
program that you want to save by
pressing the Up or Down button.
P1 : First setting
P2 : Second setting
3. Press the Select/Clock button to finish
the setting. Or, press the START/+30s
button to start the program immediately.
Result: Your setting are now stored in
the oven’s memory.
Information
Example :
2
2
3
3
If you want to store Microwave mode, Power 600 W and 3 minutes on P1.
1. Press the Microwave button.
2. Set the power 600 W by pressing the Up or Down button. And then
press the Select/Clock button.
3. Set the cooking time 3 minutes by pressing the Up or Down button.
4. Press Favorite button, then select the P1.
5. Press the Select/Clock or START/+30s button to finish the setting.
To use the favorite setting
First, place the food in the centre of the turntable and close the door.
1. Press Favorite button, then select the
program by pressing the Up or Down
1
button.
P1 : First setting
P2 : Second setting
1
2. Press the START/+30s button.
Result: The food is cooked as requested.
2
Using the deodorization features
Use this features after cooking odorous food or when there is a lot of smoke in the
oven interior.
First clean the oven interior.
Press the Deodorization button after
you have finished cleaning. As soon as
you press the Deodorization button, the
operation will start automatically. when it
has finished, the oven beeps four times.
NOTE
The deodorization time has been specified as 5 minutes. It increases by 30 seconds
whenever the START/+30s button is pressed.
NOTE
The maximum deodorization time is 15 minutes.
Oven use
English 19
MS23K3513AS_TC_DE68-04431B-00_EN.indd 19 2016-02-12 �� 11:20:35
Oven use
Cookware guide
Cookware guide
Using the child lock features
Your microwave oven is fitted with a special child lock programme, which enables
the oven to be “locked” so that children or anyone unfamiliar with it cannot
operate it accidentally.
1. Press the Child Lock button for
1
2
3 seconds.
Result:
•The oven is locked (no functions can be
selected).
•The display shows “L”.
2. To unlock the oven, press the Child Lock
button for 3 seconds.
Result: The oven can be used normally.
Switching the beeper off
You can switch the beeper off whenever you want.
1. Press the Down and STOP/ECO button at
the same time.
Result: The oven does not beep to
1
2
2. To switch the beeper back on, press the
Down and STOP/ECO button again at the
same time.
Result: The oven operates normally.
1
2
indicate the end of a function.
To cook food in the microwave oven, the microwaves must be able to penetrate
the food, without being reflected or absorbed by the dish used.
Care must therefore be taken when choosing the cookware. If the cookware is
marked microwave-safe, you do not need to worry.
The following table lists various types of cookware and indicates whether and how
they should be used in a microwave oven.
Cookware
Aluminum foil
Microwave-
safe
✓✗
Comments
Can be used in small quantities to protect
areas against overcooking. Arcing can
occur if the foil is too close to the oven
wall or if too much foil is used.
Crust plate
China and
earthenware
✓
✓
Do not preheat for more than 8 minutes.
Porcelain, pottery, glazed earthenware
and bone china are usually suitable,
unless decorated with a metal trim.
Disposable polyester
cardboard dishes
✓
Some frozen foods are packaged in these
dishes.
Fast-food packaging
•Polystyrene cups
containers
•Paper bags or
✓
Can be used to warm food. Overheating
may cause the polystyrene to melt.
✗
May catch fire.
newspaper
•Recycled paper or
✗
May cause arcing.
metal trims
Glassware
•Oven-to-tableware
✓
Can be used, unless decorated with a
metal trim.
•Fine glassware
✓
Can be used to warm foods or liquids.
Delicate glass may break or crack if
heated suddenly.
•Glass jars
✓
Must remove the lid. Suitable for
warming only.
20 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 20 2016-02-12 �� 11:20:35
Cooking guide
Cookware
Metal
•Dishes
•Freezer bag twist
ties
Paper
•Plates, cups,
napkins and
kitchen paper
•Recycled paper
Plastic
•Containers
•Cling film
•Freezer bags
Wax or greaseproof paper
✓
: Recommended
Microwave-
safe
✗
✗
✓
✗
✓
✓
✓✗
✓
✓✗
Comments
May cause arcing or fire.
For short cooking times and warming.
Also to absorb excess moisture.
May cause arcing.
Particularly if heat-resistant
thermoplastic. Some other plastics may
warp or discolour at high temperatures.
Do not use Melamine plastic.
Can be used to retain moisture. Should
not touch the food. Take care when
removing the film as hot steam will
escape.
Only if boilable or oven-proof. Should not
be airtight. Prick with a fork, if necessary.
Can be used to retain moisture and
prevent spattering.
: Use caution
✗
: Unsafe
Microwaves
Microwave energy actually penetrates food, attracted and absorbed by its water,
fat and sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid
movement of these molecules creates friction and the resulting heat cooks the
food.
Cooking
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum
efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium
and copper, but they can penetrate through ceramic, glass, porcelain and plastic as
well as paper and wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen
vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups,
steamed puddings, preserves, and chutneys can also be cooked in a microwave
oven. Generally speaking, microwave cooking is ideal for any food that would
normally be prepared on a hob. Melting butter or chocolate, for example (see the
chapter with tips, techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises
as steam and contributes to cooking process. Food can be covered in different
ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking is over food the standing time is important to allow the temperature
to even out within the food.
Cooking guide
English 21
MS23K3513AS_TC_DE68-04431B-00_EN.indd 21 2016-02-12 �� 11:20:35
Cooking guide
Cooking guide
Reheating Liquids and Food
Use the power levels and times in this table as a guide lines for reheating.
Food Serving Size Power Time (min.)
Drinks (Coffee, Tea
and Water)
Soup (Chilled) 250 g 750 W 3-3½
Stew (Chilled) 350 g 600 W 5½-6½
Pasta with Sauce
(Chilled)
Filled Pasta with
Sauce (Chilled)
150 ml (1 cup)
250 ml (1 mug)
Instructions
Pour into cup and reheat uncovered. Put cup/ mug in
the centre of turntable. Keep in microwave oven during
standing time and stir well. Stand for 1-2 minutes.
Instructions
Pour into a deep ceramic plate. Cover with plastic lid. Stir
well after reheating. Stir again before serving. Stand for
2-3 minutes.
Instructions
Put stew in a deep ceramic plate. Cover with plastic lid. Stir
occasionally during reheating and again before standing
and serving. Stand for 2-3 minutes.
350 g 600 W 4½-5½
Instructions
Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic
plate. Cover with microwave cling film. Stir before serving.
Stand for 3 minutes.
350 g 600 W 5-6
Instructions
Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic
plate. Cover with plastic lid. Stir occasionally during
reheating and again before standing and serving. Stand
for 3 minutes.
750 W 1-1½
1½-2
Food Serving Size Power Time (min.)
Plated Meal
(Chilled)
Pasta (Frozen)
(Cannelloni,
Macaroni, Lasagne)
350 g 600 W 5½-6½
Instructions
Plate a meal of 2-3 chilled components on a ceramic dish.
Cover with microwave cling-film. Stand for 3 minutes.
400 g 450 W 16-16½
Instructions
Put frozen pasta into a small flat rectangular glass pyrex
dish. Put the dish directly on the turntable. Stand for
2-3 minutes.
22 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 22 2016-02-12 �� 11:20:36
Troubleshooting and information code
Troubleshooting
If you have any of the problems listed below try the solutions given.
Problem Cause Action
General
The buttons
cannot be pressed
properly.
The time is not
displayed.
The oven does not
work.
The oven stops
while in operation.
Foreign matter may
be caught between the
buttons.
For touch models:
Moisture is on the
exterior.
Child lock is activated. Deactivate Child lock.
The Eco (power-saving)
function is set.
Power is not supplied. Make sure power is supplied.
The door is open. Close the door and try again.
The door open safety
mechanisms are covered
in foreign matter.
The user has opened the
door to turn food over.
Remove the foreign matter
and try again.
Wipe the moisture from the
exterior.
Turn off the Eco function.
Remove the foreign matter
and try again.
After turning over the food,
press the Start button again to
start operation.
Problem Cause Action
The power
turns off during
operation.
There is a popping
sound during
operation, and the
oven doesn't work.
The oven exterior
is too hot during
operation.
The door cannot be
opened properly.
The oven has been
cooking for an extended
period of time.
The cooling fan is not
working.
Trying to operate the
oven without food inside.
There is not sufficient
ventilation space for the
oven.
Several power plugs are
being used in the same
socket.
Cooking sealed food or
using a container with a
lid may causes popping
sounds.
There is not sufficient
ventilation space for the
oven.
Objects are on top of the
oven.
Food residue is stuck
between the door and
oven interior.
After cooking for an extended
period of time, let the oven
cool.
Listen for the sound of the
cooling fan.
Put food in the oven.
There are intake/exhaust
outlets on the front and rear of
the oven for ventilation.
Keep the gaps specified in the
product installation guide.
Designate only one socket to
be used for the oven.
Do not use sealed containers
as they may burst during
cooking due to expansion of
the contents.
There are intake/exhaust
outlets on the front and rear
of the oven for ventilation.
Keep the gaps specified in the
product installation guide.
Remove all objects on the top
of the oven.
Clean the oven and then open
the door.
Troubleshooting and information code
English 23
MS23K3513AS_TC_DE68-04431B-00_EN.indd 23 2016-02-12 �� 11:20:36
Troubleshooting and information code
Troubleshooting and information code
Problem Cause Action
Heating including
the Warm function
does not work
properly.
The thaw function
does not work.
The interior light
is dim or does not
turn on.
A beeping sound
occurs during
cooking.
The oven is not
level.
There are sparks
during cooking.
The oven may not work,
too much food is being
cooked, or improper
cookware is being used.
Too much food is being
cooked.
The door has been left
open for a long time.
The interior light is
covered by foreign
matter.
If the Auto Cook function
is being used, this
beeping sound means
it's time to turn over the
food during thawing.
The oven is installed on
an uneven surface.
Metal containers are used
during the oven/thawing
functions.
Put one cup of water in a
microwave-safe container and
run the microwave for 1-2
minutes to check whether the
water is heated. Reduce the
amount of food and start the
function again. Use a cooking
container with a flat bottom.
Reduce the amount of food
and start the function again.
The interior light may
automatically turn off when
the Eco function operates.
Close and reopen the door or
press the Cancel button.
Clean the inside of the oven
and check again.
After turning over the food,
press the Start button again to
restart operation.
Make sure the oven is installed
on flat, stable surface.
Do not use metal containers.
Problem Cause Action
When power is
connected, the
oven immediately
starts to work.
There is electricity
coming from the
oven.
1. Water drips.
2. Steam emits
through a door
crack.
3. Water remains
in the oven.
The brightness
inside the oven
varies.
Cooking is
finished, but the
cooling fan is still
running.
The door is not properly
closed.
The power or power
socket is not properly
grounded.
There may be water or
steam in some cases
depending on the food.
This is not an oven
malfunction.
Brightness changes
depending on power
output changes according
to function.
To ventilate the oven, the
cooling fan continues to
run for about 3 minutes
after cooking is complete.
Close the door and check
again.
Make sure the power and
power socket are properly
grounded.
Let the oven cool and then
wipe with a dry dish towel.
Power output changes during
cooking are not malfunctions.
This is not an oven
malfunction.
This is not an oven
malfunction.
24 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 24 2016-02-12 �� 11:20:36
Problem Cause Action
Turntable
While turning, the
turntable comes
out of place or
stops turning.
The turn table
drags while
turning.
The turn table
rattles while
turning and is
noisy.
There is no roller ring,
or the roller ring is not
properly in place.
The roller ring is not
properly in place, there
is too much food, or the
container is too large and
touches the inside of the
microwave.
Food residue is stuck to
the bottom of the oven.
Install the roller ring and then
try again.
Adjust the amount of food and
do not use containers that are
too large.
Remove any food residue
stuck to the bottom of the
oven.
Information code
Information code CAUSE Action
Clean the keys and check if there
is water on the surface around
Control buttons
C-d0
NOTE
If the suggested solution does not solve the problem, contact your local SAMSUNG
Customer Care Centre.
are pressed over
10 seconds.
key. If it occurs again, turn off the
microwave oven over 30 seconds
and try setting again. If it appears
again, call your local SAMSUNG
Customer Care Centre.
Troubleshooting and information code
English 25
MS23K3513AS_TC_DE68-04431B-00_EN.indd 25 2016-02-12 �� 11:20:36
Technical specifications
SAMSUNG strives to improve its products at all times. Both the design specifications
and these user instructions are thus subject to change without notice.
Memo
Technical specifications
Model MS23K3513
Power source 220 V ~ 60 Hz AC
Power consumption
Microwave 1200 W
Output power 100 W / 750 W - 6 levels (IEC-705)
Operating frequency 2450 MHz
Dimensions (W x H x D)
Outside (Include Handle)
Oven cavity
Volume 23 liter
Weight
Net 12.0 kg approx.
489 x 275 x 374 mm
330 x 211 x 324 mm
**
26 English
MS23K3513AS_TC_DE68-04431B-00_EN.indd 26 2016-02-12 �� 11:20:36
