Samsung MO17P-E, MO17ES, MO172S Specifications
CONFIDENTIAL
2 Product Specifications
2-1 Specifications
Item |
|
Description |
|
|
|
|
|
Analog |
|
Digital |
|
|
|
||
|
|
|
|
LCD Panel |
TFT-LCD panel, RGB vertical stripe, normally white transmissive, |
||
|
17-Inch viewable, 0.264 pixel pitch |
|
|
|
|
|
|
Scanning Frequency |
Horizontal : 30 kHz ~ 81 kHz (Automatic) |
|
|
|
Vertical : 56 Hz ~ 75 Hz |
|
|
|
|
|
|
Display Colors |
16,2 Million colors |
|
|
|
|
|
|
Maximum Resolution |
Horizontal : 1280 Pixels @ 81 kHz |
|
|
|
Vertical : 1024 Pixels @ 75 Hz |
|
|
|
|
|
|
Input Video Signal |
Analog, 0.7 Vp-p ± 5% positive at 75 Ω , |
|
TMDS |
|
internally terminated |
|
|
|
|
|
|
Input Sync Signal |
Type : Seperate H/V sync., In case of using option cable, Composite, Automatic Synchronization without external switch |
||
|
Level : TTL level (V high ≥ 2.0 V, V low ≤ |
0.8 V) |
|
|
|
|
|
Maximum Pixel Clock rate |
135 MHz |
|
|
|
|
|
|
Active Display |
337.92 ± 92 mm |
|
|
Horizontal/Vertical |
270.336 ± 3 mm |
|
|
|
|
|
|
AC power voltage & Frequency |
AC 90 ~ 264 Volts, 60/50 Hz ± 3 Hz |
|
|
|
|
|
|
Power Consumption |
42 W (max), 35 W (normal) |
|
|
|
|
|
|
Dimensions |
|
|
|
Unit (W x D x H) |
385 x 216 x 396.3 mm (15.2 x 8.5 x 15.6 inches) / After installation of stand |
||
|
385 x 56.8 x 324.7 mm (15.2 x 2.2 x 12.8 inches) / After folding the stand |
||
Carton (W x D x H) |
468 x 400 x 145 mm (18.4 x 15.7 x 5.7 inches) |
||
|
|
|
|
Weight (Net/Gross) |
|
|
|
Normal stand |
4.7 kg (10.4 lbs) / 6.8 kg (15.0 lbs) |
|
|
Multi stand |
4.8 kg (10.6 lbs) / 6.9 kg (15.2 lbs) |
|
|
|
|
|
|
Environmental Considerations |
Operating Temperature : 41°F ~ 95°F (5°C ~ 35°C) |
||
|
Humidity : 10 % ~ 80 % |
|
|
|
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C) |
||
|
Humidity : 5 % ~ 95 % |
|
|
|
|
|
|
• MO17P*/MO17E* comply with TCO99 recommendations for reduced electromagnetic fields.
• Designs and specifications are subject to change without prior notice.
MO17P*/MO17E* |
2-1 |
2 Product Specifications
2-2 Pin Assignments
CONFIDENTIAL
|
Sync |
|
15-Pin D-Sub Signal Cable Connector |
|
||
|
Type |
|
|
|
|
|
Pin No. |
|
Separate |
|
Composite |
|
Sync-on-green |
|
|
|
|
|
|
|
1 |
|
Red video |
|
Red video |
|
Red |
2 |
|
Green video |
|
Green video |
|
Green video + H/V Sync. |
3 |
|
Blue video |
|
Blue video |
|
Blue video |
4 |
|
GND |
|
GND |
|
GND |
5 |
|
GND (DDC Return) |
|
GND (DDC Return) |
|
GND (DDC Return) |
6 |
|
Red video GND |
|
Red video GND |
|
Red video GND |
7 |
|
Green video GND |
|
Green video GND |
|
Green video GND |
8 |
|
Blue video GND |
|
Blue video GND |
|
Blue video GND |
9 |
|
No Connection |
|
No Connection |
|
Not Used |
10 |
|
Sync.-GND/Self Test |
|
Sync.-GND/Self Test |
|
GND-Sync./Self Test |
11 |
|
GND |
|
GND |
|
GND |
12 |
|
DDC Data |
|
DDC Data |
|
DDC Data |
13 |
|
H-Sync. |
|
H/V-Sync. |
|
Not Used |
14 |
|
V-Sync. |
|
Not Used |
|
Not Used |
15 |
|
DDC Clock |
|
DDC Clock |
|
DDC Clock |
|
|
|
|
|
|
|
Sync |
|
24-Pin DVI-D(TMDS) |
|
Type |
|
|
|
Pin No. |
|
|
|
1 |
Rx2- |
13 |
No Connection |
2 |
Rx2+ |
14 |
DDC Power Input (+5V) |
3 |
GND |
15 |
Self Raster |
4 |
No Connection |
16 |
Connection Signal Output (+5V) |
5 |
No Connection |
17 |
Rx0- |
6 |
DDC Clock (SCL) |
18 |
Rx0+ |
7 |
DDC Data (SDA) |
19 |
GND |
8 |
No Connection |
20 |
No Connection |
9 |
Rx1- |
21 |
No Connection |
10 |
Rx1+ |
22 |
GND |
11 |
GND |
23 |
RxC+ |
12 |
No Connection |
24 |
RxC- |
2-2 |
MO17P*/MO17E* |
2 Product Specifications
CONFIDENTIAL

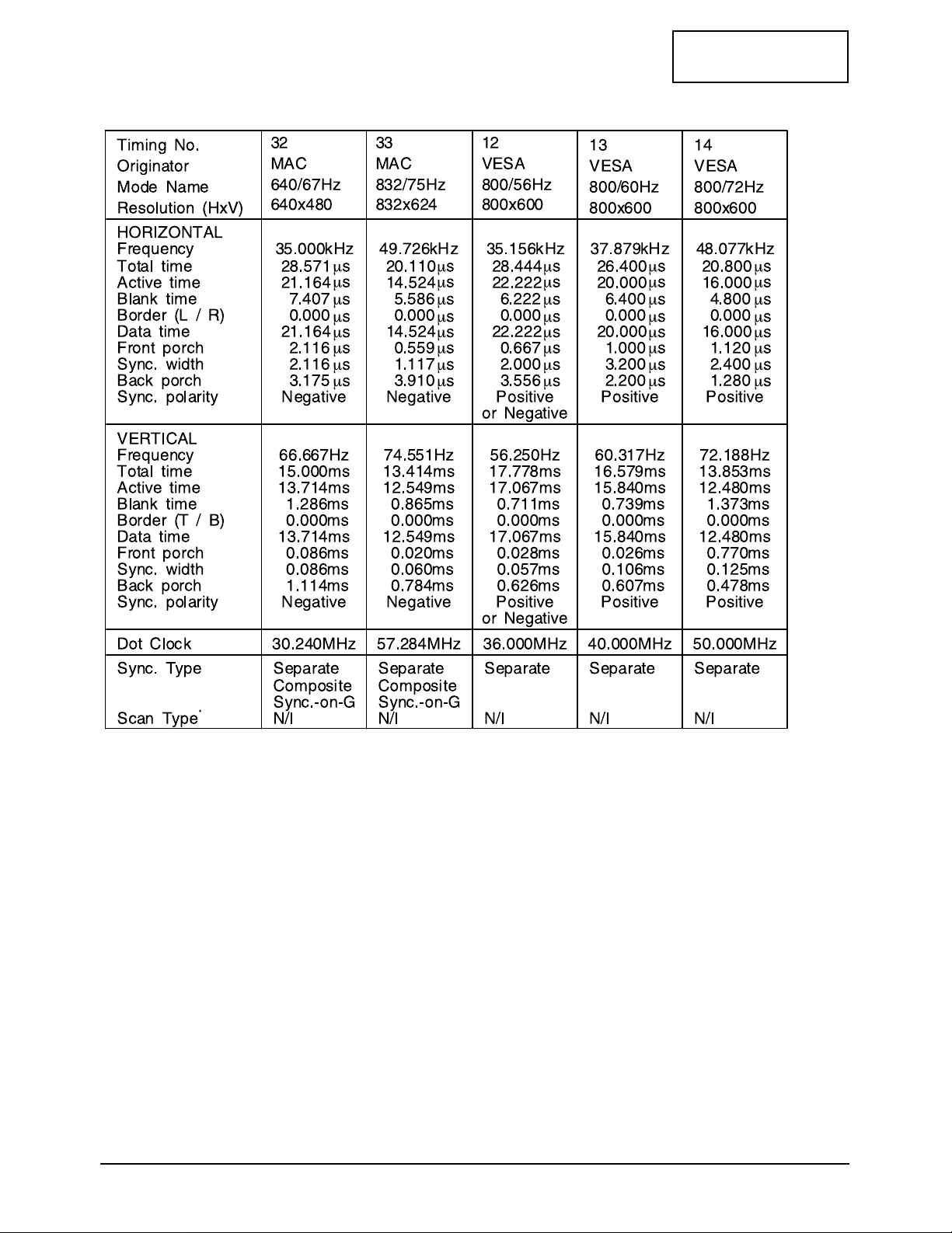

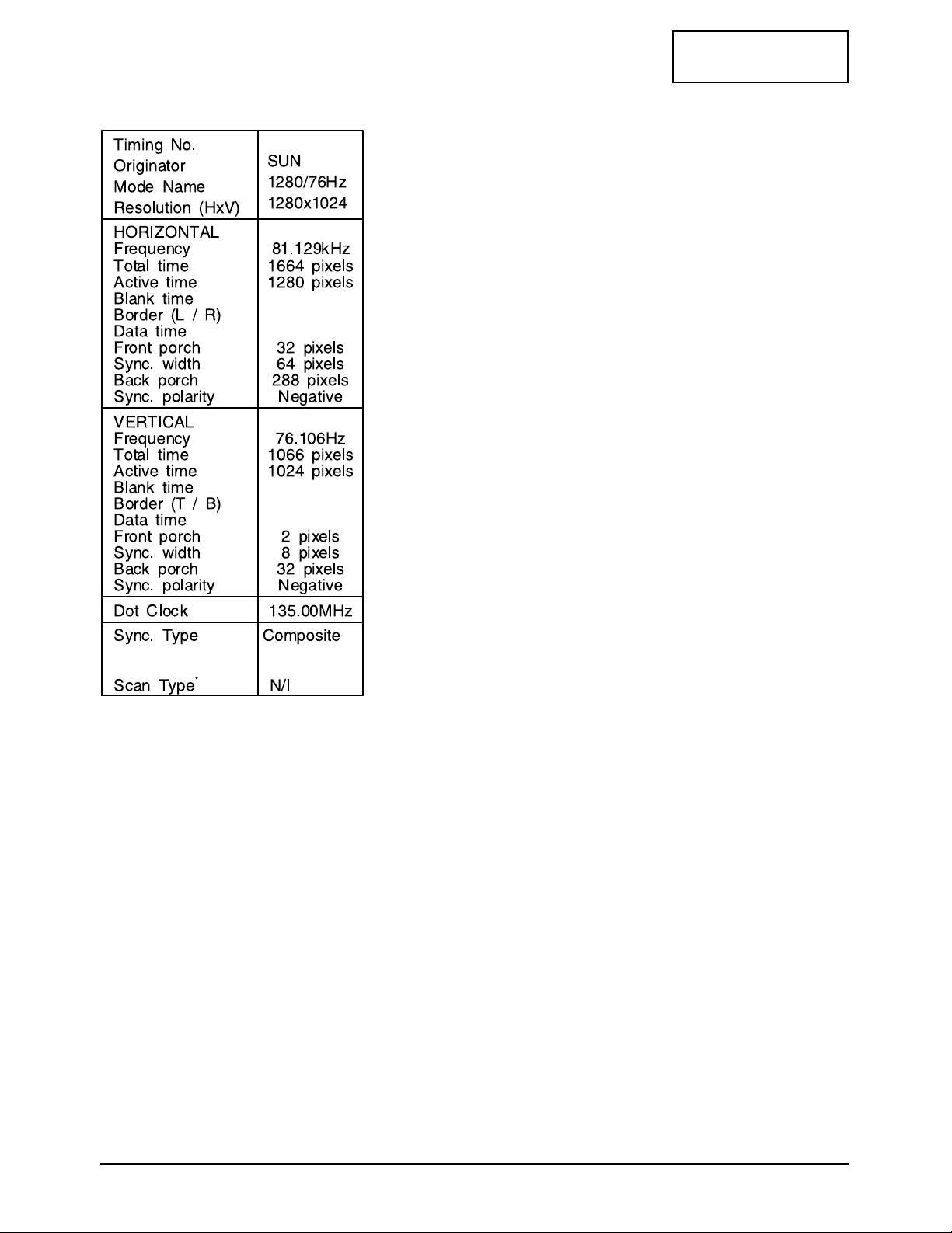

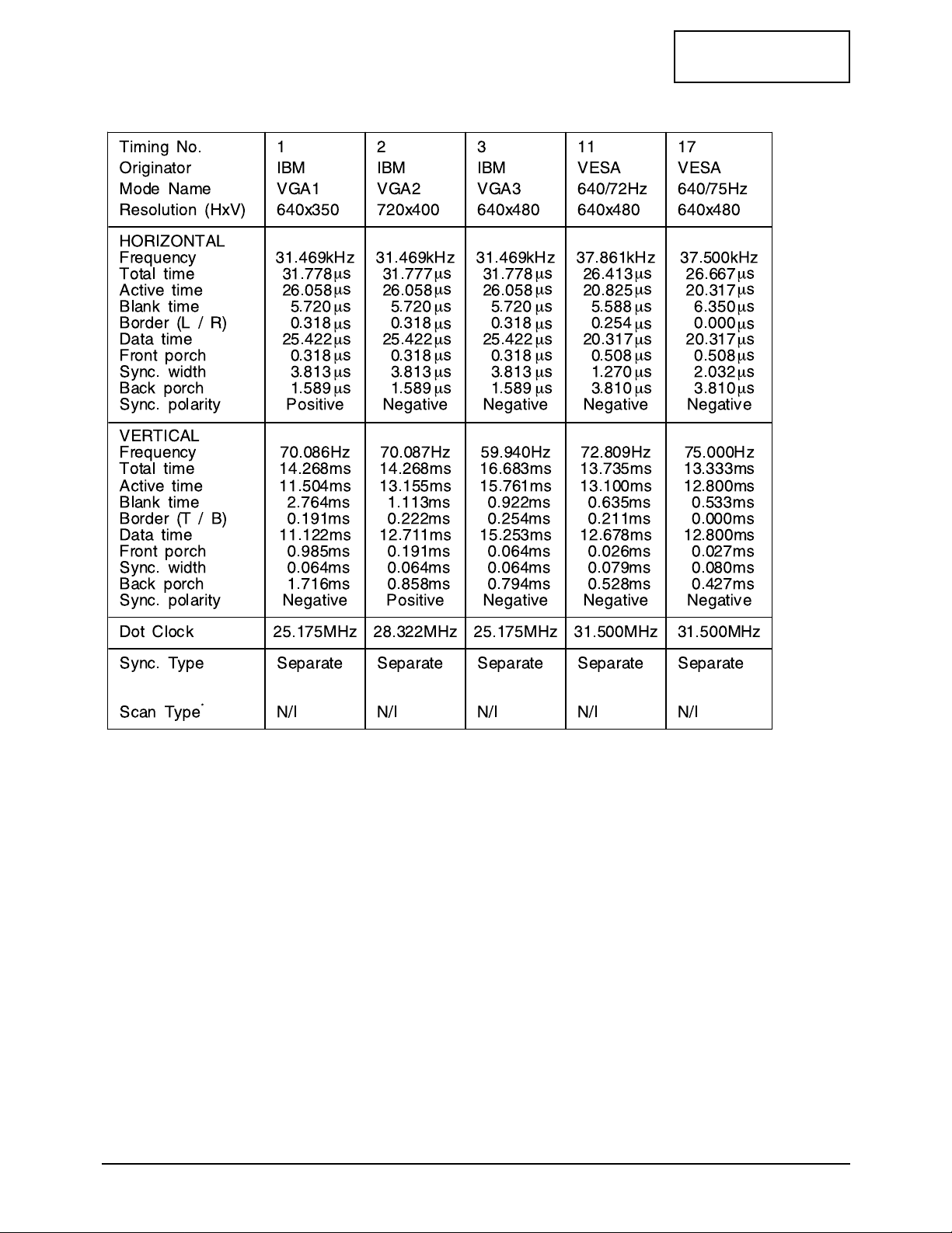

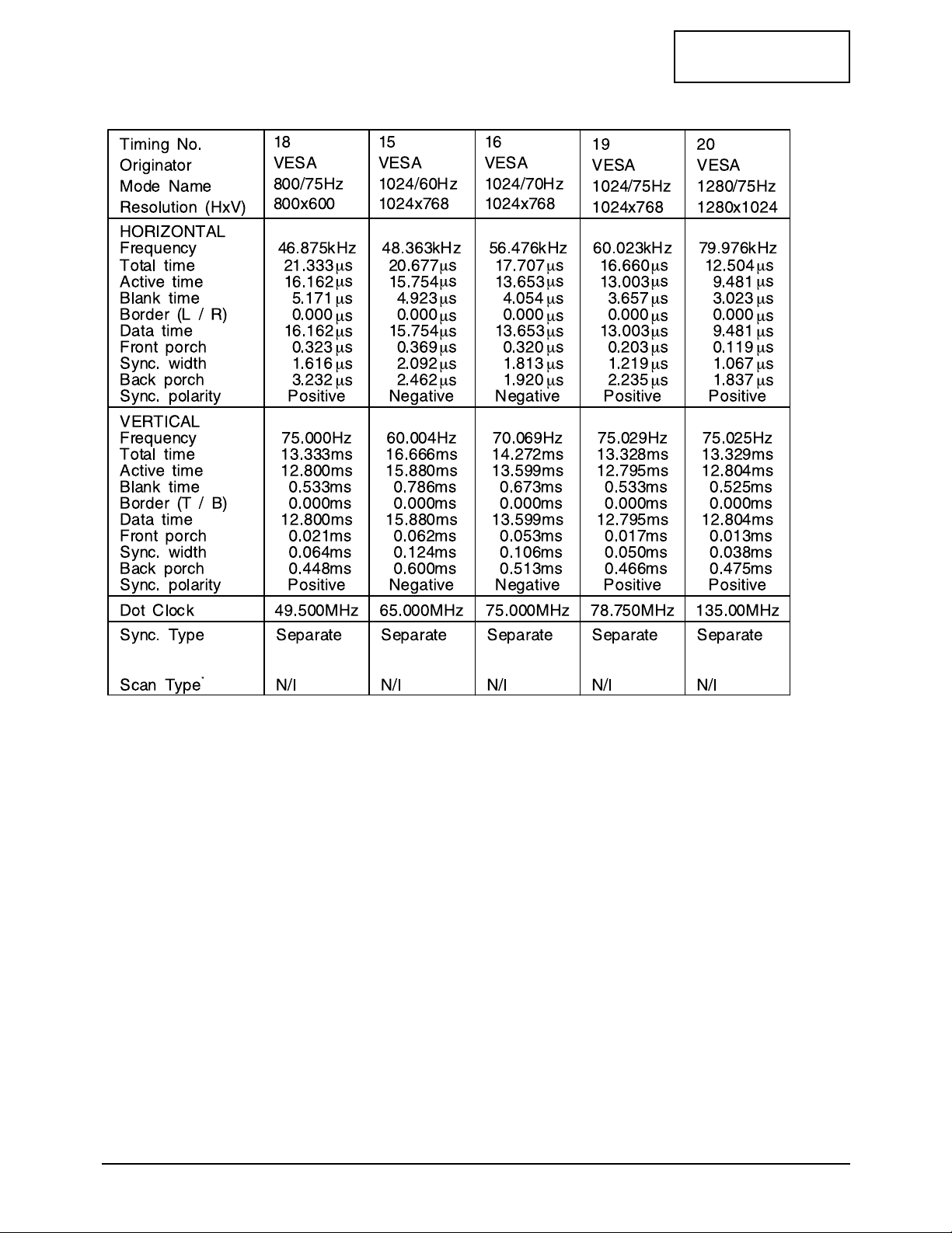

2-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals.
2-3-1 LCD Panel Mode : 1 mode
Definition of Terms |
|
"Activer"Video |
|
Blanking |
|
Video |
|
|
|
|
|
Back |
Top/Left |
"Addressable"Video |
Bottom/Right Front |
Back |
|
Sync Porch |
Border |
(Addr Time) |
Border |
Porch Sync Porch |
|
HSync |
|
|
|
|
|
YSync |
|
|
|
|
|
|
|
Blank Srart |
Blank Time |
||
|
|
Sync Srart |
|
Sync |
|
|
|
|
|
|
Time |
MO17P*/MO17E* |
2-3 |
