Samsung MO15E Schematic

CONFIDENTIAL

MO15E* 4-1

4 Troubleshooting

Notes: 1. Before troubleshooting, setup the PC’s display as below.

• Resolution: 1024 x 768

• H-frequency: 48 kHz

• V-frequency: 60 Hz

2. If no picture appears, make sure the power cord is correctly connected.

3. Check the following circuits.

• No raster appears: SMPS PCB, Main PCB

• 14V develop but no screen: Main PCB

• 14V does not develop: SMPS PCB

4. If you push and hold the “EXIT” button for more than 5 seconds, the monitor automatically turns back
to the factory preset.

4-1 No Power

Does proper DC 14 V appear at

Pin 1, 2 or Pin 3 of CN202?

Check SMPS.

Yes

No

Does proper DC 3.3 V appear at

Pin 4 of IC100?

Check IC100.

Check IC101, IC301, IC500 or IC602.

Yes

No

Does the pulse appear

at Pin 8 of IC501?

CONFIDENTIAL

4 Troubleshooting

4-2 MO15E*

4-2 No Video

Power indicator is green.

Replace X501 or

check its related circuit.

No

Does the clock pulse

appear at Pin 78 of IC300?

Does the H-sync

pulse appear at

Pin 38, 39 of IC300?

Check R304, 305, 306 and 307.

Replace IC401 or check

its related circuit.

No

Do the sync pulses appear at Pin

27, 28, 30 and 31 of IC401?

Yes

Yes

No

No

Yes

Yes

Replace X301 or

check its related circuit.

No

No

1 2

Does the clock pulse

appear at Pin 73 of IC300?

9

12 8

Do the pulses appear

at Pin 43, 44 of IC501?

Replace IC202(SOG) or check R207

and Pin 13, 15, 17, 19 of CN202.

10

13 14 15

1 3 4 5

11

Do the waveforms

appear at Pins 39

and 40 of IC401?

Replace LCD Panel.

Yes

Replace IC300.

Yes

No

Replace IC501 or

check its related circuit.

Yes

6 7

4 Troubleshooting

MO15E* 4-3

CONFIDENTIAL

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15

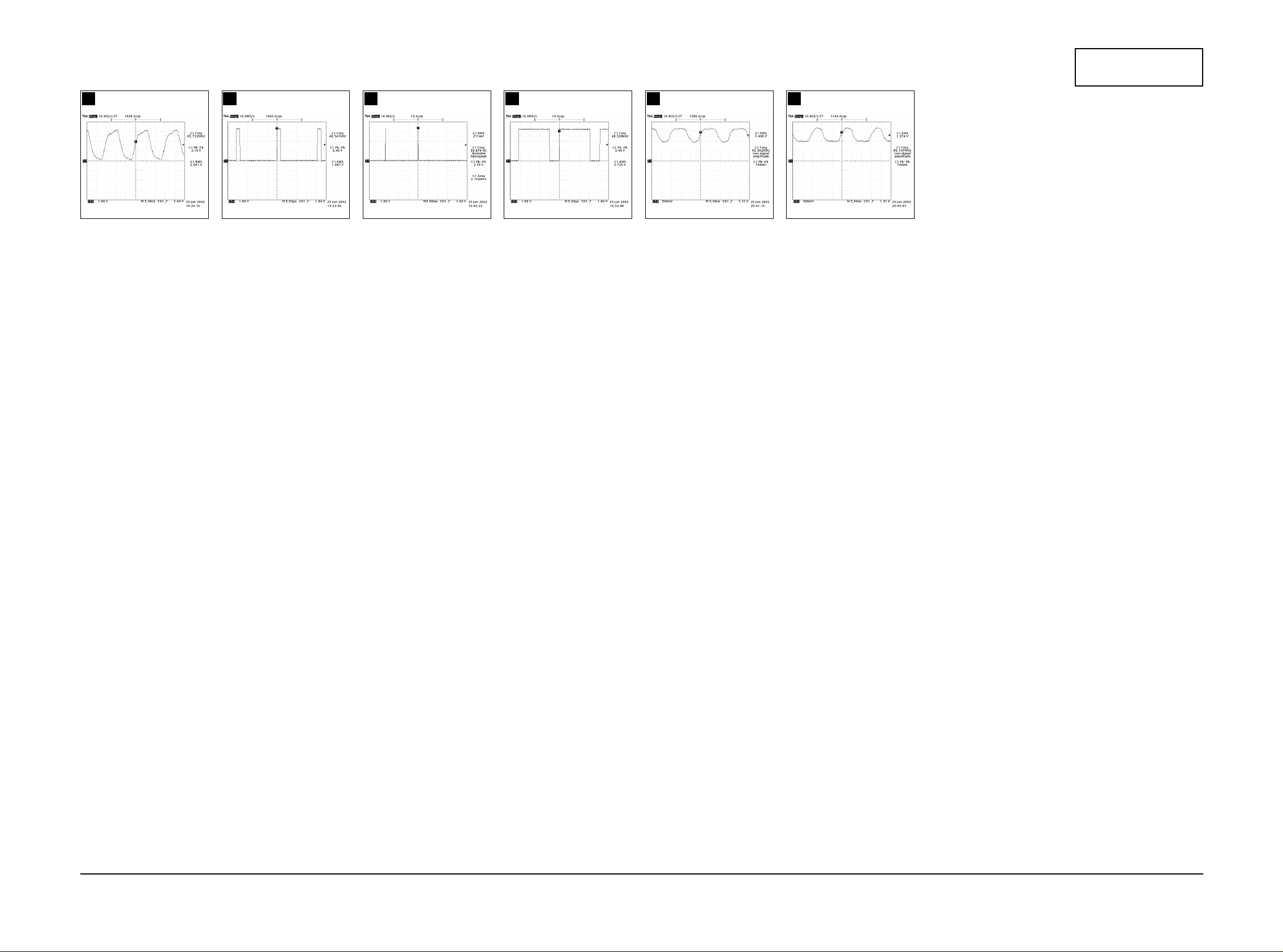

WAVEFORMS

4 Troubleshooting

4-4 MO15E*

CONFIDENTIAL

4-3 No OSD

There is video but no OSD.

While pushing a front control

button, does any pulse appear

at Pin 16, 17 of IC501?

Press exit key for more than 5

seconds to do the factory preset.

No

Do the pulses appear at Pin2

and Pin3 of CN600 while

pushing a front control button?

Replace IC300 and

check its related circuit.

Yes

Yes

Replace IC501 or check its

related circuit.

Replace the key function PBA.

No

CONFIDENTIAL

MO15E* 6-1

- BN94-00302A ASSY PCB MAIN MO15ES SNA
CIS BH73-60304E RUBBER-SUPPORT MO15PS,CR V0,6*6*6.4,BLACK SNA
CIS BN39-00002A CBF-HARNESS -,60,BLU/WHT,-,26,- SNA
CIS BN39-00251A LEAD CONNECTOR ASSY

MO15ES,UL1571#30,UL/CSA,20P,#30,12507HS-20,12507HS-20,BK,40MM,1571#30,SJ01-01-33
CIS BN44-00066A INVERTER MO15PS,SIC581,48KHZ,14VDC,2.6MARMS,6.1MARMS,48KHZ,140*50*8.0,4LAMP
CIS BN70-00264A PLATE-BRKT GROUND MO15PS,SECC,-,T0.8,-,-,-,-,MO15PS SNA
CIS BN72-00307A PLATE-PCB MO15PS,ABS+PC,IV16,-,-,5V,-,-,- SNA
CIS6 BN63-00265A GASKET

MO15PS,CONDUCTIVE FABLIC,4MM,10MM,17MM,GRAY,71TSSK 10-4-17-13,71TSSK 10-4-17-13

SNA

CIS7 BN63-00266A GASKET

MO15PS,CONDUCTIVE FABLIC,4MM,4MM,60MM,GRAY,71TTSK 4-4-60-13,71TTSK 4-4-60-13

SNA

SH/MO+BR/GR+PCB

6001-001340 SCREW-MACHINE CH,+,M2.0,L4.5,ZPC(YEL),SWRCH18A,FP

- BN97-00094A ASSY SMD MO15ES SNA
C100 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C101 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C102 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C103 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C104 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C105 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C106 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C107 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C200 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C201 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C202 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C203 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C204 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C205 2203-000815 C-CERAMIC,CHIP 0.033nF,5%,50V,NP0,TP,1608
C206 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C208 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C210 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C212 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C213 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C214 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C215 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C216 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C217 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C218 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C219 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C220 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C300 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C301 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C302 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C303 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C304 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C305 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C306 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C307 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C308 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C309 2203-000041 C-CERAMIC,CHIP 0.01nF,0.25pF,50V,NP0,TP,1608
C310 2203-000843 C-CERAMIC,CHIP 39nF,10%,25V,X7R,TP,1608,-

Loc. No. Code No. Description Specification Remarks

6 Electrical Parts List

6-1 Main PCB Parts

C311 2203-000888 C-CERAMIC,CHIP 4.7nF,10%,50V,X7R,TP,1608
C312 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C313 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C314 2203-000888 C-CERAMIC,CHIP 4.7nF,10%,50V,X7R,TP,1608
C315 2203-000888 C-CERAMIC,CHIP 4.7nF,10%,50V,X7R,TP,1608
C316 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C317 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C318 2203-000280 C-CERAMIC,CHIP 0.01nF,0.5pF,50V,NP0,TP,1608
C319 2203-000280 C-CERAMIC,CHIP 0.01nF,0.5pF,50V,NP0,TP,1608
C320 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C321 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C322 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C323 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C324 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C325 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C326 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C327 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4
C328 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C329 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C330 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C331 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C332 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C333 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C334 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C335 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C336 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C337 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C338 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C339 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C340 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C341 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C342 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C343 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C344 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608
C345 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C346 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C400 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C401 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C402 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608
C403 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C404 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C405 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C406 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C407 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C500 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C501 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C502 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C503 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C504 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C505 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C506 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608

6 Electrical Parts List

6-2 MO15E*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

CONFIDENTIAL

6 Electrical Parts List

MO15E* 6-3

C507 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608
C508 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.4
C509 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C510 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C511 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C512 2203-000384 C-CERAMIC,CHIP 0.015nF,5%,50V,NP0,TP,1608
C513 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C600 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C601 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608,
C701 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
C702 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608
C703 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C704 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C705 2203-001652 C-CERAMIC,CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C706 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm
CN101 3711-000556 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,SN SNA
CN202 3711-003161 CONNECTOR-HEADER BOX,20P,1R,1.25mm,ANGLE,SN SNA
CN400 3711-003161 CONNECTOR-HEADER BOX,20P,1R,1.25mm,ANGLE,SN SNA
CN600 3711-002049 CONNECTOR-HEADER BOX,6P,1R,1.25mm,SMD-A,SN SNA
D100 0402-001098 DIODE-RECTIFIER SK34,40V,3A,SMC,TP
D201 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
D202 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23
D203 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D204 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
D205 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,200MA,SOT-23,TP
FT701 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- SNA
IC100 1203-001447 IC-POSI.FIXED REG. 2596,TO-263,5P,-,PLASTIC,3.135
IC200 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP
IC201 0801-002478 IC-CMOS LOGIC 7SZ14,SCHMITT TRIGGER,SOT23,5P,63MIL,SINGLE,TR,PLASTIC,-,-,6V,-40to+85C,200mW,-0
IC202 1204-001551 IC-VIDEO SYSTEM GS1881,SOIC,8P,150MIL,PLASTIC,13.2V,-,0TO+70C,TP,VIDEO SYNC SEPARATOR
IC300 0904-001655 IC-GRAPHIC CONT.

MASCOTV,24BIT,PQFP,160P,28X28MM,160MHZ,TR,CMOS,PLASTIC,3.3V,2W,0TO+70C,-,-,-,-,­IC301 1203-001538 IC-POSI.ADJUST REG. 431,SOT-89,3P,-,PLASTIC,2.47/3
IC401 1205-002174 IC-TRANSMITTER NT7181,TSSOP,56P,236MIL,PLASTIC,3.45V,-,0TO+70C,TP,NT7181
IC500 1203-001488 IC-POSI.FIXED REG. 7805,T0-252,3P,-,PLASTIC,4.8/5
IC501 0903-001266 IC-MICROCONTROLLER NT68F63,8BIT,PLCC,44P,653MIL,12MHZ,ST,CMOS,PLASTIC,5V,-,-0TO+70C,256B,4KB,-,-,MC
IC502 1103-001023 IC-EEPROM 524C80D81,1028x8Bit,SOP,8P,150MIL,10mS,5V,10%,PLASTIC,0to+70C,110uA,CMOS,TP
IC601 0403-001435 DIODE-ZENER QZX363C5V6,5.32-5.88,200MW,SOT-363,TP
IC602 1203-000490 IC-SWITCH VOL. REG. 1117,SOT-223,3P,-,PLASTIC,3.235/3.365V,-,0to+125C,800mA,1.224/1.264V,TP
L101 BN27-20001A COIL-CHOKE -,53.0UH,20%,DR10*5,-,-,-,-,0.18ohm,-,-,-,TRAY
L201 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L300 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L301 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L302 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L303 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L304 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L400 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L401 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L402 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L403 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L600 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm
L601 2703-001334 INDUCTOR-SMD 1.5uH,10%,2x1.25x0.85mm

Loc. No. Code No. Description Specification Remarks

MP1.0 BN41-00161A PCB MAIN MO15ES,FR4,4L,120*100*1.0,MO15ES
Q600 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270
Q601 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270
Q701 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270
R100 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R101 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R102 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R200 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R201 2007-000097 R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
R202 2007-000097 R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
R203 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R204 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R205 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R206 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R207 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R208 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R209 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R210 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R211 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R212 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R213 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R214 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R215 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R216 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R217 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R218 2007-001114 R-CHIP 680Kohm,5%,1/16W,DA,TP,1608
R219 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R220 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R300 2007-000124 R-CHIP 2.2Kohm,5%,1/16W,DA,TP,1608
R301 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R302 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R303 2007-000109 R-CHIP 1Mohm,5%,1/16W,DA,TP,1608
R304 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R305 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R306 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R307 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608
R312 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R317 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R318 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R319 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R321 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R322 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R323 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R401 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R402 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R403 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R404 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R405 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R406 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R407 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R408 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608

6 Electrical Parts List

6-4 MO15E*

Loc. No. Code No. Description Specification Remarks

CONFIDENTIAL

CONFIDENTIAL

6 Electrical Parts List

MO15E* 6-5

R409 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R410 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608
R411 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R500 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608
R501 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R502 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R503 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R504 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
R505 2007-000109 R-CHIP 1Mohm,5%,1/16W,DA,TP,1608
R506 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R507 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R508 2007-000458 R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
R509 2007-000458 R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
R511 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R512 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R513 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R514 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R515 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R516 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R517 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R518 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R519 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R520 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R521 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R523 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R524 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R525 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R526 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R527 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608
R604 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R605 2007-001002 R-CHIP 510ohm,5%,1/16W,DA,TP,1608
R606 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R607 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R700 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R701 2007-000309 R-CHIP 10ohm,5%,1/16W,DA,TP,1608
R702 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R703 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608
RA300 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
RA301 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
RA302 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
RA303 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
RA304 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
RA305 2011-001410 R-NETWORK 120OHM,5%,1/16W,L,CHIP,8P,TP
X301 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP
X501 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP

Loc. No. Code No. Description Specification Remarks

6 Electrical Parts List

6-6 MO15E*

CONFIDENTIAL

- BN90-00304A ASSY COVER FRONT MO15PS

CIS BN90-00053B ASSY COVER FRONT MO15PS,ABS HB,BK07,ANALOG SNA

- BN90-00305A ASSY COVER REAR MO15PS

CIS BN90-00054B ASSY REAR MO15ES,ABS HB BK07

- BN90-00306A ASSY STAND MO15PS

CIS BN90-00056B ASSY STAND MO15PS,ABS HB,BK07,ANALOG

- BN91-00301C ASSY MISC-ADAPTOR DV18MS SNA

CIS BN44-00058A ADAPTOR

PSCV420106A(AD-4214N,GH17PS ,100 TO 240 VAC,47 - 63 HZ,+14VDC,3A,-,42W,AC-DC,0 T

- BN91-00311B ASSY LCD GD15NS,-,-,- SNA

CIS BN07-00043A LCD

LTM15C458,GH15LS,6BIT_FRC,331.6*254.7*12.5,16.1M,60,0.297*0.297,0~40,3.3,TOSHIBA

- BN91-00346A ASSY CHASSIS MO15ES

- BN91-00350A ASSY SHIELD MO15ES SNA

CIS BN90-00055A ASSY SHIELD-PCB MO15PS,-,SECC,T0.5,-,-,-,- SNA

- BN92-00404A ASSY P/MATERIAL MO15PS SNA

Loc. No. Code No. Description Specification Remarks

6-2 Others

CONFIDENTIAL

MO15E* 9-1

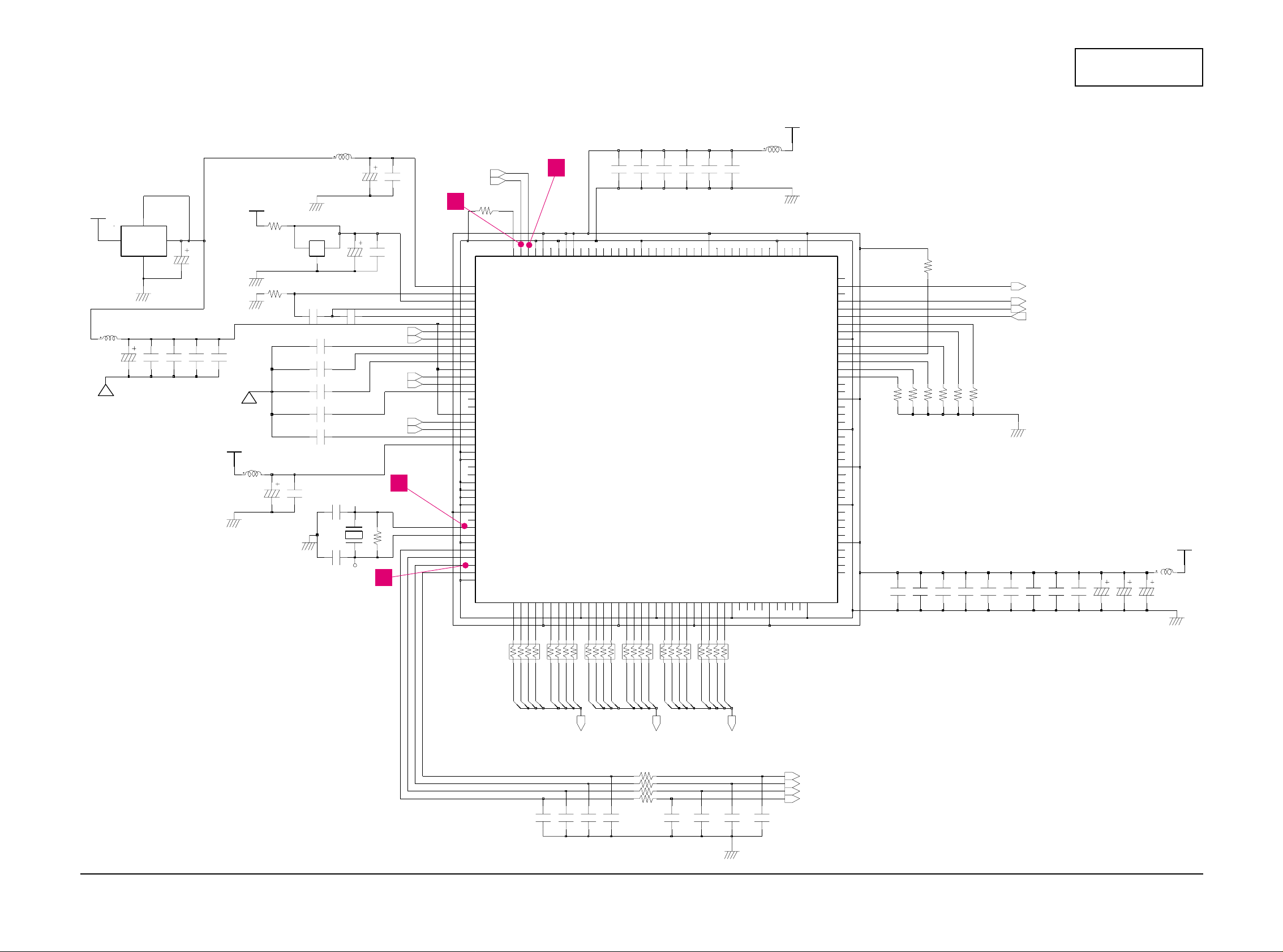

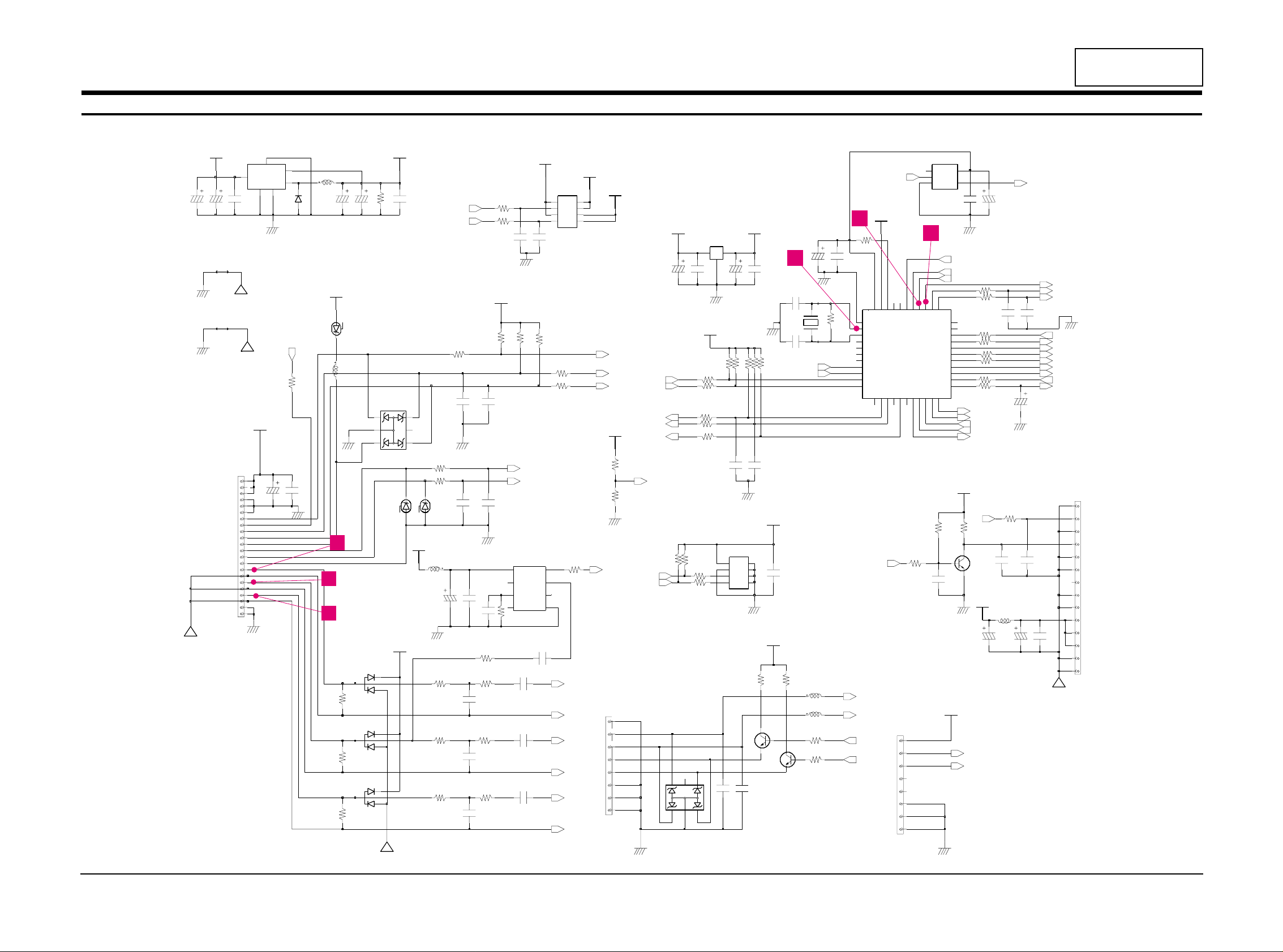

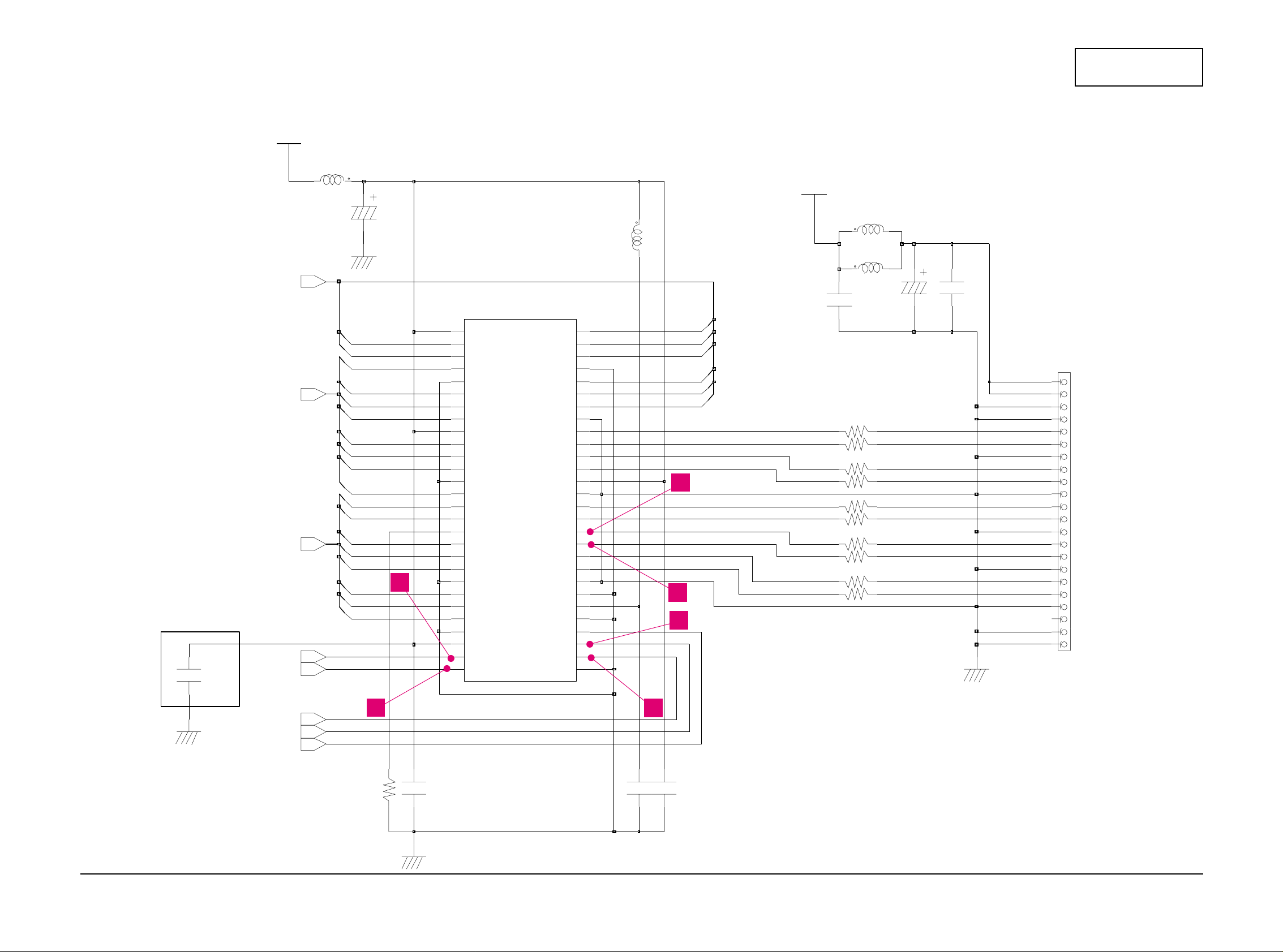

9 Schematic Diagrams

9-1 Schematic Diagram

100nF

R523 100

G-GND

G-VIDEO

B-VIDEO

B-GND

V-SYNC

+14VDC

R-GND

DSUB_+5V

DSUB_SDA
DSUB_SCL

R-VIDEO

CHK_DSUB

DSUB_GND

H-SYNC

P-GND

D202
BZX84C5V1

1

2

3

16V

100uF

C107

75

R216

C703
470nF
16V
MO

C105
470nF
16V
MO

B

C

E

4.7K

R520

+5V

KSC1623-Y

Q601

R215
33
1/16W

R213

C101

MO

100nF
16V

75

MO

16V

470nF

C106

L200

1.5uH

D204

MMBD4148SE

1

2

3

MS_3.3V

R525
100

+5V

8

SK34

D100

slcon8p

1

2

3

4
5

6
7

470nF
16V

CN501

100uF

C705

C501

MS_3.3V

C500
100nF
16V

R206

100
1/16W

C206
22pF

R200

1/16W

10K

R218
680K

10

R100

1/16W

4.7K

R527

R208

16V

470nF

C513

MO

0

C509

50V

470nF
16V
MO

50V

15pF

C511 C512

15pF

E

C220
10uF

Q701
KSC1623-Y

B

C

C601

100nF

R220

4.7K
1/16W

1/16W

33

R209

16V

100nF

C702

100
1/16W

R207

D203

1

2

3

10

R211

100

1/16W

MMBD4148SE

C706
100uF
16V

R606

Vin

16V

100uF

C701

4

F_B

3

GND

6

GND1

ON_OFF

5

OUT

21

R508

18K

IC100
LM2596S-3.3

18K
R509

+5V

100uF
16V

C502

8

C504

16V

100uF

slcon8p

CN600

1

2

3

4
5

6
7

100nF

C210

D1_1

7
6

D2

D2_1

5

2

G1

4

G2

S1

1

S2

3

+5V

1A2

B

SI9933ADY-T1

IC101

8

D1

BLM41P600S

FT701

1.5uHL601

47K
1/16W

R201

R212

1/16W

33

R605

510

1/16W

C215

15pF
50V

Q600

KSC1623-Y

B

C

E

100nF

C505

16V

100

100nF

C503

16V

TP1491

1

R515

R514 0

R702
100

1/16W

R501
10K
1/16W

53uH

L101

R203

1/16W

100

100nFC208

C213
15pF
50V

PANEL_3.3V

75

R210

2

GND

1IN3

OUT

C600

100nF

16V

470nF

C704

IC500
BA17805FP

10K

R101

R102

TP1490

1

10K

R5134.7K

100R516

R502

470

R500

R503

100

R506

100

4.7K

100

0

R519

10R701

R217

R700

4.7K
1/16W

+3.3V

100

R521

100pF

C203

100R507

+5V

R526 100

C508
10uF

R518 1K

R512

R5114.7K

R517

4.7K

A

2

C1

6

C2

4

C33C4

1

NC

5

100

A

6

C1

4

C2

3
C3

1
C4

5

NC

QZX363C5V6

IC601

IC200
QZX363C5V6

2

+5V

R204 100 1/16W

MMBD4148SE

1

2

3

C218

+5V

D205

R524 100

C507
22pF

1/16W

1M

C506
22pF

X501

HC-49/S-SMD(12MHz,30ppm)

Q0Q1

R505

C212 100nF

50V

15pF

C214

R703
10K
1/16W

10uF

C217

+5V

16V

100nF

C216

R214
10

5

6

7

8

50V

C201
100nF

IC202

1

2

3

4

PC7

36

PD0

35

PD1

34
33

PD2

32

PD3
PD4

31
30

PD5

RSTB

4

V33

644

VSYNCI

LM1881M

28

PB427PB526PB625PB7

PC0

3

PC12PC2

142

PC341PC440PC5

PC6

37

PA123PA2

PA322PA421PA520PA619PA7

18

17

PB0

PB1

16

PB2

15

PB3

14

43

HSYNCI

NC1

38

NC2

39

9

OSCI

8

OSCO

10

P30

11

P31

12

P34
P35

13

29

PA0

24

+5V

NT68F63L

IC501

CVV

5

7

GND

47K

R202
1/16W

+14V

C205
33pF
50V

1/16W

510

R604

C202
100pF

10nF

50V

C219

MO

100nF
16V

C104

1.5uH

L201

12

13

14

MS_3.3V

C100
100uF
16V

2

3

4
5

6
7

8

9

10

11

+14V

CN101

slcon14p_1

1

1/16W

10K

R504

L600 1.5uH

C102

16V

100uF

1

NC5VCC

Y

4

1/16W

100

R607

NC7SZ14M5X

IC201

A

2

GND

3

1

2

3

+14V

16V

100nF

C204

BZX84C5V1

D201

C103
100uF
16V

C200

16V

100uF

C510
100nF

7

8

+5V

+14V

1/16WR205 100

M24C08-WMN1T

IC502

1
2
3
4

5

6

D200

A

1

2

B

3

C

+3.3V

BZX84C5V1

14
15
16
17
18
19
20
21
22

10

R219

4
5
6
7
8

9
10
11
12
13

CN202

slcon22p_1

1

2

3

SDA

SCL

LED_B

H*V_SYNC

A_H*V_SYNC

H*V_SYNC

SEL_MDL

MS_IRQ*

KEY1_IN

CHK_DSUB

MS_RESET*

CHK_DVI
*PANEL_EN

*DPMS_ON

BRIGHT

KEY2_IN

MS_SCL

MS_SDA

GREEN

AMBER

V_SYNC

H_SYNC

LED_A

DDC_DATA

DDC_CLK

INV_GND

*LVDS_EN

A_V_SYNC

*BKLT_EN

SOG_SYNC

AGND

AGND

AGND

AGND

MS_SCL

MS_SDA

SOG_SYNC

*BKLT_EN

KEY1_IN

KEY2_IN

*PANEL_EN

*DPMS_ON

SCL
SDA

BRIGHT

*BKLT_EN

SEL_MDL

INV_GND

AGND

RED+

A_H*V_SYNC

A_V_SYNC

DDC_DATA

DDC_CLK

AGND

BLU+

GRN+

CHK_DSUB

AMBER

GREEN

13

15

14

10

11

8

CONFIDENTIAL

9 Schematic Diagrams

9-2

MO15E*

8 10 11 13 14 15

CONFIDENTIAL

9-2 Schematic Diagram

9 Schematic Diagrams

MO15E* 9-3

Config0 : IIC_Addr 0 0

Config1 : IIC_Addr 1 0

Config2 : IIC_Addr 2 0

Config3 : IIC_Addr 3 1

Config4 : 0-IIC, 1-SPI 0

120ohm

120ohm

120ohm

16V

100uF

120ohm

120ohm

120ohm

+5V

RC1117ST-3.3

2

VOUT

3

VIN

TAB

4

1

GND

IC602

C341

C346
100uF
16V

C342

C345

100pF

C343

100pF

15pF

100pF

C344

1.5uH

1.5uH

L303

1.5uH

C327

L302

L300

22uF
16V

1.5uH

MS_3.3V

16V

22uF

C326

16V

L304

C335
100nF
16V

100nF

C336

100nF

C334

16V

100nF
16V

C329

100nF
16V

C333C332

16V

100nF100nF

16V

C330 C331

16V

4.7nF

16V

100nF

C315

100nF

C328

4.7nF

4.7nFC311

1.5uH

C314

L301

MS_3.3V

100nF
16V

100nF
16V

C320

100nF
16V

C325C324

100nF

C321

16V

100nF

C323
100nF
16V

C322

0

16V

R301

39nF

C313 10nF

C310

10pF

MS_3.3V

22uF
16V

C316

C309

100nF

C317

16V

22uF
16V

R300

C307

100nF

C308

16V

1/16W

2.2K

100nF
16V

+5V

C306

1/16W

10K

16V

22uF

C305

22uF
16V

C300

100nF
16V

R302

C304C303
100nF
16V

C302

100nF

16V

100nF

C301

16V

10nF

R303

C312

KIA431AF-RTF

10K
1/16W

3

OUT1IN

2

GND

IC301

1/16W

1M

R322

10K
1/16W

R323

1/16W

10K

10K
1/16W

10K
1/16W

R321

R319

1/16W

10K

R318

R312

10K
1/16W

TVCLK

IC300

XTALO

73
74

XTALI

50

VTOP

R317

155

60

VREF

43

38

VGA_VSYNC

VGA_HSYNC

39

36

VCCD

58

VCCAR

52

VCCAG

46

VCCAB

VCCA

41

VBOT

51

160

138

RED_OUTB_6
RED_OUTB_5

137
136

RED_OUTB_4

56

TOUTP
TOUTM

57

40

SOGI

78

SHCLK

SDA

157

158

SCS

156

SCL
RST

133
132

RED_OUTB_1
RED_OUTB_0

131

RED_OUTA_7

109

108

RED_OUTA_6

RED_OUTA_5

107

106

RED_OUTA_4

104

RNDAR

RI

59

72

RESERVED

RED_OUTB_7

139

145

146

PWM0

OSD_R

RED_OUTA_3

RED_OUTA_2

103

102

RED_OUTA_1

RED_OUTA_0

101

RED_INB_7_UV7

31

30

RED_INB_6_UV6

RED_INB_5_UV5

29

28

RED_INB_4_UV4

134

RED_OUTB_3
RED_OUTB_2

OSD_FSW

65
66

OSD_CLK

OSD_B

69

LCD_VEE

143
142

LCD_VDD

RED_INB_3_UV3

27

26

RED_INB_2_UV2

RED_INB_1_UV1

25

24

RED_INB_0_UV0

RCLP

61

PWM1

GRN_OUTA_3

GRN_OUTA_2

LCD_VBL

141

IRQ

159

GRN_OUTB7

129
128

GRN_OUTB6
GRN_OUTB5

127
126

GRN_OUTB4

124

GRN_OUTB3

67

70

OSD_I

68

OSD_G

20

GRN_INB_5

GRN_INB_4

19

18

GRN_INB_3

GRN_OUTB2

123
122

GRN_OUTB1
GRN_OUTB0

121

GRN_OUTA_7

99

98

GRN_OUTA_6

GRN_OUTA_5

97

96

GRN_OUTA_4

94

15

154

GPIO1

GPIO0

153

54

GNDAG

48

GNDAB

GI

53

GCLP

55

93

92

GRN_OUTA_1

GRN_OUTA_0

91

22

GRN_INB_7_RTSO

GRN_INB_6

21

33

DTEST

35

130

DOBVSS_4

120

DOBVSS_3

110

DOBVSS_2

90

DOBVSS_1

DOBVDD_5

135

DOBVDD_4

125

DOBVDD_3

GRN_INB_2

17

16

GRN_INB_1

GRN_INB_0

85

DISP_VSYNC

77

DISP_HSYNC

79

76

DISP_DE

DIBVSS_1

5

DIBVSS

75

32

DIBVDD_2

DIBVDD_1

1

DGND

37

152

34

DVSS

DVDD

100

DCVSS_4

80

DCVSS_3

64

DCVSS_2

DCVSS_1

23

144

DCVDD_4

DCVDD_3

105

DCVDD_2

71

14

DCVDD_1

CZ

45

115

DOBVDD_2

95

DOBVDD_1

113

44

CP

CONFIG4

151
150

CONFIG3
CONFIG2

149
148

CONFIG1
CONFIG0

147

4

CAP_VSYNC

CAP_HSYNC

3

2

CAP_HREF

DCVSS_6

140

DCVSS_5

86

BLU_OUTA_4

84

BLU_OUTA_3

BLU_OUTA_2

83

82

BLU_OUTA_1

BLU_OUTA_0

BLU_OUTB_7

119

118

BLU_OUTB_6

BLU_OUTB_5

117

116

BLU_OUTB_4

114

BLU_OUTB_3

BLU_OUTB_2

13

12

BLU_INB_6_Y6

BLU_INB_5_Y5

11

10

BLU_INB_4_Y4

BLU_INB_3_Y3

9

8

BLU_INB_2_Y2

112

BLU_OUTB_1

BLU_OUTB_0

111

BLU_OUTA_7

89

88

BLU_OUTA_6

BLU_OUTA_5

87

1

BLU_INB_1_Y1

7

6

BLU_INB_0_Y0

BI

47

BCLP

49

42

AGND

ADVSS

63

62

ADVDD

MASCOTV

81

BLU_INB_7_Y7

1

TP1426

TP1425

22pF

C337

50V50V

22pF
50V

C318

C338

22pF

C340

C319

0.01nF

0.01nF

X301

Q1Q0

HC-49/S-SMD(12MHz,30ppm)

6

22pF
50V

C339

8

7

6

5

4

3

5

4

321

RA305

8

77

6

5

4

321

RA303

2

1

RA304

8

7

86

5

4

6

5

4

321

RA302

8

7

6

5

4

321321

RA301

75

8

7

R306

RA300

75R304

R307

75

75R305

DER(7:0)

DER(2)

DER(3)

DER(4)

DER(5)

DER(6)

DER(7)

DEG(7)

DEG(7:0)

DER(0)

DER(1)

DEG(1)

DEG(2)

DEG(3)

DEG(4)

DEG(5)

DEG(6)

DEB(6)

DEB(7)

DEB(7:0)

DEG(0)

DEB(0)

DEB(1)

DEB(2)

DEB(3)

DEB(4)

DEB(5)

DHS
DCLK

MS_RESET*

MS_SDA
MS_SCL

AGND

AGND

DEN

DVS

BLU+

GRN+

V_SYNC
H_SYNC

AGND

AGND

MS_IRQ*

RED+

AGND

1

9

2

12

CONFIDENTIAL

9 Schematic Diagrams

9-4

MO15E*

1 9 12

2

CONFIDENTIAL

9-3 Schematic Diagram

9 Schematic Diagrams

MO15E* 9-5

Place at Pin26

47

R405
R406

47

100nF

C405

C400
100uF

C406
470nF
16V
MO

0

C404
100nF

R411

15
16
17
18
19
20
21
22

3
4
5
6
7
8
9
10
11
12
13
14

PANEL_3.3V

CN400

slcon22p_1

1
2

R410 47

MS_3.3V

47R409

R404

R403 47

47

R402 47

47R401

MO

16V

470nF

C407

L403

1.5uH

C401
100uF

1.5uH

L400

L401

1.5uH

42

TXOUT3+

37

38

TXOUT3-

1

VCC

VCC1

9

VCC2

26

56

2

TXIN5

3

TXIN6

4

TXIN7

TXIN8

6

TXIN9

7

TXOUT0+

47

48

TXOUT0-

TXOUT1+

45

46

TXOUT1-

TXOUT2+

41

TXOUT2-

54

TXIN2

22

TXIN20

23

TXIN21

24

TXIN22

25

TXIN23

TXIN24

27
28

TXIN25

30

TXIN26

50

TXIN27

TXIN3

55

TXIN4

TXIN1

TXIN10

8

TXIN11

10
11

TXIN12

12

TXIN13

14

TXIN14

15

TXIN15
TXIN16

16

18

TXIN17
TXIN18

19
20

TXIN19

LVDSGND2

44

LVDSVCC

PLLGND

35

33

PLLGND1

34

PLLVCC

32

PWRDWN

R_FB

17

TXCLKIN

31

TXCLKOUT+

39

40

TXCLKOUT-

51

TXIN0

52

5

GND1

GND2

13

21

GND3

GND4

29

GND5

53

LVDSGND

49

43

LVDSGND1

36

R408

DS90C385MTD

IC401

R407 47

47

C403
100nF

10nF

C402

1.5uH

L402

TXE0+

TXE0-

TXE1+

TXE1-

TXECLK-

DHS

DVS

DEN

TXE2+

TXE2-

TXECLK+

DER(7:0)

DER(0)

DER(1)

DER(2)

DER(3)

DER(4)

DER(5)

DER(6)

DER(7)

DEG(7:0)

DEG(0)

DEG(1)
DEG(2)

DEG(3)
DEG(4)

DEG(5)

DEG(6)

DEG(7)

DEB(7:0)

DEB(0)

DEB(1)
DEB(2)

DEB(3)
DEB(4)
DEB(5)

DEB(6)

DEB(7)

*LVDS_EN

DCLK

7

6

5

1

3

4

9 Schematic Diagrams

9-6

MO15E*

CONFIDENTIAL

1 3 4 5 6 7
