Page 1
MICRO COMPONENT
AUDIO SYSTEM
MP3-CD/CD-R/RW PLAYBACK
MM-ZJ8
Instruction Manual
Page 2
GB
Safety Warnings
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER, NO USER
SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This symbol indicates that dangerous voltage constituting of a risk of electric shock is present within
this unit.
This symbol indicates that there are important operating and maintenance instructions in the owners
manual accompanying this unit.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTER LOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
Wiring the Mains Power Supply Plug(UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face
of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover omitted. If the cover is detachable. If a replacement fuse cover is required, it must be of the same
colour as the pin face of the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain
a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do NOT connect the plug to
a mains socket as there is a risk of shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:–
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured
BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY
THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
2
Page 3
Contents
S
AFETYWARNINGS
I
NSTALLINGYOURMICROCOMPONENTSYSTEM
Front Panel View........................................................................................................................................................................................4
Remote Control ..........................................................................................................................................................................................5
Rear Panel View ........................................................................................................................................................................................6
Where to Install Your Micro Component System ......................................................................................................................................7
Connecting your System to the Power Supply ..........................................................................................................................................7
Inserting Remote Control Batteries............................................................................................................................................................7
Connecting to an External Source ............................................................................................................................................................8
CD Digital Out Jack ............................................................................................................ ........................................................................8
Speaker Connection ..................................................................................................................................................................................8

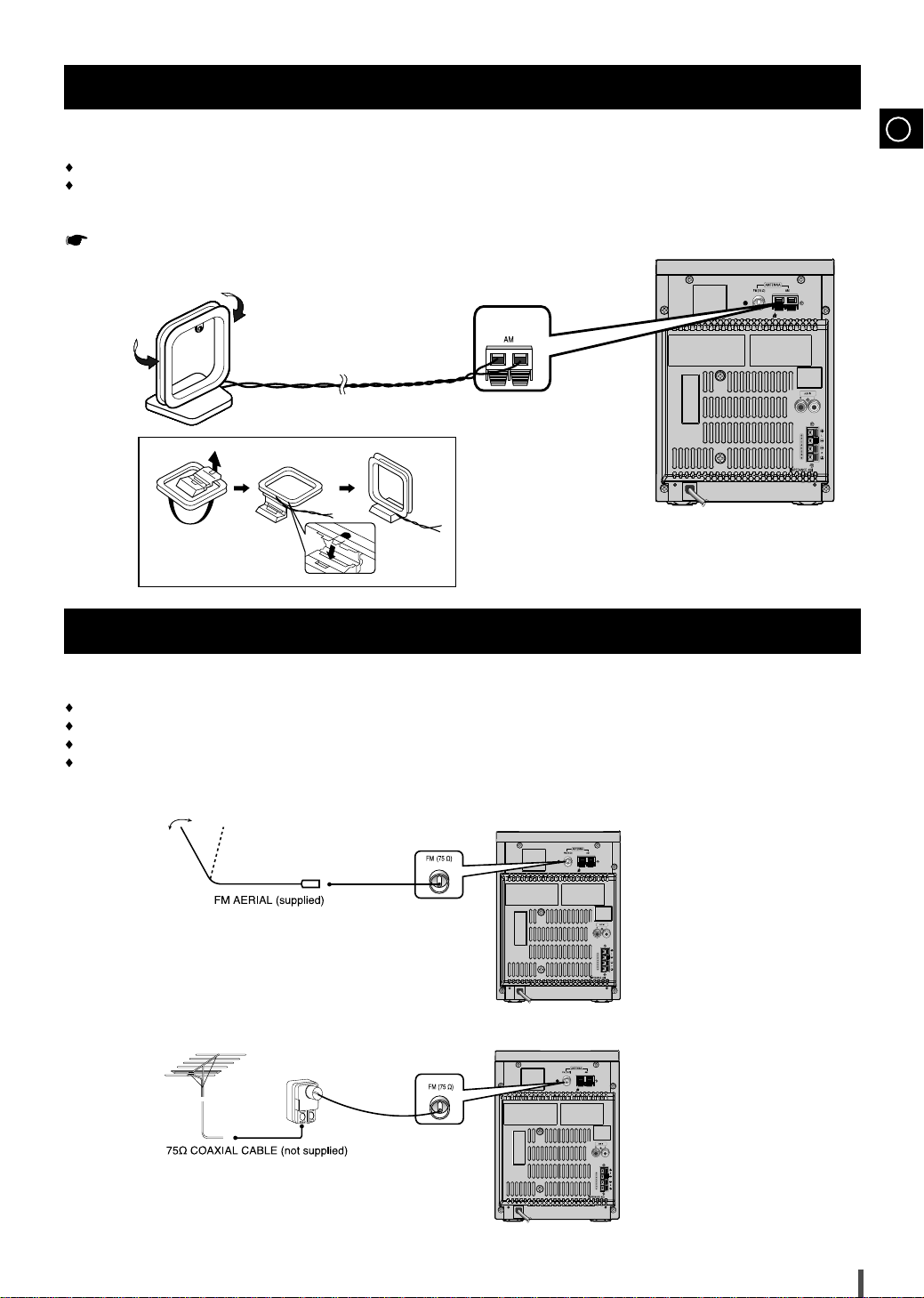

Connecting the AM (MW)/LW Aerial..........................................................................................................................................................9
Connecting the FM Aerial ..........................................................................................................................................................................9
DEMO Function........................................................................................................................................................................................10
DIMMER Function....................................................................................................................................................................................10
Setting the Clock......................................................................................................................................................................................10
MP3-CD/CD-P
To replay the CD/MP3-CD ......................................................................................................................................................................11
Selecting a Track ....................................................................................................................................................................................11
To select the MP3-CD album and track ..................................................................................................................................................11
Searching for a Specific Music Passage on a CD ..................................................................................................................................12
Function to skip through 10 tracks at a time................................................................................... .........................................................13
Repeating One or All Tracks on the Compact Discs ..............................................................................................................................13
REPEAT A↔B Function ..........................................................................................................................................................................13
Last Memory Function..............................................................................................................................................................................13
Programming the Order of Playback........................................................................................................................................................14
Checking or Changing Programmed Tracks............................................................................................................................................14
T
UNER
Searching for and Storing the Radio Stations ........................................................................................................................................15
Selecting a Stored Station........................................................................................................................................................................15
Improving Radio Reception......................................................................................................................................................................15
About RDS broadcasting......................................................................................................... .................................................................16
About RDS DISPLAY function..................................................................................................................................................................17
PTY(Program Type) indication and PTY-SEARCH function ..................................................................................................................17
T
APEDECK

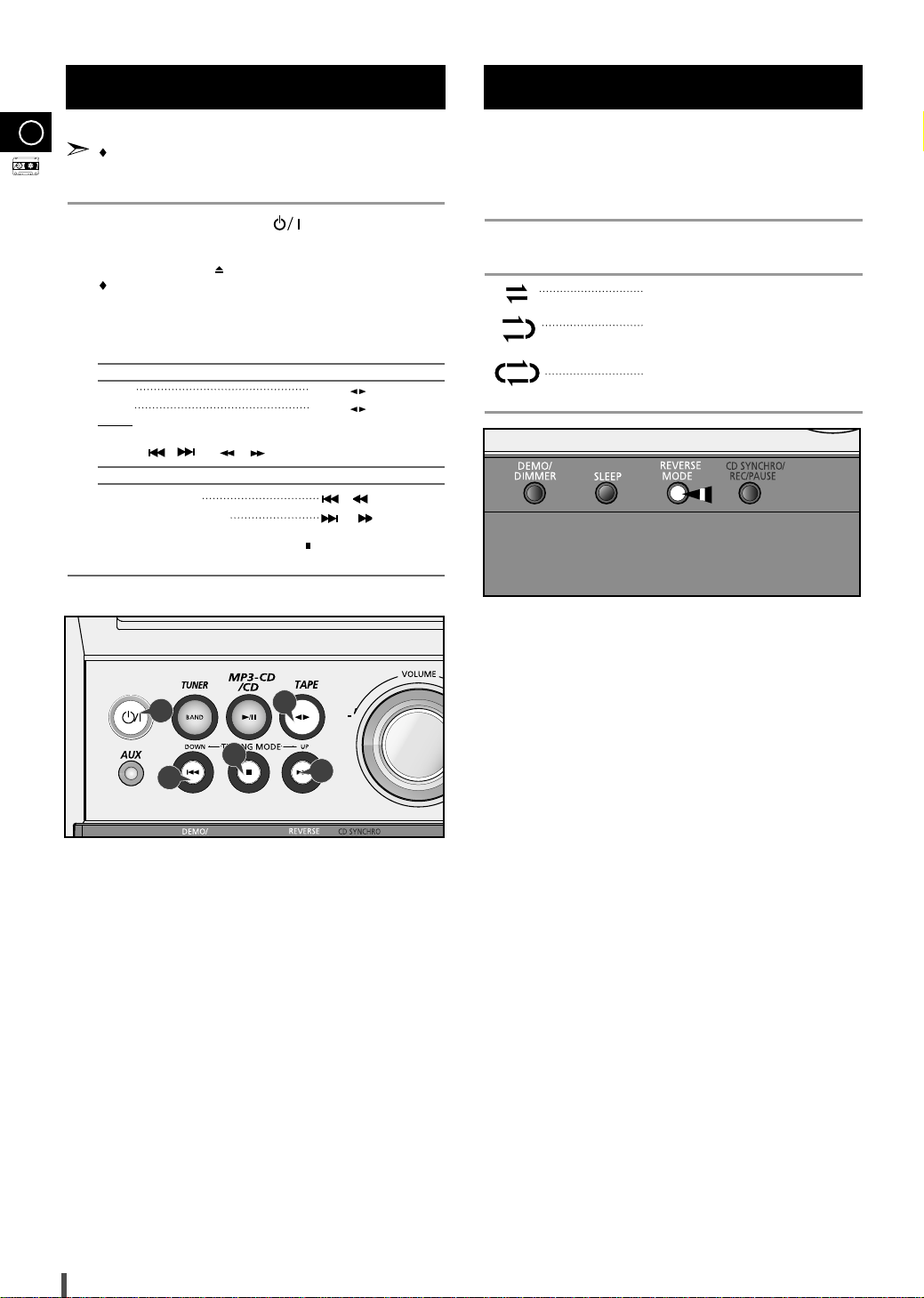

Listening to a Cassette ............................................................................................................................................................................18
Selecting the Cassette Playback Mode ..................................................................................................................................................18
Recording a Compact Disc ......................................................................................................................................................................19
Recording a Radio Program ....................................................................................................................................................................19
O
THERFUNCTIONS
Timer Function ........................................................................................................................................................................................20
Canceling the Timer ................................................................................................................................................................................20
EQ/S.BASS Function ..............................................................................................................................................................................21
SRS WOW Function ..............................................................................................................................................................................21

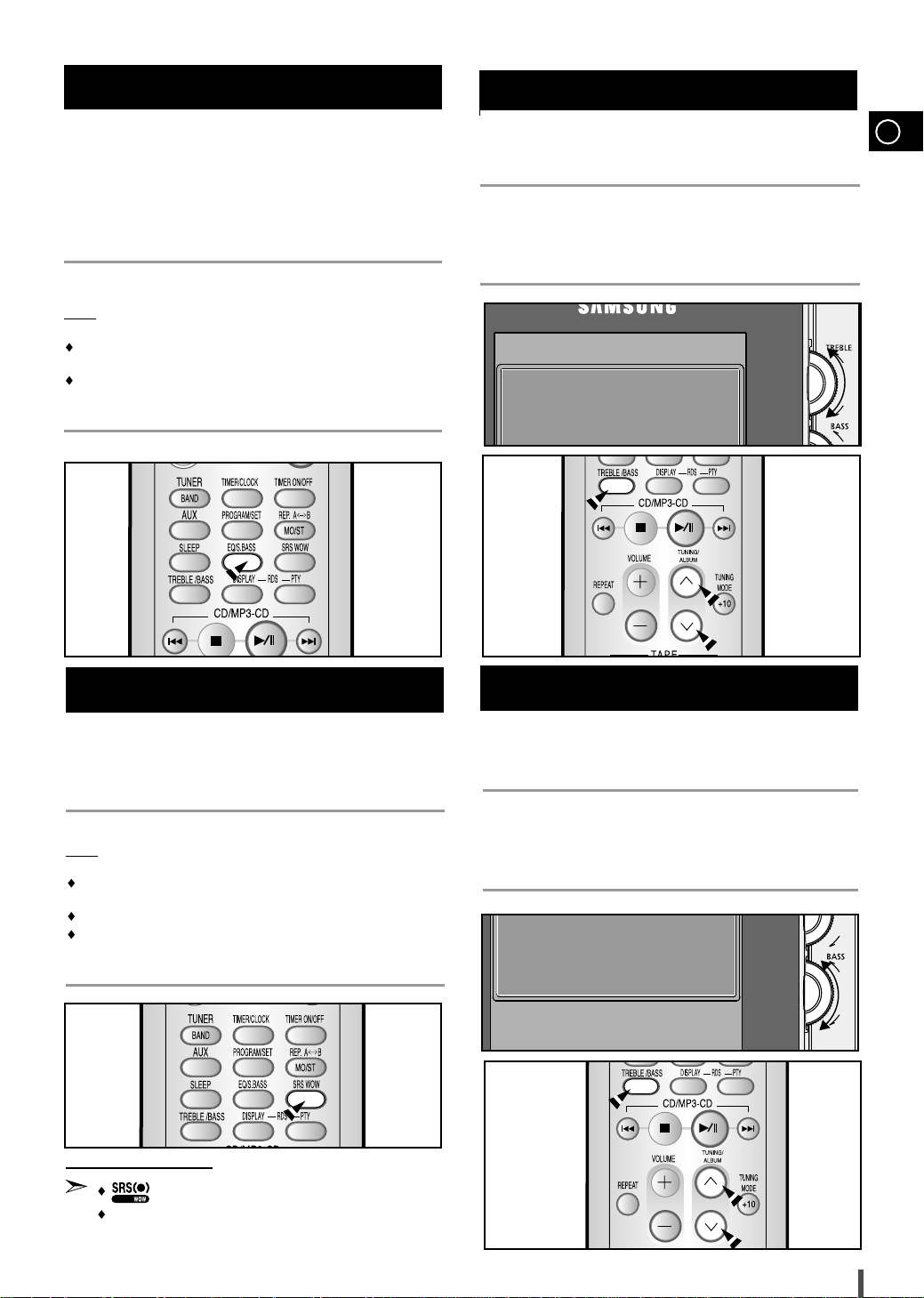

Treble Level Function ..............................................................................................................................................................................21
Bass Level Function ................................................................................................................................................................................22

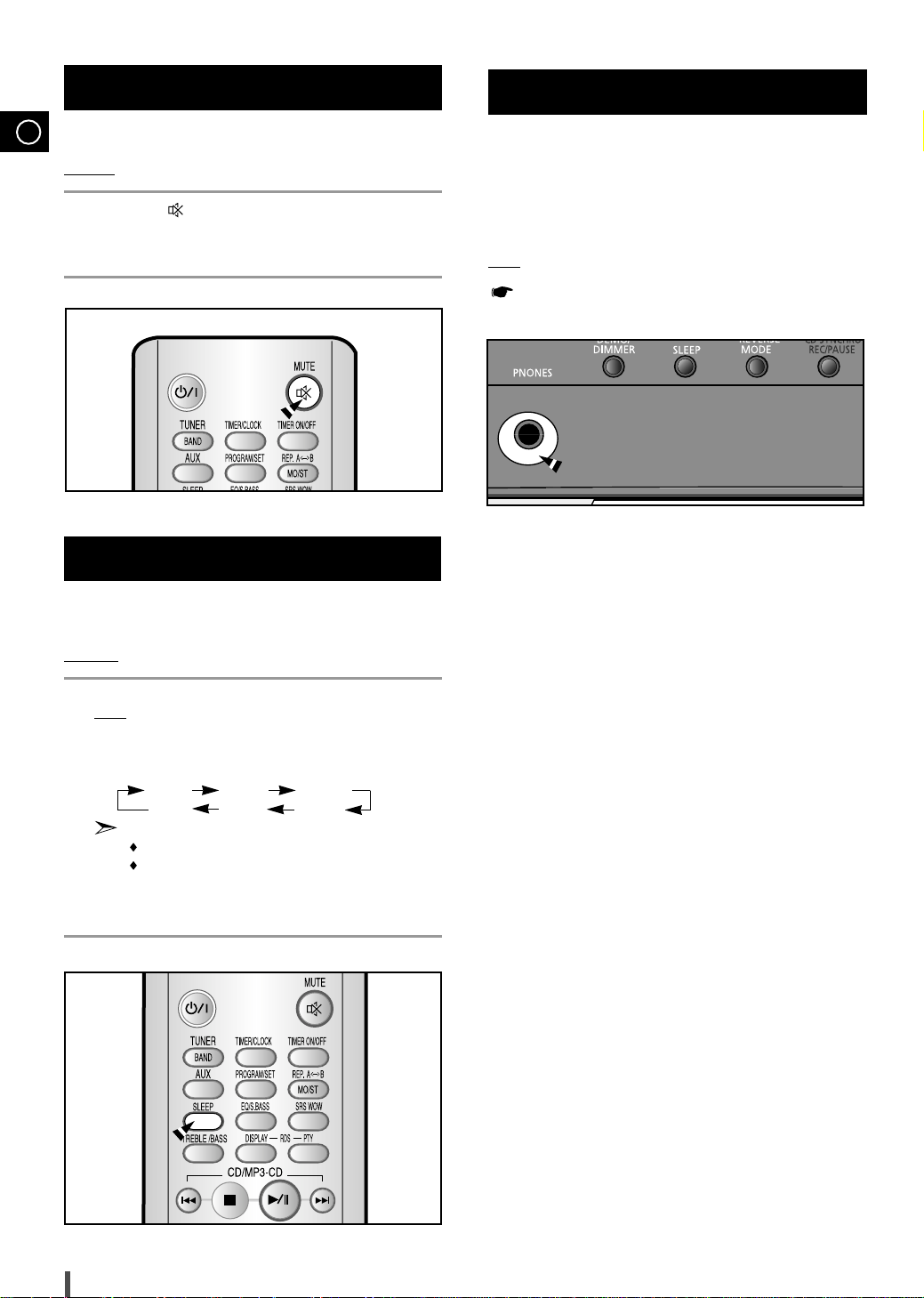

MUTE Function ........................................................................................................................................................................................22
Setting the System to Switch off Automatically........................................................................................................................................22
Connecting Headphones..........................................................................................................................................................................22
R
ECOMMENDATIONS FORUSE

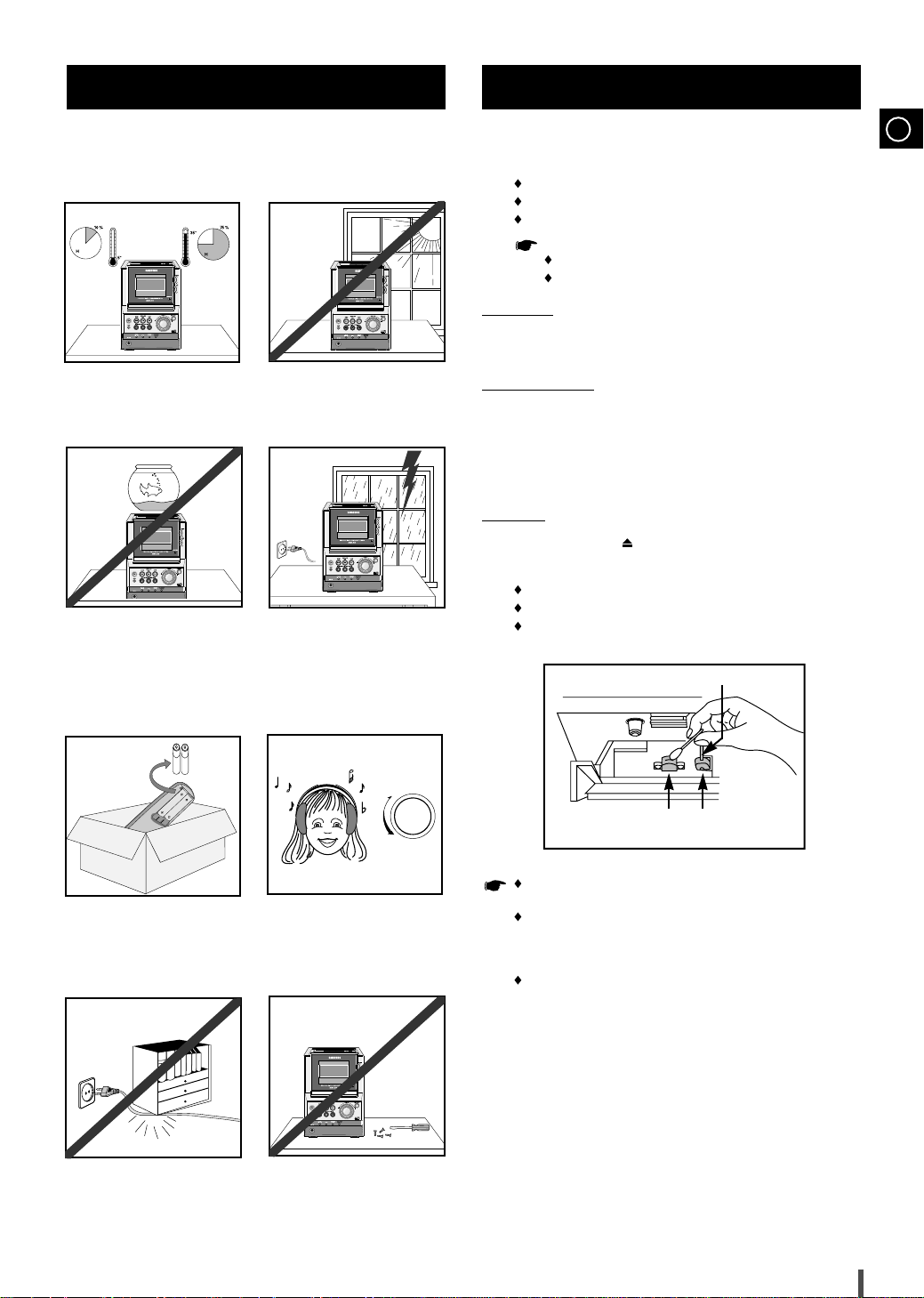

Safety Precautions ..................................................................................................................................................................................23

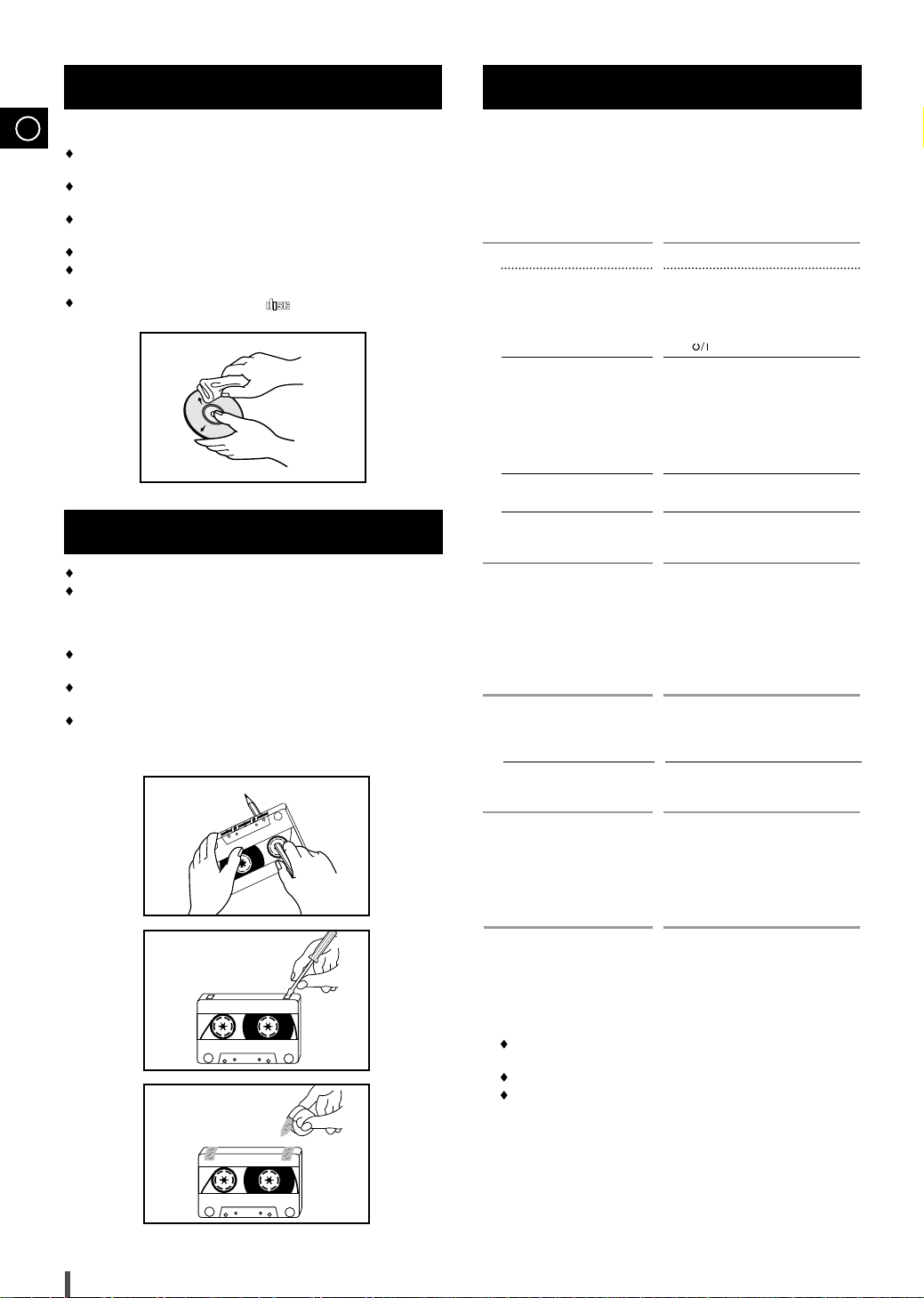

Cleaning Your Micro Component System ................................................................................................................................................23
Precautions When Using Compact Discs................................................................................................................................................24
Precautions When Using Audio Cassettes..............................................................................................................................................24
Before Contacting the After-Sales Service ..............................................................................................................................................24
Technical Specifications ..........................................................................................................................................................................25
.................................................................................................................................................................................. 2
LAYER
Thank you for buying this
SAMSUNG micro component system.
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
GB
Symbols
Press Push Important Note
3
Page 4
GB

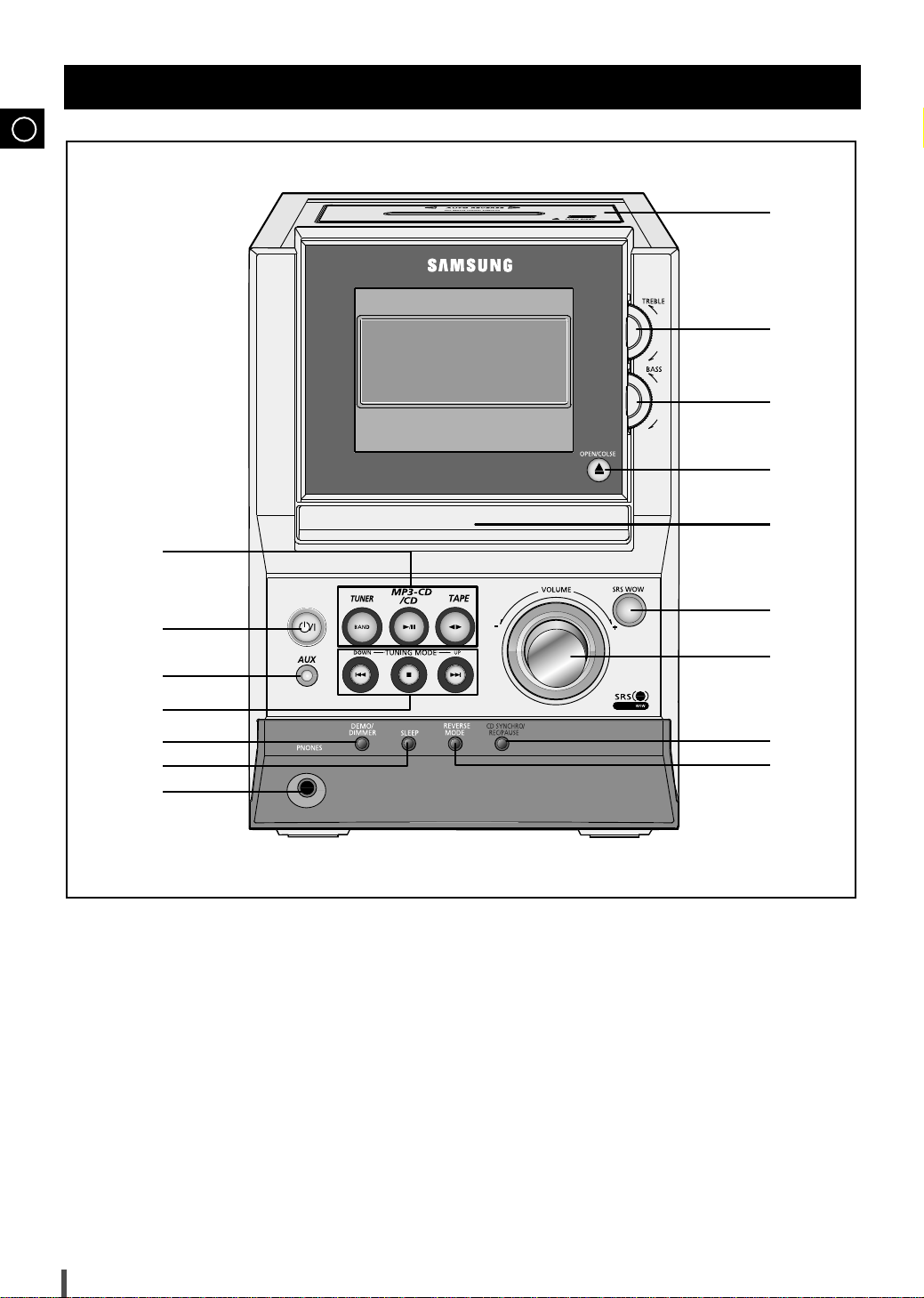

Front Panel View
16
15
14
13
12
1
2
3
4
5
6
7
1. FUNCTIONS (TUNER/CD/TAPE)
STANDBY/ON
2.
3. AUX
SEARCH FUNCTION BUTTONS
4.
TUNING MODE OR STOP BUTTON
5.
DEMO/DIMMER
6.
SLEEP
7.
HEADPHONE JACK CONNECTOR
8. REVERSE MODE
9. CD SYNCHRO / REC/PAUSE
10. VOLUME CONTROL
11. SRS WOW
12. DISC TRAY
13. CD DOOR OPEN/CLOSE
14. BASS LEVEL
15. TREBLE LEVEL
PUSH EJECT
16.
(CASSETTE DOOR OPEN/CLOSE)
11
10
9
8
4
Page 5

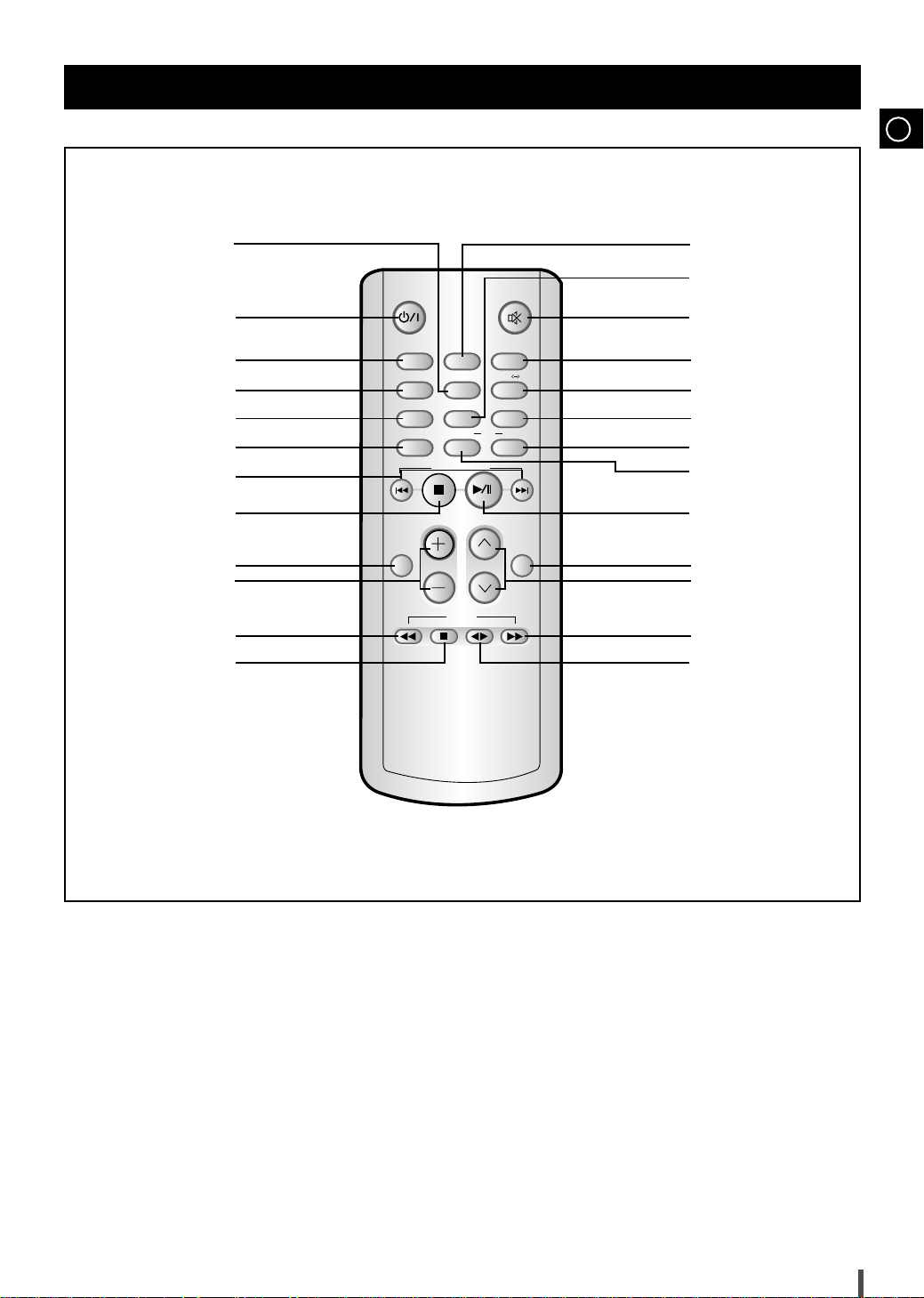

Remote Control
TAPE
TUNER
BAND
MO/ST
TIMER/CLOCK TIMER ON/OFF
AUX
PROGRAM/SET REP. A B
SLEEP
EQ/S.BASS
REPEAT
TUNING
MODE
VOLUME
MUTE
+10
TREBLE /BASS
DISPLAY
PTYRDS
TUNING/
ALBUM
CD/MP3-CD
SRS WOW
GB
10
11
12
1
25
24
2
3
4
5
6
7
8
9
23
22
21
20
19
18
17
16
15
14
13
1. PROGRAM/SET
2. STANDBY/ON
3. TUNER/BAND
4. AUX
5. SLEEP
6. TREBLE/BASS LEVEL
7. CD SKIP OR SEARCH
8. CD STOP
REPEAT
9.
10. VOLUME CONTROL
11. TAPE REWIND
12. TAPE STOP
13. TAPE PLAY
14. TAPE FAST-FORWARD
15. TUNING UP OR DOWN / ALBUM SKIP
16.
TUNING MODE/+10
17. CD PLAY/PAUSE
18. DISPLAY(RDS)
19. PTY(RDS)
20. SRS WOW
21. REPEAT A↔B / FM MONO/STEREO
22. TIMER ON/OFF
23. MUTE
24. EQ/SUPER BASS
25. TIMER/CLOCK
5
Page 6
GB

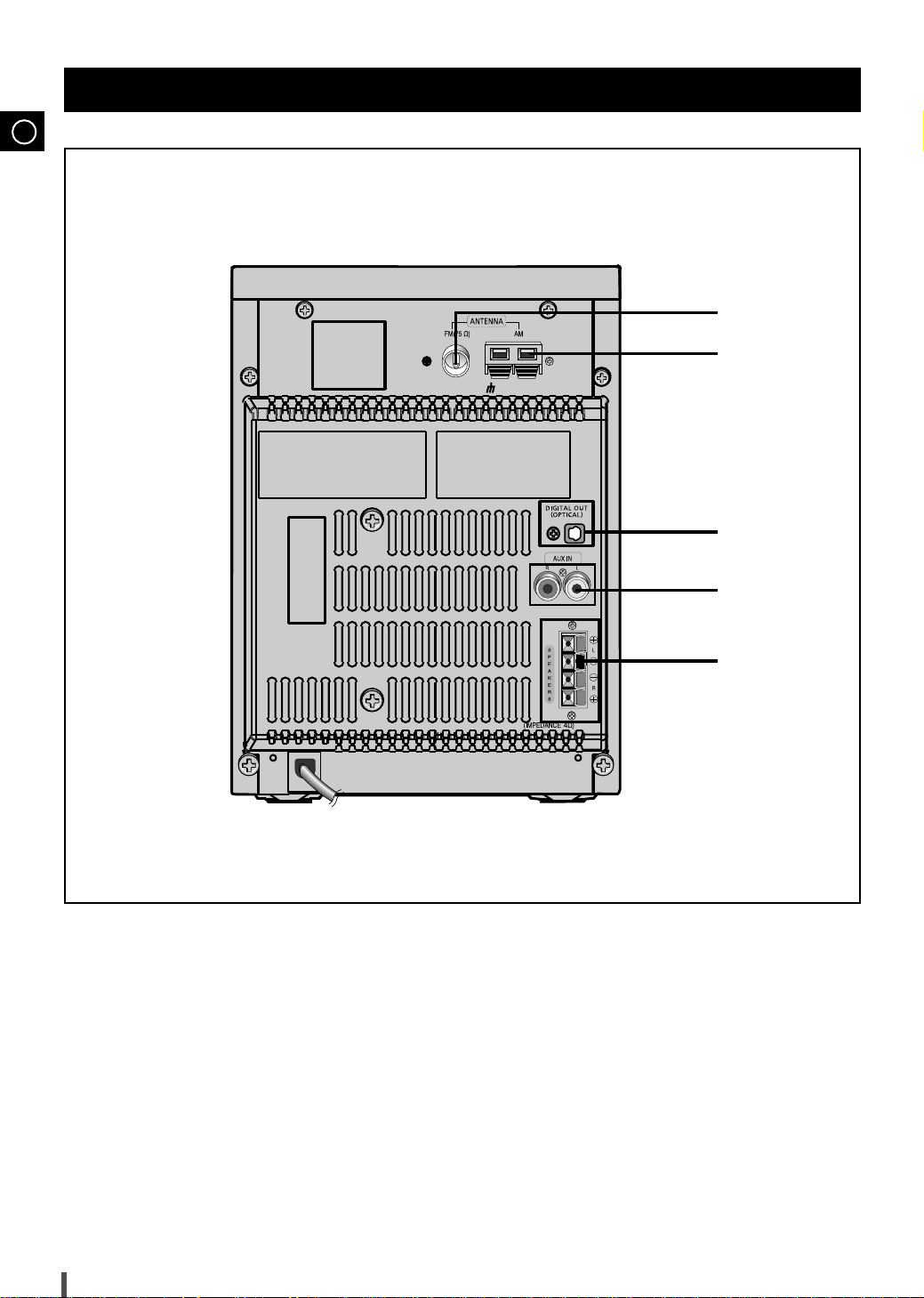

Rear Panel View
1
2
3
4
1. FM Aerial Connector Terminal
2. AM Aerial Connector Terminals
3. CD Digital Out(optical)
4. AUX-Input
5. Loudspeaker Connector Terminals
5
6
Page 7

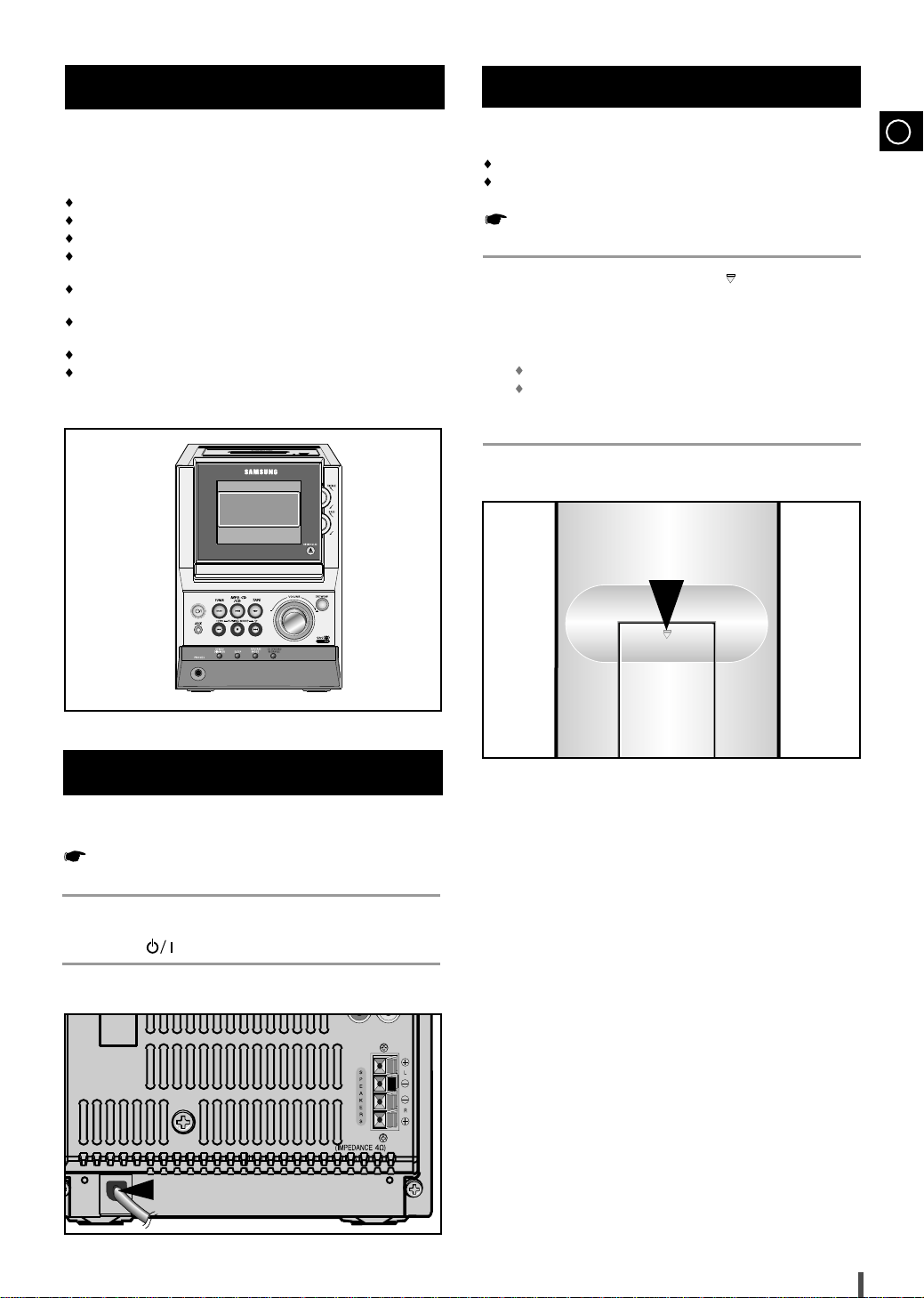

Where to Install Your Micro Component System
Inserting Remote Control Batteries
To take full advantage of your new micro component system,
follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.
Insert or replace remote control batteries when you:
Purchase the micro component system
Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery
1
compartment cover (rear of the remote control) and push the cover in
the direction of the arrow.
Insert two AAA, LR03 or equivalent batteries, taking care to respect
2
the polarities:
+ on the battery against + in the battery compartment
– on the battery against – in the battery compartment
Replace the cover by sliding it back until it clicks into position.
3
GB
Connecting your System to the Power Supply
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check
the voltage.
Plug the main lead into an appropriate socket.
1
Press the ( ) button to switch your micro component system on.
2
7
Page 8

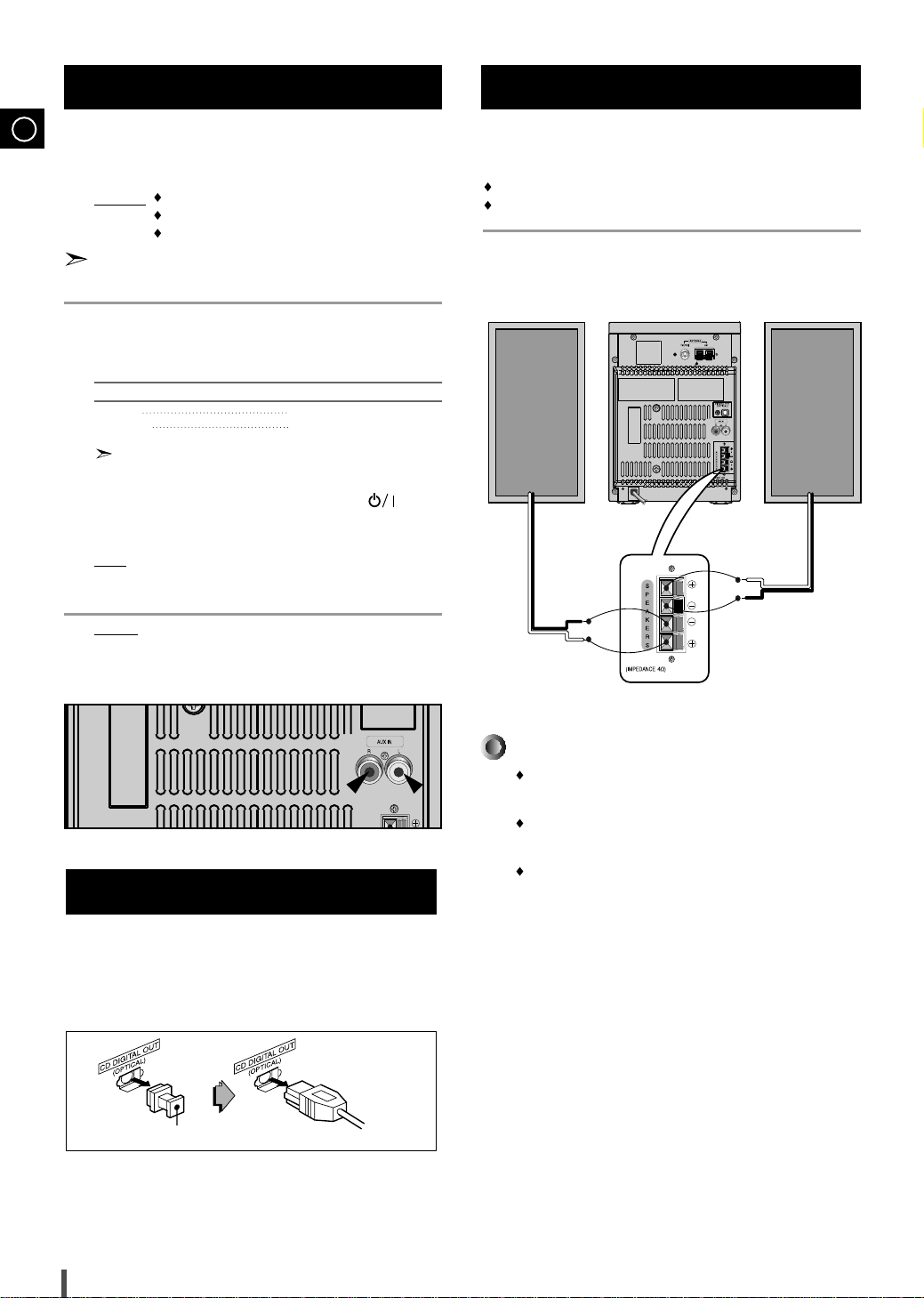

Connecting to an External Source
(+) (-) (+) (-)
L
R
GB
The auxiliary input can be used to take advantage of the
sound quality of your micro component system when listening
to other sources.
Examples
: A television
A video disc player
A Hi-Fi stereo video cassette recorder
To connect to the external source, the source must have an
audio output. In addition, you need an RCA connection cable.
Set the system to standby mode and disconnect it and the external
1
source from the main socket.
Connect the audio cable to the rear of the micro component system.
2
Connect the... To the connector marked...
Red jack R (right)
White jack L (left)
For optimum sound quality, do not invert the right and left
channels.
Plug the system back into the main socket and press ( ) to
3
switch it on.
Select the AUX source by pressing AUX.
4
Result: AUX is displayed.
Switch the external source on.
5
Speaker Connection
Main Speaker Connection: Connect the Speaker cords
(red/black) to the Main Speaker jacks of System.
Red wire to the + terminals
Black wire to the – terminals
(Right Speaker) (Left Speaker)
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo (as if you
were in a cinema).
CD Digital Out Jack
This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment.
(DAT deck, MD recorder, etc.).
Remove the dust cap (1) from the CD DIGITAL OUT jack.
Then, connect an optical cable plug to the CD DIGITAL OUT jack.
(1)
Directions in Installing Speaker
Installation in a place near heating apparatus, under direct lay of
light or with high humidity may cause performance degradation
of the speaker.
Do not install on the wall or on a high place of pole or other
unstable place to prevent any safety accident caused by falling
of the speaker.
Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the
quality of the screen display.
When the CD DIGITAL OUT jack is not being used.
Attach the supplied dust cap.
8
Page 9
Connecting the AM (MW)/LW Aerial
The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of the system and are marked AM ANT.
To avoid noise interference, check that the loudspeaker wires do not run close to the
aerial wires.
Always keep them at least 2 inches (5 cm) away.
GB
Connecting the FM Aerial
How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 15 to tune into a radio station, and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).
9
Page 10

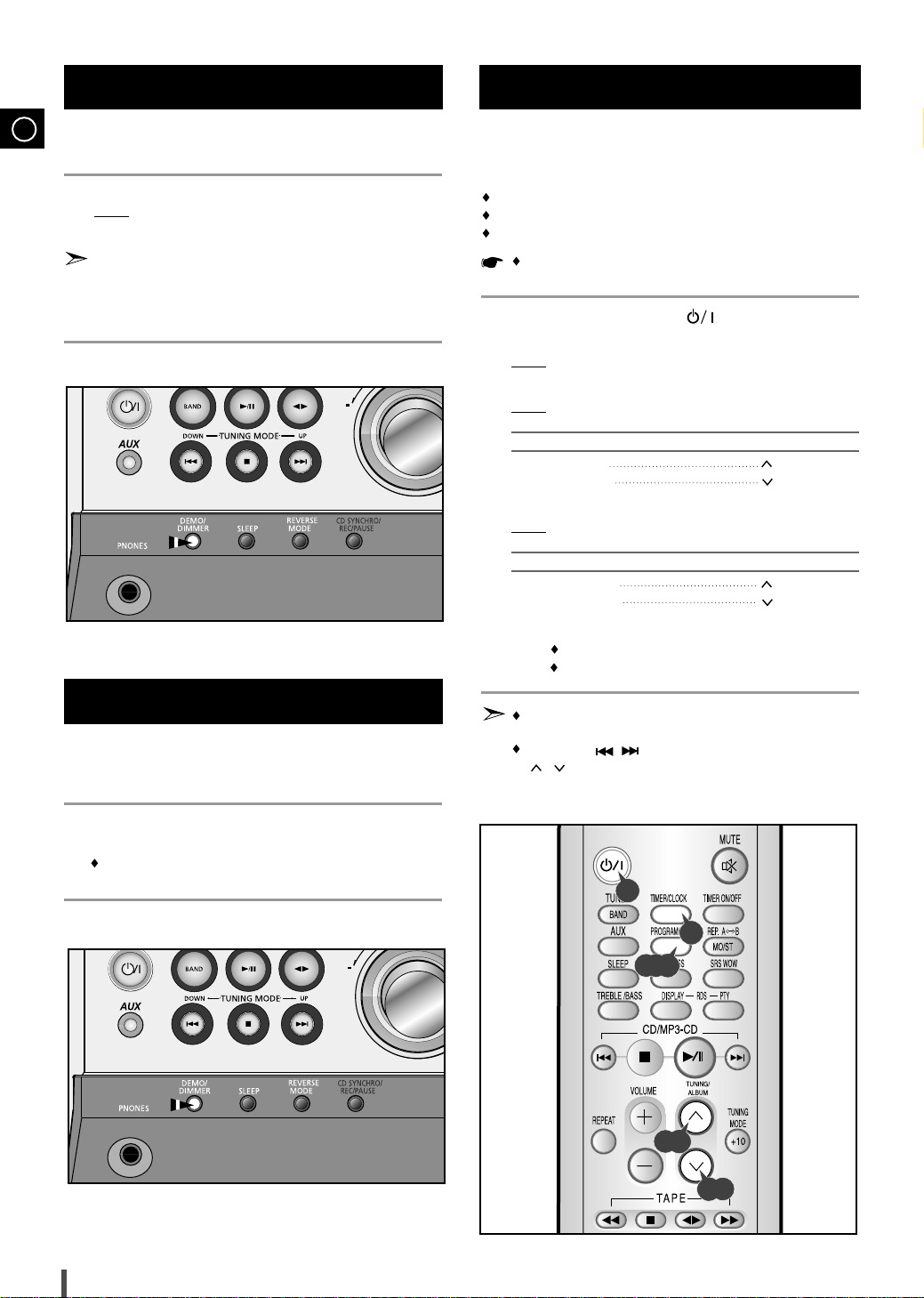

DEMO Function
GB
You can view the various functions available on your system.
Press and hold DEMO/DIMMER button.
1
Result: The various functions available are listed in turn on the
display.
All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the appropriate
sections.
To cancel this function, press DEMO/DIMMER again.
2
Setting the Clock
Your system is equipped with a clock which allows you to
turn your system on and off automatically.
You should set the clock:
When you first purchase the micro component system
After a power failure
After unplugging the unit
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing ( ) .
1
Press TIMER/CLOCK twice.
2
3
4
5
6
7
CLOCK is displayed.
Result:
Press PROGRAM/SET.
The hour flashes.
Result:
To... Press...
Increase the hours
Decrease the hours
When the correct hour is displayed, press PROGRAM/SET.
Result:
The minutes flash.
To... Press...
Increase the minutes
Decrease the minutes
When the correct time is displayed, press PROGRAM/SET.
Result: "TIMER" appears in the display.
The current time is now set.
DIMMER Function
You can adjust the brightness of the LCD display depending
on the surrounding lighting conditions.
Press the DEMO/DIMMER button.
1
Your selection switches each time the button is pressed:
DIMMER ON(Dim) ➞ DIMMER OFF(Bright).
You can display the time, even when you are using another
function, by pressing TIMER/CLOCK once.
You can use
/
buttons on the remote control.
buttons on the front panel to instead of
/
1
2
3,5,7
4,6
4,6
10
Page 11

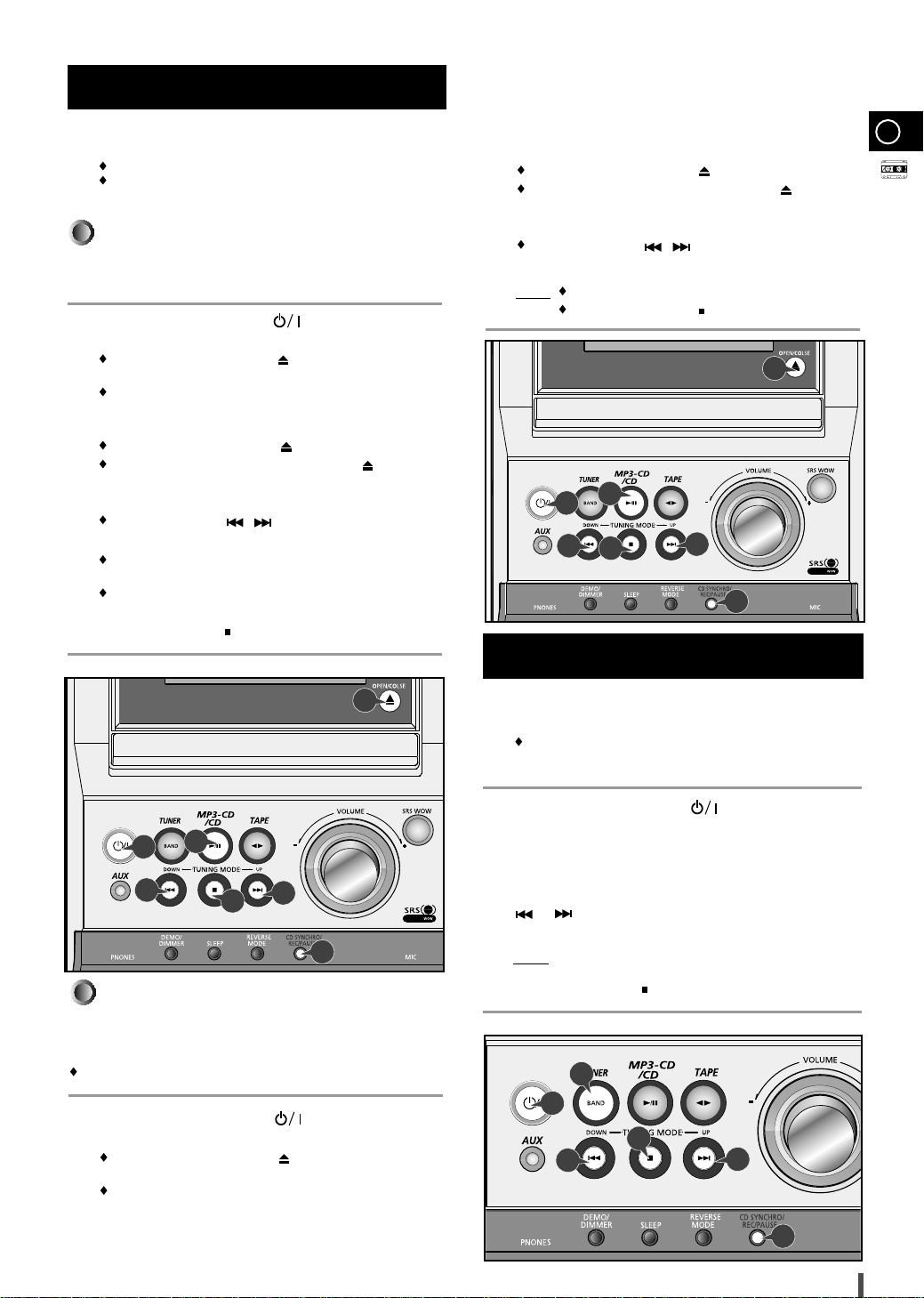

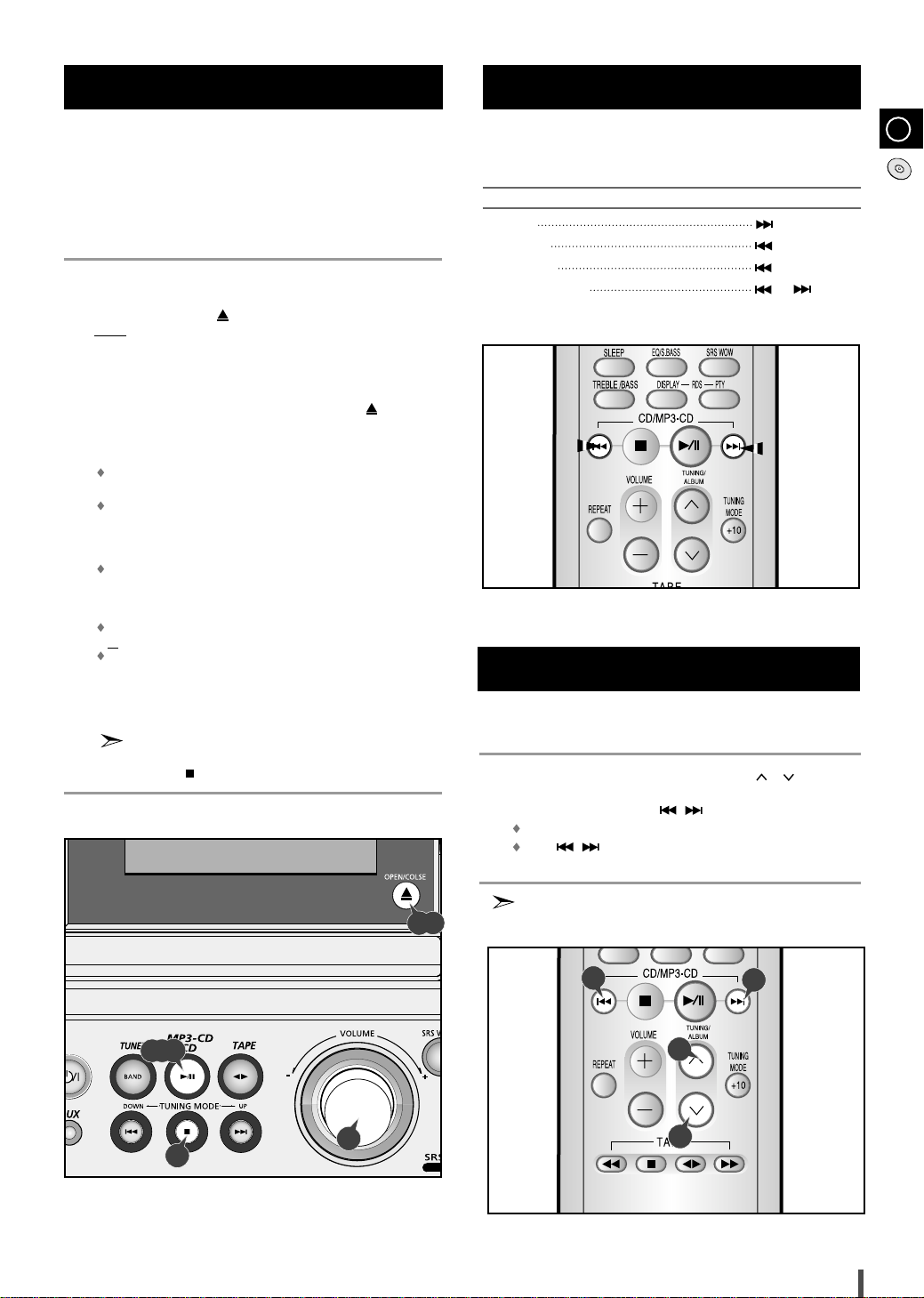

To replay the CD/MP3-CD
You can play 12 cm or 8 cm compact discs without an
adapter.
This unit has been designed to playback the CDs: Audio CD,
CD Text, CD-R, CD-RW and MP3-CD.
Continued use of irregular shape CDs (heart-shape, octagonal,
etc.) can damage the unit.
Select the CD function by pressing CD(
1
Press the Open/Close ( ) button.
2
Result
: The compartment opens.
Place your disc in the compartment, with the label on the disc facing
3
upwards.
Close the compartment by pressing the Open/Close ( ) button
4
again.
√/»
) button.
Selecting a Track
You can select the track you wish to listen to, either when the
compact disc player is stopped or when a disc is playing.
To start playback at the beginning of the...
Next track once
Current track once
Previous track twice
Track of your choice or the
Press...
appropriate number
of times.
GB
Press the CD(
5
Your CD Player will take a few moments to scan through all
the tracks recorded on a particular MP3-CD
The English name of the song may be indicated on the display
only if directly downloaded from the PC or if the purchased
MP3-CD is sorted according to titles(directory).
(Other languages besides English may not be indicated.)
The English name of the track may not be indicated depending on the characteristics of the MP3-CD.
Adjust the volume according to needs with the following procedures.
6
Turn the VOLUME control of the main unit.
or
Press the VOLUME + or –button of the remote control.
The volume level can be adjust in 31 steps(VOL MIN,VOL 1-
VOL 29,and VOL MAX).
To stop playback temporarily, press the CD (
7
8
Press CD (
Press the STOP ( ) button when you have finished.
) button.
√/»
) again to continue playing the disc.
√/»
√/»
) button.
2,4
To select the MP3-CD album and track
The album and track of the MP3-CD desired to listen may be
selected on stopping or during playbacks.
To move the album, press the TUNING/ALBUM
1
To move the track, press the , button.
2
Moves the track within the album.
If the , button is pressed more than the number of
tracks within the album, it moves to the next album.
This function works only with remote control.
/
button.
1,5,7
2
2
1
6
1
8
11
Page 12
GB
Kevin01.mp3
Album 01
(E) CD-ROM drive
Kevin02.mp3
Kevin03.mp3
Kevin04.mp3
Life.doc
Skipped
Album 02
Summer05.mp3
Summer06.mp3
Garden.mp3
Garden.mp3
Album 04
Album 03
Michael07.mp3
Michael08.mp3
Water.mp3
Water.mp3
Album 05
Skipped
Kenny01.wav
Kenny02.wav
Butterfly.mp3
Album 06
Piano14.mp3
John15.mp3
Album 07

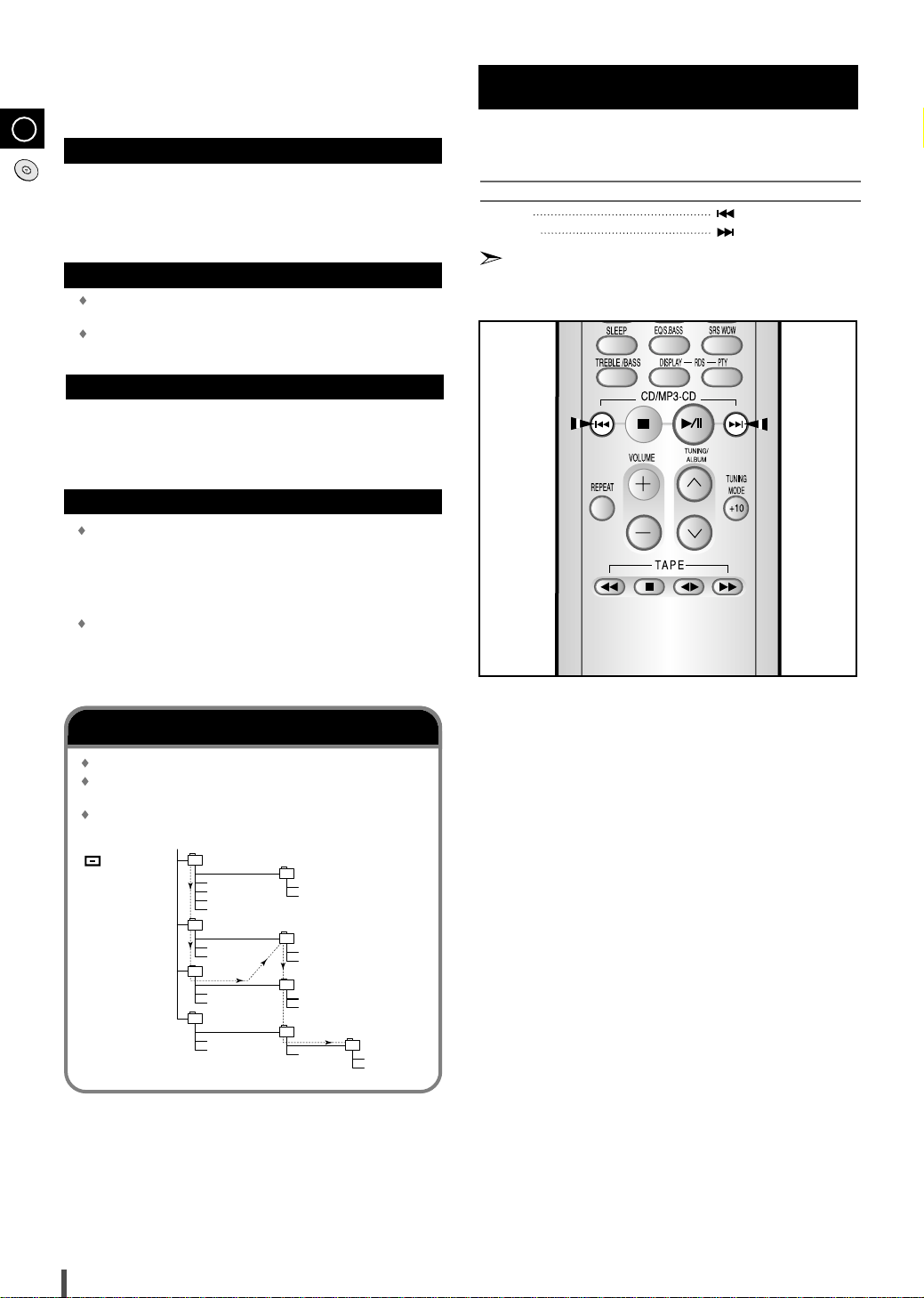

Searching for a Specific Music Passage on a CD
What is MP3?
MP3 means MPEG1 Layer 3, the global standard for audio
signal compression technology. It uses digital compression
technology to compress original sound data by up to 12 times
without sound quality degradation.
File Compatibility
The unit will playback files created in MP3 format
(Mpeg1.Layer3) with *.mp3 as their extension.
Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as
their extension can also be played back.
How many MP3 files can a CD-R or CD-RW disc record?
The maximum capacity of one CD-R or CD-RW disc is
740MB.
Normally, one MP3 file has a capacity of 4MB, therefore
approximately 180 files can be recorded on a single disc.
Regarding the playback of CD-R/RW
In the case of an original CD-R(Recordable) recorded in
audio CD format, CD-RW(Rewritable) and editing by
the user, playback is processed on the respective
completed status. (The player may not be played back
according to the characteristics of the CD or recorded
status.)
The CD-RW is comparably less reflexive than CD which
causes more time delay to read.
When listening to a compact disc, you can quickly search for a
specific music passage on a track.
To search through the tracks... Press and hold down...
Forwards for at least one second
Backwards for at least one second
It is recommended that you turn the volume down before using
this function.
Playback sequence of albums and tracks
In case of Window Explorer display.
The arrows indicates playback sequence of albums and
tracks.
Tracks with jpg, wav or doc only are not audio files and
therefore will be skipped.
12
Page 13

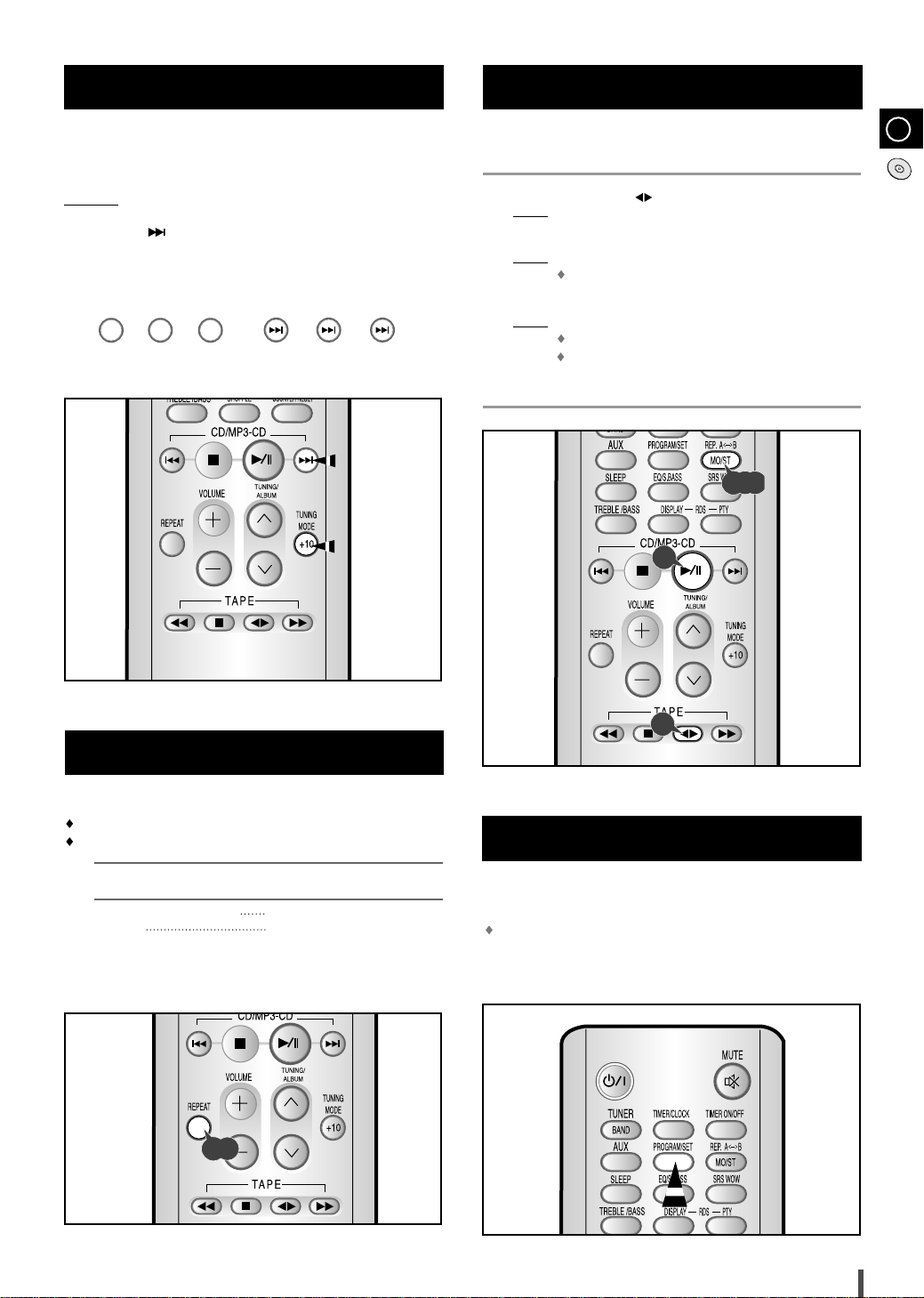

Function to skip through 10
+10 +10 +10
tracks at a time
Press the +10 button briefly while playing back a
CD. The track 10 tracks after the current one will then
be played back.
Example:
15 ➝20 ➝30 ➝40 ➝41 ➝42 ➝43
If you want to select track 43 during playback of track
15, press the +10 button three times, and then press
the
button three times.
REPEAT A↔B Function
(This function is not available during playback of an MP3-CD.)
When you select CD(TAPE) Repeat (A↔B) playback, the music
passages to which you were listening is repeated 3 times.
Press CD(
1
Result:
Press REP. A↔B button.
2
Result: The indications appear: START
Press REP. A↔B button.
3
Result:
When you have finished the Repeat playback, press REP. A↔B.
4
) / TAPE( ) button.
√/»
The CD(TAPE) player starts playing.
A Time is memorized.
The indications appear: END
B Time is memorized.
Your selected passages are repeated 3 times.
2,3,4
1
GB
Repeating One or All Tracks on the Compact Discs
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
To repeat... Press Repeat on the remote
1
The current track indefinitely REPEAT 1 is displayed
All tracks REPEAT ALL is displayed
To cancel this function, press REPEAT again.
2
1,2
control one or more times until...
1
Last Memory Function
(This function is only available during playback of an MP3-CD.)
When CD playback is selected again after your CD player has been
stopped or turned off, this function allows playback from the start of the
track that you last listened to.
Press the PROGRAM/SET button while your MP3-CD is being
played back.
The LAST ON and LAST OFF may be repeatedly selected.
13
Page 14
GB
You can decide:
1
2
3
4
5

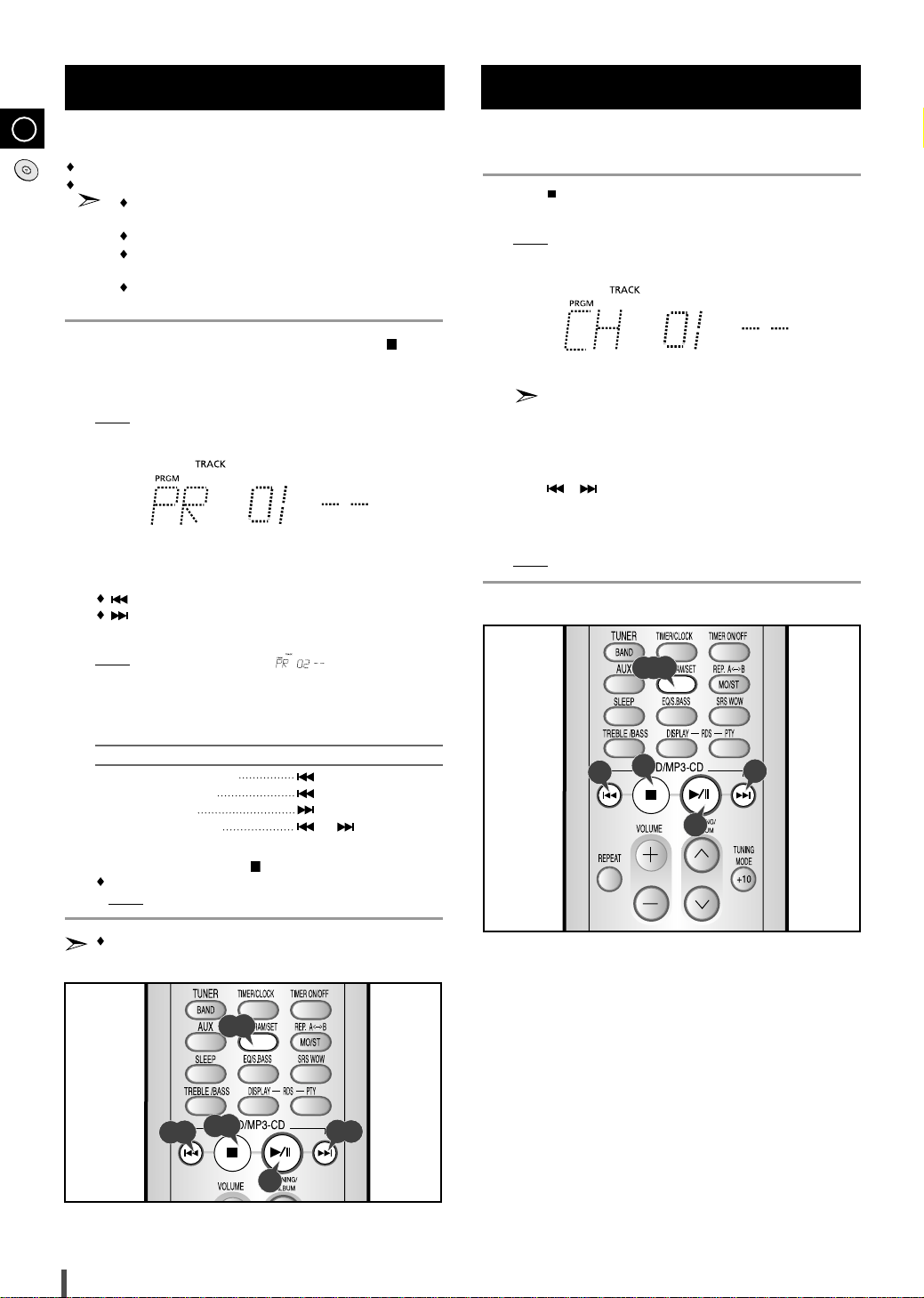

Programming the Order of Playback
(This function is not available during playback of an MP3-CD.)
The order of the track desired to listen
The track not desired to listen
A maximum of up to 24 order of tracks desired to listen
may be programmed.
Before selecting the track, the CD player should be stopped.
This function may be used simultaneously with the CD
Repeat function.
In the case of the MP3-CD, the PROGRAM/SET button
may be used as the RESUME ON, OFF function.
If the CD function is selected, stop the player by pressing button.
Load the selected CD.
Press PROGRAM/SET.
Result: The following indications are displayed:
Checking or Changing Programmed Tracks
You can check or change your selection of tracks at any time.
1
2
3
4
5
(01 = Program no., -- -- = Track no. on the disc)
Select the required track by pressing:
to move back through the tracks
to move forward through the tracks
Press PROGRAM/SET to confirm your selection.
Result:
The selection is stored and is displayed.
6
Press once if you have started listening to the selection.
Press PROGRAM/SET button twice.
Result: The following indications are displayed:
(01 = Program no., – – = Track no. on the disc)
If you have already programmed 24 tracks, Check is displayed
instead of CH when you press PROGRAM/SET.
Press PROGRAM/SET one or more times until the track to be
changed is displayed.
Press or to select a different track.
Press PROGRAM/SET to confirm your change.
Press CD (
Result:
)
to start listening to the selection.
√/»
The first track selected is played.
2,3,5
To select other tracks, repeat Steps 4 to 5.
6
Press CD (
7
To... Press...
8
Listen to the current track again
Listen to the previous track
Listen to the next track
Skip forwards or backwards
one or more tracks number of times
To cancel the selection, press button.
9
Once if the compact disc player is stopped
Result: PROG is no longer displayed.
If you open the compartment, the selection is cancelled.
) to listen to the track selection in the order programmed.
√/»
once
twice
once
or the appropriate
3,5
4,8
1,9
4,8
7
1
4
4
6
14
Page 15

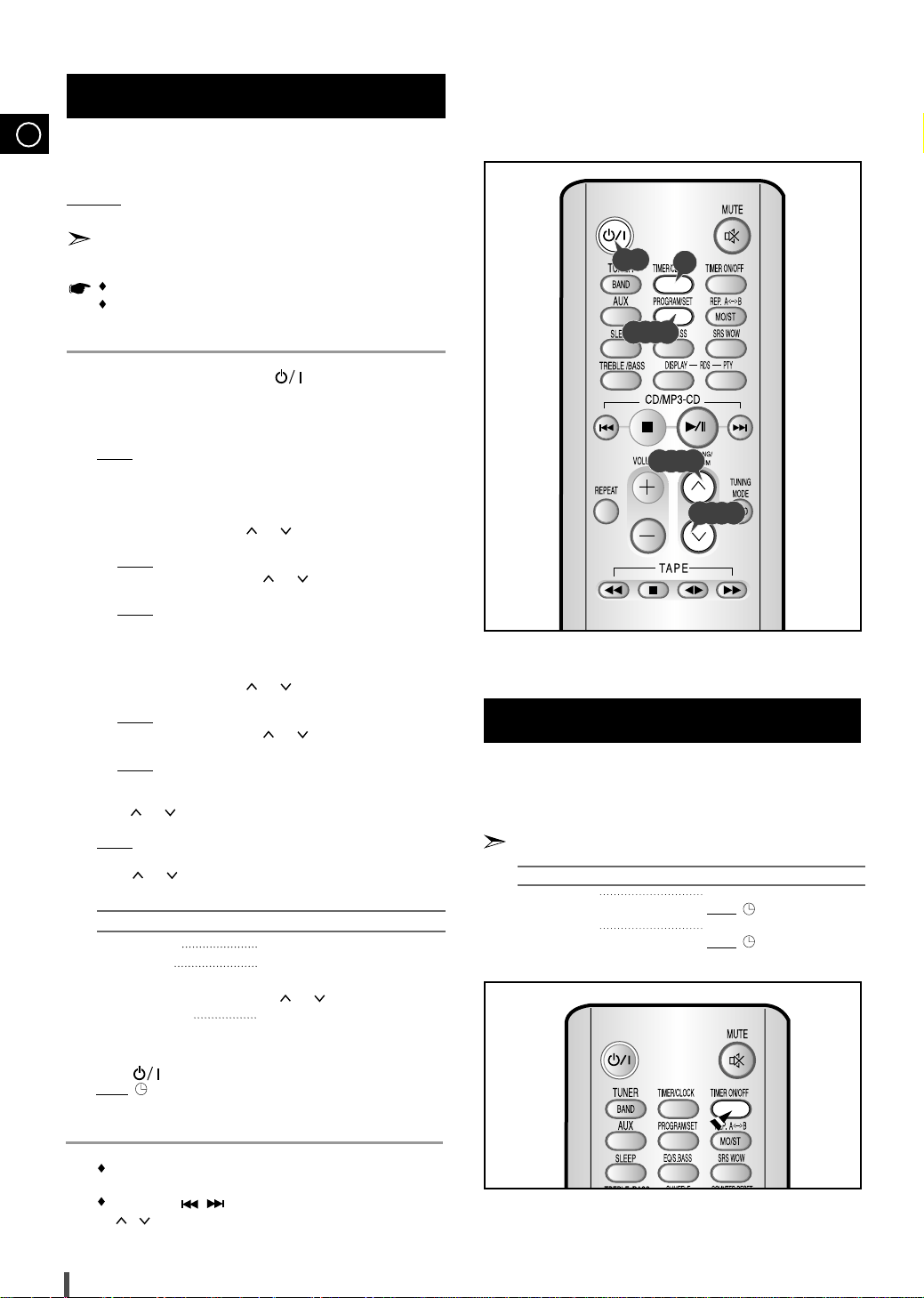

Searching for and Storing the Radio Stations
You can store up to:
15 FM stations
8 MW stations
7 LW stations
Switch the system on by pressing ( ).
1
Select the required frequency band by pressing TUNER/BAND
2
again on the front panel or BAND on the remote control.
Result: The appropriate indication is displayed:
FM Frequency Modulation
MW Medium Wave
LW Long Wave
To search for a Press TUNING MODE
3
station...
Manually One or more times until MANUAL
Automatically One or more times until AUTO is
PRESET function is explained in detail in the section
“
Selecting a Stored Station
Select the station to be stored by:
4
Pressing or buttons
buttons
on the remote control
frequency respectively.
To scroll through the frequencies faster when
searching manually, hold down the or buttons.
The automatic search procedure may stop on a
frequency that does not correspond to a radio station.
If this happens, use the manual search mode.
If you do not want to store the radio station found, revert to Step 4
5
and search for another station.
Otherwise:
a Press PROGRAM/SET.
Result:
The PROG is displayed for a few seconds.
b Pressing or buttons
buttons
on the remote control
c Press PROGRAM/SET to store the radio station.
Result:
PROG is no longer displayed and the station is stored.
To store any other radio frequencies required, repeat Steps 3 to 5.
6
The PROGRAM function can be used to assign a new station
to an existing program number.
is displayed.
displayed.
” on.
on the front panel or or
to increase or decrease the
on the front panel or or
to assign a program number .
Selecting a Stored Station
You can listen to a stored radio station as follows:
Switch the system on by pressing ( ) .
1
Select the required frequency band by pressing TUNER/BAND on
2
the front panel.
Select the radio station as follows.
3
To listen to ... Press ...
Stored station 1. the TUNING MODE button until
1
3
“PRESET” is displayed.
2. or button to select the
required program.
2
3
3
Improving Radio Reception
You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial
If reception from a specific FM radio station is poor, press MO/ST.
to switch from stereo mode to mono. The quality of the sound will be
improved.
GB
2
5
4
3
5
4
2
5
5
4
5
4
3
15
Page 16

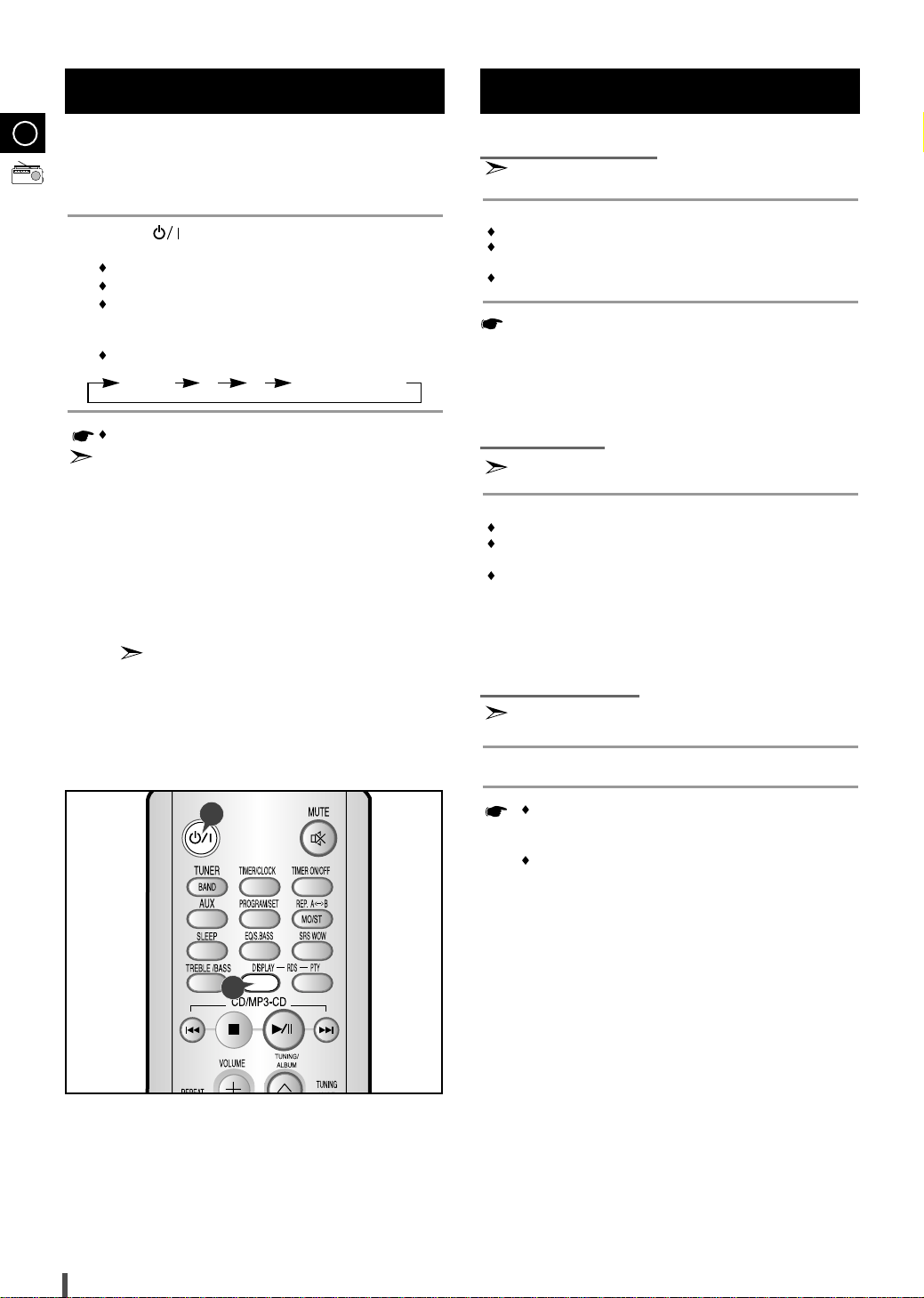

About RDS broadcasting
GB
This unit has the RDS (Radio Data System) function, which enables for
the various information such as broadcasting station, radio text, time
and 30 types of programs (News, Rock, Classic, etc.) to be received
from the FM RDS station together with normal radio signal.
Press the ( ) button.
1
Receive the FM radio.
2
See the radio receiving method on the page 15.
FM and frequency are shown on the display
If the received station transfers the RDS information, 'RDS'
appears automatically on the display.
Press the RDS Display button to select the desired RDS mode.
3
Whenever the button is pressed, RDS mode changes as follows.
PS NAME RT CT Current FM frequency
About RDS DISPLAY function
About "PS NAME" MODE
Displays the name of broadcasting station.
Press the RDS DISPLAY button to select the PS NAME.
"PS NAME" appears on the display.
If the PS information is being received, the PS name (BBC, AFO, NDR,
etc.) is shown on the display.
If the PS information isn't received, the original FM frequency is shown.
Even though no RDS DISPLAY button is pressed, the reception
of PS information ensues the PS name is displayed.
The RDS function is available only in FM broadcasting.
Description on RDS function
1. PTY(Program Type) : Displays the type of programme
currently being broadcast
2. PS NAME(Program Service Name) : Indicates the name of
broadcasting station and is composed of 8 characters.
3. RT(Radio Text) : Decodes the text broadcast by a station (if
any) and is composed of maximum 64 characters.
4. CT(Clock Time) : Decodes the real time clock from the FM
frequency.
Some stations may not transmit PTY, RT or CT
information therefore this may not be displayed in all
cases.
5. TA(Traffic Announcement) : When this symbol flashes it
shows that the traffic announcement is in progress.
1
About 'RT' MODE
Displays the character transmitted from the broadcasting station.
Press the RDS DISPLAY button to select the RT MODE.
"RT" appears on the display.
If the RT information is being received, the received information is
shown on the display.
If the RT information isn't received, the "NO RT" is shown.
On the display.
About CT(Clock Time)
Sets the time of RDS clock.
To select the CT time, set the RDS DISPLAY button to CT MODE.
The CT information will take up to 2 minutes to be decoded
therefore the clock isn’t displayed immediately.
If there is no received CT information, "NO CT" is
displayed.
16
3
Page 17

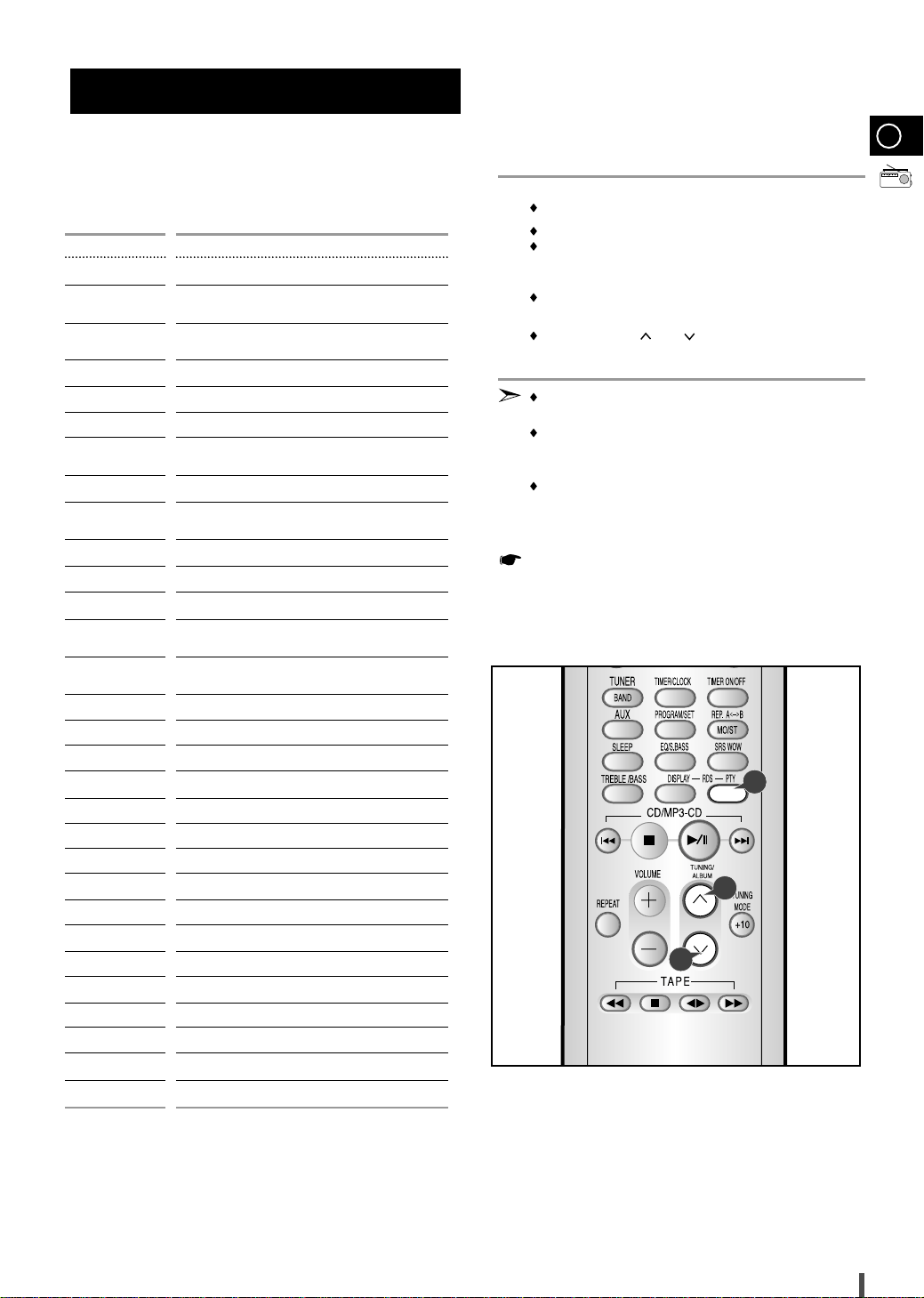

PTY(Program Type) indication and PTY-SEARCH function
◆ The PTY information is composed of an identification symbol, which helps
the FM radio to recognize the program type of each FM station.
◆ The below 30 PTY information is shown on the display by pressing the Pty
button.
Display
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M.O.R.M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
TEST
• News including an announced opinion and report
• Several matters including a current incident, documentary,
discussion and analysis.
• Information including weights and measures, returns and fore-
cast, matters interesting the customer, medical information, etc.
• Sports
• Education
• Drama-Radio serial, etc.
• Culture-National or local culture including the religious problem,
social science, language, theater,etc.
• Natural science and technology
• Others-Speech, amusing program (quiz, game), interview,
comedy and satirical play, etc.
• Pop music
• Rock music
• M.O.R- Comfortable music, occasionally vocal or piece
• Light classical music- Classical music and instrumental
and chorus music
• Heavy classical music-Orchestra music, symphony, chamber
music and opera
• Other music - Jazz, R&B country music
• Weather
• Finance
• Children’s programmes
• Social affairs
• Religion
• Phone in
• Travel
• Leisure
• Jazz Music
• Country Music
• National Music
• Oldies Music
• Folk Music
• Documentary
• Alarm Test
Program Type
About PTY-SEARCH
Receive the FM radio.
1
See the radio receiving method on the page 15.
The FM and frequency appear on the display.
If th
e received station is transmitting the RDS information, “RDS”
e r
lights up.
Press the PTY button.
2
The PTY MODE(NEWS, AFFAIRS, etc.) appears on the display.
Press the TUNING
or
button to select the desired PTY
MODE.
If the station is transmitting no PTY information, 'NO PTY' lights
on the display.
When the PTY MODE is selected(The PTY MODE is shown on
the display), press the PTY KEY once again to convert into
PTY-SEARCH MODE and auto-search the station sequentially.
If the PTY MODE received in the course of auto-search agrees
with the selected PTY MODE, the auto-search stops and the
PTY-SEARCH is finished.
If the PTY MODE which agrees with the PTY MODE selected in
the course of auto-search, isn't received, it is returned to the first
frequency at beginning the PTY SEARCH and the auto-search
and PTY SEARCH are suspended.
2
2
2
GB
17
Page 18

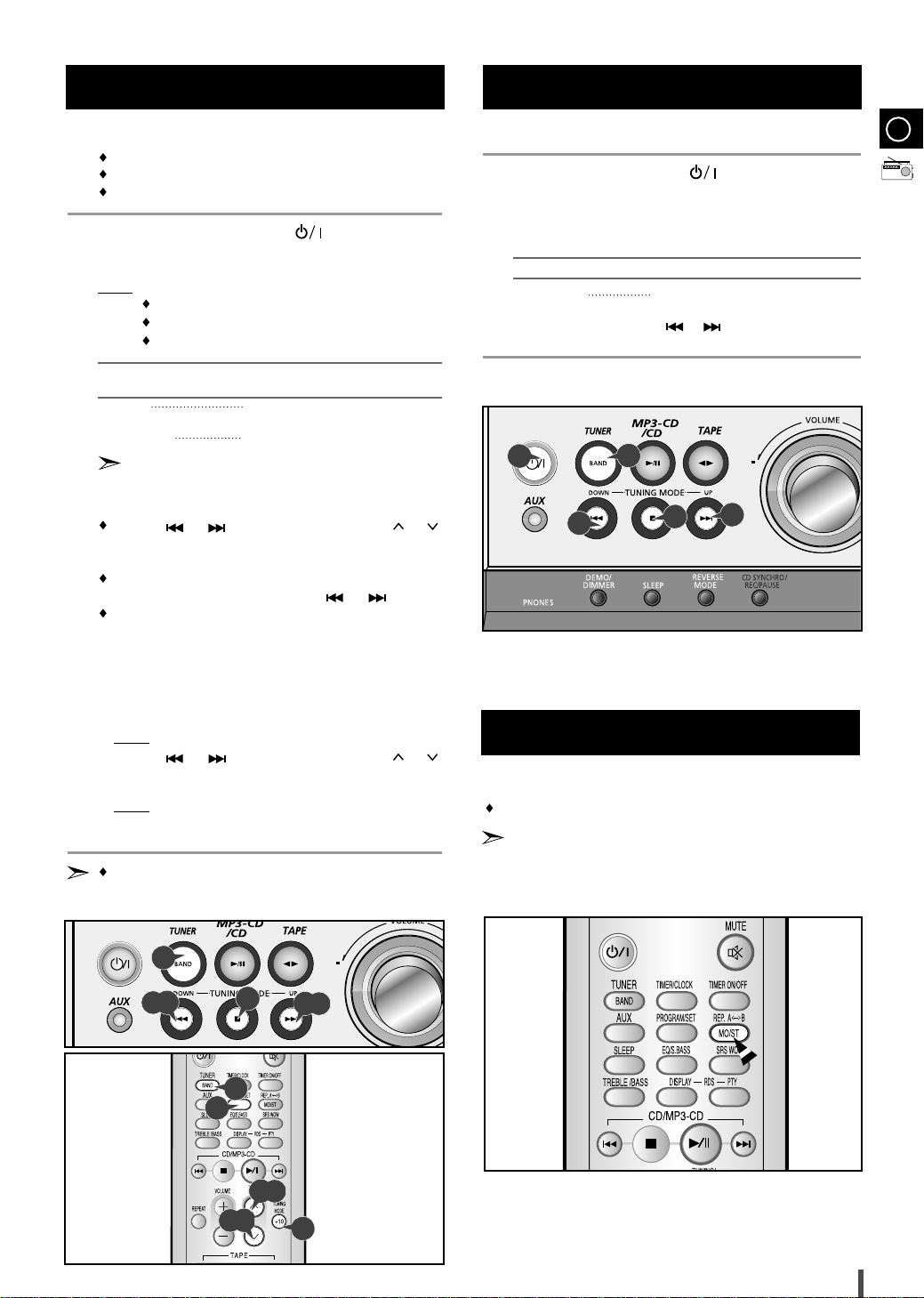

Listening to a Cassette
Selecting the Cassette Playback Mode
GB
Always treat your cassettes with care; refer, if necessary, to
the section entitled “Precautions When Using Audio Cassettes”
on page 24.
Switch the system on by pressing ( ).
1
Open the cassette deck by pushing on the corner of the cover
2
marked PUSH EJECT ( ) until you hear a click and then releasing it.
Insert the pre-recorded cassette with the open edge of the tape
facing downwards.
Close the deck by pushing on it until it clicks into place.
3
To listen to... Press ...
4
Side A Tape ( ) button once.
Side B Tape ( ) button twice.
The cassette starts playing.
Result:
Press the
5
To... Press ...
Rewind the cassette
Fast-forward the cassette / button.
When you have finished playback, press
6
, or , button if necessary.
/
button.
button.
Your micro component system has three cassette playback
modes which enable you to listen to both sides of a cassette
automatically.
Press REV.MODE until the appropriate symbol is displayed.
When the display indicates... The micro component system plays
back...
One side of the selected cassette and
then stops.
One side of the cassette.
The other side of the cassette and then
stops.
Both sides of the cassette indefinitely until
you press stop.
1
4
6
5
5
18
Page 19
Recording a Compact Disc
You can record a compact disc on a cassette in two different ways:
Synchronised recording
Direct recording
Synchronised recording
This feature enables you to synchronize the start of the
recording with the start of the disc or track of your choice.
Switch the system on by pressing ( ) .
1
Insert a blank cassette in Deck.
2
Press the PUSH/EJECT button ( ) to open the cassette door,
insert a cassette, and then close the cassette door.
Insert the cassette with the safety tabs.
Load a compact disc.
3
Press the OPEN/CLOSE button ( ) to open the CD door.
Insert a CD and press the OPEN/CLOSE button ( ) to close
the CD door.
Press the CD(
4
Use the CD selection ( , ) buttons to select the desired song.
Press and hold CD SYNCHRO button.
5
When stopped, press the button to start the recording from the
first piece of music.
Press and hold CD SYNCHRO button during the playback of CD
to start the recording from the first part of the music being played.
To stop recording, press button.
6
√/»
) button.
3
4
5
Recording a Radio Program
Load a compact disc.
Press the OPEN/CLOSE button ( ) to open the CD door.
Insert a CD and press the OPEN/CLOSE button ( ) to close
the CD door.
Press the CD(
Use the CD selection ( , ) buttons to select the desired song.
Press the REC/PAUSE button.
Result:
√/»
) button.
Recording will begin.
To stop recording, press button.
3
4
1
4
5
4
5
GB
3
4
1
4
4
6
5
Direct recording
The direct recording mode enables you to start recording
with any track on the compact disc.
You do not need to adjust the volume, as it has no effect on the recording.
1
Switch the system on by pressing ( ) .
Insert a blank cassette in Deck.
2
Press the PUSH/EJECT button ( ) to open the cassette door,
insert a cassette, and then close the cassette door.
Insert the cassette with the safety tabs.
You can record a radio program of your choice.
You do not need to adjust the volume, as it has no effect on
the recording.
Switch the system on by pressing ( ) .
1
Insert a blank cassette in Deck.
2
Select the TUNER function by pressing TUNER/BAND.
3
Select the radio station that you wish to record by pressing
4
or button .
Press the REC/PAUSE button.
5
6
REC is displayed in red and recording starts.
Result:
To stop recording, press button.
3
1
6
4
4
5
19
Page 20
Timer Function
GB
The timer enables you to switch the system on or off at
specific times.
Example: You wish to wake up to music every morning.
If you no longer want the system to be switched on or off
automatically, you must cancel the timer.
Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
1
Switch the system on by pressing ( ) .
2
Press TIMER/CLOCK until TIMER is displayed.
Press PROGRAM/SET.
3
4
5
6
7
8
9
ON TIME is displayed (instead of the equalizer symbols) for
Result:
a few seconds, followed by any switch-on time already set;
you can set the timer switch-on time.
Set the timer switch-on time.
or
a Set the hour by pressing
b Press PROGRAM/SET.
Result: The minutes flash.
c Set the minutes by pressing
d Press PROGRAM/SET.
Set the timer switch-off time.
a Set the hour by pressing
b Press PROGRAM/SET.
c Set the minutes by pressing
d Press PROGRAM/SET.
Press
PROGRAM/SET.
Result: The source to be selected is displayed.
Press
system switches on.
If you select... You must also...
TAPE (cassette) Insert a cassette tape.
TUNER (radio) a Press PROGRAM/SET.
CD (compact disc) Load a compact disc.
Press PROGRAM/SET to confirm the timer.
Press ( ) to set the system to standby mode.
Result: is displayed to the bottom left of the time, indicating that
OFF TIME is displayed (instead of the equalizer symbols)
Result:
for a few seconds, followed by any switch-off time already
set; you can now set the timer switch-off time.
Result: The minutes flash.
VOL 10 is displayed, where 10 corresponds to the
Result:
volume already set.
or
button to adjust the volume level and press
or
button to select the source to be played when the
the timer has been set. The system will switch on and off
automatically at the required times.
button.
or
button.
or
button.
or
button.
Select a preset station by pressing
b
or
.
1,9
2
3,4,5,6,7,8
4,5,6,7
4,5,6,7
Canceling the Timer
After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To... Press TIMER ON/OFF...
Cancel the timer Once.
Restart the timer Twice.
Result: is no longer displayed.
Result
: is displayed again.
If the timer switch on and off times are identical, the word ERROR
is displayed.
You can use
/
buttons in step 4,5,6,7..
buttons on the front panel to instead of
/
20
Page 21
EQ/S.BASS
Function
Treble Level Function
Your micro component system is equipped with a preset
equalizer that allows you to choose the most appropriate
balance between treble and bass frequencies, according to the
type of music you are listening to.
The function of Power Sound amplifies bass and improves
high key or bass twice as much for you to appreciate
powerful real sound.
Press EQ/S.BASS on the front panel until the required option is selected.
Result
: Press the button repeatedly to select “
➞
CLASSISC
S.BASS Function : S.Bass function emphasizes the bass sound to
produce the effect of explosion or booms.
P.SOUND Function : You can experience the powerful and realistic
sound by amplifying bass and improving the sound quality of highand low-pitched sounds by two-fold.
➞JAZZ➞
S.BASS ➞ P.SOUND
PASS➞
POP ➞ ROCK
”.
Treble Control function stresses high tones providing thudding
sound effects.
Turn TREBLE knob on the front panel to select from TRE -7 to TRE
1
7, total 15 steps.
You can select the level of high tones you desire.
2
GB
SRS WOW Function
You can enjoy realistic surround sound by using the SRS and
TruBass sound field functions and the SRS WOW function that
enhances sound clarity.
Press the SRS WOW button.
Result: Each time the button is pressed, the selection changes as
follows: PASS
TruBASS
produce deep and rich bass sounds.
Function
SRS
SRS WOW
enhanced sound field depth and bass, through speakers and
headphones.
WOW technology is incorporated under license from SRS Labs, Inc.
➞
TRU BASS➞SRS➞SRS WOW.
Function
: Enhances the bass and low frequencies to
: Provides the surround sound that fills the room.
Function
: Provides the surround sound effects with
is a trademark of SRS Labs, Inc.
BASS Level Function
BASS function stresses low tones providing thudding sound
effects.
Turn BASS knob on the front panel to select from BAS -7 to BAS 7,
1
total 15 steps.
You can select the level of low tones you desire.
2
21
Page 22
MUTE Function
GB
You can turn the sound off temporarily on your system.
Example: You wish to answer a telephone call.
Press MUTE ( ).
1
To switch the sound back on (at the same volume as before), press
2
MUTE again or the VOLUME buttons.
Setting the System to Switch off Automatically
Connecting Headphones
You can connect a set of headphones to your micro
component system so that you can listen to music or radio
programmers without disturbing other people in the room.
The earphones must have a 3.5
adapter.
Connect the headphones to the PHONES jack on the front panel.
Result
: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage
your hearing.
ø jack or an appropriate
While listening to a compact disc or a cassette, you can
set the system to switch off automatically
Example: You wish to go to sleep to music.
Press SLEEP.
1
Result: The following indications are displayed:
90 MIN
Press SLEEP one or more times to indicate how long the
2
system should continue playing before it switches off:
90 MIN 60 MIN 45 MIN
OFF 15 MIN 30 MIN
At any time, you can:
Check the remaining time by pressing SLEEP
Change the remaining time by repeating Steps 1 and 2
To cancel SLEEP function, press SLEEP one or more times until
3
OFF is display.
22
Page 23
Safety Precautions
The following diagrams illustrate the precautions to be taken
when using or moving your micro component system.
Ambient operating conditions:
Ambient temperature 5°C-35°C
Humidity 10-75%
Do not place potted plants or vases
on top of the unit. Moisture entering
the unit could lead to dangerous
electric shock and can cause
equipment damage. In such events
immediately disconnect the main
plug from the socket.
Do not expose the unit to direct sun
radiation or other heat sources.
This could lead to overheating and
malfunction of the unit.
During thunderstorms, disconnect
the main plug from the socket.
Main voltage peaks due to lightning could damage the unit.
Cleaning Your Micro Component System
To obtain the best possible results from your micro component system, you must clean the following elements regularly:
The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.
Compact Disc Player
Before playing a compact disc, clean it with a special CD cleaning
1
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
Regularly clean the player with a special cleaning disc (available from
2
your local dealer).
Tape Decks
Press PUSH EJECT( ) to open the cassette deck.
1
Use a cotton bud and a special cassette cleaning agent to clean the:
2
Head (1)
Rollers (2)
Drive capstans (3)
3
GB
Remove the batteries from the
remote control, if not used for any
extended period.
Leaking batteries can cause serious
damage to the remote control.
Do not place heavy items on the
main lead. Main cable damage can
lead to damage of the equipment (fire
hazard) and can cause electric
shock.
VOLUME
UP
DOWN
When using headphones, take care
not to listen at excessive volumes.
Extended use of headphones at
high volumes will lead to hearing
damage.
Do not remove any equipment panels.
The inside of the unit
contains live components, which
cause electric shock.
21
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
23
Page 24
GB
COMPACT
DIGITAL AUDIO
Precautions When Using Compact Discs
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked .
Precautions When Using Audio Cassettes
Check that the tape in the cassette is sufficiently taut.
To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.
When you have finished playing a cassette, always put it back in its
case.
Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.
Before Contacting the After-Sales Service
It always takes a little time to become familiar with a new appliance.
If you have any of the problems listed below, try the solutions given.
They may save you the time and inconvenience of an unnecessary
service call.
Problem
The system does not work
There is no sound
G
E
N
E
R
A
L
The Timer does not work
In case it does not work, even the
action is taken as above.
The compact disc player does not
start playing
C
D
C
The tape does not start playing
A
S
S
E
T
T
The volume falls off
E
The cassette is not erased correctly
S
There is excessive wow and flutter
Reception is poor or no radio
stations are received at all
R
A
D
I
O
Checks/Explanation
• The main lead is not correctly plugged into
a wall socket or the wall socket is not
switched on.
• The remote control batteries need replacing
or the polarity has not been respected.
• The button has not been pressed.
• The volume has been completely turned
down.
• The correct function (TUNER, CD, TAPE,
AUX) has not been selected.
• You have connected a set of earphones.
• The loudspeaker wires have been
disconnected.
• The MUTE button has been pressed.
• The timer has been stopped by pressing
TIMER ON/OFF.
• Press the SRS WOW button for 5
seconds in power ‘OFF’(standby), then it is
returned the original position (RESET)
• The CD function has not been selected.
• The disc has been inserted face down or is
either dirty or scratched.
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat,
horizontal surface.
• Condensation has formed in the player;
leave the system in a warm, airy room for at
least one hour.
• The TAPE function has not been selected.
The cassette has not been inserted correctly.
•
• The cassette player has not been closed.
• The tape is either slack or broken.
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
• The TUNER function has not been selected.
• The radio frequency has not been correctly
selected.
• The aerial has been disconnected or is not
facing the right way. Turn it until you find
the best orientation.
• You are in a building that blocks radio
waves; you must use an outside aerial.
If the above guidelines do not allow you to solve the problem, take a
note of:
The model and serial numbers, normally printed on the rear of
the system
Your warranty details
A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
24
Page 25
Technical Specifications
GB
SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.
RADIO
LW
Usable sensitivity 60 dB
AM (MW)
Signal/noise ratio 40 dB
Usable sensitivity 56 dB
Total harmonic distortion 2 %
FM
Signal/noise ratio 60 dB
Usable sensitivity 3 dB
Total harmonic distortion 1.0 %
COMPACT DISC PLAYER
Frequency range 20 Hz - 20 KHz (±1 dB)
Signal/noise ratio 90 dB (at 1 KHz) with filter
Distortion 0.05 % (at 1 KHz)
Channel separation 80 dB
Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range 125 Hz ~ 10 KHz
Signal/noise ratio 40 dB
Channel separation 35 dB
Erasing effect 60 dB
AMPLIFIER
Output power(4 Ω) 2X35 Watts RMS (total harmonic distortion : 10%)
Channel separation 50 dB
Signal/noise ratio 80 dB
GENERAL
Dimensions 194(W) x 172 (H) x 310(D) mm
25
Page 26
THIS APPLIANCE IS MANUFACTURED BY:
ELECTRONICS
AH68-01406B
Loading...
