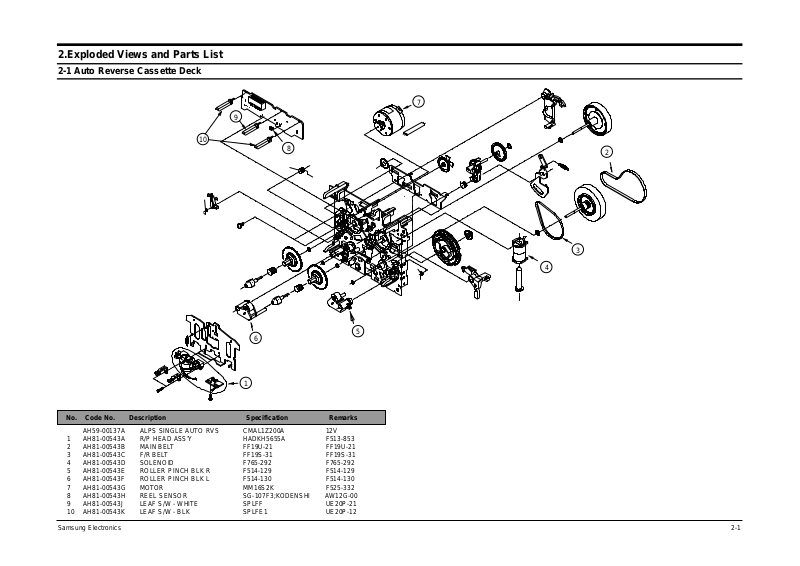

2.Exploded Views and Par ts List
2-1 Auto Reverse Cassette Deck
Samsung Electronics 2-1
2
4
5
7
8
10
9
6
1
3
No. Code No. Description Specification Remarks
AH59-00137A ALPS SINGLE AUTO RVS CMAL1Z200A 12V
1 AH81-00543A R/P HEAD ASS’Y HADKH5655A F513-853
2 AH81-00543B MAIN BELT FF19U-21 FF19U-21
3 AH81-00543C F/R BELT FF19S-31 FF19S-31
4 AH81-00543D SOLENOID F765-292 F765-292
5 AH81-00543E ROLLER PINCH BLK R F514-129 F514-129
6 AH81-00543F ROLLER PINCH BLK L F514-130 F514-130
7 AH81-00543G MOTOR MM16S2K F525-332
8 AH81-00543H REEL SENSOR SG-107F3;KODENSHI AW12G-00
9 AH81-00543J LEAF S/W - WHITE SPLFF UE20P-21
10 AH81-00543K LEAF S/W - BLK SPLFE1 UE20P-12
2-2 Total Exploded View and Parts List
Samsung Electronics
2-2
* Parts List
1 AH64-01572B DOOR-TRAY ABS 94HB,STAMPING MM-B9
AH64-01572C DOOR-TRAY ABS 94HB,STAMPING MM-ZB9
2 AH64-01579B KNOB-VOLUME ABS 94HB,SILVER
3 AH67-00143A LENS-VOLUME PMMA MILKY
4 AH64-01581B KNOB-JOG ABS 94HB,SILVER
5 AH64-01574B DECO-VOLUME ABS 94HB,Cr PLATING
6 AH64-01575B DECO-JOG ABS 94HB,Cr PLATING
7 AH64-01580B KNOB-WOOFER ABS 94HB,SILVER
8 AH64-01583B KNOB-MIC ABS 94HB,SILVER MIC OPTION
9 AH67-00142A LENS-REMOCON PMMA VIOLET
10 AH64-01567C CABINET-FRONT ABS 94HB,SILVER MM-B9,NO MIC
AH64-01567D CABINET-FRONT ABS 94HB,SILVER MM-B9,MIC
AH64-01567E CABINET-FRONT ABS 94HB,SILVER MM-ZB9,NO MIC
AH64-01567F CABINET-FRONT ABS 94HB,SILVER MM-ZB9,MIC
11 AH64-01582B KNOB-POWER ABS 94HB,SILVER
12 AH64-01585B WINDOW-LCD ACRYL T4.0 MULTI COLOR
AH64-01585C WINDO W -LCD ACRYL T4.0 BLUE COLOR,RDS
AH64-01585D WINDOW-LCD ACRYL T4.0 BLUE COLOR,NO RDS
AH64-01585E WINDOW-LCD ACRYL T4.0 MULTI COLOR,RDS
13 AH64-01106F SCREW-DECO 3*10,Cr PLATING
14 AH64-01573B DECO-FRONT ABS 94HB,SILVER
15 AH64-01576B KNOB-FUNCTION ABS V A CUUM COATING
16 AH64-01578B KNOB-OPEN ABS 94HB,SILVER
17 AH64-01577B KNOB-REC ABS 94HB,SILVER
18 AH63-00498A SHIELD-DECK SILICON PLATE T0.5
19 AH61-00896A BRKT-DECK L SECC T1.0
20 AH64-01571B DOOR-CASSETTE ABS 94HB,SILVER
21 AH64-01584B WINDOW-CASS PMMA GREEN,STAMPING
22 AH64-01568B CABINET-TOP HIPS 94HB,SILVER
23 AH61-80030A ASSY-DAMPER POM M0.8
24 AH95-50001A ASSY-LATCH MAX555
25 AH61-00857A SPRING-DOOR MM-Z100
26 AH64-00897A BRKT-DECK R SECC T1.0
27 AH64-01569B CABINET-SIDE L HIPS 94HB,SILVER
28 AH64-01570B CABINET-SIDE R HIPS 94HB,SILVER
29 AH64-01565A CABINET -BOTTOM SECC T1.0
30 AH61-01047A BRKT -PT SECC T1.0
31 AH61-10747A BRKT -FAN SECC T1.0
32 AH63-00411A SHEET -TUNER PC T0.5 BLACK
33 AH64-01566B CABINET-REAR SECC T0.8 BLACK NO OPTICAL JACK
AH64-01566C CABINET-REAR SECC T0.8 BLACK OPTICAL JACK
No. Code No. Description Specification Remarks
Samsung Electronics
2-3
2-3 SPEAKER Exploded View and Parts list
1
3
2
4
7
8
5
6
NO.
¤
¤Ł
¤Ø
¤Œ
¤º
¤
¤
¤
CODE NO. Description
AH81-00609D NET
AH81-00609C FRONT PANEL
AH81-00609L UNIT TWEETER 2"
AH81-00609G CABINET ASS'Y L
AH81-00609H CABINET ASS'Y R
AH81-00609K UNIT WOOFER 4"
AH81-00609E SIDE NET A
AH81-00609F SIDE NET B
AH81-00609J
AH59-01038B PS B9E
UNIT SUBWOOFER 5 "
1
4
* CAUTION :It is used the bonding, connect FRONT PANEL to CABINET WOODEN.
So when the disassembly, take extreme care not to demage the SPEAKER.
Samsung Electronics
2-4
