No. Code No. Description Specification Remarks
2.Exploded Views and Parts List
2-1 Auto Stop Cassette Deck
31
5
3
4
2
1
Samsung Electronics 2-1
AH59-20006G DECK-CASSETTE ADR241CSR :
1 AH81-10022E RP HEAD MA15RAA2N1 12KHZ
2 AH81-00099A ASS,Y MOTOR EG530YD-2BH 12V
3 AH81-00100A BELT MAIN ADR2400S-MAIN
4 AH81-00101A BELT FR ADR2400S-FR
5 AH81-00102A SOLENOID ADR2400-1 12V
2-2 Total Exploded View and Parts List
2-2-1 Exploded View
Samsung Electronics
2-2
2-2-2 Parts List
1 AH64-00100K DOOR-CASSETTE ABS L/GRAY
2 AH64-00103A WINDOW-DOOR PMMA SMOKE
3 AH61-00084A HOLDER-CASSETTE ABS L/GRAY
4 AH64-00098D CABINET-FRONT MIPS L/GRAY
5 AH64-00101H DECO-FRONT ABS D/GRAY
6 AH64-00102K WINDOW-LCD PMMA SMOKE
7 AH67-00004A LENS-SOUND PMMA MILKY
8 AH64-00104B KNOB-POWER ABS D/GRAY
9 AH64-00105C KNOB-PLAY ABS L/GRAY
10 AH64-00106C KNOB-VOLUME ABS BLUE
11 AH64-00107C KNOB-SOUND ABS L/GRAY
12 AH61-00086A SPRING-CASSETTE STS PI 1.0
13 AH95-50001A LATCH-ASSY BLK
14 AH59-20006G DECK-CASSETTE ADR241CSR
15 AH61-80030A DAMPER-ASSY POM M0.8
16 AH67-00005A FILTER-LCD PC 0.5T
17 AH61-00085A HOLDER-LCD PC/ABS WHT
18 AH66-30085A LEVER-EJECT POM BLK
19 AH64-32005E CABINET-TOP MIPS L/GRAY
20 AH61-62008A SPRING-KNOB CD STS PI 0.5
21 AH64-11270A KNOB-CD EJECT ABS M/GRY
22 AH63-70025B SHEET-CHUCK HYMERON T0.5
23 16603-511-840 CHUCK-PLATE ABS/GF BLK
24 AH64-52001X DOOR-CD ABS GRAY
25 AH64-42009B WINDOW-CD PMMA SMOKE
26 AH61-62007A SPRING-CD DOOR STS PI 1.2
27 AH61-20258C CAP-P/U ABS BLK
28 AH96-10001D ASSY-CD PACK G3X8T
29 AH73-10012A RUBBER-CD SI RUBBER
30 AH61-50182D SHAFT-CD MSWR
31 AH64-00099D CABINET-REAR MIPS L/GRAY
32 AH62-00006A HEAT-SINK M AL EXTR
33 AH64-32006A CABINET-BOTTOM SECC 1.0T
34 AH73-10009A CUSHION-FOOT URETAN T1.5
No. Code No. Description Specification Remarks
Samsung Electronics
2-3

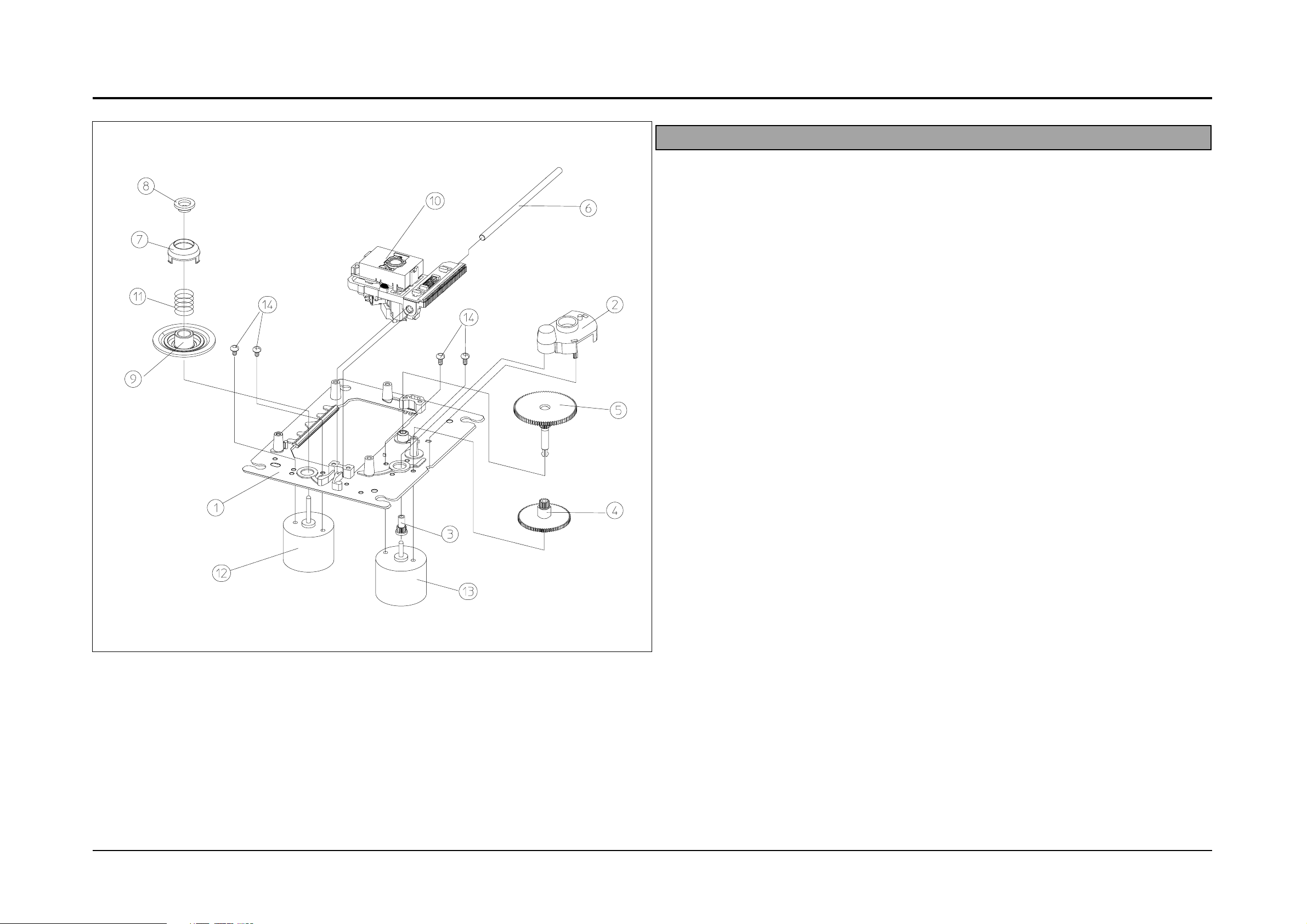

2-3. CD Deck Exploded View and Parts list(COMMON)
Samsung Electronics
2-4
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AJ59-20003F
AH61-10022B
AH63-30048A
AH66-20016A
AH66-20017A
AH66-20018A
AH71-50036A
15253-503-011
AH64-10648A
AH66-90029A
AJ30-20001B
AH61-60055A
AH31-10009A
AH31-10002B
AH60-10014A
DECK-CD
CHASSIS-DECK(M)
COVER-GEAR
GEAR(A)
GEAR(B)
GEAR(C)
SHAFT-PU
CENTER-RING
CENTER-KNOB
TURN-TABLE(M)
PICK-UP CDP
SPRING-T/TABLE
MOTOR-SPINDLE
MOTOR-FEED
SCREW-PH(+M2*3)
CMS-P30NM6
CMSA30 POM M90-44
CMS-V30 BLK ABS
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z16/Z90 SP POM
CMS-V30 D3 L79 SUS420J2
ABS+GS 20% CMS-V10N
ABS 94HB
-,-,-,CMS-V30
P/U SOH-A1 ROW V-P/J
CS STS-W PI0.4 D5.7 L9.3 CMS-V10N
RF-310T-11400 43L 25V 85mA
RF-310ta 30MM NDM4RA3ETL 11.0MM
+M2X3 FE FZY W700
AH81-00265D
FRONT PANEL ASS’Y
AH81-00265F UNIT 4"
AH81-00265E
CABINET WOODEN
Code No
PS N4( AH81-00265A)
Description

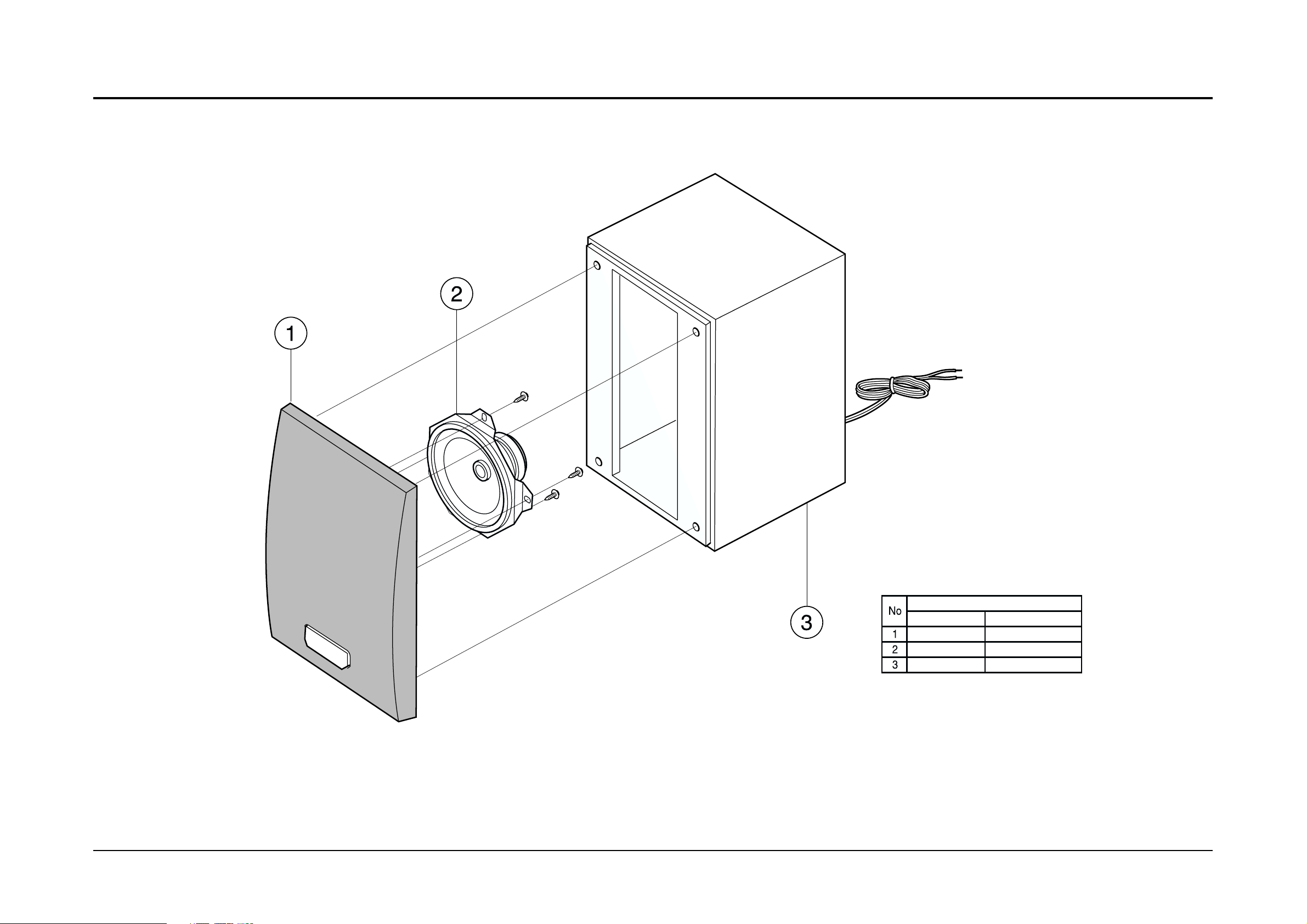

2-4 SPEAKER Exploded View and Parts list
Samsung Electronics
2-5
* CAUSION : It is used the bonding, connet CABINET FRONT to CABINET BACK .
So when the disassembly, take extreme care not to demage the SPEAKER.
