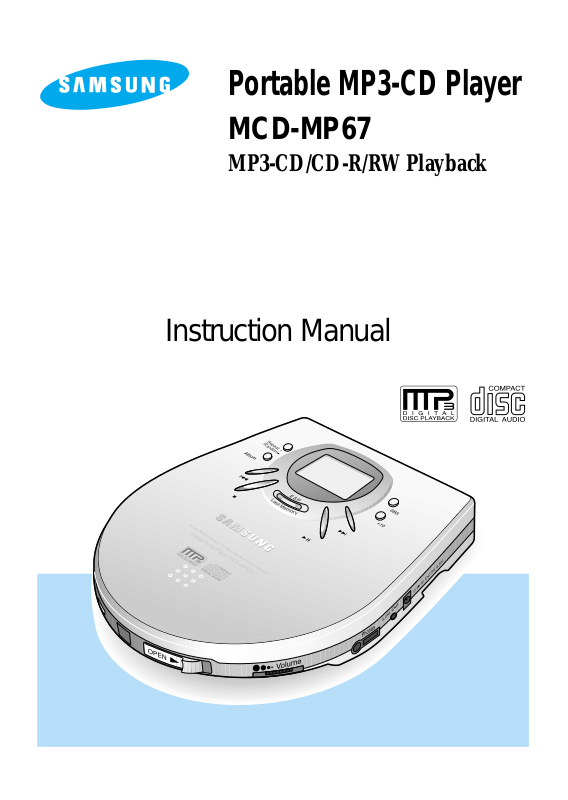

Samsung MCD-MP67 User Manual
Instruction Manual
Portable MP3-CD Player
MCD-MP67
MP3-CD/CD-R/RW Playback
Main Features
1
What is MP3?
MP3-CD, CD-R/RW
Playback
You can playback MP3-CDs and
audio CDs on the CD-R or CD-RW
drive.
Shock Prevention
Even if the CD player is knocked or
jolted while listening to a CD, the
sound will not skip but will continue
normal playback.
+10 Key
One MP3-CD can contain over 100
MP3 music files.This key is used to
skip through tracks in multiples of 10,
in order to find the track you want
more quickly.
MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12
times without sound quality degradation.
File Compatibility
● The unit will playback files created in MP3 format (Mpeg1.Layer 3) with *.mp3 as their
extension.
● Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as their extension can also
be played back.
How many MP3 files can a CD-R or CD-RW disc record?
● The maximum capacity of one CD-R or CD-RW disc is 680MB.
Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can
be recorded on a single disc.
2
Contents
Safety Warnings 3
Buttons and Controls 5
Preparation before using your unit 9
How to Connect 9

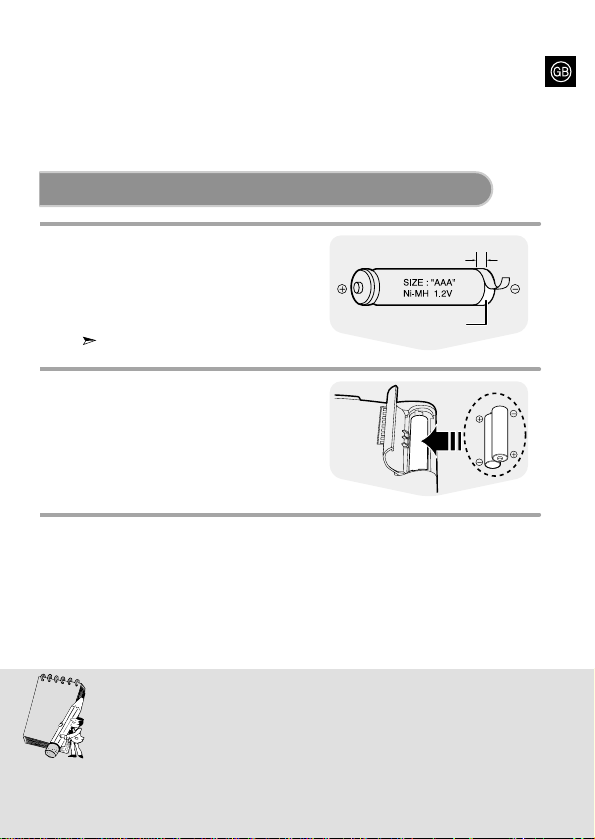

Using the rechargeable battery 10
Using a standard battery 11
Using the battery pack 12
CD Playback 13
MP3-CD Playback 14
Features
15
●
Skip
15
●
Search
15
●
Repeat Function
16
●
Random Function
16
●
SBS Function
17
●
ESP Function
17
●
Last Memory Function
18
●
Album Function
19
Maintaining and looking after your unit 21
Troubleshooting Guide 22
Specification 23
Safety Warning
3
Take care not to allow
dust or other contaminants to come into contact with your CD player.
Do not put anything other
than a CD (CD-R or CDRW) inside your CD player.
● Such actions will dam-
age your CD player.
Do not use broken or
scratched MP3 CDs.
Do not use your CD
player on uneven or
unstable surfaces.
● Your CD player may
not operate properly in
this case.
Do not touch the lens
with your finger or
scratch it.
● Your CD player may
not operate properly in
this case.
Do not place your CD
player in a dusty or
humid location.
Do not attempt to take
apart, repair or modify
your CD player.
● Such actions will dam-
age your CD player.
Do not apply heavy
pressure to the main
unit or remote control
unit.
Do not leave your CD
player in direct sunlight or near a heat
source.
4
Earphones
Road safety
● Do not use the earphones while riding a bicycle, driving any kind of motor
vehicle or motorcycle.
This is very dangerous and is illegal in certain regions.
It is dangerous to wear earphones at high volume while crossing roads.
In order to protect your hearing
● Do not wear the earphones with the volume set too high.
Doctors state that listening to music at high volume for prolonged periods is
harmful to hearing.
● If you experience a ringing in your ears, reduce the volume or stop listening.
Warning :Please do not use earphones of other companies besides those of
this company.
Environmental information
● All redundant packing material has been omitted,
We have done our utmost to make the packaging easily separable into three
materials: cardboard(box), polystyrene foam(buffer) and polyethylene(bags,
protective foam sheet).
● Your set consists of materials which can be recycled if disassembled by a
specialized company.Please observe the local regulations regarding the
disposal of packing materials, exhausted batteries and old equipment.
Buttons and Controls
5
Main Unit
1
10
11
12 13
15
14
2
3
4
5 6
2 7 8
9
Accessories
Earphone Battery Pack
6
Stop( ) button
At stop mode, press stop again or wait for
a while to switch the unit Power “OFF”
1.
Skip/Search( / )
button
2.
Album button(Refer to page 19.)
Press this button to select MP3 tracks
from an album as a single unit.
3.
Repeat/Random button
(Refer to page 16.)
Press and release when you wish to repeat a track.
Press button and keep it depressed for a moment if
you wish to listen to music in random order.
4.
Esp/Last Memory button
(Refer to pages 17~18.)
This button enables you to continue to enjoy
normal CD playback even after the machine
has been jolted or knocked.
5.
PLAY/PAUSE( ) button
6.
+ 10 button (Refer to page 15.)
This button allows you to skip through 10
tracks at a time.
7.
SBS button(Refer to page 17.)
This button enables you to enjoy realistic
and dynamic low pitch sounds.
8.
Battery Pack Connection Jack
(Refer to page 12.)
9.
HOLD switch(Refer to page 18.)
With the HOLD function selected, you
cannot operate any buttons.
10.
OPEN switch
11.
Volume control
12.
Earphone Connection Jack
(Refer to page 9.)
13.
Line Out Connection Jack
(Refer to page 9.)
14.
Power Input Jack(Refer to page 9.)
Connecting the AC adaptor.
15.
Remote Carry Case AC Adaptor
Buttons and Controls
7
Remote
1
2
3
4
5 6 7 8
Play/Pause button
1.
Mode button
2.
HOLD switch
3.
Skip/Search( / )
button
4.
Volume control
5.
Stop button
6.
Earphone Connection Jack
7.
Unit Connection Jack
8.
8
Display
1
6
2 3 4 5
7 8 9
Operation Indicator.
1.
Displayed when CD is inserted.
2.
Displayed when MP3-CD is
inserted.
3.
Displayed when songs are
selected randomly.
4.
Displayed when one or all tracks
are repeated.
5.
Album number, track number
and playing time are displayed.
6.
SBS Indicator.
7.
ESP Indicator.
8.
Replace Battery Warning Indicator
(If battery is fully discharged, the
indicator will flash.)
9.
Displayed when incompatible
MP3-CD is inserted.
Flashes when any control
button is pressed while
HOLD function is activated.
When Last Memory is
selected, the display shows
ON. If the function is
cancelled, it shows OFF.
(This is displayed only when
an MP3-CD is inserted)
