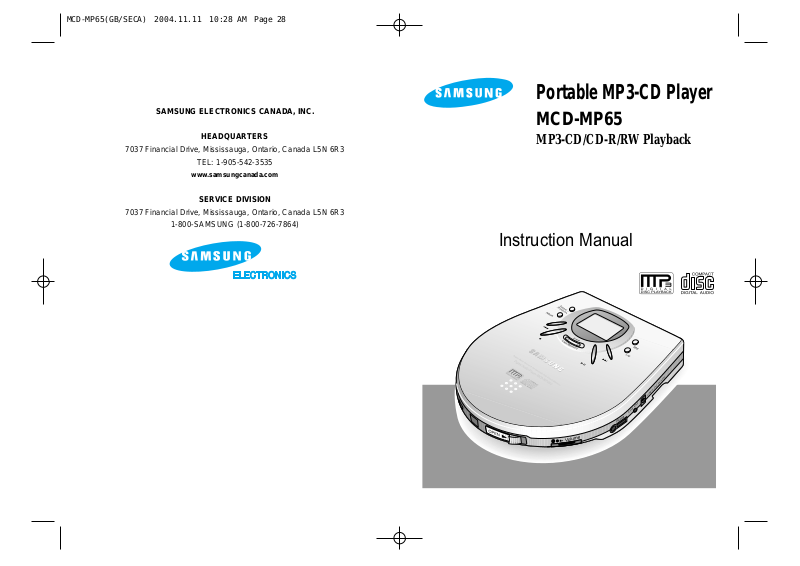

Instruction Manual
Portable MP3-CD Player
MCD-MP65
MP3-CD/CD-R/RW Playback
AH68-00784B
SAMSUNG ELECTRONICS CANADA, INC.
HEADQUARTERS
7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3
TEL: 1-905-542-3535
www.samsungcanada.com
SERVICE DIVISION
7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3
1-800-SAMSUNG (1-800-726-7864)
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 28
Main Features
1 2
Contents
What is MP3?
MP3-CD, CD-R/RW
Playback
You can playback MP3-CDs and
audio CDs on the CD-R or CD-RW
drive.
Shock Prevention
Even if the CD player is knocked or
jolted while listening to a CD, the
sound will not skip but will continue
normal playback.
+10 Key
One MP3-CD can contain over 100
MP3 music files. This key is used to
skip through tracks in multiples of 10,
in order to find the track you want
more quickly.
MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12
times without sound quality degradation.
File Compatibility
● The unit will playback files created in MP3 format (Mepg1.Layer 3) with *.mp3 as
their extension.
● Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as their extension can also
be played back.
How many MP3 files can a CD-R or CD-RW disc record?
● The maximum capacity of one CD-R or CD-RW disc is 680MB.
Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can
be recorded on a single disc.
Safety Warnings 3
Buttons and Controls 5
Preparation before using your unit 9
How to Connect 9
Using the rechargeable battery 10
Using a standard battery 11
Using the battery pack 12
CD Playback 13
MP3-CD Playback 14
Features
15
●
Skip
15
●
Search
15
●
Repeat Function
16
●
Random Function
16
●
SBS Function
17
●
ESP Function
17
●
Last Memory Function
18
●
Album Function
19
Maintaining and looking after your unit 21
Troubleshooting Guide 22
Specification 23
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 2
4
Safety Warning
3
Earphones
Take care not to allow
dust or other contaminants to come into contact with your CD player.
Do not put anything other
than a CD (CD-R or CDRW) inside your CD player.
● Such actions will dam-
age your CD player.
Do not use broken or
scratched MP3 CDs.
Do not use your CD
player on uneven or
unstable surfaces.
● Your CD player may
not operate properly in
this case.
Do not touch the lens
with your finger or
scratch it.
● Your CD player may
not operate properly in
this case.
Do not place your CD
player in a dusty or
humid location.
Do not attempt to take
apart, repair or modify
your CD player.
● Such actions will dam-
age your CD player.
Do not apply heavy
pressure to the main
unit or remote control
unit.
Do not leave your CD
player in direct sunlight or near a heat
source.
Road safety
● Do not use the earphones while riding a bicycle, driving any kind of motor
vehicle or motorcycle.
This is very dangerous and is illegal in certain regions.
It is dangerous to wear earphones at high volume while crossing roads.
In order to protect your hearing
● Do not wear the earphones with the volume set too high.
Doctors state that listening to music at high volume for prolonged periods is
harmful to hearing.
● If you experience a ringing in your ears, reduce the volume or stop listening.
Warning : Please do not use earphones of other companies besides those of
this company.
Environmental information
● All redundant packing material has been omitted,
We have done our utmost to make the packaging easily separable into three
materials: cardboard(box), polystyrene foam(buffer) and polyethylene(bags,
protective foam sheet).
● Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 4
6
Buttons and Controls
5
Main Unit
1
10 11 12 13 15
14
2 3 4 5 6 2 7 8 9
Stop( ) button
At stop mode, press stop again or wait for
a while to switch the unit Power “OFF”
1.
Skip/Search( / )
button
2.
Album button(Refer to page 19.)
Press this button to select MP3 tracks
from an album as a single unit.
3.
Repeat/Random button
(Refer to page 16.)
Press and release when you wish to repeat a track.
Press button and keep it depressed for a moment if
you wish to listen to music in random order.
4.
Esp/Last Memory button
(Refer to pages 17~18.)
This button enables you to continue to enjoy
normal CD playback even after the machine
has been jolted or knocked.
5.
PLAY/PAUSE( ) button
6.
+ 10 button (Refer to page 15.)
This button allows you to skip through 10
tracks at a time.
7.
SBS button(Refer to page 17.)
This button enables you to enjoy realistic
and dynamic low pitch sounds.
8.
Battery Pack Connection Jack
(Refer to page 12.)
9.
HOLD switch(Refer to page 18.)
With the HOLD function selected, you
cannot operate any buttons.
10.
OPEN switch
11.
Volume control
12.
Earphone Connection Jack
(Refer to page 9.)
13.
Line Out Connection Jack
(Refer to page 9.)
14.
Power Input Jack (Refer to page 9.)
Connecting the AC adaptor.
15.
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 6
8
Buttons and Controls
7
Display
1
6
2 3 4 5
7 8 9
Operation Indicator.
1.
Displayed when CD is inserted.
2.
Displayed when MP3-CD is
inserted.
3.
Displayed when songs are
selected randomly.
4.
Displayed when one or all tracks
are repeated.
5.
Album number, track number
and playing time are displayed.
6.
SBS Indicator.
7.
ESP Indicator.
8.
Replace Battery Warning Indicator
(If battery is fully discharged, the
indicator will flash.)
9.
Displayed when incompatible
MP3-CD is inserted.
Flashes when any control
button is pressed while
HOLD function is activated.
When Last Memory is
selected, the display shows
ON. If the function is
cancelled, it shows OFF.
(This is displayed only when
an MP3-CD is inserted)
Accessories
Earphone
Carry Case
Battery Pack
AC Adaptor
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 8
Preparation before using your unit
109
Connection to External Device (if necessary)
How to Connect
Using the rechargeable battery
(not supplied)
Connect the AC adaptor to the power input jack. Then, connect the
mains plug of the adaptor to the mains electricity outlet.
● Only use the AC adaptor supplied with your product.
When you are not using this product, disconnect the AC adaptor from the mains
electricity outlet.
1
Connect the earphone jack
plug to the main unit.
● Reduce the volume on the ear-
phone control while increasing
the volume on the main unit volume control.
2
Strip the sheath covering the
terminals of the rechargeable
battery before charging it.
● As shown in the illustration, with a
knife carefully strip the sheath of
the negative (-) terminal by 6 mm.
If the sheath is not stripped, charging
will not function.
1
Insert the battery into the battery
compartment.
● Carefully check the correct orienta-
tion of the positive and negative terminals of the battery.
2
Connect the AC adaptor to the mains electricity outlet and power input
jack.
● Charging of the rechargeable battery will commence.
3
❈ Your CD Player may be connected to the AUX IN jack of an external device.
1. Reduce the volume of the external device.
2. Connect the Line Out jack to the Input jack of the device.
●
Contact your nearest Samsung Service Center for a connection cable.
●
Time taken to fully charge the battery: 6 hours
●
Battery life of fully charged battery
MP3-CD (When ESP is On): 2 hours and 40 minutes
CD(When ESP is Off): 6 hours
6mm
Sheath to be stripped
Note
Note
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 10
12
Preparation before using your unit
11
Using a standard battery
Open the cover of the battery
compartment.
1
Carefully check the correct orientation
of the positive and negative terminals
of the battery. Replace the cover.
● Use two AAAtype 1.5 V batteries.
Use two AAAalkaline batteries.
Manganese batteries have a shorter
battery life.
2
Open the cover of the battery
compartment.
1
Carefully check the correct orientation of the positive and negative
terminals of the battery. Replace the
cover.
● Use two AAtype 1.5 V batteries.
2
Slide the battery pack into the
groove and insert into the battery
pack connection port on the rear of
the unit.
3
Turn LOCK knob to secure battery
pack tightly in position.
4
Battery Life(Using alkaline batteries)
Main Unit
MP3-CD/CD (When ESP is On)
CD(When ESP is Off)
2 hours and 40 minutes
6 hours
11 hours
22 hours
Main Unit + battery pack
(“AAA” type) (“AA” type)
Using the battery pack
● Do not recharge standard batteries.
● Do not mix the new batteries with the old ones.
● Remove the batteries if they are not in use for a long time.
● Remove the standard batteries when you use an AC adapter.
Note
Note
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 12
MP3-CD Playback CD Playback
To temporarily pause playback for a moment
13 14
Push the OPEN button to
open the door. Insert a CD.
● Push the door to close it.
1
Press the Play/Pause
( ) button.
● Once the CD is recog-
nised, playback commences.
2
To stop playback, press
the Stop ( ) button.
3
Push the OPEN button to
open the door, and insert
an MP3-CD.
● Push the door to close it.
1
Press the Play/Pause
( ) button.
● The inserted MP3-CD will
be scanned for about 30~90
seconds. Playback will then
commence.
Your CD Player will take a few moments
to scan through all the tracks recorded on a
particular MP3-CD.
2
To stop playback, press
the Stop ( ) button.
3
Press the Play/Pause ( ) button.
● Playback will be temporarily suspended.
Press the Play/Pause ( ) button again to resume playback.
This product is an MP3-CD and audio CD player. It cannot record/save
mp3 files.
Track number or album number indication
Track number:Indicator stops for a moment,
and then moves to the left hand side.
Album number: Indicator will move from
the right to the left.
● When the OPEN switch is slided to open the door, playback of
the CD will stop.
● For CD-RW discs, the data written in high speed may not be read
properly or the data may not be read properly in accordance with
the writing format. In such instances, please try to write the data
again.
Note
Note
Track Number Indicator Playtime Indicator
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 14
Features
15 16
Skip
Repeat Function
Search
Press and release the or button during
playback of a CD.
● Press the button to play the next track. Press the
button to go back the current track of the beginning.
(Briefly press the button twice to repeat the previous
track.)
● Press the button while the unit is in “stop”
(no playback) mode. Track 2 will be played back.
Press the button to play back the previous song.
Press the or button and keep depressed
during playback of a CD.
● Press (and keep depressed) the or button.
The CD will playback in fast forward or fast reverse mode.
● Release the button to return to normal playback mode.
To skip through 10 tracks at a time
Press the +10 button briefly while playing back a CD. The track 10 tracks
after the current one will then be played back.
example) If you want to select track 43 during playback of track 15, press the +10 button three
times, and then press the button three times.
Press the Repeat/Random
button.
●
Each time the button is pressed,
REP1 and REPALL are selected
alternately.
● If you want to playback the cur-
rent track again, select REP1. If
you want to repeat playback of
all songs, select REPALL.
Random Function
Press the Repeat/Random
button and keep depressed.
● All tracks will be played back in
random order.
● To cancel this function, press the
STOP ( ) button.
Normally use the +10 button to select
move the 10 tracks when MP3-CD is
at “Album OFF” Mode.
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 16
Remote controller remote control unlock key remote control lock key
MainSet main set key remote control key remote control key
Main Set working working working no working
Main set no working no working no working working
Lock set
Features
17 18
When the HOLD switch is selected
SBS Function
Press the SBS button.
●
The SBS function will enable you to
maximise your listening enjoyment
with dynamic reproduction of lowpitched sounds such as beating
drums or galloping horses.
● Each time the SBS button is
pressed, SBS will be turned on
and off alternately.
Last Memory Function
When MP3-CD playback is
selected again after your CD
player has been stopped or
turned off, this function allows
playback from the start of the
track that you last listened to.
● To cancel this function, press the
button.
ESP Function
Press the ESP button.
●
CD Playback: Press the ESP button
to turn this function on and off.
(During playback of an MP3-CD,
ESP will always be active whether
or not the ESP button is pressed.)
●
CD playback will operate normally
even during vibrations or shocks.
●
Playbacks may be processed by ESP
function with the battery and this
function is automatically released
when the voltage drops (below 1.7V)
❈ This function is only available during
playback of a MP3-CD
● Any other button pressed while during CD playback will
not function.
(on the display, the “HOLD” indicator will flash.)
● Use the HOLD function when carrying your CD Player
around with you, in your bag.
Use of this function will allow you to conserve battery life
as it prevents the CD Player from being turned on
unintentionally if a button is pressed inadvertently.
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 18
20
Features
19
Album Function
● This function is only available during play-
back of an MP3-CD
Selection and playback of MP3-CD tracks is
fast by the unit of album(directory).
Main
Unit
Press the Album button
for a short time.
● It moves to the next
album.
example) By pressing the
Album button for a short
time during Kevin02.mp3
being played, playback of
Summer05.mp3 that is the
1st track of the 2nd album
will begin.
Press the Album button for a
while.
● ON, OFF can be selected.
Songs stored in the ALBUM
When it is ‘ALBUM ON’
When it is ‘OFF’
Main Unit Display
Track
Num.
Album
Num.
Track Number
Effect display
● This function does not apply to the MP3-CDs that
had not been created as album.
● In case of Window Explorer display.
● The arrows indicates playback sequence of albums and tracks.
● Albums with .jpg, .wav or .doc only are not audio files and therefore will be skipped.
Playback sequence of albums and tracks
Note
Note
Track Number/Album Number Indication
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 20
(E) CD-ROM drive
ALBUM 01
Kevin01.mp3
Kevin02.mp3
Kevin03.mp3
Kevin04.mp3
ALBUM 02
Summer05.mp3
Summer06.mp3
ALBUM 03
Michael07.mp3
Michael08.mp3
Skipped
Kenny01.wav
Kenny02.wav
Skipped
Life.doc
AL 04
Garden.mp3
Garden.mp3
AL 05
Water.mp3
Water.mp3
AL 06
Butterfly.mp3
AL 07
Piano14.mp3
John15.mp3
Troubleshooting Guide
22
Maintaining and looking after your unit
21
Looking after your CDs
Wash the disc with a neutral detergent diluted in
water, and then wipe gently with a soft dry cloth from
the center of the disc to the outside.
Handling your CDs
Carefully pick up the disc by its edge without
touching the disc’s surface.
Deformed discs
Place a heavy book (4~5Kg) on the disc for at
least one day.
Do not touch the lens with your finger or scratch it.
● Playback may not function correctly in this case.
Problem Check
Unit has no power.
● Did you insert the battery with the correct polari-
ty?
● Is the battery exhausted?
● Is the AC adaptor connected correctly?
● Is the door open?
Earphones don’t work.
● Is the volume control on the main unit or on the
earphones at the minimum setting?
● Are the earphones and the main unit connected
correctly?
A sound or track is skipped.
● Was the unit jolted or knocked?
● Are there dust, fingerprints or scratches on the
disc?
Some of the MP3 files on a
CD are not recognised.
● Check if the unreadable files have .mp3 as their
extension on your PC.
Playback does not function.
● Is the disc inserted correctly?
● Is the disc damaged or deformed?
● Has the unit been locked with the HOLD switch?
● Has the unit been moved from a cold place to a
hot place?
Abrupt change of temperature may cause condensation to form on the lens. Keep your CD
Player in a warm place until the condensation
on the lens has disappeared.
Note
Note
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 22
Memo
23
Specification
Frequency range 20Hz ~ 20KHz
Signal/noise ratio 80dB
Channel Separation 60dB
Total harmonic distortion 0.08%
D/A conversion 1 bit 8 OVER SAMPLING
Earphones output (16Ω) 250~ 260 mV(RMS)
Line out output (47KΩ) 670mV(RMS)
Scope of playback supported
Bit Rate: All available
Sampling frequency : 44.1KHz
DISC Sizes Diameter 120 or 80mm. Thickness : 1.2mm
Dimensions 130(W) X 24.8(H) X 143(D)
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 24
Samsung Limited Warranty
Samsung Electronics Canada Inc. (SECA), warrants that this product
is free from defective material and workmanship.
SECA further warrants that if this product fails to operate properly within
the specified warranty period and the failure is due to improper workmanship or defective material SECA will repair or replace the product at its
option.
All warranty repairs must be performed by a SECA authorized service
centre. (The name and address of the location nearest you can be obtained
by calling toll free 1-800-268-1620 or visiting our web site at www.sam-
sungcanada.com)
Labour Parts
one (1) year (carry-in) one (1) year
On carry-in models, transportation to and from the service centre is the
customer’s responsibility.
The original dated sales receipt must be retained by the customer and is
the only acceptable proof of purchase. It must be presented to the
authorized service centre at the time service is requested.
Exclusions
This warranty does not cover damage due to accident, fire flood and/or
other acts of God; misuse, incorrect line voltage, improper installation,
improper or unauthorized repairs, commercial use, or damage that occurs
in shipping. Exterior and interior finish, lamps and glass are not covered
under this warranty. Customer adjustments which are explained in the
instruction manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a
missing or altered serial number. This warranty is valid only on products
purchased and used in Canada.
MCD-MP65(GB/SECA) 2004.11.11 10:28 AM Page 26
Loading...
