Page 1

3 DVD MINI COMPONENT SYSTEM

DVD/VCD/CD/MP3-CD/CD-R/RW PLAYBACK

MAX-DS18500

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

Instruction Manual

AH68-01607E

THIS APPLIANCE IS MANUFACTURED BY:

OPEN/CLOSE

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

UTE

I N

F O

R E T

U R

ENTER

TEST TONE

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

EZ/VIEW

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

SOUND EDIT

P.SCAN

AH59-01379B

Page 2

Safety Warnings Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Protect the player from moisture(i.e. vases) , and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc have been stored in cold

temperatures. If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The battery used with this product contain chemicals that

are harmful to the environment.

Do not dispose of batteries in the general household trash.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE REAR COVER. NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED

SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

CAUTION

PREPARATION

(Saudi Arabian Standards Organisation)

THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER.

Phones

Page 3

Features

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Copy Protection

Contents

PREPARATION

Safety Warnings ............................................................................................................................................................................................1

Precautions....................................................................................................................................................................................................2

Features.........................................................................................................................................................................................................3

Description.....................................................................................................................................................................................................5

CONNECTIONS

Connecting the Speakers ..............................................................................................................................................................................9

Connecting to a TV ........................................................................................................................................................................................11

P.SCAN(Progressive Scan) Function ............................................................................................................................................................12

Connecting External Components .................................................................................................................................................................13

Connecting the FM,AM and SW(option) Antennas........................................................................................................................................14

Setting the Clock............................................................................................................................................................................................15

OPERATION

Disc Playback ................................................................................................................................................................................................16

Bonus Group/Navigating pages ...................................................................................................................................................................18

DivX Playback................................................................................................................................................................................................19

Displaying Disc Information ...........................................................................................................................................................................21

Fast/Slow Playback .......................................................................................................................................................................................22

Skipping Scenes/Songs.................................................................................................................................................................................23

Angle Function...............................................................................................................................................................................................24

Repeat Playback............................................................................................................................................................................................25

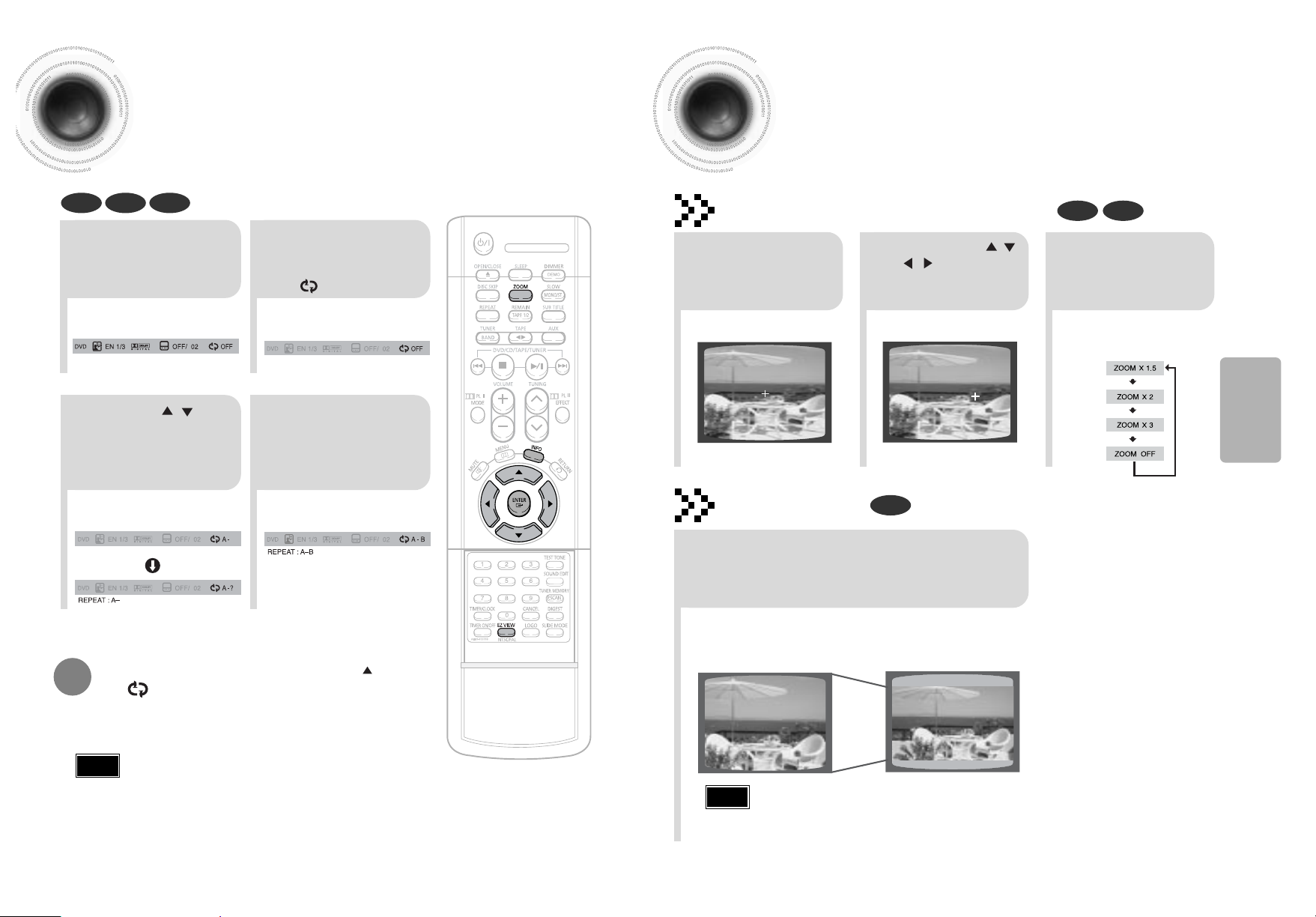

A-B Repeat playback ....................................................................................................................................................................................27

Zoom Function...............................................................................................................................................................................................28

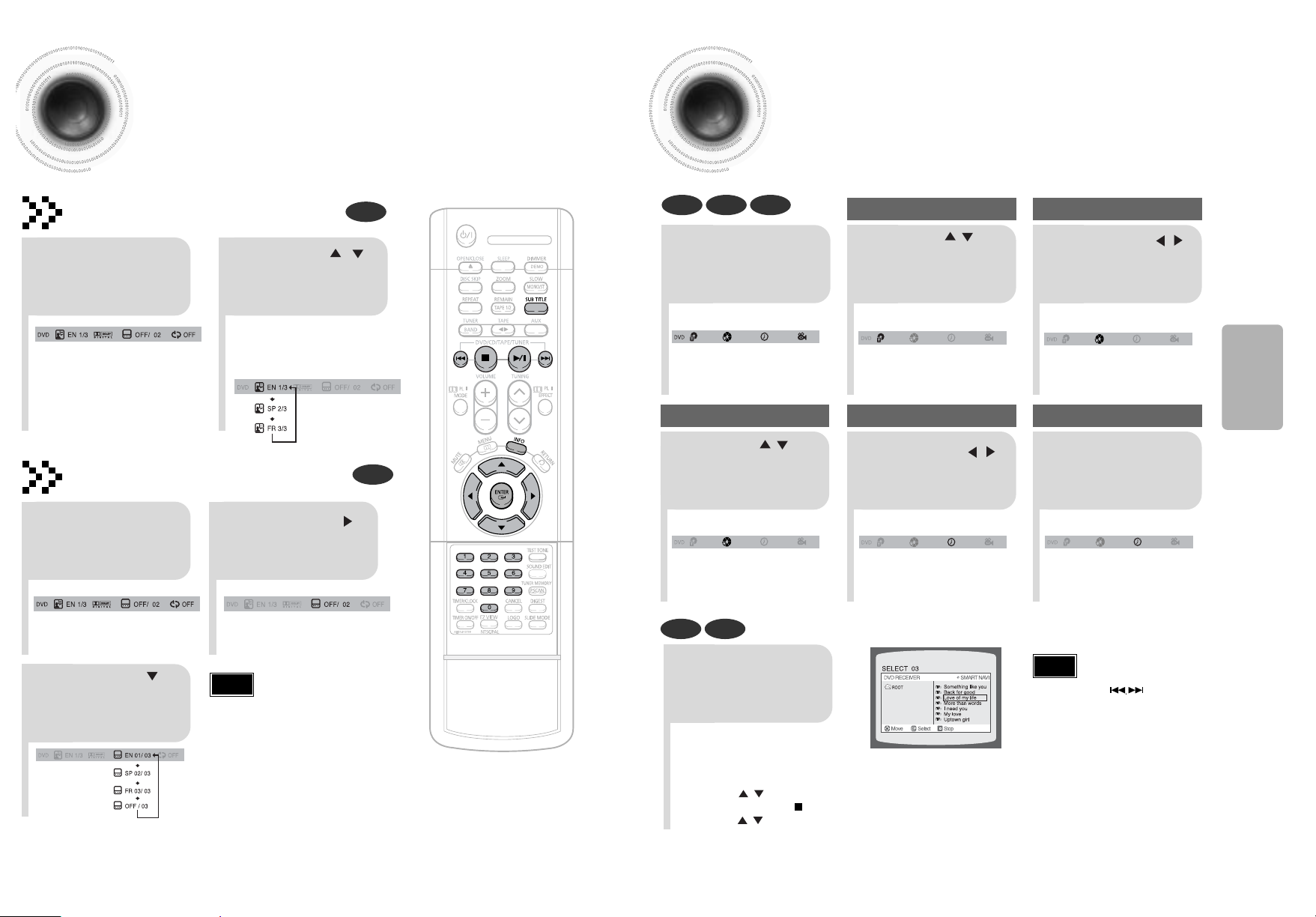

Selecting Audio/Subtitle Language................................................................................................................................................................29

Moving Directly to a Scene/Song...................................................................................................................................................................30

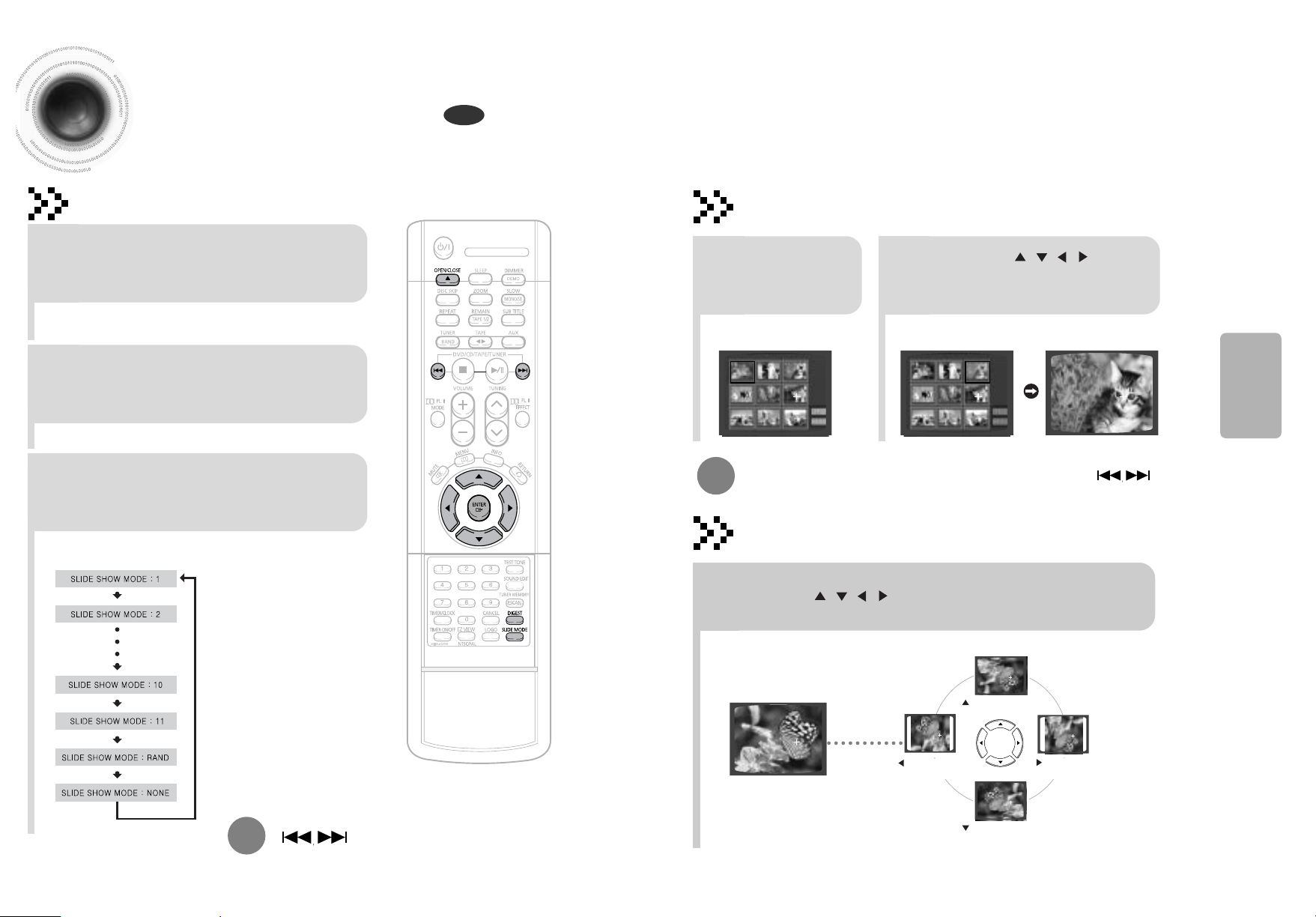

JPEG File Playback .......................................................................................................................................................................................31

Using Disc Menu............................................................................................................................................................................................33

Using the Title Menu......................................................................................................................................................................................34

SETUP

Setting the Language.....................................................................................................................................................................................35

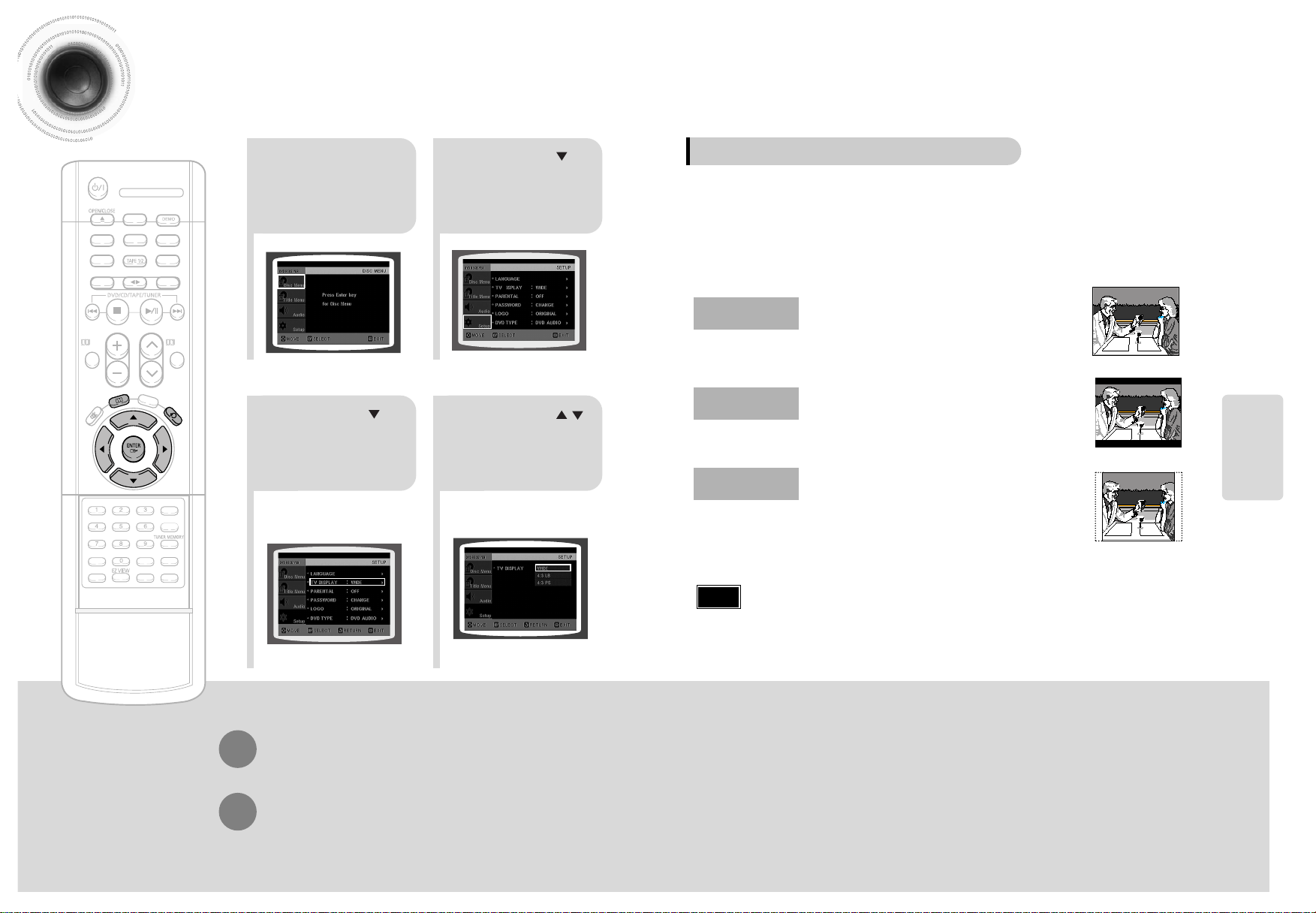

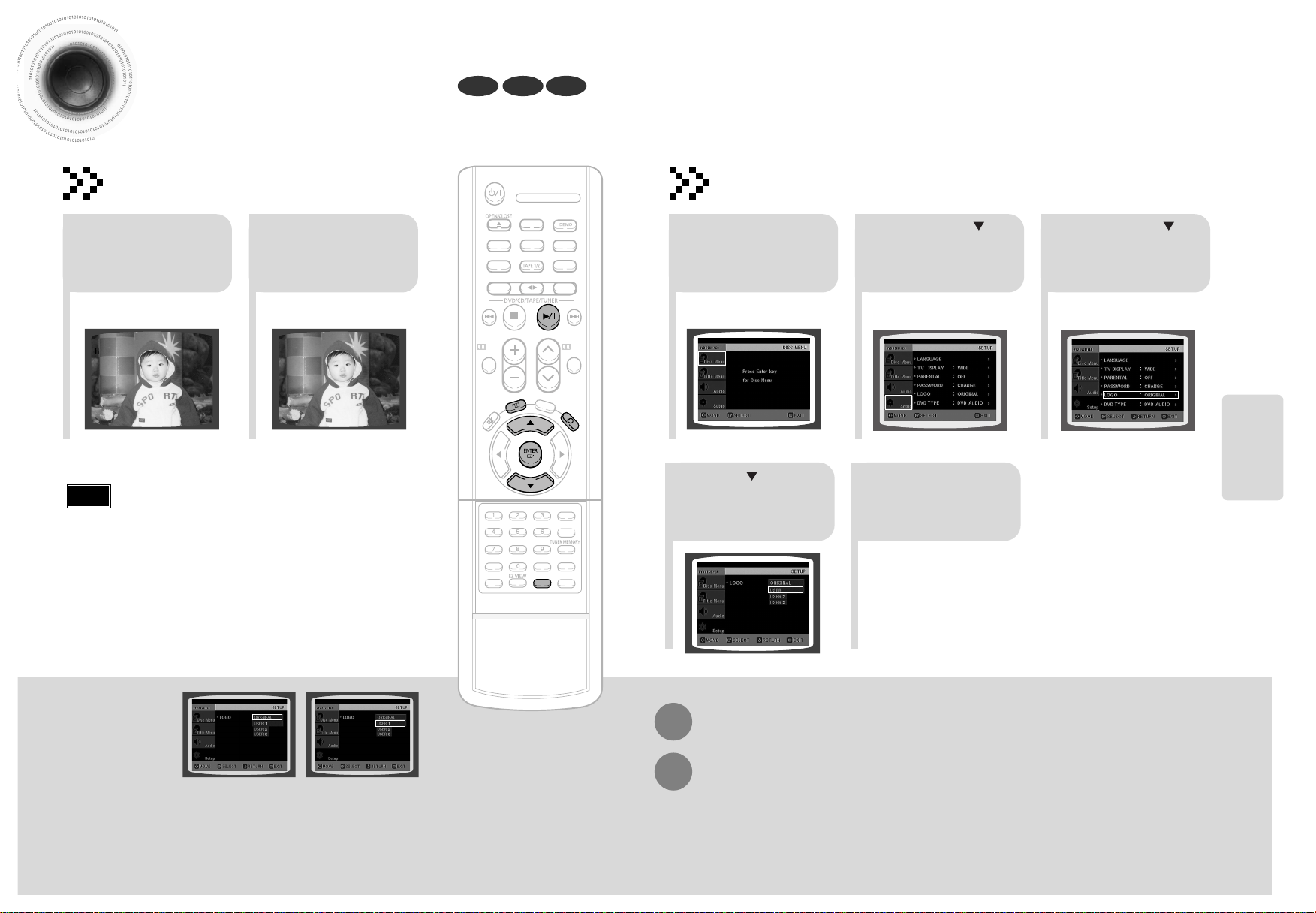

Setting TV Screen type..................................................................................................................................................................................37

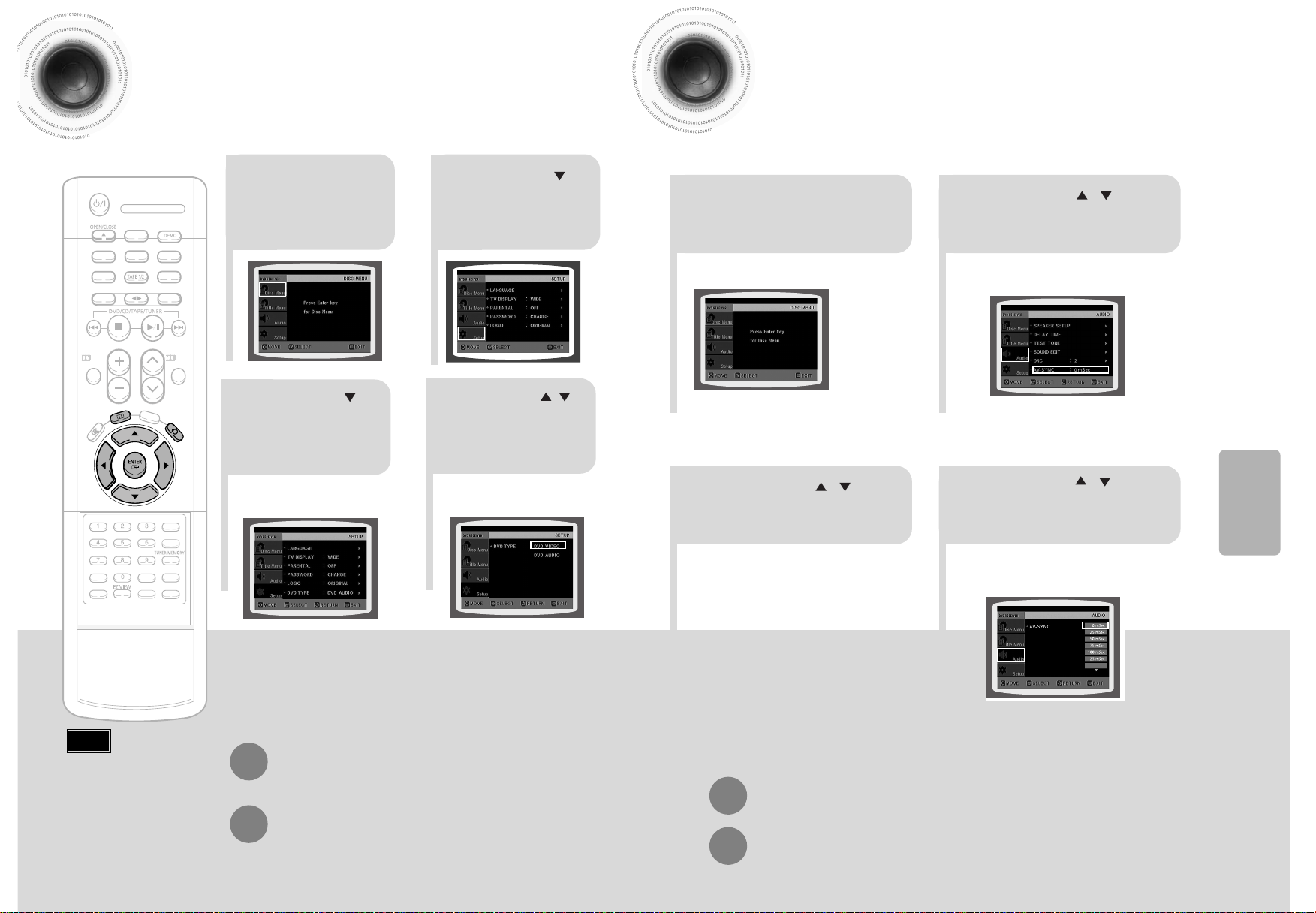

Setting Parental Controls (Rating Level) .......................................................................................................................................................39

Setting the Password.....................................................................................................................................................................................40

Setting the Wallpaper ....................................................................................................................................................................................41

DVD Playback Mode .....................................................................................................................................................................................43

AV SYNC Setup ............................................................................................................................................................................................44

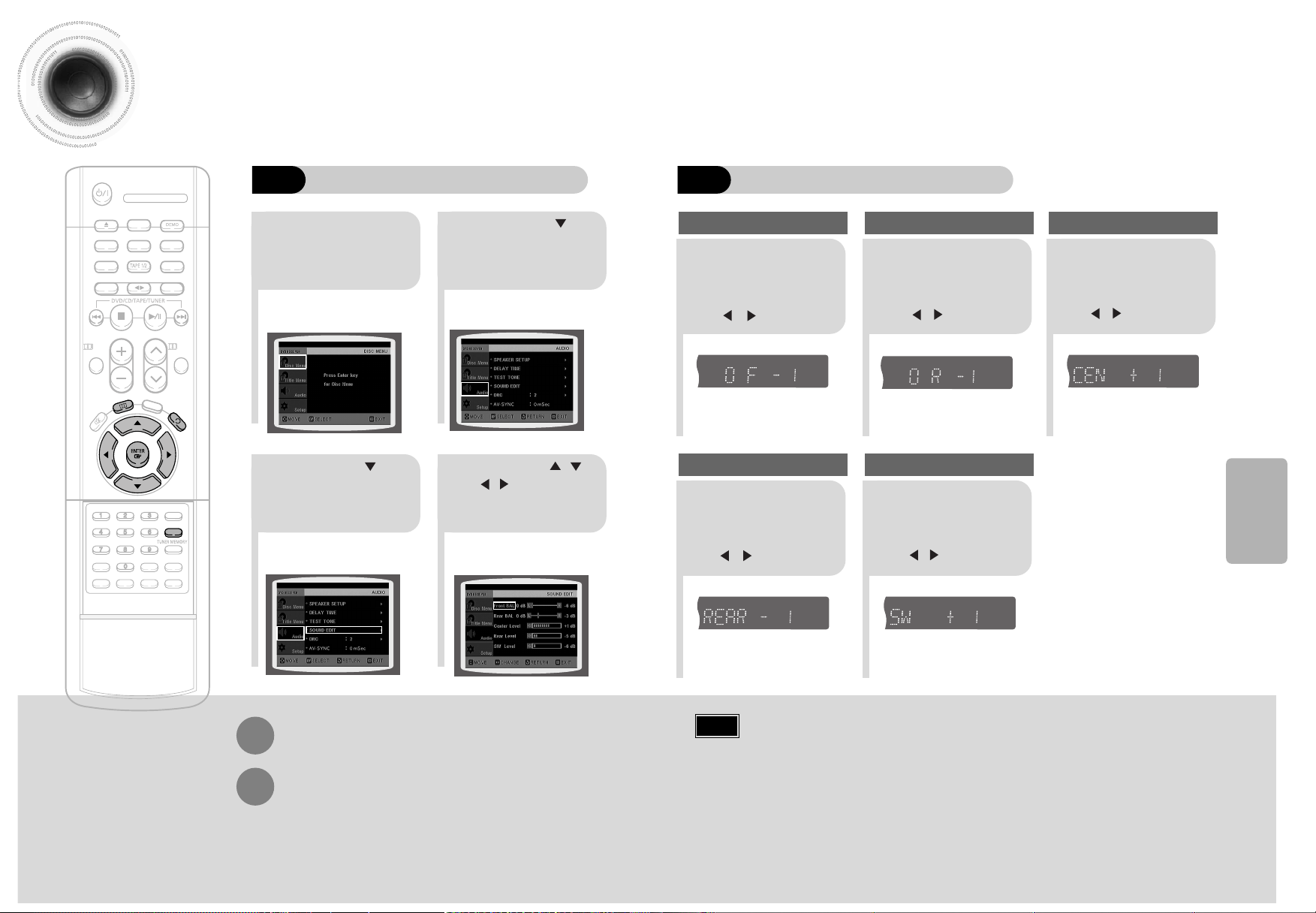

Setting the Speaker Mode ............................................................................................................................................................................45

Setting the Test Tone ...................................................................................................................................................................................46

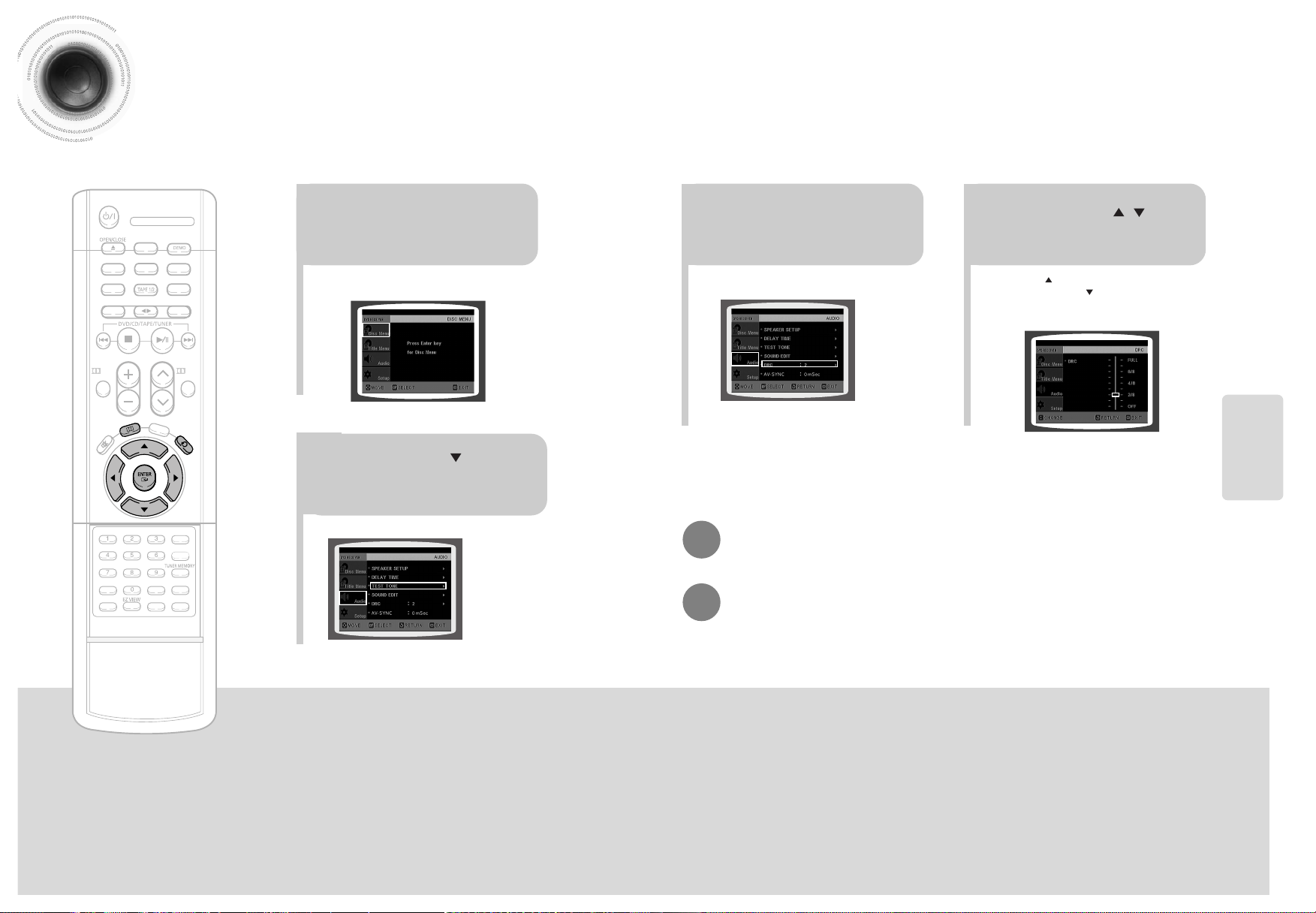

Setting the Delay time ...................................................................................................................................................................................47

Setting the Audio Quality ..............................................................................................................................................................................49

Setting the DRC (Dynamic Range Compression) .........................................................................................................................................51

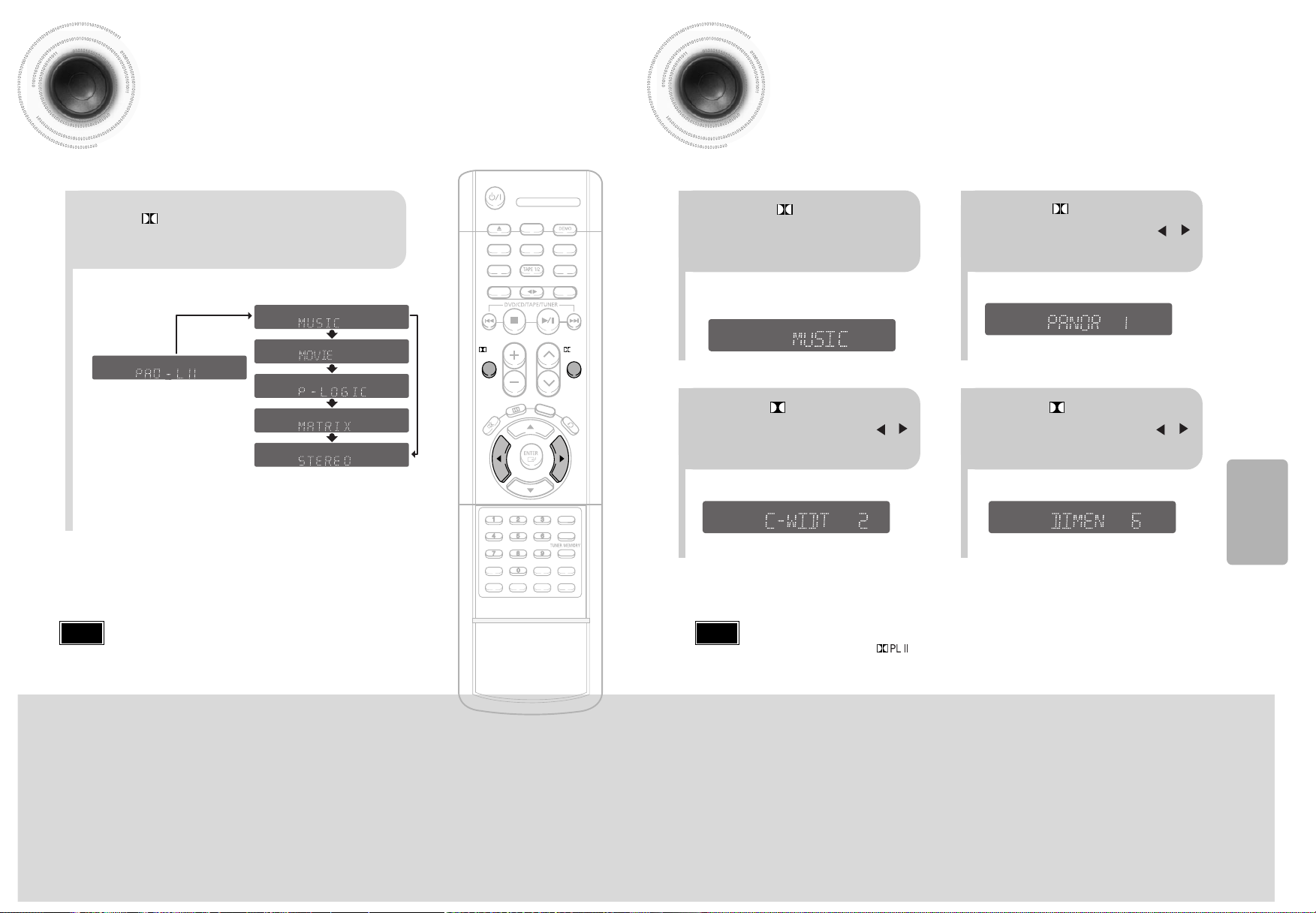

Dolby Pro Logic I I Mode ..............................................................................................................................................................................53

Dolby Pro Logic I I Effect ..............................................................................................................................................................................54

RADIO OPERATION

Listening to Radio ..........................................................................................................................................................................................55

Presetting Stations.........................................................................................................................................................................................56

TAPE DECK

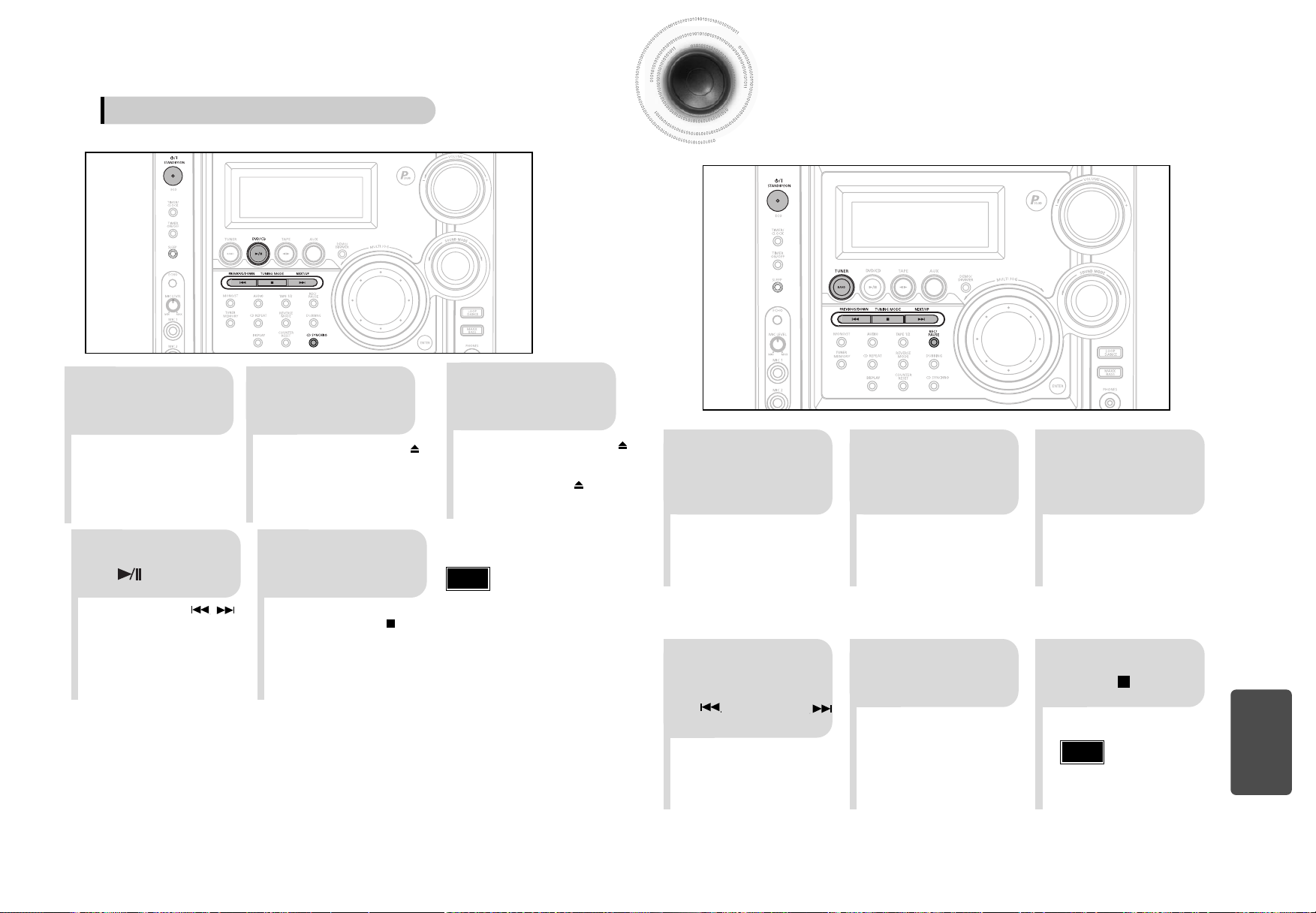

Listening to a Cassette ..................................................................................................................................................................................57

MISCELLANEOUS

Recording a Compact Disc ............................................................................................................................................................................60

Recording a Radio Program ..........................................................................................................................................................................62

Timer Function...............................................................................................................................................................................................63

Canceling the Timer.......................................................................................................................................................................................64

P.SOUND/SOUND MODE Function .............................................................................................................................................................65

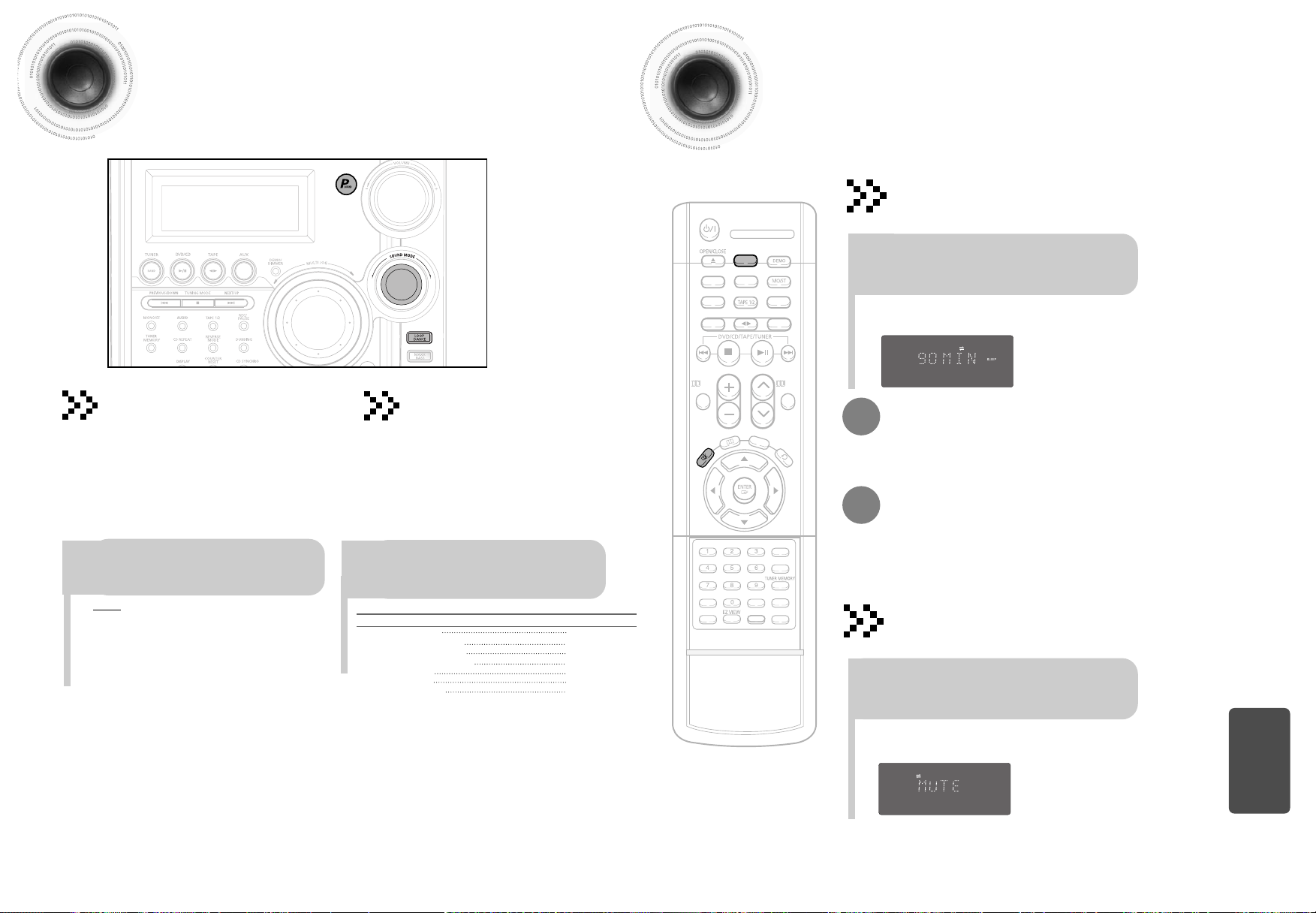

Sleep Timer Function / Mute Function...........................................................................................................................................................66

DEMO Function / DIMMER Function/ECO Function ....................................................................................................................................67

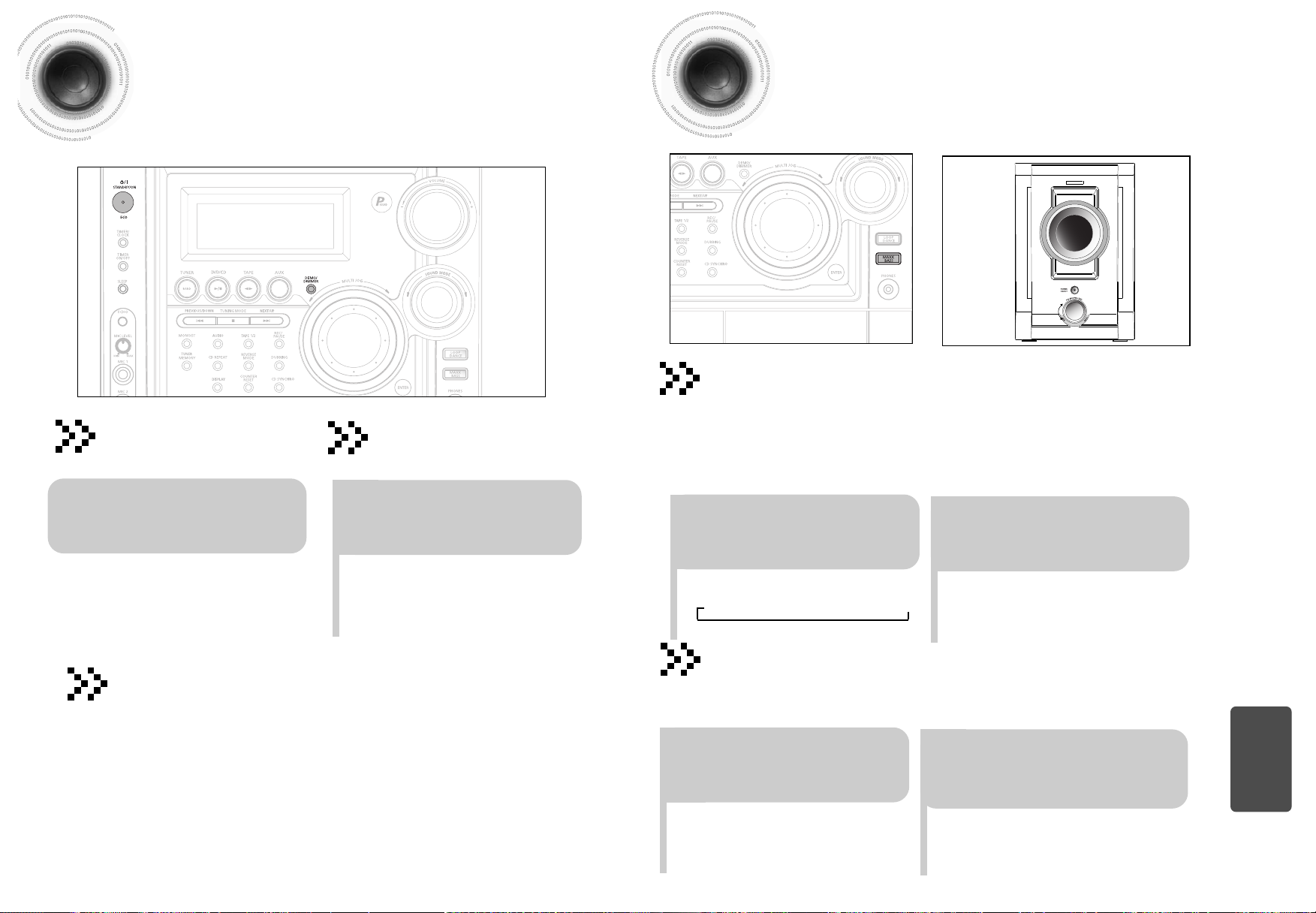

MAXX BASS LEVEL Function/SUB WOOFER LEVEL Function ..................................................................................................................68

Connecting Headphones/Microphone(option) ...............................................................................................................................................69

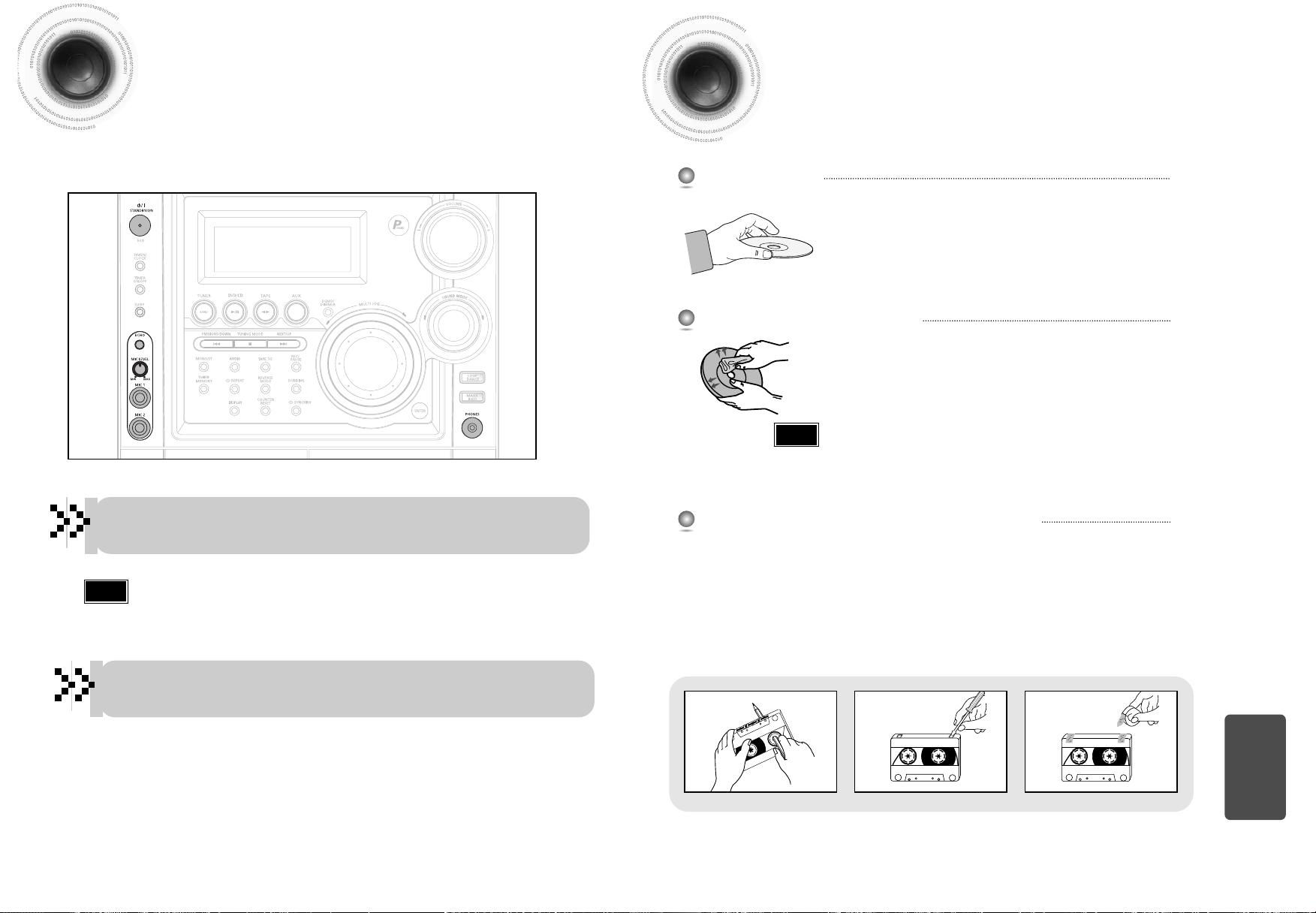

Cautions on Handling and Storing Discs .......................................................................................................................................................70

Before Calling for Service ..............................................................................................................................................................................71

Notes on Discs...............................................................................................................................................................................................73

Notes on Terminology....................................................................................................................................................................................74

Specifications.................................................................................................................................................................................................75

TV Screen Saver Function

The MAX-DS18500 automatically brightens and darkens the brightness of the TV screen after 3 minutes in the stop mode. The MAX-DS18500 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The MAX-DS18500 automatically shuts itself off after 20 minutes in the stop mode.

Customized TV Screen Display

The MAX-DS18500 allows you to select your favorite image during JPEG, VCD/DVD playback and set it as your background wallpaper.

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

V I D E O

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

Multi-Disc Playback & AM/FM Tuner, TAPE

The MAX-DS18500combines the convenience of multi-disc playback capability, including DVD-VEDIO, DVD-AUDIO,CD, MP3-CD, CD-R, CDRW,VCD,DivX,JPEG and DVD-R/RW, with a sophisticated AM/FM tuner, TAPE, all in a single player.

PREPARATION

Page 4

—Rear Panel—

O P E N

/ C L O

E D I

S C S K I P

O M

S L O

R E P E A

R E M

S U B

T I T L E

T U N

E R

V O L U M

M E

N U

I N F O

R E T U R N

E N T E

T E S T

T O N

I M E R

/ C L O C

K T I M E R

O N / O

F F

O G O

S L I D E

M O D E

T S C /

C A

N C E L

D I G E S T

T U N

I N G

T A

P E

A U

B A N D

L E E P

D I M

M E R

S O U

N D E D

I T

P . S C

A N

A H 5 9

0 1 3 7 9

Video Cable

FM Antenna

Remote Control

User's Manual

AM Antenna

Description

Accessories

—Front Panel—

PREPARATION

SW Antenna Connector (Option)

AM Antenna Connectors

FM Antenna Connector

LINE OUT

5. Sub woofer Control Jack

6. 5.1 Channel Speaker Output Terminals

Voltage Selector (Option)

8. Component Video Output Connectors

Connect a TV with component vide input jacks to

these jacks.

9. Video Output Connector

Connect the TV's video input jacks (VIDEO IN) to

the VIDEO OUT connector.

10. S-Video Output Connector

If the TV is equipped with an S-Video input connector (S-VIDEO IN), connect it to the player's S-Video output jack.

11.

AUX-In

Audio Cable

1. Search Function buttons Tuning Mode or Stop button

2. STANDBY/ON/ECO

3. Timer/Clock

4. Timer On/Off

5. Sleep

6. FM Mono/Stereo

7. Echo

8. MIC Level

9. MIC1,MIC2

10. Audio

11. Tuner Memory

12. Cassette Deck 1

13. CD Repeat

14. Display

15. Tape 1/2

16. Tape Counter Reset

17. Tape Reverse Mode

18. CD Synchro Recording

19. Tape Normal Speed Dubbing

20. Record/Pause (PAL/NTSC)

21. Multi Jog

22. Cassette Deck 2

23. Enter

24. Headphone Jack Connector

25. MAXX Bass

26. Loop Dance

27. Sound Mode

28. Volume

29. Power Sound

30. Compact Disc Compartment

31. Open/Close

32. Disc Change

33. Disc Selection buttons

34. Demo/Dimmer

35. Function Selection buttons

36. Window Display

3435

3 4 5

6 7

26 25

32 31

10 11

Page 5

To open the remote control cover, push the top of the cover, then slide downward.

Insert Remote Batteries

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Range of Operation of the Remote Control

Remove the battery cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

Replace the battery cover.

Follow these precautions to avoid leaking or cracking cells:

•

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

—Remote Control—

Description

Caution

VOLUME button

MENU button

POWER STANDBY/ON button

OPEN/CLOSE button

TUNER button

TAPE PLAY button

REPEAT button

MUTE button

Number(0~9) buttons

EZ VIEW, NTSC/PAL button

TIMER/CLOCK button

TIMER ON/OFF button

SLEEP button

DIMMER/DEMO button

SUB TITLE button REMAIN (TAPE 1/2)

AUX button

INFO button RETURN button

Direction/Enter button

TUNING button

SOUND EDIT button

TEST TONE button

TUNER MEMORY / P.SCAN button

DIGEST button SLIDE MODE button CANCEL button

LOGO button

Play/Pause button

Tuning Preset/CD/TAPE Skip button

Stop button

PREPARATION

DISC SKIP button

ZOOM button

SLOW,MONO/ST button

PL II MODE button

PL II EFFECT button

TEST TONE

Page 6

•

Make sure the colors of the speaker terminals match the colors of the connecting jacks.

Connect the connecting jacks to the back of the DVD player.

Back of the Main Unit

Rear Speaker (R)

Front Speaker (R)

Subwoofer

Center Speaker

Rear Speaker (L)

Front Speaker (L)

Blue

Gray

Violet

Red

Green

White

CONNECTIONS

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers to face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer

•

The position of the subwoofer is not so critical. Place it anywhere you like.

•

Usually, it is placed by a corner near the front speakers.

Front Speakers

•

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at the same height as your ear.

•

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front speakers.

•

You can also install it directly over or under the TV.

Position of the DVD Player

•

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Page 7

Use this method if your TV have Pr,Pb and Y jacks.

Method 3

If you television is equipped with Component Video inputs,connect a

component video cable from the Pr,Pb and Y jacks on

the back panel of the system to the corresponding jacks on your television.

COMPONENT

Connecting to a TV

Please be sure to turn off the power and unplug the power cord before moving or installing this unit. Please choose one of three video connection methods.

P.SCAN (Progressive Scan) Function

Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.

Press and hold P.SCAN button on the remote controller for over 5 seconds in STOP mode.

•

Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan" repetitively.

In interlaced-scan video, a frame consists of two interlaced fields (odd and even), where each field contains every other horizontal line in the frame. The odd field of alternating lines is displayed first, and then the even field is displayed to fill in the alternating gaps left by the odd field to form a single frame. One frame, displayed every 1/30th of a second, contains two interfaced fields, thus a total of 60 fields are displayed every 1/60th of a second. The interlaced scanning method is intended for capturing a still object.

Interlaced Scan (1 FRAME = 2 FIELDS)

The progressive scanning method scans one full frame of video consecutively down the screen, line by line. An entire image is drawn at one time, as opposed to the interlaced scanning process by which a video image is drawn in a series of passes. The progressive scanning method is desirable for dealing with moving objects.

Progressive Scan (FULL FRAME)

What is Progressive (or Non-Interlaced) Scanning?

•

This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.)

•

Depending on the brand and model of your TV, this function may not work.

Note

•

By default, the video format is set to "PAL".

•

Each time the button is pressed, the video format switches between "NTSC" and "PAL".

•

Each country has a different video format standard.

•

For normal playback, the video format of the disc must be the same as the video format of your TV.

Turn off the main unit and then press NTSC/PAL on the Remote Control or REC/PAUSE on the Main Unit.

Selecting the Video Format

CONNECTIONS

Use this method if your TV has an S-Video In jack.

Method 1

Using Video Out (Good Quality)

Connect Video Out on the player to Video In on your TV.

Connect S-Video Out to S-Video In on your TV.

Press the TV/VIDEO button on the remote of TV control to set the TV to "VIDEO".

Press the TV/VIDEO button on the remote control of TV to set the TV to "S-VIDEO".

Method 2

Using S-Video Out (Better Quality )

•

Composite Video: A single video signal that is a composite of

the black-and-white information (Y) and the color information (C).

•

S-Video: A video transmission standard that provides a sharper,

brighter picture than ordinary composite video by separating

brightness and color signals.

Note

Supplied

Page 8

Connect Audio In on the DVD player to Audio Out on the external analog component.

•

Be sure to match connector colors.

Example: Analog signal components such as a VCR, Camcorder, and TV.

Connecting an External Analog Component

Connecting External Components

Audio Cable

If the external analog component has

only one Audio Out, connect either left

or right.

Press AUX to select AUX.

•

‘

AUX’ appears in the display.

Connecting the FM, AM

(

MW)and SW(option) Antennas

FM Antenna (supplied)

AM Loop Antenna (supplied)

If AM reception is poor, connect an outdoor AM antenna(not supplied).

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

Spread the SW aerial out and attach the ends to a wall, in the position providing the best reception. If reception is poor (e.g. distance from transmitter too great, walls blocking the radio waves, etc.), install an outdoor aerial.

The cooling fan dissipates the heat generated inside the unit so that the unit can be operated normally. The cooling fan is activated automatically to supply cool air to the unit.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Cooling Fan

FM antenna connection

(MW) antenna connection

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

•

If reception is poor, connect an outdoor antenna. Before attaching a 75Ω coaxial cable (with a standard type connector), disconnect the supplied FM antenna.

1. Connect the AM loop antenna supplied to the AM and terminals.

2. If reception is poor, connect an outdoor single vinyl-covered wire to the AM terminal. (Keep the AM loop antenna connected).

CONNECTIONS

Page 9

Disc Playback

•

Depending on the content of the disc, the initial screen may appear different.

•

Depending on the recording mode, some MP3-CDs cannot be played.

•

Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

DVD VCD

•

Playback starts automatically.

MP3 JPEG

•

Playback starts automatically.

•

If the TV is on, a list of MP3s on the CD will appear on the TV screen.

Note

•

To resume playback, press PLAY/PAUSE button again.

To temporarily pause playback, press PLAY/PAUSE during playback.

•

If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory. If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

•

If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the beginning.

To stop playback, press STOP during playback.

DivX

Setting the Clock

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

•

You can display the time, even when you are using another function, by pressing TIMER/CLOCK once.

•

CLOCK is displayed.

Press TIMER/CLOCK twice.

Switch the system on by pressing POWER button.

•

"TIMER" appears in the display.

•

The current time is now set.

When the correct time is displayed, press ENTER.

•

Increase the minutes :

•

Decrease the minutes :

When the correct hour is displayed, press ENTER. The minutes flash.

•

Increase the hours :

•

Decrease the hours :

Press ENTER. The hour flashes.

Note

Checking the Remaining Time

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

TRACK REMAIN

TRACK ELAPSED

Each time the REMAIN button is pressed

Press the REMAIN button.

•

For checking the total and remaining time of a title or chapter being played.

DVD

VCD

MP3

To select a specific disc, press the corresponding DISC (1, 2, 3) button on the front panel or DISC SKIP on the remote control, until the required disc indicator flashes. Result: All the discs will be played in turn, starting with the one selected.

The CD function is automatically selected when Disc Skip is pushed.

Selecting a CD in the Disc changer

•

If you use the DISC (1, 2, 3) function when listening to the radio or to a tape, the system switches automatically to the CD mode.

•

If the disc selected is not loaded, the next disc is played automatically.

•

You can also use Multi-Jog or button on the panel front instead of , buttons in step 3,4.

Note

OPERATION

DVD-

AUDIO

TRACK REMAIN

GROUP REMAIN

TRACK ELAPSED

GROUP ELAPSED

DVD-

AUDIO

Page 10

•

In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.

Where a particular DVD type is mentioned, it is indicated separately.

•

Depending on the content of the disc, the initial screen may appear different.

DVD

Note

Groups and tracks (DVD-AUDIO)

•

DVD-audios are divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections.

These numbers are called "group numbers" and "track numbers".

Titles and chapters (DVD-VIDEO)

•

DVD-videos are divided into several large sections called "titles" and smaller sections called "chapters". Numbers are allotted to these sections.

These numbers are called "title numbers" and "chapter numbers".

Tracks (Video and music CDs)

•

Video and music CDs are divided into sections called "tracks". Numbers are allotted to these sections. These numbers are called "track numbers".

Disc terminology

Bonus Group / Navigating Pages

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

Bonus Group

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

•

You can select the desired image from a DVD-Audio disc containing still images.

•

With some discs, you may not be able to select images depending on how the disc was manufactured.

•

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

Note

Navigating Pages

During playback, press the button on the remote control.

DVD-

AUDIO

DVD-

AUDIO

OPERATION

KEY NUMBER :

Page 11

5 Minute Skip function

•

When playing the DivX disk, you can play the file with extension of AVI only.

•

Among the available DivX audio formats, DTS Audio is not supported.

•

WMV V8 is not supported for WMV files.

•

When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.

•

Divx Disc does not playing when its sampling frequency is lower than 32KHz.

•

Some of the discs recorded in DivX or XviD depending on the way of recording could be played back not correctly or couldn’t be played back at all.

•

MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS , SAMPLING FREQ.: 32K/44.1K/48KHz) .

During playback, press the , button.

•

Go to the screen about 5 minutes after whenever you press button.

•

Go to the screen about 5 minutes earlier whenever you press button.

Note

OPERATION

Subtitle Display

Press the SUBTITLE button.

DivX Feature Table

DivX Supported Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9660 format.

MPEGs containing DivX can be divided into Video and Audio.

•

Video compatibility : All versions of DivX later than 3.11 (including the latest 5.1) are supported. In addition, XviD is supported. For WMV, V1, V2, V3, and V7 formats are possible. The initial resolution is 720X480 and may support up to 720X576 .

•

Audio compatibility : MP3s encoded at bitrates from 80kbps to 384kbps, AC3s from 128kbps to 384kbps, and WMAs from 56kbps to 128kbps are supported.

•

In addition, for subtitles, this unit will support Text format (SMI).

SPEC

VIDEO Compatibility DivX3.11 Up to the latest VERSION

WMV WMV V1/V2/V3/V7

AUDIO Compatibility MP3 CBR : 80kbps~384kbps

AC3 CBR : 128kbps~384kbps

WMA CBR : 56kbps~128kbps

•

Each time you press the button, your selection will toggle between “SUBTITLE ON” and “SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

•

Up to 8 subtitle languages are supported.

Fast playback

DivX Playback

Skip Forward/Back

During playback, press the button.

•

Go to the next file whenever you press button, if there are over 2 files in the disk.

•

Go to the previous file whenever you press button, if there are over 2 files in the disk.

Press and hold button.

•

Each time the button is held down during playback, the playback speed changes as follows:

•

DivX files can be played in Zoom X2 mode only.

Note

Zoom Function

Press Cursor , ,

, buttons to move to the area you want to enlarge.

Press ZOOM button.

•

Each time you press the button, your selection will toggle between “ZOOM X2” and “ZOOM OFF”.

Page 12

Fast/Slow Playback

Fast Playback

DVD VCD CD MP3

Press and hold .

•

Each time the button is held down during playback, the playback speed changes as follows:

Press SLOW button.

•

Each time the button is pressed during playback, the playback speed changes as follows:

Slow Playback

DVD VCD

DivX

Displaying Disc Information

You can view playback information on the disc on the TV screen.

Press INFO button on the remote control or Press DISPLAY button on the main set .

•

Each time the button is pressed, the display changes as follows:

DVD

Display disappears

Display disappears Display disappears

VCD CD MP3 JPEG

•

What is a Title?

A movie contained in a DVD disc.

•

What is a Chapter?

Each title on a DVD disc is divided into several smaller sections called "chapters".

•

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

•

What is a Track (File)?

A section of video or a music file recorded on a VCD, CD, or MP3-CD.

Screen Display

DVD display

MP3 CD display

TITLE display

CHAPTER display

TRACK (FILE) display

AUDIO LANGUAGE display

SUBTITLE display

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

•

Depending on the disc, the disc information display may appear different.

•

Depending on the disc, you can also select DOLBY DIGITAL, or PRO LOGIC.

Note

DivX

DivX display

•

Reverse slow playback does not work with VCDs and DivX.

Note

•

During fast playback of a CD or MP3-CD, sound is heard only at

2x speed, and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion

playback.

OPERATION

DVD-AUDIO display

DVD

AUDIO

GROUP display

CD display

VCD display

REPEAT PLAYBACK display

TRACK (FILE) display

Page 13

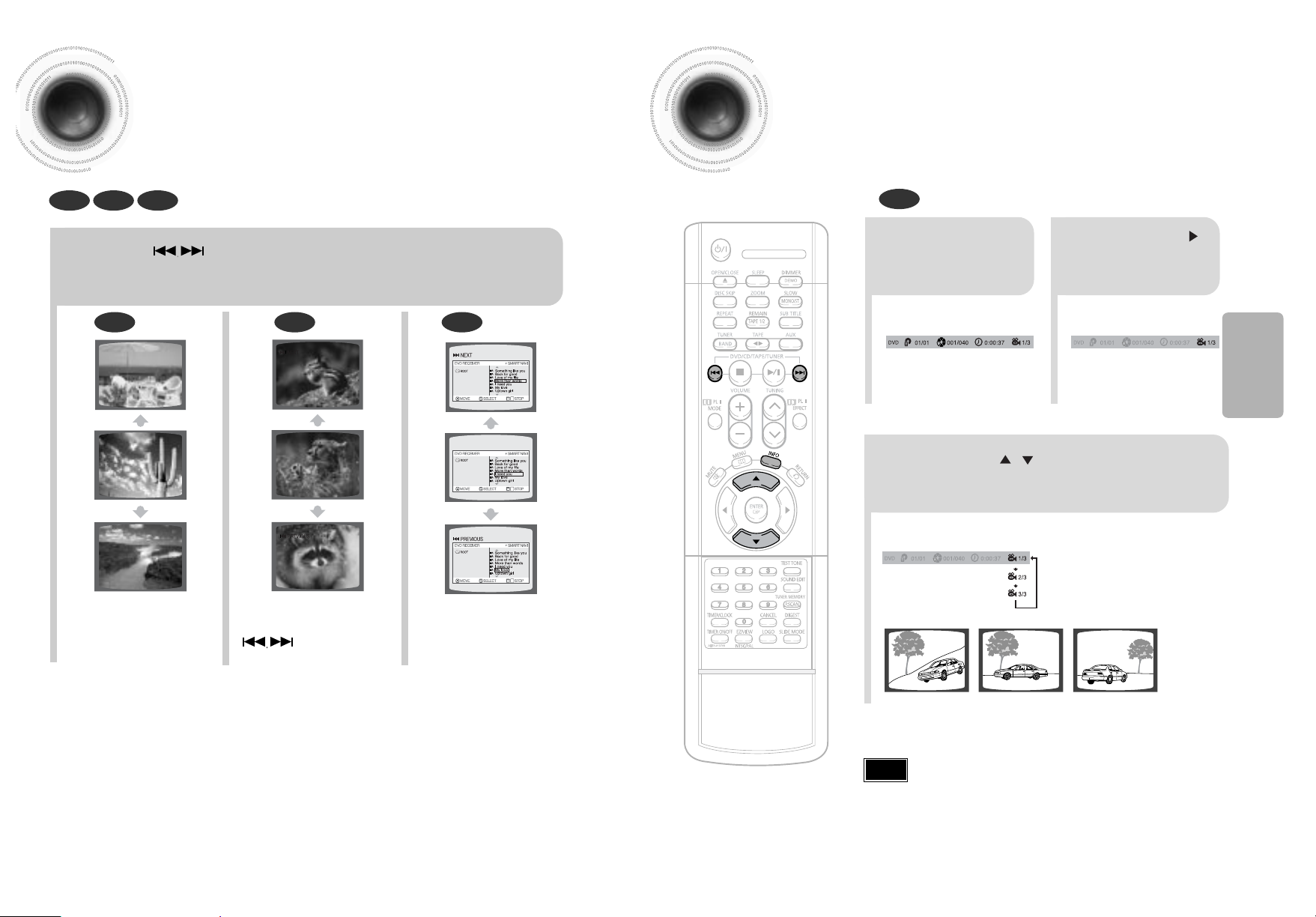

Angle Function

This function allows you to view the same scene in different angles.

DVD

Press Cursor button to move to ANGLE display.

Press INFO button.

•

Each time the button is pressed, the angle changes as follows:

Press Cursor , buttons or numeric buttons to select the desired angle.

•

The Angle function works only with discs on which multiple angles have been recorded.

Note

Skipping Scenes/Songs

DVD VCD MP3

Briefly press .

•

Each time the button is pressed briefly during playback, the previous or next chapter,

track, or directory (file) will be played.

•

But, you cannot skip chapters consecutively.

•

When watching a VCD with a track longer than 15 minutes, each time

is pressed, playback

will skip back or forward 5 minutes.

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

OPERATION

Page 14

DVD

VCD CD

•

For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

•

For VCD Version 2.0 discs, you can select Repeat Play in PBC off mode.

Note

Press Cursor button to move to REPEAT PLAYBACK display.

Press INFO button twice .

Press ENTER button.

Press Cursor button to select the desired Repeat Playback mode.

DVD VCD CD

To Select a Repeat Playback Mode in the Disc Information Screen

•

For a VCD or CD,Press INFO

button once.

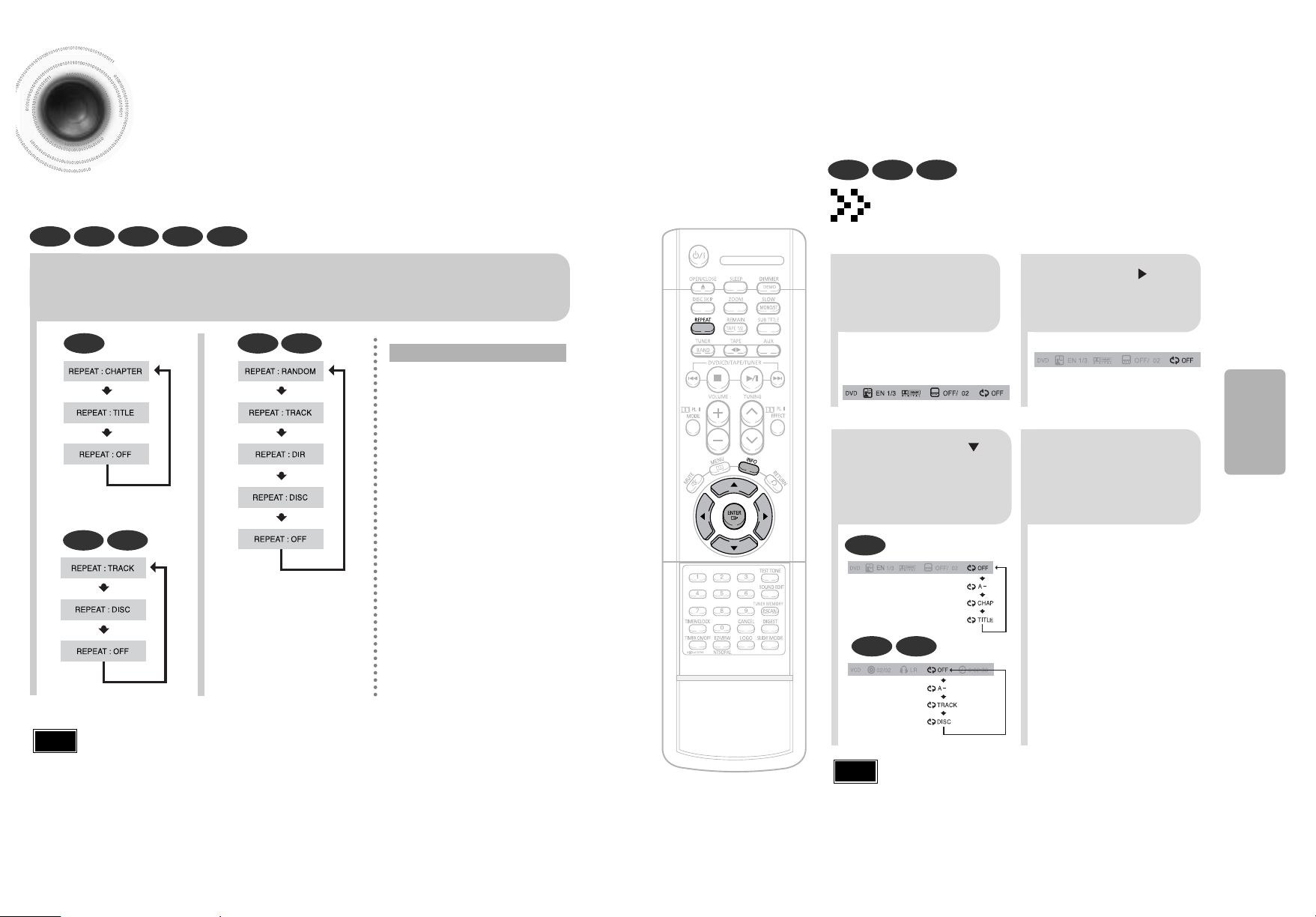

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

Press REPEAT button.

•

Each time the button is pressed during playback, the repeat playback mode changes as follows:

DVD

VCD CD

MP3 JPEG

•

Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on.

To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page 33.)

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

RANDOM

Plays tracks in random order. (A track that has already been played may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

DVD VCD CD MP3 JPEG

Repeat Playback Options

Note

OPERATION

Page 15

Zoom Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

DVD VCD

Aspect Ratio

DVD

Press Cursor , ,

, buttons to move to the area you want to enlarge.

Press ZOOM button.

•

Each time the button is pressed, the zoom level changes as follows:

Press ENTER button.

Press EZ VIEW button.

•

Each time the button is pressed, the zoom function will switch between On and Off.

•

When a movie is played in Wide screen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.

•

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

Note

SELECT ZOOM POSITION

A↔B Repeat Playback

OPERATION

•

The A-B Repeat function will not work on an MP3 or JPEG disc.

Press Cursor button to move to REPEAT PLAYBACK ( ) display.

•

For a VCD or CD, press INFO button once.

Press INFO button twice.

•

The specified segment will be played repeatedly.

Press ENTER button at the end of the desired segment.

•

When ENTER button is pressed, the selected position will be stored in memory.

Press Cursor , buttons to select ‘A-’ and then press ENTER button at the beginning of the desired segment.

To return to normal playback, press Cursor , buttons to select OFF.

DVD VCD CD

Note

EZ VIEW OFFEZ VIEW

Page 16

Selecting Audio Subtitle Language

•

Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPAIN,JAPANESE, etc.) is selected each time the button is pressed.

Press Cursor , buttons or numeric buttons to select the desired audio language.

Press INFO button twice.

•

You can use the SUBTITLE button on the remote control to select a subtitle language.

•

Depending on the disc, the Subtitle and Audio Language functions may not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

Note

Press Cursor button to move to SUBTITLE display.

Press INFO button twice.

Press Cursor button or numeric buttons to select the desired subtitle.

Moving Directly to a Scene/Song

•

The selected file will be played.

•

An MP3 or JPEG disc cannot be moved from the disc information screen.

•

When playing an MP3 or JEPG disc, you cannot use , to move a folder. To move a folder, press (Stop) and then press , .

DVD VCD CD

MP3 JPEG

Press Cursor , buttons or numeric buttons to select the desired title/track and then press ENTER button.

Press INFO button.

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired chapter and then press ENTER button.

01/05

025/040 0:00:01 1/1

Moving to a Chapter

Press the numeric buttons to select the desired time and then press ENTER button.

01/05

028/040 1:30:00 1/1

Moving to a Specific Time

Press Cursor , buttons to move to Chapter display.

Moving to a Chapter

01/05

025/040 1:17:30 1/1

Press Cursor , buttons to move to time display.

Moving to a Specific Time

Press the numeric buttons.

•

You can press on the remote control to move directly to the desired title, chapter, or track.

•

Depending on the disc, you may not be able to move to the selected title or time.

Note

OPERATION

Page 17

Rotate/Flip Function

button: Flip Vertically

button: Flip Horizontally

button: Rotate 90° Counterclockwise

button: Rotate 90° Clockwise

Digest Function

Press Cursor , , , buttons to select the desired image and then press ENTER button.

Press DIGEST button during playback.

•

JPEG files will be shown in 9 windows.

You can view 9 JPEG images on the TV screen.

•

The selected image is played for 5 seconds before moving to the next image.

To view the previous or next image with 9 windows, press .

Press Cursor , , , buttons during playback.

Original Image

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player.

Slide Mode

JPEG

Place the JPEG disc on the disc tray.

•

Each time the button is pressed, the slide moves backward or forward.

Press to skip to the next slide.

•

Playback starts automatically.

•

Each image is shown for 5 seconds before another image is displayed.

Press the OPEN/CLOSE button.

•

Playback starts automatically.

•

Each time the button is pressed, the image makes the transition as follows:

Press SLIDE MODE button.

From top to bottom

From bottom to top

Rectangular shape in the center

Vertical curtain shape

Each time a new image is displayed, slide modes (1~11) will be randomly and automatically be applied.

Cancels the slide mode.

OPERATION

Page 18

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently.

Press Cursor , button to move to ‘Title Menu’.

DVD

In stop mode Press

MENU button.

Press ENTER button.

•

The title menu appears.

Press MENU button to exit the setup screen.

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

DVD

•

When playing a VCD (version 2.0), this toggles between PBC ON and OFF.

•

When you select the disc menu that is not supported by the disc, the "This menu is not supported" message appears on the screen.

In stop mode,Press MENU button.

Press Cursor , buttons to move to ‘DISC MENU’ and then press ENTER button.

Press ENTER button.

Press Cursor , ,

, buttons to select

the desired item.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.

PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be

disabled. When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

Note

OPERATION

Page 19

If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language.

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

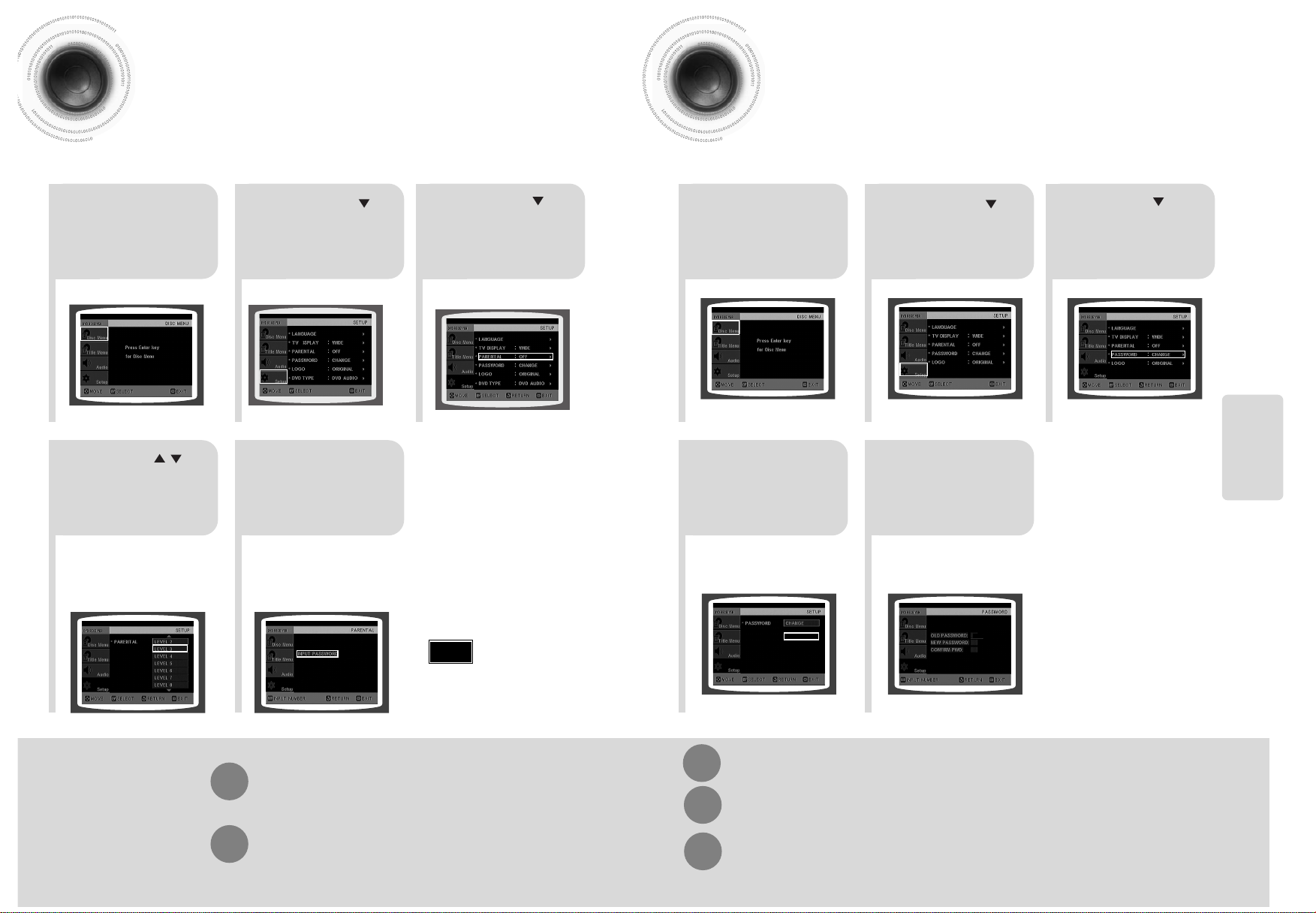

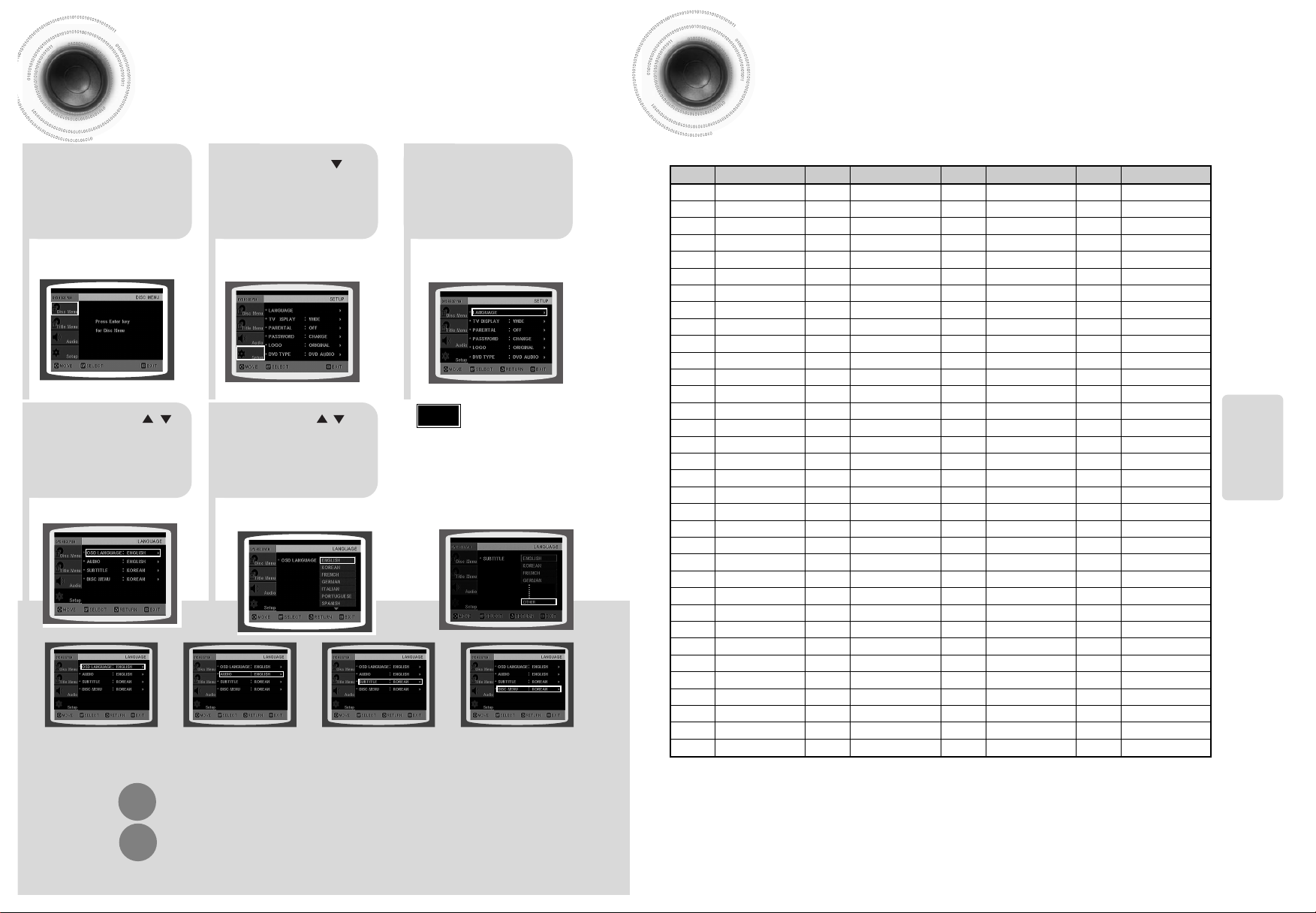

Setting the Language

OSD language is set to English by default.

In stop mode,Press MENU button.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

•

Once the setup is complete, if the language was set to English, OSD will be displayed in English.

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Disc Menu

Language (recorded on the disc)

Press ENTER button.

Press Cursor , button to select the desired item and then press ENTER button.

Press Cursor , button to select the desired language and then press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

SETUP

35 36

• To select other language, select OTHER and enter the language code of your country. (See 61 page for language code of countries) AUDIO, SUB TITLE and DISC MENU language can be selected.

Note

Language Code List

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 33).

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian 1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan 1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona 1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali 1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian 1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian 1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati 1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho 1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese 1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish 1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili 1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil 1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu 1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik 1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai 1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya 1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen 1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog 1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana 1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga 1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish 1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga 1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar 1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi 1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian 1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu 1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek 1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese 1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk 1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof 1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa 1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba 1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese 1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

Page 20

37 38

Setting TV Screen type

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

In stop mode,Press MENU button.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

•

Once the setup is complete, you will be taken to the previous screen.

Press Cursor button to move to ‘TV DISPLAY’ and then press ENTER button.

Press Cursor , button to select the desired item and then press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen size, you should adjust the aspect ratio to fit your TV or monitor.

✱ For a standard TV, select either "4:3LB" or "4:3PS" option according to

personal preference. Select "16:9" if you have a wide screen TV.

: Select this to view a 16:9 picture in the full-screen

mode on your wide screen TV.

• You can enjoy the wide screen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

4:3LB

(4:3 Letter box)

WIDE

4:3PS

(4:3 Pan&Scan)

• If a DVD is in the 4:3 ratio, you cannot view it in wide screen.

• Since DVD discs are recorded in various image formats, they will look different depending on

the software, the type of TV, and the TV aspect ratio setting.

Note

Adjusting the TV Aspect Ratio (Screen Size)

SETUP

Page 21

39 40

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

•

This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

in stop mode,Press MENU button.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be taken to the previous screen.

•

If you have selected Level 6, you cannot view DVDs with Level 7 or higher.

•

The higher the level, the closer the content is to violent or adult material.

Press Cursor button to move to ‘PARENTAL’ and then press ENTER button.

Press Cursor , button to select the desired rating level and then press ENTER button.

Enter the password and then press

ENTER button.

Note

Press MENU button.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

•

Enter the old password, a new password, and confirm new password.

•

The setting is complete.

Press Cursor button to move to ‘PASSWORD’ and then press ENTER button.

Press ENTER button.

Enter the password and then press

ENTER button.

Setting the Password

You can set the password for the Parental (rating level) setting.

SETUP

Press CANCEL button to cancel the error numeric when you inputting password.

Page 22

SETUP

Setting the Wallpaper

While watching a DVD,,VCD or JPEG CD, you can set the image you like as a wallpaper.

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

DVDJPEG

During playback, press PLAY/PAUSE button when the image you like comes up.

Press LOGO button.

PAUSE

COPY LOGO DATA

Setting the Wallpaper

21 3

Press MENU button.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

Press Cursor button to move to ‘LOGO’ and then press ENTER button.

To Change the Wallpaper

Press MENU button to exit the setup screen.

Press to select the desired ‘USER’, and then press ENTER.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

41 42

•

“COPY LOGO DATA” will be

displayed on the TV screen.

•

The selected wallpaper will be displayed.

•

You can repeat Steps 1 and 2 to set up to 3 wallpapers.

•

The power will turn off and turn on automatically and back on the display mode.

Note

VCD

Page 23

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

43 44

SETUP

DVD Playback Mode

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Press the MENU button while the disc tray is open.

Press Cursor button to move to ‘Setup’ and then press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

•

DVD Play mode is set to DVD Audio as factory default setting.

Note

When Selecting DVD Play Mode:

•

DVD VIDEO : set to play the DVD video

contents contained in DVD audio disc.

•

DVD AUDIO : set to play the default DVD

audio.

AV SYNC Setup

•

'Audio' menu appears.

•

Setup menu appears.

•

AV-SYNC screen appears.

Press Cursor , buttons to move to ‘Audio’ and then press ENTER button.

•

You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Press Cursor , buttons to select the Delay Time of AV-SYNC and then press the ENTER button.

Video may look slower than the audio if it is connected with digital TV. In this case, adjust the delay time of audio to optimal status to fit the video.

Press Cursor , buttons to move to ‘AV-SYNC’ and then press ENTER button.

Press the MENU button.

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

Press Cursor button to move to ‘DVD TYPE’ and then press ENTER button.

Press Cursor , button to move to ‘DVD VIDEO’ and then press ENTER button.

•

Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.

Page 24

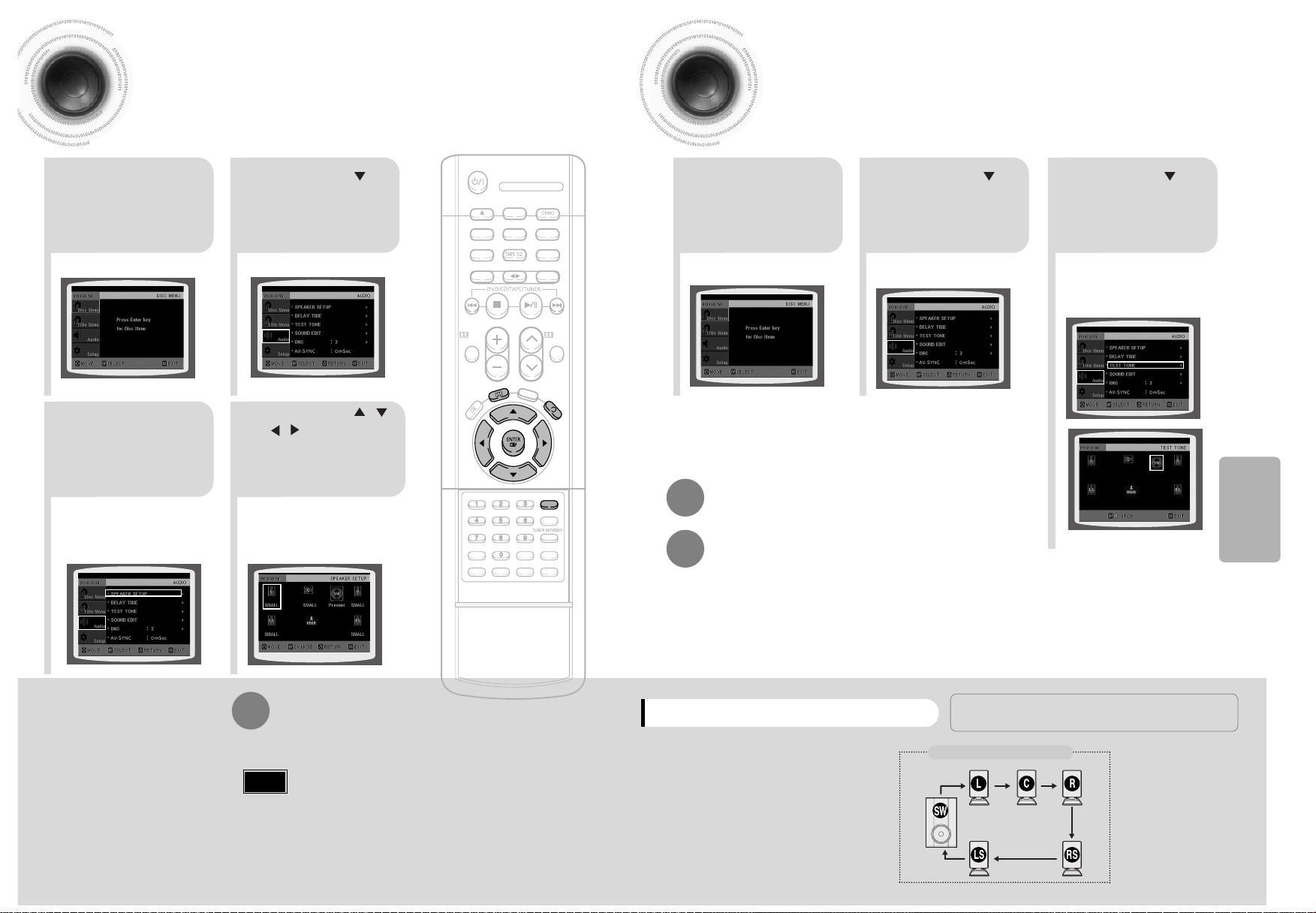

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

Setting the Test Tone

Press the Test Tone to check the speaker connections and to adjust the speaker levels.

OPEN/CLOSE

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

EZ/VIEW

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

In Stop mode, press MENU button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

In the Speaker Setup, press the ENTER button again.

L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)

Press Cursor , ,

, buttons to move to the desired speaker and then press ENTER button.

•

For C, LS, and RS, each time the button is pressed, the mode switches alternately as follows: SMALL ➝ NONE.

•

For L and R, the mode is set to SMALL.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

45 46

SETUP

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are installed.

In Stop mode, press MENU button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

Press Cursor button to move to ‘TEST TONE’ and then press ENTER button.

•

The test tone will be sent to L ➝ C ➝ R ➝ RS ➝ LS ➝ SW in that order. If the ENTER button is pressed again at this time, the test tone will stop.

To end the test tone, press TEST TONE button.

Press TEST TONE button.

•

Test tone will be produced as follows: When playing a DVD or CD, this will work only in Stop mode.

•

Use this function to check that each speaker is correctly connected and that there is no problem.

When manually testing using the TEST TONE button

Multi-Channel Pro Logic Mode

Start

•

Depending on PRO LOGIC and STEREO, the speaker mode may vary.

Note

Page 25

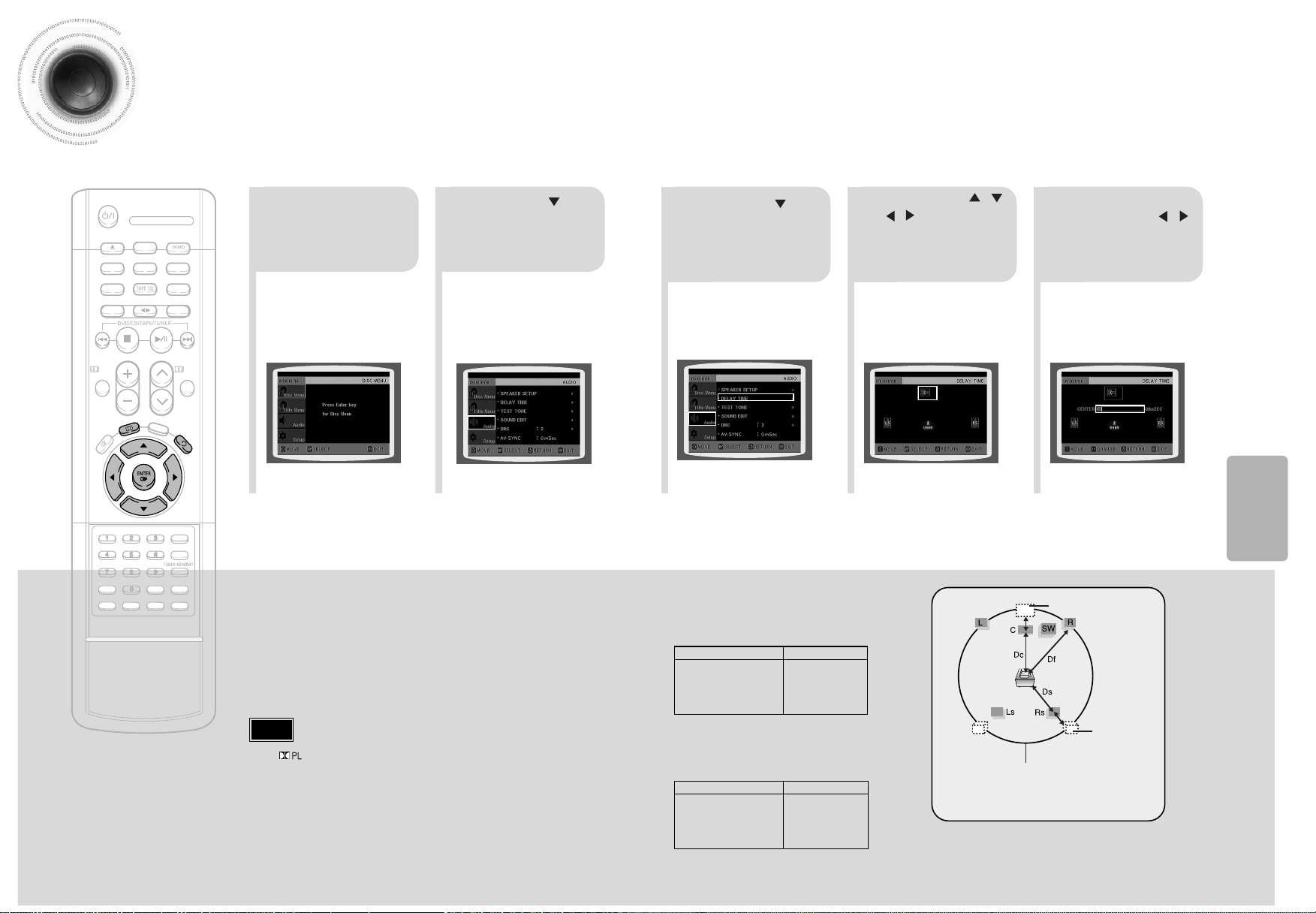

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

OPEN/CLOSE

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

EZ/VIEW

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

47 48

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center Speaker and Surround Speakers.

Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from SPEAKER

Ideal CENTER SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal SPEAKER placement

SETUP

In Stop mode, press MENU button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

•

You can set the delay time for C between 00 and 05mSEC and for LS and RS between 00 and 15mSEC.

43 5

Press Cursor button to move to ‘DELAY TIME’ and then press ENTER button.

Press Cursor , ,

, buttons to move to the desired speaker and then press ENTER button.

Press Cursor , to set the Delay time.

0 ms 3 ms 6 ms

9 ms 12 ms 15 ms

• Setting REAR () SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

•

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

Delay Time

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Distance between Df and Ds

0.00 m

0.34 m

0.68 m

1.02 m

1.36 m

1.70 m

0.00 m

1.02 m

2.04 m

3.06 m

4.08 m

5.10 m

•

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

Note

Page 26

Setting the Audio Quality

You can adjust the balance and level for each speaker.

OPEN/CLOSE

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

EZ/VIEW

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

In Stop mode, press MENU button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

Press Cursor button to move to ‘SOUND EDIT’ and then press ENTER button.

Press Cursor , ,

, buttons to select the desired item and then press ENTER button.

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Method 1

When adjusting the audio quality using the setup screen

Method 2

When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Press SOUND EDIT button and then press Cursor

, .

Press SOUND EDIT button and then press Cursor

, .

Press SOUND EDIT button and then press Cursor

, .

Press SOUND EDIT button and then press Cursor

, .

Note

SETUP

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

Page 27

51 52

Setting the DRC (Dynamic Range Compression)

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

In stop mode,Press MENU button.

Press Cursor button to move to ‘Audio’ and then press ENTER button.

If “DRC” is selected, press ENTER.

Press Cursor , to adjust the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

SETUP

•

The Cursor button is pressed, the greater the effect, and the Cursor button is pressed, the smaller the effect.

Page 28

53 54

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Dolby Pro Logic II Effect

This function works only in Dolby Pro Logic MUSIC mode.

OPEN/CLOSE

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

EZ/VIEW

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

Press PL II MODE button.

PRO LOGIC II

•

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

MOVIE: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

and right speakers.

•

MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.

•

You can select between 0 and 7.

•

You can select between 0 and 6.

•

PANORAMA: This mode extends the front stereo image to include the surround speakers for

an exciting "wraparound" effect with side wall imaging.

•

CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers

produce phantom sound.

•

DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and (Dolby Pro Logic II) button does not work.

•

You can select either 0 or 1.

Press PL II MODE button to select ‘MUSIC’ mode.

Press

PL II EFFECT button and then press Cursor , buttons to select the mode.

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz MHz

CMX

MPEG

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz MHz

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz MHz

DSP

CMX

MPEG

TITLE PBC

CHAP

PRGM RDS RT

TA TUNED

kHz MHz

Press

PL II EFFECT button and then press Cursor , buttons to select the mode.

Press

PL II EFFECT button and then press Cursor , buttons to select the mode.

Note

•

When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to 5.1 channel surround sound.

Note

SETUP

Page 29

55 56

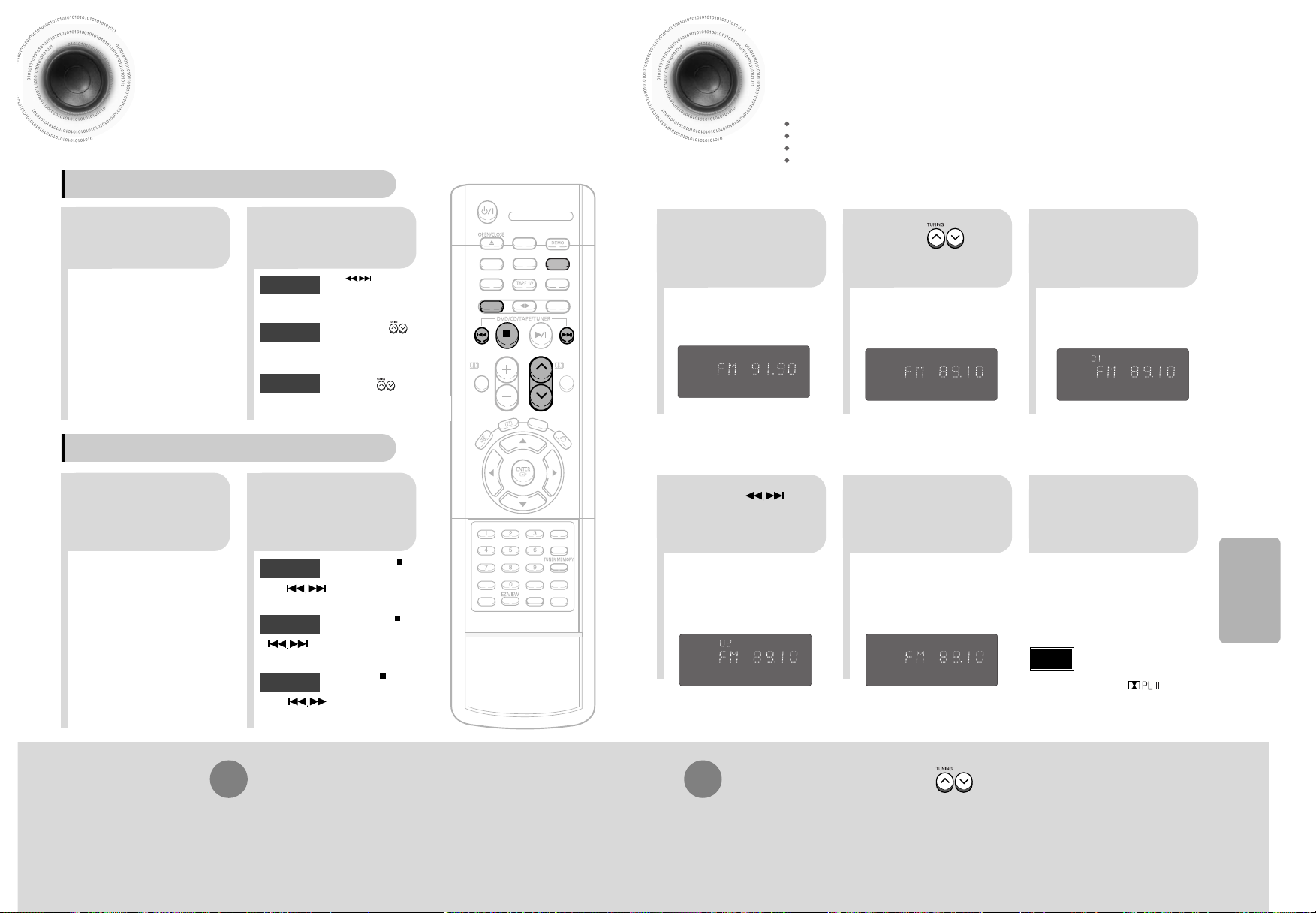

Listening to Radio

You can listen to the chosen band (FM, MW(SW1,2) broadcast stations) by using either the automatic or manual tuning operation.

Presetting Stations

•

The selection toggles back and forth between "FM➝ MW

➝

(SW1,2)" each time the TUNER(BAND) button is pressed.

Tune in to the desired station.

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

MONO/ST

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

Press TUNER/ BAND button.

Manual Tuning

Select a broadcast station.

Press the STOP ( ) button

to select PRESET and then press button or turn Multi Jog Knob to select the preset station.

Automatic Tuning 1

Press the TUNER/BAND button to select the desired band (FM, MW(SW1,2)).

Press the STOP

( )

button to

select "AUTO" and then press

button or turn Multi-Jog Knob to

automatically search the band.

Automatic Tuning 2

Press STOP

( )

to select

MANUAL and then briefly press

or turn Multi Jog Knob

to tune in to a lower or higher frequency.

Manual Tuning

•

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

Press MONO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

To tune in to a preset station, press on the remote control to select a channel.

•

Refer to Step 2 on page 41 to automatically or manually tune in to a station.

•

Each time the button is pressed, the band switches between "FM

➝

MW ➝(SW1,2)".

•

“PROGRAM” flashes in the

display.

Example: Presetting FM 89.1 in the memory

Press to select "89.10".

Press the

TUNER(BAND)

button and select the FM band.

•

Press the TUNER MEMORY button before

‘

PROGRAM

’ disappears from the display.

•

‘

PROGRAM

’ disappears from the display

and the station is stored in memory.

•

You can select between 1 and

15.

Press the TUNER MEMORY button.

Press the TUNER

MEMORY button.

To preset another station, repeat steps 2 to 5.

Press to select preset number.

Press button to select

the preset station.

Press and hold button

to automatically search the band.

Briefly press button to

Automatic Tuning 1

Remote Control Unit

Main Unit

You can store up to:

Automatic Tuning 2

kHz

MHz

kHz

MHz

kHz

PROGRAM

MHz

kHz

PROGRAM

MHz

kHz

MHz

increase or decrease the frequency incrementally.

15 FM stations

5 MW stations 5 SW1 stations 5 SW2 stations

RADIO OPERATION

•

When listening AM/SW , (Dolby Pro Logic II)

button does not work.

Note

Page 30

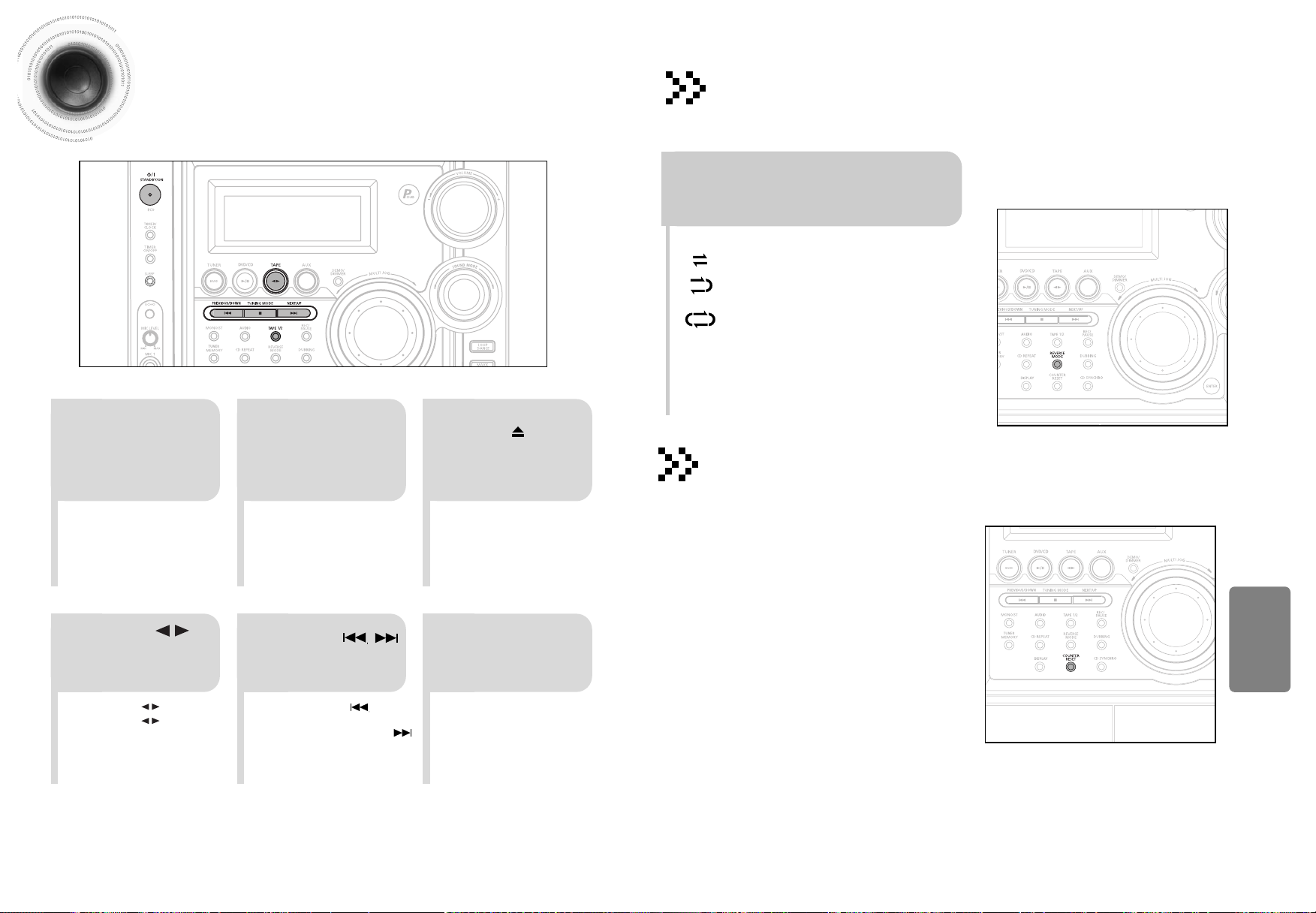

Listening to a Cassette

Always treat your cassettes with care; refer, if necessary, to the section entitled

“Precautions When Using Audio Cassettes” on page 70.

•

Insert a cassette with the recording/playback side facing the cassette holder, and then push the cassette door shut.

21 3

Press TAPE on the player to select the Tape function.

Switch the system on by pressing STANDBY ON.

•

Rewind the cassette / DOWN button.

•

Fast-forward the cassette UP / button.

•

Side A : Tape ( ) button once.

•

Side B : Tape ( ) button twice Press Tape 1/2 button to select the

cassette to be played.

Press the PUSH EJECT ( ) of the cassette deck to open the cassette door and insert a cassette.

Press the , button if necessary.

When you have finished playback, press STOP button.

Press the button. The cassette starts playing.

Press REVERSE MODEuntil the appropriate symbol is displayed.

•

: One side of the selected cassette and then stops.

•

: One side of the cassette.

The other side of the cassette and then stops.

•

: Both sides of the cassette indefinitely until you

press stop.

•

Before starting to record a cassette for which you wish to take

note of the counter values at the beginning of each track, reset the counter by pressing COUNTER RESET .

•

Each cassette deck has a separate counter.

TAPE DECK

Y our mini component system has three cassette playback modes which enable you to listen to both sides of a cassette automatically . .

When playing a cassette in one of the cassette decks, a counter is displayed to enable you to take note of the counter value at the start of each track to start playback at the beginning of the track to which you wish to listen.

Selecting the Cassette Playback Mode

Tape Counter

Page 31

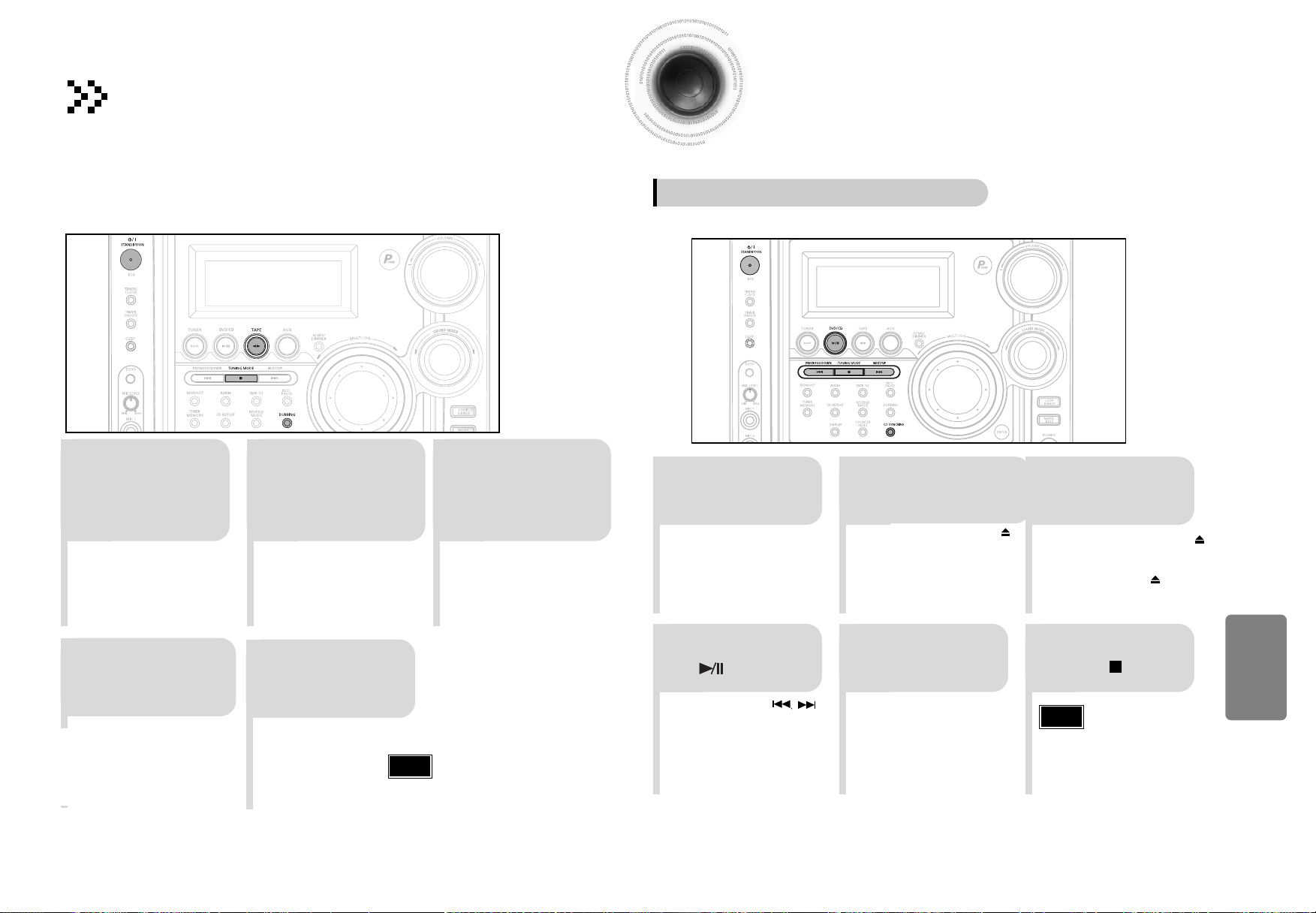

Coping a Cassette(Dubbing)

You can copy a cassette from Tape 1 to Tape 2.

•

Normal speed dubbing in selecting Tape function mode.

•

You do not need to adjust the volume, as it has no effect on the recording.

•

Take care not to insert the tape to be copied in Tape 2, as it will be erased when

you start recording.

21 3

Insert a blank

cassette in Tape 2.

Switch the system on by pressing

STANDBY/ON.

Insert the tape to be copied in Tape 1.

Press STOP button.

Press DUBBING button to copy a cassette.

The appropriate indications are displayed and the cassette in Tape 1 is copied to the cassette in Tape 2.

TAPE DECK

Recording a Compact Disc

You can record a compact disc on a cassette in two different ways:

This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice only on Audio CD.

•

Press the OPEN/CLOSE button ( ) to open the CD door.

•

Insert a CD and press the OPEN/CLOSE button ( ) to close the CD door.

•

Press the PUSH/EJECT button ( ) to open the cassette door, insert a cassette, and then close the cassette door.

•

Insert the cassette with the safety tabs.

Insert a blank cassette in Tape 2.

Switch the system on by pressing STANDBY/ON.

•

When stopped, press the button to start the recording from the first piece of music.

•

Press and hold CD SYNCHRO button during the playback of CD to start the recording from the first part of the music being played.

•

Use the CD selection ( , ) buttons to select the desired song.

Load a compact disc.

Press

CD SYNCHRO

button.

To stop recording, press button.

Press the DVD/CD ( ) button.

Synchronised recording

Note

•You can use

CD/SYNCHRO

button

only in CD Playback Mode.

•In Recoding,DPL II doesn’t work.

Note

•In Recoding,DPL II doesn’t work.

Page 32

MISCELLANEOUS

•

Press the OPEN/CLOSE button ( ) to open the CD door.

•

Insert a CD and press the OPEN/CLOSE button ( ) to close the CD door.

•

Press the PUSH/EJECT button ( ) to open the cassette door, insert a cassette, and then close the cassette door.

•

Insert the cassette with the safety tabs.

Insert a blank cassette in Tape 2.

Switch the system on by pressing STANDBY/ON.

•

Recording will begin.

•

To stop recording, press button.

•

Use the CD selection ( ) buttons to select the desired song.

Load a compact disc.

Press

REC/ PAUSE

button.

Press the DVD/CD ( ) button.

Direct recording

•

The cassette tape you want to record on must have the safety tabs intact.

Note

The direct recording mode enables you to start recording with any track on the compact disc.

Recording a Radio Program

You can record a radio program of your choice. You do not need to adjust the volume, as it has no effect on the recording.

1 3

Insert a blank cassette in Deck 2.

Switch the system on by pressing STANDBY/ON.

•

REC is displayed in red and recording starts.

Select the TUNER function by pressing TUNER/BAND.

Press(

REC/PAUSE

)

button.

To stop recording, press button.

Select the radio station that you wish to record by pressing

/DOWN or UP/

button .

•

In Recoding,DPL II doesn’t work.

Note

•

In Recoding,DPL II doesn’t work.

Page 33

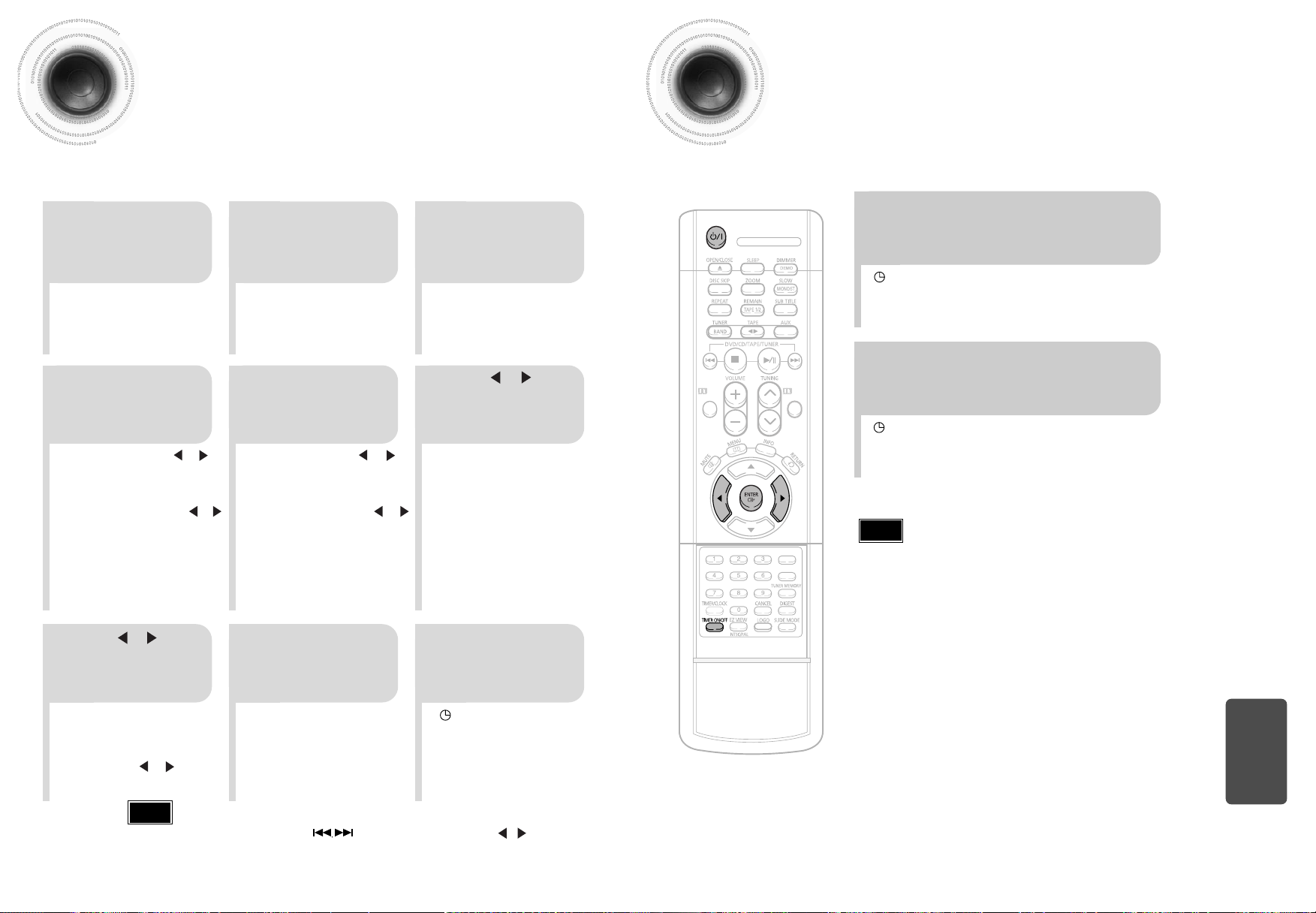

Timer Function

•

The timer enables you to switch the system on or off at specific times.

•

If you no longer want the system to be switched on or off automatically, you must cancel the timer.

•

Before setting the timer, check that the current time is correct.

•

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

Example: You wish to wake up to music every morning.

Canceling the Timer

•

ON TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-on time already set; you can set the timer switch-on time.

•

The source to be selected is displayed.

Switch the system on by pressing STANDBY/ON.

Press

TIMER/CLOCK

until TIMER is displayed.

Press the ENTER button.

•

is displayed to the top right of

the time, indicating that the timer has been set.

•

The system will switch on and off automatically at the required

times.

Press or button to select the source to be played when the system switches on.

Press ENTER to confirm the timer.

Press STANDBY/ON to set the system to standby mode.

a. Set the hour by pressing or

button.

b. Press ENTER .

•

The minutes flash.

c. Set the minutes by pressing or

button.

d. Press ENTER.

•

OFF TIME is displayed (instead of the equalizer symbols) for a few

seconds, followed by any switchoff time already set; you can now set the timer switch-off time.

•

TAPE (cassette) : Insert a cassette

tape.

•

TUNER (radio) : a Press ENTER.

b Select a preset

station by pressing

or .

•

DVD/CD (compact disc) : Load on or

more compact disc.

a. Set the hour by pressing or

button.

b. Press ENTER.

•

The minutes flash.

c. Set the minutes by pressing or

button.

d. Press ENTER.

•

VOL 10 is displayed, where 10 corresponds to the volume

already set.

Set the timer switch-off time.

Press or button to adjust the volume level and press ENTER.

Set the timer switch-on time.

Note

•

You can cancel the timer while the power is on or while the player is in standby.

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

MISCELLANEOUS

• is no longer displayed.

To cancel the timer, press TIMER ON/OFF once.

• is displayed again.

To resume the timer, press TIMER ON/OFF again.

Note

•

If the timer switch on and off times are identical, the word ERROR is displayed.

•

You can also use Multi Jog or button on the front panel to instead , button on the

remote control in step 4,5,6,7.

Page 34

Sleep Timer Function / Mute Function

DISC SKIP ZOOM SLOW

REPEAT REMAIN SUB TITLE

TUNER

VOLUME

MUTE

INFO

RETURN

TIMER/CLOCK

TIMER ON/OFF

LOGO SLIDE MODE

NTSC/PAL

CANCEL DIGEST

TUNING

TAPE AUX

BAND

SLEEP DIMMER

AH59-01379BAH59-01379B

TEST TONE

PL II

EFFECT

PL II

MODE

P.SCAN

SOUND EDIT

•

The remaining time before the DVD player will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

To confirm the sleep timer setting, press SLEEP button.

•

Each time the button is pressed, the selection changes as follows: 90 MIN ➝ 60 MIN ➝ 45 MIN ➝ 30 MIN ➝ 15 MIN ➝ OFF.

Press SLEEP button.

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

To cancel the sleep timer, press SLEEP button until OFF appears on the display.

•

‘

MUTE ’ appears in the display.

•

To turn off mute, press the button again.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

kHz MHz

P.SOUND AND SOUND MODE Function

P.SOUND Function

To obtain a... Select...

Normal balance (linear) PASS Balance suitable for pop music POP Balance suitable for rock music ROCK Balance suitable for classic music CLASSIC

Balance suitable for hall HALL Balance suitable for live LIVE Balance suitable for cinema CINEMA

Press the LOOP DANCE button,the current DSP mode can be converted to Live mode and the blue LED can flash in certain mode.It makes the place living and shinning.

Turn SOUND MODE on the front panel or Press SOUND MODE on the remote control until the required option is selected.

Selecting SOUND MODE

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Your mini-compact system is equipped with the function of Power Sound. The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

Press the P.SOUND button on the front panel.

Result: Press P.SOUND button on the front panel,

“P,SOUND,OFF” is displayed.

To cancel this function, press P.SOUND button again .

MISCELLANEOUS

Page 35

MAXX BASS LEVEL Function/SUB WOOFER LEVEL Function

MAXX BASS Level Function

MAXX BASS utilizes the principle of the missing fundamental ,which creates the sensation of low frequencies by generating a carefully calculated series of harmonics designed to simulate the auditory experience caused by the missing fundamental pitch. These harmonics extend the

virtual frequency response up to two-third or 11/2 octaves below the physical speaker cutoff frequency without perceived distortion or increased power consumption.MAXX BASS function stresses low tones providing thudding sound effects.

Press MAXX BASS button on the front panel to select:

You can select the level of low tones you desire.

Press the POWER ON/OFF button to switch on the subwoofer .

Turn the SUB WOOFER LEVEL knob to adjust the sub

woofer volume.

•

The various functions available are listed in turn on the display.

•

All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections.

DEMO Function

You can view the various functions available on your system.

To cancel this function, press DEMO/DIMMER again.

Press DEMO/DIMMER button.

DEMO Function / DIMMER Function/ ECO

Function

•

Each time the button is press, the brightness changes as follows: DIMMER ON(Dim) ➞ DIMMER OFF(Bright).

DIMMER Function

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DEMO/DIMMER button.

MISCELLANEOUS

➞

“M-BASS 1➞M-BASS 2 ➞ M-BASS 3 ➞ M-BASS 4

➞

OFF”.

SUB Woofer Level Function

You can control the sub woofer level with the SUB WOOFER OUT SYSTEM CONTROL Jack.

You can save the power consumption while the unit is turned off(on standby).

ECO Mode Function

•

To activate the ECO mode,Press STANDBY/ON/ECO while the unit is turned off (on

standby),The display illumination(including the display demonstration) disappears.

•

While ECO mode is activated, the display demonstration is canceled temporarily.

Page 36

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

•

When cleaning, wipe gently from the inside to the outside of the disc.

Handling discs

Handling and Storing Discs

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them.

•

Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Note

•

Check that the tape in the cassette is sufficiently taut.

•

To prevent erasing a cassette that you wish to keep, remove the safety tab on the upper edge of the cassette. To record a cassette, where the tab has been broken, simply cover the opening with adhesive

tape.

•

When you have finished playing a cassette, always put it back in its case.

•

Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high temperatures.

•

Avoid using 120-minute cassettes as they place unnecessary strain on the tape mechanism.

Precautions When Using Audio Cassettes

•

The loudspeakers are no longer used to output the sound.

•

Connect the Microphone.

•

Turn the MIC LEVEL knob to adjust the MIC level.

•

Press the ECHO button to select ECHO1,ECHO2, and ECHO OFF.

•

During using the microphone ,you can press the REC/PAUSE button to record your favorite.

Connect the headphones to the PHONES jack on the front panel.

You can connect a set of headphones to your micro component system so that you can listen to music or radio programmers without disturbing other people in the room. The earphones must have a 3.5ø jack or an appropriate adapter.

•

Prolonged use of headphones at a high volume may damage your hearing.

Note

Plug the microphone with a 6.3ø MIC jack into microphone terminal.

Connecting Headphones/Microphone(option)

MISCELLANEOUS

Page 37

•

Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.

Audio language and subtitles do not work.

•

The TAPE function has not been selected.

•

The cassette has not been inserted correctly.

•

The cassette player has not been closed.

•

The tape is either slack or broken.

The tape does not start playing

•

The audio heads are dirty.

•

The rollers or drive capstans are dirty.

•

The tape is worn.

The volume falls off The cassette is not erased correctly There is excessive wow and flutter

•

Are you using a disc that does not contain menus?

Menu screen does not appear even when the menu function is selected.

•

While the player is in “NO DISC” mode, hold the main unit's TUNING MODE/ button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

•

Turn off the power and hold the P.Sound button on the main unit for longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

The password for rating level has been forgotten.

•

The main unit is not working.

(Example: The power goes out or strange noise is heard.)

• The DVD player is not working normally.

•

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Can't receive radio broadcast.

Symptom Check/Remedy

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

Aspect ratio cannot be changed.

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

•

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD. DVD discs purchased from abroad may not be playable.

•

CD-ROMs and DVD-ROMs cannot be played on this DVD player.

•

Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on the surface?

•

Wipe the disc clean.

Disc tray does not open.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

•

No sound is heard during fast playback, slow playback, and step motion playback.

•

Are the speakers connected properly? Is the speaker setup correctly customized?

•

Is the disc severely damaged?

Sound is not produced.

•

Was the DVD player suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)

Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.

Symptom Check/Remedy

•

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

•

Is the remote control being operated within its operation range of angle and distance?

•

Are the batteries exhausted?

The remote control does not work.

MISCELLANEOUS

Page 38

Notes on Terminology

Recorded onto some DVD discs are scenes which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.

ANGLE

These numbers are recorded on DVD discs. A Title is subdivided into many sections, each of which is numbered, and specific parts of the video can be searched quickly using these numbers.

A high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG-2) and high-density recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.

An acronym for Pulse Code Modulation - another name for digital audio.

This is recorded on a video CD (version 2.0). Selected scenes or information can be chosen from the menu displayed on the TV monitor.

Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region number of the DVD player, the player cannot play the disc.

Translated appearing at the bottom of the screen. A DVD disc can contain up to 32 subtitle languages.

These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as Title 1, Title 2, etc.

These numbers are assigned to the tracks which are recorded on video and audio CDs. They enable specific tracks to be located quickly.

Contains recordings of pictures and sound whose quality is roughly comparable to that of video tape. This player also supports video CDs with playback control (version 2.0).

5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs recorded as a digital signals (with disc marking). With better sound quality, dynamic range, and directionality than traditional Dolby surround technology, you can enjoy dynamic, realistic sound.

CHAPTER

NUMBER

DVD

PCM

PBC

(PLAYBACK

CONTROL)

REGION NUMBER

SUBTITLES

TITLE NUMBER

TRACK NUMBER

VIDEO CD

CD-R Discs

•

Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs may not be playable.

•

Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.

•

If possible, do not use CD-RW (Rewritable) media, as they may not be playable.

•

Only the CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

Disc Recording Format

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

If the name of a file is in Korean, the name will be displayed on the TV screen in Korean and * will be shown in the display of the main unit.

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

•

If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.

•

If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.

What is MP3?

MP3 is short for MPEG-1 Audio Layer 3 and MPEG is an acronym for Moving Pictures Experts Group. MP3 is a file format with compression ratio of 1:12 (128 Kbps*) That is, you can use MP3 format to record about 12 times the usual amount of data on a regular CD.

Notes on Discs

MISCELLANEOUS

Page 39

MISCELLANEOUS

Specifications

Impedance Frequency range Output sound pressure level Rated input Maximum input Dimensions

(W x H x D)

Weights

S P E A K E R

5.1ch speaker system

Front speaker

Subwoofer speaker

6Ω x 2 3Ω 150Hz~20kHz 30Hz~150Hz 85dB/W/M 85dB/W/M 110W 150W 220W 300W

270 x 370 x 330 mm 250x 370 x 402 mm

8.0 Kg

Rear speaker

6ΩX2 150Hz~20KHz 86dB/W/M 110W 220W 250 x 370 x 402 mm

0.85 Kg

Speaker system

Weight Dimensions (W x H x D) Operating Temperature Range Operating Humidity Range Usable Sensitivity S/N Ratio Distortion Usable Sensitivity S/N Ratio Distortion Composite Video

S-Video

Component Video

Front speaker output Center speaker output Rear speaker output Subwoofer speaker output Frequency range S/N Ratio Channel separation Input sensitivity

A L

T U N E R

O U

T P

I D E O

P L

I E R

13Kg 280 x 372 x 390mm +5°C~+35°C 10%~75% 12dB 55dB

0.8% 60dB 35dB 2%

1.0Vp-p(75Ω load)

Y:1.0Vp-p(75Ω load) Pr:0.70Vp-p(75Ω load) Pb:0.70Vp-p(75Ω load) 110W x 2(6Ω) 110W(6Ω) 110W x 2(6Ω) 150W(3Ω) 20Hz~20kHz 70dB 55dB (AUX)500mV

Memo

Center speaker

6Ω 150Hz~20KHz 86dB/W/M 110W 220W 372 x 160 x 235 mm

0.85 Kg

Luminance Signal : 1.0Vp-p(75Ω load)

Color Signal : 0.286Vp-p(75Ω load)
