SAMSUNG MAX-B420, MAX-B450 Service Manual Exploded View & Part List

2-1Samsung Electronics 2-1

2.Exploded Views and Parts List

2-1 Cassette Deck :CWL43FR37 ; PIGEON

2

3

6

5

4

7

8

3

3

1

7

8

No. Code No. Description Specification Remarks

AH59-00126B ASS’Y DECK CWL43FR37
1 AH81-00472E ASS’Y R/P HEAD 50-093-4653 50-093-4653
2 AH81-00472A PB HEAD TC881CB067P TC881CB067P
3 AH81-00472N ROLLER PINCH 22-027-41054 22-027-41054
4 AH81-00472W ASS’Y MOTOR SHU2L61 50-093-4643
5 AH81-00472F BELT BR 02-084-4205 02-084-4205
6 AH81-00472D BELTAF 02-084-4202 02-084-4202
7 AH81-00472X BELT FR 02-083-4188 02-084-4202
8 AH81-00474A SOLENOID 50-093-4145 50-093-4145

2-2 Cassette Deck :CWL43FF36(OPTION);PIGEON

6

5

4

7

8

2

3

1

No. Code No. Description Specification Remarks

AH59-00126A ASS’Y DECK CWL43FF36
1 AH81-00472A PB HEAD TC881CB067P TC881CB067P
2 AH81-00472B E HEAD TC2131 TC2131
3 AH81-00472N ROLLER PINCH 22-027-41054 22-027-41054
4 AH81-00472W ASS’Y MOTOR 2HV2L61 50-093-4643
5 AH81-00472C BELT BF 02-084-4204 02-084-4204
6 AH81-00472D BELTAF 02-084-4202 02-084-4202
7 AH81-00472X BELT FR 02-083-4188 02-084-4202
8 AH81-00474A SOLENOID 50-093-4145 50-093-4145

Samsung Electronics

2-2
Samsung Electronics 2-3

2-3 Total Exploded View and Parts List

* Parts List of Total Exploded view

No. Code No. Description ; Specification Q’ty REMARK

No. Code No. Description ; Specification Q’ty REMARK

Samsung Electronics

2-4

1 AH64-01763B CABINET-FRONT MIPS L/GRAY 1 REV.MODE, W/MIC, W/O RDS

AH64-01763C CABINET-FRONT MIPS L/GRAY 1 REV.MODE, W/O MIC, W/RDS
AH64-01763D CABINET-FRONT MIPS L/GRAY 1 COUNTER, W/MIC, W/O RDS
AH64-01763E CABINET-FRONT MIPS L/GRAY 1 COUNTER, W/O MIC, W/RDS
AH64-01763G CABINET-FRONT MIPS GRAY 1 MAX-B450G
AH64-01763J CABINET-FRONT MIPS GRAY 1 MAX-B420G
AH64-01763K CABINET-FRONT MIPS L/GRAY 1 MAX-ZB450/EXP
AH64-01763L CABINET-FRONT MIPS L/GRAY 1 MAX-ZB450/ELS
AH64-01763M CABINET-FRONT MIPS L/GRAY 1 COUNTER, W/O MIC/RDS

2 AH64-01769B DOOR-CD ABS L/GRAY 1 BASIC

AH64-01769C DOOR-CD ABS GRAY 1 MAX-B420G/450G
AH64-01769F DOOR-CD ABS L/GRAY 1 ZB450

3 AH63-00414A SHEET-MIRROR PC 0.4T 1 MAX-B450/ZB450

AH63-00414B SHEET-MIRROR PC 0.4T 1 MAX-B420
4 AH64-70003K BADGE-BRAND ABS 94HB 1 SILVER
5 AH64-01766B WINDOW-CASS,A PMMA BLUE 1
6 AH64-01767B WINDOW-CASS,B PMMA BLUE 1
7 AH64-01764B DOOR-CASS,A ABS L/GRAY 1 BASIC

AH64-01764C DOOR-CASS,A ABS GRAY 1 MAX-B450G/B420G
8 AH64-01765B DOOR-CASS,B ABS L/GRAY 1 AUTO REVERSE

AH64-01765C DOOR-CASS,B ABS L/GRAY 1 AUTO STOP

AH64-01765D DOOR-CASS,B ABS GRAY 1 MAX-B450G

AH64-01765F DOOR-CASS,B ABS GRAY 1 MAX-B420G
9 AH64-01768C WINDOW-VFD PMMA BLUE 1 MAX-B450/RDS

AH64-01768D WINDOW-VFD PMMA BLUE 1 MAX-B450, W/RDS

AH64-01768F WINDOW-VFD PMMA BLUE 1 MAX-B420/ELS

AH64-01768G WINDOW-VFD PMMA BLUE 1 MAX-B420, W/RDS

AH64-01768H WINDOW-VFD PMMA BLUE 1 MAX-ZB450/ELS

AH64-01768N WINDOW-VFD PMMA BLUE 1 MAX-ZB450, W/RDS
10 AH67-00168A LENS-EQ PC BLUE 1
11 AH64-01771B KNOB-VOLUME ABS L/GRAY 1
12 AH64-01214B KNOB-MIC,VOL ABS L/GRAY 1 OPTION
13 AH67-00169A LENS-VOLUNE PMMABLUE 1
14 AH61-00552A SPRING-EJECT£¬L STS 1.0 1
15 AH61-00553A SPRING-EJECT£¬R STS 1.0 1
16 AH61-80030A DAMPER-GEAR POM BLK 2
17 AH95-50001A LATCH-ASS¡®Y POM BLK 2
18 AH61-00413B BRACKET-DECK SPTE 0.3T 1 OPTION
19 AH67-00170A LENS-POWER PMMA BLUE 1
20 AH64-01776B KNOB-POWER ABS L/GRAY 1
21 AH64-01773B KNOB-TIMER ABS L/GRAY 1
22 AH64-01770B KNOB-CD,OPEN ABS L/GRAY 1
23 AH64-01777B KNOB-FUNCTION ABS BLUE 1 AUTO REVERSE(KOR/XFO)

AH64-01777C KNOB-FUNCTION ABS BLUE 1 AUTO STOP

AH64-01777D KNOB-FUNCTION ABS BLUE 1 AUTO STOP,VCD
24 AH64-01779B KNOB-TUNING ABS L/GRAY 1 BASIC
25 AH64-01780B KNOB-DECK ABS L/GRAY 1
26 AH67-00167B LENS-P.SOUND PMMA OGANGE 1
27 AH64-01783A KNOB-P.SOUND ABS WHITE 1
28 AH64-01772B KNOB-SBS ABS L/GRAY 1
29 AH64-01774B KNOB-EQ ABS L/GRAY 1 BASIC

AH64-01774C KNOB-EQ ABS L/GRAY 1 MAX-B450/B420/LATIN

AH64-01774D KNOB-EQ ABS L/GRAY 1 MAX-B450G/B420G

30 AH61-00603A HOLDER-VFD ABS BLACK 1 MAX-B450/ZB450
31 AH61-01013A HOLDER-VFD ABS BLACK 1 MAX-B420
32 AH61-01014A CAP-VFD ABS BLACK 2 MAX-B420
33 AH64-30445D CABINET-SIDE,R MIPS L/GRAY 1 MAX-B420
34 AH64-00432B CABINET-SIDE,R MIPS L/GRAY 1 MAX-B450/ZB450
35 AH64-30416C CABINET-BOTTOM SECC 1.0T 1 MAX-B450/ZB450
36 AH64-30442A CABINET-BOTTOM MIPS L/GRAY 1 MAX-B420
37 AH64-30444D CABINET-SIDE,L MIPS L/GRAY 1 MAX-B420
38 AH64-00431B CABINET-SIDE,L MIPS L/GRAY 1 MAX-B450/ZB450
39 AH61-00021B SUPPORT-PCB ABS BLK 1
40 AH61-40014A SUPPORT-RIVET ABS ASS’Y 1
41 AH62-00023A HEAT-SINK,M AL 1 MAX-B450/ZB450

AH62-00023D HEAT-SINK,M AL 1 MAX-B420
42 AH62-30061A HEAT-SINK£¬TR AL,H40 2 MAX-B450/ZB450
43 AH62-30062C HEAT-SINK£¬TR AL,H60 1 MAX-B450/ZB450
44 AH61-00250B BRKT-HEAT SINK SECC 0.8 1 MAX-B450/ZB450

AH61-00250C BRKT-HEAT SINK SECC 0.8 1 MAX-B420
45 AH69-00120B CUSHION-PCB EVA 14T 2 MAX-B450/ZB450
46 AH64-00591L CABINET-REAR MIPS L/GRAY 1 BASIC
47 AH64-30443A CABINET-TOP MIPS L/GRAY 1 MAX-B420

AH64-30443F CABINET-TOP MIPS L/GRAY 1 MAX-B450/ZB450

Samsung Electronics 2-5

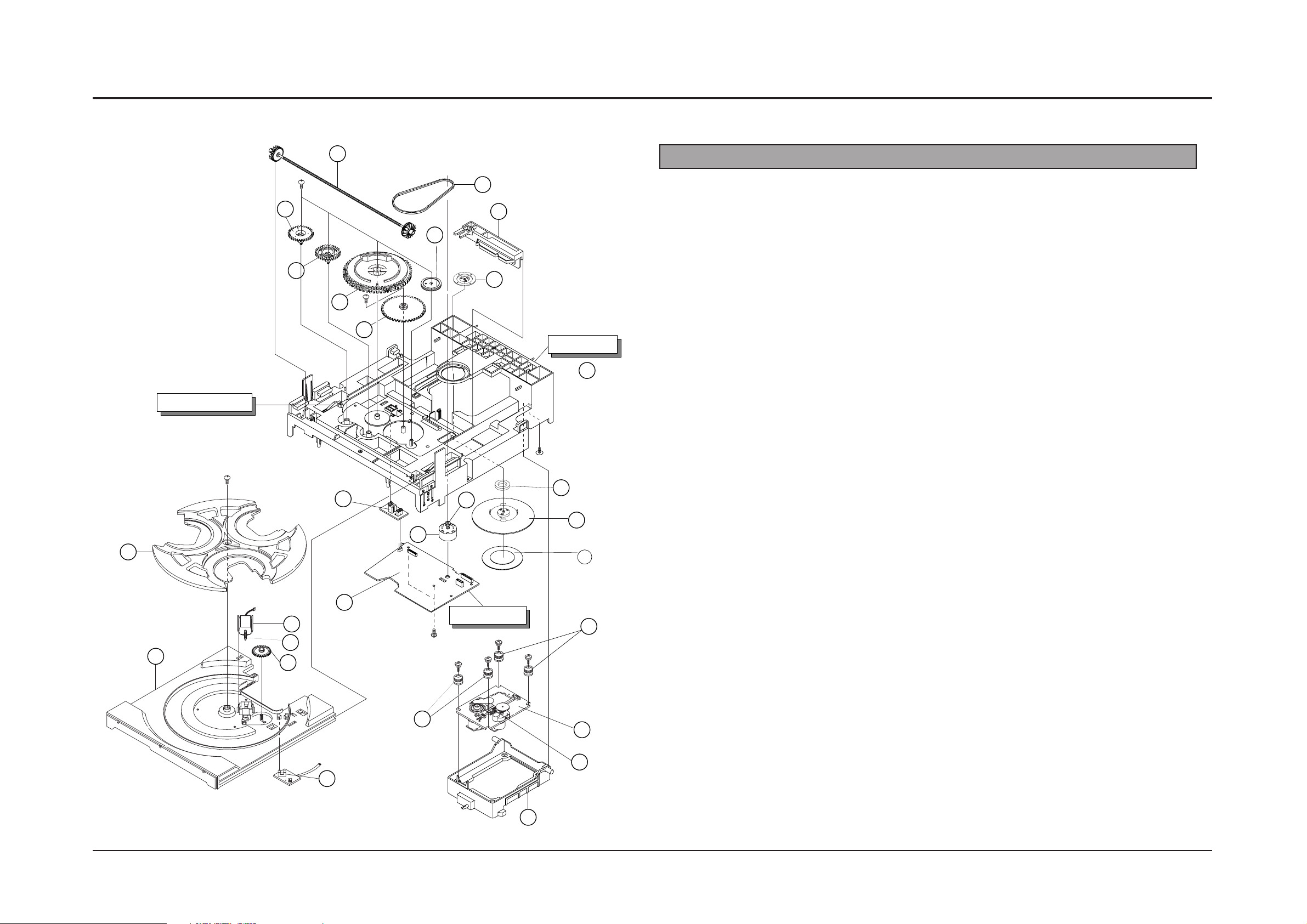

2-4 CD Deck Exploded View and Parts list

12

8

2

28

15

27

19

7

6

5

4

3

1

10

20

17

22

26

21

11

9

14

16

13

CD SUB PCB

TRAY STOPPER

24

23

25

BASE MAIN

18

No. Code No. Description Specification Remarks

AH97-00857A ASS’Y-DECK

G3HI-3CD/VCD
1 AH66-80022A SLIDER-CAM ABS HF-380 NTR
2 AH66-60034A BELT-LOAD CR
3 AH66-20186A GEAR-PULLEY POM (M90-44) WHT
4 AH66-20187A GEAR-LOAD POM (M90-44) BLK
5 AH66-20188B GEAR-CAM POM (M90-44) WHT
6 AH66-20189B GEAR-TRAY POM (M90-44) BLK
7 AH66-20190B GEAR-CONVERT POM (M90-44) WHT
8 AH66-20191A GEAR-SYNCRO ABS HF-380 NTR
9 AH66-20192A GEAR-WORM POM(M90-44),M0.5,PCD4.5
10 AH31-12001A MOTOR-LOADING FF-030PN-09120
11 AH66-20193A GEAR-ROULLETE POM(M90-44) BLK
12 AH63-00324A TRAY-ROULLETE ABS XR-401 BLK
13 AH63-00325A TRAY-DISC ABS BLK
14 AH32-10001F SENSOR KPI-L06
15 AH61-00837A BASE-MAIN ABS,NATURAL,CMS-300
16 3302-000159 MAGNET AC,3500-3800G,2.6-3.2MGOe,30
17 AH63-90053A TABLE-CHUCK ,ABS,+GF20%,BLK,
18 AH63-00068B SHEET-CHUCK SHEET,HYMERON,BLK,0.4T
19 3405-000101 SWITCH -MICRO MLS-24
20 AH31-10021A MOTOR-DC RF-500TB,9VDC/130MA
21 AH66-10008A PULLEY-MOTOR POM,BLK,CMS-CR3
22 AH73-10031A RUBBER-CD(R) SI,CMS-300,40,RED
23 AH91-60150C CDP DECK ASSY CMS-D73SG6U
24 AH66-30098A LEVER-LIFTER ABS BLK CMS-300
25 AH30-00007A PICK-UP SOH-AD3
26 AH73-10034A RUBBER-CD(G) SI,CMS-300,40,GREEN
27 AH92-00922A ASS’Y PCB CD MAIN
28 AH61-00225A BRKT-CHUCK SECL 0.8t

Samsung Electronics

2-6

2-5 SPEAKER Exploded View and Parts list

1

2

3

PS B450E/H : AH81-00638A

No. Description Code No. Q'TY

1

PANEL ASS'Y AH81-00638J

1

2

UNIT WOOFER AH81-00638E

1

3

CABINET ASS'Y

AH81-00638D

1

Specification

P ANEL+P/GRILLE+PIEZO

5 WHITE CONE

PB 9t

* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANELASS’Y) to CABINETASS’Y.

So when the disassembly, take extreme care not to demage the SPEAKER.

2-5-1 MAX-B450/MAX-ZB450

Samsung Electronics 2-7

PS B420E : AH81-00639A

No.

Description

Specification Code No. Q'TY

1 Piezo Deco

Hips AH81-00639B

1

NET

2

AH81-00639CHips 1

Unit Woof er3

AH81-00639D5

1

/

4

"1

Cabanet4

AH81-00639EPB9t 1

* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANELASS’Y) to CABINETASS’Y.

So when the disassembly, take extreme care not to demage the SPEAKER.

2-5-2 MAX-B420
