Samsung M262x, M282x, SLM2625D, SLM2825DW, SLM2625DXAC User Manual

Page 1

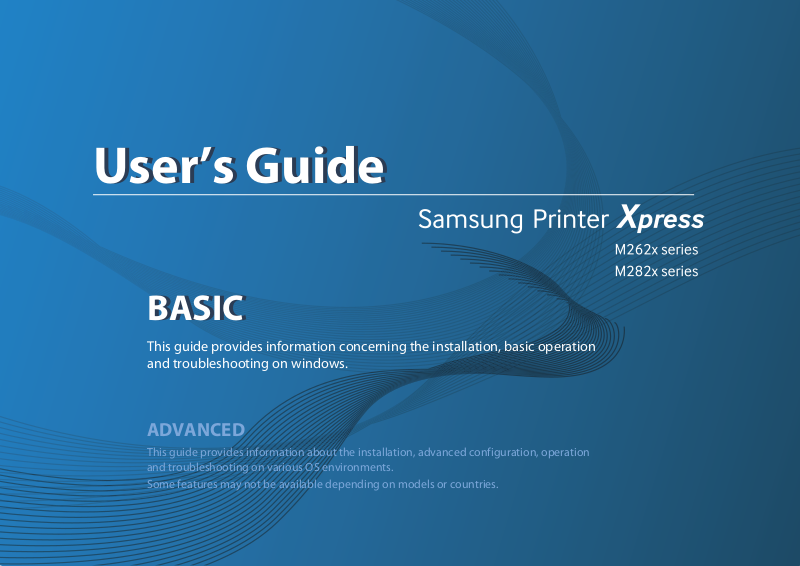

User’s Guide

BASIC

This guide provides information concerning the installation, basic operation and troubleshooting on windows.

ADVANCED

This guide provides information about the installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

Page 2

Available consumables 43

1. Introduction

Key benefits 4

Features by models 6

Useful to know 8

About this user’s guide 9

Safety information 10

Machine overview 15

Control panel overview 17

Turning on the machine 19

Installing the driver locally 20

Reinstalling the driver 22

2. Basic setup

Available maintenance parts 44

Storing the toner cartridge 45

Redistributing toner 47

Replacing the toner cartridge 49

Replacing the imaging unit 52

Cleaning the machine 53

Tips for moving & storing your machine 57

4. Troubleshooting

Tips for avoiding paper jams 59

Clearing paper jams 60

Understanding the LED 68

Printing a demo page 24

Media and tray 25

Basic printing 36

3. Maintenance

Ordering consumables and option 42

5. Appendix

Specifications 71

Regulatory information 80

Page 3

1. Introduction

This chapter provides information you need to know before using the machine.

•Key benefits 4

• Features by models 6

• Useful to know 8

• About this user’s guide 9

• Safety information 10

• Machine overview 15

• Control panel overview 17

• Turning on the machine 19

• Installing the driver locally 20

• Reinstalling the driver 22

Page 4

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports the Eco feature.

• To save paper, you can print multiple pages on a single sheet of paper (see "Using advanced print features" on page 158).

• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 158).

• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.

• We recommend using recycled paper for saving energy.

Print with excellent quality and speed

• You can print with a resolution of up to 4,800 x 600 dpi effective (600 x 600 x 3 bit) output.

• Fast, on-demand printing.

- M262x series

▪ For single-side printing, 26 ppm (A4) or 27 ppm (Letter).

- M282x Series

▪ For single-side printing, 28 ppm (A4) or 29 ppm (Letter).

Convenience

• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps (see "Google Cloud Print™" on page 149).

• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture

Manager" on page 175).

• Samsung Easy Printer Manager and Samsung Printer Status are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 181 or "Using Samsung Printer Status" on page 184).

• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 176).

• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows OS users.

• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

Page 5

Key benefits

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 73).

• Print watermark: You can customize your documents with words, such as

“CONFIDENTIAL” (see "Using advanced print features" on page 158).

• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 158).

• You can print in various operating systems (see "System requirements" on page 76).

• Your machine is equipped with a USB interface and/or a network interface.

Supports various wireless network setting method

• Using the WPS (Wi-Fi Protected Setup™) button

- You can easily connect to a wireless network using the WPS button on

the machine and the access point (a wireless router).

• Using the USB cable or a network cable

- You can connect and set various wireless network settings using a USB cable or a network cable.

• Using the Wi-Fi Direct

- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 117.

Page 6

Features by models

Some features and optional goods may not be available depending on model or country.

Operating System

(●: Included, Blank: Not available)

Software

Operating System M262x series M282x series

Windows ● ●

Mac ● ●

Linux ● ●

Unix ●

You can install the printer driver and software when you insert the software CD into your CD-ROM drive.

For Windows, select the printer driver and software in the Select

Software to Install window.

Software M262x series M282x series

SPL printer driver

PCL printer driver

PS printer driver

XPS printer driver

(M262xND only)

● ●

●

● ●

●

Samsung Easy Printer Manager

Samsung Printer Status ● ●

Direct Printing Utility

Samsung AnyWeb Print

Device Settings

● ●

Page 7

Features by models

(●: Included, Blank: Not available)

Variety feature

(●: Included, Blank: Not available)

SyncThru™ Web Service ●

(M262xND only)

●

SyncThru Admin Web Service

●

(M262xND only)

●

Easy Eco Driver ● ●

Easy Capture Manager ● ●

a. Depending on the operating system you use, the installed printer driver may differ. b. Download the software from the Samsung website and install it: (http://

www.samsung.com > find your product > Support or Downloads). Before installing, check whether your computer’s OS support the software.

Features M262x series M282x series

Hi-Speed USB 2.0 ● ●

Network Interface Ethernet 10/100 Base TX wired LAN

●

(M262xND only)

●

Network Interface 802.11b/

g/n wireless LAN

●

(M282xDW only)

Software M262x series M282x series

IPv6

●

(M262xND only)

●

(M282xND/M282xDW

only)

Eco printing ● ●

Wi-Fi Protected Setup™ (WPS)

●

(M282xDW only)

Double-sided printing

●

(M262xD/M262xND

only)

●

Double-sided printing

(Manual)

●

(M2620/M2625/

M2626 only)

AirPrint

●

(M262xND only)

●

Google Cloud Print™

●

(M262xND only)

●

a. Depending on your country, wireless LAN card may not be available. For some countries,

only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where

you bought your machine. b. Available for Windows OS only. c. Only tray 1 is supported.

Features M262x series M282x series

Page 8

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 37).

• Remove the driver and install it again (see "Installing the driver locally" on page 20).

• Select your machine as your default machine in your Windows.

Where can I purchase option or consumables?

• Inquire at a Samsung distributor or your retailer.

• Visit www.samsung.com/supplies. Select your country/region to view product service information.

The status LED flashes or remains constantly on.

A paper jam has occurred.

• Open and close the front door.

• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 60).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner cartridge.

• Try a different print resolution setting.

• Replace the toner cartridge.

Where can I download the machine’s driver?

• Turn the product off and on again.

• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the LED" on page 68).

• Visit www.samsung.com to download the latest machine’s driver, and install it on your system.

Page 9

About this user’s guide

This user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.

• Read the safety information before using the machine.

• If you have a problem using the machine, refer to the troubleshooting chapter.

• Terms used in this user’s guide are explained in the glossary chapter.

• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.

• The screenshots in this user's guide may differ from your machine depending on the machine’s firmware/driver version.

• The procedures in this user’s guide are mainly based on Windows 7.

Conventions

General icons

Icon Text Description

Gives users information to protect the machine from

Caution

Note

possible mechanical damage or malfunction.

Provides additional information or detailed specification of the machine function and feature.

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

• Machine refers to printer or MFP.

1. Introduction

Page 10

Safety information

These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.

Important safety symbols

Explanation of all icons and signs used in this chapter

Warning

Caution

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Operating environment

Warning

Do not use if the power cord is damaged or if the electrical outlet is not grounded.

This could result in electric shock or fire.

Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).

This could result in electric shock or fire.

• If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.

Do not attempt.

• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.

This could result in electric shock or fire.

Do not bend, or place heavy objects on the power cord.

Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire.

Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.

This could result in electric shock or fire.

1. Introduction

Page 11

Safety information

Caution

During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet.

This could result in electric shock or fire.

Be careful, the paper output area is hot.

Burns could occur.

If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

Operating method

Caution

Do not forcefully pull the paper out during printing.

It can cause damage to the machine.

Be careful not to put your hand between the machine and paper tray.

You may get injured.

Be careful when replacing paper or removing jammed paper.

New paper has sharp edges and can cause painful cuts.

When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch.

If the plug does not easily enter the electrical outlet, do not attempt to force it in.

Call an electrician to change the electrical outlet, or this could result in electric shock.

Do not allow pets to chew on the AC power, telephone or PC interface cords.

This could result in electric shock or fire and/or injury to your pet.

Burns can occur.

When removing jammed paper, do not use tweezers or sharp metal objects.

It can damage the machine.

Do not allow too many papers to stack up in the paper output tray.

It can damage the machine.

1. Introduction

Page 12

Safety information

Do not block or push objects into the ventilation opening.

This could result in elevated component temperatures which can cause damage or fire.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This machine's power reception device is the power cord.

To switch off the power supply, remove the power cord from the electrical outlet.

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water leaks.

This could result in electric shock or fire.

Caution

Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.

If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.

Then lift the machine:

• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.

• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.

• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.

The machine could fall, causing injury or machine damage.

Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays.

The place should be well-ventilated and be far from direct light, heat, and humidity.

When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a wellventilated space or open a window to circulate the air periodically.

1. Introduction

Page 13

Safety information

Do not place the machine on an unstable surface.

The machine could fall, causing injury or machine damage.

Use only No.26 AWG

or larger, telephone line cord, if necessary.

Maintenance / Checking

Otherwise, it can cause damage to the machine.

Make sure you plug the power cord into a grounded electrical outlet.

Otherwise, this could result in electric shock or fire.

Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.

Otherwise, it can cause damage to the machine, and could result in electric shock or fire.

Do not put a cover over the machine or place it in an airtight location, such as a closet.

If the machine is not well-ventilated, this could result in fire.

Do not overload wall outlets and extension cords.

This can diminish performance, and could result in electric shock or fire.

The machine should be connected to

the power level which is specified on the label.

If you are unsure and want to check the power level you are using, contact the electrical utility company.

Caution

Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.

This could result in electric shock or fire.

When you are working inside the machine replacing consumables or cleaning the inside, do not operate the machine.

You could get injured.

Keep cleaning consumables away from children.

Children could get hurt.

Do not disassemble, repair or rebuild the machine by yourself.

It can damage the machine. Call a certified technician when the machine needs repairing.

To clean and operate the machine, strictly follow the user's guide provided with the machine.

Otherwise, you could damage the machine.

a. AWG: American Wire Gauge

1. Introduction

Page 14

Safety information

Supply usage

Caution

Keep the power cable and the contact surface of the plug clean from dust or water.

Otherwise, this could result in electric shock or fire.

• Do not remove any covers or guards that are fastened with screws.

• Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.

• The machine should only be repaired by a Samsung service technician.

When storing consumables such as toner cartridges, keep them away from children.

Toner dust can be dangerous if inhaled or ingested.

Using recycled consumables, such as toner, can cause damage to the machine.

In case of damage due to the use of recycled consumables, a service fee will be charged.

For consumables that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.

• When disposing of the consumables, follow the instructions for disposal. Refer to the reseller for disposal instructions.

• Do not wash the consumables.

For a waste toner bottle, do not reuse it after emptying the

•

bottle.

If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.

Do not disassemble the toner cartridge.

Toner dust can be dangerous if inhaled or ingested.

Do not burn any of the consumables such as toner cartridge or fuser unit.

This could cause an explosion or uncontrollable fire.

When toner gets on your clothing, do not use hot water to wash it.

Hot water sets toner into fabric. Use cold water.

When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.

Toner dust can be dangerous if inhaled or ingested.

1. Introduction

Page 15

Machine overview

Accessories

Power cord

a. The software CD contains the printer drivers, user’s guide, and software applications. b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Software CD

Misc. accessories

1. Introduction

Page 16

Machine overview

Front view

• This illustration may differ from your machine depending on its model.

• Some features and optional goods may not be available depending on model or country.

6 5

Rear view

• This illustration may differ from your machine depending on its model.

• Some features and optional goods may not be available depending on model or country.

10 11

1 2

1 Output tray 7 Paper width guides on a manual feeder

2 Control panel 8 Output support

Front cover

Paper level indicator

Tray 1

Toner cartridge

Imaging unit

6 Manual feeder

a. M2620/ M2820 series only. b. M2625/ M2626/ M2825/ M2826 series only.

Network port

2 USB port 5 Rear cover

Power-switch

a. Network and wireless models only (see "Features by models" on page 6). b. Only if the machine has a power switch.

Power receptacle

1. Introduction

Page 17

Control panel overview

This control panel may differ from your machine depending on its model. There are various types of control panels.

Info sheet

Prints a demo page and network configuration report (see "Printing a demo page" on page 24).

WPS

Configures the wireless network connection easily without a computer (see "Wireless network setup" on page 116).

Print screen

Press this button and the green LED will start blinking. If you want to print only the active screen, release the button when the green LED stops blinking. If you want to print the whole screen, release the button while it’s blinking.

• Print Screen can only be used in the

Windows and Mac operating systems.

• You can only use this function with USBconnected machine.

• When printing the active window/ whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.

Toner

Eco

Shows the status of the toner (see "Toner LED/ WPS LED/ Power LED/ Eco LED" on page 69).

Enters Eco mode to reduce toner consumption and paper usage (see "Eco options" on page 40).

• You can only use this function if the machine’s Easy Printer Manager

program is installed. If you are a Mac OS user, you need to enable Screen Print

Settings from the Easy Printer Manager

to use the Print Screen feature.

1. Introduction

Page 18

Control panel overview

6 Status LED Indicates the status of your machine (see

a. M262xND/M282xND only. b. M282xDW only. c. M262x/M262xD only. d. Network and wireless models only (see "Features by models" on page 6).

Cancel Stops an operation at any time and there are more

Power You can turn the power on/off or wake the machine

functions.

• Cancels the current job.

• Prints demo page: Press and hold this button

for about 2 seconds until the status LED blinks slowly, and release.

• Supplies Info & Usage Counter: Press and hold

this button for about 6 seconds and release.

• Prints configuration reports/network

configuration reports

button for about 4 seconds until the status LED blinks fast, and release.

up from the power save mode with this button.

"Understanding the LED" on page 68).

: Press and hold this

1. Introduction

Page 19

Turning on the machine

Connect the machine to the electricity supply first.

Press the power key or turn the switch on if the machine has a power switch.

Press (Power) on the control panel.

1. Introduction

Page 20

Installing the driver locally

A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 107).

• If you are a Mac, Linux, or Unix OS user, refer to the "Software installation" on page 95.

• The installation window in this User’s Guide may differ depending on the machine and interface in use.

• Only use a USB cable no longer than 3 meters (118 inches).

Windows

Make sure that the machine is connected to your computer and

powered on.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.

Read and check The software End User License Agreement and Using

Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.

Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

Follow the instructions in the installation window.

1. Introduction

Page 21

Installing the driver locally

From the Windows 8 Start Screen

• Samsung Printer Experience app can only be used in the Start screen

when V4 driver is installed. The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.

• You can download Samsung Printer Experience app from the Windows

Store. You need have a Microsoft account to use the Windows Store.

1 From Charms, select Search. 2 Click Store. 3 Search and click Samsung Printer Experience. 4 Click Install.

• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can

download from the Samsung website, www.samsung.com >find your

product > Support or downloads.

• If you want to install Samsung’s printer management tools, you need to install them using the supplied software CD .

Make sure that your computer is connected to the Internet and powered

on.

Make sure that the machine is powered on.

Connect the computer and the machine with a USB cable.

The driver is automatically installed from the Windows Update.

1. Introduction

Page 22

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall the driver.

Windows

Make sure that the machine is connected to your computer and

powered on.

From the Start menu, select Programs or All Programs > Samsung

Printers > Uninstall Samsung Printer Software.

• For Windows 8,

1 From Charms, select Search > Apps.

2 Search and click Control Panel.

3 Click Programs and Features.

4 Right-click the driver you want to uninstall and select Uninstall.

Insert the software CD into your CD-ROM drive and install the driver

again (see "Installing the driver locally" on page 20).

From the Windows 8 Start Screen

Make sure that the machine is connected to your computer and

powered on.

Click on the Uninstall Samsung Printer Software tile in the Start

screen.

5 Follow the instructions in the window.

Follow the instructions in the installation window.

Follow the instructions in the window.

• If you cannot find a Samsung Printer Software tile, unintstall from the desktop screen mode.

• If you want to uninstall Samsung’s printer management tools, from the

Start screen, right-click the app > Uninstall > right-click the program you want to delete > Uninstall and follow the instruction in the window.

1. Introduction

Page 23

2. Basic setup

After installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like to set or change values.

• Printing a demo page 24

• Media and tray 25

• Basic printing 36

Page 24

Printing a demo page

Print a demo page to make sure that the machine is operating correctly.

To print a demo page:

In ready mode, press and hold (Cancel) button for about 2 seconds until the

status LED blinks, and release.

For a model with a Info sheet ( ) button, press the button to print a

demo page.

2. Basic setup

Page 25

Media and tray

This chapter provides information on how to load print media into your machine.

• Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.

• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.

• Using inflammable print media can cause a fire.

• Use designated print media (see "Print media specifications" on page

73).

The use of inflammable media or foreign materials left in the printer may

lead to overheating of the unit and, in rare cases may cause a fire.

Tray overview

To change the size, you need to adjust the paper guides.

If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper.

1 Tray extention guide 2 Paper length guide 3 Paper width guide

2. Basic setup

Page 26

Media and tray

Paper quantity indicator shows the amount of paper in the tray.

Power voltage Available paper

110V Letter, Legal, US Folio, Oficio

220V A4

1 Full 2 Empty

Paper type available for duplex printing

Duplex printing might not be available for some models (see "Features by models" on page 6).

Depending on the power voltage your machine uses, available paper types for duplex printing differs. Refer to the below table.

2. Basic setup

Page 27

Media and tray

Loading paper in the tray

When printing using the tray, do not load paper on the manual feeder, it may cause a paper jam.

2. Basic setup

Page 28

Media and tray

Loading in manual feeder

The manual feeder can hold special sizes and types of print material, such as postcards, note cards, and envelopes.

Tips on using the manual feeder

• Load only one type, size and weight of print media at time in the manual feeder.

•If you select Manual Feeder for the paper source in your software application, you need to press Print screen or Demo page, or WPS button each time you print a page and load only one type, size and weight of print media at a time on the manual tray.

• To prevent paper jams, do not add paper while printing when there is still paper in the manual feeder.

• Print media should be loaded face up with the top edge going into the manual feeder first and be placed in the center of the tray.

• To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 73).

• Flatten any curl on postcards, envelopes, and labels before loading them into the manual feeder.

• When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 30).

• When papers overlap when printing using the manual feeder, open tray 1 and remove the overlapping papers then try printing again.

• When paper does not feed well while printing, push the paper in manually until it starts feeding automatically.

• When the machine is in a power save mode, the machine does not feed paper from the manual feeder. Wake up the machine by pressing the power button before using the manual feeder.

2. Basic setup

Page 29

Media and tray

2. Basic setup

Page 30

Media and tray

Printing on special media

The table below shows the special media usable in each tray.

To change the paper setting set in the machine, from the Samsung Easy Printer

Manager select (Switch to advanced mode)> Device Settings.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 38).

For example, if you want to print on labels, select Labels for Paper Type.

• When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 73).

• Printing the special media (Face up)

If special media are printed out with curl, wrinkles, crease, or black bold lines, open the rear cover and try printing again. Keep the rear cover opened during printing.

To see for paper weights for each sheet, refer to "Print media specifications" on page 73.

Types Tray Manual feeder

Plain ●●

Thick ●●

Thicker ●

Thin ●●

Bond ●●

Color ●

CardStock ●●

Labels ●

Transparency ●

Envelope ●

Thick Envelope ●

Preprinted ●

Cotton ●

Recycled ●●

Archive ●●

(●: Included, Blank: Not available)

2. Basic setup

Page 31

Media and tray

Envelope

Printing successfully on envelopes depends upon the quality of the envelopes.

To print an envelope, place it as shown in the following figure.

- Condition: should not be wrinkled, nicked, nor damaged.

- Temperature: should resist the heat and pressure of the machine

during operation.

• Use only well-constructed envelopes with sharp and well-creased folds.

• Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, selfadhesive seals, or other synthetic materials.

• Do not use damaged or poorly made envelopes.

• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

If envelopes are printed out with wrinkles, crease, or black bold lines, open the rear cover and try printing again. Keep the rear cover opened during printing.

If you select Envelope from the Printing Preferences window, but the printed images get easily erased, select Thick Envelope and try printing again. However, this might cause some noise when printing.

• When selecting envelopes, consider the following factors:

- Weight: should not exceed 90 g/m2 otherwise; jams may occur.

- Construction: should lie flat with less than 6 mm curl and should not

contain air.

1 Acceptable 2 Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second (about 170°C (338 °F)). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.

• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

2. Basic setup

Page 32

Media and tray

Transparency

To avoid damaging the machine, use only transparencies designed for use in laser printers.

• Must withstand the machine’s fusing temperature.

• To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are being printed out.

• Recommended media: Transparency for a color laser printer by Xerox, such as 3R 91331(A4), 3R 2780 (Letter)

Labels

To avoid damaging the machine, use only labels designed for use in laser printers.

• Place them on a flat surface after removing them from the machine.

• Do not leave unused transparencies in the paper tray for long. Dust and dirt may accumulate on them, resulting in spotty printing.

• To avoid smudging caused by fingerprints, handle them carefully.

• To avoid fading, do not expose printed transparencies to prolonged sunlight.

• Ensure that transparencies are not wrinkled, curled, or have any torn edges.

• Do not use transparencies that separate from the backing sheet.

• When selecting labels, consider the following factors:

- Adhesives: Should be stable at your machine’s fusing temperature.

Check your machine’s specifications to view the fusing temperature (about 170°C (338°F)).

2. Basic setup

Page 33

Media and tray

- Arrangement: Only use labels with no exposed backing between them.

Labels can peel off sheets that have spaces between the labels, causing serious jams.

- Curl: Must lie flat with no more than 13 mm of curl in any direction.

- Condition: Do not use labels with wrinkles, bubbles, or other

indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.

• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Card stock/ Custom-sized paper

• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.

2. Basic setup

Page 34

Media and tray

Preprinted paper

When loading preprinted paper, the printed side should be facing up with an

Setting the paper size and type

uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.

• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).

After loading paper in the paper tray, set the paper size and type.

To change the paper setting set in the machine, from the Samsung Easy Printer

Manager select (Switch to advanced mode)> Device Settings.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 38).

If you want to use special-sized paper such as billing paper, select Custom in the Paper tab in the Printing Preferences (see "Opening printing preferences" on page 38).

• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.

• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

2. Basic setup

Page 35

Media and tray

Using the output support

The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not allow children near it.

Open the output support before printing. The printed pages stack on the output support, and the output support will help the printed pages to align. The printer sends printouts to the output tray by default.

2. Basic setup

Page 36

Basic printing

Printing

• If you are a Mac, Linux, or Unix OS user, refer to the "Software installation" on page 95.

• For Windows 8 user, see "Basic printing" on page 187.

The following Printing Preferences window is for Notepad in Windows 7.

Open the document you want to print.

Select Print from the File menu.

Select your machine from the Select Printer list.

The basic print settings including the number of copies and print range

are selected within the Print window.

To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 38).

To start the print job, click OK or Print in the Print window.

2. Basic setup

Page 37

Basic printing

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as follows:

• You can access this window by simply double-clicking the machine icon

( ) in the Windows task bar.

• You can also cancel the current job by pressing (Cancel) on the control

panel.

2. Basic setup

Page 38

Basic printing

Opening printing preferences

• The Printing Preferences window that appears in this user’s guide may

differ depending on the machine in use. However, the composition of the Printing Preferences window is similar.

• When you select an option in Printing Preferences, you may see a

warning mark or . An mark means you can select that certain

option but it is not recommended, and an mark means you cannot

select that option due to the machine’s setting or environment.

Open the document you want to print.

Select Print from the file menu.

Select your machine from the Select Printer.

The screenshot may differ depending on model.

Click Properties or Preferences.

• You can apply Eco features to save paper and toner before printing (see

"Easy Eco Driver" on page 177).

• You can check the machine's current status using the Printer Status

button (see "Using Samsung Printer Status" on page 184).

2. Basic setup

Page 39

Basic printing

Using a favorite setting

The Favorites option, which is visible on each preferences tab except for the

To use a saved setting, select it in the Favorites tab. The machine is now set to print according to the settings you have selected.

Samsung tab, allows you to save the current preferences for future use.

To save a Favorites item, follow these steps:

Change the settings as needed on each tab.

Enter a name for the item in the Favorites input box.

Click Save.

Enter name and description, and then select the desired icon.

Click OK. When you save Favorites, all current driver settings are saved.

To delete saved settings, select it in the Favorites tab and click Delete.

Using help

Click the option you want to know on the Printing Preferences window and press F1 on your keyboard.

Eco printing

The Eco function cuts toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.

If you press the Eco button from the control panel, Eco mode is enabled. The default setting of Eco mode is duplex printing (long edge), multiple pages per side (2-up), skip blank pages, and toner save. Some features may not be available depending on model.

2. Basic setup

Page 40

Basic printing

• Double-sided printing (long edge) feature is only available for duplex models (see "Variety feature" on page 7).

• Depending on the printer driver you use, skip blank pages may not work

properly. If skip blank pages feature does not work properly, set the feature from the Easy Eco Driver (see "Easy Eco Driver" on page 177).

Setting Eco mode on the control panel

If you set the Eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings), the Onforce message appears. You have to enter the password to change the Eco mode status.

Press (Eco) button on the control panel.

When the LED on the button lights up, the Eco mode is enabled.

Eco options

• Printer Default: Follows the settings set from the machine's control panel.

• None: Disables Eco mode.

• Eco Printing: Enables Eco mode. Activate the various eco items you want to

use.

Result simulator

Result Simulator shows the results of reduced emission of carbon dioxide, used

electricity, and the amount of saved paper in accordance with the settings you selected.

• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled.

• Refer to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index.

• The power consumption in printing mode refers to the average printing power consumption of this machine.

Setting Eco mode on the driver

Open the Eco tab to set Eco mode. When you see the eco image ( ), that means the Eco mode is currently enabled.

• The actual saved or reduced amount may differ depending on the operating system used, computing performance, application software, connection method, media type, media size, job complexity, etc.

2. Basic setup

Page 41

3. Maintenance

This chapter provides information about purchasing consumables, option and maintenance parts available for your machine.

• Ordering consumables and option 42

• Available consumables 43

• Available maintenance parts 44

• Storing the toner cartridge 45

• Redistributing toner 47

• Replacing the toner cartridge 49

• Replacing the imaging unit 52

• Cleaning the machine 53

• Tips for moving & storing your machine 57

Page 42

Ordering consumables and option

Available option may differ from country to country. Contact your sales representatives to obtain the list of available consumables, and maintenance parts.

To order Samsung-authorized consumables, option, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

3. Maintenance

Page 43

Available consumables

When consumables reach the end of their life spans, you can order the following types of consumables for your machine:

Type Model

Average yield

Part name

M2620/ M2820 series Approx. 3,000 pages MLT-D115L

Toner cartridge

M2625/ M2626/ M2825/ M2826 series Approx. 1,200 pages

MLT-D116S

Approx. 3,000 pages MLT-D116L

Imaging unit M2625/ M2626/ M2825/ M2826 series Approx. 9,000 pages MLT-R116

a. Declared yield value in accordance with ISO/IEC 19752. b. Not supported for China and India .

Depending on the options, percentage of image area, and job mode used, the toner cartridge’s lifespan may differ.

When purchasing new toner cartridges or other consumables, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other consumables will be incompatible with your machine due to different configurations of toner cartridges and other consumables according to the specific country conditions.

Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty.

3. Maintenance

Page 44

Available maintenance parts

To purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.

Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.

Parts

Fuser unit Approx. 100,000 pages

Transfer roller Approx. 100,000 pages

Forward roller Approx. 50,000 pages

Pick-Up roller Approx. 50,000 pages

Retard roller Approx. 50,000 pages

a. It will be affected by the operating system used, computing performance, application software, connecting method, media type, media size and job complexity.

Average yield

3. Maintenance

Page 45

Storing the toner cartridge

Toner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optmal performance, highest quality, and longest life from your new Samsung toner cartridge.

Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.

Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.

• Store the cartridge inside the protective bag from the original package.

• Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.

• Do not store consumables in any of the following conditions:

- Temperature greater than 40°C (104°F).

- Humidity range less than 20% and greater than 80%.

Handling instructions

• Do not touch the surface of the photoconductive drum in the cartridge.

• Do not expose the cartridge to unnecessary vibrations or shock.

• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.

Toner cartridge usage

Samsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges.

Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

- An environment with extreme changes in humidity or temperature.

- Direct sunlight or room light.

- Dusty places.

- A car for a long period of time.

- An environment where corrosive gases are present.

- An environment with salty air.

3. Maintenance

Page 46

Storing the toner cartridge

Estimated cartridge life

Estimated cartridge life the life of the toner cartridge (or imaging unit) yield depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

3. Maintenance

Page 47

Redistributing toner

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs and/or density variation side to side.

• The Toner LED blinks orange.

If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.

• Before opening the front cover, close the output support first.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

M2620/ M2820 series

3. Maintenance

Page 48

Redistributing toner

M2625/ M2626/ M2825/ M2826 series

3. Maintenance

Page 49

Replacing the toner cartridge

• Before opening the front cover, close the output support first.

• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• Shake the toner cartridge thoroughly, it will increase the initial print quality.

• Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

When a toner cartridge has reached the end of life, the machine will stop printing.

3. Maintenance

Page 50

Replacing the toner cartridge

M2620/ M2820 series

3. Maintenance

Page 51

Replacing the toner cartridge

M2625/ M2626/ M2825/ M2826 series

3. Maintenance

Page 52

Replacing the imaging unit

M2625/ M2626/ M2825/ M2826 series

3. Maintenance

Page 53

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet.

• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you.

Cleaning the outside

Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

3. Maintenance

Page 54

Cleaning the machine

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

• Use a dry lint-free cloth to clean the machine.

• If your machine has a power switch, turn the power switch off before cleaning the machine.

• Before opening the front cover, close the output support first.

3. Maintenance

Page 55

Cleaning the machine

Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine.

3. Maintenance

Page 56

Cleaning the machine

Cleaning the pickup roller

• Use a dry lint-free cloth to clean the machine.

• If your machine has a power switch, turn the power switch off before cleaning the machine.

3. Maintenance

Page 57

Tips for moving & storing your machine

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.

• When moving the machine, make sure at least two people are holding the machine securely.

3. Maintenance

Page 58

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 59

• Clearing paper jams 60

• Understanding the LED 68

This chapter gives helpful information for what to do if you encounter an error.

If your machine has a display screen, check the message on the display screen first to solve the error. If you cannot find a solution to your problem in this chapter, refer to the Advanced Guide (see "Troubleshooting" on page 194).

If you cannot find a solution in the User's Guide or the problem persists, call for service.

Page 59

Tips for avoiding paper jams

By selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 25).

• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.

• Do not remove paper from the tray while your machine is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print media (see "Print media specifications" on page 73).

4. Troubleshooting

Page 60

Clearing paper jams

To avoid tearing the paper, pull the jammed paper out slowly and gently.

In tray 1

4. Troubleshooting

Page 61

Clearing paper jams

In the manual feeder

4. Troubleshooting

Page 62

Clearing paper jams

Inside the machine

• The fuser area is hot. Take care when removing paper from the machine.

• Before opening the front cover, close the output support first.

4. Troubleshooting

Page 63

Clearing paper jams

M2620/ M2820 series

4. Troubleshooting

Page 64

Clearing paper jams

M2625/ M2626/ M2825/ M2826 series

4. Troubleshooting

Page 65

Clearing paper jams

In the exit area

4. Troubleshooting

Page 66

Clearing paper jams

In the duplex area

4. Troubleshooting

Page 67

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

4. Troubleshooting

Page 68

Understanding the LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 17).

• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Troubleshooting" on page 194).

• You also can resolve the error with the guideline from the computers’ Samsung Printer Status program window (see "Using Samsung Printer Status" on page 184).

• If the problem persists, call a service representative.

Status LED

Status Description

• The machine is off-line.

• The machine is in power save mode.

• When the backlight slowly blinks, the machine is receiving data from the computer.

• When the backlight blinks rapidly, the machine is printing data.

A minor error has occurred and the machine is waiting for the error to be cleared. When the problem is cleared, the machine resumes.

• The cover is opened. Close the cover.

• There is no paper in the tray when receiving or printing data. Load paper in the tray.

• The machine has stopped due to a major error. Reboot the power and try the printing job again. If the problem persists, please call for service.

(Status LED)

Off

Green

Red

Blinking

On • The machine is on-line and can be used.

Blinking

• An imaging unit has almost reached its estimated cartridge life

. It is recommended to replace the imaging unit (see

"Replacing the imaging unit" on page 52).

Orange

a. When the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or continue printing from the SyncThru™Web Service ( Settings > Machine

Settings > System > Setup > Supplies Manangement> Imaging Unit Stop) or Samsung Easy Printer Manager (Device Settings > System > Supplies Management > Imaging Unit Stop).

Turning off this option and continuing to print may damage the device’s system.

Blinking Upgrading firmware. On A paper jam has occurred (see "Clearing paper jams" on page 60).

4. Troubleshooting

Page 69

Understanding the LED

Toner LED/ WPS LED/ Power LED/ Eco LED

Status Description

Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new cartridge for

Blinking

replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 47).

(Toner LED)

(WPS LED)

(Power LED)

(Eco LED)

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages

may be affected by operating environment, printing interval, graphics, media type and media size. Some amount of toner may remain in the cartridge even when orange LED is on and the printer stops printing.

b. Wireless model only (see "Features by models" on page 6).

Orange

Blue

Green

Off All toner cartridges are at normal capacity.

Blinking The machine is connecting to a wireless network.

Off The machine is disconnected from a wireless network.

On The machine is in power save mode.

Off

On Eco mode is on (see "Eco printing" on page 39).

Off Eco mode is off.

A toner cartridge has almost reached its estimated cartridge life "Replacing the toner cartridge" on page 49).

The machine is connected to a wireless network (see "Wireless network setup" on page 116).

The machine is in ready mode or the machine’s power is off.

. It is recommended to replace the toner cartridge (see

4. Troubleshooting

Page 70

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

•Specifications 71

• Regulatory information 80

•Copyright 91

Page 71

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information.

Items Description

Dimension Width x Length x Height 368 x 334.5 x 202 mm (14.49 x 13.17 x 7.95 inches)

• M2620 series: 7.0 kg (15.43 lbs)

• M2625/ M2626 series: 7.2 kg (15.87 lbs)

Weight Machine with consumables

Ready mode Less than 26 dB (A)

Noise Level

Print mode Less than 50 dB (A)

Temperature

Operation 10 to 30°C (50 to 86 °F)

Storage (packed) -20 to 40°C (-4 to 104 °F)

Humidity

Operation 20 to 80% RH

Storage (packed) 10 to 90% RH

Power rating

110 volt models AC 110 - 127 V

220 volt models AC 220 - 240 V

• M2625D/ M2626D series: 7.4 kg (16.31 lbs)

• M2820 series: 7.2 kg (15.87 lbs)

• M2825/ M2826 series: 7.4 kg (16.31 lbs)

5. Appendix

Page 72

Specifications

Items Description

Average operating mode Less than 400 W

Power consumption

Ready mode Less than 45 W

• M262x/ M262xD/ M262xND: Less than 0.9 W

Power save mode

• M282xND: Less than 1.0 W

• M282xDW: Less than 1.3 W (Wi-Fi Direct on: Less than 1.8 W

Power off mode

Wireless

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing. b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine. c. The power consumption of power save mode may be affected by machine's status, setting conditions, operating environment. d. Power consumption can be completely avoided only when the power cable is not connected. e. For the machine that has a power switch. f. Wireless model only (see "Features by models" on page 6).

Module

Less than 0.2 W (0.1 We)

SPW-B4319S

)

5. Appendix

Page 73

Specifications

Print media specifications

Type Size Dimensions

Plain paper

Letter 216 x 279 mm (8.5 x 11 inches)

Legal 216 x 356 mm (8.5 x 14 inches)

US Folio 216 x 330 mm (8.5 x 13 inches)

A4 210 x 297 mm (8.27 x 11.69 inches)

Oficio 216 x 343 mm (8.5 x 13.5 inches)

JIS B5 182 x 257 mm (7.17 x 10.12 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

Executive 184 x 267 mm (7.25 x 10.5 inches)

A5 148 x 210 mm (5.83 x 8.27 inches)

A6 105 x 148 mm (4.13 x 5.83 inches)

Tray

60 to 163 g/m

(16 to 43 lbs bond)

• 250 sheets of 80 g/m

Print media weight/Capacity

Manual feeder

60 to 220 g/m

(21 lbs bond)

• 1 sheet of 80 g/m bond)

(16 to 59 lbs bond)

(21 lbs

5. Appendix

Page 74

Specifications

Type Size Dimensions

Envelope

Thick paper

Thicker paper

Thin paper

Envelope Monarch

Envelope No. 10 105 x 241 mm (4.12 x 9.5 inches)

Envelope DL 110 x 220 mm (4.33 x 8.66 inches)

Envelope C5 162 x 229 mm (6.38 x 9.02 inches)

Envelope C6 114 x 162 mm (4.49 x 6.38 inches)

Refer to the Plain paper section

98 x 191 mm (3.87 x 7.5 inches) Not available in tray

Refer to the Plain paper section

Refer to the Plain paper section Not available in tray

Refer to the Plain paper section

91 to 105 g/m

60 to 70 g/m

Print media weight/Capacity

Tray

60 to 220 g/m

(24 to 28 lbs bond) 91 to 105 g/m2 (24 to 28 lbs bond)

164 to 220 g/m bond)

(16 to 19 lbs bond) 60 to 70 g/m2 (16 to 19 lbs bond)

Manual feeder

(16 to 59 lbs bond)

(44 to 59 lbs

Transparency Letter, A4

Letter, Legal, US

Labels

Folio, A4, JIS B5, ISO B5, Executive, A5

Refer to the Plain paper section Not available in tray

138 to 146 g/m bond)

120 to 150 g/m bond)

(37 to 39 lbs

(32 to 40 lbs

5. Appendix

Page 75

Specifications

Print media weight/Capacity

Type Size Dimensions

Card stock

Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive,

Refer to the Plain paper section

121 to 163 g/m

Tray

(32 to 43 lbs bond) 121 to 163 g/m2 (32 to 43 lbs

bond)

Manual feeder

A5,

Postcard 4x6

Bond paper

Refer to the Plain paper section

Minimum size (custom)

Refer to the Plain paper section

• Manual feeder: 76 x 127 mm (3 x 5 inches)

106 to 120 g/m

60 to 163 g/m

(28 to 32 lbs bond) 106 to 120 g/m2 (28 to 32 lbs

bond)

(16 to 43 lbs bond) d,

• Tray: 105 x 148.5 mm (4.13 x 5.85 inches)

Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. 1 sheet for manual feeder. c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness. d. The paper types available in the manual feeder: Plan, Thick, Thicker, Thin, Cotton, Colored, Pre-printed, Recycled, Envelope, Transparency, Labels, Cardstock, Bond, Archive e. The paper types available in tray: Plan, Thick, Thin, Recycled, Cardstock, Bond, Archive

5. Appendix

Page 76

Specifications

System requirements

Microsoft® Windows

Operating system

Windows

Windows Server

Windows Vista

Windows

Windows Server

XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)

2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)

2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz)

7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher

2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)

Intel® Pentium® IV 3 GHz

• Support for DirectX

•DVD-R/W Drive

Requirement (recommended)

CPU RAM free HDD space

9 graphics with 128 MB memory (to enable the Aero theme).

128 MB (256 MB) 1.5 GB

128 MB (512 MB) 1.25 GB to 2 GB

512 MB (2 GB) 10 GB

512 MB (1 GB) 15 GB

1 GB (2 GB) 16 GB

512 MB (2 GB) 10 GB

Windows

8 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher

• Support for DirectX

9 graphics with 128 MB memory (to enable the Aero theme).

•DVD-R/W Drive

1 GB (2 GB) 16 GB

5. Appendix

Page 77

Specifications

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.

• Users who have administrator rights can install the software.

• Windows Terminal Services is compatible with your machine.

Mac

Operating system

Requirements (Recommended)

CPU RAM Free HDD space

Mac OS X 10.5

Mac OS X 10.6

Mac OS X 10.7 - 10.8

•Intel

processors

• 867 MHz or faster Power PC G4/G5

•Intel

processors

512 MB (1 GB) 1 GB

1 GB (2 GB) 1 GB

2 GB 4 GB

5. Appendix

Page 78

Specifications

Linux

Items Requirements

Operating system

CPU Pentium IV 2.4GHz (Intel Core™2)

RAM 512 MB (1 GB)

Free HDD space 1 GB (2 GB)

RedHat

Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 (32/ 64 bit)

OpenSuSE

Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)

Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04, 10.10, 11.04 (32/ 64 bit)

SuSE Linux Enterprise Desktop 10, 11 (32/ 64 bit)

Debian 4.0, 5.0, 6.0 (32/ 64 bit)

Enterprise Linux WS 4, 5, 6 (32/ 64 bit)

10.2, 10.3, 11.0, 11.1, 11.2, 11.3, 11.4 (32/ 64 bit)

Unix

Items Requirements

Sun Solaris 9, 10, 11 (x86, SPARC)

Operating system

Free HDD space Up to 100 MB

HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)

IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1 7.1 (PowerPC)

5. Appendix

Page 79

Specifications

Network environment

Network and wireless models only (see "Features by models" on page 6).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine.

Items Specifications

Network interface

Network operating system

Network protocols

Wireless security

• Ethernet 10/100 Base-TX Wired Lan

• 802.11b/g/n Wireless LAN

•Windows

XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows® 8,Windows Server® 2008 R2

•Various Linux OS

• Mac OS X 10.5-10.8

•UNIX OS

•TCP/IPv4

•DHCP, BOOTP

• DNS, WINS, Bonjour, SLP, UPnP

• Standard TCP/IP Printing (RAW), LPR, IPP, WSD

• SNMPv 1/2/3, HTTP, IPSec

• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)

• Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK), WPA Enterprise, WPA2 Enterprise

• Encryption: WEP64, WEP128, TKIP, AES

5. Appendix

Page 80

Regulatory information

This machine is designed for a normal work environment and certified with several regulatory statements.

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 608251 : 2007.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.

Warning

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.

Ozone safety

This product's ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.

5. Appendix

Page 81

Regulatory information

Power saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

For more information on the ENERGY STAR program see http:// www.energystar.gov

For ENERGY STAR certified models, the ENERGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.

China only

Xpress M2626

Xpress M2626D

Xpress M2626ND

1.09

1.23

Recycling

Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

5. Appendix

Page 82

Regulatory information

Correct disposal of this product (Waste electrical &

The United States of America only

electronic equipment)

(Applicable in countries with separate collection

systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278 - 0799

State of California Proposition 65 Warning (USA Only)

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

5. Appendix

Page 83

Regulatory information

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

5. Appendix

Page 84

Regulatory information

United states of america

Federal communications commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC statement for wireless LAN use:

While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna.

device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Russia only

5. Appendix

Page 85

Regulatory information

Germany only

Turkey only

Thai only

Replacing the fitted plug (for UK only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.

5. Appendix

Page 86

Regulatory information

Important warning:

You must earth this machine.

The wires in the mains lead have the following color code:

• Green and Yellow: Earth

Declaration of conformity (European countries)

Approvals and Certifications

• Blue: Neutral

• Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or colored black.

You must connect the brown wire to the pin which is marked with the letter “L” or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

• Hereby, Samsung Electronics, declares that this [M262x/ M262xD/ M262xND/M282xND] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).

• Hereby, Samsung Electronics, declares that this [M282xDW] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

5. Appendix

Page 87

Regulatory information

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained

European radio approval information (for products fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark is on the system label.

The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

European states qualified under wireless approvals:

in this document.

EU countries

European states with restrictions on use:

EEA/EFTA countries

No limitations at this time

5. Appendix

Page 88

Regulatory information

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

5. Appendix

Page 89

Regulatory information

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

Israel only

5. Appendix

Page 90

Regulatory information

China only

5. Appendix

Page 91

Copyright

This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Microsoft, Windows, Windows Vista, Windows 7, Windows 8 and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.

• iPad, iPhone, iPod touch, TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

• LaserWriter is a trademark of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

REV. 1.01

5. Appendix

Page 92

User’s Guide

ADVANCED

This guide provides information about the installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning the installation, basic operation and troubleshooting on windows.

Page 93

ADVANCED

Setting your machine as a default machine 157

1. Software installation

Installation for Mac 96

Reinstallation for Mac 97

Installation for Linux 98

Reinstallation for Linux 99

2. Using a network-connected machine

Useful network programs 101

Wired network setup 102

Installing driver over the network 107

Wireless network setup 116

Samsung MobilePrint 148

Google Cloud Print™ 149

AirPrint 152

Using advanced print features 158

Using Direct Printing Utility 165

Mac printing 167

Linux printing 169

Unix printing 171

4. Useful management tools

Accessing management tools 174

Easy Capture Manager 175

Samsung AnyWeb Print 176

Easy Eco Driver 177

Using SyncThru™ Web Service 178

Using Samsung Easy Printer Manager 181

Using Samsung Printer Status 184

Using Samsung Printer Experience 186

Using the Linux Unified Driver Configurator 191

3. Special features

Altitude adjustment 155

Changing the default print settings 156

5. Troubleshooting

Paper feeding problems 195

Power and cable connecting problems 196

Page 94

ADVANCED

Printing problems 197

Printing quality problems 201

Operating system problems 209

Page 95

1. Software installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see Installing driver over the network107).

• Installation for Mac 96

• Reinstallation for Mac 97

• Installation for Linux 98

• Reinstallation for Linux 99

• If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver locally" on page 20).

• Only use a USB cable no longer then 3 meter (118 inches).

Page 96

Installation for Mac

Make sure that the machine is connected to your computer and

powered on.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Mac desktop.

• For Mac OS X 10.8, Double-click the CD-ROM that appears on Finder.

Double-click the MAC_Installer folder > Installer OS X icon.

Click Continue.

Select Direct Connection using USB cable on the Printer Connection Type and click Continue.

Click Add Printer button to select your printer and add it to your printer list.

After the installation is finished, click Close.

Read the license agreement and click Continue.

Click Agree to agree to the license agreement.

Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

Enter the password and click OK.

1. Software installation

Page 97

Reinstallation for Mac

If the printer driver does not work properly, uninstall the driver and reinstall it.

Open the Applications folder > Samsung > Printer Software

Uninstaller.

To uninstall printer software, Click Continue.

Check the program you want to delete and click Uninstall.

Enter the password and click OK.

After the uninstallation is finished, click Close.

If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

1. Software installation

Page 98

Installation for Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Installing the Unified Linux Driver

Make sure that the machine is connected to your computer and

powered on.

When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.

The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.

From the Samsung website, download the Unified Linux Driver package

to your computer.

Right-click the Unified Linux Driver package and extract the package.

Double click cdroot > autorun.

When the welcome screen appears, click Next.

When the installation is complete, click Finish.

1. Software installation

Page 99

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

Make sure that the machine is connected to your computer and

powered on.

When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.

Open the Terminal program. When the Terminal screen appears, type in

the following.

[root@localhost root]#cd /opt/Samsung/mfp/uninstall/

[root@localhost uninstall]#./uninstall.sh

4 5

Click Next.

Click Finish.

1. Software installation

Page 100

2. Using a networkconnected machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 101

• Wired network setup 102

• Installing driver over the network 107

• Wireless network setup 116

• Samsung MobilePrint 148

• Google Cloud Print™ 149

• AirPrint 152

Samsung M262x, M282x, SLM2625D, SLM2825DW, SLM2625DXAC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

BASIC

1. Introduction

Key benefits

Features by models

Useful to know

About this user’s guide

Safety information

Machine overview

Control panel overview

Turning on the machine

Installing the driver locally

Reinstalling the driver

2. Basic setup

Printing a demo page

Media and tray

Basic printing

3. Maintenance

Ordering consumables and option

Available consumables

Available maintenance parts

Storing the toner cartridge

Redistributing toner

Replacing the toner cartridge

Replacing the imaging unit

Cleaning the machine

Tips for moving & storing your machine

4. Troubleshooting

Tips for avoiding paper jams

Clearing paper jams

Understanding the LED

5. Appendix

Specifications

Regulatory information

Copyright

ADVANCED

1. Software installation

Installation for Mac

Reinstallation for Mac

Installation for Linux

Reinstallation for Linux
