LCD TV
LW26A33W
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
-
AFTER SALES SERVICE
-
Do not hesitate to contact your retailer or service agent if a
change in the performance of your product indicates that a
faulty condition may be present.
BN68-00656F-00
ELECTRONICS
ON-SCREEN MENUS
PC DISPLAY
PICTURE IN PICTURE (PIP)
TELETEXT
This device is a class B digital apparatus.
LCD TV
LW26A33W
656Fcover.qxd 4/13/04 3:50 PM Page 1
LCD TV
LW26A33W
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PC DISPLAY
PICTURE IN PICTURE (PIP)
TELETEXT
This device is a class B digital apparatus.
1-19.qxd 4/13/04 4:19 PM Page 1
English-2
Contents
CONNECTING AND
PREPARING YOUR TV
Viewing the Control Panel ......................................................................................... 4
Viewing the Connection Panel................................................................................... 5
- Connecting an Aerial or Cable Television Network ............................................... 5
- Connecting Set-Top Box, VCR or DVD ................................................................. 5
- Connecting External A/V Devices .......................................................................... 6
- Connecting Computer ............................................................................................ 6
- Connecting Sub Woofer ......................................................................................... 7
- Connecting DVI....................................................................................................... 7
Viewing the Remote Control (All Functions Except Teletext)................................... 8
Viewing the Remote Control (Teletext Functions)..................................................... 9
Installing Batteries in the Remote Control................................................................. 10
Switching On and Off................................................................................................. 11
Placing Your Television in Standby Mode ................................................................. 11
Becoming Familiar with the Remote Control ............................................................ 12
Plug and Play ............................................................................................................. 13
Choosing Your Language .......................................................................................... 14
SETTING THE CHANNELS
Storing Channels Automatically................................................................................. 15
Storing Channels Manually ........................................................................................ 16
Editing the Channels .................................................................................................. 18
Sorting the Stored Channels ..................................................................................... 19
Assigning Channels Names ...................................................................................... 20
Fine Tuning Channel Reception ................................................................................ 21
SETTING THE PICTURE
Changing the Picture Standard ................................................................................. 22
Adjusting the Custom Picture .................................................................................... 23
Changing the Colour Tone......................................................................................... 24
Changing the Picture Size ......................................................................................... 25
Freezing the Current Picture...................................................................................... 26
DNIe(Digital Natural Image engine) .......................................................................... 26
MCC (My Colour Control) .......................................................................................... 27
I2C (Intelligent Image Control)................................................................................... 28
IBC (Intelligent Brightness Control) ........................................................................... 29
Viewing the Picture In Picture (PIP) .......................................................................... 30
SETTING THE SOUND
Adjusting the Volume ................................................................................................. 32
Switching the Sound Off Temporarily ........................................................................ 33
Changing the Sound Standard.................................................................................. 34
Adjusting the Sound Settings .................................................................................... 34
Selecting WOW Surround.......................................................................................... 35
Adjusting the Volume Automatically .......................................................................... 35
Do not display a still image (such as on a video game or when hooking up a DVD to
this LCD TV) on the Color TFT-LCD (Thin Film Transister Liquid Crystal Display)
panel for a long time as it can cause screen image retention. This image retention is
also known as “screen burn”. To avoid such image retention, reduce the degree of
brightness and contrast of this screen when displaying a still image.
1-19.qxd 4/13/04 4:19 PM Page 2
English-3
Contents
SETTING THE
SOUND
Connecting Headphones ........................................................................................... 36
Adjusting Your Headphone Preferences ................................................................... 36
Listening to the Sound of the Sub Picture ................................................................ 37
Sub Woofer................................................................................................................. 37
SETTING THE
TIME
Setting and Displaying the Current Time .................................................................. 38
Setting the Sleep Timer.............................................................................................. 39
Switching the Television On and Off Automatically ................................................... 40
SETTING THE OTHERS
Setting the Blue Screen Mode................................................................................... 41
Colour Weakness....................................................................................................... 42
Selecting the Melody ................................................................................................. 43
Selecting a Device from External Sources................................................................ 44
Viewing Pictures from External Sources................................................................... 44
SETTING THE
PC

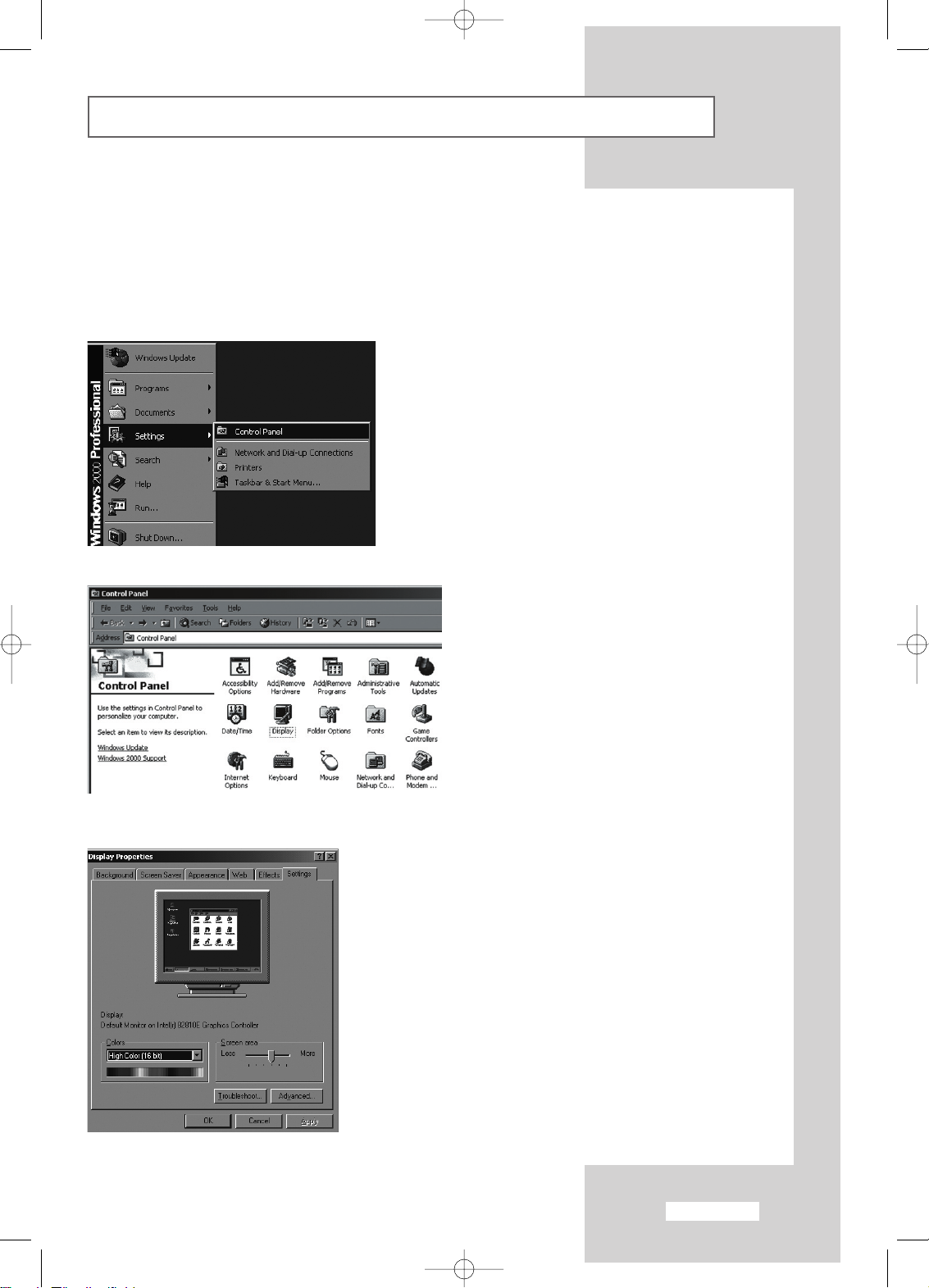

Setting up Your PC Software (Based on Windows 2000 or XP).............................. 45
Adjusting the PC Screen Automatically..................................................................... 46
Coarse and Fine Tuning of the Image....................................................................... 47
Changing the Image Position .................................................................................... 48
Initializing the Image Settings.................................................................................... 49
USING THE TELETEXT FEATURE
Teletext Decoder ........................................................................................................ 50
Displaying the Teletext Information............................................................................ 50
Selecting a Specific Teletext Page ............................................................................ 51
Using FLOF to Select a Teletext Page ...................................................................... 52
RECOMMENDATIONS FOR USE
Troubleshooting: Before Contacting Service Personnel ........................................... 53
Installing Stand ........................................................................................................... 54
Using the Anti-Theft Kensington Lock ....................................................................... 55
Installing VESA compliant mounting devices ............................................................ 56
Technical and Environmental Specifications............................................................. 57
Display Mode (PC) ..................................................................................................... 58
Pin Configurations ...................................................................................................... 59
Wiring the Mains Power Supply Plug (UK Only) ...................................................... 60
Setting Up Your Remote Control ............................................................................... 61
Press Important Note
Symbols
1-19.qxd 4/13/04 4:19 PM Page 3
English-4
Viewing the Control Panel
SOURCE
Displays a menu of all of the available input
sources (TV, Ext.1, Ext.2, AV3, S-Video, DVI, PC).
You can also use the SOURCE buttons on
the TV’s control panel to make selection.
MENU
Press to see an on-screen menu of
your TV’s features.
-
+
Press to decrease or increase the volume.
Also used to select items on the
on-screen menu.
C/P.
Press to change channels.
Also press to highlight various items
on the on-screen menu.
(Without the Remote Control, You can
turn on TV by using the Channel buttons.)
(Power)
Press to turn the TV on and off.
Light Detecting Sensor
Adjusts brightness of screen automatically by
detecting brightness of surrounding environment.
This sensor works when IBC is on.
Remote Control Sensor
Aims the remote control towards this spot
on the TV.
Power Indicator
Lights up when you turn the power off.
When you turn the power off after selecting On/Off
Timer, green light will appear.
1-19.qxd 4/13/04 4:19 PM Page 4
English-5
Viewing the Connection Panel
Whenever you connect an audio or video system to your set, ensure that all elements are
switched of
f.
Connecting an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by the set from one of the following sources:
- An outdoor aerial
- A cable television network
- A satellite network
Connecting Set-Top Box, VCR or DVD
- Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD.
- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box
to the VCR (or DVD) and connect the VCR (or DVD) to your set.
Input/Output Specification
Power Input
Connector
SCART 1
SCART 2
Video Audio (L/R) S-Video RGB Video+Audio (L/R)
✔✔ ✔
Only TV Out
✔✔
Monitor Out
(TV/Ext.1/Ext.2/AV3/S-VHS)
Input Output
1-19.qxd 4/13/04 4:19 PM Page 5
English-6
Viewing the Connection Panel
Connecting External A/V Devices
- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
- Connect RCA audio cables to “AUDIO(L)” and “AUDIO(R)” on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.
- Headphone may be connected to the headphone output ( ) on the rear of your set. While the headphone
is connected, the sound from the built-in speakers will be disabled.
Connecting Computer
- Connect the D- Sub cable to “PC (PC IN)” on the rear of your set.
- Connect the stereo audio cable to “AUDIO (PC IN)” on the rear of your set and the other end to
“Audio Out” of the sound card on your computer.
1-19.qxd 4/13/04 4:19 PM Page 6
English-7
Viewing the Connection Panel
Connecting Sub Woofer
Connecting DVI
- Connect the DVI connector to the DVD connector.
- Connect the stereo audio cable to “L - Audio - R” on the rear of your set and the other end to
“Audio Out” of the sound card on your DVD.
- DVI dose not support PC function.
Source Video Horizontal Frequency Vertical Frequency Resolution
(kHz) (Hz) (Lines)
Source PAL 15.625 50 575
SECAM 15.625 50 575
NTSC4.43 15.734 60 483
NTSC3.58 (Except RF) 15.704 60 483
DVI 480/60i 15.734 60 483
480/60p 31.469 60 483
576/50i 15.625 50 576
576/50p 31.250 50 576
720/60p 45.000 60 720
1080/50i 28.125 50 1080
1080/60i 33.750 60 1080
1-19.qxd 4/13/04 4:19 PM Page 7
English-8
Numeric buttons for
direct channel access
One/Two-digit channel selection
Volume up or down
(Refer to page 32)
Sound effect selection
(Refer to page 34)
Select to the PC mode directly
(Refer to page 46)
Temporary sound switch-off
(Refer to page 33)
Menu display and
change confirmation
(Refer to page 12)
DUAL I-II button
Automatic switch-off
(Refer to page 39)
Selects a target device to controlled
by the samsung remote control
(TV, STB, VCR, CABLE, DVD)
(Refer to page 61~64)
Use to see information on the
current broadcast.
(Refer to page 38)
Previous channel
-Next channel
-Previous channel
(Refer to page 11)
Available source selection
(Refer to page 44)
Exit the OSD
Control the cursor in the menu
(Refer to page 12)
Picture effect selection
(Refer to page 22)
Reset:
When your remote does not
work, change the batter ies and press
the “Reset” button for 2-3 seconds
before use.
STILL : Picture freeze
(Refer to page 26)
Set (Refer to page 61~63)
SRS WOW selection
(Refer to page 35)
The performance of the remote control may be affected by bright light.
Television On/Off
(Refer to page 11)

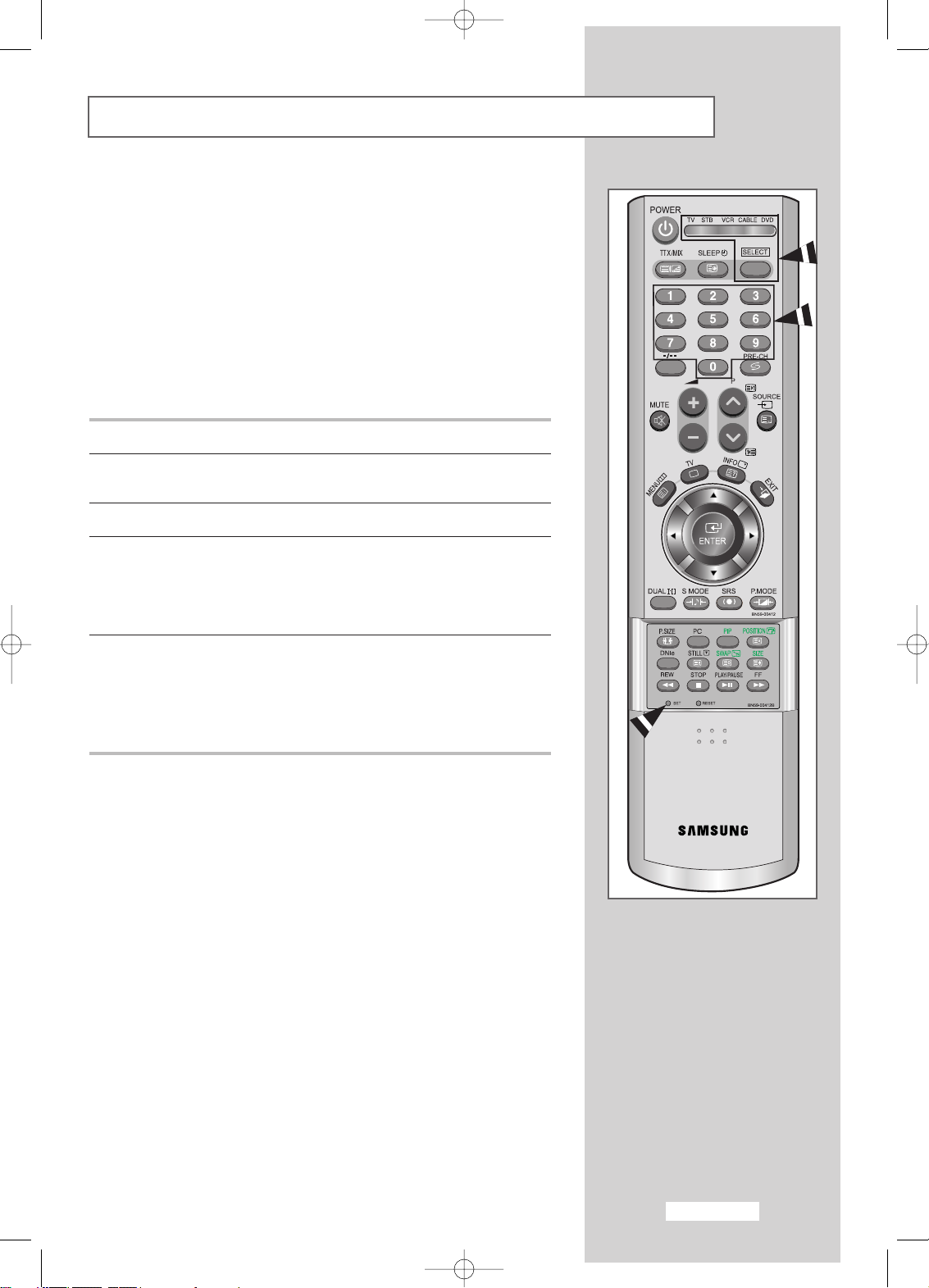

Viewing the Remote Control (All Functions Except Teletext)
Select to the TV mode directly
Picture size selection
(Refer to page 25)
Press to improve the digital
video quality.
(Refer to page 26)
VCR/DVD FUNCTIONS
: Rewind
: Stop
: Play/Pause
: Fast/Forward
PIP FUNCTIONS
; (Refer to page 30~31)
PIP : Picture-In-Picture
On/ Off
POSITION : PIP position selection
SIZE : PIP size selection
SWAP : Interchange the main
and sub picture
1-19.qxd 4/13/04 4:19 PM Page 8
English-9

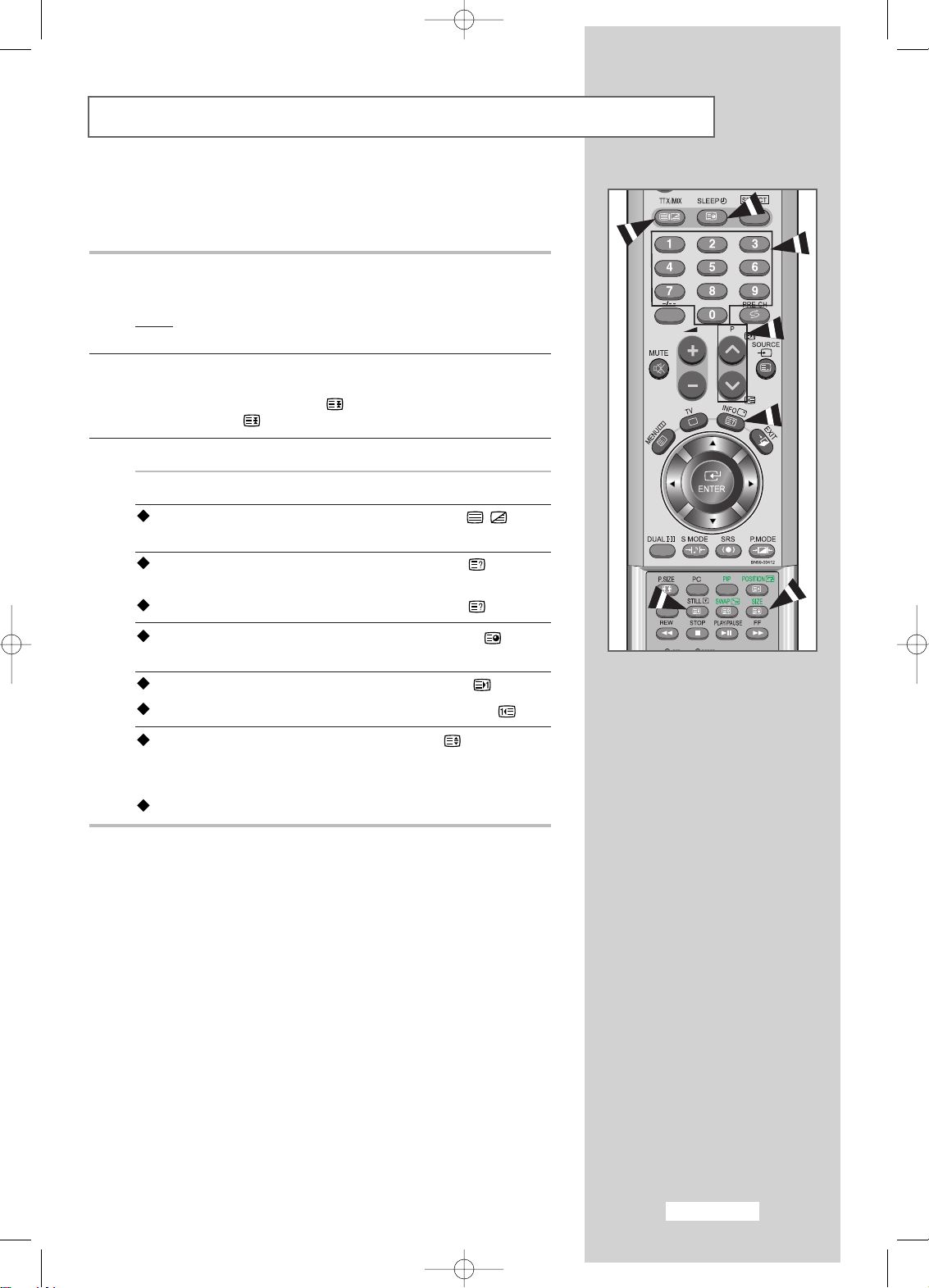

Viewing the Remote Control (Teletext Functions)
Teletext index
Teletext hold
Exit from the teletext display
Teletext reveal
P : Teletext next page
P : Teletext previous page
Teletext mode selection
(LIST/FLOF)
Teletext size selection
Teletext store
Teletext Function : Refer to page 50-52 for details
Teletext cancel
Teletext display/mix both teletext
information and the normal broadcast
Teletext sub page
1-19.qxd 4/13/04 4:19 PM Page 9
English-10
Installing Batteries in the Remote Control
1 Slide the cover out completely.
2 Install two AAA size batteries.
Make
sure to match the “+” and “–” ends of the batteries with
the diagram inside the compartment.
3 Replace the cover.
Remove the batteries and store them in a cool, dry place
if you won’t be using the remote control for a long time.
The remote control can be used up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries last for about one year.)
The remote control doesn’t work!
Check the following:
1. Is the TV power switch on?
2. Are the plus end and the minus end of the battery reversed?
3. Did the battery run out?
4. Is there a power outage?
5. Is the power cord unplugged?
6. Is there a special fluorescent light or a neon sign nearby?
1-19.qxd 4/13/04 4:20 PM Page 10
English-11
Switching On and Off
Your set can be placed in Standby mode, in order to reduce the power
consumption. The Standby mode can be useful when you wish to
interrupt viewing temporarily (during a meal, for example).
1 Press the
POWER
( ) button on the remote control.
Result
:
The screen is turned off and a orange standby indicator
appears on the front of your set.
2 To switch your set back on, simply press the
POWER
( ), numeric
buttons (0~9) or channel up/down ( / ) button again.
Do not leave your set in Standby mode for long periods of time (when you
are away on holiday, for example).
Turn your set off by pressing the POWER ( ) button on the right-side
of the set. It is best to unplug the set from the mains and aerial.
1. Use of the 'POWER' button on the remote is possible only when the
TV is in 'Power Saving' (standby) mode. If the TV is powered off, the
remote cannot be used to turn the TV on.
2. To retain the time and or automatic alarm settings, always put the TV in
stand-by mode with the remote control. Use of the the power switch on the
TV will clear all time related settings.
[Benefit] This full 'power off' function is as effective as unplugging the
power cable.
TV switches to standby mode when powered off by the remote control. To
return power ( ) to the screen, press the remote control 'ON' or channel
button( ). Pressing the power button on the TV does not return power to
the screen because in this case, the TV restores the last mode, which was
'Power Saving'.
The mains lead is attached to the rear of your set.
If you have purchased this set in the United Kingdom,
refer to page 60 for further instructions on plug wiring.
1 Plug the mains lead into an appropriate socket.
Result
:
The main voltage is indicated on the rear of your set and
the frequency is 50 or 60Hz.
2 Press the
POWER
( ) button on the right-side of your set.
Result
:
The standby indicator right on the front panel.
3 Press the numeric button (0~9) or channel up/down ( / ) button
on the remote control or C/P. button on the right-side of
your set.
Result
:
The programme that you were watching last is reselected
automatically.
When you switch the set on for the very first time, you will be
asked to choose language in which the menus are to be
displayed (see page 14).
4 To switch your set off, press the
POWER
( ) button again.
Placing Your Television in Standby Mode
1-19.qxd 4/13/04 4:20 PM Page 11
English-12
Becoming Familiar with the Remote Control
The remote control is used mainly to:
Change channels and adjust the volume
Set up your set using the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button Viewing Function Menu Function
Used to display the
-
next stored channel.
Used to display the
-
previous stored channel.
to Used to display the corresponding channels.
For double digit channels, the second digit
must be pushed immediately after the first.
Failure to do this will result in a single digit
channel being displayed.
_/_ _
Used to select a channel numbered ten or over.
Press this button, and enter the two digit channel
number.
Used to increase the
-
volume.
Used to decrease the
-
volume.
MUTE
Used to switch the sound off temporarily.
To turn the sound back on, press this button
again, or press the
+
/- button.
MENU
Used to display the Used to return to the
on-screen menu system. previous menu or
normal viewing.
EXIT
Used to exit the On-Screen menu system.
Used to move among the menu items.
Used to select a menu item or increase
the value of the selected item.
Used to return to the previous menu item or
decrease the value of the selected item.
-
Used to confirm your
ENTER
choice.
1-19.qxd 4/13/04 4:20 PM Page 12
English-13
Plug and Play
When the set is initially powered ON, several basic customer settings
proceed automatically and subsequently.
The following settings are available.
1 If the set is in standby mode, press the
POWER
( ) button on the
remote control.
Result
: The message
Plug & Play
is displayed. It appears for a
little while, and then the
Language
menu is
automatically displayed.
2 Select the appropriate
Language
by pressing the or button.
The available languages are listed
.
You can choose one of 18 languages.
3 Press the
ENTER
button to confirm your choice.
Result: The message
Antenna Input Check
is displayed with
the
OK
is selected.
4 Press the
ENTER
button.
Result
: The following countries are available:
Belgie - Deutschland - Espania - France Italia - Nederland - Schweiz - Sverige - UK East Europe -Others
5 Select your
Country
by pressing the or button.
Press the
ENTER
button.
Result
:
The
Auto Store
menu is displayed.
6 Press the
ENTER
button.
Result
:
The channel search will start and end automatically.
7 Select the
Hour
or
min
by pressing the or button.
Set the
Hour/min
by pressing the or button.
(Refer to “Setting and Displaying the Current Time” on page 38)
8 Press the
MENU
button to confirm your setting.
Result
:
The
message
Enjoy your watching
is displayed, and
then the channel which has been stored will be activated.
1-19.qxd 4/14/04 11:09 PM Page 13
English-14
Plug and Play
If you want to reset this feature...
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button
.
Result:
The options available in the
Setup
group are displayed.
3 Press the or button to select
Plug & Play
.
4 Press the
ENTER
button
.
Result:
The message is
Plug & Play
displayed.
5 For further details on how to set, refer to the previous page.
Choosing Your Language
When you start using your set for the first time, you must select the
language which will be used for displaying menus and indications.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Result
:
The options available in the
Setup
group are displayed.
3 Press the
ENTER
button
.
4 Press the or button
to
select
Language
.
Press the
ENTER
button
.
Result:
The available
languages
are listed.
5 Select a particular language by pressing the or button
repeatedly.
Press the
ENTER
button
.
You can choose one of 18 languages.
6 When you are satisfied with your choice, press the
EXIT
button to
return to normal viewing.
1-19.qxd 4/13/04 4:20 PM Page 14
English-15
Storing Channels Automatically
You can scan for the frequency ranges available to you (and availability
depends on your country). Automatically allocated programme numbers
may not correspond to actual or desired programme numbers. However
you can sort numbers manually and clear any channels you do not wish
to watch.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Channel
.
Result
:
The options available in the
Channel
group are
displayed.
3 Press the
ENTER
button
.
Result:
The
Country
is selected.
4 Press the
ENTER
button again
. Select your
Country
by pressing the
or
button repeatedly.
Result:
The following countries are available:
Belgie - Deutschland - Espania - France - Italia Nederland - Schweiz - Sverige - UK East Europe - Others
5 Press the
ENTER
button
.
6 Press the or button to select
Auto Store
.
Press the
ENTER
button
.
Result:
The
Start
is selected.
7 Press
ENTER
button to search the channels.
The sub menu is changed from
StarttoStop
with channel search
started.
Result
: The search will end automatically. Channels are sorted
and stored in an order which reflects their position in the
frequency range (with lowest first and highest last).
The programme originally selected is then displayed.
To return to the previous menu, press or button to
select
Return
and then press
ENTER
button.
To stop the search before it has finished, press
ENTER
button with stop selected.
8 When the channels have been stored, you can:
Sort them in the order required (refer to page 19)
Assign a name to the stored channels (refer to page 20)
Add or delete the channels (refer to page 18)
Fine tune channel reception if necessary (refer to page 21)
1-19.qxd 4/13/04 4:20 PM Page 15
You can store up to 100 channels, including those received via cable
networks. When storing channels manually, you can choose:
Whether or not to store each of the channels found
The programme number of each stored channel which you
wish to identify
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Channel
.
Result
:
The options available in the
Channel
group are
displayed.
3 Press the
ENTER
button
.
4 Press the or button
to
select
Manual Store
.
Press the
ENTER
button.
Result
: The options available in the
Manual Store
menu are
displayed with
prog.No
selected.
5 Press the
ENTER
button again.
To assign a programme number to a channel, find the correct
number by pressing the or button and then press the
ENTER
button
.
6 Press the or button to select
Colour System
and then press
the
ENTER
button.
Select the
Colour System
required by pressing the or button
repeatedly and then press the
ENTER
button.
Result
: The colour standards are displayed in the following order:
AUTO - PAL - SECAM - NT4.43
7 Press the or button to select
Sound System
and then press
the
ENTER
button.
Select the sound standard required by pressing the or button
repeatedly and then press the
ENTER
button.
Result
: The sound standards are displayed in the following order:
BG - DK - I - L
8 For all the channels to move to the required channel numbers,
repeat steps 5 to 7 after selecting
prog.No
by pressing or
button
.
English-16
Storing Channels Manually
1-19.qxd 4/13/04 4:20 PM Page 16
9 If you know the number of the channel to be stored....
Press the or button to select
Channel
and then press the
ENTER
button.
Select C (Air channel) or S (Cable channel) by pressing the
or button.
Press the button to select Channel.
Select the required number by pressing the or button and
then press the
ENTER
button.
If there is abnormal sound or no sound, re-select the sound
system required.
10 If you do not know the channel numbers, press the or button
to select
Search
and then press the
ENTER
button.
Search
by pressing or button and then press the
ENTER
button.
Result
: The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
11 Press the or button to select
Store
and then press the
ENTER
button.
Select
Yes
by pressing the or button and then press the
ENTER
button.
Result
: The channel and associated programme number are
stored.
12 Repeat Steps 9 to11 for each channel to be stored.
Channel mode
P
(Programme mode): When tuning is completed, the
broadcasting stations in your area will have been assigned to
position numbers from P00 to P99. You can select a channel
by entering the position number in this mode.
C (Real channel mode): You can select a channel by entering
the assigned number to each broadcast station in this mode.
S (Cable channel mode): You can select a channel by
entering the assigned number to each cable channel in this
mode.
English-17
Storing Channels Manually
1-19.qxd 4/13/04 4:20 PM Page 17
You can exclude the channels you chosen from the channels you
scanned. When you scan through the stored channels, those you have
chosen to skip are not displayed.
All channels that you do not specifically choose to skip are displayed
during scanning.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Channel
.
Press the
ENTER
button
.
Result:
The options available in the
Channel
group are
displayed.
3 Press the or button to select
Add/Delete
.
Press the
ENTER
button.
Result
:
The state of current
channel
is displayed.
4 Press the / button to select
Channel
that you wish to
Add
or
Delete
.
Result
:
If the channel that you wish to edit is not in memory, the
Add
is selected and displayed.
Otherwise, if the channel that you wish to edit is in
memory, the
Delete
is selected and displayed.
5 Press the
ENTER
button to
Add
or
Delete
channel.
6 To return to the previous menu, select
Return
by pressing the
or button and then press the
ENTER
button.
7 Repeat Step 4 and 6 for each channel to be added or deleted.
English-18
Editing the Channels
1-19.qxd 4/13/04 4:20 PM Page 18
English-19
Sorting the Stored Channels
You can exchange the numbers of two channels, in order to:
Modify the numeric order in which the channels have been
automatically stored.
Give easily remembered numbers to the channels that you
watch most often.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Channel
.
Press the
ENTER
button
.
Result:
The options available in the
Channel
group are
displayed.
3 Press the or button to select
Sort
.
Press the
ENTER
button.
Result
: The
Prog.No, Channel
and
Name
are
displayed.
4 Select the
Channel
number that you wish to change by pressing
the or button repeatedly.
Press the
ENTER
button
.
Result: The selected
Channel
number and
Name
is moved to
right side.
5 Press the or button to move to the position which you would
like to change and then press the
ENTER
button.
Result
: The selected channel is exchanged with the one
previously stored to the chosen number
.
6 Repeat step 4 to 5 for another channel to sort again.
1-19.qxd 4/13/04 4:20 PM Page 19
English-20
Assigning Channels Names
Channel names will be assigned automatically when channel
information is broadcast.
These names can be changed, allowing you to assign new names.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
Channel
.
Press the
ENTER
button
.
Result: The options available in the
Channel
group are
displayed.
3 Press the or button to select
Name
.
Press the
ENTER
button.
Result
: The current
Prog.No, Channel
and
Name
are
displayed.
4 If necessary, select the channel to be assigned to a new name by
pressing the or button.
Press the
ENTER
button.
Result
: The selection bar is displayed around the name box.
5 To... Then...
Select a letter, number or symbol Press the or button
Move on the next letter Press the button
Move back the previous letter Press the button
Confirm the name Press the
ENTER
button
The characters available are :
Letters of the alphabet (A~Z)
Numbers (0~9)
Special characters ( *, _, _, space)
6 Repeat Steps 4 to 5 for each channel to be assigned to a new name.
7 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
20-37.qxd 4/13/04 4:21 PM Page 20
Fine Tuning Channel Reception
If the reception is clear, you do not have to fine-tune the channel,
as this is done automatically during the search and store operation.
If however the signal is weak or distorted, you may have to fine-tune
the channel manually.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
Channel
.
Press the
ENTER
button
.
Result: The options available in the
Channel
group are
displayed.
3 Press the or button to select
Fine Tune
.
Press the
ENTER
button
.
4 Press the or button to reach the required setting.
Press the
ENTER
button
.
To reset the fine tuning, select
Reset
by pressing or button
and then press the
ENTER
button
.
To return to the previous menu, select
Return
by pressing
or button and press the
ENTER
button.
English-21
20-37.qxd 4/13/04 4:21 PM Page 21
English-22
Changing the Picture Standard
You can select the type of picture which best corresponds to your
viewing requirements.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
Result: The
Mode
is selected.
4 Press the
ENTER
button again.
Select the required picture effect by pressing the or button
repeatedly.
Result
: The following picture effects are available:
Dynamic - Standard - Movie - Custom
You can also display simply by pressing the
P.MODE
(Picture Mode) button.
20-37.qxd 4/13/04 4:21 PM Page 22
English-23
Adjusting the Custom Picture
Your set has several settings which allow you to control picture
quality.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press or button to select
Custom
and press the
ENTER
button.
5 Select the option (
Contrast, Brightness, Sharpness, Colour
)
to be adjusted by pressing the or button. Press the
ENTER
button.
Result
: The horizontal bar is displayed.
6 Press the or button to reach the required setting.
7 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
20-37.qxd 4/13/04 4:21 PM Page 23
English-24
Changing the Colour Tone
You can select the most comfortable colour tone to your eye.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button to select
Colour Tone
and press
ENTER
button. Select the required option by pressing the
or button repeatedly.
Result
: The following options are available:
Cool2 - Cool1 - Normal - Warm1 - Warm2
5 When you are satisfied with your choice, press the
EXIT
button to
return to normal viewing
.
20-37.qxd 4/13/04 4:21 PM Page 24
English-25
Changing the Picture Size
You can select the picture size which best corresponds to your viewing
requirements.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press or button to select
Size
and press the
ENTER
button.
5 Select the required option by pressing the or button
repeatedly.
Press the
ENTER
button.
Result
: The following options are available:
Auto Wide-Wide-Panorama-Zoom1
-
Zoom2-4:3
You can select these options by simply pressing the
P.SIZE
(Picture Size) button on the remote control.
When the picture size is selected to Auto Wide, the PIP
feature will work.
In PC Mode, only Wide and 4:3 mode can be adjusted.
In Zoom 1 or 2, use or button to move the picture.
20-37.qxd 4/13/04 4:22 PM Page 25
English-26
DNIe(Digital Natural Image engine)
Press the "STILL" button to freeze a moving picture into a still one.
Press again to cancel.
Samsung’s New Technology brings you more detailed images with
contrast and white enhancement. A new image compensation algorithm
gives viewers brighter and clearer image.
DNIe technology will match every signal to your eye.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button to select
DNIe
and then press the
ENTER
button.
Select the required option by pressing the or button.
The following options are available:
You can also select these options by simply pressing the
DNIe
button.
DNIe On Improved picture mode demonstrated by DNIe
Demo is activated.
DNIe Off The mode is deactivated and the screen returns
to its original condition.
DNIe Demo The screen shows the improved image on the
left-hand side and the original image on the
right-hand side.
5 When you are satisfied with your choice, press the
EXIT
button to
return to normal viewing.
Freezing the Current Picture
20-37.qxd 4/13/04 4:22 PM Page 26
MCC (My Colour Control) is to adust the most preferred colours such as
Skin Tone, Green Grass, Blue Sky without interfering with other colours
in order for each consumer to enjoy screen colour of their choice.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button
to
select
MCC
and then
press the
ENTER
button.
Result
: The options available in the
MCC
menu are displayed
.
5 Press the or button to select
Easy Control
and
press
ENTER
button. Select a source of the sub picture by pressing
the or button
and
press the
ENTER
button.
Result
: The sources are displayed in the following order:
Turkish Blue - Emerald Green - Indian Pink
- Standard - Custom
6 Press the or button to select
Detail Control
and
press
ENTER
button. Select a source of the sub picture by pressing
the or button
and
press the
ENTER
button.
Result
: The sources are displayed in the following order:
Skin Tone - Green Grass - Blue Sky- Reset
7 Press the or button to reach the required setting.
8 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
This function doesn't work when Source is in PC mode, or DNIe is
in off mode.
English-27
MCC (My Colour Control)
20-37.qxd 4/14/04 11:10 PM Page 27
Skin Tone 50
I2C (Intelligent Image Control) is to automatically detect distribution of
inputted visual signal and adjust to create optimum contrast.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button to select
I2C
.
Press the
ENTER
button
.
Result: The
I2C
menu is displayed.
5 Select
On
by pressing or button.
Press the
ENTER
button.
6 When it has finished, press the
EXIT
button to return to normal
viewing.
This function doesn't work when Source is in PC mode, or DNIe is
in off mode.
English-28
I2C (Intelligent Image Control)
20-37.qxd 4/13/04 4:22 PM Page 28
IBC (Intelligent Brightness Control)
IBC (Intelligent Brightness Control) is to adjust brightness of screen
either automatically or manually by detecting brightness of
surrounding environment using light detecting sensor.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button to select
IBC
.
Press the
ENTER
button
.
Result: The
IBC
menu is displayed.
5 Select
On
by pressing or button.
Press the
ENTER
button.
Result
: Brightness on the screen is adjusted automatically
according to brightness of surrounding environment.
6 When it has finished, press the
EXIT
button to return to normal
viewing.
This function doesn't work when Source is in PC mode, or DNIe is
in off mode.
English-29
20-37.qxd 4/13/04 4:22 PM Page 29
English-30
You can display a sub picture within the main picture of set programme
or video input. In this way you can watch or monitor set programm or
the video input from any connected equipment while watching set or
other video input.
1 Press the
MENU
button.
Result
: The main menu is displayed.
2 Press the or button to select
.
Result
: The options available in the
group are
displayed.
3 Press the
ENTER
button.
4 Press the or button
to
select
PIP
and then
press the
ENTER
button.
Result
: The options available in the
PIP
menu are displayed.
5 Press the
ENTER
button again.
Select
On
by pressing the or button and then press the
ENTER
button.
6 Press the or button to select
Source
and
press
ENTER
button. Select a source of the sub picture by pressing the or
button
and
press the
ENTER
button.
Result
: The sources are displayed in the following order:
When main picture is set to TV/Ext.1/Ext.2/S-Video,
only DVI/PC can be selected and when main picture is
set to DVI/PC, TV/Ext.1/Ext.2/S-Video can be selected.
7 Press the or button to select
Swap.
To interchange the main picture and the sub picture, select
Swap
option and press the
ENTER
button.
Result
: The main picture and the sub picture are interchanged.
8 Press the or button to select
Size
of sub picture and then
press
the
ENTER
button.
Select a size of the sub picture by pressing the or button and
then press the
ENTER
button.
Result
: The sizes are displayed in the following order
- -
Viewing the Picture In Picture (PIP)
[PC/DVI Only]
20-37.qxd 4/13/04 4:22 PM Page 30
9 Press the or button to select
Position
and then press the
ENTER
button.
Select the position of sub picture by pressing the or button and
then press the
ENTER
button.
Result
: You can move the sub picture counterclockwise.
When the size of sub picture is set to
or , this feature does not work.
10 Press the or button to select
prog.No
and then press the
ENTER
button.
You can select the channel that you want to view through sub picture
by pressing the or button.
Result
: The memorized
prog.No
is displayed.
MAIN:PC/DVI, PIP:TV
“Prog.No” is inactive and not available in TV mode.
However, they become active and available in PC/DVI mode.
11 To return to normal viewing, press the
EXIT
button.
Remote-control functions while "PIP" is "On":
Features Description
PIP Used to operate ON/OFF function of PIP
directly.
SWAP Used to interchange the main picture and the
sub picture.
When the main picture is in the Video
mode and the sub picture is in the set
mode, you might not hear the sound of
main picture when pressing the SWAP
button after changing the sub picture
channel. At this time, reselect the main
picture channel.
POSITION You also move the sub picture simply
by pressing the
POSITION
button.
SIZE Select a size of the sub picture by pressing the
SIZE
button.
PIP Settings
Sub
TV
Ext.1 Ext.2 AV3
S-Video
DVI
PC
Main
TV
Ext.1
Ext.2
AV3
S-Video
DVI
PC
X
X
X
X
X
O
O
X
X
X
X
X
O
O
X
X
X
X
X
O
O
X
X
X
X
X
O
O
X
X
X
X
X
O
O
O
O
O
O
O
X
X
O
O
O
O
O
X
X
Viewing the Picture In Picture (PIP)
English-31
[PC/DVI Only]
20-37.qxd 4/13/04 4:22 PM Page 31
English-32
Adjusting the Volume
You can adjust the volume using your remote control.
Press the VOL(+)button to increase the volume.
Result
: A horizontal bar is displayed and the volume increases
until you release the button. The cursor moves to the right
to indicate the volume.
Press the VOL(-)button to decrease the volume.
Result
: A horizontal bar is displayed and the volume decreases
until you release the button. The cursor moves to the left
to indicate the volume.
Additional sound adjustments are available on your set.
For further details, refer to pages 33 to 37.
20-37.qxd 4/13/04 4:22 PM Page 32
English-33
Switching the Sound Off Temporarily
You can switch the sound off temporarily.
Example
: You wish to answer the telephone.
1 Press the MUTE ( ) button.
Result
:
The sound is switched off and
“Mute” is displayed
.
2 When you wish to turn the sound back on, press the
MUTE
()
button again or either of the volume buttons.
Result
:T
he sound comes back on at the same volume as before
and the
“Mute” indication disappears
.
20-37.qxd 4/13/04 4:22 PM Page 33
English-34
Changing the Sound Standard
Adjusting the Sound Settings
You can select the type of special sound effect to be used when
watching a given broadcast.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Result
:
The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Press the
ENTER
button again.
Result:
The
Mode
is selected.
5 Select the required sound effect by pressing the or button
repeatedly and then press the
ENTER
button.
The following sound effects are available:
Standard - Music - Movie - Speech - Custom
You can also select these options by simply pressing the
S.MODE
(Sound Mode) button on the remote control.
The sound settings can be adjusted to suit your personal preferences.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Result
:
The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Select
Equalizer
by pressing the or button and then press
the
ENTER
button.
5 Select the required option by pressing the or button.
6 Press the or button to reach the required setting.
7 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
20-37.qxd 4/13/04 4:22 PM Page 34
Selecting WOW Surround
Adjusting the Volume Automatically
Select the Wow Surround feature to amplify the mid- to low-range
sounds or create a surround sound effect.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select the
Sound
.
Result
:
The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Press the or buttons to select
WOW.
press the
ENTER
button.
5 Press the or button to select
Off/On
.
Press the
ENTER
button.
6 Press the
EXIT
button to return to normal viewing.
Select On/Off with
SRS
button on the remote control as well.
is a trademark of SRS Labs,Inc.
WOW technology is incorporated under license from SRS labs, Inc.
Each broadcasting station has its own signal conditions, and so
it is not easy for you to adjust the volume every time the channel
is changed.
This feature lets you automatically adjust the volume of the
desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when
the modulation signal is low.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Press the
ENTER
button.
Result
:
The options available in the
Sound
group are displayed.
3 Press the or button to select
Auto Volume.
Press the
ENTER
button
.
4 Select the required option (Off or On) by pressing the or
button.
Press the
ENTER
button.
5 Press the
EXIT
button to return to normal viewing.
English-35
20-37.qxd 4/13/04 4:22 PM Page 35
English-36
Connecting Headphones
You can connect a set of headphones to your set if you wish to watch a
TV programme without disturbing the other people in the room.
Plug a set of headphones into the 3.5mm mini-jack socket on the rear panel
of the set.
Result
: The sound is heard through the headphones.
For further details on how to set your headphone
preferences, refer to the section below.
Prolonged use of headphones at a high volume may damage
your hearing.
You will not receive sound from the speakers when you
connect headphones to the system.
You can adjust the headphone settings to suit your preferences.
The following headphones settings are available:
Volume, Balance, Bass, Treble.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Result
: The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Press the or button to select
Headphone
.
Press the
ENTER
button.
Result
: The
Headphone
sound menu (
Volume, Balance,
Bass, Treble
) is displayed.
To... Then...
Change the option Press the or button.
Change a setting Press the or button.
Confirm the changes Press the
ENTER
button.
Adjusting Your Headphone Preferences
20-37.qxd 4/13/04 4:22 PM Page 36
English-37
Listening to the Sound of the Sub Picture
During the PIP feature is activating, you can listen to the sound of the
sub picture.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Result
:
The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Press the or button to select
Sound Select
and then press
the
ENTER
button.
Result
:
Main
and
Sub
are displayed.
When the PIP option only be "
On
", you can select these
option.
5 Select the
Sub
by pressing the or button.
Press the
ENTER
button.
Result
:
You can listen to the sound of the sub picture.
To listen the sound of current main picture, set to
Main
.
Sub Woofer is a speaker that complements front speaker’s
reproduction capability of low-pitched sound.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Sound
.
Result
:
The options available in the
Sound
group are displayed.
3 Press the
ENTER
button.
4 Press the or button to select
Sub Woofer.
Press the
ENTER
button
.
5 After pressing the
ENTER
button, select the required option
"On"
by pressing the or button.
Result
: The
Sub Woofer
menu (
Volume, Cut off Freq.
)
is displayed.
To... Then...
Change the option Press the or button.
Change a setting Press the or button.
Confirm the changes Press the
ENTER
button.
Sub Woofer
20-37.qxd 4/13/04 4:22 PM Page 37
English-38
Setting and Displaying the Current Time
You can set the TV’S clock so that the current time is displayed when
you press the "INFO" button. You must also set the time if you wish to
use the automatic On/Off timers.
If you disconnect the power cord or switch off the power on the
right-side of panel, you have to set the clock again.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button
Result
:
The options available in the
Setup
group are displayed
with
Time
selected.
3 Press the
ENTER
button
.
Result:
The
Time
menu is
displayed with
Clock
selected.
4 Press the
ENTER
button.
5 To... Press the...
Move to
Hour
or
min
or button
Set the hour or minute or button
6 When you have satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing
.
7 To display the... Press the...
Current time and selected audio/video INFO button
setting status
38-55.qxd 4/13/04 4:23 PM Page 38
English-39
Setting the Sleep Timer
You can select a time period of between 30 and 180 minutes after which
the television automatically switches to standby mode.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
Result
:
The options available in the
Setup
group are displayed
with
Time
selected.
3 Press the
ENTER
button
.
Result:
The
Time
menu is
displayed with
Clock
selected.
4 Press the or button to select
Sleep Timer.
Press the
ENTER
button.
5 Press the or button repeatedly and cycle through the preset
time intervals (--, 30, 60, 90, 120, 150, 180).
Result
:
The TV automatically switches to standby mode when the
timer reaches 0.
6 To cancel the sleep timer function, select
Set
by pressing the
or button and then select "
Off
" by pressing the or
button.
Press the
ENTER
button.
7 Press the
EXIT
button to return to normal viewing.
You can set the sleep timer by simply pressing the "SLEEP" button on the
remote control.
1 Press the SLEEP button on the remote control
.
Result:
If the sleep timer is not yet set,
Off is displayed.
Otherwise, the remaining time before which the television
switches to Standby mode is displayed.
2 Select the preset time interval for staying on by pressing the SLEEP
button repeatedly.
38-55.qxd 4/13/04 4:23 PM Page 39
You can set the On/Off timers so that the set will :
Switch on automatically and tune to the channel of your
choice at the time you select.
Switch off automatically at the time you select.
The first step is to set the television’s clock
(refer to “Setting and Displaying the Current Time” on page 38 ).
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button
Result
:
The options available in the
Setup
group are displayed
with
Time
selected.
3 Press the
ENTER
button
.
Result:
The
Time
menu is
displayed with
Clock
selected.
4 Press the or button to select
On Timer.
Press the
ENTER
button.
Result
:
The
On Timer
menu is displayed.
5 Set the time, channel and volume level at which you wish the set to
be switched on
.
To... Press the..
.
Move to
Hour, min, Prog.No
and
Volume
or button
Set Hour, Minute, Prog.No. and or button
Volume level
Move to Set or button
Select On to enable above setting or button
Press the
ENTER
button.
6 Press the or button to select
Off Timer.
In the same way, set the time at which you wish the set to
be switched off automatically.
English-40
Switching the Television On and Off Automatically
38-55.qxd 4/13/04 4:23 PM Page 40
English-41
If no signal is being received or the signal is very weak, a blue screen
automatically replaces the noisy picture background.
If you wish to continue viewing the poor picture, you must set the
"Blue screen" mode to "Off".
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
Result
:
The options available in the
Setup
group are displayed.
3 Press the or button to select
Blue Screen.
Press the
ENTER
button
.
4 Select the required option (On or Off) by pressing the or
button.
Press the
ENTER
button
.
5 Press the
EXIT
button to return to normal viewing.
Setting the Blue Screen Mode
38-55.qxd 4/13/04 4:33 PM Page 41
English-42
Colour Weakness is a feature that enables those with a
colour Weakness to view images as those with normal colour vision do.
The feature provides nine different colour adjustment layers each for
red, green and blue.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
Result
:
The options available in the
Setup
group are displayed.
3 Press the or button to select
Colour Weakness
.
Press the
ENTER
button.
4 Press the
ENTER
button.
Select the required option (
On
or
Off
) by pressing the or
button.
5 Press the
ENTER
button.
Press the or button to select
Red, Green
and
Blue.
Press the
ENTER
button.
6 Press the or button to adjust the
Colour Weakness.
7 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
Colour Weakness
38-55.qxd 4/13/04 4:33 PM Page 42
English-43
You can hear melody sound when the television is powered on
or off.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
Result
:
The options available in the
Setup
group are displayed.
3 Press the or button to select
Melody.
Press the
ENTER
button
.
4 Select the required option (Off or On) by pressing the or
button.
Press the
ENTER
button
.
5 Press the
EXIT
button to return to normal viewing.
Selecting the Melody
38-55.qxd 4/13/04 4:33 PM Page 43
English-44
Selecting a Device from External Sources
Your set enables you to choose which audio/video signals are output to
the external connector.
1 Press the
MENU
button.
Press the
ENTER
button to select
Input.
Result:
The options available in the
Input
group are displayed.
2 Press the
ENTER
button
.
Result:
The options available in the
Source List
menu are
displayed.
3 Select the required device by pressing the or button.
Press the
ENTER
button
.
4 Repeat Step
1
.
Press the or button to select
Edit Name
.
Press the
ENTER
button
.
Result:
The options available in the
Edit Name
menu are
displayed.
5
Select the device that you wish to edit by pressing the
or
button.
The following options are available:
Ext.1 - Ext.2 - AV3 - S-Video - DVI - PC
6 Press the
ENTER
button
.
7 Select the required device by pressing the or button
repeatedly.
The following options are available:
---- - VCR - DVD - Cable STB - HD STB - Satellite STB AV Receiver - DVD Receiver - Game - Camcorder DVD Combo - DHR - PC
8 When you are satisfied with the setting, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
Once you have connected up your various audio and video systems,
you can view the different sources by selecting the appropriate input.
1 Check that all the necessary connections have been made
.
2 Press the
SOURCE
button.
Result
:
The edited device and audio status are displayed on
Top-left of the set.
3 Press the
SOURCE
button until the required input source is
selected.
If you change the external source while viewing, pictures
might take a short period of time to be switched.
Viewing Pictures from External Sources
38-55.qxd 4/13/04 4:23 PM Page 44
Setting up Your PC Software (Based on Widows 2000 or XP)
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1 First, click on “
Settings
” on the Windows start
menu.
While “
Settings
” is highlighted, move the cursor so
that “
Control Panel
” is highlighted.
3 Navigate to the “
Settings
” tab on the display dialog-box.
The correct setting of size (resolution)
-
1280 x 768
pixels
If a vertical-frequency option exists on your display settings
dialog box, the correct value is “
60
” or “
60 Hz
”.
Otherwise, just click “
OK
” and exit the dialog box.
(Refer to 'Display Mode' on page 58)
2 When the control panel screen appears,
click on “
Display
” and a display
dialog-box will appear.
English-45
38-55.qxd 4/13/04 4:23 PM Page 45
English-46
Adjusting the PC Screen Automatically
Press the PCbutton on the remote control to select the PC mode.
This function does not work in
DVI-Digita
l mode.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup.
Press
ENTER
button.
Result
:
The options available in the
Setup
group are displayed.
3 Press the or button to select
PC
.
Press
ENTER
button.
Result
: The options available in thePCmenu are displayed.
4 Press the or button to select
Auto Adjustment
.
Press
ENTER
button.
Result
: After the PC screen twists during the auto adjustment
procedure,
the screen quality and position are
automatically adjusted.
Auto adjustment allows the PC screen of set to self-adjust to the
incoming PC video signal.
The values of fine, coarse and position are adjusted automatically.
38-55.qxd 4/13/04 4:23 PM Page 46
English-47
Coarse and Fine Tuning of the Image
Press the PCbutton on the remote control to select the PC mode.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press
ENTER
button.
Result
:
The options available in the
Setup
group are displayed.
3 Press the or button to select
PC
.
Press
ENTER
button.
Result
: The options available in thePCmenu are displayed.
4 Press
ENTER
button again.
Result: The
Image Lock
menu is selected.
5 Press the or button to select
Coarse
or
Fine
.
Press the
ENTER
button.
Result
: The horizontal bar is displayed.
6 Press the or button to adjust the screen quality.
Vertical stripes may appear or the picture may become blurry.
7 When you are satisfied with the settings, press the
MENU
button to
return to the previous menu or press the
EXIT
button to return to
normal viewing.
The purpose of picture quality adjustment is to remove or reduce
picture noise.
If the noise is not removed by Fine tuning alone, then adjust the
frequency as best as possible (coarse) and Fine tune again.
After the noise has been reduced, re-adjust the picture so that it is
aligned on the center of screen.
38-55.qxd 4/13/04 4:23 PM Page 47
English-48
Changing the Image Position
Press the PCbutton on the remote control to select the PC mode.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
3 Press the or button to select
PC
.
Press the
ENTER
button.
Result:
The options available in the PCmenu are displayed.
4 Press the or button to select
Position
.
Press the
ENTER
button.
Result
:
You can adjust the image
Position
.
5 Press the or button to adjust horizontal position.
Press the or button to adjust vertical position.
6 Press
MENU
button to return to the previous menu or press the
EXIT
button to return to normal viewing.
38-55.qxd 4/13/04 4:23 PM Page 48
English-49
Initializing the Image Settings
Press the PCbutton on the remote control to select the PC mode.
1 Press the
MENU
button.
Result
:
The main menu is displayed.
2 Press the or button to select
Setup
.
Press the
ENTER
button.
3 Press the or button to select
PC
.
Press the
ENTER
button.
Result
:
The options available in the PCmenu are displayed.
4 Press the or button to select
Image Reset
.
Press the
ENTER
button.
Result
: You can initialize all image setting to the factory default
values.
You can replace all image settings with the factory default values.
38-55.qxd 4/13/04 4:23 PM Page 49
English-50
Teletext Decoder
Most set channels carry “ teletext ”, pages of written information that
provide information such as:
Television programme times
News bulletins and Weather forecasts
Sports results
Subtitles for the hard of hearing
The teletext pages are organized according to six categories:
Part Contents
A Selected page number.
B Broadcasting station identity.
C Current page number or search status.
D Date and time.
E Text.
F Status information.
Displaying the Teletext Information
You can display teletext information at any time, but signal reception
must be good. Otherwise:
Information may be missing
Some pages may not be displayed
To activate the teletext mode and display the contents page:
1
Using the P()or
P
()button, select the channel providing
the teletext service.
2
Press the
TTX/MIX
(
/
) button to activate the teletext mode.
Result
: The contents page is displayed. It can be redisplayed at
any time by pressing the
INDEX
()button.
3
To display the actual broadcast simultaneously with the teletext page,
press the
TTX/MIX
(
/
) button.
4
To return to normal viewing, press the
CANCEL
()button.
5
Press the
TTX/MIX
(
/
) button again to exit from the TTX display.
If any broken character appears while TTX is being viewed,
make sure that the TTX language is identical with the
language in the “Setup” menu mode. If both languages are
different, select the same language with the TTX language
on the “Setup” menu.
38-55.qxd 4/13/04 4:23 PM Page 50
Press the number buttons on the remote control to enter the page
number directly:
1
Enter the three-digit page number listed in the contents by pressing the
corresponding numeric buttons.
Result
: The current page counter is incremented and the page is
then displayed.
2
If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display on
a given page, press the HOLD ().
Press the HOLD ()button again to resume.
3
Using the various display options:
To display... Press the...
Both teletext information and TTX/MIX (
/
)
the normal broadcast
Hidden text REVEAL ()
(answers to quiz games, for example)
The normal screen REVEAL ()again
A secondary page, SUB-PAGE ()
by entering its 4-digit number
The next page PAGE UP ())
The previous page PAGE DOWN(()
Double-size letters in the: SIZE ()
• Upper half of the screen •Once
• Lower half of the screen •Twice
Normal screen •Three times
English-51
Selecting a Specific Teletext Page
38-55.qxd 4/13/04 4:23 PM Page 51
English-52
Using FLOF to Select a Teletext Page
The various topics included in the teletext pages are colour-coded, and
can be selected by pressing the coloured buttons on the remote control.
1
Display the teletext contents page by pressing the
TTX/MIX
(
/
)
button.
2
Press the coloured button corresponding to the topic that you wish to
select (The available topics are listed on the status information line).
Result:
The page is displayed with additional colour-coded
information that can be selected in the same way.
3
To display the: Press the:
Previous page Red button.
Next page Green button.
4
When you have finished, press the
CANCEL
() button to return to
the normal broadcast.
38-55.qxd 4/13/04 4:23 PM Page 52
English-53
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of your
set and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
“Check Signal Cable!” message is
displayed.
On PC mode, “Not Supported Mode”
message is displayed.
The image is too light or too dark.
On PC mode, horizontal bars appear to
flicker, jitter or shimmer on the image.
On PC mode, vertical bars appear to
flicker, jitter or shimmer on the image.
On PC mode, screen is black and
power indicator light blinks every 1
seconds
On PC mode, image is not stable and
may appear to vibrate.
On PC mode, image is not centered
on the screen.
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the POWER ( ) button on the
right-side of the TV.
Check the picture contrast and brightness settings.
Check the volume.
Check the volume.
Check whether the MUTE ( ) button has been pressed on the
remote control.
Adjust the colour settings.
Check that the broadcast system selected is correct.
Try to identify the electrical appliance that is affecting the set and
move it further away.
Plug your set into a different mains socket.
Check the direction, location and connections of your aerial.
This interference is often due to the use of an indoor aerial.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Check that the signal cable is firmly connected to the PC or video
sources.
Check that the PC or video sources are turned on.
Check the maximum resolution and the frequency of the video
adapter.
Compare these values with the data in the Display Modes Timing
Chart.
Adjust the Brightness and Contrast.
Adjust the Fine function.
Adjust the Coarse function and then adjust the Fine function.
The TV is using its power management system.
Move the computer’s mouse or press a key on the keyboard.
Check that the display resolution and frequency from your
Computer or video board is an available mode for your set. On your
Computer check: Control Panel, Display, Settings.
If the setting is not correct, use your computer utility programme to
change the display settings.
Your set supports multiscan display functions within the
following frequency domain:
◆Horizontal frequency: 30 ~ 68 kHz
◆Vertical frequency: 56 ~ 85 Hz
◆Maximum refresh rate: 1280 X 768@60Hz
Adjust the horizontal and vertical position.
38-55.qxd 4/13/04 4:23 PM Page 53
English-54
Installing Stand
<1> <2>
1. Lower the TV set in the direction of the arrow and fix the stand.
2. Use the four screws to tightly fix the stand.
Maintenance of Your LCD TV
WARNING: To avoid risk of electric shock, do not disassemble the TV cabinet.
Users cannot service the TV. User maintenance is restricted to cleaning as explained below:
Unplug the LCD TV from the power outlet before cleaning.
• To clean your flat panel display screen, lightly dampen a soft, clean cloth with water or mild detergent.
If possible, use a special screen cleaning tissue or solution suitable for the antistatic coating.
• To clean the LCD TV cabinet, use a cloth lightly dampened with a mild detergent.
• Never use flammable cleaning material to clean your LCD TV or any other electrical apparatus.
38-55.qxd 4/13/04 4:23 PM Page 54
English-55
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction
(Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.
The Kensington lock is a device used to physically fix the system when using it in a public place.
The locking device has to be purchased separately. The appearance and locking method may differ
from the illustration depending on the manufacturer. Please refer to the manual provided with the
Kensington lock for proper use.
Figure 2
Figure 1
Cable
<Optional>
38-55.qxd 4/13/04 4:23 PM Page 55
English-56
Installing VESA compliant mounting devices
Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with
the four screws that come with the arm-type base, wall mount hanger or other bases.
This TV accepts a 200mmx100mm VESA-Compliant mounting interface pad.
Rear cover
Mounting pad
56-65.qxd 4/13/04 4:26 PM Page 56
English-57
Technical and Environmental Specifications
Model Name LW26A33W
Panel
Size 26” Diagonal
Display Size 556.4 (H) x 339.84 (V) mm
Type a-si TFT active matrix
Pixel Pitch 0.4425 (H) x 0.4425 (V) mm
Viewing Angle 170/170 (H/V)
Frequency
Horizontal 30 ~ 68 kHz
Vertical 56 ~ 85 Hz
Display Colour 16,194,277 colours
Resolution
Maximum 1280 x 768 @ 60 Hz
Input Signal
Sync. H/V Separate, TTL, P. or N.
Video Signal 0.7 Vp-p @ 75 ohm
TV
Colour System PAL/SECAM/NTSC 4.43
Sound System BG, DK, I, L
Video
Colour System PAL/NTSC/SECAM
Video System CVBS, S-VHS, RGB
SCART 1
Video Input/Output 1.0 Vp-p @ 75 ohm
RGB Input 0.7 Vp-p @ 75 ohm
Audio Input/Output 500mVrms
SCART 2
Video Input/Output 1.0 Vp-p @ 75 ohm
Audio Input/Output 500mVrms
Power Supply
Input AC 100 ~ 240 V, 60/50 Hz ±3Hz
Power Consumption
Maximum 130W
Power Saving
<
5.0 W
Dimension (W x D x H)
Body 29.17x 4.68 x 16.92 inches (741.0 x 119.0 x 498.5 mm)
With stand 29.17x 10.89 x 20.70 inches (741.0 x 276.8 x 526.0 mm)
Weight
With stand 33.07 lbs (15.0 kg )
56-65.qxd 4/13/04 4:26 PM Page 57
English-58
Technical and Environmental Specifications
Display Mode (PC)
Model LW26A33W
Environmental Considerations
Operating Temperature 50 °F to 104 °F (10 °C to 40 °C)
Operating Humidity 10% to 80%, non-condensing
Storage Temperature -13 °F to 113 °F (-25 °C to 45 °C)
Storage Humidity 5% to 95%, non-condensing
Audio Characteristics
Audio Input RCA Jack (L, R), 0.5Vrms (-9dB)
Audio Input (PC) 3.5
Ø
Stereo Jack, 0.5Vrms (-9dB)
Headphone Output Max. 10mW Output (3.5
Ø Stereo Jack, 32Ω)
Frequency RF: 80Hz ~ 15kHz (at- 3dB)
Response A/V: 80Hz ~ 20kHz (at- 3dB)
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Mode Resolution Horizontal Vertical Pixel Clock Sync Polarity
Frequency (kHz) Frequency (Hz) Frequency (MHz) (H/V)
MAC
640 x 480 35.000 66.667 30.240
-/ -
832 x 624 49.726 74.551 49.500 + /+
IBM
640 x 480 31.469 59.940 25.175
-/ -
720 x 400 31.469 70.087 28.322
-
/ +
VESA
640 x 480 37.861 72.809 31.500
-/ -
640 x 480 37.500 75.000 31.500
-/ 800 x 600 37.879 60.317 40.000 + /+
800 x 600 48.077 72.188 50.000 + /+
800 x 600 46.875 75.000 49.500 + /+
1024 x 768 48.364 60.000 65.000
-/ -
1024 x 768 56.476 70.069 75.000
-/ -
1024 x 768 60.023 75.029 78.750 + /+
GTF
1280 x 768 47.700 60.000 80.136
-
/ +
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
DVI dose not support PC function.
56-65.qxd 4/13/04 4:26 PM Page 58
English-59
Pin Configurations
Pin Description
1 Rx 2-
2 Rx 2+
3 Grounding
4 No connection
5 No connection
6 DDC Clock (SCL)
7 DDC Data (SDA)
8 Analog Vertical Sync
9 Rx 1-
10 Rx 1+
11 Grounding
12 No connection
13 No connection
14 DDC Input Power (+5V)
15 Self-Raster
Pin Description
16 Output Signal Connection
17 Rx 0-
18 Rx 0+
19 Grounding
20 No connection
21 No connection
22 Grounding
23 Rx C-
24 Rx C+
DVI - D Connector
Pin Separate H/V Composite H/V
1 Red (R) Red (R)
2 Green (G) Green (G)
3 Blue (B) Blue (B)
4 Grounding Grounding
5 (DDC return) Grounding (DDC return)
6 Grounding - Red (R) Grounding - Red (R)
7 Grounding - Green (G) Grounding - Green (G)
8 Grounding - Blue (B) Grounding - Blue (B)
9 No connection No connection
10 Grounding - Sync. / Self test Grounding - Sync. / Self test
11 Grounding Grounding
12 DDC - SDA (Data) DDC - SDA (Data)
13 Horizontal Sync. Horizontal/Vertical Sync.
14 Vertical Sync. Not used
15 DDC - SCL (Clock) DDC - SCL (Clock)
D - Sub Connector
56-65.qxd 4/13/04 4:26 PM Page 59
English-60
Wiring the Mains Power Supply Plug (UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse
is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BSI1362 of the same
rating must be used. Never use the plug with the fuse cover omitted if the cover is detachable.
If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement
covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the
cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead
or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse
and then safely dispose of the plug. Do NOT connect the plug to a mains socket as there is a risk of shock
hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL BROWN - LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug,
proceed as follows:
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or
BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured
BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL, WHICH IS MARKED
WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR
GREEN AND YELLOW.
56-65.qxd 4/13/04 4:26 PM Page 60
English-61
Setting Up Your Remote Control
After it has been set up properly, your remote control can operate in
four different modes: TV, VCR, Cable, or DVD. Pressing the
corresponding button on the remote control allows you to switch
between these modes, and control whichever piece of equipment you
choose.
Note
The remote control might not be compatible with all DVD Players,
VCRs and Cable boxes.
Setting Up the Remote to Operate Your VCR
1 Turn off your VCR.
2 Press the SELECT button and make sure that the VCR LED is
illuminated.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the VCR code listed on page 64 of this manual for your brand of
VCR. Make sure you enter three digits of the code, even if the first
digit is a “0”.
(If more than one code is listed, try the first one.)
5 Press the Power button on the remote control.
Your VCR should turn on if your remote is set up correctly.
If your VCR does not turn on after set up, repeat steps 2, 3, and 4,
but try one of the other codes listed for your brand of VCR.
If no other codes are listed, try each VCR code, 000 through 089.
Note on Using Remote Control Modes: VCR
When your remote control is in “VCR” mode, the volume buttons
still control your TV’s volume.
56-65.qxd 4/13/04 4:26 PM Page 61
Setting Up Your Remote Control
English-62
Setting Up the Remote to Operate Your Cable Box
1 Turn off your cable box.
2 Press the SELECT button and make sure that the Cable LED is
illuminated.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the cable box code listed on page 64 of this manual for your
brand of cable box. Make sure you enter three digits of the code,
even if the first digit is a “0”.
If there is more than one code listed, try the first one.
5 Press the Power button on the remote control.
Your cable box should turn on if your remote is set up correctly.
If your cable box does not turn on after set up, repeat steps 2, 3, and
4, but try one of the other codes listed for your brand of cable box. If no
other codes are listed, try each code, 000 through 077.
Note on Using Remote Control Modes: Cable Box
When your remote control is in “Cable Box” mode, the volume
buttons still control your TV’s volume.
56-65.qxd 4/13/04 4:26 PM Page 62
Setting Up Your Remote Control
English-63
Setting Up the Remote to Operate Your DVD
1 Turn off your DVD.
2 Press the SELECT button and make sure that the DVD LED is
illuminated.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the DVD code listed on page 64 of this manual for your brand of
DVD. Make sure you enter three digits of the code, even if the first
digit is a “0”.
If there is more than one code listed, try the first one.
5 Press the Power button on the remote control.
Your DVD should turn on if your remote is set up correctly.
If your DVD does not turn on after set up, repeat steps 2, 3, and 4,
but try one of the other codes listed for your brand of DVD.
If no other codes are list-ed, try each code, 000 through 008.
Note on Using Remote Control Modes: DVD
When your remote control is in “DVD” mode, the volume buttons
still control your TV’s volume.
56-65.qxd 4/13/04 4:26 PM Page 63
English-64
Setting Up Your Remote Control
Admiral
Aiwa
Audio Dynamics
Bell&Howell
Broksonic
Candle
Canon
Citizen
Colortyme
Craig
Curtis-Mathes
Daewoo
DBX
Dimensia
Dynatech
Electrohome
Emerson
Fisher
Funai
GE
Go Video
Harman Kardon
Hitach
Instant Replay
JC Penny
JCL
JVC
kenwood
015,088
024
022,025
011
019
016,018,022,054,055,061
017,062
016,018,022,054,055,061
023
016,021
009,016,017,023,024,055,062,073,076
003,004,005,006,007,008,022,054,085
009
024
036
017,018,019,022,024,029,032,036,043,
050,051,056,058,066,071,074,076,077,079
011,021,027,028,052,057,067
024
016
023
014,024,044,045
017
011,014,016,017,023,025,039,044,060,062
011,017,023,025,039,055
011,023,025,039,055
015,016
015,016
015,016
054
012,013,023,031,032,
033,038,044,075,076,077
011,012,020,021,042,056
045,051,054
012,013,023,031,032,033,038,044,054,070,073
045,051
015,016,027,029,034,036,037,040,041,048,049
007
008
008
002
006
004
000
017
024,046
024
011,035,047,069
015,016,027,029,034,036,037,040,041,048,049
026,028,052
015,016
008,035,074
011,020,021
010,041
000,011,030,052,071,072
054
035
054
066
019,067
019,067
025,029,057,058,063
039,040,049
059,060
015,016,027,029,034,036,037,040,041,048,049
052
022,050,065,069
082
001,002,007
024
040
024
017,038,062,065
011,017,023,025,038,039,055,070
016,024
016,024,040,041
011,023,025,039,055,070,073
015
017,062,084,086
014,044
055
017,038,062,065
017,038
014,025,042,059
053,054,061
009
011
017,053
011,015,017,018,021,
024,028,036,052,062
KLH
LG
Lloyd
Logik
LXI
Magnavox
Marantz
Marta
MEI
Memorex
MGA
Midland
Minota
Mitsubishi
Montgomery ward
MTC
Multitech
NEC
Optimus
Panasonic
Pentax
Pentex Reserch+
Philco
Philips
Pioneer
Portland
ProScan
Quartz
Quasar
Radio Shack/Realistics
Anvision
Cable star
Eagle
Eastrm Int.
General Instrument
GI
Hamlin
Hitachi
Jerrold
Macom
Magnavox
Philips
Proscan
RCA
Toshiba
Panasonic
Sony
Samsung
NSC
Oak
Osk Sigma
Panasonic
Philips
Pioneer
Randtek
RCA
Regal
Regency
SA
Samsung
Signature
Sprucer
Starcom
Stargate 2000
Sylvania
Texscan
Tocom
Unika
Universal
Viewstar
Warner Amex
Zenith
RCA
Samsung
Sansui
Sanyo
Scott
Sears
Sharp
Shintom
Signature
Sony
Sylvania
Symphonic
Tandy
Tashiko
Tatung
Teac
Technics
Temika
TMK
Toshiba
Totevision
Unitech
Vector Research
Victor
Video Concepts
Videosonic
Wards
Yamaha
Zenith
009,014,016,017,037,044,046,063,078
000,016,022,031,041,051
025
011,021
022,050,058,077
011,014,018,021,027,028,044,052,057
015,036,048,054
026,035,040,064
024
026,035,047
017,024,038,062,065
024
011,024
039
024,039,078
017
076
014,022,028,057,058
016,018
VCR Codes
Cable Box Codes
DVD Codes
Remote Control Codes
56-65.qxd 4/13/04 4:26 PM Page 64
-
AFTER SALES SERVICE
-
Do not hesitate to contact your retailer or service agent if a
change in the performance of your product indicates that a
faulty condition may be present.
ELECTRONICS
56-65.qxd 4/13/04 4:26 PM Page 65
Loading...
