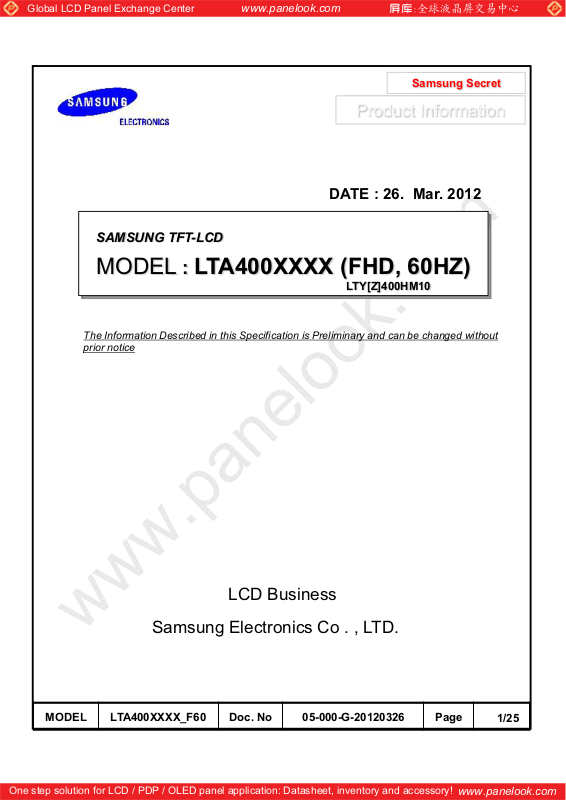

Global LCD Panel Exchange Center
SAMSUNG TFT-LCD
MODEL : LTA400XXXX (FHD, 60HZ)
www.panelook.com
Samsung Secret
Product Information
DATE : 26. Mar. 2012
LTY[Z]400HM10
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/25
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)
4.1 Input Signal & Power
4.2 . LS Bar Input Pin Configuration
4.3 LVDS Interface
4.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (16)
5.1 Timing Parameters (Stand Alone Mode)
5.2 Timing Diagrams of interface Signal (D mode)
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (19)
7. Packing -------------------------------------------------------------------------------------------------- (21)
8. Marking & Others --------------------------------------------------------------------------------------- (22)
9. General Precaution ------------------------------------------------------------------------------------ (23)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/25
www.panelook.com
Page 3
Global LCD Panel Exchange Center
* Revision History
www.panelook.com
Samsung Secret
Date
26.
Mar,
2012
Rev.
No
000 - First Issued
Page Summary
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/25
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
General Description
Samsung Secret
Description
LTA400XXXX is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 40.0“ is 1920 x
1080 and this model can display up to 1.07G colors with wide viewing angle of 89¶ or
higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display
terminals for AV application products, and High Definition TV (HDTV).
Features
RoHS compliance (Pb-free)
High contrast ratio, high aperture ratio, fast response time
SPVA (Super Patterned Vertical Align) mode
Wide viewing angle (·89¶)
Full HD (1920 x 1080 pixels) resolution (16:9)
Low Power consumption
WLED (White Light Emitting Diode) Backlight
LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
Module Size
Weight 8000(Max) g
Pixel Pitch
Active Display Area 885.6(H) x 498.15(V) mm
Surface Treatment Haze 0.8%, Hard-coating (2H)
Display Colors 8+2 bit- 1.07G colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB Horizontal stripe
Display Mode Normally Black
Luminance of White 470 cd/m
915.7(H
0.46125(H) Ý 0.15375(V) * 3
) x 528.8(V
TYP
23.9(D
MAX
)
TYP
)
mm
mm
·1.0mm
2
Typ.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/25
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1. Absolute Maximum Ratings
1-1 Operating Condition
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
Samsung Secret
Power Supply Voltage V
Module Storage Temperature T
Operating Temperature T
Shock ( non – operating ) S
Vibration ( non – operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 93.8 % RH Max. (Ta ≤ 40 ¶C)
b. Maximum wet-bulb temperature at 40 ¶C or less. (Ta ≤ 40 ¶C)
c. No condensation
(3) Polarizer will not be damaged in this range, even though abnormal visual problems occur
T
in
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X, Y, Z axis
SUR
range.
DD
STG
OPR
NOP
NOP
GND-0.5 13 V (1)
-20 60
050
- 50 G (4)
- 1.5 G (5)
(2)
(2)
(40, 93.8)
(50, 50.4)
Fig. Temperature and Relative humidity range
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
5/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON BM-7,SPECTRORADIOMETER SR-3
(LED Input Current = 110mA, Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G
[AVE]
Red
Green
Blue
White
C/R
Tg - 8 16 msec
Y
L
Rx
Ry 0.330
Gx 0.318
Gy 0.606
Bx 0.155
By 0.054
Wx 0.280
Wy 0.285
Normal
L,R=0
U,D=0
Viewing
Angle
*3000 5000 -
400 470 - cd/m
0.647
TYP.
-0.03
=148.5MHz, Dim = 100%)
DCLK
TYP.
+0.03
Samsung Secret
(3)
SR-3A
(5)
RD-80S
2
(6)
SR-3A
(7),(8)
SR-3A
Color Gamut - - 70 - %
Color Temperature - - 10000 - K (9)
Hor.
Viewing
Angle
Ver.
Brightness Uniformity
(9 Points)
* CR = (White at point ྜྷ of Note 2) / (Most Dark Point of Black Pattern at area ཿ of Note 2)
L
R
U
D
B
uni
C/R≥10
79 89 -
79 89 -
Degree
79 89 -
79 89 -
--30%
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(7)
SR-3A
(8)
EZ-Contrast
(4)
SR-3
Single lamp current @ Vdim = 100%
Environment condition : Ta = 25 · 2 ¶C
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/25
www.panelook.com
Page 7
Global LCD Panel Exchange Center
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
BM-7
TFT - LCD Module
Note (2) Definition of test point
320 960 1600
1ദ
2ദ
Photo detector
Field
SR-3 : 50
BM-7 : 50
LCD Panel
The center of the screen
180
540
900
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
CR
/
Area ཿ
640 1280
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
360
720
Active Area
Test Point
CR Measured Area
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/25
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Note (4) Definition of 9 points brightness uniformity
BB
Buni
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (5) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
(max min)
100
100%
90%
10%
0%
B
max
Black (data off)
White (data on)
T
R
Samsung Secret
White (data off)
T
F
TIME
Note (6) Definition of Luminance of White : Luminance of white at center point 䐣
Note (7) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (8) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
Note (9) Definition of 2 point Gamma
Gamma X Y
XZBBB
lum
Y Measurement Level Z Measurement Brightness
:/:
log log
min max min
100 100
lum
100
B Maximum Brightness B Minimum Brightness
:/:
max min
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/25
www.panelook.com
Page 9
Global LCD Panel Exchange Center
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
www.panelook.com
Samsung Secret
Ta = 25 ¶C · 2 ¶C
Voltage of Power Supply V
(a) Black
Current
(b) White - 730 800
of Power
Supply
(c) Mosaic - 700 760
DD
I
DD
11 12 13 V (1)
- 660 720
(4) Max Pattern - 890 980
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
V
H
DCLK
RUSH
Note (1) The ripple voltage should be controlled under 10% of V
(2) f
V=60Hz, fDCLK = 148.5MHz, V
DD
47 60 62 Hz
50 67.5 73 kHz
130 148.5 155 MHz
--3A(4)
.
DD
= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Mosaic d) Max. Pattern
mA (2),(3)

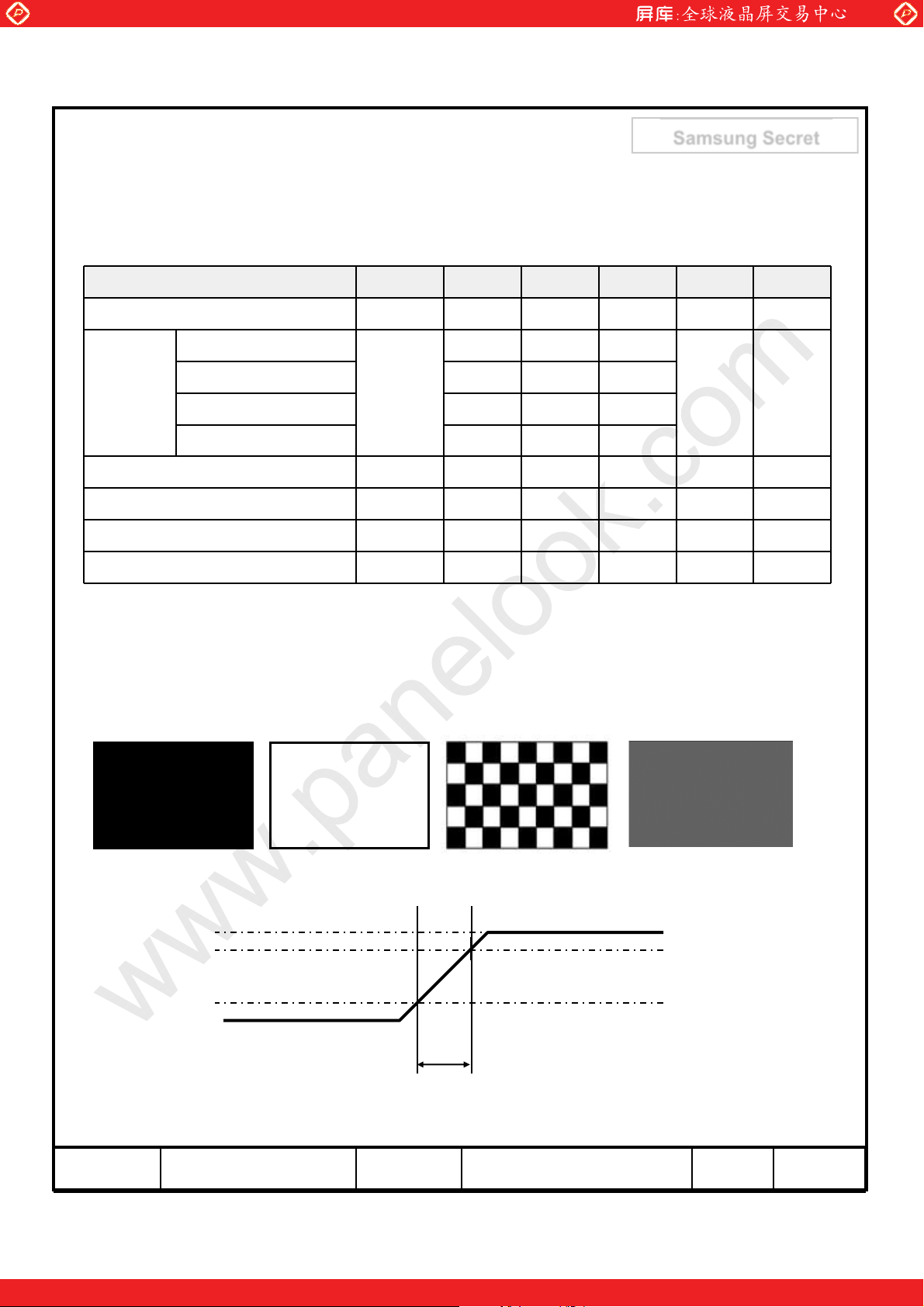

(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470us
RUSH
Rush Current I
can be measured when T
RUSH
RUSH
. is1ms
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/25
www.panelook.com
Page 10
Global LCD Panel Exchange Center
3.2 Back Light Unit
The back light contains 88 LEDs.
The characteristics of lamps are shown in the following tables.
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 30,000 - - Hour (1)
www.panelook.com
Samsung Secret
Ta=25 · 2¶C
Operating
Current
Operating
Voltage
Range of Voltage
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value at
each Srting, Iop=.110.0mArms
[Definition of Operating Voltage : At each Strings, I
Continuous I
Continuous V
op - 110 260 mA
op 257 - 293 V
⊿Vf
- - 11.5 V
= 140.0 mArms (typ.)]
op
@140mA
/ 44LEDs
@Ta 25
@140mA
/ String
3.2.1 Review and Update for Electrical Specification
According to the improvement of efficiency for devices, the electrical specification would be revie
wed and revised after initial values had been established.This revision mentioned above should be
discussed at appropriate time.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10/25
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power of Control Board
1. 51Pin Connector : FI-RNE51SZ-HF (JAE)
PIN No. Signal Description PIN No. Signal Description
1 Vin Power 26 RE[0]P Even LVDS Signal +
2 Vin Power 27 RE[1]N Even LVDS Signal -
3 Vin Power 28 RE[1]P Even LVDS Signal +
4 Vin Power 29 RE[2]N Even LVDS Signal -
5 Vin Power 30 RE[2]P Even LVDS Signal +
6 N.C. No Connection 31 GND GND
7 GND GND 32 RECLKN Even LVDS CLK -
8 GND GND 33 RECLKP Even LVDS CLK +
9 GND GND 34 GND GND
10 RO[0]N Odd LVDS Signal - 35 RE[3]N Even LVDS Signal -
11 RO[0]P Odd LVDS Signal + 36 RE[3]P Even LVDS Signal +
12 RO[1]N Odd LVDS Signal - 37 RE[4]N Even LVDS Signal -
13 RO[1]P Odd LVDS Signal + 38 RE[4]P Even LVDS Signal +
14 RO[2]N Odd LVDS Signal - 39 GND GND
15 RO[2]P Odd LVDS Signal + 40 N.C. No Connection
16 GND GND 41 N.C. No Connection
17 ROCLKN Odd LVDS CLK - 42 N.C. No Connection
18 ROCLKP Odd LVDS CLK + 43 N.C. No Connection
19 GND GND 44 N.C. No Connection
20 RO[3]N Odd LVDS Signal - 45 N.C. No Connection
21 RO[3]P Odd LVDS Signal + 46 N.C. No Connection
22 RO[4]N Odd LVDS Signal - 47 N.C. No Connection
23 RO[4]P Odd LVDS Signal + 48 N.C. No Connection
24 GND GND 49 N.C. No Connection
25 RE[0]N Even LVDS Signal - 50 N.C. No Connection
51 LVDS OPT LVDS Option
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11/25
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Option Pin Description
These pins are CMOS interface.
Please use within the range of the following restriction.
VIHஔ2.4V(min) / 3.5V(max)
VILஔ0.0V(min) / 0.4V(max)
Note(1) Pin number starts from Right side
PCB
Samsung Secret
A. 51 Pin
#1
CON1
#1
#51
#51

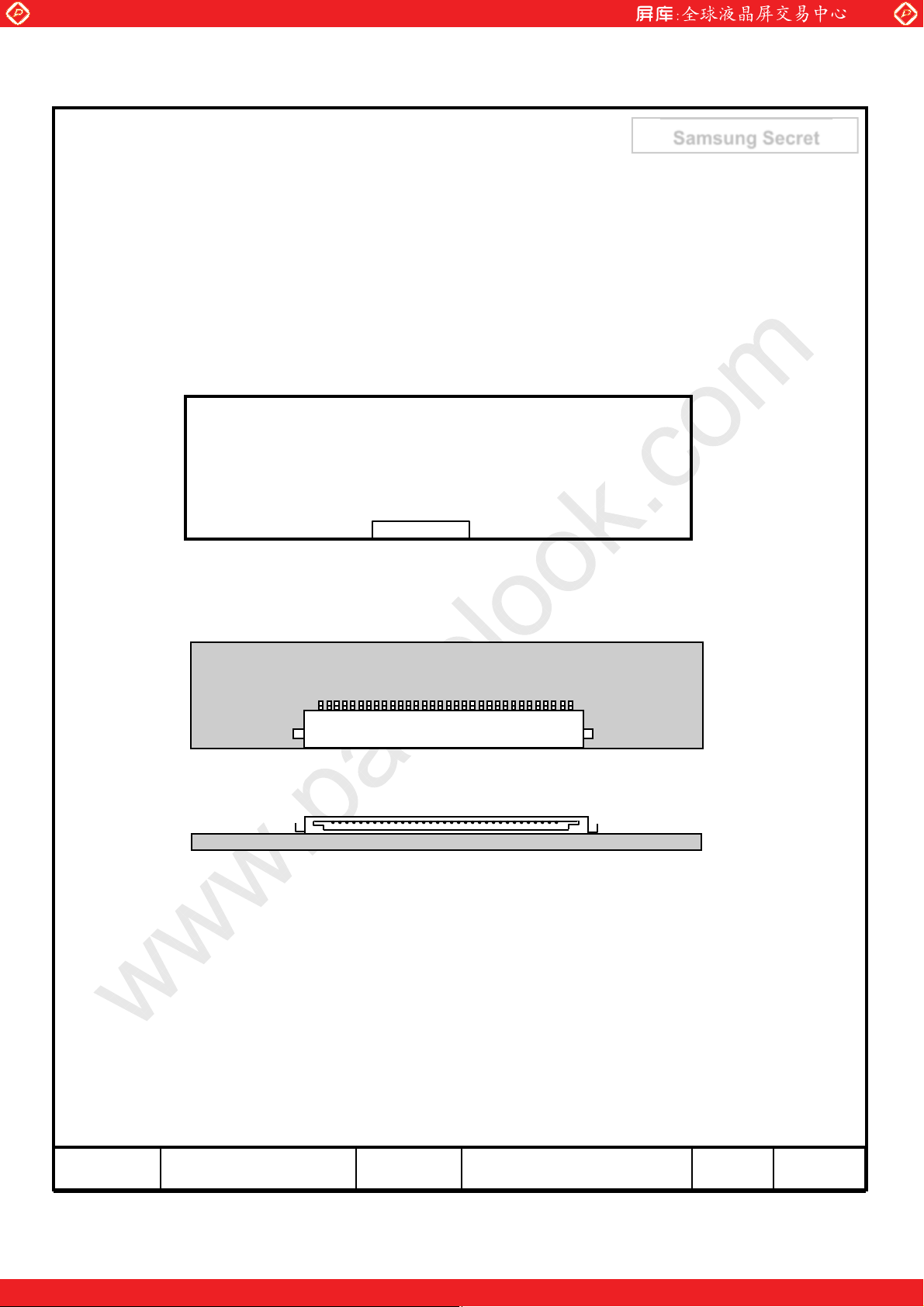

Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12/25
www.panelook.com
Page 13
Global LCD Panel Exchange Center
4.2. LS Bar Input Pin Configuration
&211(&725 0RUH[
www.panelook.com
Samsung Secret
Pin
1
2 N.C.
3 N.C.
4 DC Voltage (+)
&211(&725 0RUH[
Pin
1
2
3
4
5
Pin Configuration (Function)
DC Voltage (+)
Pin Configuration (Function)
Feedback
N.C.
N.C.
Feedback
N.C.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13/25
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
4.3 LVDS Interface
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxOUT/RxIN3
TxOUT/RxIN4
Samsung Secret
LVDS pin Odd Data Even Data
TxIN/RxOUT0 R0 R0
TxIN/RxOUT1 R1 R1
TxIN/RxOUT2 R2 R2
TxIN/RxOUT3 R3 R3
TxIN/RxOUT4 R4 R4
TxIN/RxOUT6 R5 R5
TxIN/RxOUT7 G0 G0
TxIN/RxOUT8 G1 G1
TxIN/RxOUT9 G2 G2
TxIN/RxOUT12 G3 G3
TxIN/RxOUT13 G4 G4
TxIN/RxOUT14 G5 G5
TxIN/RxOUT15 B0 B0
TxIN/RxOUT18 B1 B1
TxIN/RxOUT19 B2 B2
TxIN/RxOUT20 B3 B3
TxIN/RxOUT21 B4 B4
TxIN/RxOUT22 B5 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R6 R6
TxIN/RxOUT5 R7 R7
TxIN/RxOUT10 G6 G6
TxIN/RxOUT11 G7 G7
TxIN/RxOUT16 B6 B6
TxIN/RxOUT17 B7 B7
TxIN/RxOUT23 Reserved Reserved
TxIN/RxOUT28 R8 R8
TxIN/RxOUT29 R9 R9
TxIN/RxOUT30 G8 G8
TxIN/RxOUT31 G9 G9
TxIN/RxOUT32 B8 B8
TxIN/RxOUT33 B9 B9
TxIN/RxOUT34 Reserved Reserved
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14/25
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
4.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DISPLAY
(10bit)
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111000000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
DARK
LIGHT
RED 111111111100000000000000000000 R1023
R0R1R2R3R4R5R6R7R8R9G0G1G2G3G4G5G6G7G8G9B0B1B2B3B4B5B6B7B8B
100000000000000000000000000000 R1
010000000000000000000000000000 R2
↑
:::::: :: :::: :: ::: :
:::::: :: :::: :: ::: :
↓
101111111100000000000000000000 R1021
011111111100000000000000000000 R1022
RED GREEN BLUE
Samsung Secret
9
GRAY
SCALE
LEVEL
R3~
20
R10
BLACK 000000000000000000000000000000 G0
000000000010000000000000000000 G1
000000000001000000000000000000 G2
RK
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
DA
↑
:::::: :::::: :: ::: :
:::::: :::::: :: ::: :
↓
LIGHT
GREEN 000000000011111111110000000000 G1023
BLACK 000000000000000000000000000000 B0
DARK
LIGHT
BLUE 000000000000000000001111111111 B1023
000000000010111111110000000000 G1021
000000000001111111110000000000 G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
↑
:::::: :::::: ::::::
:::::: :::::: ::::::
↓
000000000000000000001011111111 B1021
000000000000000000000111111111 B1022
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
G3~
G1020
B3~
B1020
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15/25
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
5. Interface Timing
5.1 Timing Parameters
5.1.1 DE Only Mode
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit Note
Clock
Hsync FH 50 67.5 73 kHz
Vsync FV 47 60
Vertical
Active
Horizontal
Active
Frequency
Display
Period
Vertical
Total
Display
Period
Hrizontal
Total
Samsung Secret
1/Tc 130.00 148.50 155.00 MHz
63
TVD 1080 1080 1080 Lines
TV
THD 1920 1920 1920 clocks
TH 2145 2200 2350 clocks
1100 1125 1480
Hz
Lines
Polarity
Negative
Polarity
Negative
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16/25
www.panelook.com
Page 17
Global LCD Panel Exchange Center

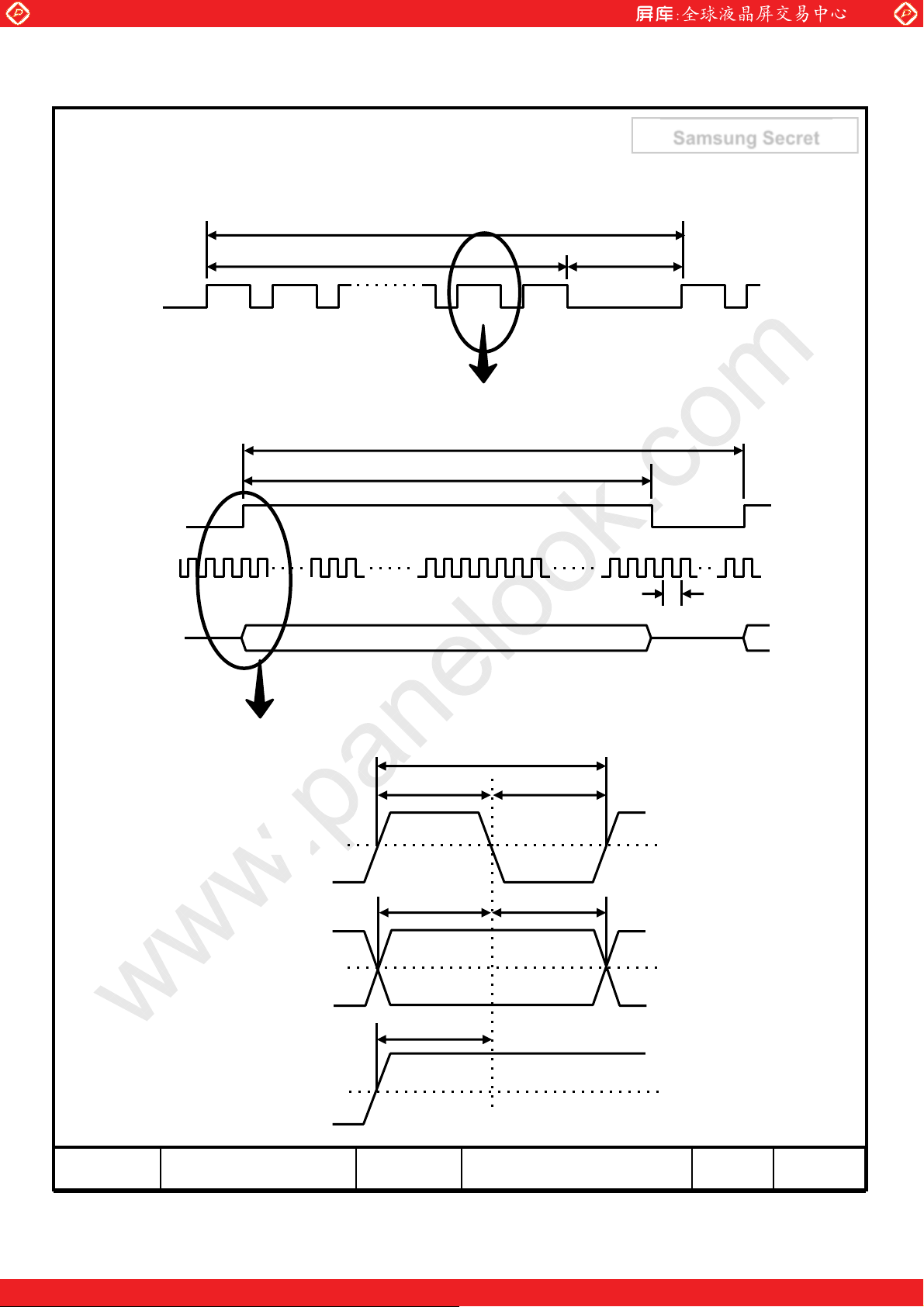

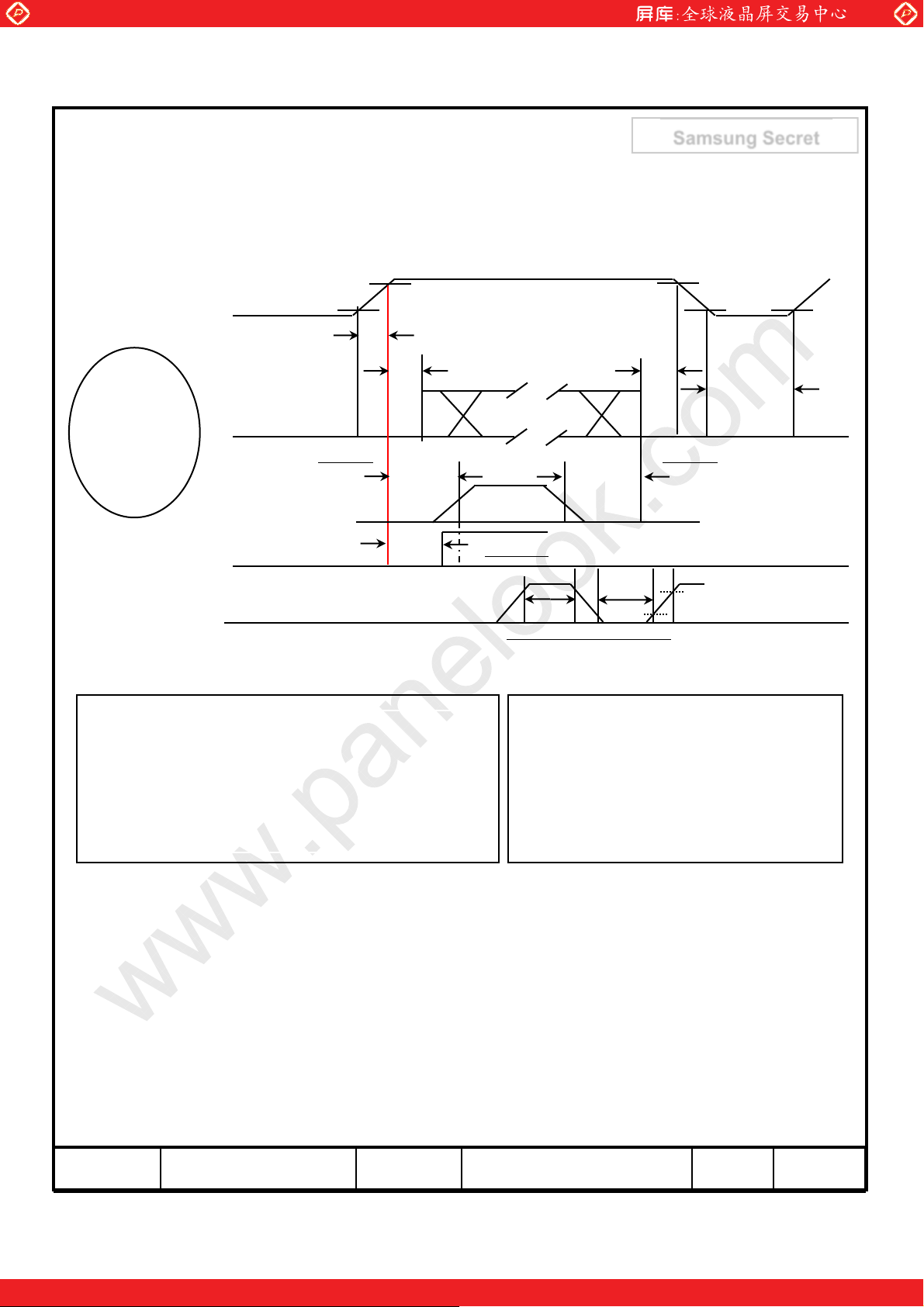

5.2 Timing diagrams of interface signal ( DE only mode )
www.panelook.com
Samsung Secret
TV
DE
DE
DCLK
DATA
SIGNALS
TVD
TVB
TH
THD
TC
TC
TCH
DCLK
TDS TDH
DISPLAY
DATA
TES
DE
TCL
0.5
V
0.5
V
CC
0.5
V
CC
CC
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
17/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
0.9V
Panel 12V
0V
0.1V
DD
www.panelook.com
DD
T1
Samsung Secret
0.9V
DD
0.1V
DD
T2
0.47ms<T1≤30ms
10ms<T2≤50ms
0ms<T3≤50ms
1000ms <T4
400ms≤T5
60ms≤T6
1ms ≤T8
0V
Power On
T5
50% 50%
200
ms
0V
0V
T1 : VDD rising time from 10% to 90%
T2 : The time from V
T3 : The time from valid data off to V
T4 : V
off time for Windows restart
DD
to valid data at power ON.
DD
off at power Off.
DD
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
T8 : DCC LUT Selection Enable Period.
T3
T4
VALID
Power Off
T6
T-Con Ready
T8
DCC LUT Selection Enable Period
T8
0.9V
0.1V
DD
DD
[Valid Data Condition]
1. Input LVDS signals must satisfy
“Interface Timing” Specification on p23.
2. LVDS Clock must keep the same frequency.
3. “Temp SEL” signal should be changed
within Tcon Reset and Tcon Ready.
4. Data signal should not input during
“Fail Safe Mode”.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18/25
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
6.1 Outline Dimension
a. Front View
Samsung Secret
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19/25
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

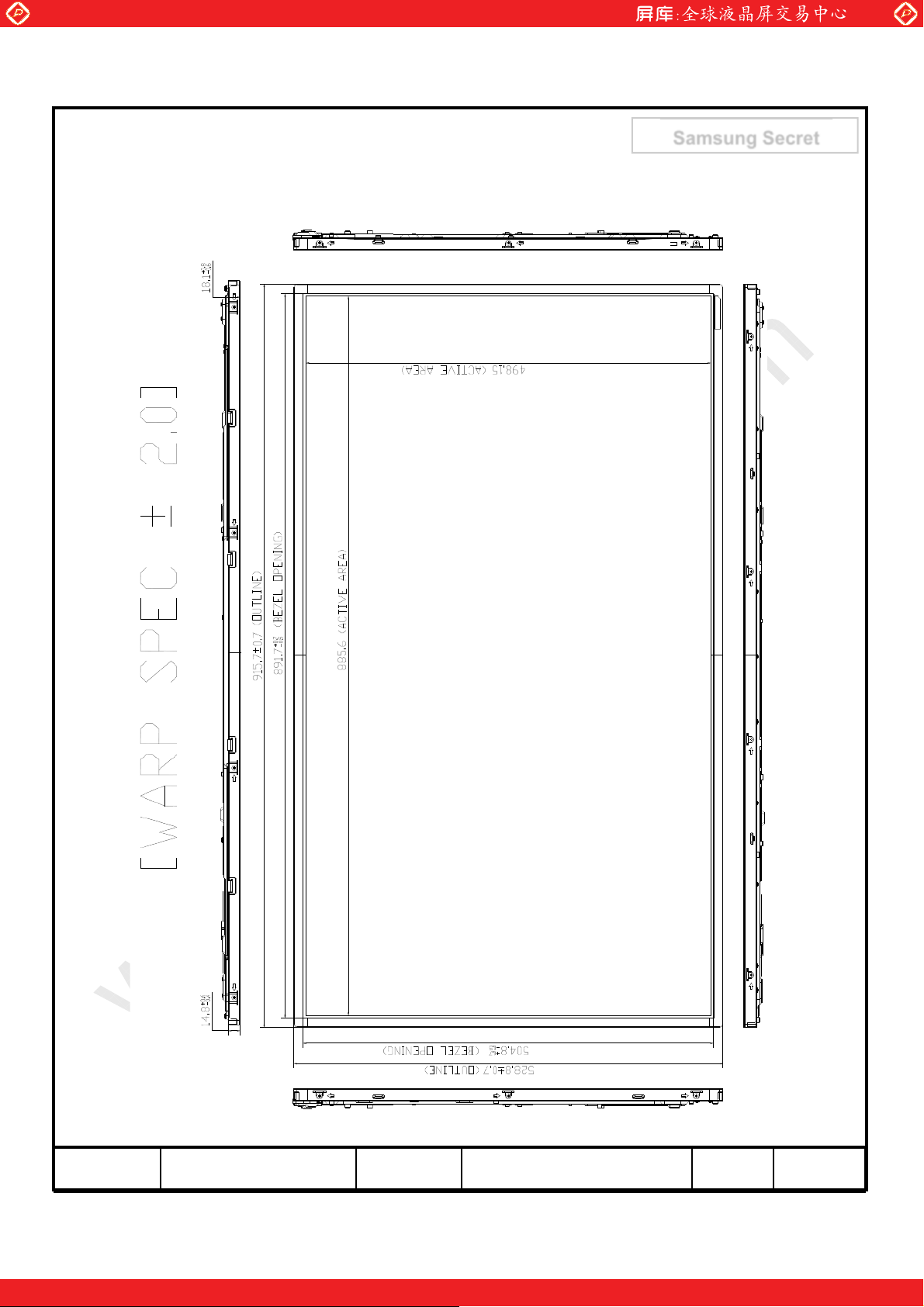

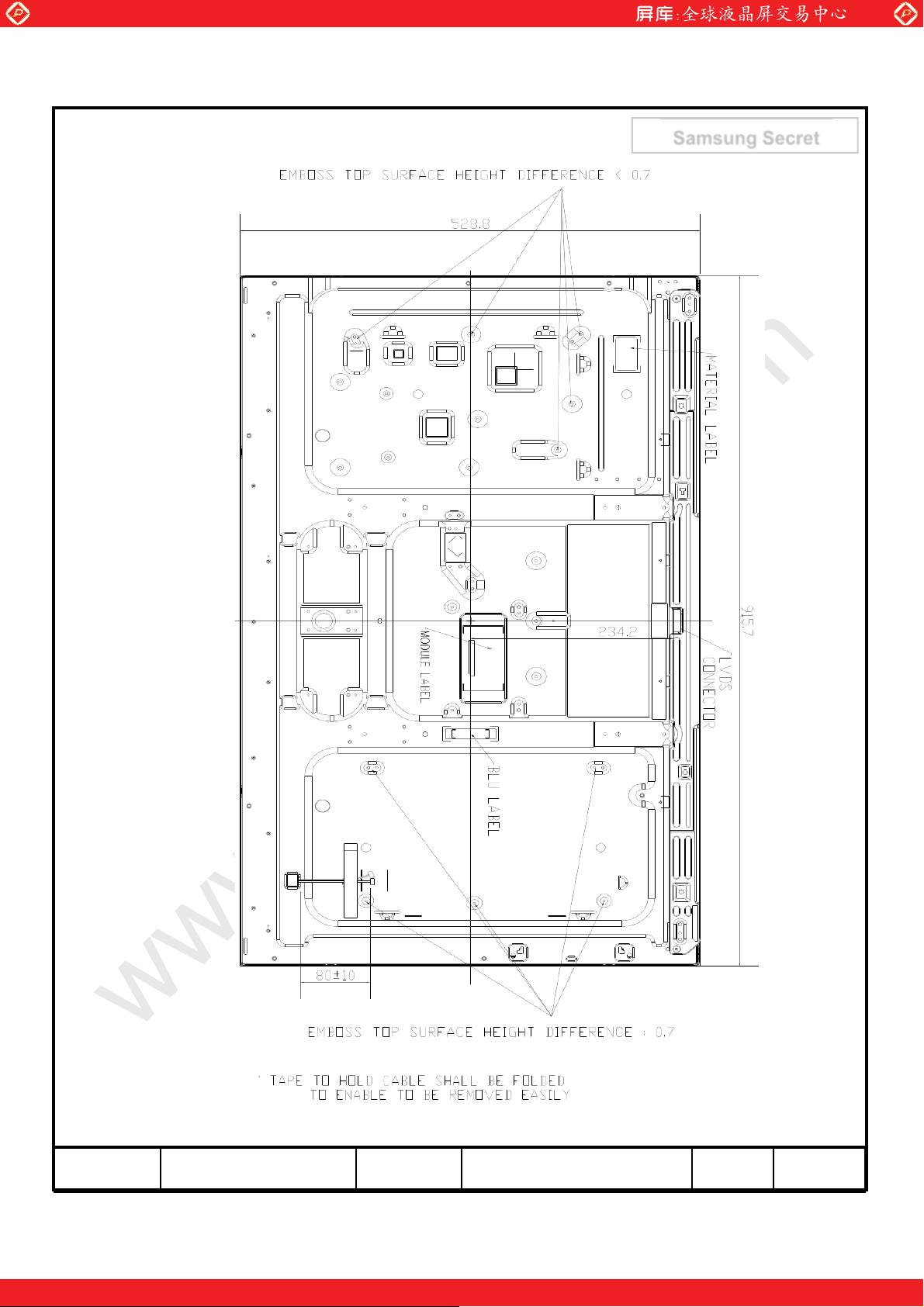

6.1 Outline Dimension
b. Rear View
Samsung Secret
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20/25
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com

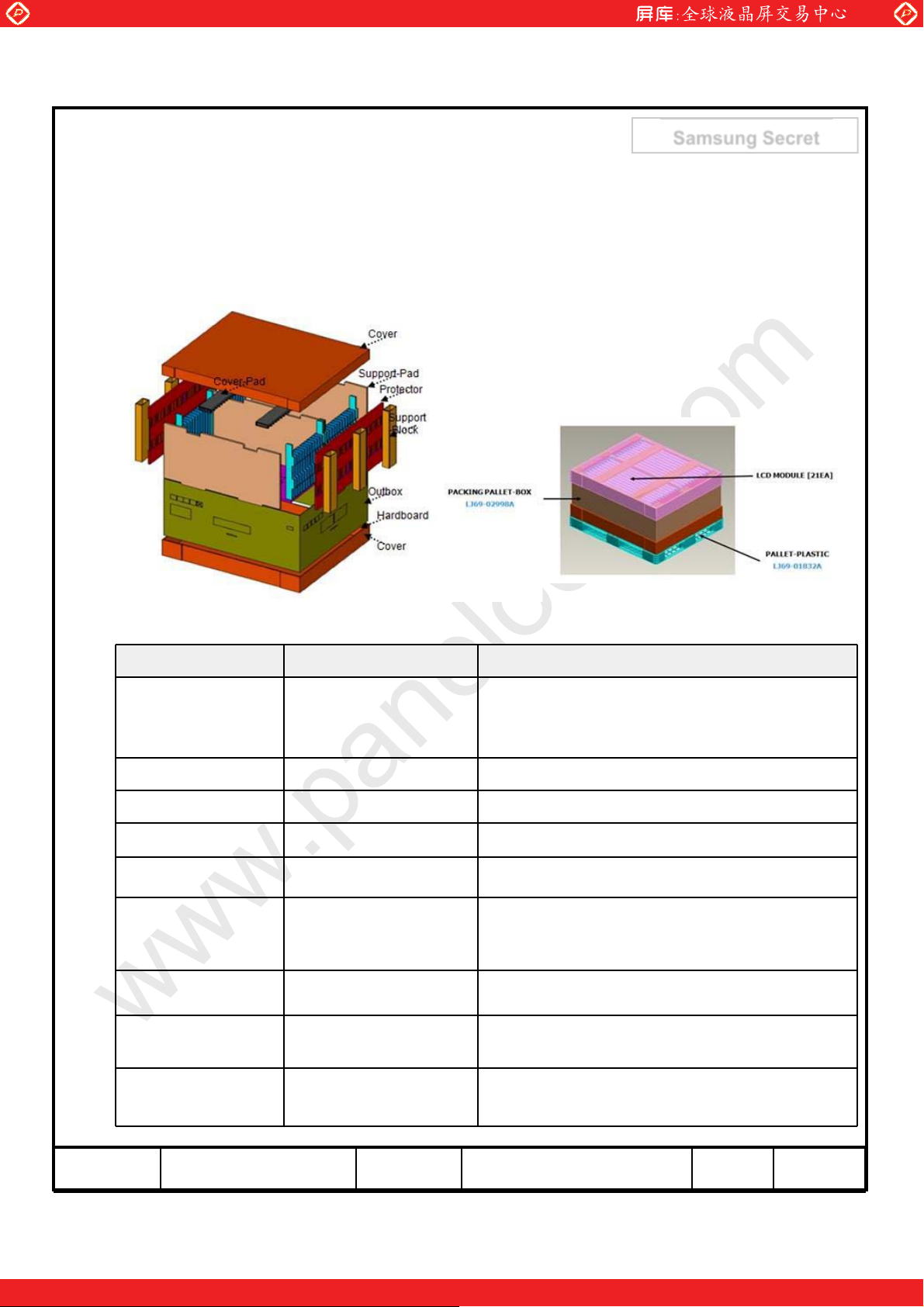

7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing Box
Samsung Secret
7.2 Packing Specification
Item Specification Remark
LCD Packing
Desiccant (Drier) 4ea / LCD 20g/ea, Cobalt-dichloride-free
Pallet 1Box / Pallet Pallet weight : 5.3kg
Packing Direction Vertical -
Total Pallet Size L x W x Height 1140mm x 968mm x 708mm
Total Pallet Weight 195kg
Stack Layer
Shielding Bag
21ea / (Packing Box)
-
Compound PE /
Sealing / 70༁
1. 168kg/LCD(21ea)
2. 20kg/Packing Box(1ea)
3. Packing Box Material : Paper
Pallet(5.3kg) + Module( 21 x 8kg = 168kg) +
Packing BOX(20kg) +
Desiccant(0.02kg x 84 = 1.68kg)
Material / Adhesive tape / Thickness
POL Protection
Film
PET / 0.125mm Material / Thickness
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21/25
www.panelook.com
Page 22
Global LCD Panel Exchange Center

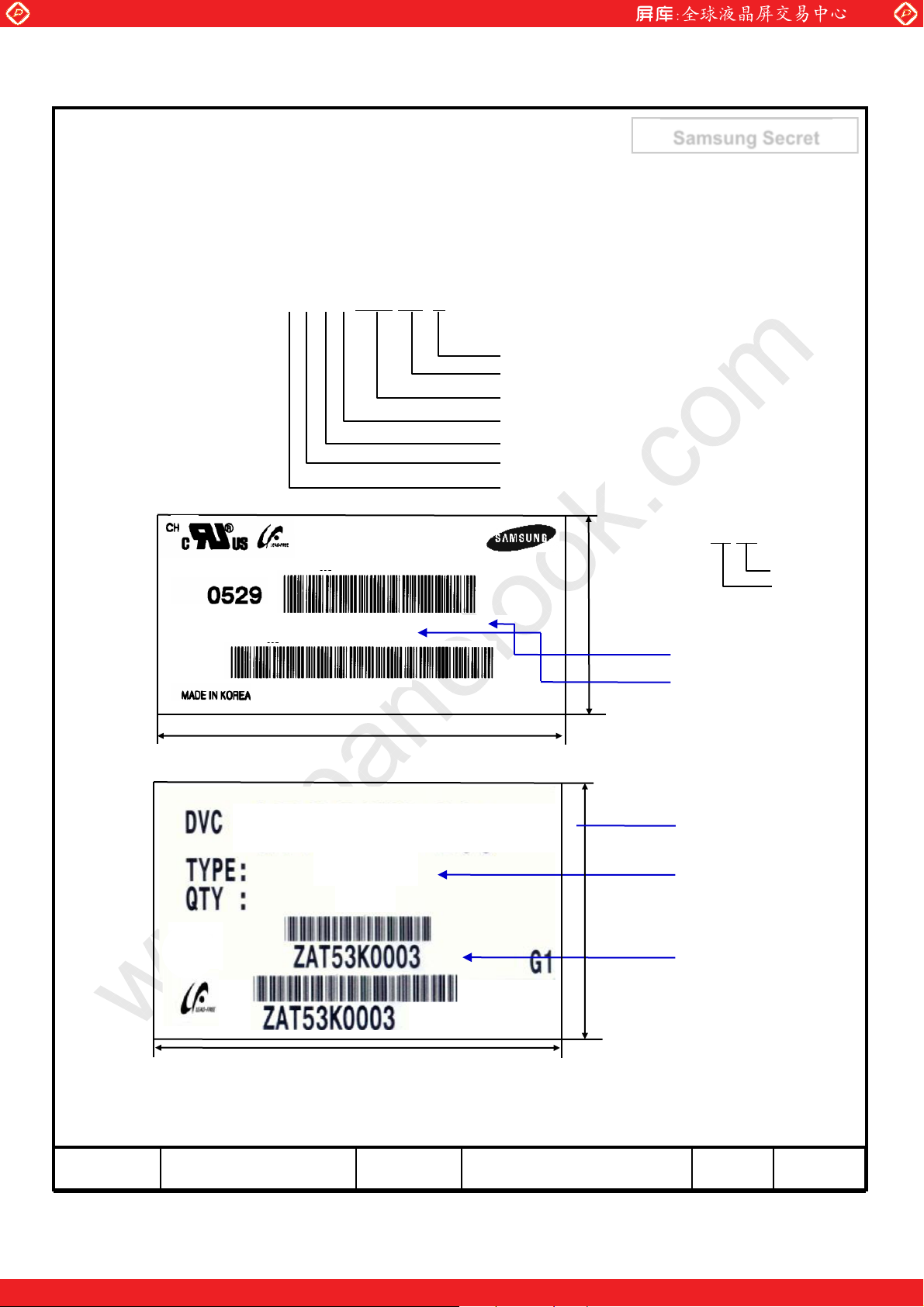

8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Parts number : LTY[Z]400HM10-XXX
(2) Revision: One letters
(3) Lot number : X XXXXXX
(4) Nameplate Indication
www.panelook.com
Samsung Secret
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTY[Z]400HM10
[[[[[[
LTY[Z]400HM10XXX
(5) Packing box attach
LTY[Z]400HM10-XXX
[[[[[[[[[[#########{{{
80mm
XXXX
21
Week code : 05 29
week
year
40mm
Revision code
Lot number
100mm
Part number
Revision code
Box serial number
0703
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22/25
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not pull or fold the LED FFC.
(m) Do not adjust the variable resistor located on the Module.
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized.
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23/25
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
9.2 Storage
Samsung Secret
~GGGGGGGGGGGU
Item Unit Min. Max.
Storage
Temperature
Storage Humidity (%rH) 35 75
Storage Life 12 Months
- The storage room should provide good ventilation and temperature
control.
- Products should not be placed on the floor, but on the Pallet away
from
a wall.
()
- Prevent products from direct sunlight, moisture nor water; Be
cautious of
Storage
Condition
a build up of condensation.
- Avoid other hazardous environment while storing goods.
- If products delivered or kept in conditions of over the storage period
of 3
months, the recommended temperature or humidity range,
we recommend you leave them at a temperature of 20 and a
humidity
of 50% for 24 hours.
10 40
9
.3 Operation
(a) No Connection or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its Converter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of LED and
may require higher startup voltage(Vs).
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
24/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
9.4 Operation Condition Guide
Samsung Secret
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTA400XXXX_F60 Doc. No 05-000-G-20120326 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25/25
www.panelook.com
Loading...
