General Description
Description
LTY[Z]320HM03 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0“ is 1920 x
1080 and this model can display up to 16.7million colors with wide viewing angle of 89¶ or
higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display
terminals for AV application products, and High Definition TV (HDTV).
Features
RoHS compliance (Pb-free)
High contrast ratio, high aperture ratio, fast response time
SPVA (Super Patterned Vertical Align) mode
Wide viewing angle (·89¶)
Full HD (1920 x 1080 pixels) resolution (16:9)
Low Power consumption
4 CCFTs (Cold Cathode Fluorescent Tube)
LVDS (Low Voltage Differential Signaling) interface
www.panelook.com
General Information
Items Specification Unit Note
Module Size
Weight 6000(Max) g
Pixel Pitch 0.12125(H) * 3 x 0.36375(V) mm
Active Display Area 698.4(H) x 392.85(V) mm
Surface Treatment Haze 7%, Hard-coating (3H)
Display Colors 8 bit- 16.7M colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White
960(H
) x 450(V
TYP
57.2(D
400
MAX
)
TYP
)
mm
cd/m
2
·1.0mm
Typ.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Global LCD Panel Exchange Center
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
Power Supply Voltage V
Storage temperature T
Operating Temperature T
Panel surface temperature T
Shock ( non - operating ) S
Vibration ( non - operating ) V
DD
STG
OPR
SUR
NOP
NOP
GND-0.5 13 V (1)
-20 65 Ԩ (2)
050Ԩ (2)
065Ԩ (3)
- 50 G (4)
- 1.5 G (5)
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 93.8 % RH Max. (Ta 40 ¶C)
b. Maximum wet-bulb temperature at 40 ¶C or less. (Ta 40 ¶C)
c. No condensation
(3) Polarizer will not be damaged in this range, even though abnormal visual problems occur
in
T
SUR
range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(40, 93.8)
(50, 50.4)
(65, 27.7)
Fig. Temperature and Relative humidity range
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
Item Symbol Condition Min. Typ. Max. Unit Note
TOPCON BM-7,SPECTRORADIOMETER SR-3
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
www.panelook.com
=148.5MHz, Dim = 100%)
DCLK
Contrast Ratio
(Center of screen)
Rising Tr - 12 70
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
Color Gamut - - 72 - %
Falling Tf - 8 18
G-to-G
[AVE]
Red
Green
Blue
White
C/R
Tg - 8 -
Y
L
Rx
Ry 0.325
Gx 0.294
Gy 0.603
Bx 0.150
By 0.059
Wx 0.280
Wy 0.285
Normal
TL,R=0
TU,D=0
Viewing
Angle
*2000 5000 -
330 400 - cd/m
0.633
TYP.
-0.03
+0.03
TYP.
msec
(3)
SR-3
(5)
BM-7
2
(6)
SR-3
(7),(8)
SR-3
(7)
SR-3
Color Temperature - - 10000 - K
Gamma - 2.2 -
T
Hor.
Viewing
Angle
Ver.
Brightness Uniformity
(9 Points)
* marked Items Value does not Specification above when “White stain” occurs at Center Point [Point ྜྷ of Note 2.]
L
T
R
T
U
T
D
B
uni
C/R10
79 89 -
79 89 -
Degree
79 89 -
79 89 -
--25%
(7)
SR-3
(8)
SR-3
(4)
SR-3
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Single lamp current @ Vdim = 100%
Environment condition : Ta = 25 · 2 ¶C
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
www.panelook.com
Photo detector Field
SR-3
BM-7
TFT - LCD Module
Note (2) Definition of test point
320 960 1600
1ദ
2ദ
Photo detector
Field
SR-3 : 50
BM-7 : 50
LCD Panel
The center of the screen
180
540
900
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 㽶 of the panel
CR
/
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Global LCD Panel Exchange Center
Note (4) Definition of 9 points brightness uniformity
www.panelook.com
BB
Buni
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (5) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
(max min)
100
100%
90%
10%
0%
B
max
Black (data off)
White (data on)
T
R
White (data off)
T
F
TIME
Note (6) Definition of Luminance of White : Luminance of white at center point 㽶
Note (7) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 㽶
Note (8) Definition of Viewing Angle
: Viewing angle range (C/R 10)
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
www.panelook.com
Ta = 25 ¶C · 2 ¶C
Voltage of Power Supply V
(a) Black
Current
(b) White - 700 900
of Power
Supply
(c) Mosaic - 700 -
DD
I
DD
11 12 13 V (1)
- 450 -
mA (2),(3)
(4) Max Pattern - 750 950
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
V
H
DCLK
RUSH
Note (1) The ripple voltage should be controlled under 10% of V
(2) f
V=60Hz, fDCLK = 148.5MHz, V
DD
47 60 62 Hz
50 67.5 73 kHz
130 148.5 155 MHz
--5A(4)
.
DD
= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Mosaic d)Max. Pattern
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=1ms
RUSH
Rush Current I
can be measured when T
RUSH
RUSH
. is1ms
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3.2 Back Light Unit
The back light unit contains 4 CCFTs ( Cold Cathode Fluorescent Tube ).
The characteristics of lamps are shown in the following tables.
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 50,000 - - Hour (1)
Lamp Current Lc 11.0 - 16.0 mA -
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
Ta= 25 · 2¶C
[Operating condition : Ta = 25·2Ԩ, I
Socket
HOT 1
HOT 1
Inverter
HOT 4
HOT 4
= 14.0 mArms(typ.), For single lamp only. ]
L
LCD
Module
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Global LCD Panel Exchange Center
4. Block Diagram
www.panelook.com
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Global LCD Panel Exchange Center
5. Input Terminal Pin Assignment
5.1. Input Signal & Power Connector : IS050-C51B-C38(UJU)
PIN No. Signal Description PIN No. Signal Description
www.panelook.com
Compatible with FI-RE51S-HF(JAE)
1 Power V
2 Power V
3 Power V
4 Power V
5 Power V
6 GND GND 31 GND GND
7 GND GND 32 LVECLK- Even LVDS Clock-
8 GND GND 33 LVECLK+ Even LVDS Clock+
9 GND GND 34 GND GND
10 LVO[0]N Odd LVDS Signal - 35 LVE[3]N Even LVDS Signal -
11 LVO[0]P Odd LVDS Signal + 36 LVE[3]P Even LVDS Signal +
12 LVO[1]N Odd LVDS Signal - 37 N.C. No Connection
13 LVO[1]P Odd LVDS Signal + 38 N.C. No Connection
14 LVO[2]N Odd LVDS Signal - 39 GND GND
15 LVO[2]P Odd LVDS Signal + 40 SCL I2C SCL
16 GND GND 41 SDA I2C SDA
17 LVOCLK- Odd LVDS CLK - 42 VSYNC *V Sync Signal
DD
DD
DD
DD
DD
26 LVE[0]P Even LVDS Signal +
27 LVE[1]N Even LVDS Signal -
28 LVE[1]P Even LVDS Signal +
29 LVE[2]N Even LVDS Signal -
30 LVE[2]P Even LVDS Signal +
18 LVOCLK+ Odd LVDS CLK + 43 B-INT Bus Release
19 GND GND 44 N.C. No Connection
20 LVO[3]N Odd LVDS Signal - 45 N.C. No Connection
21 LVO[3]P Odd LVDS Signal + 46 LUT SEL0 DCC LUT Select 0
22 N.C. No Connection 47 LUT SEL1 DCC LUT Select1
23 N.C. No Connection 48 LUT SEL2 DCC LUT Select2
24 GND GND 49 HSYNC H Sync Signal
25 LVE[0]N Even LVDS Signal - 50 TCON_RDY T-Con Ready
51 SEL1 SEC Internal Use Only
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
B-INT : I2C BUS RELEASE
Operation Description
www.panelook.com
sv~Vvwlu
HIGH USER CAN ACCESS EEPROM
DCC Look Up Table Selection
Pin N.O. 48 47 46
000
001
010
Select
bit
TCON Ready
011
100
101
110
111
SDA/SCL LINE BECOME HI-Z
Description ( Based on DCC On)
LUT %(For Interpolate)
For 60Hz 100%
For 60Hz
For 60Hz @ Low Temp.
For 60Hz @ Low Temp.
For 50Hz
For 50Hz
0%
100%X1.25
100%X1.25
(100%X1.25) X 1.25
100%
100%X1.25
Operation Description
Low Æ High Normal Operation
High Æ Low Error Operation
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Global LCD Panel Exchange Center
Note(1) Pin number starts from Right side
www.panelook.com
PCB
Pin No. 1 Pin No. 51
#1
connect name
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Global LCD Panel Exchange Center
5.2. Inverter Input Pin Configuration
www.panelook.com
Connector : 20022WR-14AML
Pin No.
1
2
3
4
5
6GND
7GND
8GND
9GND
10 GND
11 Inverter Operation Status Output
12 Inverter On/Off Control Signal
13 No Connection
14 External Dimming Control Signal
Pin Configuration(FUNCTION)
Y[}
Y[}
Y[}
Y[}
Y[}
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
5.3. Inverter Input Power Sequence & Specification
Items Symbol Conditions
Input
Voltage
Input
Current
Lamp
Current
Operating
Frequency
Backlight
On/Off
Dimming
Duty
Output
Open Lamp
Voltage
Vin - 21.6 24.0 26.4 V
I
SAT
I
O
F
O
Vin=24V
EX_DIM=100%
Vin=24V
EX_DIM=100%
Vin=24V
EX_DIM=100%
ENA
D
max
D
min
D
min
Vopen
Vin=24V
EX_DIM=100%
Vin=24V
EX_DIM=100%
Specifications
Min. Typ. Max.
- 3.25 3.80 A -
13.0 14.0 15.0 mArms -
55.0 57.5 60.0 kHz -
ON 2.4 - 5.25
OFF -0.3 - 0.8
100 - -
15 20 25 -
10 - - Note 2
1305 - - Vrms Note 3
Unit Note
Ta=25·Z¶j
V-
Note 1
%
Striking
Time
EX_DIM
Frequency
PWM
Signal
Amplitude
Tst
F
EX_DIM
V
pwm
Vin=24V
EX_DIM=100%
1.0 1.5 2.0 sec -
Vin=24.0V 120 150 180 Hz -
High (On) 2.4 - 5.25
Low (Off) -0.3 - 0.4
All data was approved after running 120minutes with LCM.
Note1. Duty Measurement [Duty(%) = Ton / T x 100]
Note 2. There are not shut down and flicker at 10% @ 150Hz.
V-
There is not shut down at 5% @ 75Hz.
Note 3. Measurement Method : Check Vs on BLU Remaining all Lamps.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
www.panelook.com
Global LCD Panel Exchange Center
5.4 LVDS Interface
www.panelook.com
LVDS pin Odd Data Even Data
TxIN/RxOUT0 R2 R2
TxIN/RxOUT1 R3 R3
TxIN/RxOUT2 R4 R4
TxOUT/RxIN0
TxOUT/RxIN1
TxIN/RxOUT3 R5 R5
TxIN/RxOUT4 R6 R6
TxIN/RxOUT6 R7 R7
TxIN/RxOUT7 G2 G2
TxIN/RxOUT8 G3 G3
TxIN/RxOUT9 G4 G4
TxIN/RxOUT12 G5 G5
TxIN/RxOUT13 G6 G6
TxIN/RxOUT14 G7 G7
TxIN/RxOUT15 B2 B2
TxIN/RxOUT18 B3 B3
TxIN/RxOUT19 B4 B4
TxIN/RxOUT20 B5 B5
TxIN/RxOUT21 B6 B6
TxOUT/RxIN2
TxOUT/RxIN3
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
TxIN/RxOUT22 B7 B7
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT28 R0 R0
TxIN/RxOUT29 R1 R1
TxIN/RxOUT30 G0 G0
TxIN/RxOUT31 G1 G1
TxIN/RxOUT32 B0 B0
TxIN/RxOUT33 B1 B1
TxIN/RxOUT34 Reserved Reserved
17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
DATA SIGNAL
DISPLAY
(8bit)
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK 000000000000000000000000 -
BLUE 000000000000000011111111 -
GREEN 000000001111111100000000 -
CYAN 000000001111111111111111 -
RED 111111110000000000000000 -
MAGENTA111111110000000011111111 -
YELLOW 111111111111111100000000 -
WHITE 111111111111111111111111 -
BLACK 000000000000000000000000 R0
100000000000000000000000 R1
DARK
LIGHT
RED 111111110000000000000000 R255
BLACK 000000000000000000000000 G0
DARK
LIGHT
GREEN 000000001111111100000000 G255
BLACK 000000000000000000000000 B0
DARK
LIGHT
BLUE 000000000000000011111111 B255
010000000000000000000000 R2
:::::: :::::: ::::::
:::::: :::::: ::::::
101111110000000000000000 R253
011111110000000000000000 R254
000000001000000000000000 G1
000000000100000000000000 G2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000001011111100000000 G253
000000000111111100000000 G254
000000000000000010000000 B1
000000000000000001000000 B2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000000000000010111111 B253
000000000000000001111111 B254
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R252
G3~
G252
B3~
B252
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Global LCD Panel Exchange Center
6. EDID Information
6.1 EEPROM Data
No Item Spec Address Data Remark
www.panelook.com
EEPROM Data
Panel Product
1
Vender
2 Screen Size XX 01 XX
3 H-Resolution XXXX 02,03 XX,XX
4 V-Resolution XXX 04,05 XX,XX
Vertical
5
Frequency
6 Data Format XX 07 XX - Note 3
FRC Revision
7
Information
8 Part Number
Note 1. Note 2. Note 3.
Data Panel Vender Code
00 HDLCD(SEC)
XXXX 00 XX
XX 06 XX - Note 2
XED XX
XX,XX,XX,XX,XX,
XXX(X)XXXXX
XX
Data V-Frequency
00 50/60Hz
E0~EC
XX,XX,XX,XX,XX,
XX,
XX
,XX,XX,XX,XX
Data Data Format
00 6Bit
SONY Choice
- Note 1
16讝
16讝
16讝
ASCII
- Note 4
ASCII
- Note 5, 6
01 Others
02 Others
03 Others
04 Others
05 Others
Note 4.
- FRC Revision Code will be Changed from “00” to “41” (A)
When FRC IC is changed. At First MP. This Code will be “00”
Note 5.
- LTY[Z]XXXXXXX Only for SEC Model
Note 6.
- Rest of them must be “00” (Null)
01 100/120HZ
02 200/240Hz
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
01 8Bit
02 10Bit
19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
6.2 EEPROM Data Map
0123456789ABCDEF
0 XXXXXXXXXXXXXXXX0000000000000000
1 00000000000000000000000000000000
2 00000000000000000000000000000000
3 00000000000000000000000000000000
4 00000000000000000000000000000000
5 00000000000000000000000000000000
6 00000000000000000000000000000000
www.panelook.com
7 00000000000000000000000000000000
8 00000000000000000000000000000000
9 00000000000000000000000000000000
A 00000000000000000000000000000000
B 00000000000000000000000000000000
C 00000000000000000000000000000000
D 00000000000000000000000000000000
E XXXXXXXXXXXXXXXXXXXXXXXXXXXX 00 00
F 00000000000000000000000000000000
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
www.panelook.com
Global LCD Panel Exchange Center
7. Interface Timing
7.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
130 148.5 155 MHz -
50 67.5 73 KHz -
47 60 62 Hz -
Active
- 1080 - lines -
Vertical
Display
Period
T
VD
Display Term
Vertical
Total
T
VB
1100 1125 1480 Lines -
Active
- 1920 - clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
2154 2200 2450 clocks -
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal V
DD = 3.3V
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Global LCD Panel Exchange Center
7.2 Timing diagrams of interface signal ( DE only mode )
www.panelook.com
TV
DE
DE
DCLK
DATA
SIGNALS
TVD
TVB
TH
THD
TC
TC
TCH
DCLK
TDS TDH
DISPLAY
DATA
TES
DE
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
TCL
0.5
V
0.5
V
0.5
V
CC
CC
CC
22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
7.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
www.panelook.com
[UNIT : mS]
Min Max Min Max
T1 0.47 30 T8 30 -
T2 0 100 T9 500 -
T3 0 100 T10 50 -
T4 0.1 50 T11 100 -
T5 220 350 T12 0 50
T6 0 30 T13 0 300
T7 0 30 T14 1000 -
The supply voltage of the external system for the Module input should be the same
as the definition of V
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of VDD= off level,
please keep the level of input signals low or keep a high impedance.
T14 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
DD
.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23
www.panelook.com
Global LCD Panel Exchange Center
{ik
www.panelook.com
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24
www.panelook.com
Global LCD Panel Exchange Center
{ik
www.panelook.com
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25
www.panelook.com
Global LCD Panel Exchange Center
9. EMI Specification
: -3dB at CISPR22 Class B
This EMI Recommendation is recommended to be measured as SET Condition.
10. UL Approval
www.panelook.com
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26
www.panelook.com
Global LCD Panel Exchange Center
11. Reliability Test
Item Test condition Quantity
www.panelook.com
Temperature
Step Stress
HTOL 50Ԩ, 1000hr (500hr determination) 8EA
LTOL 0Ԩ, 1000hr (500hr determination) 4EA
RTOL 20 Ԩ, continue ~ 4EA
HTS 70Ԩ, 1000hr (500hr determination) 4EA
LTS -30Ԩ,1000hr (500hr determination) 4EA
THB 40Ԩ / 95%RH,1000hr (500hr determination) 4EA
WHTS 60Ԩ / 75%RH, 1000hr (500hr determination) 4EA
T/C -20 Ԩ ~ 60 Ԩ, 200cycle (100cycle determination) 4EA
ESD
(non-operation)
ESD(operation)
Input Con. ESD
contact : ᇹ8 kV ,150Ꮔ/330,210Point,1 time/Point
non-contact : ᇹ15 kV,150Ꮔ/330,100Point,1 time/Point
contact : ᇹ2kV,200Ꮔ/100,Input Con.Pin,3 times/Pin
0 50Ԩ,10Cycle determination 4EA
ᇹ10 kV,200Ꮔ/100 ,9Point,3times/Point
3EA
3EA
3EA
POWER
ON/OFF
Vibration 10~300Hz/1.5G/10minSR, XYZ, 30min/axis 3EA
Shock
PALLET
Vibration
PALLET Drop 20cm, Bottom, Front, Rear 1times 1PALLET(13EA)
30sec (on) / 30sec(off) : 12,000 times 4EA
Condition : 11msec, ᇹXY Z 1time/axis 50G
1.146 Grms, 2~200Hz, Random, Z axis 1Hr 1PALLET(13EA)
3EA
[ Result Evaluation Criteria]
Under the display quality test conditions with normal operation state, these shall
be no change which may affect practical display function.
HTOL/ LTOL : High/Low Temperature Operating Life,
THB : Temperature Humidity Bias
HTS/LTS : High/Low Temperature Storage
WHTS : Wet High Temperature Storage
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27
www.panelook.com
Global LCD Panel Exchange Center
12. PACKING
Applied to SESL Model

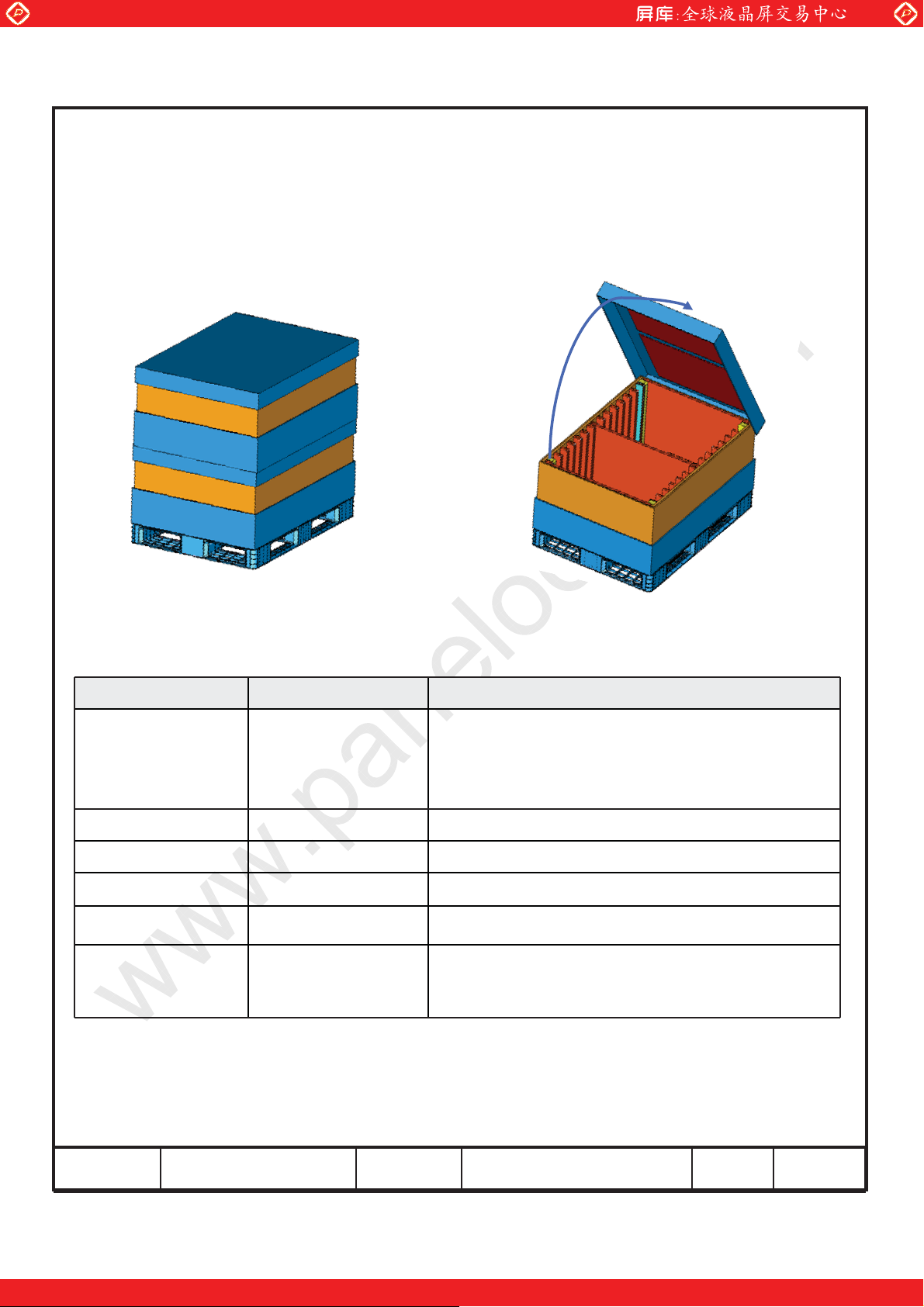

12.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing Box
www.panelook.com
Module(26EA)
Pallet
Direction be able to Open
12.2 Packing Specification
Item Specification Remark
LCD Packing
Desiccant (Drier) 2ea/LCD 10g/ea, Cobalt-dichloride-free
Pallet 1 Box / Pallet Pallet weight : 8kg
Packing Direction Vertical -
Total Pallet Size H x V x height 1150mm x 850mm x 1125mm
Total Pallet Weight 194.52kg
26 ea / (Packing Box)
1. 156Kg/LCD(26ea)
2. 30kg/Packing Box(2set)
3. Packing Box Material : DW, SW
Pallet(8kg) + Module( 26 x 6 = 156kg) +
Packing BOX(15 x 2 = 30kg) +
Desiccant(0.02kg x 26 = 0.52kg)
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28
www.panelook.com
Global LCD Panel Exchange Center
Applied to SELSK Model
12.3 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing Pallet Box
www.panelook.com
12.4 Packing Specification
Item Specification Remark
1. 144Kg/LCD(24ea)
LCD Packing 24 ea / (Packing-
Pallet Box)
Desiccant (Drier) 2ea/LCD 10g/ea, Cobalt-dichloride-free
Pallet 1 Box / Pallet Pallet weight : 8kg
Packing Direction Vertical -
Total Pallet Size H x V x height 1150mm x 985mm x 1159mm
Total Pallet Weight 173.18kg
2. 14kg/Cushion Set(4ea)
3. 6.7kg/Packing-Pallet Box(1ea)
4. Cushion Material : EPS
5. Packing Pallet Box Material : DW4
Pallet(8kg) + Module( 24 x 6 = 144kg) +
Cushion(14kg) + Pallet-BOX(6.7kg) +
Desiccant(0.02kg x 24 = 0.48kg)
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29
www.panelook.com
Global LCD Panel Exchange Center
13. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Parts number : LTY[Z]320HM03-XXX
(2) Revision: One letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
www.panelook.com
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTY[Z]320HM03
[[[[[[
LTY[Z]320HM03XXX
(5) Packing box attach
LTY[Z]320HM03-XXX
[[[[[[[[[[#########{{{
80mm
XXXX
xx
Week code : 05 29
week
year
40mm
Revision code
Lot number
100mm
Part number
Revision code
Actual Quantity
Box serial number
0703
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30
www.panelook.com
Global LCD Panel Exchange Center
14. General Precautions
14.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFT back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
www.panelook.com
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not pull or fold the lamp wire.
(m) Do not adjust the variable resistor located on the Module.
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized.
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31
www.panelook.com
Global LCD Panel Exchange Center
14.2 Storage
(a) Do not leave the Module in high temperature, and high humidity for a long time.
It is highly recommended to store the Module with temperature from 0 to 35Ԩ
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD Module in direct sunlight.
(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light in storing.
14.3 Operation
www.panelook.com
(a) No Connection or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).
14.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15Ԩ
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32
www.panelook.com
Global LCD Panel Exchange Center
14.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
www.panelook.com
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTY[Z]320HM03 Doc. No 05-002-S-110412 Page / 33
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33
www.panelook.com
Loading...
