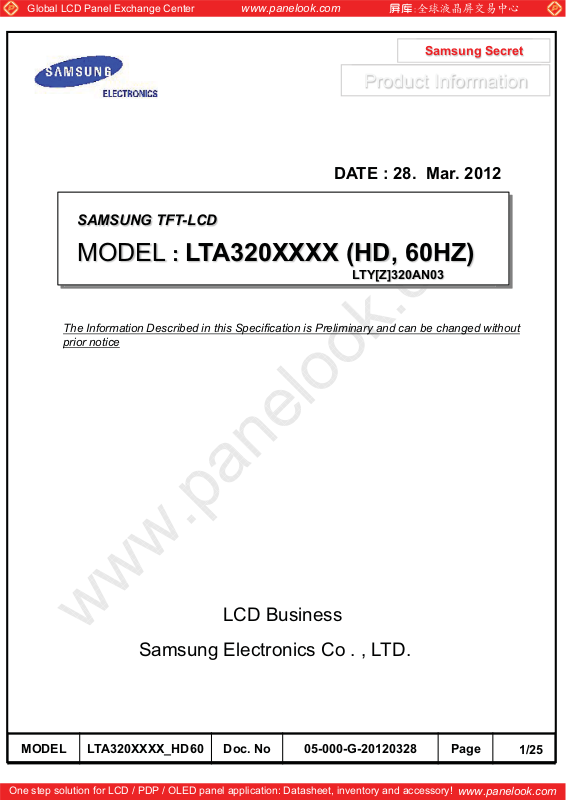

SAMSUNG LTY320AN03 Specification

Global LCD Panel Exchange Center

SAMSUNG TFT-LCD

MODEL : LTA320XXXX (HD, 60HZ)

www.panelook.com

Samsung Secret

Product Information

DATE : 28. Mar. 2012

LTY[Z]320AN03

The Information Described in this Specification is Preliminary and can be changed without
prior notice

LCD Business

Samsung Electronics Co . , LTD.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Contents

Samsung Secret

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)

3.1 TFT LCD Module

3.2 Back Light Unit

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)

4.1 Input Signal & Power

4.2 . LS Bar Input Pin Configuration

4.3 LVDS Interface

4.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (16)

5.1 Timing Parameters (Stand Alone Mode)

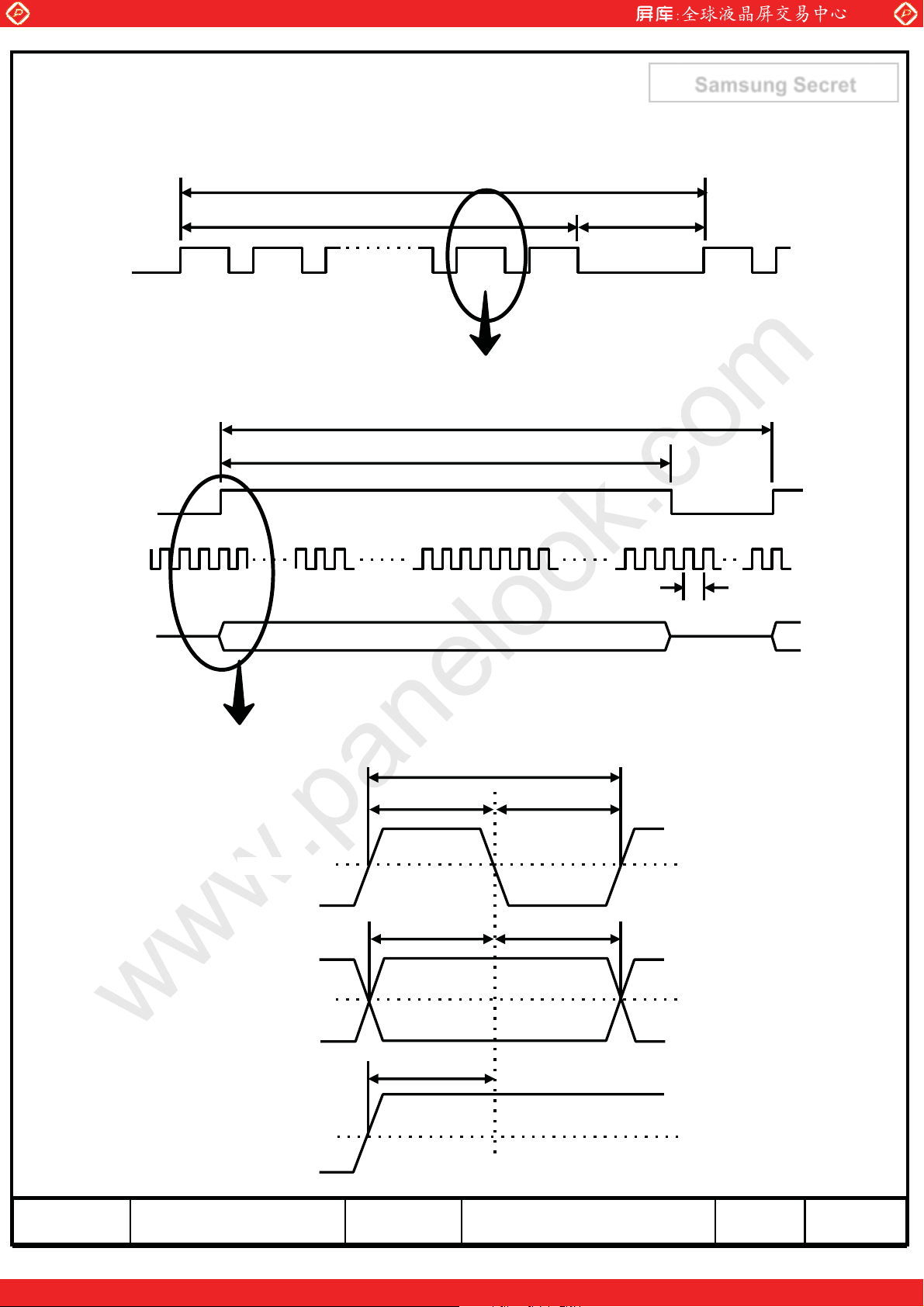

5.2 Timing Diagrams of interface Signal (DE mode)

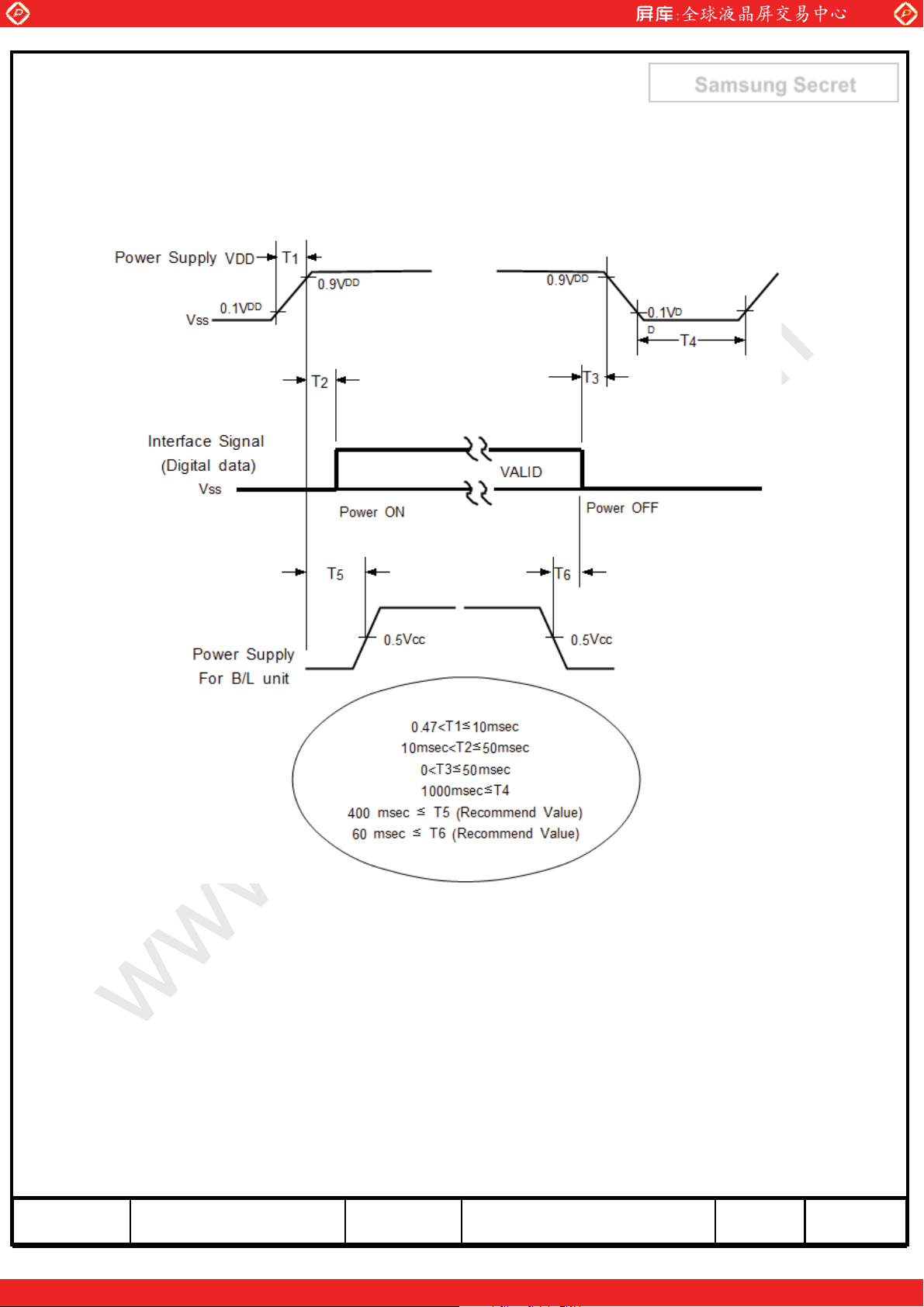

5.3 Power ON/OFF Sequence

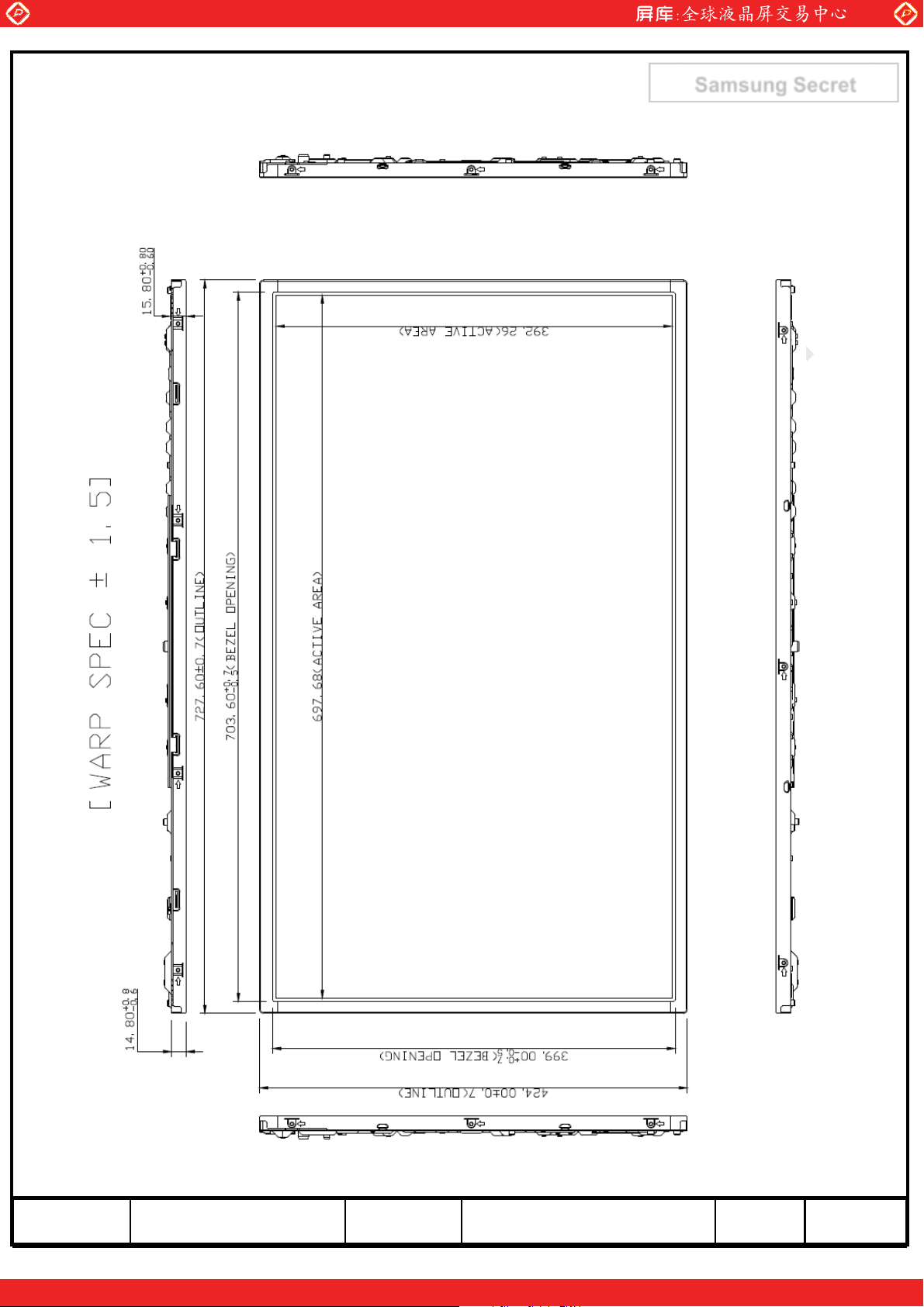

6. Outline Dimension -------------------------------------------------------------------------------------- (19)

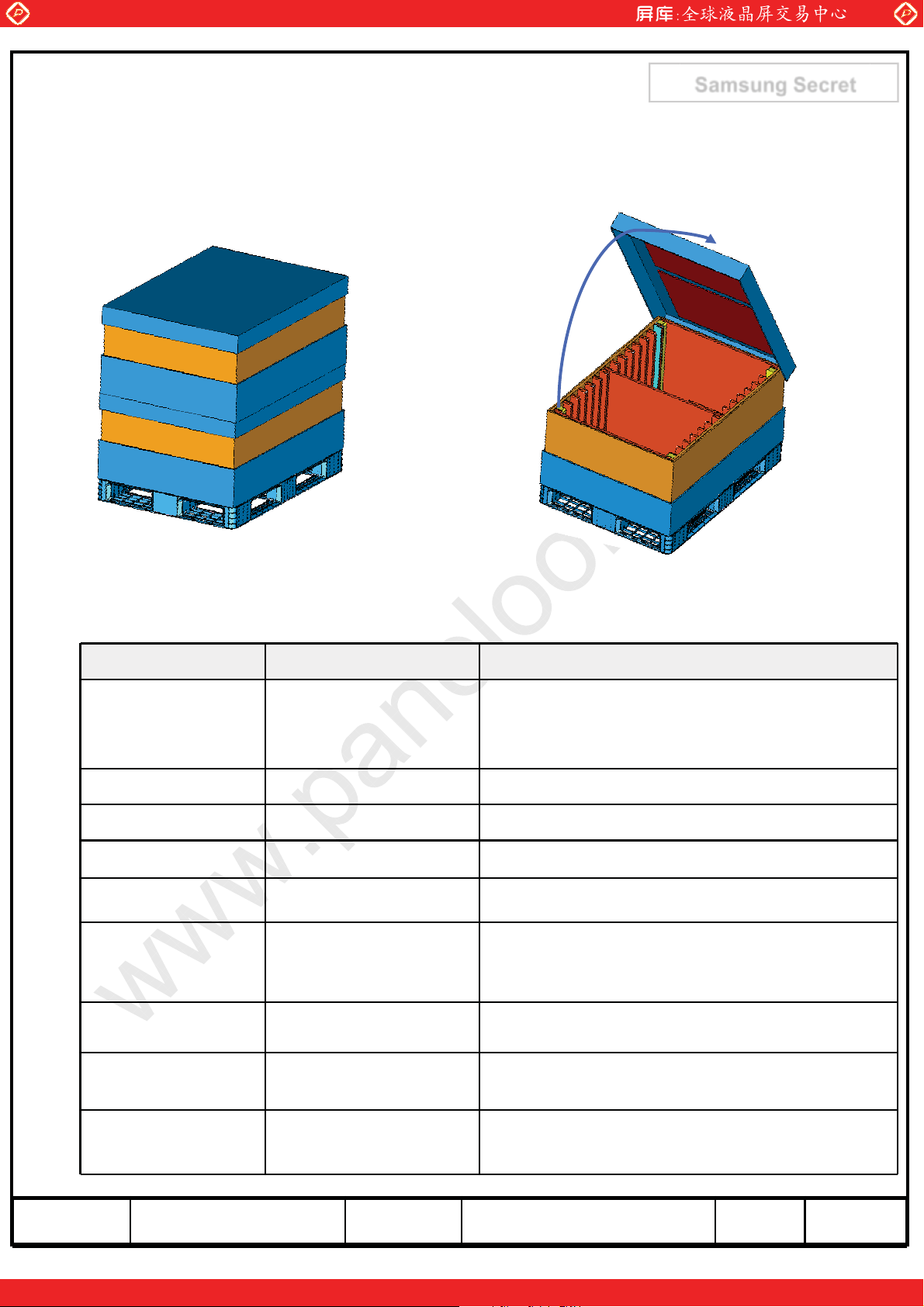

7. Packing -------------------------------------------------------------------------------------------------- (21)

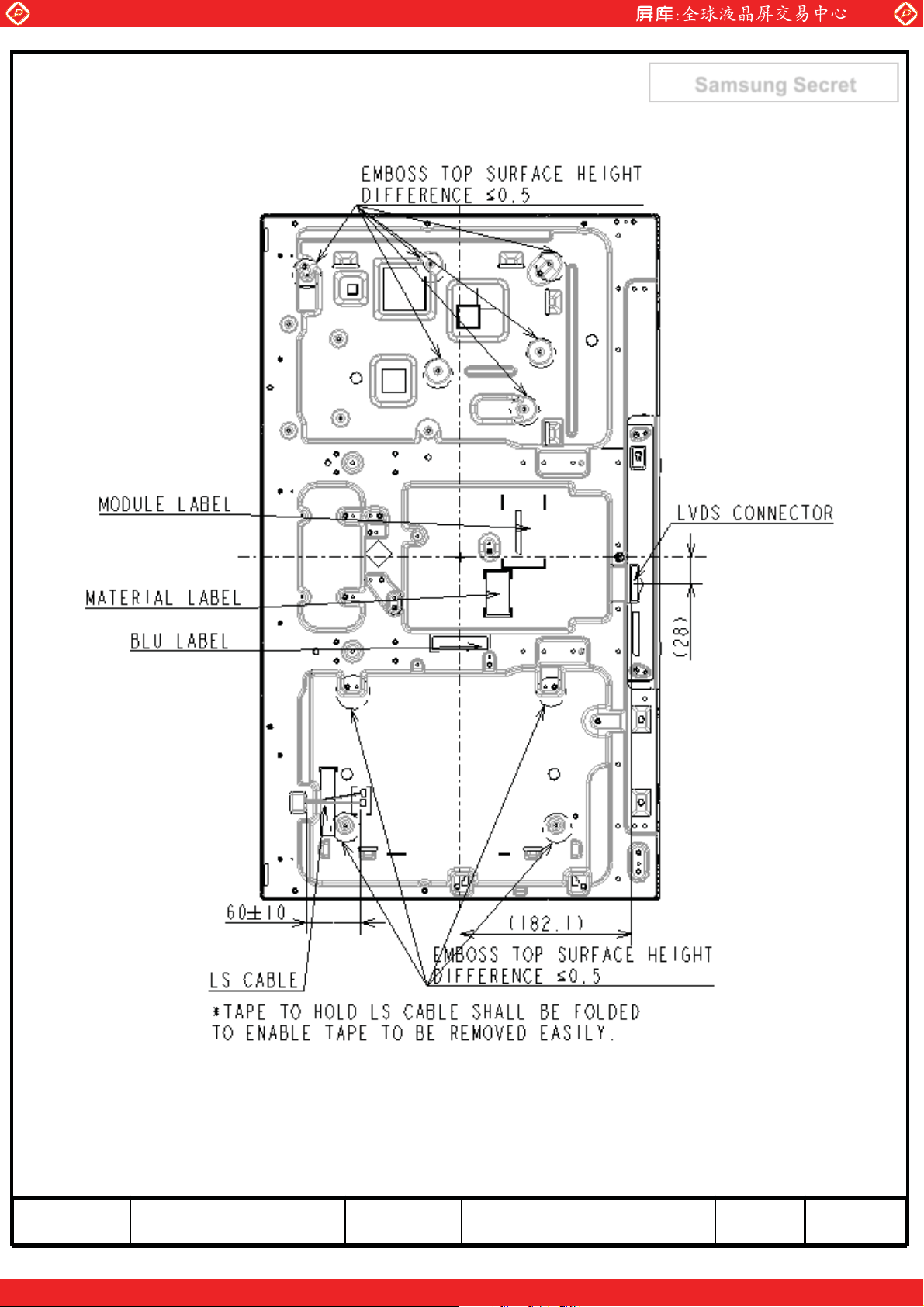

8. Marking & Others --------------------------------------------------------------------------------------- (22)

9. General Precaution ------------------------------------------------------------------------------------ (23)

9.1 Handling

9.2 Storage

9.3 Operation

9.4 Operation Condition Guide

9.5 Others

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/25

www.panelook.com

Global LCD Panel Exchange Center

* Revision History

www.panelook.com

Samsung Secret

Date

28. Mar.
2012

Rev.

No

000 - First Issued

Page Summary

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

General Description

Samsung Secret

Description

LTA320XXXX is a color active matrix liquid crystal display (LCD) that uses amorphous

silicon TFT(Thin Film Transistor) as switching components. This model is composed of a

TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0“ is 1366 x

768 and this model can display up to 16.7million colors with wide viewing angle of 89¶ or

higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display
terminals for AV application products, and High Definition TV (HDTV).

Features

 RoHS compliance (Pb-free)
 High contrast ratio, high aperture ratio, fast response time
 PVA mode
 Wide viewing angle (·89¶)
 WXGA (1366 x 768 pixels) resolution (16:9)
 Low Power consumption
 WLED (White Light Emitting Diode) Backlight
 LVDS (Low Voltage Differential Signaling) interface

General Information

Items Specification Unit Note

Module Size

Weight 5500(Max) g

Pixel Pitch

Active Display Area 697.6845(H) x 392.256(V) mm

Surface Treatment Haze 0.8%, Hard-coating (2H)

Display Colors 8 bit- 16.7M colors

Number of Pixels 1366 x 768 pixel

Pixel Arrangement RGB Horizontal stripe

Display Mode Normally Black

727.6(H

0.51075(H) Ý 0.17025 (V) * 3

) x 424.0(V

TYP

24.8(D

MAX

)

TYP

)

·1.0mm

mm

mm

Luminance of White 430 cd/m

2

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Typ.

4/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Samsung Secret

1. Absolute Maximum Ratings
1-1 Operating Condition

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

Item Symbol Min. Max. Unit Note

Power Supply Voltage V

Module Storage Temperature T

Operating Temperature T

Panel surface Temperature T

Shock ( non – operating ) S

Vibration ( non – operating ) V

Note (1) Ta= 25 · 2 ¶C

(2) Temperature and relative humidity range are shown in the figure below.

a. 93.8 % RH Max. (Ta ≤ 40 ¶C)
b. Maximum wet-bulb temperature at 40 ¶C or less. (Ta ≤ 40 ¶C)
c. No condensation

(3) Polarizer will not be damaged in this range, even though abnormal visual problems occur

in T

(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X, Y, Z axis

SUR

range.

DD

STG

OPR

SUR

NOP

NOP

GND-0.5 13 V(1)

-20 60

050

060

୅

୅

୅

- 50 G (4)

-1.5G(5)

(2)

(2)

(3)

(40, 93.8)

(50, 50.4)

Fig. Temperature and Relative humidity range

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

5/25

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2. Optical Characteristics

The optical characteristics should be measured in a dark room or equivalent.

Measuring equipment :

(LED Input Current = 110mA, Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

G-to-G

[AVE]

Red

Green

Blue

TOPCON BM-7,SPECTRORADIOMETER SR-3

=148.5MHz, Dim = 100%)

DCLK

C/R

Tg - 8 18 msec

Y

L

Rx

Ry 0.331

Gx 0.315

Gy 0.616

Bx 0.156

By 0.048

Normal

L,R=0

U,D=0

Viewing

Angle

*3000 5000 -

360 430 - cd/m

0.645

TYP.

-0.03

TYP.

+0.03

Samsung Secret

(3)

SR-3A

(5)

RD-80S

2

(6)

SR-3A

(7),(8)

SR-3A

White

Color Gamut - - 70 - %

Color Temperature - - 10000 - K (9)

Hor.

Viewing

Angle

Ver.

Brightness Uniformity

(9 Points)

* CR = (White at point ྜྷ of Note 2) / (Most Dark Point of Black Pattern at area ཿ of Note 2)

Wy 0.285



L



R



U



D

B

uni

C/R≥10

79 89 -

79 89 -

79 89 -

79 89 -

--30%

Degree

Note (1) Test Equipment Setup

Wx 0.280

(7)

SR-3A

(8)

EZ-Contrast

(4)

SR-3

The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

Single lamp current @ Vdim = 100%
Environment condition : Ta = 25 · 2 ¶C

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/25

www.panelook.com

Global LCD Panel Exchange Center

ྙ

ྚྛ

ྞ

ྡ

ྠ

ྜྷ ྜ

ྟ

www.panelook.com

Samsung Secret

Photo detector Field

SR-3

BM-7

TFT - LCD Module

Note (2) Definition of test point

1ദ

2ദ

Photo detector

Field

SR-3 : 50໅
BM-7 : 50໅

LCD Panel

The center of the screen

228 683 1138

128

384

640

Note (3) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel

CR

/

Area ཿ

455 911

G

max



G

min

Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black

256

512

Active Area

Test Point

CR Measured Area

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note (4) Definition of 9 points brightness uniformity

BB

Buni



Bmax : Maximum brightness
Bmin : Minimum brightness

Note (5) Definition of Response time : Sum of Tr, Tf

Display data

Optical Instruments

Response

(max min)

100

100%

90%

10%

0%



B

max

Black (data off)

White (data on)

T

R

Samsung Secret

White (data off)

T

F

Note (6) Definition of Luminance of White : Luminance of white at center point 䐣

Note (7) Definition of Color Chromaticity (CIE 1931)

Color coordinate of Red, Green, Blue & White at center point 䐣

Note (8) Definition of Viewing Angle

: Viewing angle range (C/R ≥10)

TIME

Note (9) Definition of 2 point Gamma

Gamma X Y

XZBBB

lum

Y Measurement Level Z Measurement Brightness

:/:

B Maximum Brightness B Minimum Brightness

max min



log log



  

 

min max min

100 100

lum

100

:/:

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Samsung Secret

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

Ta = 25¶C · 2 ¶C

Item Symbol Min. Typ. Max. Unit Note

Voltage of Power Supply V

(a) Black

Current

(b) White - 350 450

of Power
Supply

(c) Mosaic - 365 -

I

DD

DD

11 12 13 V (1)

- 375 -

(4) Max Pattern - 670 770

Vsync Frequency f

Hsync Frequency f

Main Frequency f

Rush Current I

V

H

DCLK

RUSH

47 60 63 Hz

45 48.6 53 kHz

65 80 86 MHz

--3A(4)

Note (1) The ripple voltage should be controlled under 10% of V

(2) f

V=60Hz, fDCLK = 148.5MHz, V

= 12.0V, DC Current.

DD

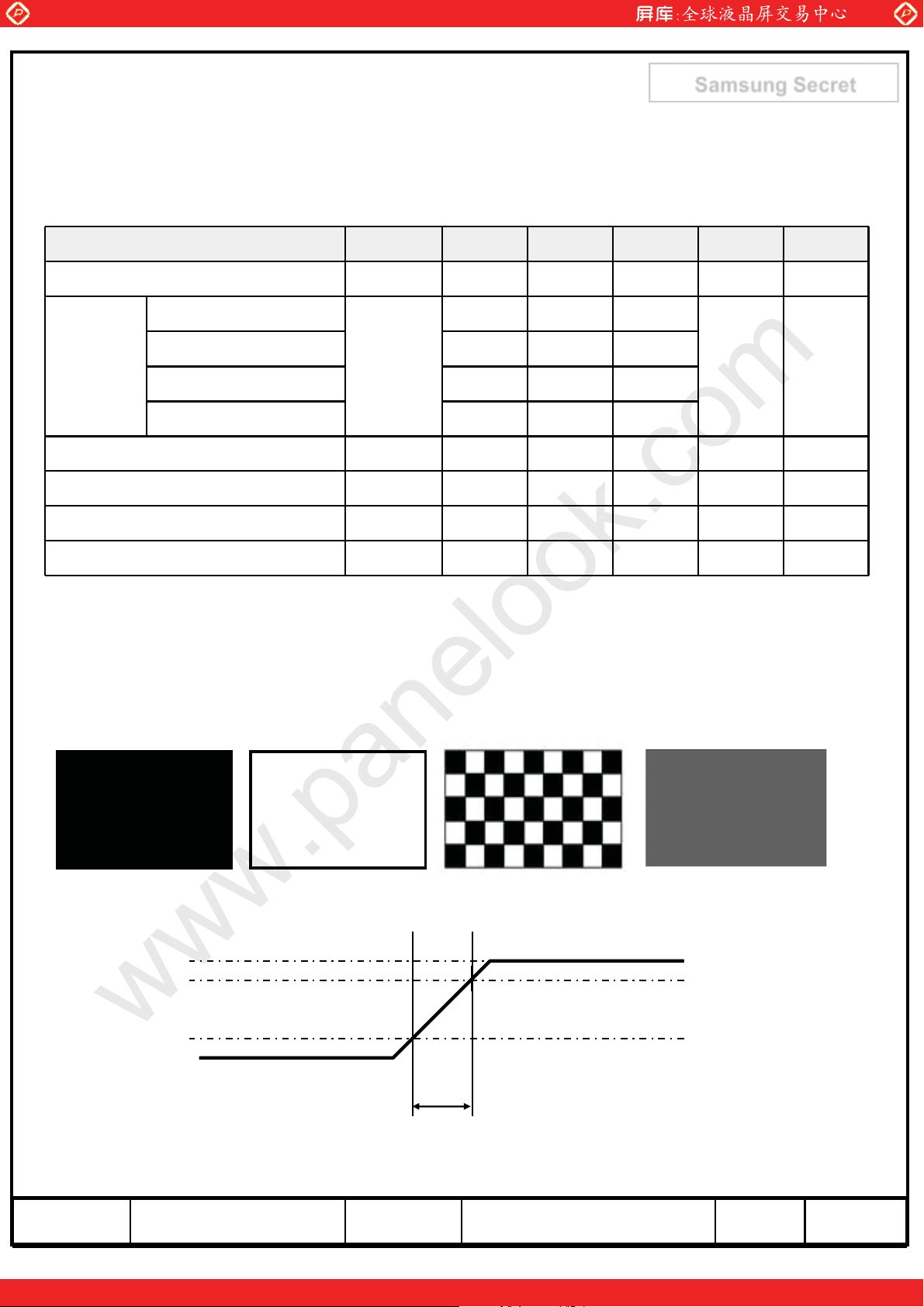

(3) Power dissipation check pattern (LCD Module only)

DD

mA (2),(3)

.

a) Black Pattern b) White Pattern c) Mosaic d) Max. Pattern

(4) Measurement Conditions

V

100%

DD

90%

10%
GND

Rush Current I

T

can be measured when T

RUSH

RUSH

=470us

RUSH

. is1ms

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.2 Back Light Unit

The back light contains 60 LEDs.
The characteristics of lamps are shown in the following tables.

Item Symbol Min. Typ. Max. Unit Note

Operating Life Time Hr 30,000 - - Hour (1)

Samsung Secret

Ta=25 · 2¶C

Operating

Current

Operating

Voltage

Range of Voltage

Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value at

each Srting, Iop=.110.0mArms

[Definition of Operating Voltage : At each Strings, I

Continuous I

Continuous V

op - 110 200 mA

op 171 - 194 V

⊿Vf

- - 11.5 V

= 140.0 mArms (typ.)]

op

@140mA
/ 30LEDs
@Tj 25୅

@110mA
/ 30LEDs
@Tj 25୅

@140mA
/ 30LEDs
@Tj 25୅

3.2.1 Review and Update for Electrical Specification

According to the improvement of efficiency for devices, the electrical specification would be revie
wed and revised after initial values had been established.This revision mentioned above should be
discussed at appropriate time.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

10/25

Global LCD Panel Exchange Center

www.panelook.com

5. Input Terminal Pin Assignment

Samsung Secret

5.1. Input Signal & Power of Control Board

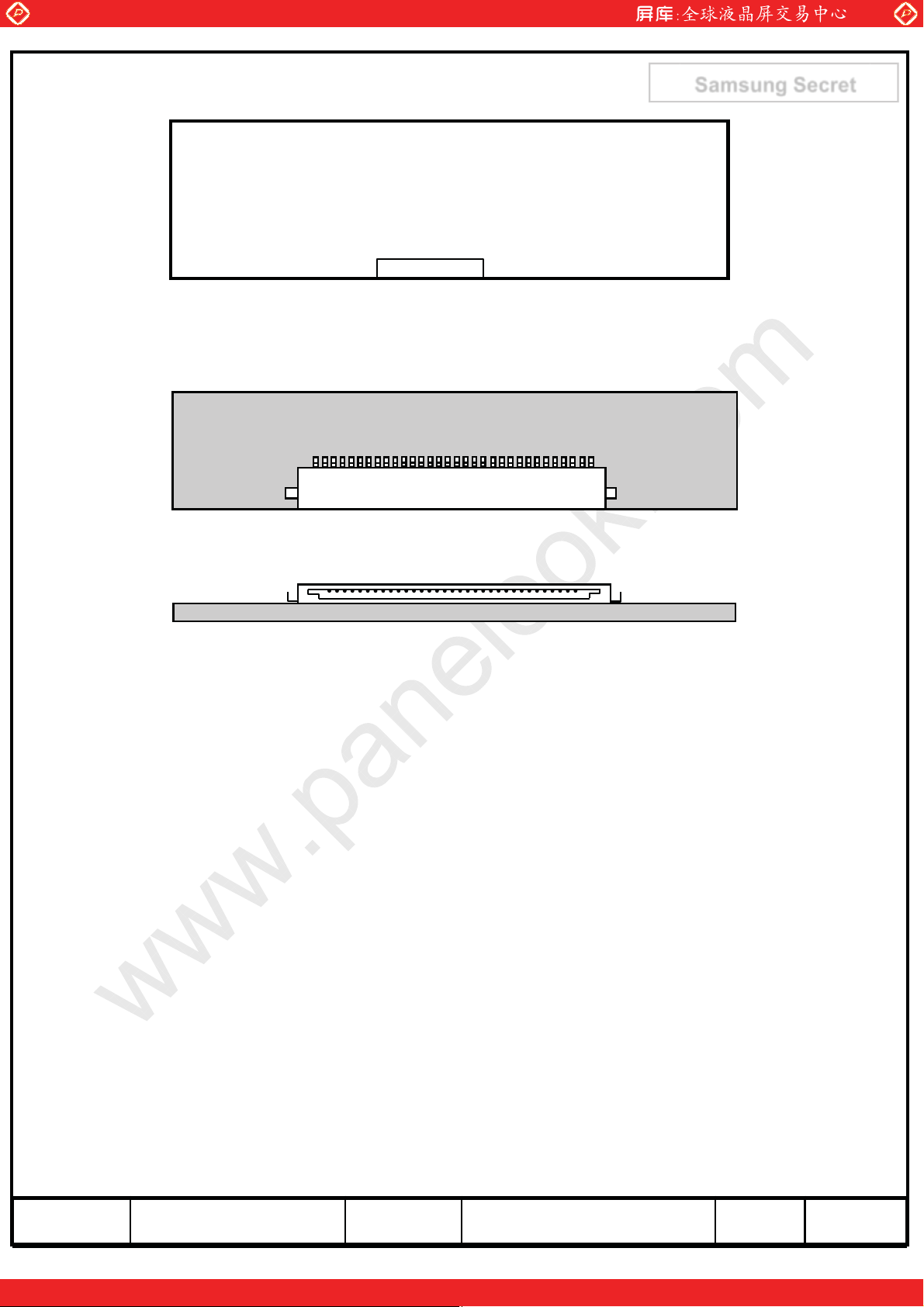

Connector : 196260-30041 (P-TWO Industries)

PIN No. Signal Description PIN No. Signal Description

1 N.C. No Connection 16 GND GND

2 SCL_I I2C Clock 17 LV3_NI Even LVDS Signal -

3 SDA_I I2C Data 18 LV3_PI Even LVDS Signal +

4 GND GND 19 GND GND

5 LV0_NI LVDS Signal - 20 N.C. No Connection

6 LV0_PI LVDS Signal + 21 LVDS_SEL LVDS Selection

7 GND GND 22 WPN Bus Release

8 LV1_NI LVDS Signal - 23 GND GND

9 LV1_PI LVDS Signal + 24 GND GND

10 GND GND 25 N.C. No Connection

11 LV2_NI LVDS Signal - 26 Power V

12 LV2_PI LVDS Signal + 27 Power V

13 GND GND 28 Power V

14 LVCLK_NI LVDS Clock - 29 Power V

15 LVCLK_PI LVDS Clock + 30 Power V

DD

DD

DD

DD

DD

 Option Pin Description

These pins are CMOS interface.
Please use within the range of the following restriction.
VIHஔ2.4V(min) / 3.5V(max)
VILஔ0.0V(min) / 0.4V(max))

SCL : Pull up 22Ω/ 4.7kΩ
SDA : Pull up 22Ω/ 4.7kΩ

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note(1) Pin number starts from Right side

PCB



Pin No. 1 Pin No. 30

#1

connect name

Samsung Secret

#30

#1

#30

Fig. Connector diagram

a. All GND pins should be connected together and also be connected to the LCD’s

metal chassis.

b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12/25

www.panelook.com

Global LCD Panel Exchange Center

5.2. LS Bar Input Pin Configuration

&211(&725  0RUH[

www.panelook.com

Samsung Secret

Pin

1 DC Voltage (+)

2 N.C.

3 N.C.

4

 &211(&725 0RUH[

Pin

1

2

3

4 Feedback

5 N.C.

Pin Configuration (Function)

DC Voltage (+)

Pin Configuration (Function)

Feedback

N.C.

N.C.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.3 LVDS Interface

TxOUT/RxIN0

TxOUT/RxIN1

Samsung Secret

LVDS pin JEIDA - Data Normal Data

TxIN/RxOUT0 R2 R0

TxIN/RxOUT1 R3 R1

TxIN/RxOUT2 R4 R2

TxIN/RxOUT3 R5 R3

TxIN/RxOUT4 R6 R4

TxIN/RxOUT6 R7 R5

TxIN/RxOUT7 G2 G0

TxIN/RxOUT8 G3 G1

TxIN/RxOUT9 G4 G2

TxIN/RxOUT12 G5 G3

TxIN/RxOUT13 G6 G4

TxIN/RxOUT14 G7 G5

TxIN/RxOUT15 B2 B0

TxOUT/RxIN2

TxOUT/RxIN3

TxIN/RxOUT18 B3 B1

TxIN/RxOUT19 B4 B2

TxIN/RxOUT20 B5 B3

TxIN/RxOUT21 B6 B4

TxIN/RxOUT22 B7 B5

TxIN/RxOUT24 HSYNC HSYNC

TxIN/RxOUT25 VSYNC VSYNC

TxIN/RxOUT26 DEN DEN

TxIN/RxOUT27 R0 R6

TxIN/RxOUT5 R1 R7

TxIN/RxOUT10 G0 G6

TxIN/RxOUT11 G1 G7

TxIN/RxOUT16 B0 B6

TxIN/RxOUT17 B1 B7

TxIN/RxOUT23 RESERVED RESERVED

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

DATA SIGNAL

COLOR

BASIC

COLOR

GRAY

SCALE

OF

RED

DISPLAY

(10bit)

BLACK 000000000000000000000000000000 -

BLUE 000000000000000000001111111111 -

GREEN 000000000011111111110000000000 -

CYAN 000000000011111111111111111111 -

RED 111111111000000000000000000000 -

MAGENTA111111111100000000001111111111 -

YELLOW 111111111111111111110000000000 -

WHITE 111111111111111111111111111111 -

BLACK 000000000000000000000000000000 R0

DARK

↑

↓

LIGHT

R0R1R2R3R4R5R6R7R8R9G0G1G2G3G4G5G6G7G8G9B0B1B2B3B4B5B6B7B8B

100000000000000000000000000000 R1

010000000000000000000000000000 R2

:::::: :: :::: :: ::: :

:::::: :: :::: :: ::: :

101111111100000000000000000000 R1021

011111111100000000000000000000 R1022

RED GREEN BLUE

Samsung Secret

GRAY
SCALE
LEVEL

9

R3~

R1020

GRAY

SCALE

OF

GREEN

GRAY

SCALE

OF

BLUE

RED 111111111100000000000000000000

BLACK 000000000000000000000000000000 G0

000000000010000000000000000000 G1

DARK

↑

↓

LIGHT

GREEN 000000000011111111110000000000 G1023

BLACK 000000000000000000000000000000 B0

DARK

↑

↓

LIGHT

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023

000000000001000000000000000000 G2

:::::: :::::: :: ::: :

:::::: :::::: :: ::: :

000000000010111111110000000000 G1021

000000000001111111110000000000 G1022

000000000000000000001000000000 B1

000000000000000000000100000000 B2

:::::: :::::: ::::::

:::::: :::::: ::::::

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022

R1023

G3~

G1020

B3~

B1020

Note) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15/25

www.panelook.com

Global LCD Panel Exchange Center

7. Interface Timing

7.1 Timing Parameters ( DE mode )

SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE

www.panelook.com

Samsung Secret

Clock

Hsync F

Frequency

Vsync F

1/T

C

H

V

65 80 86 MHz -

45 48.6 53 KHz -

47 60 63 Hz -

Active

768 768 768 lines -

Vertical

Display

Period

T

VD

Display Term

Vertical

Total

T

VB

775 810 1300 Lines -

Active

1366 1366 1366 clocks -

Horizontal

Display

Period

T

HD

Display Term

Horizontal

Total

T

H

1450 1648 2000 clocks -

Note) This product is DE only mode. The input of Hsync & Vsync signal does

not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal V

DD = 3.3V

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

7.2 Timing diagrams of interface signal ( DE mode )

TV

Samsung Secret

DE

DE

DCLK

DATA

SIGNALS

TVD

TVB

TH

THD

TC

DCLK

DISPLAY

DATA

DE

TC

TCH

TDS TDH

TES

TCL

0.5
V

0.5
V

0.5
V

CC

CC

CC

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

7.3 Power ON/OFF Sequence

To prevent a latch-up or DC operation of the LCD Module, the power on/off

sequence should be as the diagram below.

Samsung Secret

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of V

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.

= off level,

DD

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

8.1 Outline Dimension
a. Front View

Samsung Secret

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

8.1 Outline Dimension
b. Rear View

Samsung Secret

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

12. PACKING

12.1 CARTON (Internal Package)

(1) Packing Form

Corrugated fiberboard box and corrugated cardboard as shock absorber

(2) Packing Method

Packing Box

Module(52EA)

Samsung Secret

Pallet

→ Direction be able to Open

12.2 Packing Specification

Item Specification Remark

LCD Packing

Desiccant (Drier) 4ea / LCD 10g/ea, Cobalt-dichloride-free

Pallet 2Box / Pallet Pallet weight : 5.3kg

Packing Direction Vertical -

Total Pallet Size L x W x Height 1150mm x 850mm x 1085mm

Total Pallet Weight 297kg

26ea / (Packing Box)

1. 260kg/LCD(52ea)

2. 30kg/Packing Box(2set)

3. Packing Box Material : Paper

Pallet(5.3kg) + Module( 52 x 5kg = 260kg) +
Packing BOX(15 x 2 = 30kg) +
Desiccant(0.03kg x 52 = 1.56kg)

Stack Layer

Shielding Bag

POL Protection

Film

3 layer in warehouse.

2 layer in container.

Compound PE /

Sealing / 70༁

PET / 0.125mm Material / Thickness

Material / Adhesive tape / Thickness

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Samsung Secret

13. MARKING & OTHERS

A nameplate bearing followed by is affixed to a shipped product at the specified

location on each product.

(1) Parts number : LTY[Z]320AN03-XXX
(2) Revision: One letters
(3) Lot number : X X X X XXX

(4) Nameplate Indication

XX X

Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line

LTY[Z]320AN03

[[[[[[

LTY[Z]320AN03XXX

(5) Packing box attach

LTY[Z]320AN03-XXX

Week code : 05 29

week
year

40mm

[[[[[[[[[[#########{{{

Revision code

Lot number

80mm

100mm

Part number

XXXX

Revision code

26

Box serial number

0703

(6) Others

1. After service part
Lamps cannot be replaced because of the narrow bezel structure.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

14. General Precautions

Samsung Secret

14.1 Handling

(a) When the Module is assembled, it should be attached to the system firmly

using all mounting holes. Be careful not to twist and bend the Module.

(b) Because the inverter use high voltage, it should be disconnected from power

before it is assembled or disassembled.

(c) Refrain from strong mechanical shock and / or any force to the Module.

In addition to damage, this may cause improper operation or damage to the Module
and back light.

(d) Note that polarizers are very fragile and could be damage easily.

Do not press or scratch the surface harder than a HB pencil lead.

(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.

(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.

(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.

(h) If the liquid crystal material leaks from the panel, it should be kept away

from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.

(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.

(j) Use finger-stalls with soft gloves in order to keep display clean during the

incoming inspection and assembly process.

(k) Do not disassemble the Module.

(l) Do not pull or fold the LED FFC.

(m) Do not adjust the variable resistor located on the Module.

(n) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized.

(o) Pins of I/F connector should not be touched directly with bare hands.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

14.2 Storage

Samsung Secret

(a) Do not leave the Module in high temperature, and high humidity for a long time.

It is highly recommended to store the Module with temperature from 5 to 40୅
and relative humidity of less than 70%.

(b) Do not store the TFT-LCD Module in direct sunlight.

(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or

fluorescent light in storing.

(d) Storage period is recommended not to exceed 1 year.

14.3 Operation

(a) No Connection or disconnect the Module in the "Power On" condition.

(b) Power supply should always be turned on/off by the "Power on/off sequence"

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.

(d) The cable between the back light connector and its Converter power supply should

be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of LED and
may require higher startup voltage(Vs).

14.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20·15୅

- Humidity : 55·20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at

Airports, Transit Stations, Banks, Stock market, and Controlling systems.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/25

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

14.5 Others

Samsung Secret

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SEC in advance when you display the same pattern for a long time.

MODEL LTA320XXXX_HD60 Doc. No 05-000-G-20120328 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25/25

www.panelook.com
