GENERAL DESCRIPTION
DESCRIPTION
LTN156AT19 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices.
This model is composed of a TFT LCD panel, a driver circuit and a backlight unit.
The resolution of a 15.6” contains 1366 x 768 pixels and can display up to 262,144colors.
6 O'clock direction is the optimum viewing angle.
FEATURES
• High contrast ratio
• HD(1366 x 768 pixels ) resolution
• Fast Response
• LED Back Light with embedded LED Driver
• DE (Data enable) only mode
• 3.3V LVDS Interface
• Onboard EEDID chip
www.panelook.com
Approval
APPLICATIONS
• Notebook PC
• If the usage of this product is not for PC application, but for others, please contact SEC
GENERAL INFORMATION
Item Specification Unit Note
Display area 344.232 (H) x 193.536 (V) (15.6”diagonal)
Driver element
Display colors
Number of pixel
Pixel arrangement
Pixel pitch 0.252 (H) x 0.252 (V) (TYP.)
a-Si TFT active matrix
262,144
1366 * 768 pixel
RGB vertical stripe
mm
mm
Display Mode
Surface treatment
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Normally white
ڣڼەۀٻڍڐڀڇٻڣڼۍڿۉۀێێٻڍڣ
04-A00-G-111011
A/G
Page
/ 31LTN156AT19-W
4
www.panelook.com
Page 5
Global LCD Panel Exchange Center
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 358.8 359.3 359.8 mm
Module
size
Note (1) Measurement condition of outline dimension
Vertical (V) 209.0 209.5 210.0 mm
Depth (D)
Weight - - 430 g
. Equipment : Bernier Calipers
. Push Force : 500g f (minimum)
- - 4.0 mm
1. ABSOLUTE MAXIMUM RATINGS
1.1 ENVIRONMENTAL ABSOLUTE RATINGS
www.panelook.com
Approval
Item Symbol Min. Max. Unit Note
Storage temperate TSTG -20 60 qC(1)
Operating temperate
(Temperature of glass surface)
Shock ( non-operating ) Snop - 240 G (2),(4)
Vibration (non-operating) Vnop - 2.41 G (3),(4)
Note (1) Temperature and relative humidity range are shown in the figure below.
95 % RH Max. (40 qC t Ta)
Maximum wet - bulb temperature at 39
100
90
80
60
40
20
TOPR 0 50 qC(1)
O
C or less. (Ta ! 40 qC ) No condensation
Relative Humidity ( %RH)
( 40,90 )
Operating Range
( 50,50.4 )
( 60,27.7 )
Storage Range
5
0
-40 -20 0 20 40 60 80
O
Temperature (
C)
(2) 2ms, half sine wave, one time for rX, rY, r Z.
(3) 5 - 500 Hz, random vibration, 30min for X, Y, Z.
(4) At testing Vibration and Shock, the fixture in holding the Module to be tested have to be
hard and rigid enough so that the Module would not be twisted or bent by the fixture.
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 31LTN156AT19-W
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD MODULE
Item Symbol Min. Max. Unit Note
www.panelook.com
Approval
V
DD =3.3V, VSS = GND = 0V
Power Supply Voltage V
Logic Input Voltage V
Note (1) Within Ta (25 r 2 qC)
DD VDD - 0.3 VDD + 0.3 V (1)
IN VDD - 0.3 VDD + 0.3 V (1)
(2) BACK-LIGHT UNIT
Item Symbol Min. Typ. Max. Unit Note
LED Current I
LED Voltage V
Note 1) Permanent damage to the device may occur if maximum values are exceeded
Functional operation should be restricted to the conditions described under normal operating conditions.
L -22-
L - 3.2 - V (1)
Ta = 25 r 2 qC
mArm
s
(1)
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 31LTN156AT19-W
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
2. OPTICAL CHARACTERISTICS
The following items are measured under stable conditions. The optical characteristics
should be measured in a dark room or equivalent state with the methods shown in Note (5).
Measuring equipment : TOPCON SR-3
www.panelook.com
Approval
* Ta = 25 r 2 qC, VDD=3.3V, fv= 60Hz, fDCLK = 70.7MHz, IF = 100% duty
Item Symbol
Contrast Ratio
(5 Points)
Response Time at Ta
( Rising + Falling )
Average Luminance
of White (5 Points)
Red
Green
Color
Chromaticity
( CIE )
Blue
White
Conditio
n
CR
RT - 16 25 msec (1), (3)
T
Min. Typ. Max Unit Note
300 - - - (1), (2), (5)
IF=100%
L,AVE 200 220 - cd/m
Y
2
Normal
X
R
Viewing
0.570
Angle
Y 0.340
R
G
X 0.330
Y 0.560
G
X 0.160
B
Y 0.135
B
W
X 0.313
W
Y 0.329
I = 0
T = 0
Typ-
0.03
Typ
+0.03
-
duty
(1), (4)
(1), (5)
SR-3
L
T
40 45 -
Hor.
Viewing
Angle
Ver.
H
T
H
I
L
I
CR t 10
At center
40 45 -
15 15 -
30 30- -
Degrees
Color Gamut CG - 45 - %
13 Points
White Variation
G
L
- - 2.0 - (6)
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 31LTN156AT19-W
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
d
www.panelook.com
Note 1) Definition of Viewing Angle : Viewing angle range(10
C/R)
Normal Line
I = 0
o
,
T = 0
o
T L
T R
TL =90
o
x
I L
I H
y
12 O’clock
direction
IH= 90
6 O’clock
direction
o
IL= 90
x'y'
=90
T
R
Note 2) Definition of Contrast Ratio (CR) : Ratio of gray max (Gmax) ,gray min (Gmin)
at 5 points(4, 5, 7, 9, 10)
CR(4) + CR(5) + CR(7) + CR(9) + CR(10)
CR =
5
Approval
o
o
Points : , , , , at the figure of Note (6).
4 9
5
7
10
Note 3) Definition of Response time :
Display data
White(TFT OFF)
TR
Black(TFT ON)
White(TFT OFF)
TF
100%
90%
Optical
Response
10%
0%
Note 4) Definition of Average Luminance of White : measure the luminance of white at 5 points.
25%
50% 75%
VIEW AREA
Average Luminance of White ( Y
L,AVE )
10
9
25%
Time
L4 + YL5 + YL7 + YL9 + YL10
Y
7
YL,AVE =
5
5
4
(lines)
: test point
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
50%
75%
Page
/ 31LTN156AT19-W
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Note 5) After stabilizing and leaving the panel alone at a given temperature for 30 min , the measurement
should be executed. Measurement should be executed in a stable, windless,and dark room.
30 min after lighting the backlight. This should be measured in the center of screen.
IF current : 22mA
Environment condition : Ta = 25 r 2 qC
Photo-detector
( TOPCON SR-3 )
www.panelook.com
= 2q
Field
Approval
50 cm
TFT-LCD module
Center of the screen
[ Optical characteristics measurement setup ]
Note 6) Definition of 13 points white variation (G L ), CR variation( CVER ) [ ~ ]
Maximum luminance of 13 points
LCD panel
113
G L =
Minimum luminance of 13 points
10mm
11
25%
10mm
10mm
13 12
25% 50% 75%
10
9
8
5
3
10mm
Samsung Secret
Doc.No. Rev.No
7
4
2
04-A00-G-111011
6
50%
75%
(lines)
1
: test point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 31LTN156AT19-W
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Differential Input
High V
Voltage for LVDS
Receiver Threshold
Low V
Vsync Frequency fv - 60 - Hz
Main Frequency f
Rush Current I
White
Current of Power
Supply
Mosaic - 230 - mA
DD 3.0 3.3 3.6 V
IH --+100mVVCM = +1.2V
IL -100 - - mV
DCLK 66.14 70.7 83.88 MHz -
RUSH - - 1.5 A (4)
IDD
Approval
Ta= 25 r 2qC
- 230 - mA
*a),b),c)
V.stripe - 300 350 mA
Note (1) Display data pins and timing signal pins should be connected.( GND = 0V )
(2) f
V = 60Hz, fDCLK = 72.33MHZ, VDD = 3.3V , DC Current.
(3) Power dissipation pattern
*a) White Pattern *b) Mosaic Pattern
VIEW AREA
Display Brightest Gray Level
Display Darkest Gray Level
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
10
/ 31LTN156AT19-W
www.panelook.com
Page 11
Global LCD Panel Exchange Center
*c) 1dot Vertical stripe pattern
www.panelook.com
Approval
RGB R G B R GB R G
GBRGBRGB RG
R
R
GBRGBRGB RG
RGB R G B R GB R G

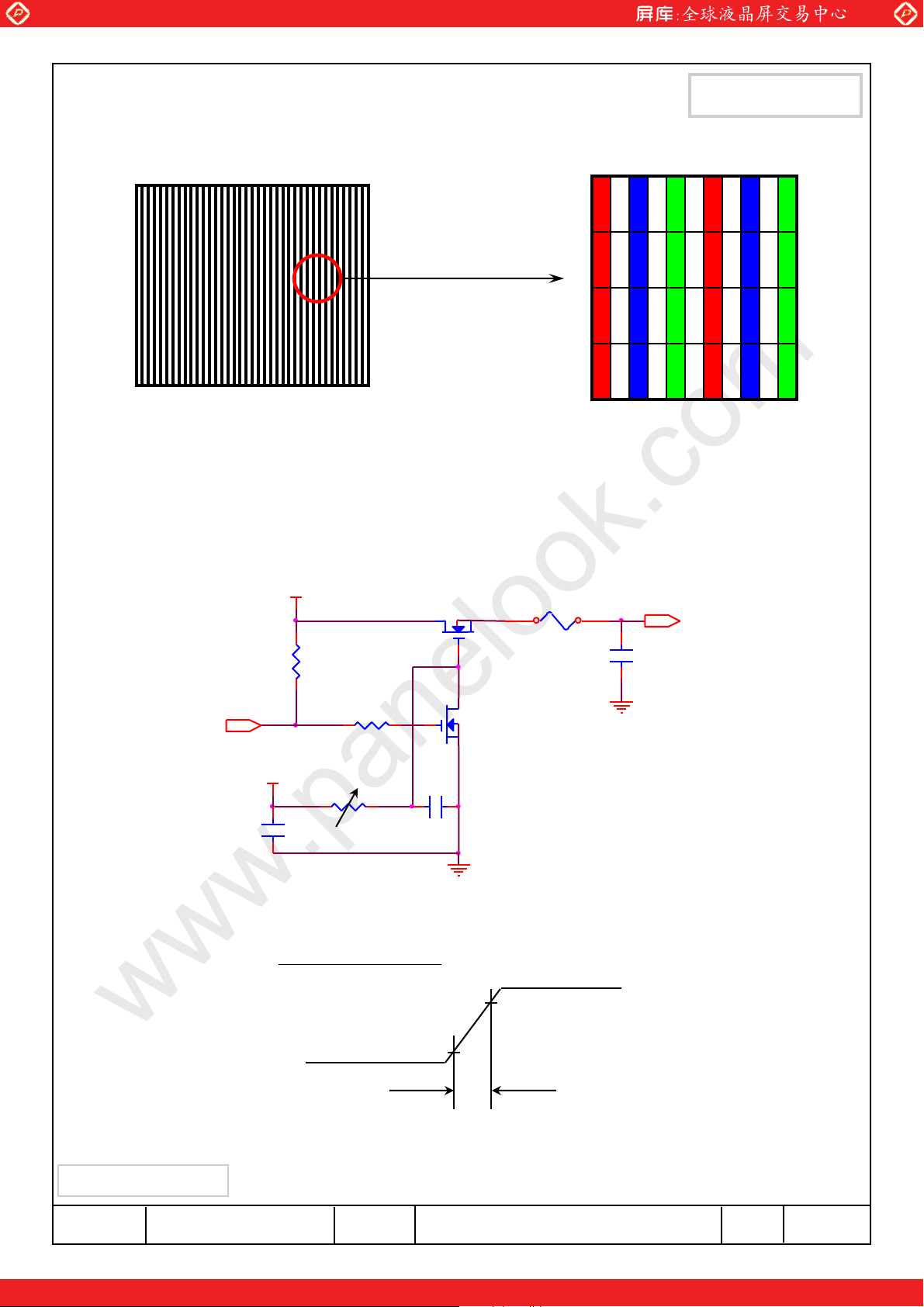

4) Rush current measurement condition
3.3V
R1
47K
CONTROL SIGNAL
(HIGH to LOW)
12V
C3
1uF
V
DD rising time is 470us
R2
1K
R3
47K
M1
2SK1059
C2
10000pF
0.9VDD
M2
2SK1399
FUSE
VDD ( LCD INPUT)
C1
1uF
3.3V
0.1VDD
GND
470us
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
11
/ 31LTN156AT19-W
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3.2 LED Driver
www.panelook.com
Approval
- On board LED Driver (Intersil)
Item- Symbol Min. Typ. Max. Unit Note
Input Voltage V
Input Current I - 270 - mA -
power consumption P
EN control level
PWM control level
PWM Control Duty
Ratio
External PWM
Dimming Control
Frequency (BLIM)
Operating Life Time Hr 10,000 - - Hour
in 71220V -
- 0.9 1.0 W @ 60nit
- 3.3 3.5 W @ Max
ON 2.0 - - V
OFF - - 0.8 V
ON 2.0 - - V
OFF - -
D
BLIM 0.2 1 10 kHz
F
5 - 100 % PWM freq : 200Hz~10KHz
10 - 100 PWM freq : 1KHz~10KHz
0.8 V
Ta= 25 r 2 qC
Note (1) Life time (Hr) of LEDs can be defined as the time in which it continues to operate under the
condition Ta= 25 r 2 qC and IF = 22mA
When the brightness becomes 50% or lower than the original.
rms until one of the following event occurs.
3.3 BACK-LIGHT UNIT
Ta= 25 r 2 qC
Item Symbol Min. Typ. Max. Unit Note
LED Forward Current IF - 22 - mA
LED Forward Voltage VF 3.0 3.2 3.4 V
LED Array Voltage VP - 36 - V
BL consumption P - - 3.3 W
@ MAX
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
12
/ 31LTN156AT19-W
www.panelook.com
Page 13
Global LCD Panel Exchange Center

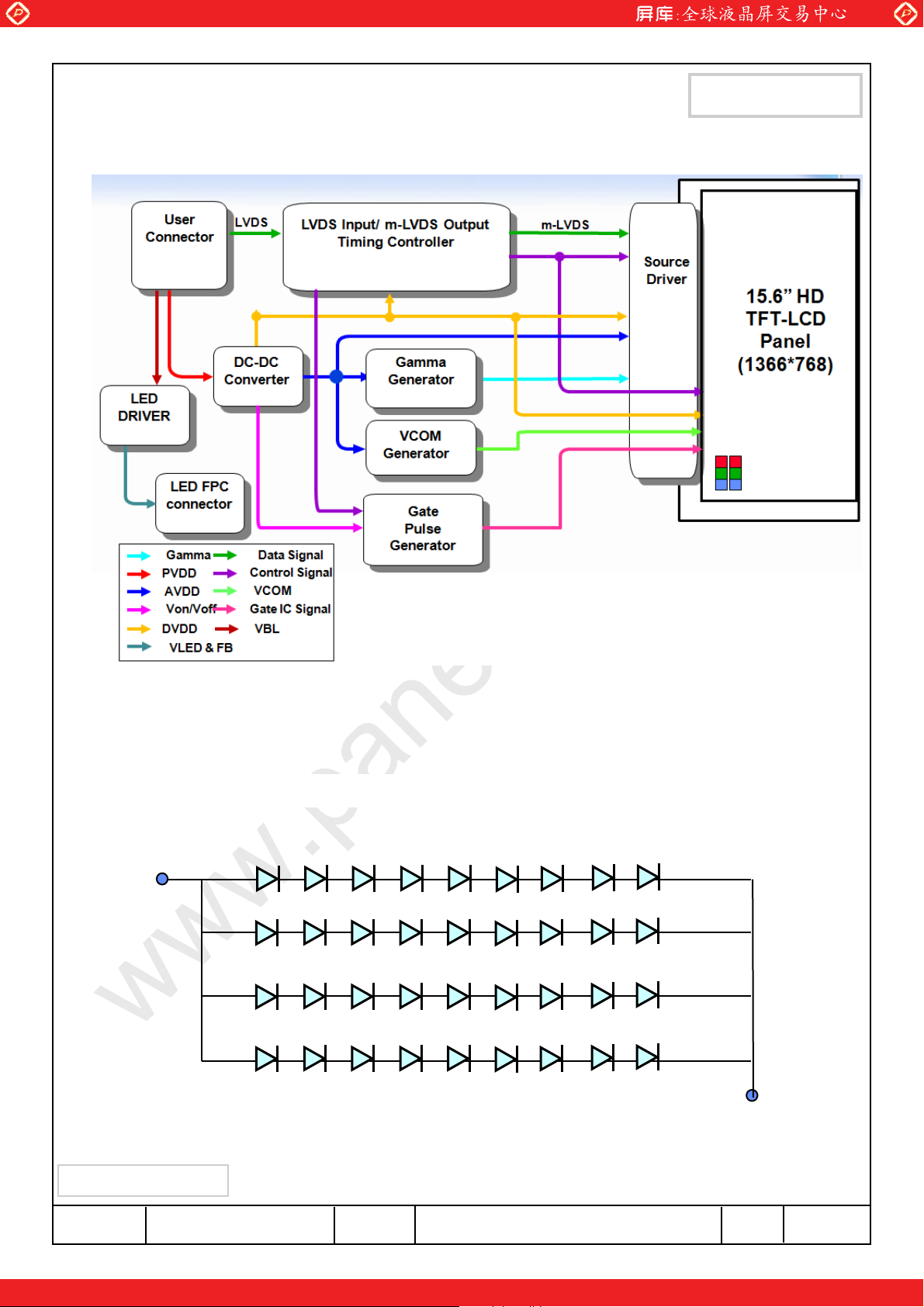

4. BLOCK DIAGRAM
4.1 TFT LCD Module
www.panelook.com
Approval
4.2 LED placement structure
D1 D2 D3 D4 D5 D6
Anode
Samsung Secret
Doc.No. Rev.No
D7
D8
04-A00-G-111011
D9
Page
Cathode
/ 31LTN156AT19-W
13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
5. INPUT TERMINAL PIN ASSIGNMENT
Approval
5.1. Input Signal & Power (LVDS, Connector : I-PEX 20455-#40E-## or equivalent )
No. Symbol Function Polarity Remarks
1 NC No Connection (Reserved for supplier)
2 AVDD
3 AVDD
4DVDD
5NC
6SCL
7SDA
8
9 RIN0+
10 GND
11 RIN1-
RIN0-
Power Supply 3.3V (typical)
Power Supply 3.3V (typical)
DDC 3.3V power
No Connection
DDC Clock
DDC data
-LVDS differential data input (R0-R5, G0)
+LVDS differential data input (R0-R5, G0)
Ground
-LVDS differential data input (G1-G5, B0-B1)
Negative
Positive
Negative
12 RIN1+
13 GND
14 RIN2- -LVDS differential data input (B2-B5, HS, VS, DE)
15 RIN2+
16 GND
17 CLK- -LVDS differential clock input
18 CLK+ +LVDS differential clock input
19 GND Ground
20 NC No connection
21 NC No connection
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC
+LVDS differential data input (G1-
Ground
+LVDS differential data input (B2-B5, HS, VS, DE)
Ground
No connection
G5, B0-B1)
Positive
Negative
Positive
Negative
Positive
27 NC No connection
28 GND Ground
29 NC No Connect
30 NC No Connect
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
14
/ 31LTN156AT19-W
www.panelook.com
Page 15
Global LCD Panel Exchange Center
No. Symbol Function Polarity Remarks
31 VSSLED Ground ˀ LED
32 VSSLED Ground ˀ LED
33 VSSLED Ground ˀ LED
34 NC No Connect
35 PWM System PWM Signal Input (+3.3V Swing)
36 LED_EN LED enable pin (+3.3V Input)
37 NC No Connect
38 VDDLED LED power
39 VDDLED LED power
40 VDDLED LED power
www.panelook.com
Approval
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
15
/ 31LTN156AT19-W
www.panelook.com
Page 16
Global LCD Panel Exchange Center
5.2 LVDS Interface
5.2.1 LVDS DC Input
ڤگڠڨ ڮڴڨڝڪڧ ڨڤکډ گڴګډ ڨڜڳډ ڰکڤگ کڪگڠ
www.panelook.com
Approval
ڧڱڟڮٻڟۄہہۀۍۀۉۏۄڼۇٻ
ڱۊۇۏڼۂۀ
ڤۉۋېۏٻڞۊۈۈۊۉٻڨۊڿۀٻ
ڱۊۇۏڼۂۀ
ڱڤڟ
ڱ
ڞڨ

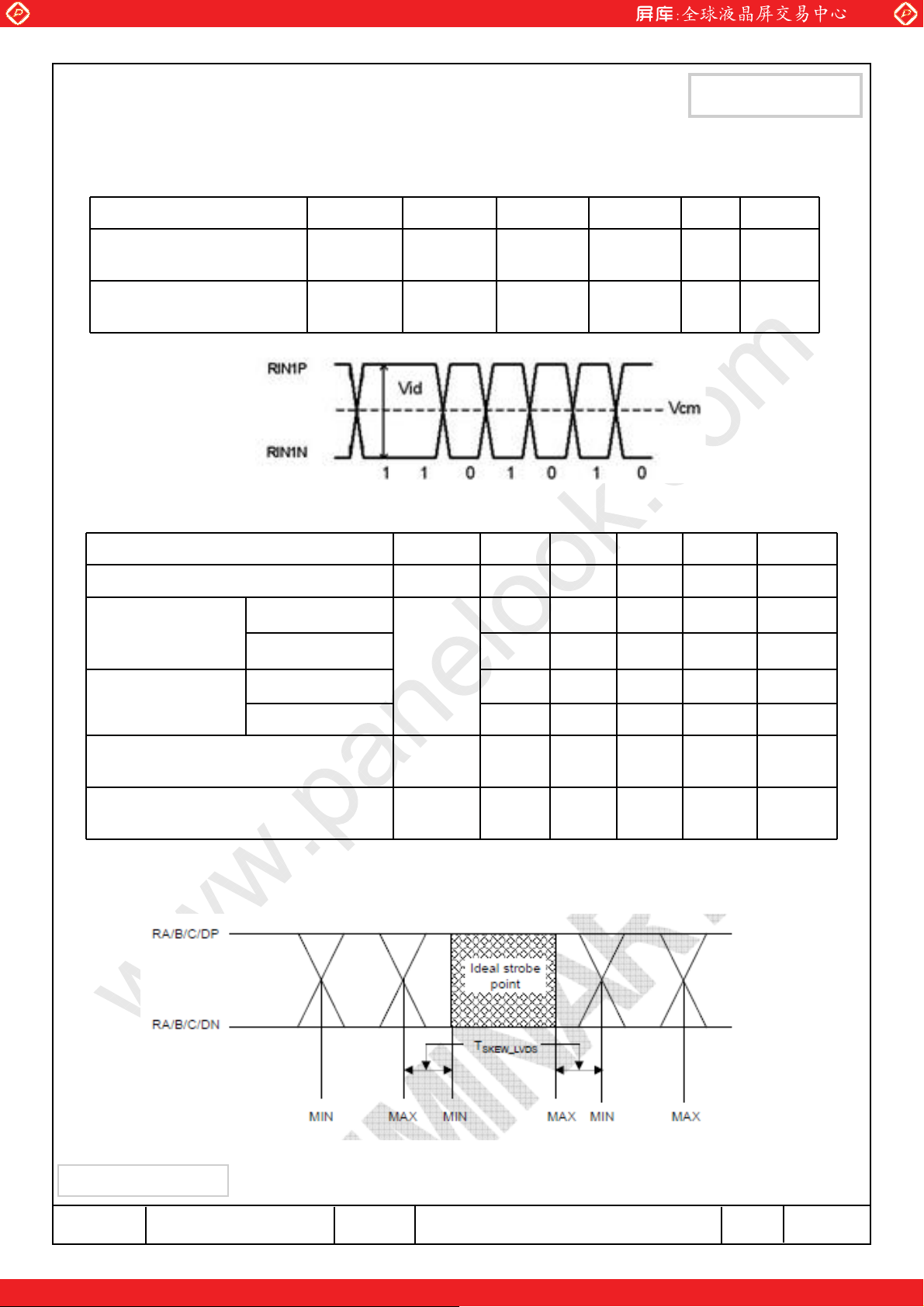

5.2.1 LVDS AC Input
ڤگڠڨ ڮڴڨڝڪڧ ڨڤکډ گڴګډ ڨڜڳډ ڰکڤگ کڪگڠ
ڧڱڟڮٻۄۉۋېۏٻڞۇۊھۆٻڡۍۀیېۀۉھ۔ ڡ
ڧڱڟڮٻڭڳٻێۆۀےٻ
ڭۄۂۃۏٻۈڼۍۂۄۉ
ڧڱڟڮٻڭڳٻێۆۀےٻ
ڧۀہۏٻۈڼۍۂۄۉ
ڌڋڋڨڣە
ڐڋڨڣە ڈ ڈ ڒڋڋ ۋێ ڃڌڄڇڃڍڄ
ڌڋڋڨڣە ڈڍڒڋ ڈ ڈ ۋێ
ڐڋڨڣە ڈڒڋڋ ڈ ڈ ۋێ ڃڌڄڇڃڍڄ
ڍڋڋ ڈ ڑڋڋ
ڋډڏ ڌډڍ ڌډڒ ڱ
ڞڧڦںڧڱڟڮ
ڎڋ ڌڋڋ ڨۃە
ڈ ڈ ڍڒڋ ۋێ ڃڌڄڇڃڍڄ
گ
ڭڮڭڨ
ۈڱ
ڃڌڄڇڃڍڄ
ڨڼۓۄۈېۈٻڿۀۑۄڼۏۄۊۉٻۊہٻڧڱڟڮٻۄۉۋېۏ
ھۇۊھۆٻڿېۍۄۉۂٻڮڮڞڢ
ڨۊڿېۇڼۏۄۉۂٻہۍۀیېۀۉھ۔ٻۊہٻڧڱڟڮ
ۄۉۋېۏٻھۇۊھۆٻڿېۍۄۉۂٻڮڮڞڢ
ڡ
ڡ
ڞڧڦںڨڪڟ
Note (1) : LVDS Receiver Skew (Strobe) Margin
Samsung Secret
ڞڧڦںڟڠڱ
ڈ ڈ ڎ ڀ ڃڎڄ
ڎڋ ڈ ڎڋڋ ڦڣە ڃڎڄ
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
16
/ 31LTN156AT19-W
www.panelook.com
Page 17
Global LCD Panel Exchange Center

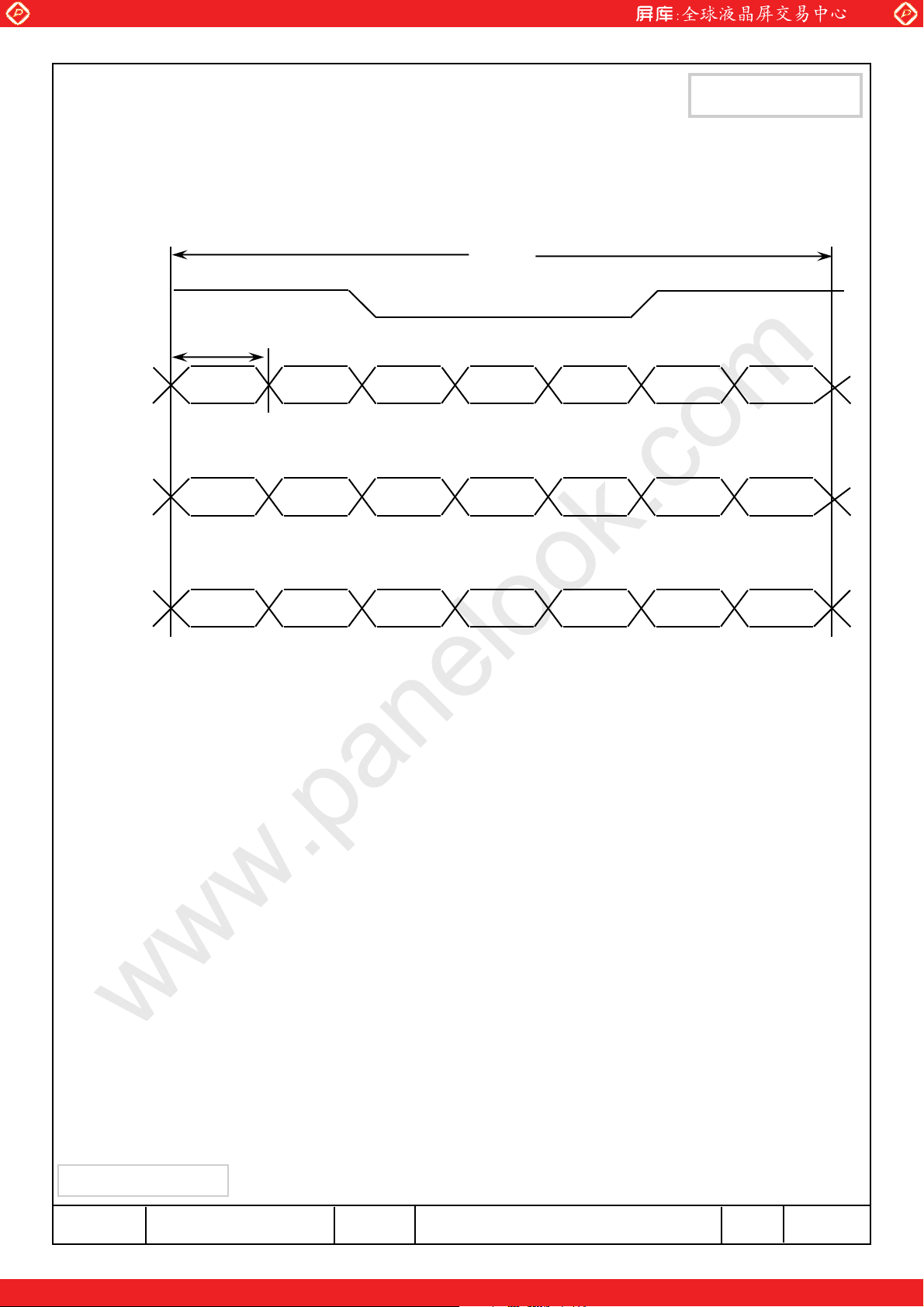

5.3 Timing Diagrams of LVDS For Transmission
LVDS Receiver : Integrated T-con
TxCLK OUT
RxCLK IN
T/7
www.panelook.com
Approval
T
Rx IN2
Rx IN1
RxIN0
RxOUT20 RxOUT19 RxOUT17RxOUT18 RxOUT16 RxOUT15 RxOUT14
DE
RxOUT13 RxOUT12 RxOUT10RxOUT11 RxOUT9 RxOUT8 RxOUT7
RxOUT6 RxOUT5 RxOUT3RxOUT4 RxOUT2 RxOUT1 RxOUT0
G0
Vsync B2Hsync B5 B3B4
G4B1 G5B0 G3 G2 G1
R5
R4
R3
R2 R1 R0
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
17
/ 31LTN156AT19-W
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.4 Pixel Format in the display
www.panelook.com
Approval
Line 1
Line 768
1
RGB RGB
RGB RGB
1366
LTN156AT19Panel
RGB RGB RGB RGB
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
18
/ 31LTN156AT19-W
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

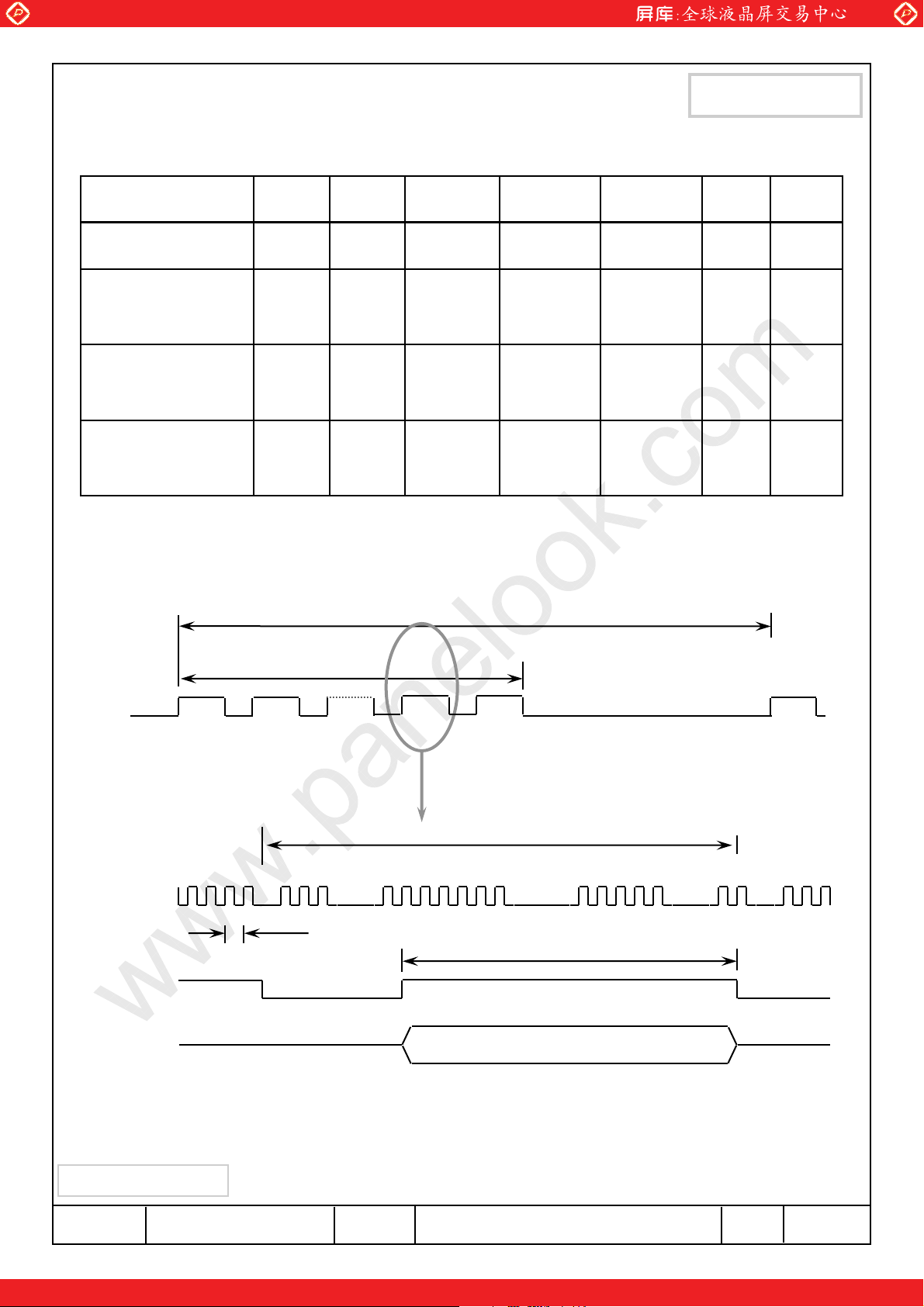

6. INTERFACE TIMING
6.1 Timing Parameters
Signal Item Symbol Min. Typ. Max. Unit Note
Frame Frequency Cycle TV 773 790 810 Lines
Vertical Active
Display Term
One Line
Scanning Time
Horizontal Active
Display Term
Display
Period
Cycle TH 1426 1526 1726 Clocks
Display
Period
TVD - 768 - Lines
THD - 1366 - Clocks
Approval
6.2 Timing diagrams of interface signal
TVD
DE
DCLK
TC
DE
TV
TH
THD
DATA
SIGNALS
Samsung Secret
Doc.No. Rev.No
Valid display data ( 1366 clocks)
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
19
/ 31LTN156AT19-W
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

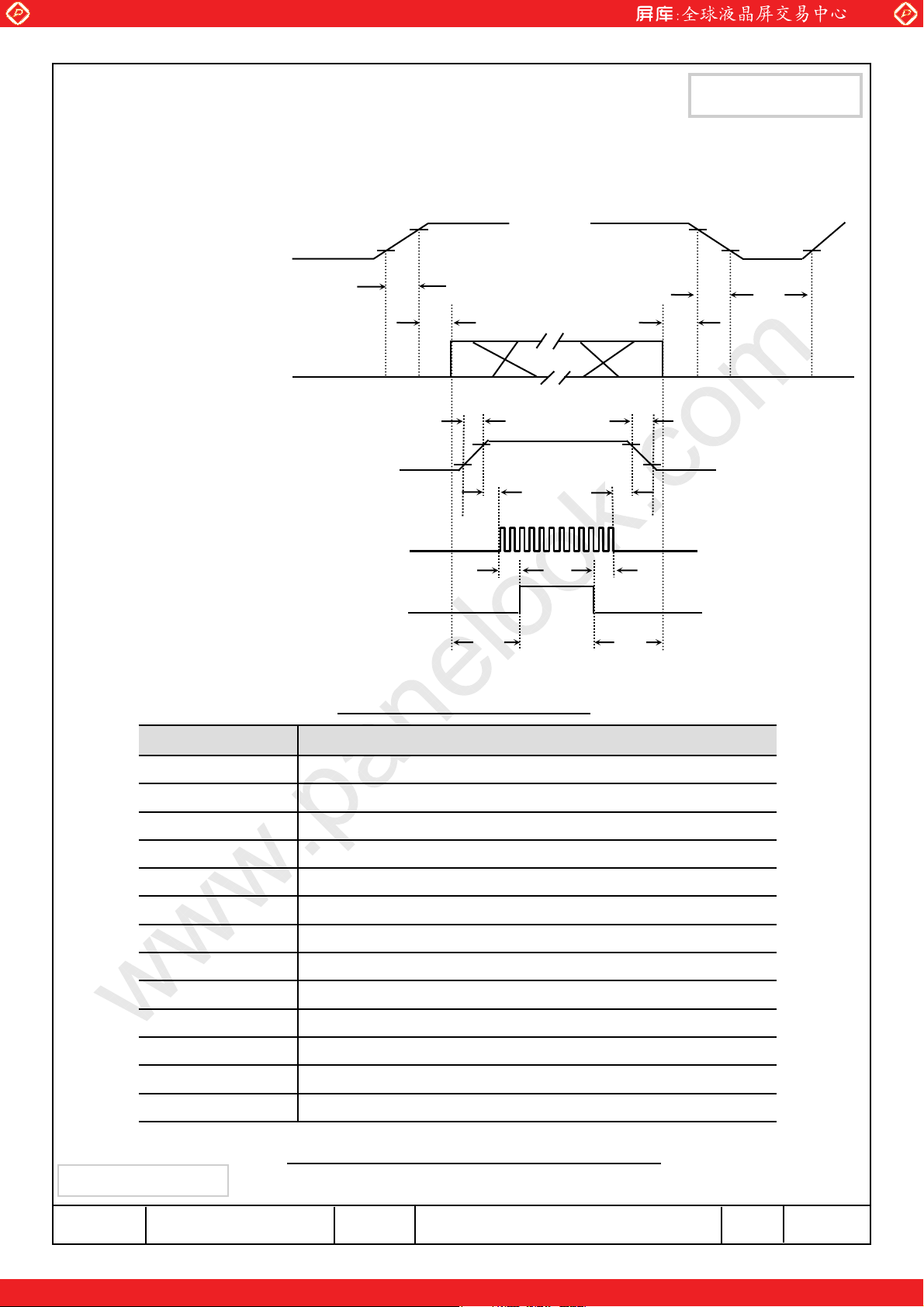

6.3 Power ON/OFF Sequence
Approval
: To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
should be as the diagram below.
Power Supply VDD
Signals
LED Power (V
PWM for LED driver
(Dimming signal)
0.9 V
DD
0.1 V
0 V
DD
T1
0.1 LED V
T2
0.9 LED V
in
in
T12
T8
T10
T3
VALID
T9
0.9 LED V
0.1 LED V
T11
T13
0V
)
in
0.9 V
T7
in
DD
0.1 V
DD
T4
in
Enable signal for LED driver
(Backlight on/off)
Timing (ms) Remarks
0.5T1≤10
0T2 ≤50
0T3 ≤50
500 ≤T4
300 ≤T5
200 ≤T6
0T7 ≤10
0.5T8≤10
0.5T9≤10
0 അT10
0അT11
0അT12
0 അT13
V
DD
Delay from V
Delay from valid data OFF to V
V
DD
Delay from valid data to B/L enable at power ON
Delay from valid data off to B/L disable at power Off
V
DD
LED V
LED V
Delay from LED driver Vin rising time 90% to PWM ON
Delay from PWM Off to LED driver Vin falling time 10%, Must Keep rule
Delay from PWM ON to B/L Enable ON, Must Keep rule
Delay from B/L Enable Off to PWM Off
T5
Power ON/OFF Sequence
rising time from 10% to 90%
to valid data at power ON
DD
OFF at power Off
DD
OFF time for Windows restart
falling time from 90% to 10%
rising time from 10% to 90%
in
falling time from 90% to 10%
in
T6
Power Sequence & Timing Parameters
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
20
/ 31LTN156AT19-W
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
6.3 Power ON/OFF Sequence
Approval
NOTE.
(1) The supply voltage of the external system for the module input should be the same
as the definition of V
DD.
(2) Apply the lamp voltage within the LCD operation range. When the back-light turns on
before the LCD operation or the LCD turns off before the back-light turns off, the
display may momentarily become white.
(3) In case of V
DD = off level, please keep the level of input signals on the low or keep
a high impedance.
(4) T4 should be measured after the module has been fully discharged between power
off and on period.
(5) Interface signal shall not be kept at high impedance when the power is on.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
21
/ 31LTN156AT19-W
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com

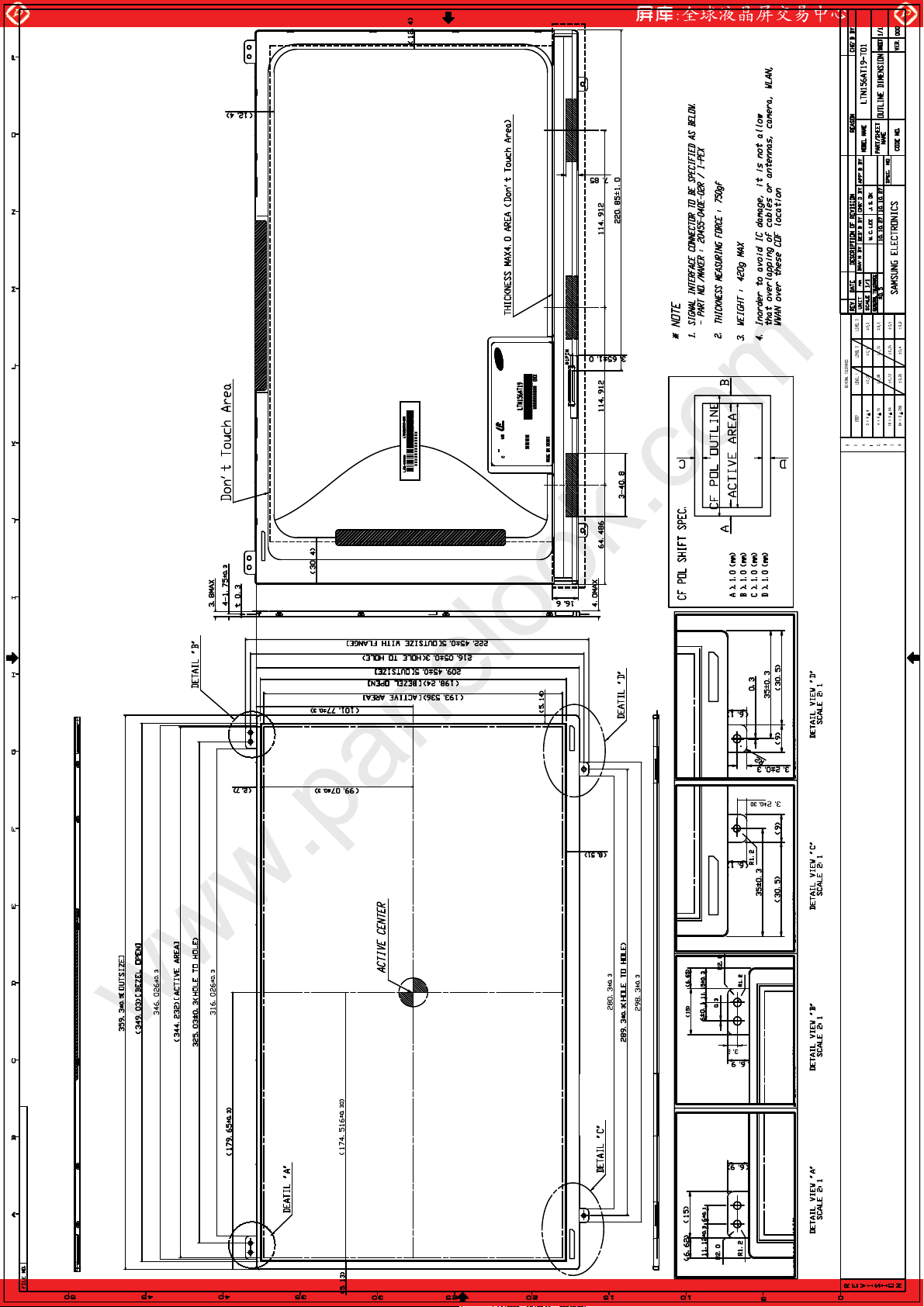

7. Mechanical Outline Dimension
Refer to the next page
Approval
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
22
/ 31LTN156AT19-W
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
8. PACKING

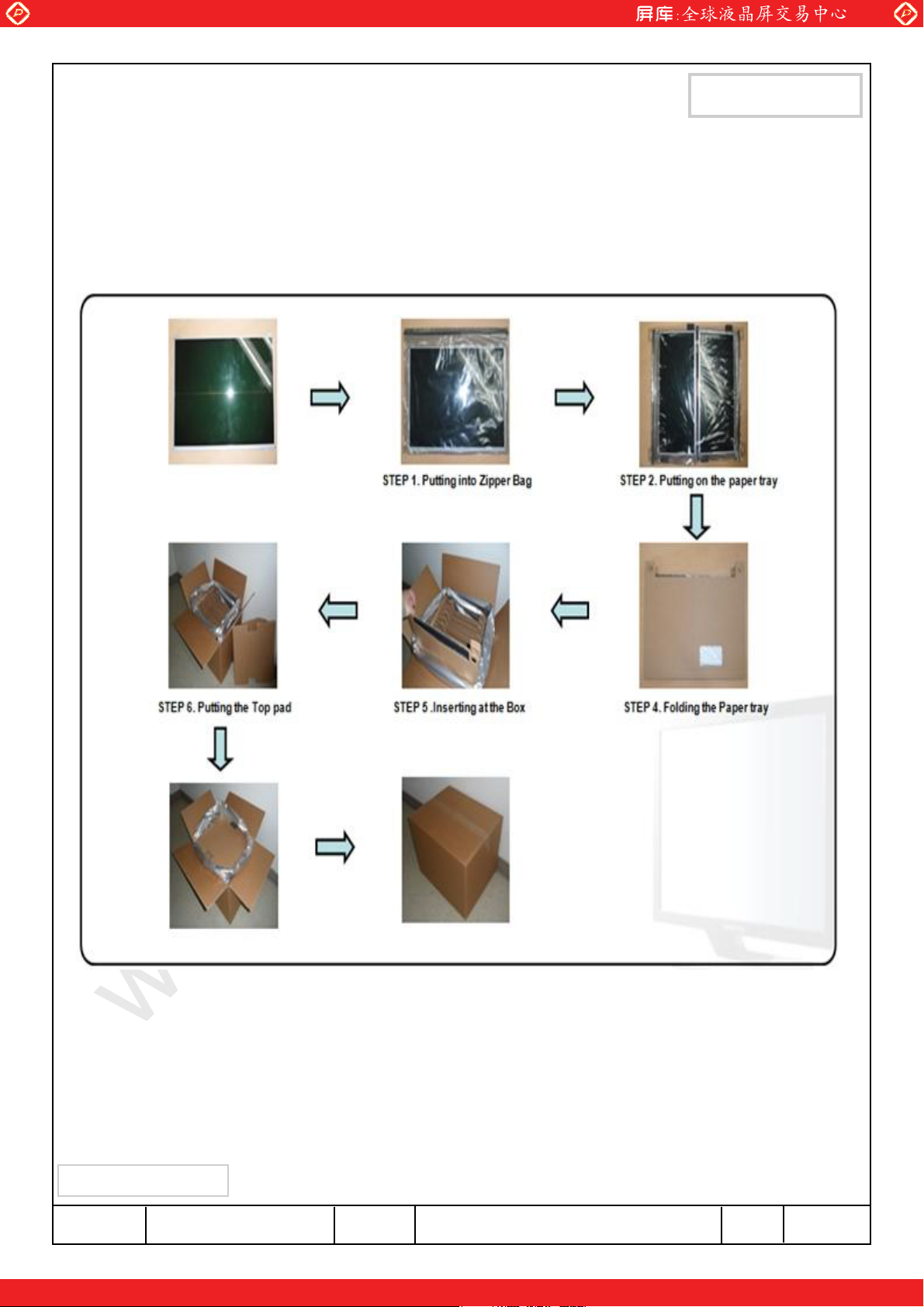

1. CARTON(Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrupad form as shock absorber
(2) Packing Method
Approval
Note 1)Total Weight : Approximately 20 kg
2) Acceptance number of piling : 36 sets
3) Carton size : 469(W) u 373(D) u 347(H)
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
24
/ 31LTN156AT19-W
www.panelook.com
Page 25
Global LCD Panel Exchange Center

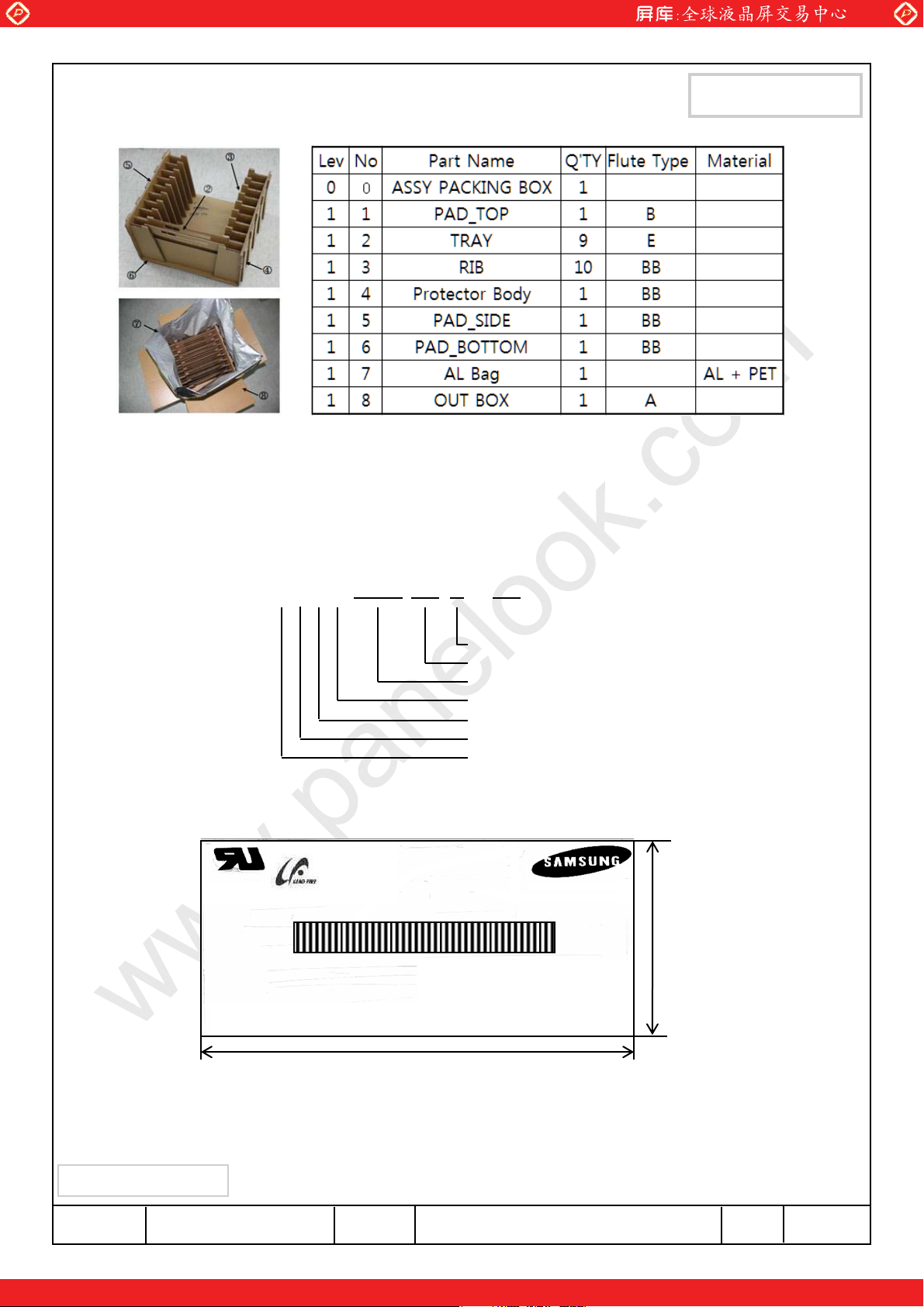

(3)Packing Material
9. MARKINGS & OTHERS
www.panelook.com
Approval
A nameplate bearing followed by is affixed to a shipped product at the
specified location on each product.
(1)Parts number : LTN156AT19
(2)Revision code : 3 letters
(3)Lot number : X X X X XXX XX X Wxx
SEC Revision Code
Panel number
Cell ID
Lot ID
Month
Year
Product Code
Line
(5) Nameplate Indication
LTN156AT19
1025
40 mm
XXXXXXXXXX Wxx
MADE IN CHINA
80 mm
Parts name : LTN156AT19
Lot number : XXXXXXXXXX
Inspected work week : 1025(2010 year, 25nd week)
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
25
/ 31LTN156AT19-W
www.panelook.com
Page 26
Global LCD Panel Exchange Center

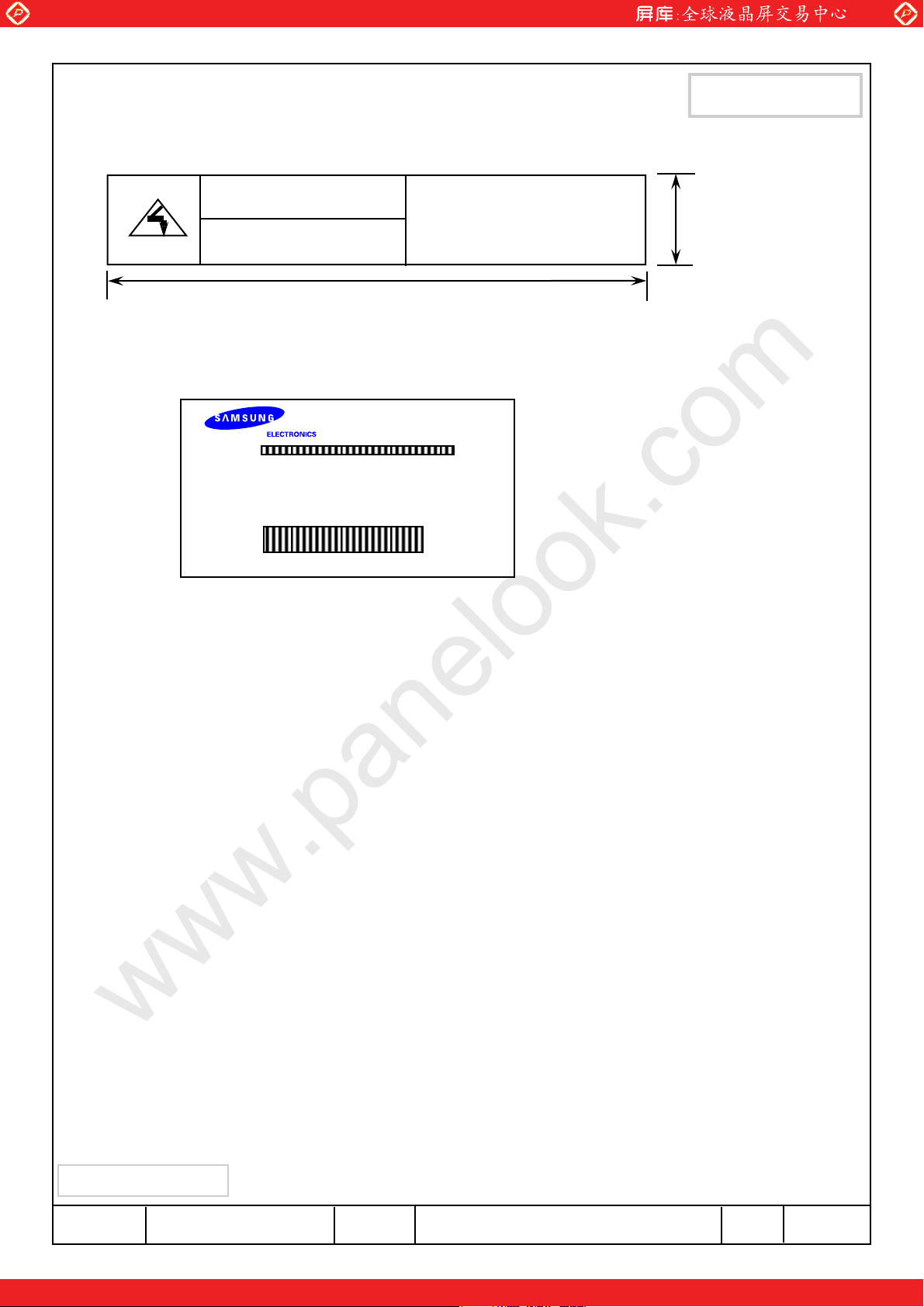

High voltage caution label
www.panelook.com
Approval
HIGH VOLTAGE
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT THE ELECTRIC
POWER BEFORE SERVICE
(6) Packing small box attach
DEVICE : LTN156AT19
TYPE : Wxx
QUANTITY : 36 PCS
CO6040001
THIS COVER CONTAINS
FLUORESCENT LAMP.
PLEASE FOLLOW LOCAL
ORDINANCES OR
REGULATIONS FOR ITS DISPOSAL
70mm
10mm
High voltage
caution
Samsung Secret
Doc.No. Rev.No
04-A00-G-111011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
26
/ 31LTN156AT19-W
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
10. GENERAL PRECAUTIONS
1. Handling
(a) When the module is assembled, It should be attached to the system firmly
using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In addition to
damage, this may cause improper operation or damage to the module and CCFT back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch
the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time,
Staining and discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.
(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl
chloride. It might permanent damage to the polarizer due to chemical reaction.
Approval
(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or
mouth . In case of contact with hands, legs or clothes, it must be washed away thoroughly
with soap.
(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.
(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming
inspection and assembly process.
(j) Do not disassemble the module.
(k) Do not pull or fold the lamp wire.
(l) Do not adjust the variable resistor which is located on the back side.
(m) Protection film for polarizer on the module shall be slowly peeled off just before use so
that the electrostatic charge can be minimized.
(n) Pins of I/F connector shall not be touched directly with bare hands.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
www.panelook.com
27
/ 31LTN156AT19-W
Page 28
Global LCD Panel Exchange Center
www.panelook.com
2. STORAGE
Approval
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 qC and
relative humidity of less than 70%.
(b) Do not store the TFT-LCD module under the direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent
light during storage.
(d) Storage period is recommended not to exceed 1 year.
3. OPERATION
(a) Do not connect,disconnect the module in the “ Power On” condition.
(b) Power supply should always be turned on/off by following item 6.3
“ Power on/off sequence “.
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The standard limited warranty is only applicable when the module is used for general
notebook applications. If used for purposes other than as specified, SEC is not to be
held reliable for the defective operations. It is strongly recommended to contact SEC
to find out fitness for a particular purpose.
4. OTHERS
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation, input
voltage variation, variation in part contents and environmental temperature, so on)
Otherwise the module may be damaged.
(d) If the module displays the same pattern continuously for a long period of time,it can be
the situation when the image “sticks” to the screen.
(e) This module has its circuitry PCB’s on the rear side and should be handled carefully in
order not to be stressed.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
28
/ 31LTN156AT19-W
www.panelook.com
Page 29
Global LCD Panel Exchange Center
Address Value ASCII
or
(HEX) HEX Da ta
00 00 00000000 0
01 FF 11111111 255
02 FF 11111111 255
03 FF 11111111 255
04 FF 11111111 255
05 FF 11111111 255
06 FF 11111111 255
07 00 00000000 0
08 4C 01001100 76 S
E
09 A3 10100011 163 C
0A 4A 01001010 74 [J]
0B 32 00110010 50 [2]
0C 00 00000000 0
0D 00 00000000 0
0E 00 00000000 0
0F 00 00000000 0
10 Week of manufacture 00 00000000 0
11 Year of manufacture 15 00010101 21 2011
12 EDID Structure Ver. 01 00000001 1 1
13 EDID revision # 03 00000011 3 3
14 Video input definition 80 10000000 128
15 Max H image size 22 00100010 34 34
16 Max V image size 13 00010011 19 19
17 Display Gamma 78 01111000 120 2.2
18 Feature support 0A 00001010 10
19 Red/green low bits 09 00001001 9
1A Blue/white low bits 25 00100101 37
0.570
0.340
0.330
0.560
0.160
0.135
0.313
0.329
23 Established timing 1 00 00000000 0
24 Established timing 2 00 00000000 0
25 Established timing 3 00 00000000 0
26 01 00000001 1
27 01 00000001 1
28 01 00000001 1
29 01 00000001 1
White y 0.329=
01010100
601.088
00100111
Blue y 0.130=
00100001
01010000
White x 0.313=
01000010
11010101
Red x 0.587=
Red y 0.344=
34 cm(approx)
19 cm(approx)
Gamma 2.2
2011
EDID Ver. 1.0
EDID Rev. 3
01010000
01010100
00100010
10001111
00101001
Blue x 0.155=
01010111
"SEC"
Green x 0.320=
01010010
Green y 0.541=
10001100
146
87
84
143
41
01010100
10010010
34
DEC
80
84
10011000
01010111
3 character ID
www.panelook.com
11. EDID
FUNCTION BIN
Header EDID Header
ID Manufacturer Name
1B Red x/ high bits 92
1C Red y 57
1D Green x
1E
1F Blue x 29
20 Blue y 22
21 White x 50
22 White y 54
ID Product Code
32-bit serial no.
54
Green y 8F
Approval
Notes
Standard timing #1
Standard timing #2
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
not used
not used
Page
29
/ 31LTN156AT19-W
www.panelook.com
Page 30
Global LCD Panel Exchange Center
2A 01 00000001 1
2B 01 00000001 1
2C 01 00000001 1
2D 01 00000001 1
2E 01 00000001 1
2F 01 00000001 1
30 01 00000001 1
31 01 00000001 1
32 01 00000001 1
33 01 00000001 1
34 01 00000001 1
35 01 00000001 1
36 9E 10011110 158 70.7
37 1B 00011011 27
38 56 01010110 86 1366
39 78 01111000 120 120
3A 50 01010000 80
3B 00 00000000 0 768
3C 18 00011000 24 24
3D 30 00110000 48
3E 30 00110000 48 48
3F 20 00100000 32 32
2
5
42 58 01011000 88 344
43 C2 11000010 194 194
44 10 00010000 16
45 00 00000000 0
46 00 00000000 0
47 19 00011001 25
48 00 00000000 0
49 00 00000000 0
4A 00 00000000 0
4B 0F 00001111 15
4C 00 00000000 0
4D 00 00000000
4E 00 00000000
4F 00 00000000
50 00 00000000
51 00 00000000
52 00 00000000
53 00 00000000
54 00 00000000
55 23 00100011
56 87 10000111
57 02 00000010
58 64 01100100
59 01 00000001 1
Module revision
H sync. Width
V sync. Offset
V sync. Width
Vertcal active
Vertical blanking
4bit : 4bit
Hor s ync. Offs et
Hor active
Hor blanking
4bit : 4bit
descriptor #2
Value=HSPWm in / 2
Value=HSPWm ax / 2
Value=Thbpmin /2
Value=Thbpmax /2
Value=VSPWmin /2
Value=VSPWmax /2
No Vertical Border
Value=Tvbpmin / 2
Value=Tvbpmax / 2
Thpmin=value*2 + HA pixelclks
Thpmax=value*2 + HA pixelclks
Tvpmin=value *2 + VA lines
Tvpmax=value*2 + VA lines
H image size
V image s ize
No Horizontal Border
00000000
Detailed timing/monitor
Detailed timing/monitor
descriptor #1
00100101
37
41
www.panelook.com
Approval
Standard timing #3
Standard timing #4 not used
Standard timing #5
Standard timing #6
Standard timing #7
Standard timing #8
40
25
00
0
not used
not used
not used
not used
not used
Main clock
2bit : 2bit :2bit :2bit
Manufacturer Specified (Timing)
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
30
/ 31LTN156AT19-W
www.panelook.com
Page 31
Global LCD Panel Exchange Center
5A 00 00000000 0
5B 00 00000000 0
5C 00 00000000 0
5D FE 11111110 254
5E 00 00000000 0
5F 53 01010011 83 [S]
60 41 01000001 65 [A]
61 4D 01001101 77 [M]
62 53 01010011 83 [S]
63 55 01010101 85 [U]
64 4E 01001110 78 [N]
65 47 01000111 71 [G]
66 0A 00001010 10 [^]
67 20 00100000 32 [ ]
68 20 00100000 32 [ ]
69 20 00100000 32 [ ]
6A 20 00100000 32 [ ]
6B 20 00100000 32 [ ]
6C 00 00000000 0
6D 00 00000000 0
6E 00 00000000 0
6F FE 11111110 254
70 00 00000000 0
71 4C 01001100 76 [L]
72 54 01010100 84 [T]
73 4E 01001110 78 [N]
74 31 00110001 49 [1]
75 35 00110101 53 [5]
76 36 00110110 54 [6]
77 41 01000001 65 [A]
78 54 01010100 84 [T]
79 31 00110001 49 [1]
7A 39 00111001 57 [9]
7B 30 00110000 48 [0]
7C 0A 00001010 10 [*]
7D 20 00100000 32 [*]
7E Extension Flag 00 00000000 0
7F Checksum B4 10110100 180
descriptor #4
descriptor #3
Detailed timing/monitor
Detailed timing/monitor
www.panelook.com
Approval
ASCII Data String Tag
Monitor Name Tag (ASCII)
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-111011
Page
31
/ 31LTN156AT19-W
www.panelook.com
Loading...
