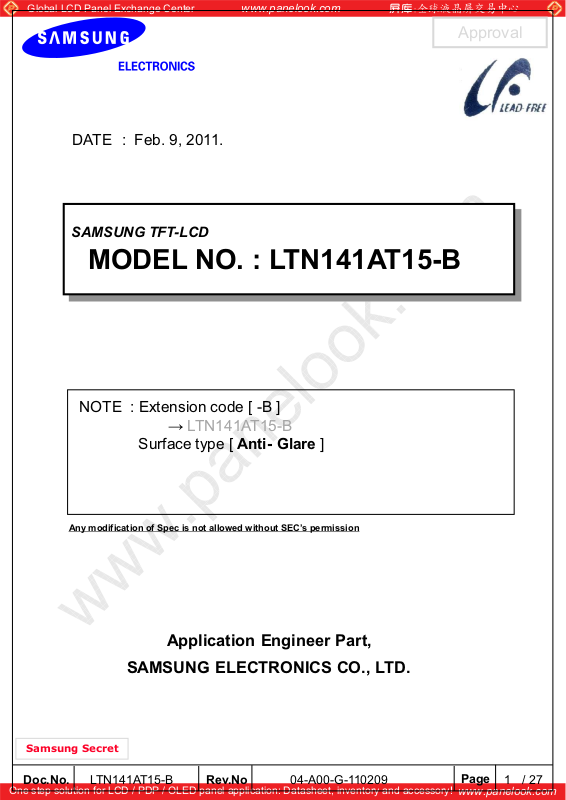

Global LCD Panel Exchange Center
DATE : Feb. 9, 2011.
SAMSUNG TFT-LCD
MODEL NO. : LTN141AT15-B
www.panelook.com
Approval
NOTE : Extension code [ -B ]
→ LTN141AT15-B
Surface type [ Anti- Glare ]
Any modification of Spec is not allowed without SEC’s permission
Application Engineer Part,
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
/ 27LTN141AT15-B
1
Page 2
Global LCD Panel Exchange Center
CONTENTS
www.panelook.com
Approval
Revision History
General Description
1. Absolute Maximum Ratings
-------------------( 3 )
-------------------( 4 )
-------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics
3. Electrical Characteristics
-------------------( 7 )
-------------------( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
3.3 LED Driver
4. Block Diagram
-------------------( 13 )
4.1 TFT LCD Module
5. Input Terminal Pin Assignment
-------------------( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.5 Pixel format
6. Interface Timing
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension
8. Packing
9. Markings & Others
10. General Precaution
-------------------( 19 )
-------------------( 21 )
-------------------( 23 )
-------------------( 24 )
-------------------( 26 )
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
/ 27LTN141AT15-B
2
Page 3
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Date
Feb. 9. 2011 A00 All The Preliminary specification of LTN141AT15-B was issued first.
Revision
No.
Page Summary
Approval
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
/ 27LTN141AT15-B
3
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Approval
GENERAL DESCRIPTION
DESCRIPTION
LTN141AT15-B is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a backlight system. The resolution of a 14.1" contains
1280 x 800 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum
viewing angle.
FEATURES
• High contrast ratio, high aperture structure
• 1280 x 800 pixels resolution
• Fast Response Time
• Low power consumption
• LED BLU Structure
• DE (Data enable) only mode.
• 3.3V LVDS Interface
• On board EDID chip
• RoHS Compliance
APPLICATIONS
• Notebook PC
• If the usage of this product is not for PC application, but for others, please contact SEC
GENERAL INFORMATION
Item Specification Unit Note
Display area 303.36(H) X 189.6(V) (14.1”diagonal)
Driver element a-si TFT active matrix
Display colors 262,144
Number of pixel 1280 x 800
Pixel arrangement RGB vertical stripe
mm
pixel
Pixel pitch 0.237(H) x 0.237(V)
Display Mode Normally white
Surface treatment Haze 25, Hard-Coating 2H
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
mm
Page
www.panelook.com
/ 27LTN141AT15-B
4
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 319.0 319.5 320.0
Module
size
Note (1) Measurement condition of outline dimension
Vertical (V) 205.0 205.5 206.0 mm
Depth (D) - - 5.5 mm (1)
Weight - 395 410 g
. Equipment : Vernier Calipers
. Push Force : 500g f (minimum)
1. ABSOLUTE MAXIMUM RATINGS
1.1 ENVIRONMENTAL ABSOLUTE RATINGS
Item Symbol Min. Max. Unit Note
Storage temperate TSTG -20 60 qC(1)
Approval
mm
Operating temperate
(Temperature of glass surface)
Shock ( non-operating ) Snop - 240 G (2),(4)
Vibration (non-operating) Vnop - 2.41 G (3),(4)
Note (1) Temperature and relative humidity range are shown in the figure below.
95 % RH Max. (40 qC t Ta)
Maximum wet -
bulb temperature at 39
TOPR 0 50 qC(1)
O
C or less. (Ta ! 40 qC ) No condensation
Relative Humidity ( %RH)
100
90
80
60
40
20
-40 -20 0 20 40 60 80
Operating Range
8
Storage Range
5
0
Temperature (
O
C)
( 40,90 )
( 50,50.4 )
( 60,27.7 )
(2) 2ms, half sine wave, one time for rX, rY, r Z.
(3) 5 - 500 Hz, random vibration, 30min for X, Y, Z.
(4) At testing Vibration and Shock, the fixture in holding the Module to be tested have to be
hard and rigid enough so that the Module would not be twisted or bent by the fixture.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
/ 27LTN141AT15-B
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD MODULE
Item Symbol Min. Max. Unit Note
www.panelook.com
Approval
VDD =3.3V, Vss = GND =0V
Power Supply Voltage V
Logic Input Voltage V
Note (1) Within Ta (25 r 2 qC)
DD VDD – 0.3 VDD + 0.3 V (1)
IN VDD – 0.3 VDD + 0.3 V (1)
(2) BACK-LIGHT UNIT
Item Symbol Min. Typ. Max. Unit Note
LED Current I
LED Voltage F
Note 1) Permanent damage to the device may occur if maximum values are exceeded
Functional operation should be restricted to the conditions described under normal operating conditions.
L
L
-20-mA(1)
- 3.2 - V (1)
Ta =
25 r 2 qC
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
/ 27LTN141AT15-B
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Approval
2. OPTICAL CHARACTERISTICS
The following items are measured under stable conditions. The optical characteristics
should be measured in a dark room or equivalent state with the methods shown in Note (5).
Measuring equipment : TOPCON SR-3 and PR-650
* Ta = 25 r 2 qC, VDD=3.3V, fv= 60Hz, fDCLK = 69.22MHz, IL = 20mA
Item Symbol
Contrast Ratio
(5 Points)
Response
Time at Ta
Rising T
Falling T
Average Luminance
of White (5 Points)
Green
Color
Chromaticity
( CIE )
Red
Blue
Conditio
n
CR
R -16
Min. Typ. Max Unit Note
- 300 - - (1), (2), (5)
msec (1), (3)
F -16
L,AVE 190 220 - cd/m
Y
-
Normal
X
R
Viewing
0.550 0.580 0.610
Angle
R
G
G
B
B
Y
X
Y
X
Y
I = 0
T = 0
0.310 0.340 0.370
0.315 0.345 0.375
0.520 0.550 0.580
0.121 0.151 0.181
0.070 0.100 0.130
2
(1), (4)
(1), (5)
-
SR-3
White
Hor.
Viewing
Angle
Ver.
Color Gamut
Brightness Uniformity
W
W
G
G
T
T
I
I
CG
L5
L13
X
Y
L
H
0.283
0.299
40 45 -
40 45 -
0.313
0.329
CR t 10
H
L
10 15 -
30 35 -
0.343
0.359
Degrees
(1), (5)
SR-3
-45-
5points 80 - -
%
(6)
13points 60 - -
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 27LTN141AT15-B
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
d
www.panelook.com
Note 1) Definition of Viewing Angle : Viewing angle range(10
C/R)
Normal Line
I = 0
o
,
T = 0
o
T L
T R
TL=90
o
I L
x
I H
y
12 O’clock
direction
IH= 90
6 O’clock
direction
IL= 90
o
x'y'
=90
T
R
Note 2) Definition of Contrast Ratio (CR) : Ratio of gray max (Gmax) ,gray min (Gmin)
at 5 points(4, 5, 7, 9, 10)
Approval
o
o
CR(4) + CR(5) + CR(7) + CR(9) + CR(10)
CR =
5
Points : , , , , at the figure of Note (6).
4 9
5
7
10
Note 3) Definition of Response time :
Display data
White(TFT OFF)
TR
Black(TFT ON)
White(TFT OFF)
TF
100%
90%
Optical
Response
10%
0%
Note 4) Definition of Average Luminance of White : measure the luminance of white at 5 points.
Time
(320) ( 640) (960)
Average Luminance of White ( Y
L4 + YL5 + YL7 + YL9 + YL10
Y
L,AVE )
10
9
7
YL,AVE =
5
5
4
: test point
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
VIEW AREA
(200)
(400)
(600)
(lines)
Page
/ 27LTN141AT15-B
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Approval
Note 5) After stabilizing and leaving the panel alone at a given temperature for 30 min , the measurement
should be executed. Measurement should be executed in a stable, windless,and dark room.
30 min after lighting the backlight. This should be measured in the center of screen.
Environment condition : Ta = 25 r 2 qC
Photo-detector
( TOPCON SR-3
PR-650 )
= 2q
Field
50 cm
TFT-LCD module
Center of the screen
[ Optical characteristics measurement setup ]
Note 6) Definition of 13 points white variation (G L ), [ ~ ]
Maximum luminance of 13 points
113
G L =
Minimum luminance of 13 points
10mm
10mm
13 12
320 640
960
LCD panel
10mm
11
10
8
5
3
10mm
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
2
04-A00-G-110209
9
4
200
6
400
600
(lines)
1
: test point
Page
/ 27LTN141AT15-B
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Differential Input
High V
Voltage for LVDS
Receiver
Threshold
Low V
Hsync Freq F
60Hz
Main Freq F
Vsync
Freque
ncy
50Hz
Hsync Freq F
Main Freq F
DD 3.0 3.3 3.6 V
IH --+100mV
IL -100 - - mV
H 45.97 48.96 60.11 KHz
DCLK 65 69.22 85 MHz
H 39.06 41.60 51.08 KHz
DCLK 65 69.22 85 MHz
Approval
Ta= 25 r 2qC
CM = +1.2V
V
Hsync Freq F
H 39.06 32.68 51.08 KHz
40Hz
Rush Current I
Current of Power
Supply
Main Freq F
White
Mosaic - 350 - mA (2),(3)*b
DCLK 65 69.22 85 MHz
RUSH - - 1.5 A (4)
- 300 - mA (2),(3)*a
DD
I
V. Stripe 395 485 mA (2),(3)*c
Note (1) Display data pins and timing signal pins should be connected.( GND = 0V )
(2) f
V = (60)Hz, fDCLK = (69.22)MHZ, VDD = (3.3)V , DC Current.
(3) Power dissipation pattern
*a) White Pattern *b) Mosaic Pattern
VIEW AREA
Display Brightest Gray Level
Display Darkest Gray Level
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
10
/ 27LTN141AT15-B
www.panelook.com
Page 11
Global LCD Panel Exchange Center

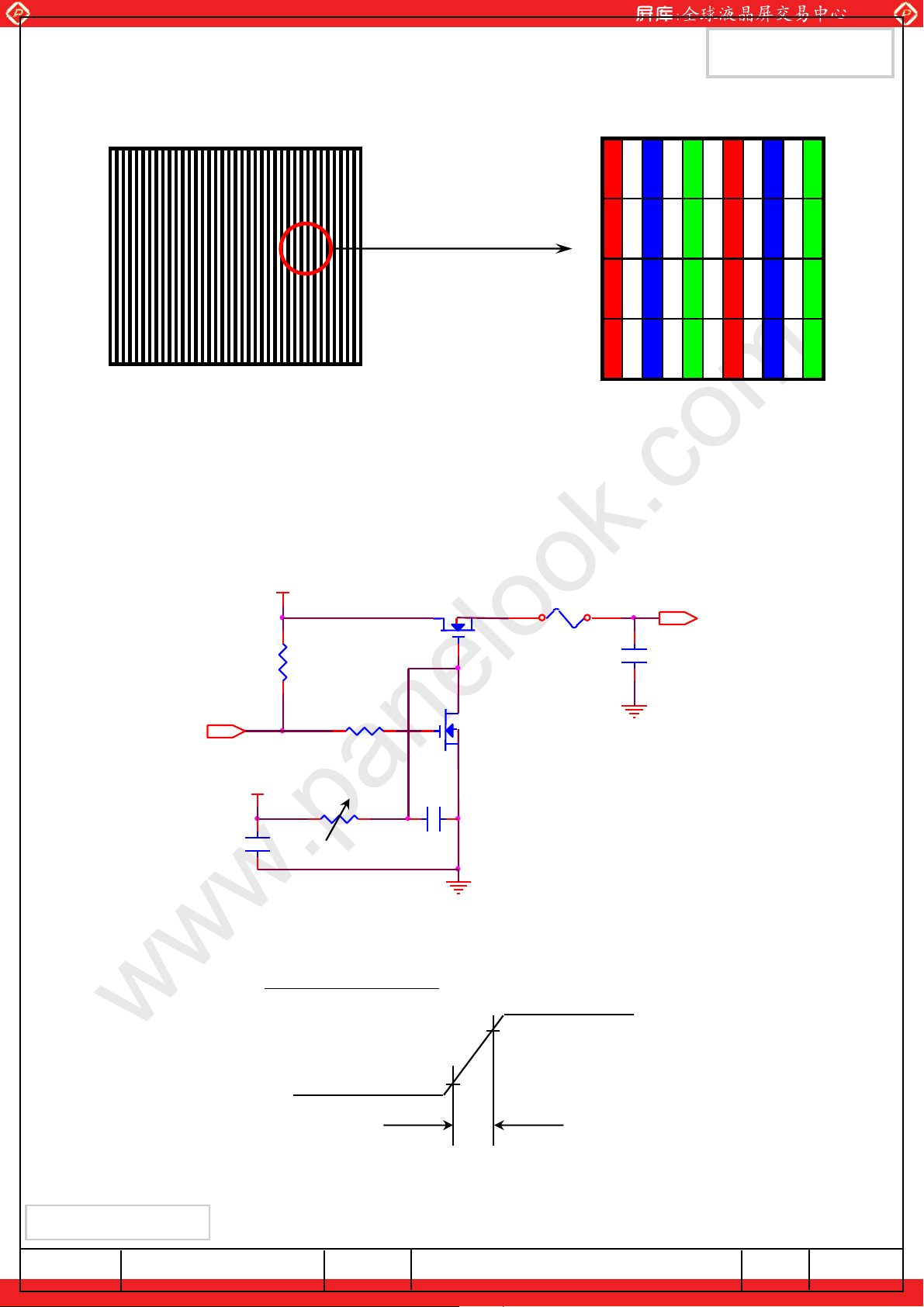

*c) 1dot Vertical stripe pattern
www.panelook.com
Approval
RGB RG B R G B R G
GBRGB RGB RG
R
GBRGB RGB RG
R
RGB R G B R G B R G
4) Rush current measurement condition
3.3V
R1
47K
CONTROL SIGNAL
(HIGH to LOW)
12V
C3
1uF
R2
1K
R3
47K
M1
2SK1059
C2
10000pF
M2
2SK1399
FUSE
VDD ( LCD INPUT)
C1
1uF
V
DD rising time is 470us
0.9VDD
3.3V
0.1VDD
GND
470us
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
11
/ 27LTN141AT15-B
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Approval
3.2 BACK-LIGHT UNIT
Item Symbol Min. Typ. Max. Unit Note
LED Forward Current IF - 20 - mA
LED Forward Voltage VF - 3.2 - V
LED Array Voltage VP - 22.4 - V VF X 7 LEDs
Power Consumption P - 3.5 3.85 W (IF X VF X 42LEDs)
Operating Life time Hr 10,000
Note (1) Life time (Hr) of LEDs can be defined as the time in which it continues to operate under the
condition Ta= 25 r 2 qC and IF = 20.0mA until below event occurs.
- When the brightness becomes 50% or lower than the original.
Hr (1)
Ta= 25 r 2 qC
3.3 LED Driver
-LED Driver Manufacturer (P/N) : Richtek (RT8561A)
Item Symbol Min. Typ. Max. Unit Note
Ta= 25 r 2 qC
Input Voltage V
Duty Ratio
PWM Frequency F
Operating Frequency F
Efficiency
in 71221 V
1 - 100 % 100~300Hz
5
10
pwm 0.1 - 10 Khz
o 675 750 825 kHz
Ȧ
80 %
-
-
100 % 300Hz~1KHz
100 % 1~10KHz
600KHz
Possible
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
12
/ 27LTN141AT15-B
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
4. BLOCK DIAGRAM
4.1 TFT LCD Module
Approval
I2C bus
EDID
EEPROM
4.2 LED connection and placement
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
13
/ 27LTN141AT15-B
Page 14
Global LCD Panel Exchange Center
www.panelook.com
5. INPUT TERMINAL PIN ASSIGNMENT
5.1. Input Signal & Power (Connector : I-PEX, 20455-040E)
Pin Symbol Function
1
2
3
4
5
6
7
8
9
10
11
NC No Connection (Reserved for supplier)
VCC Power Supply, 3.3V (typical)
VCC Power Supply, 3.3V (typical)
VCC_EDID DDC 3.3V power
NC No Connection (Reserved for supplier)
CLK_EDID DDC Clock
DATA_EDID DDC Data
RXin0- - LVDS differential data (R0-R5, G0)
RXin0+ + LVDS differential data (R0-R5, G0)
GND Ground
RXin1- - LVDS differential data (G1-G5, B0-B1)
Approval
12
13
14
15
16
17
18
19
20~21
22
23~24
25
26~27
28
29~30
RXn1+ + LVDS differential data (G1-G5, B0-B1)
GND Ground
RXin2- - LVDS differential data (B2-B5,HS,VS, DE)
RXn2+ + LVDS differential data (B2-B5,HS,VS, DE)
GND Ground
ClkIN- - LVDS differential clock input
ClkIN+ + LVDS differential clock input
GND Ground
NC No Connection
NC Ground
NC No Connection
NC Ground
NC No Connection
NC Ground
NC No Connection
31~33
34
35
36
37
38~40
VBL- LED Ground
NC No Connection
PWM PWM for luminance control
LED_EN BL On/Off (On: 2.0~3.3V, Off: 0~0.5V)
NC No Connection
VBL(7~21) *LED Power Supply 7V-21V
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
14
/ 27LTN141AT15-B
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
5.2 LVDS Interface : Transmitter DS90CF363 or Compatible
LVDS
Pin No. Name RGB Signal Pin No. Name RGB Signal
44 TxIN0 RO0 12 TxIN11 GO5
45 TxIN1 RO1 13 TxIN12 BO0
47 TxIN2 RO2 15 TxIN13 BO1
48 TxIN3 RO3 16 TxIN14 BO2
1 TxIN4 RO4 18 TxIN15 BO3
Approval
3
4 TxIN6 GO0 20 TxIN17 BO5
6 TxIN7 GO1 22 TxIN18 Hsync
7 TxIN8 GO2 23 TxIN19 Vsync
9 TxIN9 GO3 25 TxIN20 DE
10 TxIN10 GO4 26 TxCLK IN Clock
Graphics controller
18-bit
RED0
RED1
RED2
RED3
RED4
RED5
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
Hsync
Vsync
Enable
CLOCK
TxIN5 RO5 19 TxIN16 BO4
LVDS Interface
DS90CF363 or
compatible
44
45
47
48
1
3
4
6
7
9
10
12
13
15
16
18
19
20
22
23
25
26
TxOUT0-
TxOUT0+
TxOUT1-
TxOUT1+
TxOUT2-
TxOUT2+
TxCLKOUT-
TxCLKOUT+
41
40
39
38
35
34
33
32
I-PEX, 20455-040E
8
100 :
9
11
12
14
15
17
18
100 :
100 :
100 :
RxIN0-
RxIN0+
RxIN1-
RxIN1+
RxIN2
RxIN2+
RxCLK-
RxCLK+
-
Note : The LCD Module uses a 100ohm resistor between positive and negative lines of each
receiver input.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
15
/ 27LTN141AT15-B
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com

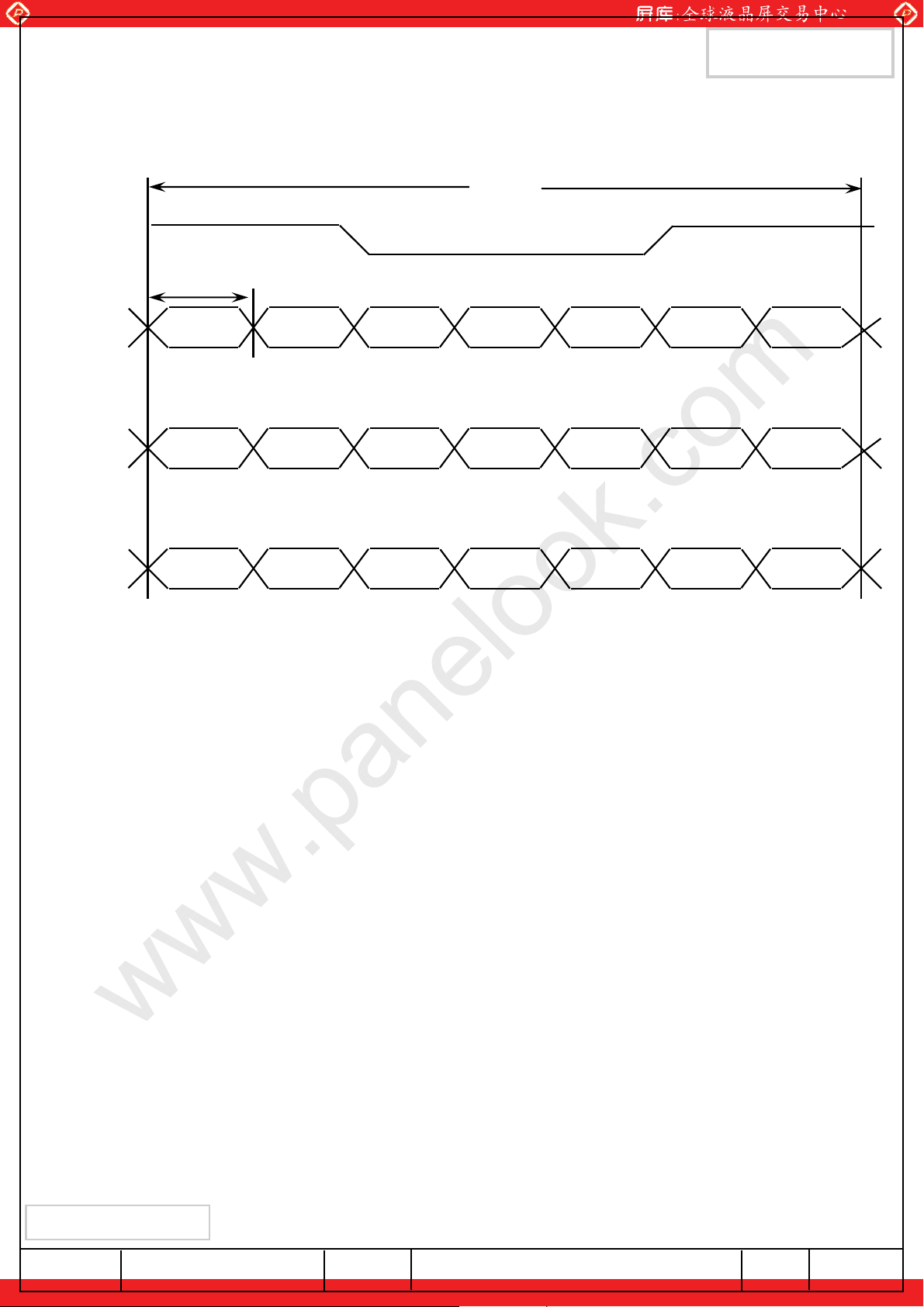

5.3 Timing Diagrams of LVDS For Transmission
LVDS Receiver : Integrated T-CON
O_TxCLK OUT
0_RxCLK IN
T/7
Approval
T
O_RxIN2
O_RxIN1
O_RxIN0
TxIN20 TxIN19 TxIN17TxIN18 TxIN16 TxIN15 TxIN14
DE
TxIN13 TxIN12 TxIN10TxIN11 TxIN9 TxIN8 TxIN7
TxIN6 TxIN5 TxIN3TxIN4 TxIN2 TxIN1 TxIN0
G0
Vsync B2Hsync B5 B3B4
G4B1 G5B0 G3 G2 G1
R5
R4
R3
R2 R1 R0
Samsung Secret
Doc.No. Rev.No
04-A00-G-110209
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
16
/ 27LTN141AT15-B
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
Approval
Color Display
Black 000000000000 0 0000 0 -
Blue 0 0 0 0
Green 0000001111110 0000 0 -
Basic
Colors
Gray
Scale
Of
Red
Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 -
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 -
Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 -
Yellow 1111111111110 0000 0 -
White 1111111111111 1111 1 -
Black 000000000000 0 0000 0 R0
Dark 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
n 010000000 0 000 0000 0 R2
: :::::::::: ::
: :::::::::: ::: :::: :
p 101111000 0 000 0000 0 R61
Data Signal
Red Green Blue
R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 45 B5
00000 0 001 1111 1 -
::::::
Gray
Scale
Level
R3aR60
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Light 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R62
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R63
Black 000000000000 0 0000 0 G0
Dark 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 G1
n 000000010 0 000 0000 0 G2
: :::::::::: ::: :::: :
G3aG60
: :::::::::: ::: :::: :
p 000000101 1 110 0000 0 G61
Light 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 G62
Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 G63
Black 000000000000 0 0000 0 B0
Dark 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 B1
n 000000000 0 000 1000 0 B2
: :::::::::: ::: :::: :
B3aB60
: :::::::::: ::: :::: :
p 000000000 0 001 0111 1 B61
Light 0 0 0 0
Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 B63
Note 1) Definition of gray :
Rn: Red gray, Gn: Green gray, Bn: Blue gray (n=gray level)
Note 2)Input signal: 0 =Low level voltage, 1=High level voltage
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
00000 0 000 1111 1 B62
04-A00-G-110209
Page
17
/ 27LTN141AT15-B
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.5 Pixel Format in the display
www.panelook.com
Approval
Line 1
Line 800
Pixel 1
RGB RGB
RGB RGB
Pixel 1280
LTN141AT15-B Panel
RGB RGB RGB RGB
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
18
/ 27LTN141AT15-B
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

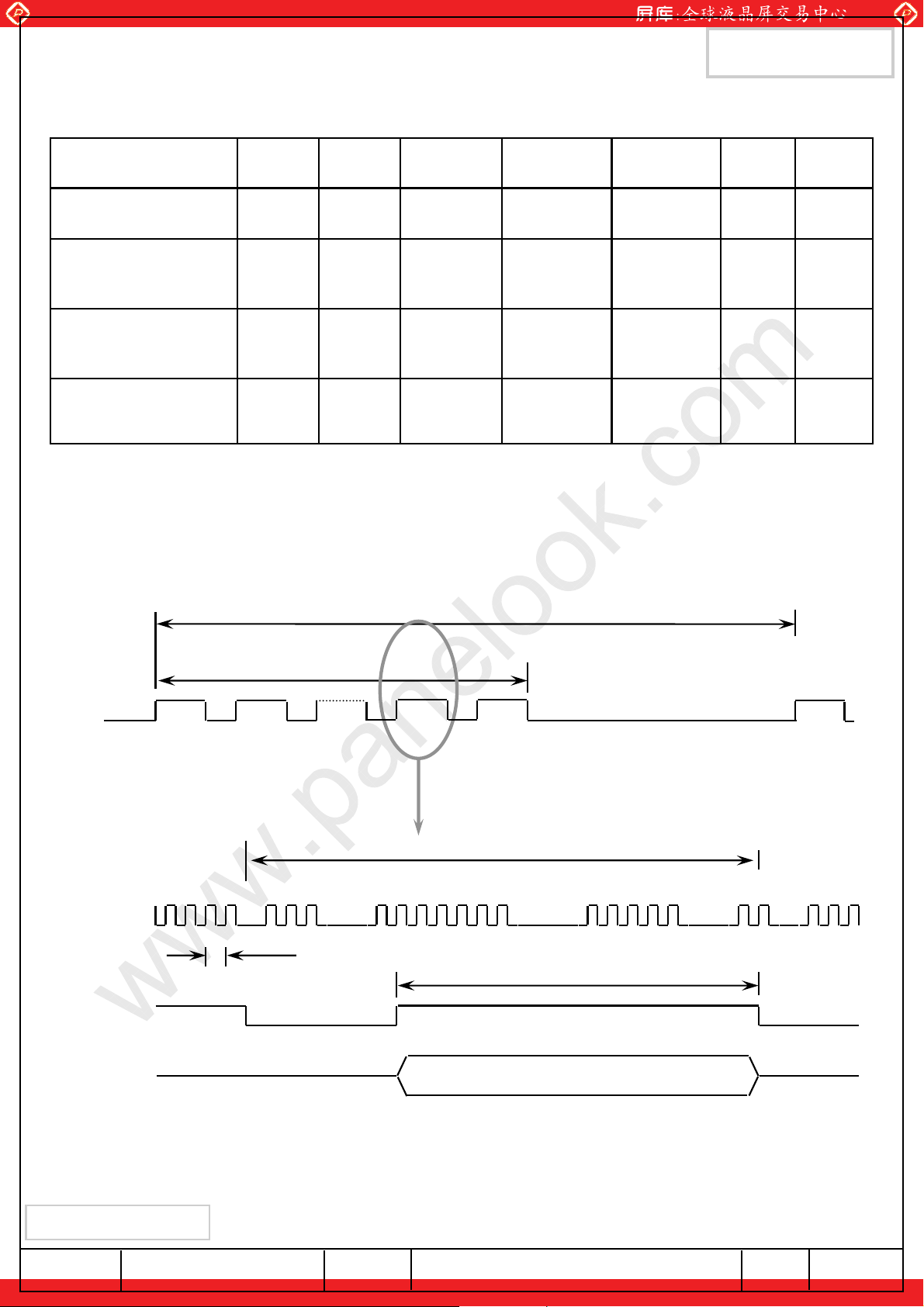

6. INTERFACE TIMING
Approval
6.1 Timing Parameters
Signal Item Symbol Min. Typ. Max. Unit Note
Frame Frequency Cycle TV 808 817 900 Lines -
Vertical Active
Display Term
One Line
Scanning Time
Horizontal Active
Display Term
Display
Period
Cycle TH 1344 1412 1650 Clocks -
Display
Period
TVD - 800 - Lines -
THD - 1280 - Clocks -
6.2 Timing diagrams of interface signal
TVD
DE
DCLK
TC
TV
TH
THD
DE
DATA
SIGNALS
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Valid display data ( 1280 clocks)
04-A00-G-110209
Page
19
/ 27LTN141AT15-B
www.panelook.com
Page 20
Global LCD Panel Exchange Center
T2d
d
www.panelook.com

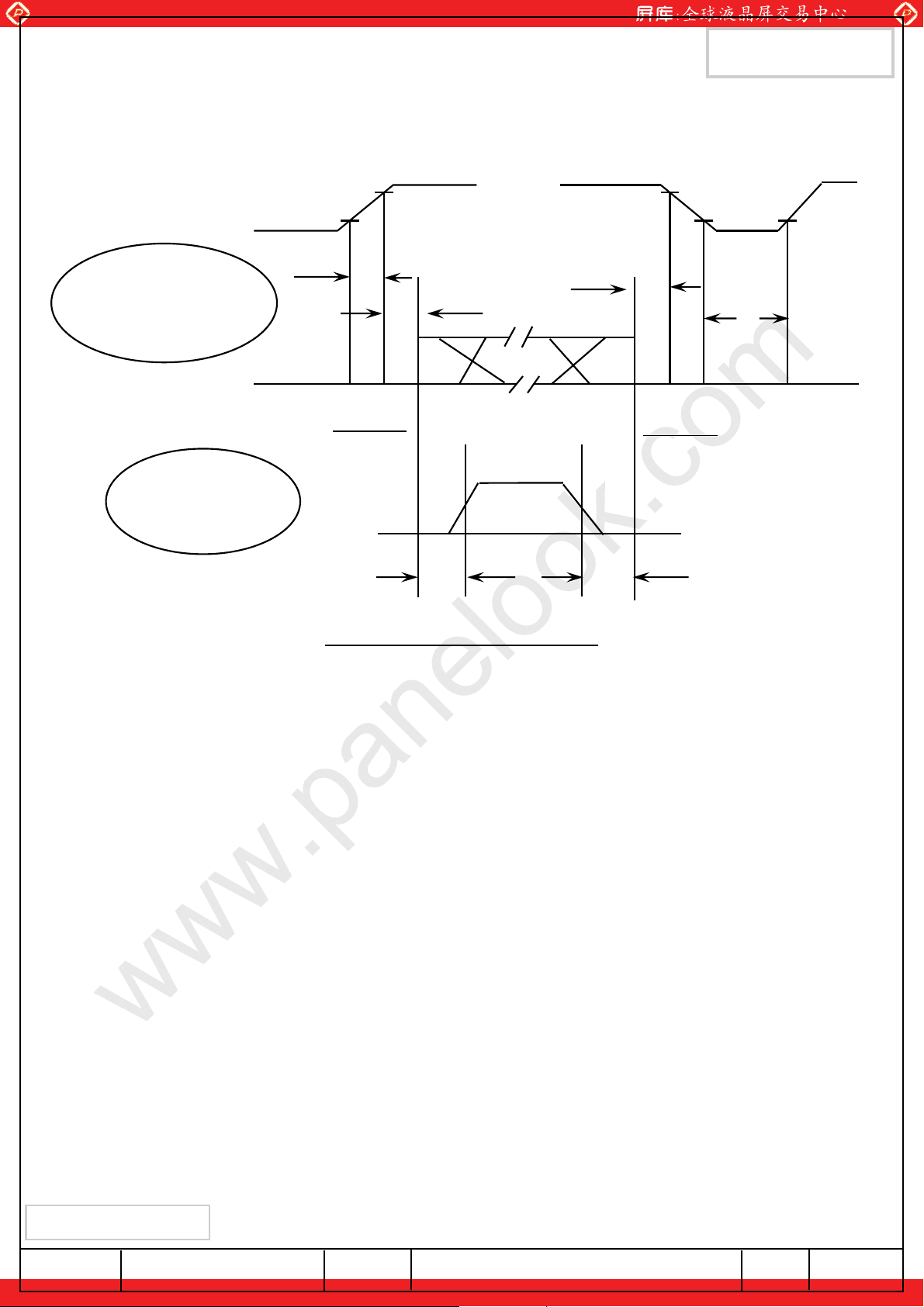

6.3 Power ON/OFF Sequence
Approval
: To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
should be as the diagram below.
Power Supply
DD
V
0V
0T1d10 msec
0
50 msec
0T3d50 msec
0.9 VDD 0.9 VDD
0.1 VDD
T1
T3
T2
0.1 VDD
T4
150 msec dT4
Signals
0 V
Power On
VALID
Power Off
Back-light
200 msec
T5
50% 50%
0 msec T6
T5 T6
Power ON/OFF Sequence
T1 : Vdd rising time from 10% to 90%
T2 : The time from Vdd to valid data at power ON.
T3 : The time from valid data off to Vdd off at power Off.
T4 : Vdd off time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
NOTE.
(1) The supply voltage of the external system for the module input should be the same
as the definition of V
(2) Apply the lamp voltage within the LCD operation range. When the back-light turns on
before the LCD operation or the LCD turns off before the back-light turns off, the
display may momentarily become white.
DD.
(3) In case of V
DD = off level, please keep the level of input signals on the low or keep
a high impedance.
(4) T4 should be measured after the module has been fully discharged between power
off and on period.
(5) Interface signal shall not be kept at high impedance when the power is on.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
20
/ 27LTN141AT15-B
Page 21
Global LCD Panel Exchange Center
www.panelook.com

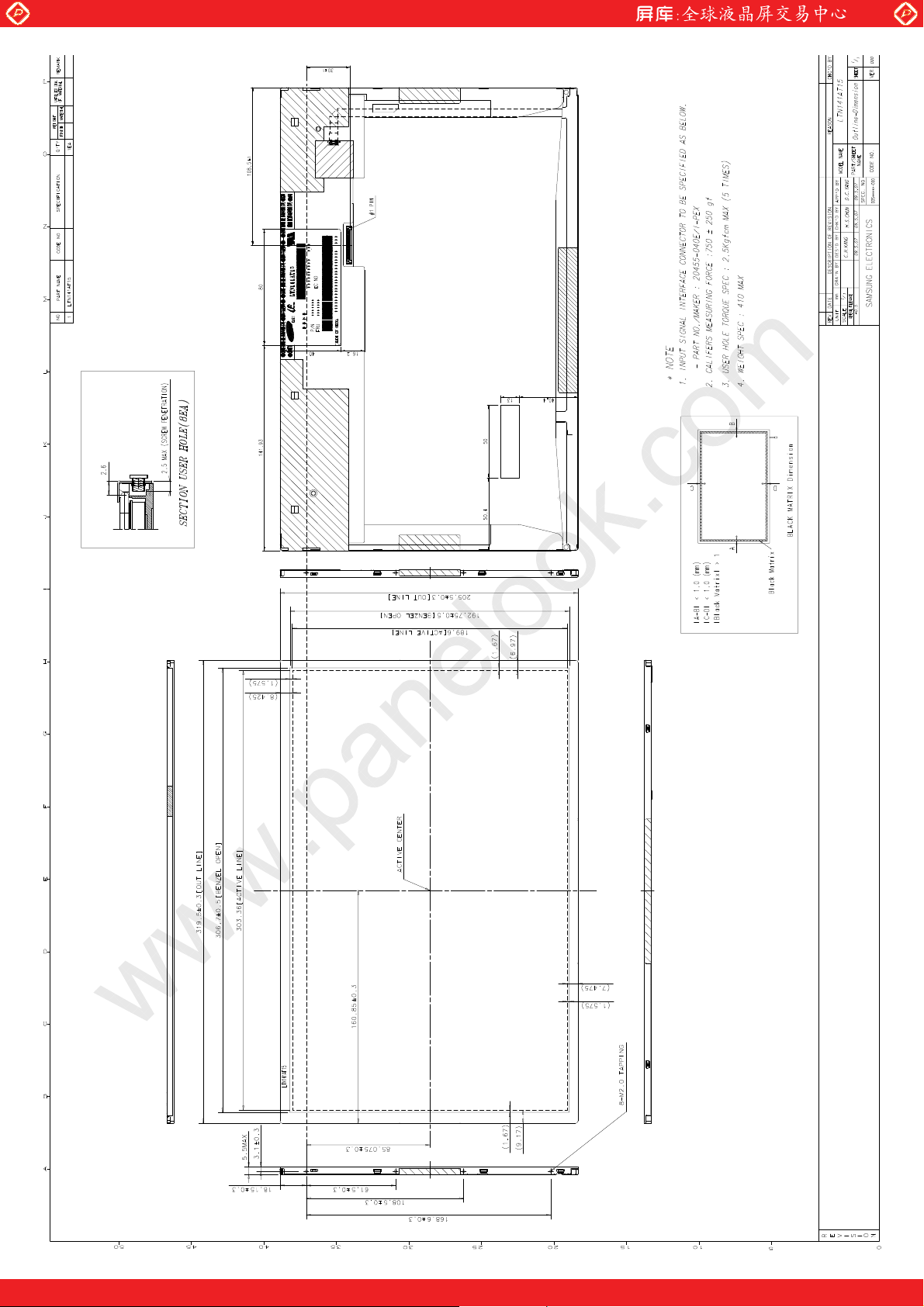

7. MECHANICAL OUTLINE DIMENSION
[ Refer to the next page ]
Approval
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
21
/ 27LTN141AT15-B
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
8. PACKING
1. CARTON (Internal Package)
(1) Packing Form
Corrugated Cardboard box and Corrupad form as shock absorber
(2) Packing Method
Approval
TBD
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
23
/ 27LTN141AT15-B
Page 24
Global LCD Panel Exchange Center
(3)Packing Material
No Part name Quantity
1 Static electric protective sack 10
www.panelook.com
Approval
2
3 Pictorial marking 2 pcs
4 Carton 1 set
Packing case (Inner box)
1 set
included shock absorber
9. MARKINGS & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the
specified location on each product.
(1)Parts number : LTN141AT15-B
(2)Revision : One letter
(3)Control code : One letter
(4)Lot number : X X X XXX XX XX
Panel No.
Cell ID
Lot ID
Year
Product Code
Line
NOTE 1). This code indicating year is omitted in the products of SESL site.
(5) Product Label Definition
TBD
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
24
/ 27LTN141AT15-B
Page 25
Global LCD Panel Exchange Center
www.panelook.com
(6) High voltage caution label
This HIGH VOLTAGE CAUTION is carved in mold frame
Approval
HIGH VOLTAGE
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT THE ELECTRIC
POWER BEFORE SERVICE
(7) Packing small box attach
DEVICE : LTN141AT15
TYPE : XXX
QUANTITY : 10 PCS
CO6040001
THIS COVER CONTAINS
FLUORESCENT LAMP.
PLEASE FOLLOW LOCAL
ORDINANCES OR
REGULATIONS FOR ITS DISPOSAL
70mm
10mm
High voltage
caution
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
25
/ 27LTN141AT15-B
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
10. GENERAL PRECAUTIONS
Approval
1. Handling
(a) When the module is assembled, It should be attached to the system firmly
using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In addition to
damage, this may cause improper operation or damage to the module and LED back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch
the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time,
Staining and discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.
(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl
chloride. It might permanent damage to the polarizer due to chemical reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or
mouth . In case of contact with hands, legs or clothes, it must be washed away thoroughly
with soap.
(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.
(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming
inspection and assembly process.
(j) Do not disassemble the module.
(k) Do not adjust the variable resistor which is located on the back side.
(l) Protection film for polarizer on the module shall be slowly peeled off just before use so
that the electrostatic charge can be minimized.
(m) Pins of I/F connector shall not be touched directly with bare hands.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
26
/ 27LTN141AT15-B
Page 27
Global LCD Panel Exchange Center
minimized length and be connected directly . The longer cable between the back
www.panelook.com
2. STORAGE
Approval
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 qC and
relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent
light during the store.
(d) Storage period is recommended not to exceed 1 year.
3. OPERATION
(a) Do not connect,disconnect the module in the “ Power On” condition.
(b) Power supply should always be turned on/off by following item 6.3
“ Power on/off sequence “.
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The FPC cable between the LED chips and its converter power supply shall be a
and the converter may cause lower luminance of light source (LED).
(e) The standard limited warranty is only applicable when the module is used for general
notebook applications. If used for purposes other than as specified, SEC is not to be
held reliable for the defective operations. It is strongly recommended to contact SEC
to find out fitness for a particular purpose.
4. OTHERS
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
-light
(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation, input
voltage variation, variation in part contents and environmental temperature, so on)
Otherwise the module may be damaged.
(d) If the module displays the same pattern continuously for a long period of time,it can be
the situation when the image “sticks” to the screen.
(e) This module has its circuitry PCB’s on the rear side and should be handled carefully in
order not to be stressed.
Samsung Secret
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A00-G-110209
Page
www.panelook.com
27
/ 27LTN141AT15-B
Loading...
