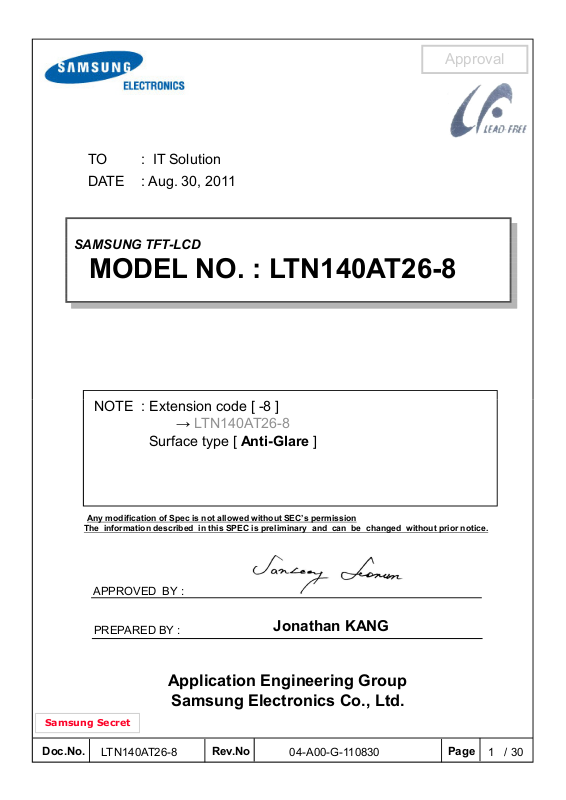

SAMSUNG LTN140AT26-804 Specification

Approval

NOTE : Extension code [

-

8 ]

TO

DATE

SAMSUNG TFT-LCD

: IT Solution

: Aug. 30, 2011

MODEL NO. : LTN140AT26-8

→ LTN140AT26-8

Surface type [ Anti-Glare ]

Any modification of Spec is not allowed without SEC’s permission

The information described in this SPEC is preliminary and can be changed without prior notice.

APPROVED BY :

PREPARED BY :

Jonathan KANG

Application Engineering Group

Samsung Electronics Co., Ltd.

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

/ 30LTN140AT26-8

1

CONTENTS

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.

Approval

Revision History

General Description

1. Absolute Maximum Ratings

1.1 Absolute Ratings of environment

1.2 Electrical Absolute Ratings

2. Optical Characteristics

3. Electrical Characteristics

3.1 TFT LCD Module

3.2 Backlight Unit

3.3 LED Driver

4. Block Diagram

4.1 TFT LCD Module

5. Input Terminal Pin Assignment

5.1 Input Signal & Power

5.2 LVDS Interface

5.3 Timing Diagrams of LVDS For Transmitting

- - - - - - - - - - - - - - - - - - - ( 3 )

- - - - - - - - - - - - - - - - - - - ( 4 )

- - - - - - - - - - - - - - - - - - - ( 5 )

- - - - - - - - - - - - - - - - - - - ( 7 )

- - - - - - - - - - - - - - - - - - - ( 10 )

- - - - - - - - - - - - - - - - - - - ( 13 )

- - - - - - - - - - - - - - - - - - - ( 14 )

5.5 Pixel format

5.6 LED Driver Connector & Pin Assignment

6. Interface Timing

6.1 Timing Parameters

6.2 Timing Diagrams of interface Signal

6.3 Power ON/OFF Sequence

7. Outline Dimension

8. Packing

9. Markings & Others

10. General Precautions

- - - - - - - - - - - - - - - - - - - ( 21 )

- - - - - - - - - - - - - - - - - - - ( 23 )

-- - - - - - - - - - - - - - - - - - ( 25 )

-- - - - - - - - - - - - - - - - - - ( 26 )

- - - - - - - - - - - - - - - - - - - ( 28 )

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

/ 30LTN140AT26-8

2

REVISION HISTORY

Approval

Date Revision No. Page

Aug, 30, 2011 A00 All The specification of LTN140AT26-8 model was issued first.

Summary

CODE REVISION HISTORY

Date Model. Revision No. Summary MP or EOL

803 Basic model

Aug,30,2011

LTN140AT26-8

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

/ 30LTN140AT26-8

3

Approval

•

If the usage of this product is not for PC application, but for others, please contact SEC

GENERAL DESCRIPTION

DESCRIPTION

LTN140AT26 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 14.0" contains
1366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the optimum

viewing angle.

FEATURES

• High contrast ratio

• HD (1366 x 768 pixels ) resolution

• Low power consumption

• Fast response time

• LED Back Light with embedded LED Driver

• DE (Data enable) only mode

• 3.3V LVDS Interface

• Onboard EEDID chip

• Green product (RoHS compliant)

APPLICATIONS

• Notebook PC

GENERAL INFORMATION

Item Specification Unit Note

Display area

Driver element

Display colors

Number of pixel

Pixel arrangement

Pixel pitch

Display Mode

309.399(H) x 173.952(V) ( 14.0” HD diagonal ) mm

a-Si TFT active matrix

262,144

1366 x 768 pixel 16:9

RGB vertical stripe

0.2265(H) x 0.2265(V) (TYP.) mm

Normally white

Surface treatment

Samsung Secret

Doc.No. Rev.No

Haze 25, Hard-Coating 3H

04-A00-G-110830

Page

Anti-

Glare

4

/ 30LTN140AT26-8

Mechanical Information

Item Min. Typ. Max. Unit Note

Horizontal (H) 323.0 323.5 324.0 mm

Module

size

Note (1) Measurement condition of outline dimension

Vertical (V) 191.5 192.0 192.5 mm

Depth (D) - - 5.2 mm (1)

Weight - - 350 g

. Equipment : Bernier Calipers
. Push Force : 750g ⋅f (minimum)

1. ABSOLUTE MAXIMUM RATINGS

1.1 ENVIRONMENTAL ABSOLUTE RATINGS

Item Symbol Min. Max. Unit Note

Storage temperate TSTG -20 60 °C (1)

Approval

Operating temperate

(Temperature of glass surface)

Shock ( non-operating ) Snop - 240 G (2),(4)

Vibration (non-operating) Vnop - 2.41 G (3),(4)

Note (1) Temperature and relative humidity range are shown in the figure below.

95 % RH Max. (40 °C ≥ Ta)
Maximum wet - bulb temperature at 39 OC or less. (Ta > 40 °C ) No condensation

100

90

80

60

40

20

TOPR 0 50 °C (1)

Relative Humidity ( %RH)

( 40,90 )

Operating Range

( 50,50.4 )

( 60,27.7 )

Storage Range

5

0

-40 -20 0 20 40 60 80

Temperature (OC)

(2) 2ms, half sine wave, one time for ±X, ±Y, ± Z.
(3) 5 - 500 Hz, random vibration, 30min for X, Y, Z.
(4) At testing Vibration and Shock, the fixture in holding the Module to be tested have to be

hard and rigid enough so that the Module would not be twisted or bent by the fixture.

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

/ 30LTN140AT26-8

5

1.2 ELECTRICAL ABSOLUTE RATINGS

(1) TFT LCD MODULE

Item Symbol Min. Max. Unit Note

Power Supply Voltage VDD VDD - 0.3 VDD + 0.3 V (1)

Logic Input Voltage VIN VDD - 0.3 VDD + 0.3 V (1)

Note (1) Within Ta (25 ± 2 °C )

(2) BACK-LIGHT UNIT

Item Symbol Min. Typ. Max. Unit Note

Approval

VDD =3.3V, VSS = GND = 0V

Ta = 25 ± 2 °C , Duty = 100%

LED Current I

LED Voltage F

Note (1) Permanent damage to the device may occur if maximum values are exceeded

Functional operation should be restricted to the conditions described under normal operating conditions.

L

L

- 25 - mA (1)

3.0 3.2 3.4 V (1)

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

/ 30LTN140AT26-8

6

Approval

Color

Color

GY0.580

2. OPTICAL CHARACTERISTICS

The following items are measured under stable conditions. The optical characteristics
should be measured in a dark room or equivalent state with the methods shown in Note (5).
Measuring equipment : TOPCON SR-3

* Ta = 25 ± 2 °C, VDD=3.3V, fv= 60Hz, fDCLK = 72.33MHz, IF = 25 mA

Item Symbol Condition Min. Typ. Max Unit Note

Contrast Ratio

(5 Points)

Response Time at Ta

( Rising + Falling )

Average Luminance
of White (5 Points)

Red

Green

Chromaticity

( CIE )

Blue

White

CR

TRT - 16 25 msec (1), (3)

YL,AVE 200 220 - cd/m

RX 0.585

RY 0.355

GX 0.350

BX 0.165

BY 0.125

WX 0.313

WY 0.329

Normal

Viewing

Angle

φ = 0
θ = 0

300 - - - (1), (2), (5)

IF=25mA

2

(1), (4)

-0.03 +0.03 -

(1), (5)

SR-3

Color Gamut 45 - %

θL

Hor.

Viewing

Angle

13 Points

White Variation

Samsung Secret

Ver.

θH

φH

φL

δL

CR ≥ 10

At center

Doc.No. Rev.No

40 - -

40 - -

15 - -

30 - -

- - 1.7 - (6)

04-A00-G-110830

Degrees (1), (5)

Page

SR-3

7

/ 30LTN140AT26-8

Note 1) Definition of Viewing Angle : Viewing angle range(10 ≤

Normal Line

o

φ = 0

,

θ = 0

θ L

φ H

θL =90

o

x

φ L

≤ C/R)

≤≤

o

θ R

y

Approval

12 O’clock
direction

φH= 90

o

6 O’clock
direction

φL= 90

o

x'y'

θR=90

Note 2) Definition of Contrast Ratio (CR) : Ratio of gray max (Gmax) ,gray min (Gmin)

at 5 points(4, 5, 7, 9, 10)

CR(4) + CR(5) + CR(7) + CR(9) + CR(10)

CR =

5

Points : , , , , at the figure of Note (6).

4 9

5

7

10

Note 3) Definition of Response time :

Display data

White(TFT OFF) White(TFT OFF)

TR

Black(TFT ON)

TF

100%

90%

Optical
Response

10%

0%

o

Note 4) Definition of Average Luminance of White : measure the luminance of white at 5 points.

25% 50% 75%

Average Luminance of White ( YL,AVE )

YL4 + YL5 + YL7 + YL9 + YL10

10

9

7

YL,AVE =

5

5

4

: test point

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Time

VIEW AREA

25%

50%

75%

(lines)

Page

/ 30LTN140AT26-8

8

Approval

Note 5) After stabilizing and leaving the panel alone at a given temperature for 30 min , the measurement

should be executed. Measurement should be executed in a stable, windless,and dark room.
30 min after lighting the backlight. This should be measured in the center of screen.
IF current : 25 mA
Environment condition : Ta = 25 ± 2 °C

Photo-detector

( TOPCON SR-3 )

Field = 2°

50 cm

TFT-LCD module

Center of the screen

[ Optical characteristics measurement setup ]

Note 6) Definition of 13 points white variation (δ L ), CR variation( CVER ) [ ~ ]

Maximum luminance of 13 points

LCD panel

1 13

δ L =

Minimum luminance of 13 points

10mm

11

25%

10mm

10mm

25% 50%

13 12

10

75%

9

8

5

3

10mm

Samsung Secret

Doc.No. Rev.No

7

4

2

04-A00-G-110830

6

50%

75%

1

: test point

Page

/ 30LTN140AT26-8

9

3. ELECTRICAL CHARACTERISTICS

(2) f

V

= 60Hz, f

DCLK

= 72.33MHZ, V

DD

= 3.3V , DC Current.

3.1 TFT LCD MODULE

Item Symbol Min. Typ. Max. Unit Note

Voltage of Power Supply VDD 3.0 3.3 3.6 V

Approval

Ta= 25 ± 2°C

Differential Input

Voltage for LVDS

Receiver Threshold

Vsync Frequency fv - 60 - Hz

Main Frequency fDCLK - 72.33 85 MHz

Rush Current IRUSH - - 1.5 A (4)

Current of Power

Supply

Note (1) Display data pins and timing signal pins should be connected.( GND = 0V )

(3) Power dissipation pattern

*a) White Pattern *b) Mosaic Pattern

High VIH - - +100 mV VCM = +1.2V

Low VIL -100 - - mV

White

Mosaic - 210 240 mA (2),(3)*b

V. stripe - 335 350 mA (2),(3)*c

IDD

- 210 - mA (2),(3)*a

VIEW AREA

Samsung Secret

Doc.No. Rev.No

Display Brightest Gray Level

Display Darkest Gray Level

04-A00-G-110830

Page

10

/ 30LTN140AT26-8

*c) 1dot Vertical stripe pattern

R1

C1

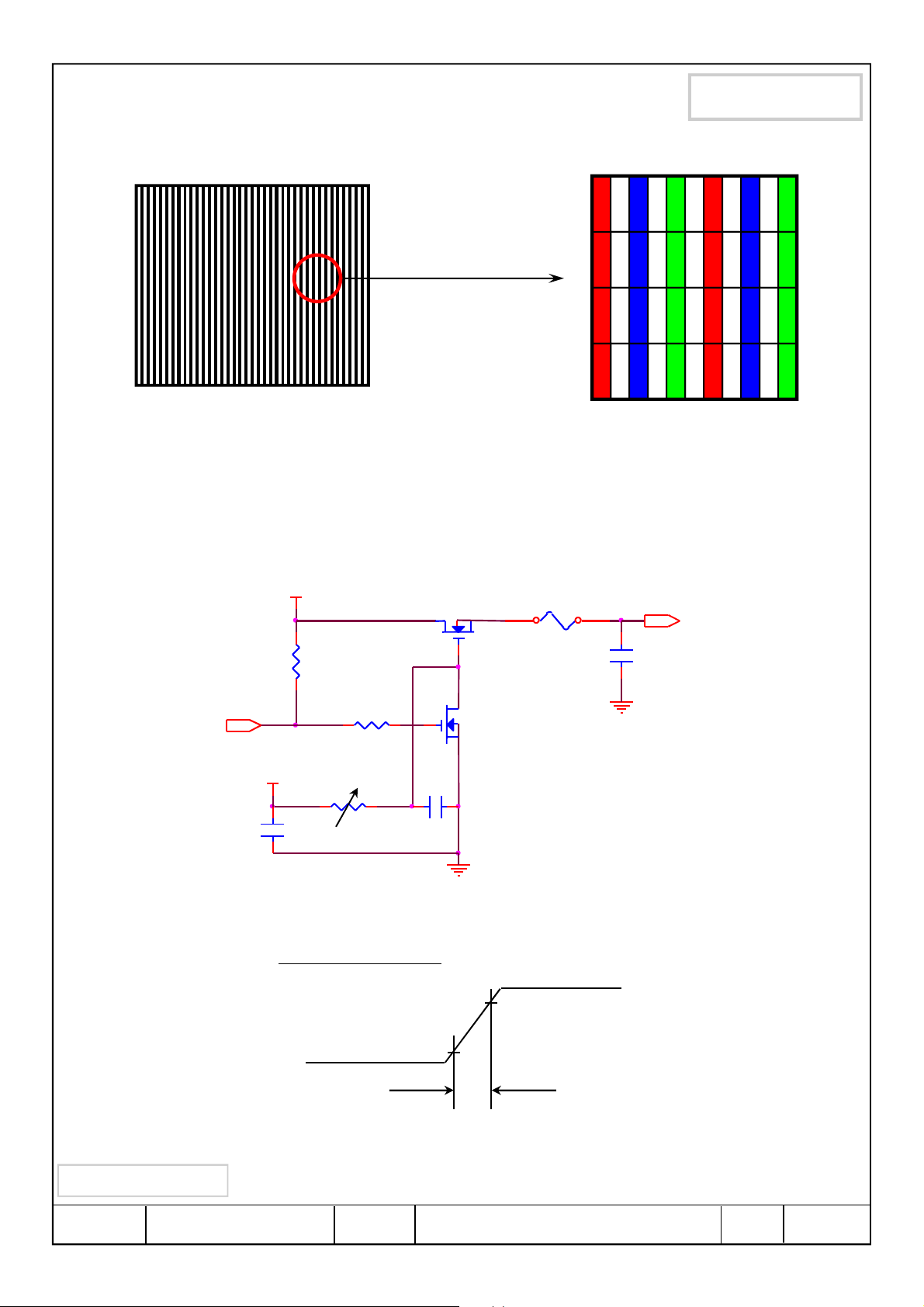

4) Rush current measurement condition

Approval

R G B R G B R G B R G

G B R G B R G B R G

R

G B R G B R G B R G

R

R G B R G B R G B R G

CONTROL SIGNAL

(HIGH to LOW)

3.3V

47K

R2

1K

12V

C3
1uF

R3

47K

VDD rising time is 470us

M1
2SK1059

C2

10000pF

0.9VDD

VDD ( LCD INPUT)

FUSE

1uF

M2
2SK1399

3.3V

0.1VDD

GND

Samsung Secret

Doc.No. Rev.No

470us

04-A00-G-110830

Page

11

/ 30LTN140AT26-8

Approval

Input Current

I-25-mA

-

3.2 BACK-LIGHT UNIT

Ta= 25 ± 2 °C

Item Symbol Min. Typ. Max. Unit Note

LED Forward Current IF 275 mA

LED Forward Voltage VF 3.0 3.2 3.4 V

LED Array Voltage VP - 32 - V VF X 10LEDs

Operating Life Time Hr 12,000 - - Hour (1)

Note (1) Life time (Hr) of LEDs can be defined as the time in which it continues to operate under the

condition Ta= 25 ± 2 °C and IF = 27 mArms until one of the following event occurs.

1. When the brightness becomes 50% or lower than the original.

3.3 LED Driver

Ta= 25 ± 2 °C

Item- Symbol Min. Typ. Max. Unit Note

Input Voltage Vin 7 12 20 V -

EN control level

PWM control level

PWM Control Duty

Ratio

External PWM

Dimming Control

Frequency (BLIM)

Note (1) Test Equipment : Fluke 45

ON 2 - - V

OFF - - 0.8 V

ON 2 - - V

OFF - - 0.8 V

D 10 - 100 %

FBLIM - 1 10 kHz

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

12

/ 30LTN140AT26-8

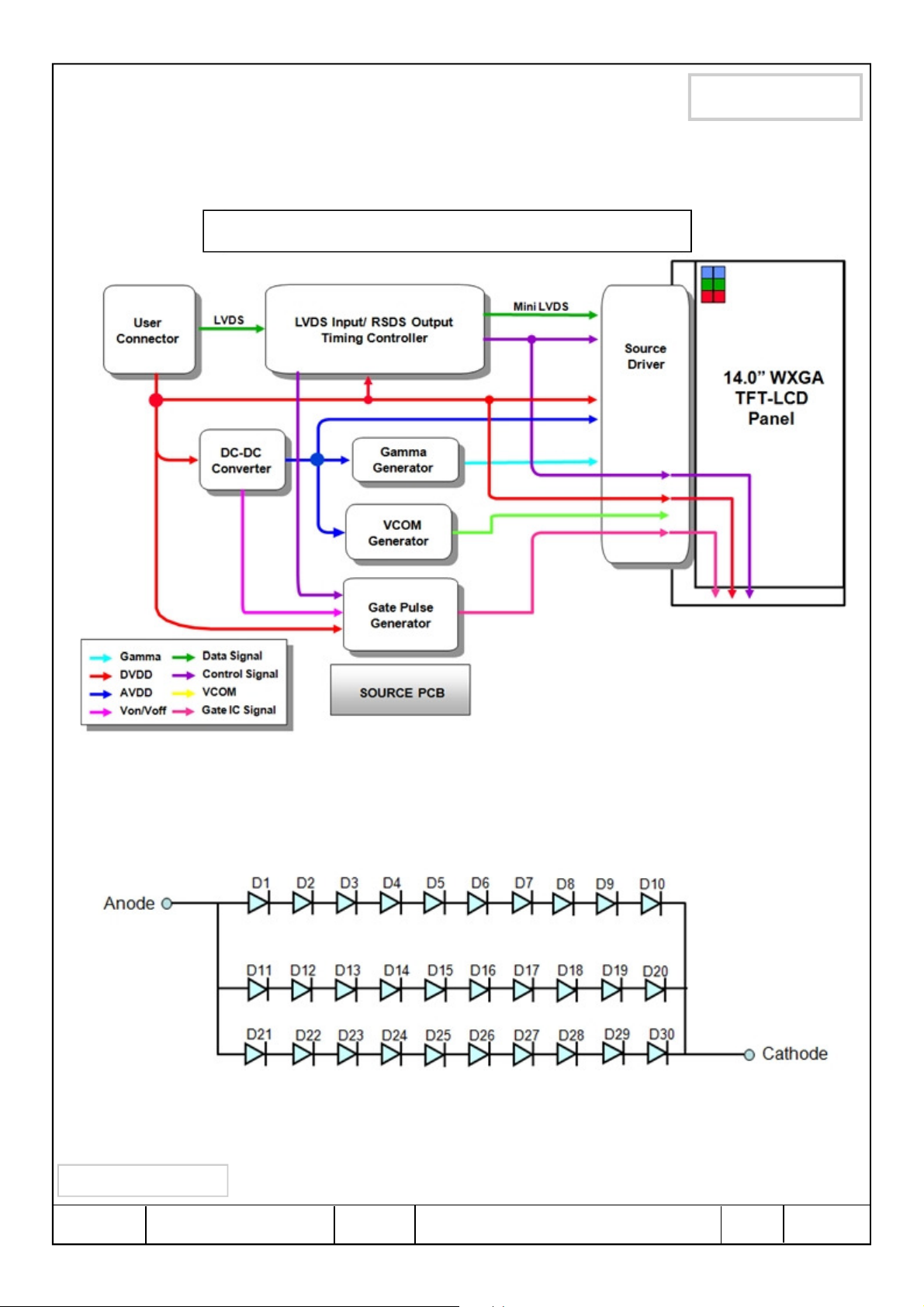

4. BLOCK DIAGRAM

4.1 TFT LCD Module

LTN140AT26-8 Circuit Block Diagram

Approval

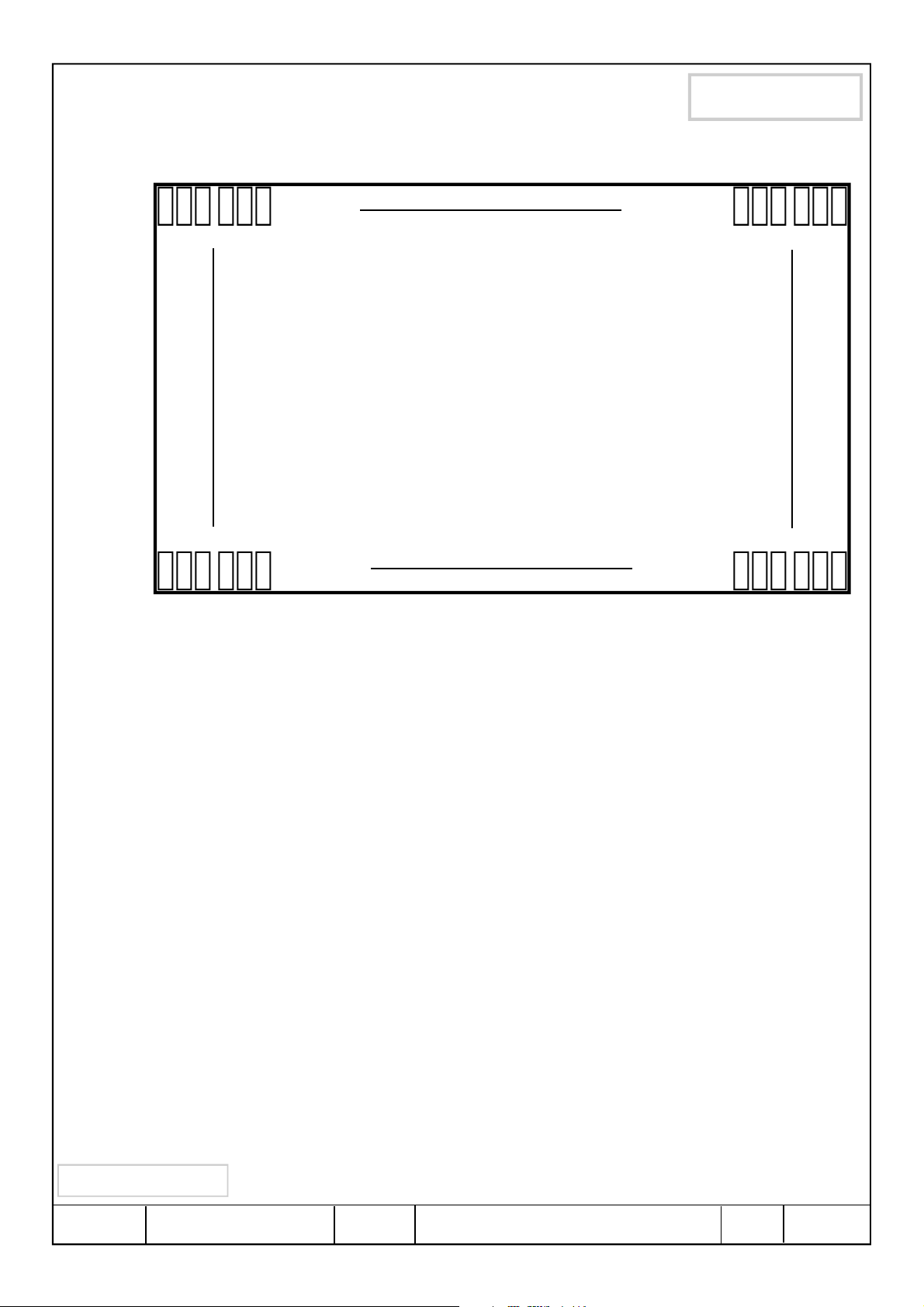

4.2 LED connection and placement

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

13

/ 30LTN140AT26-8

5. INPUT TERMINAL PIN ASSIGNMENT

16

GND

Ground

Approval

5.1. Input Signal & Power (LVDS, Connector : 20455-040E-0 by I-PEX or equivalent )

No. Signal Description

1 NC No Connection

2~3 AVDD Power Supply, 3.3V ( typical)

4 DVDD DDC 3.3V power

5 NC No Connection

6 SCL DDC Clock

7 SDA DDC Data

8 Rin0- -LVDS differential data input (R0-R5, G0)

9 Rin0+ +LVDS differential data input (R0-R5, G0)

10 GND Ground

11 Rin1- -LVDS differential data input (G1-G5, B0-B1)

12 Rin1+ +LVDS differential data input (G1-G5, B0-B1)

13 GND Ground

14 Rin2- -LVDS differential data input (B2-B5, HS, VS, DE)

15 Rin2+ +LVDS differential data input (B2-B5, HS, VS, DE)

17 ClkIN- -LVDS differential clock input

18 ClkIN+ +LVDS differential clock input

19 GND Ground

20~21 NC No Connection

22 GND Ground

23~24 NC No Connection

25 GND Ground

26~27 NC No Connection

28 GND Ground

29~30 NC No Connection

31~33 VBL- LED Ground

34 NC No Connection

35 BLIM PWM for luminance control (200~1KHz, 3.3V, 10~100%)

36 BL_Enable BL On/Off (On:2.0~3.3V, Off: 0~0.5V)

37 NC No Connection

38~40 VBL+ LED Power Supply 5.5V~20V

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

14

/ 30LTN140AT26-8

5. 2 LVDS Interface

LVDS Clock Ratio

TOD455055

%

5.2.1 LVDS DC Input

ITEM SYMBOL MIN. TYP. MAX. UNIT NOTE

LVDS Differential Voltage Vid 200 200 400 mV

Approval

Input Common Mode

Voltage

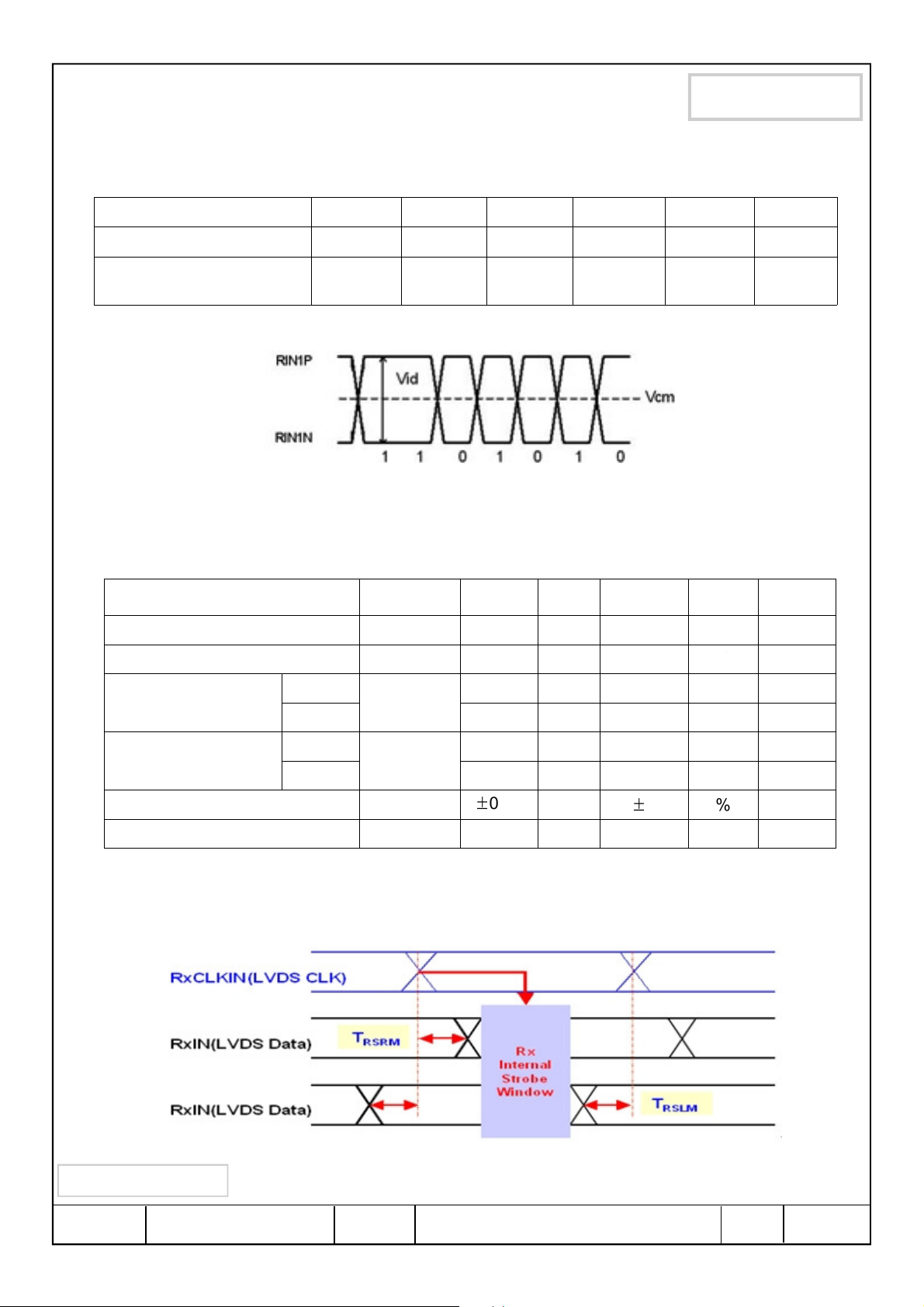

5.2.2 LVDS AC Input

ITEM SYMBOL MIN. TYP. MAX. UNIT NOTE

PLL Lock Time

LVDS RX Skew

(Strobe) Right Margin

85MHz

50MHz

V

CM

0.4 1.2 1.6 V

- - 20

400 - 400

T

RSRM

600 - 600

µsec

ps

ps

(1),(2)

(1),(2)

LVDS RX Skew

(Strobe) Left Margin

85MHz

50MHz

T

RSLM

SSC Modulation Rate

SSC Modulation Frequency

Note (1) : LVDS Receiver Skew (Strobe) Margin

Samsung Secret

400 - 400

600 - 600

±

0.05

-

30 200 300

±

ps

ps

3

%

KHz

(1),(2)

(1),(2)

(3)

(3)

Doc.No. Rev.No

04-A00-G-110830

Page

15

/ 30LTN140AT26-8

Note (2) : Ideal Strove Positions for LVDS Input

Approval

Note (3) : SSC ( Spread Spectrum Clock)

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

16

/ 30LTN140AT26-8

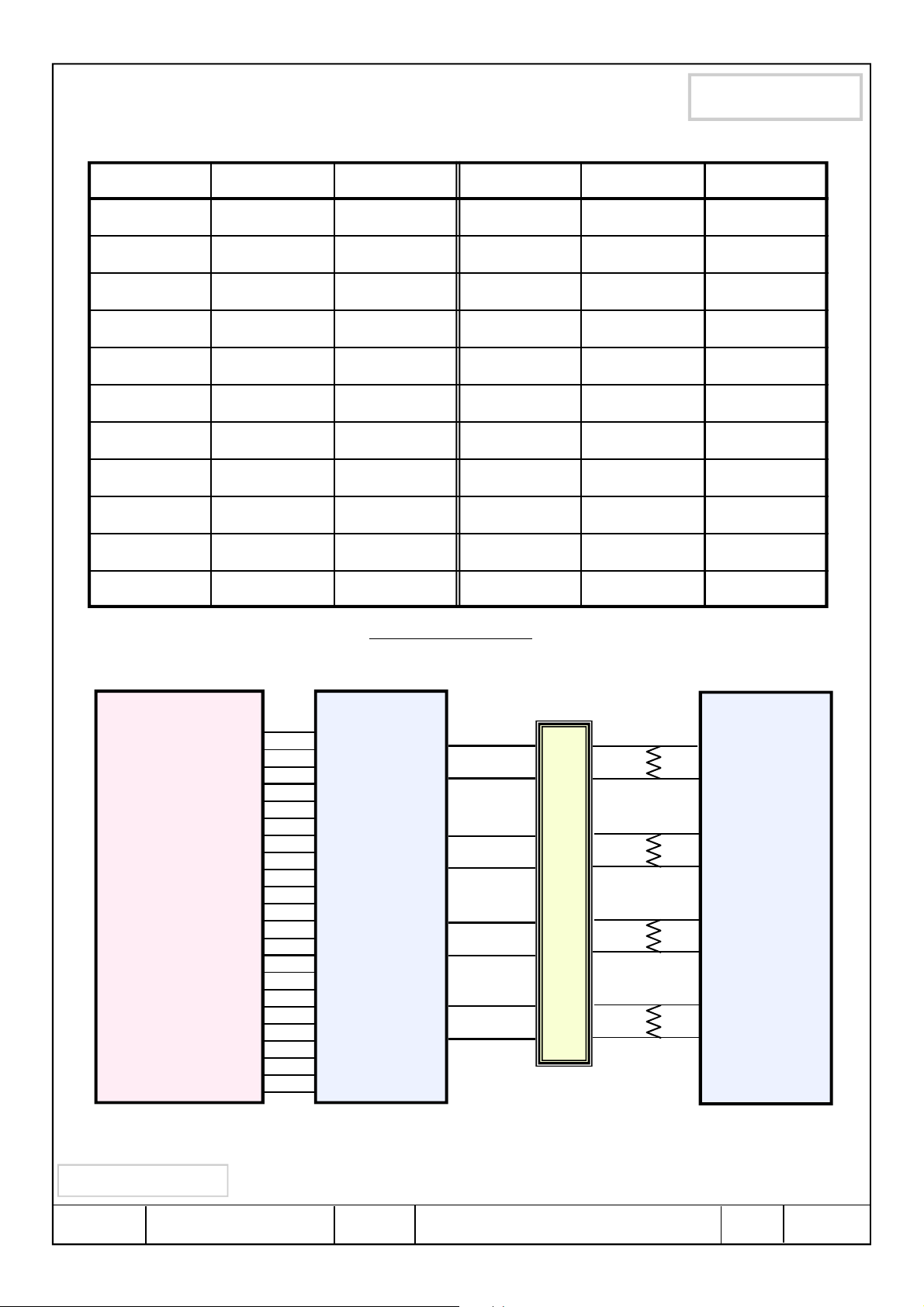

5.2 LVDS Interface : Transmitter SN75LVDS86 or Compatible

Pin No. Name RGB Signal Pin No. Name RGB Signal

51 TxIN0 R0 14 TxIN14 G5

52 TxIN1 R1 15 TxIN15 B0

54 TxIN2 R2 19 TxIN18 B1

55 TxIN3 R3 20 TxIN19 B2

56 TxIN4 R4 22 TxIN20 B3

3 TxIN6 R5 23 TxIN21 B4

4 TxIN7 G0 24 TxIN22 B5

6 TxIN8 G1 27 TxIN24 Hsync

7 TxIN9 G2 28 TxIN25 Vsync

Approval

11 TxIN12 G3 30 TxIN26 DE

12 TxIN13 G4 31 TxCLKIN Clock

LVDS INTERFACE

Graphics controller

18-bit

Note : The LCD Module uses a 100ohm resistor between positive and negative lines of each
receiver input.

RED0
RED1
RED2
RED3
RED4
RED5

GREEN0
GREEN1
GREEN2
GREEN3

GREEN4
GREEN5

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5

Hsync
Vsync

Enable

CLOCK

DS90CF383 Integrated IC

51
52
54
55
56
3
4
6
7
11
12
14
15
19
20
22
23
24
27
28
30
31

TxOUT0-

TxOUT0+

TxOUT1-

TxOUT1+

TxOUT2-

TxOUT2+

TxCLKOUT-

TxCLKOUT+

I-PEX 20455-040E

48

47

46

45

42

41

40

39

8

100 Ω

9

11

100Ω

12

14

100 Ω

15

17

100 Ω

18

RxIN0-

RxIN0+

RxIN1-

RxIN1+

RxIN2-

RxIN2+

RxCLKIN-

RxCLKIN+

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

17

/ 30LTN140AT26-8

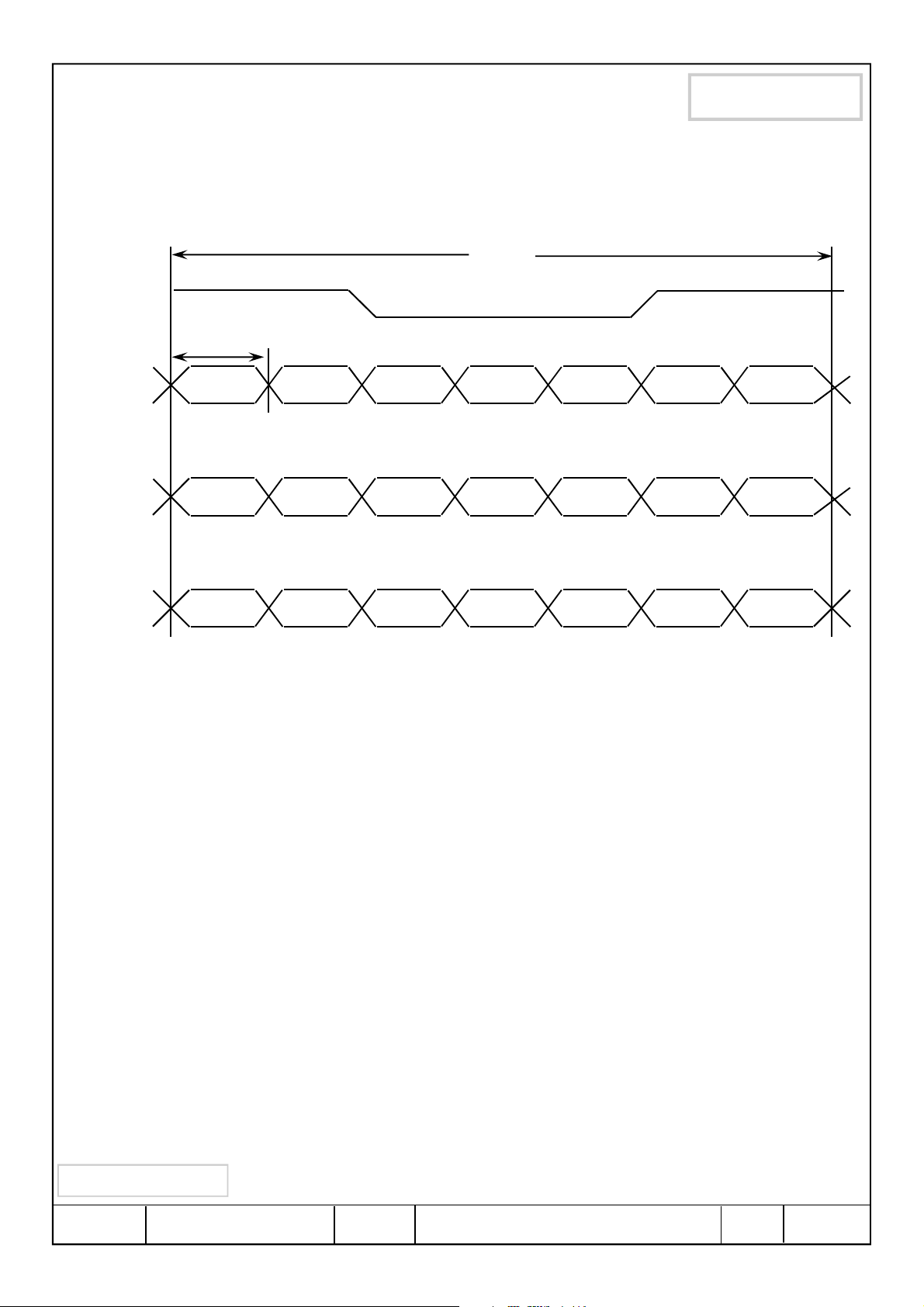

5.3 Timing Diagrams of LVDS For Transmission

G0R4R5R2R1R0R3

LVDS Receiver : Integrated T-CON

TxCLK OUT

RxCLK IN

T/7

Approval

T

Rx IN2

Rx IN1

RxIN0

RxOUT20 RxOUT19 RxOUT17RxOUT18 RxOUT16 RxOUT15 RxOUT14

DE

RxOUT13 RxOUT12 RxOUT10RxOUT11 RxOUT9 RxOUT8 RxOUT7

RxOUT6 RxOUT5 RxOUT3RxOUT4 RxOUT2 RxOUT1 RxOUT0

Vsync B2Hsync B5 B3B4

G4B1 G5B0 G3 G2 G1

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

18

/ 30LTN140AT26-8

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

Red111111000000000000

R63

Approval

Color Display

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 -

Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 -

Basic

Colors

Gray

Scale

Of

Red

Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 -

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 -

Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 -

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 -

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0

Dark 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1

↑ 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2

: : : : : : : : : : : : : : : : : : :

: : : : : : : : : : : : : : : : : : :

↓ 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R61

Data Signal

Red Green Blue

R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 45 B5

Gray
Scale
Level

R3∼R60

Gray

Scale

Of

Green

Gray

Scale

Of

Blue

Light 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R62

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0

Dark 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 G1

↑ 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 G2

: : : : : : : : : : : : : : : : : : :

G3∼G60

: : : : : : : : : : : : : : : : : : :

↓ 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0 G61

Light 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 G62

Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 G63

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0

Dark 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 B1

↑ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 B2

: : : : : : : : : : : : : : : : : : :

B3∼B60

: : : : : : : : : : : : : : : : : : :

↓ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 B61

Light 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 B62

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 B63

Note 1) Definition of gray :

Rn: Red gray, Gn: Green gray, Bn: Blue gray (n=gray level)

Note 2)Input signal: 0 =Low level voltage, 1=High level voltage

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

19

/ 30LTN140AT26-8

5.5 Pixel Format in the display

Approval

Line 1

Line 768

1

R G B R G B

R G B R G B

1366

LTN140AT26-8 Panel

R G B R G B R G B R G B

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

20

/ 30LTN140AT26-8

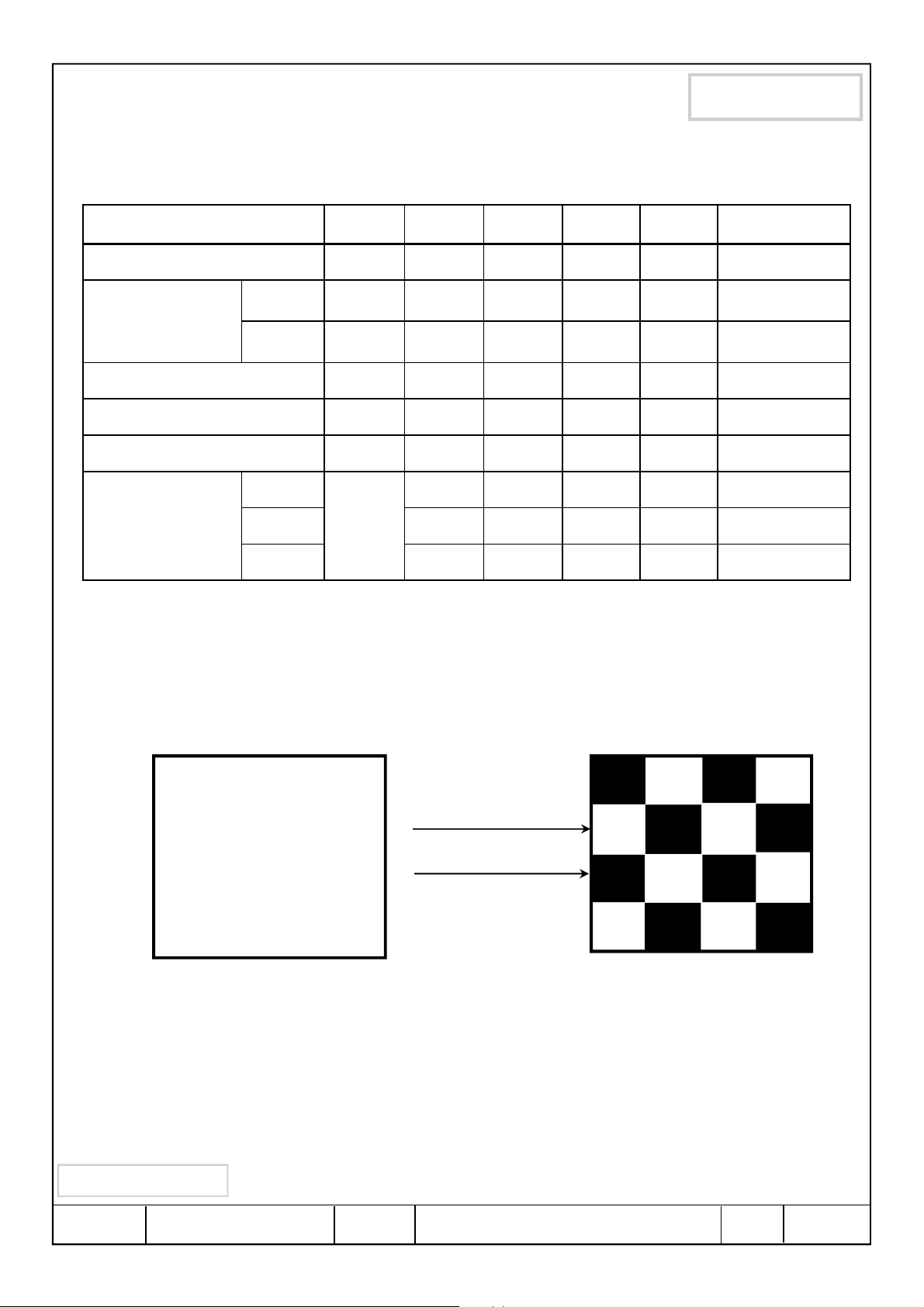

6. INTERFACE TIMING

6.1 Timing Parameters

Signal Item Symbol Min. Typ. Max. Unit Note

Frame Frequency Cycle TV 780 790 980 Lines

Approval

Vertical Active
Display Term

One Line

Scanning Time

Horizontal Active

Display Term

Display

Period

Cycle TH 1440 1526 1800 Clocks

Display

Period

TVD - 768 - Lines

THD - 1366 - Clocks

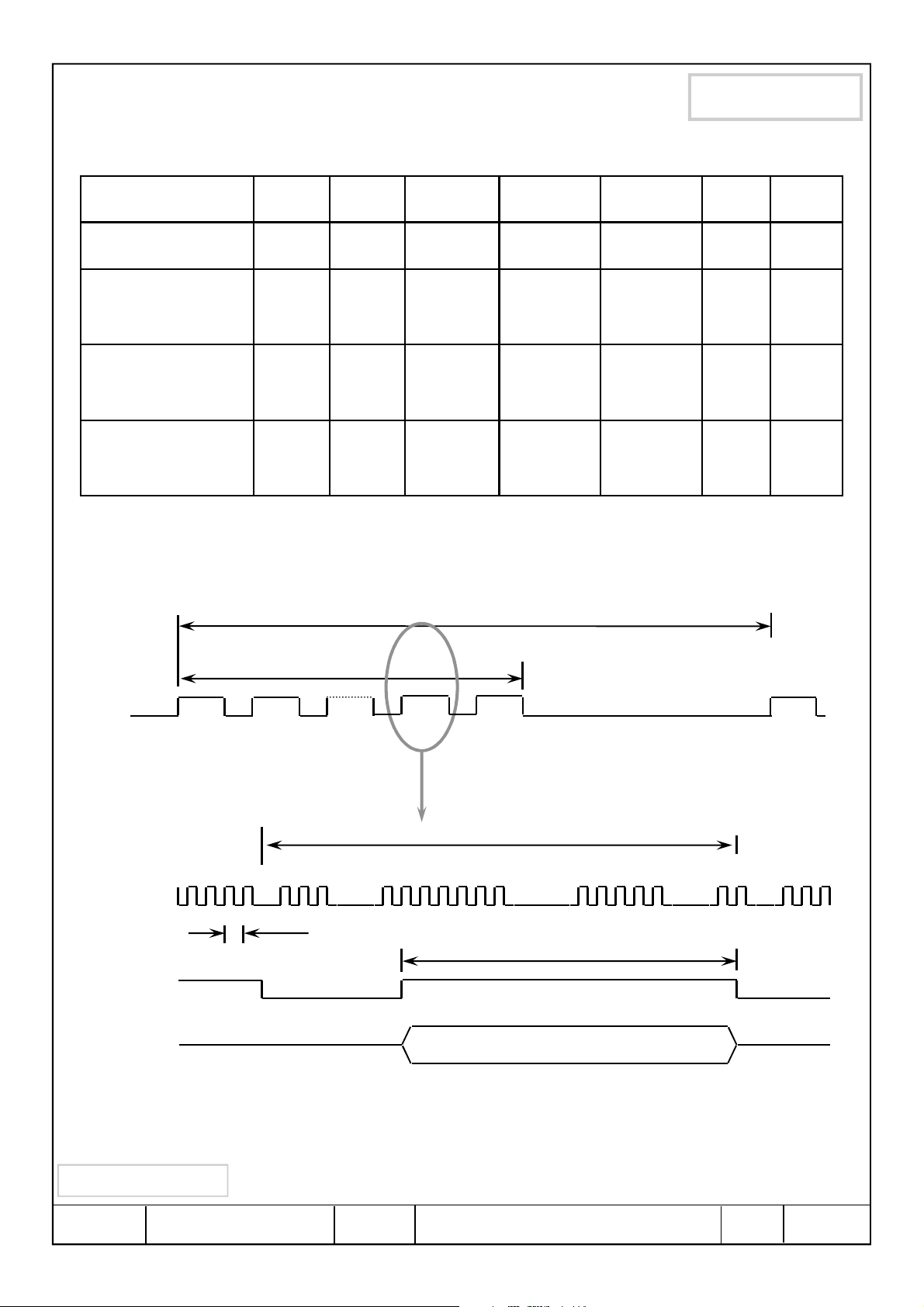

6.2 Timing diagrams of interface signal

TVD

DE

TV

DCLK

TC

DE

DATA
SIGNALS

Samsung Secret

Doc.No. Rev.No

TH

THD

Valid display data ( 1366 clocks)

04-A00-G-110830

Page

21

/ 30LTN140AT26-8

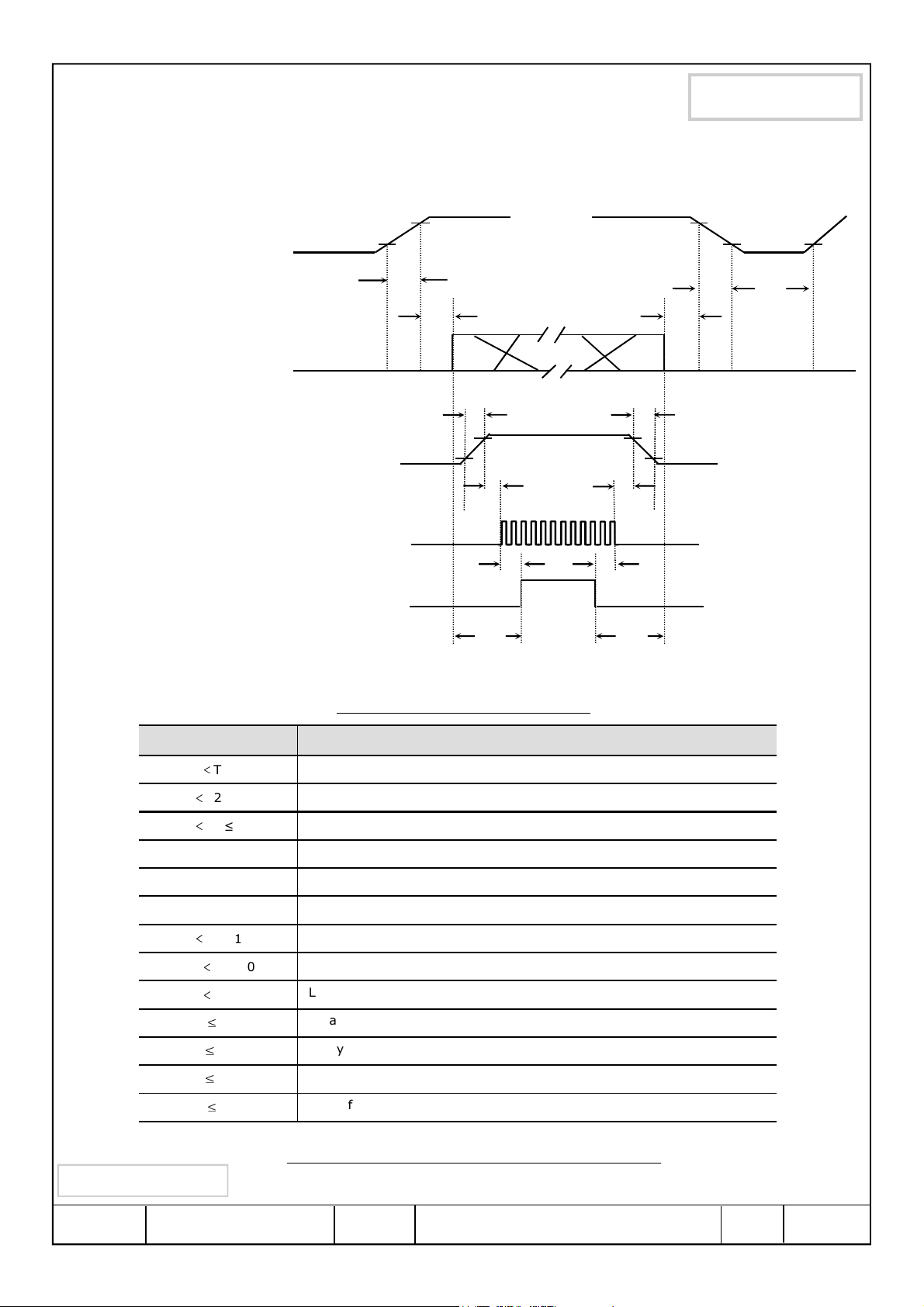

6.3 Power ON/OFF Sequence

Approval

: To prevent a latch-up or DC operation of the LCD module, the power on/off sequence

should be as the diagram below.

Power Supply VDD

0.1 V

0V

Signals

0 V

LED Power (Vin)

PWM for LED driver
(Dimming signal)

Enable signal for LED driver
(Backlight on/off)

0.9 V

DD

0.1 LED V

DD

T1

T2

0.9 LED V

in

in

T12

T5

T8

T10

VALID

T9

T11

T13

T6

T3

0.9 LED V

0.1 LED V

0.9 V

T7

in

DD

0.1 V

DD

T4

in

Power ON/OFF Sequence

Timing (ms) Remarks

0.5＜T1≤10

0＜T2 ≤50

0＜T3 ≤50

500 ≤T4

200 ≤T5

200 ≤T6

0＜T7 ≤10

0.5＜T8≤10

0.5＜T9≤10

0 ≤T10

0≤T11

0≤T12

0 ≤T13

VDDrising time from 10% to 90%

Delay from VDDto valid data at power ON

Delay from valid data OFF to VDDOFF at power Off

VDDOFF time for Windows restart

Delay from valid data to B/L enable at power ON

Delay from valid data off to B/L disable at power Off

VDDfalling time from 90% to 10%

LED V

rising time from 10% to 90%

in

LED V

falling time from 90% to 10%

in

Delay from LED driver Vin rising time 90% to PWM ON

Delay from PWM Off to LED driver Vin falling time 10%, Must Keep rule

Delay from PWM ON to B/L Enable ON, Must Keep rule

Delay from B/L Enable Off to PWM Off

Power Sequence & Timing Parameters

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

22

/ 30LTN140AT26-8

7. Mechanical Outline Dimension

Refer to the next page

Approval

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

23

/ 30LTN140AT26-8

This page will be replaced with the outline drawing after
producing PDF file.

Approval

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

24

/ 30LTN140AT26-8

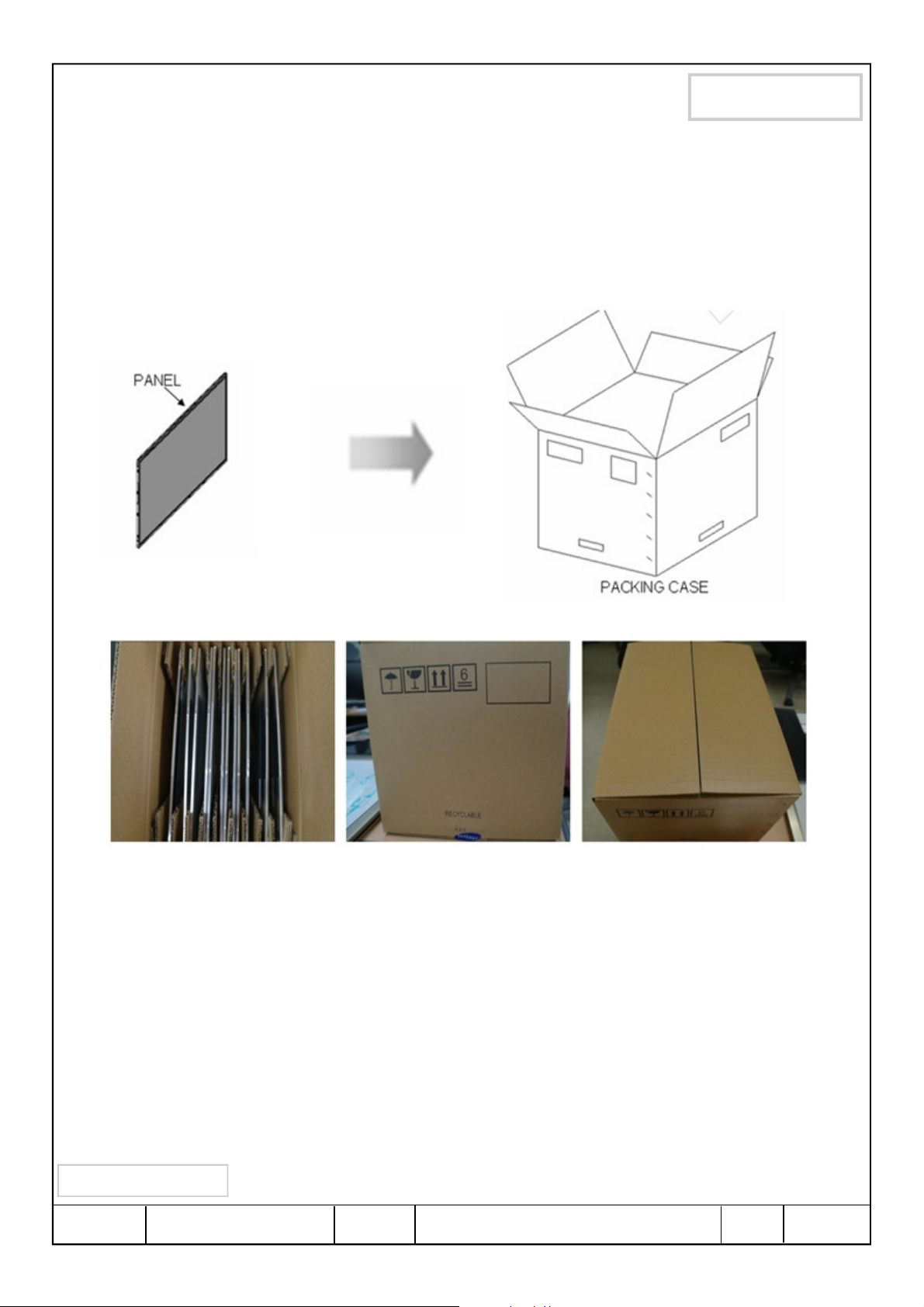

8. PACKING

1. CARTON (Internal Package)

(1) Packing Form

Corrugated Cardboard box and EPS form as shock absorber

(2) Packing Method

Approval

Note (1) Total : Approx. 10.7 Kg

(2) Acceptance number of piling : 15 sets

(3) Carton size : 347.5(W) X 375(L) X 246(H)

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

25

/ 30LTN140AT26-8

(3)Packing Material

Year

No Part name Quantity

1 Static electric protective sack 30 pcs

Approval

2

3 Pictorial marking 2 pcs

4 Carton 1 set

Packing case (Inner box)

1 set

included shock absorber

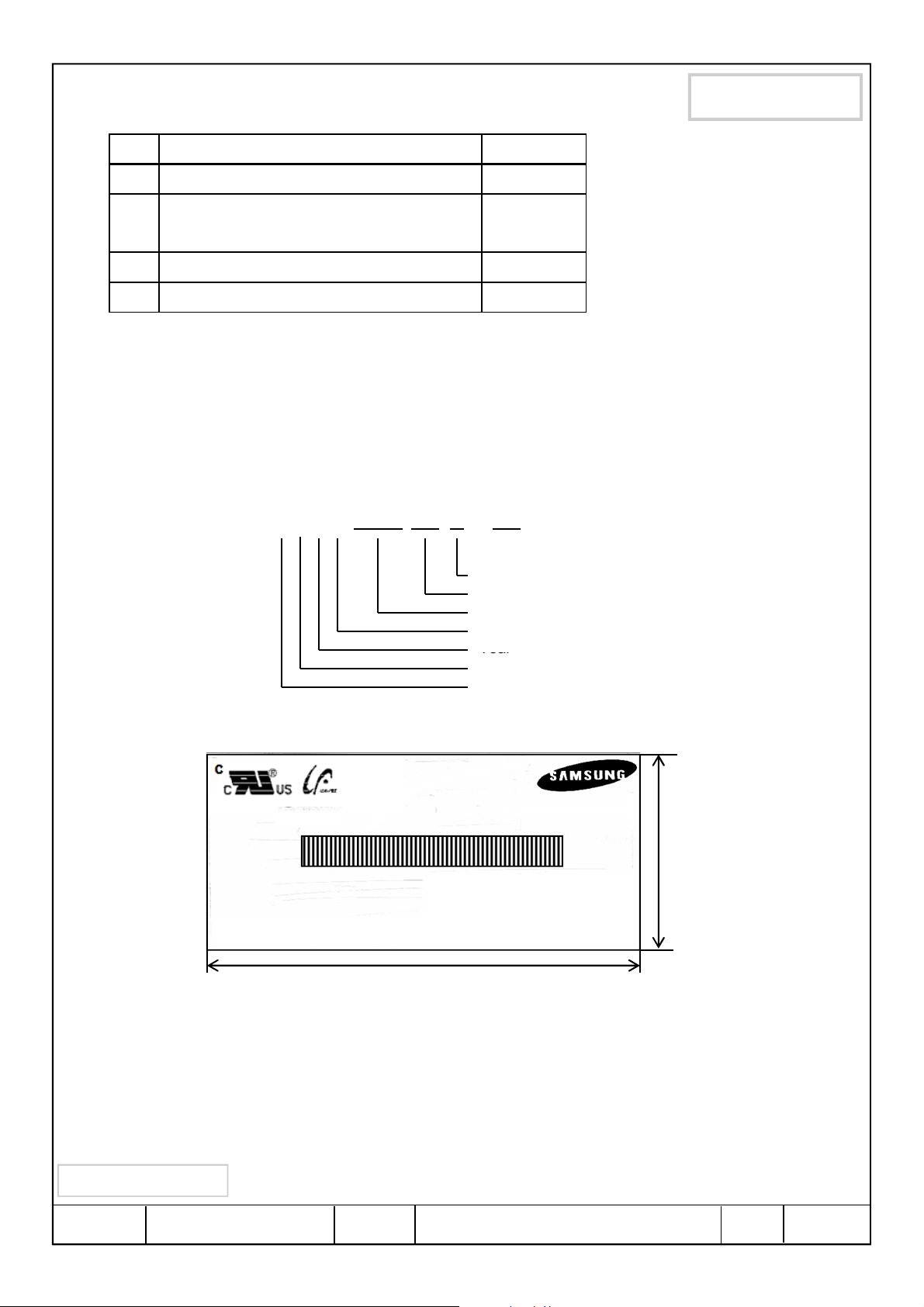

9. MARKINGS & OTHERS

A nameplate bearing followed by is affixed to a shipped product at the
specified location on each product.

(1)Parts number : LTN140AT26
(2)Revision code : 3 letters
(3)Lot number : X X X X XXX XX X 8**

SEC Revision Code

Panel number
Cell ID
Lot ID
Month

(4) Nameplate Indication

1127

MADE IN CHINA

Parts name : LTN140AT26
Lot number : XXXXXXXXXX
USPXXXXXXX/USPXXXXXXX : Related patent Num.
Inspected work week : 1127 (2011 year, 27th week)
Product revision Code : 8**

Product Code
Line

LTN140AT26

XXXXXXXXXX

USPXXXXXXX/USPXXXXXXX

80 mm

40 mm

8**

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

26

/ 30LTN140AT26-8

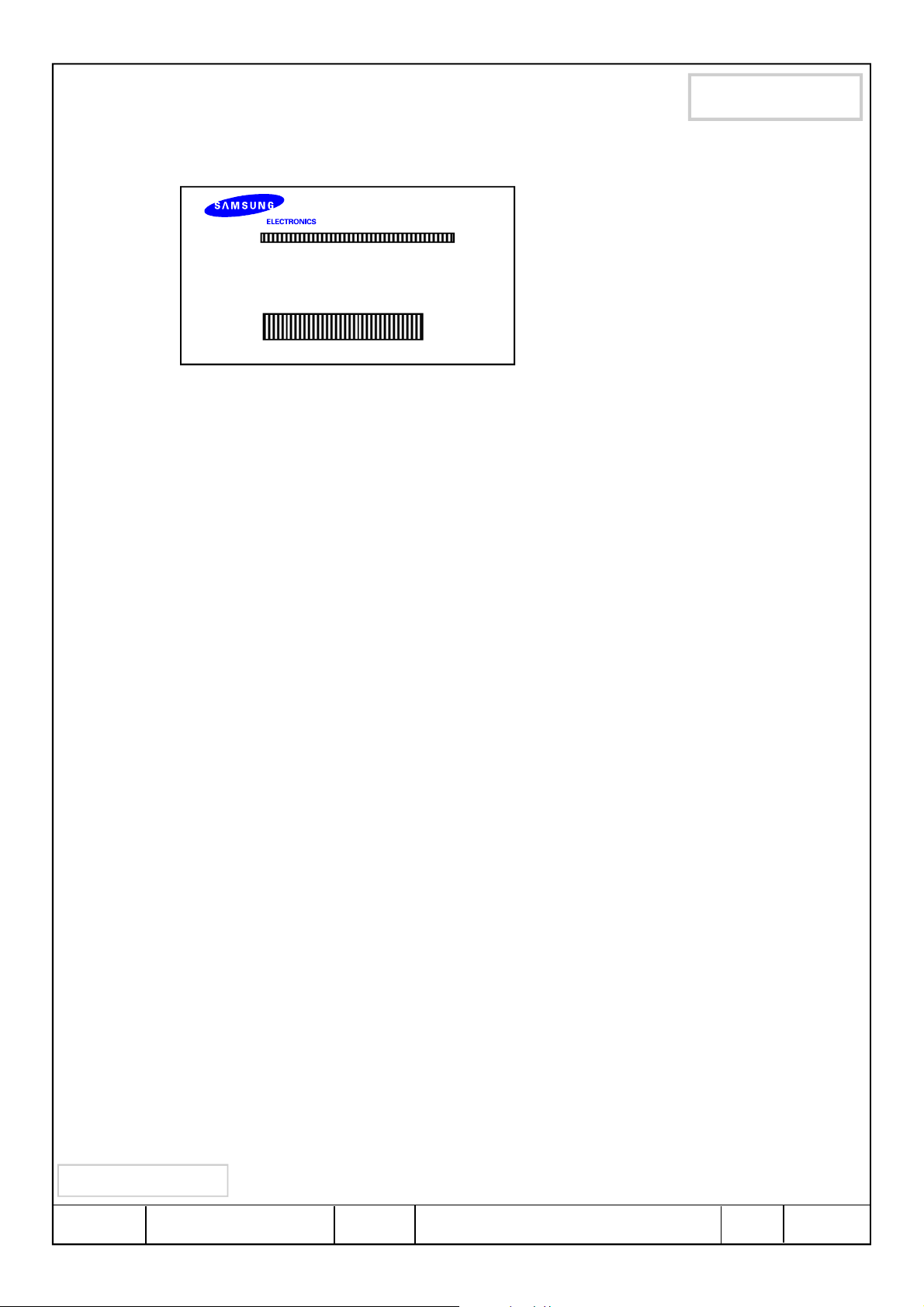

(5) Packing small box attach

DEVICE : LTN140AT26
TYPE : 8**
QUANTITY : 30 PCS

CO*******

Approval

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

27

/ 30LTN140AT26-8

Approval10. GENERAL PRECAUTIONS

with soap.

1. Handling

(a) When the module is assembled, It should be attached to the system firmly

using every mounting holes. Be careful not to twist and bend the modules.

(b) Refrain from strong mechanical shock and / or any force to the module. In addition to

damage, this may cause improper operation or damage to the module and LED back-light.

(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch

the surface harder than a HB pencil lead.

(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time,

Staining and discoloration may occur.

(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.

(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane.

Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl
chloride. It might permanent damage to the polarizer due to chemical reaction.

(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or

mouth . In case of contact with hands, legs or clothes, it must be washed away thoroughly

(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.

(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming

inspection and assembly process.

(j) Do not disassemble the module.

(k) Do not pull or fold the lamp wire.

(l) Do not adjust the variable resistor which is located on the back side.

(m) Protection film for polarizer on the module shall be slowly peeled off just before use so

that the electrostatic charge can be minimized.

(n) Pins of I/F connector shall not be touched directly with bare hands.

Doc.No. Rev.No

Samsung Secret

04-A00-G-110830

Page

28

/ 30LTN140AT26-8

2. STORAGE

ITEM Unit Min. Max.

Storage Temperature (℃) 5 40

Storage Humidity (%rH) 35 75

Storage life 12 months

- The storage room should provide good ventilation and temperature control.

- Products should not be placed on the floor, but on the Pallet away from

a wall.

- Prevent products from direct sunlight, moisture nor water; Be cautious of

Approval

Storage Condition

a build up of condensation.

- Avoid other hazardous environment while storing goods.

- If products delivered or kept in conditions of over the storage period of 3

months, the recommended temperature or humidity range,

we recommend you leave them at a temperature of 20℃and a humidity

of 50% for 24 hours.

3. OPERATION

(a) Do not connect,disconnect the module in the “ Power On” condition.

(b) Power supply should always be turned on/off by following item 6.3

“ Power on/off sequence “.

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference shall be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.

(d) The standard limited warranty is only applicable when the module is used for general

notebook applications. If used for purposes other than as specified, SEC is not to be
held reliable for the defective operations. It is strongly recommended to contact SEC
to find out fitness for a particular purpose.

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

29

/ 30LTN140AT26-8

Approval

4. OTHERS

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation, input

voltage variation, variation in part contents and environmental temperature, so on)
Otherwise the module may be damaged.

(d) If the module displays the same pattern continuously for a long period of time,it can be

the situation when the image “sticks” to the screen.

(e) This module has its circuitry PCB’s on the rear side and should be handled carefully in

order not to be stressed.

Samsung Secret

Doc.No. Rev.No

04-A00-G-110830

Page

30

/ 30LTN140AT26-8
