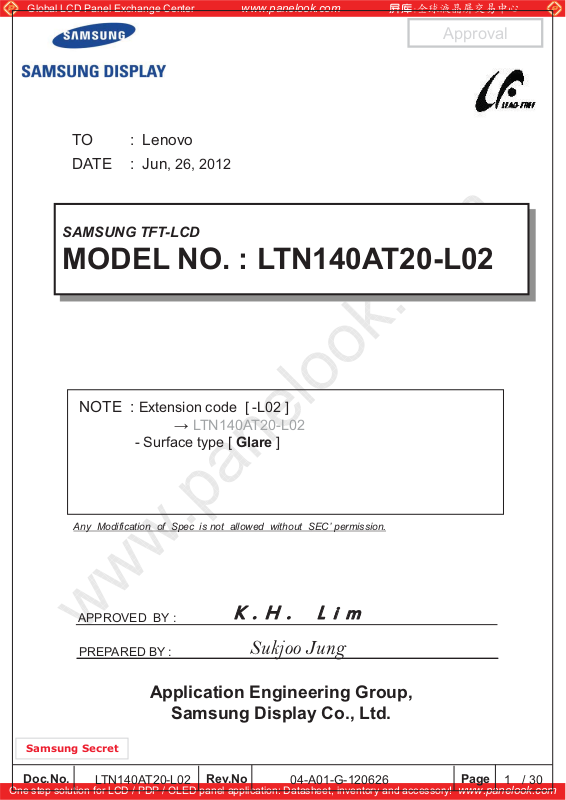

SAMSUNG LTN140AT20-L02 Specification

Page 1
Global LCD Panel Exchange Center
K . H . L i m
www.panelook.com
Approval
TO
DATE
SAMSUNG TFT-LCD
: Lenovo
: Jun, 26, 2012
MODEL NO. : LTN140AT20-L02
NOTE : Extension code [ -L02 ]
→ LTN140AT20-L02
- Surface type [ Glare ]
Any Modification of Spec is not allowed without SEC’ permission.
APPROVED BY :
PREPARED BY :
Sukjoo Jung
Application Engineering Group,
Samsung Display Co., Ltd.
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
/ 30LTN140AT20-L02
1
Page 2
Global LCD Panel Exchange Center
www.panelook.com
CONTENTS
Revision History
General Description
1. Absolute Maximum Ratings
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics
3. Electrical Characteristics
3.1 TFT LCD Module
3.2 LED Driver
4. Block Diagram
4.1 TFT LCD Module
4.2 LED connection and placement
Approval
-------------------( 3 )
-------------------( 4 )
-------------------( 5 )
-------------------( 7 )
-------------------( 10 )
-------------------( 13 )
5. Input Terminal Pin Assignment
-------------------( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.5 Pixel format
6. Interface Timing
-------------------( 19 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension
8. Packing
9. Markings & Others
10. General Precautions
-------------------( 21 )
-------------------( 23 )
-------------------( 24 )
-------------------( 26 )
11. EDID
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
-------------------( 28 )
Page
www.panelook.com
/ 30LTN140AT20-L02
2
Page 3
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Date Rev. No. Page
Jun. 05, 2012 A00 All . The approval specification was issued first.
Jun. 26, 2012 A01 10 . Pattern name in current of power supply was modified from “max” to
“vertical stripe” to avoid misunderstanding each other.
Measurement pattern have been vertical stripe from the beginning
and it have not been changed.
Summary
Approval
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
/ 30LTN140AT20-L02
3
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Approval
GENERAL DESCRIPTION
DESCRIPTION
LTN140AT20-L02 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 14.0" contains 1,366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum
viewing angle.
FEATURES
• High contrast ratio, high aperture structure
• 1366 x 768 pixels resolution
• Low power consumption
• Fast Response
• LED BLU with LED driver
• DE(Data enable) only mode
• 3.3V LVDS Interface
• Onboard EEDID chip
• Pb-free product
APPLICATIONS
• Notebook PC
• If the usage of this product is not for PC application, but for others, please contact SEC.
GENERAL INFORMATION
Item Specification Unit Note
Display area
Driver element
Display colors
Number of pixel
Pixel arrangement
Pixel pitch
309.399(H) x 173.952(V) (14.0” diagonal ) mm
a-Si TFT active matrix
262,144
1366 x RGB(3) x 768 pixel 16 : 9
RGB vertical stripe
0.2265(H) x 0.2265(V) (TYP.) mm
Display Mode
Surface treatment
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Normally white
Haze 0, Hard-Coating 3H
04-A01-G-120626
Page
www.panelook.com
/ 30LTN140AT20-L02
4
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 319.9 320.4 320.9 mm
Module
size
Note (1) Measurement condition of outline dimension
Vertical (V) 186.6 187.1 187.6 mm
Depth (D) - - 3.6 mm (1)
Weight - - 330 g
. Equipment : Vernier Calipers . Push Force : 150g f (minimum)
1. ABSOLUTE MAXIMUM RATINGS
1.1 ENVIRONMENTAL ABSOLUTE RATINGS
Item Symbol Min. Max. Unit Note
Storage temperate T
STG
Approval
-20 60 qC(1)
Operating temperate
(Temperature of glass surface)
Shock ( non-operating ) Snop -
Vibration (non-operating) Vnop - 2.41 G (4),(5)
Note (1) Temperature and relative humidity range are shown in the figure below.
O
90 % RH Max. ( 39
Maximum wet - bulb temperature at 39 (2) 3ms, half sine wave, one time for ρX,ρY,ρZ. (3) 18ms, Trapezoidal wave, one time for ൥X,൥Y,൥Z. (4) 5~500 Hz, Random vibration, 30 min for X,Y,Z. (5) At testing Vibration and Shock, the fixture in holding the Module to be tested have to be
hard and rigid enough so that the Module would not be twisted or bent by the fixture.
C ≥ Ta)
T
OPR
050qC(1)
210
G
50 (3),(5)
O
C or less. (Ta > 39 OC) No condensation.
Relative Humidity ( %RH)
100
90
80
( 39,90 )
(2),(5)
60
40
20
-40 -20 0 20 40 60 80
Doc.No. Rev.No
Operating Range
Storage Range
5
0
Temperature (
( 50,50.4 )
( 60,27.7 )
O
C)
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 30LTN140AT20-L02
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD MODULE
Item Symbol Min. Max. Unit Note
www.panelook.com
Approval
DD =3.3V, VSS = GND = 0V
V
Power Supply Voltage V
Logic Input Voltage V
Note (1) Within Ta (25 r 2 qC)
DD VDD - 0.3 VDD + 0.3 V (1)
IN VDD - 0.3 VDD + 0.3 V (1)
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
/ 30LTN140AT20-L02
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Approval
2. OPTICAL CHARACTERISTICS
The following items are measured under stable conditions. The optical characteristics should be measured in a dark room or equivalent state with the methods shown in Note (5). Measuring equipment : TOPCON SR-3
* Ta = 25 r 2 qC, VDD=3.3V, fv= 60Hz, fDCLK = (72.33)MHz, IL = (27) mA
Item Symbol Condition Min. Typ. Max Unit Note
Contrast Ratio
(5 Points)
Response Time at Ta
( Rising + Falling )
Average Luminance of White (5 Points)
Red
Color
Green
Chromaticity
( CIE )
Blue
White
CR 300 500 - - (1), (2), (5)
RT_B/W - 16 - msec (1), (3)
T
L,AVE
Y
X 0.543 0.573 0.603
R
Y 0.314 0.344 0.374
R
170 200 - cd/m
2
IL=(27)mA
(1), (4)
Normal
X 0.310 0.340 0.370
G
Y 0.532 0.562 0.592
G
X 0.132 0.162 0.192
B
Y 0.089 0.119 0.149
B
X 0.283 0.313 0.343
W
W
Y
Viewing
Angle
I = 0 T = 0
0.299 0.329 0.359
-
(1), (5)
SR-3
Viewing Angle
Color Gamut CG - 45 - %
13 Points
White Variation
5 Points
White Variation
Hor.
Ver.
L
T
R
T
CR t 10
I
H
L
I
G
L
L
G
-45-
-45­Degrees
-15-
(1), (5)
SR-3
-30-
- - 1.67 - (6)
- - 1.25 - (6)
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
/ 30LTN140AT20-L02
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
d
www.panelook.com
Note 1) Definition of Viewing Angle : Viewing angle range( 10
C/R, 100 dC/R )
Normal Line I = 0
o
,
T = 0
o
T L
T R
TL=90
o
I L
x
I H
y
12 O’clock
direction
IH= 90
6 O’clock
direction
IL= 90
o
x'y'
=90
T
R
Note 2) Definition of Contrast Ratio (CR) : Ratio of gray max (Gmax) ,gray min (Gmin)
at 5 points(4, 5, 7, 9, 10)
Approval
o
o
CR(4) + CR(5) + CR(7) + CR(9) + CR(10)
CR =
5
Points : , , , , at the figure of Note (6).
4 9
5
7
10
Note 3) Definition of Response time :
Display data
White(TFT OFF)
TR
Black(TFT ON)
White(TFT OFF)
TF
100%
90%
Optical Response
10%
0%
Note 4) Definition of Average Luminance of White : measure the luminance of white at 5 points.
Time
(25%) ( 50%) (75%)
Average Luminance of White ( Y
L4 + YL5 + YL7 + YL9 + YL10
Y
L,AVE )
10
9
7
YL,AVE =
5
5
4
: test point
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
VIEW AREA
(25%)
(50%)
(75%)
Page
/ 30LTN140AT20-L02
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Approval
Note 5) After stabilizing and leaving the panel alone at a given temperature for 30 min , the measurement
should be executed. Measurement should be executed in a stable, windless,and dark room. 30 min after lighting the backlight. This should be measured in the center of screen. Environment condition : Ta = 25 r 2 qC
Photo-detector
( TOPCON SR-3)
= 2q
Field
50 cm
TFT-LCD module
Center of the screen
[ Optical characteristics measurement setup ]
Note 6) Definition of 13 points white variation (G L ), CR variation( CVER ) [ ~ ]
Maximum luminance of 13 points
LCD panel
113
G L =
Minimum luminance of 13 points
10mm
11
10mm
10mm
25% 50%
13 12
75%
10
8
5
3
10mm
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
2
04-A01-G-120626
9
4
25%
6
50%
75%
1
: test point
Page
/ 30LTN140AT20-L02
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Differential Input
High V
Voltage for LVDS
Receiver Threshold
Vsync
F
60Hz
r
Low V
Hsync Freq F
Main Freq F
e q
50Hz
u
Hsync Freq F
Main Freq F
e n
c
40Hz
y
Hsync Freq F
Main Freq F
DD 3.0 3.3 3.6 V
IH --+100mV
IL -100 - - mV
H
DCLK
H
DCLK
H
DCLK
Approval
Ta= 25 r 2qC
- 91.6 - KHz
- 72.33 - MHz
- 76.3 - KHz
- 62.27 - MHz
- 61.0 - KHz
- 48.22 - MHz
CM =
V
+1.2V
Rush Current I
White
RUSH - - 1.5 A (4)
- 240 - mA (2),(3)*a
Mosaic - 230 - mA (2),(3)*b
Current of Power
Supply
WinXP
Pattern
Vertical
Stripe
I
DD
- 280 - mA (2),(3)*c
- - 380 mA (2),(3)*d
Note (1) Display data pins and timing signal pins should be connected.( GND = 0V )
(2) f
V = 60Hz, fDCLK = (72.33)MHZ, VDD = 3.3V , DC Current.
(3) Power dissipation pattern
*a) White Pattern *b) Mosaic Pattern
VIEW AREA
Display Brightest Gray Level
Display Darkest Gray Level
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
10
/ 30LTN140AT20-L02
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
*c) WinXP Pattern
*d) 1dot Vertical stripe pattern
Approval
RGBRGBRGBRG
GBRGB RGB RG
R

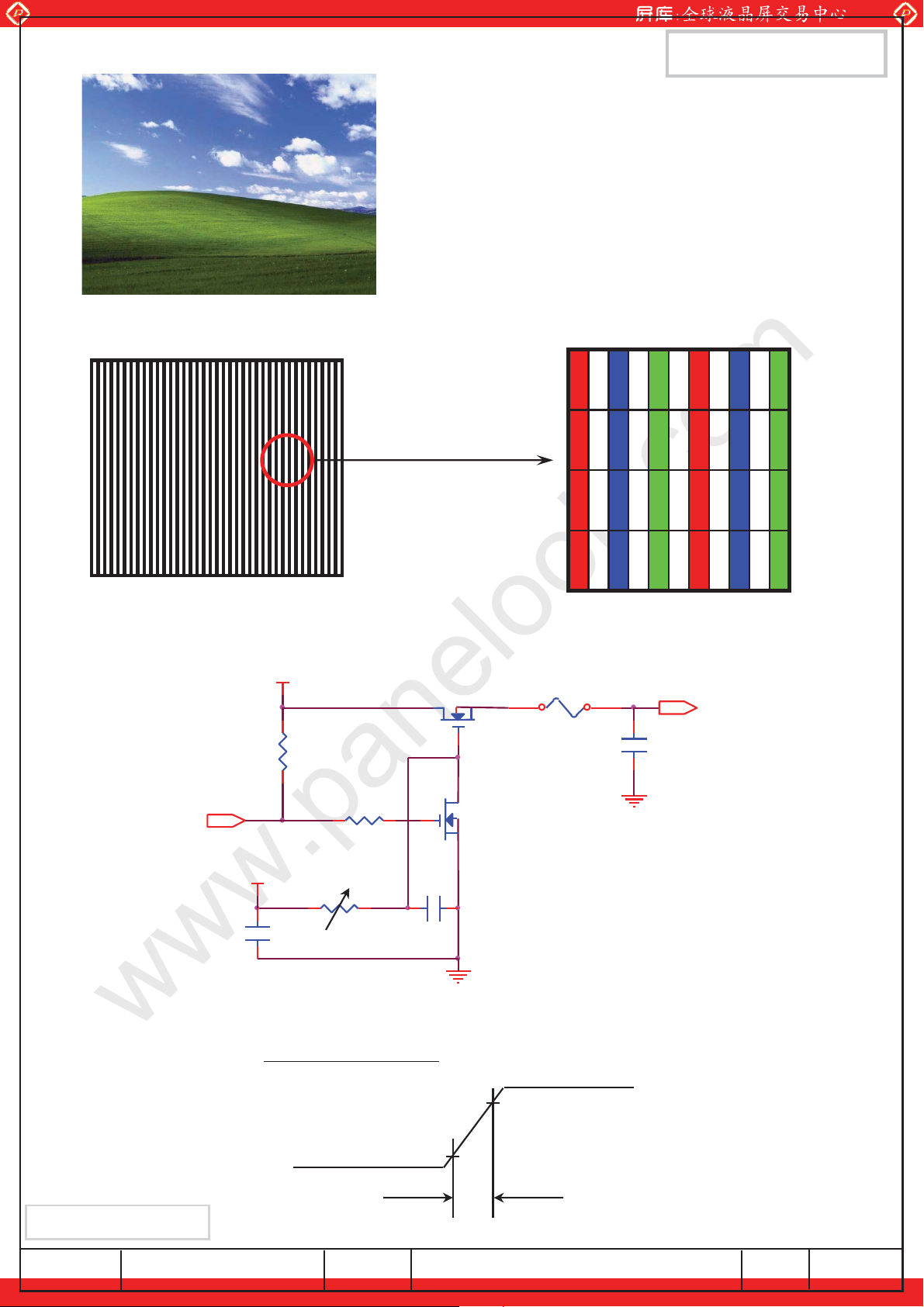

4) Rush current measurement condition
3.3V
R1 47K
CONTROL SIGNAL
(HIGH to LOW)
12V
C3 1uF
R3
47K
R2
1K
M1 2SK1059
C2
10000pF
M2 2SK1399
R
GBRGB RGB RG
RGBRGBRGBRG
VDD ( LCD INPUT)
FUSE
C1 1uF
V
DD rising time is 470us
0.9VDD
3.3V
0.1VDD
GND
470us
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
11
/ 30LTN140AT20-L02
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Approval
3.2 Back light unit
Ta= 25 r 2 qC
Item Symbol Min. Typ. Max. Unit Note
LED Forward Current IF - 23 - mA
LED Forward Voltage VF - 3.2 3.4 V IF=27mA
LED Array Voltage VP - 32 - V VF X 10 LEDs
Power Consumption P - 2.6 3.25 W IF X VF X 30LEDs
Operating Life Time Hr 12,000 - - Hr (1)
Note (1) Life time (Hr) of LEDs can be defined as the time in which it continues to operate under the
condition Ta= 25 r 2 qC and DC = (23.0) mA until one of the following event occurs.
- When the brightness becomes 50% or lower than the original.
3.3 LED Driver
-LED Driver Manufacturer : Intersil
Item Symbol Min. Typ. Max. Unit Note
Input Voltage V
PWM Duty
PWM Frequency F
Efficiency
in 71221V
D1 1 - 100 %
D2 5 - 100 %
D3 10 - 100 %
PWM 0.12 30 KHz
Ȧ
PWM frequency
(120~1khz)
PWM frequency
(1~10khz)
PWM frequency
(10~30Khz)
80 %
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
12
/ 30LTN140AT20-L02
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com

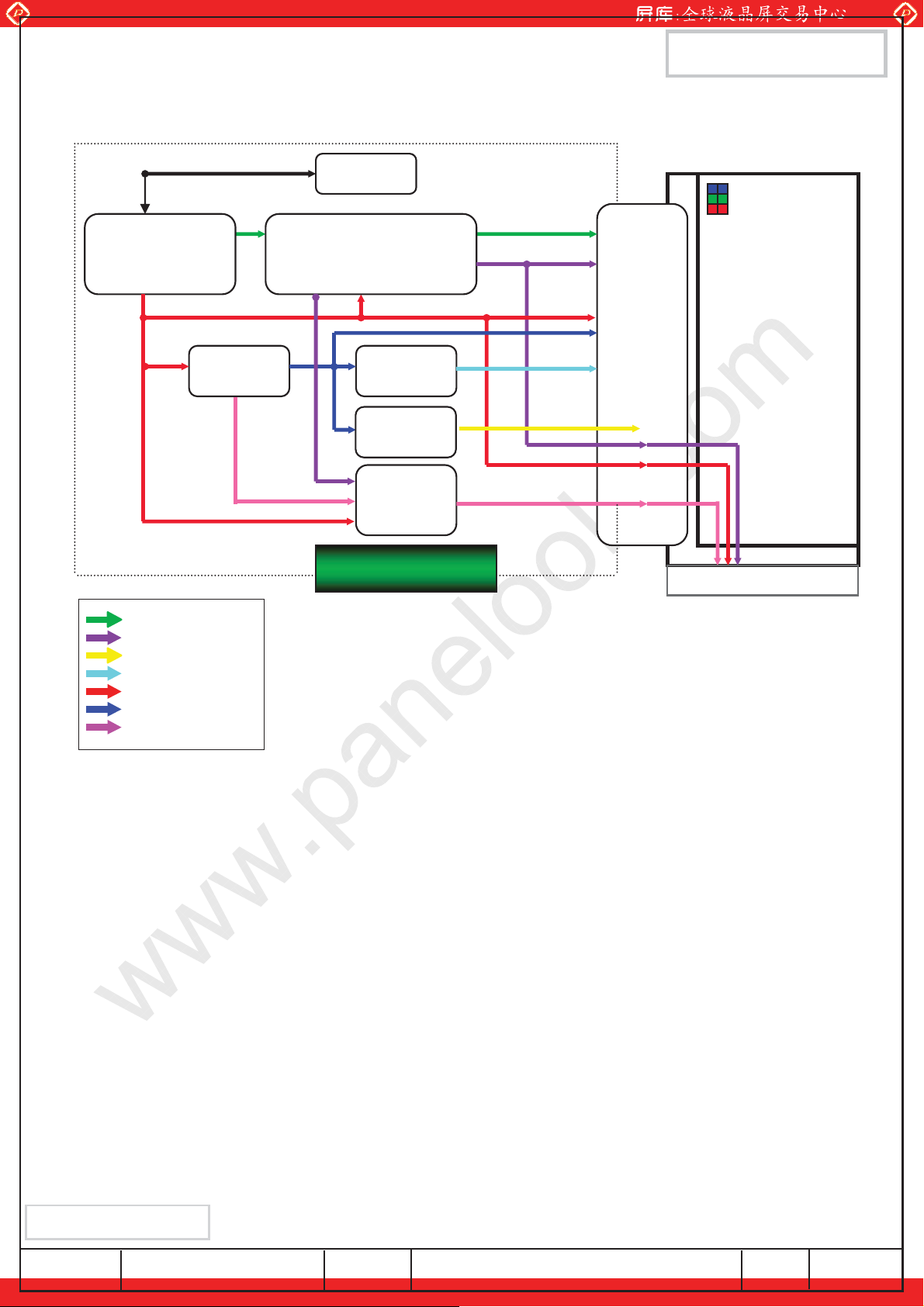

4. BLOCK DIAGRAM
4.1 TFT LCD Module
Approval
Input Connector
Converter
I2C bus
LVDS
DC-DC
EDID
EEPROM
LVDS Input/RSDS Output
Timing Controller
Gamma Generator
VCOM Generator
Gate Pulse
Generator
SOURCE PCB
Mini LVDS
RSDS
Source
Driver
IC
14.0” HD
TFT-LCD Panel
Gate IC
Video Signal
Control Signal
VCOM Gamma DVDD AVDD Von/Voff
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
13
/ 30LTN140AT20-L02
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
5. INPUT TERMINAL PIN ASSIGNMENT
5.1. Input Signal & Power (LVDS, Connector : IPEX 20455-040E
Pin Symbol
1
2~3
4 VEDID
5 NC no connect
6 CLK_EDID EDID clock
7 DATA_EDID EDID data
8
9
10
11
NC
VDD
RXin0- - LVDS differential data (R0-R5, G0)
RXin0+ + LVDS differential data (R0-R5, G0)
GND Ground
RXin1- - LVDS differential data (G1-G5, B0-B1)
No Connection (Reserved for supplier)
Logic power 3.3V (Panel logic, BL logic)
EDID 3.3V power
Function
Approval
12
13
14
15
16
17
18
19 CE_EN Color Engine enable, High enable
20~21
22
23~24
25
26~27
28
RXn1+ + LVDS differential data (G1-G5, B0-B1)
GND Ground
RXin2- - LVDS differential data (B2-B5,HS,VS, DE)
RXn2+ + LVDS differential data (B2-B5,HS,VS, DE)
GND Ground
ClkIN- - LVDS differential clock input
ClkIN+ + LVDS differential clock input
NC No Connection
GND Ground
NC No Connection
GND Ground
NC No Connection
GND Ground
29~30
31~33
34
35
36
37 DBC_EN Dynamic Backlight Control enable (High enable)
38~40
NC No Connection
VBL- LED Ground
NC No Connection
S_PWM System PWM Signal Input
LED_EN BL On/Off (On: 2.0~3.3V, Off: 0~0.8V)
VBL+ LED Power Supply 7V-21V
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
14
/ 30LTN140AT20-L02
www.panelook.com
Page 15
Global LCD Panel Exchange Center

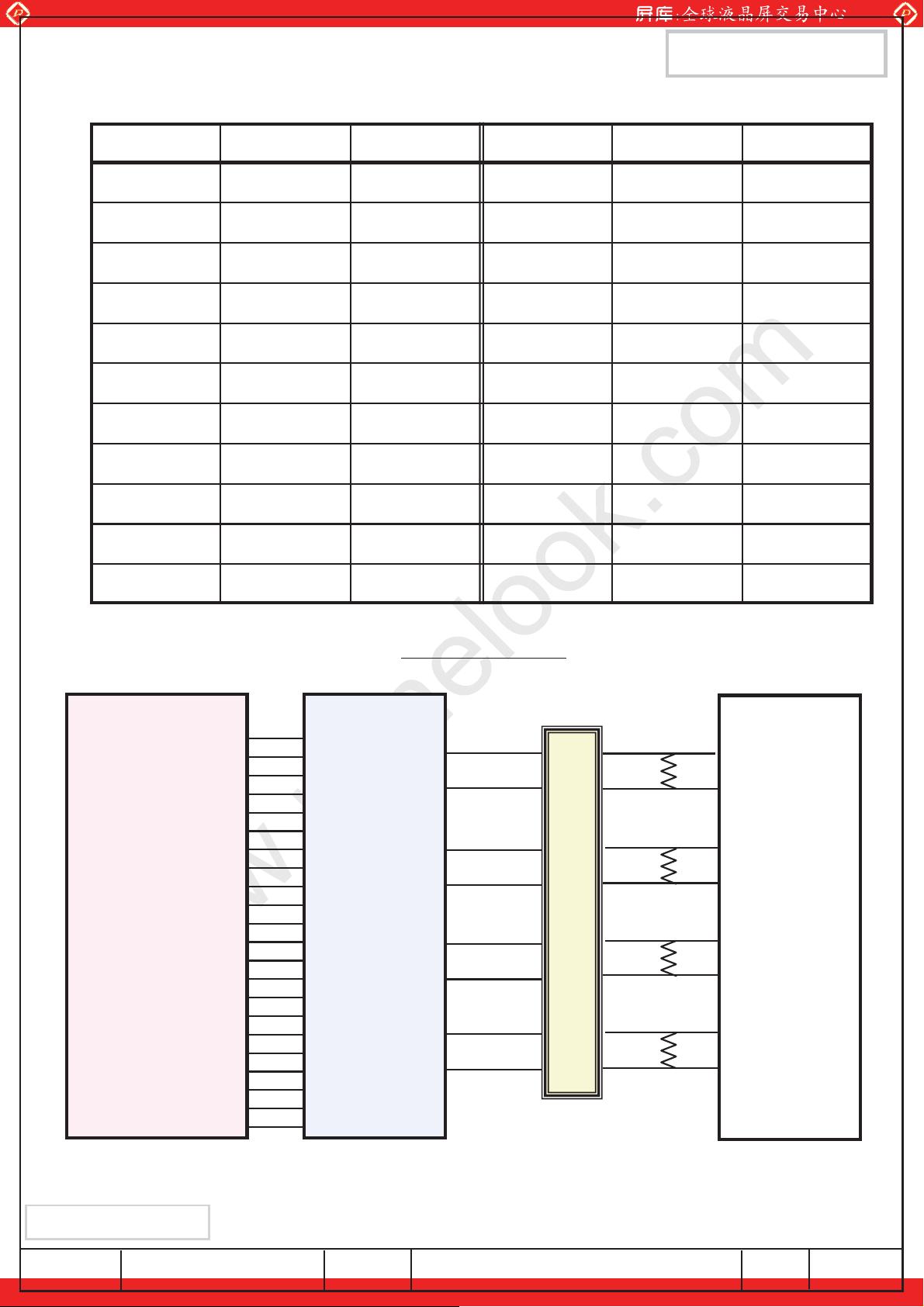

5.2 LVDS Interface
Pin No. Name RGB Signal Pin No. Name RGB Signal
51 TxIN0 R0 14 TxIN14 G5
52 TxIN1 R1 15 TxIN15 B0
54 TxIN2 R2 19 TxIN18 B1
55 TxIN3 R3 20 TxIN19 B2
56 TxIN4 R4 22 TxIN20 B3
3 TxIN6 R5 23 TxIN21 B4
4 TxIN7 G0 24 TxIN22 B5
www.panelook.com
Approval
6 TxIN8 G1 27 TxIN24 Hsync
7 TxIN9 G2 28 TxIN25 Vsync
11 TxIN12 G3 30 TxIN26 DE
12 TxIN13 G4 31 TxCLKIN Clock
Graphics controller
18-bit
RED0 RED1 RED2 RED3 RED4 RED5
GREEN0 GREEN1
GREEN2 GREEN3 GREEN4 GREEN5
BLUE0 BLUE1 BLUE2 BLUE3 BLUE4 BLUE5
Hsync Vsync
Enable
CLOCK
LVDS Interface
I-PEX, 20455-40E
DS90CF383 Integrated IC
51 52 54 55 56 3 4 6 7 11 12 14
15 19 20 22
TxCLKOUT-
23 24
TxCLKOUT+
27 28 30 31
TxOUT0-
TxOUT0+
TxOUT1-
TxOUT1+
TxOUT2-
TxOUT2+
48
47
46
45
42
41
40
39
8
9
11
12
14
15
17
18
RxIN0-
100 :
RxIN0+
RxIN1-
100:
RxIN1+
RxIN2-
100 :
RxIN2+
RxCLKIN-
100 :
RxCLKIN+
Note : The LCD Module uses a 100ohm resistor between positive and negative lines of each receiver input.
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
15
/ 30LTN140AT20-L02
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com

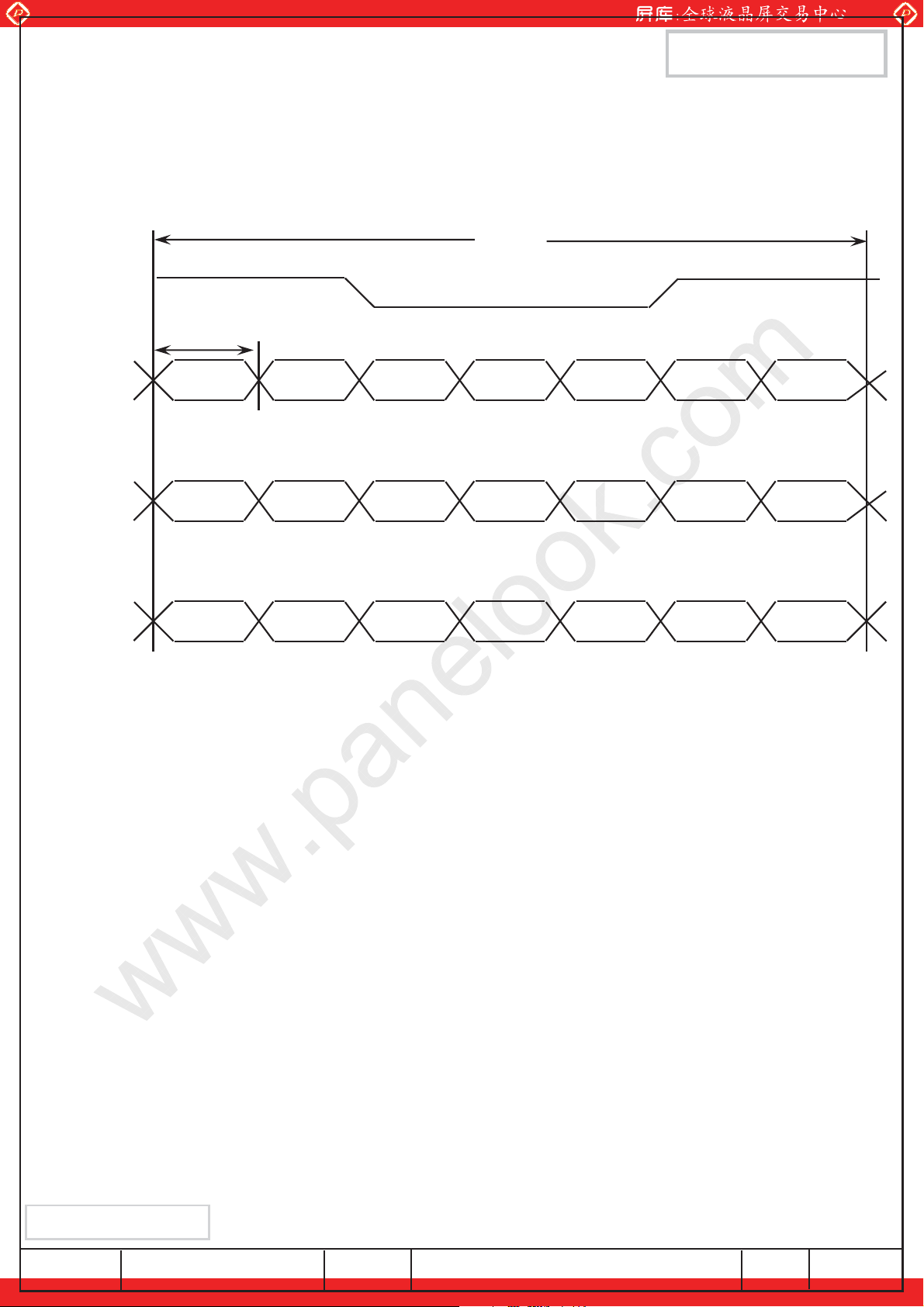

5.3 Timing Diagrams of LVDS For Transmission
LVDS Receiver : Integrated T-CON
TxCLK OUT
RxCLK IN
T/7
Approval
T
Rx IN2
Rx IN1
RxIN0
RxOUT20 RxOUT19 RxOUT17RxOUT18 RxOUT16 RxOUT15 RxOUT14
DE
RxOUT13 RxOUT12 RxOUT10RxOUT11 RxOUT9 RxOUT8 RxOUT7
RxOUT6 RxOUT5 RxOUT3RxOUT4 RxOUT2 RxOUT1 RxOUT0
G0
Vsync B2Hsync B5 B3B4
G4B1 G5B0 G3 G2 G1
R5
R4
R3
R2 R1 R0
Doc.No. Rev.No
04-A01-G-120626
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page
16
/ 30LTN140AT20-L02
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com

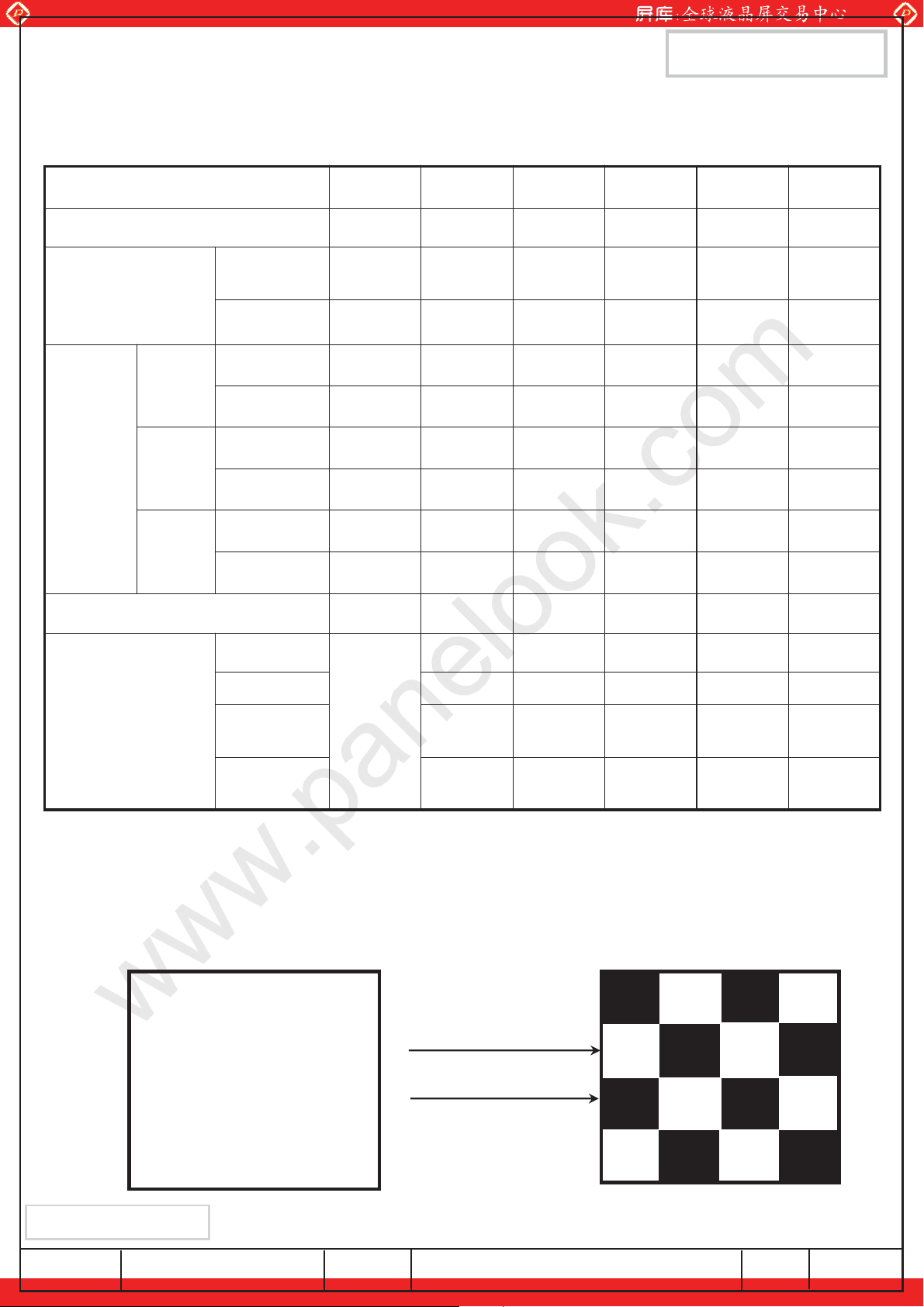

5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
Approval
Color Display
Black 000000000000000000 -
Blue 0 0 0
Green 0000001111110 00000 -
Basic
Colors
Gray
Scale
Of
Red
Cyan 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 -
Red 1111110000000 00000 -
Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 -
Yellow 1111111111110 00000 -
White 111111111111111111 -
Black 000000000000000000 R0
Dark 1000000000000 00000 R1
n 010000000000000000 R2
: :::::::::::
: ::::::::::::::::::
p 101111000000000000 R61
Data Signal
Red Green Blue
R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 45 B5
000000000111111 -
:::::::
Gray Scale Level
R3aR60
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Light 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R62
Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 R63
Black 000000000000000000 G0
Dark 0000001000000 00000 G1
n 000000010000000000 G2
: ::::::::::::::::::
G3aG60
: ::::::::::::::::::
p 000000101111000000 G61
Light 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 G62
Green 0000001111110 00000 G63
Black 000000000000000000 B0
Dark 0000000000001 00000 B1
n 000000000000010000 B2
: ::::::::::::::::::
B3aB60
: ::::::::::::::::::
p 000000000000101111 B61
Light 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 B62
Blue 0000000000001 11111 B63
Note 1) Definition of gray :
Rn: Red gray, Gn: Green gray, Bn: Blue gray (n=gray level)
Note 2)Input signal: 0 =Low level voltage, 1=High level voltage
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
17
/ 30LTN140AT20-L02
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.6 Pixel Format in the display
www.panelook.com
Approval
Line 1
Line 768
1
RGB RGB
RGB RGB
1366
LTN140AT20-L02 Panel
RGB RGB RGB RGB
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
18
/ 30LTN140AT20-L02
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
6. INTERFACE TIMING
6.1 Timing Parameters
Signal Item Symbol Min. Typ. Max. Unit Note
Frame Frequency Cycle T
Vertical Active
Display Term
One Line
Scanning Time
Horizontal Active
Display Term
Display
Period
Cycle T
Display
Period
Approval
V
T
VD
H
T
HD
780 790 980 Lines
- 768 - Lines
1440 1526 1800 Clocks
- 1366 - Clocks

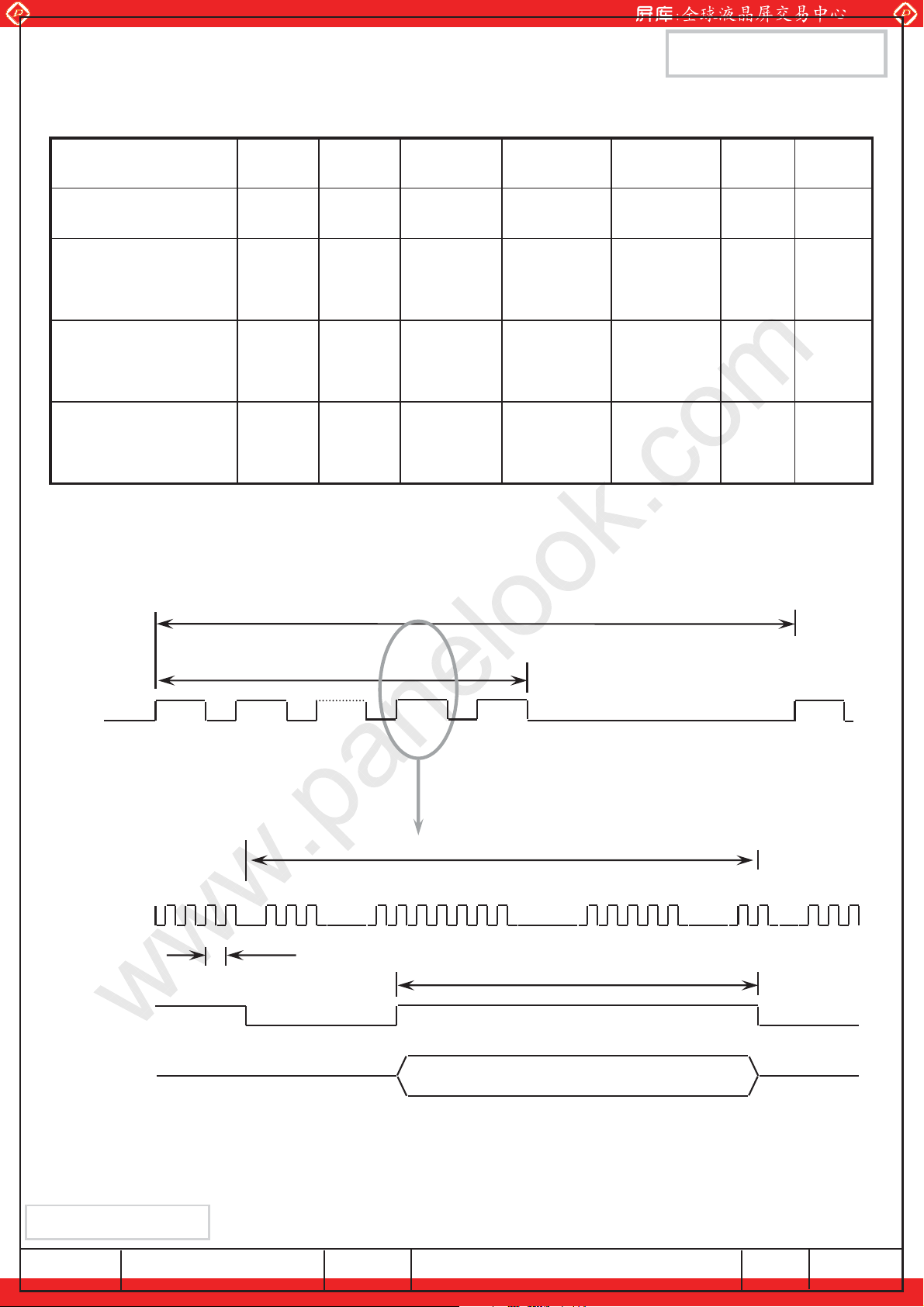

6.2 Timing diagrams of interface signal
TVD
DE
DCLK
TC
TV
TH
THD
DE
DATA SIGNALS
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Valid display data ( 1366 clocks)
04-A01-G-120626
Page
19
/ 30LTN140AT20-L02
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

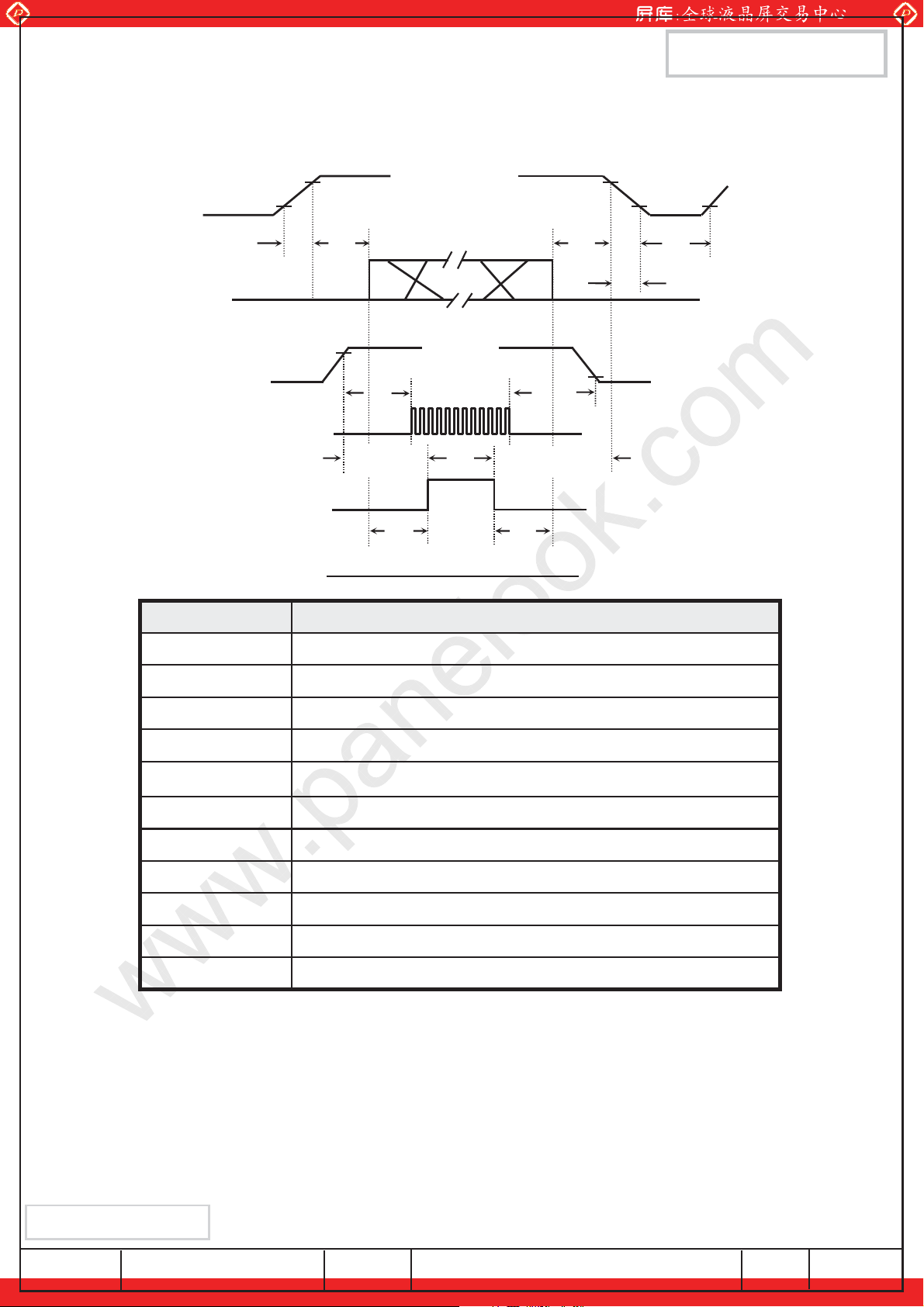

6.3 Power ON/OFF Sequence
Approval
: To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
should be as the diagram below.
0.9 VDD
0.1 VDD 0.1 VDD
0V
0 V
90%
B/L Enable
Power Supply VDD
T2 T3T1
Signals
VALID
LED Power
T7 T8
PWM
T9
T5
0.9 VDD
T4
T11
10%
T10
T6
Power ON/OFF Sequence
Timing (ms) Remarks
rising time from 10% to 90%
0.5஖T
0஖T
0஖T
150 ≤T
200 ≤T
0஖T
0஖T
0஖T
0஖T
0஖T
0஖T
11
2
≤10
1
≤50
3
4
5
6
7
8
9
10
≤10
V
DD
Delay from V
to valid data at power ON
DD
Delay from valid data OFF to VDDoff at power OFF
VDDOFF time for Windows restart
Delay from valid data to B/L enable at power ON
Delay from valid data off to B/L disable at power OFF
Delay from LED driver power ON to PWM ON
Delay from PWM OFF to LED driver power OFF
Delay from VBL on to B/L Enable ON
Delay from B/L Enable Off to VBL OFF
V
falling time from 90% to 10%
DD
NOTE.
(1) The supply voltage of the external system for the module input should be the same
as the definition of VDD.
(2) In case of VDD = off level, please keep the level of input signals on the low or keep
a high impedance.
(3) T4 should be measured after the module has been fully discharged between power
off and on period.
(4) Interface signal shall not be kept at high impedance when the power is on.
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
20
/ 30LTN140AT20-L02
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com

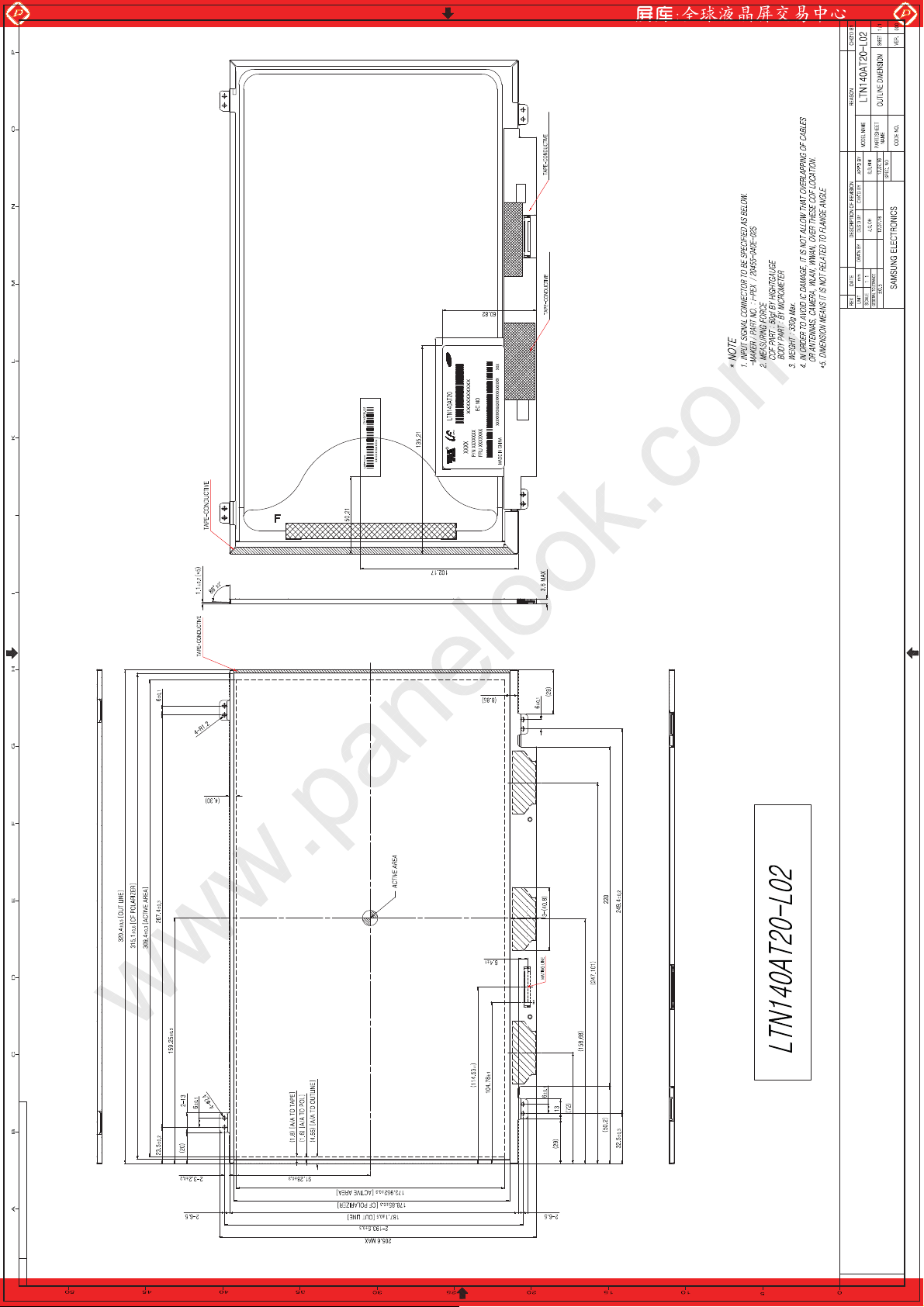

7. Mechanical Outline Dimension
[ Refer to the next page ]
Approval
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
21
/ 30LTN140AT20-L02
Page 22
Global LCD Panel Exchange Center
www.panelook.com
ͽ
Ά΄
΃
ʹ
Ή
ͷͺͽͶͿ΀
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
΄ΒΞΤΦΟΘΔΠΟΗΚΕΖΟΥΚΒΝ
΃Ͷ·ͺ΄
ͺ΀Ϳ
www.panelook.com
Page 23
Global LCD Panel Exchange Center
z{lwXwi
z{lww
z{lwZtXw{z{
lw[mw{
z{lw\pi
z{lw\w{w
www.panelook.com
8. PACKING

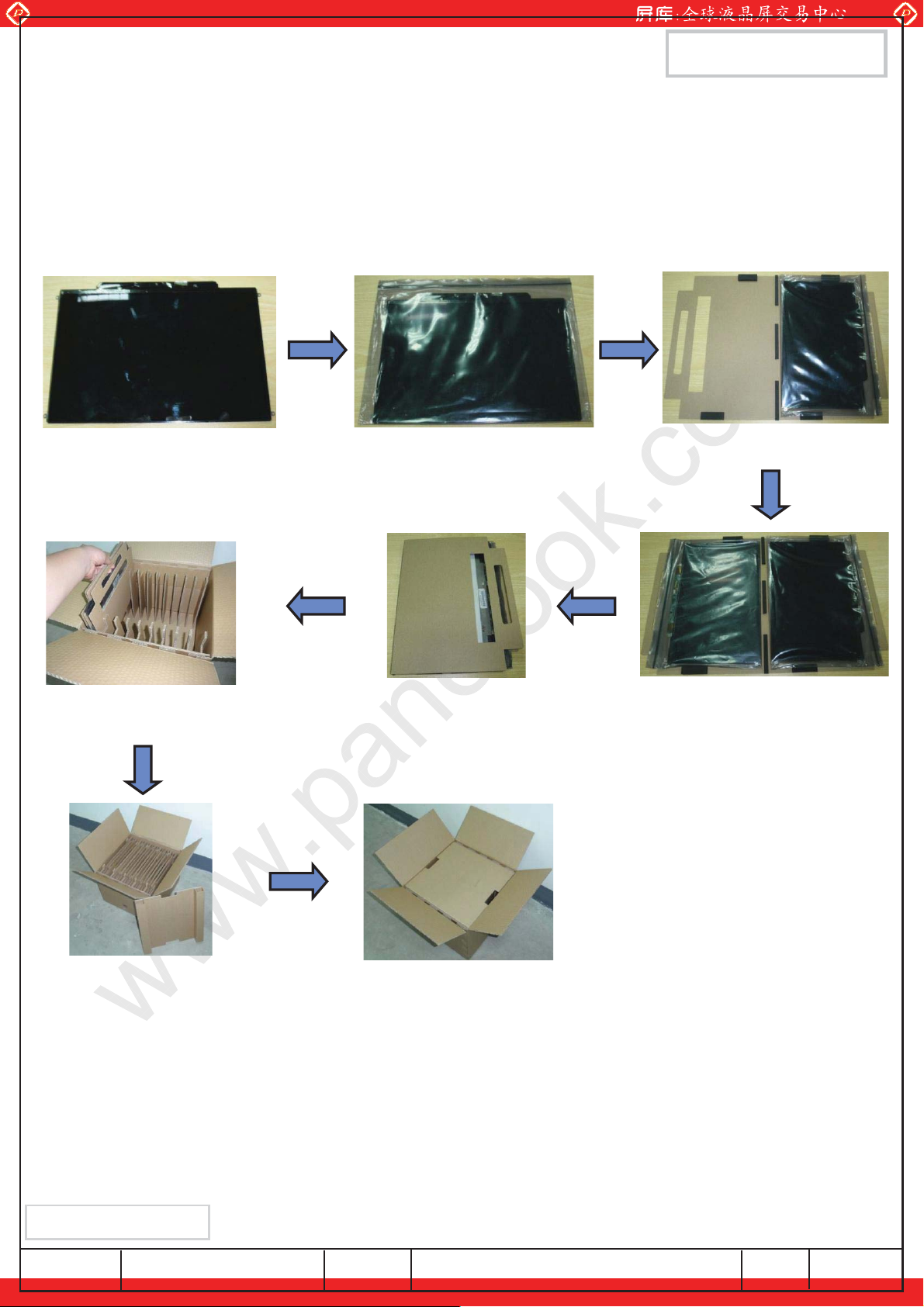

1. CARTON(Internal Package)
(1) Packing Form
Corrugated Cardboard box and EPS form as shock absorber
(2) Packing Method
Approval
Note 1)Total Weight : Approximately (13.2) kg
2) Acceptance number of piling : 30 sets
3) Carton size : 495(W) x 423(D) x 310 (H)
* included AL Bag in the outbox
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
23
/ 30LTN140AT20-L02
Page 24
Global LCD Panel Exchange Center
www.panelook.com
(3) Packing Material
No Part name Quantity
1 Static electric protective sack 36 EA
2
Packing case (Inner box)
included shock absorber
3 Pictorial marking 2
4 Carton 1 set
1 set

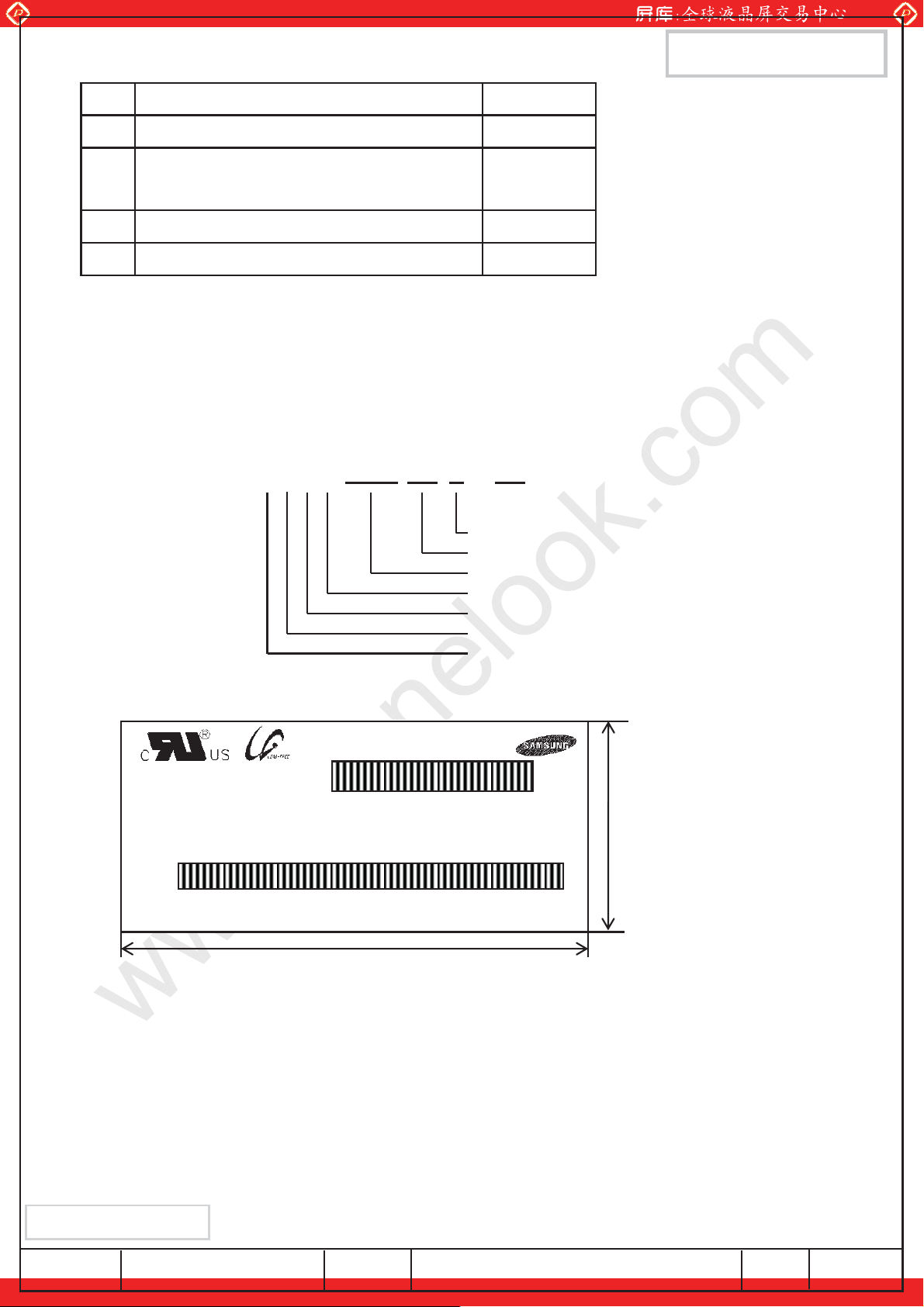

9. MARKINGS & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified location on each product.
(1) Parts number : LTN140AT20 (2) Revision code : 3 letters (3) Lot number : X X X X XXX XX X L02
SEC Revision Code
Approval
(4) Nameplate Indication
D
1019
P/N 0C00311 FRU 04Y1557
xxxxxxxxxxxx1ZM9Zxxxxxx xxx
MADE IN CHINA
Panel number Cell ID Lot ID Month Year Product Code Line
LTN140AT20
XXXXXXXXXX L02
40 mm
EC NO -
80 mm
TFT-LCD Product name : LTN140AT20 Lot number : XXXXXXXXXX Revision Code : L02 Inspected work week : 1019(2010 Year, 19nd week)
P/N : Lenovo Part Number (0C00311)
EC NO : Engineering Change Number (Blank) FRU : Field Replaceable Unit Part Number (04Y1557) Header Code : 1ZM9Z
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
24
/ 30LTN140AT20-L02
Page 25
Global LCD Panel Exchange Center
(5) Packing small box attach
DEVICE : LTN140AT20 TYPE : L02 QUANTITY : 36 PCS
CO6040001
www.panelook.com
Approval
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
25
/ 30LTN140AT20-L02
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
10. GENERAL PRECAUTIONS
Approval
1. Handling
(a) When the module is assembled, It should be attached to the system firmly
using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In addition to
damage, this may cause improper operation or damage to the module and back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch
the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time,
Staining and discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.
(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanent damage to the polarizer due to chemical reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or
mouth . In case of contact with hands, legs or clothes, it must be washed away thoroughly with soap.
(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.
(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming
inspection and assembly process.
(j) Do not disassemble the module.
(k) Do not pull or fold the lamp wire.
(l) Do not adjust the variable resistor which is located on the back side.
(m) Protection film for polarizer on the module shall be slowly peeled off just before use so
that the electrostatic charge can be minimized.
(n) Pins of I/F connector shall not be touched directly with bare hands.
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
26
/ 30LTN140AT20-L02
Page 27
Global LCD Panel Exchange Center
www.panelook.com
2. STORAGE
Approval
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 qC and relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent
light during the store.
(d) Storage period is recommended not to exceed 1 year.
3. OPERATION
(a) Do not connect, disconnect the module in the “ Power On” condition.
(b) Power supply should always be turned on/off by following item 6.3
“ Power on/off sequence “.
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interference.
(d) The FPC cable between the LED chips and its converter power supply shall be a
minimized length and be connected directly . The longer cable between the back-light and the converter may cause lower luminance of light source (LED).
(e) The standard limited warranty is only applicable when the module is used for general
notebook applications. If used for purposes other than as specified, SEC is not to be held reliable for the defective operations. It is strongly recommended to contact SEC to find out fitness for a particular purpose.
4. OTHERS
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation, input
voltage variation, variation in part contents and environmental temperature, so on) Otherwise the module may be damaged.
(d) If the module displays the same pattern continuously for a long period of time,it can be
the situation when the image “sticks” to the screen.
(e) This module has its circuitry PCB’s on the rear side and should be handled carefully in
order not to be stressed.
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
www.panelook.com
27
/ 30LTN140AT20-L02
Page 28
Global LCD Panel Exchange Center
Addres s Value ASCII
or
(H EX) HEX Da ta
00 00 00000000 0 01 FF 11111111 255 02 FF 11111111 255 03 FF 11111111 255 04 FF 11111111 255 05 FF 11111111 255 06 FF 11111111 255 07 00 00000000 0 08 4C 01001100 76 S
E 09 A3 10100011 163 C 0A 4C 01001100 76 [L] 0B 41 01000001 65 [A] 0C 00 00000000 0 0D 00 00000000 0 0E 00 00000000 0 0F 00 00000000 0 10 Week of manufacture 00 00000000 0 11 Year of manufacture 14 00010100 20 2010 12 EDID Structure Ver. 01 00000001 1 1 13 EDID revision # 03 00000011 3 3 14 Video input definition 80 10000000 128 15 Max H image size 1F 00011111 31 31 16 Max V image size 11 00010001 17 17 17 Display Gamma 78 01111000 120 2.2 18 Feature support EA 11101010 234 19 Red/green low bits 87 10000111 135 1A Blue/white low bits F5 11110101 245
0.580
0.340
0.310
0.550
0.155
0.155
0.313
0.329
23 Established timing 1 00 00000000 0 24 Established timing 2 00 00000000 0 25 Established timing 3 00 00000000 0 26 01 00000001 1 27 01 00000001 1 28 01 00000001 1 29 01 00000001 1 2A 01 00000001 1 2B 01 00000001 1 2C 01 00000001 1 2D 01 00000001 1 2E 01 00000001 1 2F 01 00000001 1 30 01 00000001 1 31 01 00000001 1 32 01 00000001 1 33 01 00000001 1 34 01 00000001 1 35 01 00000001 1
Red y 0.340=
00100111
Blue y 0155=
00100111
01010000
White x 0.313=
17 cm(approx)
Gamma 2.2
10000111
11111110
Red x 0.580=
2010
EDID Ver. 1.0
EDID Rev. 3
01010000
White y 0.329=
01010100
00100111
01010100
10001100
00100111
01010111
01001111
31 cm(approx)
39
3 character ID
"SEC"
#HD LED
DEC
148
87
79
140
10010100
39
80
84
10010100
01010111
Green x 0.310=
01001111
Green y 0.550=
10001100
Blue x 0155=
www.panelook.com
11. EDID
FUNCTION BIN
1B Red x/ high bits 94
1C Red y 57
1D Green x 4F
1E Green y 8C
1F Blue x 27
20 Blue y 27
21 White x
22 White y 54
Header
ID Manufacturer Name
ID Product Code
32-bit serial no.
50
Approval
Notes
EDID Header
Standard timing #1
Standard timing #2
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Standard timing #3
Standard timing #4 not used
Standard timing #5
Standard timing #6 not used
Standard timing #7
Standard timing #8 not used
04-A01-G-120626
not used
not used
not used
not used
not used
Page
28
/ 30LTN140AT20-L02
www.panelook.com
Page 29
Global LCD Panel Exchange Center
36 41 01000001 65 72.33
37 1C 00011100 28 38 56 01010110 86 1366 39 A0 10100000 160 160 3A 50 01010000 80 3B 00 00000000 0 768 3C 16 00010110 22 22 3D 30 00110000 48 3E 30 00110000 48 48 3F 20 00100000 32 32
2 5
42 35 00110101 53 309 43 AE 10101110 174 174 44 10 00010000 16 45 00 00000000 0 46 00 00000000 0 47 19 00011001 25
48 00 00000000 0
49 00 00000000 0
4A 00 00000000 0
4B 0F 00001111 15
4C 00 00000000 0 4D 00 00000000 4E 00 00000000 4F 00 00000000 50 00 00000000 51 00 00000000 52 00 00000000 53 00 00000000 54 00 00000000
55 25 00100101 
56 D9 11011001 
57 06 00000110
58 6A 01101010 
59 00 00000000 0
5A 00 00000000 0
5B 00 00000000 0
5C 00 00000000 0
5D FE 11111110 254
5E 00 00000000 0
5F 53 01010011 83 [S]
60 41 01000001 65 [A]
61 4D 01001101 77 [M]
62 53 01010011 83 [S]
63 55 01010101 85 [U]
64 4E 01001110 78 [N]
65 47 01000111 71 [G]
66 0A 00001010 10 [^]
67 20 00100000 32 [ ]
68 20 00100000 32 [ ]
69 20 00100000 32 [ ]
6A 20 00100000 32 [ ]
6B 20 00100000 32 [ ]
Tvpmin=value*2 + VA lines
descriptor #2
Detailed timing/monitor
Value=HSPWmin / 2
Value=HSPWmax / 2
descriptor #3
Value=Tvbpmin / 2
Value=Thbpmin /2
4bit : 4bit
Hor s ync. Offs e t=4 8 pi xels
H sync. Width=32 pixels
V sync. Offset=2 lines
V sync. Width=5 lines
Hor active=683*2 pixels
Value=VSPWmin /2
Tvpmax=value*2 + VA lines
Value=VSPWmax /2
Value=Tvbpmax / 2
Thpmin=value*2 + HA pixelclks
Thpmax=value*2 + HA pixelclks
Module revision
Detailed timing/monitor
No Vertical Border
H image size= 309 mm(approx)
V image s ize = 174 mm(approx)
No Horizontal Border
Value=Thbpmax /2
descriptor #1
00100101
37
00000000
Detailed timing/monitor
Hor blanking=160pixels
4bit : 4bit
Vertcal active=768 lines
Vertical blanking=22 lines
40
41 00
25
www.panelook.com
0
Approval
Main clock= 72.33 MHz (@60Hz)
2bit : 2bit :2bit :2bit
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Manufacturer Specified (Timing)
ASCII Data String Tag
Page
29
/ 30LTN140AT20-L02
www.panelook.com
Page 30
Global LCD Panel Exchange Center
6C 00 00000000 0
6D 00 00000000 0
6E 00 00000000 0
6F FE 11111110 254
70 00 00000000 0 71 31 00110001 49 [1] 72 34 00110100 52 [4] 73 30 00110000 48 [0] 74 41 01000001 65 [A] 75 54 01010100 84 [T] 76 32 00110010 50 [2] 77 30 00110000 48 [0] 78 2D 00101101 45 [-] 79 4C 01001100 76 [L] 7A 30 00110000 48 [0] 7B 32 00110010 50 [2] 7C 0A 00001010 10 [^] 7D 20 00100000 32 []
7E Extension Flag 00 00000000 0
7F Checksum E0 11100000 224
descriptor #4
Detailed timing/monitor
www.panelook.com
Approval
Monitor Name Tag (ASCII)
Doc.No. Rev.No
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
04-A01-G-120626
Page
30
/ 30LTN140AT20-L02
www.panelook.com
Loading...
