Page 1
Global LCD Panel Exchange Center
ISSUED DATE : 2011-05-24
SAMSUNG TFT-LCD PRODUCT INFORMATION
MODEL : LTM190BT07-V
www.panelook.com
PRODUCT INFORMATION
Note : This is Product Information is subject to change after 3 months of issuing date.
Application Engineering Group, LCD Division
Samsung Electronics Co. , LTD.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/33
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
Contents
General Description ------------------------------------------------------------------------------------- (3)
1. Absolute Maximum Ratings ------------------------------------------------------------------------ (4)
2. Optical Characteristics ------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ---------------------------------------------------------------------------- (11)
3.1 TFT LCD Module
3.2 Back Light Unit

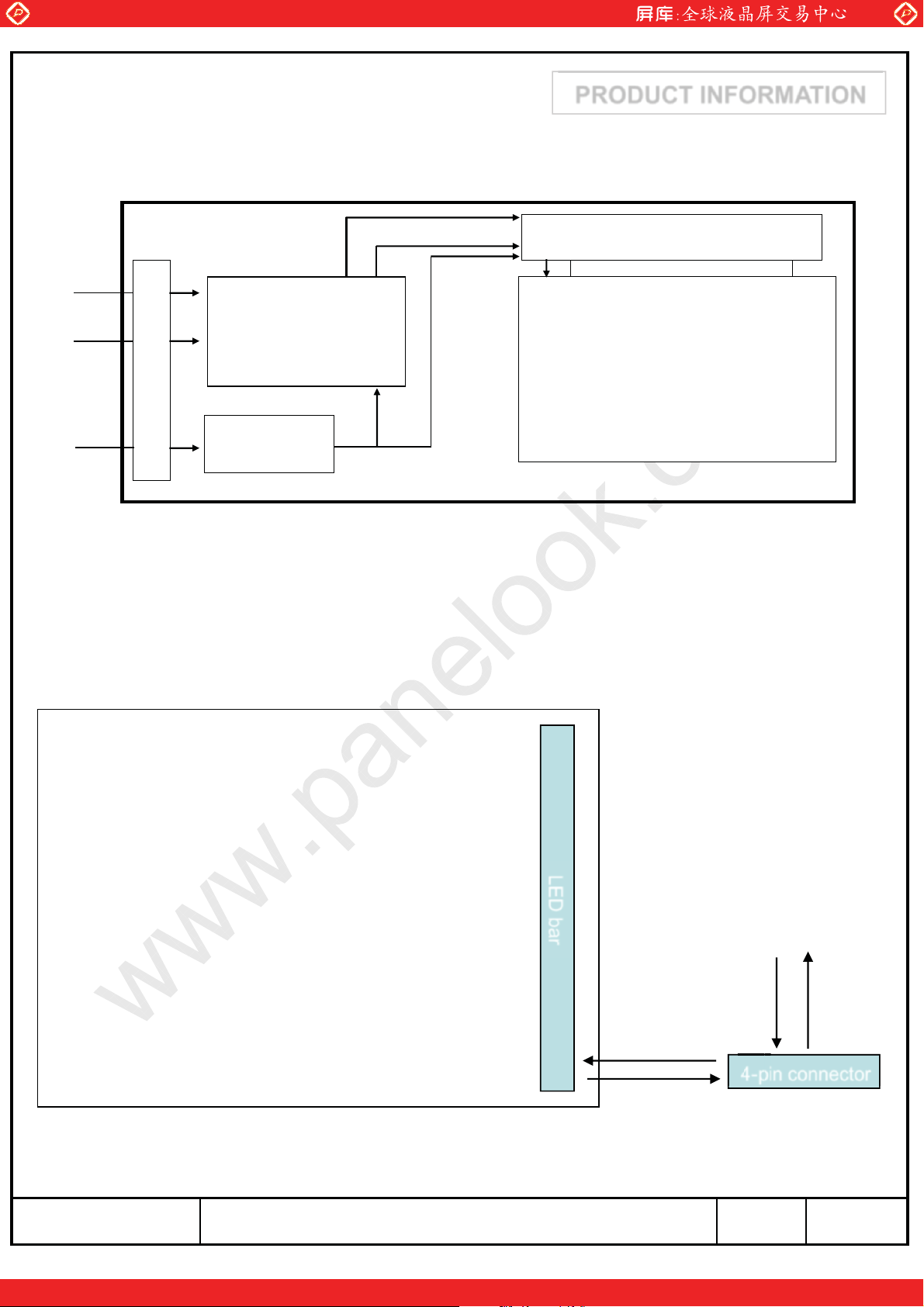

4. Block Diagram ------------------------------------------------------------------------------------------ (15)
4.1 TFT LCD Module
4.2 Back Light Unit

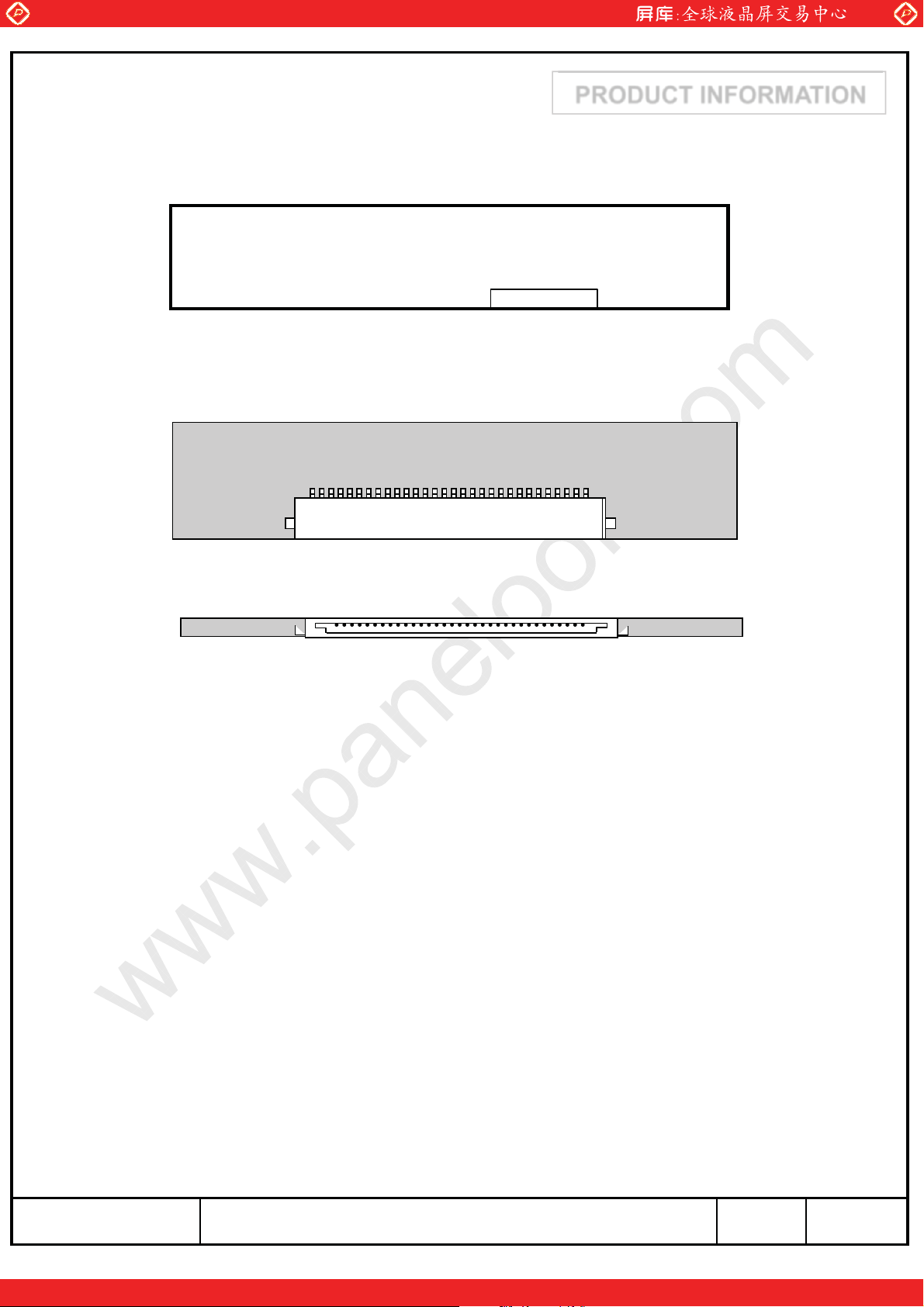

5. Input Terminal Pin Assignment --------------------------------------------------------------------- (16)
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Back Light Unit
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ---------------------------------------------------------------------------------------- (25)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)

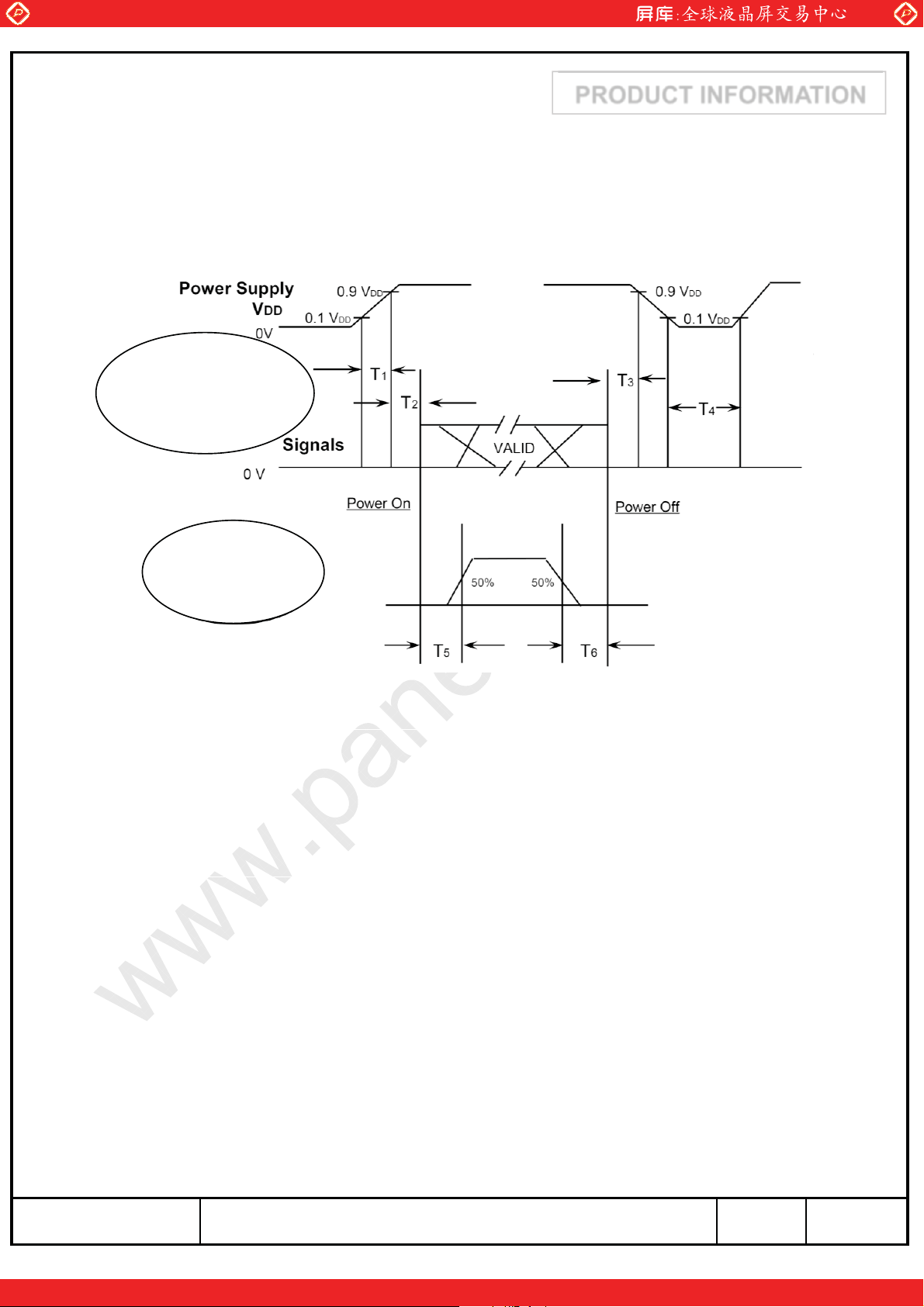

6.3 Power ON/OFF Sequence

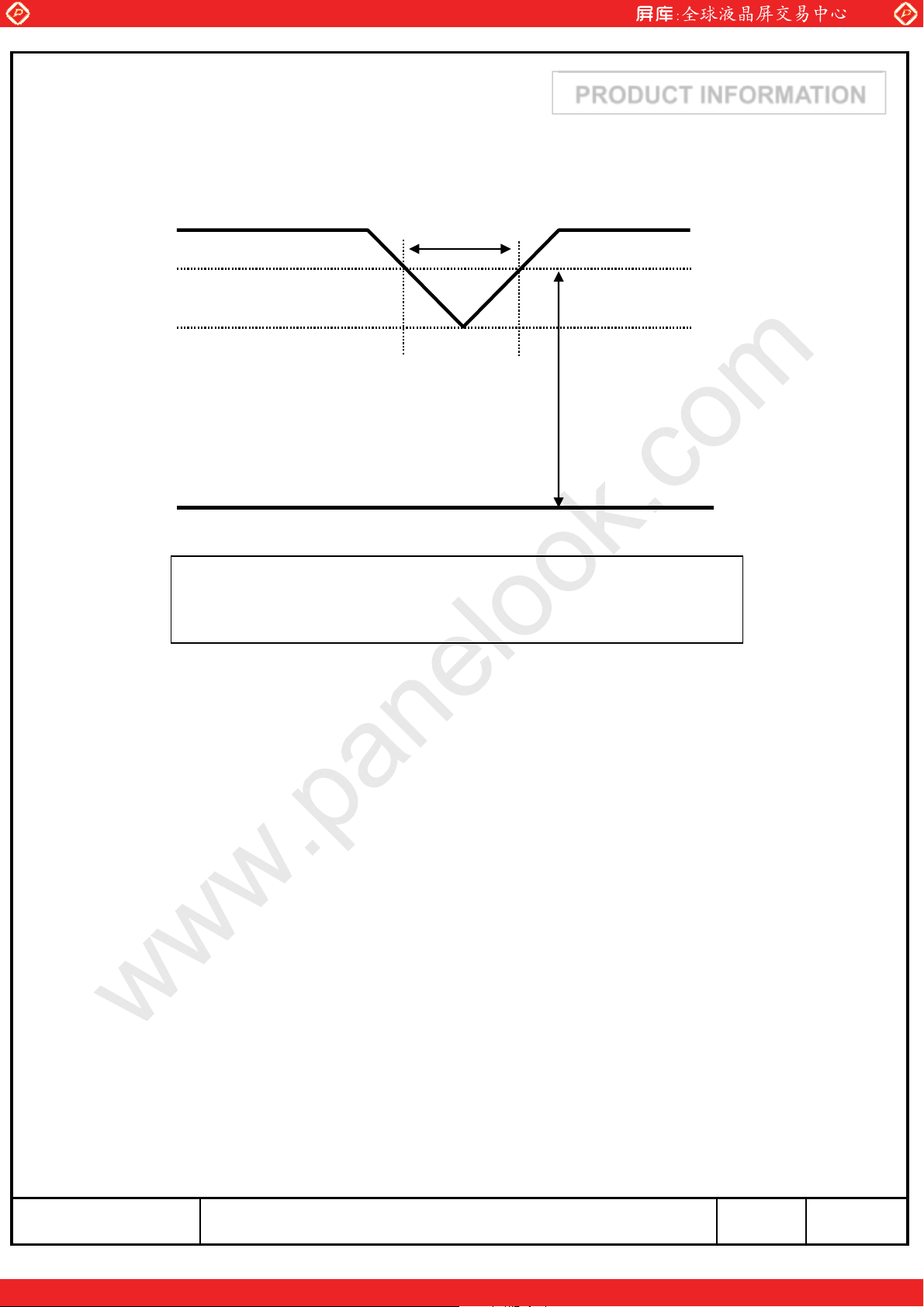

6.4 VDD Power Dip Condition

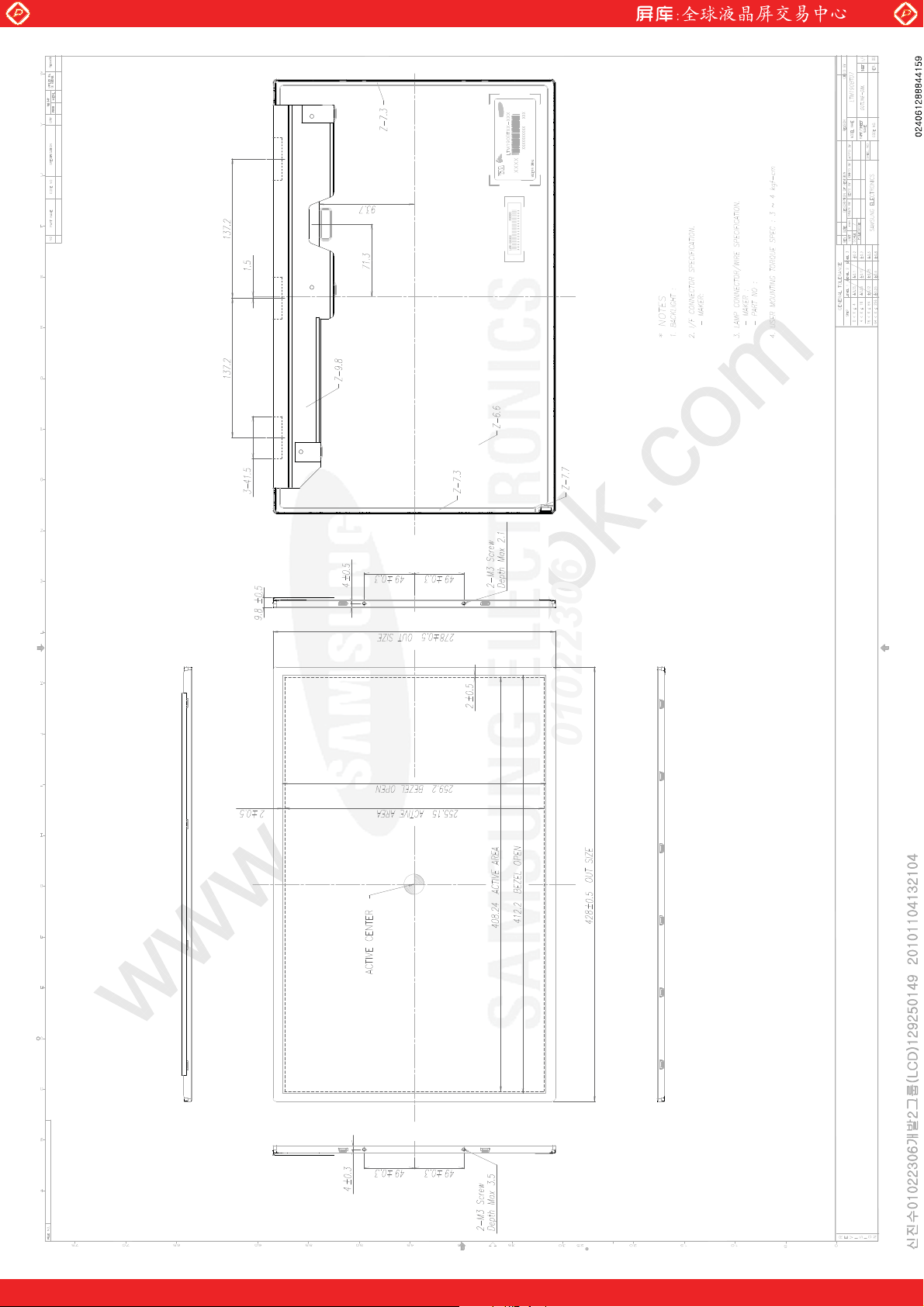

7. Outline Dimension -------------------------------------------------------------------------------------- (29)
8. General Precaution ------------------------------------------------------------------------------------- (31)
8.1 Handling
8.2 Storage
8.3 Operation
8.4 Operation Condition Guide
8.5 Others
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/33
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
General Description
PRODUCT INFORMATION
Description
LTM190BT07 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 19.0” is 1440 x
900 and this model can display up to 16.7 millions colors.
Features
High contrast ratio, high aperture structure
TN (Twisted Nematic) mode
Wide Viewing Angle
High speed response
WXGA+ (1440 x 900 pixels) resolution
Low power consumption
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
Compact Size Design
RoHS compliance
TCO5.0 compliance
( Except for 2.2 response time; this product does not have over driving function.
It is recommended to support in system level )
Applications
Workstation & desktop monitors
Display terminals for AV application products
Monitors for industrial machine
* If the module is used to other applications besides the above, please contact SEC
in advance.
General Information
Items Specification Unit Note
Pixel Pitch 0.2835(H) x 0.2835(W) mm
Active Display Area 408.24(H) x 255.15(V) mm
Surface Treatment Haze 25%, Hard-coating(3H)
Display Colors 16.7M ( 6bit Hi-FRC ) colors
Number of Pixels 1440 x 900 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally White
Luminance of White 250(Typ.)
cd/༇
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/33
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 427.5 428.0 428.5 mm
Module
size
Depth (D) - - 10.3 mm
Weight - - 1,600 g LCD module only
Note (1) Mechanical tolerance is · 0.5mm unless there is a special comment.
-Vertical (V) 277.5 278.0 278.5 mm
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Data Signal V
Storage temperature T
Center of Glass surface temperature
(Operation)
Shock ( non - operating ) S
Vibration ( non - operating ) V
T
DD
sig
STG
OPR
nop
nop
GND-0.5 6.5 V (1)
-5V
-25 60
050
- 50 G (3)(5)
- 1.5 G (4)(5)
(2)
(2)
Note (1) Ta= 25 · 2 ¶C
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/33
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Maximum wet-bulb temperature at 39 ¶C or less. (Ta ≤ 39 ¶C)
c. No condensation
(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(5) At vibration and shock test, the fixture which holds the module to be tested has to be
hard and rigid enough so that the module would not be twisted or bent by the fixture.
(39,90)
(50,50.4)
(-25,5)
Fig. Temperature and Relative humidity range
(60,27.7)
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/33
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2. Optical Characteristics
PRODUCT INFORMATION
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : SR-3, RD-80S(TOPCON), EZ-Contrast (Eldim)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
On/Off Tr+ Tf - 5 10 msec
Red
(Ta = 25 · 2¶C, VDD=5V, fv= 60Hz, F
C/R
Y
L
Rx
Ry 0.339
600 1000 -
200 250 - cd/m2
0.639
=51.9MHz, If = 360mA)
DCLK
(3)
SR-3
(5)
RD-850S
(6)
SR-3
Color
Chromaticity
(CIE 1931)
Color
Chromaticity
(CIE 1976)
Green
Blue
White
Red
Green
Blue
White
Gx 0.318
Gy 0.622
-0.030
Bx 0.154
By 0.048
Wx 0.313
Wy 0.329
Ru'
Rv' 0.527
Gu' 0.129
Gv' 0.570
Bu' 0.188
Bv' 0.131
Wu' 0.198
Wv' 0.468
Normal
=0
θ
L,R
=0
θ
U,D
Viewing
Angle
0.442
-
+0.030 -
(7),(8)
SR-3
--
C.G.L
* C.G.L : Color Grayscale Linearity (continue to the next page)
White
Ƹu'v'
- - 0.02 (9)
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
6/33
Page 7
Global LCD Panel Exchange Center
Item Symbol Condition Min. Typ. Max. Unit Note
Color Gamut - - 72 - %
Color Temperature - - 6500 - K
www.panelook.com
PRODUCT INFORMATION
θ
Hor.
Viewing
Angle
Ver.
Brightness Uniformity
(9 Points)
L
θ
R
θ
U
θ
D
B
uni
CR≥10
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
30min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Environment condition : Ta = 25 · 2 ¶C, If = 360mA
70 80 -
70 80 -
Degrees
70 80 -
70 80 -
--25%
(8)
EZ-
Contrast
(4)
SR-3
Photo detector Field
SR-3
2ദ
TFT - LCD Module
Photodetector
Field
SR-3 : 50
RD-80S : 50
LCD Panel
The center of the screen
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/33
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note (2) Definition of test point
www.panelook.com
PRODUCT INFORMATION
144 720 1296
Active Area
6
: Test Point
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point䐣 of the panel
G
CR
max
G
min
3 2 1
8 79
45
90
450
810
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Note (4) Definition of 9 points brightness uniformity
BB
Buni
100
Bmax : Maximum brightness
Bmin : Minimum brightness
(max min)
B
max
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/33
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
Note (5) Definition of Response time
a. On/Off response time : Sum of Tr, Tf
Display Data White(TFT off) Black(TFT on) White(TFT off)
Optical Instruments
Response
Note (6) Definition of Luminance of White : Luminance of white at center point䐣
Note (7) Definition of Color Chromaticity (CIE 1931, CIE1976)
Color coordinate of Red, Green, Blue & White at center point䐣
100%
90%
10%
0%
Note (8) Definition of Viewing Angle
: Viewing angle range (CR ≥10)
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/33
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Note (9) Color Grayscale Linearity
a. Test image : 100% full white pattern with a test pattern as below
b. Test pattern : Squares, 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and
105 grays steps should be arranged at the centerྜྷ of the screen.
PRODUCT INFORMATION
c. Test method
st
-1
gray step : move a square of 255 gray level should be moved into the center of the
screen and measure luminance and u’ and v’ coordinates.
- Next gray step : Move a 225 gray square into the center and measure both
luminance and coordinates, too.
d. Test evaluation
u'v'= (u' - u' ) + (v' - v' )
AB
2
AB
2
Where A, B : 2 gray levels found to have the largest color differences between them
i.e. get the largest Δu’ and Δv’ of each 6 pair of u’ and v’ and calculate the Δu’v’.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10/33
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Differential Input
Voltage for LVDS
Receiver Threshold
LVDS skew t
LVDS
Input
Characteri
stics
Differential input
voltage
PRODUCT INFORMATION
Ta = 25 ¶C
DD
High - - +100 mV (2)
Low -100 - - mV
SKEW
| 200 600 mV (4)
|V
ID
4.5 5.0 5.5 V (1)
-300 300 (3)
Current of
Power
Supply
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Input voltage range
(single-ended)
Common mode
voltage
(a) Black
(c) Dot - 1100 1300 mA
Rush Current I
V
IN
V
CM
I
DD
V
H
DCLK
RUSH
0 2.4 V (4)
|V
0+
ID
|/2
1.2
2.4-
|V
|/2
V(4)
ID
- 550 - mA
50 60 75 Hz
52.6 56.4 71.4 kHz
48.4 51.9 65.7 MHz
- - 3.0 A (7)
(5),(6)(b) White - 550 - mA
Note (1) The ripple voltage should be controlled under 10% of V
DD
.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11/33
www.panelook.com
Page 12
Global LCD Panel Exchange Center
(2)

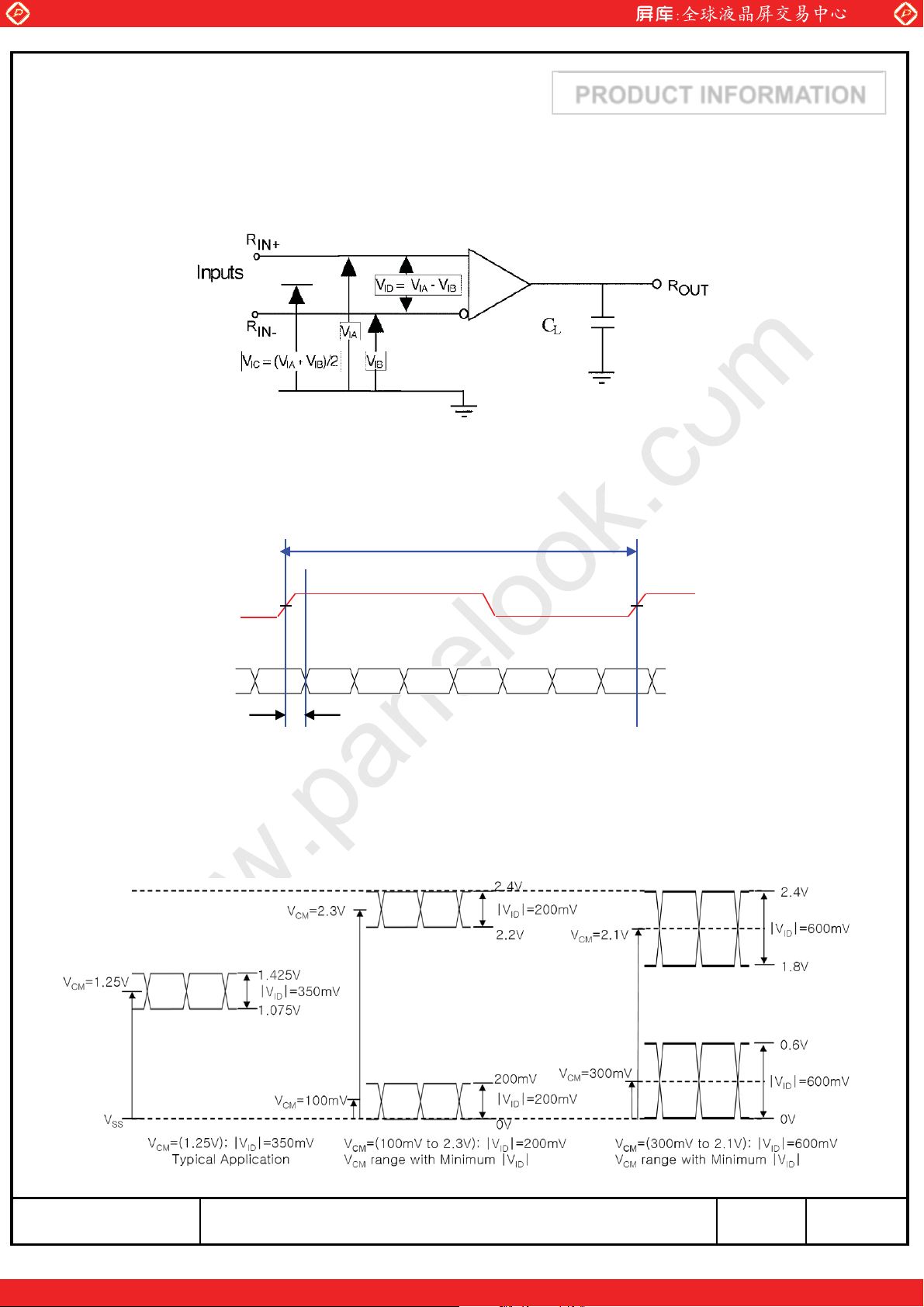

Differential receiver voltage definitions and propagation delay and transition time test circuit
a. All input pulses have frequency = 10MHz, t
b. C
includes all probe and fixture capacitance
L
Note a.
www.panelook.com
or tF=1ns
R
Note b.
PRODUCT INFORMATION
(3) LVDS Receiver DC parameters are measured under static and steady conditions
which may not be reflective of its performance in the end application.
T
LVDS Clk
LVDS Data
V
= 0V
DIFF
V
= 0V
DIFF
Differential
Differential
RX +/-
t
SKEW
where tskew : skew between LVDS clock & LVDS data,
T : 1 period time of LVDS clock
cf) (-/+) of 300psec means LVDS data goes before or after LVDS clock.
(4) Definition of V
and V
ID
using single-end signals
CM
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12/33
www.panelook.com
Page 13
Global LCD Panel Exchange Center
(5) A : fV=60Hz, B : fV=75Hz fDCLK = 51.9MHz, VDD = 5.0V, DC Current.

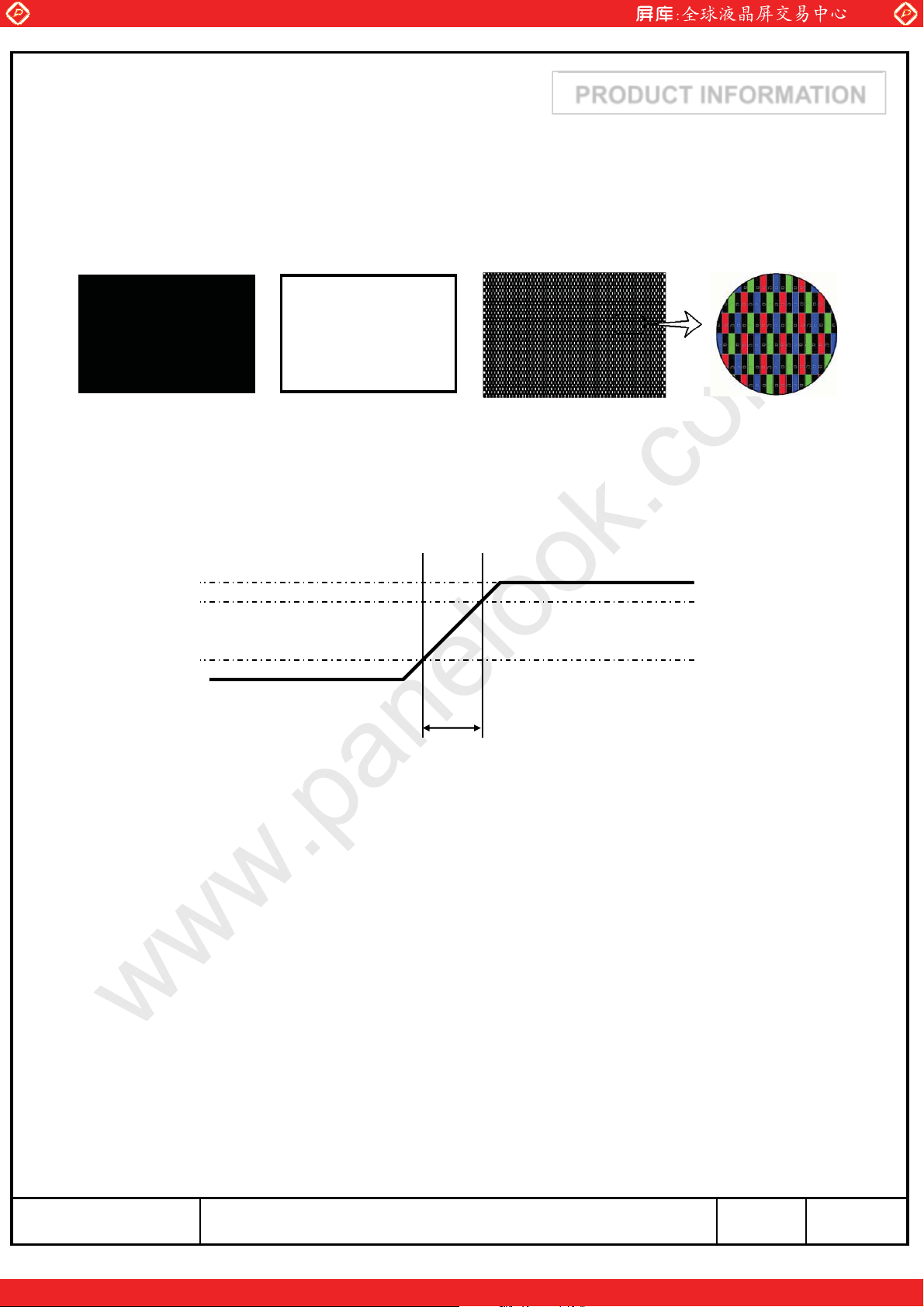

(6) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Dot Pattern
www.panelook.com
PRODUCT INFORMATION
(7) Measurement Condition
100%
90%
10%
GND
Rush Current I
RUSH
T
RUSH
=470༕
can be measured when T
. is 470༕.
RUSH
V
DD
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13/33
www.panelook.com
Page 14
Global LCD Panel Exchange Center
3.2 Back Light Unit
3.2.1 The characteristics of LED bar
The back light unit is composed of WLED.
Item Symbol Min. Typ. Max. Unit Note
www.panelook.com
PRODUCT INFORMATION
Ta=25 · 2¶C
LED Forward Current I
LED Forward Voltage V
F
F
- 120 - mA (1)/ch
-25.6 - V(1)
Operating Life Time Hr 30,000 - - Hour (2)
Note (1) The above specification is not for the converter output, but for the LED bar.
The LED bar consists of 24 LED packages ; 3 parallel X 8 serial
( LED 1 parallel Typ. current : 120mA )
(2) Life time(Hr) is defined as the time when brightness of a LED package itself
becomes 50% or less than its original value at the condition of Ta=25 · 2¶C
and I
=120mA
F
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14/33
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
4. BLOCK DIAGRAM
PRODUCT INFORMATION
4.1 TFT LCD Module
RSDS
Source Driver ICs
Column Driver Circuit
TFT-LCD
LVDS
pair #1
LVDS
pair #2
+5.0V
V
DD
CN1
(30pin)
LVDS (Rx)
(USI-2)(Tx)
Timing Controller
Power
Circuit
Control signal
S1 S1440
Control signal
(1440 x RGB x 900 pixels)
4.2 Back Light Unit
Connector : Molex 104086-0410(4-pin connector) or equivalent
LED bar
LED Return
LED Power
signal
LED Power
LED Return
4-pin connector
signal
For detail connector information, please refer to page 23.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15/33
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
5. Input Terminal Pin Assignment
PRODUCT INFORMATION
5.1. Input Signal & Power ( Connector : PTWO 196260-30041 or equivalent )
PIN NO SYMBOL FUNCTION
1 RXO0- Negative Transmission Data of Pixel 0 (ODD data)
2 RXO0+ Positive Transmission Data of Pixel 0 (ODD data)
3 RXO1- Negative Transmission Data of Pixel 1 (ODD data)
4 RXO1+ Positive Transmission Data of Pixel 1 (ODD data)
5 RXO2- Negative Transmission Data of Pixel 2 (ODD data)
6 RXO2+ Positive Transmission Data of Pixel 2 (ODD data)
7 GND Power Ground
8 RXOC- Negative Sampling Clock (ODD data)
9 RXOC+ Positive Sampling Clock (ODD data)
10 RXO3- Negative Transmission Data of Pixel 3 (ODD data)
11 RXO3+ Positive Transmission Data of Pixel 3 (ODD data)
12 RXE0- Negative Transmission Data of Pixel 0 (EVEN data)
13 RXE0+ Positive Transmission Data of Pixel 0 (EVEN data)
14 GND Power Ground
15 RXE1- Negative Transmission Data of Pixel 1 (EVEN data)
16 RXE1+ Positive Transmission Data of Pixel 1 (EVEN data)
17 GND Power Ground
18 RXE2- Negative Transmission Data of Pixel 2 (EVEN data)
19 RXE2+ Positive Transmission Data of Pixel 2 (EVEN data)
20 RXEC- Negative Sampling Clock (EVEN data)
21 RXEC+ Positive Sampling Clock (EVEN data)
22 RXE3- Negative Transmission Data of Pixel 3 (EVEN data)
23 RXE3+ Positive Transmission Data of Pixel 3 (EVEN data)
24 GND Power Ground
25 NC * CE (For LCD internal use only. Do not connect)
26 NC * CTL (For LCD internal use only. Do not connect)
27 NC No Connection
28 V
30 V
DD
DD
DD
Power Supply : +5V29 V
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16/33
www.panelook.com
Page 17
Global LCD Panel Exchange Center
Note) Pin number starts from Left side
#1
www.panelook.com
PRODUCT INFORMATION
PCB
Pin No. 1 Pin No. 30
#30
PTWO 196260-30041 or equivalent
#1
#30
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the
LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17/33
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.2 LVDS Interface
5.2.1 Odd Pixel Data (1st pixel data)
1st LVDS Transmitter ( DS90C383, DS90C385 ) Signal Interface
www.panelook.com
PRODUCT INFORMATION
Device Input Pin Device Input Signal
No Symbol Symbol Function Terminal Symbol
51 TXIN0 RO0 Red Odd Pixel Data (LSB)
52 TXIN1 RO1 Red Odd Pixel Data
54 TXIN2 RO2 Red Odd Pixel Data
55 TXIN3 RO3 Red Odd Pixel Data
56 TXIN4 RO4 Red Odd Pixel Data
2 TXIN5 RO7 Red Odd Pixel Data (MSB)
3 TXIN6 RO5 Red Odd Pixel Data
4 TXIN7 GO0 Green Odd Pixel Data (LSB)
6 TXIN8 GO1 Green Odd Pixel Data
7 TXIN9 GO2 Green Odd Pixel Data
8 TXIN10 GO6 Green Odd Pixel Data
10 TXIN11 GO7 Green Odd Pixel Data (MSB)
Output
Signal
TXOUT0-
TXOUT0+
TXOUT3-
TXOUT3+
TXOUT0-
TXOUT0+
TXOUT1-
TXOUT1+
TXOUT3-
TXOUT3+
To LTM190BT07
Interface ( CN1 )
No. 1
No. 2
No. 10
No. 11
No. 1
No. 2
No. 3
No. 4
No. 10
No. 11
RXO0-
RXO0+
RXO3-
RXO3+
RXO0-
RXO0+
RXO1-
RXO1+
RXO3-
RXO3+
11 TXIN12 GO3 Green Odd Pixel Data
12 TXIN13 GO4 Green Odd Pixel Data
14 TXIN14 GO5 Green Odd Pixel Data
15 TXIN15 BO0 Blue Odd Pixel Data (LSB)
16 TXIN16 BO6 Blue Odd Pixel Data
18 TXIN17 BO7 Blue Odd Pixel Data (MSB)
19 TXIN18 BO1 Blue Odd Pixel Data
20 TXIN19 BO2 Blue Odd Pixel Data
22 TXIN20 BO3 Blue Odd Pixel Data
23 TXIN21 BO4 Blue Odd Pixel Data
24 TXIN22 BO5 Blue Odd Pixel Data
50 TXIN27 RO6 Red Odd Pixel Data
TXOUT1-
TXOUT1+
TXOUT3-
TXOUT3+
TXOUT1-
TXOUT1+
TXOUT2-
TXOUT2+
TXOUT3-
TXOUT3+
No. 3
No. 4
No. 10
No. 11
No. 3
No. 4
No. 5
No. 6
No. 10
No. 11
RXO1-
RXO1+
RXO3-
RXO3+
RXO1-
RXO1+
RXO2-
RXO2+
RXO3-
RXO3+
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18/33
www.panelook.com
Page 19
Global LCD Panel Exchange Center
5.2.2 Even Pixel Data (2nd pixel data)
2nd LVDS Transmitter ( DS90C383, DS90C385 ) Signal Interface
www.panelook.com
PRODUCT INFORMATION
Device Input Pin Device Input Signal
No Symbol Symbol Function Terminal Symbol
51 TXIN0 RE0 Red Even Pixel Data (LSB)
52 TXIN1 RE1 Red Even Pixel Data
54 TXIN2 RE2 Red Even Pixel Data
55 TXIN3 RE3 Red Even Pixel Data
56 TXIN4 RE4 Red Even Pixel Data
2 TXIN5 RE7 Red Even Pixel Data (MSB)
3 TXIN6 RE5 Red Even Pixel Data
4 TXIN7 GE0 Green Even Pixel Data (LSB)
6 TXIN8 GE1 Green Even Pixel Data
7 TXIN9 GE2 Green Even Pixel Data
Output
Signal
TXOUT0-
TXOUT0+
TXOUT3-
TXOUT3+
TXOUT0-
TXOUT0+
TXOUT1-
TXOUT1+
To LTM190BT07
Interface ( CN1 )
No. 12
No. 13
No. 22
No. 23
No. 12
No. 13
No. 15
No. 16
RXE0-
RXE0+
RXE3-
RXE3+
RXE0-
RXE0+
RXE1-
RXE1+
8 TXIN10 GE6 Green Even Pixel Data
10 TXIN11 GE7 Green Even Pixel Data (MSB)
11 TXIN12 GE3 Green Even Pixel Data
12 TXIN13 GE4 Green Even Pixel Data
14 TXIN14 GE5 Green Even Pixel Data
15 TXIN15 BE0 Blue Even Pixel Data (LSB)
16 TXIN16 BE6 Blue Even Pixel Data
18 TXIN17 BE7 Blue Even Pixel Data (MSB)
19 TXIN18 BE1 Blue Even Pixel Data
20 TXIN19 BE2 Blue Even Pixel Data
22 TXIN20 BE3 Blue Even Pixel Data
23 TXIN21 BE4 Blue Even Pixel Data
24 TXIN22 BE5 Blue Even Pixel Data
TXOUT3-
TXOUT3+
TXOUT1-
TXOUT1+
TXOUT3-
TXOUT3+
TXOUT1-
TXOUT1+
TXOUT2-
TXOUT2+
No. 22
No. 23
No. 15
No. 16
No. 22
No. 23
No. 15
No. 16
No. 18
No. 19
RXE3-
RXE3+
RXE1-
RXE1+
RXE3-
RXE3+
RXE1-
RXE1+
RXE2-
RXE2+
50 TXIN27 RE6 Red Even Pixel Data
TXOUT3-
TXOUT3+
No. 22
No. 23
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
RXE3-
RXE3+
19/33
www.panelook.com
Page 20
Global LCD Panel Exchange Center
5.2 LVDS Interface(2)
5.2.1 Odd Pixel Data (1st pixel data)
LVDS Transmitter ( DS90C386 ) Signal Interface
www.panelook.com
PRODUCT INFORMATION
Device Input Pin Device Input Signal
No Symbol Symbol Function Terminal Symbol
10 R10 RO0 Red Odd Pixel Data (LSB)
9 R11 RO1 Red Odd Pixel Data
8 R12 RO2 Red Odd Pixel Data
7 R13 RO3 Red Odd Pixel Data
6 R14 RO4 Red Odd Pixel Data
3 R17 RO7 Red Odd Pixel Data (MSB)
5 R15 RO5 Red Odd Pixel Data
2 G10 GO0 Green Odd Pixel Data (LSB)
1 G11 GO1 Green Odd Pixel Data
100 G12 GO2 Green Odd Pixel Data
94 G16 GO6 Green Odd Pixel Data
93 G17 GO7 Green Odd Pixel Data (MSB)
Output
Signal
A0M
A0P
A3M
A3P
A0M
A0P
A1M
A1P
A3M
A3P
To LTM190BT07
Interface ( CN1 )
No. 1
No. 2
No. 10
No. 11
No. 1
No. 2
No. 3
No. 4
No. 10
No. 11
RXO0-
RXO0+
RXO3-
RXO3+
RXO0-
RXO0+
RXO1-
RXO1+
RXO3-
RXO3+
99 G13 GO3 Green Odd Pixel Data
96 G14 GO4 Green Odd Pixel Data
95 G15 GO5 Green Odd Pixel Data
92 B10 BO0 Blue Odd Pixel Data (LSB)
86 B16 BO6 Blue Odd Pixel Data
85 B17 BO7 Blue Odd Pixel Data (MSB)
91 B11 BO1 Blue Odd Pixel Data
90 B12 BO2 Blue Odd Pixel Data
89 B13 BO3 Blue Odd Pixel Data
88 B14 BO4 Blue Odd Pixel Data
87 B15 BO5 Blue Odd Pixel Data
4 R16 RO6 Red Odd Pixel Data
A1M
A1P
A3M
A3P
A1M
A1P
A2M
A2P
A3M
A3P
No. 3
No. 4
No. 10
No. 11
No. 3
No. 4
No. 5
No. 6
No. 10
No. 11
RXO1-
RXO1+
RXO3-
RXO3+
RXO1-
RXO1+
RXO2-
RXO2+
RXO3-
RXO3+
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20/33
www.panelook.com
Page 21
Global LCD Panel Exchange Center
5.2.2 Even Pixel Data (2nd pixel data)
LVDS Transmitter ( DS90C387 ) Signal Interface
www.panelook.com
PRODUCT INFORMATION
Device Input Pin Device Input Signal
No Symbol Symbol Function Terminal Symbol
84 R20 RE0 Red Even Pixel Data (LSB)
81 R21 RE1 Red Even Pixel Data
80 R22 RE2 Red Even Pixel Data
79 R23 RE3 Red Even Pixel Data
78 R24 RE4 Red Even Pixel Data
75 R27 RE7 Red Even Pixel Data (MSB)
77 R25 RE5 Red Even Pixel Data
74 G20 GE0 Green Even Pixel Data (LSB)
73 G21 GE1 Green Even Pixel Data
72 G22 GE2 Green Even Pixel Data
66 G26 GE6 Green Even Pixel Data
65 G27 GE7 Green Even Pixel Data (MSB)
Output
Signal
A4M
A4P
A7M
A7P
A4M
A4P
A5M
A5P
A7M
A7P
To LTM190BT07
Interface ( CN1 )
No. 12
No. 13
No. 22
No. 23
No. 12
No. 13
No. 15
No. 16
No. 22
No. 23
RXE0-
RXE0+
RXE3-
RXE3+
RXE0-
RXE0+
RXE1-
RXE1+
RXE3-
RXE3+
71 G23 GE3 Green Even Pixel Data
70 G24 GE4 Green Even Pixel Data
69 G25 GE5 Green Even Pixel Data
64 B20 BE0 Blue Even Pixel Data (LSB)
58 B26 BE6 Blue Even Pixel Data
57 B27 BE7 Blue Even Pixel Data (MSB)
63 B21 BE1 Blue Even Pixel Data
62 B22 BE2 Blue Even Pixel Data
61 B23 BE3 Blue Even Pixel Data
60 B24 BE4 Blue Even Pixel Data
59 B25 BE5 Blue Even Pixel Data
76 R26 RE6 Red Even Pixel Data
A5M
A5P
A7M
A7P
A5M
A5P
A6M
A6P
A7M
A7P
No. 15
No. 16
No. 22
No. 23
No. 15
No. 16
No. 18
No. 19
No. 22
No. 23
RXE1-
RXE1+
RXE3-
RXE3+
RXE1-
RXE1+
RXE2-
RXE2+
RXE3-
RXE3+
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21/33
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com

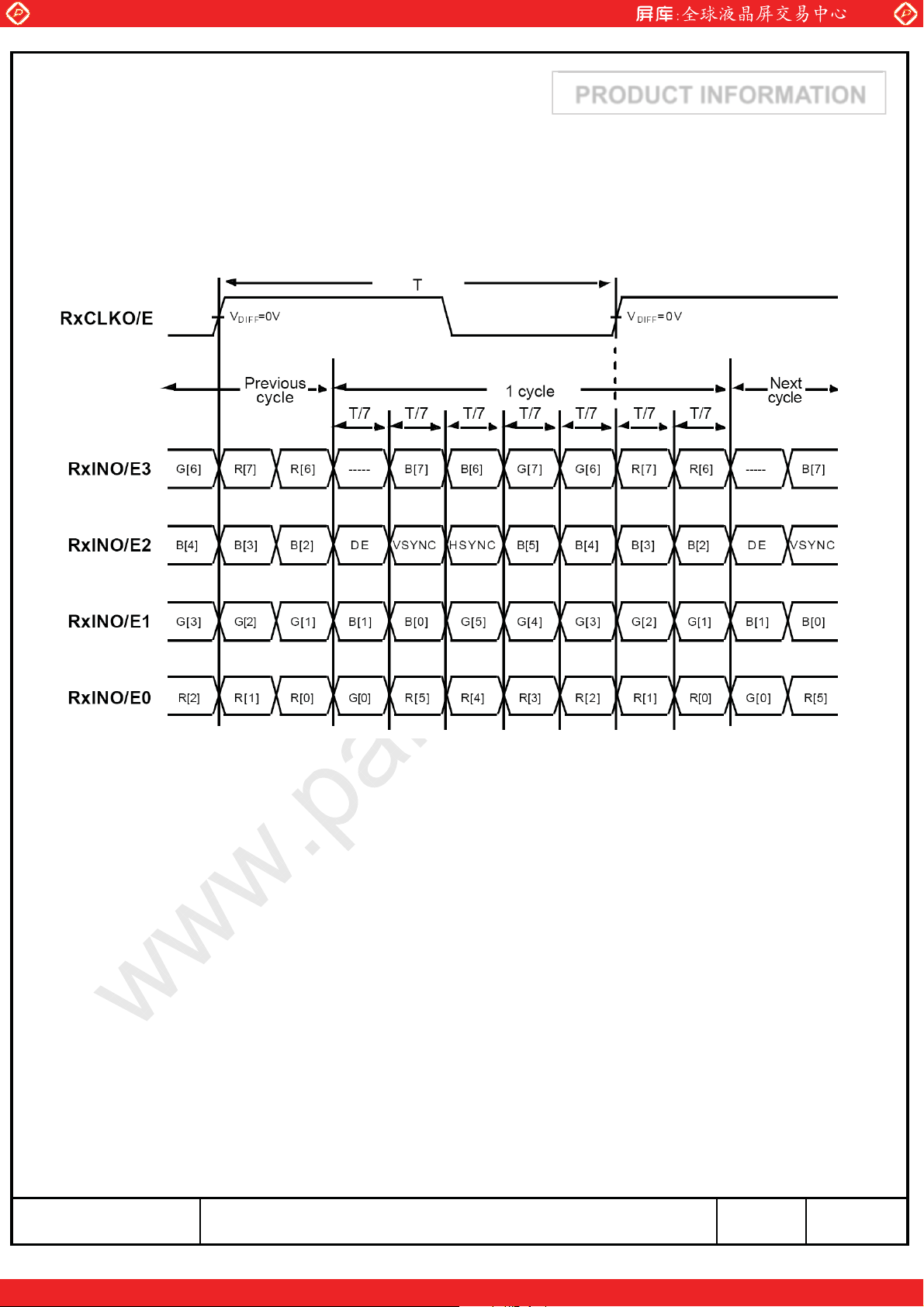

5.2.3 Timing Diagrams of LVDS For Transmitting
LVDS Receiver : Integrated T-CON
PRODUCT INFORMATION
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22/33
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com

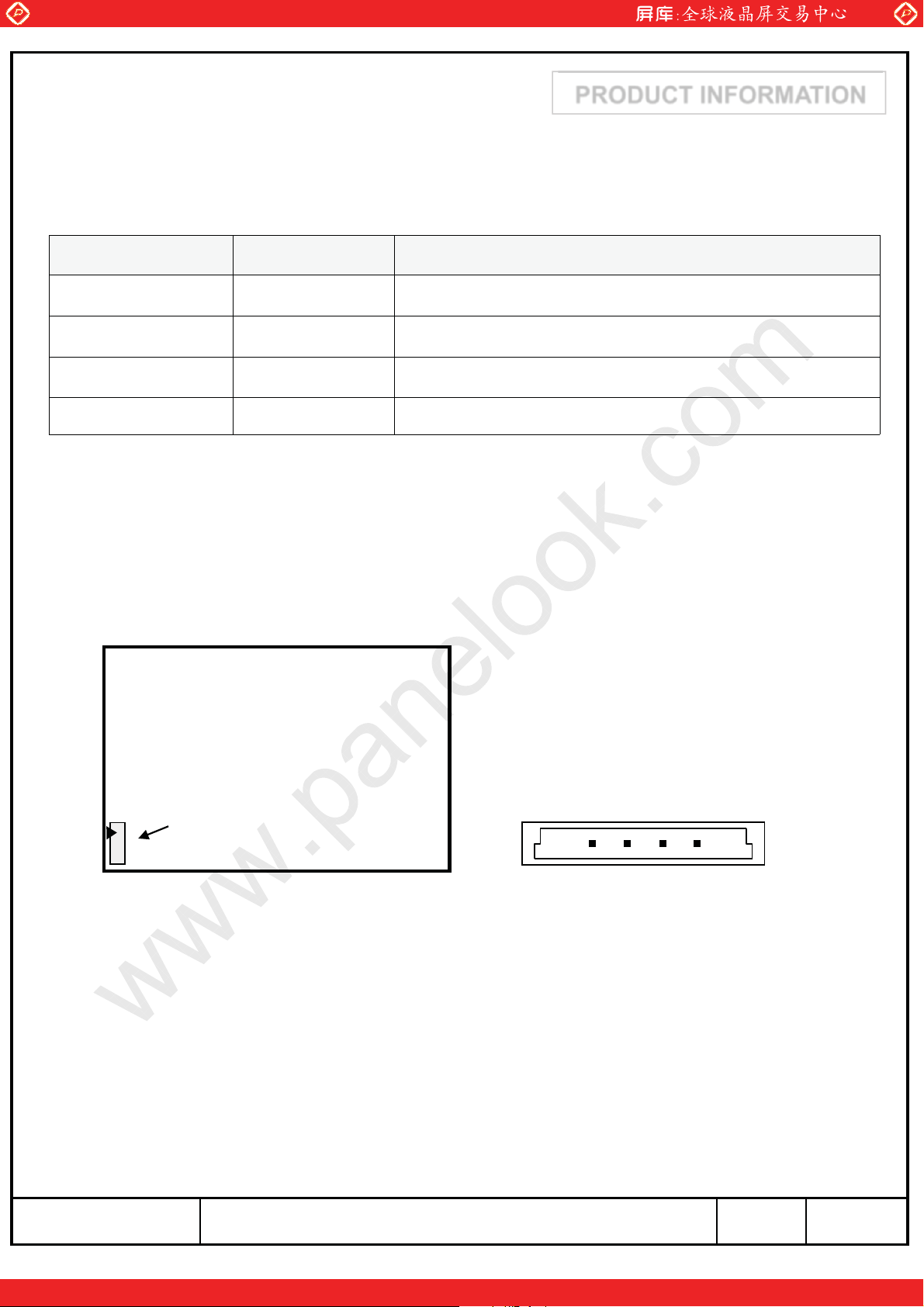

5.3 Back Light Unit
LED Bar input connector : Molex 104086-0410 or equivalent
(mating CNT : Molex 104085-0400, 104085-0410 or equivalent )
Pin No. Pin description Function
1 Vin LED power input
2 RTN 1 LED Bar return channel 1
3 RTN 2 LED Bar return channel 2
4 RTN 3 LED Bar return channel 3
PRODUCT INFORMATION
Note ) Pin number starts from Left side
Rear view of panel
Connector
#4
Fig. Connector diagram
#1
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23/33
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
COLORDISPLAY
BASIC
COLO
R
GRAY
SCALE
OF
RED
GRAY
SCALE
OF
GREE
N
GRAY
SCALE
OF
BLUE
(8bit)
BLACK 000000000000000000000000 -
BLUE 000000000000000011111111 -
GREEN 000000001111111100000000 -
CYAN 000000001111111111111111 -
RED 111111110000000000000000 -
MAGENT
A
YELLOW111111111111111100000000 -
WHITE 111111111111111111111111 -
BLACK 000000000000000000000000 R0
DARK
↑
↓
LIGHT
RED 111111110000000000000000 R255
BLACK 000000000000000000000000 G0
DARK
↑
↓
LIGHT
GREEN 000000001111111100000000 G255
BLACK 000000000000000000000000 B0
DARK
↑
↓
LIGHT
BLUE 000000000000000011111111 B255
R0 R1 R2 R3 R4 R5 R6 R7 G0
111111110000000011111111 -
100000000000000000000000 R1
010000000000000000000000 R2
:::::: :::::: ::::::
:::::: :::::: ::::::
101111110000000000000000 R253
011111110000000000000000 R254
000000001000000000000000 G1
000000000100000000000000 G2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000001011111100000000 G253
000000000111111100000000 G254
000000000000000010000000 B1
000000000000000001000000 B2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000000000000010111111 B253
000000000000000001111111 B254
RED GREEN BLUE
G1G
2
G3
G4G
G
G6
5
B0 B1 B2 B3 B4 B5 B6 B7
7
GRAY
SCALE
LEVEL
R3~
R252
G3~
G252
B3~
B252
Note (1) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24/33
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
6. Interface Timing
6.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Clock
Hsync F
Frequency
Vsync F
Active
Display
Vertical
Period
Display Term
Vertical
Total
Active
Display
Horizontal
Period
Display Term
Horizontal
Total
1/T
T
T
T
T
VD
VB
HD
PRODUCT INFORMATION
C
H
V
H
48.4 51.9 65.7 MHz -
52.6 56.4 71.4 KHz -
50 60 75 Hz -
900 900 900 lines -
908 940 960 lines -
618 618 618 clocks
880 920 960 clocks
2pixel/
clock
2pixel/
clock
Note (1) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(2) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(3) Internal Vcc = 3.3V
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25/33
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION

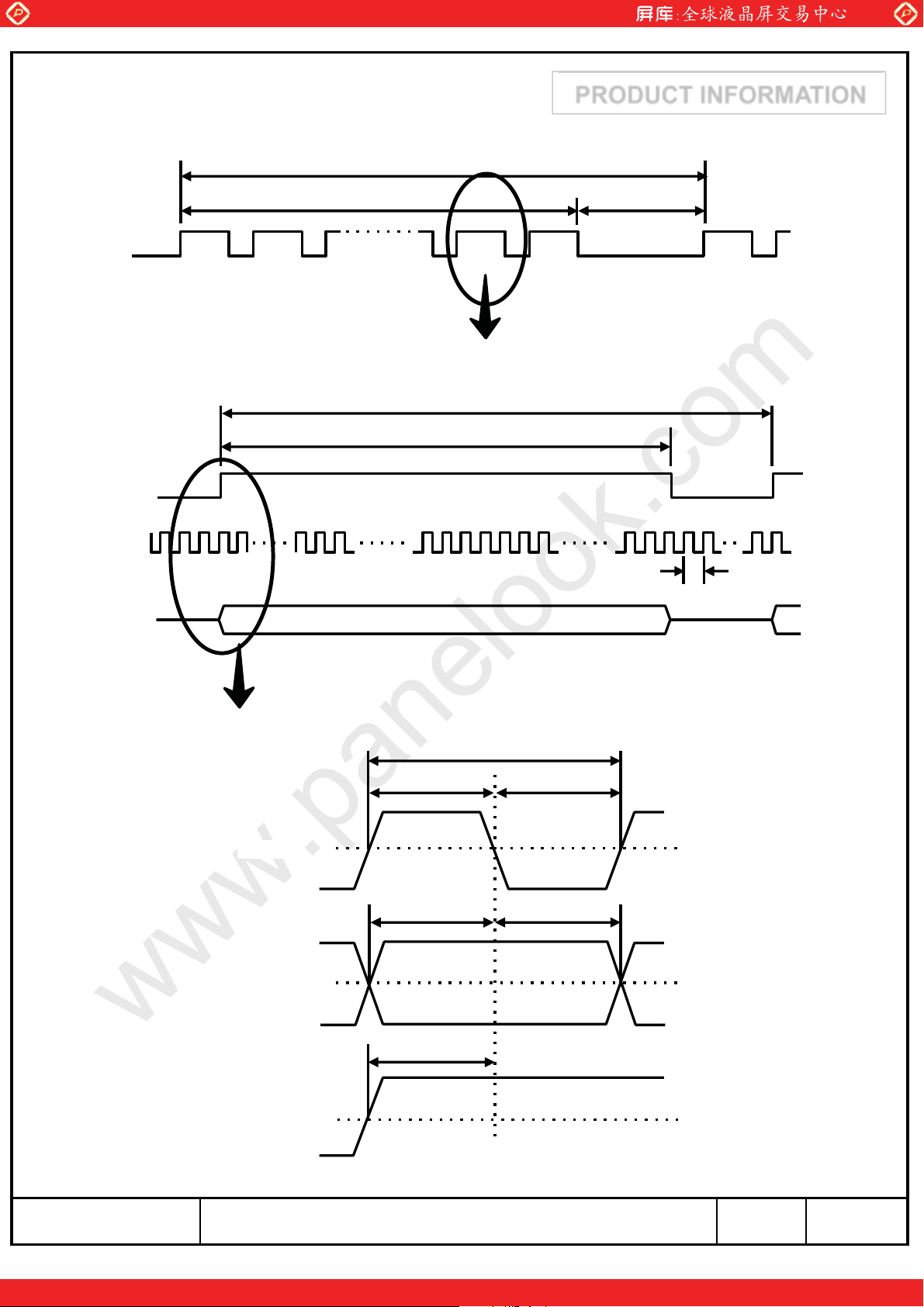

6.2 Timing diagrams of interface signal ( DE only mode )
TV
DE
DE
DCLK
DATA
SIGNALS
TVD
TVB
TH
THD
TC
DCLK
DISPLAY
DATA
DE
TC
TCH
TDS TDH
TES
TCL
0.5
V
0.5
V
CC
0.5
V
CC
CC
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26/33
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
6.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
300༕≤T1≤10msec
0≤T2≤50msec
0≤T3≤50msec
1sec≤T4
Back-Light
(Recommended)
500msec≤T5
100msec≤T6
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of VDD.
Apply the LED voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27/33
www.panelook.com
Page 28
Global LCD Panel Exchange Center
6.4 VDD Power Dip Condition
V
DD
90%
www.panelook.com
T
d
PRODUCT INFORMATION
80%
V
CC
GND
4.5V ≤ VDD≤ 5.5V
If V
(typ.) x 80% ≤ VCC≤ VDD(typ) x 90%
DD
Then, 0<Td ≤20msec
Note (1) The above conditions are for the glitch of the input voltage.
(2) For stable operation of an LCD Module power, please follow them.
i.e., if typ VDD x 80% ≤ Vcc ≤ typ VDD x 90%, then T
should be less than 20ms.
d
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28/33
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
7. Outline Dimension
[ Refer to the next page ]
PRODUCT INFORMATION
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29/33
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
www.panelook.com
8. General Precautions
PRODUCT INFORMATION
8.1 Handling
(a) When the module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the module.
(b) Refrain from strong mechanical shock and / or any force to the module.
In addition to damage, it may cause improper operation or damage to the module
and LED back light.
(c) Note that polarizer films are very fragile and could be damaged easily.
Do not press or scratch the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(f) Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might cause permanent damage to the polarizer due to chemical
reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(h) Protect the Module from static, or the CMOS Gate Array IC would be damaged.
(i) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(j) Do not disassemble the Module.
(k) Do not pull or fold the FPC wire.
(l) Do not adjust the variable resistor located on the Module.
(m) Protection film for polarizer on the Module should be slowly peeled off just before
use so that the electrostatic charge can be minimized.
(n) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31/33
www.panelook.com
Page 32
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
8.2 Storage
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 ¶C
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light during the store.
(d) Storage period is recommended not to exceed 1 year.
8.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the item 6.3
"Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding
methods may be important to minimize the interference.
8.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 65·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32/33
www.panelook.com
Page 33
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT INFORMATION
8.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "stuck" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTM190BT07 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33/33
www.panelook.com
