SAMSUNG LTI216XM01 Specification

Page 1
Global LCD Panel Exchange Center
LCD Sales & Marketing Team
www.panelook.com
Product Specification
( ) Preliminary Specification ( √ ) Approval Specification
Any modification of Spec is not allowed without SDC’s permission.
CUSTOMER
DATE OF ISSUE 2012.08.23 EXTENSION CODE -V
MODEL NO. LTI216XM01
Customer Approval & Feedback
Approved by
Prepared by
12/08/23
12/08/23
Samsung Display Co., Ltd
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
REVISION HISTORY
…………………………………………………………………………………………………
…. 3
GENERAL DESCRIPTION ...
…………………………………………………………………………………………
… 4
1. ABSOLUTE MAXIMUM RATINGS
1.1 ENVIRONMENTAL ABSOLUTE RATINGS
………………………………………………………
… 6
1.2 ELECTRICAL ABSOLUTE
RATINGS
………………………………………………………………
…. 7
1.3 THE OTHERS ABSOLUTE RATINGS
…………………………………………………………
……. 7
2. APPLICATION INFORMATION FOR DID(DIGITAL INFORMATION DISPLAY)
………………
.…….. 8
3. OPTICAL CHARA
C
TERISTICS
…………………………………………………………………………………
… 9
4.
ELECTRICAL CHARACTERISTICS
4.1 TFT LCD MODULE
……………………………………………………………………………………
…. 12
4.2 BACK LIGHT UNIT
……………………………………………………………………………………
… 13
4.3 CONDITION & SPECIFICATION OF CONVERTER
’
S INPUT
………………
.
…………………
… 13
5
. INPUT TERMINAL PIN ASSIGNMENT
5.1 INPUT SIGNAL & POWER
…………………………………………………………………………
.... 14
5.2
LED PIN CONFIGURATION
…………………
………………………………………………………
… 16 5
.3
LED BAR STRUCTURE
…………………………………………………………
...
.............................
16
5.4 LVDS INTERFACE
…
……………………………………………………………………………………
.. 17
5.5 INPUT SIGNALS, BASIC DISPLAY COLORS AND GRAY SCALE
……………………………
.. 18
6
. INTERFACE TIMING
6.1 TIMING PARAMETERS (DE ONLY MODE)
……………………………………………………
..... 19
6.2 TIMING DIAGRAMS OF INTERFACE SIGNAL (DE ONLY
MODE)
…………………………
... 20
6.3 CHARACTERISTICS OF INPUT DATA OF LVDS
………………………………………………
…. 21
6.4 THE SEQUENCE OF POWER ON AND OFF
……………………………………………………
..... 22
7
. OUTLINE DIMENSION
……………………………………………………………………………………………
.. 23
8. RELIABILITY
TEST
………………………………………………………………………………………………
...
.... 25
9
. PACKING
…………………………………………………………………………………………………………
....... 26
10
. MARKINGS & OTHERS
………………………………………………………………………………………
…. 27
11. GENERAL PRECAUTIONS
…
…………………………………………………………………………………
….. 28
www.panelook.com
————————————————————————————————————————————————–
Table of Contents
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 2 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Date
. Rev.No.
Page
Revision Description
08/23
/2012 000 All Initial Release
www.panelook.com
————————————————————————————————————————————————–
REVISION HISTORY
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 3 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
Items
Specification
Unit Note
Module Size
393.26
(W) x
393.26(
H) mm
Typical
, ±1.5m
55.5(D
) MAX
Weight
4,
200 g MAX
Pixel Pitch
0.1345(H) x 0.1345(V)
mm Active Display Area
387.36(H) x 387.36(V)
mm
Surface Treatment
Haze 44% ,
Anti-Glare
Display Colors
8 bit
- 16.7M
colors
Number of Pixels
960 X 960
pixel
1:1
Pixel Arrangement
RGB vertical stripe
Display Mode
Normally Black
Luminance of White
450 (Typ.)
www.panelook.com
————————————————————————————————————————————————–
GENERAL DESCRIPTION
DESCRIPTION
LTI216XM01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 21.6“ is 960 x 960 and this model can display up to 16.7M colors with wide viewing angle of 89° or higher in all directions. This panel is intended to support applications to provide a excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display terminals for AV application products, and Digital Information Display (DID).
FEATURES
RoHS compliance (Pb-free) High contrast ratio, High luminance SPVA(Super Patterned Vertical Align) mode Wide viewing angle (±178°) 960 x 960 pixels resolution (1:1) Low power consumption Direct LED Backlight DE(Data Enable) mode 1ch LVDS (Low Voltage Differential Signaling) interface Super Narrow Bezel Landscape / Portrait type compatible
APPLICATIONS
DID(Digital Information Display) If the intent to use this product is for other purpose, please contact Samsung Display.
GENERAL INFORMATION
cd/ ั
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 4 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
MECHANICAL INFORMATION
Item Min. Typ. Max. Unit Note
Module size
Horizontal(H)
Vertical(V) 391.76 393.26 394.76 mm ±1.5
Depth(D) 52.5 54.0 55.5 mm ±1.5
Weight - 3,800 4,200 g
391.76 393.26 394.76 mm ±1.5
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 5 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
Item
Symbol
Min.
Max.
Unit Note
Storage
Te
mperature
T
STG
-20 65
୅ (1)
T.
www.panelook.com
————————————————————————————————————————————————–
1. ABSOLUTE MAXIMUM RATINGS
1.1 ENVIRONMENTAL ABSOLTE RATINGS
Operating Temperature T
Glass surface Temperature
(Operation)
Note (1) Ta= 25 ± 2 °C (2) Temperature and relative humidity range are shown in the figure below. a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta > 39 °C)
c. No condensation
Center T
Uniformity
0 50
CENTER
0 50
CENTER
೚T
- 10
୅
୅
୅
(1),(2)
(1),(2),
(3) Module Vibration and shock tests are not guaranteed due to SNB model’s characteristics
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 6 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD MODULE
Item Symbol Min. Max. Unit Note
Power Supply Voltage
Note (1) Within Ta (25 ± 2 °C )
(2) The permanent damage or defect to the device may occur if the panel is operated at the figure set,
which exceeds a limit of maximum value stated in the former spec. The functional operation should be limited to the conditions described above under normal operating conditions.
(2) BACK LIGHT UNIT
Item
DD
10.8 13.2
V
Symbol
Min.
Max.
V (1),(2)
Unit
Note
Input Supply Voltage /
Converter
Vcc
22 26 V
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 7 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
2. Application Information for DID(Digital Information Display)
A DID’s screen may display the sudden image such as an image retention. To extend the lifetime and optimize a function of module, the below-mentioned operating conditions are required.
1. Normal operating condition
a. Temperature: 20 ±15ଇ b. Humidity: 55 ±20 % c. Display pattern: Moving image or image, which switches regularly
Note) The sudden image on the screen can be displayed after the static image is shown in the long-term.
2. The operating conditions when the module is operated under the abnormal condition.
a. Ambient condition
-It is recommended to set the DID up in the well-ventilated place.
b. The function of power off and screen saver
-The function of periodical power-off or a screen saver is needed when the static image is displayed in the long-term.
3. Operating conditions to prevent the sudden display resulted from displaying the static image in the long-term.
a. The proper operating time: Under 20 hours a day. b. The moving image shall be inserted between the static displays periodically.
-The refresh time for liquid crystal is needed.
c. The periodic changing of background color and character’s color (image)
-Use the different color for background and character (image) respectively.
-Change colors periodically.
d. Avoid combining the color for background with the color for character, which has a largely different
luminance. Note (1) Abnormal condition means all operating condition except normal operating condition. Note (2) The moving image or black pattern is strongly recommended as a screen saver.
4. Only the lifetime of DID stated in this spec is guaranteed if the DID is used under the proper operating conditions.
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 8 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Item
Symbol
Condition
Min.
Typ.
Max.
Unit Note
Contrast Ratio
(3)
Response
G-to-G
(5)
Luminance of White
(6)
(7)
(7)
θ
θ
θ
θ
Brightness Uniformity
(4)
www.panelook.com
————————————————————————————————————————————————–
3. OPTICAL CHARACTERISTICS
The following items are measured under the stable conditions.* The optical characteristics should be measured in the dark room or the equivalent environment by the methods shown in the Note (5).
Measuring equipment : TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
LCD_VCC
Ta = 25 ± 2 °C, V
(Center of screen)
Time
(Center of screen)
Color
Chromaticity
(CIE 1931)
(Avg.)
Red
Green
Blue
White
C/R
Tg - 8 16 msec
Y
350 450 - cd/m2
L
Normal
Rx
Ry 0.330
Gx 0.315
Gy 0.620
Bx 0.155
By 0.053
Wx 0.280
Wy 0.290
θ L,R=0
θ U,D=0
Viewing
Angle
=3.3V, fv= 60Hz, fDCLK = 74.25MHz, IF = 100% duty
3000 4000 -
0.650
TYP.
-0.03
TYP.
+0.03
SR-3
RD-80S
SR-3
(7),(8)
SR-3
Color Gamut -
Color Temperature -
Hor.
Viewing
Angle
Ver.
(9 Points)
——————————————————————————————————————————————––—
L
R
U
D
B
uni
C/R≥10
- 72 - %
- 10,000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
- - 25 %
SR-3
SR-3
(8)
SR-3
SR-3
Doc.No. LTI216XM01-V Page 9 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
Photo detector
Field
SR-3 2° RD-
80S 2°
G
min
B
−
max
H/6
H/2
5H/6
V/6
www.panelook.com
————————————————————————————————————————————————–

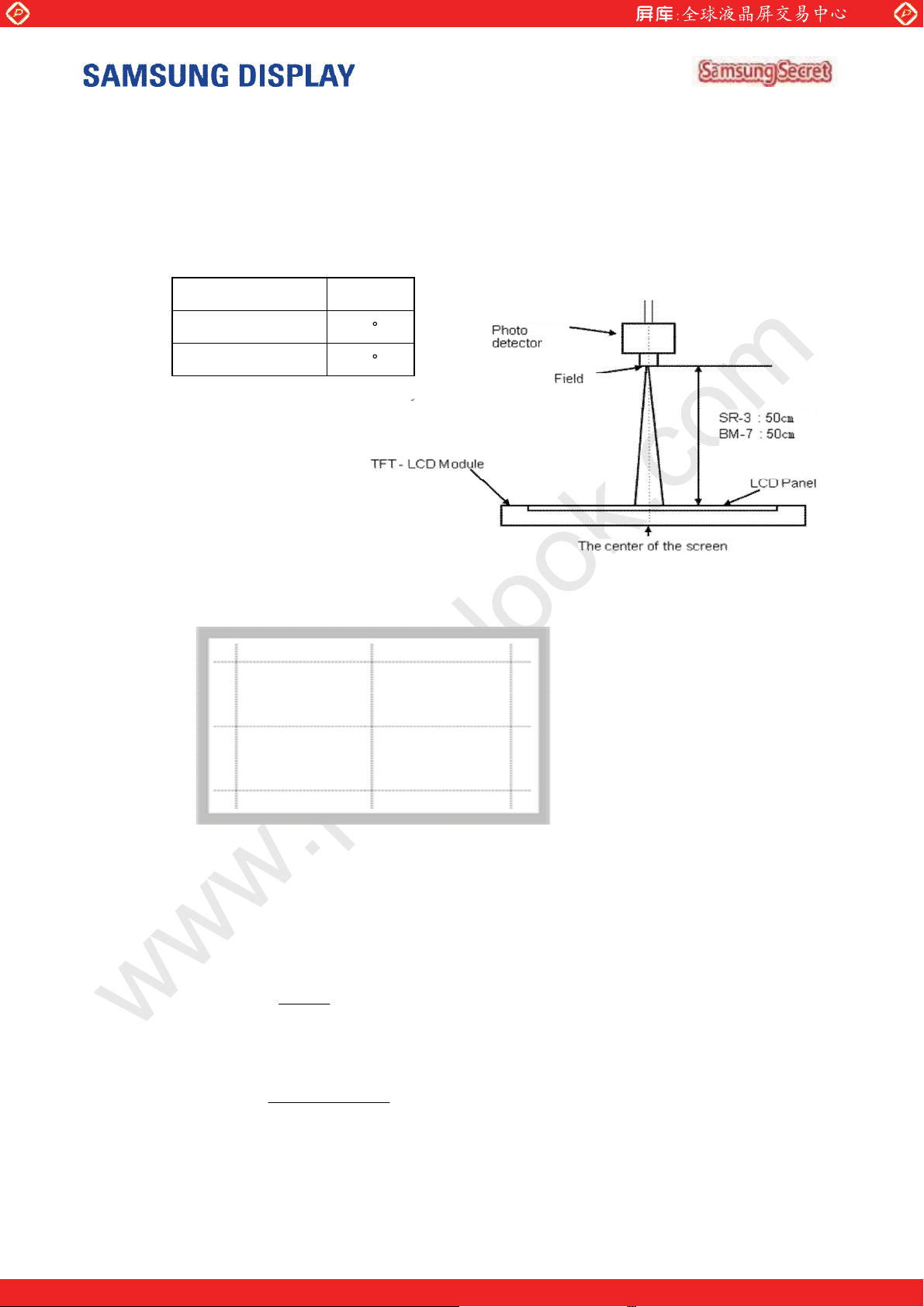

Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between 40min and 60min after lighting the backlight at the given temperature for stabilization of the backlight. This should be measured in the center of screen.
Environment condition : Ta = 25 ± 2 °C
Note (2) Definition of test
Note (3) Definition of Contrast Ratio (C/R) : Ratio of gray max (Gmax) & gray min (Gmin) at the center point ྜྷ of the panel
Gmin : Luminance with all pixels black
Note (4) Definition of 9 points brightness uniformity
V/2
5V/6
Buni
ª ©
§
¤
G
CR
/
=∗
100
max
=
BB
(max min)
¨
¦
£ ¢
Gmax : Luminance with all pixels white
Bmax : Maximum brightness Bmin : Minimum brightness
¥
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 10 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–

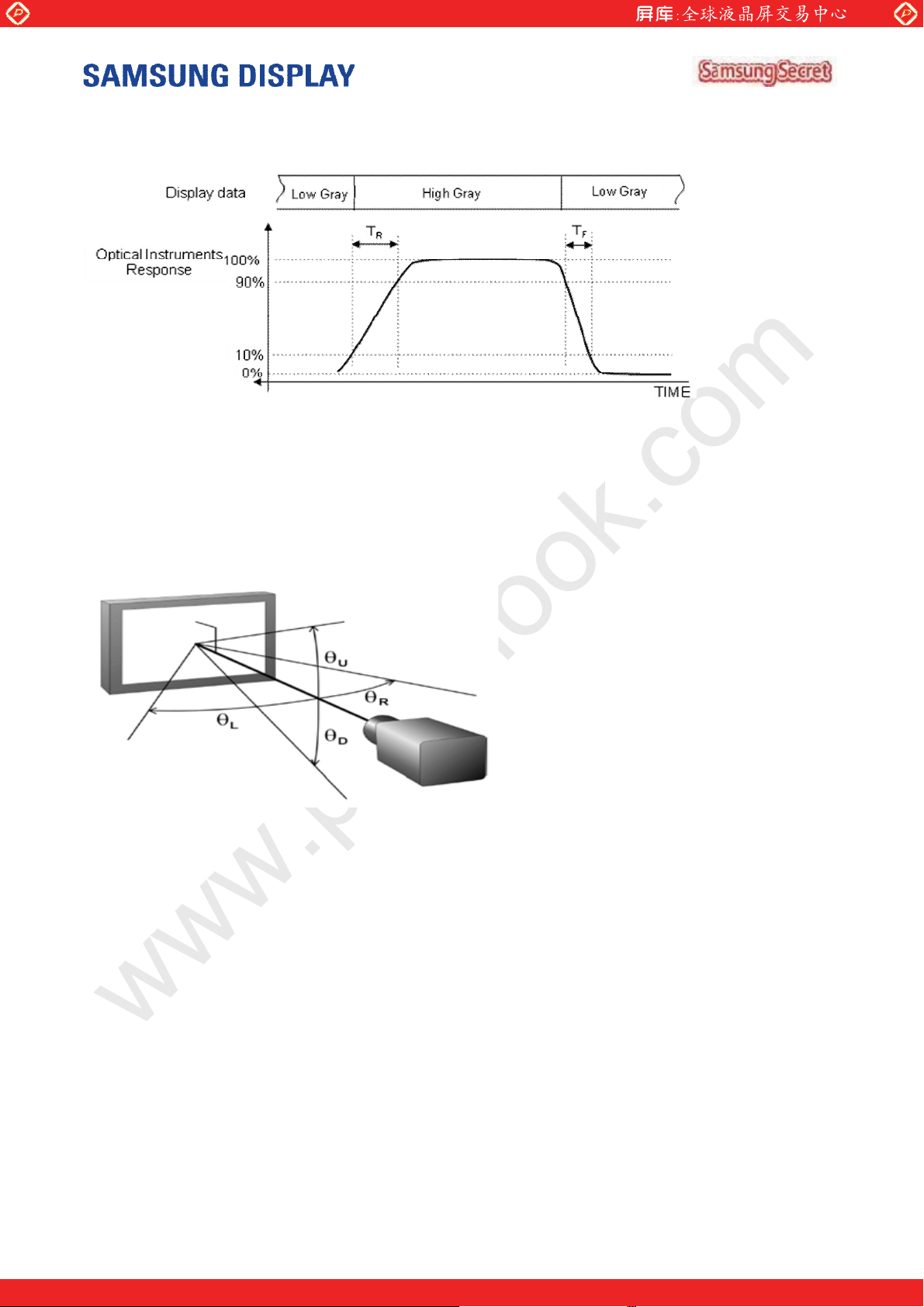

Note (5) Definition of Response time : Average response time of all Gray to gray
Note (6) Definition of Luminance of White : Luminance of white at center point ྜྷ
Note (7) Definition of Color Chromaticity (CIE 1931) Color coordinate of Red, Green, Blue & White at center point ྜྷ
Note (8) Definition of Viewing Angle : Viewing angle range (C/R ≥ 10)
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 11 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
Item
Symbol
Min.
Typ.
Max.
Unit Note
Voltage of Power Supply
VDD
10.8 12.0 13.2 V (1)
(a) Black
- 310 370 mA
(b) White
-
460 540 mA
(c) Checker
-
390 450 mA
www.panelook.com
————————————————————————————————————————————————–

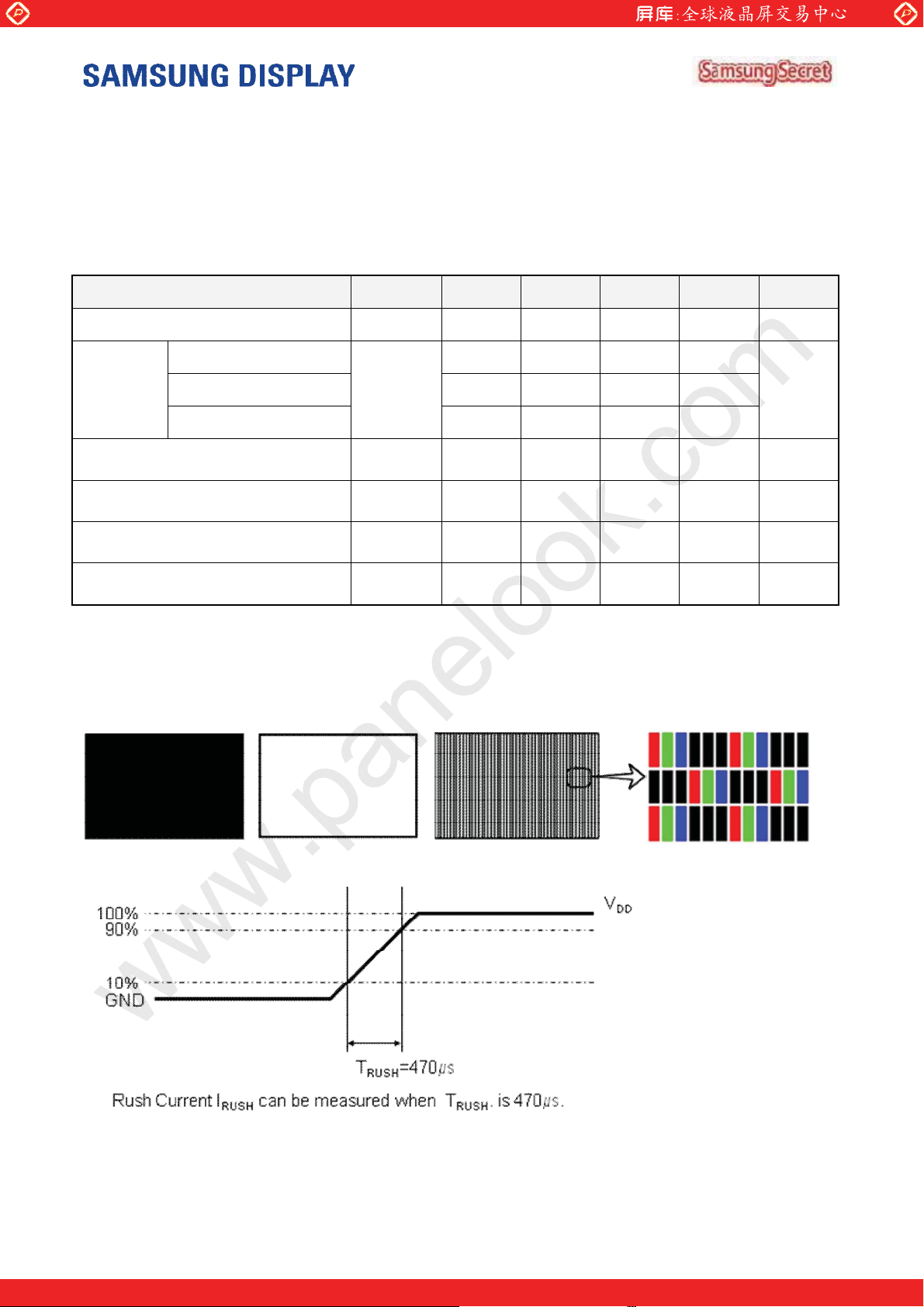

4. ELECTRICAL CHARACTERISTICS
4.1 TFT LCD MODULE
* Ta = 25 ± 2 °C
Current of
Power
Supply
IDD
Vsync Frequency fV 47 60 63
Hsync Frequency fH 53 67.5 71
ภ
ม
G
G
(2),(3)
Main Frequency f
Rush Current I
Note (1) The ripple voltage should be controlled under 10% of V (2) f (3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c)Checker Pattern
(4) Measurement Conditions
= 60Hz, f
V
= 74,25 MHz, VDD = 12.0V, DC Current.
DCLK
58 74.25 78
DCLK
- - 1.8 A (4)
RUSH
.
DD
ย
G
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 12 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
Item
Min.
Typ.
Max.
Unit
Note
Specifications
Min.
Typ.
Max.
Input
Inrush
Output
After 1 hour
Converter
Enable
3 -
5.25
www.panelook.com
————————————————————————————————————————————————–
4.2 BACK LIGHT UNIT
Operating Life Time 50,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value. [Operating condition : Ta = 25±2 ]
Ȕ
4.3 CONDITION & SPECIFICATION OF CONVERTER’S INPUT
Items Symbol Conditions
Voltage
Vin -
22 24 26 V Ta=25±2 °C
Unit Note
Current
(*2)
Current
(*1)
On/Off
Control
$B',0
G
Note (1) All data was approved after running 120 minutes. (2) Inrush is measured within BLU on 10ms after leaving the BLU as it is at least 1hr or more at room temperature(25 ) (3) Additional Appendix for Input current at room temperature (25୅)
Inrush
ILED
ENA
9
$B',0
,
$B',0
G
G
Vin = 24.0V
dim =Max
Vin = 24.0V
dim =Max
Disable -0.3 - 0.4
9,1 9
9,1 9
G G
Ȕ
- - 2.5 Adc Initial turn on
47.5 50 52.5 mAmean
V
G

G
G
G


G
G
9
G
P$PHDQ
Warm-up,
@1string
G
#VWULQJ
G
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 13 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 INPUT SIGNAL & POWER
Connector : FI-RE51S-HF-J(JAE)
Pin
1
2
3
4
5
6
7
8
9
Description
Vdd (12V)
Vdd (12V)
Vdd (12V)
Vdd (12V)
Vdd (12V)
No connection
GND
GND
GND
Pin
26
27
28
29
30
31
32
33
34
Description
No connection
No connection
No connection
No connection
No connection
GND
No connection
No connection
GND
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
LVDS
Signal
RX1A_N
RX1A_P
RX1B_N
RX1B_P
RX1C_N
RX1C_P
Ground
RX1CLK_N
RX1CLK_P
Ground
RX1D_N
RX1D_P
No connection
No connection
GND
No connection
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
LVDS_SEL
No connection
No connection
No connection
No connection
No connection
GND
NOTE1
NOTE2
NOTE1
Note 1) No Connection : These pins are only used for SAMSUNG internal purpose. Note 2) LVDS OPTION : IF THIS PIN : HIGH (3.3 V) → NORMAL NS LVDS FORMAT OTHERWISE : LOW (GND) OR OPEN(NC) → JEIDA LVDS FORMAT Sequence : On = VDD(T1) ≥ LVDS Option ≥ Interface Signal(T2) OFF = Interface Signal(T3) ≥ LVDS Option ≥ VDD Note 3) LVDS Connector
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 14 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
51
No connection
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–

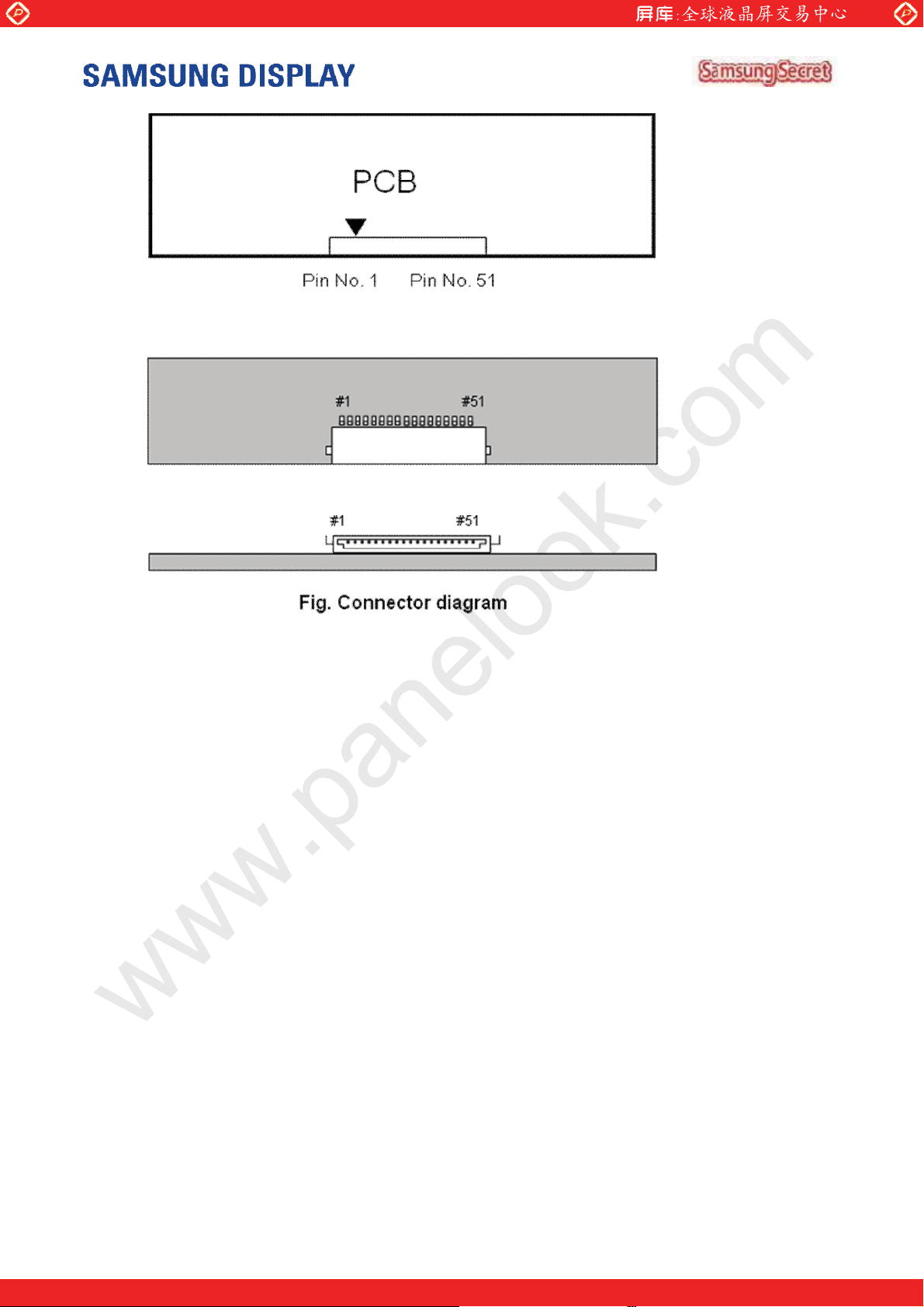

a. All GND pins should be connected together and also be connected to the LCD’s metal chassis. b. All power input pins should be connected together. c. All N.C pins should be separated from other signal or power.
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 15 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
Pin No.
SYMBOL
Pin Configuration(FUNCTION)
1, 2, 3, 4, 5
Vin Power Supply DC 24V
6, 7, 8, 9, 10
GND
Ground
11 NC No connection
12
ENA ENA (Converter on/off Control signal)
13 A_DIM
Analog Dimming Control [0V: Min, 3.3V: MAX]
14 - No Connection
www.panelook.com
————————————————————————————————————————————————–
5.2 CONFIGUARATION OF INPUT PIN OF CONVERTER
22022WR-014B1 (YEONHO)
Note) Pin 14 must be disconnected from signal

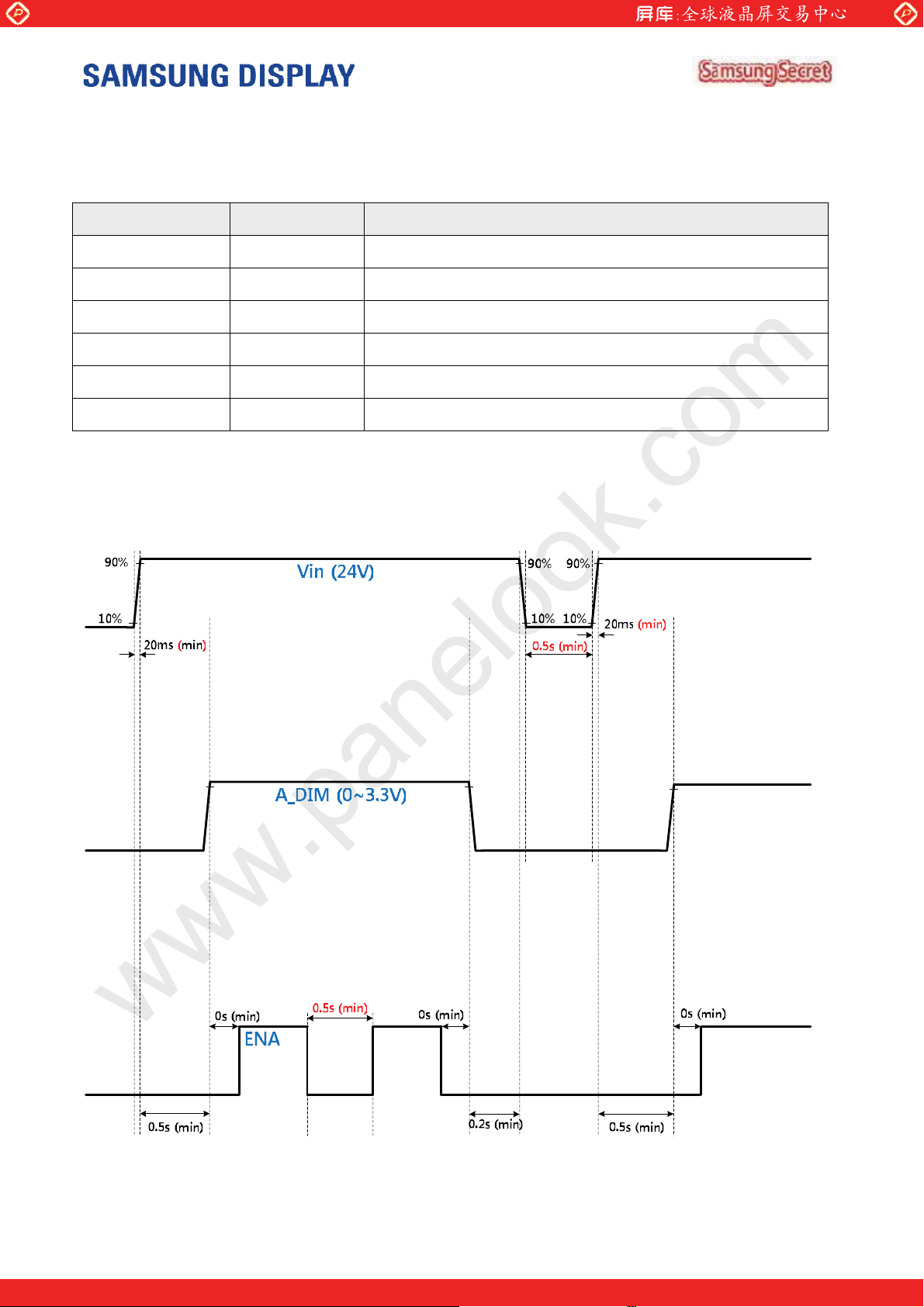

5.3 THE POWER SEQUENCE FOR INPUTTING TO THE CONVERTER
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 16 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
TxIN/RxOUT0
R2
TxIN/RxOUT1
R3
TxIN/RxOUT2
R4 TxIN
/RxOUT3
R5
TxIN/RxOUT4
R6
TxIN/RxOUT6
R7
TxIN/RxOUT7
G2
TxIN/RxOUT8
G3
TxIN/RxOUT9
G4 TxIN/RxOUT12
G5
TxIN/RxOUT13
G6 TxIN/RxOUT14
G7
TxIN/RxOUT15
B2
TxIN/RxOUT18
B3
TxIN/RxOUT19
B4
TxIN/RxOUT20
B5
TxIN
/RxOUT21
B6 TxIN/RxOUT22
B7
TxIN/RxOUT24
HSYNC
TxIN/RxOUT25
VSYNC
TxIN/RxOUT26
DEN
TxIN/RxOUT27
R0
TxIN/RxOUT5
R1
TxIN/RxOUT10
G0
TxIN/RxOUT11
G1
TxIN/RxOUT16
B0 TxIN/RxOUT17
B1
www.panelook.com
————————————————————————————————————————————————–
5.4 LVDS INTERFACE
- LVDS Receiver : T-CON (merged)
- Data Format : JEIDA
LVDS pin JEIDA -DATA
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT23
RESERVED
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 17 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
GREEN
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
-
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
YELLOW
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
WHITE
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
: : : : : : : : : : : : : : : : : : : : : : : :
0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R254
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R255
BLACK
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
: : : : : : : : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G253
0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G254
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 B2
: : : : : : : : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 B253
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B255
www.panelook.com
————————————————————————————————————————————————–
5.5 INPUT SIGNALS, BASIC DISPLAY COLORS AND GRAY SCALE
DATA SIGNAL
COLOR DISPLAY
BASIC
COLOR
GRAY
SCALE
OF RED
CYAN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
DARK
↑
↓
LIGHT
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
: : : : : : : : : : : : : : : : : : : : : : : :
1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R253
RED
GREEN
BLUE
GRAY
SCALE
LEVEL
R3~
R252
DARK
0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
↑
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF BLUE
↓
LIGHT
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
DARK
↑
↓
LIGHT
: : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 B254
Note (1) Definition of gray : Rn: Red gray, Gn: Green gray, Bn: Blue gray (n=gray level) Note (2) Input signal: 0 =Low level voltage, 1=High level voltage
G3~
G252
B3~
B252
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 18 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Signal
Item
Symbol
Min.
Typ.
Max.
Unit
Note
1/TC
FH
FV
Active
TV
Active
Horizontal
www.panelook.com
————————————————————————————————————————————————–
6. INTERFACE TIMING
6.1 THE PARAMETERS OF TIMING(DE MODE)
Clock
Hsync
Vsync
Vertical
Display Term
Horizontal
Display Tearm
Frequency
Display
Period
Vertical Total
Display
Period
Total
T
VD
T
HD
T
H
58 74.25 78 MHz -
53 67.5 71 KHz -
47 60 63 Hz -
- 960 - Lines -
968 1125 1475 Lines -
- 960 - Clocks -
995 1100 1612 Clocks -
Note)
(1) Test Point: TTL controls signal and CLK at LVDS Tx at the input terminal of system. (2) Internal VDD = 3.3V (3) The spread spectrum
- The limit of spread spectrum's range of SET in which the LCD module is assembled should be within ± 3 %
- Frequency for modulation : Min 30KHz ~ Max 300KHz
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 19 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–

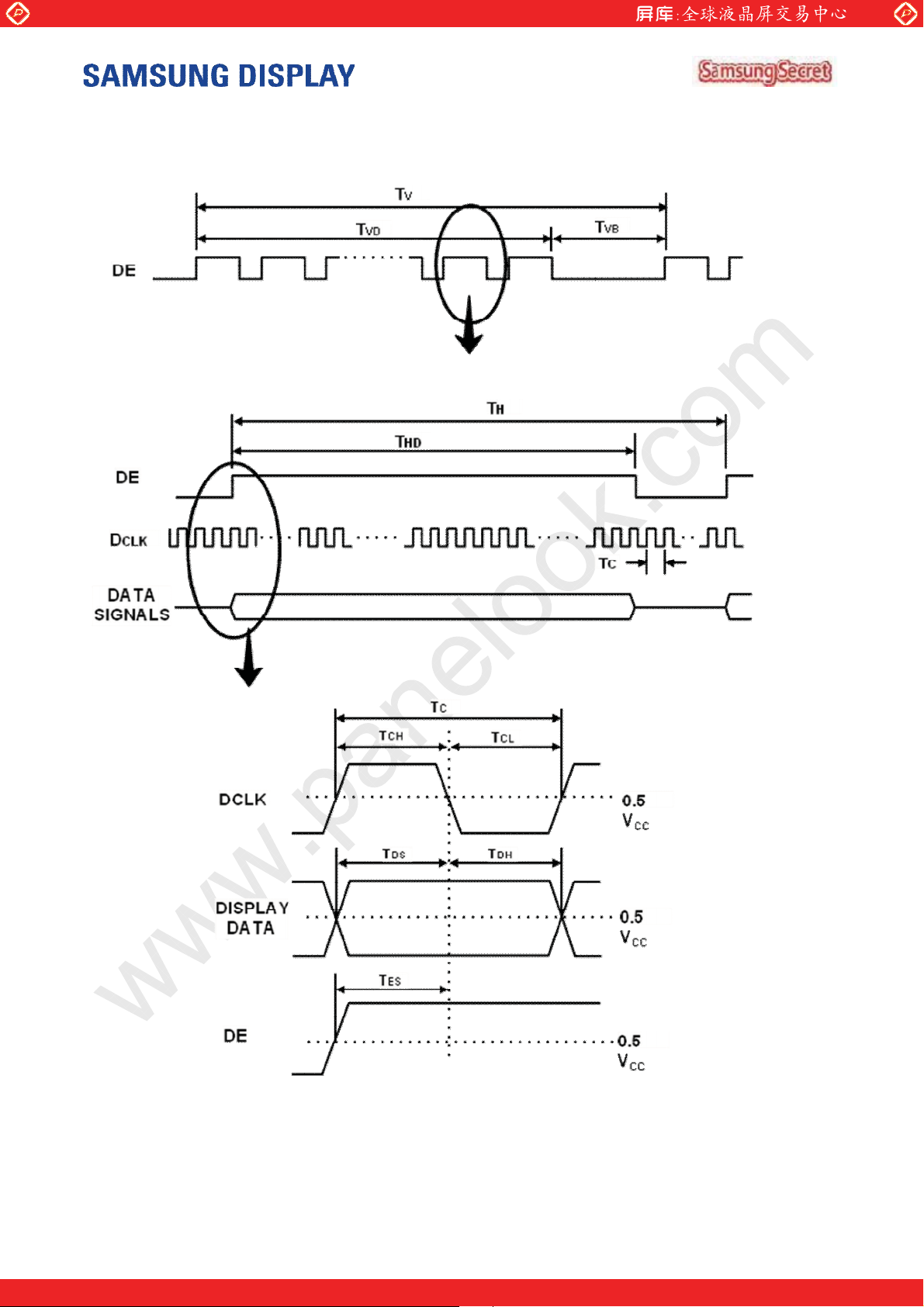

6.2 TIMING DIAGRAMS OF INTERFACE SIGNAL (ONLY DE MODE)
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 20 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Characteristic
Symbol
Condition
Min.
Typ.
Max.
Unit
IO Supply Voltage
VDD33_LVDS
3.0 3.3 3.6 V
Core Supply Voltage
VDD12_LVDS
1.1 1.2 1.3 V
Color Depth
- 8/10
- Bit
25
100
MHz
Input Common Mode Voltage
VCM
0.3 - 1.8 V
Differential Input Voltage
|VID|
200 350 600 mV
Symbol
Characteristic
Min. Typ.
Max.
Unit
FIN Input Clock
Frequency (= 1/T)
25 -
100 MHz
tRCP
Output Clock period
11.11
40 ns
FIN=85MHz
+400
ps
FIN=78MHz
+450
ps FIN=75MHz
+500
ps
FIN=85MHz
-400 ps
FIN=78MHz
-450 ps
FIN=75MHz
-500 ps
tRPLL
Lock Time
100
Ɇsec
tduty
Rx Output Clock Duty Ratio
45 50 55 %
www.panelook.com
————————————————————————————————————————————————–

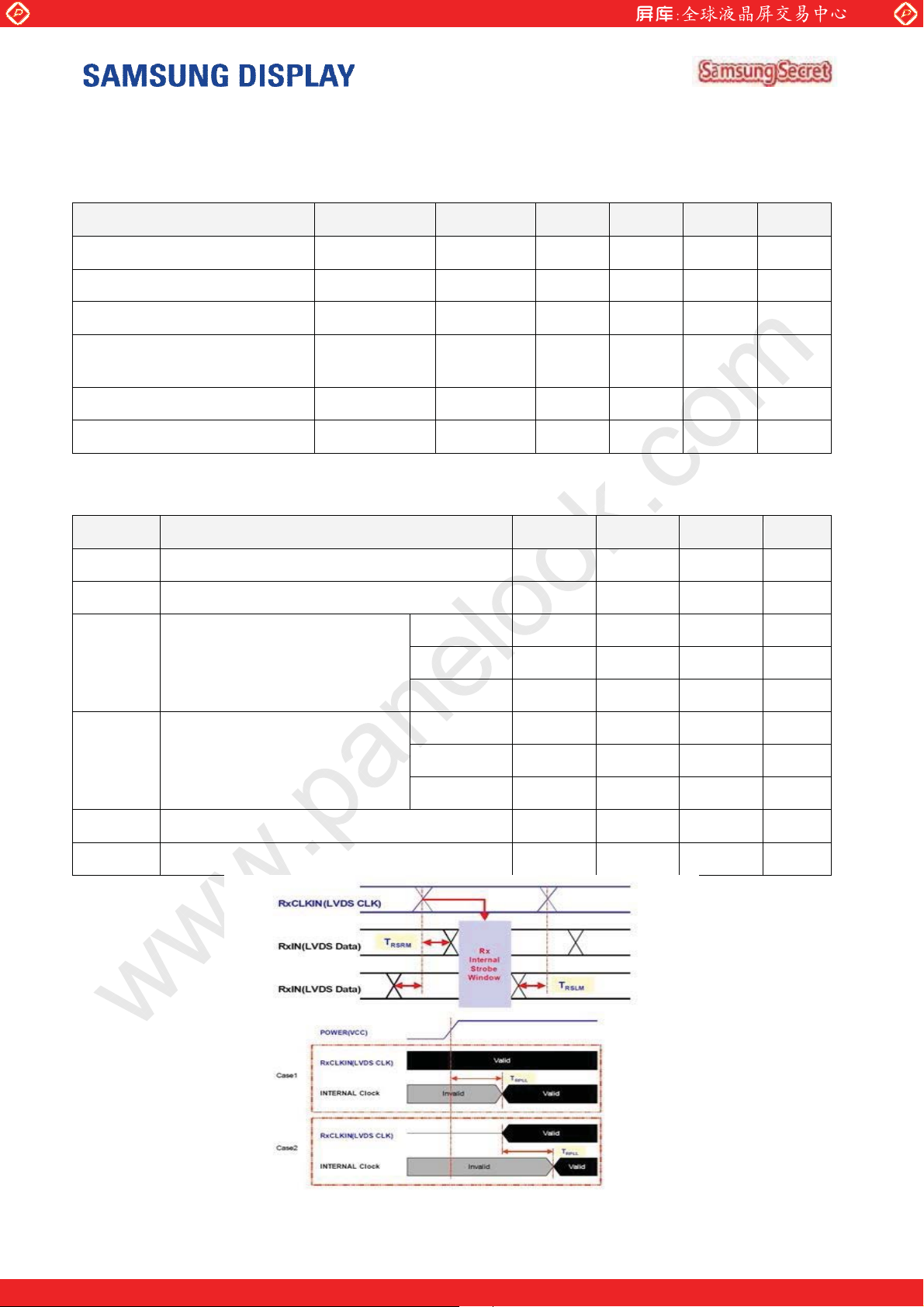

6.3 CHARACTERISTICS OF LVDS INPUT DATA
(1) Specification of DC
Input Clock Range(Data Rate@1ch)
(2) Specification of AC
FIN
(175)
­(700)
(Mbps)
tRSRM Input Data position
tRSLM Input Data position
G
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 21 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–

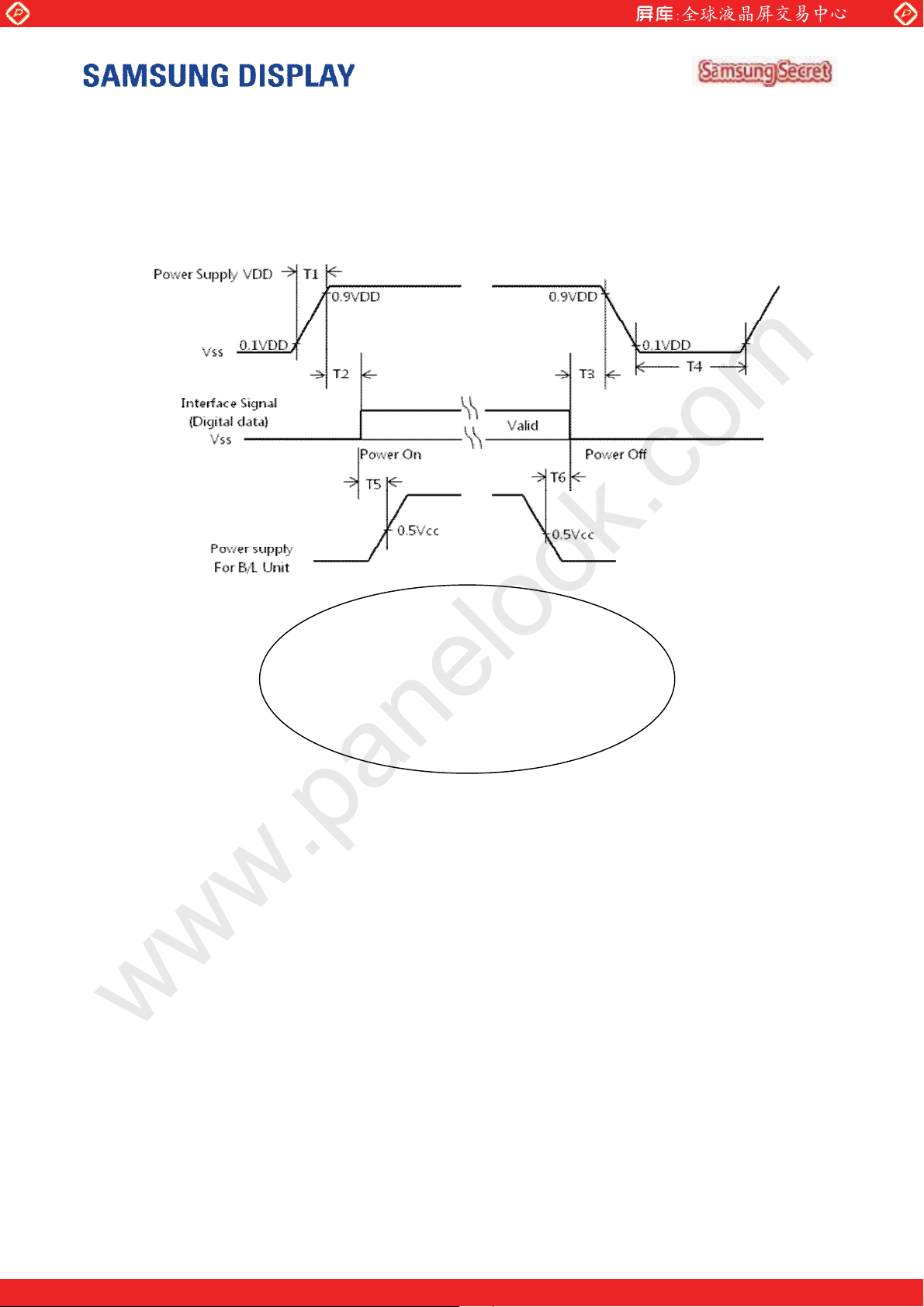

6.4 THE SEQUENCE OF POWER ON AND OFF
To prevent the product from being latched up or the DC in the LCD module from starting an operation, the order to turn the power on and off should be changed to the order as shown in the diagram below.
0.5ms7PV
PV7PV
7PV
PV7
PV75HFRPPHQG9DOXH
PV75HFRPPHQG9DOXH
T1 : The time, during which the level of V T2 : The change for the time, during which the V
is rising from 10% to 90%.
DD
start rising the level above 90% until the valid data
DD
of signal started coming in.
T3 : The change for the time, during which the valid data of signal started coming until the V
coming out.
T4 : The time, during which the V
start coming out to restart the Windows.
DD
T5 : The time, during which the valid data starts coming in until the power of B/L exceed 50%. T6 : The time, during which the level of B/L’s power falls below 50% until the valid data of signal starts coming out.
The inputted V
’s value for supply voltage, BLU, and signal to the external system of the module shall
DD
be computed in observance of the former mentioned value.
The method to apply the voltage to the lamp within the range, which the LCD operates. When the bac
k-light is turned on before the LCD is operated or the power of LCD is turned off before the back-ligh t is turned off the abnormal display on the screen may be shown momentarily.
Please keep the level of input signal low or keep the level of impedance high when the V
is off.
DD
The value shall be measured after the module has been fully discharged between the periods when th
e power is on and off during the T4.
started
DD
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 22 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
7. OUTLINE DIMENSION

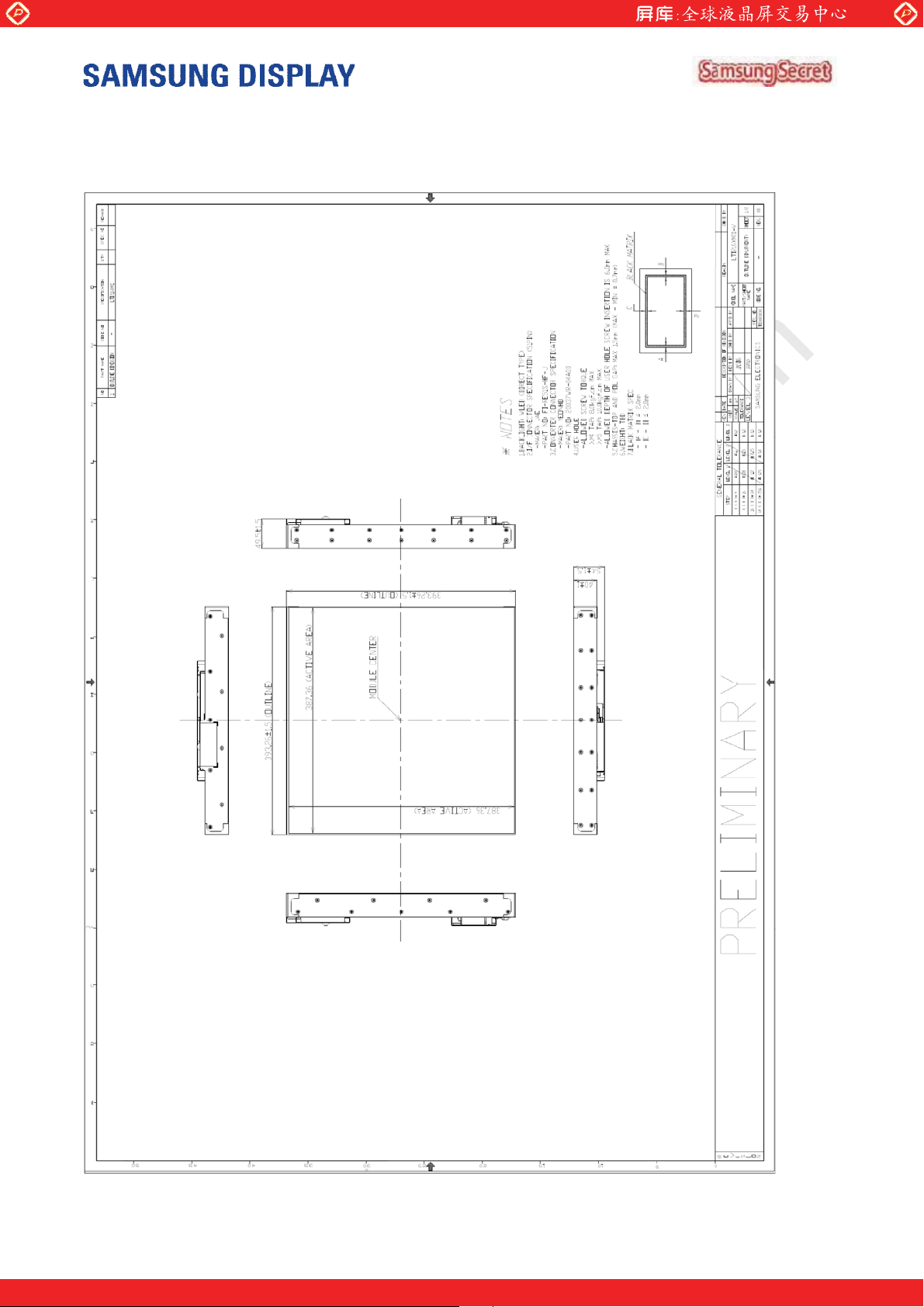

7.1 FRONT
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 23 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–

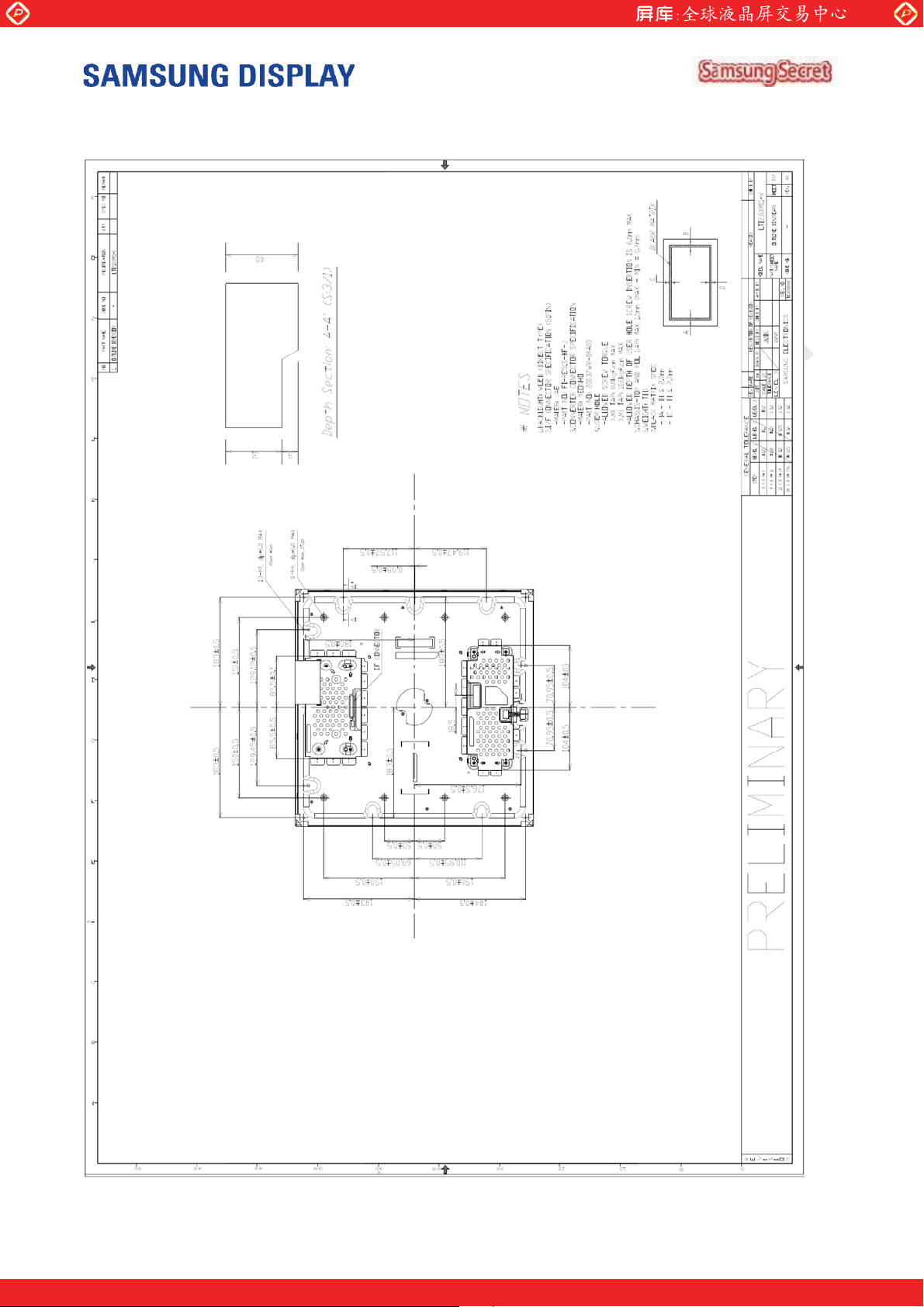

7.2 BACK
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 24 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
Item
Test condition
Quantity
HTOL
50୅, 500hr
determination
4EA
T/S -
20~50
Dwell time:30min, 100cycle
4EA
LTOL
0୅, 500hr determination
4EA
LTS
-
25୅, 500hr determination
4EA
THB
40୅
/ 95%RH, 500hr determination
4EA
WHTS
60୅
/ 75%RH, 250hr determination
4EA
Thermal Shock
-
20 ୅
~ 50
, 200cycle determination
4EA
contact
: ±10 kV ,150
/330Ω, 210Point,1 time/Point
6.6~8.6um, 5sec Spray, 5min sedimentation / 10hr,
PALLET
1PALLET
Altitude
-
40~50
, 0~45,000ft, 1cycle(72.5hr)
4EA
www.panelook.com
————————————————————————————————————————————————–
8. RELIABILITY TEST
LTOL
HTS
0୅, 500hr determination
୅
60୅, 500hr determination
୅
4EA
4EA
Image Sticking
ESD(operation)
Inverter Input
Con. ESD
Dust
Vibration
PALLET Drop
Ȅ We don’t guarantee about Vibration and Shock test due to the SNB panel characteristics.
[ Result Evaluation Criteria] Under the display quality test conditions with normal operation state, these should be no change which may affect practical display functions.
* HTOL/ LTOL : High/Low Temperature Operating Life ** THB : Temperature Humidity Bias *** HTS/LTS : High/Low Temperature Storage **** WHTS : Wet High Temperature Storage
non-contact : ±15 kV,150 Ꮔ/330Ω, 210Point,1 time/Point
contact : ±15kV,150 Ꮔ/340,Input Con.Pin,3 times/Pin
Vibration : 1.05Grms 5~200Hz 1hr/stack side
50୅, Mosaic Pattern (9×10)
Ꮔ
Power 10min on, 10min off
Drop : 2 edge 1face(bottom) 20 cm
୅
4EA
3EA
3EA
2EA
1PALLET
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 25 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
Item
Specification
Remark
1. 3.8Kg / LCD (36ea)
1. Pallet weight = 14.5kg
Total Pallet Size
H x V x height
971mm(H) x 1136mm(V) x 1211mm(height)
Total Pallet
Pallet(14.5kg) + Module(3.8kg*36ea=136.8kg) +
www.panelook.com
————————————————————————————————————————————————–
9. PACKING

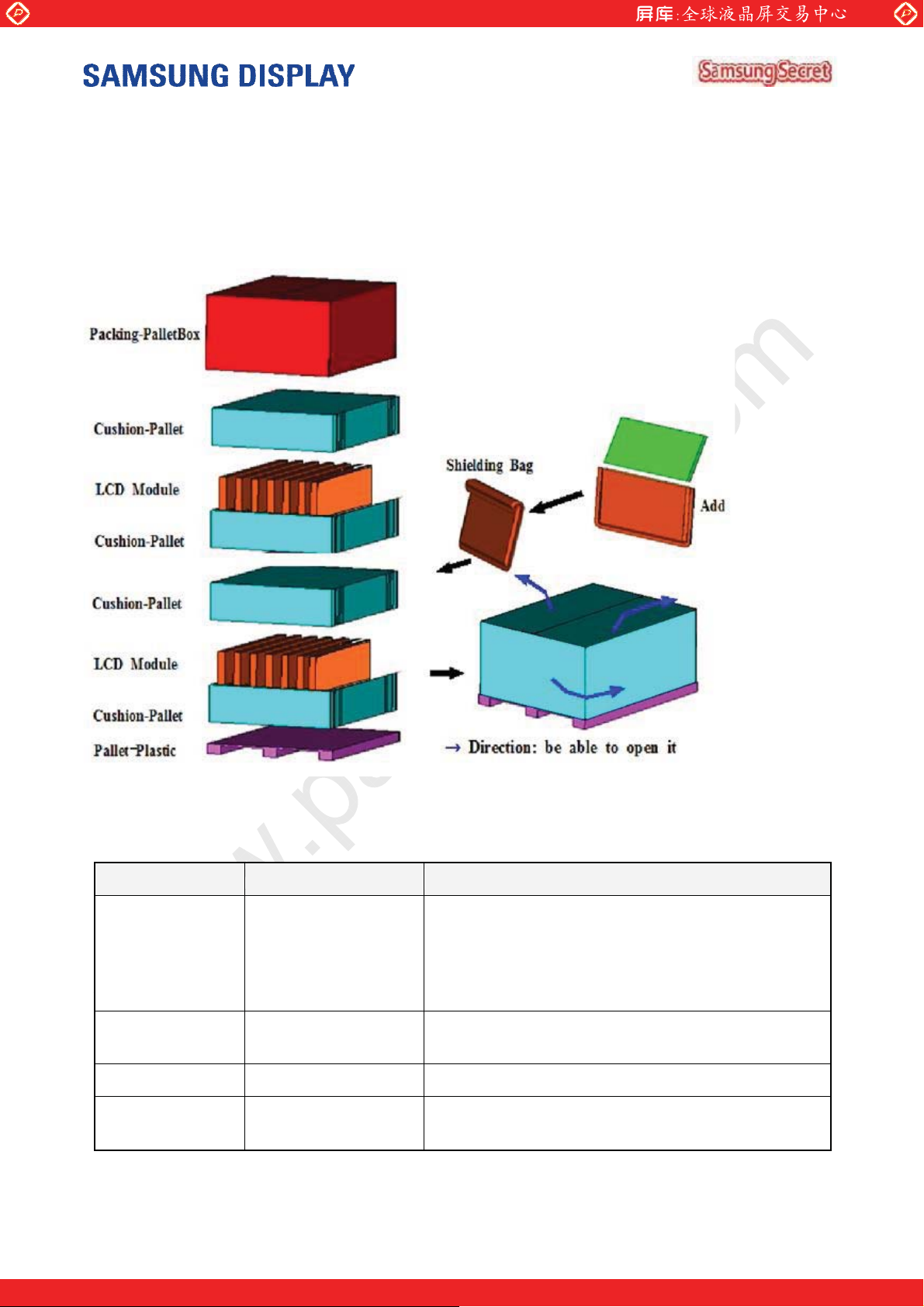

(1) Packing Form Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
G
G
(3) Packing Material
LCD Packing
Pallet 1Box / Pallet
Weight
——————————————————————————————————————————————––—
36ea / (Packing-Pallet
Box)
172.85kg
2. 17.12 Kg / Cushion-pallet (4ea)
3. 4.43 Kg / Packing-Pallet Box (1ea)
4. Cushion-pallet Material : EPS
5. Packing-Pallet Box Material : SW
=> Pallet Material : WOOD
Cushion(17.12kg) + Pallet-BOX(4.43kg)
Doc.No. LTI216XM01-V Page 26 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
LTI
216XM01
XXXXXXXXXX
XXX
80mm
40mm
Week Code : 0529
Week
Revision Code
LTI
216XM01
XXXXXXXXXX
XXX
165mm
100mm
Part Number
LTI
216XM01
Box Serial Number
Panel number
Samsung Revision Code
www.panelook.com
————————————————————————————————————————————————–

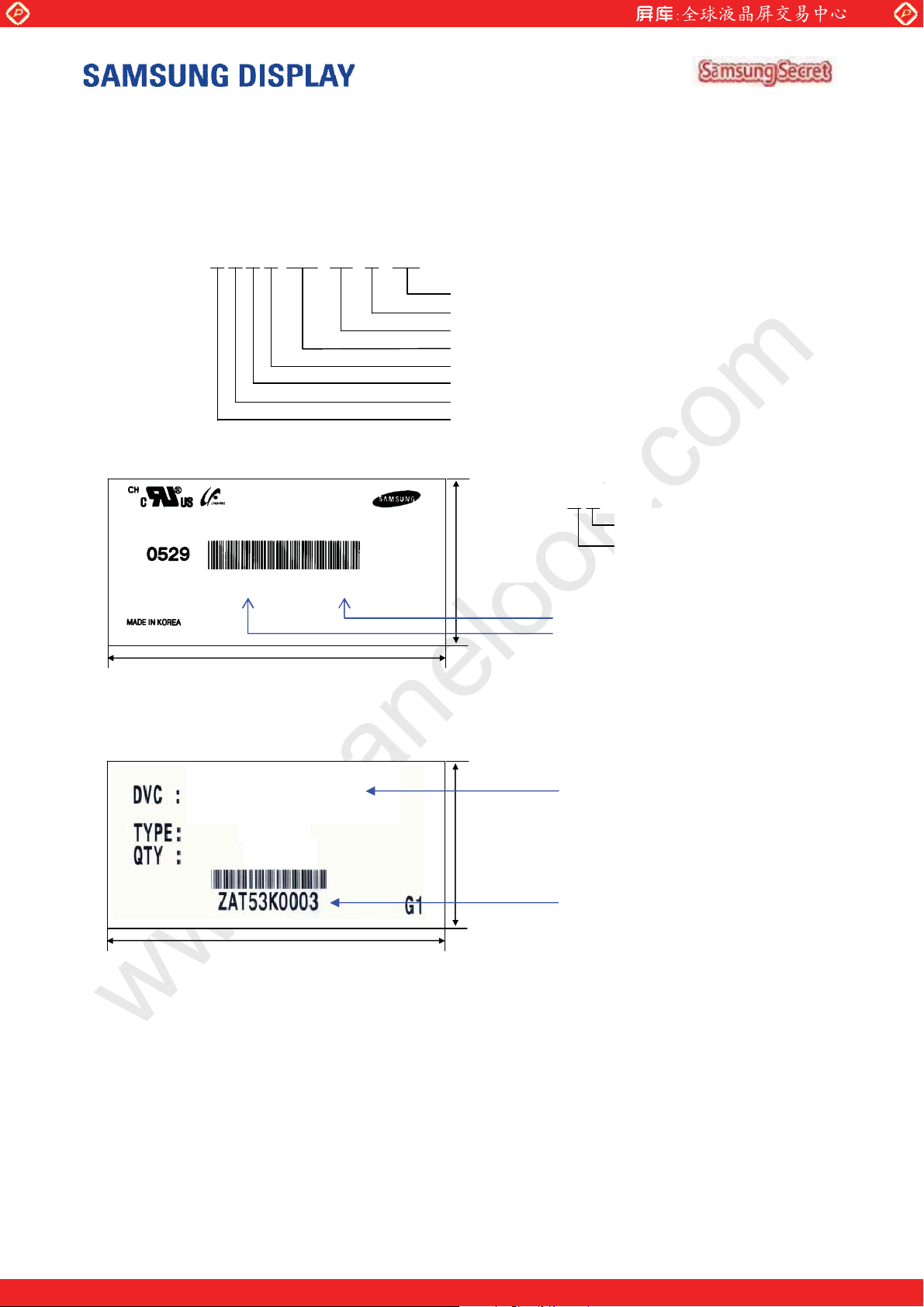

10. MARKING
A nameplate bearing followed by is affixed to a shipped product at the specified location on each product.
(1)Parts number : LTI216XM01 (2)Revision code : 3 letters (3)Lot number : X X X X XXX XX X V01
(4) Nameplate Indication
(5) Packing small Box Attach
(6) Others
1. After service part Lamps cannot be replaced because of the narrow bezel structure.
OWL549[P34#OWL549[P34#
OWL549[P34#
[[[[#
6|#
Cell ID Lot ID Month Year Product Code Line
Year
Lot Number
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 27 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
11. GENERAL PRECAUTIONS
10.1 HANDLING
(a) When the module is assembled, It should be attached to the system firmly using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In addition to damage, this may cause improper operation or damage to the module and CCFT back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time, Staining and discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.
(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane. Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanent damage to the polarizer due to chemical reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth .In case of contact with hands, legs or clothes, it must be washed away thoroughly with soap.
(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.
(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming inspection and assembly process.
(j) Do not disassemble the module.
(k) Do not pull or fold the LED FPC.
(l) Do not touch any component which is located on the back side.
(m) Protection film for polarizer on the module shall be slowly peeled off just before use so that the electrostatic charge can be minimized.
(n) Pins of I/F connector shall not be touched directly with bare hands.
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 28 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
ITEM
Unit Min. Max.
Storage
Storage Humidity
(%rH)
35 75
Storage Life
12 months
-
www.panelook.com
————————————————————————————————————————————————–
11.2 STORAGE
We highly recommend to comply with the criteria in the table below.
Temperature
Storage Condition
The storage room should be equipped with a good ventilation facility, which has a
temperature controlling system.
- Products should be placed on the pallet, which is away from the wall not on the floor.
- Prevent products from being exposed to the direct sunlight, moisture, and water. Be cautious not to pile the products up.
- Avoid storing products in the environment, which other hazardous material is placed.
- If products are delivered or kept in the storage facility more than 3 months, we recommend you to leave products under the condition including a 20ଇ temperature and a humidity of 50% for 24 hours.
- If you store semi-manufactured products for more than 3 months, bake the products under the condition including the 50ଇ temp. and the 10% humidity for 24hrs after being used.
(ଇ) 5 40
11.3 OPERATION
(a) Do not connect or disconnect the cable to/ from the module at the "Power On" condition.
(b) The power shall be always turned on/off by the item 6.5. "Power on/off sequence"
(c) The module has a circuit with a high frequency. The system manufacturers shall suppress the
electromagnetic interference sufficiently. The methods to ground and shield are important to minimize the interference.
(d) Design the length of cable to connect between the connector for back-light and the inverter as short as
possible and the shorter cable shall be connected directly.
The longer cable between that of back-light and that of inverter may cause the luminance of lamp(CCFL) to lower and need a higher startup voltage(Vs).
11.4 OPERATION CONDITION GUIDE
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20±15୅
- Humidity : 55±20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature, humidity, display patterns or
operation time etc.., It is strongly recommended to contact SDC for Application engineering advice.
Otherwise, its reliability and function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 29 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
————————————————————————————————————————————————–
11.5 OTHERS
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Module should be turned clockwise (regular front view perspective) when used in portrait mode.
(c) Avoid condensation of water. It may result in improper operation or disconnection of electrode.
(d) Do not exceed the absolute maximum rating value. (supply voltage variation, input voltage variation,
variation in part contents and environmental temperature, and so on) Otherwise the Module may be damaged.
(e) If the Module keeps displaying the same pattern for a long period of time, the image may be "sticked" to
the screen. To avoid image sticking, it is recommended to use a screen saver.
(f) This Module has its circuitry PCB's on the rear side and should be handled carefully in order not to be
stressed.
(g) Please contact SDC in advance when you display the same pattern for a long time.
——————————————————————————————————————————————––—
Doc.No. LTI216XM01-V Page 30 of 30 Rev.No. 06-000-G-120823
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
