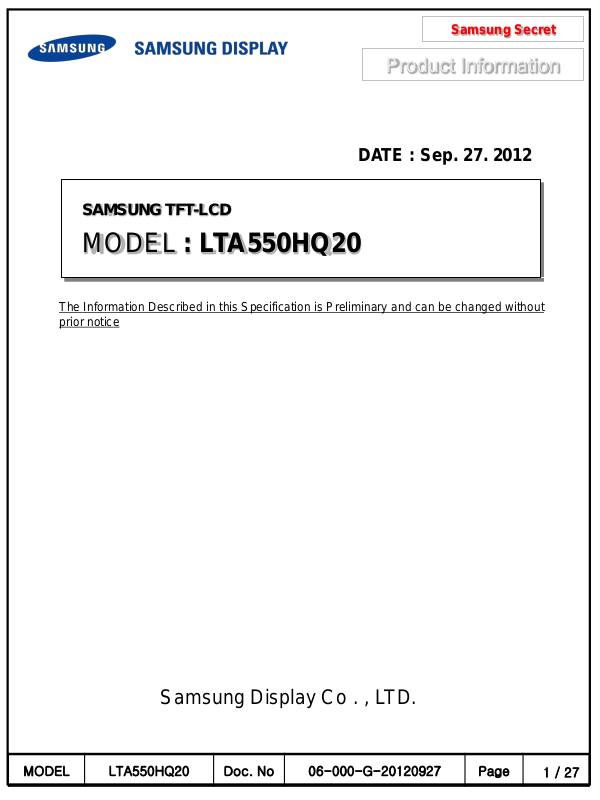

SAMSUNG LTA550HQ20 Specification

Samsung Secret

Product Information

DATE : Sep. 27. 2012

SAMSUNG TFT-LCD

MODEL : LTA550HQ20

The Information Described in this Specification is Preliminary and can be changed without
prior notice

Samsung Display Co . , LTD.

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

1 / 27

Contents

Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (7)

3. Electrical Characteristics ------------------------------------------------------------------------------- (10)

3.1 TFT LCD Module

3.2 Back Light Unit

3.3 converter Input & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)

Samsung Secret

4.1 Input Signal & Power

4.2 Converter Input Pin Configuration

4.3 Converter Input Power Sequence

4.4 LVDS Interface

4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (17)

5.1 Timing Parameters (DE only mode)

5.2 LVDS Input data Characteristics

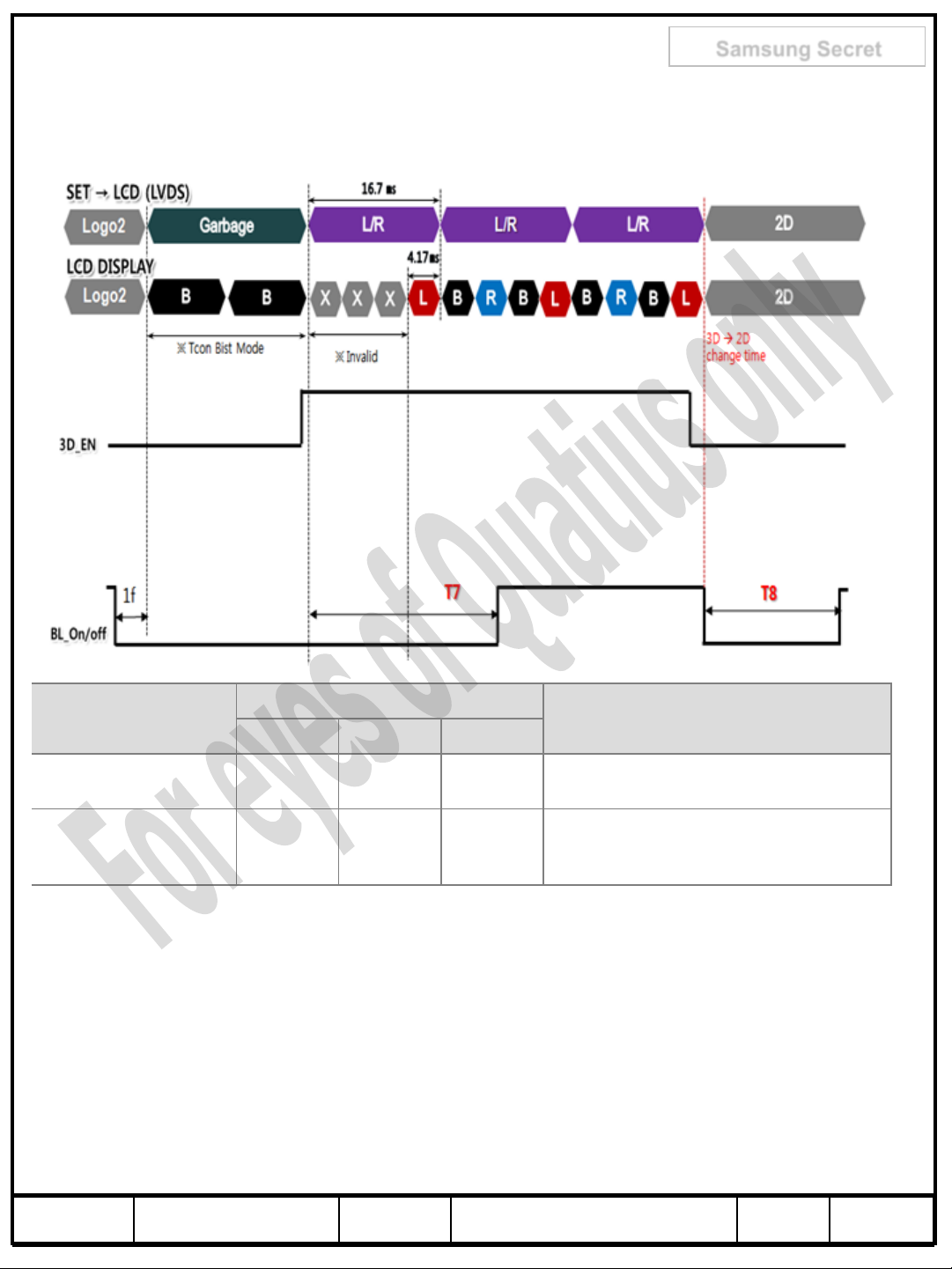

5.3 3D mode Sequence

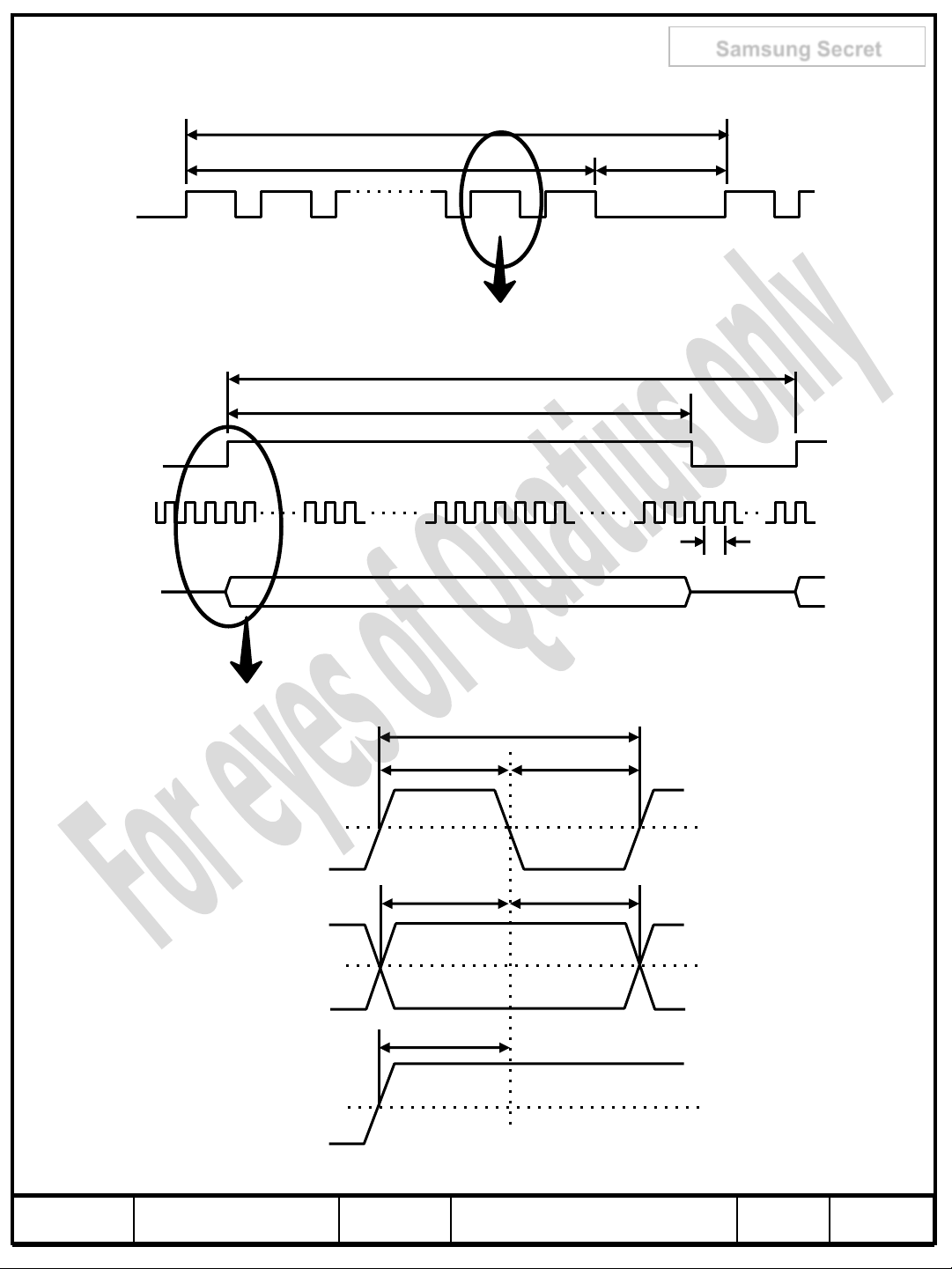

5.4 Timing Diagrams of interface Signal (DE only mode)

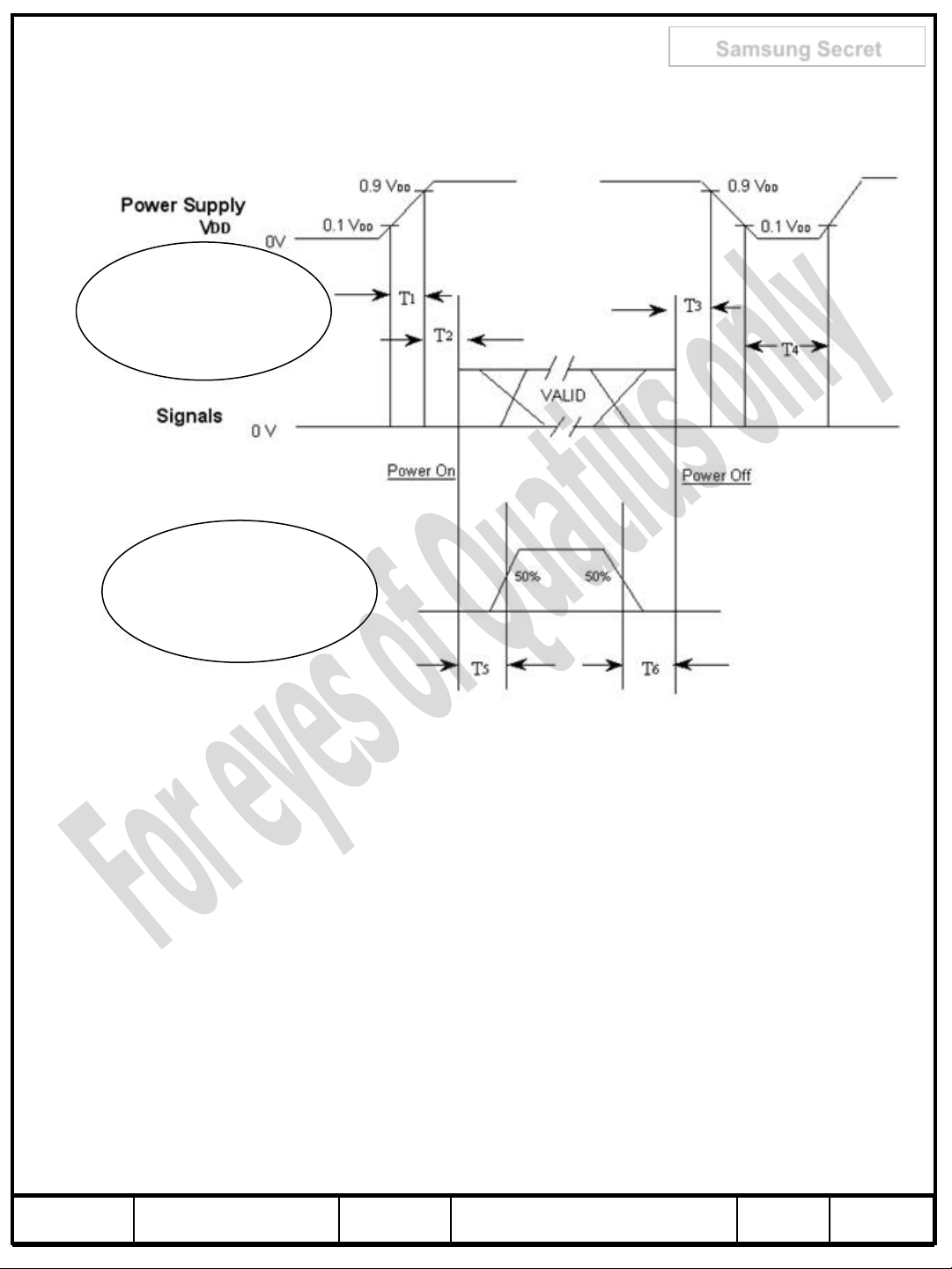

5.5 Power ON/OFF Sequence

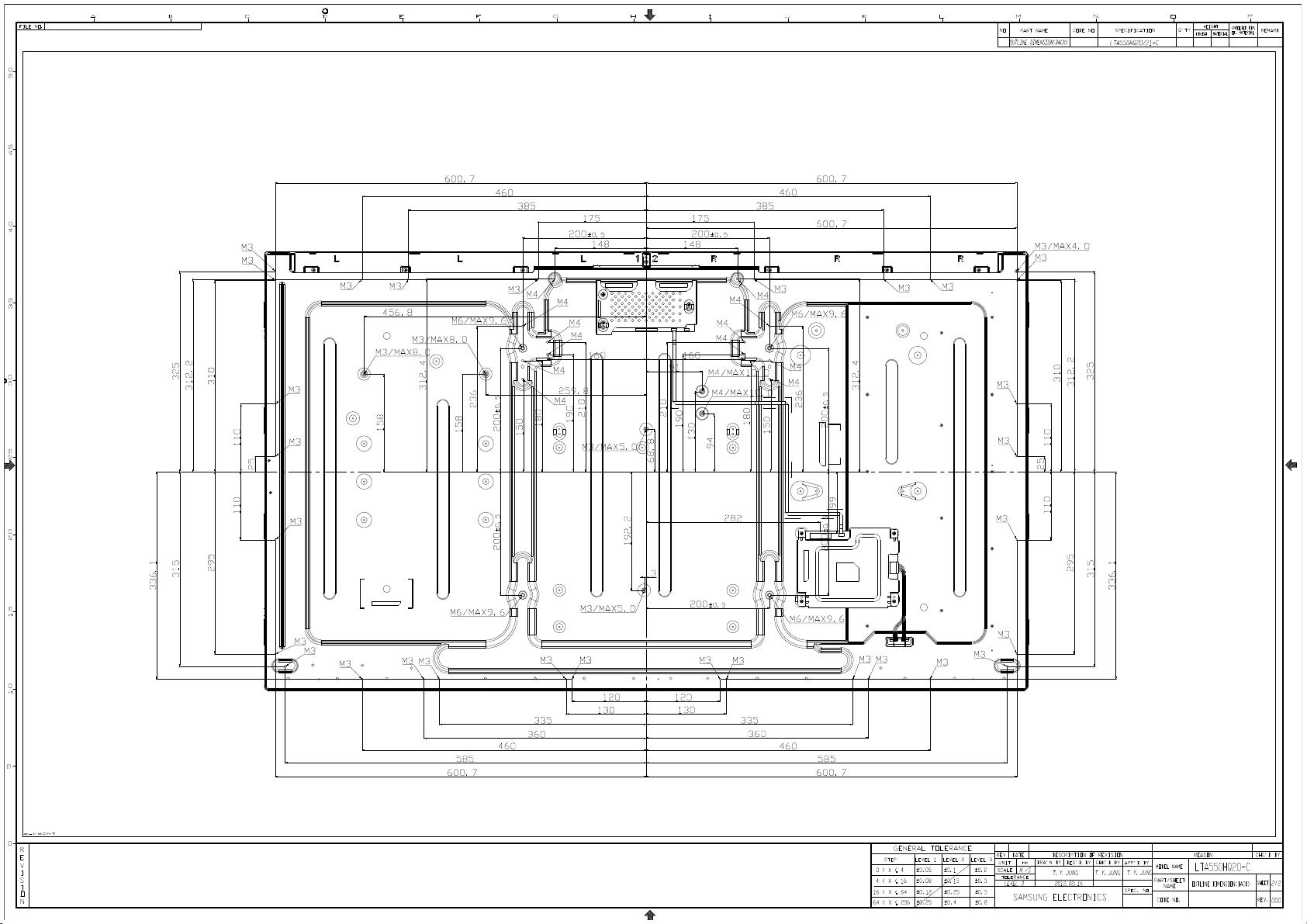

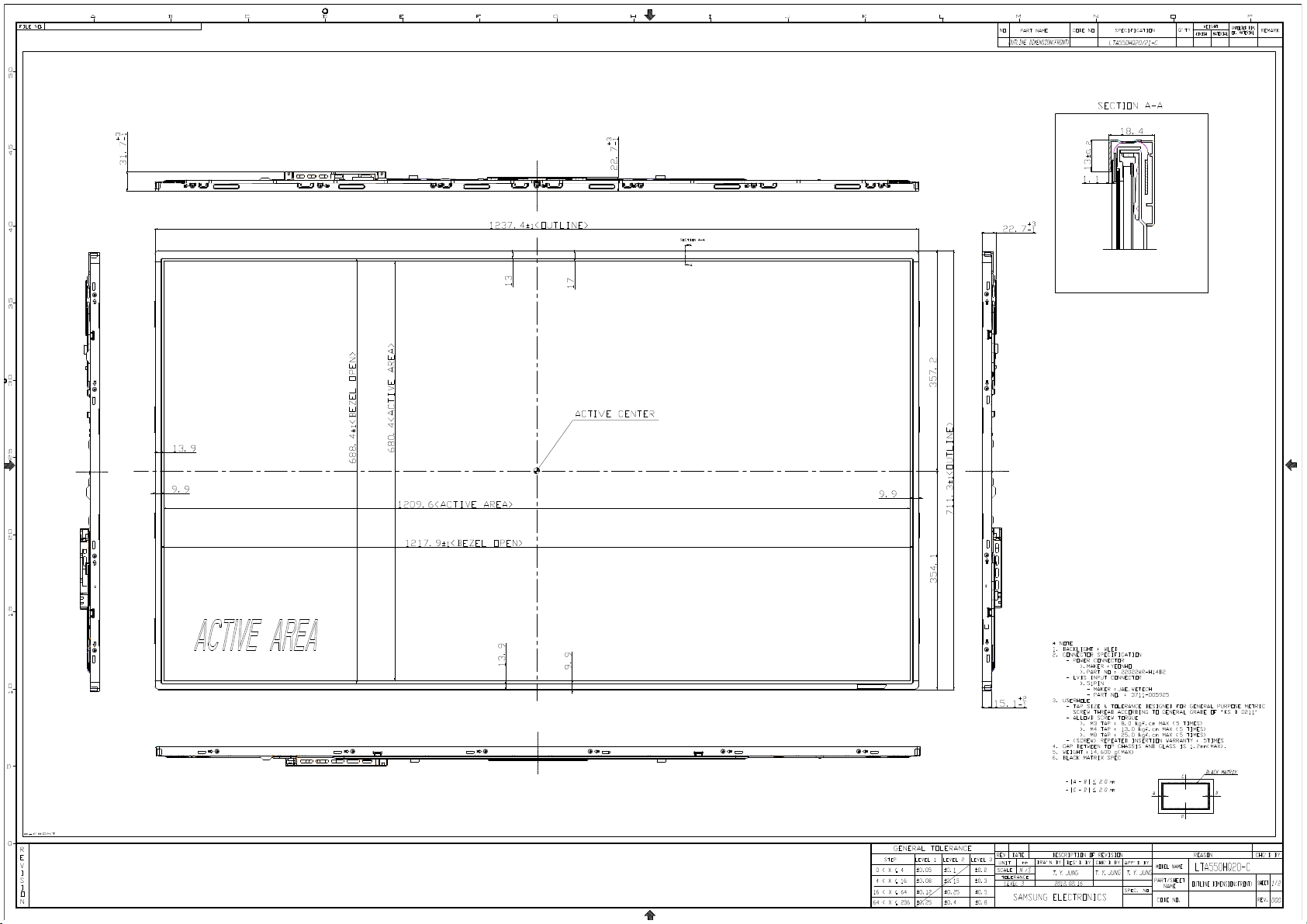

6. Outline Dimension -------------------------------------------------------------------------------------- (21)

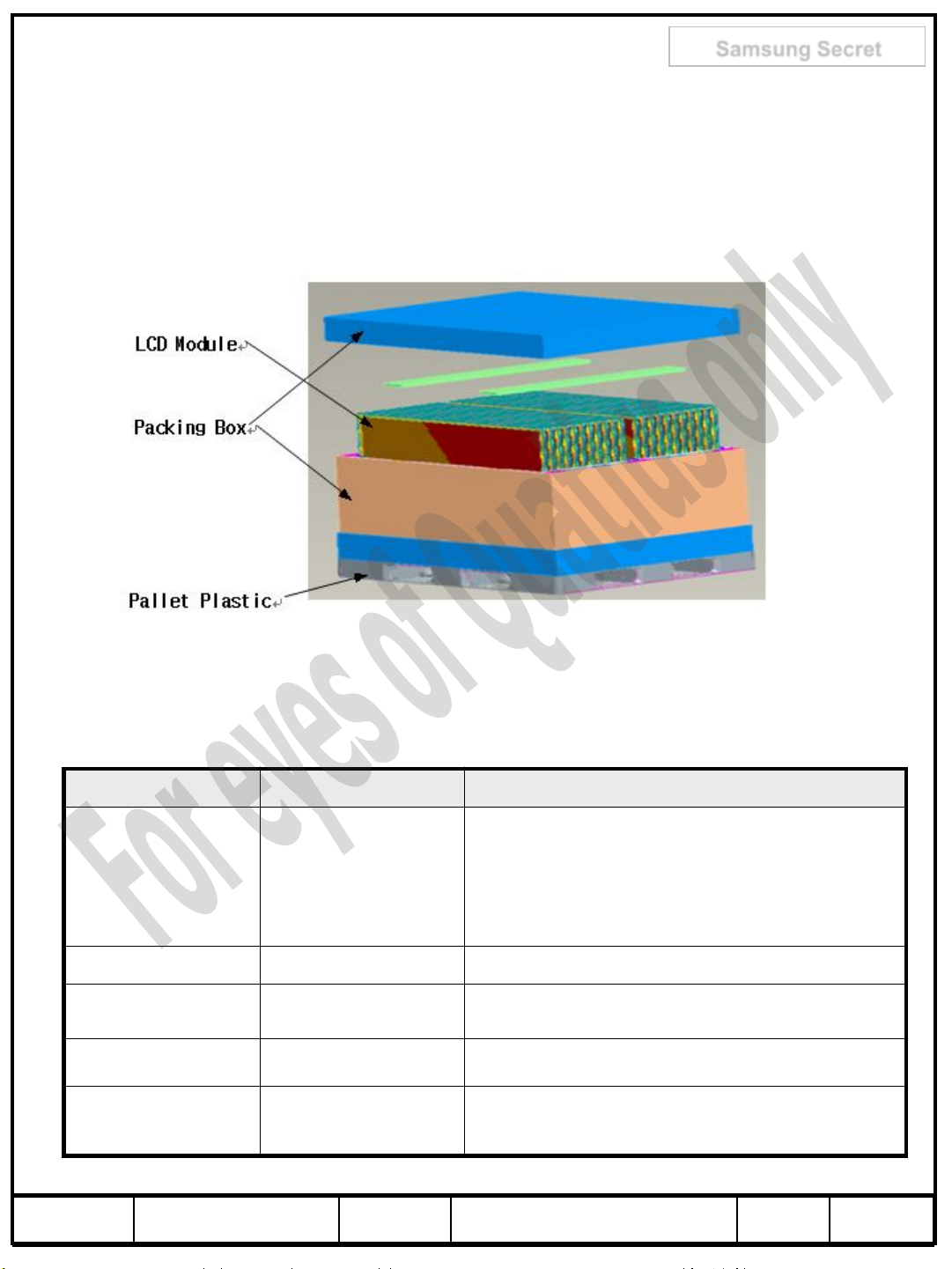

7. Packing --------------------------------------------------------------------------------------------------- (23)

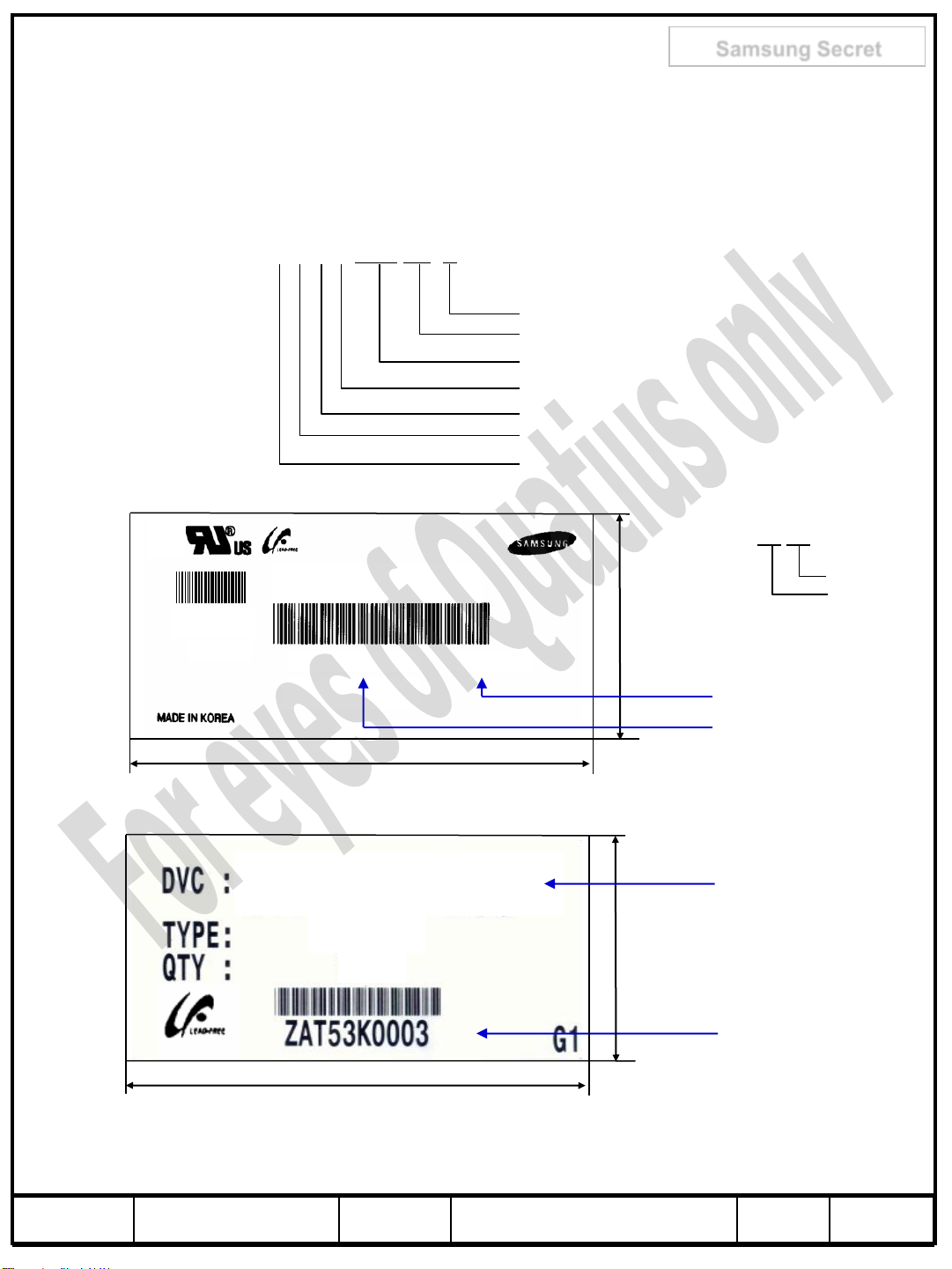

8. Marking & Others --------------------------------------------------------------------------------------- (24)

9. General Precaution ------------------------------------------------------------------------------------ (25)

9.1 Handling

9.2 Storage

9.3 Operation

9.4 Operation Condition Guide

9.5 Others

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

2 / 27

Revision History

Samsung Secret

Date

Sep. 27.

2012

Rev.

No

000 all First issued

Page Summary

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

3 / 27

General Description

Samsung Secret

Description

LTA550HQ20 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon

TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,

a driver circuit and a back light unit. The resolution of a 55.0“ is 1920 x 1080 and this model can

display up to 1.07 Billion colors with wide viewing angle of 89° or higher in all directions. This panel
is intended to support applications to provide a excellent performance for Flat Panel Display such
as Home-alone Multimedia TFT-LCD TV and High Definition TV

Features

 RoHS compliance (Pb-free)

 High contrast ratio & aperture ratio with wide color gamut

 SVA(Super Vertical Align) mode
 Wide viewing angle (±178°)
 High speed response

 FHD resolution (16:9)

 Low Power consumption
 Edge Type LED (Light Emitted Diode) BLU
 DE (Data Enable) mode
 2ch LVDS (Low Voltage Differential Signaling) interface

General Information

Items Specification Unit Note

1237.4 (H) x 711.3 (V)

Module Size

34.7 (Dmax) With converter

Weight 14600 g

Pixel Pitch 0.630(H) x 0.630(W) mm

Active Display Area 1209.6(H) X 680.4(V) mm

Surface Treatment Antiglare

Display Colors 10 bit colors

Number of Pixels 1920 x 1080 pixel

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Luminance of White 400 (Typ.) cd/m

mm

±1.0mm

2

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

4 / 27

Samsung Secret

1. Absolute Maximum Ratings

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

Item Symbol Min. Max. Unit Note

Power Supply Voltage V

DD

GND-0.3 13.2 V

Dimming Control Max. Lum - 5 V

Storage temperature T

Operating temperature T

Surface temperature T

STG

OPR

SUR

-20 60
0 50
0 65

X,Y - 40

Shock ( non - operating )

Z 30

Vibration ( non - operating ) V

Note (1) Ta= 25 ± 2 °C

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta ＞39 °C)
c. No condensation

(3) Although abnormal visual problems can be occurred in T

is not damaged in this range.
(4) 11ms, sine wave, one time for ±X, ±Y, ±Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis

NOP

- 1.5 G (5)

SUR

℃

℃

℃

G (4)

range, the polarizer

(1)

(2), (6)

(3), (6)

Fig. Temperature and Relative humidity range

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

5 / 27

(6) Definition of test point

5mm

Samsung Secret

5mm

1 2

5

○

LCD Module (Active)

– T

4

MAX

3

△T should be less than 10 ℃(△T = | T

T

: Temperature of the center of the glass surface (Test point 5)

OPR

OPR

T1~ T4 : Temperature of each edge of the glass surface

T

: The highest temperature of the glass surface

MAX

| )

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

6 / 27

2. Optical Characteristics

The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast

Samsung Secret

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Response

Time

G-to-G Tg

Luminance of White

(Center of screen)

Color

Green

Chromaticity

(CIE 1931)

White

Red

Blue

(Ta = 25 ± 2°C, VDD=12V, fv= 60Hz, f

C/R 3000 4000 -

- 6 18 msec

Y

L

Rx
Ry 0.330

Normal

qL,R =0

350 400 - cd/m

0.650

qU,D =0

Gx 0.310
Gy 0.600
Bx 0.150

Viewing

Angle

TYP.

-0.03

TYP.

+0.03

By 0.060
Wx 0.280
Wy 0.290

= 148.5MHz)

DCLK

RD-80S

2

(1)

SR-3

(3)

(4)

SR-3

(5),(6)

SR-3

Color Gamut - - 70 - %

Color Temperature - 7000 10000 - K

Viewing

Angle

Hor.

Ver.

q

L

q

R

q

U

q

D

C/R≥10

75 89 ­75 89 -

Degree

75 89 ­75 89 -

White Brightness

Uniformity

B

uni

- - 30 %

(9 Points)

- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between

40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

Environment condition : Ta = 25 ± 2 °C

(5)

SR-3

(6)

EZ-Contrast

(2)

SR-3

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

7 / 27

Samsung Secret

C R

G

G

/

max

min



Photo detector Field

SR-3

RD-80S

TFT - LCD Module

2°
1°

- Definition of test point

320 960 1600

Photo detector

Field

SR-3 : 50㎝
RD-80S : 50㎝

LCD Panel

The center of the screen

180

540

900

⑨

⑥

⑧

⑤ ④

②③

Note (1) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel

Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black

⑦

①

Active Area
Test Point

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

8 / 27

Samsung Secret

Buni

B B

B

 



100

( max min)

max

Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )

Bmax : Maximum brightness
Bmin : Minimum brightness

Note (3) Definition of Response time : Sum of Tr, Tf

Display data

Optical Instruments

Response

100%

90%

10%

0%

Black (data off)

White (data on)

T

R

Black (data off)

T

F

TIME

Note (4) Definition of Luminance of White : Luminance of white at center point ⑤
Note (5) Definition of Color Chromaticity (CIE 1931)

Color coordinate of Red, Green, Blue & White at center point ⑤

Note (6) Definition of Viewing Angle

: Viewing angle range (C/R ≥10)

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

9 / 27

Samsung Secret

48

60

62.5

60

67.5

70

130

148.5

152.5

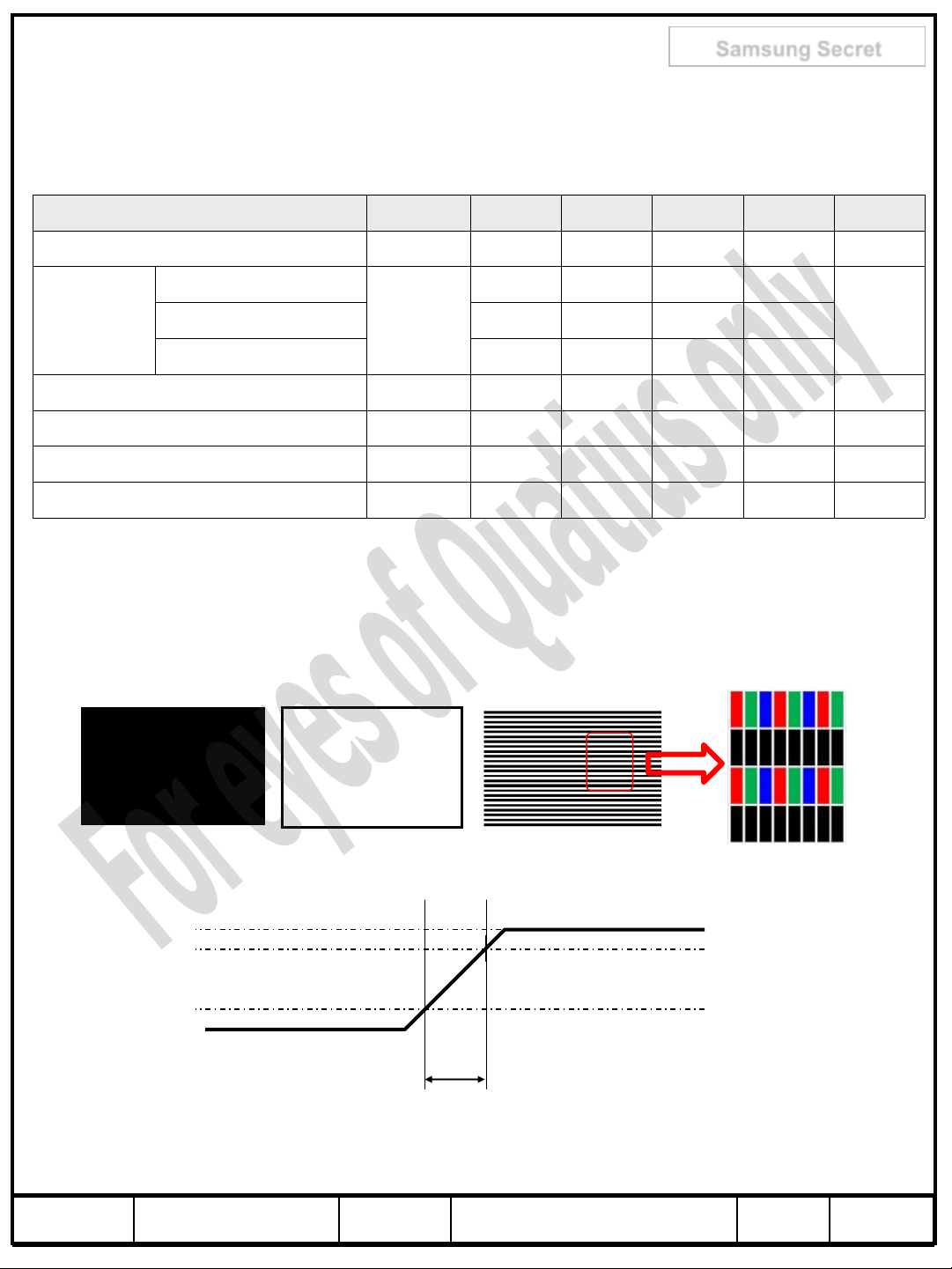

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

Ta = 25°C ± 2 °C

Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V

Current of

(a) Black

Power
Supply

(c) N-PTN - 1100 1500 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I

DD

I

DD

V

H

DCLK

RUSH

10.8 12.0 13.2 V (1)

- 550 700 mA

- - 4 A (4)

Note (1) The ripple voltage should be controlled under 10% of VDD.

(2) fV=60Hz, fDCLK = 148.5MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) N-PTN

(2),(3)(b) White - 650 850 mA

Hz

kHz

MHz

(4) Measurement Conditions

V

100%

DD

90%

10%
GND

T

=470㎲

RUSH

Rush Current I

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

can be measured when T

RUSH

. is 470㎲.

RUSH

10 / 27

Samsung Secret

3.2 Back Light Unit

The back light unit contains Edge type White LEDs (Light Emitting Diode)

Control Board

LCD Module

Converter

Ta=25 ± 2°C

Item Symbol Min. Typ. Max. Unit Note

Operating Life Time Hr 30,000 - - Hour (1)

Note (1) It is defined as the time to take until the brightness reduces to 50% of its original

value.

[Operating condition : Ta = 25±2℃, For LED package only]

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

11 / 27

3.3 Converter Input Condition & Specification

Samsung Secret

Items Symbol Conditions

Input Voltage Vin - 22 24 26 V

Vin=24.0V

Input Current I

Backlight

On/Off

Dimming Range V

Dimming Duty

Output

Dimming

Frequency

External Dimming

Duty Range

External Dimming

Frequency Range
External Dimming

Signal Level

RUSH

ON Vin=24.0 V 3 - 5.25

OFF Vin=24.0 V 0 - 0.4

_DIM

D max Vin=24V Dim:3.3V - - 100

D min Vin=24V Dim:0V 1 - -

F

PWM

EX_Dim

F

EX_PWM

V

PWM

Vdim =3.3V

3D ENA= ON - - 8.4 Adc Blinking mode

Vin :22~26V 0 - 3.3 V

Vin=24.0 V 140 150 160 Hz

Vin=22.0~26.0 V

Dim Pin(#13):floting

High (ON) 3 - 5.25

Low (Off) 0 - 0.4

Specifications

Min. Typ. Max.

- - 5.1 Adc Normal mode

1 - 100 %

140 145 150 Hz

Unit Note

Ta=25±2 °C

V

%

Note(2)

V

Note (1) All data is measured after 120min warm-up.
Note (2) V_Dim and Ex_Dim are available only at Normal 2D mode. (3D ENA = OFF)
Note (3) Duty = On / (On+Off) * 100

On Off

Max

Min

- Additional Appendix for Supply Current (Only for Reference_2D mode)

Items Symbol Conditions Min. Typ. Max. Unit

Vin = 24V, Dim=3.3V

(Within 1hr at BLU on)

Vin = 24V, Dim=3.3V

(After 1hr Aging)

Vin=24.0V, Vdim = 3.3V

Vin = 24V, Dim=3.3V

(Within 1hr at BLU on)

Vin = 24V, Dim=3.3V

(After 1hr Aging)

- 3.88 3.99 A

- 3.80 3.91 A

- - 122.4 Watt

- 93.12 95.76 Watt

- 91.2 93.84 Watt

Input

Current

Power

Consumption

(Back light)

Iin _ overshoot

Iin _ saturation

P _ Inrush

P _ overshoot

P _ saturation

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

12 / 27

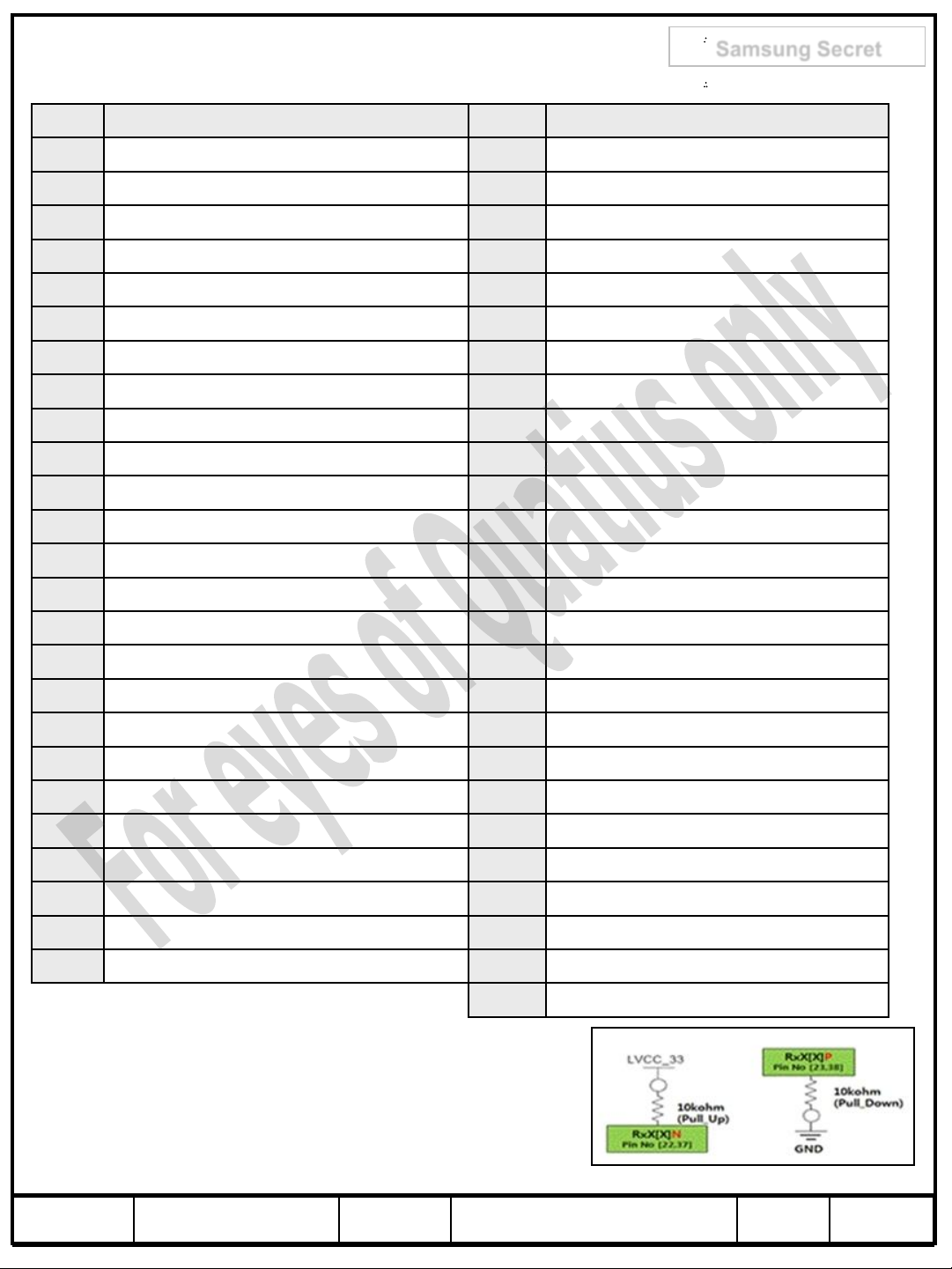

4. Input Terminal Pin Assignment

Samsung Secret

4.1.1 Input Signal & Power

Pin Description Pin Description

1 NC 26 3D EN

2 NC 27 NC
3 NC 28 Rx2[0]N
4 NC 29 Rx2[0]P
5 3D_Sync_O 30 Rx2[1]N
6 GND 31 Rx2[1]P
7 GND 32 Rx2[2]N
8 NC 33 Rx2[2]P

9 NC 34 GND
10 NC 35 Rx2CLKN
11 GND 36 Rx2CLKP
12 Rx1[0]N 37 GND
13 Rx1[0]P 38 Rx2[3]N
14 Rx1[1]N 39 Rx2[3]P
15 Rx1[1]P 40 Rx2[4]N *note (1)
16 Rx1[2]N 41 Rx2[4]P *note (1)
17 Rx1[2]P 42 NC
18 GND 43 NC
19 Rx1CLKN 44 GND
20 Rx1CLKP 45 GND
21 GND 46 GND
22 Rx1[3]N 47 NC
23 Rx1[3]P 48 VCC
24 Rx1[4]N *note (1) 49 VCC
25 Rx1[4]P *note (1) 50 VCC

51 VCC

Note(1) If 8bit of LVDS signal input from SET,

Keep [4]channel level ‘0’ 

Note(2) 3D format is set with interleave function only
Note(3) NC : No connection, Pins are used only for SDC.

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

13 / 27

4.2. Converter Input Pin Configuration

Connector : Yeon-ho, 20022WR-14B1

Pin Configuration(FUNCTION)

Pin No.

Master

1 ~5 24 V

6~10 GND

11 Error Out
12 Backlight On /Off [ON:3.0 – 5.25 V, OFF: 0 – 0.4 V]
13 Dimming Control [0V:Min, 3.3V:Max] *Note(1)

14 External PWM [1~100 %] *Note(1)

Note(1) If use Dimming Control, Pin 14 Must be N.C

If use External PWM, Pin 13 Must be N.C

Samsung Secret

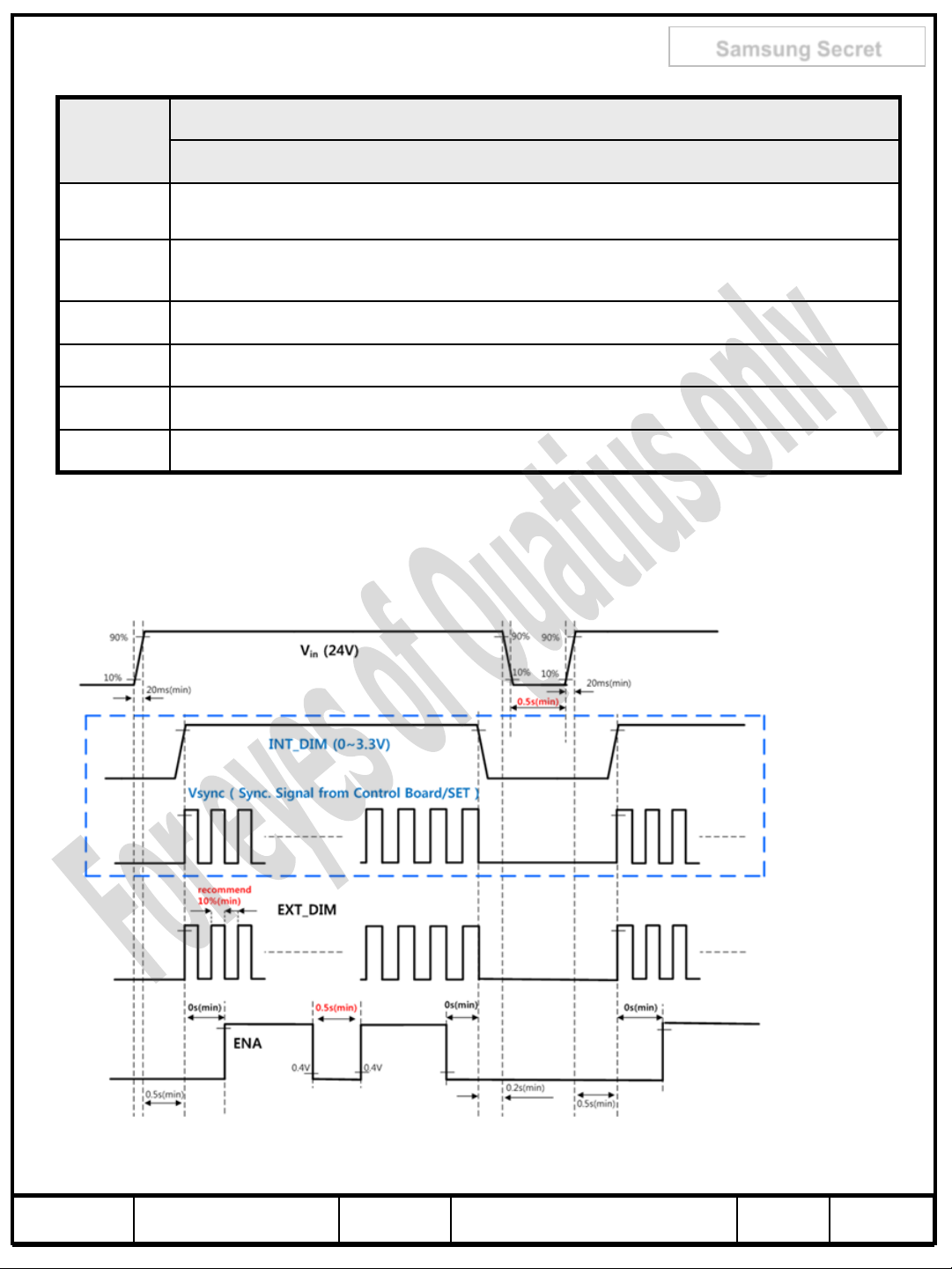

4.3. Converter Input Power Sequence

Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off

OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

14 / 27

4.4 LVDS Interface

- LVDS Receiver : T-con (merged)

- Data Format (JEIDA)
LVDS pin JEIDA -DATA

TxIN/RxOUT0 R4
TxIN/RxOUT1 R5
TxIN/RxOUT2 R6

Samsung Secret

TxOUT/RxIN0

TxOUT/RxIN1

TxOUT/RxIN2

TxIN/RxOUT3 R7
TxIN/RxOUT4 R8
TxIN/RxOUT6 R9
TxIN/RxOUT7 G4
TxIN/RxOUT8 G5

TxIN/RxOUT9 G6
TxIN/RxOUT12 G7
TxIN/RxOUT13 G8
TxIN/RxOUT14 G9
TxIN/RxOUT15 B4
TxIN/RxOUT18 B5

TxIN/RxOUT19 B6

TxIN/RxOUT20 B7
TxIN/RxOUT21 B8
TxIN/RxOUT22 B9
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R2

TxIN/RxOUT5 R3
TxIN/RxOUT10 G2

TxOUT/RxIN3

TxOUT/RxIN4

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

TxIN/RxOUT11 G3
TxIN/RxOUT16 B2
TxIN/RxOUT17 B3
TxIN/RxOUT23 RESERVED
TxIN/RxOUT28 R0
TxIN/RxOUT29 R1
TxIN/RxOUT30 G0
TxIN/RxOUT31 G1
TxIN/RxOUT32 B0
TxIN/RxOUT33 B1
TxIN/RxOUT34 RESERVED

15 / 27

Samsung Secret

4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

DATA SIGNAL

COLOR

BASIC

COLOR

GRAY

SCALE

RED

DISPLAY

(10bit)

R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -

GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -

CYAN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -

RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

MAGENTA 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -

YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -

WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ­BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1

DARK

OF

LIGHT

0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022

RED GREEN BLUE

GRAY
SCALE
LEVEL

R3~

R1020

RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0

0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1

GRAY

DARK

SCALE

OF

GREEN

LIGHT

GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0

DARK

GRAY

SCALE

OF

BLUE

LIGHT

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023

0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 B2

↑

: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :

↓

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022

Note) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

G3~

G1020

B3~

B1020

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

16 / 27

Samsung Secret

130

148.5

152.5
60

67.5

70

48

60

62.5

-

1080

-

1110

1125

1400

-

1920

-

2092

2200

2348

5. Interface Timing

5.1 Timing Parameters ( DE mode )

SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE

Clock

Hsync F

Frequency

Vsync F

1/T

C

H

V

MHz -

KHz -

Hz -

Active

Vertical

Display

Period

T

VD

Lines -

Display Term

Vertical

Total

T

V

Lines -

Active

Horizontal

Display

Period

T

HD

Clocks -

Display Term

Horizontal

Total

T

H

clocks -

Note) This product is DE mode. But the Hsync & Vsync signal must be inputted

(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum

- Modulation rate (max) : ± 1.5 %

- Modulation Frequency : under 100KHz

5.2 LVDS Input Data Characteristics

ITEM SYMBOL Min. Typ. Max. UNIT NOTE

t

Input Data

Position

Input common mode voltage V

Differential Input Voltage |VID| 100 - 600 mV -

FIN=75MHz

RSRM

t

RSLM

CM

Note) When the skew is measured the Spread Spectrum should be 0%

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

- - 500 ps

-500 - - ps

0.3 - 1.8 V -

17 / 27

5.3 3D mode Sequence

5.3.1 3D Sequence

Samsung Secret

Timing

T7 ≥ 42

T8 ≥ 30

Spec (ms)

Description

Min. Typ. Max

Backlight should be on after 10 frame

when 3D signal input from SET

Backlight should be off after 7 frame

when 3D signal change to 2D signal

from SET

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

18 / 27

5. 4 Timing diagrams of interface signal ( DE mode )

TV

Samsung Secret

DE

DE

DCLK

DATA

SIGNALS

TVD

TVB

TH

THD

TC

TC

TCH

DCLK

TDS TDH

DISPLAY

DATA

TES

DE

TCL

0.5
V

0.5
V

CC

0.5
V

CC

CC

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

19 / 27

5.5 Power ON/OFF Sequence

Samsung Secret

To prevent a latch-up or DC operation of the LCD Module, the power on/off

sequence should be as the diagram below.

1ms<T1≤10ms

1<T2≤50ms
0<T3≤50ms
1000ms≤T4

1000ms≤T5

(Recommend Value)

100ms≤T6

(Recommend Value)

T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.

T3 : The time from valid data off to VDDoff at power Off.

T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,

the display may momentarily show abnormal screen.

 In case of VDD= off level,

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.
 In Case T5 is less than 1000msec and T6 is less than 100msec,

Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

20 / 27

7. PACKING

1. 299.2 Kg / LCD (22ea)

2. 32Kg / Packing Set

3. Packing Material Paper

7.1 CARTON (Internal Package)

(1) Packing Form

Corrugated fiberboard box and EPS cushion as shock absorber

(2) Packing Method

Samsung Secret

7.2 Packing Specification

Item Specification Remark

LCD Packing

Pallet 1Box / Pallet 9.3Kg

Packing Direction Vertical

Total Pallet Size H x V x height 1133(H) x 1452(W) x 768(height)

Total Pallet

Weight

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

22ea / Box

374.26Kg

Module(299.2kg) + pallet (9.3kg) + packing
set (32kg) + desiccant (1.76kg)

23 / 27

Samsung Secret

8. MARKING & OTHERS

A nameplate bearing followed by is affixed to a shipped product at the specified

location on each product.

(1) Part number : LTA550HQ20
(2) Revision: Three letters
(3) Lot number : X X X X XXX XX X

Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code

Line

(4) Nameplate Indication

T

C

LTA550HQ20

0925

XXXX

(5) Packing box attach

XXXXXXXXXX XXX

LTA550HQ20

Week code : 09 25

week
year

40mm

Revision code
Lot number

80mm

100mm

Part number

XXX

22

Box serial number

165mm

(6) Others

1. After service part
Lamps cannot be replaced because of the narrow bezel structure.

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

24 / 27

9. General Precautions

Samsung Secret

9.1 Handling

(a) When the Module is assembled, it should be attached to the system firmly

using all mounting holes. Be careful not to twist and bend the Module.

(b) Because the converter use high voltage, it should be disconnected from power

before it is assembled or disassembled.

(c) Refrain from strong mechanical shock and / or any force to the Module.

In addition to damage, this may cause improper operation or damage to the Module
and LED back light.

(d) Note that polarizers are very fragile and could be damage easily.

Do not press or scratch the surface harder than a HB pencil lead.

(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.

(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.

(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.

(h) If the liquid crystal material leaks from the panel, it should be kept away

from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.

(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or

semiconductor would be damaged.

(j) Use finger-stalls with soft gloves in order to keep display clean during the

incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of converter & LVDS board

(m) Do not connect N.C pins. (Samsung internal use only)

(n) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module

(o) Pins of I/F connector should not be touched directly with bare hands.

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

25 / 27

9.2 Storage

ITEM

UNIT

Min.

Max.

Storage Temperature

(℃)

5

40

Storage Humidity

(%rH)

35

75

Storage Life

12 months

Storage Condition

- The storage room should provide good ventilation and

temperature control.

- Products should not be placed on the floor, but on the

Pallet away from a wall.

- Prevent products from direct sunlight, moisture nor

water; Be cautious of a build up of condensation.

- Avoid other hazardous environment while storing

goods.

- If products delivered or kept in conditions of over the
storage period of 3months, the recommended
temperature or humidity range, we recommend you
leave them at a temperature of 20℃ and a humidity of
50% for 24 hours.

Samsung Secret

9.3 Operation

(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.

(d) The cable between the back light connector and its converter power supply should

be connected directly with a minimized length. A longer cable between
the back light and the converter may cause lower luminance of LED package and
may require higher startup voltage(Vs).

26 / 27

Samsung Secret

9.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20±15℃

- Humidity : 55±20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SDC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at

Airports, Transit Stations, Banks, Stock market, and Controlling systems.

9.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "sticked" to the screen.

To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SDC in advance when you display the same pattern for a long time.

MODEL LTA550HQ20 Doc. No 06-000-G-20120927 Page

27 / 27
