SAMSUNG TFT-LCD
MODEL : LTA550HJ13
www.panelook.com
Samsung Secret
Product Information
DATE : 16. Aug. 2012
The Information Described in this Specification is Preliminary and can be changed without
prior notice
Samsung Display Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Y VGY_
www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 converter Input & Specification

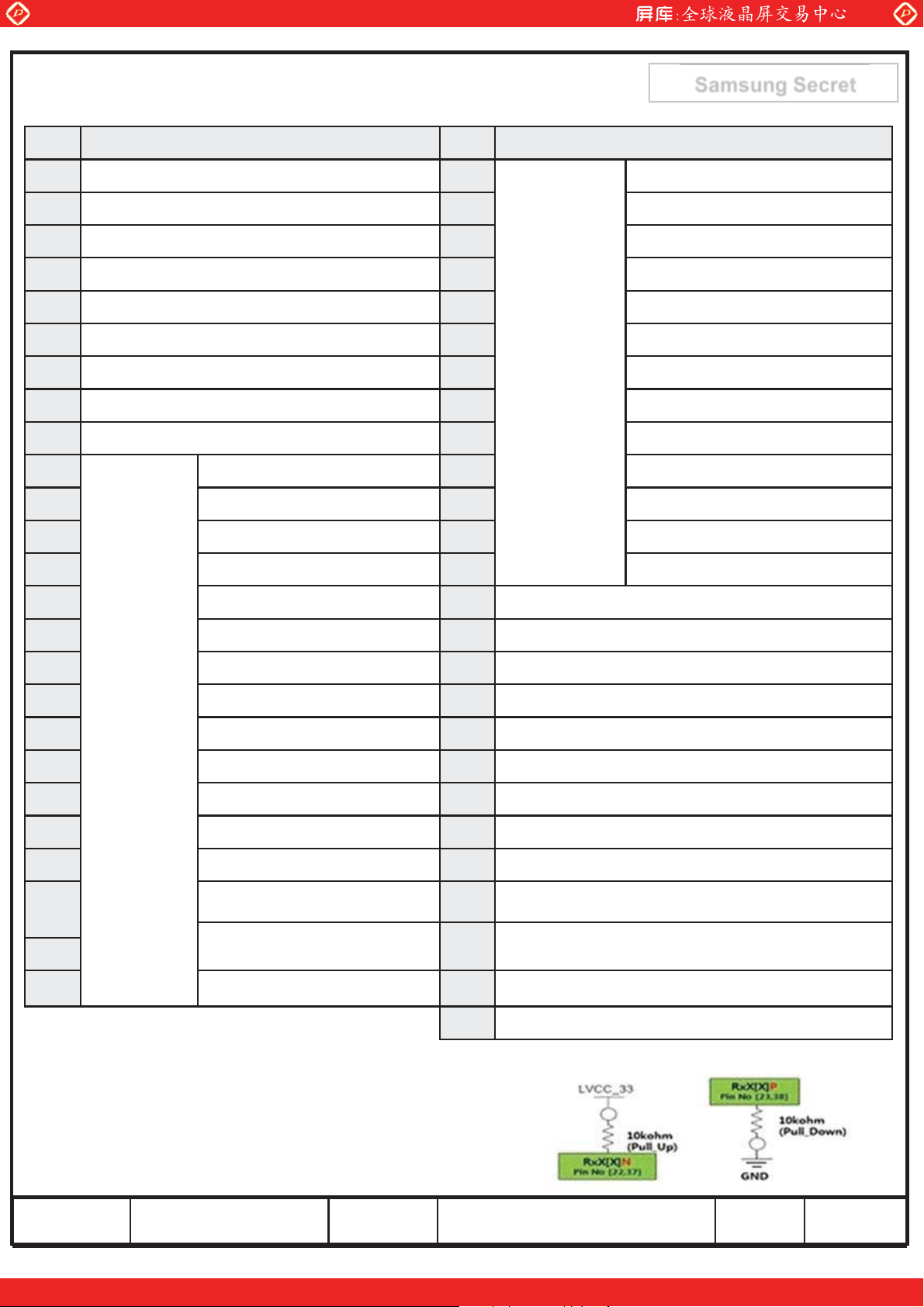

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration

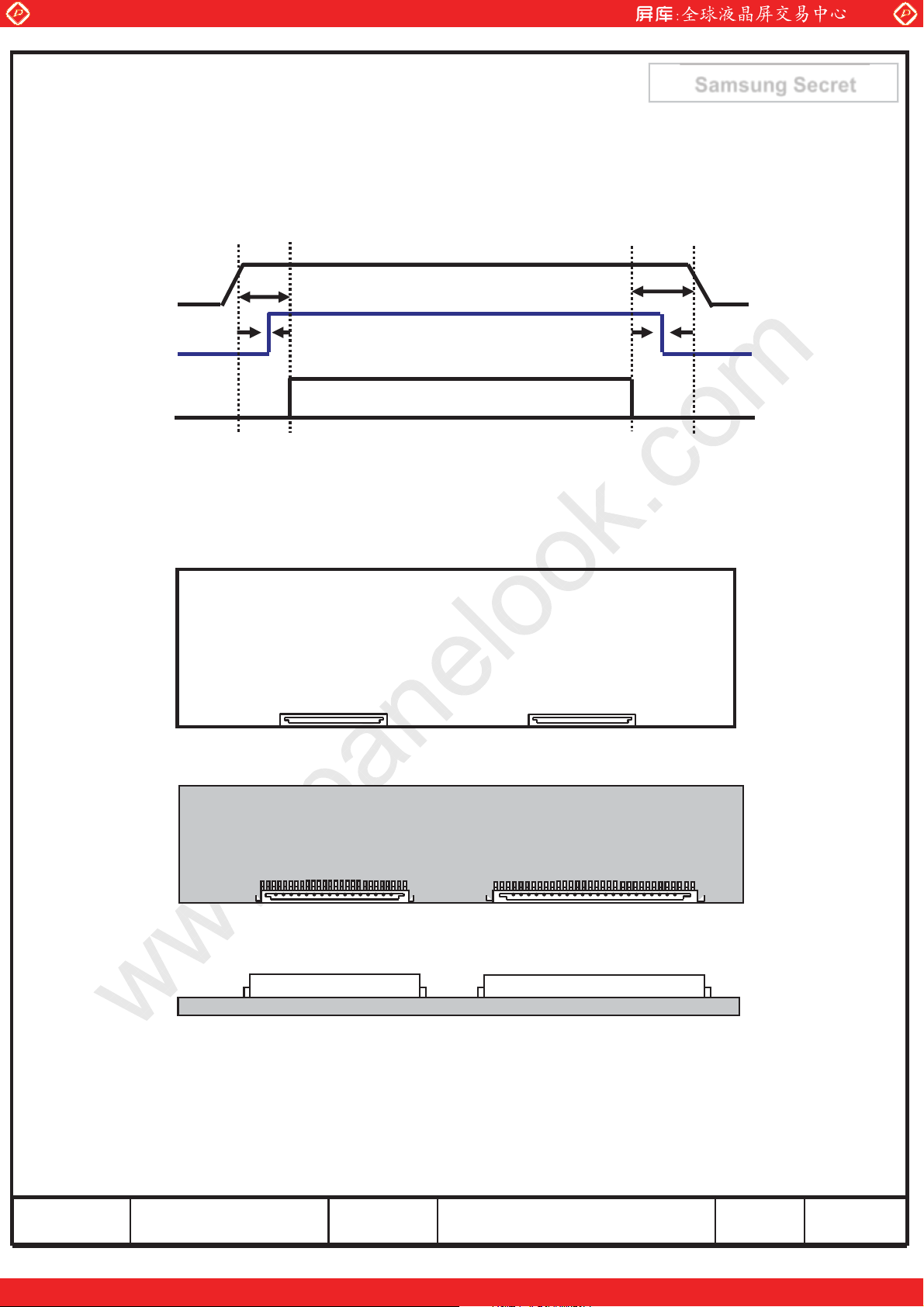

4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (16)
5.1 Timing Parameters (DE only mode)
5.2 LVDS Input data Characteristics

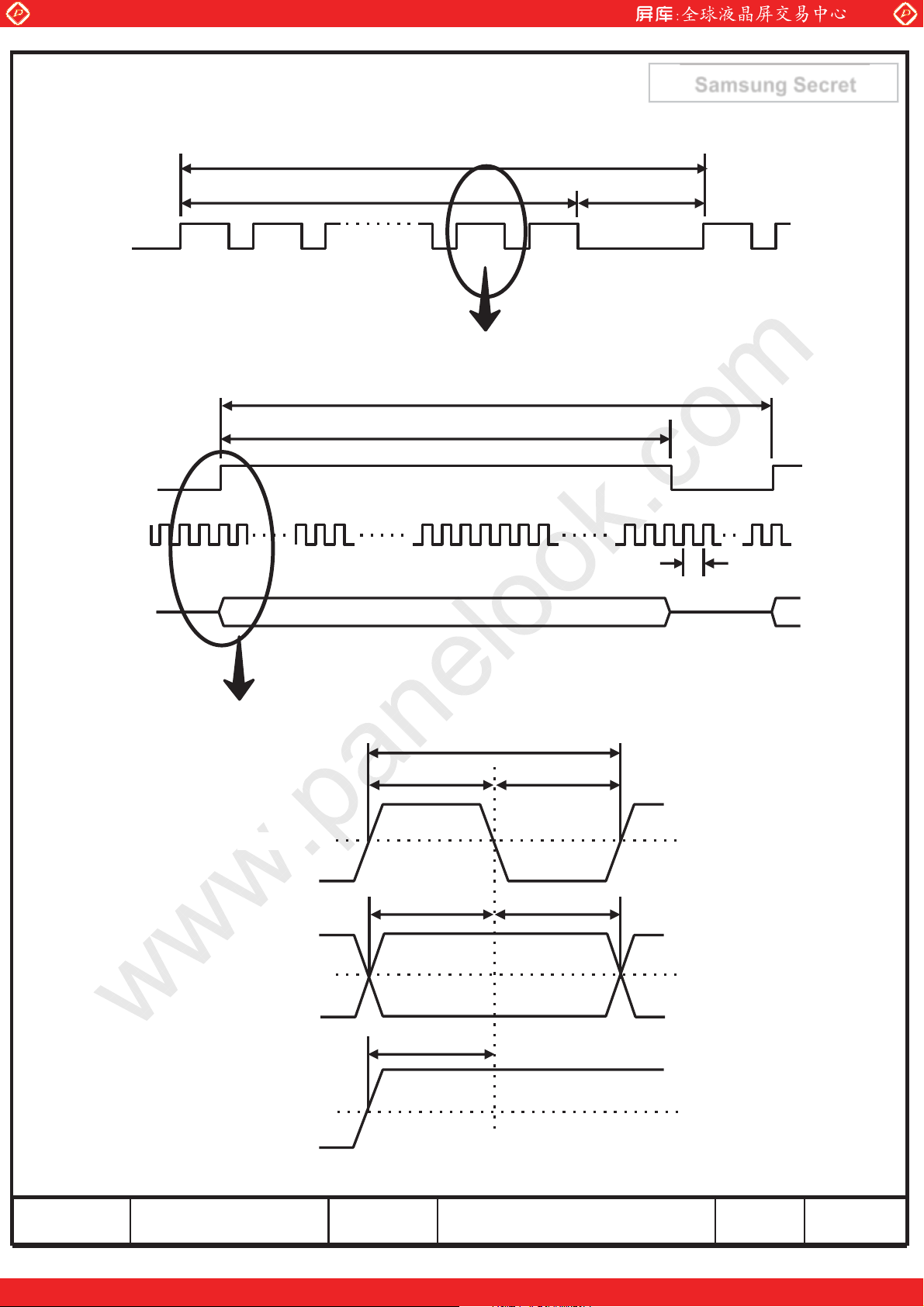

5.3 Timing Diagrams of interface Signal (DE only mode)

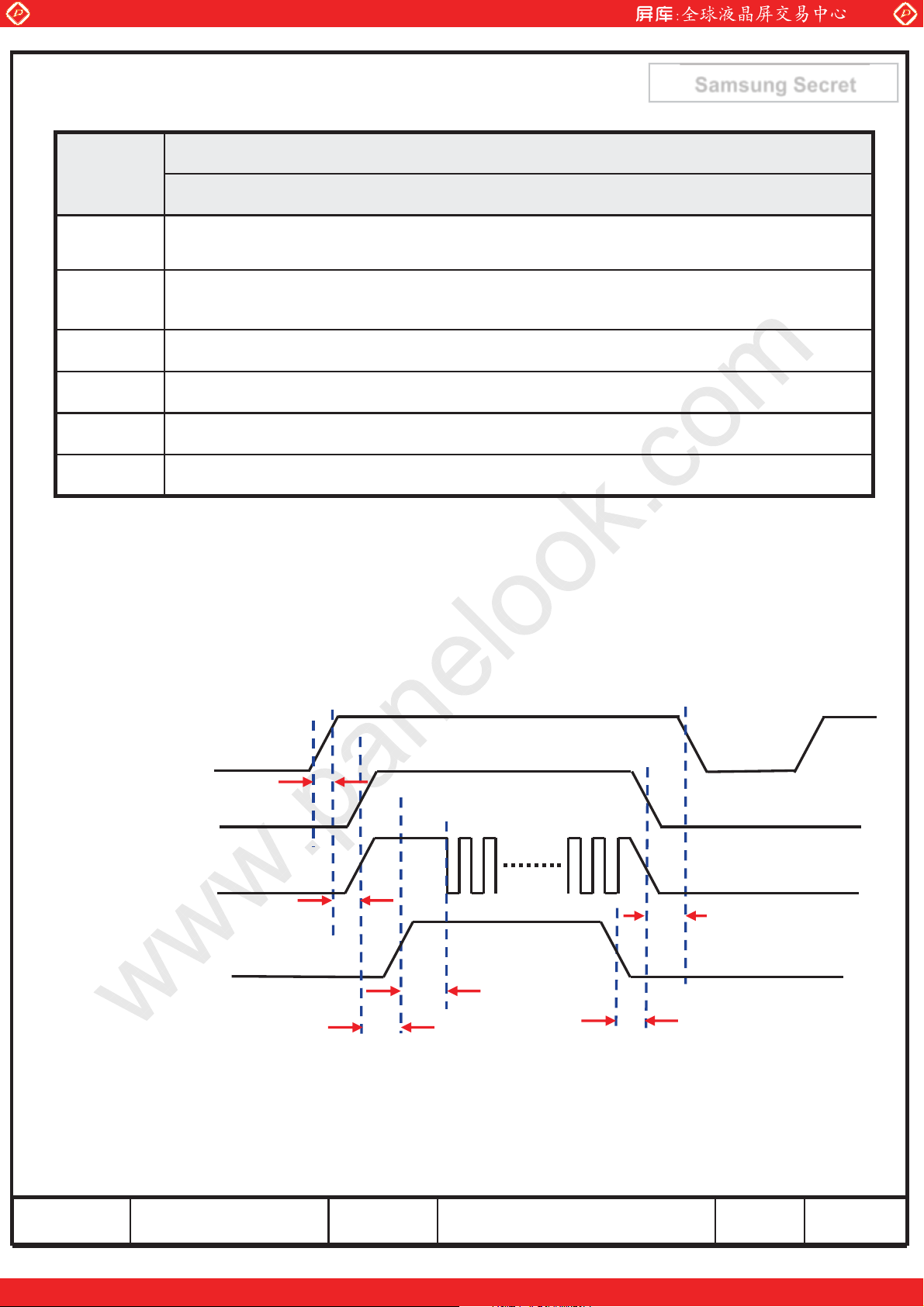

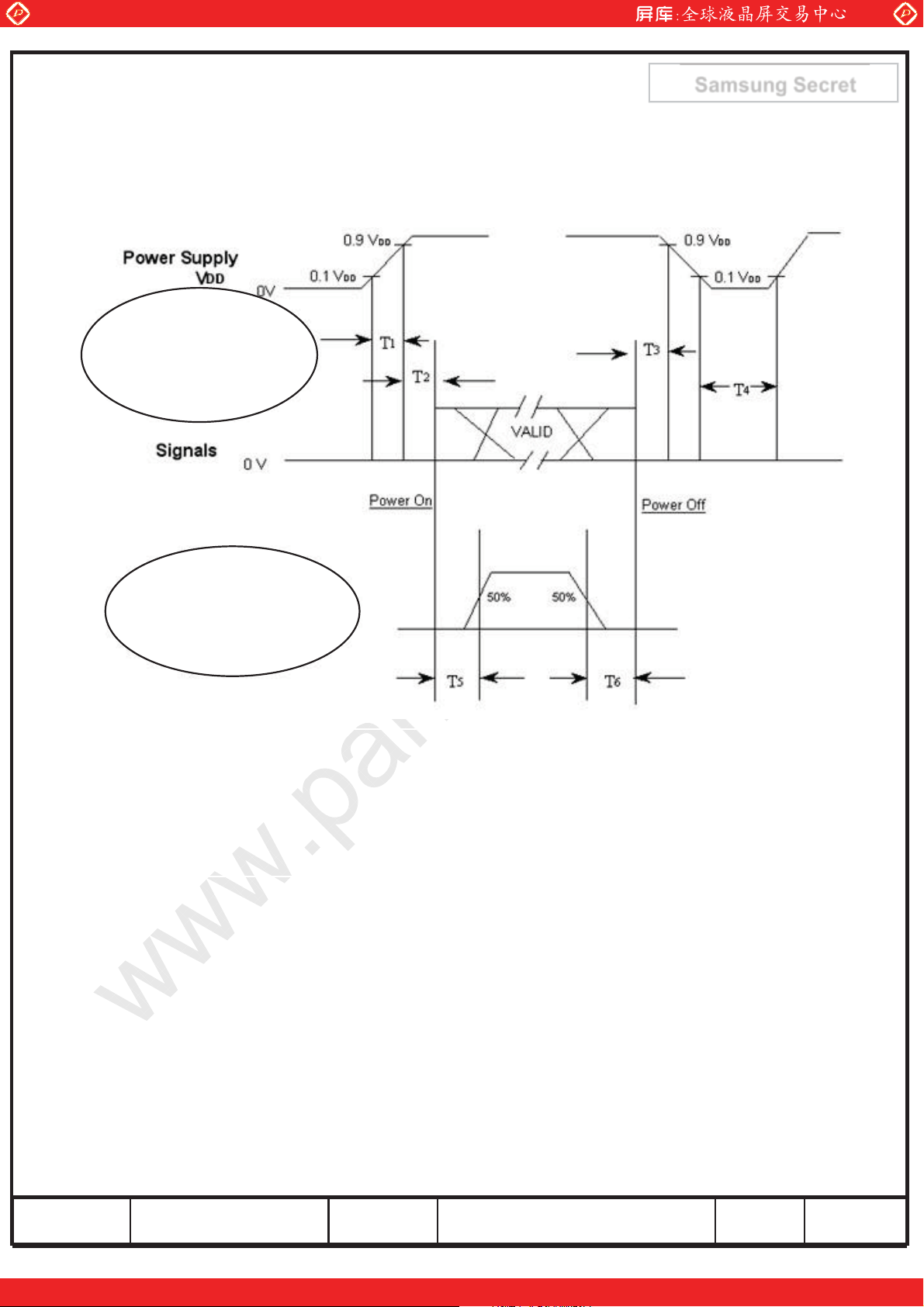

5.4 Power ON/OFF Sequence

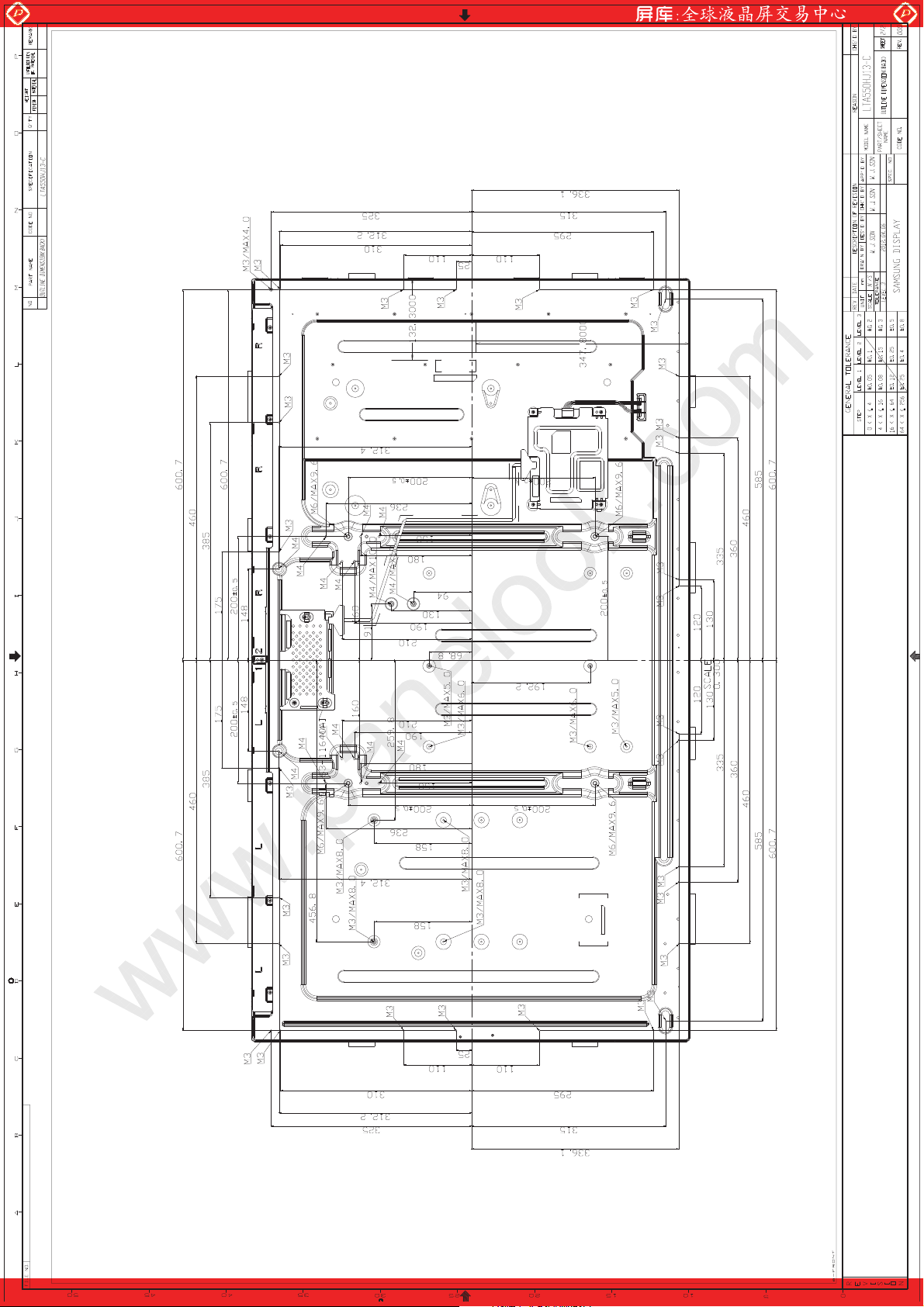

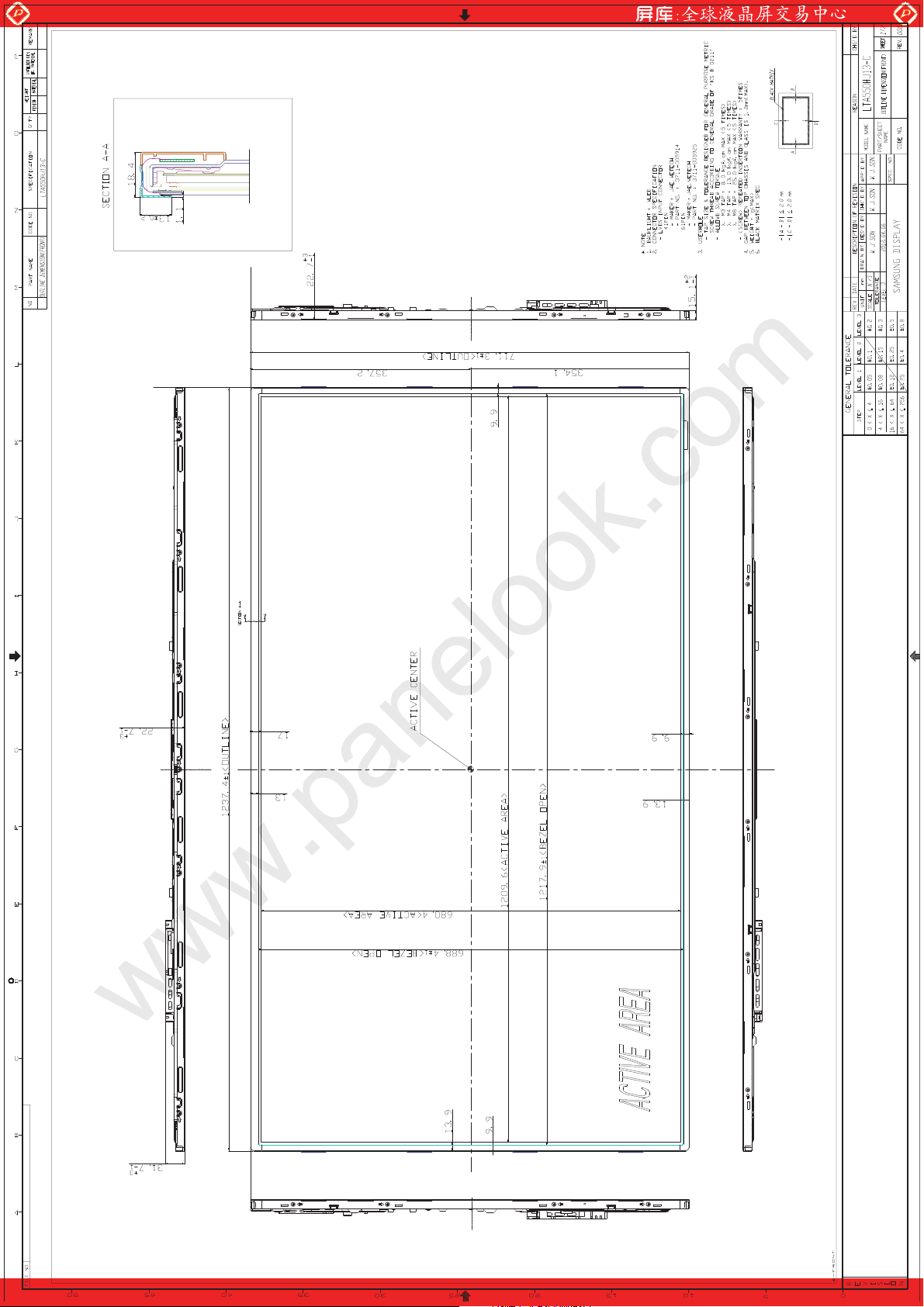

6. Outline Dimension -------------------------------------------------------------------------------------- (21)

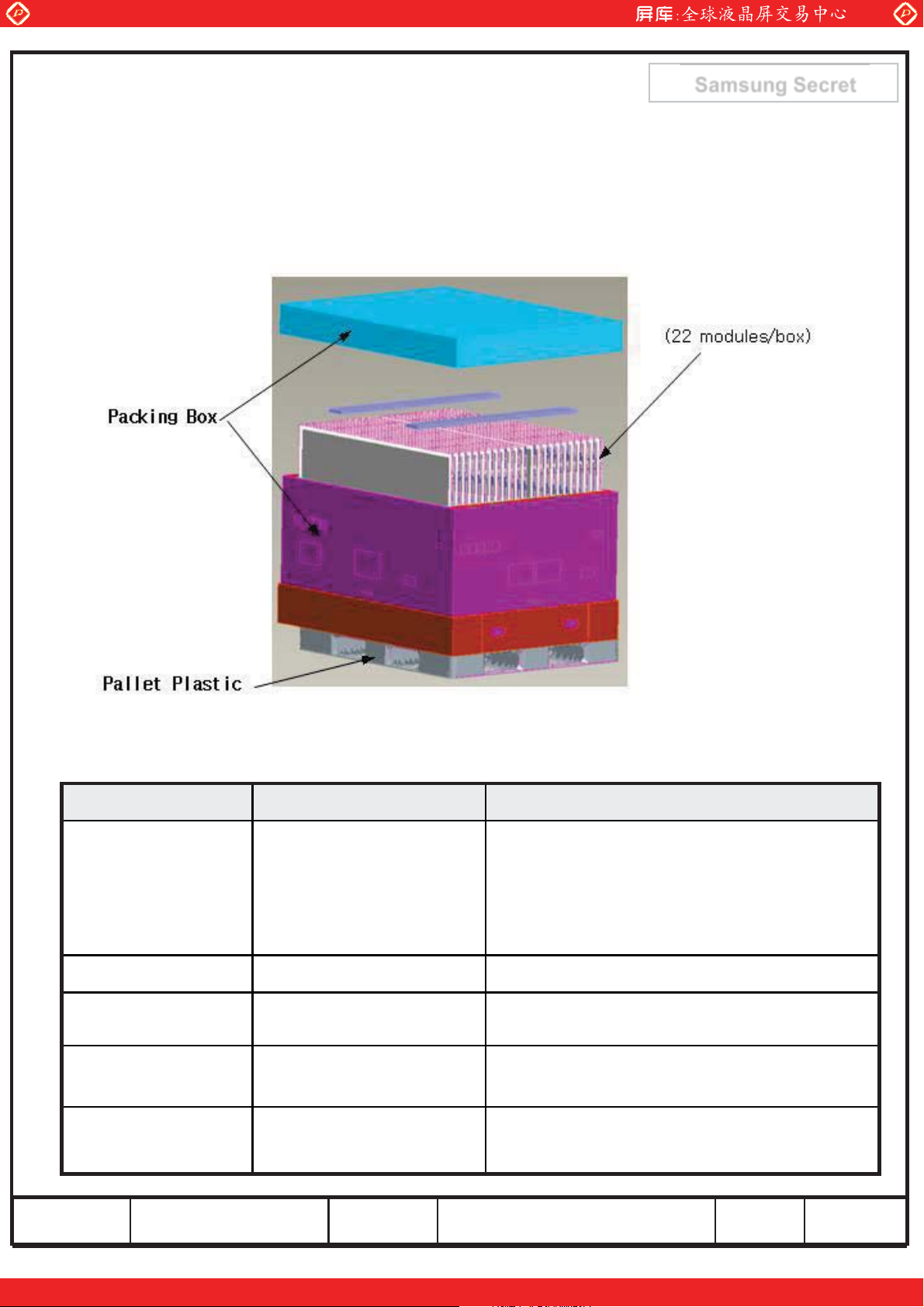

7. Packing --------------------------------------------------------------------------------------------------- (23)

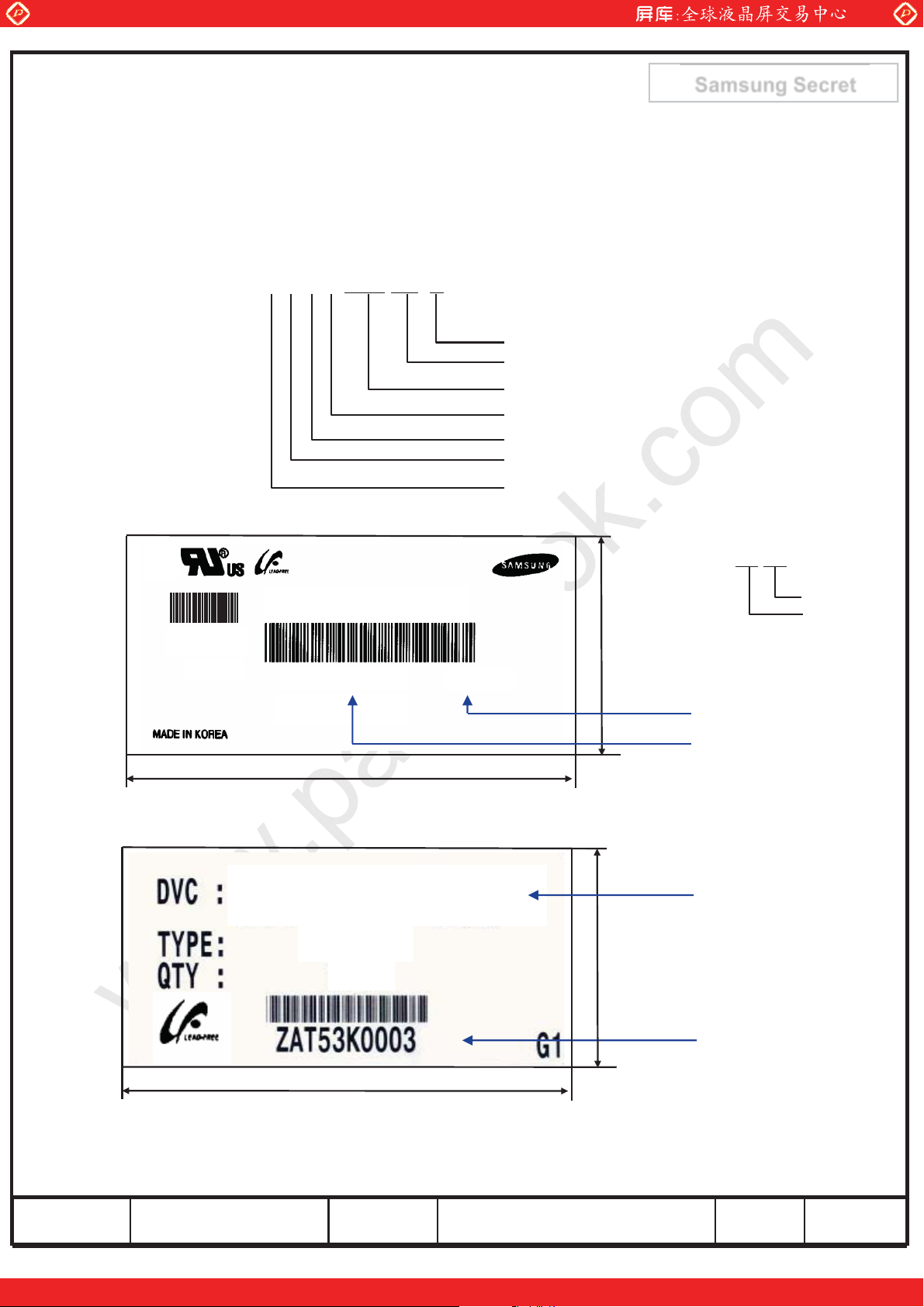

8. Marking & Others --------------------------------------------------------------------------------------- (24)
9. General Precaution ------------------------------------------------------------------------------------- (25)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Z VGY_
Revision History
www.panelook.com
Samsung Secret
Date
16. Aug.
2012
Rev.
No
000 all First issued
Page Summary
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
[ VGY_
www.panelook.com
General Description
Samsung Secret
Description
LTA550HJ13 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 55.0“ is 1920 x 1080 and this model can
display up to 1.07 Billion colors with wide viewing angle of 89¶ or higher in all directions. This panel
is intended to support applications to provide a excellent performance for Flat Panel Display such
as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SVA(Super Vertical Align) mode
Wide viewing angle (·178¶)
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
1237.4 (H
Module Size
Weight 14600(Max) g
Pixel Pitch 0.210(H) x 0.630(W) mm
Active Display Area 1209.6(H) X 680.4(V) mm
Surface Treatment Haze 2%, Hard coating (2H) Antiglare
Display Colors Dithered 10Bit – 1.07B colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB Horizontal stripe
Display Mode Normally Black
) x 711.3 (V
TYP
34.7 (Dmax) With converter
TYP
)
·1.0mm
mm
Luminance of White 400 (Typ.) cd/m
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
\ VGY_
www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
DD
GND-0.3 13.2 V
Dimming Control Max. Lum - 5 V
Storage temperature
(Temperature of glass surface)
Operating temperature T
T
STG
OPR
-20 60
050
Shock ( non - operating ) X,Y,Z - 30 G (3)
Vibration ( non - operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta 39 ¶C)
c. No condensation
(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
NOP
-1.5G(4)
(1)
(2), (5)
(2)
90
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
] VGY_
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
(Ta = 25 · 2¶C, VDD=12V, fv= 120Hz, f
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
= 297MHz, LED Current = 160 mA)
DCLK
C/R - 5000 -
- 8 18 msec
Y
L
Rx
Ry 0.330
Normal
qL,R =0
300 400 - cd/m
0.640
qU,D =0
Gx 0.300
Gy 0.600
Bx 0.150
Viewing
Angle
TYP.
-0.03
TYP.
+0.03
By 0.060
Samsung Secret
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
Wx 0.280
White
Wy 0.290
Color Gamut - - 70 - %
Color Temperature - - 10000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R≥10
White Brightness
Uniformity
B
uni
--30%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
^ VGY_
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
2ദ
1ദ
- Definition of test point
Photo detector
Field
SR-3 : 50
RD-80S : 50
LCD Panel
The center of the screen
320 960 1600
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
_ VGY_
www.panelook.com
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
` VGY_
95
120
125
120
135
140
260
297
305
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) Checker - 1600 1900 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
RUSH
DD
I
DD
V
H
DCLK
10.8 12.0 13.2 V (1)
- 900 1000 mA
--6A(4)
Note (1) The ripple voltage should be controlled under 10% of V
(2) fV=120Hz, fDCLK = 297MHz, V
= 12.0V, DC Current.
DD
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Checker
DD
(2),(3)(b) White - 1000 1100 mA
Hz
kHz
MHz
.
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470༕
RUSH
Rush Current I
can be measured when T
RUSH
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
XW VGY_
www.panelook.com

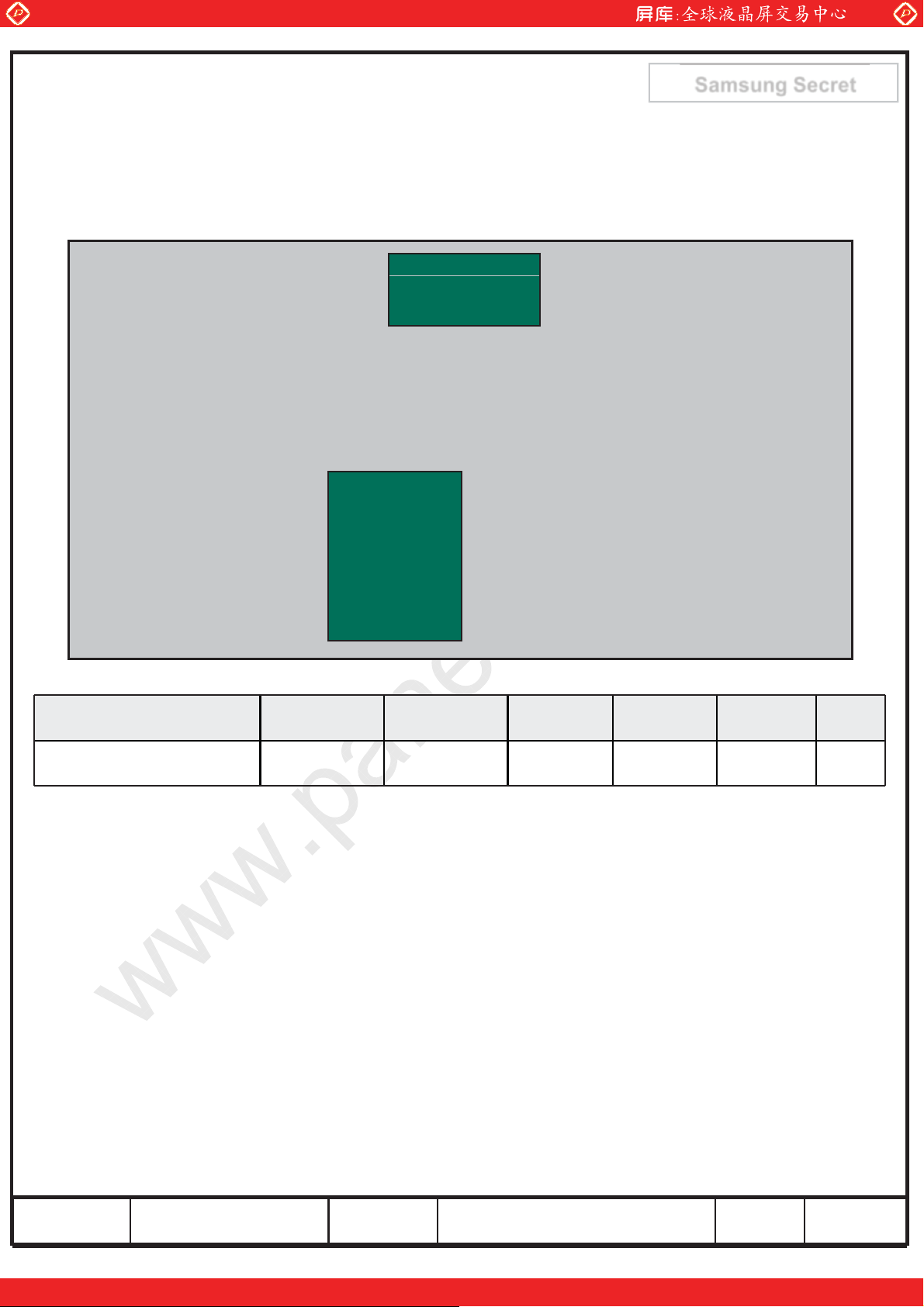

3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Control Board
LCD Module
Samsung Secret
Ta=25 · 2¶C
Converter
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 30,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25·2, For LED package only]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
XX VGY_
www.panelook.com

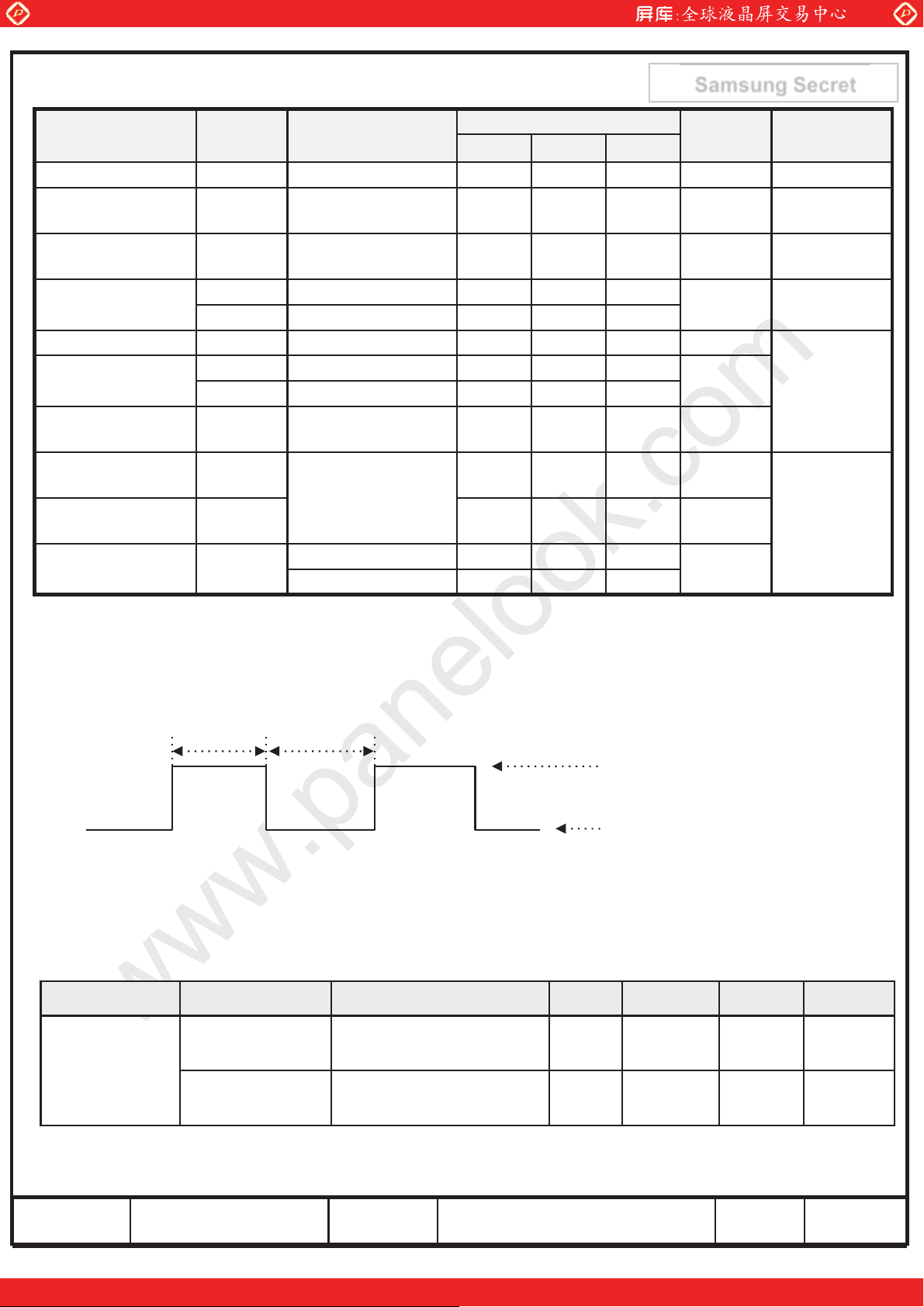

3.3 Converter Input Condition & Specification
Items Symbol Conditions
Input Voltage Vin - 22 24 26 V
Input Current I
Output
Current
Backlight
On/Off
Dimming Range V
Dimming Duty
Output
Dimming
Frequency
External Dimming
Duty Range
External Dimming
Frequency Range
External Dimming
Signal Level
RUSH
I
O
ON Vin=24.0 V 3 - 5.25
OFF Vin=24.0 V 0 - 0.4
_DIM
D max Vin=24V Dim:3.3V - - 100
D min Vin=24V Dim:0V 1 - -
F
PWM
EX_Dim
F
EX_PWM
V
PWM
Vin=24.0V
Vdim =3.3V
Vin = 24.0V
V dim =3.3 V
Vin :22~26V 0 - 3.3 V
Vin=24.0 V 140 - 150 Hz
Vin=22.0~26.0 V
Dim Pin(#13):floting
High (ON) 3 - 5.25
Low (Off) 0 - 0.4
Specifications
Min. Typ. Max.
- - 5.1 Adc Normal mode
152 160 168 mAmean
1 - 100 %
140 - 150 Hz
Samsung Secret
Unit Note
Ta=25·YG¶j
V
%
V
Note(2)
Pin#14 = N.C
Note(2)
Pin#13 = N.C
Note (1) All data is measured after 120min warm-up.
Note (2) V_Dim and Ex_Dim are available only at Normal 2D mode.
Note (3) Duty = On / (On+Off) * 100
On Off
Max
Min
- Additional Appendix for Supply Current
Items Symbol Conditions Min. Typ. Max. Unit
Iin _ overshoot
Input
Current
Iin _ saturation
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
- 3.88 3.99 A
- 3.80 3.91 A
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
XY VGY_
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1.1 Input Signal & Power Connector : FI-RE41S-HF (JAE/UJU)
Pin Description Pin Symbol Description
1 Vdd(12V) 21
2 Vdd(12V) 22 Rx1[4]N note(1)
3 Vdd(12V) 23 Rx1[4]P note(1)
4 Vdd(12V) 24 GND
5 Vdd(12V) 25 Rx3[0]N
6 No Connection 26 Rx3[0]P
7 GND 27 Rx3[1]N
8 GND 28 Rx3[1]P
Rx1[3]P
9 GND 29 Rx3[2]N
10
11 Rx1[0]P 31 GND
12 Rx1[1]N 32 Rx3CLK-
13 Rx1[1]P 33 Rx3CLK+
14 Rx1[2]N 34 GND
15 Rx1[2]P 35 Rx3[3]N
16 GND 36 Rx3[3]P
17 Rx1CLK- 37 Rx3[4]N note(1)
18 Rx1CLK+ 38 Rx3[4]P note(1)
19 GND 39 GND
ODD LVDS
SIGNAL
Rx1[0]N 30 Rx3[2]P
ODD LVDS
SIGNAL
20 Rx1[3]N 40 No Connection
41 No Connection
No Connection: This PINS are only used for SAMSUNG internal using.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
XZ VGY_
NOT CONNECT)
www.panelook.com
Samsung Secret
4.1.2 Input Signal & Power Connector : FI-RE51S-HF (JAE/UJU)
Pin Description Pin Description
1 Vdd(12V) 26
2 Vdd(12V) 27 Rx4[1]N
3 Vdd(12V) 28 Rx4[1]P
4 Vdd(12V) 29 Rx4[2]N
5 Vdd(12V) 30 Rx4[2]P
6 No Connection 31 GND
7 GND 32 Rx4CLK-
8 GND 33 Rx4CLK+
9 GND 34 GND
10
11 Rx2[0]P 36 Rx4[3]P
12 Rx2[1]N 37 Rx4[4]N note(1)
13 Rx2[1]P 38 Rx4[4]P note(1)
14 Rx2[2]N 39 GND
Rx2[0]N 35 Rx4[3]N
EVEN LVDS
SIGNAL
Rx4[0]P
15 Rx2[2]P 40 No Connection
16 GND 41 No Connection
17 Rx2CLK- 42 No Connection
18 Rx2CLK+ 43 No Connection
19 GND 44 No Connection
20 Rx2[3]N 45 LVDS Option note(2)
21 Rx2[3]P 46 No Connection
22 Rx2[4]N note(1) 47 No Connection
23
24
25 Rx
No Connection: These PINS are used only for SAMSUNG. (DO NOT CONNECT)
EVEN
LVDS
SIGNAL
Rx2[4]P note(1) 48 No Connection
GND 49 No Connection
4[0]N 50 No Connection
51 No Connection
note(1) [JEIDA] If 8bit of LVDS signal input from Set.
Keep [4] channel level ‘0’ Æ
[Normal]10bit only
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X[ VGY_
www.panelook.com
Samsung Secret
Note (2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS format [10bit input only]
LOW (GND) → JEIDA LVDS format
SEQUENCE : On = V
OFF = Interface Signal(T3) ≥ LVDS Option ≥ V
DD(T1) ≥ LVDS Option ≥ Interface Signal(T2)
DD
Vin
LVDS
Option
LVDS
Signal
T2
LVDS Option Sequence
Note (3) Pin number starts from Left side
T3
PCB
Pin No. 1 Pin No. 41
#1 #41
#1
#41
Pin No. 1 Pin No. 51
#1
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X\ VGY_
www.panelook.com
4.2. Converter Input Pin Configuration
Pin Configuration(FUNCTION)
Pin No.
Master
1 ~5 24 V
6~10 GND
11 No Connection
12 Backlight On /Off
13 Dimming Control [0V:Min, 3.3V:Max] *Note(1)
14 External PWM [1~100 %] *Note(1)
Note(1) If use Dimming Control, Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
[ON:3.0 ~ 5.25 V, OFF: 0 ~ 0.4 V]
Samsung Secret
Connector : Yeon-ho, 20022WR-14B1
4.3. Converter Input Power Sequence
Vin (24V)
0.02sec [Min]
Dimming Control
External PWM
0.5sec [Min]
Backlight On/Off
0sec [Min]
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
0.5sec [Min]
0 sec [Min]
0.2sec [Min]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X] VGY_
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : T-con (merged)
LVDS pin JEIDA -DATA Normal
TxIN/RxOUT0 R4 R0
TxIN/RxOUT1 R5 R1
TxIN/RxOUT2 R6 R2
TxOUT/RxIN0
TxOUT/RxIN1
TxIN/RxOUT3 R7 R3
TxIN/RxOUT4 R8 R4
TxIN/RxOUT6 R9 R5
TxIN/RxOUT7 G4 G0
TxIN/RxOUT8 G5 G1
TxIN/RxOUT9 G6 G2
TxIN/RxOUT12 G7 G3
TxIN/RxOUT13 G8 G4
TxIN/RxOUT14 G9 G5
TxIN/RxOUT15 B4 B0
Samsung Secret
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT18 B5 B1
TxIN/RxOUT19 B6 B2
TxIN/RxOUT20 B7 B3
TxIN/RxOUT21 B8 B4
TxIN/RxOUT22 B9 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DE DE
TxIN/RxOUT27 R2 R6
TxIN/RxOUT5 R3 R7
TxIN/RxOUT10 G2 G6
TxIN/RxOUT11 G3 G7
TxIN/RxOUT16 B2 B6
TxIN/RxOUT17 B3 B7
TxIN/RxOUT23 RESERVED RESERVED
TxIN/RxOUT28 R0 R8
TxIN/RxOUT29 R1 R9
TxIN/RxOUT30 G0 G8
TxOUT/RxIN4
TxIN/RxOUT31 G1 G9
TxIN/RxOUT32 B0 B8
TxIN/RxOUT33 B1 B9
TxIN/RxOUT34 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X^ VGY_
www.panelook.com
Samsung Secret
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
COLOR
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
RED GREEN BLUE
GRAY
SCALE
LEVEL
BASIC
COLOR
GRAY
SCALE
OF
RED
GRAY
SCALE
OF
GREEN
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
100000000000000000000000000000 R1
DARK
↑
↓
LIGHT
RED 111111111100000000000000000000R1023
BLACK 000000000000000000000000000000 G0
DARK
↑
↓
LIGHT
010000000000000000000000000000 R2
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
101111111100000000000000000000R1021
011111111100000000000000000000R1022
000000000010000000000000000000 G1
000000000001000000000000000000 G2
:::::: :::::::::: :::::::::: ::::
::::::: ::::::::: :::::::::: ::::
000000000010111111110000000000G1021
R3~
R1020
G3~
G1020
000000000001111111110000000000G1022
GREEN 000000000011111111110000000000G1023
BLACK 000000000000000000000000000000 B0
000000000000000000001000000000 B1
000000000000000000000100000000 B2
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
GRAY
SCALE
OF
BLUE
DARK
↑
↓
LIGHT
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
B3~
B1020
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X_ VGY_
260
297
305
120
135
140
95
120
125
-
1080
-
1110
1125
1350
-
1920
-
2092
2200
2348
www.panelook.com
5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Clock
Hsync F
Frequency
Vsync F
Active
Display
Vertical
Period
Display Term
Vertical
Total
Active
Display
Horizontal
Period
Display Term
Horizontal
Total
1/T
T
T
T
T
H
V
VD
V
HD
H
Samsung Secret
C
MHz -
KHz -
Hz -
Lines -
Lines -
Clocks -
clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation Frequency : 30~150KHz
* The limit of spread spectrum's range of SET in which the LCD module is
assembled should be within · 3 %.
5.2 LVDS Input Data Characteristics
SYMBOL ITEM Min. Typ. Max. UNIT NOTE
=85MHz - - 400
F
IN
t
RSRM
t
RSLM
V
CM
Input Data
Position
Input Data
Position
Input common mode
voltage
=78MHz - - 450
F
IN
F
=75MHz - - 500
IN
=85MHz -400 - -
F
IN
F
=78MHz -450 - -
IN
F
=75MHz -500 - -
IN
ps -
0.4 - 2.4 V -
|V
|
ID
Differential Input
Voltage
100 - 600 mV -
Note) When the skew is measured the Spread Spectrum should be 0%
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
X` VGY_
www.panelook.com
5. 3 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
Samsung Secret
TVB
DCLK
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
Tcl
TC
0.5
V
0.5
V
CC
CC
TES
DE
0.5
V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
YW VGY_
www.panelook.com
5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
1ms<T1≤10ms
1ms<T2≤50ms
0<T3≤50ms
1000ms≤T4
1000ms≤T5
(Recommend Value)
100ms≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
YZ VGY_
1.
2.
3.
7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and EPS cushion as shock absorber
(2) Packing Method
www.panelook.com
Samsung Secret
7.2 Packing Specification
Item Specification Remark
LCD Packing
Pallet 1Box / Pallet 9.3Kg
Packing Direction Vertical
Total Pallet Size
Total Pallet
Weight
22ea / Box
1133(L) x 1452(W) x
768(height)
374.26Kg
13.6 Kg / LCD (22ea)
32Kg / Packing Set
Packing Material Paper
Module(13.6x22kg) + pallet (9.3kg) +
packing set (32kg) + desiccant (1.76kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Y[ VGY_
www.panelook.com
Samsung Secret
8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA550HJ13
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
T
C
LTA550HJ13
0925
[[[[
(5) Packing box attach
[[[[[[[[[[ [[[
OWD883KM46
Week code : 09 25
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
[[[
55
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Y\ VGY_
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the converter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of converter & LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of I/F connector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Y] VGY_
UNIT
(
5
(%rH)
- The storage room should provide good ventilation and
temperature control.
- Products should not be placed on the floor, but on the
Pallet away from
-
water; Be cautious of a build up of condensation.
-
goods.
- If products delivered or kept in conditions of over the
storage period of 3months, the recommended
temperature or humidity range,
leave them at a temperature of 20
of
50% for 24 hours.
9.2 Storage
www.panelook.com
Samsung Secret
ITEM
Storage Temperature
Storage Humidity
)
Min. Max.
35 75
Storage Life 6 months
a wall.
Prevent products from direct sunlight, moisture nor
Storage Condition
Avoid other hazardous environment while storing
40
we recommend you
and a humidity
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its converter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the converter may cause lower luminance of LED package and
may require higher startup voltage(Vs).
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
tvkls s{h\\WoqXZ kUGu W]TWWWTnTYWXYW_X] w
Y^ VGY_
www.panelook.com
Samsung Secret
9.4 Operation Condition Guide
(a
) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
