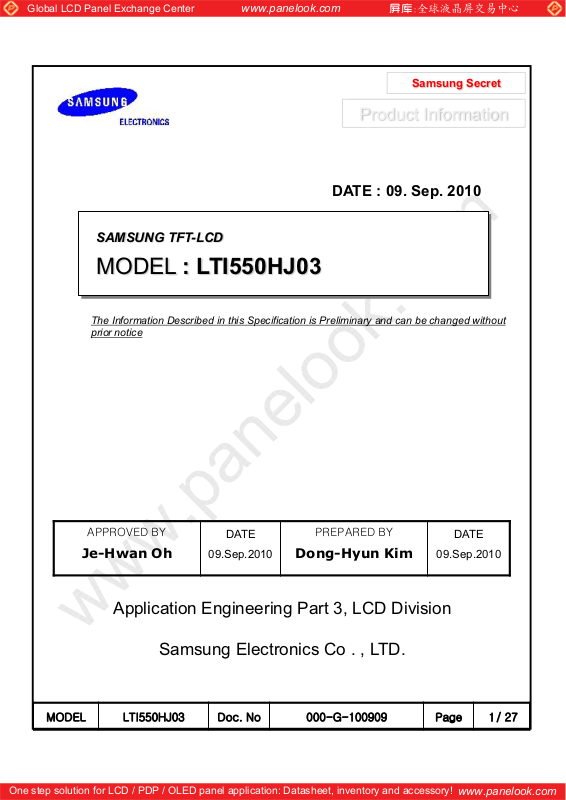

SAMSUNG TFT-LCD
MODEL : LTI550HJ03
www.panelook.com
Samsung Secret
Product Information
DATE : 09. Sep. 2010
The Information Described in this Specification is Preliminary and can be changed without
prior notice
hwwyv}lkGi
Je-Hwan Oh
DATE
09.Sep.2010
wylwhylkGi
Dong-Hyun Kim
DATE
09.Sep.2010
Application Engineering Part 3, LCD Division
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Y
www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power

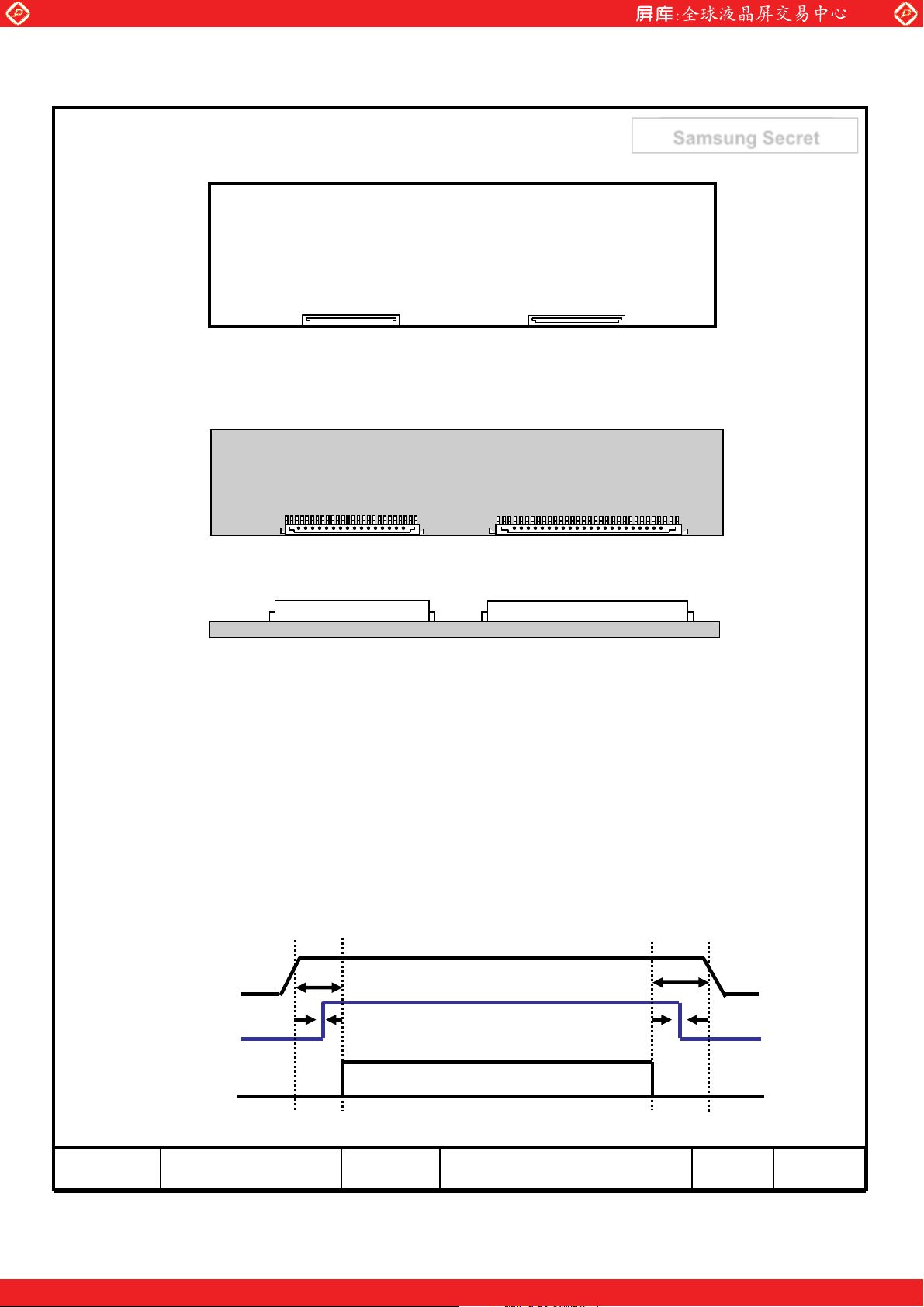

4.2 Inverter Input Pin Configuration
4.3 Inverter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (18)
5.1 Timing Parameters (DE only mode)

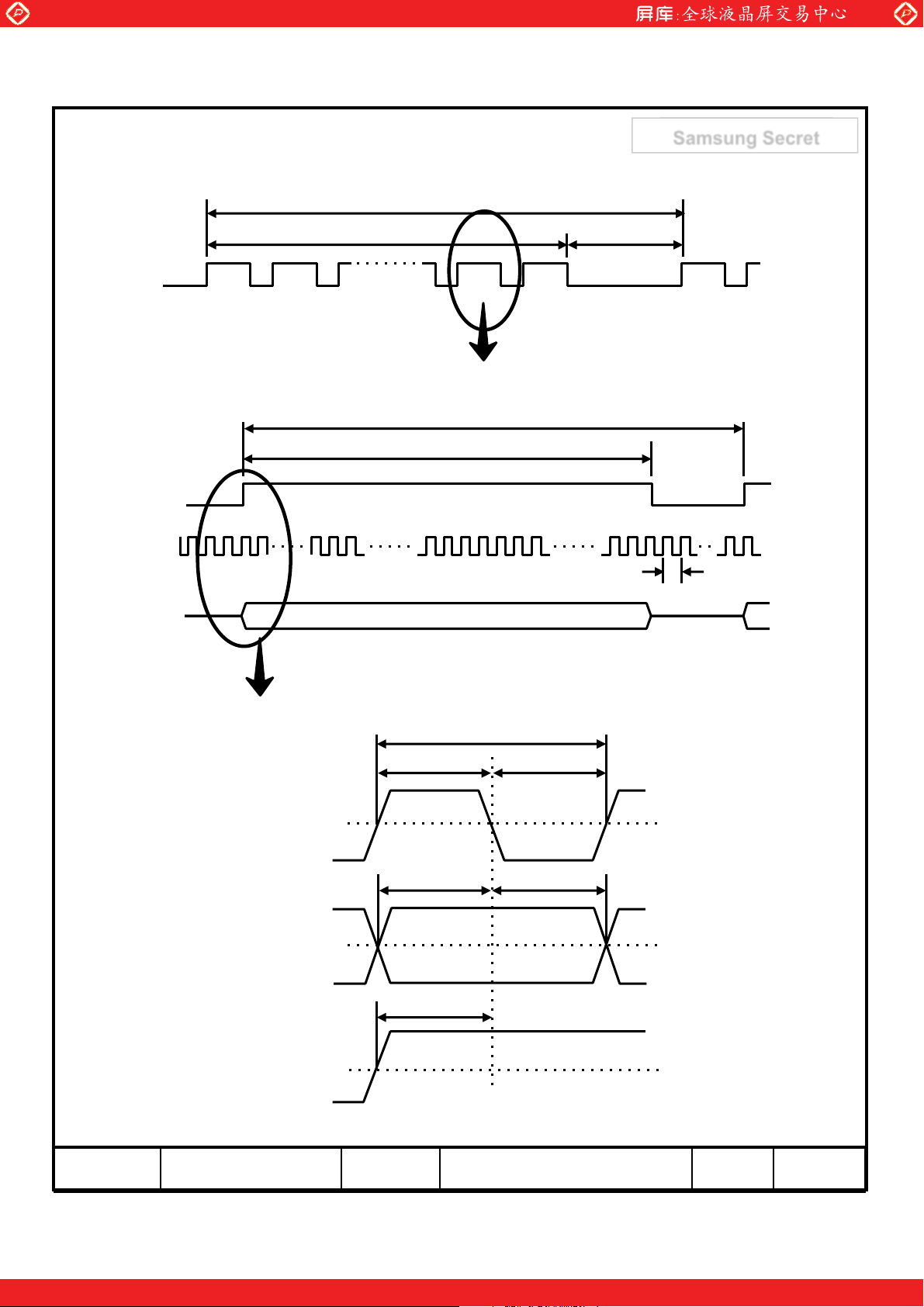

5.2 Timing Diagrams of interface Signal (DE only mode)

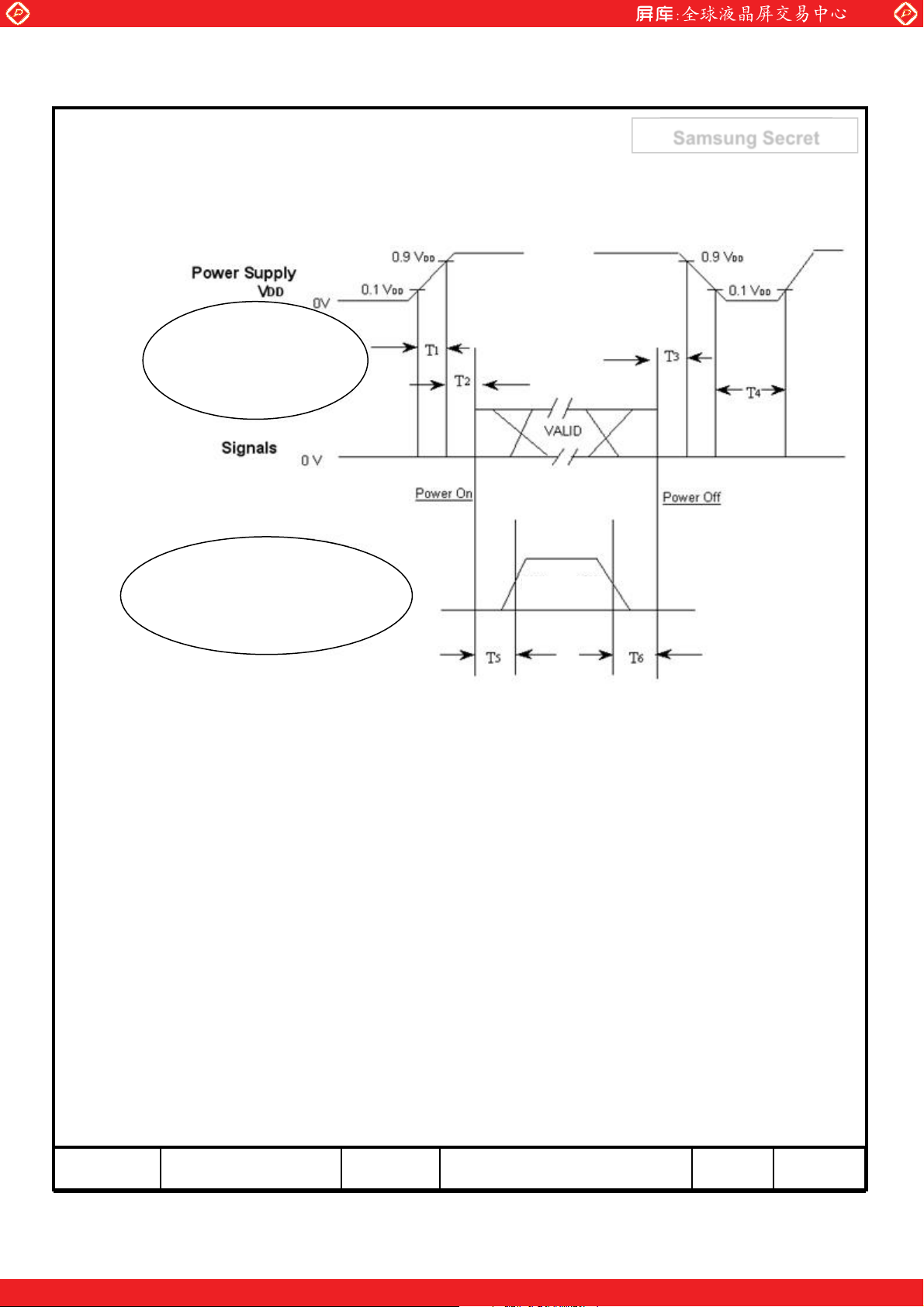

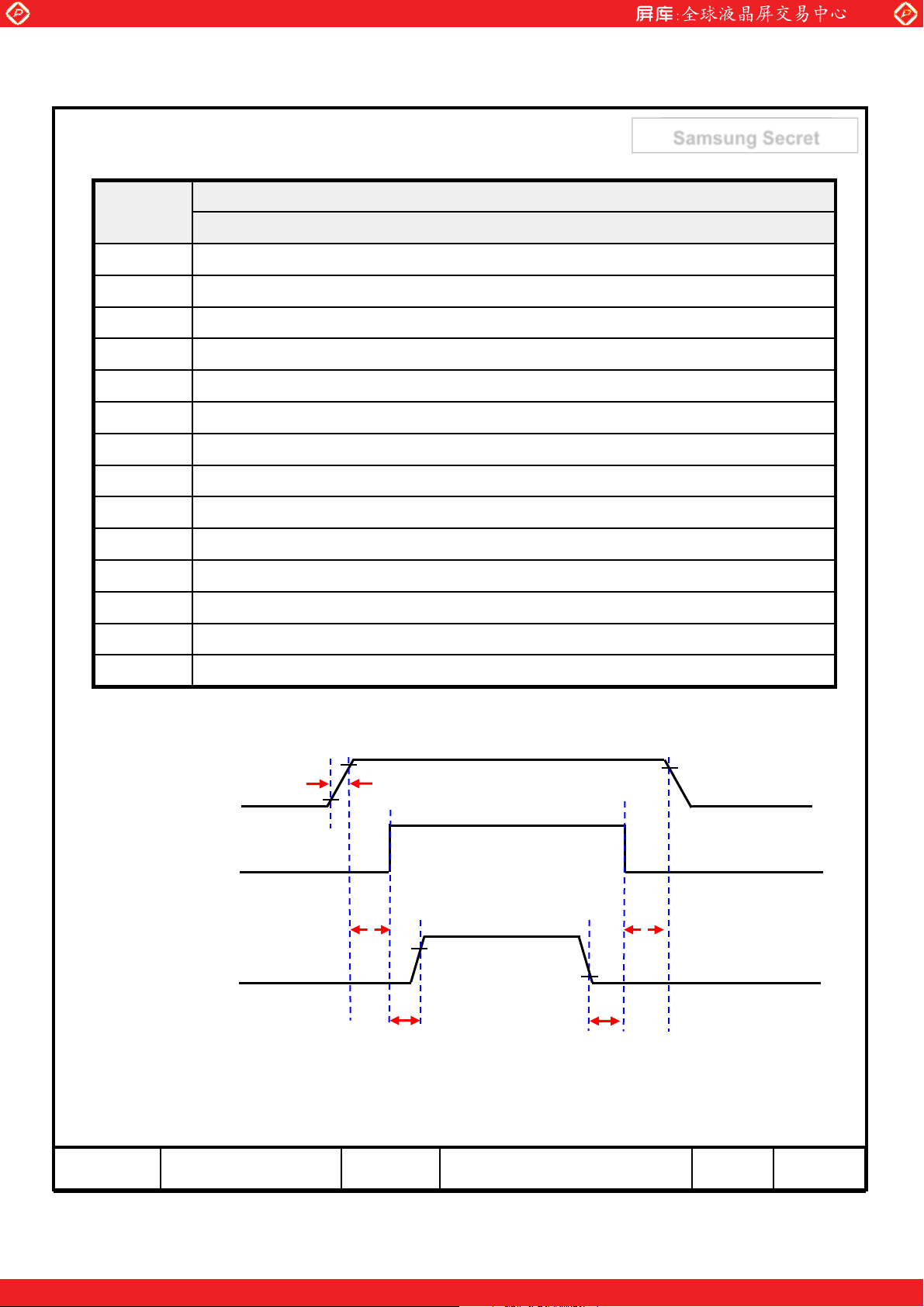

5.3 Power ON/OFF Sequence

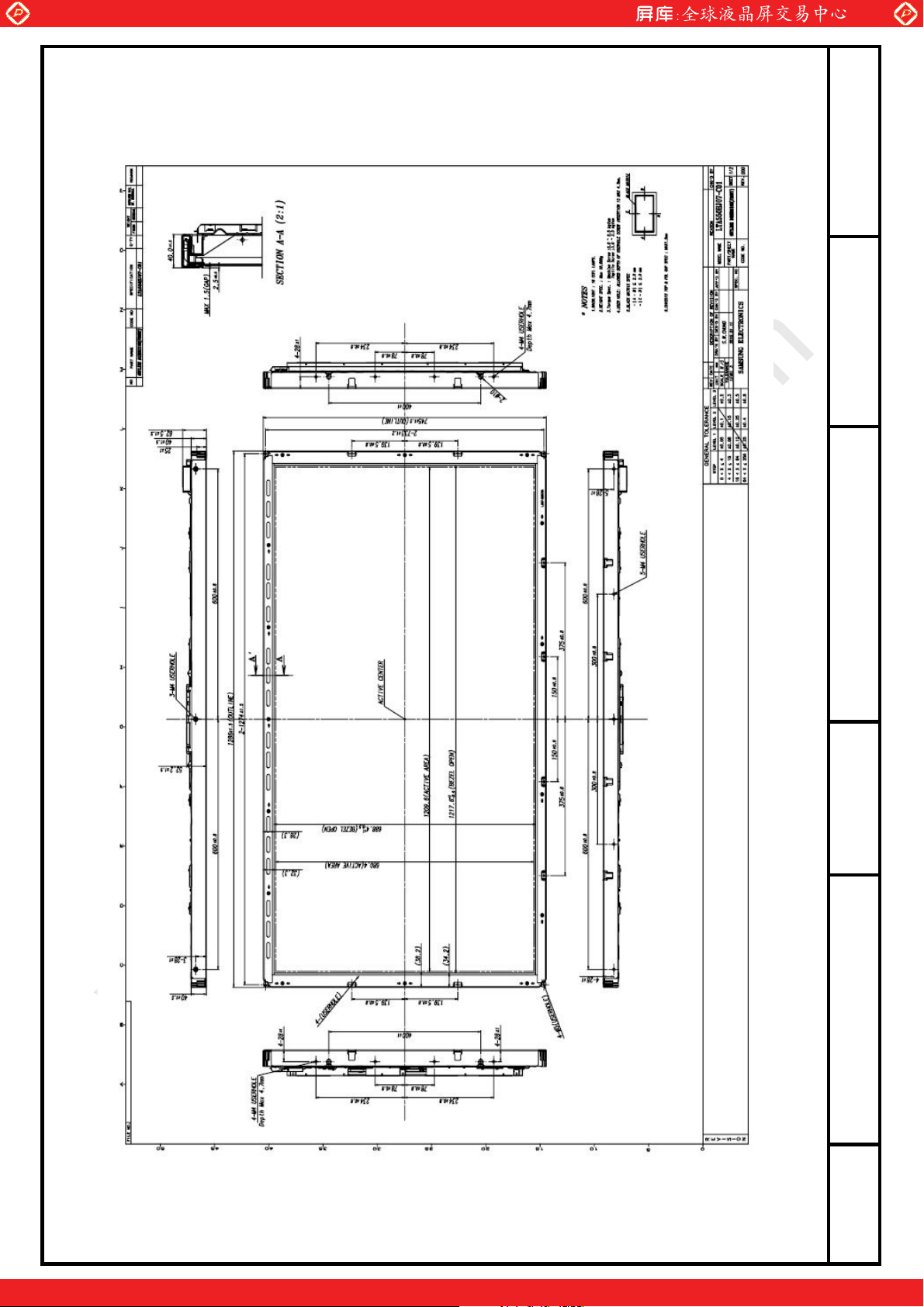

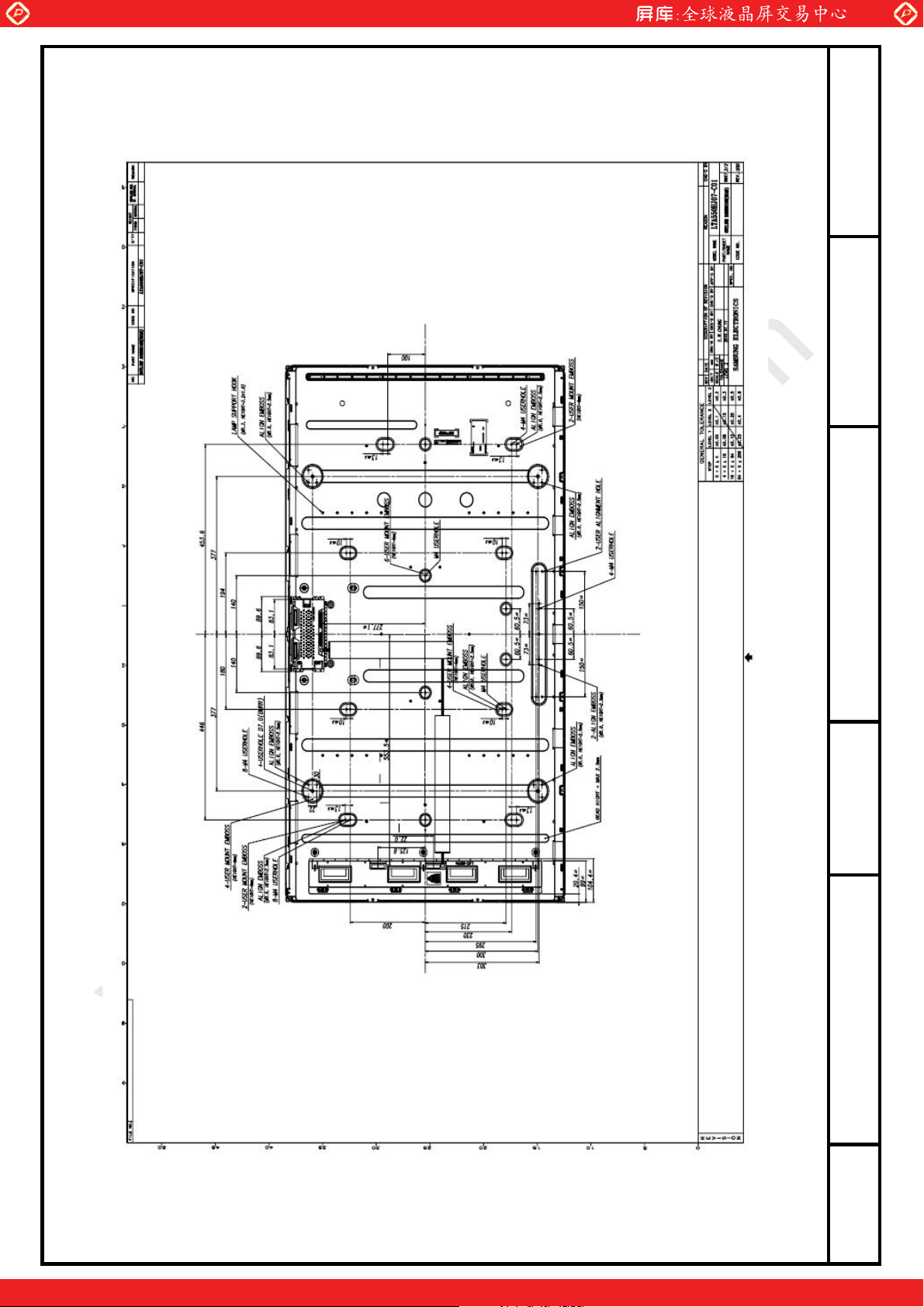

6. Outline Dimension -------------------------------------------------------------------------------------- (21)
7. Packing --------------------------------------------------------------------------------------------------- (24)

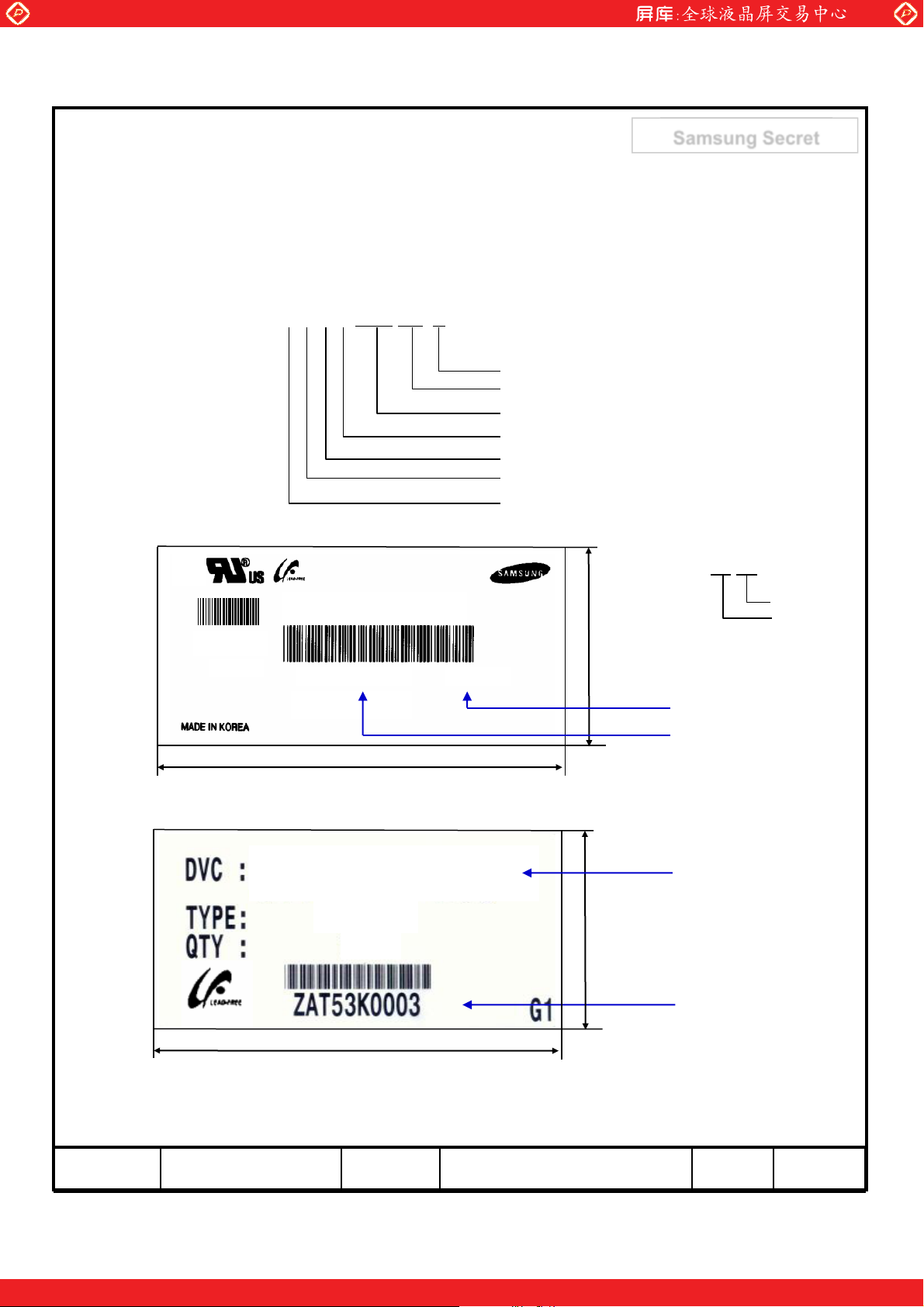

8. Marking & Others --------------------------------------------------------------------------------------- (25)
9. General Precaution ----------------------------------------------------------------------------------- (26)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Z
Revision History
Date Rev. No Page Summary
www.panelook.com
Samsung Secret
Sep. 09.
2010
000 all First issued
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
[
www.panelook.com
General Description
Samsung Secret
Description
LTI550HJ03 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 55.0“ is 1920 x 1080 and this model can
display up to 1.07 Billion colors with wide viewing angle of 89¶ or higher in all directions. This
panel is intended to support applications to provide a excellent performance for Flat Panel Display
such as Home-alone Multimedia TFT-LCD TV and High Definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (·178¶)
High speed response ( & Natural Motion (DFR: Double Frame Rate) )
FHD resolution (16:9)
Low Power consumption
Direct Type 16 CCFLs(Cold Cathode Fluorescent Lamp)
DE(Data Enable) mode
4ch LVDS (Low Voltage Differential Signaling) interface (4pixel/clock)
General Information
Items Specification Unit Note
Module Size
Weight 18,000 (Max) g
Pixel Pitch 0.630(H) x 0.630(W) mm
Active Display Area 1209.6(H) X 680.4(V) mm
Surface Treatment Antiglare, Hard-coating(3H)
Display Colors 1.07 Billion colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 450 (Typ.) cd/m
1,286 (H) X 745 (V)
62.5
mm
·1.0mm
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
\
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
Samsung Secret
Power Supply Voltage V
DD
GND-0.5 13.2 V
Dimming Control Max. Lum - 5 V
Storage temperature T
Operating temperature T
Surface temperature T
STG
OPR
SUR
-20 60
050
060
Shock ( non - operating ) X,Y,Z 30 G (4)
Vibration ( non - operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta 39 ¶C)
c. No condensation
(3) Although abnormal visual problems can be occurred in T
is not damaged in this range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
NOP
-1.5G(5)
range, the polarizer
SUR
(1)
(2)
(3)
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
]
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
(Ta = 25 · 2¶C, VDD=12V, fv= 120Hz, f
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
= 297.0MHz, Lamp current = 11.5mA)
DCLK
C/R 3,500 5,000 -
- 6 - msec
Y
L
Rx
Ry 0.326
Normal
qL,R =0
400 450 - cd/m
0.637
qU,D =0
Gx 0.287
Gy 0.607
Bx 0.150
Viewing
Angle
TYP.
-0.03
TYP.
+0.03
By 0.055
Samsung Secret
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
White
Wx 0.280
Wy 0.290
Color Gamut - - 72 - %
Color Temperature - - 10,000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R≥10
White Brightness
Uniformity
B
uni
--25%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
^
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
2ദ
1ദ
- Definition of test point
320 960 1600
Photo detector
Field
SR-3 : 50
RD-80S : 50
LCD Panel
The center of the screen
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
_
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
www.panelook.com
Samsung Secret
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
`
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) H-STRIPE - 1200 1500 mA
DD
I
DD
10.8 12.0 13.2 V (1)
- 700 1000 mA
Power Consumption (Control) Pc - 14.4 18 Watt
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
V
H
DCLK
RUSH
Note (1) The ripple voltage should be controlled under 10% of V
(2) fV=120Hz, fDCLK = 297.0MHz, V
DD
90 120.0 125 Hz
100 135.0 140 kHz
240 297.0 310 MHz
--7A(4)
.
DD
= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) H-STRIPE
(2),(3)(b) White - 700 1000 mA
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470༕
RUSH
Rush Current I
can be measured when T
RUSH
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
XW

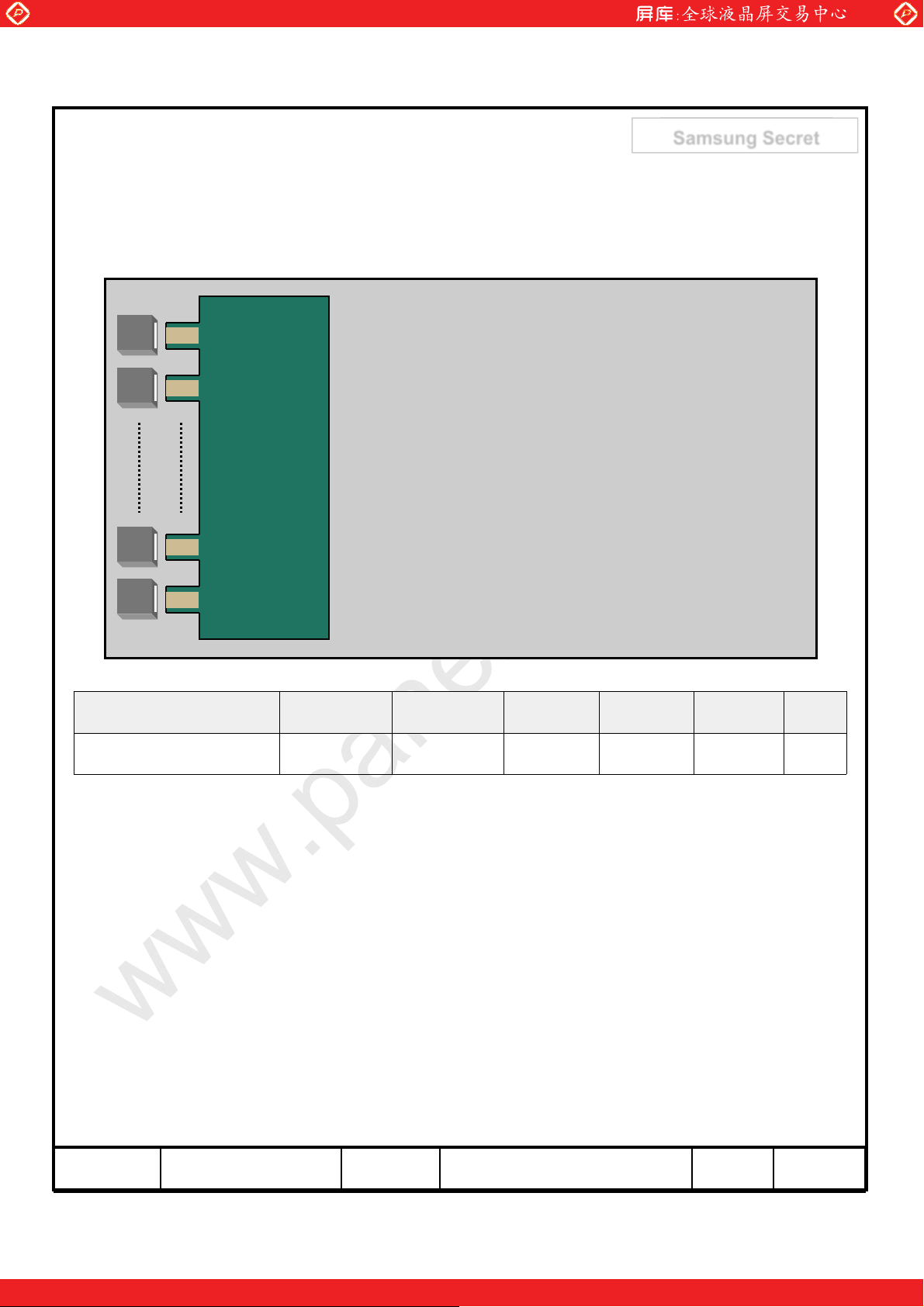

3.2 Back Light Unit
The back light unit contains 16 direct-lighting type CCFLs ( Cold Cathode Fluorescent
Lamp )
Socket
HOT 1
HOT 2
Inverter
www.panelook.com
Samsung Secret
Ta=25 · 2¶C
LCD
Module
HOT 15
HOT 16
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 50,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25·2, For single lamp only. ]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
XX
3.3 Inverter Input Condition & Specification
Items Symbol Conditions
www.panelook.com
Samsung Secret
Specifications
Unit Note
Min. Typ. Max.
Input
Voltage
Input
Current
Vin - 22 24 26 V
I
RUSH
Vin=24.0V
Vdim =3.3V
--
10.72
A
Ta= 25·YG¶j
OYP
(1)
Lamp
Current
Shut-down
Time
Backlight
On/Off
Dimming
Control
I
O,MAX
T
_SD
Vdim =3.3 V
Vin = 24V
Vdim =0~3.3V
ON Vin=24.0 V 2.4 - 5.25
OFF Vin=24.0 V 0 - 0.8
Max Lum 3.3 - -
V
DIM
Min. Lum - - 0
10.4 11 11.6
1.0 1.5 2.0
mArms
Sec -
V (2)
V (2)
PWM Duty Duty Vin=24.0 V 20 - 100 % (3)
Note) Power Consumption is measured when 450 [cd/m ] of luminance which is the typical
luminance.
Lamp Current is measured at the point before Lamp.
(1) Max Value of the Power Consumption is measured after 60 min warm-up.
(2) The ripple voltage should be controlled under 10% of Input Signal
- Additional Appendix for Supply Current & Power consumption
Items Symbol Conditions Min. Typ. Max. Unit
Iin _ overshoot
Input
Current
Iin _ saturation
Power
Consumption
(Back light)
* Initial turn-on time : From 0sec to 60min after turn-on
P _ overshoot
P _ saturation
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
- 8.3 8.85 A
- 8.06 8.59 A
- 199.2 212.4 Watt
- 193.4 206.2 Watt
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
XY
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1.1 Input Signal & Power Connector : FI-RE41S-HF (JAE/UJU)
Pin Description Pin Symbol Description
1 Vdd(12V) 21
2 Vdd(12V) 22 Rx1[4]N
3 Vdd(12V) 23 Rx1[4]P
4 Vdd(12V) 24 GND
5 Vdd(12V) 25 Rx3[0]N
6 No Connection 26 Rx3[0]P
7 GND 27 Rx3[1]N
8 GND 28 Rx3[1]P
9 GND 29 Rx3[2]N
10
Rx1[0]N 30 Rx3[2]P
ODD LVDS
SIGNAL
Rx1[3]P
11 Rx1[0]P 31 GND
12 Rx1[1]N 32 Rx3CLK-
13 Rx1[1]P 33 Rx3CLK+
14 Rx1[2]N 34 GND
15 Rx1[2]P 35 Rx3[3]N
16 GND 36 Rx3[3]P
17 Rx1CLK- 37 Rx3[4]N
18 Rx1CLK+ 38 Rx3[4]P
19 GND 39 GND
20 Rx1[3]N 40 No Connection
Note) No Connection: This PINS are only used for SAMSUNG internal using.
ODD LVDS
SIGNAL
41 No Connection
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
XZ
4.1.2 Input Signal & Power Connector : FI-RE51S-HF (JAE/UJU)
Pin Description Pin Description
www.panelook.com
Samsung Secret
1 Vdd(12V) 26
2 Vdd(12V) 27 Rx4[1]N
3 Vdd(12V) 28 Rx4[1]P
4 Vdd(12V) 29 Rx4[2]N
5 Vdd(12V) 30 Rx4[2]P
6 No Connection 31 GND
7 GND 32 Rx4CLK-
8 GND 33 Rx4CLK+
9 GND 34 GND
10
11 Rx2[0]P 36 Rx4[3]P
12 Rx2[1]N 37 Rx4[4]N
13 Rx2[1]P 38 Rx4[4]P
14 Rx2[2]N 39 GND
15 Rx2[2]P 40 No Connection
Rx2[0]N 35 Rx4[3]N
EVEN
LVDS
SIGNAL
Rx4[0]P
16 GND 41 No Connection
17 Rx2CLK- 42 No Connection
18 Rx2CLK+ 43 No Connection
19 GND 44 No Connection
20 Rx2[3]N 45 LVDS Option * Note(1)
21 Rx2[3]P 46 No Connection
22 Rx2[4]N 47 No Connection
23 Rx2[4]P 48 No Connection
24 GND 49 No Connection
25 Rx4[0]N 50 No Connection
NOTE) No connection : This Pins are only used for SAMSUNG internal using
EVEN
LVDS
SIGNAL
51 No Connection
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
X[
Note) Pin number starts from Right side
www.panelook.com
Samsung Secret
PCB
Pin No. 1 Pin No. 41
#1 #41
#1
#41
Pin No. 1 Pin No. 51
#1
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
Note(1) LVDS OPTION : If this PIN HIGH ( 3.3V ) → Normal LVDS format
LOW ( GND ) → JEIDA LVDS format
SEQUENCE : On = VDD(T1) → LVDS Option → Interface Signal(T2)
OFF = Interface Signal(T3) → LVDS Option → VDD
Vin
LVDS
Option
LVDS
Signal
T2
T3
LVDS Option Sequence
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
www.panelook.com
4.2. Inverter Input Pin Configuration
Pin Configuration(FUNCTION)
Pin No.
124 V
224 V
324 V
424 V
524 V
6GND
7GND
8GND
9GND
10 GND
11 Error Out
Samsung Secret
Connector : 20022WR-14B1 (Yeon-ho)
Master
12 Backlight On /Off
[ON:2.4 – 5.25 V, OFF: 0 - 0.8 V]
13 Dimming Control [0V:Min, 3.3V:Max]
14
NC
4.3. Inverter Input Power Sequence
0.9 Vin
Vin (24V)
Dimming Control
( 0 ~ 3.3 V )
0.5sec [Min]
Backlight On/Off
0.1 Vin
0.02sec [Min]
0sec [Min]
2.4V(On level)
0.8V(Off level)
0.1 sec [Min]
0.9 Vin
0.5sec [Min]
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
X]
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & Normal)
LVDS pin JEIDA -DATA Normal -DATA
TxIN/RxOUT0 R4 R0
TxIN/RxOUT1 R5 R1
TxIN/RxOUT2 R6 R2
TxOUT/RxIN0
TxIN/RxOUT3 R7 R3
TxIN/RxOUT4 R8 R4
TxIN/RxOUT6 R9 R5
TxIN/RxOUT7 G4 G0
TxIN/RxOUT8 G5 G1
TxIN/RxOUT9 G6 G2
TxIN/RxOUT12 G7 G3
TxOUT/RxIN1
TxIN/RxOUT13 G8 G4
TxIN/RxOUT14 G9 G5
TxIN/RxOUT15 B4 B0
TxIN/RxOUT18 B5 B1
Samsung Secret
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT19 B6 B2
TxIN/RxOUT20 B7 B3
TxIN/RxOUT21 B8 B4
TxIN/RxOUT22 B9 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R2 R6
TxIN/RxOUT5 R3 R7
TxIN/RxOUT10 G2 G6
TxIN/RxOUT11 G3 G7
TxIN/RxOUT16 B2 B6
TxIN/RxOUT17 B3 B7
TxIN/RxOUT23 RESERVED RESERVED
TxIN/RxOUT28 R0 R8
TxIN/RxOUT29 R1 R9
TxIN/RxOUT30 G0 G8
TxOUT/RxIN4
TxIN/RxOUT31 G1 G9
TxIN/RxOUT32 B0 B8
TxIN/RxOUT33 B1 B9
TxIN/RxOUT34 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
X^
www.panelook.com
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
Samsung Secret
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DATA SIGNAL
DISPLAY
(8bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
100000000000000000000000000000 R1
DARK
LIGHT
RED 111111111100000000000000000000R1023
010000000000000000000000000000 R2
↑
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
↓
101111111100000000000000000000R1021
011111111100000000000000000000R1022
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R1020
BLACK 000000000000000000000000000000 G0
000000000010000000000000000000 G1
GRAY
DARK
SCALE
OF
GREEN
LIGHT
GREEN 000000000011111111110000000000G1023
BLACK 000000000000000000000000000000 B0
DARK
GRAY
SCALE
OF
BLUE
LIGHT
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
000000000001000000000000000000 G2
↑
:::::: :::::::::: :::::::::: ::::
::::::: :: ::::::: :::::::::: ::::
↓
000000000010111111110000000000G1021
000000000001111111110000000000G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
↑
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
↓
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
G3~
G1020
B3~
B1020
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
X_
5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Samsung Secret
Clock
Hsync F
Frequency
1/T
Vsync F
C
H
V
240 297.0 310 MHz -
100 135.0 140 KHz -
90 120.0 125 Hz -
Active
- 1080 - Lines -
Vertical
Display
Period
T
VD
Display Term
Vertical
Total
T
V
1090 1125 1380 Lines -
Active
- 1920 - Clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
2092 2200 2350 clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 %
- Modulation Frequency : under 100KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Differential Input Voltage |V
=78MHz
F
IN
RSRM
t
RSLM
CM
| 200 350 600 mV -
ID
Note) When the skew is measured the Spread Spectrum should be 0%
- - 450 ps
-450 - - ps
0.3 - 1.8 V -
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
X`
www.panelook.com
5.2 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
DCLK
Samsung Secret
TVB
TC
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
TES
TCL
0.5
V
CC
0.5
V
CC
DE
0.5
V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
WU\G}
YW
www.panelook.com
5.3 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
0msec<T1≤10msec
0<T2≤50msec
0<T3≤50msec
1000msec≤T4
XWWW˺{\
OyG}P
XWW˺{]
OyG}P
T1 : VDDrising time from 10% to 90%
T2 : The time from V
T3 : The time from valid data off to V
T4 : V
off time for Windows restart
DD
to valid data at power ON.
DD
off at power Off.
DD
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
t s{p\\WoqWZ kU u WWWTnTXWW`W` w YX V Y^
Samsung Confidential
www.panelook.com
Front View)
(
TBD
Outline Dimension
7.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
t s{p\\WoqWZ kU u WWWTnTXWW`W` w YY V Y^
Samsung Confidential
www.panelook.com
Rear View)
(
TBD
Outline Dimension
7.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
YZ
7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing
-Pallet Box
www.panelook.com
Samsung Secret
Direction be able to open it
Cushion-Foam
LCD Module
Cushion-Foam
Pallet-Plastic
7.2 Packing Specification
Item Specification Remark
LCD Packing 9 ea / (Packing-
Pallet Box)
1. 162 kg / LCD (9ea)
2. 13.4 Kg / Cushion-pallet (2ea)
3. 10.5 Kg / Packing-Pallet Box (1ea)
4. Cushion-pallet Material : EPS
5. Packing-Pallet Box Material : DW4
Pallet 1Box / Pallet 1. Pallet weight = 10 kg
Packing Direction Vertical
Total Pallet Size H x V x height
Total Pallet
Weight
195.9 kg
1475mm(H) x 1150mm(V) x 995mm(height)
Pallet(10kg) + Module (162 kg) + Cushion
(up + bottom =13.4kg) + Pallet-BOX(10.5kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Y[
8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTI550HJ03
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
www.panelook.com
Samsung Secret
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
T
C
LTI550HJ03
0925
[[[[
(5) Packing box attach
[[[[[[[[[[ [[[
OWL883KM36
Week code : 09 25
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
[[[
<
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Y\
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFT back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of I/F connector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Y]
9.2 Storage
(a) Do not leave the Module in high temperature, and high humidity for a long time.
It is highly recommended to store the Module with temperature from 0 to 35
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD Module in direct sunlight.
(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light in storing.
9.3 Operation
www.panelook.com
Samsung Secret
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).
9.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
tvkls s{p\\WoqWZ kUGu WWWTnTXWW`W` w VGY^
Y^
www.panelook.com
9.5 Others
Samsung Secret
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
