Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X VGY^
www.panelook.com
Samsung Secret

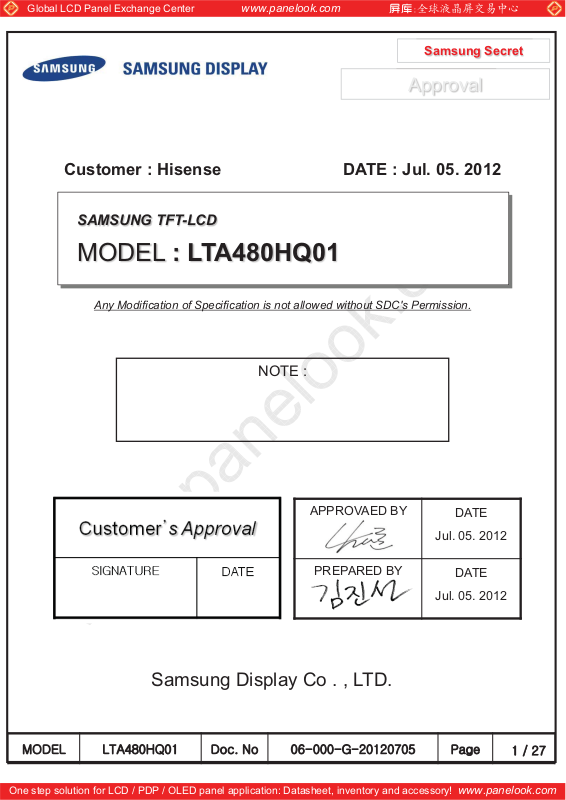

Approval
Customer : Hisense
SAMSUNG TFT-LCD
MODEL : LTA480HQ01
Any Modification of Specification is not allowed without SDC's Permission.
NOTE :
DATE : Jul. 05. 2012
APPROVAED BY
PREPARED BY
DATE
Jul. 05. 2012
DATE
Jul. 05. 2012
Samsung Display Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Y VGY^
www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 converter Input & Specification

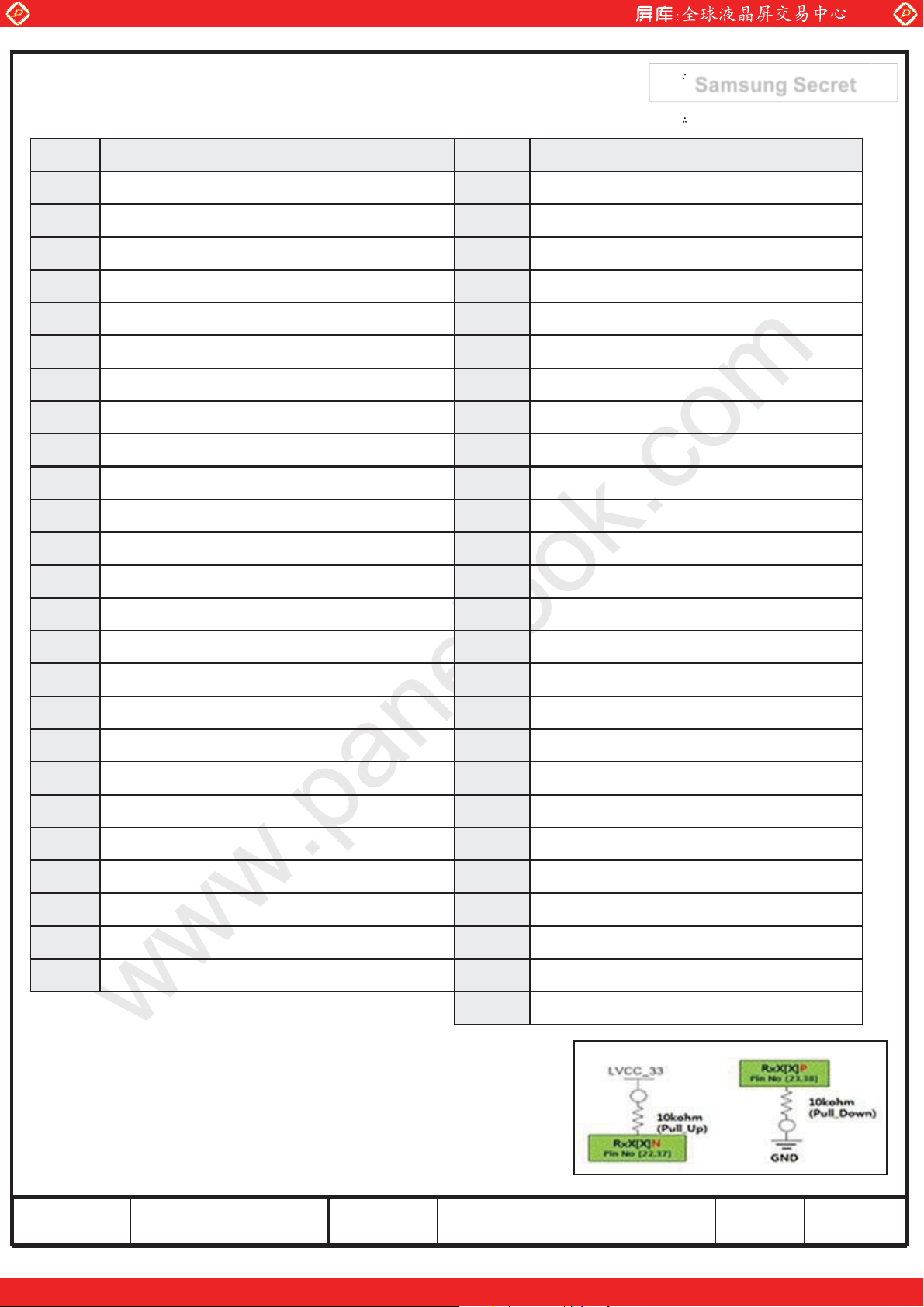

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (16)
5.1 Timing Parameters (DE only mode)
5.2 LVDS Input data Characteristics

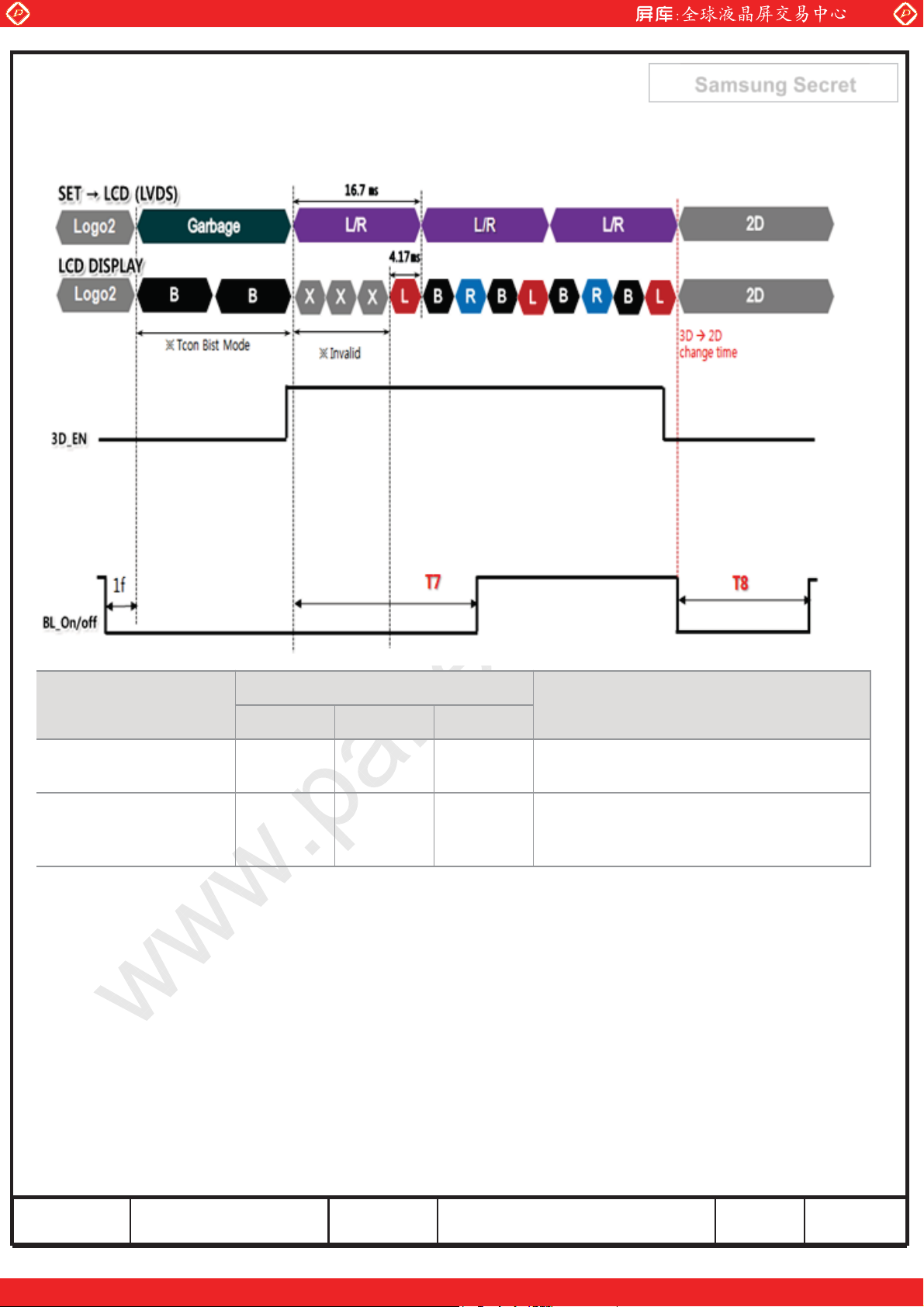

5.3 3D mode Sequence

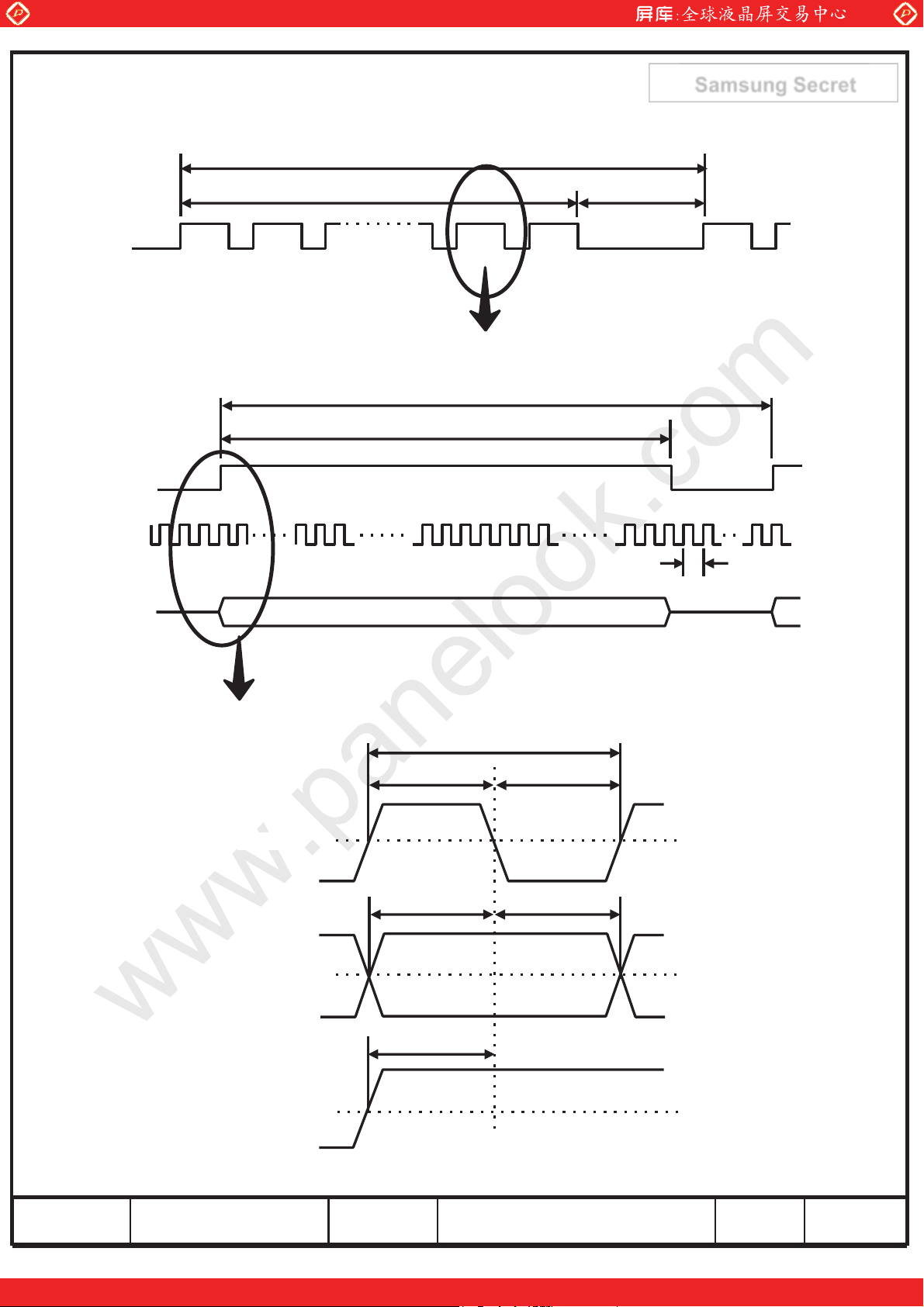

5.4 Timing Diagrams of interface Signal (DE only mode)

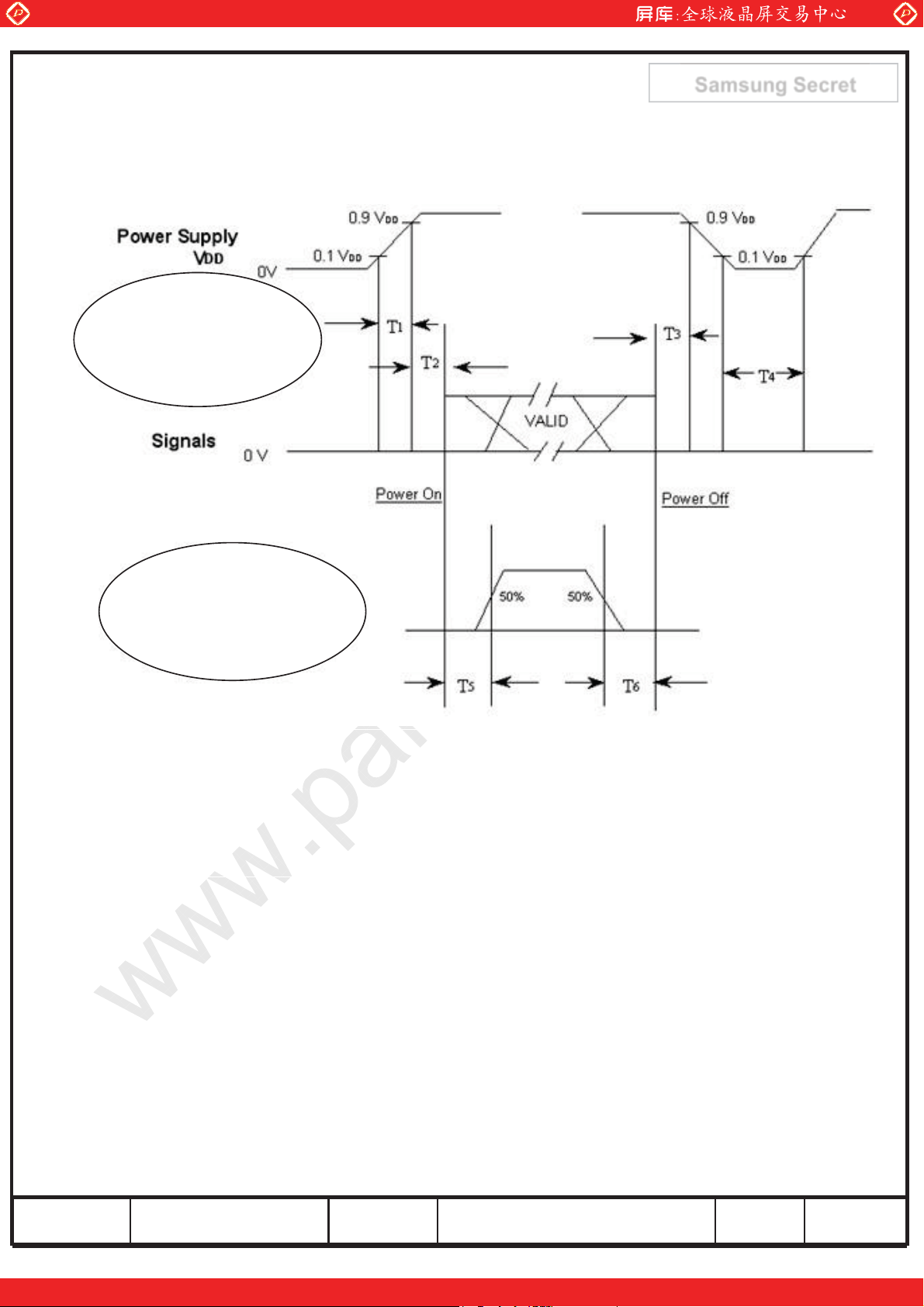

5.5 Power ON/OFF Sequence

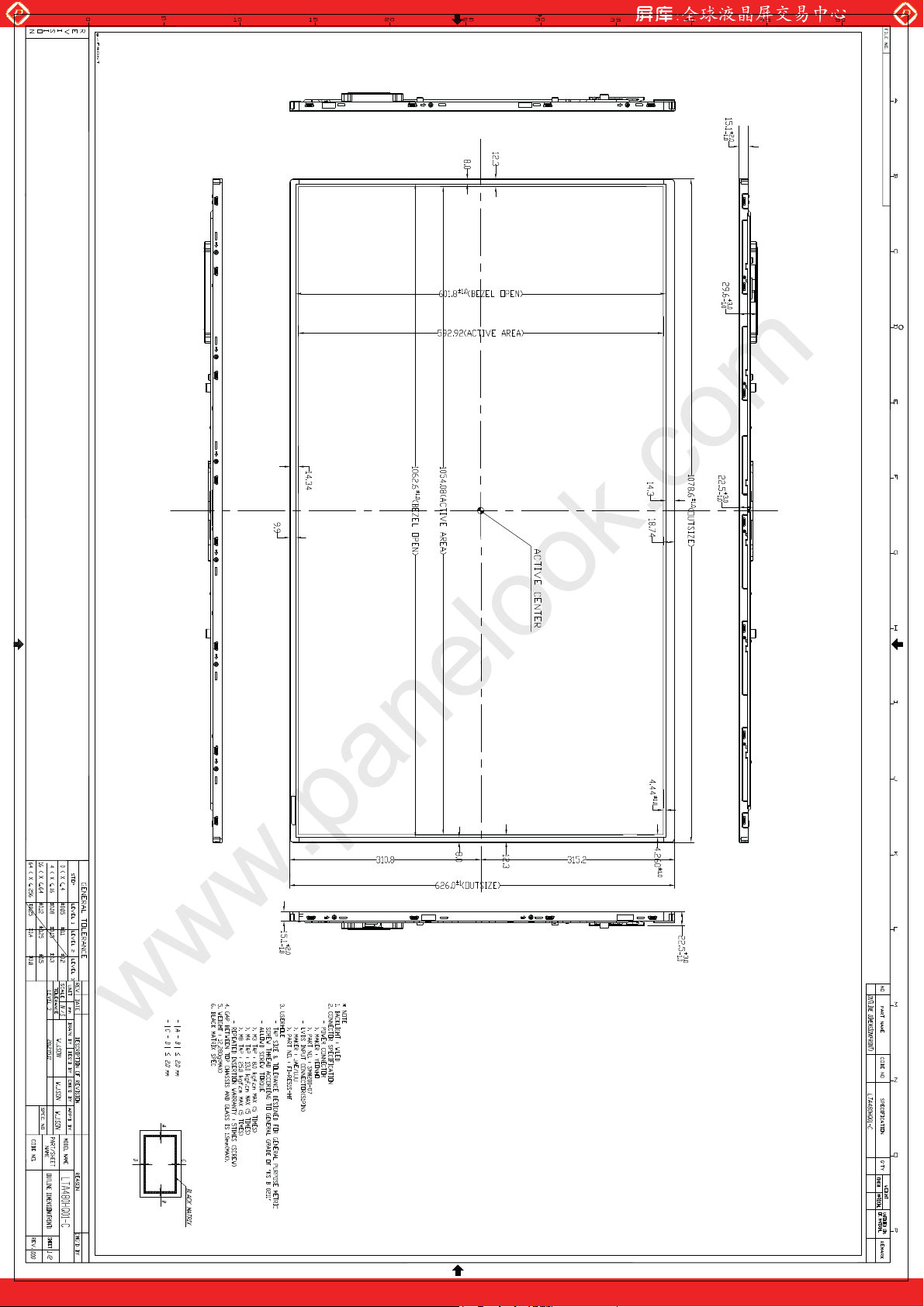

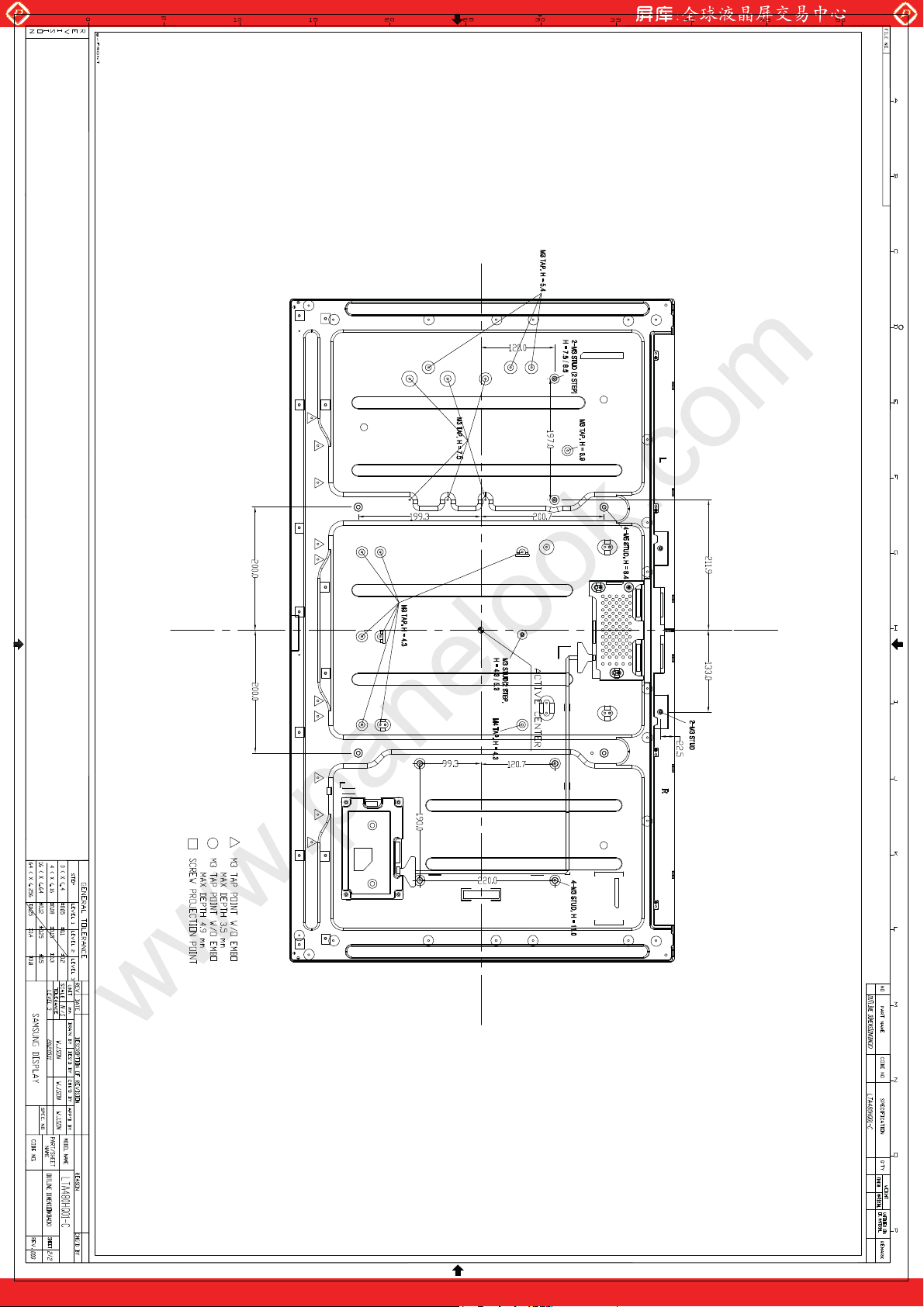

6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Reliability Test -------------------------------------------------------------------------------------------- (22)

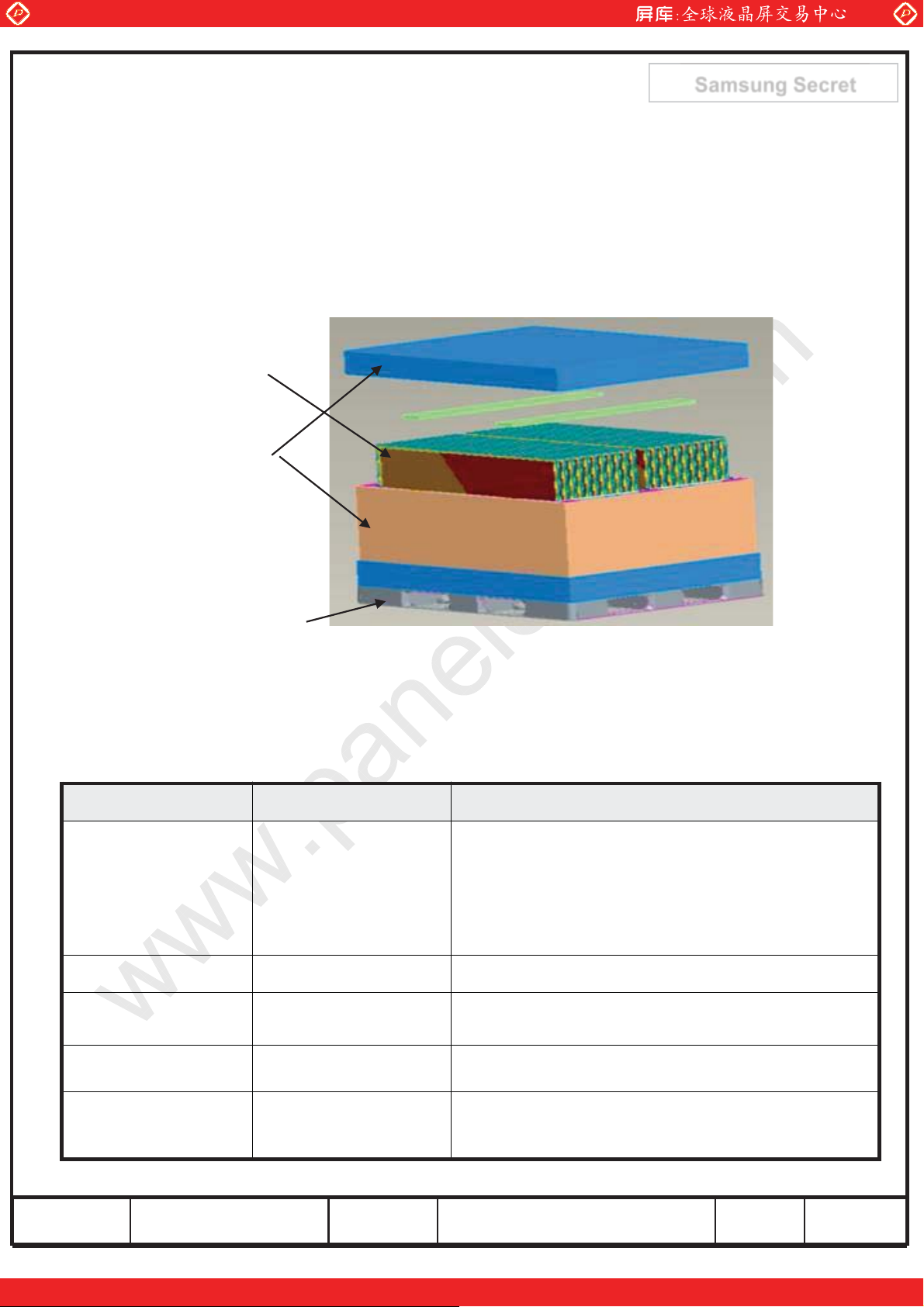

8. Packing --------------------------------------------------------------------------------------------------- (23)

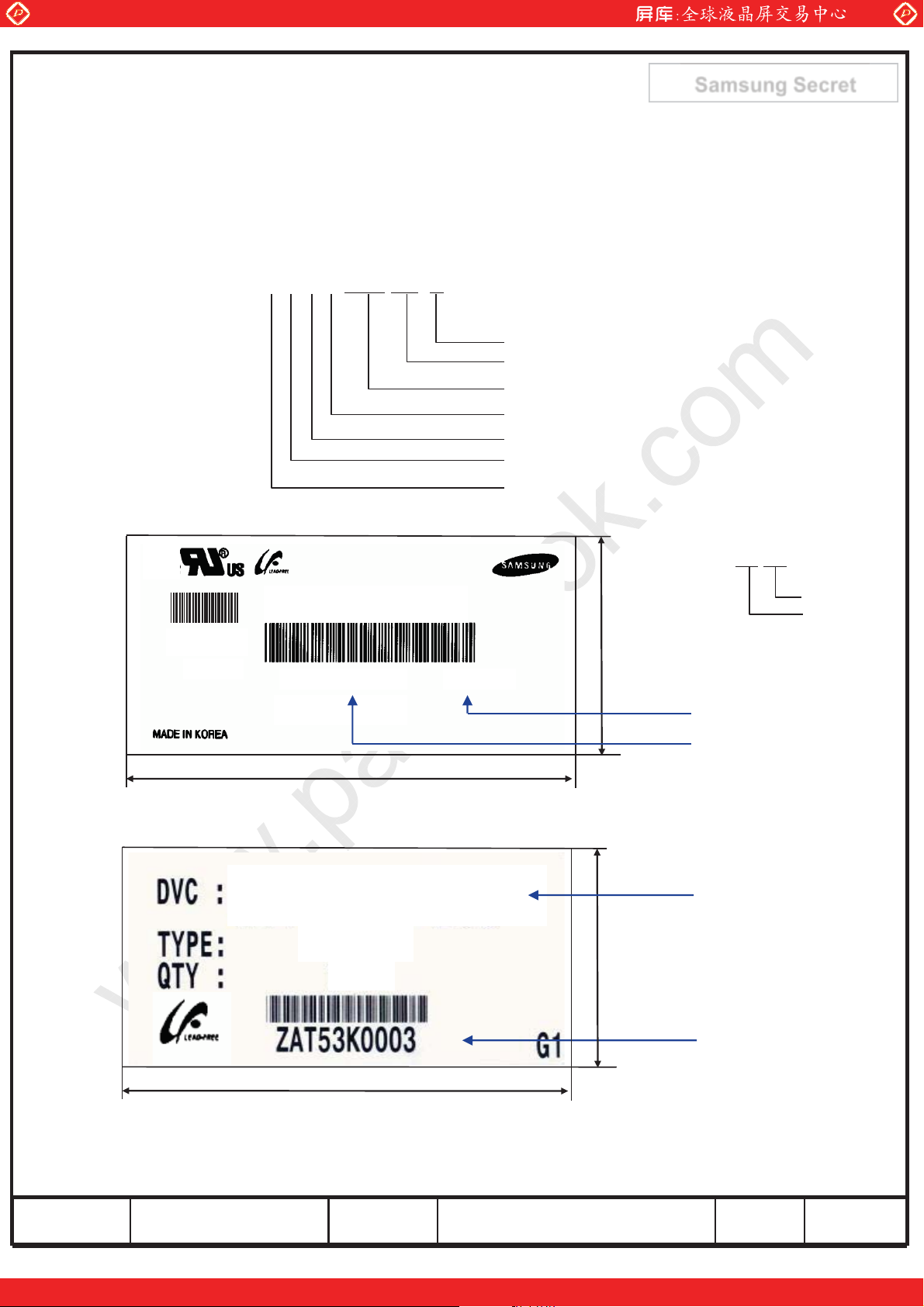

9. Marking & Others --------------------------------------------------------------------------------------- (24)
10. General Precaution ----------------------------------------------------------------------------------- (25)
10.1 Handling
10.2 Storage
10.3 Operation
10.4 Operation Condition Guide
10.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Z VGY^
Revision History
www.panelook.com
Samsung Secret
Date
Jul. 05.
2012
Rev.
No
000 all First issued
Page Summary
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
[ VGY^
www.panelook.com
General Description
Samsung Secret
Description
LTA480HQ01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 48.0“ is 1920 x 1080 and this model can
display up to 1.07 Billion colors with wide viewing angle of 89¶ or higher in all directions. This panel
is intended to support applications to provide a excellent performance for Flat Panel Display such
as Home-alone Multimedia TFT-LCD TV and High Definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SVA(Super Vertical Align) mode
Wide viewing angle (·178¶)
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
1078.6(H) x 626.0(V)
Module Size
32.6 (D) Max.
Weight 12280 g Max.
Pixel Pitch 0.5490(H) x 0.5490(W) mm
Active Display Area 1054.08(H) X 592.92(V) mm
Surface Treatment Antiglare
Display Colors 10 bit colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
·1.0mm
Mm
Luminance of White 400 (Typ.) cd/m
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
\ VGY^
www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Dimming Control Max. Lum - 5 V
Storage temperature T
Operating temperature T
Surface temperature T
Shock ( non - operating )
Vibration ( non - operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta 39 ¶C)
c. No condensation
(3) Although abnormal visual problems can be occurred in T
is not damaged in this range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
DD
GND-0.3 13.2 V
(1)
STG
-20 60
(2)
OPR
SUR
050
065
(3)
X,Y - 40
G (4)
Z30
NOP
- 1.5 G (5)
range, the polarizer
SUR
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
] VGY^
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
C/R 3000 4000 -
- 9 18 msec
Y
L
Rx
Ry 0.330
Normal
qL,R =0
350 400 - cd/m
0.650
qU,D =0
Gx 0.310
Gy 0.600
Bx 0.150
Viewing
Angle
TYP.
-0.03
TYP.
+0.03
By 0.060
Samsung Secret
= 148.5MHz)
DCLK
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
Wx 0.280
White
Wy 0.290
Color Gamut - - 70 - %
Color Temperature - 8000 10000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R≥10
White Brightness
Uniformity
B
uni
--25%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
^ VGY^
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
2ദ
1ദ
- Definition of test point
Photo detector
Field
SR-3 : 50
RD-80S : 50
LCD Panel
The center of the screen
960 1600
180
540
900
320
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
_ VGY^
www.panelook.com
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
` VGY^
48.0
60.0
62.5
60.0
67.5
70.0
130.0
148.5
152.5
-
-
4
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) Sub V-STRIPE - 1400 1800 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
RUSH
DD
I
DD
V
H
DCLK
10.8 12.0 13.2 V (1)
- 1100 1400 mA
Note (1) The ripple voltage should be controlled under 10% of V
(2) fV=60Hz, fDCLK = 148.5MHz, V
= 12.0V, DC Current.
DD
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Sub V-Stripe
DD
(2),(3)(b) White - 1100 1400 mA
Hz
kHz
MHz
A(4)
.
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
Rush Current I
T
can be measured when T
RUSH
RUSH
=470༕
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
XW VGY^
www.panelook.com

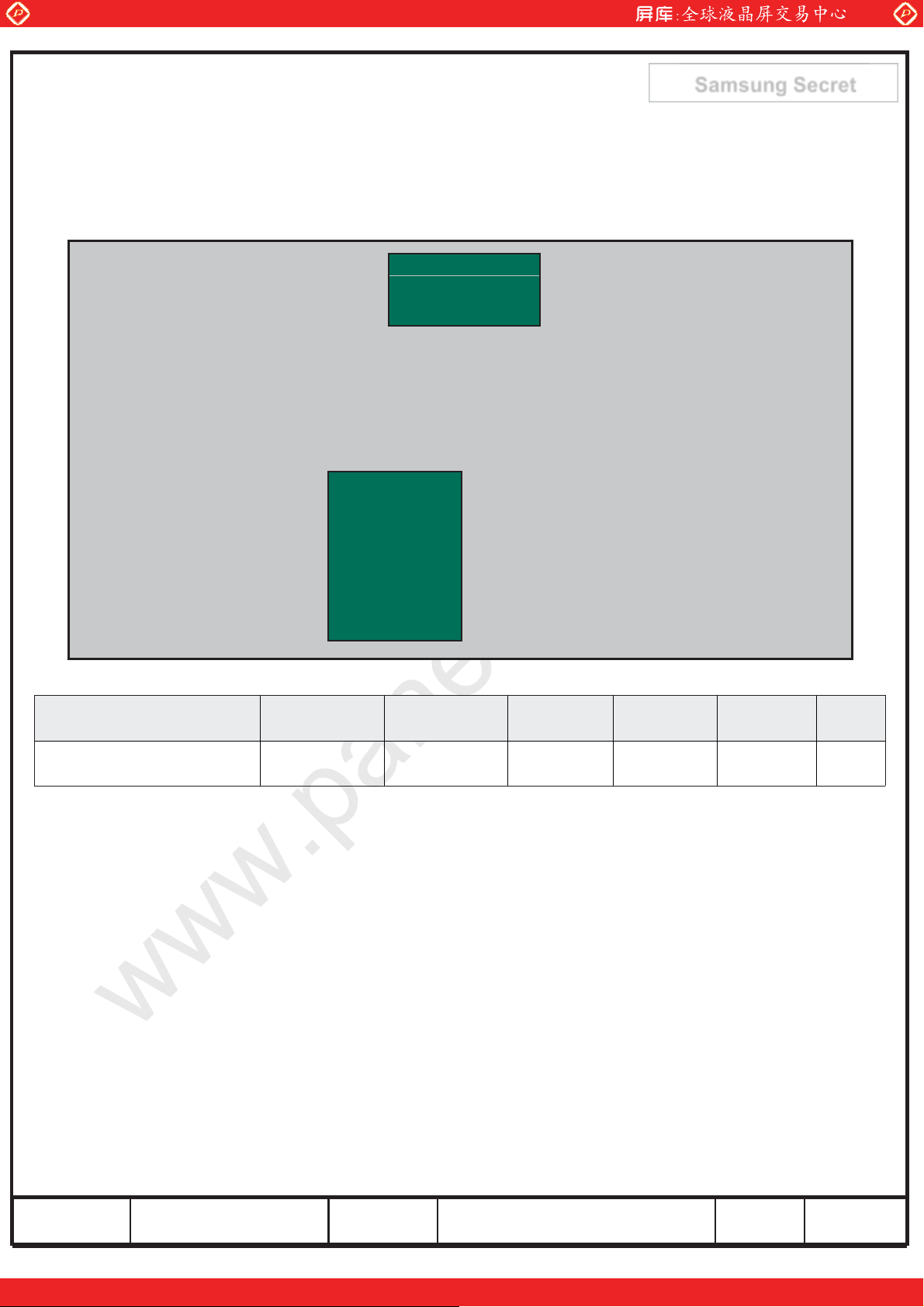

3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Control Board
LCD Module
Samsung Secret
Ta=25 · 2¶C
Converter
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 30,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25·2, For LED package only]
(2) The accelerate test Condition : 300mA, Tj: 110
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
XX VGY^
www.panelook.com

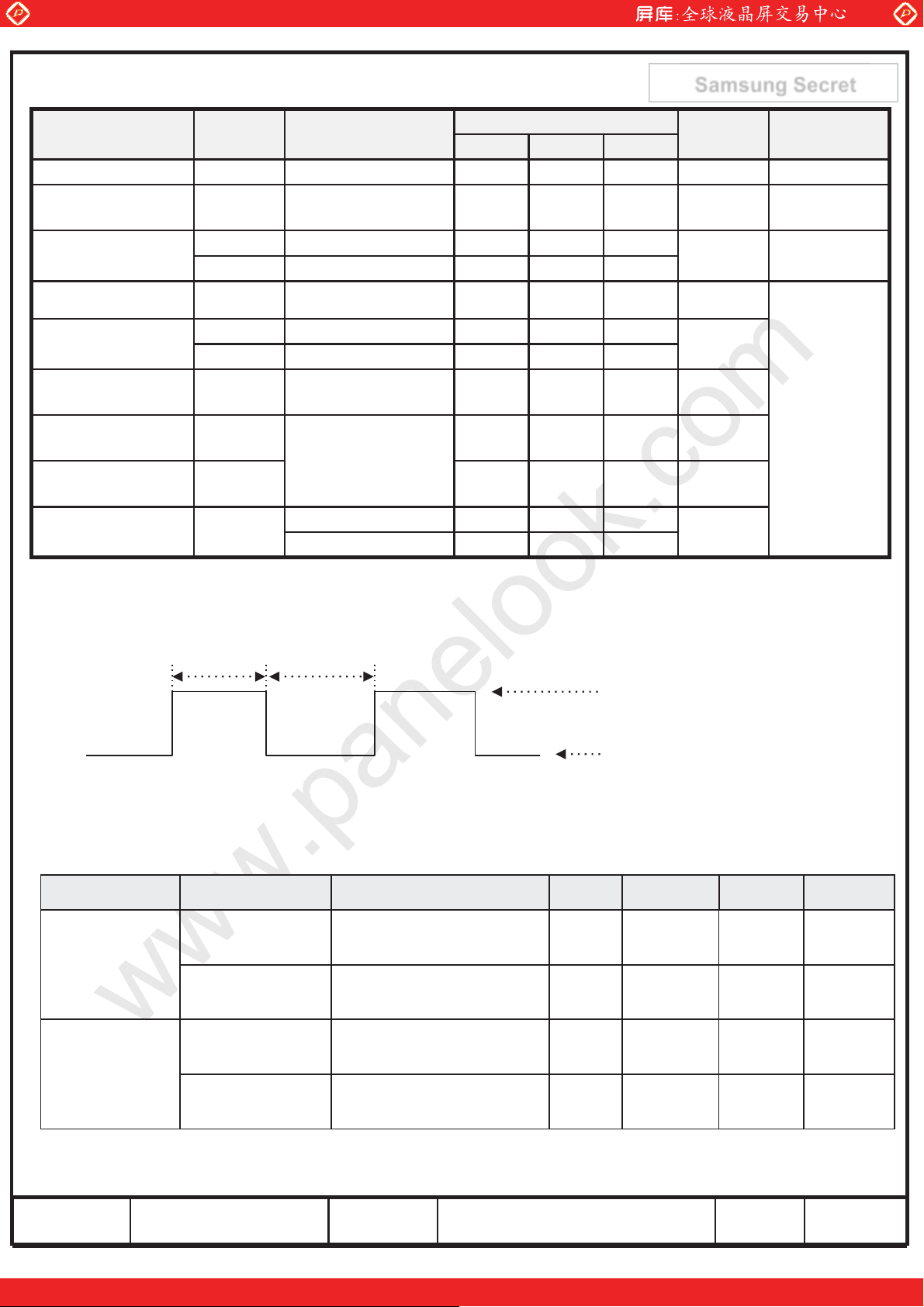

3.3 Converter Input Condition & Specification
Items Symbol Conditions
Input Voltage Vin - 22 24 26 V
Input Current I
Backlight
On/Off
Dimming Range V
Dimming Duty
Output
Dimming
Frequency
External Dimming
Duty Range
External Dimming
Frequency Range
External Dimming
Signal Level
RUSH
ON Vin=24.0 V 3.00 - 5.25
OFF Vin=24.0 V 0 - 0.4
_DIM
D max Vin=24V Dim:3.3V - - 100
D min Vin=24V Dim:0V 1 - -
F
PWM
EX_Dim
F
EX_PWM
V
PWM
Vin=24.0V
Vdim =3.3V
Vin :22~26V 0 - 3.3 V
Vin=24.0 V 140 150 160 Hz
Vin=22.0~26.0 V
Dim Pin(#13):floting
High (ON) 3.0 - 5.25
Low (Off) 0 - 0.4
Specifications
Min. Typ. Max.
- - 4.6 Adc Normal mode
1 - 100 %
- 145 - Hz
Samsung Secret
Unit Note
Ta=25·YG¶j
V
%
Note(2)
V
Note (1) All data is measured after 120min warm-up.
Note (2) V_Dim and Ex_Dim are available only at Normal 2D mode. (3D ENA = OFF)
Note (3) Duty = On / (On+Off) * 100
On Off
Max
Min
- Additional Appendix for Supply Current (Only for reference 2D mode)
Items Symbol Conditions Min. Typ. Max. Unit
Input
Current
Power
Iin _ overshoot
Iin _ saturation
P _ overshoot
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
-
-
-
3.4 3.5
3.3 3.4
81.6 84
Consumption
(Back light)
P _ saturation
Vin = 24V, Dim=3.3V
(After 1hr Aging)
-
79.2 81.6
A
A
Watt
Watt
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
XY VGY^
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1.1 Input Signal & Power
Pin Description Pin Description
1 NC 26 3D EN
2 NC 27 NC
3 NC 28 Rx2[0]N
4 NC 29 Rx2[0]P
5 3D_Sync_O 30 Rx2[1]N
6 GND 31 Rx2[1]P
7 GND 32 Rx2[2]N
8 NC 33 Rx2[2]P
9 NC 34 GND
10 NC 35 Rx2CLKN
11 GND 36 Rx2CLKP
12 Rx1[0]N 37 GND
13 Rx1[0]P 38 Rx2[3]N
14 Rx1[1]N 39 Rx2[3]P
15 Rx1[1]P 40 Rx2[4]N *
16 Rx1[2]N 41 Rx2[4]P *note (1)
17 Rx1[2]P 42 NC
18 GND 43 NC
19 Rx1CLKN 44 GND
20 Rx1CLKP 45 GND
21 GND 46 GND
22 Rx1[3]N 47 NC
23 Rx1[3]P 48 VCC
24 Rx1[4]N *
25 Rx1[4]P *
note (1) 49 VCC
note (1) 50 VCC
note (1)
51 VCC
Note(1) If 8bit of LVDS signal input from SET,
Keep [4]channel level ‘0’
Æ
Note(2) 3D format is set with interleave function only
Note(3) NC : No connection, Pins are used only for SDC.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
XZ VGY^
www.panelook.com
4.2. Converter Input Pin Configuration
Pin Configuration(FUNCTION)
Pin No.
Master
1 ~5 24 V
6~10 GND
11 Error Out
12 Backlight On /Off
13 Dimming Control [0V:Min, 3.3V:Max] *Note(1)
14 External PWM [1~100 %] *Note(1)
Note(1) If use Dimming Control, Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
[ON:3 – 5.25 V, OFF: 0 – 0.4 V]
Samsung Secret
Connector : Yeon-ho, 20022WR-14B1

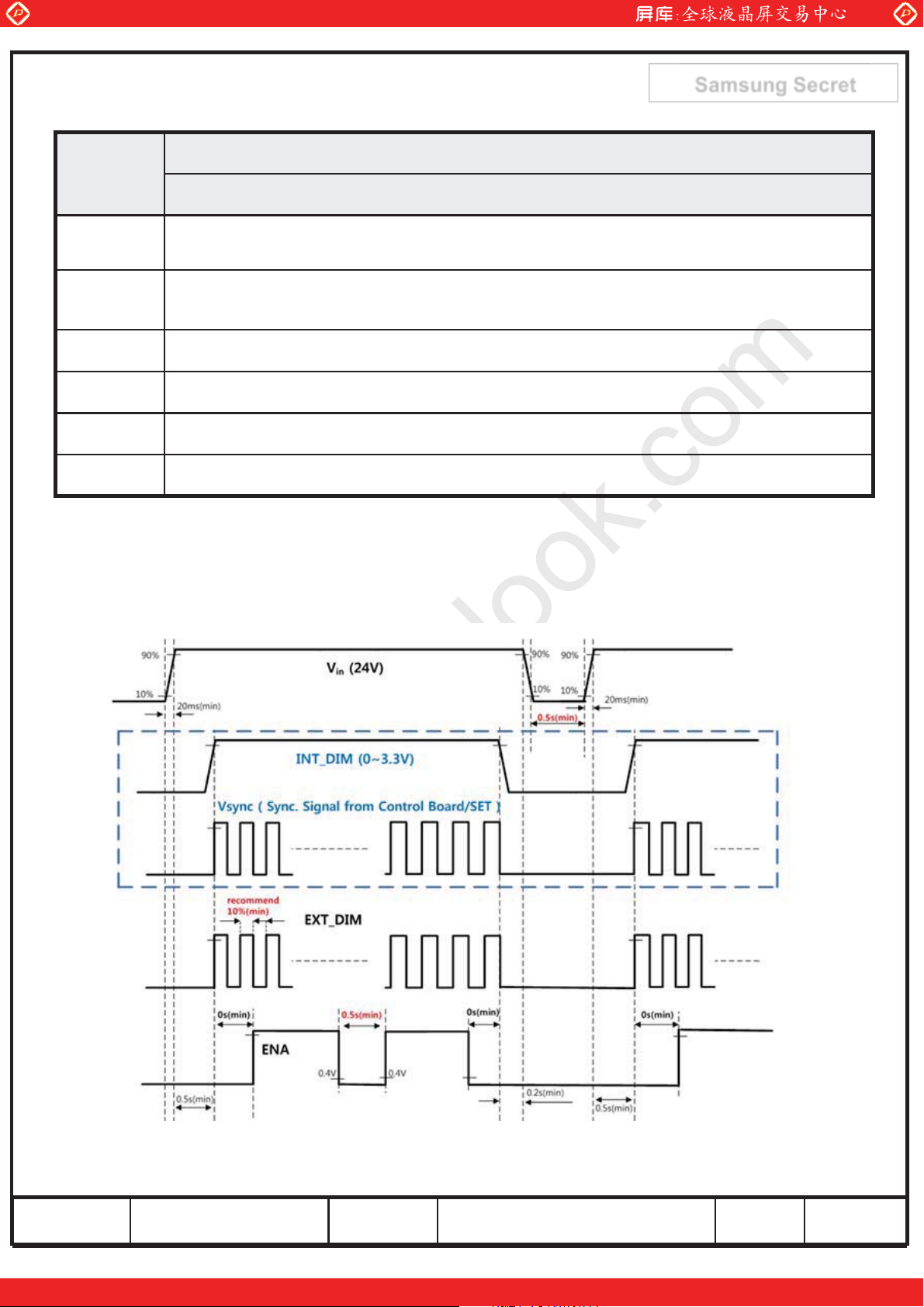

4.3. Converter Input Power Sequence
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X[ VGY^
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : T-con (merged)
- Data Format (JEIDA)
LVDS pin JEIDA -DATA
TxIN/RxOUT0 R4
TxIN/RxOUT1 R5
TxIN/RxOUT2 R6
TxOUT/RxIN0
TxIN/RxOUT3 R7
TxIN/RxOUT4 R8
TxIN/RxOUT6 R9
TxIN/RxOUT7 G4
TxIN/RxOUT8 G5
TxIN/RxOUT9 G6
TxIN/RxOUT12 G7
TxOUT/RxIN1
TxIN/RxOUT13 G8
TxIN/RxOUT14 G9
Samsung Secret
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT15 B4
TxIN/RxOUT18 B5
TxIN/RxOUT19 B6
TxIN/RxOUT20 B7
TxIN/RxOUT21 B8
TxIN/RxOUT22 B9
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R2
TxIN/RxOUT5 R3
TxIN/RxOUT10 G2
TxIN/RxOUT11 G3
TxIN/RxOUT16 B2
TxIN/RxOUT17 B3
TxIN/RxOUT23 RESERVED
TxIN/RxOUT28 R0
TxIN/RxOUT29 R1
TxIN/RxOUT30 G0
TxOUT/RxIN4
TxIN/RxOUT31 G1
TxIN/RxOUT32 B0
TxIN/RxOUT33 B1
TxIN/RxOUT34 RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X\ VGY^
www.panelook.com
Samsung Secret
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DATA SIGNAL
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
100000000000000000000000000000 R1
DARK
↑
↓
LIGHT
010000000000000000000000000000 R2
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
101111111100000000000000000000R1021
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R1020
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
011111111100000000000000000000R1022
RED 111111111100000000000000000000R1023
BLACK 000000000000000000000000000000 G0
000000000010000000000000000000 G1
DARK
↑
↓
LIGHT
GREEN 000000000011111111110000000000G1023
BLACK 000000000000000000000000000000 B0
DARK
↑
↓
LIGHT
000000000001000000000000000000 G2
:::::: :::::::::: :::::::::: ::::
::::::: ::::::::: :::::::::: ::::
000000000010111111110000000000G1021
000000000001111111110000000000G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
G3~
G1020
B3~
B1020
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X] VGY^
130
148.5
152.5
60
67.5
70
48
60
62.5
-
1080
-
1110
1125
1400
-
1920
-
2092
2200
2348
5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Samsung Secret
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
MHz -
KHz -
Hz -
Active
Lines -
Vertical
Display
Period
T
VD
Display Term
Vertical
Total
T
V
Lines -
Active
Clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 %
- Modulation Frequency : under 100KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Differential Input Voltage |V
=75MHz
F
IN
RSRM
t
RSLM
CM
| 100 - 600 mV -
ID
Note) When the skew is measured the Spread Spectrum should be 0%
- - 500 ps
-500 - - ps
0.3 - 1.8 V -
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X^ VGY^
www.panelook.com
5.3 3D mode Sequence
5.3.1 3D Sequence
Samsung Secret
Timing
T7
T8
Spec (ms)
Description
Min. Typ. Max
Backlight should be on CHVGTHTCOG
YJGP&UKIPCNKPRWVHTQO5'6
Backlight should be off after 7 frame
when 3D signal change to 2D signal
from SET
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X_ VGY^
www.panelook.com
5. 4 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
Samsung Secret
TVB
DCLK
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
TCL
TC
0.5
V
0.5
V
CC
CC
TES
DE
0.5
V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
X` VGY^
www.panelook.com
5.5 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
1ms<T1≤10ms
1<T2≤50ms
0<T3≤50ms
1000ms≤T4
1000ms≤T5
(Recommend Value)
100ms≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
YY VGY^
7. Reliability Test
Item Test condition Quantity
www.panelook.com
Samsung Secret
TSS
HTOL
LTOL
HTS
LTS
THB
TS
ESD
(non-operation)
ESD(operation)
POWER
ON/OFF
-20 ~ 65, 440cycle determination
60, 500hr determination
-5, 500hr determination
70, 500hr determination
-25, 500hr determination
50 / 90%RH, 500Hr determination
-20 0.5Hr Æ 60 0.5Hr, 100cycle determination
Converter input connector : ᇹ15 kV, 150Ꮔ/330 Ω, 3times/pin
LED input connector : ᇹ4 kV, 150Ꮔ/330 Ω, 3times/pin
contact : ᇹ10 kV, 150Ꮔ/330Ω, 210 Point, 1 time/Point
air : ᇹ 20kV, 150Ꮔ/330Ω, 210 Point, 1 time/Point
-5/60, 3sec (on) / 2sec(off), 1000 times
4EA
4EA
4EA
4EA
4EA
4EA
4EA
3EA
3EA
4EA
Vibration
Shock
Acoustic Noise
Temperature
Humidity Stress
PALLET
Vibration
PALLET Drop 20cm, 2Edge 1PALLET
Complex
[ Result Evaluation Criteria]
Under the display quality test conditions with normal operation state, these should
be no change which may affect practical display functions.
10 ~ 300Hz : 1.5G/10minSR, XYZ, 30min/axis
[ 30~ 50Hz : 3G/10minSR, XYZ, 30min/axis ]
11msec (ᇹXY 40G, ᇹZ:30G)
Electromagnetic noise : below 24dB
Expansion/ Contraction noise by Heat : Max 50dB ( Do not
exceed 36dB more than 10times)
-20 ~ 65, 0 ~ 90%RH, 2cycle
5~200Hz , 1.05Grms, Random 2Hr / Y 1PALLET
WHTS : Pallet Vibration/ Drop Æ WHTS Æ THB 48Hr
HTS, LTS : Pallet Vibration/ Drop Æ HTS, LTS Æ HTOL 48Hr
3EA
3EA
2EA
4EA
WHTS 10EA
HTS 4EA
LTS 4EA
* HTOL/ LTOL : High/Low Temperature Operating Life
** THB : Temperature Humidity Bias
*** HTS/LTS : High/Low Temperature Storage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
YZ VGY^
1.
2.
3.
ࣿࣜ
ࣜࣾ
ࣜ
8. PACKING
8.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and EPS cushion as shock absorber
(2) Packing Method
www.panelook.com
Samsung Secret
8.2 Packing Specification
Item Specification Remark
268.4 Kg/ LCD (22ea)
LCD Packing
Pallet 1Box / Pallet 7.8 Kg
Packing Direction Vertical
Total Pallet Size H x V x height 1270 (H) x 1150 (V) x 807 (height)
22ea/ Box
25.5 Kg / Packing Set
Packing Material : Paper
Total Pallet
Weight
303.02 kg
Module (268.4kg) + pallet (7.8kg) + packing
set (25.5kg) + desiccant (1.32kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Y[ VGY^
www.panelook.com
Samsung Secret
9. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA480HQ01
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
T
C
LTA480HQ01
0925
[[[[
(5) Packing box attach
[[[[[[[[[[ [[[
OWD7;3KT34
Week code : 09 25
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
[[[
55
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Y\ VGY^
www.panelook.com
10. General Precautions
Samsung Secret
10.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the converter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of converter & LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of I/F connector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Y] VGY^
UNIT
(
5
(%rH)
- The storage room should provide good ventilation and
temperature control.
- Products should not be placed on the floor, but on the
Pallet away from
-
water; Be cautious of a build up of condensation.
-
goods.
- If products delivered or kept in conditions of over the
storage period of 3months, the recommended
temperature or humidity range,
leave them at a temperature of 20
of
50% for 24 hours.
10.2 Storage
www.panelook.com
Samsung Secret
ITEM
Storage Temperature
Storage Humidity
)
Min. Max.
35 75
Storage Life 12 months
a wall.
Prevent products from direct sunlight, moisture nor
Storage Condition
Avoid other hazardous environment while storing
40
we recommend you
and a humidity
10.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its converter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the converter may cause lower luminance of LED package and
may require higher startup voltage(Vs).
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{h[_WoxWX kUGu W]TWWWTnTYWXYW^W\ w
Y^ VGY^
www.panelook.com
Samsung Secret
10.4 Operation Condition Guide
(a
) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SDC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
10.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SDC in advance when you display the same pattern for a long time.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
