SAMSUNG TFT-LCD
MODEL NO.:LTA460W2-L01
www.panelook.com
Product Information
Note :
Any Modification of Spec is not allowed without SEC's permission.
Senior Engineer :
PREPARED BY :
AMLCD TECHNICAL CUSTOMER SERVICE TEAM
Samsung Electronics Co . , LTD.
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
/30
www.panelook.com
Page 2
Global LCD Panel Exchange Center
Contents
Revision History -------------------------- (3)
General Description -------------------------- (4)
1. Absolute Maximum Ratings -------------------------- (5)
1.1 Absolute Ratings Of Environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------------- (7)
3. Electrical Characteristics -------------------------- (11)
3.1 TFT LCD Module
www.panelook.com
Product Information
3.2 Back-light Unit
4. Block Diagram -------------------------- (14)
4.1 TFT LCD Module
4.2 Back-light Unit
5. Input Terminal Pin Assignment -------------------------- (15)
5.1 Input Signal & Power
5.2 Inverter Control Connector
5.3 Inverter Specification & Inverter input Power Sequence
5.4 LVDS Interface
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing -------------------------- (19)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
7. Outline Dimension -------------------------- (22)
8. Packing --------------------------- (24)
9. Marking & Others --------------------------- (25)
10. General Precautions --------------------------- (27)
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
/30
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Information
Revision History
No Date page Before Change After Change Remark
0.0 2004.12.1 All First issued
4 Haze 44% Haze 41%
0.1 2005.3.02
Response Time Tr 3.5(typ.) 10(max.)
7
Tf 4.5(typ.) 10(max.)
Response Time Tr 8(typ.) 13(max.)
Tf 6(typ.) 7(max.)
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
/30
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Information
General Description
* Description
LTA460W2-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFTs as a switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a back-light system. The resolution of a 46.0" contains
1366 x 768 pixels and can display up to 16.7 million colors with wide viewing angle of 85° or
higher in all directions.
* Features
- High contrast ratio, high aperture structure
- PVA(
- Wide viewing angle(±170°)
- High speed response
- WXGA(1,366 x 768 pixels) resolution (16:9)
- Low Power consumption
- Direct Type 24 CCFT( Cold Cathode Fluorescent Tube)
- DE only mode
- 1Channel LVDS(Low-Voltage Differential Signal) interface.(1 pixel/clock)
* Applications
Patterned Vertical Align
) mode
Public Display
Home-alone Multimedia TFT-LCD TV
Display terminals for AV application products
High Definition TV Ready(HD TV Ready)
* General information
Items
Display area 1018.353(H) x 572.544(V) mm
Driver element a-Si TFT Active matrix
Display colors 16.7M(true) colors
Number of pixels 1,366 x 768 pixel 16:9
Pixel arrangement RGB Vertical Stripe
Pixel pitch 0.2485(H)
Display mode Normally Black
Surface treatment
Haze 41% , Hard-Coating (3H) Anti-Glare
Specification Unit Note
൴
0.7455(W) mm
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
/30
www.panelook.com
Page 5
Global LCD Panel Exchange Center
* Mechanical information (Panel Module Only)
Item Min. Typ. Max. Note
www.panelook.com
Product Information
Module
Horizontal(H) 1082.0 1083.0 1084.0 mm
size
Vertical(V) 626.0 627.0 628.0 mm
Depth(D) 55.5 56.5 57.5 mm
Weight 12,000 13,500 15,000 g
1. Absolute Maximum Ratings
1.1 Absolute ratings of environment
Item Symbol Min. Max. Unit Note
Storage temperature
T
STG
-20 65
Operating temperature
T
OPR
0 50
(Ambient temperature)
x,y axis - 50 G
Shock ( non - operating ) Snop
z axis - 35 G
Vibration ( Non - operating ) Vnop - 1.5 G (3),(4)
(1)
(1)
(2),(4)
Note (1) Temperature and relative humidity range are shown in the figure below.
93.8% RH Max. ( 40 °CtTa )
Maximum wet-bulb temperature at 39 ° C or less. (Ta > 40 ° C) No condensation.
(2) 11ms, sine wave, 1 time for ±X, ±Y, ±Z axis
(3) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(4) At testing Vibration and Shock, the fixture in holding the Module to be tested have
to be hard and rigid enough so that the Module would not be twisted or bent by the
fixture.
100
-40 -20 0 20 40 60
Relative Humidity ( %RH)
90
80
60
40
20
Operating Range
Storage Range
5
0
Temperature (
O
C)
80
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
/30
www.panelook.com
Page 6
Global LCD Panel Exchange Center
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD Module (Vss = GND = 0 V)
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD Vss-0.5 5.5 V (1)
NOTE (1) Within Ta ( 25 ± 2 °C)
www.panelook.com
Product Information
(2) BACK-LIGHT UNIT
Ta = 25 ± 2° C)
(
Item Symbol Min. Max. Unit. Note
Lamp Current I
Lamp Frequency F
L
L
(4.0) (7.0) mArms (1),(2)
(40) (80) kHz (1)
NOTE (1) Permanent damage to the device may occur if maximum values are exceeded.
Functional operation should be restricted to the conditions described under
Normal Operating Conditions.
(2) Specified values are for a single lamp.
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
/30
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Information
2. Optical Characteristics
The following items are measured under stable conditions. The optical characteristics should be
measured in a dark room or equivalent state with the methods shown in Note (1).
Measuring equipment : TOPCON BM-5A , BM-7, PHOTO RESEARCH PR650
◆
EZ-Contrast (Eldim)
* Ta = 25±2°C, VDD=5V, fv=60Hz, f
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Rising Tr - 8 13
Falling Tf - 6 7
Luminance of White
(Center of screen)
Red
Color
Green
Chromaticity
(CIE 1931)
Blue
White
=80MHz, IL=(6.0)mA
DCLK
C/R
600 800 -
Normal
Y
Rx
L
I
T
=0
=0
400 500 - cd/m2
(0.648)
Ry (0.333)
Gx (0.271)
Gy (0.592)
Bx (0.141)
Viewing
Angle
TYP.
-0.03
By (0.066)
Wx 0.280
Wy 0.290
rms,
TYP.
+0.03
1 By 1 Reversal Operation
(3)
BM-5A
(4)
msec
BM-7
(5)
BM-5A
(6)
PR650
Color
Temp.:
10000°K
Lamp Temperature - 10,000 - K
75 85 -
75 85 -
Degrees
75 85 -
75 85 -
Viewing
Angle
Hor.
Ver.
L
T
R
T
H
I
L
I
C/Rt10:1
Brightness Uniformity
Buni - - 25 %
(9 points)
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
(7)
BM-5A
(2),(8)
BM-5A
7
/30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note 1) Test Equipment Setup
After stabilizing and leaving the panel alone at a given temperature for 30 min ,the
measurement should be executed. Measurement should be executed in a stable, windless, and
dark room 30 min after lighting the back-light. This should be measured in the center of
screen.
A single lamp current : (6.0) mA
Environment condition : Ta = 25 ± 2 °C
Photodetector
www.panelook.com
Product Information
Photodetector
BM-5A 2
BM-7 2
PR650 1
TFT - LCD Module
Note 2)
Definition of test point
Field
°
°
°
Field
The center of the screen
Optical Measuring Equipment Setup
BM-5A : 4 0
BM-7 : 5 0
PR650 : 5 0
50cm
50cm
50cm
LCD Panel
㎝
㎝
㎝
(228)
(683)
⑨⑧⑦
⑥
③
⑤
②
(1138)
④
①
(128)
(384)
(640)
Active Area
Test Point
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
/30
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Information
Note 3) Definition of Contrast Ratio (C/R) : Ratio of gray max (Gmax) & gray min (Gmin)
at the center point(5) of the panel
G
CR
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Note 4) Definition of Response time : Sum of Tr ,Tf
max
G
min
Display data
Optical
Response
100%
90%
10%
0%
Black(TFT OFF)
TR
White(TFT ON)
Black(TFT OFF)
TF
Time
Note 5) Definition of Luminance of White : Luminance of white at center point(5).
Note 6) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red , Green , Blue & White at center point(5).
Note 7) Definition of Viewing Angle : Viewing angle range (CR
Normal Line
I = 0
o
,
T = 0
o
10 )
T L
T R
T
=90
L
6 O’clock
direction
= 90
L
o
I
o
x
I L
I H
y
12 O’clock
direction
I
= 90
H
x’ y’
T
=90
R
o
o
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
/30
www.panelook.com
Page 10
Global LCD Panel Exchange Center
Note 8) Definition of 5 points brightness uniformity
www.panelook.com
Product Information
BB
Buni
Bmax : Maximum brightness
Bmin : Minimum brightness
( max min)
100
B
max
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
/30
www.panelook.com
Page 11
Global LCD Panel Exchange Center
3. Electrical Characteristics
3.1 TFT LCD MODULE
www.panelook.com
Product Information
Item
Voltage of Power Supply
(a)Black
Symbol Min. Typ. Max. Unit Note
Module V
DD
4.5 5.0 5.5 V (1)
- 1500 - mA (2),(3)
Current of
Power
Supply
(b)Mosaic - 1700 - mA
I
DD
(d)N-Pattern - 2000 2300 mA
(Without
Inverter)
1by1 Driving
Vsync Frequency
Hsync Frequency
Main Frequency
Rush Current
f
f
f
DCLK
I
RUSH
V
H
- 60 - Hz
46.3 50.18 - kHz
65 80 90 MHz

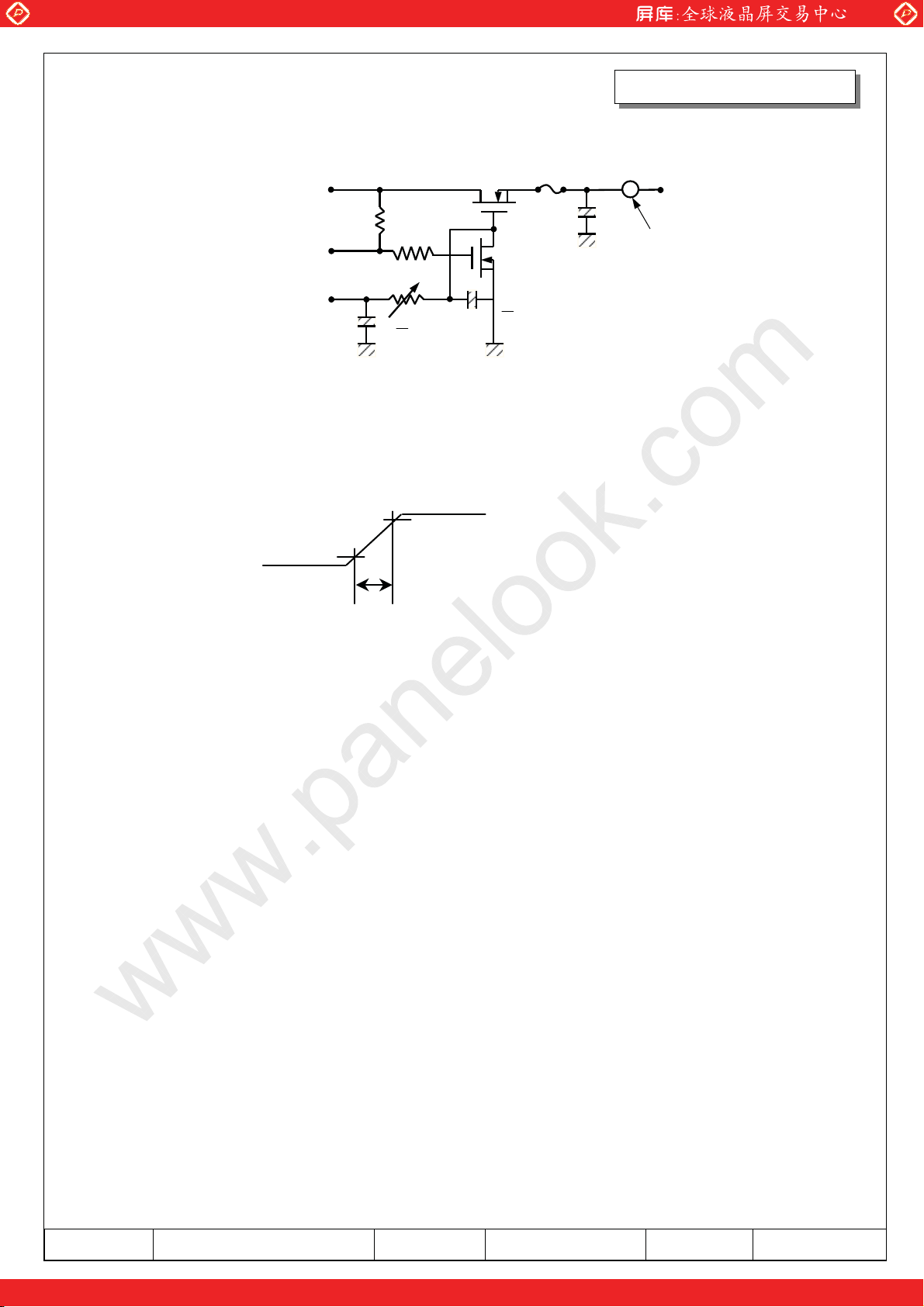

- (4.5) (6) A (4)
Note (1) Voltage of Power Supply is the value which is measured at the input connector of
panel.
(2) f
=60Hz, f
V
=80MHz, VDD= 5.0V, DC Current.
DCLK

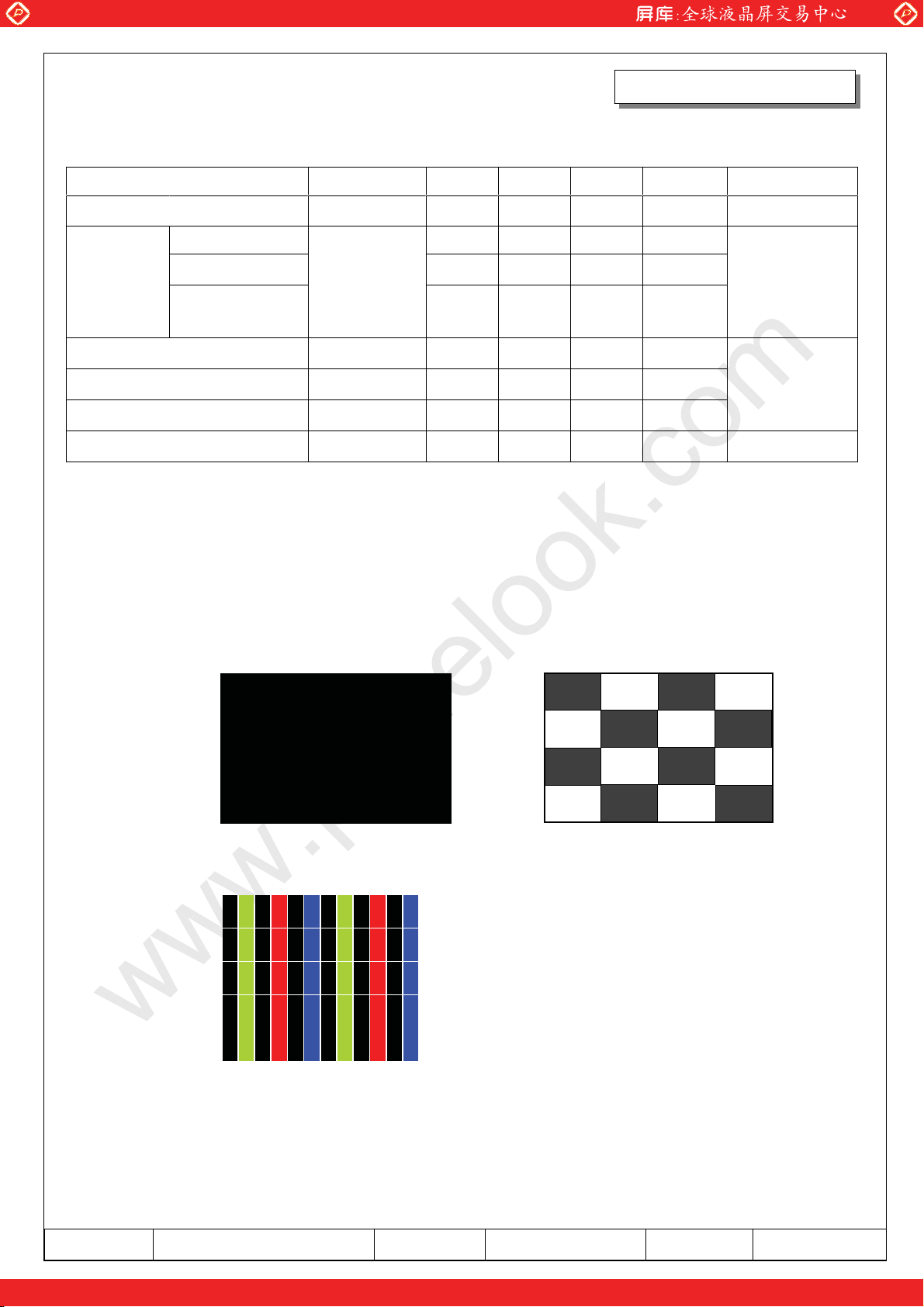

(3) Power dissipation check pattern(LCD Module only)
(a) Black
(c) N-pattern
Pattern
(b) Mosaic
Pattern
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
/30
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Information
(4) Measurement Conditions (5V Operation, R
INPUT
POWER(5V)
㏀
47
㏀
47
1
㏀
R
CONTROL
SIGNAL
(High to
Low)
12V
㎌
1
Note : Control Signal : High(+5V) -->Low(Ground)
All Signal lines to panel except for power 5V : Ground
The rising time of supplied voltage is controlled to 470us by R and C value.
0.9 VDD
GND
0.1 VDD
ising time =470㎲)
2SK1059
㎌
1
2SK1339
C
㎌
0.01
5V
A
V
DD
Rising Time
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
/30
www.panelook.com
Page 13
Global LCD Panel Exchange Center
3.2 BACK-LIGHT UNIT

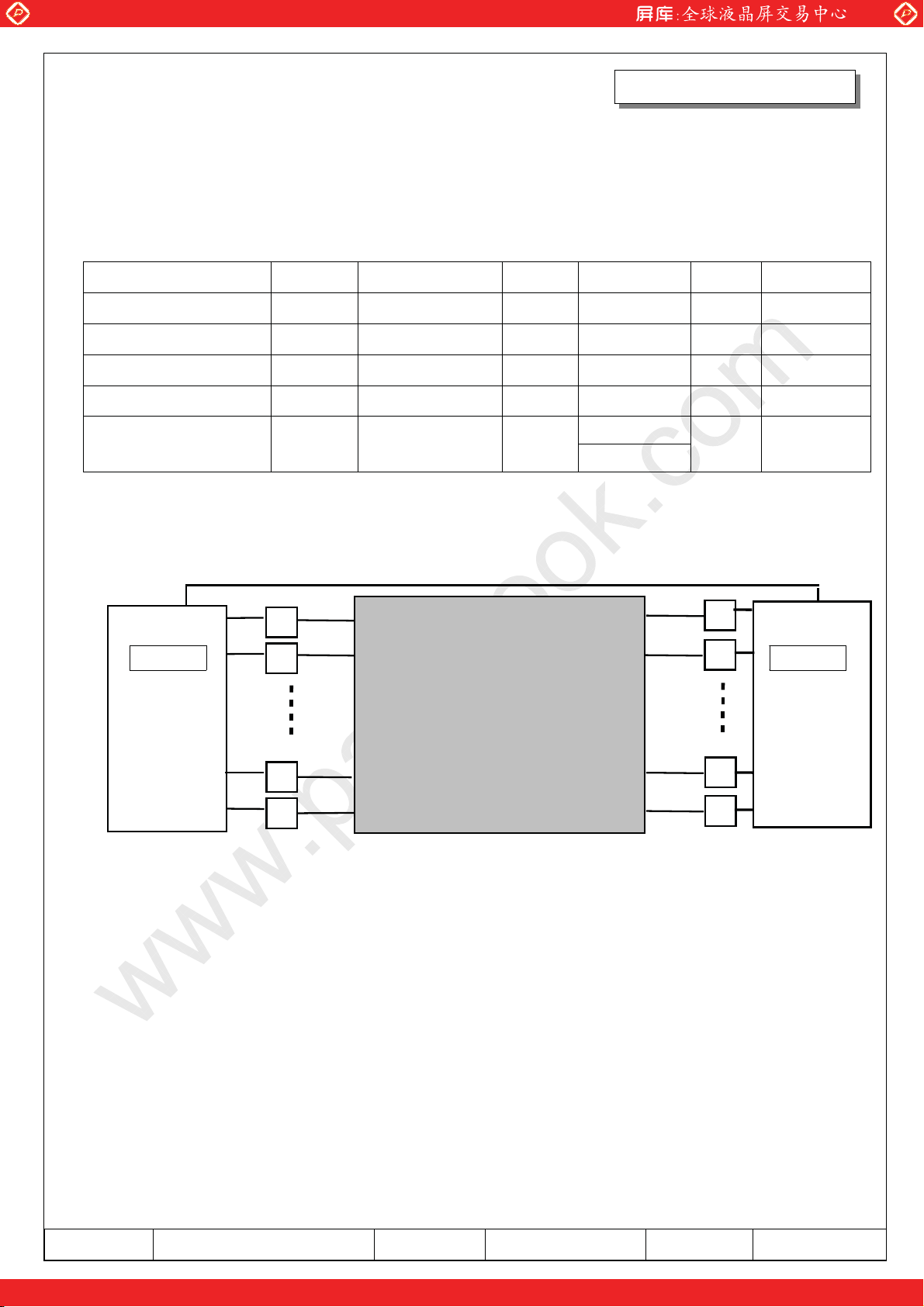

The back-light system is an direct - lighting type with 24 CCFTs ( Cold Cathode
Fluorescent Tube ) The characteristics of 24 direct lamps are shown in the following tables.
www.panelook.com
Product Information
Ta=25 ± 2° C
Item
Lamp Current
Lamp Voltage
Lamp Frequency
Symbol Min. Typ. Max. Unit Note
(4.0) (6.0) (7.0) mArms (1)
(1480) (1540) (1600) Vrms (1)
(40) - (80) kHz (2)
V
I
L
L
f
L
Operating Life Time Hr 50,000 - - Hour (3)
0℃:(2500)
Start up Voltage Vs - -
℃
1990)
Vrms (4)
Note) The waveform of the inverter output voltage must be area symmetric and the design
of the inverter must have specifications for the modularized lamp.
Specified values are for a single lamp.
HOT1
HOT2
Inverter
Inverter
HOT1
HOT2
LCD
Module
HOT23
HOT24
HOT23
HOT24
The performance of the back-light, for example life time or brightness, is much influenced by
the characteristics of the DC-AC inverter for the lamp. So all the parameters of an inverter
should be carefully designed so as not to produce too much leakage current from high-voltage
output of the inverter.
When you design or order the inverter, please make sure that a poor lighting caused by the
mismatch of the back-light and the inverter(miss lighting, flicker, etc.) never occur. When you
confirm it, the module should be operated in the same condition as it is installed in your
instrument.
Note (1) lamp current is measured with current meter.
Refer to the block diagram of the back-light unit in the next page for more information.
Lamp Voltage Min : Lamp Current (7.0) mArms
Lamp Voltage Max : Lamp Current (4.0) mArms
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
/30
www.panelook.com
Page 14
Global LCD Panel Exchange Center
(2) Lamp frequency may produce interference with horizontal synchronous frequency and this
may cause line flow on the display. Therefore lamp frequency shall be detached from
the horizontal synchronous frequency and its harmonics as far as possible in order to
avoid interference.
(3) Life time (Hr) of a lamp is defined as the time in which it continues to operate under
the condition of Ta = 25±2°C and IL = 6.0mArms for a lamp until the brightness
becomes 50% or lower than it's original value.
(4) If an inverter has shutdown function it should keep its output for more than 1 second
even if the lamp connector open. Otherwise the lamps may not to be turned on.
www.panelook.com
Product Information
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
/30
www.panelook.com
Page 15
Global LCD Panel Exchange Center

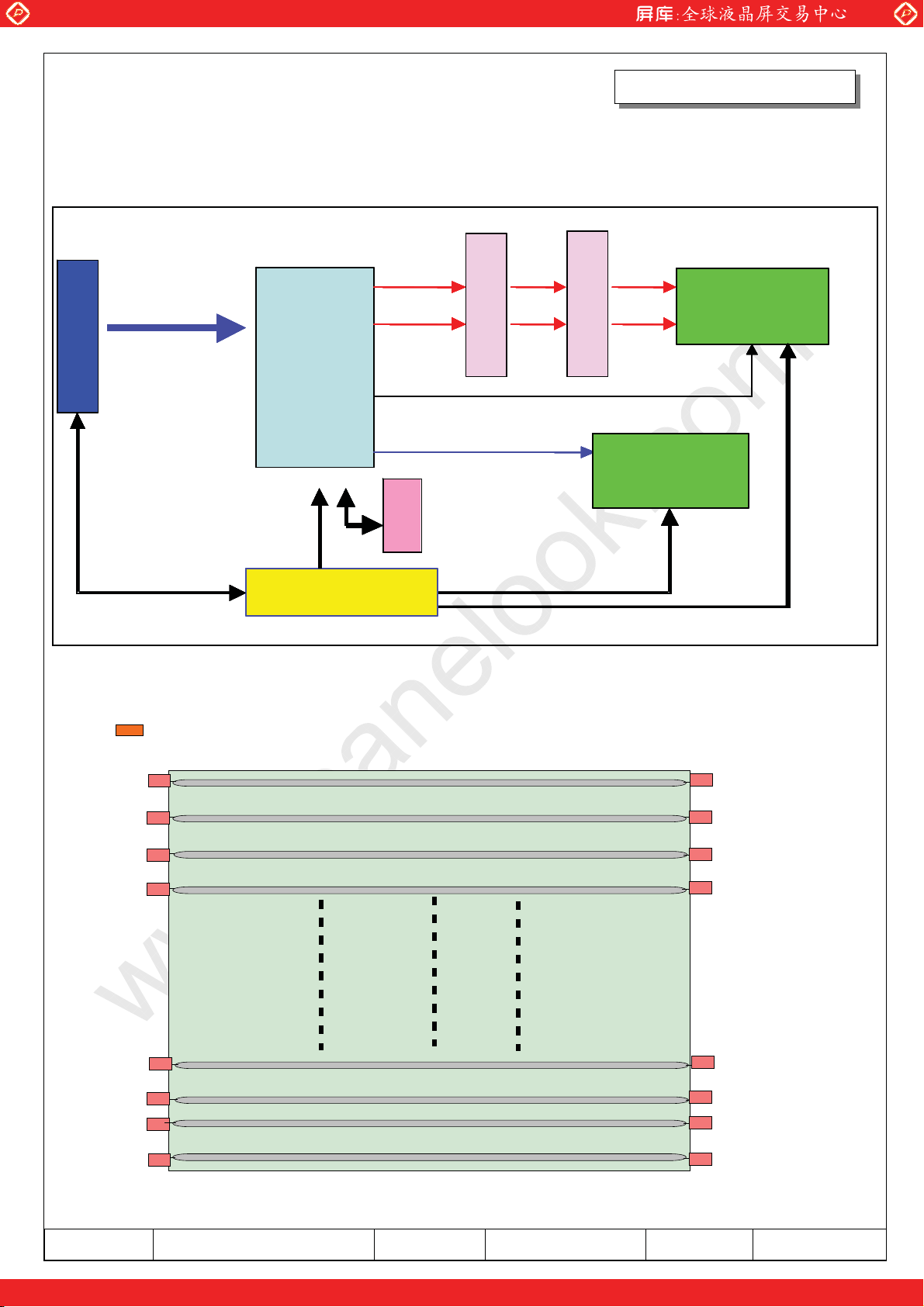

4. Block Diagram
4.1 TFT LCD MODULE
CO N N EC T O R
CONNECTOR
LVDS 1ch
LVDS 1ch
Tim ing
Tim ing
Timing
Timing
Co nt r o l l e r
Co nt r o l l e r
Controller
Controller
( ME RG E D
( ME RG E D
( MERGED
( MERGED
LV DS )
LV DS )
LVDS )
LVDS )
MAIN POWER
MAIN POWER
www.panelook.com
RS D S Si gn al
RSDS Signal
CPV,OE,STV
CPV,OE,STV
CPV,OE,STV
CPV,OE,STV
ME MORY
MEMORY
Product Information
Termi n a t i o n Re sist o r
Termination Resistor
SO UR CE D R I V E I C
SO UR CE D R I V E I C
SO UR CE D R I V E I C
SOURCE DRIVE IC
(S 6C21 0 1,38 4C H )
(S 6C21 0 4,41 4C H )
(S 6C21 0 1,38 4C H )
(S6C2104,414CH)
Control Signal (TP, POL, STH)
Control Signal (TP, POL, STH)
Control Signal (TP, POL, STH)
Control Signal (TP, POL, STH)
GA T E D R I V E I C
GA T E D R I V E I C
GA T E D R I V E I C
GATE DRIVE IC
( K S 065 5, 12 8 CH)
( K S 065 5, 12 8 CH)
( 256 CH)
( 256CH)
x 6 EA
x 6 EA
x 3 EA x 2 Bank
x 3 EA x 2 Bank
x 10 E A
x 10 E A
x 10 E A
x 10 EA
(5V)
(5V)
4.2
& Gam m a Gen erat ion
& Gam m a Gen erat ion
& Gam m a Gen erat ion
& Gamma Generation
BACK-LIGHT UNIT
㇠㛅
HOT
: HIGH VOLTAGE
HOT 1
HOT 2
HOT 3
HOT 4
DC -D C BLO CK
DC -D C BLO CK
DC -D C BLO CK
DC-DC BLOCK
jjmsXSY
jjmsZS[
VON,VOFF,DVDD
VON,VOFF,DVDD
VON,VOFF,DVDD
VON,VOFF,DVDD
HOT 1
HOT 2
HOT 3
HOT 4
HOT 21
HOT 22
HOT 23
HOT 24
jjmsYXSYY
jjmsYZSY[
HOT 21
HOT 22
HOT 23
HOT 24
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
/30
www.panelook.com
Page 16
Global LCD Panel Exchange Center
5. Input Terminal Pin Assignment
www.panelook.com
Product Information
5.1. Input Signal & Power : Connector 30P,
X uUjQ X] nuk
Y uUjQ X^ yZT
Z uUjQ X_ yZR
[ nuk X` nuk
\ yWT YW uUj
] yWR YX s}kz v
^ nuk YY uUj
_ yXT YZ nuk
` yXR Y[ nuk
XW nuk Y\ nuk
XX yYT Y] }kkOdR\}P
XY yYR Y^ }kkOdR\}P
XZ nuk Y_ }kkOdR\}P
X[ yjsrT Y` }kkOdR\}P
X\ yjsrR ZW }kkOdR\}P
* NOT CONNECTED : THIS PINS ARE ONLY USED FOR SEC INTERNAL OPERATIONS.
** LVDS OPTION : IF THIS PIN : HIGH (3.3 V)→NORMAL NS LVDS FORMAT
OTHERWISE : LOW (GND) OR OPEN(NC)→JEIDA LVDS FORMAT
Sequence : On = Vdd(T1)≥LVDS Option≥Interface Signal(T2)
OFF = Interface Signal(T3)≥LVDS Option≥Vdd
qhl mpTlZWz
5.2. Inverter Control Connector
X k Y[}
Y k Y[}
Z k Y[}
[ k Y[}
\ k Y[}
] nuk
^ nuk
_ nuk
` nuk
XW nuk
XX uUj
XY p l Ov a \}S v a W}P
XZ hkpt t a ZUZ}S t a W}
X[ wkpt t a XWWLS t a ZWL
Connector : JST S14B-PH-SM3-TB
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
/30
www.panelook.com
Page 17
Global LCD Panel Exchange Center
5.3 Inverter Specification
www.panelook.com
Product Information
Items Symbol Conditions
Input Power Vin - 23 24 25 V Ta=25
Input Current Iin Vin=24V 9 Adc At 500nit(Typ)
Output Current
(Single Lamp)
Frequency F
Open Lamp
Shutdown Time
Open Lamp
Voltage
On/Off control
PWM signal
Io,max Adim=3.3V (6.5) (7.0) (7.5)
Io.min Adim=0V (3.5) (4.0) (4.5)
L
Ts-d No Load 1.0 1.5 2.0 sec
Vo
On ON/OFF=High 2.4 - 5.25 V
Off ON/OFF=Low 0 - 0.8 V
Vpwm ON(high) 2.4 5.25 V
Vpwm OFF(low) 0 0.8 V
Vin=24V,Adim=3.3V (55) (60) (65) kHz
Vin=24V,ADIM=3.3V
Each Transformer
Output
Specifications
Min. Typ. Max.
(1400) V
Unit
mArm
s
비고
℃
After 2hour
Warm-up,
Note (1)
PWM duty PD
Max Lum
Analog Dimmer
Min. Lum
Note(1) Controlled by Analog or PWM dimming
Note(2) High-duty = On/(On+Off) * 100
Vin=24V,Adim=3.3V 30 100
Vin=24V,Adim=0V 50 100
-
-
On Off
Note(3) - Controlled by Analog dimming only
- Analog dimming 0[V] (Minimum Lamp current)
- Analog dimming 3.3[V] (Maximum Lamp current)
% Note (2)
ڈ ڎډڎ ڈ
V Note (3)
ڈ ڋ ڈ
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
/30
www.panelook.com
Page 18
Global LCD Panel Exchange Center
5.3.2 Inverter input Power Sequence
www.panelook.com
Vin
Vin
ADIM Control Range : 0 ~ 3.3V
ADIM Control Range : 0 ~ 3.3V
PWM
PWM
On/Off
On/Off
Product Information
0.5sec(Min)
0.5sec(Min)
0.5sec(Min)
0.5sec(Min)
0.5sec(min) PWM High
0.5sec(min) PWM High
0.1sec(Min)
0.1sec(Min)
0.5sec(Min)
0.5sec(Min)
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
/30
www.panelook.com
Page 19
Global LCD Panel Exchange Center
5.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- JEIDA & Normal Data Format
www.panelook.com
Product Information
LVDS pin JEIDA -DATA VESA -DATA
TxIN/RxOUT0 R2 R0
TxIN/RxOUT1 R3 R1
TxIN/RxOUT2 R4 R2
TxOUT/RxIN0
TxOUT/RxIN1
TxIN/RxOUT3 R5 R3
TxIN/RxOUT4 R6 R4
TxIN/RxOUT6 R7 R5
TxIN/RxOUT7 G2 G0
TxIN/RxOUT8 G3 G1
TxIN/RxOUT9 G4 G2
TxIN/RxOUT12 G5 G3
TxIN/RxOUT13 G6 G4
TxIN/RxOUT14 G7 G5
TxIN/RxOUT15 B2 B0
TxIN/RxOUT18 B3 B1
TxIN/RxOUT19 B4 B2
TxIN/RxOUT20 B5 B3
TxIN/RxOUT21 B6 B4
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT22 B7 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R0 R6
TxIN/RxOUT5 R1 R7
TxIN/RxOUT10 G0 G6
TxIN/RxOUT11 G1 G7
TxIN/RxOUT16 B0 B6
TxIN/RxOUT17 B1 B7
TxIN/RxOUT23 RESERVED RESERVED
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
19
/30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
5.5 Input Signal,Basic Display Colors and Gray Scale of Each Color
Product Information
COLOR DISPLAY
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
BASIC
COLOR
GRAY
SCALE
OF RED
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
CYAN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
DARK
↑
↓
LIGHT
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
DARK
↑
↓
LIGHT
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
DARK
↑
↓
LIGHT
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B255
DATA SIGNAL
RED GREEN BLUE
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
: : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : :
1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R253
0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R254
0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
: : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G253
0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G254
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 B2
: : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 B253
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 B254
GRAY
SCALE
LEVEL
R3~
R252
G3~
G252
B3~
B252
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
/30
www.panelook.com
Page 21
Global LCD Panel Exchange Center
6. Interface Timing
6.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. UNIT NOTE
www.panelook.com
Product Information
Frequency 1/TC
Clock
Data
Data Enable Setup Time TES
Frame Frequency Cycle Tv
Vertical Active
Display Term
Horizontal Active
Display Term
Hgh Time TCH
Low Time TCL
Setup Time TDS
Hold Time TDH
Display Period TVD
Vertical Total TVB
Display Period THD
Horizontal
TH
Total
65 80 90
4 - -
4 - -
4 - -
4 - -
4 - -
- 16.7 -
- 768 -
773 838 ~
- 1366 -
1570 1600 1700
༪
nsec
nsec
1pixel/clock
nsec
nsec
nsec
msec
lines
lines
clocks
clocks
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
/30
www.panelook.com
Page 22
Global LCD Panel Exchange Center
T
ES
T
DS
T
DH
T
CH
T
CL
T
C
www.panelook.com

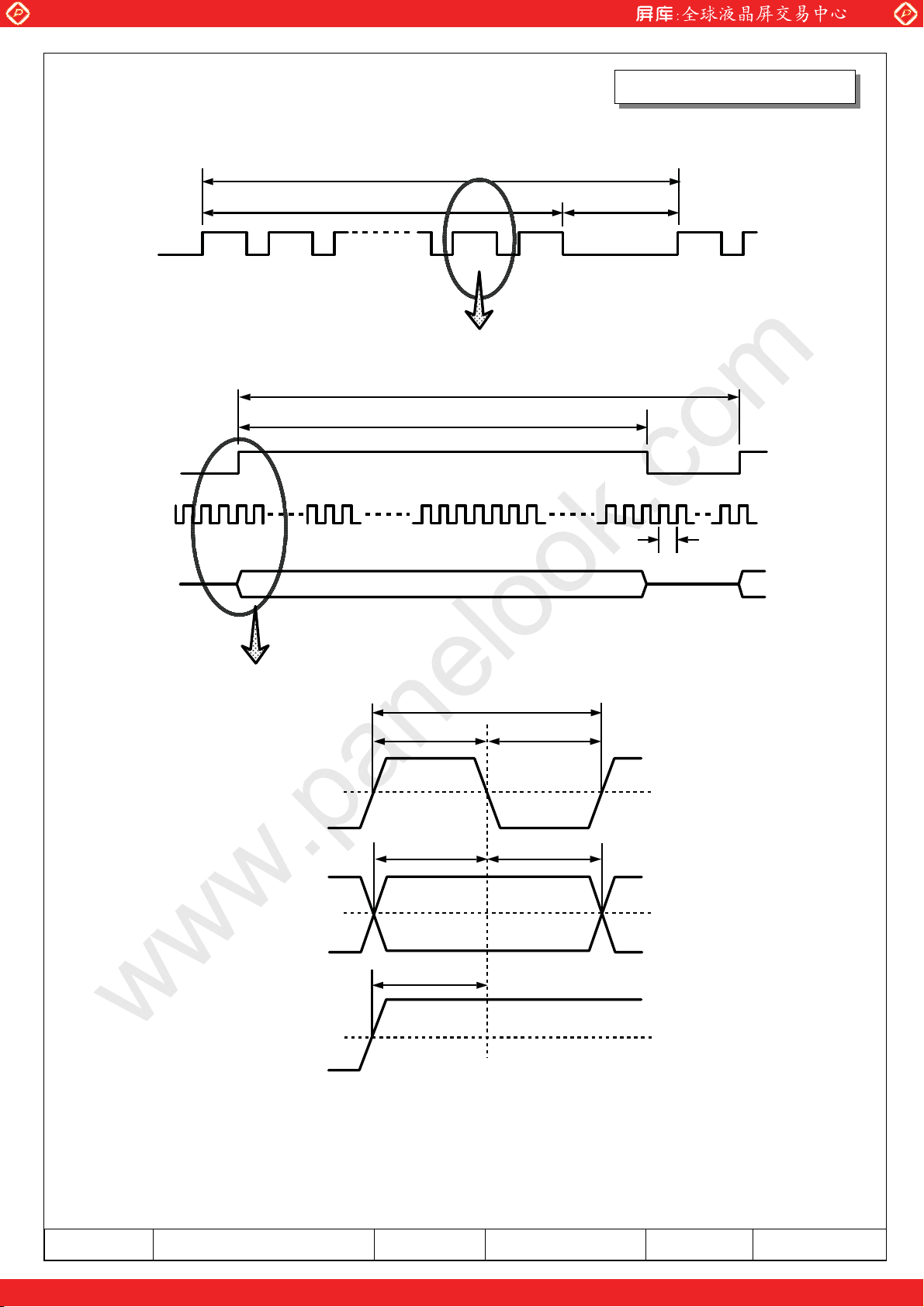

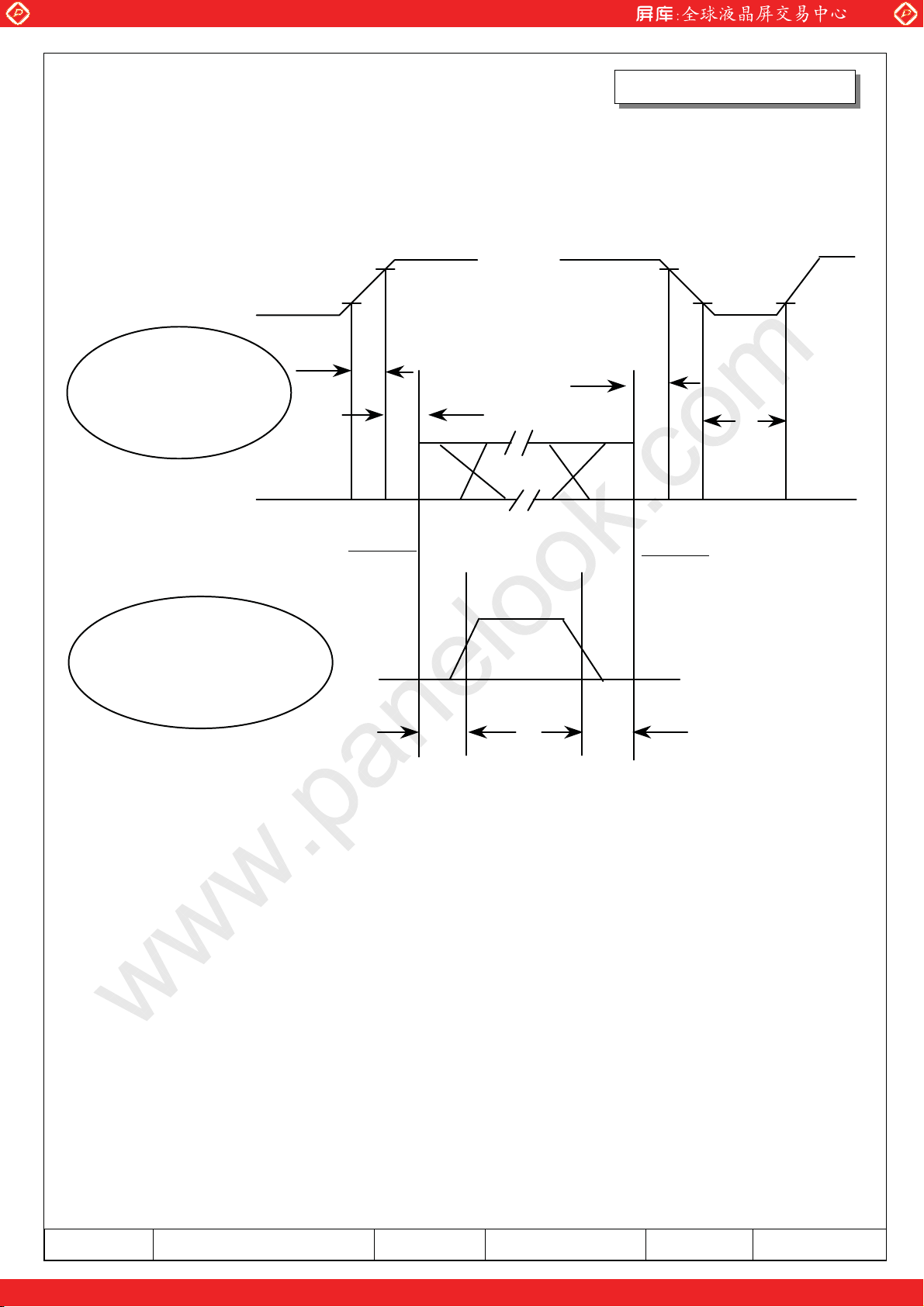

6.2 Timing diagrams of interface signal ( DE only mode )
T
V
T
VD
DE
T
HD
DE
Product Information
T
VB
T
H
D
CLK
DATA
SIGNALS
D
CLK
DISPLAY
DATA
T
C
0.5 V
CC
0.5 V
CC
DE
0.5 V
CC
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
/30
www.panelook.com
Page 23
Global LCD Panel Exchange Center

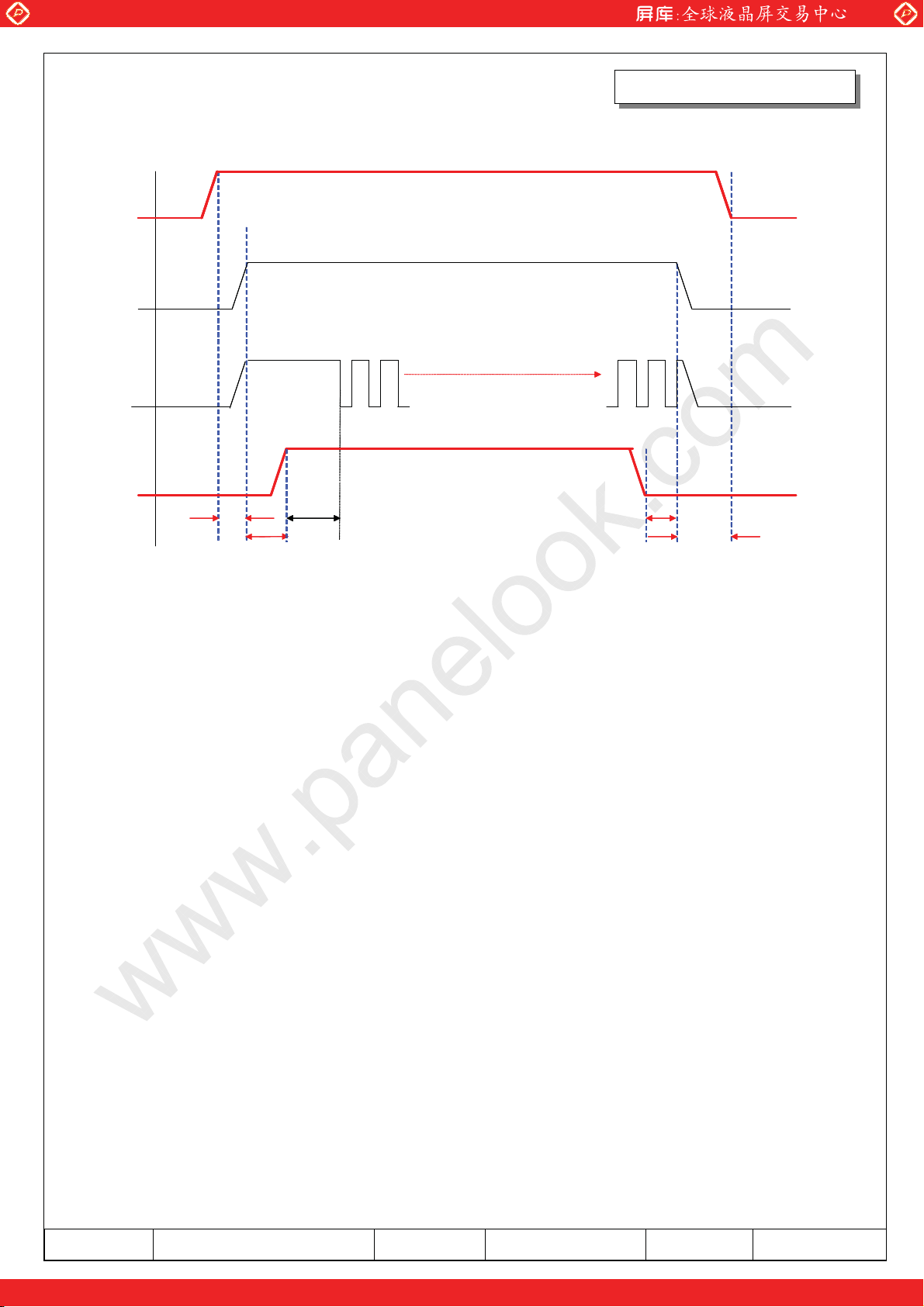

6.3 Power ON/OFF Sequence
: To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
should be as the diagram below.
Power Supply
V
DD
0V
0.1 VDD
www.panelook.com
Product Information
0.9 VDD 0.9 VDD
0.1 VDD
0dT1 d 10msec
0
T2 d 50 msec
T
0
3
50 msec
1sec
T
4
Signals
0 V
Back-light(Recommended)
500 msec
T5
100 msec dT6
T1
T2
Power On
Power ON/OFF Sequence
T3
T4
VALID
Power Off
50% 50%
T5 T6
NOTE
(1)The supply voltage of the external system for the module input should be the
same as the definition of VDD.
(2) Apply the lamp voltage within the LCD operation range. When the back-light turns
on before the LCD operation or the LCD turns off before the back-light turns off,
the display may momentarily become abnormal screen.
(3) In case of VDD = off level, please keep the level of input signals on the low or
keep a high impedance.
(4) T4 should be measured after the module has been fully discharged between
power off and on period.
(5) Interface signal shall not be kept at high impedance when the power is on.
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
23
/30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
Product Information
www.panelook.com
/30
24
- Front side

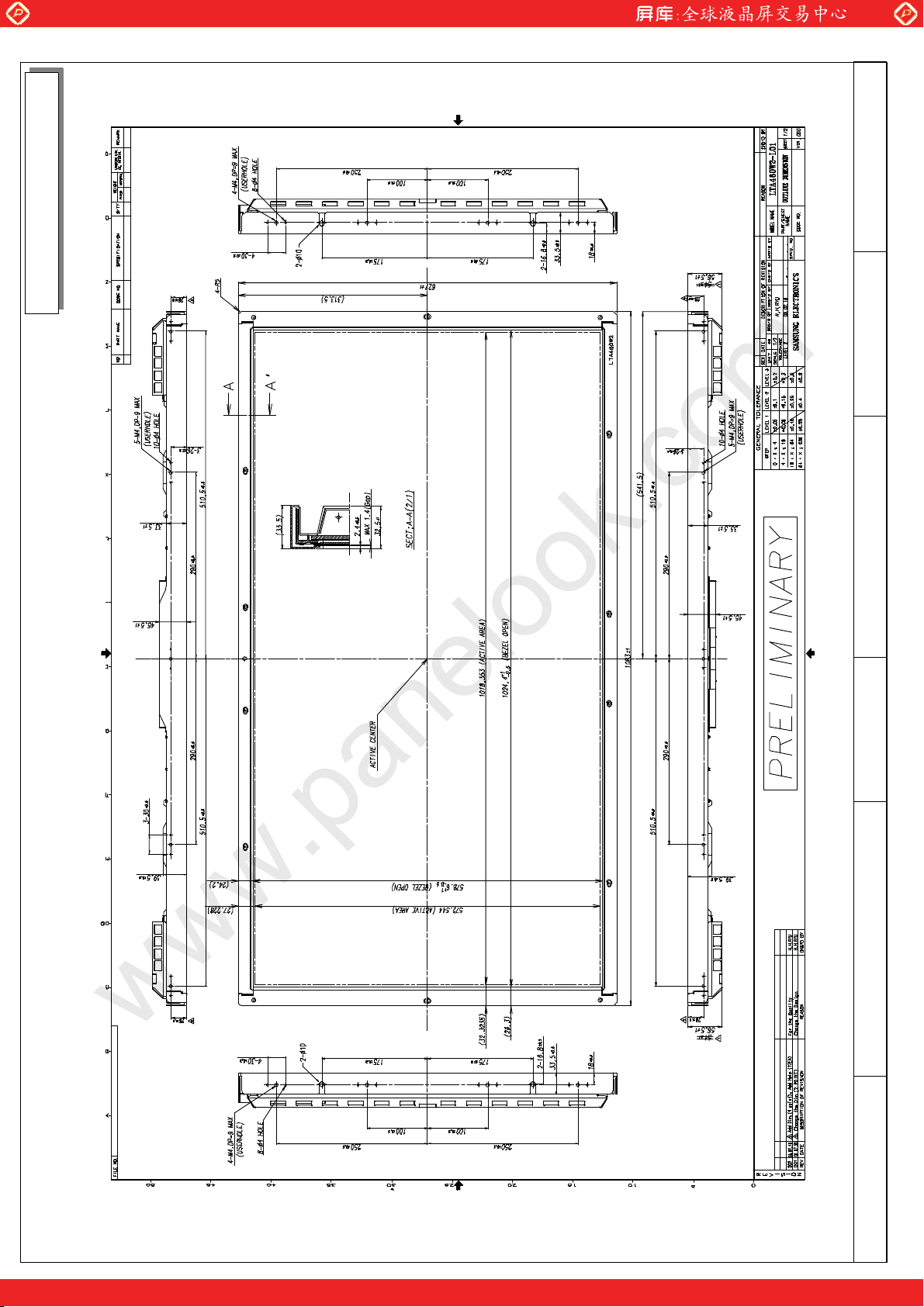

7. Outline Dimension
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Doc . No LTA460W2-L01 Rev.No. 0.1-050302 Page
www.panelook.com
Page 25
Global LCD Panel Exchange Center
Product Information
www.panelook.com
/30
25

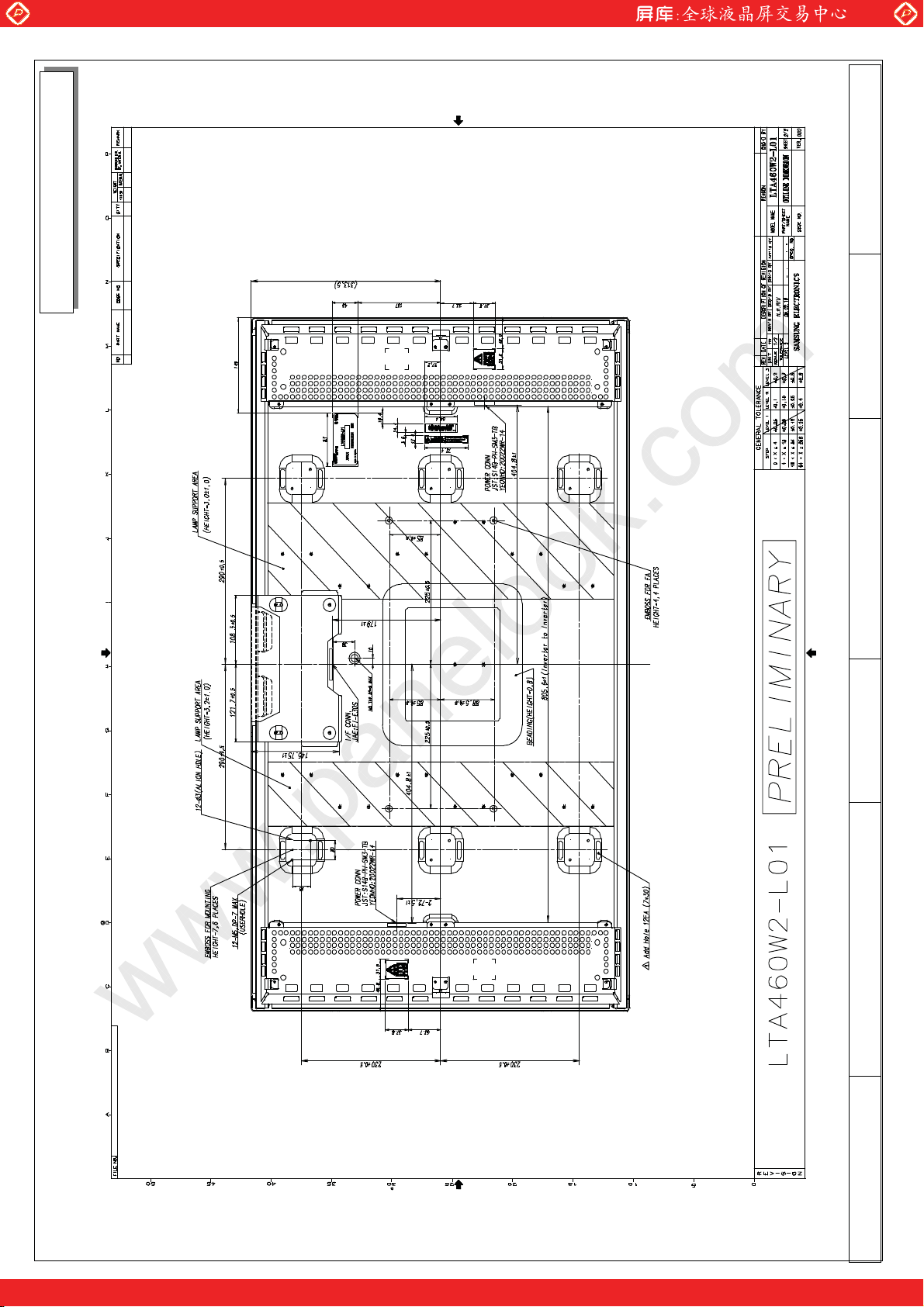

-Rearside
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Doc.No LTA460W2-L01 Rev.No. 0.1-050302 Page
www.panelook.com
Page 26
Global LCD Panel Exchange Center
8. Packing
8.1. CARTON(Internal Package)

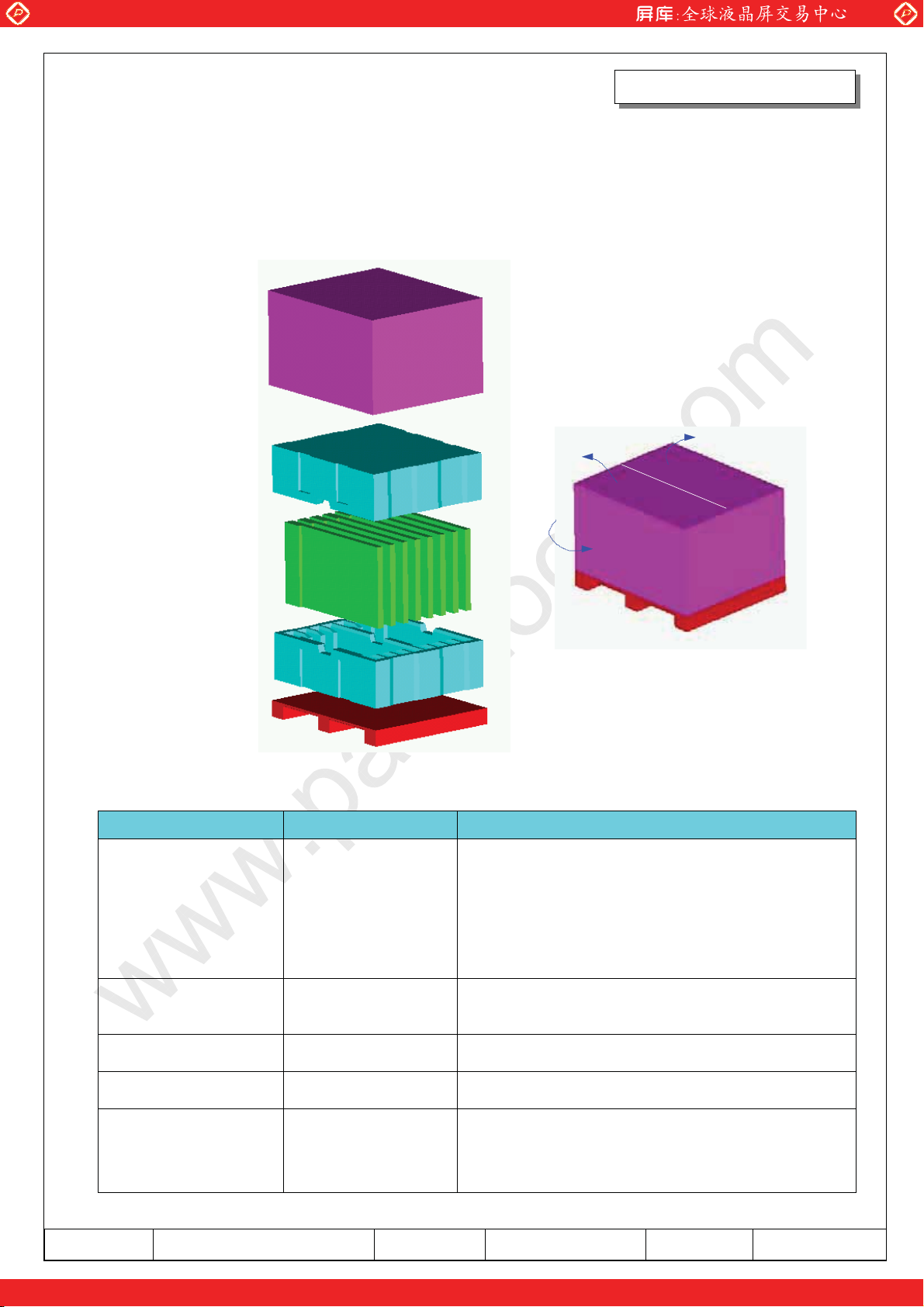

(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing
-PalletBox
www.panelook.com
Product Information
Direction: be able to open it
Cushion-Foam
LCD Module
Cushion-Foam
Pallet
8.2. Packing Specification
ITEM Specification Remark
LCD Packing
(Packing-Pallet Box)
10ea /
1. 140 Kg / LCD (10ea)
2. 10 Kg / Cushion-Foam (2ea)
3. 8 Kg / Packing-Pallet Box (1ea)
3. Cushion-Foam Material : EPS
4. Packing-Pallet Box Material : DW4
Pallet 1Box / Pallet 1. Pallet weight = 8.8kg
2. 8.8 Kg / Pallet
Packing Direction Vertical
Total Pallet size H x V x height 1270mm(H) x 1150mm(V) x 844mm(height)
Pallet(8.8kg) + Module(14*10=140) +
Total Pallet weight 167kg
Cushion(up+botton=10kg) + PALLET-BOX(8kg)
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26
/30
www.panelook.com
Page 27
Global LCD Panel Exchange Center
9. Marking & Others
A nameplate bearing followed by is affixed to a shipped product at the
specified location on each product.
(1) Parts number : LTA460W2-L01-XXXX
(2) Revision : One letter
(3) Control : One letter
(4) Lot number : 6 L 4 H 123 01 A
123 4567
www.panelook.com
Product Information
ᐭͽΚΟΖ
ᐮͽ͵ΖΧΚΔΖ
ᐯΊΖΒΣ
ᐰ;ΠΟΥΙ
ᐱͽ΅Ϳ
ᐲͽͲ΄΄Ϳ
ᐳͲʹͶͽͽͿ
(5) Nameplate Indication
MADE IN KOREA
LTA460W2-L01
6L4H12301A
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27
/30
www.panelook.com
Page 28
Global LCD Panel Exchange Center

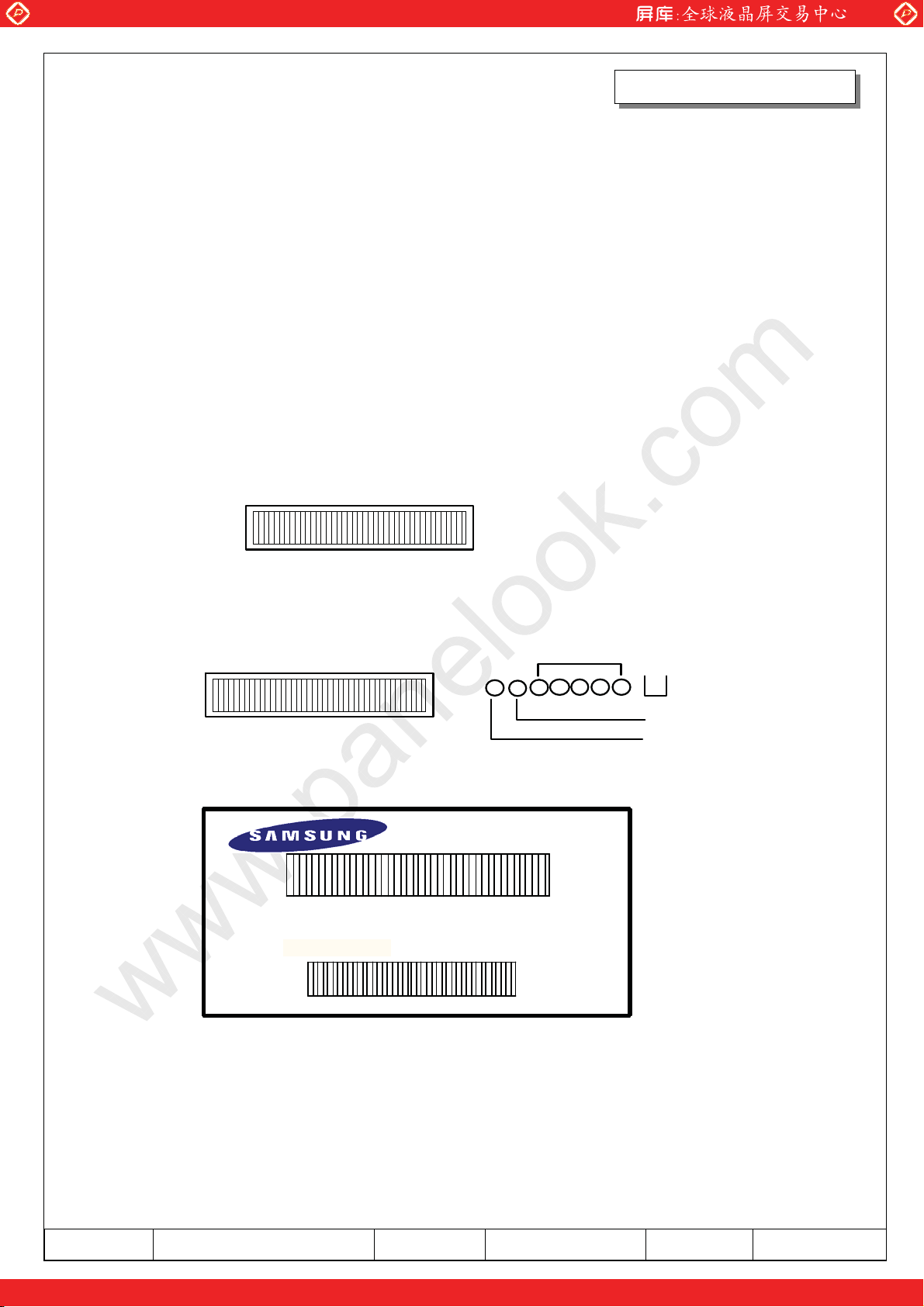

(6) Bar code marking for Customer
The bar code marking is attached to module backside.
1) MODEL NAME : LTA460W2-L01-XXXX
2) SAMSUNG
3) MADE IN KOREA
4) PRODUCTION NUMBER
5) USER MODEL NAME
Bar code shows a) user model name, b) production number
a) User model name
LTA460W2-L01-XXXX
www.panelook.com
Product Information
b) Production Number
SAMSUNG
MADE IN KOREA
*6430008B*
(7) Packing box attach
MADEIN KOREA
DEVICE : LTA460W2-L01
TYPE :
QUANTITY
QUANTTY : 1 PCS
CO6040001
SERIAL NO
B
REVISION CODE
PRODUCTION MONTH
PRODUCTION YEAR
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28
/30
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
10. General Precautions
10.1 Handling
(a) When the module is assembled, It should be attached to the system firmly
using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In
addition to damage, this may cause improper operation or damage to the module
and CCFT back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press
or scratch the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, Staining and discoloration may occur.
(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or
soft cloth.
Product Information
(f) The desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl
acid or Methyl chloride. It might permanent damage to the polarizer due to
chemical reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away thoroughly with soap.
(h) Protect the module from static , it may cause damage to the CMOS Gate Array IC.
(i) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(j) Do not disassemble the module.
(k) Do not pull or fold the lamp wire.
(l) Do not adjust the variable resistor which is located on the module.
(m) Protection film for polarizer on the module shall be slowly peeled off just before use
so that the electrostatic charge can be minimized.
(n) Pins of I/F connector shall not be touched directly with bare hands.
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29
/30
www.panelook.com
Page 30
Global LCD Panel Exchange Center
www.panelook.com
10.2 Storage
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 0 to 35C
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light during the store.
10.3 Operation
(a) Do not connect,disconnect the module in the "Power On" condition.
(b) Power supply should always be turned on/off by the item 6.3
"Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the
electromagnetic interference shall be done by system manufacturers. Grounding
and shielding methods may be important to minimize the interference.
Product Information
(d) The cable between the back-light connector and its inverter power supply shall
be a minimized length and be connected directly . The longer cable between
the back-light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).
10.4 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on) Otherwise the module may be damaged.
(d) If the module displays the same pattern continuously for a long period of time,it
can be the situation when the image "Sticks" to the screen.
We recommend that you should discuss SEC when you want the module to be
operated in displaying the same pattern for a long time.
(e) This module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
Doc. No. LTA460W2-L01 Rev. No. 0.0-050302 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30
/30
www.panelook.com
