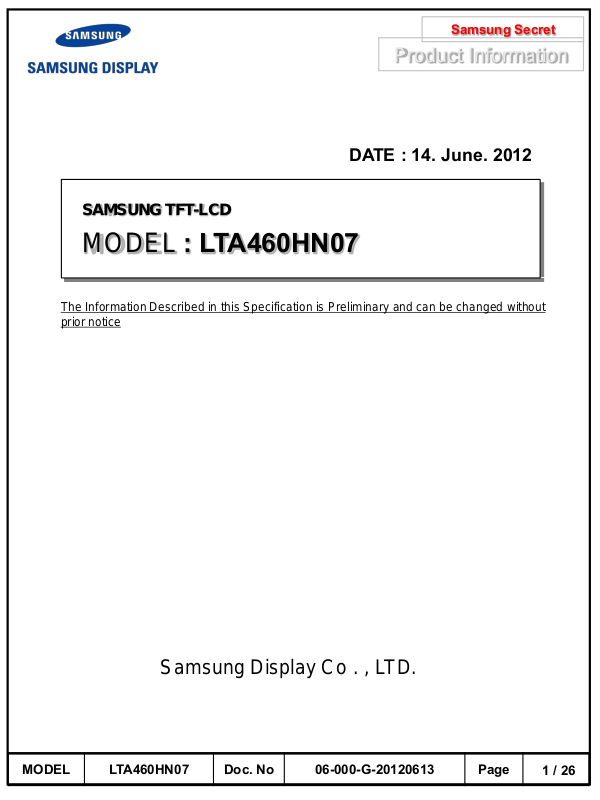

Page 1
Samsung Secret
Product Information
DATE : 14. June. 2012
SAMSUNG TFT-LCD
MODEL : LTA460HN07
The Information Described in this Specification is Preliminary and can be changed without
prior notice
Samsung Display Co . , LTD.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
1 / 26
Page 2
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Converter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration

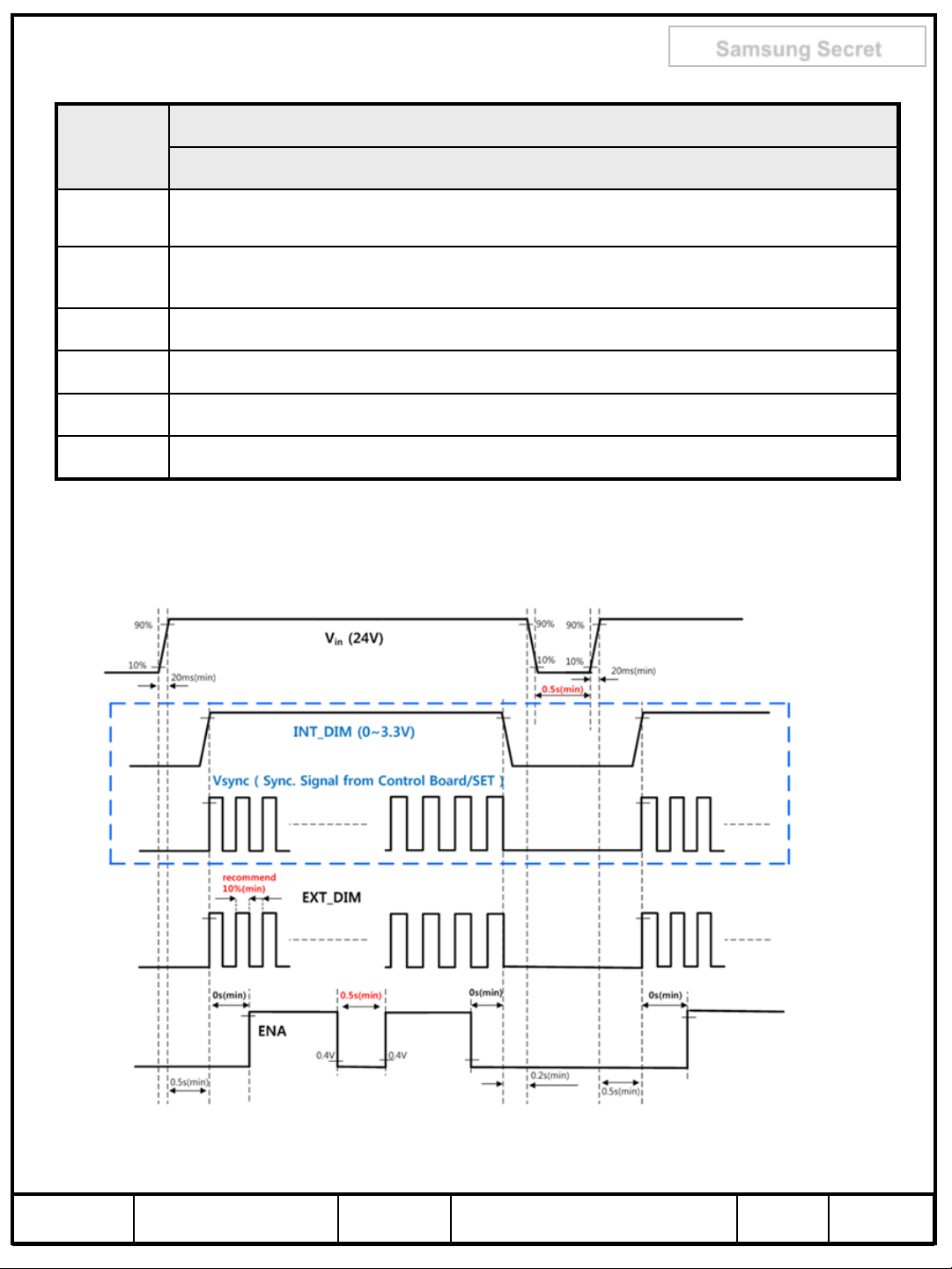

4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
Samsung Secret
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE mode)
5.2 LVDS Input data Characteristics

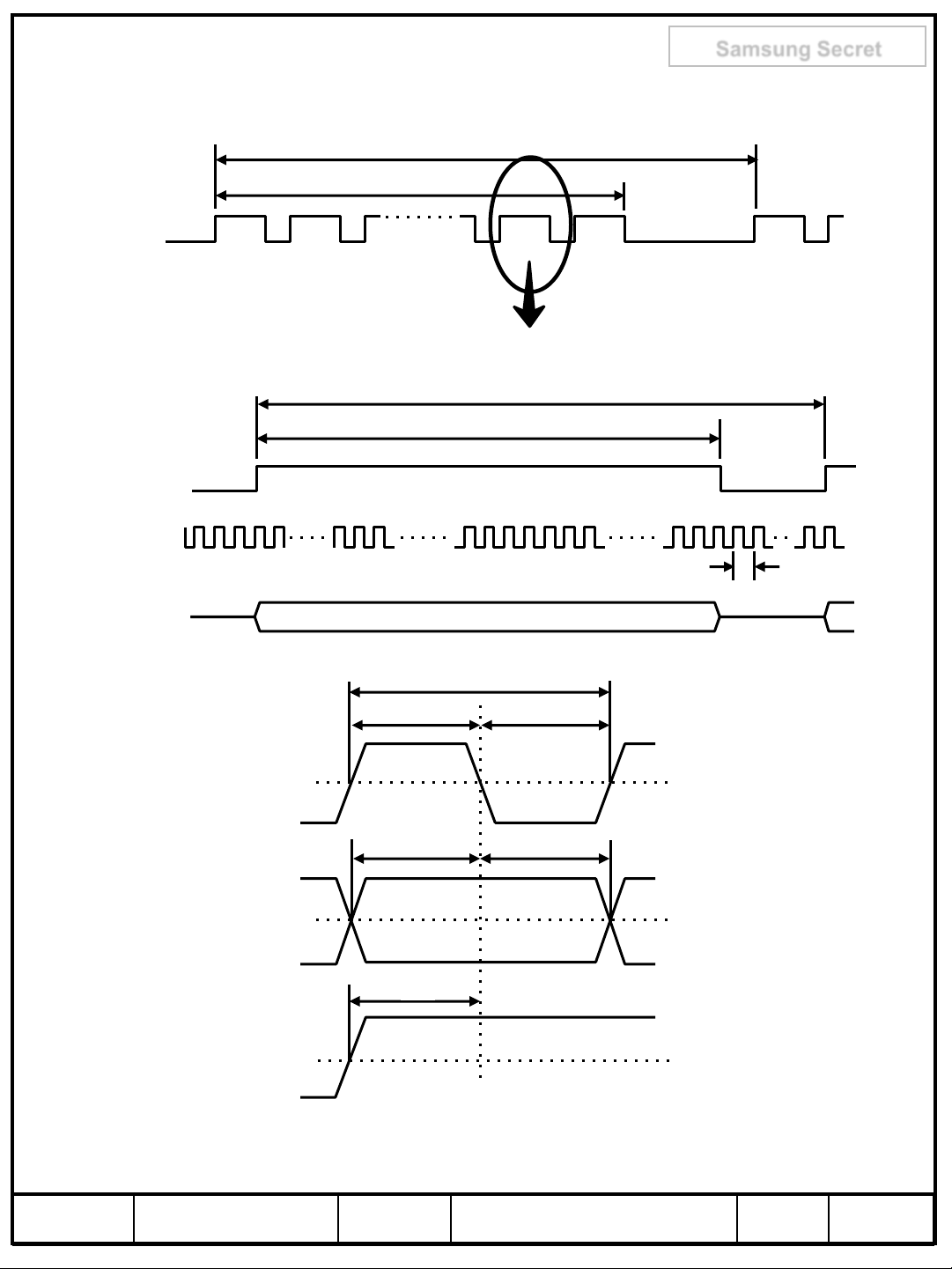

5.3 Timing Diagrams of interface Signal (DE mode)

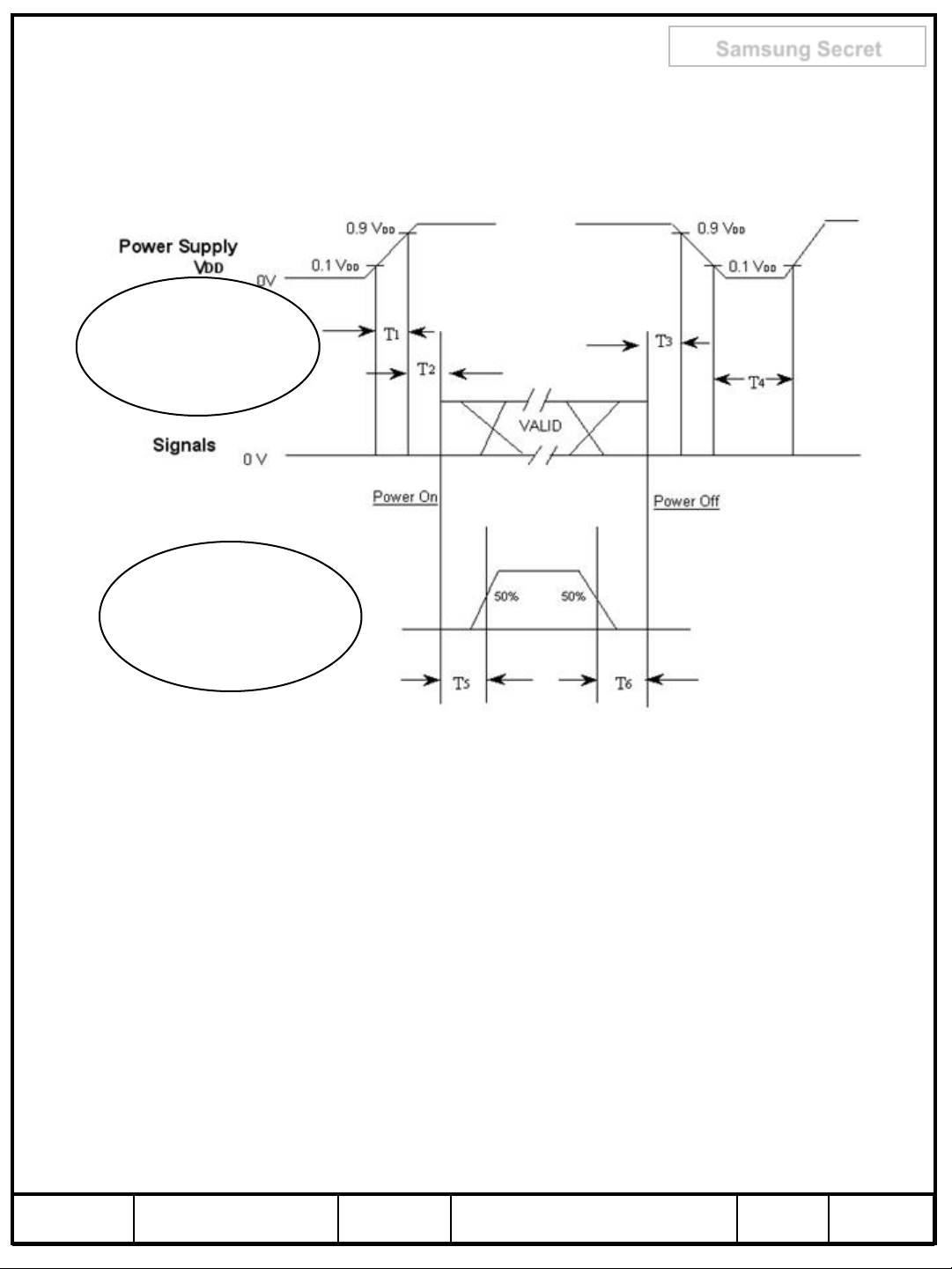

5.4 Power ON/OFF Sequence

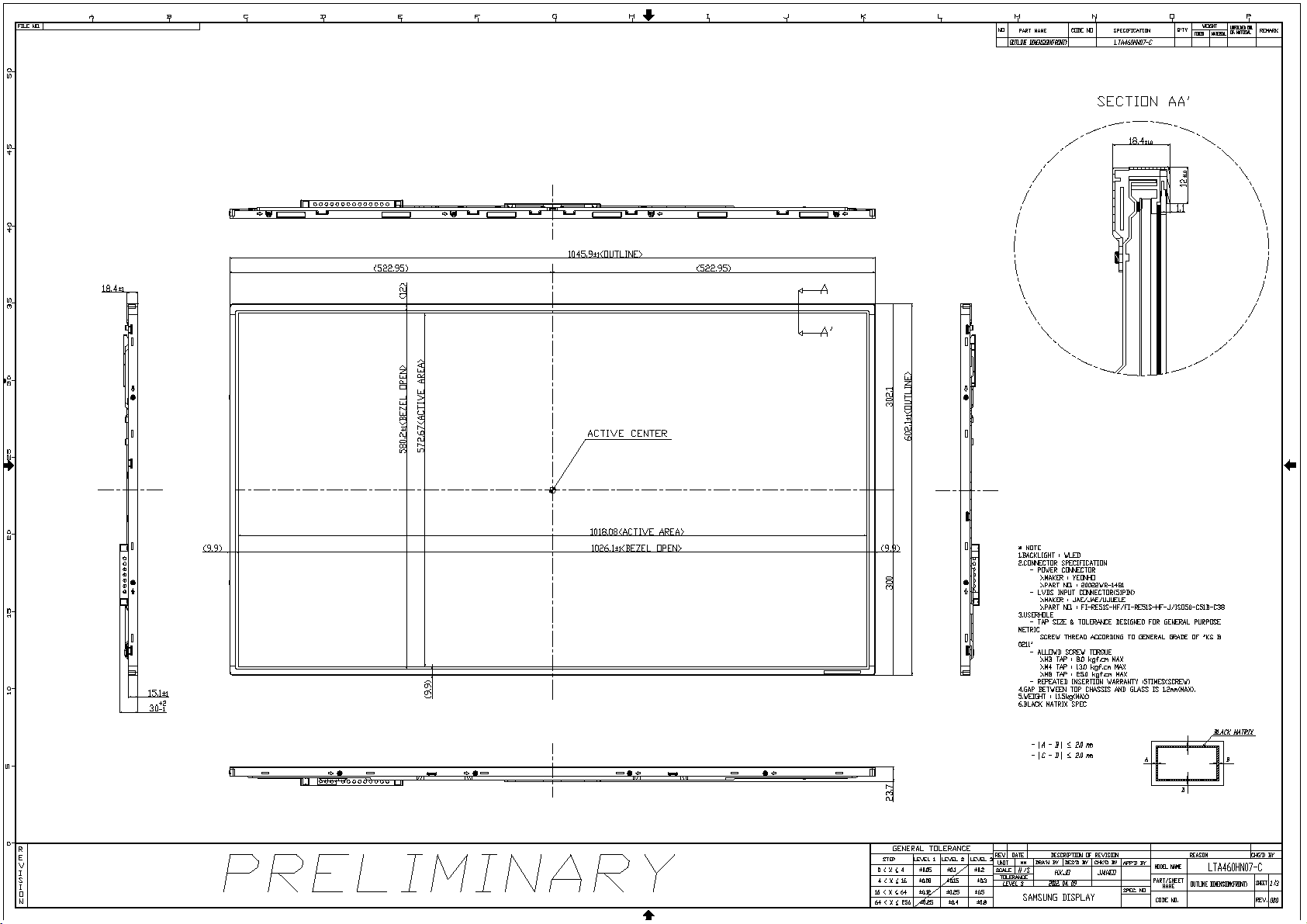

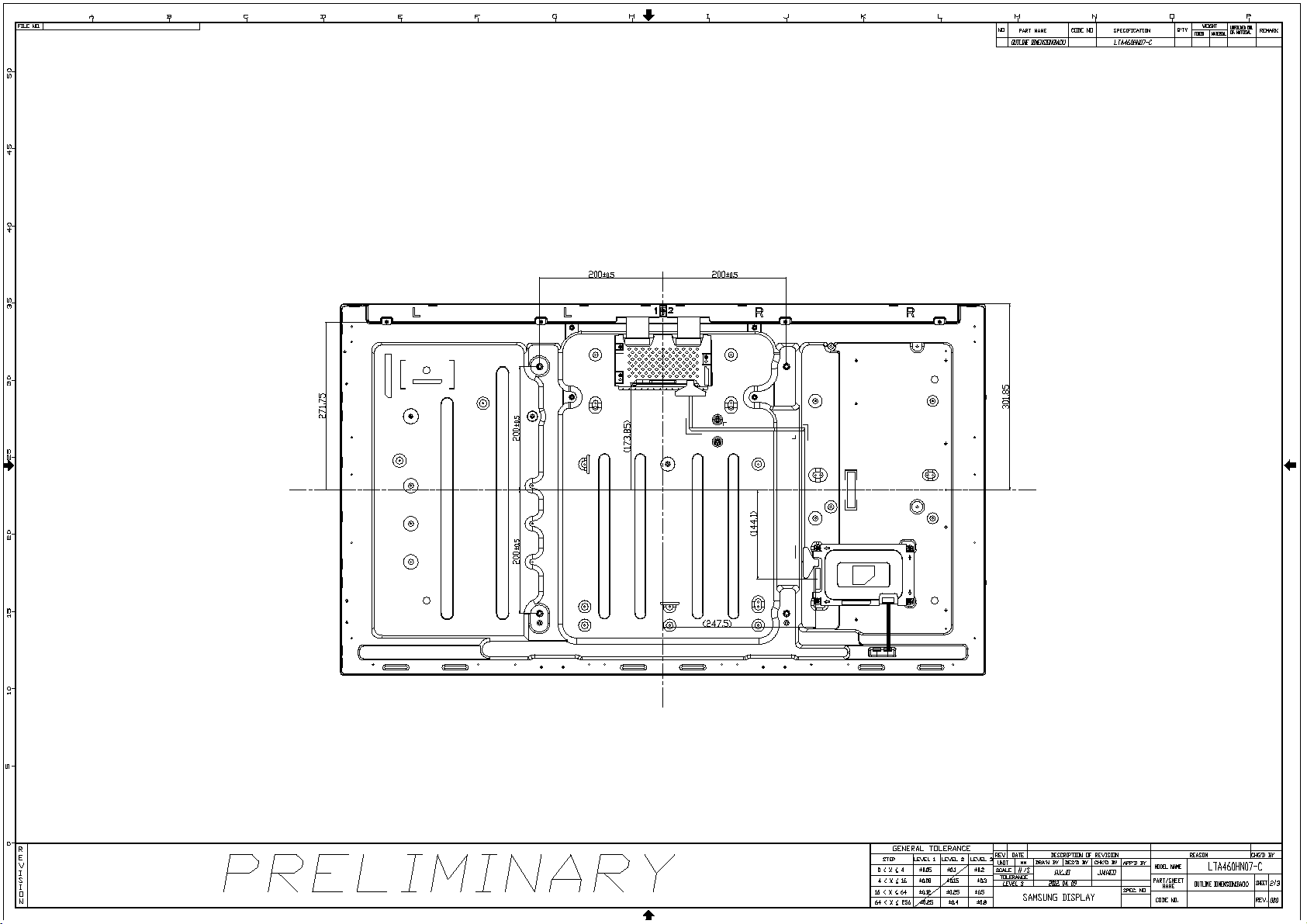

6. Outline Dimension -------------------------------------------------------------------------------------- (20)

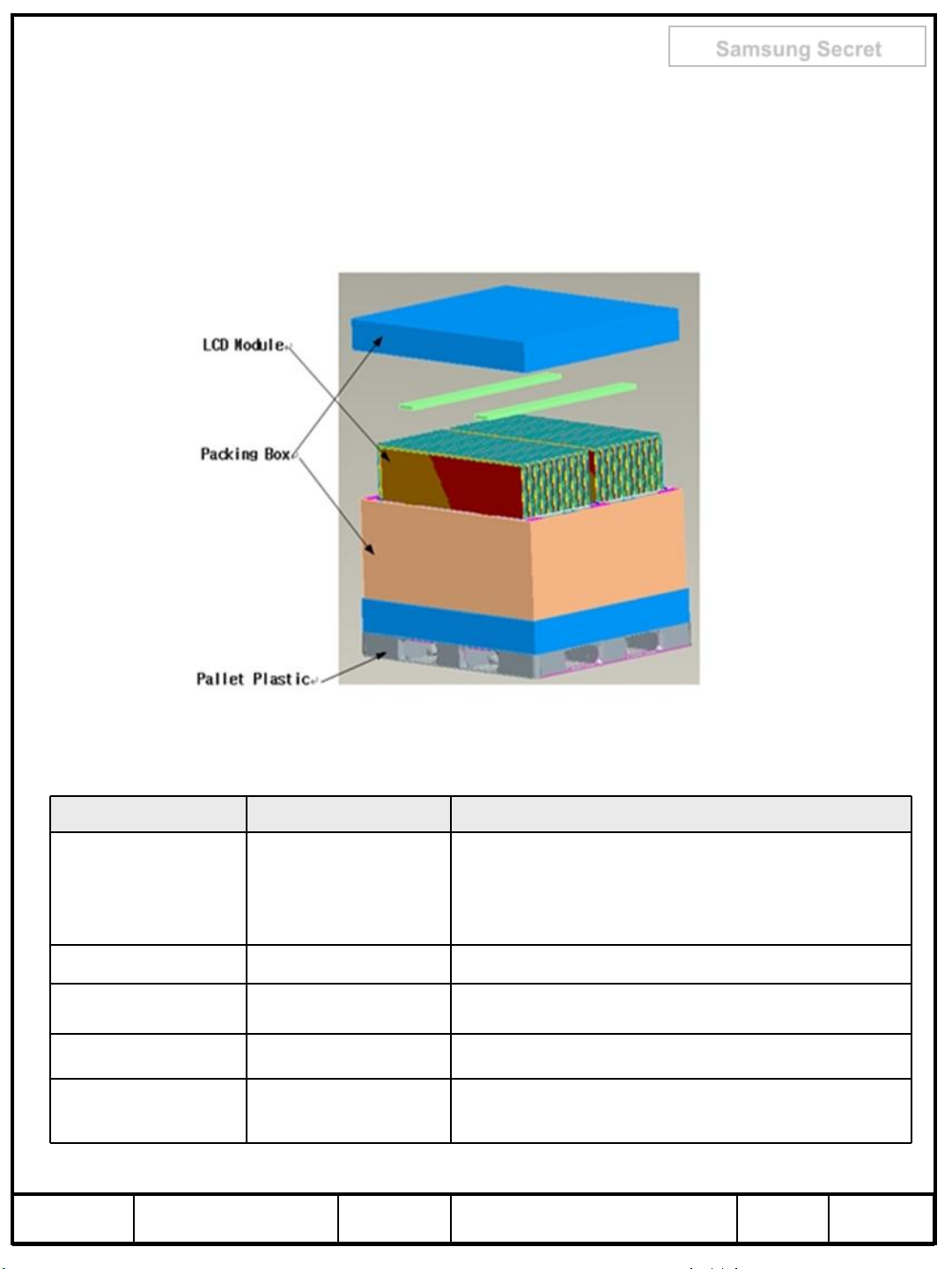

7. Packing --------------------------------------------------------------------------------------------------- (22)

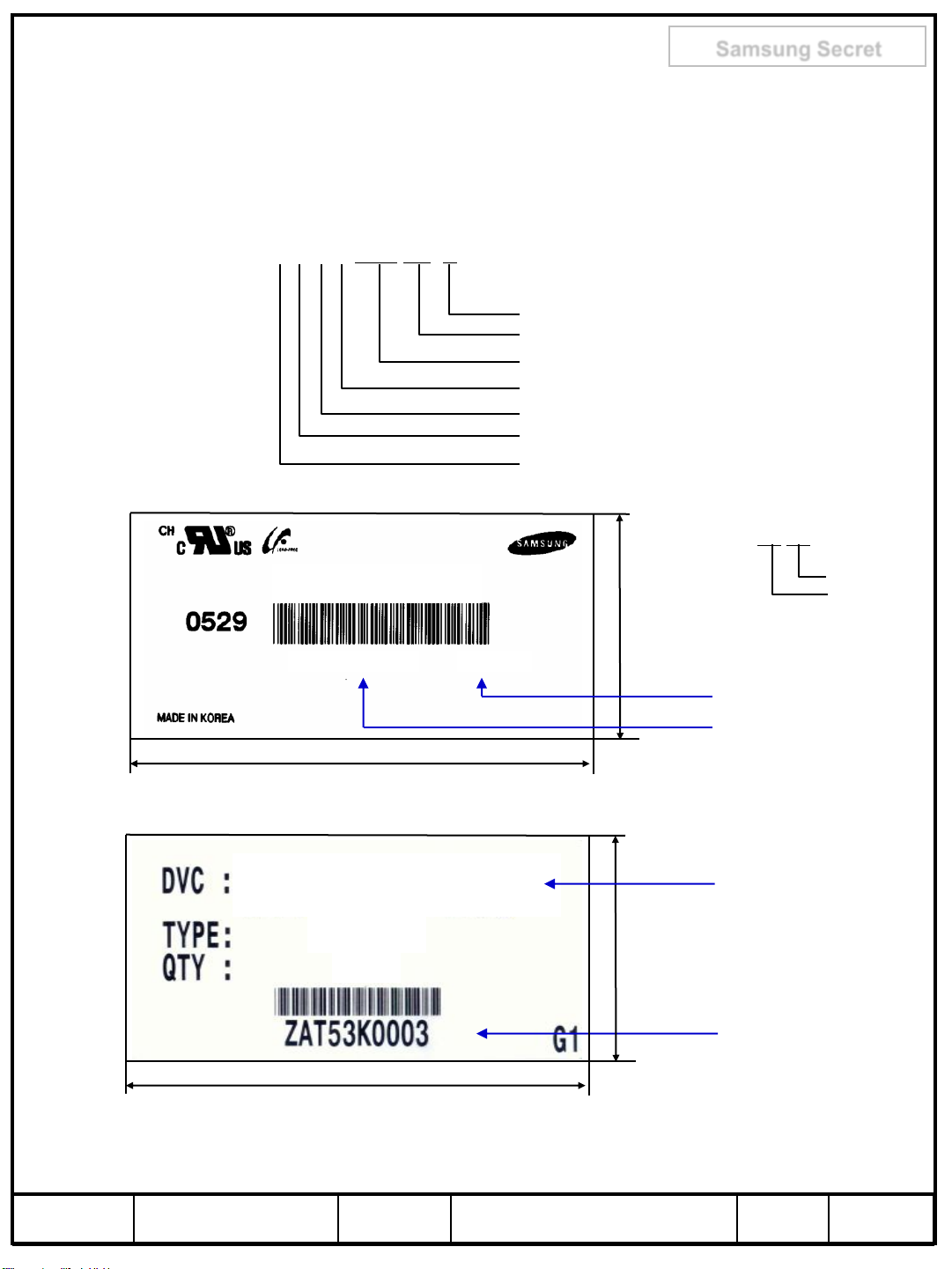

8. Marking & Others --------------------------------------------------------------------------------------- (23)
9. General Precaution ------------------------------------------------------------------------------------- (24)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
2 / 26
Page 3
Revision History
Date Rev. No Page Summary
Samsung Secret
14. June.
2012
000 all First issued
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
3 / 26
Page 4
General Description
Samsung Secret
Description
LTA460HN07 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit.
The resolution of a 46.0” is 1920 x 1080 and this model can display up to 1.07 Billion
colors with wide viewing angle of 89° or higher in all directions. This panel is intended to
support applications to provide a excellent performance for Flat Panel Display such as
Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (±178°)
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
1045.9(H) x 602.1 (V)
Module Size
34.2 (D) max.
Weight 12300 g max.
Pixel Pitch 0.530 (H) x 0.530 (W) mm
Active Display Area 1018.08 (H) x 572.67 (V) mm
Surface Treatment Anti-glare -
Display Colors 8bit + FRC Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Arrangement RGB vertical stripe -
Display Mode Normally Black -
Luminance of White 350 (Typ.) cd/m
mm
±1.0mm
2
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
4 / 26
Page 5
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Storage temperature T
Operating temperature T
Surface temperature T
DD
STG
OPR
SUR
GND-0.3 13.2 V (1)
-20 65
0 50
0 60
X,Y - 30
Shock ( non - operating )
Z 30
Vibration ( non - operating ) V
Note (1) Ta= 25 ± 2 °C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta > 39 °C)
c. No condensation
(3) Although abnormal visual problems can be occurred in T
is not damaged in this range.
(4) 11ms, sine wave, one time for ±X, ±Y, ±Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
NOP
- 1.5 G (5)
SUR
℃
℃
℃
G (4)
range, the polarizer
(2)
(3)
90
Fig. Temperature and Relative humidity range
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
5 / 26
Page 6
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
TOPCON RD-80S, TOPCON SR-3 ,ELDIM EZ-Contrast
Samsung Secret
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
(Ta = 25 ± 2°C, VDD=12.0V, fv=60Hz, f
C/R
3000 4000 -
=148.5MHz, LED Current = 165 mA )
DCLK
G-to-G Tg - TBD TBD msec
Y
L
300 350 - cd/m
Normal
TBD
TBD
TBD
TBD
TBD
TYP.
+0.03
Red
Green
Rx
Ry
Gx
Gy
Bx
qL,R=0
qU,D=0
Viewing
Angle
TYP.
-0.03
Blue
By
Wx
TBD
TBD
White
Wy
TBD
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
Color Gamut - - 70 - %
Color Temperature - 7000 10000 - K
Hor.
Viewing
Angle
Ver.
Brightness Uniformity
(9 Points)
q
L
q
R
q
U
q
D
B
uni
C/R≥10
75 89 75 89 -
Degree
75 89 75 89 -
- - 25 %
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Environment condition : Ta = 25 ± 2 °C
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
6 / 26
Page 7
Samsung Secret
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
- Definition of test point
320 960 1600
1°
2°
Photo detector
Field
SR-3 : 50㎝
RD-80S : 50㎝
EZ-Contrast:0㎝
LCD Panel
The center of the screen
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel
C R
/
⑨
⑥
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
⑧
⑤ ④
②③
⑦
①
Active Area
Test Point
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
7 / 26
Page 8
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White)
Buni
100
B B
( max min)
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
Black (data off)
T
R
White (data on)
90%
10%
0%
Black (data off)
T
F
TIME
※ G-to-G : Average response time between Gray to Gray (Scale)
Note (4) Definition of Luminance of White : Luminance of white at center point ⑤
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point ⑤
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
8 / 26
Page 9

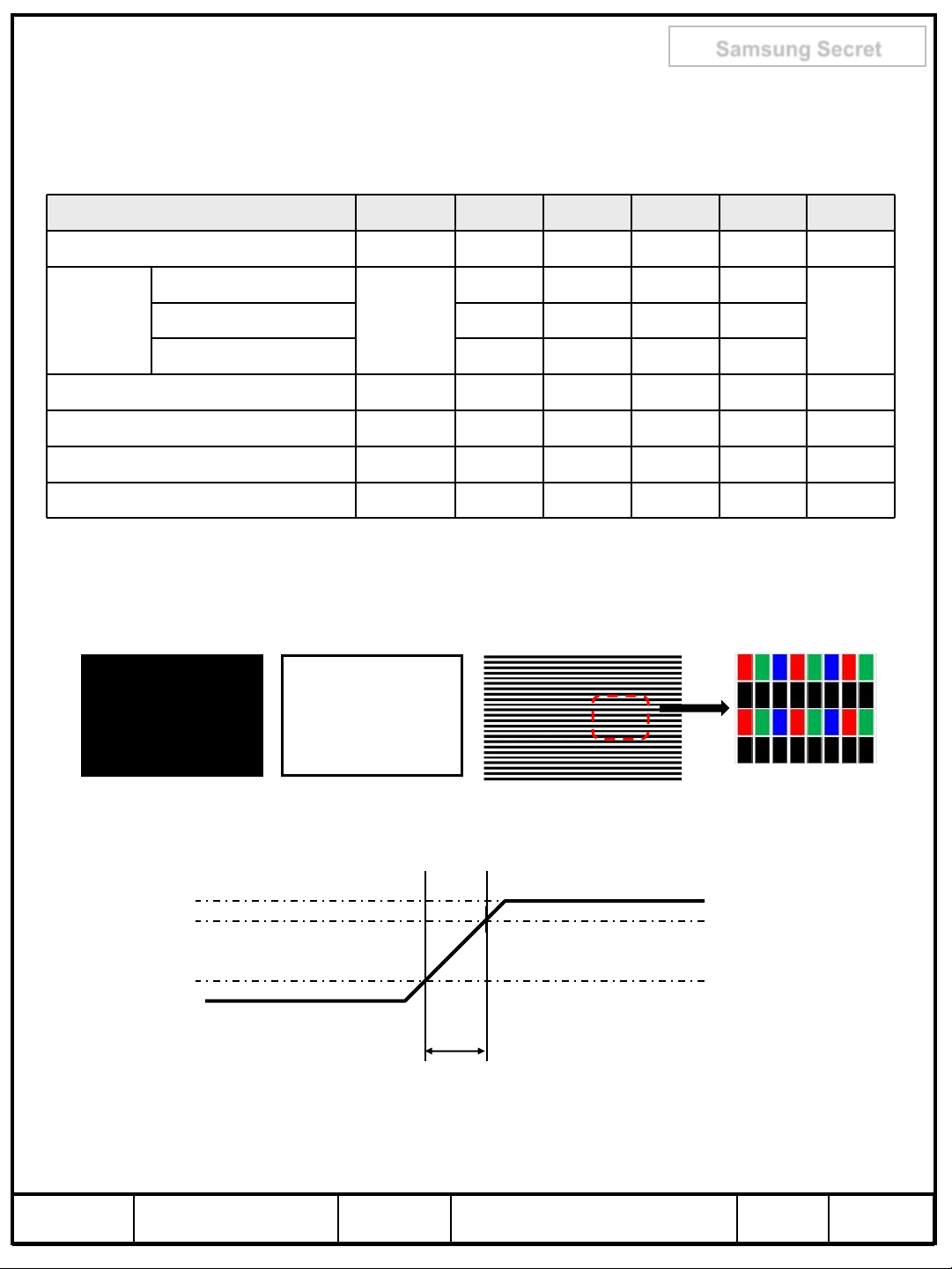

3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
Samsung Secret
Ta = 25°C± 2 °C
Voltage of Power Supply V
Current
(a) Black
of Power
Supply
(c) N-pattern - 532 780 mA
Vsync Frequency f
Hsync Frequency f
DD
I
DD
V
H
10.8 12.0 13.2 V (1)
- 279 410 mA
45 60 65 Hz
48 67.5 73 kHz
Main Frequency Fdclk 130 148.5 160 MHz
Rush Current I
RUSH
- - 5 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV=60Hz, fDCLK =148.5MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N - Pattern
(2),(3)(b) White - 251 460 mA
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470㎲
RUSH
Rush Current I
can be measured when T
RUSH
. is 470㎲.
RUSH
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
9 / 26
Page 10

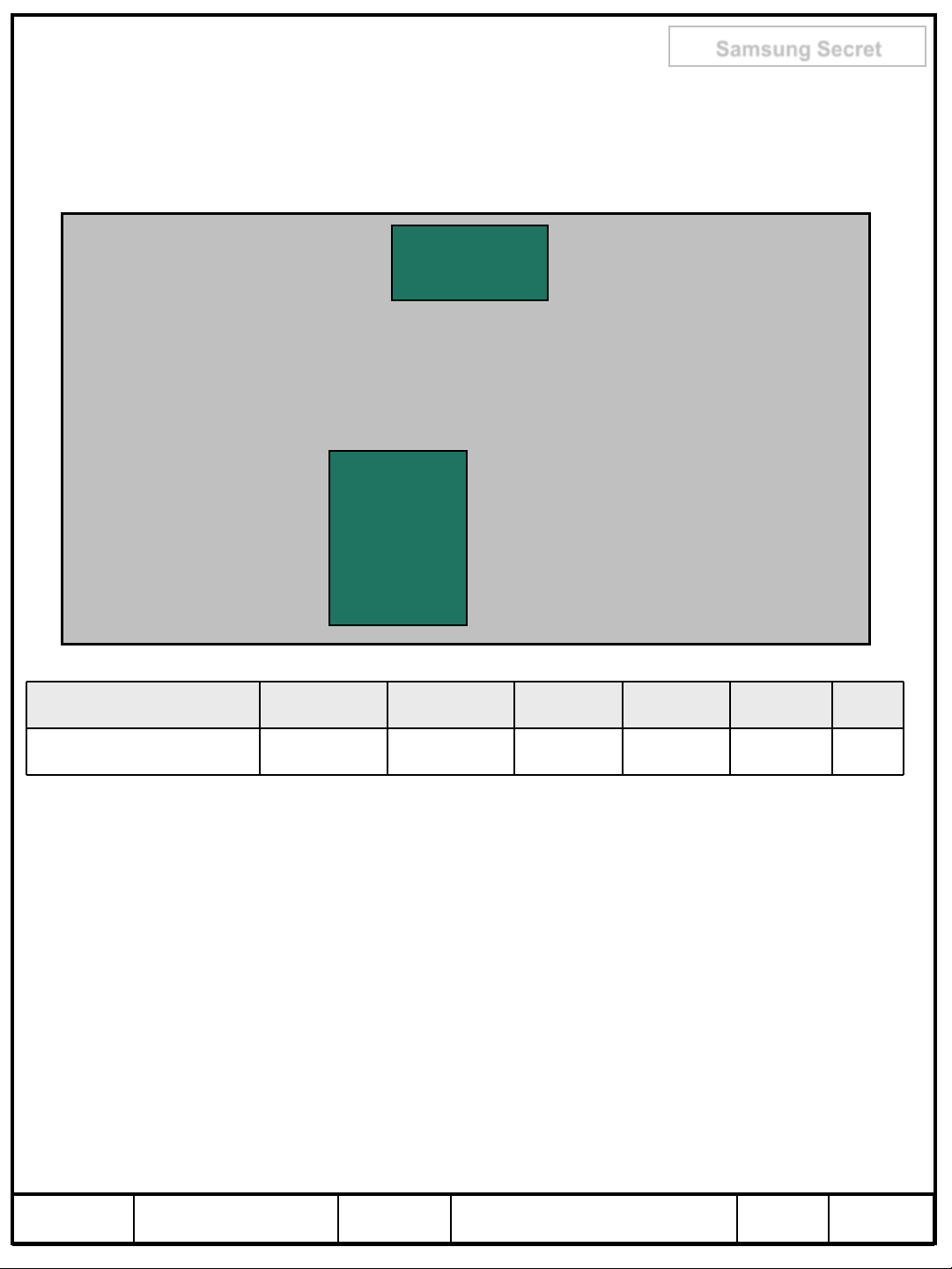

3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Control Board
LCD Module
Converter
Samsung Secret
Ta=25 ± 2°C
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 30,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25±2℃
, For LED package only. ]
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
10 / 26
Page 11

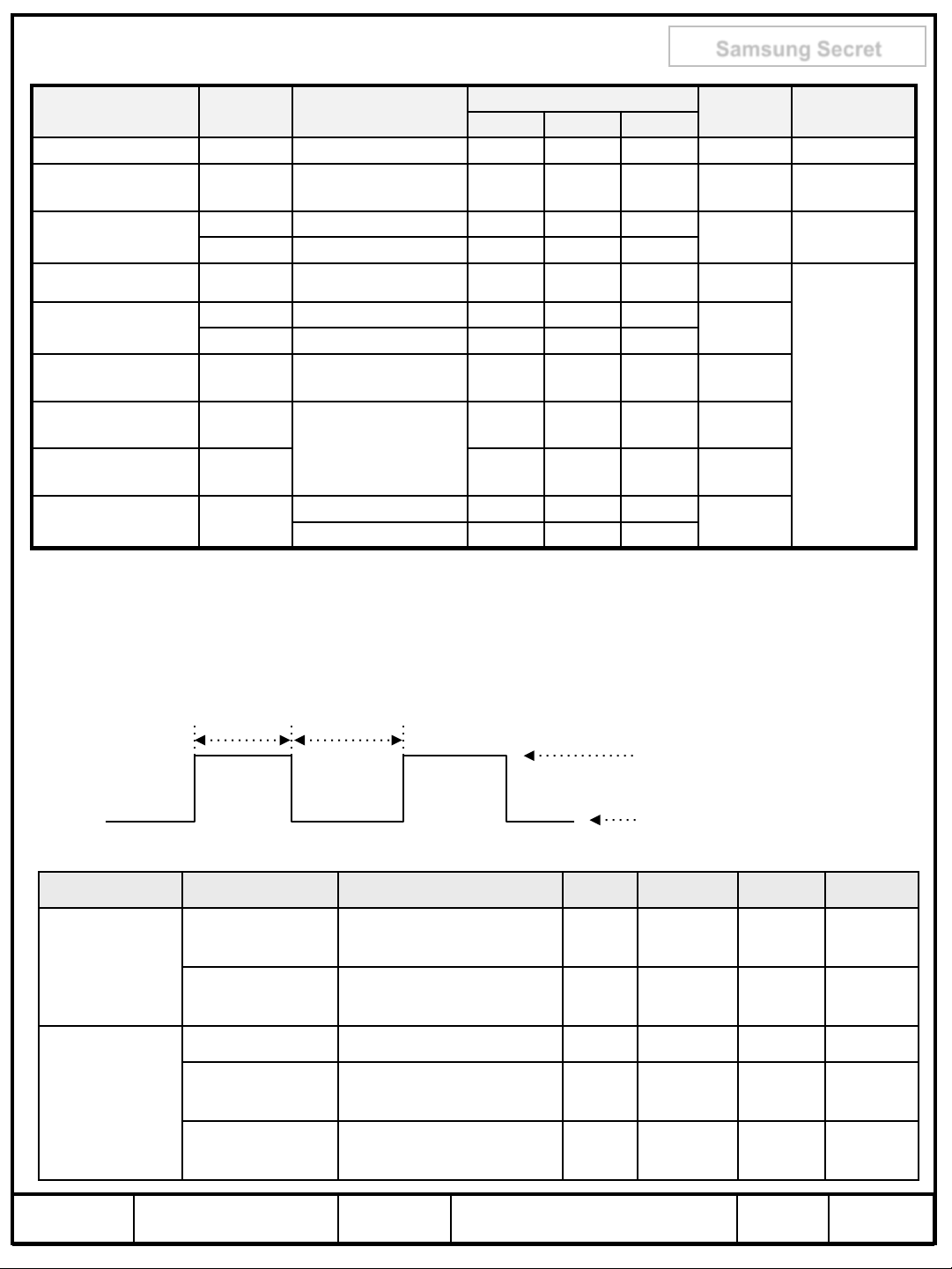

3.3 Converter Input Condition & Specification
Samsung Secret
Items Symbol Conditions
Input Voltage Vin - 22 24 26 V
Input Current I
Backlight
On/Off
Dimming Range V
Dimming Duty
Output
Dimming
Frequency
External Dimming
Duty Range
External Dimming
Frequency Range
External Dimming
Signal Level
RUSH
ON Vin=24.0 V 3 - 5.25
OFF Vin=24.0 V 0 - 0.4
_DIM
D max Vin=24V Dim:3.3V - - 100
D min Vin=24V Dim:0V 1 - -
F
PWM
EX_Dim
F
EX_PWM
V
PWM
Vin=24.0V
Vdim =3.3V
Vin :22~26V 0 - 3.3 V
Vin=24.0 V 140 150 160 Hz
Vin=22.0~26.0 V
Dim Pin(#13):floting
High (ON) 3 - 5.25
Low (Off) 0 - 0.4
Specifications
Min. Typ. Max.
- - 4.80 A Normal
1 - 100 %
- 150 - Hz
Unit Note
Ta=25±2 °C
V
%
Note(2)
V
Note) Power Consumption is measured when 350 [cd/m ] of luminance which is the typical
luminance.
(1) All data is measured after 120min warm-up.
(2) Duty = On/ (On+Off) * 100
On Off
Max
Min
- Additional Appendix for Supply Current & Power consumption
Items Symbol Conditions Min. Typ. Max. Unit
Input
Current
Power
Consumption
(Back light)
Iin _ overshoot
Iin _ saturation
P _ Inrush
P _ overshoot
P _ saturation
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
Vin=24.0V, Vdim = 3.3V
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
- 3.76 3.87 A
- 3.22 3.32 A
- - 115.2 Watt
- 90.24 92.88 Watt
- 77.28 79.68 Watt
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
11 / 26
Page 12
4. Input Terminal Pin Assignment
Samsung Secret

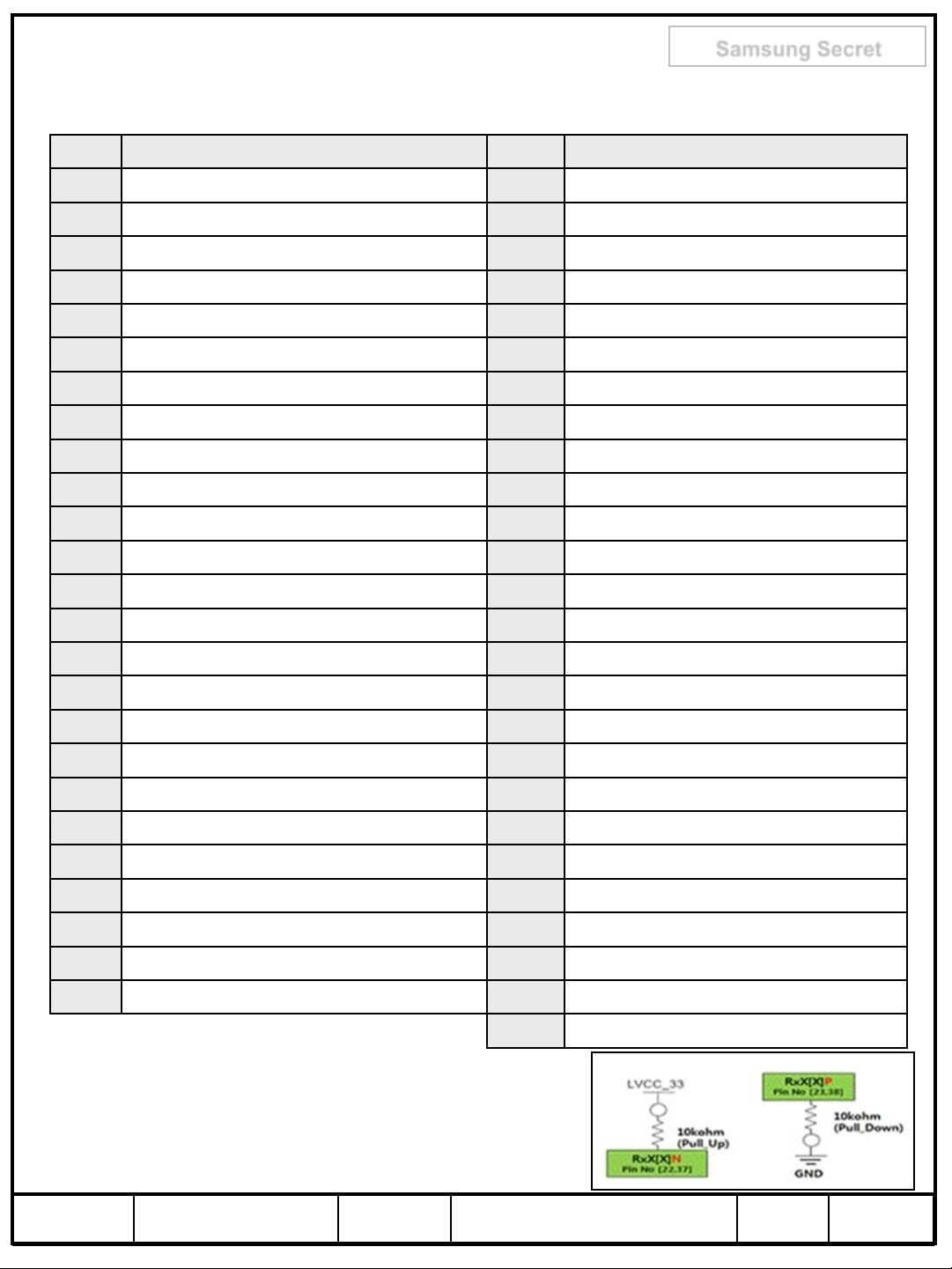

4.1. Input Signal & Power
Pin Description Pin Description
1 NC 26 3D EN
2 NC 27 NC
3 NC 28 Rx2[0]N
4 NC 29 Rx2[0]P
5 NC 30 Rx2[1]N
6 NC 31 Rx2[1]P
7 GND 32 Rx2[2]N
8 NC 33 Rx2[2]P
9 NC 34 GND
10 NC 35 Rx2CLKN
11 GND 36 Rx2CLKP
12 Rx1[0]N 37 GND
13 Rx1[0]P 38 Rx2[3]N
14 Rx1[1]N 39 Rx2[3]P
15 Rx1[1]P 40 Rx2[4]N *note (1)
16 Rx1[2]N 41 Rx2[4]P *note (1)
17 Rx1[2]P 42 NC
18 GND 43 NC
19 Rx1CLKN 44 GND
20 Rx1CLKP 45 GND
21 GND 46 GND
22 Rx1[3]N 47 NC
23 Rx1[3]P 48 VCC
24 Rx1[4]N *note (1) 49 VCC
25 Rx1[4]P *note (1) 50 VCC
51 VCC
Note(1) If 8bit of LVDS signal input from SET,
Keep [4]channel level ‘0’
Note(2) NC : No connection, Pins are used only for SDC.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
12 / 26
Page 13

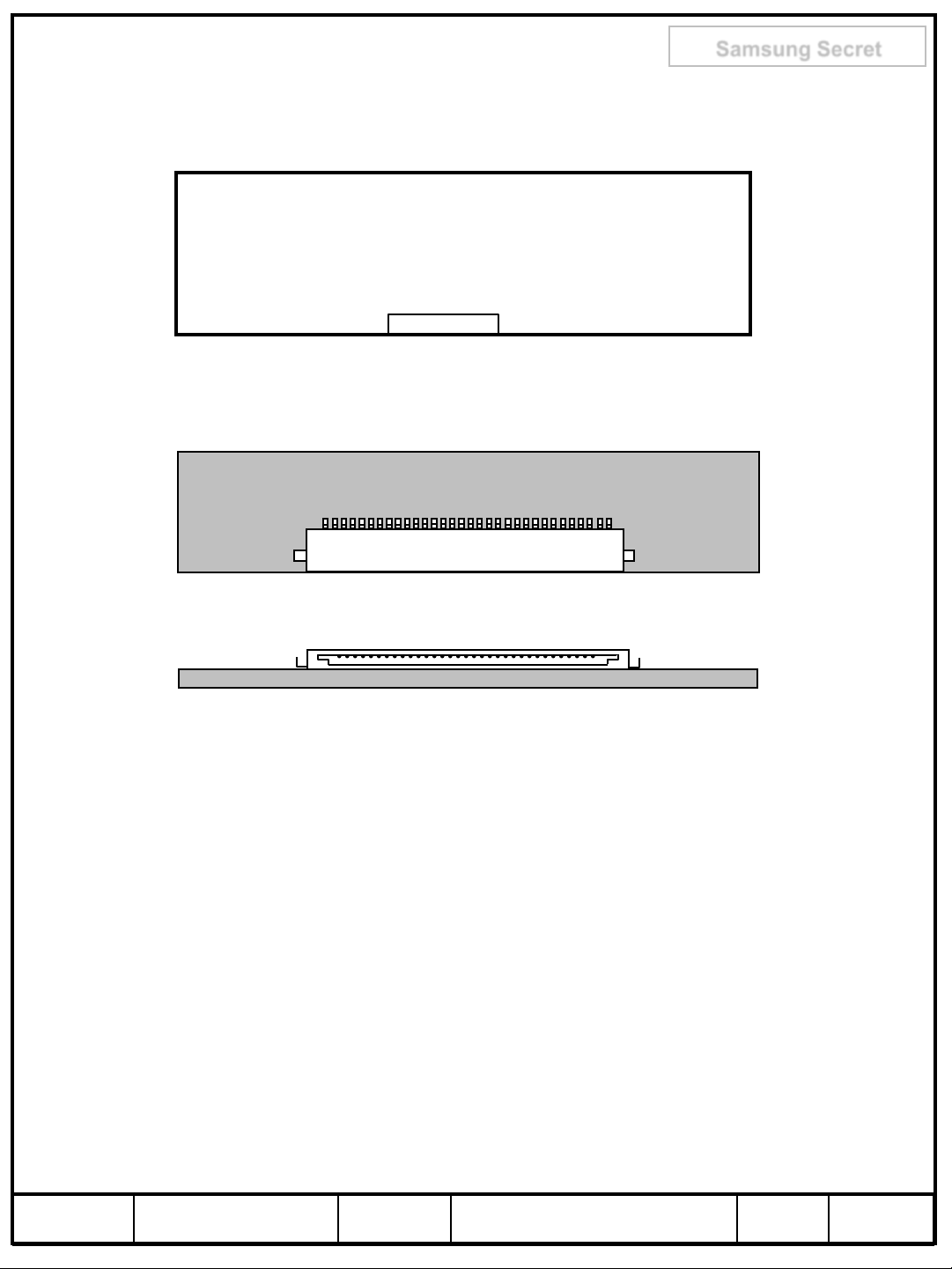

Note(3) Pin number starts from Left side
▼
Pin No. 1 Pin No. 51
#1 #51
Samsung Secret
PCB
#1
Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pin should be separated from other signal or power.
#51
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
13 / 26
Page 14
4.2. Converter Input Pin Configuration
Connector : Yeon-ho, 20022WR-14B1
Pin Configuration(FUNCTION)
Pin No.
Master
1 ~5 24 V
6~10 GND
11 Converter operation status Output
12 Converter On /Off Control [ON:3 – 5.25 V, OFF: 0 - 0.4 V]
13 Internal Dimming Control [0V:Min, 3.3V:Max] *Note(1)
14 External PWM [1~100 %] *Note(1)
Note(1) If use Dimming Control, Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
Samsung Secret
4.3. Converter Input Power Sequence
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
14 / 26
Page 15
4.4 LVDS Interface
- LVDS Receiver : T-con (merged)
- Data Format (JEIDA only)
LVDS pin JEIDA -DATA
TxIN/RxOUT0 R4
TxIN/RxOUT1 R5
TxIN/RxOUT2 R6
Samsung Secret
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxIN/RxOUT3 R7
TxIN/RxOUT4 R8
TxIN/RxOUT6 R9
TxIN/RxOUT7 G4
TxIN/RxOUT8 G5
TxIN/RxOUT9 G6
TxIN/RxOUT12 G7
TxIN/RxOUT13 G8
TxIN/RxOUT14 G9
TxIN/RxOUT15 B4
TxIN/RxOUT18 B5
TxIN/RxOUT19 B6
TxIN/RxOUT20 B7
TxIN/RxOUT21 B8
TxIN/RxOUT22 B9
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R2
TxIN/RxOUT5 R3
TxIN/RxOUT10 G2
TxOUT/RxIN3
TxOUT/RxIN4
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
TxIN/RxOUT11 G3
TxIN/RxOUT16 B2
TxIN/RxOUT17 B3
TxIN/RxOUT23 RESERVED
TxIN/RxOUT28 R0
TxIN/RxOUT29 R1
TxIN/RxOUT30 G0
TxIN/RxOUT31 G1
TxIN/RxOUT32 B0
TxIN/RxOUT33 B1
TxIN/RxOUT34 RESERVED
15 / 26
Page 16
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
Samsung Secret
DATA SIGNAL
COLOR
BASIC
COLOR
GRAY
SCALE
RED
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
CYAN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
DARK
OF
LIGHT
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
↑
: : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
↓
1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022
RED GREEN BLUE
: : : : : : : : : : : : : : : : : : : : : : : : : :
GRAY
SCALE
LEVEL
0 -
R3~
R1020
RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
GRAY
DARK
SCALE
OF
GREEN
LIGHT
GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
DARK
GRAY
SCALE
OF
BLUE
LIGHT
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
↑
: : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
↓
0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 B2
↑
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
↓
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
: : : : : : : : : : : : :
G3~
G1020
B3~
B1020
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
16 / 26
Page 17
5. Interface Timing
5.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Samsung Secret
Clock
Hsync F
Frequency
1/T
Vsync F
C
H
V
130 148.5 160
48 67.5 73
45 60 65
MHz -
KHz -
Hz -
Active
Vertical
Display
Period
T
VD
1080
Lines -
Display Term
Vertical
Total
T
V
1092 1125 1380
Lines -
Active
1920
Clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
2090 2200 2350
clocks -
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : ± 1.5 %
- Modulation Frequency : under 150 KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Differential Input Voltage |VID| 100 - - mV -
FIN=75MHz
RSRM
t
RSLM
CM
Note) When the skew is measured the Spread Spectrum should be 0%
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
- - 500 ps
-500 - - ps
0.3 - 1.8 V -
17 / 26
Page 18
5.3 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
DCLK
Samsung Secret
TC
DATA
SIGNALS
DCLK
DISPLAY
DATA
DE
TC
TCH
TDS TDH
TES
Tcl
0.5
V
0.5
V
CC
0.5
V
CC
CC
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
18 / 26
Page 19
Samsung Secret
5.4 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
1ms<T1≤10ms
1<T2≤50ms
0<T3≤50ms
1000ms≤T4
1000ms≤T5
100ms≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of VDD.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of VDD= off level,
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
19 / 26
Page 20
Page 21
Page 22
7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Samsung Secret
7.2 Packing Specification
Item Specification Remark
1. 259.2Kg/ LCD (24ea)
LCD Packing
Pallet
Packing Direction
Total Pallet Size
Total Pallet Weight
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
24ea / Box
2. 12Kg/ Cushion pallet (2ea)
3. 8 Kg / Packing pallet box (1ea)
1Box / Pallet 1. Pallet weight : 8.8Kg
Vertical
H x V x height 1270mm(H) x 1150mm(V) x 844mm (height)
288Kg Pallet + Module + Cushion + Pallet box
22 / 26
Page 23
Samsung Secret
8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA460HN07
(2) Revision: Three letters
(3) Lot number : X X X X XXX XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
(4) Nameplate Indication
Week code : 05 29
LTA460HN07
XXXXXXXXXX XXX
(5) Packing box attach
LTA460HN07
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
XXXX
24
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
23 / 26
Page 24
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.
Do not use ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
Semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board.
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handle a module
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
24 / 26
Page 25
9.2 Storage
Samsung Secret
ITEM UNIT Min. Max.
Storage Temperature
Storage Humidity (%rH) 35 75
Storage Life 6 months
Storage Condition
(℃)
- The storage room should provide good ventilation and
temperature control.
- Products should not be placed on the floor, but on the
Pallet away from a wall.
- Prevent products from direct sunlight, moisture nor
water; Be cautious of a build up of condensation.
- Avoid other hazardous environment while storing
goods.
- If products delivered or kept in conditions of over the
storage period of 3months, the recommended
temperature or humidity range, we recommend you
leave them at a temperature of 20℃ and a humidity of
50% for 24 hours.
5 40
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of LED and
may require higher startup voltage(Vs).
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
25 / 26
Page 26
9.4 Operation Condition Guide
Samsung Secret
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20±15℃
- Humidity : 55±20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SDC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SDC in advance when you display the same pattern for a long time.
MODEL LTA460HN07 Doc. No 06-000-G-20120613 Page
26 / 26
Loading...
