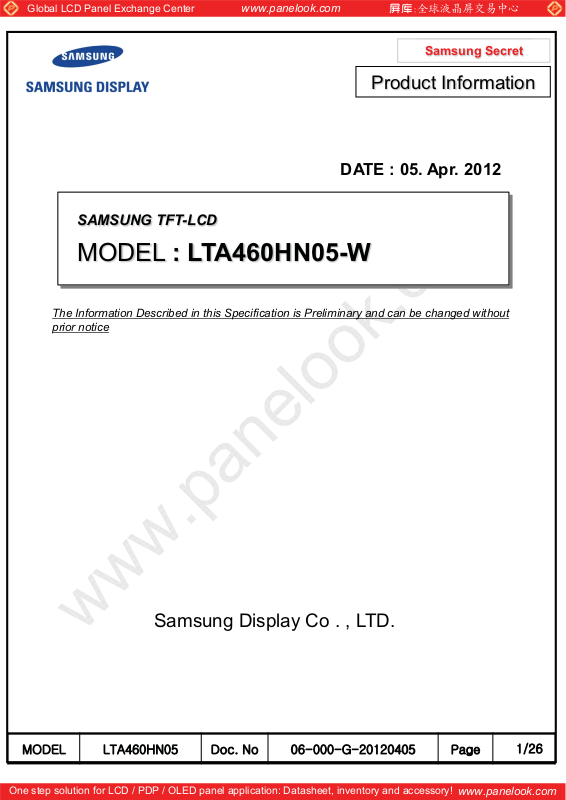

SAMSUNG TFT-LCD
MODEL : LTA460HN05-W
www.panelook.com
Samsung Secret
Product Information
DATE : 05. Apr. 2012
The Information Described in this Specification is Preliminary and can be changed without
prior notice
Samsung Display Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
YVY]
www.panelook.com
Samsung Secret
Contents
Revision History --------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE mode)
5.2 Timing Diagrams of interface Signal (DE mode)
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Packing --------------------------------------------------------------------------------------------------- (22)
8. Marking & Others --------------------------------------------------------------------------------------- (23)
9. General Precaution ------------------------------------------------------------------------------------- (24)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
ZVY]
* Revision History
Date Rev. No Page Summary
www.panelook.com
Samsung Secret
5, Apr.
2012
000 All First Issued.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
[VY]
www.panelook.com
General Description
Samsung Secret
Description
LTA460HN05 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 46.0” is 1,920 x
1,080 and this model can display up to 1.07 Billion colors with wide viewing angle of 89¶ or
higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and
High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (·178¶)
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitting Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
1045.9(W) x 602.1(V)
Module Size
34.2 (Max)
Weight 12,500 g Max
Pixel Pitch 0.53(H) x 0.53(V) mm
Active Display Area 1018.08(H) x 572.67(V) mm
Surface Treatment Haze 2 % - Anti Glare
Display Colors 1.07 Billion colors 8bit FRC
Number of Pixels 1,920 x 1,080 pixel
Pixel Arrangement RGB vertical stripe -
Display Mode Normally Black -
mm
·1.0mm
T/C~Converter
Luminance of White 350 (Typ.) cd/m
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
\VY]
www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
(VDD=12V)
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Storage temperature T
Operation temperature T
Shock ( non - operating ) S
Vibration ( non - operating ) V
DD
STG
OPR
nop
nop
GND-0.3 16 V (1)
-20 60
050
-30G(4)
- 1.5 G (5)
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta > 39 ¶C)
c. No condensation
(3) Although abnormal visual problems can be occurred in Tsur range,
the polarizer is not damaged in this range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(2)
(2)
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
]VY]
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, fDCLK = 148.5 MHz, LED Current = 165 mA)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
C/R - 5000 -
- 10 16 msec
Y
L
Rx
Ry 0.334
Normal
qL,R =0
- 350 - cd/m
0.647
qU,D =0
Gx 0.316
Gy 0.595
Bx 0.148
Viewing
Angle
TYP.
-0.03
TYP.
+0.03
By 0.059
Samsung Secret
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
Wx 0.280
White
Wy 0.290
Color Gamut - - 70 - %
Color Temperature - - 10,000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R≥10
White Brightness
Uniformity
B
uni
--30%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
^VY]
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷ ྜ
ྟ
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
1ദ
2ദ
Photo detector
Field
The center of the screen
- Definition of test point
SR-3 : 50
RD-80S : 50
EZ-Contrast:0
LCD Panel
༃
320 960 1600
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
CR
/
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
_VY]
www.panelook.com
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White)
Samsung Secret
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
Black (data off)
T
R
White (data on)
90%
10%
0%
Black (data off)
T
F
G-to-G : Average response time between Gray to Gray (Scale)
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
TIME
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
`VY]
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 2 5¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) Sub V-Stripe - 532 780 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
DCLK
RUSH
DD
I
DD
V
H
10.8 12.0 13.2 V (1)
- 279 - mA
47 60 63 Hz
50 67.5 75 kHz
130 148.5 160 MHz
--5A(4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV= 60 Hz, fDCLK = 148.5 MHz, VDD= 12.0V, DC Current.

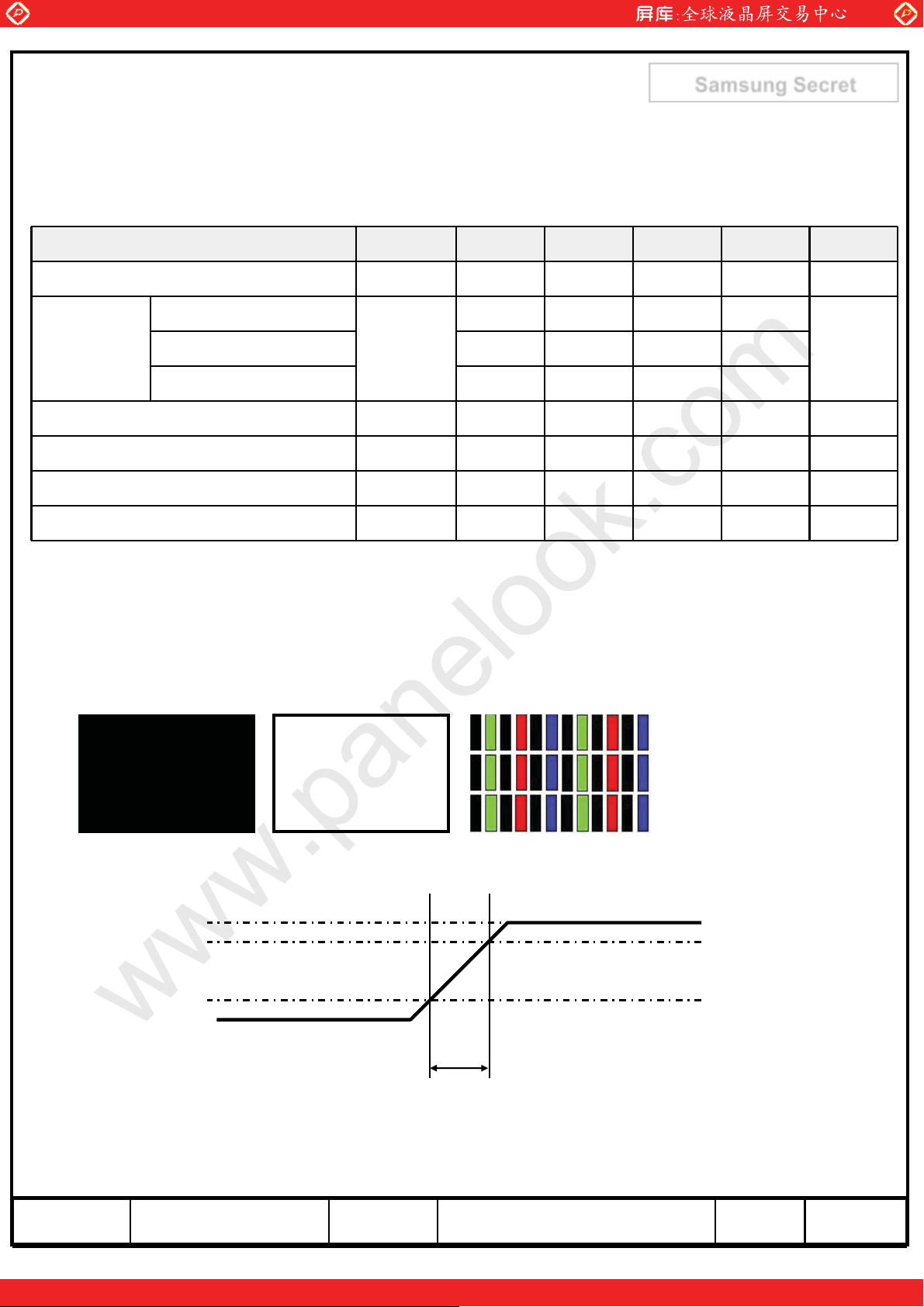

(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Sub V-Stripe
(2),(3)(b) White - 251 - mA
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
Rush Current I
T
can be measured when T
RUSH
RUSH
=470༕
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
XWVY]
www.panelook.com

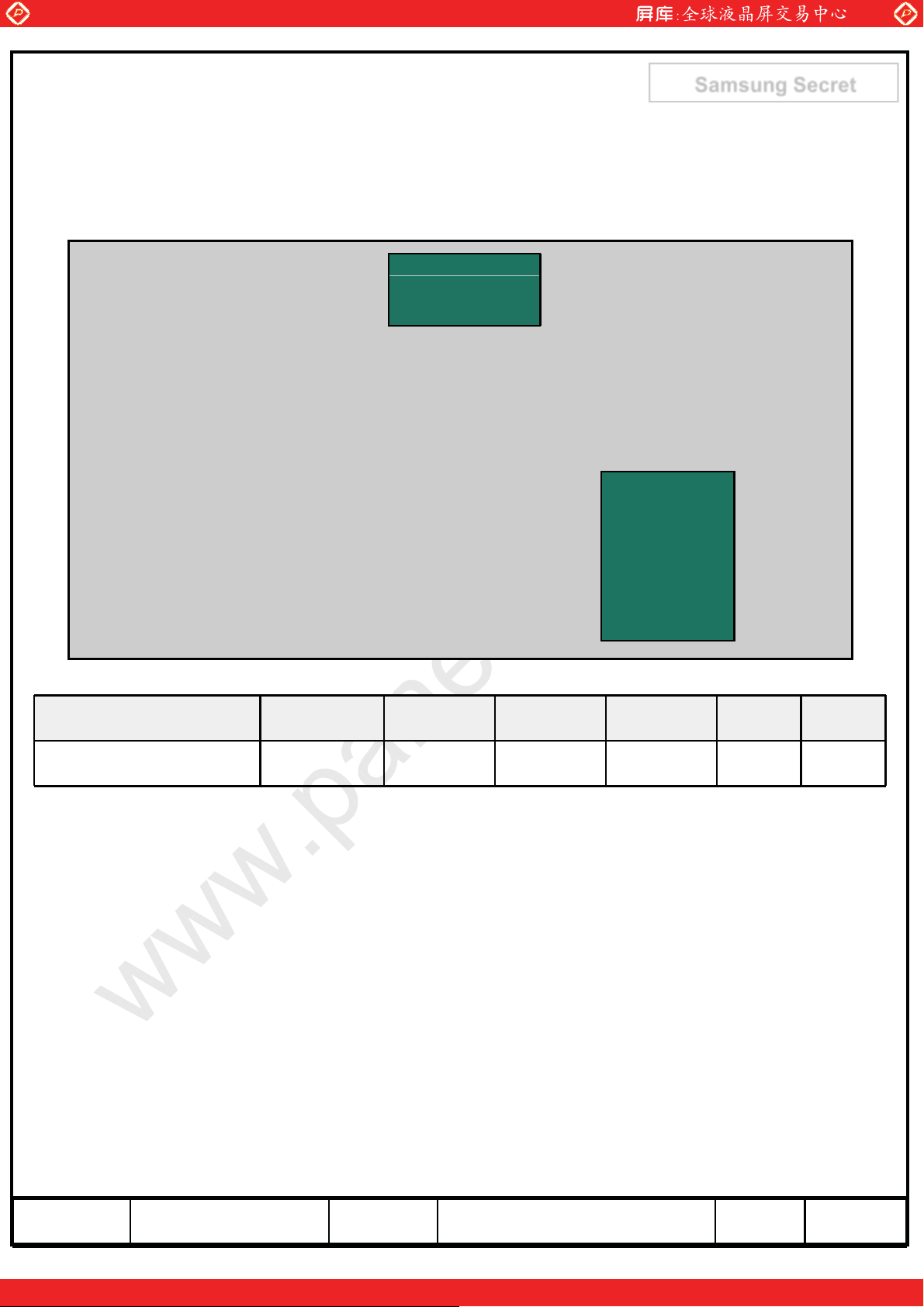

3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Control Board
LCD Module
Samsung Secret
Ta=25 · 2¶C
Converter
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr - 30,000 - Hour (1),(2)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value. [Operating condition : Ta = 25·2, For LED Package only. ]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
XXVY]
www.panelook.com
3.3 Converter Input Condition & Specification
Specifications
Items Symbol Conditions
Min. Typ. Max.
Input Voltage Vin - 22 24 26 V
Input Current
Output
Current
I
RUSH (2D)
I
O (2D)
Vin=24.0V
Dim = MAX
Vin=24.0V
Dim = MAX
- - 4.8 A Note (1)
157 165 173 mA Note (2)
Samsung Secret
Unit Note
Ta=25·2 ¶C
Backlight
On/Off
External Dimming
ON
Vin=24.0 V
OFF -0.3 - 0.8
D
EXT_DIM
Vin=24.0V
F
EXT_DIM
2.4 - 5.5
V
1 - 100 %
95 - 200 Hz Note(3)
Note (4)
High (ON) 2.4 - 5.5
External Dimming
Signal Level
V
EXT_DIM
Low (Off) -0.3 - 0.8
V
Note) Power Consumption is measured when 350 [cd/m ] of luminance which is the typical
luminance.
(1) All data is measured after 120min warm-up.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
XYVY]
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power Connector :FI-RE51S-HF (JAE/UJU)
PIN No. Description PIN No. Description
1V
2V
3V
4V
5V
6 No Connection * Note (1) 31 GND
7 GND 32 RE[CLK]N
8 GND 33 RE[CLK]P
9 GND 34 GND
10
DD(12V) 26
DD(12V) 27 RE[1]N
DD(12V) 28 RE[1]P
DD(12V) 29 RE[2]N
DD(12V) 30 RE[2]P
Even
LVDS
Signal
RO[0]N 35 RE[3]N
RE[0]P
11 RO[0]P 36 RE[3]P
12 RO[1]N 37 RE[4]N
13 RO[1]P 38 RE[4]P
14 RO[2]N 39 GND
15 RO[2]P 40 No Connection
16 GND 41 No Connection
17 RO[CLK]N 42 No Connection
18 RO[CLK]P 43 No Connection
19 GND 44 No Connection
20 RO[3]N 45 LVDS Option *Note (2)
21 RO[3]P 46 No Connection
22 RO[4]N 47 No Connection
23 RO[4]P 48 No Connection
24 GND 49 No Connection
Odd
LVDS
Signal
25 Even LVDS RE[0]N 50 No Connection
51 No Connection
Note)(1) No Connection: This PINS are only used for SAMSUNG internal using.
(2) LVDS OPTION : If this PIN : HIGH (3.3 V) → Normal LVDS format
: LOW (GND) → JEIDA LVDS format
SEQUENCE : On = V
OFF = Interface Signal(T3) ≥ LVDS Option ≥ V
DD(T1) ≥ LVDS Option ≥ Interface Signal(T2)
DD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
XZVY]
www.panelook.com
Samsung Secret
Vin
LVDS
Option
LVDS
Signal

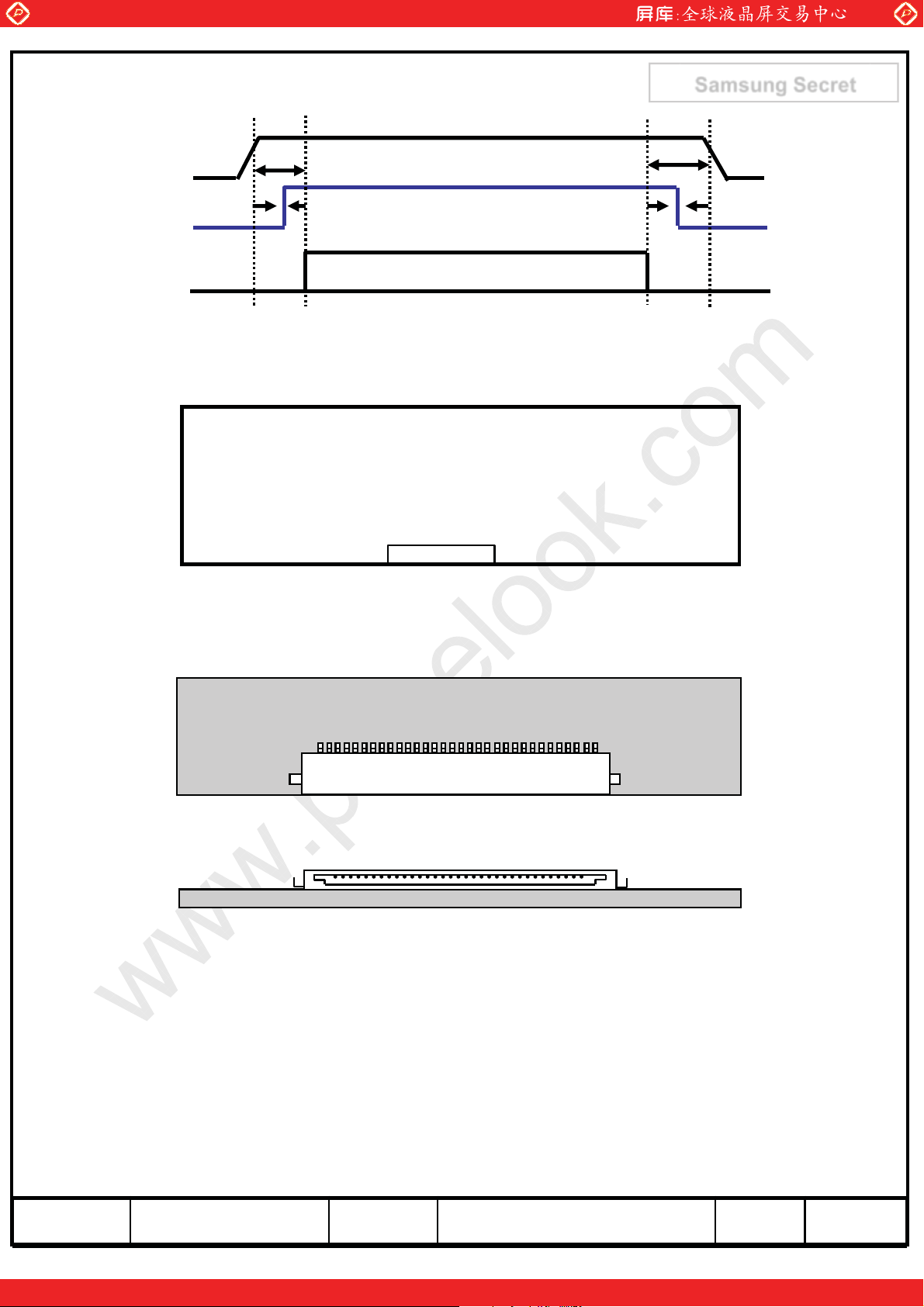

Note(3) Pin number starts from Right side
T2
LVDS Option Sequence
Pin No. 1 Pin No. 51
T3
PCB
#1
connect name
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X[VY]
www.panelook.com
4.2. Converter Input Pin Configuration
Pin Configuration (FUNCTION)
Pin No.
1 ~5 24 V
6~10 GND
11 No Connection
12 Backlight On /Off
13 No Connection
14 External PWM
Samsung Secret
Connector : Yeon-ho, 20022WR-14B1
Master

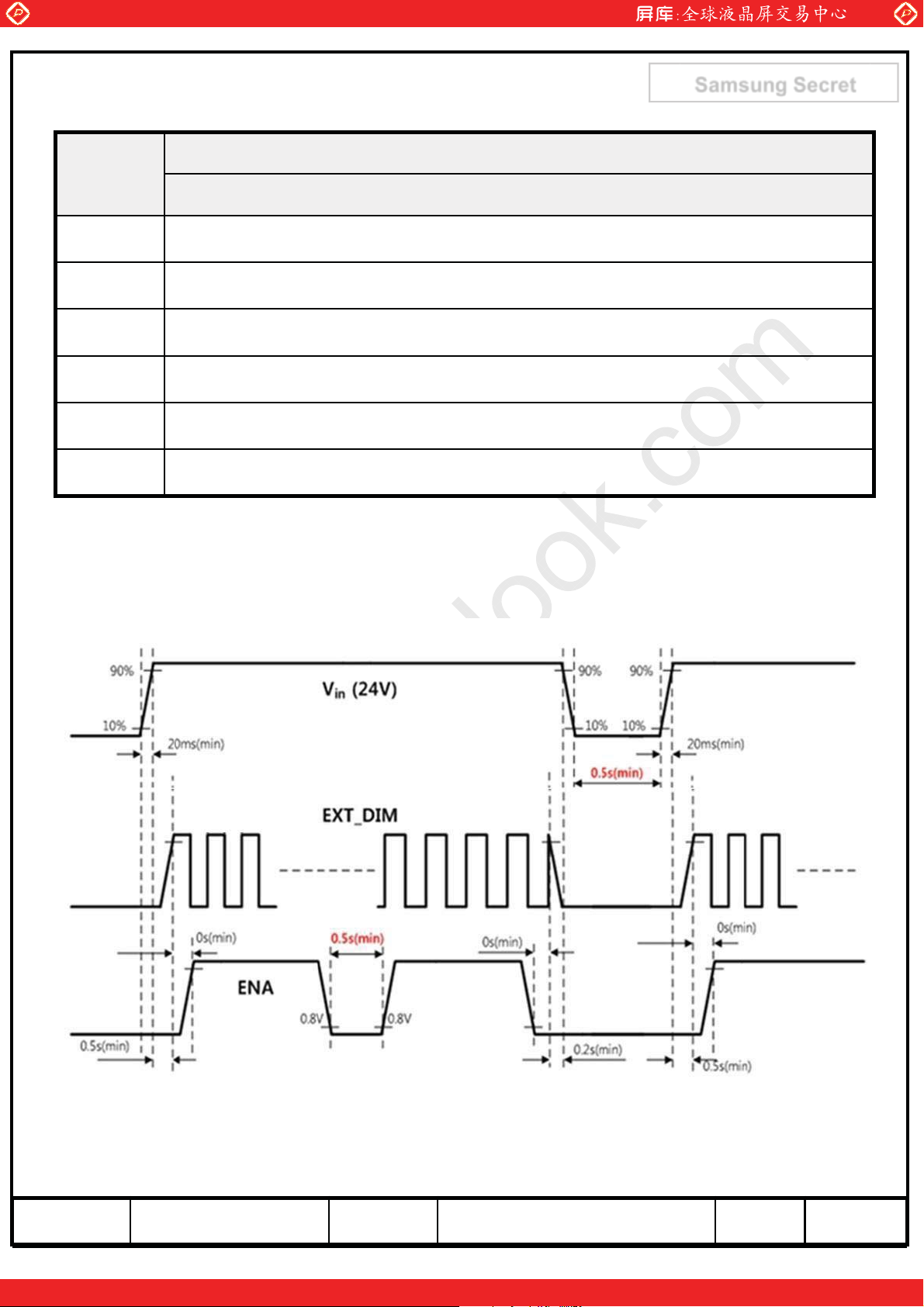

4.3. Converter Input Power Sequence
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X\VY]
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & Normal)
LVDS pin JEIDA -DATA Normal -DATA
TxIN/RxOUT0 R4 R0
TxIN/RxOUT1 R5 R1
TxIN/RxOUT2 R6 R2
TxOUT/RxIN0
TxIN/RxOUT3 R7 R3
TxIN/RxOUT4 R8 R4
TxIN/RxOUT6 R9 R5
TxIN/RxOUT7 G4 G0
TxIN/RxOUT8 G5 G1
TxIN/RxOUT9 G6 G2
TxIN/RxOUT12 G7 G3
TxOUT/RxIN1
TxIN/RxOUT13 G8 G4
TxIN/RxOUT14 G9 G5
Samsung Secret
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT15 B4 B0
TxIN/RxOUT18 B5 B1
TxIN/RxOUT19 B6 B2
TxIN/RxOUT20 B7 B3
TxIN/RxOUT21 B8 B4
TxIN/RxOUT22 B9 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R2 R6
TxIN/RxOUT5 R3 R7
TxIN/RxOUT10 G2 G6
TxIN/RxOUT11 G3 G7
TxIN/RxOUT16 B2 B6
TxIN/RxOUT17 B3 B7
TxIN/RxOUT23 RESERVED RESERVED
TxIN/RxOUT28 R0 R8
TxIN/RxOUT29 R1 R9
TxIN/RxOUT30 G0 G8
TxOUT/RxIN4
TxIN/RxOUT31 G1 G9
TxIN/RxOUT32 B0 B8
TxIN/RxOUT33 B1 B9
TxIN/RxOUT34 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X]VY]
www.panelook.com
Samsung Secret
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DATA SIGNAL
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
100000000000000000000000000000 R1
DARK
↑
↓
LIGHT
010000000000000000000000000000 R2
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
101111111100000000000000000000R1021
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R1020
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
011111111100000000000000000000R1022
RED 111111111100000000000000000000R1023
BLACK 000000000000000000000000000000 G0
000000000010000000000000000000 G1
DARK
↑
↓
LIGHT
GREEN 000000000011111111110000000000G1023
BLACK 000000000000000000000000000000 B0
DARK
↑
↓
LIGHT
000000000001000000000000000000 G2
:::::: :::::::::: :::::::::: ::::
::::::: ::::::::: :::::::::: ::::
000000000010111111110000000000G1021
000000000001111111110000000000G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
G3~
G1020
B3~
B1020
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X^VY]
5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Samsung Secret
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
130 148.5 160 MHz -
50.0 67.5 75.0 KHz -
47.0 60.0 63.0 Hz -
Active
- 1080 - Lines -
Vertical
Display
Period
T
VD
Display Term
Vertical
Total
T
V
1092 1125 1380 Lines -
Active
- 1920 - Clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
2090 2200 2350 clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 %
- Modulation Frequency : 30~ 100KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Differential Input Voltage |V
=75MHz
F
IN
RSRM
t
RSLM
CM
| 100 - - mV -
ID
Note) When the skew is measured the Spread Spectrum should be 0%
- - 500 ps
-500 - - ps
0.55 - 1.8 V -
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X_VY]
www.panelook.com

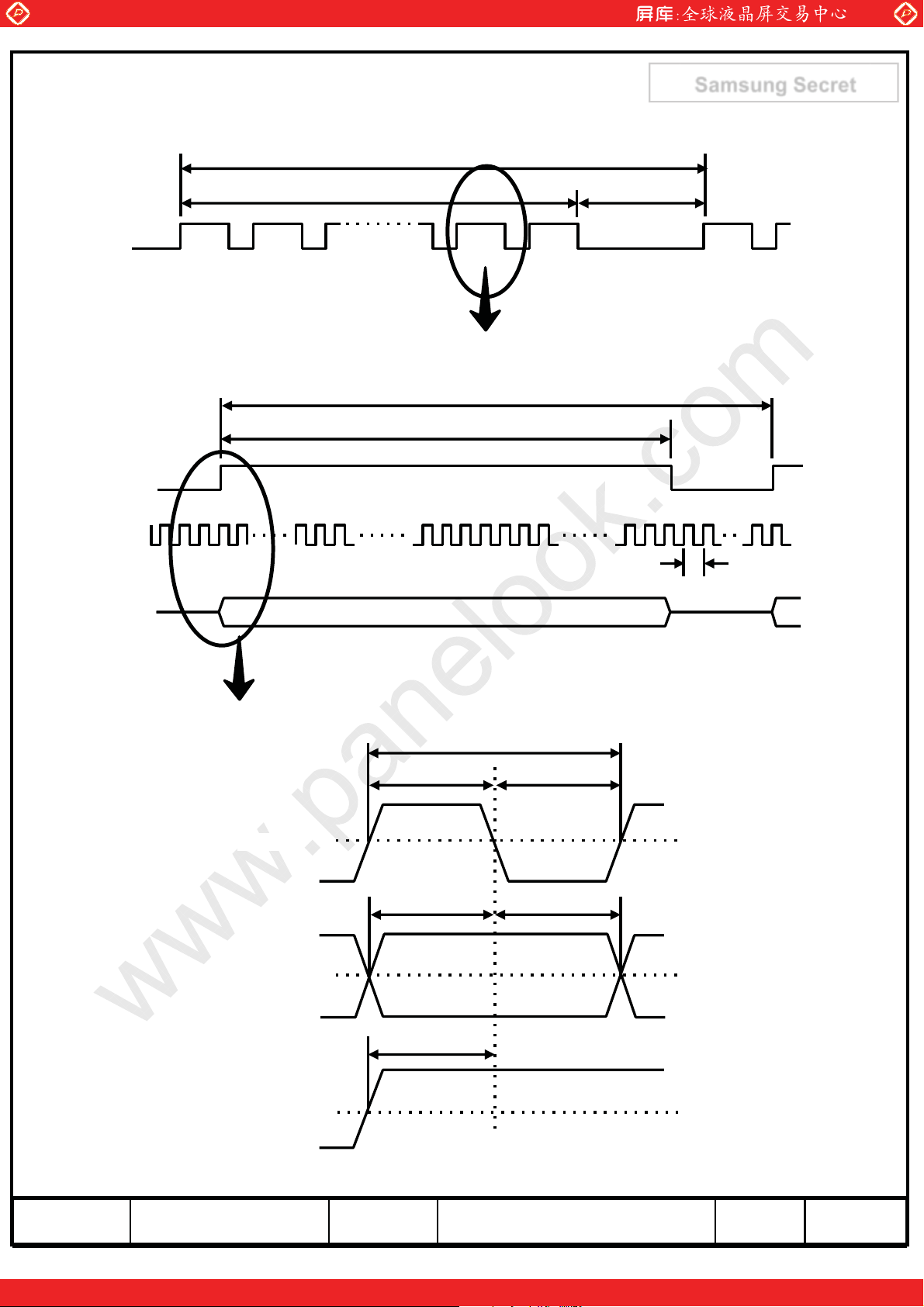

5.3 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
Samsung Secret
TVB
DCLK
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
TCL
TC
0.5
V
0.5
V
CC
CC
TES
DE
0.5
V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
X`VY]
WU\G}
www.panelook.com

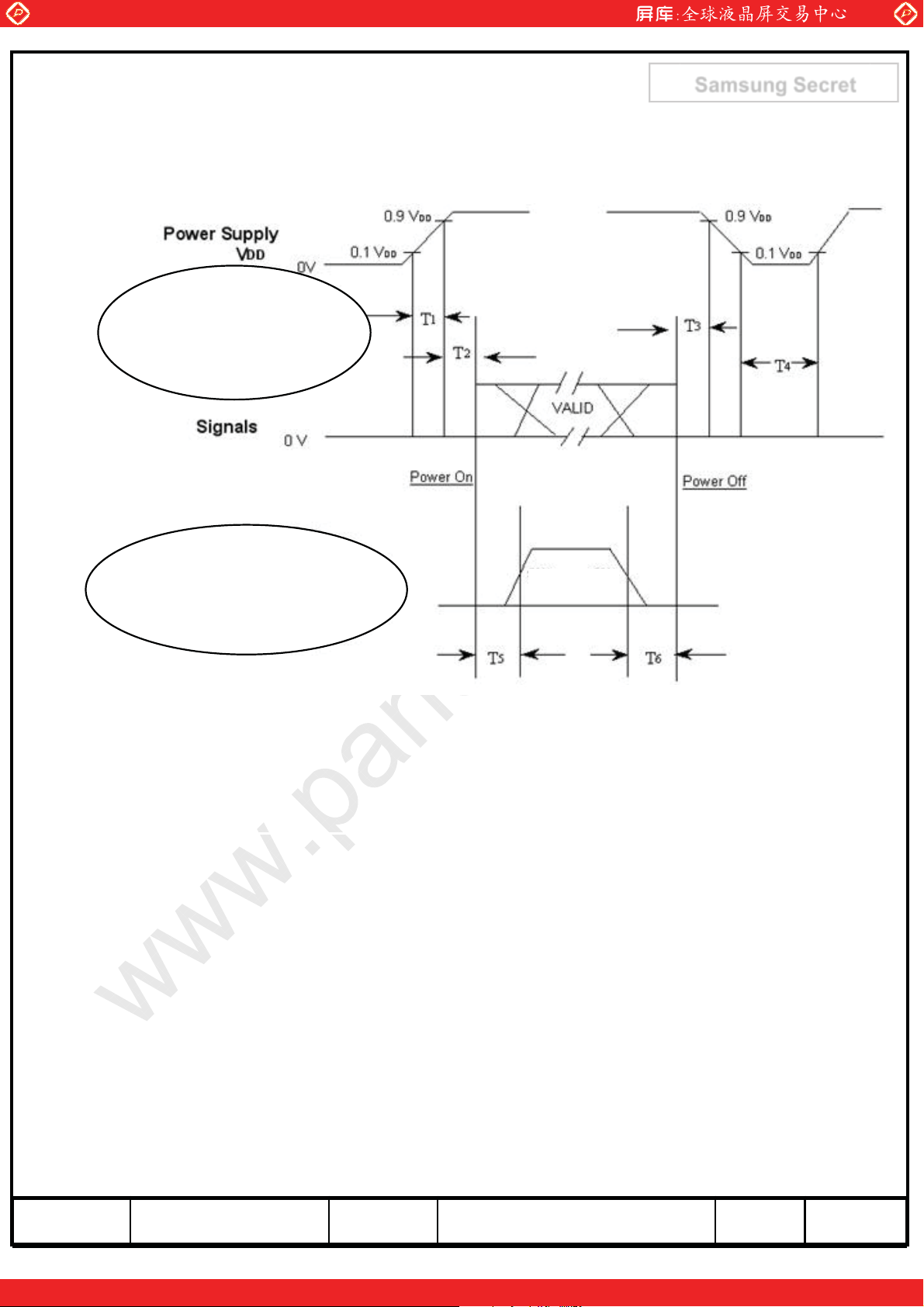

5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
1<T1≤10msec
1<T2≤50msec
0<T3≤50msec
1000msec≤T4
1000msec≤T5
(Recommend Value)
100msec≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from V
T3 : The time from valid data off to V
T4 : V
off time for Windows restart
DD
to valid data at power ON.
DD
off at power Off.
DD
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
YWVY]
6. Outline Dimension- Front
www.panelook.com
Samsung Secret
TBD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
YXVY]
6. Outline Dimension- Rear
www.panelook.com
Samsung Secret
TBD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
YYVY]
Pallet Box)
1.
2.
>. Packingt Box Material : KLB, AK, CK
3.
(PE,W1270,L1150,H125)
1. Pallet weight = 7.8Kg
>. Pallet Material :
Packing Direction
1270
Total Pallet Weight
Pallet (7.8kg) + Module (276kg)
+ Packing

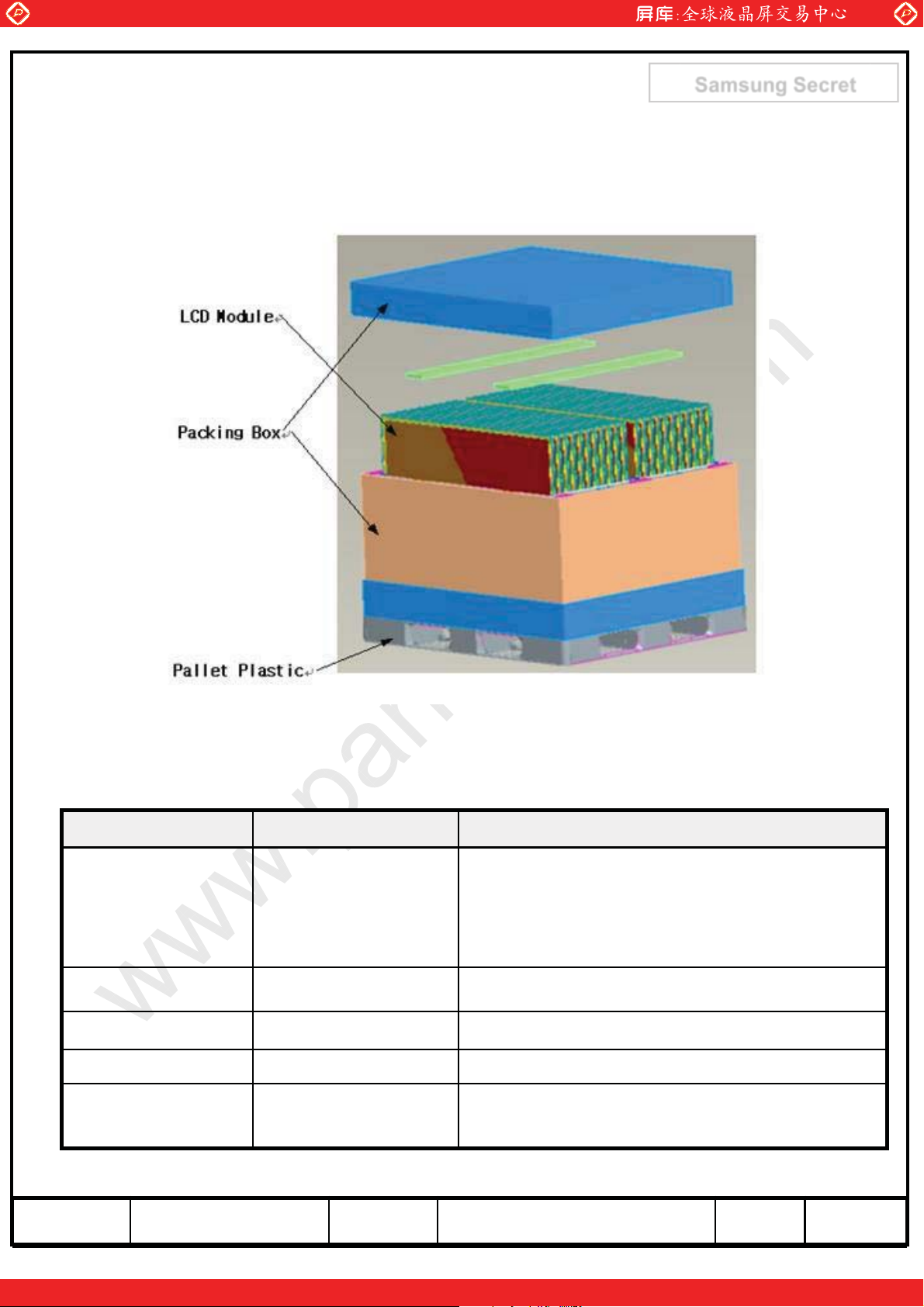

7. PACKING
7.1 CARTON (Internal Package)
www.panelook.com
Samsung Secret
7.2 Packing Specification
Item Specification Remark
11.5 / LCD (24ea)
LCD Packing 24 ea / Box
(Packing-
Pallet
Total Pallet Size H x V x height
1Box / Pallet
Vertical
309.34 kg
24.1Kg / Packing Box (1ea)
60g/Slica-Gel (6ea)
HDPE
mm(H) x 1150 mm(V) x 788 mm(height)
-Box (24.1kg) + silica-gel(1.44Kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
YZVY]
www.panelook.com
Samsung Secret

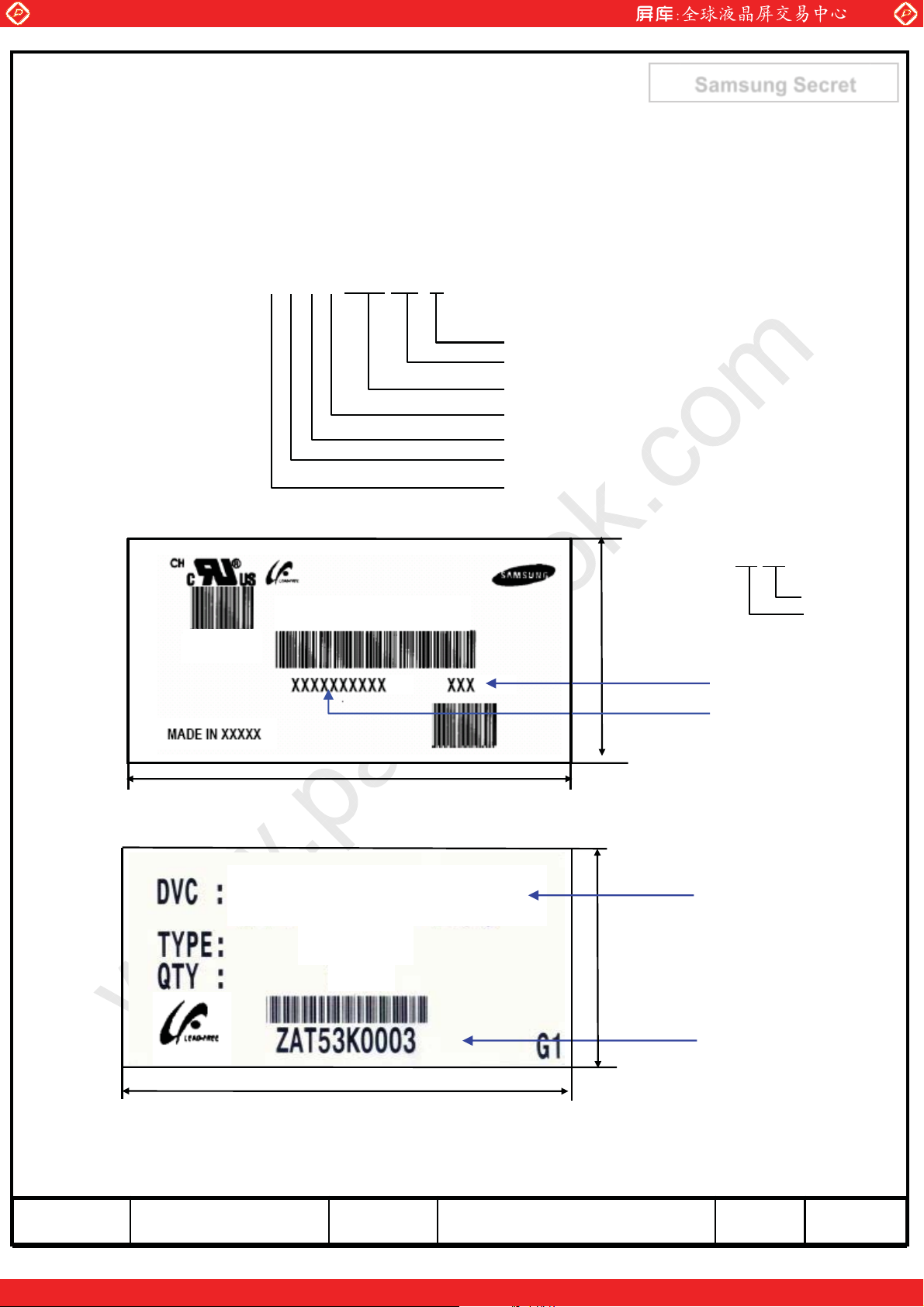

8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA460HN05
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
(4) Nameplate Indication
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTA460HQ07
LTA460HN05
1009
1129
(5) Packing box attach
OWD793KQ38
Week code : 11 29
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
W[[
57
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
Y[VY]
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFT back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of I/F connector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
Y\VY]
9.2 Storage
Item Unit Min. Max.
www.panelook.com
Samsung Secret
Storage
Temperature
()
Storage Humidity (%rH)
Storage Life 6 Months
- The storage room should provide good ventilation and temperature
control.
- Products should not be placed on the floor, but on the Pallet away
from a wall.
Storage
Condition
- Prevent products from direct sunlight, moisture nor water; Be
cautious of a build up of condensation.
- Avoid other hazardous environment while storing goods.
- If products delivered or kept in conditions of over the storage period
of 3 months, the recommended temperature or humidity range,
we recommend you leave them at a temperature of 20 and a
humidity of 50% for 24 hours.
540
35 75
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(LED) and
may require higher startup voltage(Vs).
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
tvkls s{h[]WouW\ kUGu W]TWWWTnTYWXYW[W\ w
Y]VY]
www.panelook.com
9.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
Samsung Secret
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
