General Description
Samsung Secret
Description
LTA400HM23 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit.
The resolution of a 40.0“ is 1920 x 1080 and this model can display up to 16.7million colors with
wide viewing angle of 178¶ or higher in all directions. This panel is intended to support applications
to provide a excellent performance for Flat Panel Display such as Home-alone multimedia TFTLCD TV and high definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (typ.178¶)
High speed response
HD resolution (16:9)
Low Power consumption
Direct Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
ItemsSpecificationUnitNote
914.4 (H
Module Size
Weight6200 (Typ.)g
Pixel Pitch0.46125(H) x 0.15375(W)mm
Active Display Area885.6 (H) x 498.15 (V)mm
Surface TreatmentAnti-Glare Haze 5.5%, Hard coating (2H) -
Display Colors8 bit – 16.7 Mcolor
Number of Pixels1920 x 1080pixel
Pixel ArrangementRGB Horizontal stripe
Display ModeNormally Black
Luminance of White300 (Typ.)cd/m
) x 530.6 (V
Typ
37 (D
Max
)
Typ
)
·1.0mm
mm
2
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/26
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
ItemSymbolMin.Max.UnitNote
www.panelook.com
Samsung Secret
Power Supply VoltageV
Storage temperatureT
Operating temperatureT
DD
STG
OPR
GND-0.313.2V(1)
-2060
050
Shock ( non - operating )X,Y,Z-50G(3)
Vibration ( non - operating )V
NOP
-1.5G(4)
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. Ta ≤ 39 ¶C , Relative Humidity is max 90 %
b. Ta 39 ¶C , Relative Humidity is less than 90%
c. No condensation
(2)
Fig. Temperature and Relative humidity range
(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/26
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2. Optical Characteristics
Samsung Secret
The optical characteristics should be measured in a dark room or equivalent condition.
Measuring equipment ( ) : equipment maker
:
BM-7(TOPCON), PR-650(Photo Research), SR3(TOP CON )
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
ItemSymbolConditionMin.Typ.Max.UnitNote
Contrast Ratio
(Center of screen)
Response
G-to-G
Time
Luminance of White
(Center of screen)
Color
Green
Chromaticity
(CIE 1931)
(2D)
Red
Blue
C/R-5000-
Tg
Y
L
Rx
Ry0.338
Normal
θL,R =0
-820msec
260300-cd/m
θU,D =0
Gx0.312
Gy0.616
Bx0.150
Viewing
Angle
TYP.
-0.03
By0.054
= 148.5 MHz, If = 400mA, Dim.duty 100%)
DCLK
BM-7, RD-80S
2
0.640
TYP.
-0.03
(1)
SR-3
(3)
(4)
SR-3
(5),(6)
PR650,
SR-3
Center
Point
White
Wx0.275
Wy0.285
Color Gamut--70-%
Color Temperature--11,000-K
Typ.
Viewing
Angle
Hor.
Ver.
θ
L
θ
R
θ
U
θ
D
C/R≥10
7589-
7589-
Degree
7589-
7589-
White Brightness
Uniformity
B
uni
--30%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/26
www.panelook.com
Page 7
Global LCD Panel Exchange Center
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷྜ
ྟ
www.panelook.com
Samsung Secret
detector
SR-3
RD-80S
TFT - LCD Module
Field
1ദ
2ദ
- Definition of test point
3209601600
Photo detector
Field
D : 50
LCD Panel
The center of the screen
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/26
www.panelook.com
Page 8
Global LCD Panel Exchange Center
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
www.panelook.com
Samsung Secret
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Average of T
(data is 8 x 8 Gray table, excluding 0 to 255Gray)
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
R
, T
F
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle at center point
: Viewing angle range (C/R ≥10)
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/26
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
ItemSymbolMin.Typ.Max.UnitNote
Voltage of Power SupplyV
(a) Black
DD
I
DD
10.812.013.2V(1)
-725850mA
(c) Checker-10601200mA
Vsync Frequencyf
Hsync Frequencyf
Main Frequencyf
Rush CurrentI
V
H
DCLK
RUSH
486062Hz
5067.573kHz
130148.5155MHz
--3A(4)
Note (1) The ripple voltage should be controlled under 10% of V
(2) fV=60Hz, fDCLK =148.5MHz,V
= 12.0V, DC Current.
DD

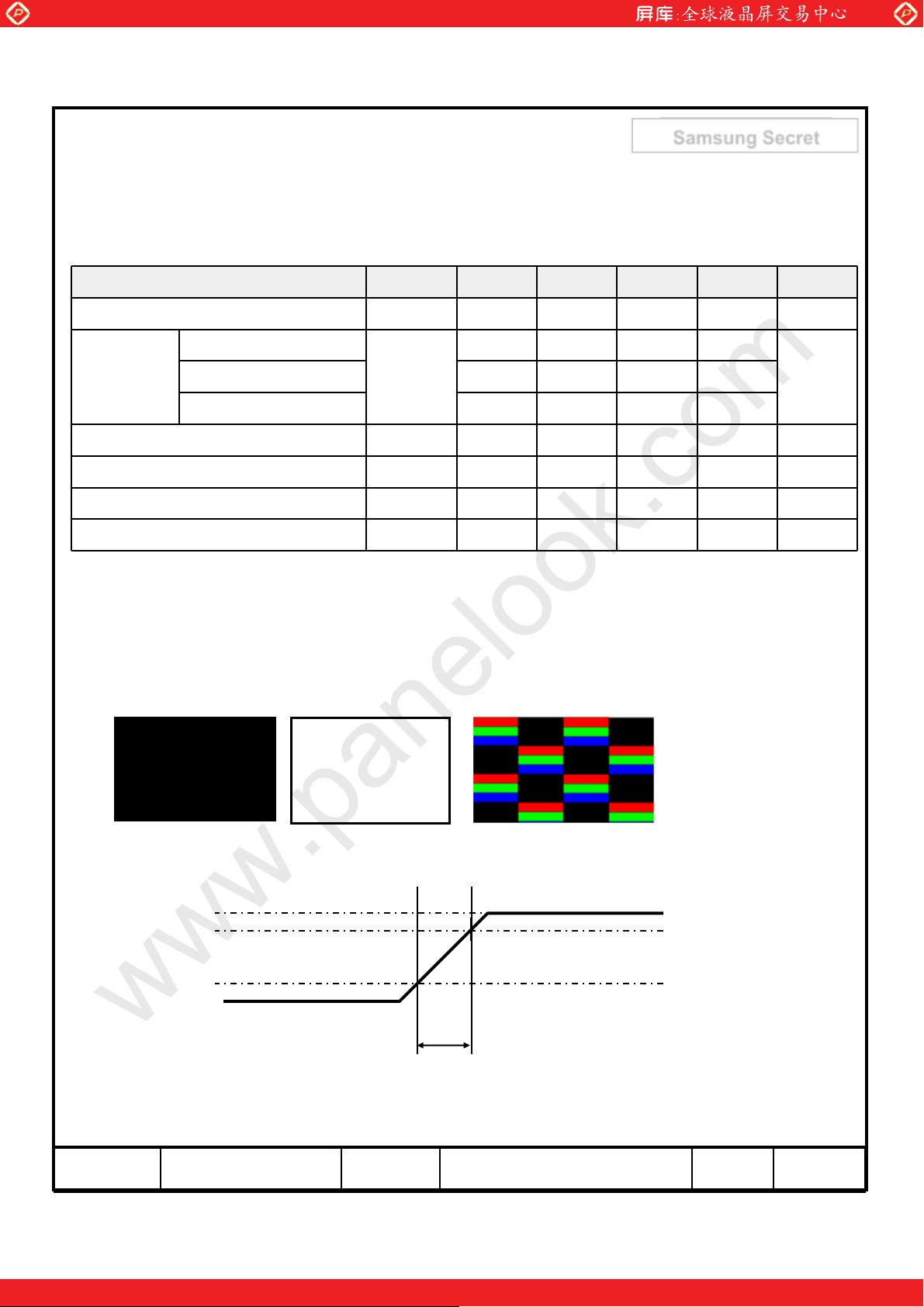

(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Checker
DD
(2),(3)(b) White-730850mA
.
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
Rush Current I
T
can be measured when T
RUSH
RUSH
≥ 470༕
. is bigger then 470༕.
RUSH
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/26
www.panelook.com
Page 10
Global LCD Panel Exchange Center
3.2 Back Light Unit
The back light unit contains Direct type White LEDs (Light Emitting Diode)
www.panelook.com
Samsung Secret
Ta=25 · 2¶C
LCD Module
Converter CNT
ItemMin.Typ.Max.UnitNote
Operating Life Time30000--Hour
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Operating condition : Ta = 25·2]
Signal & Power CNT
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 / 26
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
3.3 Converter Input Condition & Specification
Samsung Secret
Specifications
ItemsSymbolConditions
Min.Typ.Max.
Input VoltageVin-222426VTa=25·YG¶j
Input Rush CurrentI
Output CurrentI
Backlight
On/Off
Dimming RangeV
Vin=24.0V
RUSH
LED, N
ONVin=24.0 V3-5.25
_DIM
Vdim =3.3V
Vin=21.6 ~ 26.4V
Vdim =3.3V
Vin :22~26V0-3.3V
--3.66A
380400420mA
UnitNote
V
Pin(#12)OFFVin=24.0 V0-0.4
Dimming Duty
Output
External Dimming
Duty Range
External Dimming
Frequency Range
External Dimming
Signal Level
D maxVin=24V Dim:3.3V--100
%(2)
D minVin=24V Dim:0V10--
EX_DimMin10-100%
F
EX_PWM
V
PWM
Vin=22.0~26.0 V95120185Hz
High (ON)3-5.25
V
Low (Off)0-0.4
Dim Pin(#14)
: Floating, (4)
Note) Power Consumption is measured when 300 [cd/m ] of luminance which is the typical
luminance.
(1) All data is measured after 60min warm-up.
(2) only use #Pin 13
(3) only use #Pin14
(4) External PWM frequency should be synchronized with SET frequency
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 / 26
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power Connector : FI-RE51S-HF (JAE)
ISO-C51B-C38(UJU)
wzkwzk
X
Y\
XW
XX
XY
XZ
X[
X\
X]
X^
X_
X`
YW
YX
YY
YZ
Y[
12VDC power supply
Y
Z
[
\
]
^
_
`
12VDC power supply
12VDC power supply
12VDC power supply
12VDC power supply
NCNOTE1
GNDGround
GNDGround
GNDGround
RO[0]NOdd LVDS Signal -
RO[0]POdd LVDS Signal +
RO[1]NOdd LVDS Signal -
RO[1]POdd LVDS Signal +
RO[2]NOdd LVDS Signal -
RO[2]POdd LVDS Signal +
GNDGround
ROCLK-Odd LVDS Clock -
ROCLK+Odd LVDS Clock +
GNDGround
RO[3]NOdd LVDS Signal -
RO[3]POdd LVDS Signal +
NC
NOTE1
NC
GNDGround
RE[0]NEven LVDS Signal -
Y]
Y^
Y_
Y`
ZW
ZX
ZY
ZZ
Z[
Z\
Z]
Z^
Z_
Z`
[W
[X
[Y
[Z
[[
[\
[]
[^
[_
[`
\W
\X
RE[0]PEven LVDS Signal +
RE[1]NEven LVDS Signal -
RE[1]PEven LVDS Signal +
RE[2]NEven LVDS Signal -
RE[2]PEven LVDS Signal +
GNDGround
ROCLK-Even LVDS Clock -
ROCLK+Even LVDS Clock +
GNDGround
RE[3]NEven LVDS Signal -
RE[3]PEven LVDS Signal +
NC
NC
GNDGround
NC
NC
NC
NC
NC
LVDS_SELNOTE2
NC
NC
NC
NC
NC
NCNOTE1
NOTE1
NOTE1
Note1) No Connection: These PINS are used only for SAMSUNG. (DO NOT CONNECT)
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 / 26
www.panelook.com
Page 13
Global LCD Panel Exchange Center
High
-
3.6 V
-
Note(2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS format
Pull down resistor : 47Kohm

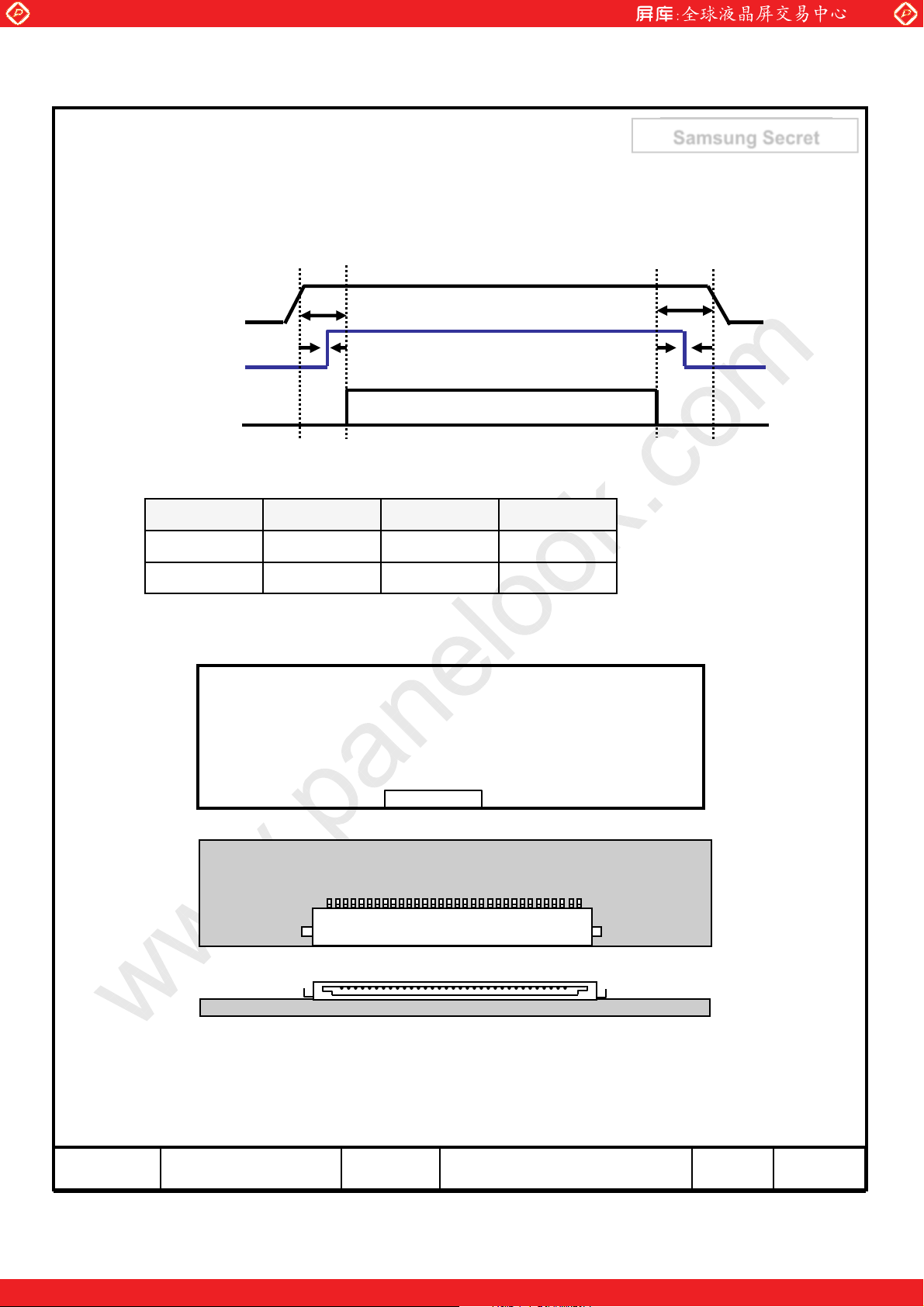

SEQUENCE : On = V
OFF = Interface Signal(T3) ≥ LVDS Option
www.panelook.com
Samsung Secret
LOW (GND) → JEIDA LVDS format
DD(T1) ≥ LVDS Option ≥ Interface Signal(T2)
Vin
LVDS
Option
LVDS
Signal
Note (3) Signal level of LVDS selection
Low0 V
Note(4) Pin number starts from Left side
T2
MinTypMax
2.8V
T3
LVDS Option Sequence
0.4V
PCB
Pin No. 1 Pin No. 51
#1#51
#1
Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pin should be separated from other signal or power.
MODELLTA400HM23Doc. No06-000-G-20120704Page
#51
13 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
4.2. converter Input Pin Configuration
Connector : Yeon-ho, 20022WS-H14J
Pin Configuration(FUNCTION)
Pin No.
Master
124 V
224 V
324 V
424 V
524 V
6GND
7GND
8GND
9GND
10GND
11No connection
12ENA [ converter on/off control signal ] *Note(2)
Samsung Secret
13Analog Dimming Control [0V:Min, 3.3V:Max] *Note(1)
14External PWM [10~100%] *Note(1), Note(2)
Note(1) If use Dimming Control, Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
Note(2) Pin 12 has Pull down register 100Kohm, Pin 13/14 has Pull up register 100Kohm
4.3. converter Input Power Sequence
Vin (24V)
0.02sec [Min]
Dimming Control
External PWM
Backlight On/Off
0.5sec [Min]
0.5sec [Min]
0.2sec [Min]
0sec [Min]
0 sec [Min]
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 26
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format
TxOUT/RxIN0
Samsung Secret
LVDS pinJEIDA -DATAVESA -DATA
TxIN/RxOUT0R2R0
TxIN/RxOUT1R3R1
TxIN/RxOUT2R4R2
TxIN/RxOUT3R5R3
TxIN/RxOUT4R6R4
TxIN/RxOUT6R7R5
TxIN/RxOUT7G2G0
TxIN/RxOUT8G3G1
TxIN/RxOUT9G4G2
TxIN/RxOUT12G5G3
TxOUT/RxIN1
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT13G6G4
TxIN/RxOUT14G7G5
TxIN/RxOUT15B2B0
TxIN/RxOUT18B3B1
TxIN/RxOUT19B4B2
TxIN/RxOUT20B5B3
TxIN/RxOUT21B6B4
TxIN/RxOUT22B7B5
TxIN/RxOUT24HSYNCHSYNC
TxIN/RxOUT25VSYNCVSYNC
TxIN/RxOUT26DENDEN
TxIN/RxOUT27R0R6
TxIN/RxOUT5R1R7
TxIN/RxOUT10G0G6
TxIN/RxOUT11G1G7
TxIN/RxOUT16B0B6
TxIN/RxOUT17B1B7
TxIN/RxOUT23RESERVEDRESERVED
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 26
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
4.5 Input Signals, basic display colors and gray scale of each color
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 26
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
5. Interface Timing
Samsung Secret
5.1 Timing Parameters ( DE mode )
SIGNALITEMSYMBOLMIN.TYP.MAX.UnitNOTE
Clock
HsyncF
Frequency
VsyncF
Active
Display
Vertical
Period
Display Term
Vertical
Total
Active
Display
Horizontal
Period
Display Term
Horizontal
Total
1/T
T
T
T
T
VD
HD
C
H
V
130148.5155MHz-
5067.573KHz-
4860.062Hz-
-1080-Lines-
V
109211251380Lines-
-1920-Clocks-
H
209022002350clocks-
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 % , Modulation Frequency : Min 30KHz
5.2 LVDS Input Data Characteristics
ITEMSYMBOLMin.Typ.Max.UNITNOTE
t
Input Data
Position
Input common mode voltageV
Differential Input Voltage|V
=85MHz
F
IN
RSRM
t
RSLM
CM
|100-600mV-
ID
Note) When the skew is measured the Spread Spectrum should be 0%
--400ps
-400--ps
VSSL+0.61.2VDDL-0.6V-
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 26
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com

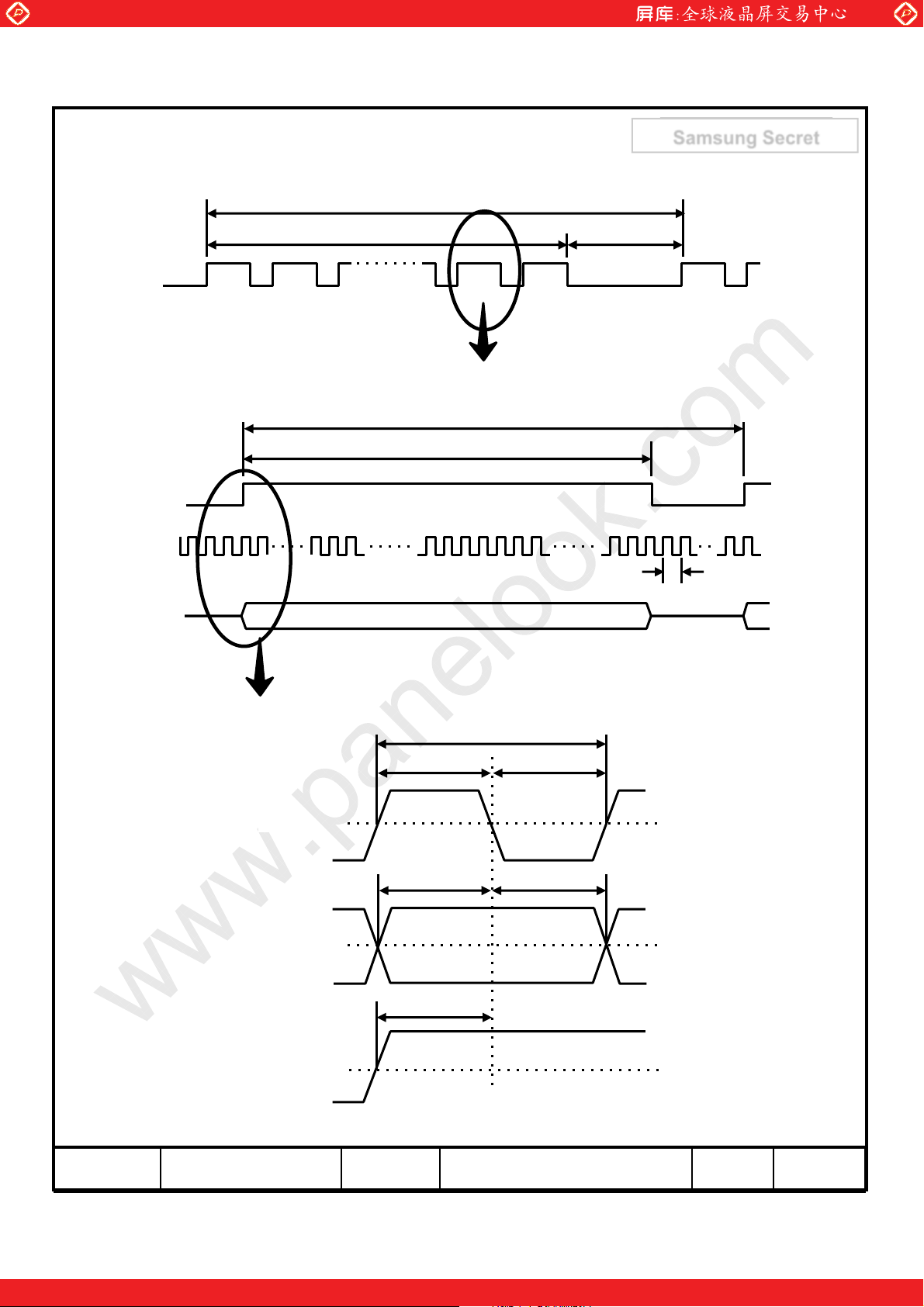

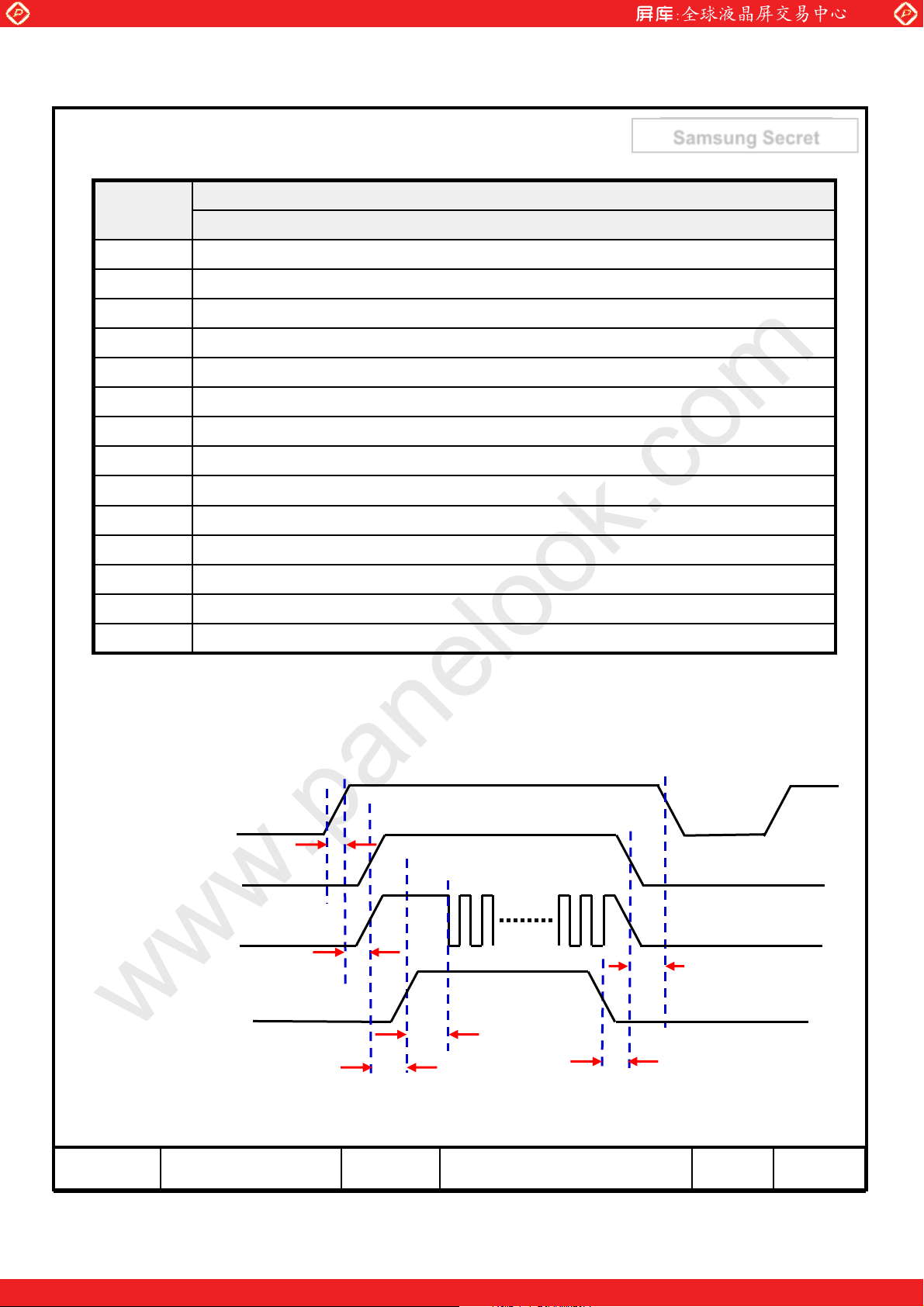

5. 3 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
DCLK
Samsung Secret
TVB
TC
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDSTDH
TES
TCL
0.5
V
0.5
V
CC
CC
DE
0.5
V
CC
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 26
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

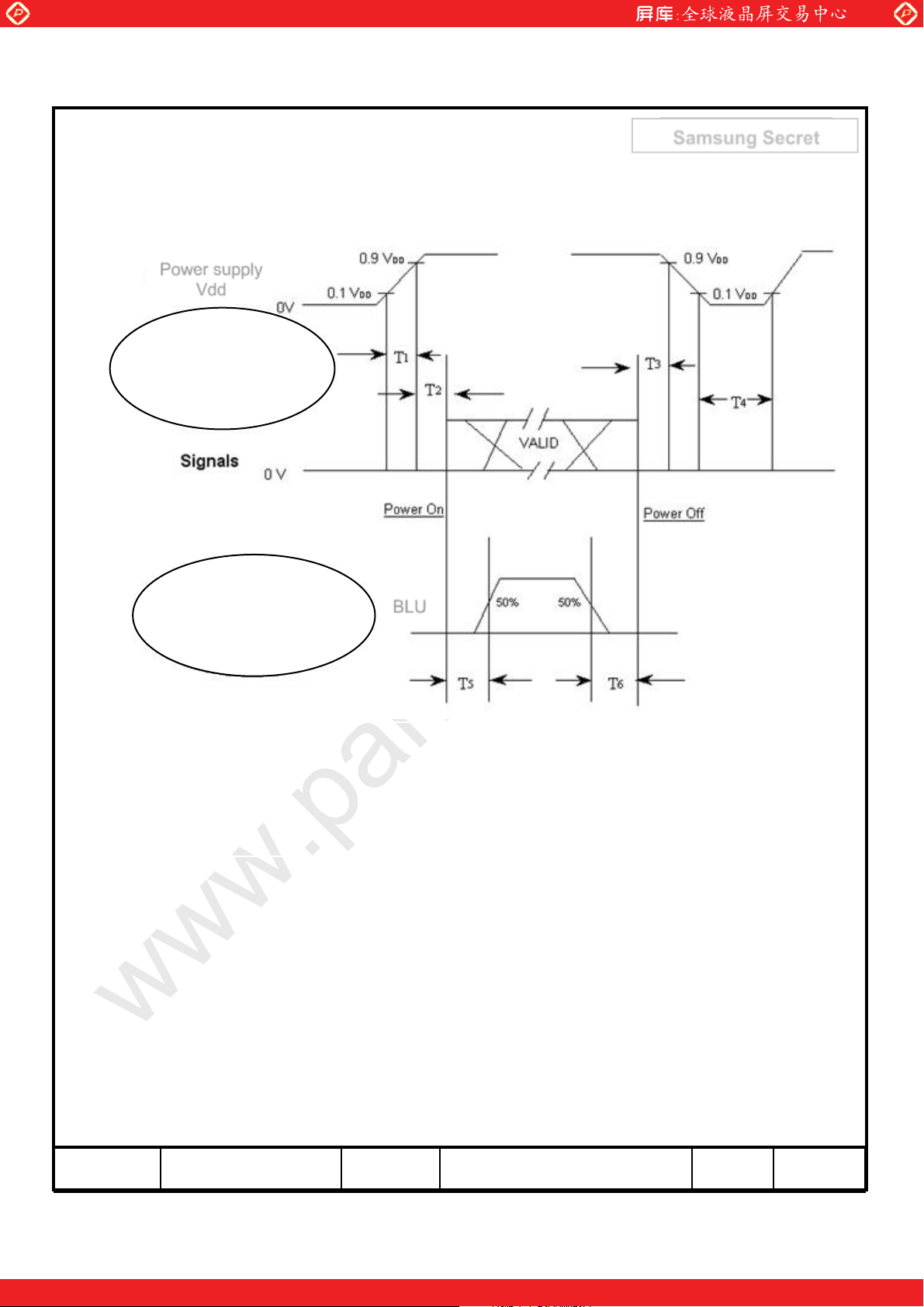

5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
Power supply
Vdd
1ms<T1≤10ms
1ms<T2≤50ms
0<T3≤50ms
1000ms≤T4
1000ms≤T5
100ms≤T6
(Recommend Value)
BLU
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the module input should be the same
as the definition of V
DD
.
Apply the LED voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
garbage display can be seen. (It is not related to electrical function issue, just for
recommendation to prevent garbage display )
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 26
www.panelook.com

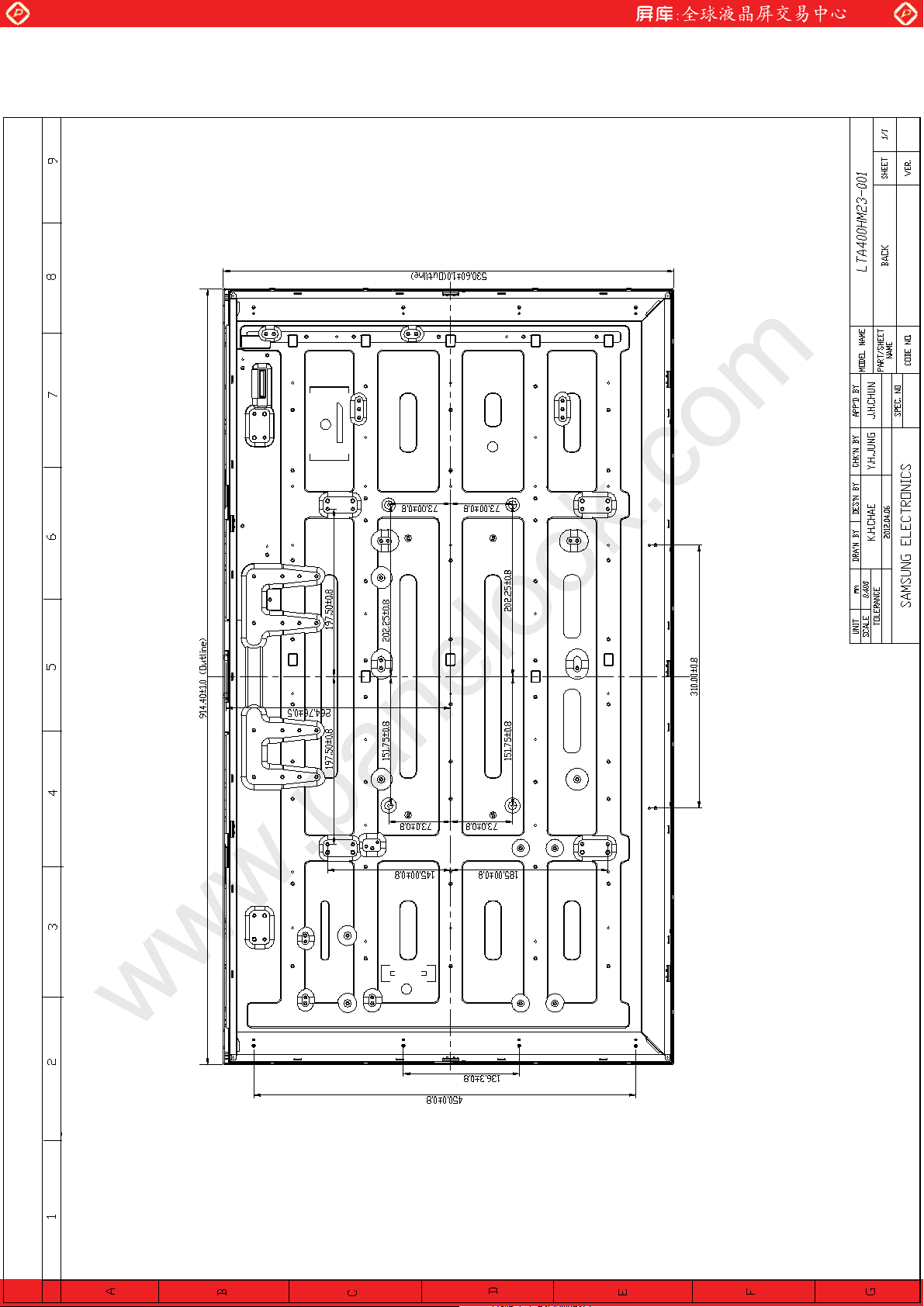

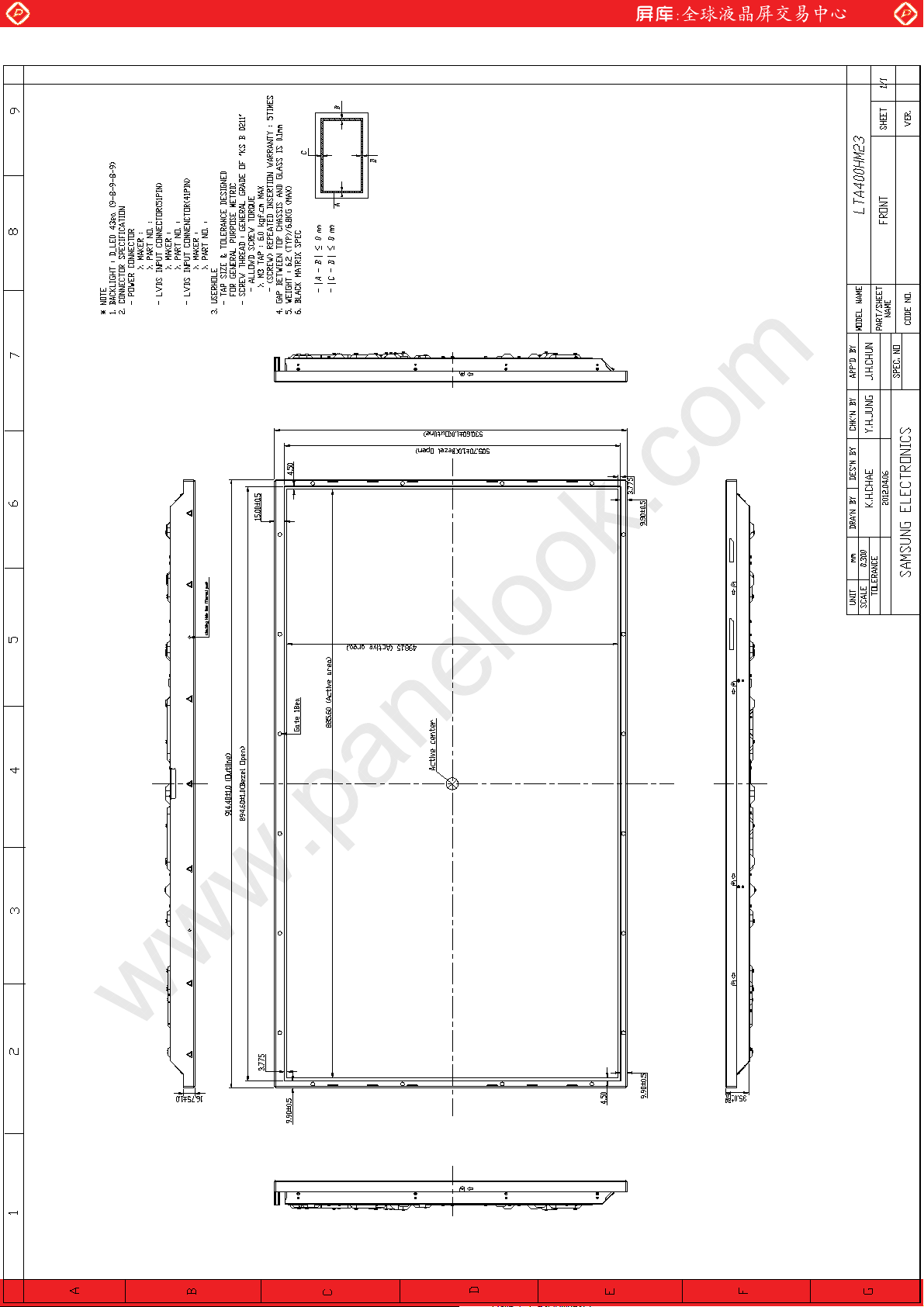

Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2. 18.5 Kg / Packing Box (1set)
> Packing Box Material : Paper
3. 10 g/EA, 4 EA/Module,
Cobalt-dichloride-free
1. Pallet weight = 4.9 kg
> Pallet Material : HDPE
Total Pallet SizeL x W x height1150mm(L) x 850mm(W) x 1071mm(height)
Total Pallet Weight114.12 kg
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
MODELLTA400HM23Doc. No06-000-G-20120704Page
22 / 26
www.panelook.com
Page 23
Global LCD Panel Exchange Center
8. Marking & Others

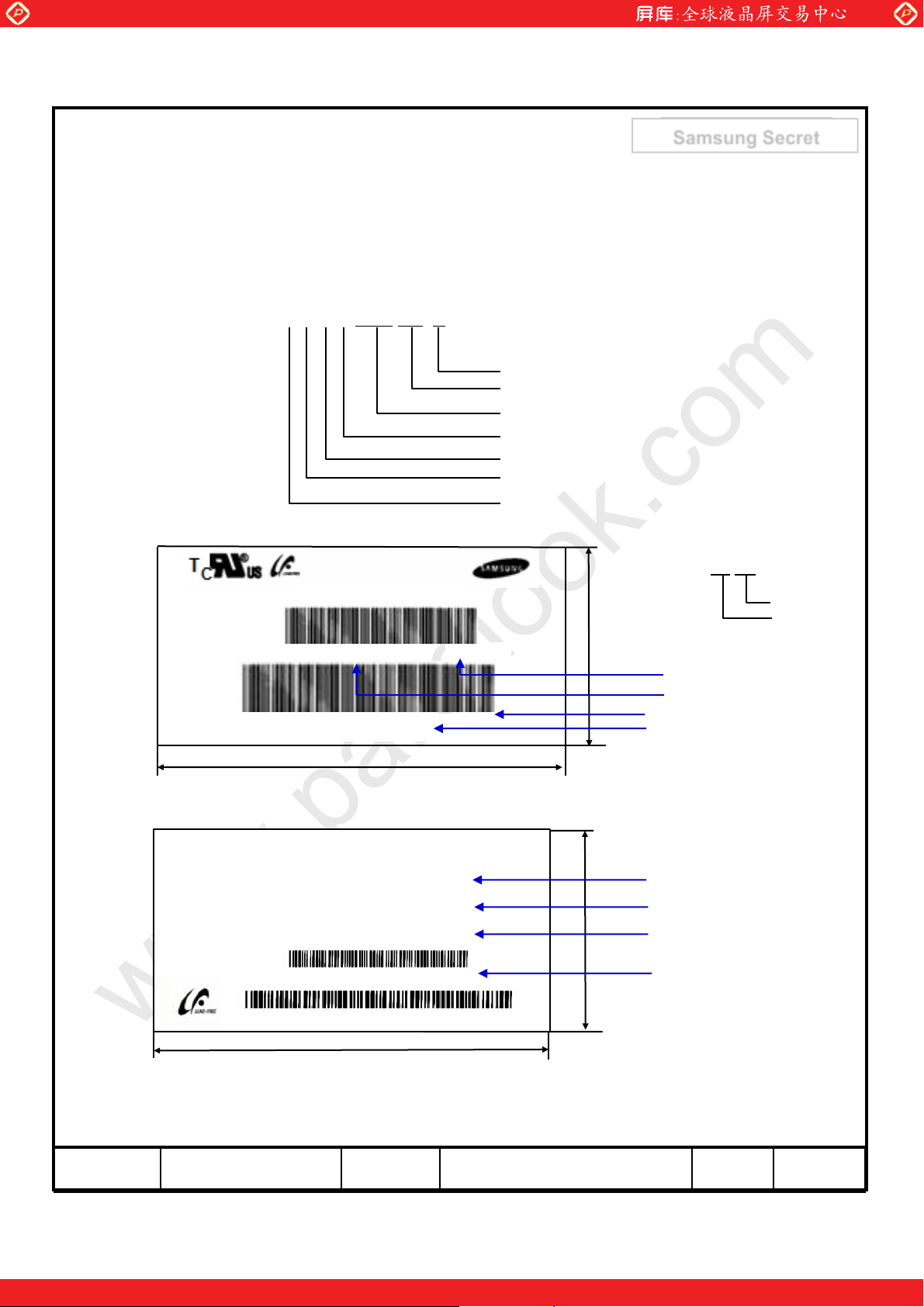

A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA400HM23
(2) Revision: Three letters
(3) Lot number : X XXXXXX
(4) Nameplate Indication
www.panelook.com
Samsung Secret
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTA400HM23
1125
[[[[[[[[[[[[[
LTA320HW03XXX
80mm
80mm
(5) Packing box attach
DVC : LTA400HM23
TYPE : 001
QTY : 13
XXXXXXXXXX
Week code : 11 25
week
year
40mm
Revision code
Lot number
Model + suffix code
100mm
Part number
Revision code
Actual quantity
Box serial number
XXXXXXXXXXXXXX
165mm
(6) Others
1. After service part
LED bar can not be replaced because of the narrow bezel structure.
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 26
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend them.
(b) Module should be disconnected from power before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the module.
In addition to damage, this may cause improper operation or damage to the module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might do permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from ESD (Electro-Static Discharge). Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the module.
(l) Do not disassemble shield case of LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of Interface connector should not be touched directly with bare hands.
MODELLTA400HM23Doc. No06-000-G-20120704Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 26
www.panelook.com
Page 25
Global LCD Panel Exchange Center
Storage Temperature
5
Humidity
Condition
-
- Products should not be placed on the floor, but on the Pallet
-
-
- If products delivered or kept in conditions of over the storage
period of 3months, the recommended temperature or humidity
9.2 Package storage
We highly recommend to comply with the criteria in the table below.
ITEMUNITMin.Max.
www.panelook.com
Samsung Secret
()
Storage
Storage Life6 months
Storage
(%rH)3575
The storage room should provide good ventilation and
temperature control.
away from a wall.
Prevent products from direct sunlight, moisture nor water;
Be cautious of a build up of condensation.
Avoid other hazardous environment while storing goods.
range, we recommend you leave them at a temperature of 20
and a humidity of 50% for 24 hours.
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
40
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
MODELLTA400HM23Doc. No06-000-G-20120704Page
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its Converter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the Converter may cause lower luminance of lamp(LED) and
may require higher startup voltage(Vs).
25 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
9.4 Operation Condition Guide
) The LCD product should be operated under normal conditions.
