SAMSUNG TFT-LCD
MODEL : LTA400HM22
The Information Described in this Specification is Preliminary and can be changed without
prior notice
APPROVED BY
DATE
21, Dec, 2011
PREPARED BY
21, Dec, 2011
LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
DATE
www.panelook.com
Page 2
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
Contents
Samsung Secret
General Description --------------------------------------------------------------------------------------- (3)
General Information --------------------------------------------------------------------------------------- (3)
1. Absolu te Maximum Ratings -------------------------------------- ------------------------------------ (4)
2. Optical Ch aracteristics --------------------------------------------------------------------------------- (5)
3. Electrical Characteristics ------------------------------------------------------------------------------- (8)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Converter Input Condition & Specification
4. Input Termin al Pin Assign ment --------------------------------------------------------------------- (11)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timin g ---------------------------------------------------------------------------------------- (16)
5.1 Timing Parameters (DE mode)
5.2 LVDS Inpu t data Characteristics
5.3 Timing diagrams of interface signal ( DE mode )
5.4 Power ON/OFF Sequence
6. Outline Dimen sion -------------------------------------------------------------------------------------- (19)
7. Packin g --------------------------------------------------------------------------------------------------- (21)
7.1 CARTON (Internal Package)
7.2 Packing Specification
8. Markin g & Others --------------------------------------------------------------------------------------- (22)
9. Gen eral Precau tion ------------------------------------------------------------------------------------- (23)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
General Description
Samsung Secret
Description
LTA400HM22 is a color active matrix liqu id crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 40.0” is 1,920 x
1,080 and this model can display up to 1.07 Billion colors with wide viewing angle of 89¶ or
higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and
High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle ( ·178 ¶)
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitting Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
Module Size
Weight 8700 gT y p .
Pixel Pitch 0.46(H) x 0.46(V) mm
Active Display Area 885.6(H) x 498.15(V) mm
Surf ace Treatment Haze 2 % - Anti Glare
Display Colors 1.07 Billion colors 8bit FRC
Number of Pixels 1,920 x 1,080 pixel
Pixel Arrangement RGB vertical stripe -
Display Mode Normally Black -
Luminance of White 350 (Typ.) cd/m
912.4 (W) x 527.6(V)
33.2 (Max)
mm
T/C~Converter
2
· 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
Samsung Secret
(VDD=12V)
Power Supply Voltage V
Storage temperature T
Surf ace temperature T
Operation temperature T
Shock ( non - operating ) S
Vibration ( non - operating ) V
DD
STG
SUR
OPR
nop
nop
GND-0.3 13.2 V (1)
-20 60 (2)
06 5 (3)
05 0 (2)
- 50 G (4)
-1 . 5 G ( 5 )
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta > 39 ¶C)
c. No condensation
(3) Although abnormal visual problems can be occurred in Tsur range,
the polarizer is not damaged in this range.
(4) 11ms, sine wave, one time f or ·X, · Y, · Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
(Ta = 25 · 2¶ C, VDD=12V, fv= 60Hz, f DCLK = 148.5 MHz, LED Current = 140 mA)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
C/R 4000 5000 -
-1 01 6 m s e c
Y
L
Rx
Ry 0.332
Normal
qL,R =0
300 350 -c d / m
0.642
qU,D =0
Gx 0.318
Gy 0.604
Bx 0.152
Viewing
Angle
TYP.
-0.03
TYP.
+0.03
By 0.053
Samsung Secret
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
White
Wx 0.280
Wy 0.290
Color Gamut - - 70 - %
Color Temperature - - 10,000 - K
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R≥ 10
75 89 -
75 89 -
Degree
75 89 -
75 89 -
White Brightness
Uniformity
B
uni
--30 %
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
Samsung Secret
Photo detector Field
SR-3 1ദ
RD-80S 2ദ
TFT - LCD Mo d ul e
320 960 1600
Photo detector
Field
SR-3 : 50
RD-80S : 50
EZ-Contrast:0༃
LCD Panel
The center of the screen
- Definition of test point
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
CR
/
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
Note (2) Def inition of 9 points brightness uniformity (Test pattern : Full White)
www.panelook.com
Samsung Secret
Buni
BB
(m a x m i n )
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
Blac k (data off)
T
R
90%
10%
0%
White (data on)
Blac k (data of f )
T
F
TIME
G-to-G : Average response time between Gray to Gray (Scale)
Note (4) Def inition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Def inition of Viewing Angle
: Viewing angle range (C/R ≥10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 2 5 ¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) Sub V-Stripe - 525 600 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
DD
I
DD
V
H
DCLK
RUSH
10.8 12.0 13.2 V (1)
- 330 -m A
47 60 63 Hz
50 67.5 75 kHz
130 148.5 160 MHz
- - 3 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV = 60 Hz, fDCLK = 148.5 MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-Pattern
(2),(3) (b) White - 350 -m A
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470༕
RUSH
Rush Current I
can be measured when T
RUSH
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\

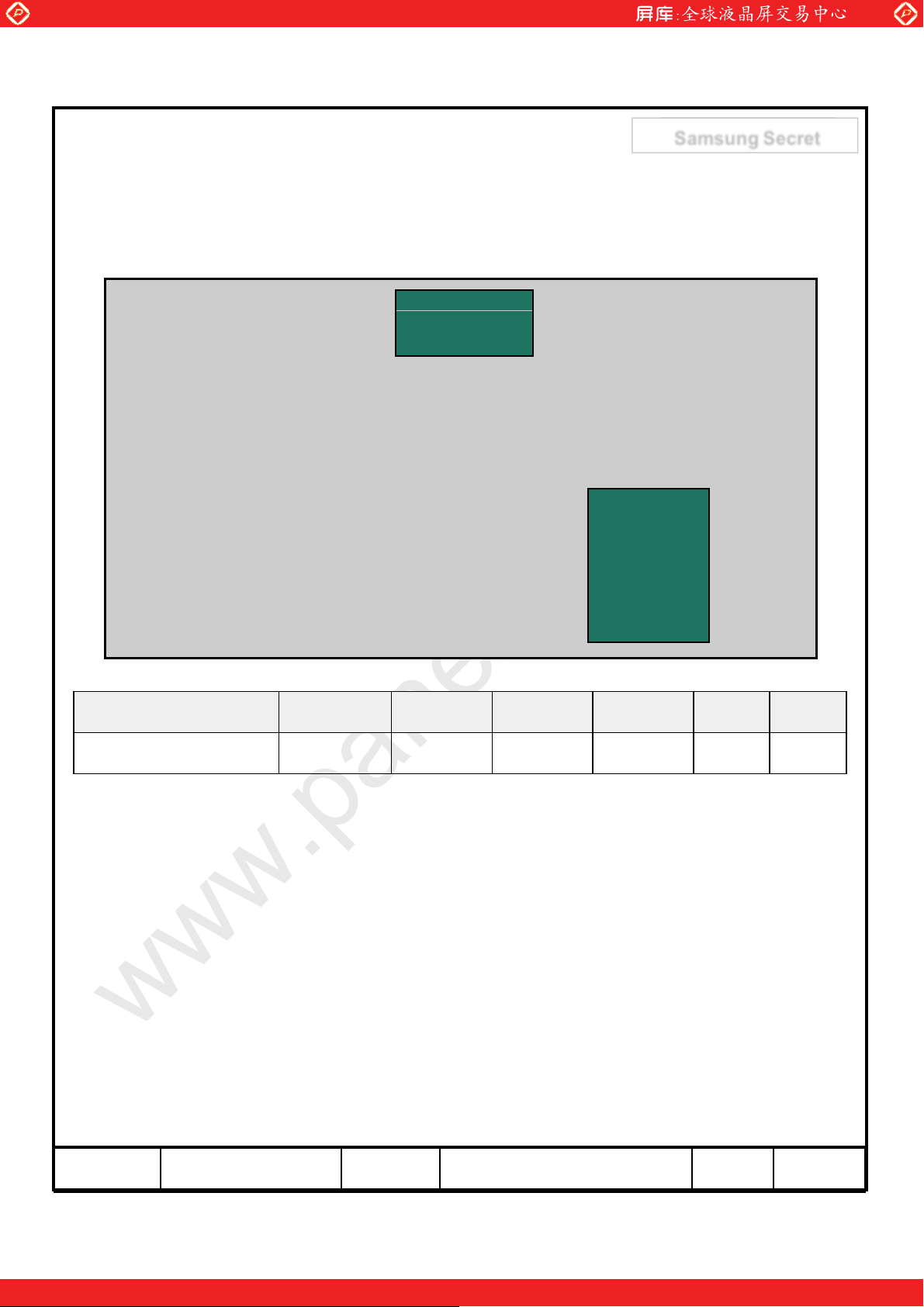

3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
www.panelook.com
Samsung Secret
Ta=25 · 2¶C
Control Board
LCD Module
Converter
Item Symbol Min. Typ. Max. Un it Note
Operating Life Time Hr - 31,000 - Hour (1),(2)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value. [Operating condition : Ta = 25·2 , For LED Package only. ]
(2) Test Condition : Tj : 110䌡
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
3.3 Converter Input Condition & Specification
Items Symbol Conditions
Input Voltage Vin - 22 24 26 V Ta=25·2 ¶C
Input Current
Output
Current
Backlight
On/Of f
Internal Dimming
External Dimming
External Dimming
Sig nal Level
I
RUSH (2D)
I
O (2D)
ON
OFF -0.3 - 0.8
V
INT_DIM
INT_DIM
D
INT_DIM
D
EXT_DIM
F
EXT_DIM
V
EXT_DIM
Vin=24.0V
Dim = MAX
Vin=24.0V
Dim = MAX
Vin=24.0 V
Vin=24.0 V
Vin=24.0V
Hig h (ON) 2.4 - 5.5
Low (Of f) -0.3 - 0.8
Specifications
Min. Typ. Max.
- - 3.84 A Note (1)
133 140 147 mA Note (2)
2.4 - 5.5
0-3 . 3V
140 150 160 Hz
1 - 100 %
1 - 100 %
- 100 - Hz Note(4)
- 120 - Hz Note(4)
Samsung Secret
Unit Note
V
Note (3,5) F
Note (3,5)
V
Note) Power Consumption is measured when 350 [cd/m ] of luminance which is the typical
luminance. Lamp Current is measured at the point before Lamp.
(1) I
is measured within BLU on 10ms af ter leaving the BLU as it is at least 1hr or more at 25.
RUSH
(2) All data was approved af ter running 120 minutes.
(3) Internal PWM mode and External PWM mode are not available at the same time.
(4) External Frequency : PAL Input ( 100Hz ) , NTSC Input ( 120Hz )
(5) Duty = On/(On+Off) * 100
On Off
Max
Min
- Additional Appendix for Supply Current
Items Symbol Conditions Min. Typ. Max. Unit
Input
Iin _ overshoot
Current
Iin _ saturation
Vin = 24V, Dim=3.3V
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
(After 1hr Aging)
- 2.4 2.47 A
- 2.33 2.4 A
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power Connector :FI-RE51S-HF (JAE/UJU)
PIN No. Descri ption PIN No. Descri ption
1VDD(12V) 26
2VDD(12V) 27 RE[1]N
3VDD(12V) 28 RE[1]P
4V
5VDD(12V) 30 RE[2]P
6 No Connection * Note (1) 31 GND
7 GND 32 RE[CLK]N
8 GND 33 RE[CLK]P
9G N D3 4 G N D
10
11 RO[0]P 36 RE[3]P
12 RO[1]N 37 RE[4]N
DD(12V) 29 RE[2]N
Even
LVDS
Signal
RO[0]N 35 RE[3 ]N
RE[0]P
13 RO[1]P 38 RE[4]P
14 RO[2]N 39 GND
15 RO[2]P 40 No Connection
16 GND 41 No Connection
17 RO[CLK]N 42 No Connection
18 RO[CLK]P 43 No Connection
19 GND 44 No Connection
20 RO[3]N 45 LVDS Opti on * Note (2 )
21 RO[3]P 46 No Connection
22 RO[4]N 47 No Connection
23 RO[4]P 48 No Connection
24 GND 49 No Connection
25 Even LVDS RE[0]N 50 No Connection
Odd
LVDS
Signal
51 No Connection
Note)(1) No Connection: This PINS are only used f or SAMSUNG internal using.
(2) LVDS OPTION : If this PIN : HIGH (3.3 V) → Normal LVDS format
: LOW (GND) → JEIDA LVDS format
SEQUENCE : On = VDD (T1) ≥ LVDS Option ≥ Interf ace Signal(T2)
OFF = Interface Signal(T3) ≥ LVDS Option ≥ V DD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
Samsung Secret
Vin
LVDS
Option
LVDS
Signal
T2

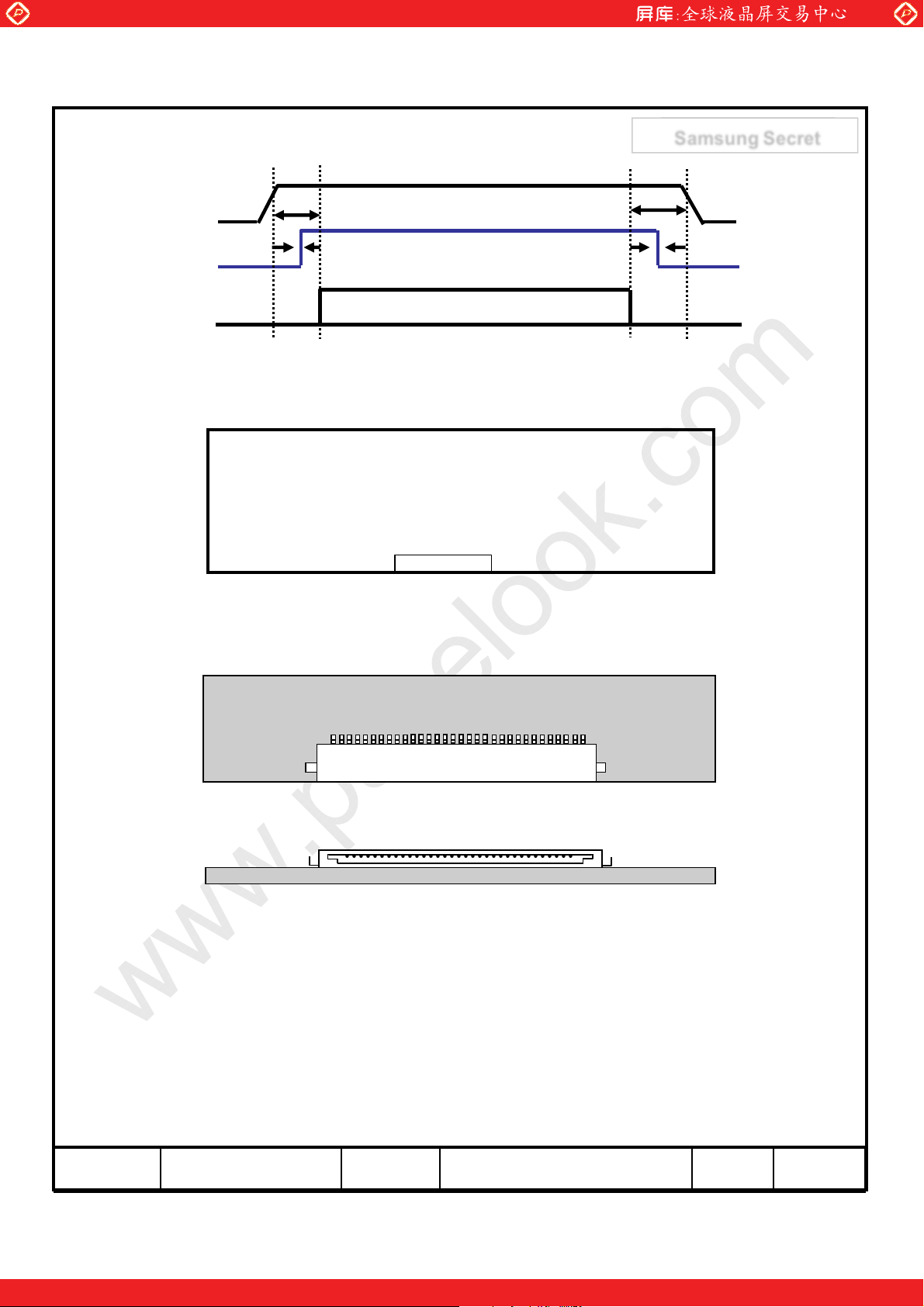

LVDS Option Sequence
Note(3) Pin number starts from Right side
Pin No. 1 Pin No. 51
T3
PCB
#1
co nnect name
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal c hassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
4.2. Converter Input Pin Configuration
Pin Configuration (FUNCTION)
Pin No.
Master
1 ~5 24 V
6~10 GND
11 Error Out
12 Backlight On /Of f
13 Internal Dimming
14 External PWM
Note(1) If u se Intern al Dimming , Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
Samsung Secret
Connector : Yeon-ho, 20022WR-14B1

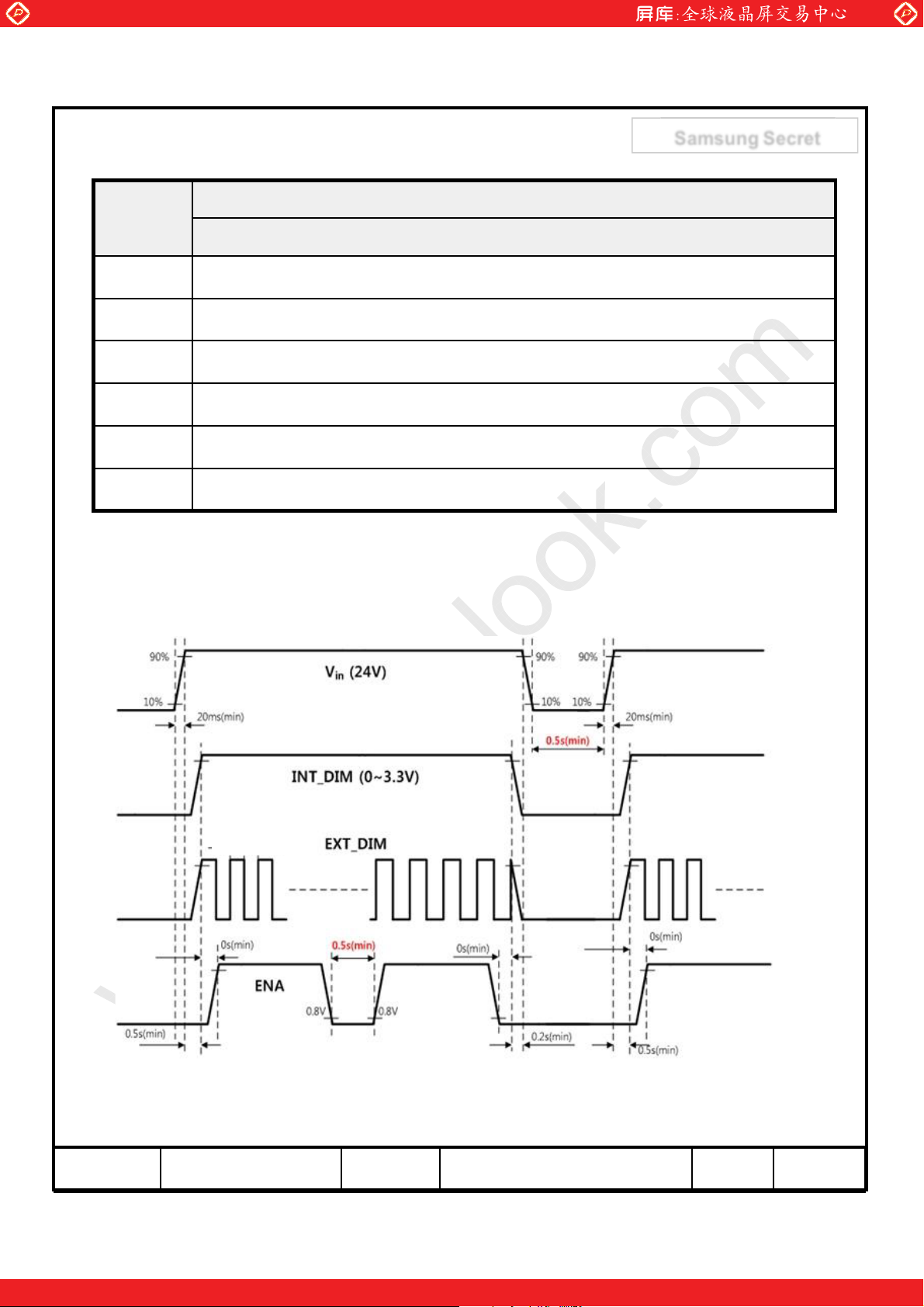

4.3. Converter Input Power Sequence
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & Normal)
LVDS pin JEIDA -DATA Normal -DATA
TxIN/RxOUT0 R4 R0
TxIN/RxOUT1 R5 R1
TxIN/RxOUT2 R6 R2
TxOUT/RxIN0
TxIN/RxOUT3 R7 R3
TxIN/RxOUT4 R8 R4
TxIN/RxOUT6 R9 R5
TxIN/RxOUT7 G4 G0
TxIN/RxOUT8 G5 G1
TxIN/RxOUT9 G6 G2
TxIN/RxOUT12 G7 G3
TxOUT/R xIN1
TxIN/RxOUT13 G8 G4
TxIN/RxOUT14 G9 G5
TxIN/R xOUT15 B4 B0
TxIN/RxOUT18 B5 B1
Samsung Secret
TxOUT/RxIN2
TxOUT/RxIN3
TxIN/RxOUT19 B6 B2
TxIN/RxOUT20 B7 B3
TxIN/RxOUT21 B8 B4
TxIN/RxOUT22 B9 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/R xOUT26 DEN DEN
TxIN/R xOUT27 R2 R6
TxIN/RxOUT5 R3 R7
TxIN/RxOUT10 G2 G6
TxIN/RxOUT11 G3 G7
TxIN/RxOUT16 B2 B6
TxIN/RxOUT17 B3 B7
TxIN/RxOUT23 RESERVED RESERVED
TxIN/RxOUT28 R0 R8
TxIN/R xOUT29 R1 R9
TxIN/RxOUT30 G0 G8
TxOUT/R xIN4
TxIN/RxOUT31 G1 G9
TxIN/R xOUT32 B0 B8
TxIN/RxOUT33 B1 B9
TxIN/RxOUT34 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
Samsung Secret
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DATA SIGNAL
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
WHIT E 111111111111111111111111111111 -
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
100000000000000000000000000000 R1
DARK
LIGHT
RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023
010000000000000000000000000000 R2
↑
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
↓
1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R1020
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
000000000010000000000000000000 G 1
000000000001000000000000000000 G 2
↑
:::::: :::::::::: :::::::::: ::::
::::::: :: ::::::: :::::::::: ::::
↓
0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
↑
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
↓
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
DARK
LIGHT
GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
DARK
LIGHT
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
G3~
G1020
B3~
B1020
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\

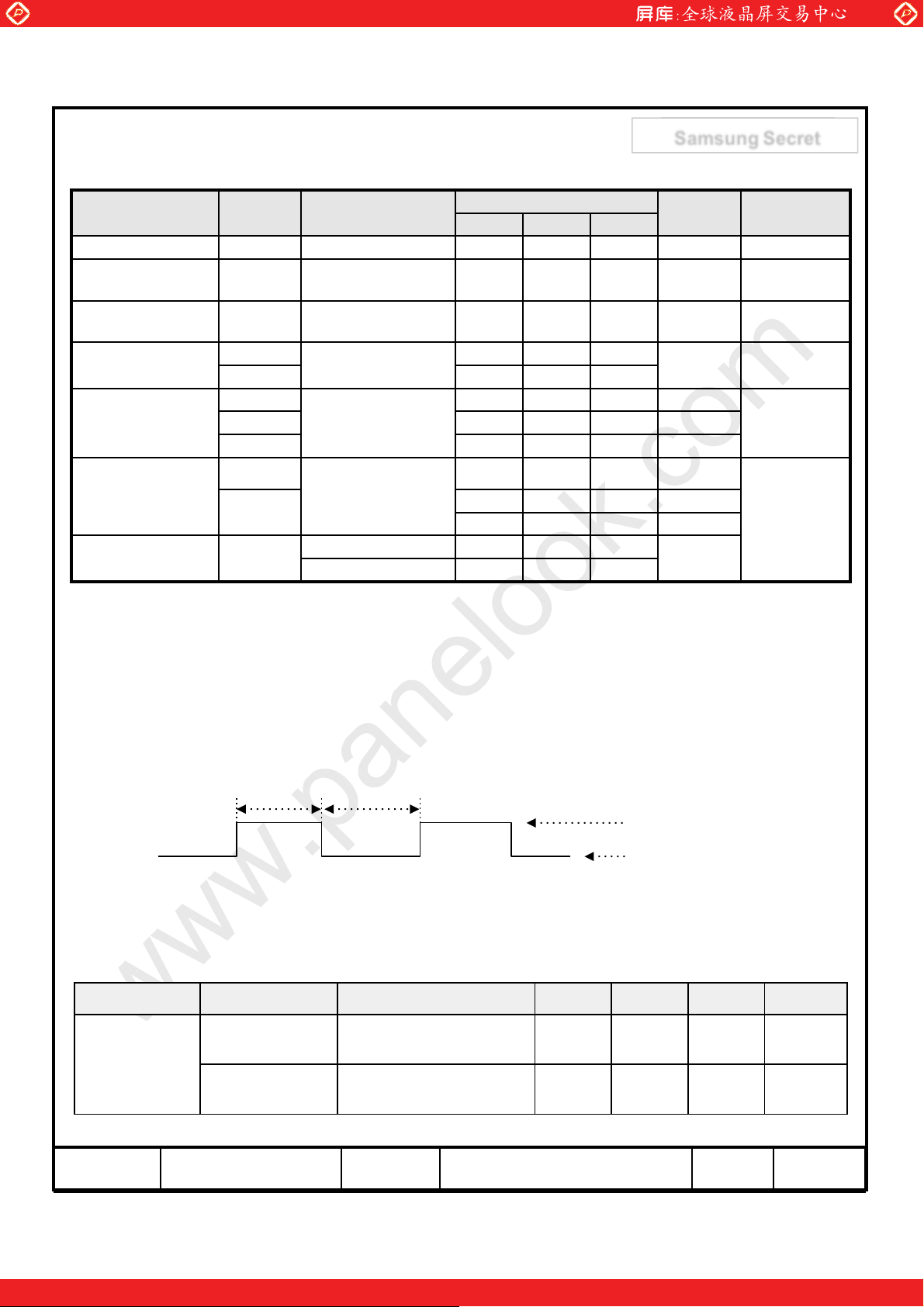

5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Samsung Secret
Clock
Hsync F
Frequency
1/T
Vsync F
C
H
V
130 148.5 160 MHz -
50.0 67.5 75.0 KHz -
47.0 60.0 63.0 Hz -
Active
Vertical
Display
Period
T
VD
- 1080 - Lines -
Display Term
Vertical
Total
T
V
1092 1125 1380 Lines -
Active
Horizontal
Display
Period
T
HD
- 1920 - Clocks -
Display Term
Horizontal
Total
T
H
2090 2200 2350 clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 %
- Modulation Frequency : 30~ 100KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Dif f erential Input Voltage |V
FIN=75 MHz
RSRM
t
RSLM
CM
| 100 - - mV -
ID
Note) When the skew is measured the Spread Spectrum should be 0%
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
- - 500 ps
-500 - - ps
0.55 - 1.8 V-
www.panelook.com
Page 17
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com

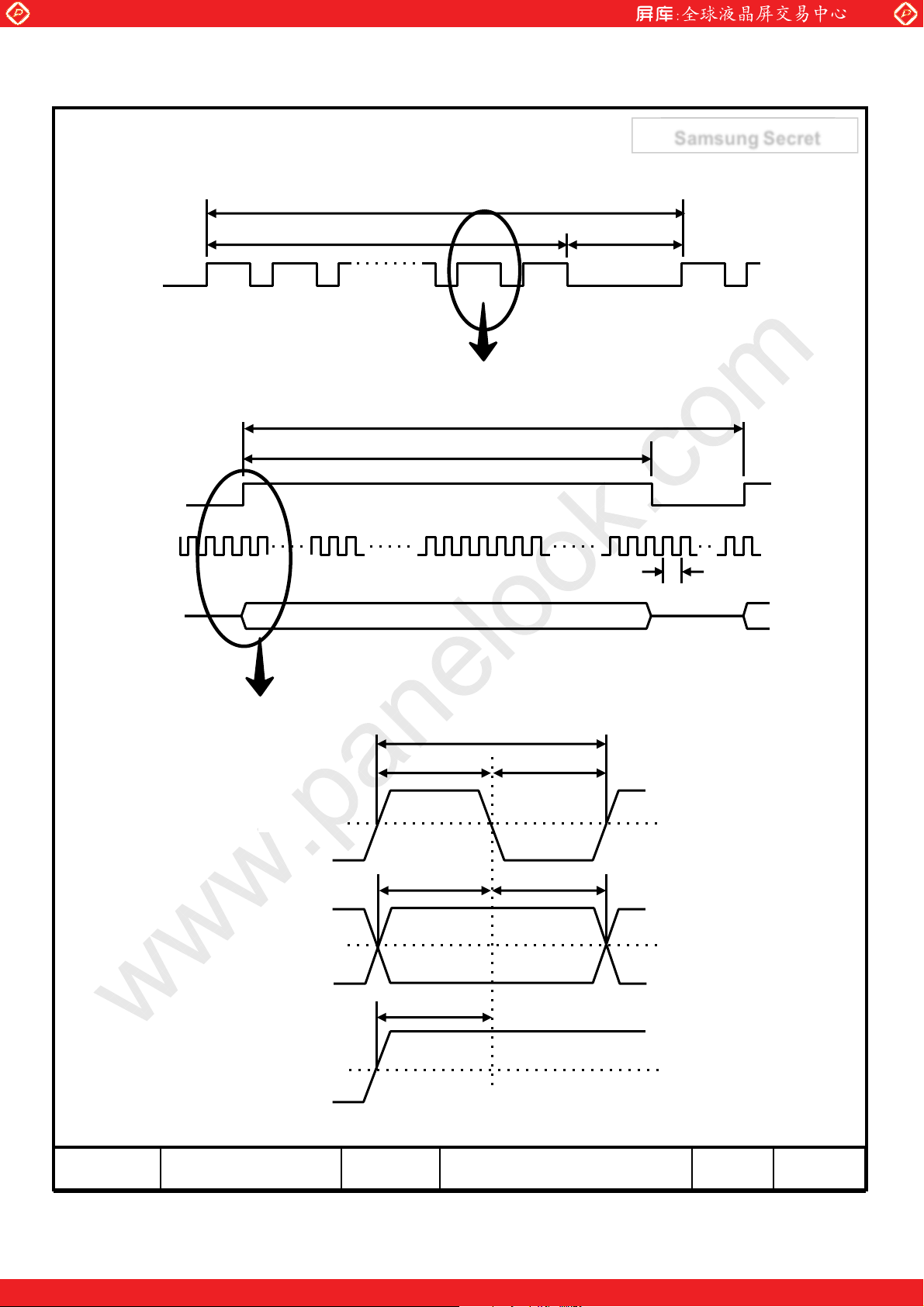

5.3 Timing diagrams of interface signal ( DE only mode )
TV
TVD
DE
TH
THD
DE
DCLK
Samsung Secret
TVB
TC
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
TES
TCL
0.5
V
0.5
V
CC
CC
DE
0.5
V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com

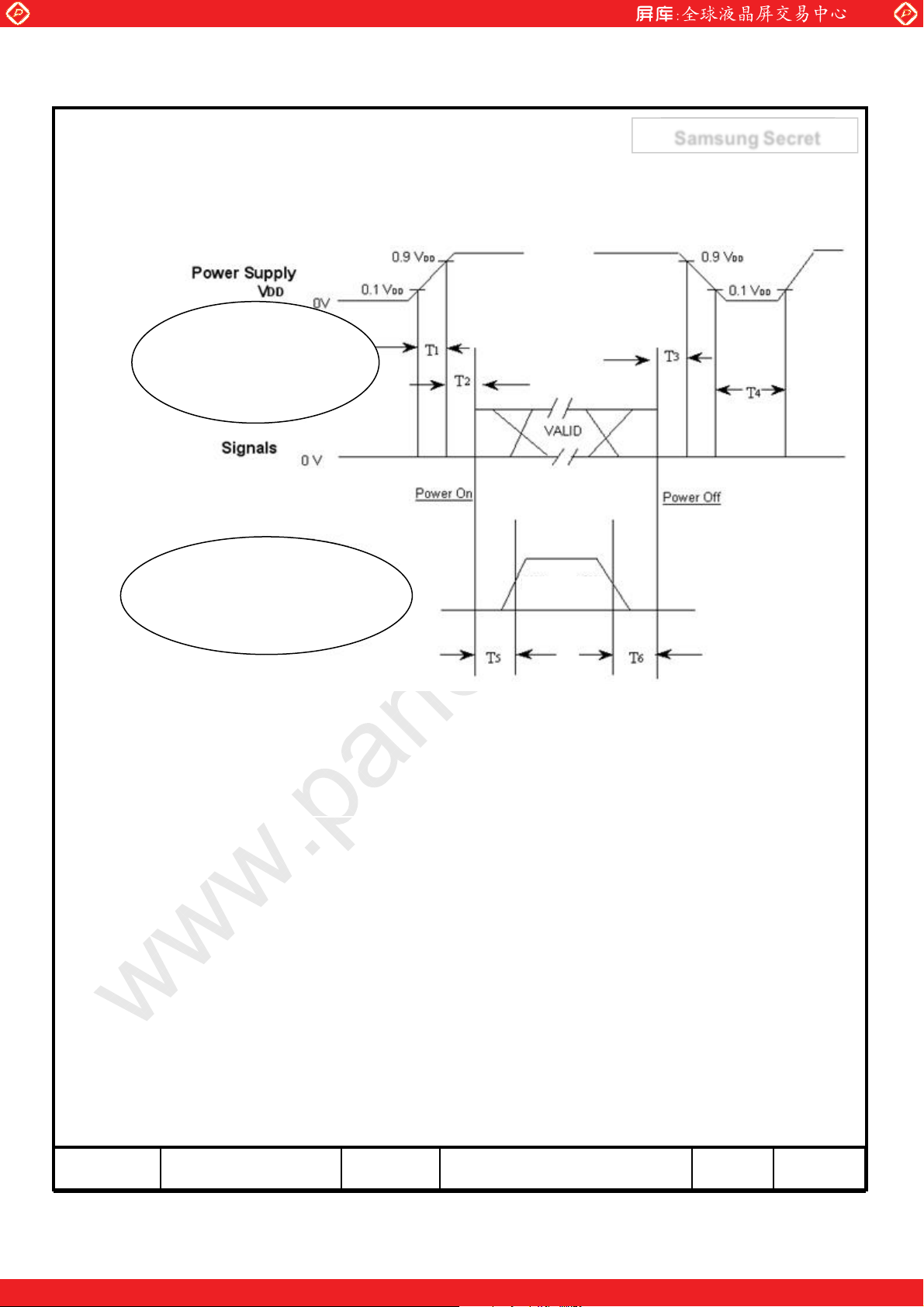

5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
1<T1≤10msec
1<T2≤50msec
0<T3≤50msec
1000msec≤T4
1000msec≤T5
(Recommend Value)
100msec≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : V
off time for Windows restart
DD
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data of f to B/L disable at power Off .
The supply voltage of the external system f or the Module input should be the same
as the def inition of VDD.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off ,
the display may momentarily show abnormal screen.
In case of VDD= off level,
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interf ace signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

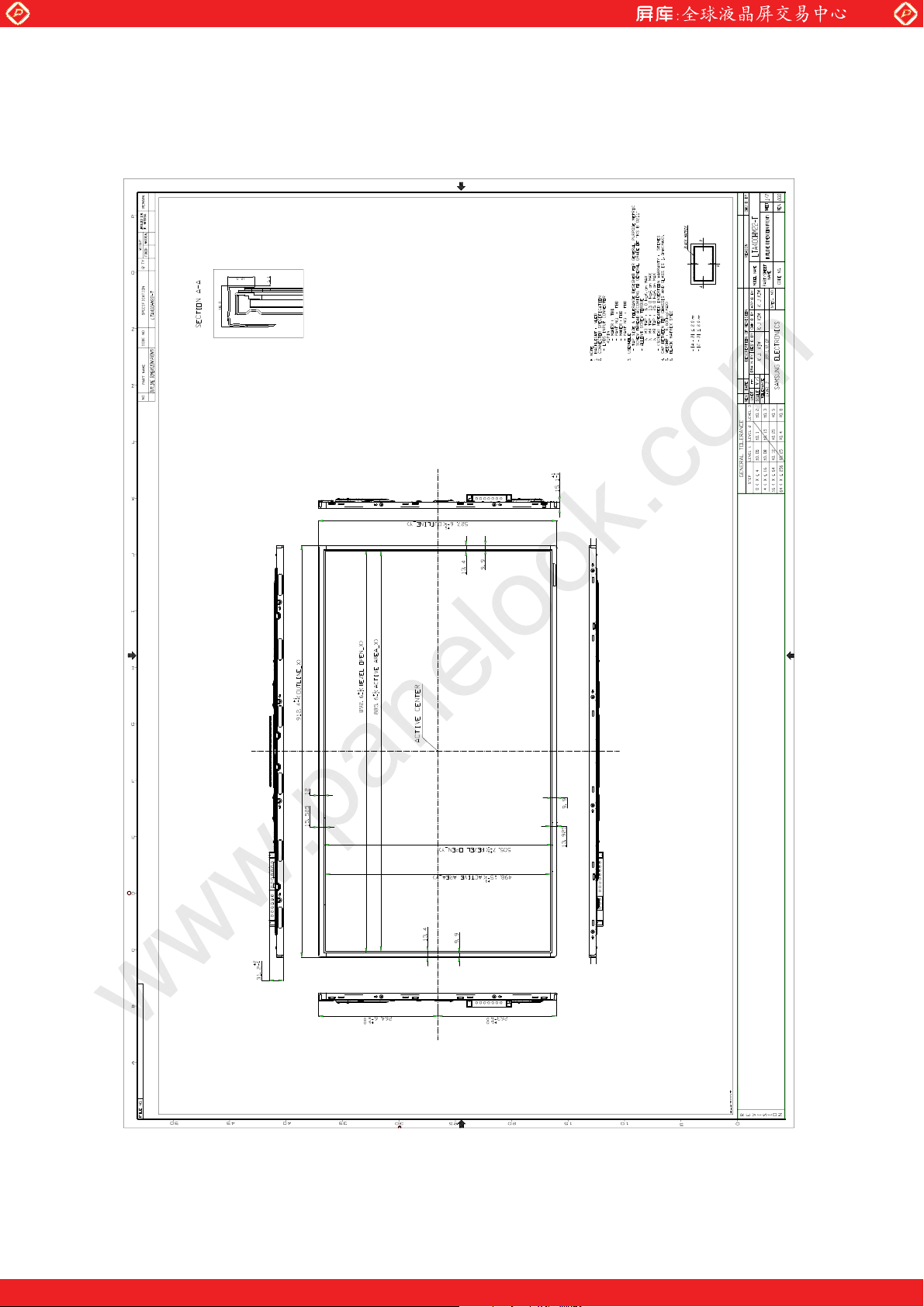

Page 19
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

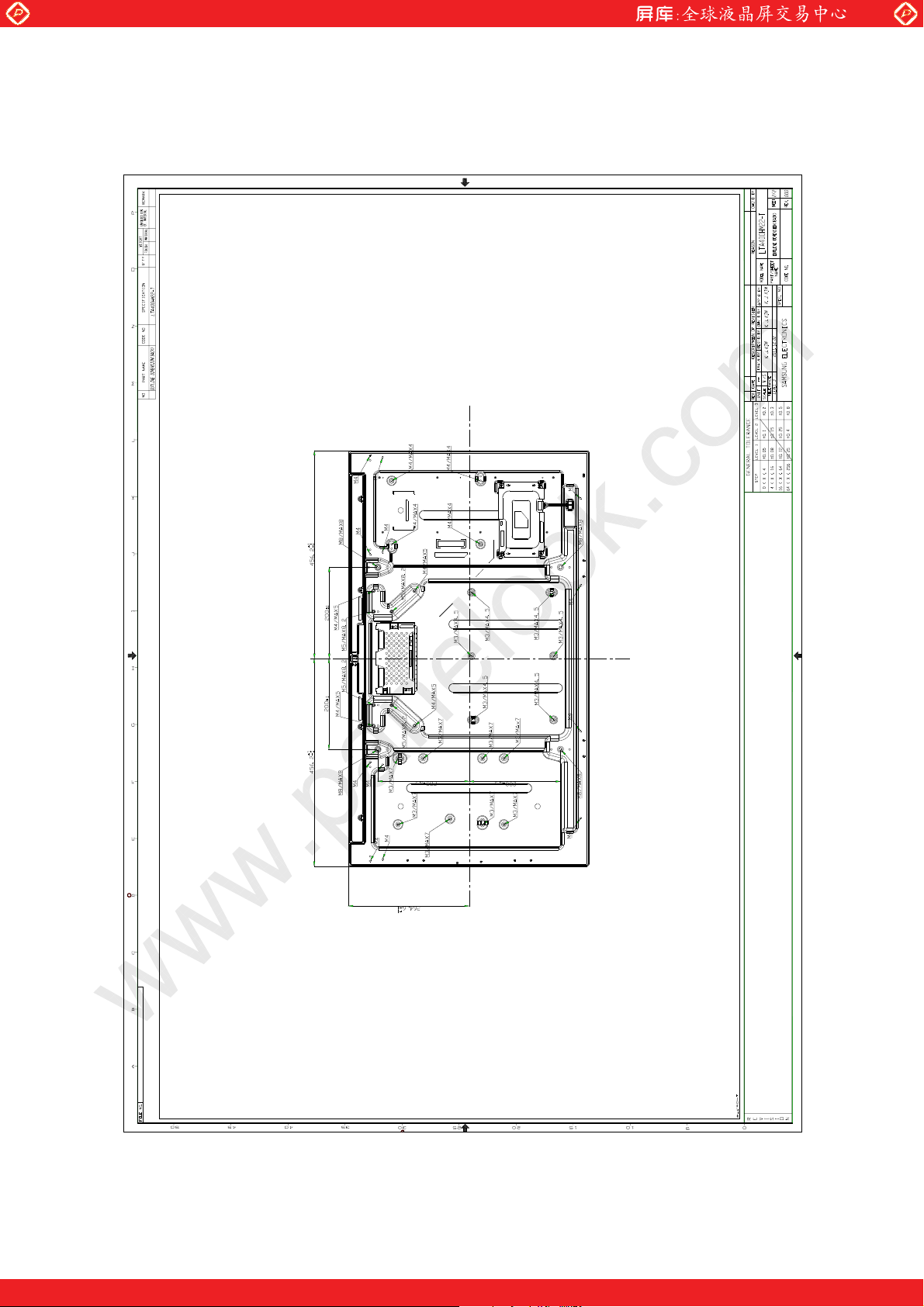

Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
7. PACKING

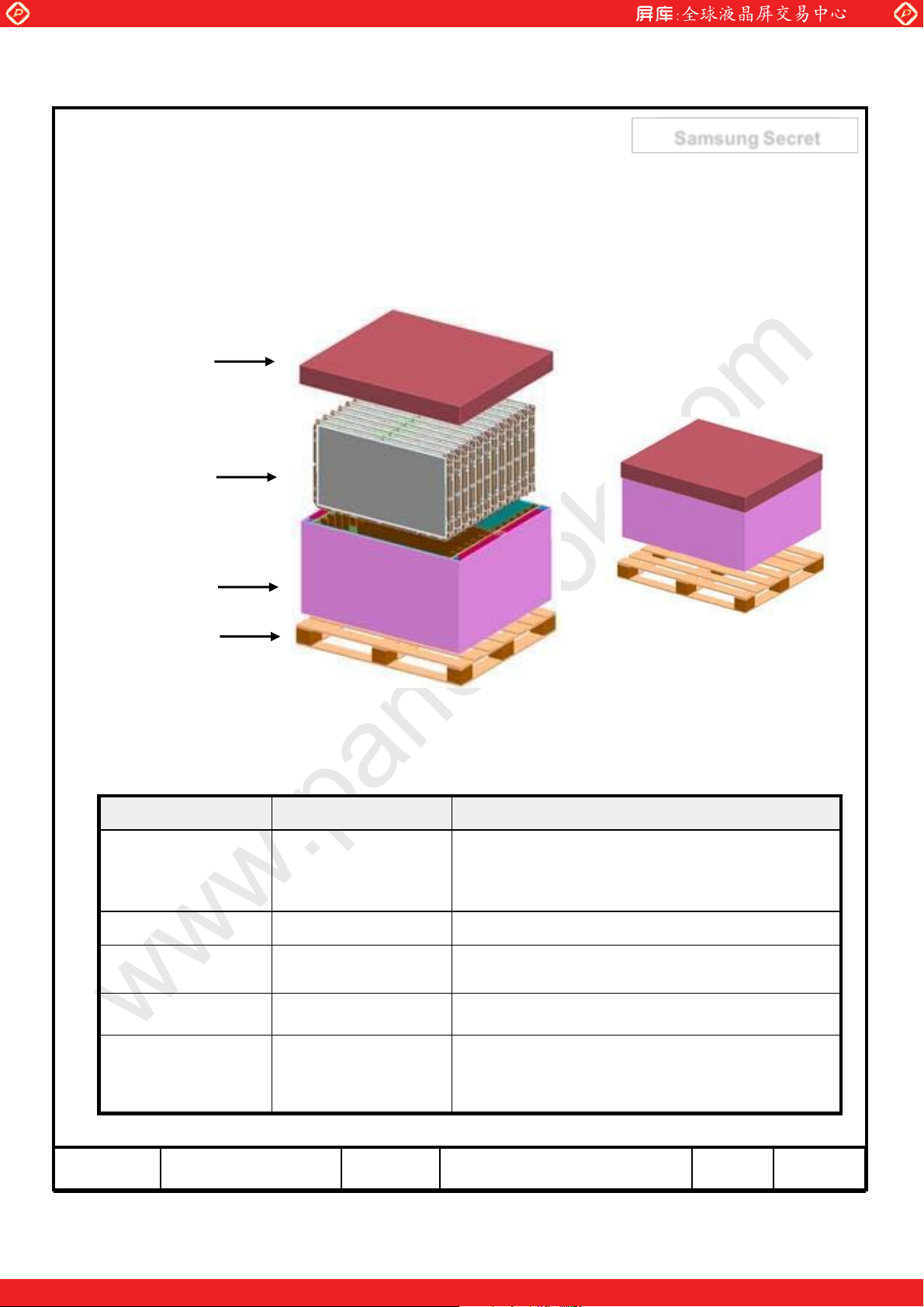

7.1 CARTON (Internal Package)
Packing
Pallet-Box
www.panelook.com
Samsung Secret
LCD Module
Packing
Paper-Box
Pallet-WOOD
7.2 Packing Specification
Item Specification Remark
LCD Packing
Pallet-Box
(Packing-Pallet
21ea / Box
Box)
1. 8.7Kg / LCD (21ea)
2. 14Kg / Packing Set
3. Packing Material : Paper
Pallet-Wood 1box / pallet 1. Pallet weight = 14.5kg
Packing Direction Vertical
Total Pallet Size H x V x height 1150mm(H) x 985mm(V) x 711mm(height)
Total Pallet
Weigh t
212.04kg
Module(8.7kgx21=182.7kg) +
Pallet(14.5kg)+ Packing SET(14kg) +
Desiccant(0.04kgx21=0.84kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
8. MARKING & OTHERS

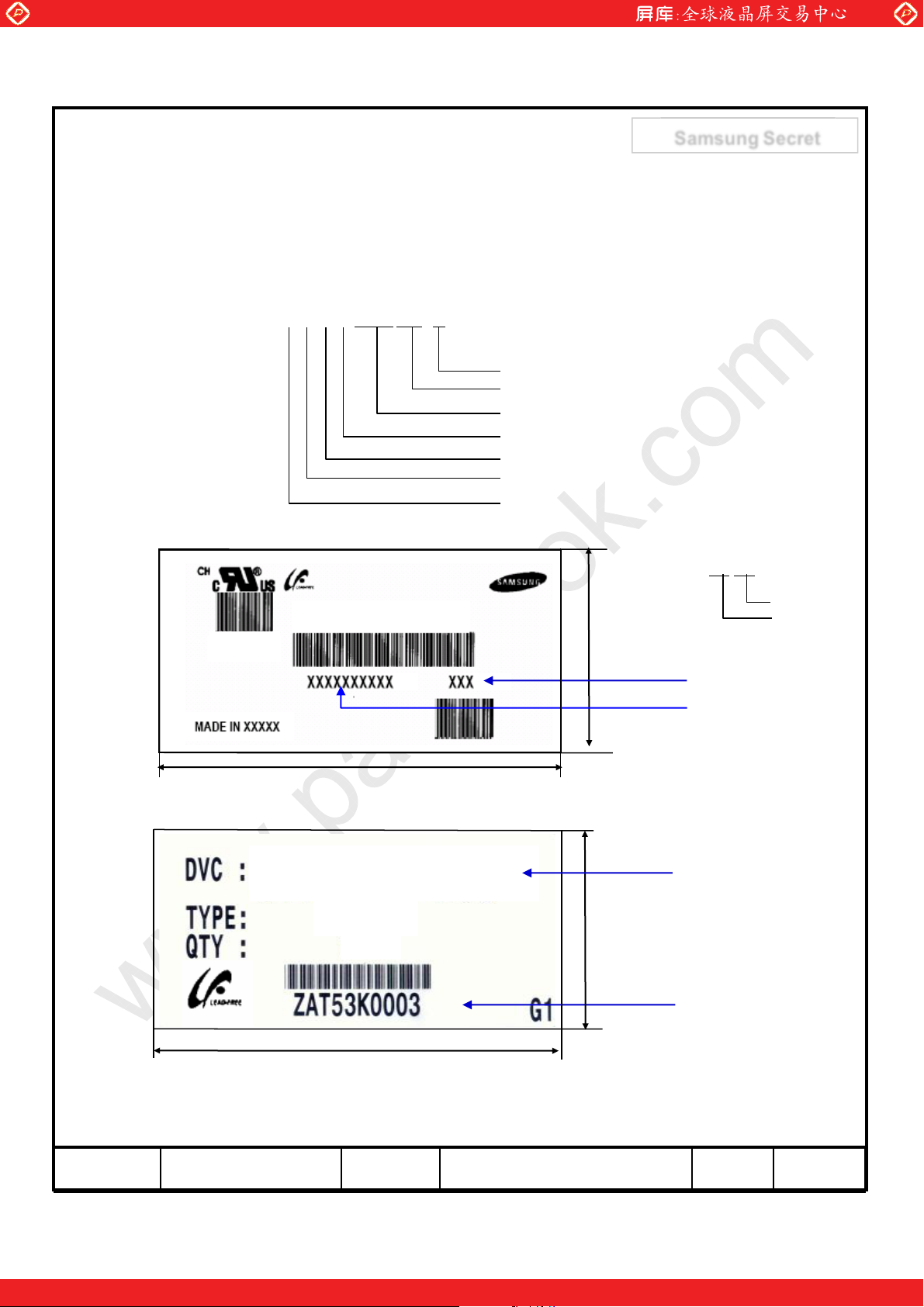

A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA400HM22
(2) Revision: Three letters
(3) Lot number : X X X X XXX XX X
(4) Nameplate Indication
(4) Nameplate Indication
www.panelook.com
Samsung Secret
Cell Position No. (In th e Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
L T A 460H Q 07
LTA400HM22
1009
1129
(5) Packing box attach
OWD733KP55
Week code : 11 29
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
W[[
54
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFT back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of I/F conn ector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
9.2 Storage
Item Unit Min. Max.
www.panelook.com
Samsung Secret
Storage
Temperature
( )
Storage Humidity (%rH)
Storage Life 12 Months
- The storage room should provide good ventilation and temperature
control.
- Products should not be placed on the floor, but on the Pallet away
from a wall.
Storage
Condition
- Preven t products from direct sunligh t, moisture nor water; Be
cautious of a build up of condensation.
- Avoid other hazardous environment while storing goods.
- If products delivered or kept in conditions of over the storage period
of 3 months, the recommen ded temperature or humidity range,
we recommend you leave them at a temperature of 20 and a
humidity of 50% for 24 hours.
9.3 Operation
54 0
35 75
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(LED) and
may require higher startup voltage(Vs).
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
tvkls s{h[WWotYY kUGu W]TWWWTzTYWXXXYYX w ˒J˓ VGY\
9.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
www.panelook.com
Samsung Secret
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
