SAMSUNG LTA320HN03-T Specification

Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
XVY]
MODEL : LTA320HN03-T
www.panelook.com
Samsung Secret
Product Information
DATE : 07. Feb. 2012
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
YVY]
www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 LED Driver Input Condition & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration

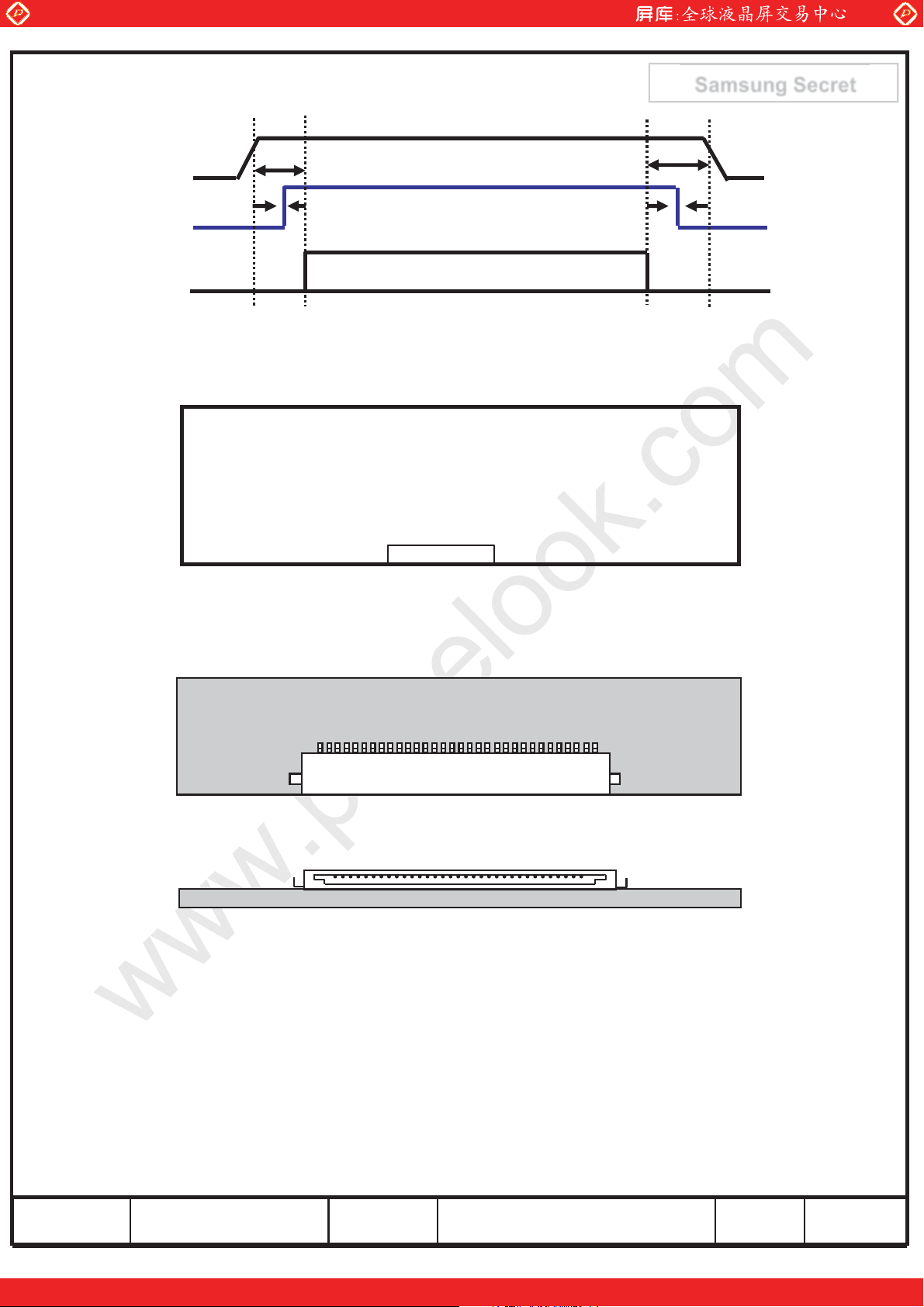

4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE mode)
5.2 LVDS Input data Characteristics

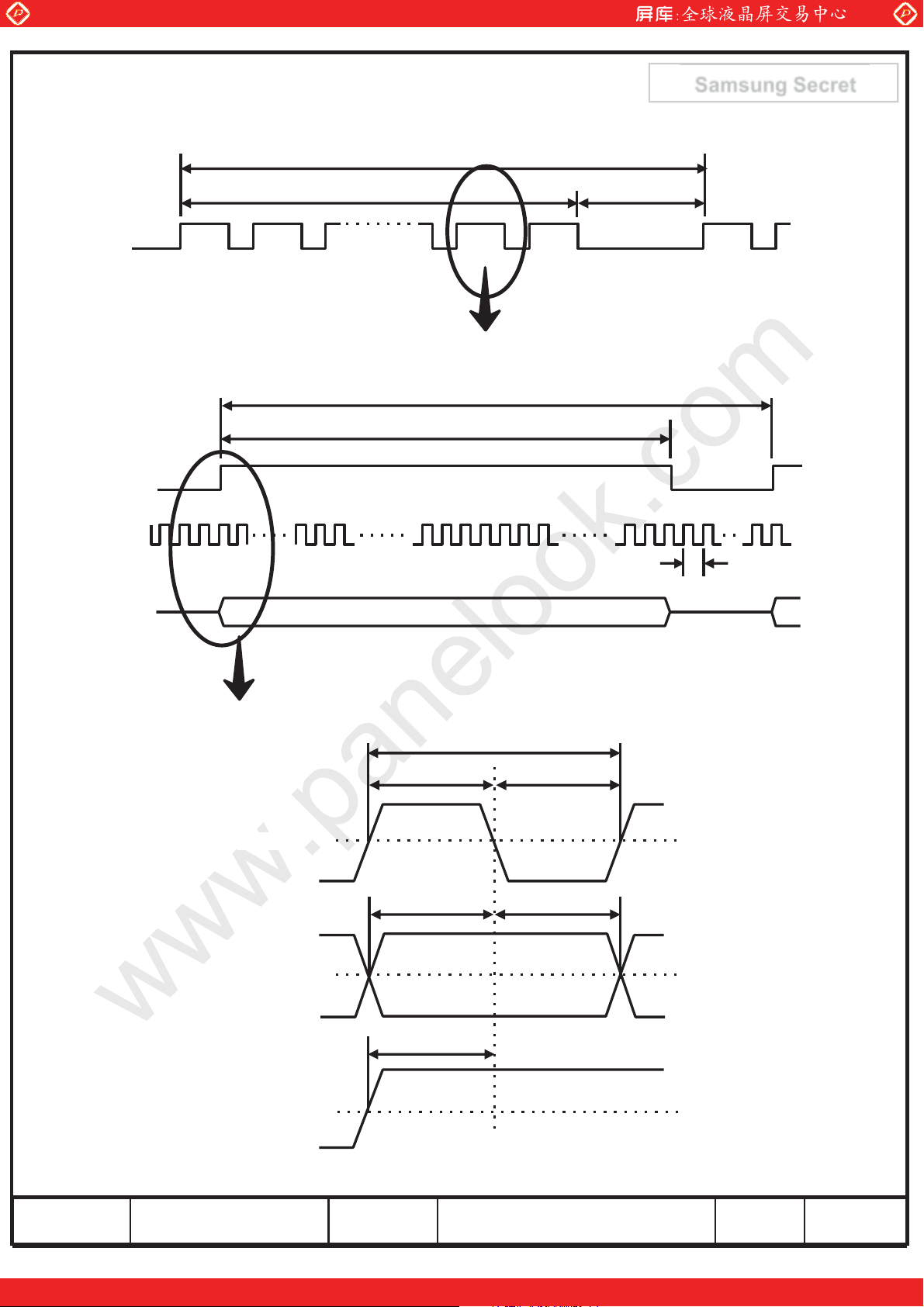

5.3 Timing diagrams of interface signal ( DE mode )
5.4 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Packing --------------------------------------------------------------------------------------------------- (23)
7.1 CARTON (Internal Package)
7.2 Packing Specification
8. Marking & Others --------------------------------------------------------------------------------------- (24)
9. General Precaution ----------------------------------------------------------------------------------- (25)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
ZVY]
* Revision History
www.panelook.com
Samsung Secret
Date
07. Jan, 2012
Rev.
No
000 all First Issued
Page Summary
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
[ VGY]
www.panelook.com
General Description
Samsung Secret
Description
LTA320HN03 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 32.0” is 1920 x 1080 and this model can
display up to 1.07 Billion colors with wide viewing angle of 89or higher in all directions. This panel is intended to support applications to provide a excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) modeWide viewing angle (·178¶)High speed response
FHD resolution (16:9)
Low Power consumptionEdge Type LED (Light Emitted Diode) BLUDE (Data Enable) mode2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
Module Size
Weight 5500 g
Pixel Pitch 0.12125(H) x 0.36375(W) mm
Active Display Area 698.4(H) x 392.85(V) mm
Surface Treatment Haze 5.5 % - Anti Glare
Display Colors 1.07 Billion colors 8 bit + FRC
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
725.2(H) x 421.9(V)
22.8(D) Max.
mm
·1.0mm
With wall mount
stud
·1000g
Display Mode Normally Black
Luminance of White 400 (Typ.) cd/m
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
\ VGY]
www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
DD
GND-0.3 13.2 V
Dimming Control Max. Lum - 5 V
Storage temperature T
Operating temperature T
Surface temperature T
STG
OPR
SUR
-20 60
050
040
Shock ( non - operating ) X,Y,Z - 50 G (4)
Vibration ( non - operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta ஘39 ¶C)
c. No condensation
(3) Although abnormal visual problems can be occurred in T
is not damaged in this range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis (5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
NOP
- 1.5 G (5)
range, the polarizer
SUR
(1)
(2)
(3)
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
] VGY]
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent. Measuring equipment :
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G Tg
Red
Green
Blue
BM-7(TOPCON), PR-650(Photo Reserch), SR-3
= 148.5 MHz, LED Current = 140 mA)
DCLK
C/R 4000 5000 -
- - 16 msec
Y
Rx
L
Normal
300 400 - cd/m
0.644
qL,R =0
Ry 0.334
qU,D =0
Gx 0.308
Viewing
Gy 0.600
Angle
Bx 0.151
TYP.
-0.03
TYP.
+0.03
By 0.056
Samsung Secret
(1)
SR-3
(3)
BM-7
RD-80S
2
(4)
SR-3
(5),(6)
PR-650
SR-3
Center
Point
Wx 0.275
White
Wy 0.285
Color Gamut - - 70 - %
Color Temperature - - 10,000 - K
75 89 -
75 89 -
Degree
75 89 -
75 89 -
Viewing
Angle
Hor.
Ver.
q
L
q
R
q
U
q
D
C/R10
White Brightness
Uniformity
B
uni
--30%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between 40min and 60min after lighting the back light at the given temperature for stabilization of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
^ VGY]
www.panelook.com
Samsung Secret
Photo detector Field
SR-3
PR-650
BM-7
TFT - LCD Module
2
1
2/ 1
- Definition of test point
Photo detector
Field
D : 50
LCD Panel
The center of the screen
320 960 1600
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white Gmin : Luminance with all pixels black
Active Area
Test Point
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
_ VGY]
www.panelook.com
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
Buni
BB

(max min)
100
B
max
Bmax : Maximum brightness Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
` VGY]
www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V
Current of
(a) Black
Power
Supply
(c) N-Pattern - 480 600 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
RUSH
DD
I
DD
V
H
DCLK
10.8 12.0 13.2 V (1)
- 290 - mA
52.5 60 63 Hz
59 67.5 73 kHz
130 148.5 160 MHz
--3A(4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV=60Hz, fDCLK = 148.5MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-Pattern
(2),(3)(b) White - 300 - mA
(4) Measurement Conditions
V
100%
DD
90%
10% GND
Rush Current I
T
can be measured when T
RUSH
RUSH
=470
. is 470༕.
RUSH
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
XW VGY]
www.panelook.com
3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Control Board
LCD Module
Samsung Secret
Ta=25 · 2¶C
Converter
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr - 30,000 - Hour (1,2)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25·2୅, For LED Package only. ]
Note (2) Test Condition : 140mA, Tj : 85䌡/ 2000Hr
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
XX VGY]
www.panelook.com

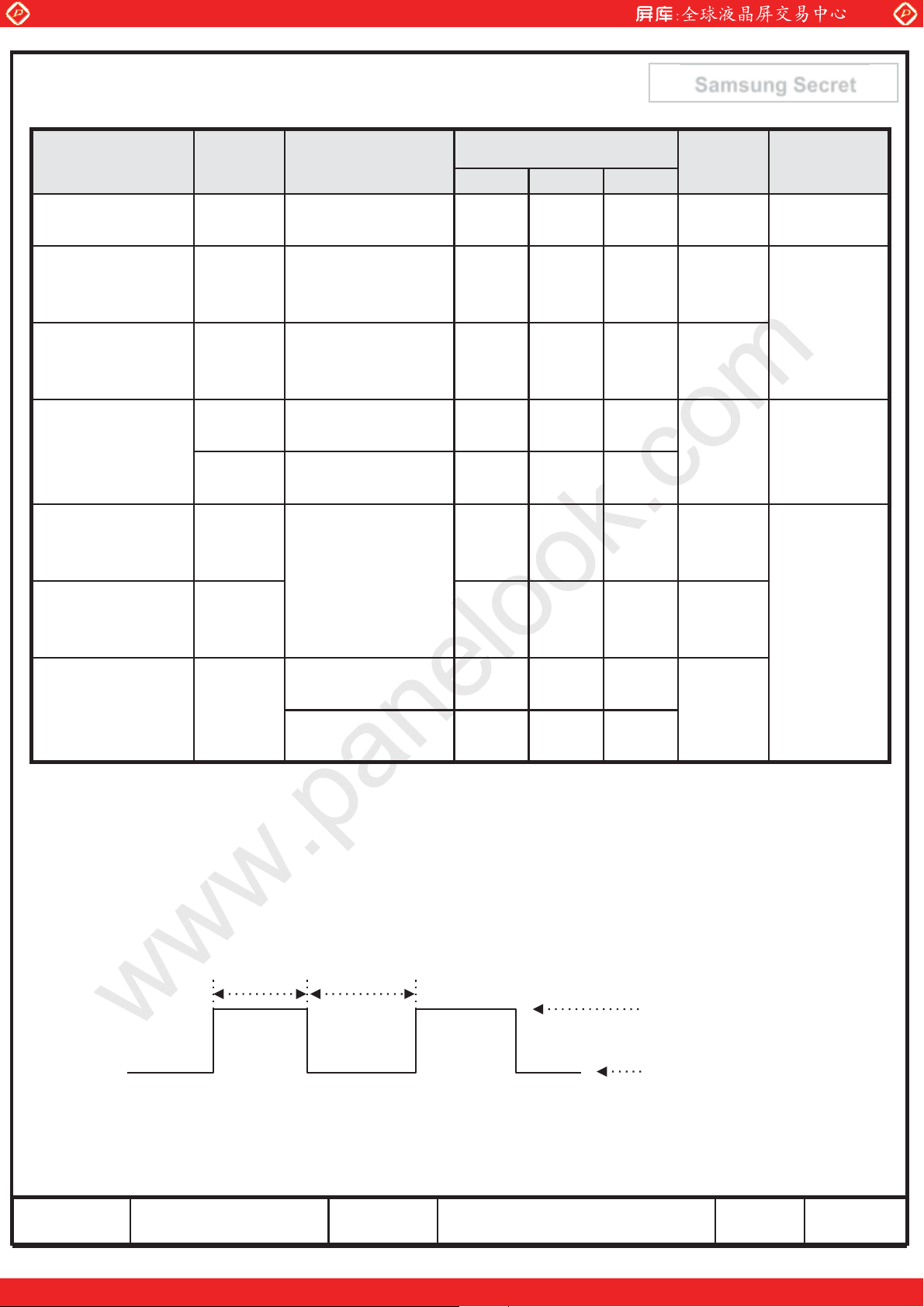

3.3 Converter Input Condition & Specification
Items Symbol Conditions
Input Voltage Vin - 22 24 26 V
Input Current
Output
Current
Backlight
On/Off
External Dimming
Duty Range
I
RUSH (2D)
I
O (2D)
ON Vin=24.0 V 3.0 - 5.5
OFF Vin=24.0 V -0.3 - 0.8
EX_Dim
Vin=24.0V
PWM = 100%
Vin=24.0V
PWM = 100%
Specifications
Min. Typ. Max.
- - 2.12 A
133 140 147 mArms
1 - 100 %
Samsung Secret
Unit Note
Ta=25·2 ¶C
Note (1)
V
Vin=22.0~26.0 V
External Dimming Frequency Range
External Dimming
Signal Level
F
EX_PWM
V
PWM
95 - 200 Hz
Note (2, 3)
High (ON) 3.0 - 5.5
V
Low (Off) -0.3 - 0.8
Note) Power Consumption is measured when 400 [cd/m ] of luminance which is the typical
luminance. (1) All data is measured after 120min warm-up. (2) Ex_Dim are available only at Normal mode. (3) Duty = On / (On+Off) * 100
On Off
Max
Min
- Additional Appendix for Supply Current (Only for Reference)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
XY VGY]
www.panelook.com
4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power Connector :FI-RE51S-HF (JAE/UJU)
PIN No. Description PIN No. Description
1V
2V
3V
4V
5V
6 No Connection * Note (1) 31 GND
7 GND 32 RE[CLK]N
8 GND 33 RE[CLK]P
9 GND 34 GND
10
DD(12V) 26
DD(12V) 27 RE[1]N
DD(12V) 28 RE[1]P
DD(12V) 29 RE[2]N
DD(12V) 30 RE[2]P
Even
LVDS
Signal
RO[0]N 35 RE[3]N
RE[0]P
11 RO[0]P 36 RE[3]P
12 RO[1]N 37 RE[4]N
13 RO[1]P 38 RE[4]P
14 RO[2]N 39 GND
15 RO[2]P 40 No Connection
16 GND 41 No Connection
17 RO[CLK]N 42 No Connection
18 RO[CLK]P 43 No Connection
19 GND 44 No Connection
20 RO[3]N 45 LVDS Option *Note (2)
21 RO[3]P 46 No Connection
22 RO[4]N 47 No Connection
23 RO[4]P 48 No Connection
24 GND 49 No Connection
Odd
LVDS
Signal
25 Even LVDS RE[0]N 50 No Connection
51 No Connection
Note)(1) No Connection: This PINS are only used for SAMSUNG internal using.
(2) LVDS OPTION : If this PIN : HIGH (3.3 V) → Normal LVDS format
: LOW (GND) → JEIDA LVDS format
SEQUENCE : On = V
OFF = Interface Signal(T3) ≥ LVDS Option ≥ V
DD(T1) ≥ LVDS Option ≥ Interface Signal(T2)
DD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
XZ VGY]
www.panelook.com
Samsung Secret
Vin
LVDS
Option
LVDS
Signal
Note(3) Pin number starts from left side
T2
LVDS Option Sequence
Pin No. 1 Pin No. 51
T3
PCB
#1
connect name
#1
#51
#51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD’s
metal chassis. b. All power input pins should be connected together. c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X[ VGY]
4.2. Converter Input Pin Configuration
Pin Configuration (FUNCTION)
Pin No.
1~5 Vin
6~10 GND
11 Error_out
12 Backlight On /Off [ON:2.4 – 5.5 V, OFF: 0 - 0.8 V]
13 No Connection
www.panelook.com
Samsung Secret
Connector : Yeon-ho, 20022WR-14B1
Master
14 External PWM
4.3. Inverter Input Power Sequence
[1~100 %]
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X\VY]
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & Normal)
LVDS pin JEIDA -DATA VESA -DATA TxIN/RxOUT0 R4 R0 TxIN/RxOUT1 R5 R1 TxIN/RxOUT2 R6 R2
www.panelook.com
Samsung Secret
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxIN/RxOUT3 R7 R3 TxIN/RxOUT4 R8 R4 TxIN/RxOUT6 R9 R5
TxIN/RxOUT7 G4 G0
TxIN/RxOUT8 G5 G1 TxIN/RxOUT9 G6 G2
TxIN/RxOUT12 G7 G3 TxIN/RxOUT13 G8 G4 TxIN/RxOUT14 G9 G5 TxIN/RxOUT15 B4 B0 TxIN/RxOUT18 B5 B1 TxIN/RxOUT19 B6 B2
TxIN/RxOUT20 B7 B3
TxIN/RxOUT21 B8 B4 TxIN/RxOUT22 B9 B5 TxIN/RxOUT24 HSYNC HSYNC TxIN/RxOUT25 VSYNC VSYNC
TxOUT/RxIN3
TxOUT/RxIN4
TxIN/RxOUT26 DEN DE TxIN/RxOUT27 R2 R6
TxIN/RxOUT5 R3 R7
TxIN/RxOUT10 G2 G6 TxIN/RxOUT11 G3 G7 TxIN/RxOUT16 B2 B6 TxIN/RxOUT17 B3 B7 TxIN/RxOUT23 RESERVED RESERVED TxIN/RxOUT28 R0 R8
TxIN/RxOUT29 R1 R9
TxIN/RxOUT30 G0 G8 TxIN/RxOUT31 G1 G9 TxIN/RxOUT32 B0 B8 TxIN/RxOUT33 B1 B9 TxIN/RxOUT34 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X]VY]
www.panelook.com
Samsung Secret
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
DATA SIGNAL
DISPLAY
(10bit)
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 000000000000000000000000000000 -
BLUE 000000000000000000001111111111 -
GREEN 000000000011111111110000000000 -
CYAN 000000000011111111111111111111 -
RED 111111111100000000000000000000 -
MAGENTA111111111100000000001111111111 -
YELLOW 111111111111111111110000000000 -
WHITE 111111111111111111111111111111 -
BLACK 000000000000000000000000000000 R0
100000000000000000000000000000 R1
DARK
LIGHT
010000000000000000000000000000 R2
:::::: :::::::::: ::::::::::: :::
:::::: :::::::::: :::::::::: ::::
101111111100000000000000000000R1021
RED GREEN BLUE
GRAY SCALE LEVEL
R3~
R1020
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
011111111100000000000000000000R1022
RED 111111111100000000000000000000R1023
BLACK 000000000000000000000000000000 G0
000000000010000000000000000000 G1
DARK
LIGHT
GREEN 000000000011111111110000000000G1023
BLACK 000000000000000000000000000000 B0
DARK
LIGHT
000000000001000000000000000000 G2
:::::: :::::::::: :::::::::: ::::
::::::: ::::::::: :::::::::: ::::
000000000010111111110000000000G1021
000000000001111111110000000000G1022
000000000000000000001000000000 B1
000000000000000000000100000000 B2
:::::: :::::::::: :::::::::: ::::
:::::: :::::::::: :::::::::::: ::
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
G3~
G1020
B3~
B1020
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X^ VGY]
5. Interface Timing
5.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Samsung Secret
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
130 148.5 160 MHz -
59 67.5 73 KHz -
52.5 60 65 Hz -
Active
- 1080 - Lines -
Vertical
Display
Period
T
VD
Display Term
Vertical
Total
T
V
1092 1125 1380 Lines -
Active
- 1920 - Clocks -
Horizontal
Display
Period
T
HD
Display Term
Horizontal
Total
T
H
2090 2200 2350 clocks -
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system (2) Internal VDD = 3.3V (3) Spread spectrum
- Modulation rate (max) : · 1.5 %
- Modulation Frequency : 30~ 100KHz
5.2 LVDS Input Data Characteristics
ITEM SYMBOL Min. Typ. Max. UNIT NOTE
t
Input Data
Position
Input common mode voltage V
Differential Input Voltage |V
=78MHz
F
IN
RSRM
t
RSLM
CM
| 100 - - mV -
ID
Note) When the skew is measured the Spread Spectrum should be 0%
- - 500 ps
-500 - - ps
0.55 - 1.8 V -
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X_ VGY]
www.panelook.com
5.3 Timing diagrams of interface signal ( DE mode )
TV
TVD
DE
TH
THD
DE
Samsung Secret
TVB
DCLK
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDS TDH
TCL
TC
0.5 V
0.5
V
CC
CC
TES
DE
0.5 V
CC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
X` VGY]
www.panelook.com
5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
2ms<T1≤10ms
1ms<T2≤50ms
0<T3≤50ms 1000ms≤T4
1000ms≤T5
(Recommend Value)
100ms≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90% T2 : The time from V T3 : The time from valid data off to V T4 : V
off time for Windows restart
DD
to valid data at power ON.
DD
off at power Off.
DD
T5 : The time from valid data to B/L enable at power ON. T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off, the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.In Case T5 is less than 1000msec and T6 is less than 100msec,
Garbage Display can be seen. (It is not related to electrical function issue, Just for recommendation to prevent Garbage Display )
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
YW VGY]
6. Outline Dimension- Front
www.panelook.com
Samsung Secret
TBD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
YX VGY]
6. Outline Dimension- Rear
www.panelook.com
Samsung Secret
TBD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
YY VGY]
7. PACKING
7.1 CARTON (Internal Package)
Packing
Pallet-Box
www.panelook.com
Samsung Secret
LCD Module
Packing
Paper-Box
Pallet-Plastic
7.2 Packing Specification
Item Specification Remark
LCD Packing
Pallet-Box
24ea / box
(Packing
pallet-Box)
1. 5.5Kg / LCD (48ea)
2. 15Kg / Packing Set
3. Packing Material : Paper
Pallet-Plastic 2box / pallet Pallet weight : 5.3Kg
Packing Direction Vertical
Total Pallet Size H x V x height 1150mm(H) x 850mm(V) x 1083mm(height)
Module(5.5Kg x 48ea = 264Kg) +
Total Pallet
Weight
310.44 Kg
Packing Set(15Kg x 2ea = 30Kg) + Pallet-Plastic(15Kg) + Desiccant(0.03Kg x 48ea = 1.44Kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
YZ VGY]
www.panelook.com
Samsung Secret
8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA320HN01 (2) Revision: Three letters (3) Lot number : X X X X XXX
(4) Nameplate Indication
XX X
Cell Position No. (In the Glass) Glass No. (In the one Lot) Lot No. (Glass) Month Year (Note1) Product code Line
T
C
LTA320HN01
1125
[[[[
(5) Packing box attach
[[[[[[[[[[ [[[
OWD653KQ34
Week code : 11 25
week year
40mm
Revision code
Lot number
80mm
100mm
Part number
57
WEG
Box serial number
165mm
(6) Others
1. After service part Lamps cannot be replaced because of the narrow bezel structure.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
Y[ VGY]
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter &C-PBA
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while handling a module
(o) Pins of I/F connector should not be touched directly with bare hands.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
Y\ VGY]
www.panelook.com
9.2 Storage
Samsung Secret
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 C and relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent
light during the store.
(d) Storage condition of Packing
Item Unit Min. Max.
Storage
Temperature
()
540
Storage Humidity (%rH) 35 75
Storage Life 12 Months
-. Prohibit direct sunlight
-. Ventilation in storehouse and Control changing temperature is within limits of environment
Storage
Condition
-. Put it on pallet, don’t put it on floor, and store them with removing form wall.
-. Don’t wet Out-Box and avoid rain.
-. Without condensation.
-. Etc. Avoid harmful Condition.
Long-term
Storage Process
More than 3months Storage or Low temp. Delivery/under5୅ Storage, Æ On the 20୅ 50%rH Condition, More than 24hr release.
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between the back light and the inverter may cause lower luminance of lamp(LED) and may require higher startup voltage(Vs).
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
tvkls s{hZYWouWZ kUGu W]TWWWTnTYWXYWYW^ w
Y] VGY]
www.panelook.com
Samsung Secret
9.4 Operation Condition Guide
) The LCD product should be operated under normal conditions.
(a
Normal condition is defined as below;
- Temperature : 20·15୅
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended to contact SEC for Application engineering advice. Otherwise, its reliability and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature, and so on) Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
