9. General precaution -----------------------------------------------------------------------------------(24)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation condition guide
9.5 Others
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2/26
Page 3
Global LCD Panel Exchange Center
www.panelook.com
* Revision History
DateRev. NoPageSummary
04. Sep. 2012000First issued
Samsung Secret
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/26
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
General Description
Samsung Secret
Description
LTA320AP33 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit.
The resolution of a 32.0“ is 1366 x 768 and this model can display up to 16.7million colors with
wide viewing angle of 178¶ or higher in all directions. This panel is intended to support applications
to provide a excellent performance for Flat Panel Display such as Home-alone multimedia TFTLCD TV and high definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (typ.178¶)
High speed response
HD resolution (16:9)
Low Power consumption
Direct Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
1ch LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
General Information
ItemsSpecificationUnitNote
724.5 (H
Module Size
Weight3800 (Typ.)g
Pixel Pitch
Active Display Area697.6845 (H) X 392.256 (V)mm
Surface TreatmentAnti-Glare Haze 14%, Hard coating (2H) -
Display Colors8 bit – 16.7 Mcolor
Number of Pixels1366 x 768pixel
Pixel ArrangementRGB Horizontal stripe
Display ModeNormally Black
0.51075 (H) Ý 0.17025 (V)
) x 424.3 (V
Typ
37 (D
Max
)
Typ
)
·1.0mm
Mm
mm
Luminance of White300 (Typ.)cd/m
2
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/26
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
ItemSymbolMin.Max.UnitNote
Power Supply VoltageV
Storage temperatureT
Operating temperatureT
Surface temperatureT
DD
STG
OPR
SUR
GND-0.313.2V(1)
-2060
050
065
Shock ( non - operating )X,Y,Z-50G(4)
Vibration ( non - operating )V
NOP
-1.5G(5)
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. Ta ≤ 39 ¶C , Relative Humidity is max 90 %
b. Ta 39 ¶C , Relative Humidity is less than 90%
c. No condensation
(2)
(3)
Fig. Temperature and Relative humidity range
(3) Although abnormal visual problems can be occurred in T
is not damaged in this range.
(4) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
range, the polarizer
SUR
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/26
www.panelook.com
Page 6
Global LCD Panel Exchange Center
0.640
0.337
0.327
0.616
0.146
0.054
0.275
0.285
www.panelook.com
2. Optical Characteristics
Samsung Secret
The optical characteristics should be measured in a dark room or equivalent condition.
Measuring equipment ( ) : equipment maker
BM-7(TOPCON), PR-650(Photo Research), SR3(TOP CON )
:
ItemSymbolConditionMin.Typ.Max.UnitNote
Contrast Ratio
(Center of screen)
Response
Time
G-to-G
(2D)
Luminance of White
(Center of screen)
Color
Green
Chromaticity
(CIE 1931)
Blue
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
C/R-3000-
-2030msec
260300-cd/m
Red
Tg
Y
Rx
Ry
L
Normal
θL,R =0
θU,D =0
Gx
Gy
Bx
Viewing
Angle
TYP
- 0.030
By
= 78 MHz, If = 400mA, Dim.duty 100%)
DCLK
BM-7, RD-80S
2
TYP
+ 0.030
(1)
SR-3
(3)
(4)
SR-3
(5),(6)
PR650,
SR-3
Center
Point
Wx
White
Wy
Color Gamut-6670-%
Color Temperature--11,000-K
Typ.
Viewing
Angle
Hor.
Ver.
θ
L
θ
R
θ
U
θ
D
C/R≥10
7589-
7589-
Degree
7589-
7589-
White Brightness
Uniformity
B
uni
--30%
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/26
www.panelook.com
Page 7
Global LCD Panel Exchange Center
ྙ
ྚྛ
ྞ
ྡ
ྠ
ྜྷྜ
ྟ
www.panelook.com
Samsung Secret
detector
SR-3
RD-80S
TFT - LCD Module
Field
1ദ
2ദ
Photo detector
Field
D : 50
LCD Panel
The center of the screen
- Definition of test point
2286831138
128
384
640
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
G
CR
/
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Active Area
Test Point
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/26
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
Buni
BB
(max min)
100
B
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Average of T
(data is 8 x 8 Gray table, excluding 0 to 255Gray)
Display data
Optical Instruments
Response
100%
90%
10%
0%
Black (data off)
T
R
White (data on)
R
, T
F
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle at center point
: Viewing angle range (C/R ≥10)
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/26
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret

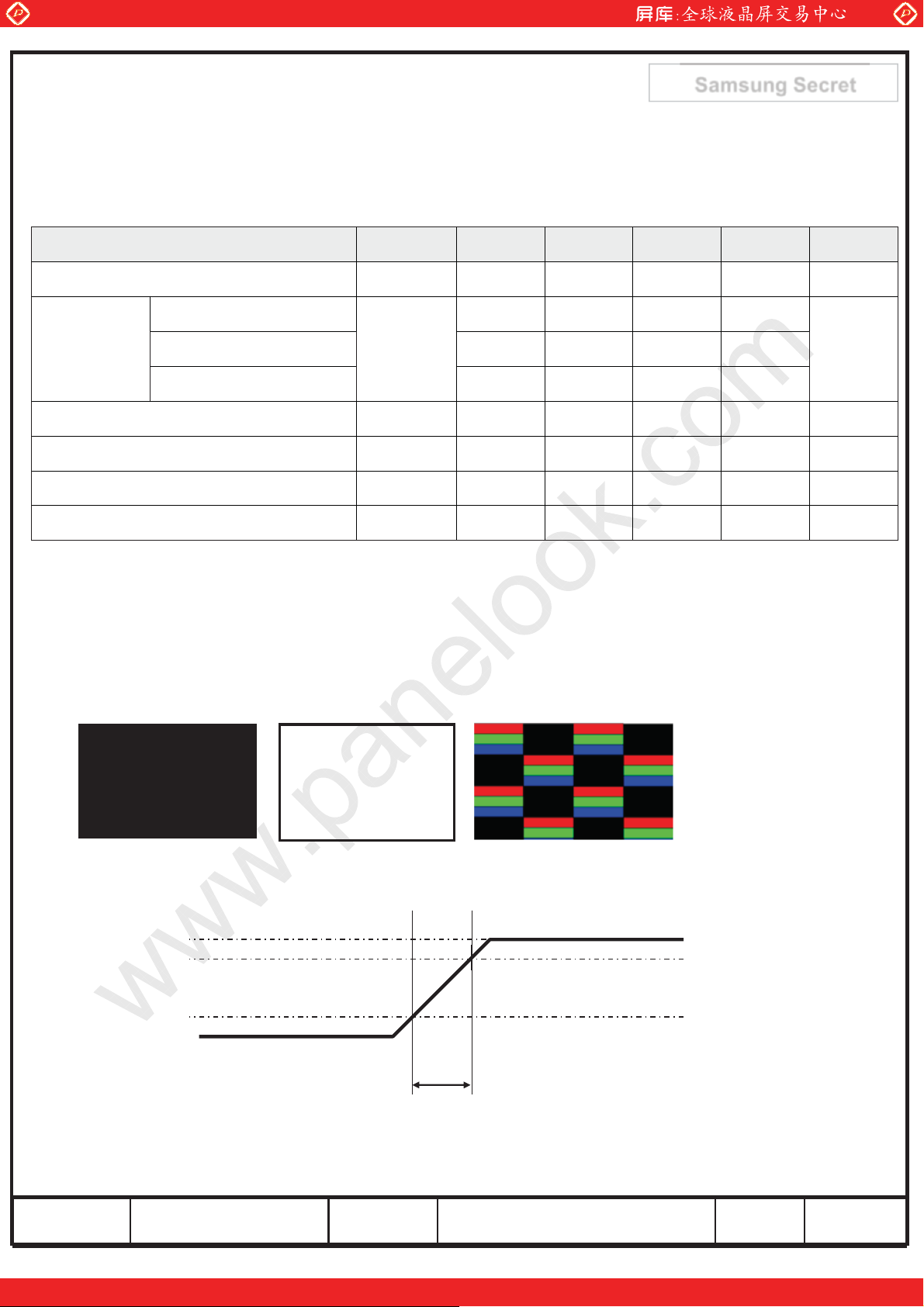

3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25¶C · 2 ¶C
ItemSymbolMin.Typ.Max.UnitNote
Voltage of Power SupplyV
(a) Black
DD
I
DD
10.812.013.2V(1)
-330420mA
(c) Checker-490620mA
Vsync Frequencyf
Hsync Frequencyf
Main Frequencyf
Rush CurrentI
RUSH
V
H
DCLK
476066Hz
444853kHz
727885MHz
--3A(4)
Note (1) The ripple voltage should be controlled under 10% of V
(2) fV=60Hz, fDCLK = 78MHz,V
= 12.0V, DC Current.
DD
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) checker
DD
(2),(3)(b) White-360440mA
.
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
Rush Current I
T
can be measured when T
RUSH
RUSH
≥ 470༕
. is bigger then 470༕.
RUSH
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/26
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
3.2 Back Light Unit
The back light unit contains Direct type White LEDs (Light Emitting Diode)
LCD Module
Samsung Secret
Ta=25 · 2¶C
Converter CNT
ItemMin.Typ.Max.UnitNote
Operating Life Time30000--Hour
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Operating condition : Ta = 25·2]
Signal & Power CNT
Tj = 133ഒ(1)
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 / 26
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
3.3 Converter Input Condition & Specification
Samsung Secret
Specifications
ItemsSymbolConditions
Min.Typ.Max.
Input VoltageVin-222426VTa=25·YG¶j
Input
Current
Input Rush CurrentI
Backlight
On/Off
overshoot
saturation
Iin _
Iin _
RUSH
ONVin=24.0 V2.5-5.25
Vin = 24V, Dim=3.3V
-1.361.4A
(Within 1hr at BLU on)
Vin = 24V, Dim=3.3V
-1.351.39A
(After 1hr Aging)
Vin=24.0V
--1.7A
Vdim =3.3V
UnitNote
V
Pin(#12)OFFVin=24.0 V0-0.4
Dimming RangeV
Dimming Duty
Output
Dimming
Frequency
External Dimming
Duty Range
External Dimming
Frequency Range
External Dimming
Signal Level
_DIM
D maxVin=24V Dim:3.3V--100
D minVin=24V Dim:0V10--
F
PWM
EX_DimMin10-100%
F
EX_PWM
V
PWM
Vin :22~26V0-3.3V
%(2)
Vin=24.0 V---HzAnalog, (2)
Dim Pin(#14)
Vin=22.0~26.0 V-100/120-Hz
: Floating, (4)
High (ON)2.5-5.25
V
Low (Off)0-0.4
Note) Power Consumption is measured when 300 [cd/m ] of luminance which is the typical
luminance.
(1) All data is measured after 60min warm-up.
(2) only use #Pin 13
(3) only use #Pin14
(4) External PWM frequency should be synchronized with SET frequency
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 / 26
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com

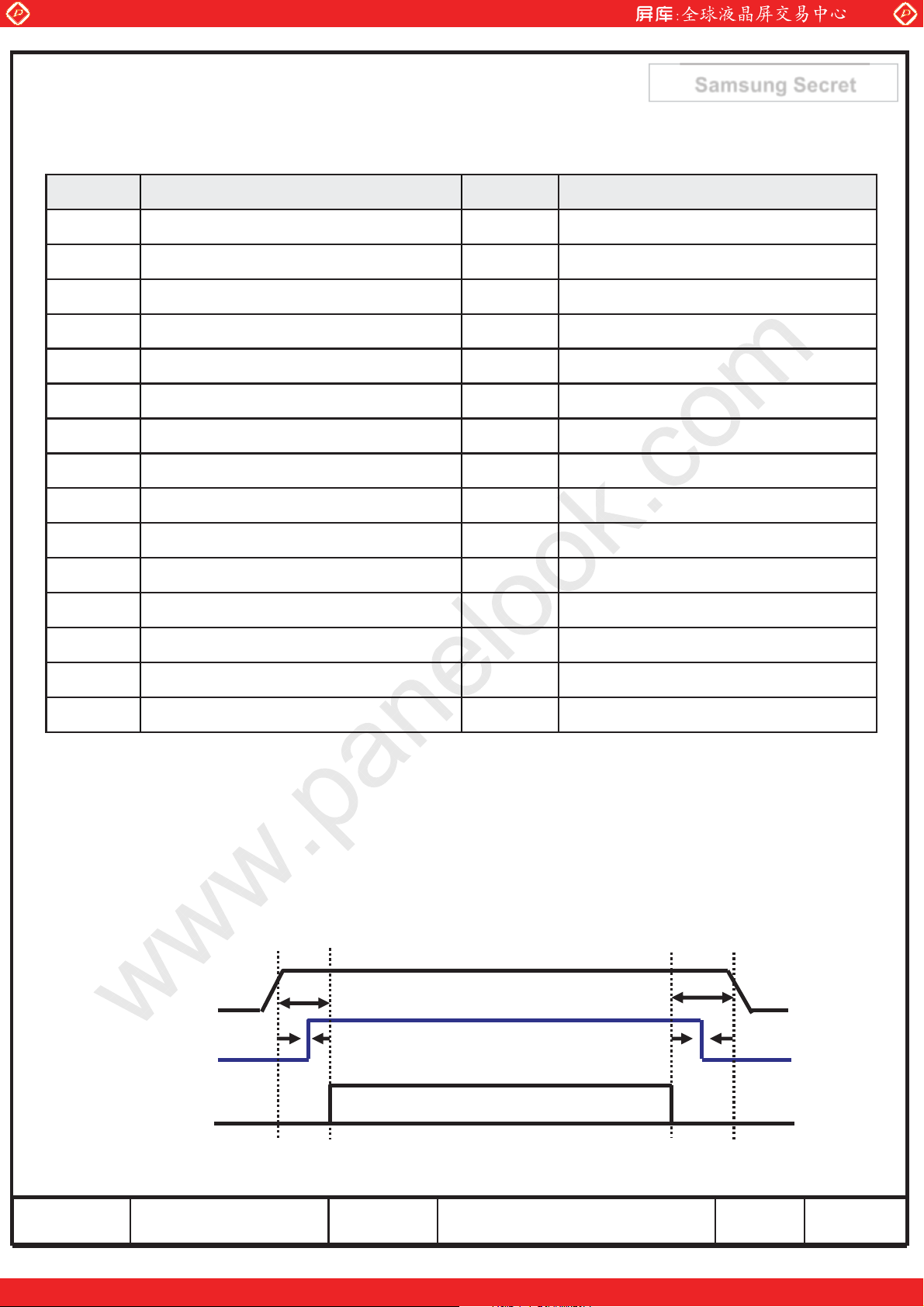

4. Input Terminal Pin Assignment
Samsung Secret
4.1. Input Signal & Power Connector :IS100-L30O-C23(UJU)
PIN No.DescriptionPIN No.Description
1
2
3
4
5
6
7
8
9
LVDS_SEL (note 2, 3)
VIN (12V)
VIN (12V)
VIN (12V)
VIN (12V)
N.C
GND
GND
N.C
16
17
18
19
20
21
22
23
24
LV1_P
GND
LV2_N
LV2_P
GND
LVCLK_N
LVCLK_P
GND
LV3_N
10
11
12
13
14
15
N.C
GND
LV0_N
LV0_P
GND
LV1_N
25
26
27
28
29
30
Note1) No Connection: This PINS are only used ONLY for SAMSUNG.
Note2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS format
LOW (GND) → JEIDA LVDS format
Pull down resistor : 47Kohm
SEQUENCE : On = V
DD ≥ LVDS Option ≥ Interface Signal(T2)
OFF = Interface Signal(T3) ≥ LVDS Option
Vin
T2
LV3_P
GND
N.C
N.C
N.C
GND
T3
LVDS
Option
LVDS
Signal
LVDS Option Sequence
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 / 26
www.panelook.com
Page 13
Global LCD Panel Exchange Center
High
-
3.6 V
-
Note 3) Signal level of LVDS selection
MinTypMax
2.8V
www.panelook.com
Samsung Secret
Low0 V
Note4) Pin number starts from right side
Pin No. 1 Pin No. 30
0.4V
PCB
#1#30
#1
#30

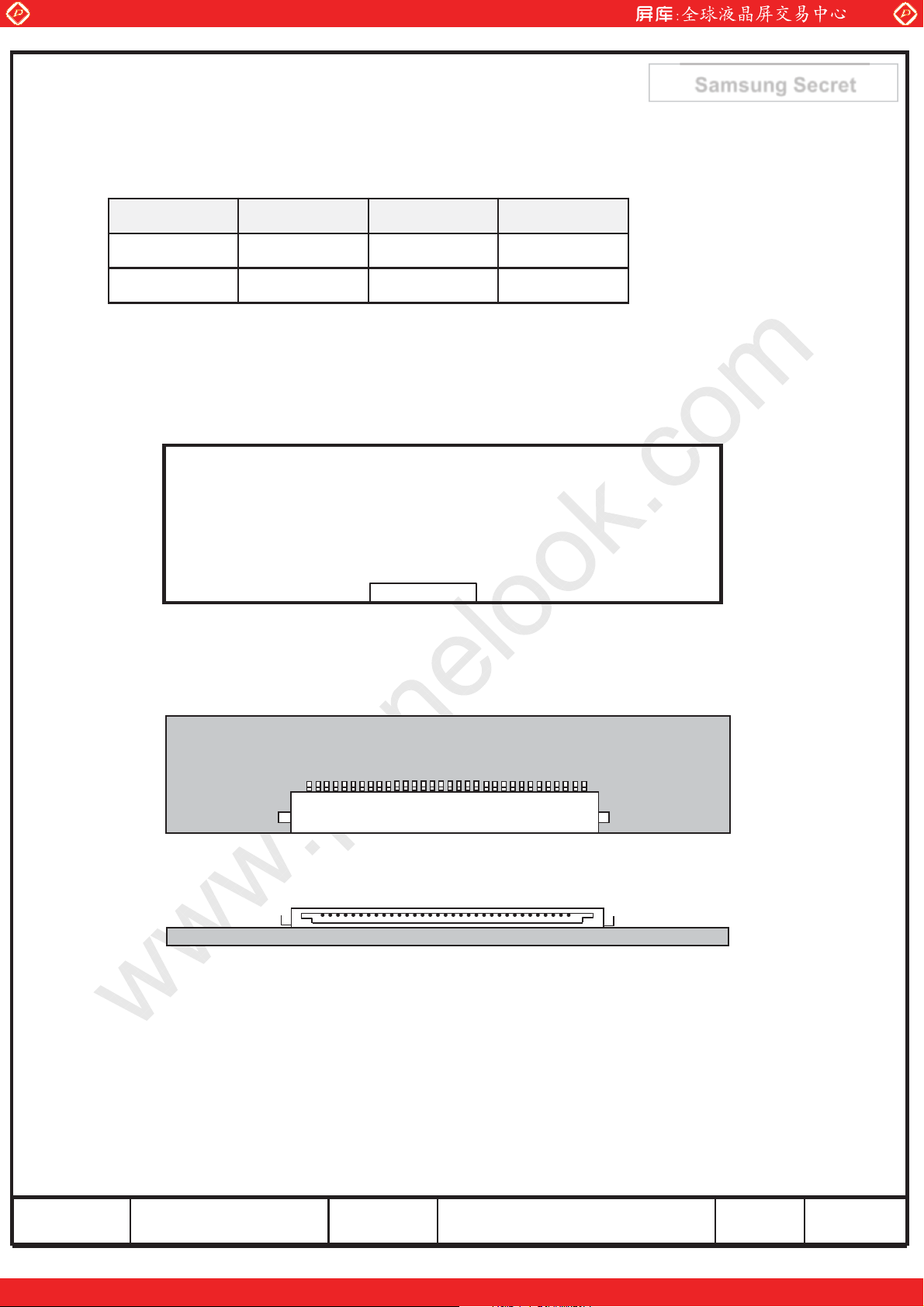

Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pin should be separated from other signal or power.
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 26
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com

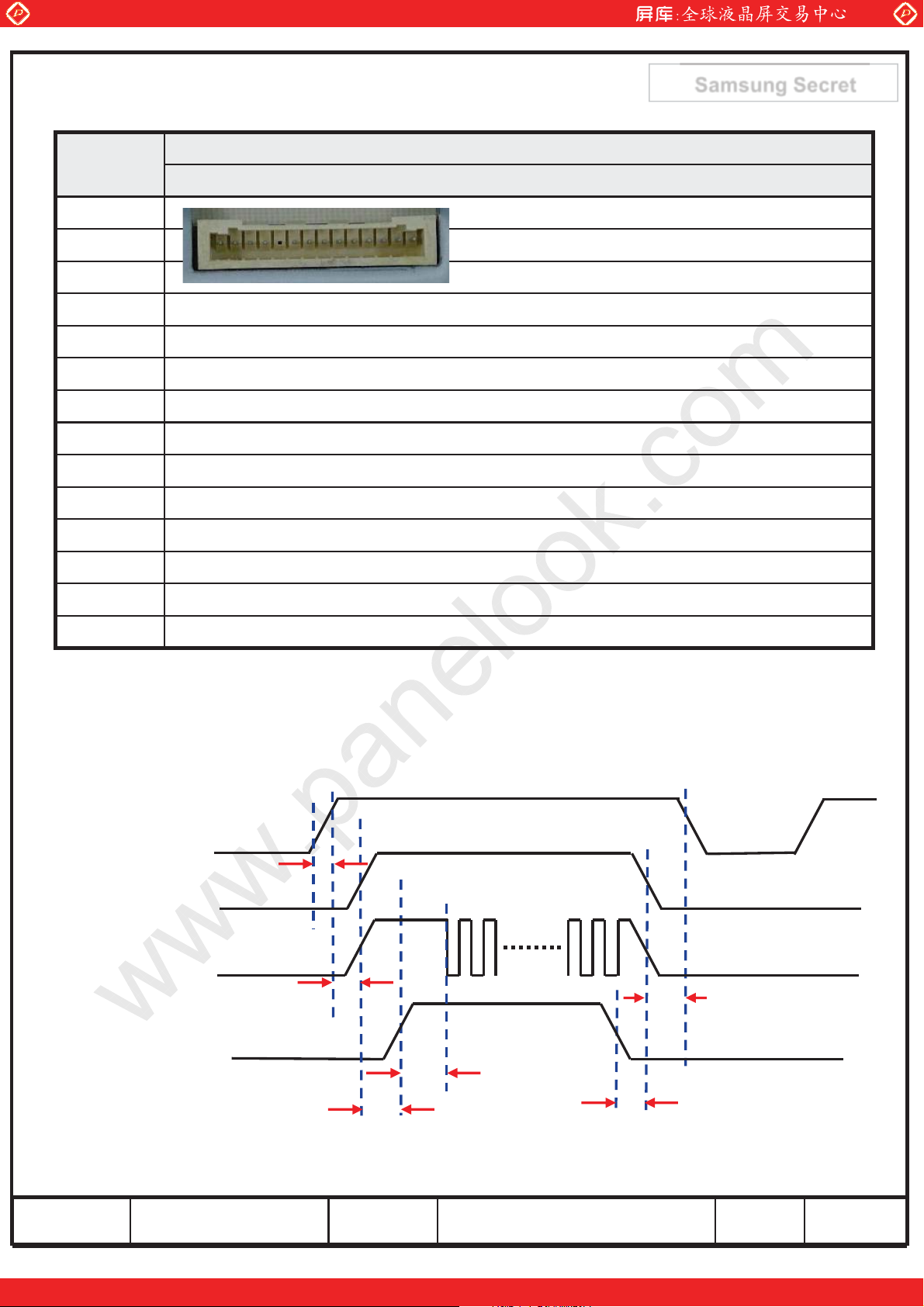

4.2. converter Input Pin Configuration
Pin Configuration(FUNCTION)
Pin No.
124 V
224 V
324 V
424 V
524 V
6GND
7GND
8GND
9GND
10GND
Pin No. 1
Samsung Secret
Connector : Yeon-ho, 20022WS-H14J
Master
11No connection
12ENA [ converter on/off control signal ]
13Analog Dimming Control [0V:Min, 3.3V:Max] *Note(1)
14External PWM [10~100%] *Note(1), Note(2)
*Note(2)
Note(1) If use Dimming Control, Pin 14 Must be N.C
If use External PWM, Pin 13 Must be N.C
Note(2) Pin 12 has Pull down register 100Kohm, Pin 13/14 has Pull up register 100Kohm
4.3. converter Input Power Sequence
Vin (24V)
0.02sec [Min]
Dimming Control
External PWM
0.5sec [Min]
0.2sec [Min]
Backlight On/Off
0sec [Min]
0.5sec [Min]
0 sec [Min]
Note) SEQUENCE : ON = Vin(24V) > Dimming Control ≥ Backlight On/Off
OFF = Backlight On/Off ≥ Dimming Control > Vin(24V)
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 26
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format
LVDS pinVESA (Normal)JEIDA
TxIN/RxOUT0R0R4
TxIN/RxOUT1R1R5
TxIN/RxOUT2R2R6
TxOUT/RxIN0
TxIN/RxOUT3R3R7
TxIN/RxOUT4R4R8
TxIN/RxOUT6R5R9
TxIN/RxOUT7G0G4
TxIN/RxOUT8G1G5
TxIN/RxOUT9G2G6
Samsung Secret
TxOUT/RxIN1
TxOUT/RxIN2
TxIN/RxOUT12G3G7
TxIN/RxOUT13G4G8
TxIN/RxOUT14G5G9
TxIN/RxOUT15B2B4
TxIN/RxOUT18B3B5
TxIN/RxOUT19B4B6
TxIN/RxOUT20B5B7
TxIN/RxOUT21B6B8
TxIN/RxOUT22B7B9
TxIN/RxOUT24Don’t careDon’t care
TxIN/RxOUT25Don’t careDon’t care
TxIN/RxOUT26DENDEN
TxIN/RxOUT27R6R2
TxIN/RxOUT5R7R3
TxIN/RxOUT10G6G2
TxOUT/RxIN3
TxIN/RxOUT11G7G3
TxIN/RxOUT16B6B2
TxIN/RxOUT17B7B3
TxIN/RxOUT23RESERVEDRESERVED
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 26
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
4.5 Input Signals, basic display colors and gray scale of each color
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 26
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
5. Interface Timing
Samsung Secret
5.1 Timing Parameters ( DE mode )
SIGNALITEMSYMBOLMIN.TYP.MAX.UnitNOTE
Clock
HsyncF
Frequency
VsyncF
Active
Display
Vertical
Period
Display Term
Vertical
Total
Active
Display
Horizontal
Period
Display Term
Horizontal
Total
1/T
T
T
T
T
H
V
VD
V
HD
H
C
707885MHz-
444853KHz-
476066Hz-
-768-Lines-
7808021200Lines-
-1366-Clocks-
146016242000clocks-
Note) This product is DE mode. But the Hsync & Vsync signal must be inputted
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum
- Modulation rate (max) : · 1.5 % , Modulation Frequency : under 100KHz
5.2 LVDS Input Data Characteristics
ITEMSYMBOLMin.Typ.Max.UNITNOTE
t
Input Data
Position
Input common mode voltageV
Differential Input Voltage|V
=85MHz
F
IN
RSRM
t
RSLM
CM
|100--mV-
ID
Note) When the skew is measured the Spread Spectrum should be 0%
--400ps
-400--ps
VSSL+0.61.2VDDL-0.6V-
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 26
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com

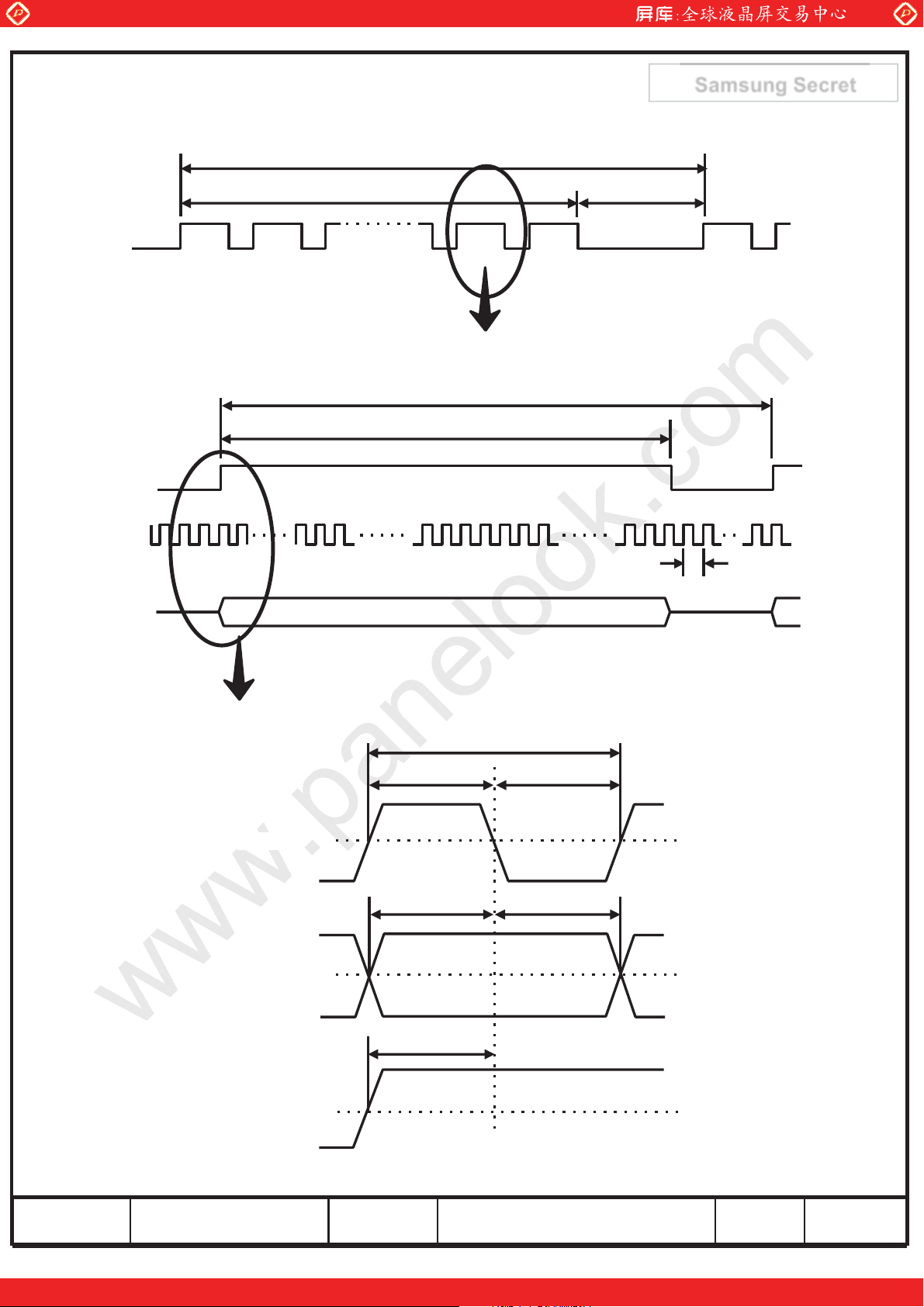

5.3 Timing diagrams of interface signal ( DE only mode )
TV
TVD
DE
TH
THD
DE
Samsung Secret
TVB
DCLK
DATA
SIGNALS
DCLK
DISPLAY
DATA
TC
TCH
TDSTDH
TCL
TC
0.5
V
0.5
V
CC
CC
TES
DE
0.5
V
CC
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 26
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

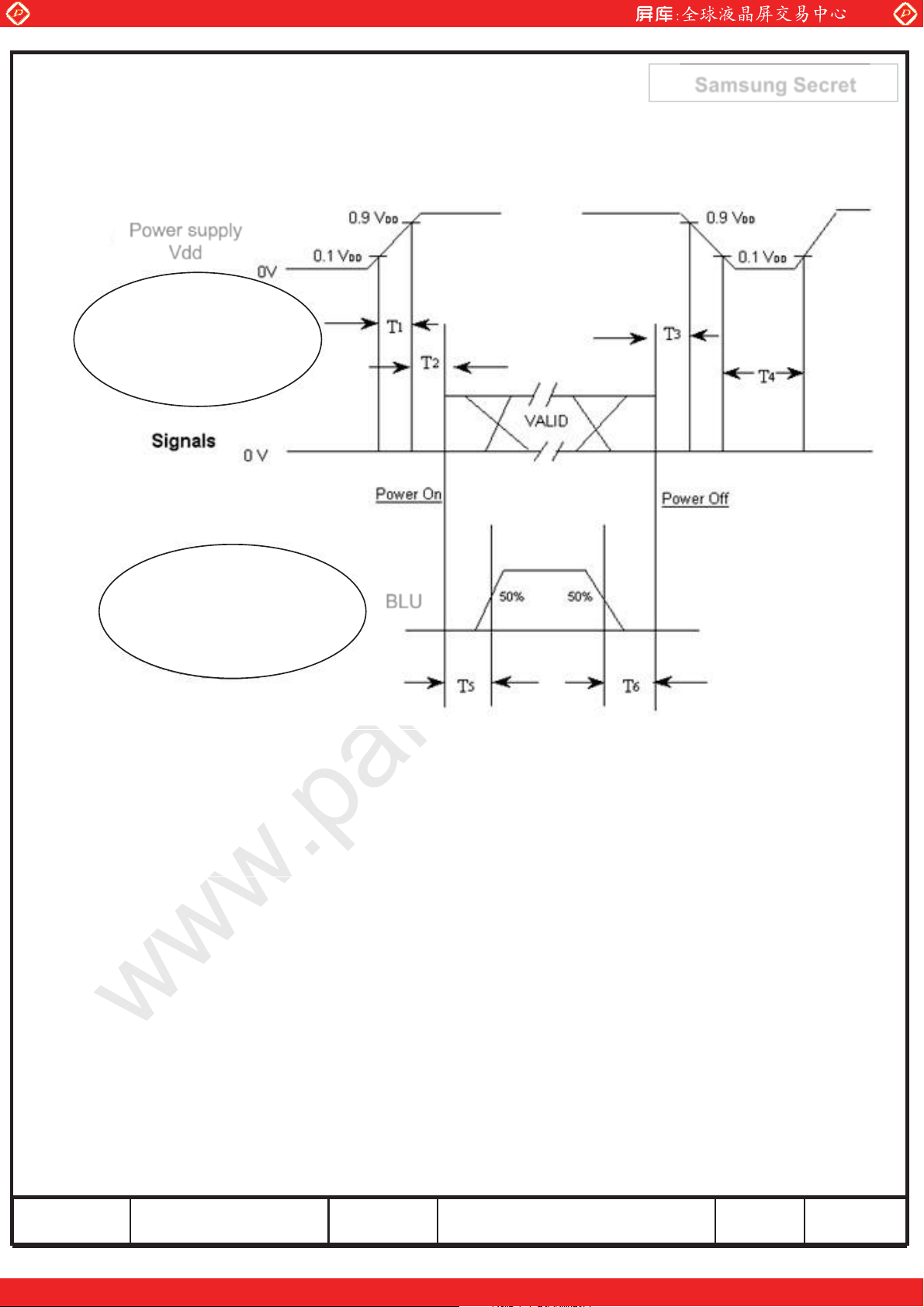

5.4 Power ON/OFF Sequence
Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
Power supply
Vdd
1ms<T1≤10ms
1ms<T2≤50ms
0<T3≤50ms
1000ms≤T4
1000ms≤T5
100ms≤T6
(Recommend Value)
BLU
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the module input should be the same
as the definition of V
DD
.
Apply the LED voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
In Case T5 is less than 1000msec and T6 is less than 100msec,
garbage display can be seen. (It is not related to electrical function issue, just for
recommendation to prevent garbage display )
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 26
www.panelook.com

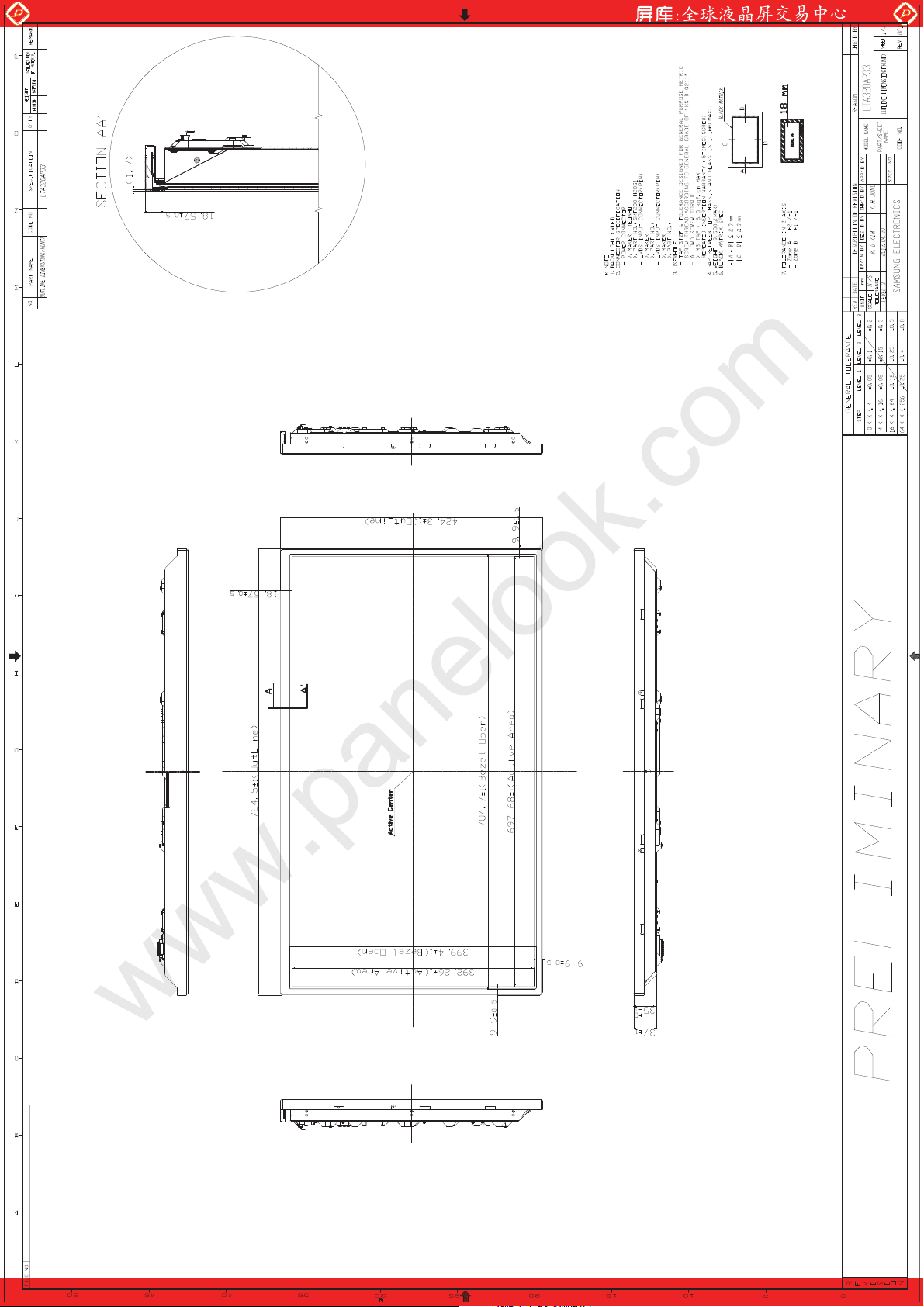

Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

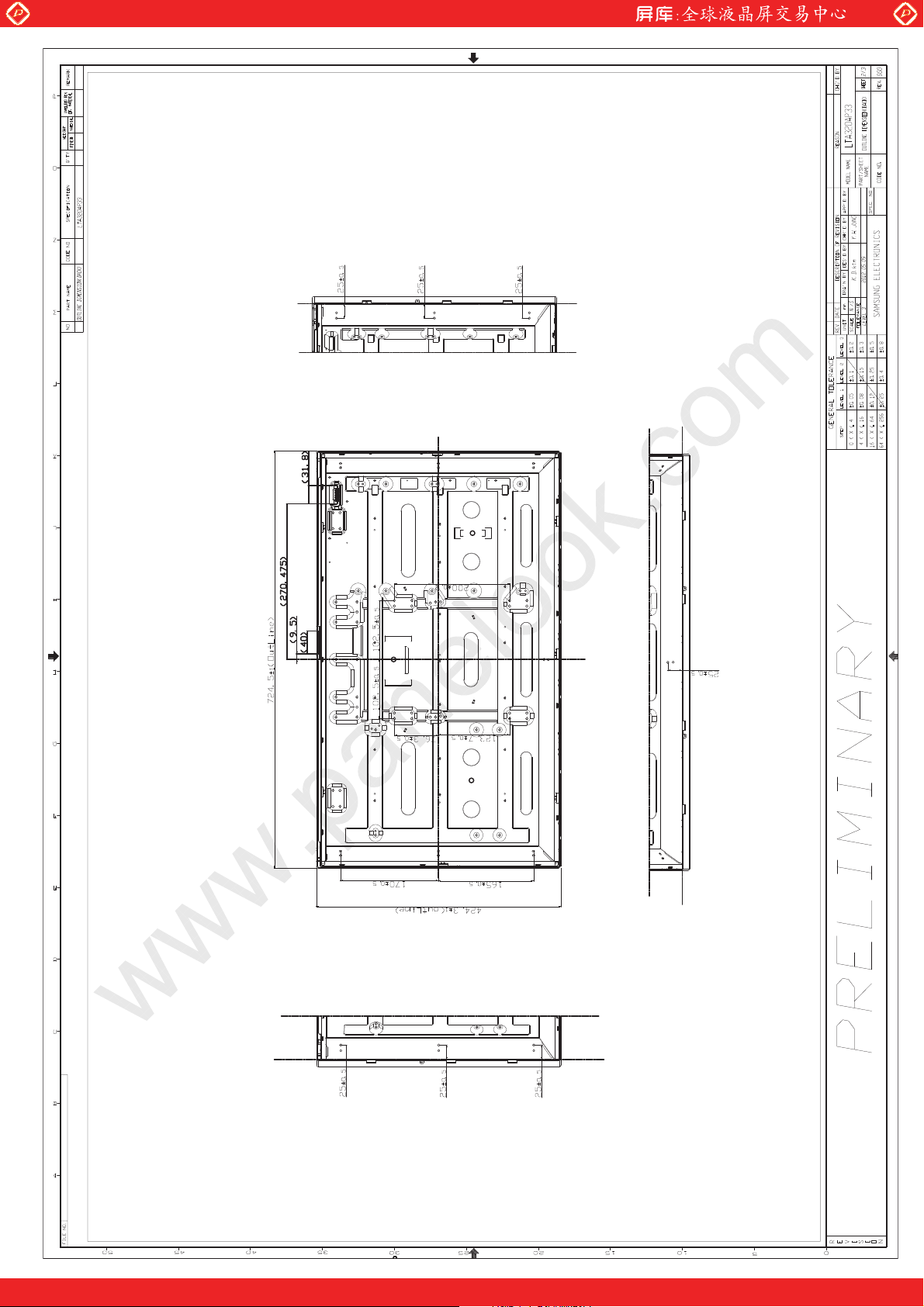

Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
7. PACKING

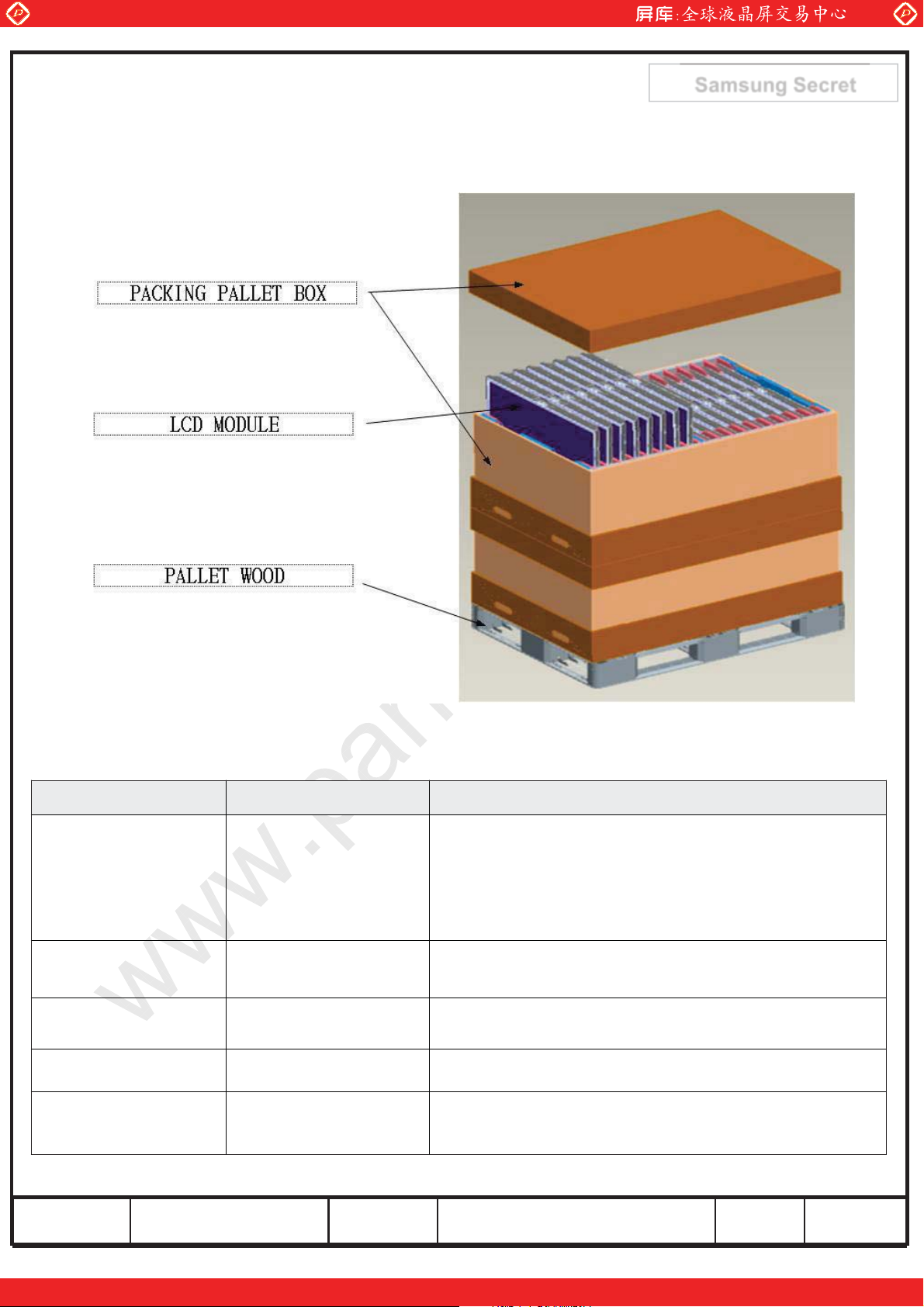

7.1 Carton (Internal Package)
www.panelook.com
Samsung Secret
7.2 Packing Specification
ItemSpecificationRemark
1. 4.5 Kg / LCD (34ea) : 153kg(Max)
17ea / Box
LCD Packing
Pallet2Box / Pallet
Packing DirectionVertical
Total Pallet SizeL x W x height1150mm(L) x 850mm(W) x 1069mm(height)
Total Pallet Weight187.82kg
34ea / Pallet
(Packing-Pallet Box)
2. 14.5Kg / Packing Box (1set)
> Packing Box Material : Paper
3. 10 g/EA, 3 EA/Module,
Cobalt-dichloride-free
1. Pallet weight = 4.8 kg
> Pallet Material : HDPE
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 / 26
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret

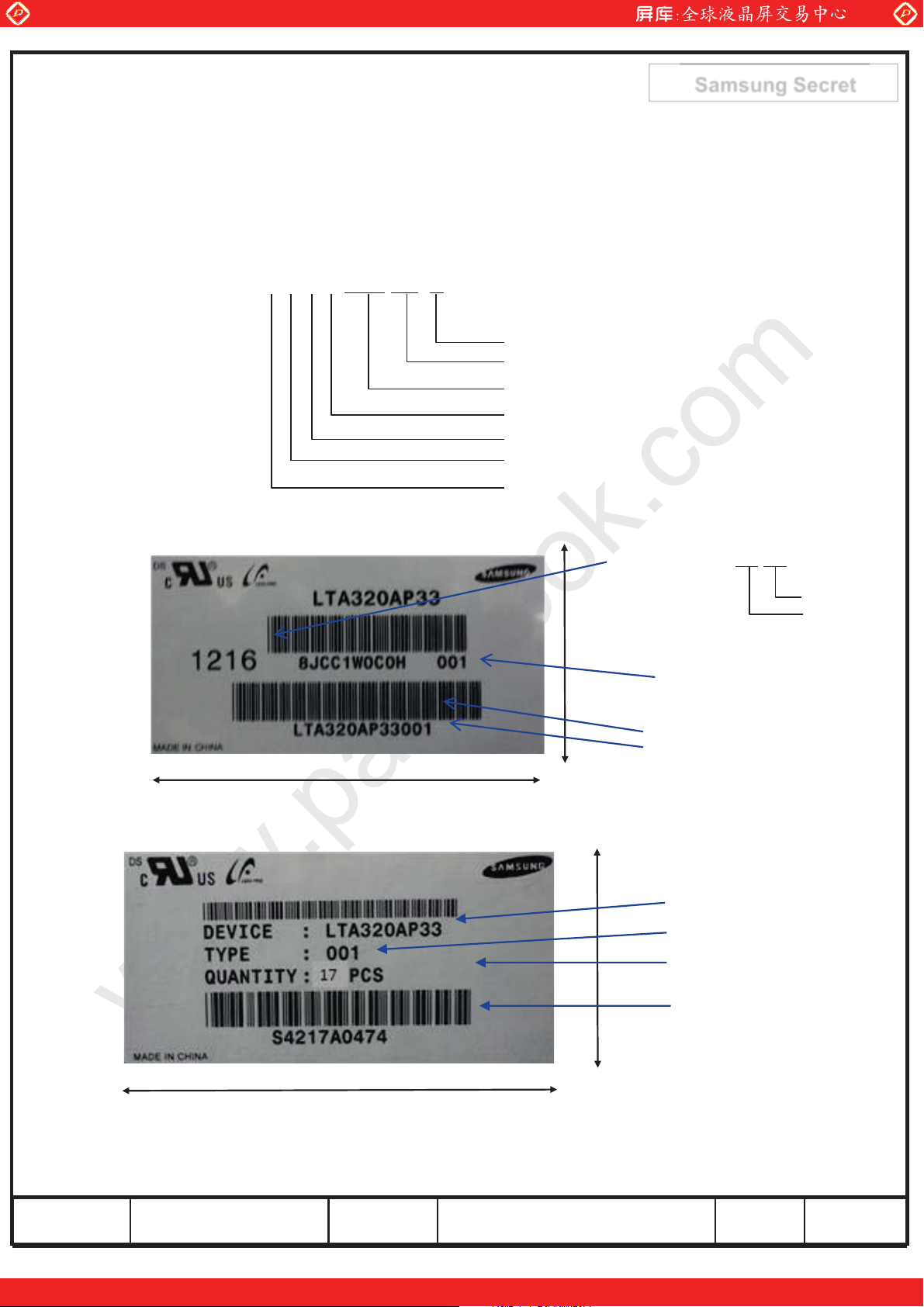

8. Marking & Others
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Part number : LTA320AP33
(2) Revision: Three letters
(3) Lot number : X XXXXXX
(4) Nameplate Indication
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
(5) Packing box attach
Week code : 10 23
week
year
40mm
Revision code
Model + suffix code
80mm
100mm
Part number
Revision code
Actual quantity
Box serial number
165mm
(6) Others
1. After service part
LED bar can not be replaced because of the narrow bezel structure.
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 26
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend them.
(b) Module should be disconnected from power before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the module.
In addition to damage, this may cause improper operation or damage to the module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might do permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from ESD (Electro-Static Discharge). Otherwise the ASIC IC or
semiconductor would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the module.
(l) Do not disassemble shield case of LVDS board
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handling a module
(o) Pins of Interface connector should not be touched directly with bare hands.
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 26
www.panelook.com
Page 25
Global LCD Panel Exchange Center
Storage Temperature
5
Humidity
Condition
-
-
-
-
- If products delivered or kept in conditions of over the storage
period of 3months, the recommended temperature or humidity
www.panelook.com
9.2 Package storage
We highly recommend to comply with the criteria in the table below.
ITEMUNITMin.Max.
Samsung Secret
Storage
Storage Life12 months
Storage
9.3 Operation
()
40
(%rH)3575
The storage room should provide good ventilation and
temperature control.
Products should not be placed on the floor, but on the Pallet
away from a wall.
Prevent products from direct sunlight, moisture nor water;
Be cautious of a build up of condensation.
Avoid other hazardous environment while storing goods.
range, we recommend you leave them at a temperature of 20
and a humidity of 50% for 24 hours.
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its Converter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the Converter may cause lower luminance of lamp(LED) and
may require higher startup voltage(Vs).
MODELLTA320AP33Doc. No06-000-G-20120904Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 26
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Samsung Secret
9.4 Operation Condition Guide
) The LCD product should be operated under normal conditions.
