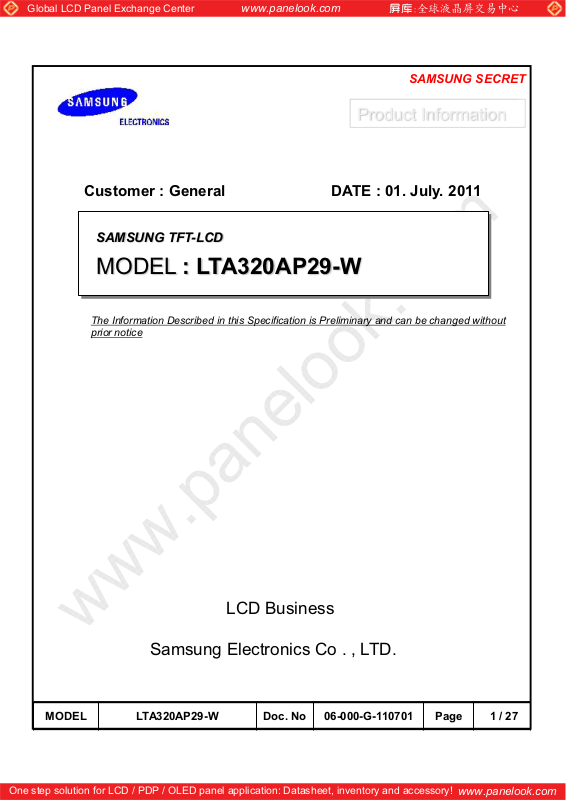

Page 1
Global LCD Panel Exchange Center
www.panelook.com
SAMSUNG SECRET
Product Information
Customer : General
SAMSUNG TFT-LCD
DATE : 01. July. 2011
MODEL : LTA320AP29-W
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/ 27
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
SAMSUNG SECRET
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (7)
3. Electrical Characteristics ----------------------------------------------------------------------------- (10)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input Condition & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
4.1 Input Signal & Power
4.2 Inverter Input Pin Configuration
4.3 Inverter Input Power sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ----------------------------------------------------------------------------------------- (19)
5.1 Timing Parameters (DE only mode)
5.2 Timing Diagrams of interface Signal (DE only mode)
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (22)
7. Packing ---------------------------------------------------------------------------------------------------- (23)
8. Marking & Others ------------------------------------------------------------------------------------- (24)
9. General Precaution ------------------------------------------------------------------------------------ (25)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/ 27
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Revision History
Date Rev. No Page Summary
23.
Feb.
2011
000 All First Issued
www.panelook.com
SAMSUNG SECRET
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/ 27
www.panelook.com
Page 4
Global LCD Panel Exchange Center
Active
Pitc
interfac
www.panelook.com
General Description
SAMSUNG SECRET
Description
LTA320AP29-W is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit.
The resolution of a 32.0” is 1366 x 768 and this model can display up to 16.7 Million
colors with wide viewing angle of 89¶ or higher in all directions. This panel is intended to
support applications to provide a excellent performance for Flat Panel Display such as
Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast & aperture ratio
PVA (Patterned Vertical Align) mode
Wide viewing angle (·178¶)
High speed response
HD resolution (16:9)
Direct U-Type 4 CCFLs (Cold Cathode Fluorescent Lamp)
DE (Data Enable) mode
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
General Information
Items Specification Unit Note
Module Size
Weight 5700 (max) g With inverter
Pixel Pitch 0.51075(H) x 0.17025(V) mm
Active Display Area 697.68(H) x 392.25(V) mm
Surface Treatment Haze 7, Hard-coating(3H) -
Display Colors 8 bit - 16.7M colors
Number of Pixels 1366 x 768 pixel
Pixel Arrangement RGB Vertical stripe -
Display Mode Normally Black -
Luminance of White 450 Typ. cd/m
760.0(H
) x 450.0(V
TYP
50.5 (D
)
TYP
) With inverter
MAX
mm
2
·1.0mm
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/ 27
www.panelook.com
Page 5
Global LCD Panel Exchange Center
Y,
0min, 30min for X,Y,Z
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
SAMSUNG SECRET
Power Supply Voltage V
Storage temperature T
Glass surface
Center T
DD
STG
OPR
GND-0.5 13.2 V (1)
-20 65
050
temperature
(Operation)
T. Uniformity
Shock ( non - operating ) S
Vibration ( non - operating ) V
Note (1) Ta= 25 · 2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 ¶C)
b. Relative Humidity is 90% or less. (Ta > 39 ¶C)
c. No condensation
(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
T
nop
nop
-10
- 50 G (3)
- 1.5 G (4)
(2)
(2),(5)
90
Fig. Temperature and Relative humidity range
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
5/ 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
surface
(5) Definition of test point
www.panelook.com
SAMSUNG SECRET
5mm
5mm
12
5
LCD Module (Active)
MAX
4
| )
3
T should be less than 10
T
: Temperature of the center of the glass surface (Test point 5)
OPR
(ƸT = | T
OPR
– T
T1~ T4 : Temperature of each edge of the glass surface
: The highest temperature of the glass surface
T
MAX
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/ 27
www.panelook.com
Page 7
Global LCD Panel Exchange Center
ess Unif
Points)
.060
www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
G-to-G
(Avg)
Red
Green
Blue
TOPCON RD-80S,TOPCON SR-3, ELDIM EZ-Contrast
(Ta = 25 · 2¶C, VDD=12V, fv= 60Hz, f
C/R
Tg - 20 30 ms
Y
L
Rx
Ry 0.327
Gx 0.289
Gy 0.612
Bx 0.148
By 0.060
Normal
L,R=0
U,D=0
Viewing
Angle
3000 4,000 -
400 450 - cd/m
0.641
TYP.
-0.03
=75MHz,Lamp current = 12.5 mA)
DCLK
TYP.
+0.03
SAMSUNG SECRET
(1)
SR-3
(3)
RD-80S
2
(4)
SR-3
(5),(6)
SR-3
White
Color Gamut - 69 72 - %
Color Temperature - - 10,000 - K
Hor.
Viewing
Angle
Ver.
Brightness Uniformity
(9 Points)
Wx 0.280
Wy 0.290
L
R
U
D
B
uni
C/R≥10
79 89 -
79 89 -
79 89 -
79 89 -
--25%
Degree
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
(5)
SR-3
(5)
SR-3
(6)
EZ-Contrast
(2)
SR-3
Environment condition : Ta = 25 · 2 ¶C
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/ 27
www.panelook.com
Page 8
Global LCD Panel Exchange Center
ྙ
ྡ
ྜ
r o
tras
www.panelook.com
SAMSUNG SECRET
Photo detector Field
SR-3
RD-80S
TFT - LCD Module
- Definition of test point
228 683 1138
1ദ
2ദ
Photo detector
Field
The center of the screen
SR-3 : 50
RD-80S : 50
EZ-Contrast :0
LCD Panel
༃
128
384
640
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point 䐣 of the panel
CR
/
ྞ
G
max
G
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
ྠ
ྜྷ
ྚྛ
ྟ
Active Area
Test Point
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/ 27
www.panelook.com
Page 9
Global LCD Panel Exchange Center
tion of V
inanc
o
Viewing angle rang
Note (2) Definition of 9 points brightness uniformity ( Test pattern : Full White )
www.panelook.com
SAMSUNG SECRET
BB
Buni
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
GnTTnGaGhGGGGnGGGOPG
(max min)
100
100%
90%
10%
0%
B
max
Black (data off)
White (data on)
T
R
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point 䐣
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point 䐣
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/ 27
www.panelook.com
Page 10
Global LCD Panel Exchange Center
dition
unde
er 10% o
Curren
of V
A
A

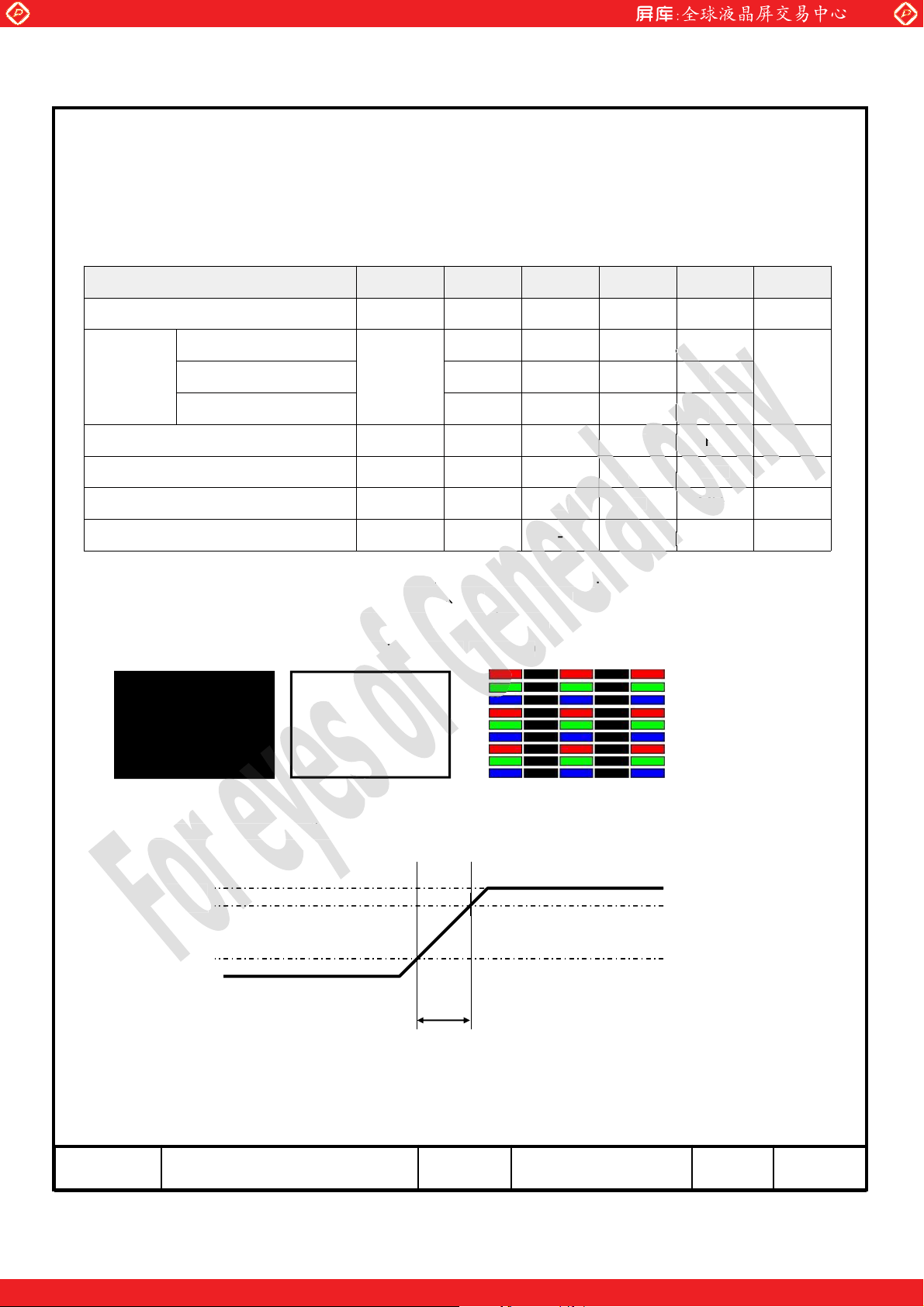

3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
www.panelook.com
SAMSUNG SECRET
Ta = 25 ¶C · 2 ¶C
Voltage of Power Supply V
Current
(a) Black
of Power
Supply
(c) V-Stripe - 0.6 0.7 A
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
DD
I
DD
V
H
DCLK
RUSH
10.8 12.0 13.2 V (1)
- 0.4 0.5 A
48 60 66 Hz
44 48 53 kHz
72 78 85 MHz
--4A(4)
Note (1) The ripple voltage should be controlled under 10% of V
(2) f
V=60Hz, fDCLK = 75MHz, V
= 12.0V, DC Current.
DD
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) V strip
DD
(2),(3)(b) White - 0.5 0.6 A
.
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470༕
RUSH
Rush Current I
can be measured when T
RUSH
. is 470༕.
RUSH
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
10 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
(1) It is
im

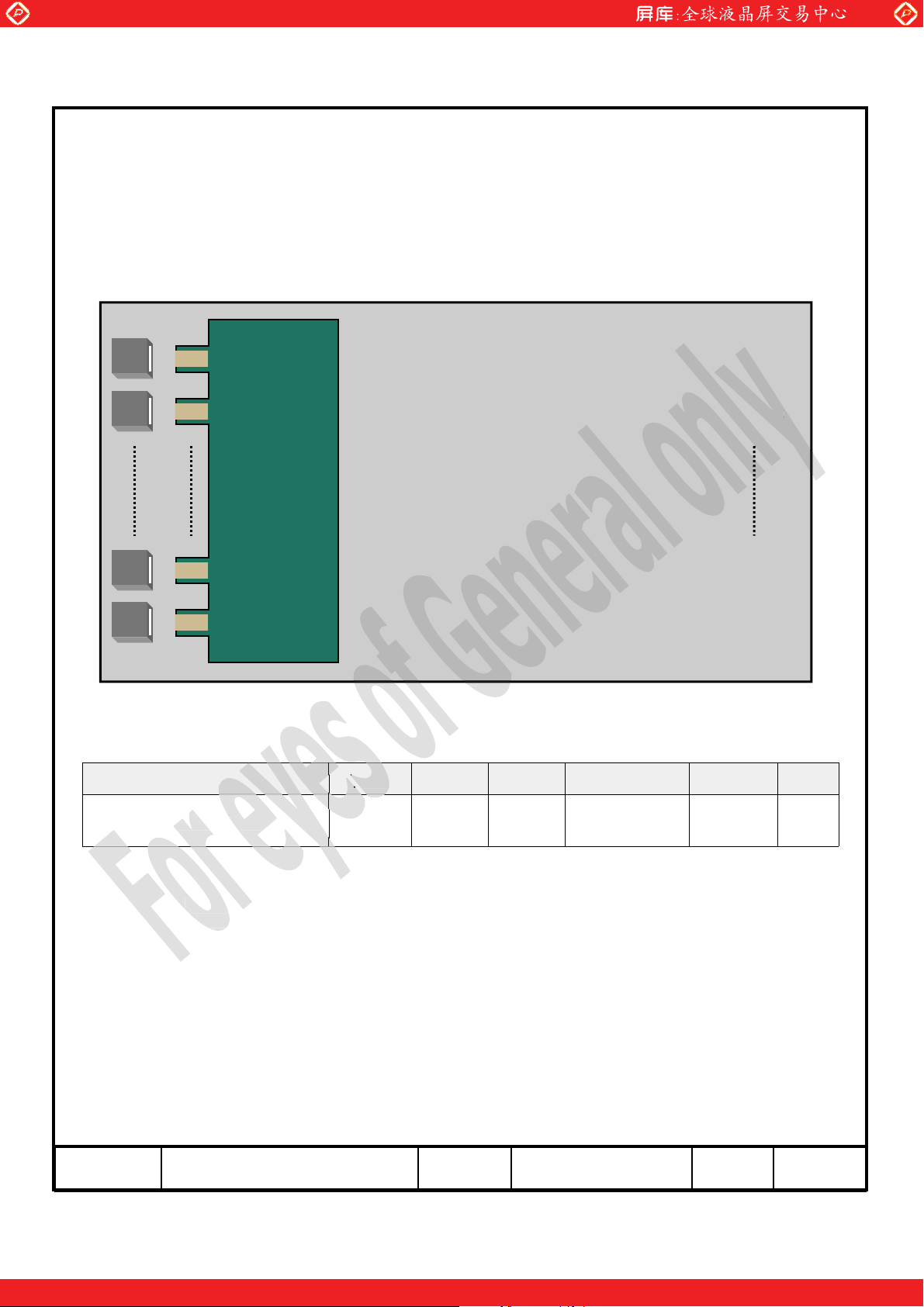

3.2 Back Light Unit
The back light unit contains 4 direct-lighting U-type CCFLs ( Cold Cathode Fluorescent
Lamp ). The characteristics of lamps are shown in the following tables.
Socket
www.panelook.com
SAMSUNG SECRET
Ta=25 · 2¶C
HOT 1
HOT 2
COLD 1
COLD 2
LCD
Inverter
Module
HOT 7
HOT 8
Item Symbol Min. Typ. Max. Unit Note
COLD 7
COLD 8
Operating Life Time Hr 50,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Operating condition : Ta = 25·2, IL= 5.0 mArms(Min),13.0 mArms (Max)
For single lamp only. ]
(2) LIPS HOT part
(3) The lamp starting voltage Vs should be applied to the lamp for more than 1second
under starting up duration. Otherwise the lamp could not be lighted on completed.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
11 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
Po
wer Co
V
3.3 Inverter Input Condition & Specification
Items Symbol Conditions
www.panelook.com
SAMSUNG SECRET
Specifications
Unit Note
Min. Typ. Max.
Input
Voltage
Input
Current
Lamp
Current
Frequency F
Backlight
On/Off
Dimming
Control
Vin -
I
RUSH
I
LAMP
O
Vin = 24V
Vdim = 3.3V
Vin = 24V
Vdim = 3.3V
Vin = 24V 55 57.5 60.0 kHz -
21.6 24.0 26.4
- - 3.75 Arms (1)
12.0 12.5 13.0 mArms (2)
ON Vin = 24V 2.4 - 5.25
OFF Vin = 24V 0 - 0.4
Max Lum - - 3.3
V
DIM
Min. Lum 0 - -
Note) Power Consumption is measured when 450[cd/m
Lamp Current is measured at the point before Lamp.
V
Ta=25·2 ¶C
V(3)
V(4)
2
] of luminance which is the typical luminance.
(1) Max Value of the Power Consumption is measured during initial turn-on time* of the backlight.
(2) Max Value of the Power Consumption is measured after 120 min warm-up.
(3) Inverter pin NO.12 is for backlight On/Off.
(4) Inverter pin NO.13 is for dimming control.
* Initial turn-on time : From 0sec to 60min after turn-on
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
12 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
is HIGH
nly
Conne
PTION
4. Input Terminal Pin Assignment
4
.1. Input Signal & Power Connector :IS100-L30O-C23
PIN No. Description PIN No. Description
1 No Connection (Note1) 16 GND
2 No Connection (Note1) 17 RxIN3-
3 No Connection (Note1) 18 RxIN3+
4 GND 19 GND
5 RxIN0- 20 No Connection (Note1)
6 RxIN0+ 21 LVDS OPTION (Note 2)
7GND22No Connection (Note1)
8 RxIN1- 23 GND
www.panelook.com
SAMSUNG SECRET
9 RxIN1+ 24 GND
10 GND 25 No Connection (Note1)
11 RxIN2- 26 Vin
12 RxIN2+ 27 Vin
13 GND 28 Vin
14 RxCLK- 29 Vin
15 RxCLK+ 30 Vin
Note1) No Connection: This PINS are only used ONLY for SAMSUNG.
Note2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS format
LOW (GND) → JEIDA LVDS format
SEQUENCE : On = VDD(T1) ≥ LVDS Option ≥ Interface Signal(T2)
OFF = Interface Signal(T3) ≥ LVDS Option ≥ VDD
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 27
www.panelook.com
Page 14
Global LCD Panel Exchange Center

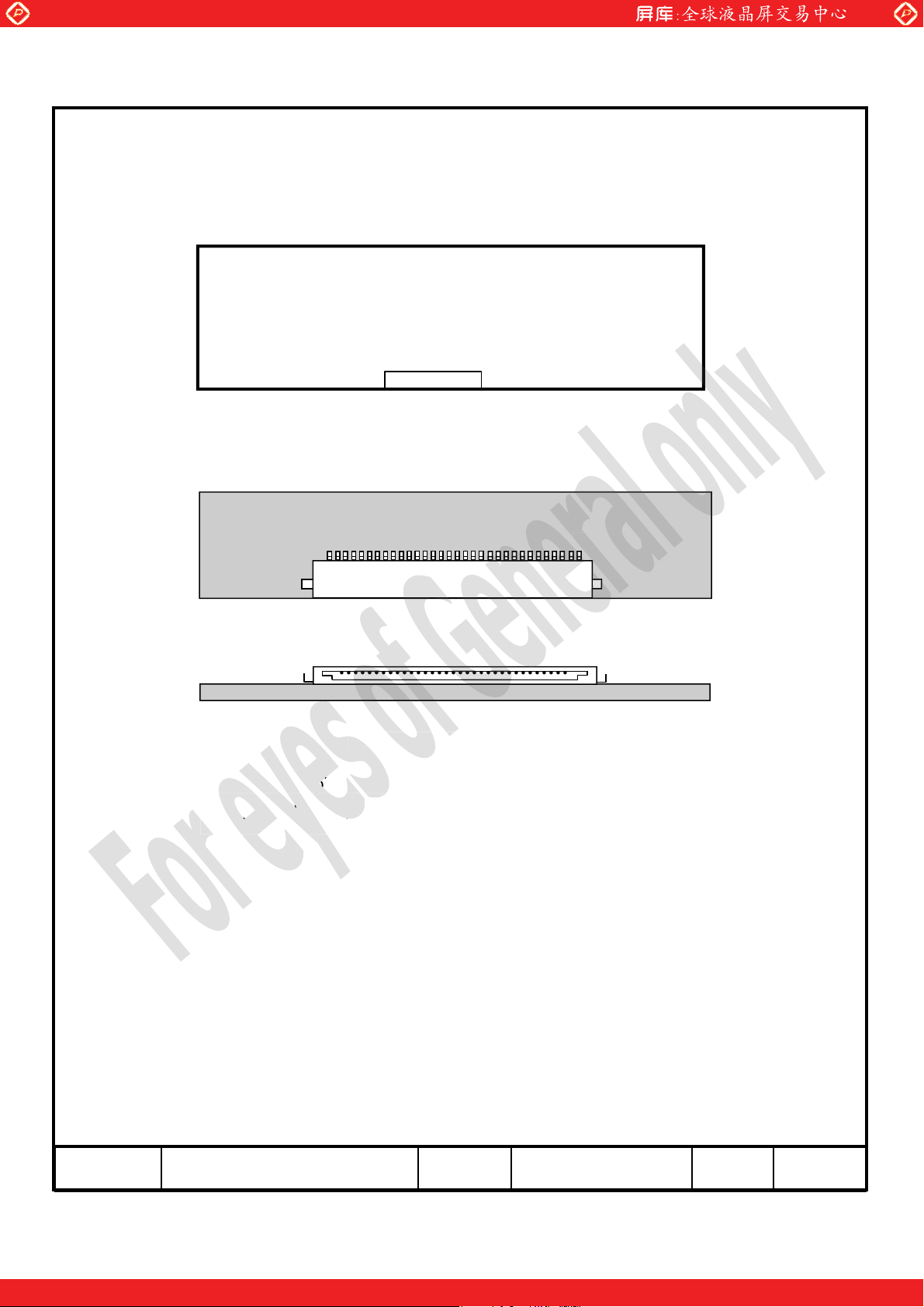

Powe
#
Note(1) Pin number starts from Left side
www.panelook.com
SAMSUNG SECRET
PCB
Pin No. 1 Pin No. 30
#1 #30
#1
#30
Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pin should be separated from other signal or power.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 27
www.panelook.com
Page 15
Global LCD Panel Exchange Center
3.3 V )
Con
quence
o Connec
: open c
4.2 Inverter Input Pin Configuration
Pin No. Pin Configuration (FUNCTION)
1 Vin (24 V)
2 Vin (24 V)
3 Vin (24 V)
4 Vin (24 V)
5 Vin (24 V)
6GND
7GND
8GND
www.panelook.com
SAMSUNG SECRET
Connector : JST, S14B-PHA-SM-TB(LF)
9GND
10 GND
11 Error_out ( normal : GND, abnormal : open collector)
12 Backlight On /Off [ON: 2.4 ~ 5.5 V, OFF: 0 ~ 0.8 V]
13 Dimming Control [ 0V: Min, 3.3V: Max ]
14 No Connection (DO NOT CONNECT)
4.3. Inverter Input Power Sequence
0.9 Vin
Vin (24V)
Dimming Control
( 0 ~ 3.3 V )
0.1 Vin
20msec [Min]
0.9 Vin
0.5sec [Min]
Backlight On/Off
2.4V(On level)
0.5sec [Min]
0.8V(Off level)
0.1sec [Min]
0.5sec [Min]
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 27
www.panelook.com
Page 16
Global LCD Panel Exchange Center
N2
T15
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & VESA)
www.panelook.com
SAMSUNG SECRET
LVDS pin JEIDA -DATA VESA -DATA
TxIN/RxOUT0 R2 R0
TxIN/RxOUT1 R3 R1
TxIN/RxOUT2 R4 R2
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxIN/RxOUT3 R5 R3
TxIN/RxOUT4 R6 R4
TxIN/RxOUT6 R7 R5
TxIN/RxOUT7 G2 G0
TxIN/RxOUT8 G3 G1
TxIN/RxOUT9 G4 G2
TxIN/RxOUT12 G5 G3
TxIN/RxOUT13 G6 G4
TxIN/RxOUT14 G7 G5
TxIN/RxOUT15 B2 B0
TxIN/RxOUT18 B3 B1
TxIN/RxOUT19 B4 B2
TxIN/RxOUT20 B5 B3
TxIN/RxOUT21 B6 B4
TxIN/RxOUT22 B7 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R0 R6
TxIN/RxOUT5 R1 R7
TxIN/RxOUT10 G0 G6
TxOUT/RxIN3
TxIN/RxOUT11 G1 G7
TxIN/RxOUT16 B0 B6
TxIN/RxOUT17 B1 B7
TxIN/RxOUT23 RESERVED RESERVED
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 27
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
SAMSUNG SECRET
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
DATA SIGNAL
DISPLAY
(8bit)
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK 000000000000000000000000 -
BLUE 000000000000000011111111 -
GREEN 000000001111111100000000 -
CYAN 000000001111111111111111 -
RED 111111110000000000000000 -
MAGENTA111111110000000011111111 -
YELLOW 111111111111111100000000 -
WHITE 111111111111111111111111 -
BLACK 000000000000000000000000 R0
100000000000000000000000 R1
DARK
↑
↓
LIGHT
RED 111111110000000000000000 R255
BLACK 000000000000000000000000 G0
DARK
↑
↓
LIGHT
GREEN 000000001111111100000000 G255
BLACK 000000000000000000000000 B0
DARK
↑
↓
LIGHT
BLUE 000000000000000011111111 B255
010000000000000000000000 R2
:::::: :::::: ::::::
:::::: :::::: ::::::
101111110000000000000000 R253
011111110000000000000000 R254
000000001000000000000000 G1
000000000100000000000000 G2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000001011111100000000 G253
000000000111111100000000 G254
0
000000000000000010000000 B1
000000000000000001000000 B2
:
:::::: :::::: ::::::
:::::: :::::: ::::::
000000000000000010111111 B253
000000000000000001111111 B254
RED GREEN BLUE
0
0
0
GRAY
SCALE
LEVEL
R3~
R252
G3~
G252
B3~
B252
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 27
www.panelook.com
Page 18
Global LCD Panel Exchange Center
cont
V
y mod
366
5. Interface Timing
5.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
SAMSUNG SECRET
Clock
Hsync F
Vsync F
Vertical
Display Term
Horizontal
Display Term
Frequency
Active
Display
Period
Vertical
Total
Active
Display
Period
Horizontal
Total
1/T
T
T
T
T
VD
HD
C
H
V
V
H
72 78 85 MHz -
44 48 53 KHz -
48 60 66 Hz -
- 768 - lines -
780 802 1200 lines -
- 1366 - clocks -
1460 1624 2000 clocks -
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
5.2 LVDS Input Data Characteristics
ITEM
Input Data
Position
Input common mode
Differential Input
Fin=85MHz
voltage
Voltage
SYMBO
L
tRSRM
tRSLM
VCM
|VID|
Min. Typ. Max. Unit Note
-
-400 - - ps
0.3 - 2.7 V
100
- 400 ps
- 200 mV
note) When the skew is measured the Spread Spectrum should be 0%
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
18 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
WU\G
}
jj
{lz
{kz {ko
{js
{j
kl
wsh
h{h
WU\G
}
jj
WU\G
}
jj

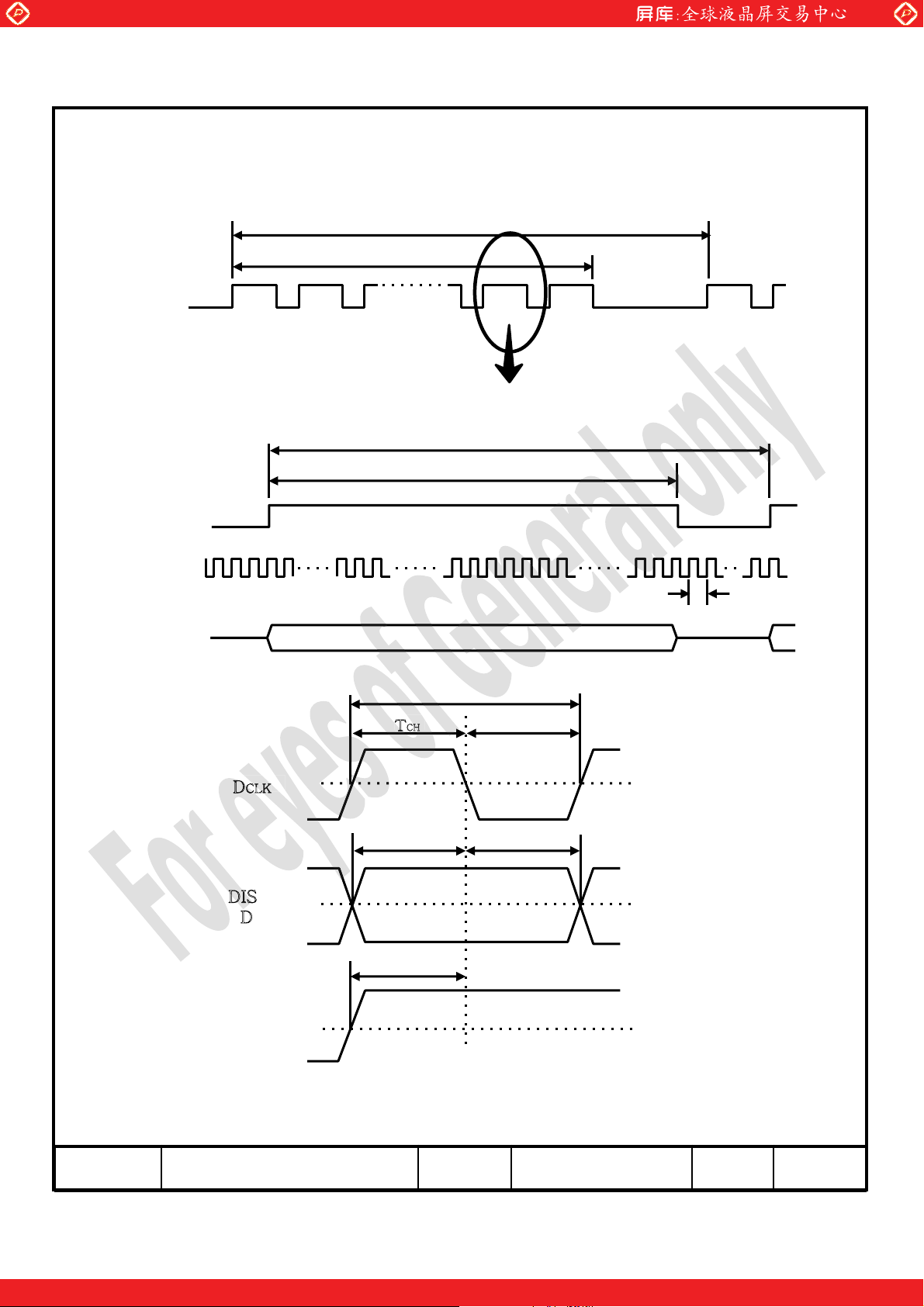

5.2 Timing diagrams of interface signal ( DE only mode )
DE
www.panelook.com
SAMSUNG SECRET
TV
TVD
TH
DE
DCLK
DATA
SIGNALS
kjsr
kpz
k
THD
{jo
TC
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 27
www.panelook.com
Page 20
Global LCD Panel Exchange Center
ff time f

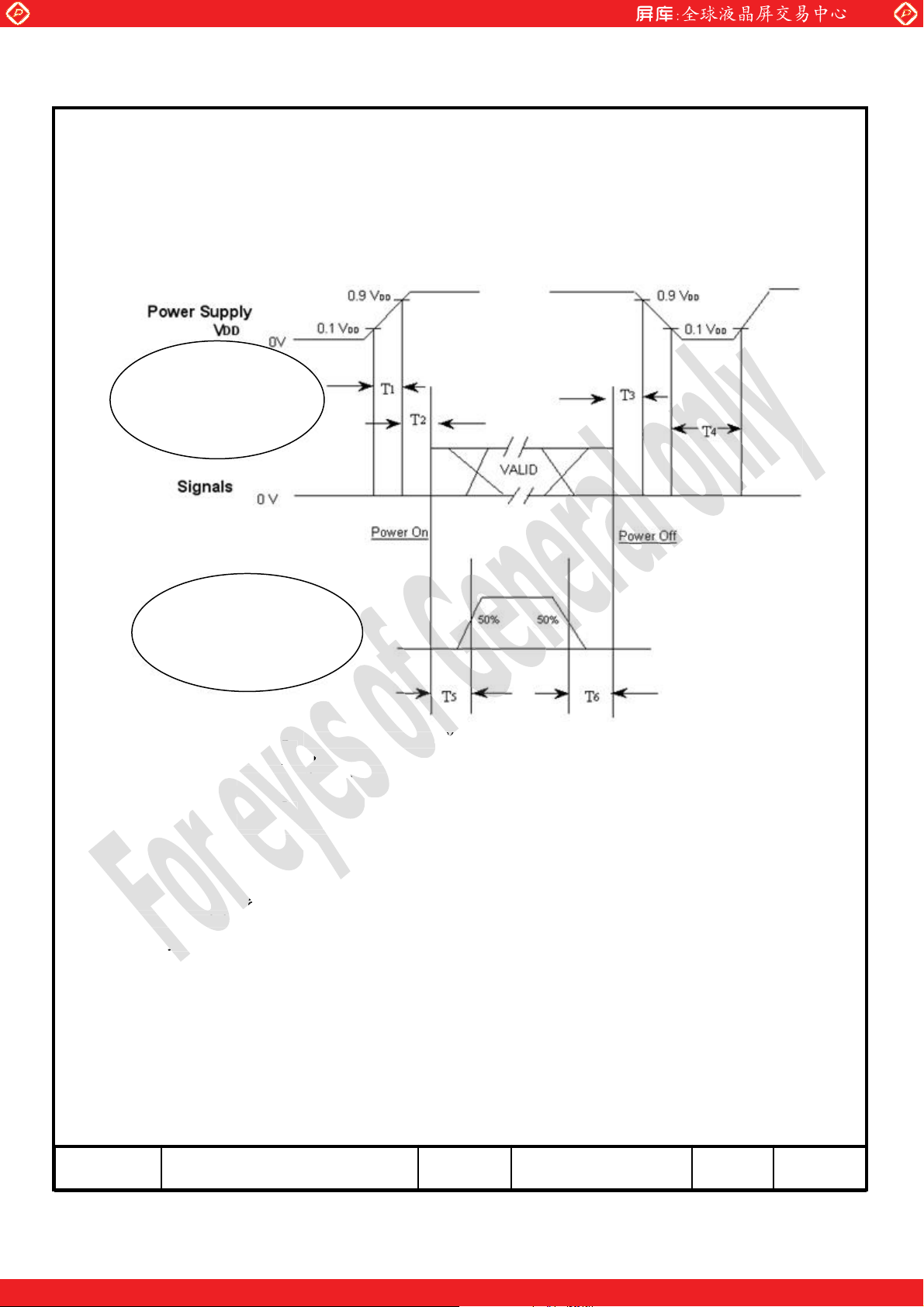

5.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
2ms<T1≤10ms
0<T2≤50ms
0<T3≤50ms
1000ms≤T4
www.panelook.com
SAMSUNG SECRET
1000ms≤T5
(Recommend Value)
100ms≤T6
(Recommend Value)
T1 : VDDrising time from 10% to 90%
T2 : The time from V
to valid data at power ON.
DD
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of VDD.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 27
www.panelook.com
Page 21
Global LCD Panel Exchange Center
6. Outline Dimension
www.panelook.com
SAMSUNG SECRET
T
B
D
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 27
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
SAMSUNG SECRET
T
B
D
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 / 27
www.panelook.com
Page 23
Global LCD Panel Exchange Center
p

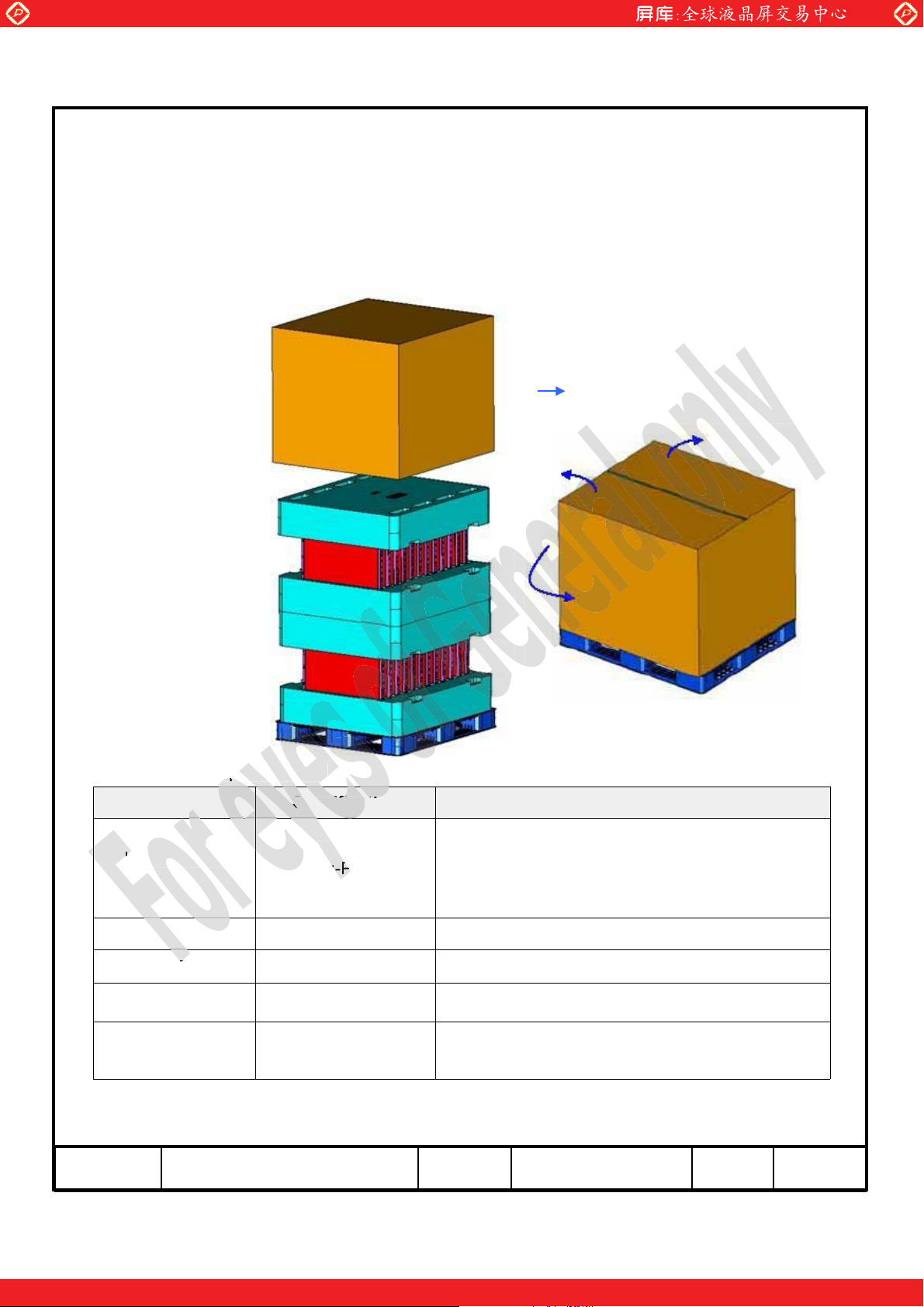

7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
www.panelook.com
SAMSUNG SECRET
Packing
-Pallet Box
Cushion-Foam
LCD Module
Cushion-Foam
Cushion-Foam
LCD Module
Cushion-Foam
Pallet-Plastic
7.2 Packing Specification
Item Specification Remark
Direction to open
LCD Packing
Pallet 2Box / Pallet 1. Pallet weight = 6kg
Packing Direction Vertical 1150 x 850 x1105
Total Pallet Size H x V x height 1150mm(H) x 850mm(V) x 125m(height)
Total Pallet
Weight
30ea / Box
(Packing-Pallet Box)
216kg Pallet Weight 6kg + Pallet 210kg
1. 6.0 Kg / LCD (30ea)
2. 15 Kg / Cushion-pallet (2ea)
3. Packing Pallet Box Material : DW4
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 27
www.panelook.com
Page 24
Global LCD Panel Exchange Center
W
he G
8. MARKING & OTHERS

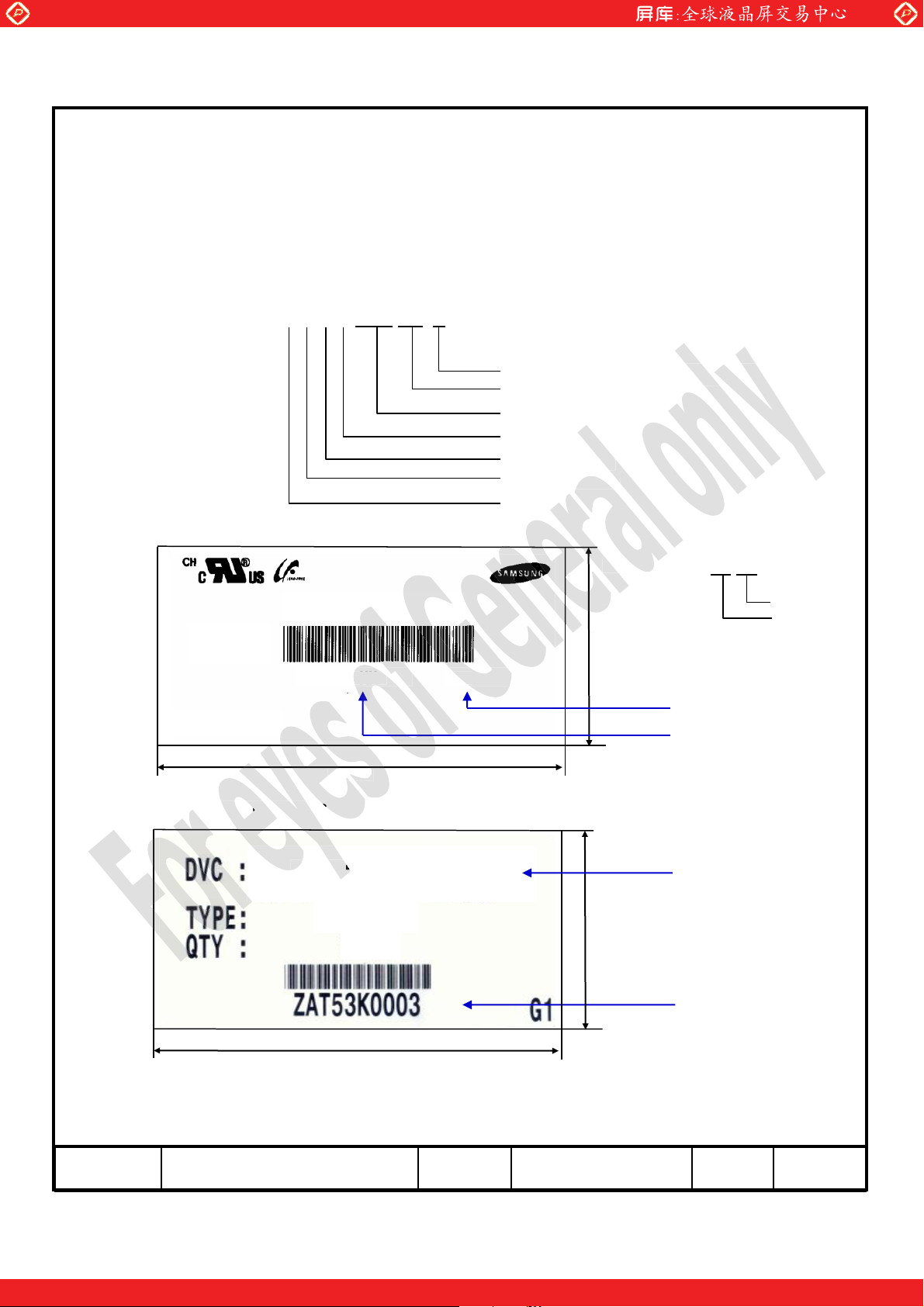

A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Parts number : LTA320AP05
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
www.panelook.com
SAMSUNG SECRET
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTA320AP05
0730
[[[[[[[[[[ [[[
MADE IN CHINA
(5) Packing box attach
OWD653DS38
Week code : 05 29
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
[[[[
48
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 27
www.panelook.com
Page 25
Global LCD Panel Exchange Center
le
th sof
from E
Alcohol
nt cotto
dro
o not disassem
www.panelook.com
9. General Precautions
SAMSUNG SECRET
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFL back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
Semiconductor would be damaged
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board.
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
.
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handle a module
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 27
www.panelook.com
Page 26
Global LCD Panel Exchange Center
UNIT
(
5
(%rH)
-Prohibit direct sunlight
-Ventilation in storehouse and control changing
temperature
-Put it on pallet and store them with removing from wall.
-Don't wet Out
-Without condensation.
-Etc. Avoid harmful Condition
-More than 3 months Storage or Low temp.
Delivery/under
→On the 20,50%rH Condition, more than 10hr release.
has h
than
with
40
9.2 Storage
(a) Do not leave the module in high temperature, and high humidity for a long time.
It is highly recommended to store the module with temperature from 5 to 40 C
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD module in direct sunlight.
(c) The module shall be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light during the store.
(d) Storage condition of Packing
www.panelook.com
SAMSUNG SECRET
ITEM
Storage Temperature
Storage Humidity
Storage Life 12 months
Storage Condition
Long-term
Storage Process
9.3 Operation
)
Min. Max.
40
35 75
is within limits of environment
-BOX and avoid rain.
5storage
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
26 / 27
www.panelook.com
Page 27
Global LCD Panel Exchange Center
systems.
y be damaged.
www.panelook.com
9.4 Operation Condition Guide
(a
) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
SAMSUNG SECRET
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTA320AP29-W Doc. No 06-000-G-110701 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 / 27
www.panelook.com
Loading...
