Page 1
SyncMaster 800TFT
TFT-LCD Monitor
Owner’s
Instructions
Page 2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Unpacking your Monitor
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
Power adapter Cable Holder
Colorific & Driver
Power Cord
Warranty Card
(Not available in all areas)
† Monitor and Stand
Manual
†
The stand type is subject to change based on monitor.
DC-Adapter
15-pin D-Sub Signal Cable
13W3 Signal Cable
(Optional)
Page 3
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Your Flat Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance of Your Flat Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Self-Test Feature Check (STFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting Your FPD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Direct-Access Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
OSM Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Removing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Attaching an Arm-Type Stand or Wall Mount Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside back cover
English
FrançaisDeutschEspañolPortu-
Italiano
1
Page 4
Safety Instructions
Before connecting the AC power cord to the DC adapter outlet, make sure the voltage
1
designation of the DC adapter corresponds to the local electrical supply.
Never insert anything metallic into the openings in the cabinet of the flat panel
2
display monitor (FPD). Doing so may create the danger of electric shock.
To avoid electric shock, never touch the inside of the FPD. Only a qualified technician
3
should open the FPD’s case.
Never use your FPD if the power cord has been damaged. Do not allow anything to
4
rest on the power cord, and keep the cord away from areas where people can trip over
it.
Be sure to hold the plug, not the cord, when disconnecting the FPD from an electric
5
socket.
Openings in the FPD cabinet are provided for ventilation. To prevent overheating,
6
these openings should not be blocked or covered. Also, avoid using the FPD on a bed,
sofa, rug, or other soft surface. Doing so may block the ventilation openings in the
bottom of the cabinet. If you put the FPD in a bookcase or some other enclosed space,
be sure to provide adequate ventilation.
Put your FPD in a location with low humidity and a minimum of dust.
7
Do not expose the FPD to rain or use it near water (In kitchens, near swimming pools,
8
etc.). If the FPD accidentally gets wet, unplug it and contact an authorized dealer
immediately. You can clean the FPD with a damp cloth when necessary, but be sure to
unplug the FPD first.
Place the FPD on a solid surface and treat it carefully. The screen is made of thin glass
9
with a plastic front surface and can be damaged if dropped, hit or scratched. Do not
clean the front panel with keton-type materials (e.g.,acetone), ethyl alcohol, toluene,
ethyl acid, methyl, or chloride-these may damage the panel.
Locate your FPD near an easily accessible AC outlet.
10
If your FPD does not operate normally – in particular, if there are any unusual sounds
11
or smells coming from it – unplug it immediately and contact an authorized dealer or
service center.
High temperature can cause problems. Don’t use your FPD in direct sunlight, and keep
12
it away from heaters, stoves, fireplaces, and other sources of heat.
Unplug the FPD when it is going to be left unused for an extended period of time.
13
Unplug your FPD from the AC outlet before any service.
14
2
Page 5
Your Flat Panel Monitor
FrançaisEspañolDeutschItaliano EnglishPortuguese
1
2
Figure 1. Front panel
Video input selector (A/B) and indicator lights
1
Your Flat Panel Display (FPD) monitor allows you to connect both a workstation and a
computer system to it at the same time. Use this button to select which system your
FPD should display. Indicator “A” will glow green when a workstation is the active
system and indicator “B” will glow green when an alternate computer system is
active.
Menu access controls
2
Use these buttons to open the On-Screen Menu (OSM) system access the Auto
Adjustment Direct-Access Control, select a menu, and to exit from the OSM.
Power button and indicator light
3
Use this button to turn the FPD on and off. The power indicator light glows green
during normal operation.
OSM adjustment controls and direct-access controls
4
Use these buttons to access the Brightness and Contrast Direct-Access controls and
to make adjustments to the various OSM features.
4
3
3
Page 6
Your Flat Panel Monitor
1
4
3
5
5
Figure 2. Back panel connectors
Power adapter connector
1
Connect the power adapter jack here.
15-pin, mini D-sub signal cable connector
2
Connect a computer system to this connector.
13W3 signal cable connector
3
Connect a 13W3 cable (Optional) from the video connector on your workstation to this
connector.
Power adapter cable holder slot
4
The plastic cable holder fits into this slot to protect the power adapter jack from being
inadvertently dislodged. To disconnect the power adapter, turn the plastic holder 1/4
turn to the left or right and pull the holder out of the cabinet.
Kensington security slots
5
This FPD offers you the opportunity to attach a Kensington-type security device in two
different locations; on the panel cabinet or on the tower stand. Please note that the
location on the panel cabinet is more secure than the one on the tower stand.
Kensington lock not included. Refer to your locking device documentation for
installation instructions.
USB hub receptacle
6
You may install a self-powered USB hub in this slot. Remove the cover to reveal the
available space.
2
6
4
Page 7
Installation
1
4
Figure 3. Connecting your monitor to a PC
Turn off your system and unplug its power cord.
1
Place the FPD facedown on a cushion (being careful not to harm the screen) so that
2
you can access the cable connectors along the bottom of the rear recess.
When connecting your FPD to a computer: Connect the supplied signal cable to the
3
15-pin mini D-sub connector Á on the back of your FPD. Connect the other end of the
cable to the video port on the back of your computer.
When connecting your FPD to a workstation: Connect an optional signal cable to the
13W3 connector  on the back of your FPD. Connect the other end of the cable to the
video port on the back of your workstation. An adapter may be required.
NOTE:
One or both types of signal cables can be connected to the FPD,
simultaneously.
3
2
5
To workstation
video port
6
FrançaisEspañolDeutschItaliano EnglishPortuguese
Connect the power adapter jack to the power port ¬ on the back of the FPD. To
4
prevent dislodging the jack, slide the power adapter cable into the cable holder. Insert
the cable holder into the holder slot and turn it 1/4 turn. Connect the proper power
cord for your locale to the AC inlet on the power adapter.
Place your FPD upright on your desk and plug the power cords from your system and
5
your FPD into a nearby outlet.
Turn on your system and FPD. If your FPD displays an image, installation is complete.
6
Perform the auto adjustment procedure as described in “Auto Adjustment” on page 6
7
5
Page 8
Installation
Getting Help
If your FPD does not display an image, check your cable connections and refer to
“Troubleshooting” on page 16. If you experience difficulties with the quality of the displayed
image, run auto adjustment again and refer to “Adjusting Your FPD” on page 8 or
“Troubleshooting” on page 16.
Plug and Play
Our adoption of the new VESA® Plug and Play solution eliminates complicated and time
consuming setup. It allows you to install your FPD without the usual hassles and confusion.
Your system can easily identify and configure itself for use with your display. This flat panel
display automatically tells the system its Extended Display Identification (EDID) data using
Display Data Channel (DDC) protocols so the system can automatically configure itself to use
the flat panel display.
Auto Adjustment
Even though your computer system can recognize your new flat panel display system, the
auto adjustment function will optimize the display settings for use with your computer. Use
Auto Adjustment whenever the FPD has become misaligned or whenever the displayed
image is unsatisfactory.
Turn on your computer and flat panel display.
1
Push the EXIT button to open the Auto Adjustment OSM.
2
Push the + button to activate the Auto Adjustment function. The screen will dim and
3
you may notice small changes to the screen image and “Auto Adjustment” will blink
on and off on the OSM. To abort the Auto Adjustment function, press the EXIT button
again.
When finished, the screen will stop changing. Press the EXIT button to leave the OSM
4
or allow the OSM to time-out and disappear automatically.
Maintenance of Your Flat Panel Display
WARNING:
The unit is not user-serviceable. User maintenance is restricted to cleaning as explained
below:
6
To avoid risk of electric shock, do not disassemble the FPD cabinet.
Unplug the FPD from the power outlet before cleaning.
•
Page 9
Installation
•
To clean your flat panel display screen, lightly dampen a soft, clean cloth with
water or mild detergent. If possible, use a special screen cleaning tissue or solution
suitable for the antistatic coating.
•
To clean the monitor cabinet, use a cloth lightly dampened with a mild detergent.
Never use flammable cleaning material to clean your flat panel display or any other
•
electrical apparatus.
Self-Test Feature Check (STFC)
Your FPD provides a self test feature which allows you to check if your FPD is functioning
properly. If your FPD and computer are properly connected but the FPD screen remains dark
and the power indicator is lit, use the following steps to perform the FPD self test:
Turn off both your computer and the monitor.
1
Unplug the video cable from the computer or video card.
2
Turn on the monitor.
3
If the FPD is functioning properly, you will see a white box with a red border and black text
inside stating:
FrançaisEspañolDeutschItaliano EnglishPortuguese
No Connection
Check Signal Cable
Figure 4. FPD self-test screen
The three boxes inside the border are red, green and blue. Failure of any of the boxes to
appear indicates a problem with your FPD.
This box will also appear during normal operation of your system if the video cable becomes
disconnected or damaged.
Turn off your FPD and reconnect the video cable; then turn on both your system and
4
the monitor.
If your flat panel display screen remains black after using the above procedure, check your
video controller and computer system; your FPD is functioning properly.
7
Page 10
Adjusting Your FPD
Your flat panel display allows you to easily adjust the characteristics of the image being
displayed. All of these adjustments are made using the control buttons on the front of the
FPD. While you use these buttons to adjust the controls, an on-screen menu shows you their
numeric values as they change.
1
2 3 4 5 6
Figure 5. User controls
Video Selector (A/B) button and indicators
1
The Video Selector button allows you to select between two different computer
systems which may be connected to your FPD. “A” is for use with a workstation, while
“B” is for use with an alternate computer system. An indicator light glows green
beneath the A and B letters indicating which system is active on the flat panel display
screen.
EXIT button
2
The EXIT button opens the Auto Adjustment on-screen menu (OSM), exits from menus
and sub-menus, and exits the OSM.
MENU button
3
This button opens the OSM system and activates the highlighted function.
Power button and indicator
4
Use this button to turn the FPD on and off. The power indicator light glows green
during normal operation.
The –/+ ( / and ) buttons
5
When used with the OSM system, these buttons allow you to select sub-menu items
and to move the selector between menu rows on the OSM. These buttons are also
direct access buttons for the Brightness feature control. (See the section on
Direct-Access Buttons.)
The –/+ ( / and ) buttons
6
These buttons allow you to move the selector between menus and to select items on
the on-screen menu. When adjusting an item using the OSM, the “ – “ ( ) button
lowers the value of the selected function. The “ + “ ( ) button raises the value of the
selected function. These buttons are also direct access buttons for the Contrast
feature control. (See the section on Direct-Access Buttons)
8
Page 11
A
Adj
Adjusting Your FPD
Automatic Save
Whenever you open the on-screen menu and allow an adjustment window to remain
on-screen for about three seconds without pressing another button, this FPD automatically
saves any adjustments you have made. These changes are saved into a user area in the FPD.
User areas are reserved according to the signal frequency from your computer. This FPD can
save adjustments for up to five user modes. It has ten factory preset or preload modes, one
for each signal frequency as listed in the “Preset timing modes” on page 20.
If you have made no adjustments, the on-screen menu disappears and the FPD does not save
anything.
Direct-Access Features
The features described on this page and the next page can be accessed quickly, at the touch
of one button.
Once you finish making adjustments to a feature, push the EXIT button to turn off the menu
or allow the OSM to time-out and disappear automatically.
Auto Adjustment
uto
No
Ð
EXIT: Exit key
ustment
Ye s
+
Follow these instructions to enable or disable the
automatic screen adjustments for your FPD.
With the menu off, push the EXIT button.
1
The automatic adjustment display will appear.
Follow the directions previously given on
2
page 6.
FrançaisEspañolDeutschItaliano EnglishPortuguese
Caution :
the monitor must display a full screen, colored
image.
For Auto Adjustment to function correctly,
Brightness
Brightness
44
Ð
EXIT: Exit key
+
Follow these instructions to adjust the brightness of
the FPD’s display.
()
With the menu off, push the “–”
1
“
”
+
()
button. The brightness display
will appear.
Push the “+”
2
brightness; push the “
decrease the brightness.
()
button to increase the
Ð
”
()
button to
or
9
Page 12
Adjusting Your FPD
Contrast
Follow
Contrast
16
Ð
EXIT: Exit key
Ý
+
OSM Lock/Unlock
This function allows you to secure the current settings so that they cannot be inadvertently
changed, while still allowing you to adjust the Brightness and Contrast. You can unlock the
OSM controls at any time by using the same procedure.
Push and hold the MENU button for 5 seconds to Lock or Unlock the controls. When
1
locked, a “LOCKED!” message will be displayed along the bottom of each OSM menu
until you unlock the controls again.
these instructions to adjust the contrast
between darkness and lightness on the FPD’s
display
With the menu off, push the “–” ( ) or “+”
1
( ) button. The contrast display will appear.
Push the “+” ( ) button to increase the
2
contrast; push the “–” ( ) button to decrease
the contrast.
10
Page 13
Menu System
Adjusting Your FPD
i
Image Lock
Fine
29
Coarse
1688
Auto Adjustment
Access: Menu Key
Figure 6. On-Screen Menu (OSM)
Accessing the Menu System
With the menu off, push the MENU button to open the menu system and display the
1
main function menu.
Push the “+” ( ) button to move to the next icon or push the “–” () button to move
2
back to the previous icon. As you move from one icon to another, the function name
changes to reflect the function or group of functions represented by that icon. See the
table below to view a complete list of all the functions offered by this FPD.
Push the MENU button once to select the adjustment function, then use the “–” ( )
3
or “+”( ) and the “–” ( ) or “+”( ) buttons to make your changes.
FrançaisEspañolDeutschItaliano EnglishPortuguese
Push the EXIT button once to return to the main menu to select another function or
4
push the EXIT button 1 or 2 times to exit from the OSM.
11
Page 14
Adjusting Your FPD
Table 1. Menu Adjustments
Icon
Settings and
Sub-menus
Image Lock:
• Fine
• Coarse
• Auto
Adjustment
Position :
• Horizontal
• Vertical
Description
The Fine and Coarse adjustments allow you to more
closely adjust your FPD to your preference.
Use the “–” ( ) and “+” ( ) buttons to adjust away
the interference. If satisfactory results are not
obtained using the Fine adjustment, use the Coarse
adjustment and then use Fine again. This function may
change the width and centering of the display image.
Use the Horizontal function on the Position menu to
center the display image on the screen.
Select this icon to adjust for and limit the amount of
noise visible in the displayed image which can appear
as horizontal lines or areas on the screen where the
image is unstable and jitters or shimmers.
Auto Adjustment allows the FPD to self-adjust to the
incoming video signal. After using Auto Adjustment
you can further tune your FPD to your liking using the
Fine and Coarse adjustments.
Caution: Using Auto Adjustment will cause any
stored user settings to be overwritten.
Select this icon to move the viewing area on the FPD
screen. Use the “–” ( ) and “+” ( ) buttons to move
the viewing area to the left or right when Horizontal is
selected and up and down when Vertical is selected.
Color Control:
• R(ed)
• G(reen)
• B(lue)
Select this icon to adjust the color hue and saturation.
The color hue is most noticeable in areas of white.
Use the “–” ( ) button to decrease the amount of the
selected color. Use the “+” ( ) button to increase the
amount of the selected color.
12
Page 15
Adjusting Your FPD
Table 1. Menu Adjustments (
Icon
Settings and
Sub-menus
Reset:
• Geometry
• Color
Language:
• English
• Deutsch
• Español
• Français
• Italiano
• Svenska
Menu Display
Time:
• 5 Seconds
• 10 Seconds
• 20 Seconds
• 200 Seconds
Continued
)
Description
Select this icon to return to the factory preset values
for the selected group of functions. Resetting the
Geometry settings changes the Position settings,
Image Lock settings and changes the Image Size to
Expand 2.
Resetting the Color settings changes the colors back
to their original factory settings.
Select one of the six languages to use for the OSM.
The language chosen affects only the language of the
OSM, but does not alter its function. Neither does it
have any effect on any software running on the computer.
The OSM stays active for as long as it is in use. The
Menu Display Time sets the length of time the OSM
will remain active after the last time you pushed a
button. The default time is 10 seconds.
FrançaisEspañolDeutschItaliano EnglishPortuguese
Menu Position:
• Vertical
• Horizontal
Image Size:
• Normal
• Expanded 1
• Expanded 2
Select this icon to change the position of the OSM on
the screen. The “–” ( ) and “+” ( ) buttons move
the OSM. Select the Horizontal function to move the
OSM to the left or right; select the Vertical function to
move the OSM up or down.
If your computer or video board supplies a signal rate
and addressability lower than 1280 x 1024, this FPD
provides a scaling processor that can expand the
addressability up to 1280 x 1024. Select the Normal
setting to use the normal size viewing area for the current signal. Select Expanded 1 to expand the viewing
area to the full width of the FPD screen. Select
Expanded 2 to extend the viewing area both horizontally and vertically to the full size of the FPD screen.
13
Page 16
Adjusting Your FPD
Table 1. Menu Adjustments (
Icon
Settings and
Sub-menus
Display Mode :
i
Image Effect:
• Scaling
• Filtering
Continued
)
Description
Select this icon to view the current user mode. This
screen only displays information; you cannot select a
new setting.
Select this icon to optimize the display for the type of
software you are using.
Scaling smooths an image which may help the eye to
see more detail.
Filtering sharpens text by adding a fine, contrasting
line around each character so that it is easier to recognize.
14
Page 17
Adjusting Your FPD
PowerSaver
This FPD has a built-in power management system called PowerSaver. This system saves
energy by switching your FPD into a low-power mode when it has not been used for a certain
amount of time. The available modes are “On”, “Standby”, “Sleep Mode”, and “Deep Sleep
Mode”
Table 2. Power-saving modes
Power-Saving Function mode (EPA/NUTEK)
Standby Mode
Inactive
Active
Blanked
Less than 5W Less than 5W Less than 5W
Sleep Mode
Position A1
Active
Inactive
Blanked
Blinking
(0.5 sec
interval)
Deep Sleep Mode
Position A2
Inactive
Inactive
Blanked
Amber
Blinking
(1 sec interval)
State
Horizontal Sync
Vertical Sync
Video
Power
Indicator
Power
Consumption
Normal
Operation
Active
Active
Active
Green Amber Green/Amber
60W (Max.)
56W (Nom.)
NOTE: This FPD automatically returns to normal operation when horizontal and vertical sync
return. This occurs when you move the computer’s mouse or press a key on the keyboard.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it
unattended for long periods.
NOTE: Screen saver video patterns designed for use with CRT-based monitors are not recom-
mended for use with your FPD since they may not extinguish the FPD’s back light
resulting in premature aging.
FrançaisEspañolDeutschItaliano EnglishPortuguese
15
Page 18
Adjusting Your FPD
Troubleshooting
Before calling for service, check the information in this section to see if you can remedy any
problems yourself
Table 3. Troubleshooting problems
Symptom Corrective Actions
No Picture • Check to see that both the FPD and the
computer are plugged in and turned on.
“No Connection
Check Signal Cable” appears
“Video mode not supported” • Check the maximum resolution and the
Picture is scrambled • Check the signal cable connection between
Picture is not clear • Adjust Fine and Coarse adjustments as
Picture is fuzzy • Perform FPD reset.
Picture bounces or has wavy
oscillations
Picture appears to be ghosting • Check the signal cable connection between
The image is too light or too dark • Adjust the Brightness and Contrast settings.
• Check the signal cable connection between
the computer and the FPD
• Use the flat panel display self test described
on page 7.
frequency on the video port of your
computer.
• Compare these values with the data in the
preset timing modes, page 20.
the computer and FPD.
• Perform Auto Adjustment (see page 6).
needed (see page 12).
• Eliminate accessories (i.e., video extension
cables).
• Check the signal cable connection between
the computer and FPD
the computer and FPD.
Color is not uniform • Adjust the color settings using the OSM
COLOR menu.
The colors are distorted with dark
or shadowed areas
16
• Adjust the color settings using the OSM
COLOR menu.
Page 19
Adjusting Your FPD
Table 3. Troubleshooting problems (
Symptom Corrective Actions
White does not look white • Adjust the color settings using the OSM
Screen image is not centered or
sized properly
The power indicator blinks amber
once
The power indicator is blinking
green / amber or is blinking
amber only
Cannot adjust FPD with the
buttons on the front panel
Continued
• Adjust the Horizontal and Vertical position
• Check the image size selection (see
• Run Auto Adjustment (see page 6).
• The flat panel display is saving your changes
• The FPD is using its power management
• Please contact Samsung customer service.
)
COLOR menu.
settings using the OSM.
page 13).
to the OSM.
system. Check the power management
utility on your computer.
FrançaisEspañolDeutschItaliano EnglishPortuguese
17
Page 20
Specifications
Table 4. Specifications
Appendix
LCD Panel 46 cm (18.1") Diagonal true active area
* Synchronization Horizontal: 30 kHz to 81 kHz
Display Colors 16.7 Million Colors
Maximum Resolution Horizontal: 1280 Dots @ 81 kHz
Active Display Horizontal: 359.0 ± 3 mm (14.13" ± 0.12”)
Input Signal, Terminated Analog video 0.7 Vpp positive at 75
Maximum Pixel Clock 135 MHz
Power Adapter AC 90-264 Volt, 60 Hz/50 Hz ± 3 Hz
Power Consumption 60 W (Maximum), 56 W (Nominal)
Dimensions/Weight
(W x D x H)
0.28 mm Pixel pitch
Viewing Angle: 80/80/80/80 (U/D/L/R) (Degrees)
Vertical: 56 Hz to 85 Hz (~XGA)
60 Hz to 76 Hz (SXGA)
Vertical: 1024 Lines @ 76 Hz
Vertical: 287.2 ± 3 mm (11.36" ± 0.12”)
(Active display size is dependent upon signal timing and image
size selection)
W
Separate sync, composite, and sync-on-green
Unit: 449.4 x 461.2 x 182.0 mm; 9.35 kg
17.7 x 18.2 x 7.2 in; 20.61 lb
Carton: 570 x 295 x 580 mm; 12.8 kg
22.4 x 11.6 x 22.8 in; 28.22 lb
(All measurements approximate.)
VESA Mounting Interface 100 mm x 100 mm
Environmental Considerations Operating Temperature:50°F to 104°F (10°C to 40°C)
NOTE: Design and specifications are subject to change without prior notice.
(For use with Specialty (Arm) Mounting hardware.)
Humidity: 10% to 80%
Storage Temperature: -68°F to 113°F (-20°C to 45°C)
Humidity: 5% to 95%
* Referring to Standard signal modes, page 20.
18
Page 21
Pin Assignments
Table 5. 15-Pin D-SUB connector
Appendix
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15-Pin Side of the
Signal Cable
Green
GND (DDC Return)
GND-R
GND-G
GND-B
GND-Sync/Self test
DDC Data
H-Sync
V-Sync
DDC Clock
Table 6. 13W3 Connector
Pin No.
13W3 Side of the
Signal Cable
Red
Blue
GND
NC
GND
Composite H/V
Red
Green
Blue
GND
GND (DDC Return)
GND-R
GND-G
GND-B
NC
GND-Sync/Self test
GND
DDC Data
H-Sync
V-Sync
DDC Clock
Composite H/V
FrançaisEspañolDeutschItaliano EnglishPortuguese
A1
A2
A3
10
Red video signal
Green video signal
Blue video signal
1
2
3
4
5
6
7
8
9
SCL
NC
S2
S gnd
H Sync
SDA
V-Sync
S1
S0
Sync. Return
Red video signal
Green video signal
Blue video signal
SCL
NC
S2
S gnd
Composite Sync
SDA
V-Sync
S1
S0
Sync.17 Return
19
Page 22
Appendix
Display Modes
If the signal from the system equals to the standard signal mode, the screen is adjusted
automatically. If the signal from the system doesn't equal to the standard signal mode, adjust
the mode with referring to the Videocard user guide because the screen might not display or
only the power LED might be on. For the display modes listed below, the screen image has
been optimized during manufacture.
Table 7. Preset timing modes
Horizontal
Display Mode
720 x 400 31.469 70.087 28.322 –/+
640 x 480 31.469 59.940 25.175 –/–
640 x 480 37.500 75.000 31.500 –/–
640 x 480 43.269 85.008 36.000 –/–
800 x 600 46.875 75.000 49.500 +/+
800 x 600 53.674 85.061 56.250 +/+
1024 x 768 48.363 60.004 65.000 –/–
1024 x 768 60.023 75.029 78.750 +/+
1024 x 768 68.677 84.997 94.500 +/+
1280 x 1024 79.976 75.025 135.000 +/+
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
20
Page 23
Appendix

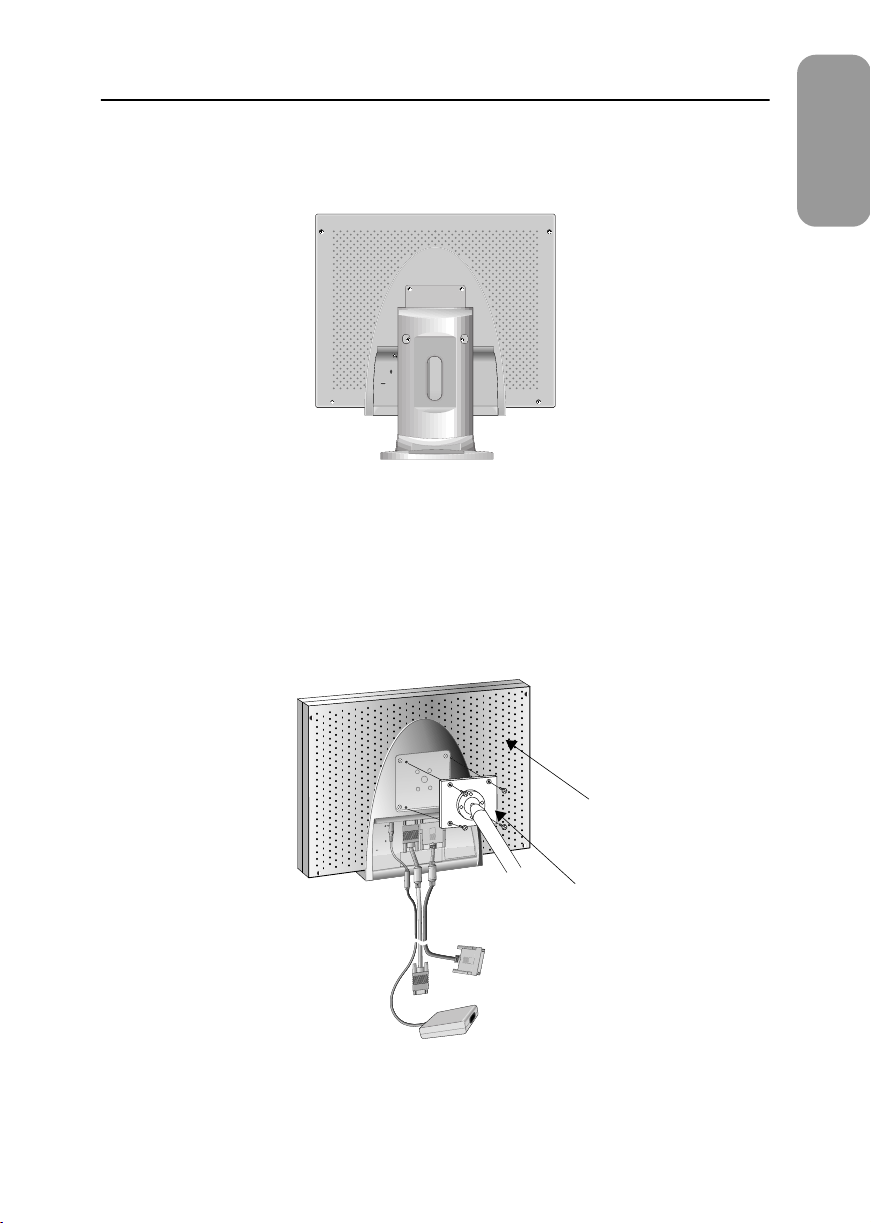

Changing the Stand
Removing the Stand
Turn off your monitor and unplug its power cord.
1
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect
2
the screen.
Remove the four screws, securing the stand and remove it.
3
Attaching an Arm-Type Stand or Wall Mount Hanger
NOTE: This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad
FrançaisEspañolDeutschItaliano EnglishPortuguese
.
A
A
B
B
14V DC
14V DC
Align the Mounting Interface Pad with the holes in the Rear Cover and secure it with
1
the four screws that came with the Arm-type Stand or Wall Mount Hanger.
Rear cover
Mounting
Interface Pad
21
Page 24
Index
A
Auto adjustment , 12
B
Blue , 12
C
Coarse , 12
Color , 13
Color control , 12
B , 12
G
, 12
R , 12
D
Deep sleep mode , 15
Deutsch , 13
Display Modes , 20
E
English , 13
Español , 13
Expanded 1
Expanded 2 , 13
, 13
F
Filtering , 14
Français , 13
G
Geometry , 13
Green , 12
I
Image effect , 14
Filtering
, 14
Scaling , 14
Image lock , 12
Auto adjustment , 12
Coarse , 12
Fine
, 12
Image size , 13
Expanded 1 , 13
Expanded 2 , 13
Normal
, 13
Italiano , 13
K
Kensington security slots , 4
L
Language , 13
Deutsch , 13
English , 13
Español
, 13
Français , 13
Italiano , 13
M
Menu display time , 13
Menu position , 13
Horizontal , 13
Vertical
, 13
N
No Connection Check Signal Cable , 16
Normal , 13
R
Red , 12
Reset , 13
Color , 13
Geometry
, 13
S
Safety instructions , 2
Scaling , 14
Sleep mode , 15
Standby mode , 15
Svenska , 13
T
Troubleshooting , 16
Index-1
Page 25
Regulatory Information
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the following
warning:
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to
radio or television receptions, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
n
Reorient or relocate the receiving antenna.
n
Increase the separation between the equipment and
receiver.
n
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
n
Consult the dealer or an experienced radio/TV technician for help.
User Information
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions.
You may find the booklet called How to Identify and
Resolve Radio/TV Interference Problems helpful. This
booklet was prepared by the Federal Communications
Commission. It is available from the U.S. Government
Printing Office, Washington, DC 20402, Stock Number
004-000-00345-4.
Warning
User must use shielded signal interface cables to
maintain FCC compliance for the product.
Declaration of conformity for products
Marked with FCC Logo
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
85 West Tasman Drive
San Jose, CA 95134 USA
Tel) 408-544-5124
Fax) 408-544-5191
Provided with this monitor is a detachable power supply
cord with IEC320 style terminations. It may be suitable for
connection to any UL Listed personal computer with similar configuration. Before making the connection, make
sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating
of the computer convenience outlet is equal to or exceeds
the monitor voltage rating.
For 120 Volt applications, use only UL Listed detachable
power cord with NEMA configuration 5-15P type (parallel
blades) plug cap. For 240 Volt applications use only UL
Listed Detachable power supply cord with NEMA configuration 6-15P type (tandem blades) plug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements
of the Canadian Interference-Causing Equipment Regulations of ICES-003.
Cet appareil Numérique de classe B respecte toutes
les exigences du Règlemont ICES-003 sur les équipements produisant des interférences au Canada.
MPR II Compliance
This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.
European Notice
Products with the CE Marking comply with both the
EMC Directive (89/336/EEC), (92/31/EEC), (93/68/EEC)
and the Low Voltage Directive (73/23/EEC) issued by
the Commission of the European Community.
Compliance with these directives implies conformity to
the following European Norms:
n
EN55022 (CISPR 22) – Radio Frequency Interference
n
EN50082-1 : 1992 – Electromagnetic Immunity
n
EN60555-2 (IEC555-2) – Power Line Harmonics
n
EN60555-3 (IEC555-3) – Voltage Fluctuations
n
EN60950 (IEC950) – Product Safety.
FrançaisDeutschEspañolPortuguese EnglishItaliano
Page 26
U.S.A. :
Samsung Electronics America (SEA)
One Samsung Place
Ledgewood, NJ 07852
Tel. : 1-800-SAMSUNG (1-800-726-7864)
CANADA :
Samsung Electronics Canada Inc.
7037 Financial Drive
Mississauga, Ontario L5N 6R3
Tel. : 1-800-SAMSUNG (1-800-726-7864)
Fax. : (905) 542-1199
GERMANY :
Samsung Electronics GmbH Samsung-Haus
Am Kronberger Hang 6/65824 Schwalbach/Ts.
Tel. : 06196-66-1134
Fax. : 06196-66-1133
AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Unit G, 10-16 South Street,
Rydalmere, N.S.W. 2116
P.O. BOX 368
Tel. : (02) 638-5200
ITALIA :
Samsung Electronics Italia SpA
Via C. Donat Cattin,
5-20063 Cernusco sul Naviglio (Mi)
Tel. : 167-010740
PANAMA :
Servicios Samsung (Zona Libre), S.A.
50 and 61 Streets Sta, Cecilia
Bdl. Don Camilo, Panama City
Tel. : (507) 264-0195 or 269-5571
Fax : (507) 269-5568
MEXICO
Samsung Electronics Mexico S.A. de C.V.
Saturno 44 Col. Nva. Industrial Vallejo
Del. Gustavo A. Madero C.P. 07700
Mexico D.F. Tel. 5747-5100
RFC: SEM950215S98
ESPAÑA :
Samsung Electrónics Comercial Ibérica, S.A.
Ciencies, 55-65 (Polígono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : (93) 261 67 00
Fax. : (93) 261 67 50
UK :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : (0181) 391 0168
Fax. : (0181) 397 9949
<European Service Center & National Service>
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : (01952) 292 262
Fax. : (01952) 292 033
THAILAND :
Samsung Service Center
729-729/1 JSP Tower Rachadapisek RD.,
Bangpongpang, Yannawa, Bangkok 10120
Tel : (662) 2954508-14
Fax : (662) 2954267
SOUTH AFRICA :
Samsung Electronics South Africa
Somerset Office Park 5 Libertas Road
Bryanston, South Africa
Tel : (27)-11-463-5678
Fax : (27)-11-463-5215
BRASIL :
Samsung Eletrônica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303-2º Andar
Chácara Sto. Antônio • cep : 04719-040
São Paulo • SP
Tel. : (011) 541-8500
Fax : (011) 523-3995, 522-0726
SWEDEN:
Samsung Electronics Svenska, AB
Box 713, S-194 27 Upplands Vasby
Tel.: (468) 590-966-00
Fax : (468) 590-966-50
IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.
SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO
DEL. GUSTAVO A. MADERO C.P. 07700
MEXICO D.F. TEL. 5747-5100
RFC: SEM950215S98
EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
JOONG-ANG DAILY NEWS BLDG.
7 SOON-WHA-DONG CHUNG-KU,
C.P.O BOX 2775, 1144 SEOUL, KOREA
“As an ENERGYSTAR® Partner, SAMSUNG has
determined that this product meets the
ENERGYSTAR® guidelines for energy efficiency.”
P/N: BN68-00059A-06
Printed on recyclable paper
Loading...
