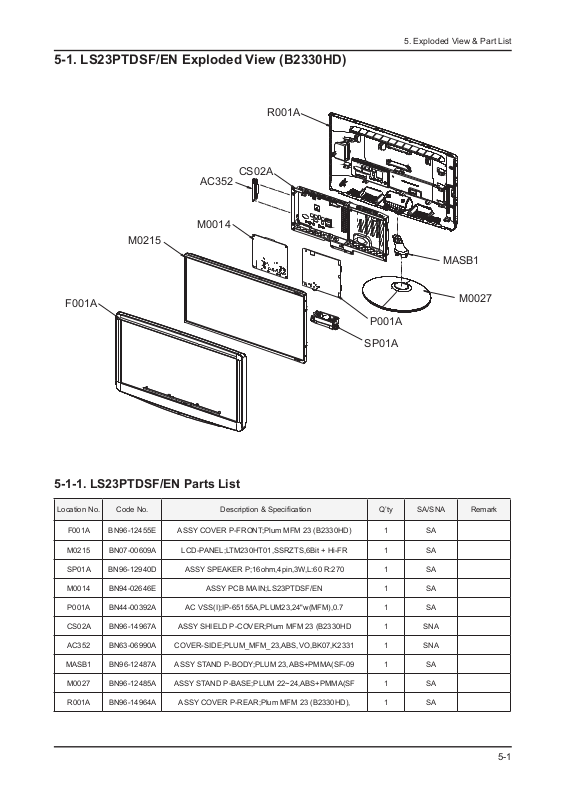

5-1. LS23PTDSF/EN Exploded View (B2330HD)
F001A
M0215
M0014
AC352
CS02A
R001A
MASB1
M0027
P001A
SP01A
5. Exploded View & Part List
5-1-1. LS23PTDSF/EN Parts List
Location No. Code No. Description & Specication Q’ty SA/SNA Remark
F001A BN96-12455E ASSY COVER P-FRONT;Plum MFM 23 (B2330HD) 1 SA
M0215 BN07-00609A LCD-PANEL;LTM230HT01,SSRZTS,6Bit + Hi-FR 1 SA
SP01A BN96-12940D ASSY SPEAKER P;16ohm,4pin,3W,L:60 R:270 1 SA
M0014 BN94-02646E ASSY PCB MAIN;LS23PTDSF/EN 1 SA
P001A BN44-00392A AC VSS(I);IP-65155A,PLUM23,24"w(MFM),0.7 1 SA
CS02A BN96-14967A ASSY SHIELD P-COVER;Plum MFM 23 (B2330HD 1 SNA
AC352 BN63-06990A COVER-SIDE;PLUM_MFM_23,ABS,VO,BK07,K2331 1 SNA
MASB1 BN96-12487A ASSY STAND P-BODY;PLUM 23,ABS+PMMA(SF-09 1 SA
M0027 BN96-12485A ASSY STAND P-BASE;PLUM 22~24,ABS+PMMA(SF 1 SA
R001A BN96-14964A ASSY COVER P-REAR;Plum MFM 23 (B2330HD), 1 SA
5-1
Page 2
5-2
5. Exploded View & Part List
5-2. LS23PTDSF/EN Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
LS23PTDSF/EN
0.1 BN90-02391D ASSY COVER FRONT;cancel 1 SNA
..2 F001A BN96-12455E ASSY COVER P-FRONT;Plum MFM 23 (B2330HD) 1 SA
...3 W392 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW 4 SA
...3 BN61-06447A HOLDER-BOSS;PLUM_MFM_23,HIPS,BK23,HB 1 SNA
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.8 SNA
...3 F001 BN63-06311B COVER-FRONT;PLUM MFM 23",ABS+PMMA,HB,BK0 1 SNA
....4 0103-007303 RESIN-PMMA;BK0035,UL-94 HB,PMMA+ABS,tran 219 SNA
...3 BN64-01211A DECORATION;PLUM 23,PC,CLEAR 1 SNA
...3 AL093 BN67-00280A LENS-LED;PLUM23'',PC CLEAR,TP26 1 SNA
...3 T0527 BN68-00798D LABEL-ENERGY,STAR;L/M,W/W,PET,T0.05,9.3, 1 SNA
...3 AS100 BN63-07438A SHEET-LED;30-MFM,PC SHEET,T0.2,BLK 2 SNA
...3 FB01A BN96-15120B ASSY BOARD P-FUNCTION;B2230HN,CT5000-796 1 SA
..2 SP01A BN96-12940D ASSY SPEAKER P;16ohm,4pin,3W,L:60 R:270 1 SA
..2 BN68-03085B LABEL-MONITOR-POP;30 MFM POP,WW,PET,T0.0 1 SNA
0.1 R001A BN90-02902A ASSY COVER REAR;LS23PTDSF/EN,30-MFM 1 SNA
..2 W391 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR 2 SA
..2 R001A BN96-14964A ASSY COVER P-REAR;Plum MFM 23 (B2330HD), 1 SA
...3 M0081 6003-001001 SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC 1 SNA
...3 M0081 6003-001239 SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR 2 SNA
...3 T0060 BN61-05091A SPRING ETC-STAND;ECOFIT 23",SK5,T0.3 1 SNA
...3 T0060 BN61-05968A SPRING ETC;PLUM 23,SK5,T0.6,BLACK 1 SNA
...3 CIS4 BN61-05971A HOLDER-STAND;PLUM 23,POM,WHITE,ACETAL 1 SNA
...3 CB19 BN61-06509A BRACKET-VESA;PLUM MFM,EGI-SECC,T0.8 4 SNA
...3 BN63-06317A SHIELD-LAMP;PLUM 23'',SPTE,T0.3 1 SNA
...3 R001 BN63-06980A COVER-REAR;PLUM_MFM_23,ABS,HB,BK23,EUROP 1 SNA
...3 SC05 BN63-06981A COVER-STAND;PLUM_MFM_23,ABS+PMMA,HB,BK23 1 SNA
...3 T0071 BN64-01397A INLAY-TERMINAL;PLUM MFM,PS SHEET,T0.3,EU 1 SNA
...3 M0131 BP63-00786A GASKET;HLS6187WX/XAA,Conductive Adhesive 1 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.15 SNA
0.1 BN91-02922A ASSY LCD;LTM230HT01,Cream-MFM 23" 1 SNA
..2 M0215 BN07-00609A LCD-PANEL;LTM230HT01,SSRZTS,6Bit + Hi-FR 1 SA
0.1 M0017 BN91-05542E ASSY CHASSIS;LS23PTDSF/EN 1 SNA
..2 T0081 6001-002408 SCREW-MACHINE;BH,+,WT,M4,L12,ZPC(WHT),SW 2 SA
..2 M0081 6003-000264 SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S 5 SA
..2 T0562 6046-001014 STAND OFF;#4-40,L6,NI PLT,C3601 2 SNA
..2 P001A BN44-00392A AC VSS(I);IP-65155A,PLUM23,24"w(MFM),0.7 1 SA
..2 CCMM1 BN73-00152A SILICON/RUBBER;LNT4661FX/XAA,FILLER,19x1 1 SNA
..2 M0014 BN94-02646E ASSY PCB MAIN;LS23PTDSF/EN 1 SA
...3 0202-001557 SOLDER-CREAM;LST57-A,D38-63,42SN/57BI/1A 3 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA
...3 3701-001658 CONNECTOR-DSUB;15P,3ROW,FEMALE,STARAIGHT 1 SA
...3 HB01A 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 SA
...3 CN906 3711-004105 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,ANGLE,S 1 SA
...3 DRVCN1 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 SA
...3 JA330 3722-002176 JACK-PHONE;7P/4C,SN,L-BLU,STRAIGHT 1 SA
Page 3
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...3 JA332 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 SA
...3 JA331 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 SA
...3 CIS3 BN40-00173A TUNER;DTOS40CVL081A,DVB-T/C,164CH,38.9MH 1 SA
...3 BN97-03630E ASSY SMD;LS23PTDSF/EN,BN94-02646E 1 SNA
....4 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 3.476 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 13 SA
....4 D1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 SA
....4 0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 15 SNA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 4 SNA
....4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 3 SNA
....4 KQ1 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- 1 SA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 9 SA
....4 PQ02 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 4 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 2 SA
....4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,-30V,-11. 3 SA
....4 M0215 0801-002198 IC-CMOS LOGIC;74LVC14,INVERTER,SOP,14P,1 1 SA
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 SA
....4 ND51C2 0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 SA
....4 IC104 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 2 SA
....4 IC104 0802-001012 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,DQFN, 1 SNA
....4 1006-001474 IC-LINE DRIVER;DRV604PWP,HPSSOP,28P,9.8x 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001310 IC-EEPROM;24LC02B,256X8BIT,SOIC,8P,3.91X 2 SA
....4 1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256Kbit,32Kx8 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 1201-002994 IC-POWER AMP;NTP-7300S,QFN,56P,8x8mm,DUA 1 SA
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 2 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 2 SA
....4 1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA
....4 1204-003088 IC-DEMODULATOR;DRX39XYK,PQFN,64P,9x9x0.8 1 SA
....4 1204-003173 IC-DECODER;SEMS16-LF-SC,LFBGA,569P,20.2* 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 SA
....4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 25 SA
....4 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 5 SA
....4 PR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 4 SA
....4 AR150 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
....4 FMR4 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 SNA
....4 CER04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
....4 MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
Page 4
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 ARR2 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
....4 KAR11 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 2 SNA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 21 SA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 12 SA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 8 SA
....4 AVR73 2007-000142 R-CHIP;2.7Kohm,5%,1/16W,TP,1005 1 SA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 55 SA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 48 SA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 8 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 5 SNA
....4 MR16 2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 1 SNA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 3 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 2 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 23 SA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 2 SA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 2 SA
....4 HR10 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 SA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 2 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 34 SA
....4 DR43 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 2 SA
....4 DR1 2007-001301 R-CHIP;68ohm,5%,1/16W,TP,1005 10 SA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 2 SA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 6 SNA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 17 SA
....4 HDR8 2007-007095 R-CHIP;390ohm,5%,1/16W,TP,1005 1 SA
....4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 1 SA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 5 SA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 4 SNA
....4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 2 SNA
....4 DR157 2007-007650 R-CHIP;274ohm,1%,1/10W,TP,1608 1 SA
....4 R8 2007-007721 R-CHIP;560ohm,1%,1/10W,TP,1608 1 SA
....4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 2 SA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SA
....4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
....4 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
....4 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 18 SA
....4 2011-001402 R-NETWORK;56ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SA
....4 2011-001448 R-NETWORK;10ohm,5%,1/16W,L,4P,T,1010 8 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 11 SA
....4 DRP9 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 SA
....4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 1 SNA
Page 5
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 3 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 2 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 5 SA
....4 FC04 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 2 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 3 SA
....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,TP,1005 1 SNA
....4 CK40B 2203-000838 C-CER,CHIP;.39nF,5%,50V,C0G,1608 2 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 4 SA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 3 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 13 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 6 SNA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 13 SA
....4 AD480 2203-005393 C-CER,CHIP;.005nF,0.1pF,50V,NP0,TP,1005 1 SNA
....4 AD480 2203-005511 C-CER,CHIP;27nF,10%,10V,X7R,TP,1005 1 SA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 24 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 4 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005 94 SA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 6 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 14 SA
....4 C802 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608 1 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 52 SA
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 8 SA
....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 16 SNA
....4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 2 SNA
....4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 3 SA
....4 T0052 2703-000296 INDUCTOR-SMD;680nH,10%,1608 1 SA
....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 4 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 2 SA
....4 T0052 2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 2 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 4 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 8 SNA
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 5 SA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 37 SA
....4 T0313 3404-001207 SWITCH-TACT;12V,50mA,160gf,6.2X6.2,SPST 1 SA
....4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,Hi 1 SNA
....4 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 2 SNA
....4 AC510 3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 SA
....4 HB01A 3711-005503 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,SMD- 1 SA
....4 BN41-01473A PCB MAIN;30-MFM,FR-4,4,1.2T,162x142 1 SNA
....4 BN97-04344A ASSY MICOM-MAIN;30-MFM,2010.04.13,T-MSXM 1 SNA
.....5 1107-001940 IC-NAND FLASH;KFG1G16U2D-HIB6,1Gbit,64Mx 1 SNA
....4 BN97-04345A ASSY MICOM-SUB;30-MFM,2010.04.14,T-MSXMD 1 SNA
Page 6
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
.....5 IC520 0903-001651 IC-MICROCONTROLLER;61P802-RG480WT,LQFP,4 1 SNA
....4 AR158 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 2 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 4 SA
....4 1203-006142 IC-DC/DC CONVERTER;BD8924G,5P,2.9x1.6x1. 1 SA
....4 J914 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SC
....4 2703-003890 INDUCTOR-SMD;47uH,10%,3225 1 SA
....4 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 2 SA
...3 T0066 BP62-00017A HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, 1 SNA
...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA
...3 3709-001569 CONNECTOR-CARD SLOT;68P(ULTRA SLIM 60mm) 1 SA
...3 3722-000498 JACK-SCART;21P,SN,BLK 1 SA
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 2 SA
...3 3722-002920 JACK-USB;4P/1C,Ni/Pd/Au/Sn,BLK,STRAIGHT, 1 SA
...3 CN906 3707-001096 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA
..2 CS02A BN96-14967A ASSY SHIELD P-COVER;Plum MFM 23 (B2330HD 1 SNA
...3 M0909 AA63-01388A GASKET-EMI,SPONGE;SP-P300M,Conductive Fa 2 SNA
...3 BN61-02429C STUD-PEM;PNB,M2.8,D7,L10,ZPC(SIL),SUM24L 2 SNA
...3 BN61-05973A STUD-PEM;PLUM23'',M4,D8,L20 2 SNA
...3 M0909 BN63-04498A GASKET;PN40A450P1D,Polyurethane Sponge,1 1 SNA
...3 T0073 BN63-04800A GASKET-EMI;T-MFM,Fabric Type,1.5mm,20mm, 2 SNA
...3 BN63-06982A SHIELD-COVER;PLUM MFM 23/24,EGI-SECC,T0. 1 SNA
...3 BN63-07393A SHEET-PROTECTOR;30-MFM,PC SHEET,T0.43,25 1 SNA
...3 M0114 BP61-01088A HOLDER-WIRE;SVP-42L6,NYLON 1 SNA
..2 T0073 BH63-00008A GASKET-EMI;IB10LO,CONDUCTIVE FABRIC,3MM, 1 SNA
..2 AC352 BN63-06990A COVER-SIDE;PLUM_MFM_23,ABS,VO,BK07,K2331 1 SNA
..2 FL06 BN96-12453Q ASSY CABLE P-FFC;30-MFM,FFC,JSCAWHSZ-506 1 SA
0.1 BN91-05950A ASSY SHIELD;LS23PT,30-MFM 1 SNA
..2 AC352 BN63-06990A COVER-SIDE;PLUM_MFM_23,ABS,VO,BK07,K2331 1 SNA
..2 BN68-02998A LABEL-STICKER;WW,PET,T0.05,55,20,30MFM L 1 SNA
..2 BN81-01805C A/S-TAPE-FILAMENT;ELMATIT,T0.1,W12,L1200 0.24 SNA
..2 T0069 AA63-60002D SPACER-FELT;-,FELT,-,-,-,BLK,T1.0,-,330X 2 SNA
0.1 BN92-05799A ASSY LABEL;LS22PTDSF/EN 1 SNA
..2 CCM1 BN68-01570A LABEL RATING;ALL,SS,PE,T0.05,90,45,Dark 1 SNA
0.1 ACCE1 BN92-06155A ASSY ACCESSORY;LS22PTDSF/EN 1 SNA
..2 T0268 3903-000452 CBF-POWER CORD;DT,EU/KR,CP3,IEC320 C13,2 1 SA
..2 EC29 BN39-00244H CBF SIGNAL-D-SUB TO D-SUB;D-sub cable,15 1 SA
..2 T0074 BN59-01012A REMOCON;TM950,SAMSUNG,20PIN SINGLE,48KEY 1 SA
..2 M0027 BN96-12485A ASSY STAND P-BASE;PLUM 22~24,ABS+PMMA(SF 1 SA
...3 M0081 6003-001001 SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC 4 SNA
...3 CIS4 BN61-01717A HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5) 1 SNA
...3 BN63-06313A COVER-STAND BASE;PLUM23,ABS+PMMA(SF-0950 1 SNA
....4 0103-005096 RESIN-ABS;HB,ABS+PMMA 165 SNA
...3 BN68-02482A LEAFLET-STAND;Plum,Mojo 80g,148,210,A4 t 1 SNA
...3 AR011 BN73-00077A RUBBER FOOT;MATISSE,BUMPON,#13.5,T2.0,GR 4 SNA
...3 BN68-02466B LABEL-STICKER;PLUM,ALL,ART PAPER,50,10,S 1 SNA
...3 BN61-05087A BRACKET-STAND BOTTOM;ECOFIT 23",SECC T0. 1 SNA
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.3 SNA
..2 MASB1 BN96-12487A ASSY STAND P-BODY;PLUM 23,ABS+PMMA(SF-09 1 SA
...3 BN61-05969A STAND-BAR;PLUM 23,ABS+PMMA(SF-0950),BK23 1 SNA
....4 BN61-05970A STAND-BAR IN;PLUM 23,ABS+PMMA(SF-0950),B 1 SNA
Page 7
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
.....5 BN61-02932E BRACKET-STOPPER NUT;ECOFIT 20,M4,D8,L12, 1 SNA
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.1 SNA
...3 BN68-02466C LABEL-STICKER;PLUM,ALL,ART PAPER,50,10,S 1 SNA
..2 ACCE1 BN96-13948H ASSY ACCESSORY;LS19PTDSF/EN,20,22,23,24 1 SNA
..2 EC08 BN39-01286A CBF SIGNAL-STEREO;3p,UL2547, Audio Stand 1 SA
0.1 BN92-06607A ASSY BOX;LS23PT,30-MFM 1 SNA
..2 T0077 BH68-00329D LABEL BAR CODE-02;NO CE,NO WT`Y,MPRII,LA 1 SNA
..2 BH68-00659J LABEL BOX-00;ALL MODEL,MOJO 90G,90,95,WH 1 SNA
..2 BN69-05083A BOX-01,SET;B2330HD,CB,A-01,SW2,YEL,W632, 1 SNA
..2 M0245 BN96-02895A ASSY MISC P-01,HANDLE PACKING;ALL MODEL, 1 SNA
...3 BN66-00007A LEVER-TOP;ALL MODEL,LDPE,WHITE,5.8g 1 SNA
...3 BN66-00008A LEVER-BOTTOM;ALL MODEL,LDPE,WHITE,4.01g 1 SNA
0.1 BN92-06611A ASSY P/MATERIAL;LS23PT,30-MFM 1 SNA
..2 6902-001116 BAG ROLL;HDPE/HDPE/NITRON,T0.5,W600,L175 1.4 SNA
..2 AA01-00004A FOIL;2000,2000,NTR,SEH 1 SNA
..2 T0527 BH68-40364A LABEL-SUMMARY;G52,G72,ART,100G,WHT,BLK,W 1 SNA
..2 BH69-00457C PACKING INNER-00,PAD;COMM,OTHER,T3.0,880 1 SNA
..2 T0527 BN68-00129A LABEL SHIPPING-00;LABEL SHIPPING,ART-PAP 1 SNA
..2 T0603 BN69-00617K PALLET-PACKING;TS17AS,OTHER,1310,910,120 1 SNA
..2 BN69-02114A PAD PACKING-EDGE;CB,B800,W200,L2200,YEL, 1 SNA
..2 BN69-03934A WRAP STRETCH FILM;All,HDPE,0.012,500,300 1.2 SNA
..2 BN69-04977A CUSHION-01,SET;B2330HD,EPS,16.7g/l 1 SNA
..2 BN81-02321A BAG-AIR;LIGHT FLEX PLASTIK,PE WHITE,L120 1 SNA
..2 HA83-00057B LP-TAPE-CELLULOSE;,HA02-030010,T0,046,W7 1.6 SNA
Page 8
5. Exploded View & Part List
Memo
5-8
Loading...
