Samsung LS19MEPSFV-XAA User Manual

SyncMaster 931C

Install drivers Install programs

Notation

Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Ground to prevent an electric shock

Powe

When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to active screen mode.

Do not use a damaged or loose plug.

This may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

This may cause electric shock or fire.

Use only a properly grounded plug and receptacle.

An improper ground may cause electric shock or equipment damage.

Insert the power plug firmly so that it does not come loose.

A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

This may cause electric shock or fire.

Do not connect too many extension cords or plugs to one outlet.

This may cause fire.

Do not disconnect the power cord while using the monitor.

A surge may be caused by the separation and may damage the monitor.

Do not use the power cord when the connector or plug is dusty.

If the connector or plug of the power cord is dusty, clean it with a dry cloth. Using the power cord with a dusty plug or connector may cause electric shock or

fire.

Installation

Be sure to contact an authorized Service Center when installing your set in a location

with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances, and where it will be operated for 24 hours continuously such as at airports, train stations etc.

Failure to do so may cause serious damage to your monitor.

Place your monitor in a location with low humidity and a minimum of dust.

Failure to do so may cause electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

This may cause damage to the product or the person carrying it.

Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.

Dropping the product may cause damage to the product or the person carrying it.

Do not place the product on an unstable or small surface area.

Place the product on an even and stable surface, as the product may fall and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

Take care, as someone, specifically children may trip over it.

Keep any flammable objects such as candles, insecticides or cigarettes away from the product.

Otherwise, this may cause fire.

Keep any heating devices away from the power cable.

A melted coating may cause electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

Any increase in the internal temperature may ca use fire .

Put down the monitor carefully.

Failing to do so may damage the monitor.

Do not place the monitor face down.

This may damage the TFT-LCD surface.

The installation of the bracket must be done by a qualified professional.

Installing the bracket by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.

Cleaning and Use

When installing the product, make sure to keep it away from the wall (more than 10 cm/4 inches) for ventilation purposes.

Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.

Keep the plastic packaging (bag) out of children's reach.

The plastic packaging (bag) may cause suffocation if children play with it.

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a

slightly moistened, soft fabric.

Do not spray water or detergent directly onto the monitor.

This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth.

A dirty connector may cause electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

Otherwise, this may cause electric shock or fire.

Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

Contact the SAMSUNG customer care center or Customer Center for interior cleaning once a year.

Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire.

Others

Do not remove the cover (or back).

This may cause electric shock or fire. Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - unplug it immediately and contact an authorized

dealer or the Service Center.

This may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

This may cause a malfunction, electric shock or fire. In particular avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center.

The monitor may malfunction, causing electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is not used for a long period of time.

Failure to do so may cause electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not move the monitor right or left by pulling only the wire or the signal cable.

This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not cover the vents on the monitor cabinet.

Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on the monitor.

This may cause malfunction, an electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the

Service Center.

Keep the product away from combustible chemical sprays or in flammable substances.

This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

This may cause electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc.

This may cause electric shock or fire. If an alien substances or water enters the product, turn the product off, unplug the power connector from the wall outlet and contact the Service Center.

When viewing a fixed screen for an extended period of time, residual image or blurriness may appear.

Change the mode to energy saving mode or set a screensaver to a changing picture when away from the monitor for an extended period of time.

djust the resolution and frequency to the level appropriate for the model.

An inappropriate resolution may cause undesirable picture quality. 19 inch (48 cm) - 1280 x 1024

Viewing the monitor continuously at a too close angle may result in damage to your eyesight.

To ease eye strain, take at least a five-minute break after every hour of using the monitor.

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

Dropping the product may cause damage to the product or the person carrying it. Using the product in a location prone to vibrations may shorten the lifetime of the product or may cause the product to catch fire.

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

Failure to disconnect a cable may damage it and cause fire or electric shock.

Place the product out of children's reach, as they could damage by hanging onto it.

A falling product may cause injury to the person or even fatality.

When not using the product for an extended period of time, keep the product unplugged.

Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, causing electric shock or fire.

Do not place your children's favorite toys or any other objects of interest on the product.

Children may try to climb on the product to retrieve an object. The product could fall, causing injury or even fatality.

When lifting up or moving the monitor, do not lift the monitor upside down while holding only the stand.

This may cause your monitor to fall, and become damaged or cause personal injury.

Good Postures When Using the Monito

Try to maintain a good posture when using the monitor.

z Keep your back straight.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

Keep a distance of about 45 ~ 50 cm between your eyes and the

monitor screen. Look at the s creen from slightly above it, and have the monitor directly in front of you. Tilt the monitor upwards by 10 ~20 degrees. Adjust the monitor

height so that the top of the monitor is slightly below eye level. Adjust the monitor angle so that there is no reflected light on the

screen.Try to maintain your arms perpendicular to your armpits. Keep your arms level with the back of your hands.

Keep the angle of the elbow perpendicular.

z Keep the angle of the knees at more than 90 degree. Do not let your

feet fall up from the floor. Adjust the arm position so that it is below the heart.

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase con tract. This product should not be mixed with other commercial wastes for disposal.

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have an image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate a correct usage of LCD products in order to protect them from Image retention.

Warrant

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

What is Image retention ?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD,are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode

Ex)

z Turn the power off when using a stationary pattern.

- Turn the power off for 4 hours after 20 hours in use

- Turn the power off for 2 hours after 12 hours in use

z Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

z Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

void using a combination of characters and background color with large

difference in luminance.

void using Grey colors, which can cause Image retention easily.

z Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

z Recommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes Ex)

- Every 30 minutes, change the characters with movement.

Ex)

The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed. To prevent this, the accumulated voltage difference must be decreased.

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Features

RTA Monito

RTA (Response Time Accelerator) A function that accelerates the response speed of the panel so as to provide a sharper and more

natural video display.

RTA On Activates the RTA function so that the panel operates at a higher response speed than

its original speed.

RTA OFF Deactivates the RTA function so that the panel operates at its original response speed.

If you turn the power off and on again after switching RTA off, the RTA function is automatically switched On (Factory Setting)

Package Contents

Please make sure the following items are included with your monitor.

Unpackin

Without Stand

With Stand

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Monitor

Manual

Monitor & Simple stand

Quick Setup Guide

Cable

Power Cord D-sub Cable

Sold separatel

DVI Cable

Warranty Card

(Not available in all

locations)

User's Guide, Monitor Driver,

Natural Color software, MagicTune™ software,

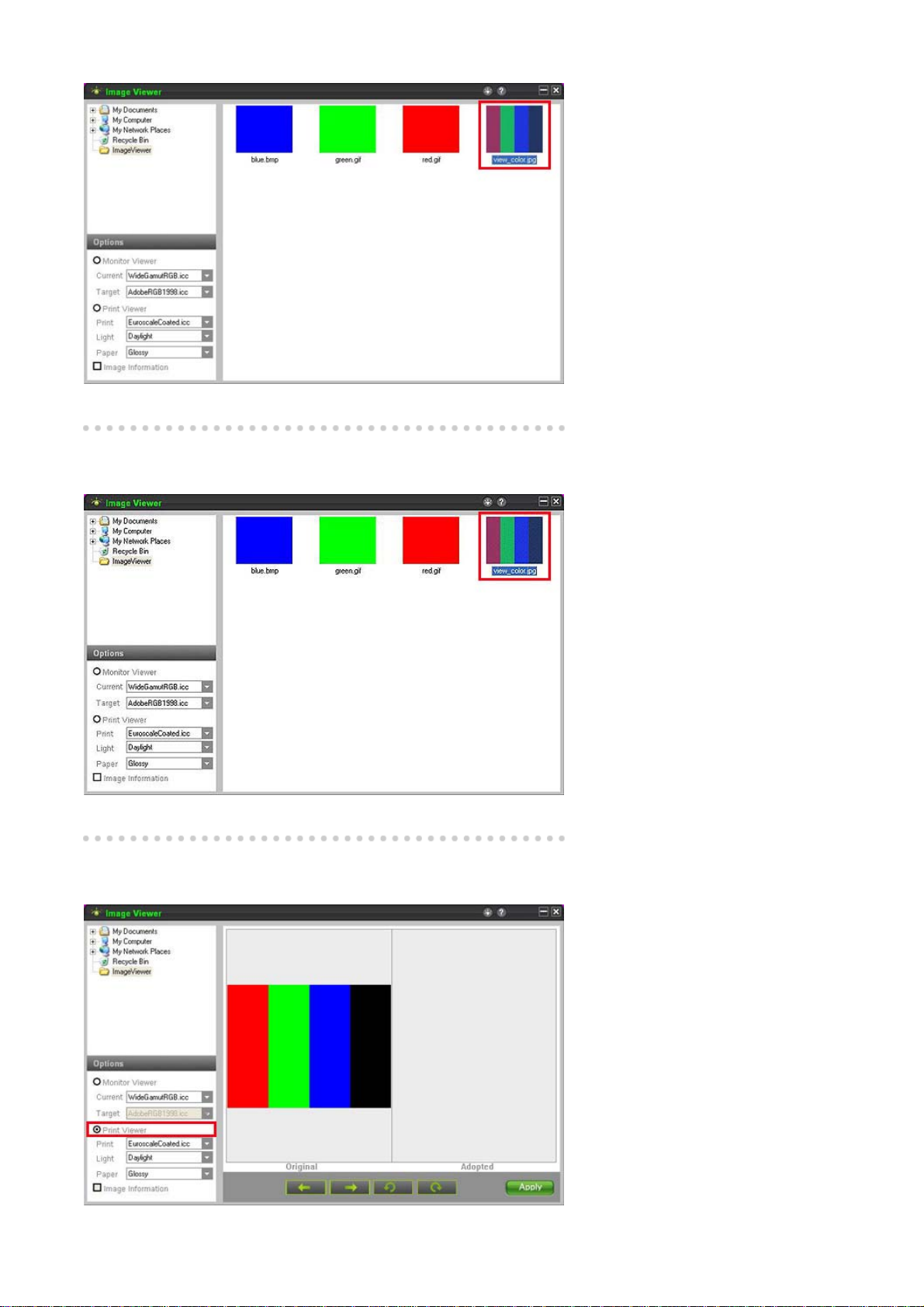

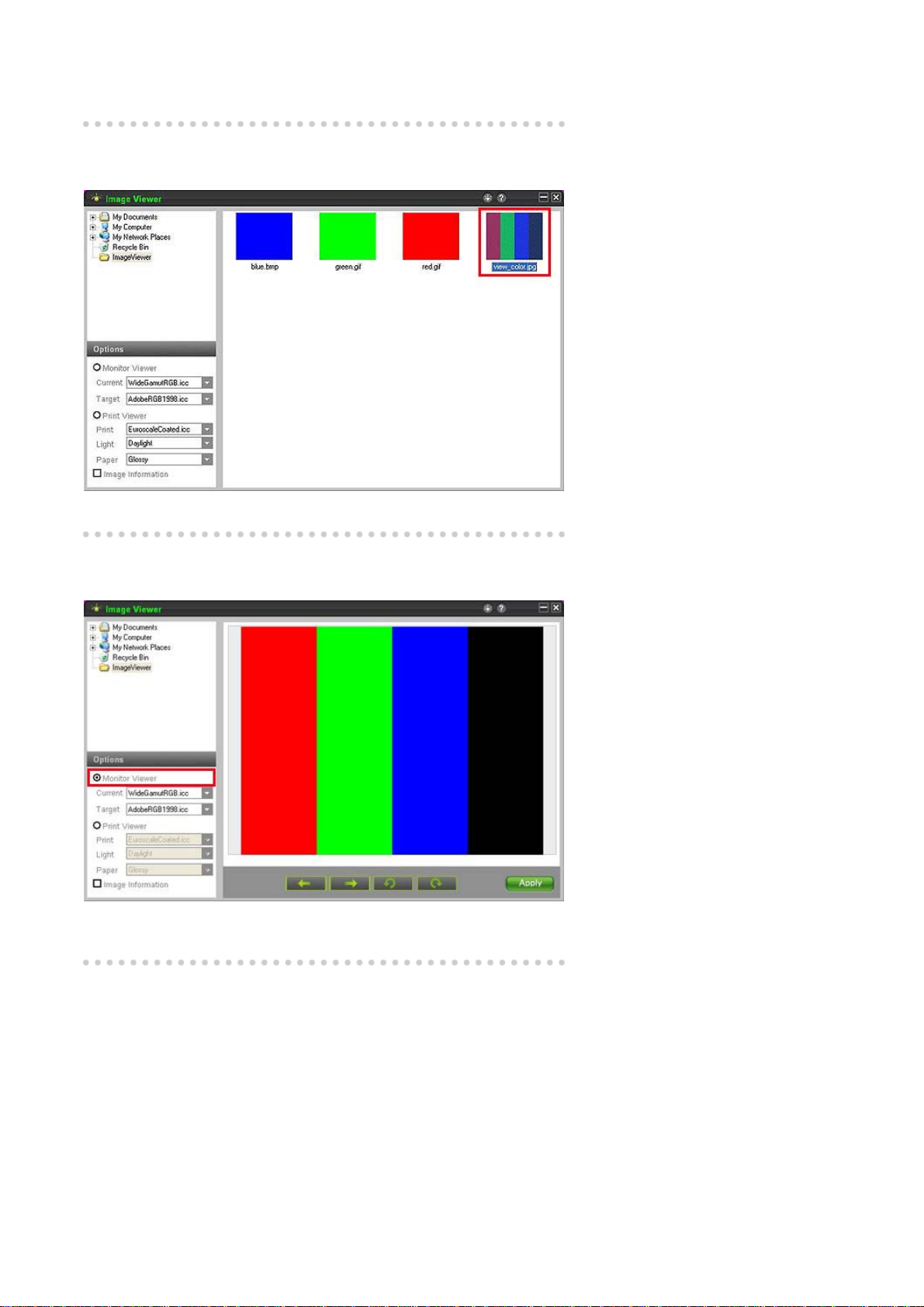

ImageViewer

our Monito

Front

MENU button [ ]

MagicBright™ button []

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

MagicBright™ is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently seven different modes are availabl e: Custo m, Text, Internet, Game, Sport and Movie, Dynamic Contrast. Each mode has its own pre-configured brightness value. You can easily select one of seven settings by simply pressing MagicBright™ control button.

1) Custom Although the values are carefully chosen by our engineers, the

pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Text For documentations or works involving heavy text.

3) Internet For working with a mixture of images such as text and graphics.

4) Game For watching motion pictures such as a game.

5) Sport For watching motion pictures such as a sport.

6) Movie For watching motion pictures such as a DVD or Video CD.

7) Dynamic Contrast

Dynamic Contrast is to automatically detect distribution of inputted

visual signal and adjust to create optimum contrast.

>> Click here to see an animation clip

Brightness button [ ] When OSD is not on the screen, push the button to adjust bright ness.

Adjust buttons [ ] Adjust items in the menu. Enter button [ ] /

SOURCE button

AUTO button Use this button for auto adjustment.

Power button [ ] Use this button for turn the monitor on and off. Power indicator

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Rea

>> Click here to see an animation clip

Activates a highlighted menu item. / Push the 'SOURCE', then selects the video signal while the OSD is off. (When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.)

If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable.

>> Click here to see an animation clip

This light glows blue during normal operation, and blinking blue once as the monitor saves your adjustments.

The configuration at the back of the monitor may vary from product to product.

POWER port Connect the power cord for your monitor to the power port on the back of the

monitor.

DVI IN port Connect the DVI Cable to the DVI port on the back of your monitor. RGB IN port Connect the signal cable to the 15-pin, D-sub port on the back of your

monitor.

Kensington Lock The Kensington lock is a device used to physically fix the system when using

it in a public place.

The locking device has to be purchased separately. For using a locking device, contact where you purchase it.

See Connecting Cables for further information regarding cable connections.

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

- Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

Using the DVI (Digital) connector on the video card.

- Connect the DVI Cable to the DVI Port on the back of your Monitor.

Connected to a Macintosh.

-Connect the monitor to the Macintosh computer using the D-sub connection cable.

If the monitor and the computer are connected, you can turn them on and use them.

[RGB IN]

[DVI IN (HDCP)]

Using the Stand

Monitor Assembl

Monitor and Bottom

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

A. Monitor B. Mounting interface pad (Sold separately)

Turn off your monitor and unplug its power cord. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen. Remove three screws and then remove the stand from the LCD monitor. Align the mounting interface pad with the holes in the rear cover mounting Pad and

secure it with four screws that came with the arm-type base, wall mount hanger or other base.

Monitor Driver

)

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this

monitor. Driver installation is slightly different from one operating system to another. Follow the

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Installing the Monitor Driver (Automatic

Insert CD into the CD-ROM drive. Click

"Windows"

Choose your monitor model in the model list, then click the "OK" button.

directions appropriate for the operating system you have.

Internet web site :http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn

(China)

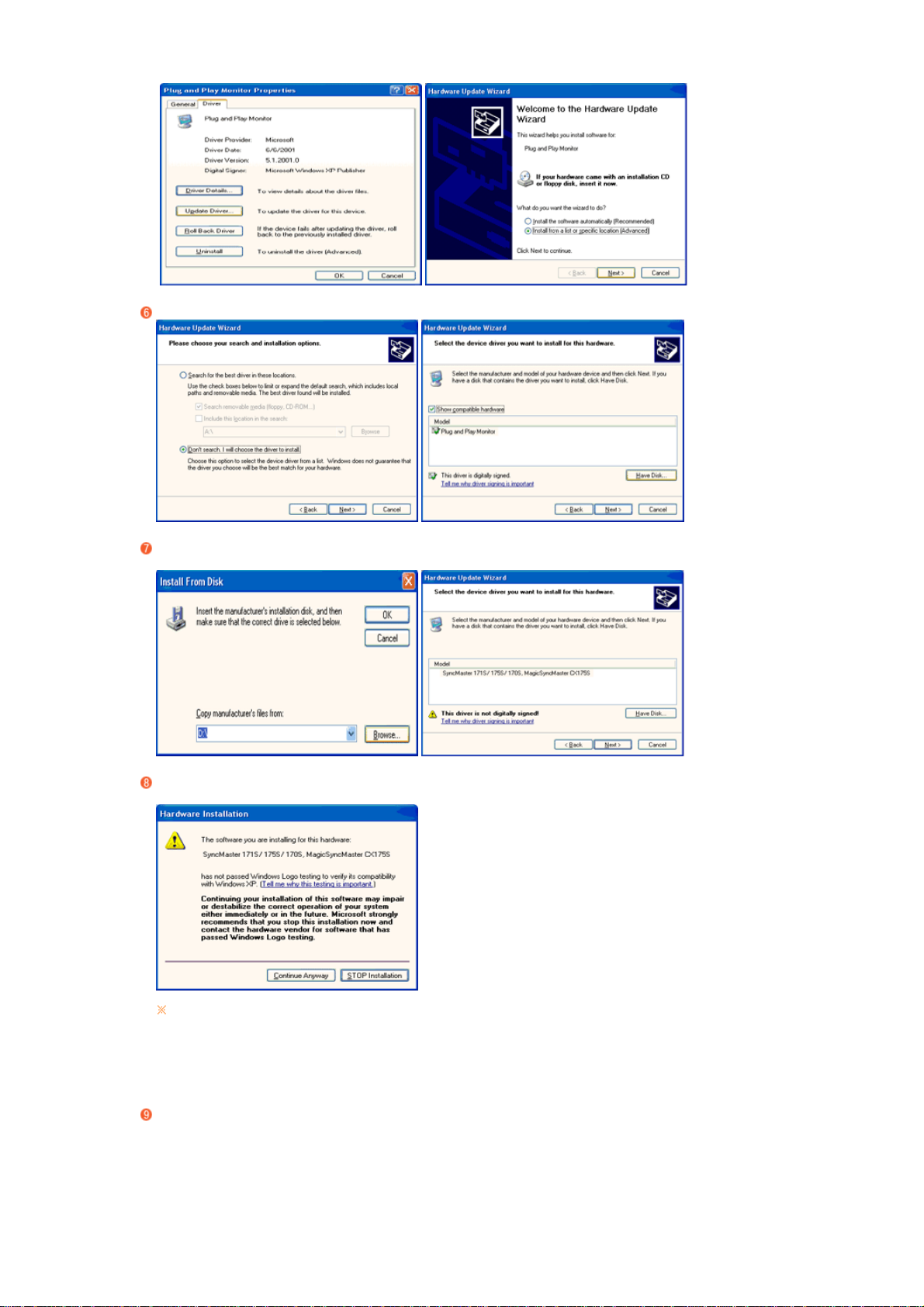

If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button (Microsoft

Windows® XP/2000 Operating System).

+ 43 hidden pages
