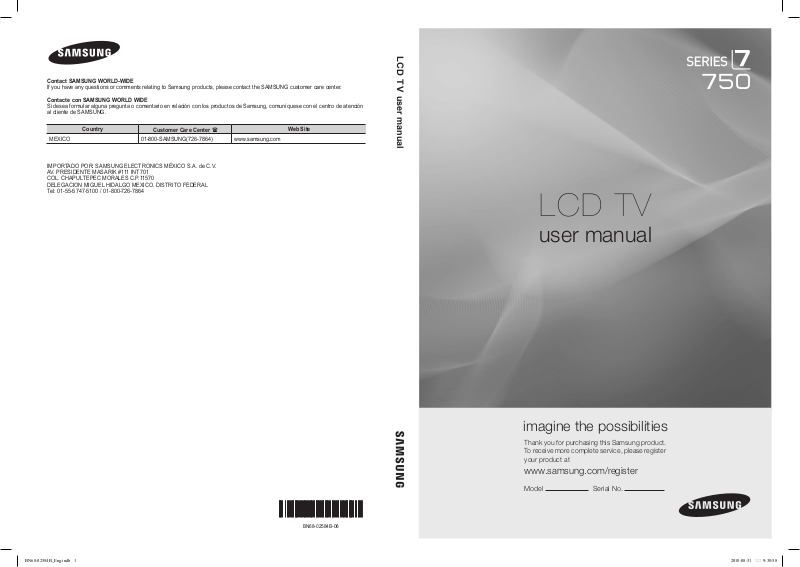

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Contacte con SAMSUNG WORLD WIDE
Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención
al cliente de SAMSUNG.
LCD TV
user manual
Country
MEXICO01-800-SAMSUNG(726-7864)www.samsung.com
IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.
AV. PRESIDENTE MASARIK #111 INT701
COL. CHAPULTEPEC MORALES C.P.11570
DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL
Tel: 01-55-5747-5100 / 01-800-726-7864
Customer Care Center
Web Site
LCD TV
user manual
BN68-02584B-06
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model Serial No.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock
or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image
quality. To reduce risk of this effect, please follow below recommendations:
Avoid displaying the same TV channel for long periods.•
Always try to display any image on full screen, use TV set picture format menu for best possible match.•
Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout •
process.
Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
When using a stand or wall-mount, use parts provided by Samsung Electronics only.
✎
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
x
The appearance may differ depending on the product.
✎
Be careful when you contact the TV because some parts can be somewhat hot.
✎
Installation with a stand.Installation with a wall-mount.
List of Features y ......................................................... 4
Accessories y .............................................................. 4
Installing the LCD TV Stand y ...................................... 4
Viewing the Control Panel y ......................................... 5
Viewing the Remote Control y ......................................6
Connecting to an Antenna y ........................................ 7
Plug & Play (Initial Setup) y ........................................... 7
Connections

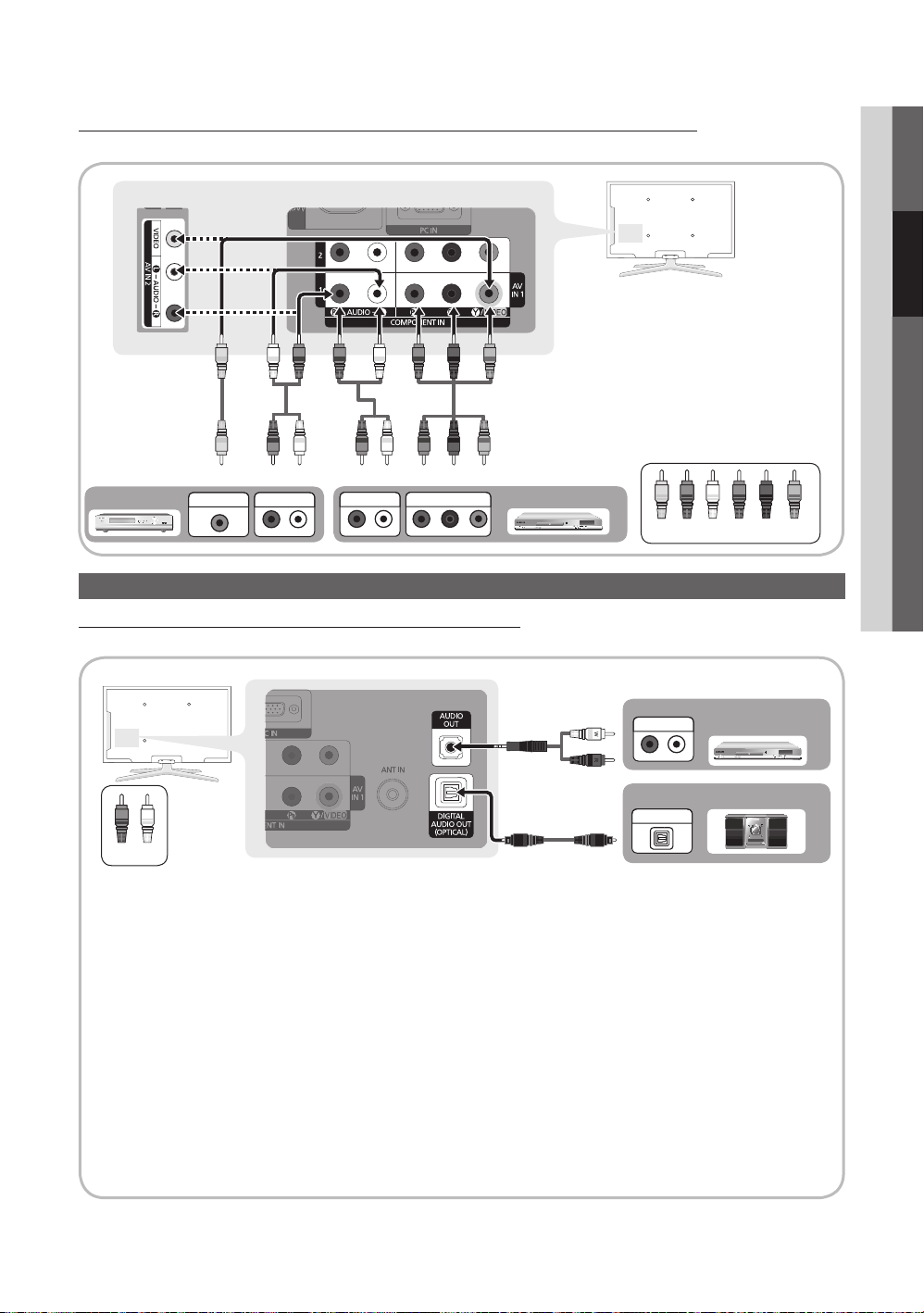

Connecting to an AV Device y ...................................... 8

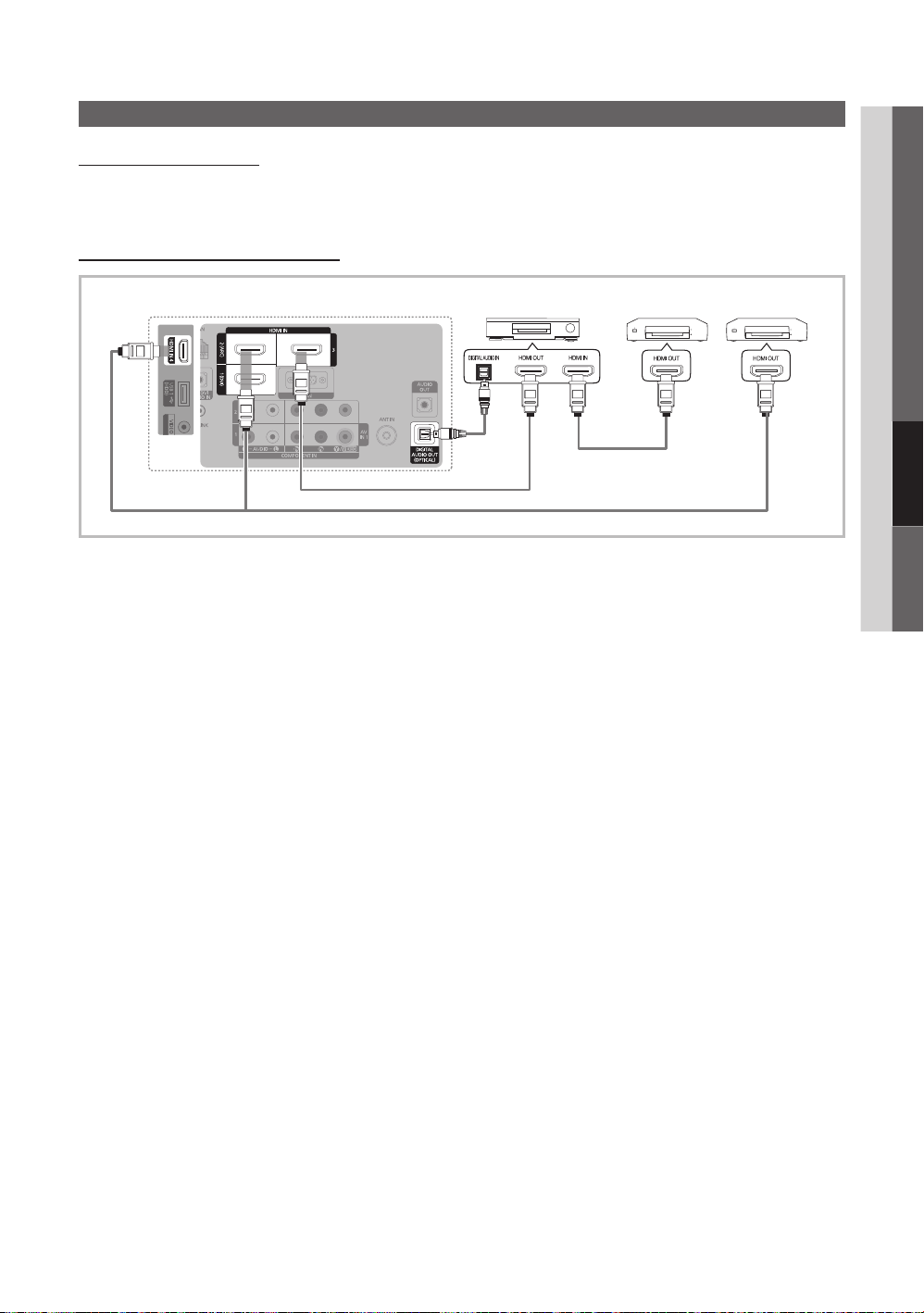

Connecting to an Audio Device y ................................. 9

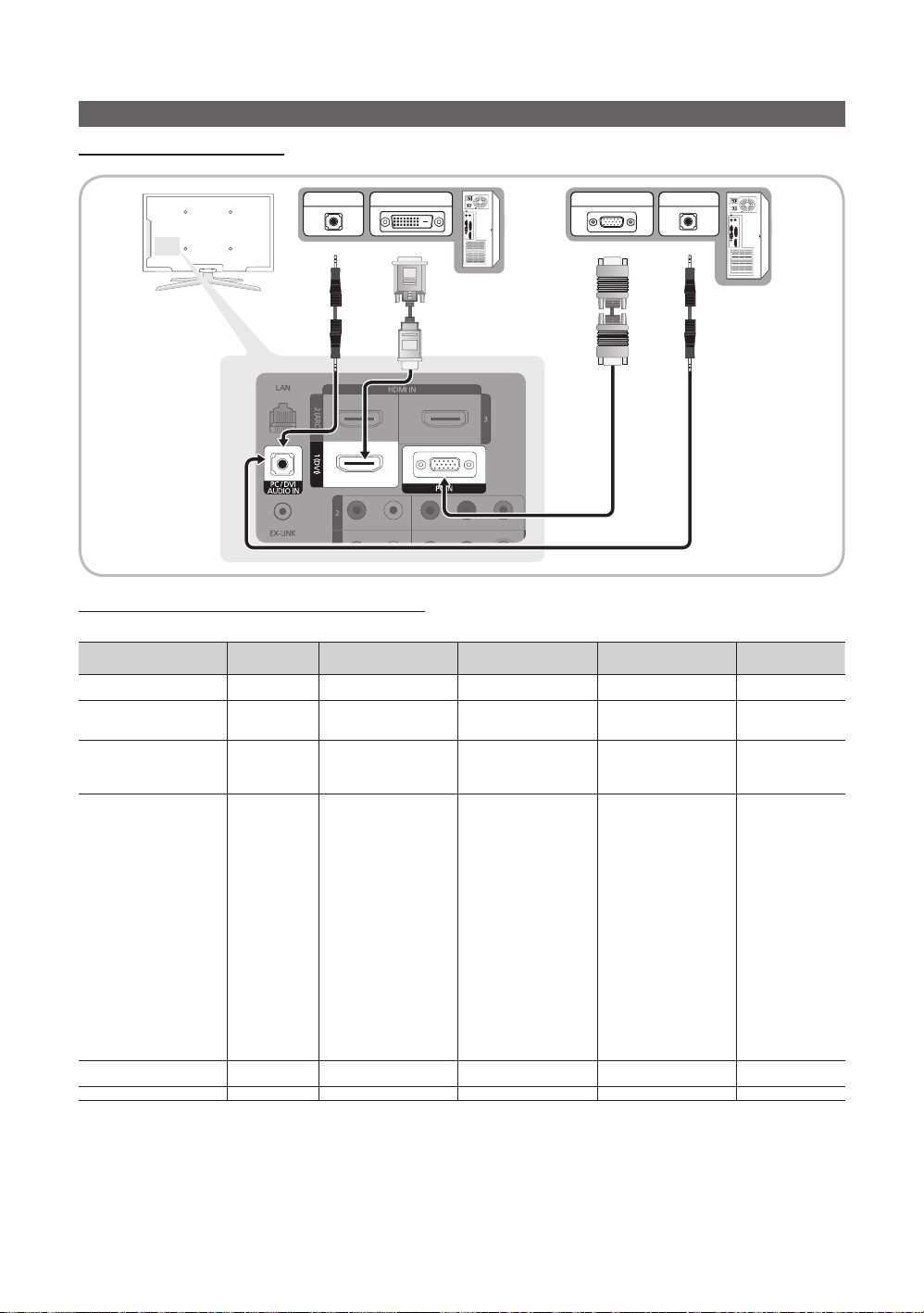

Connecting to a PC y ................................................10

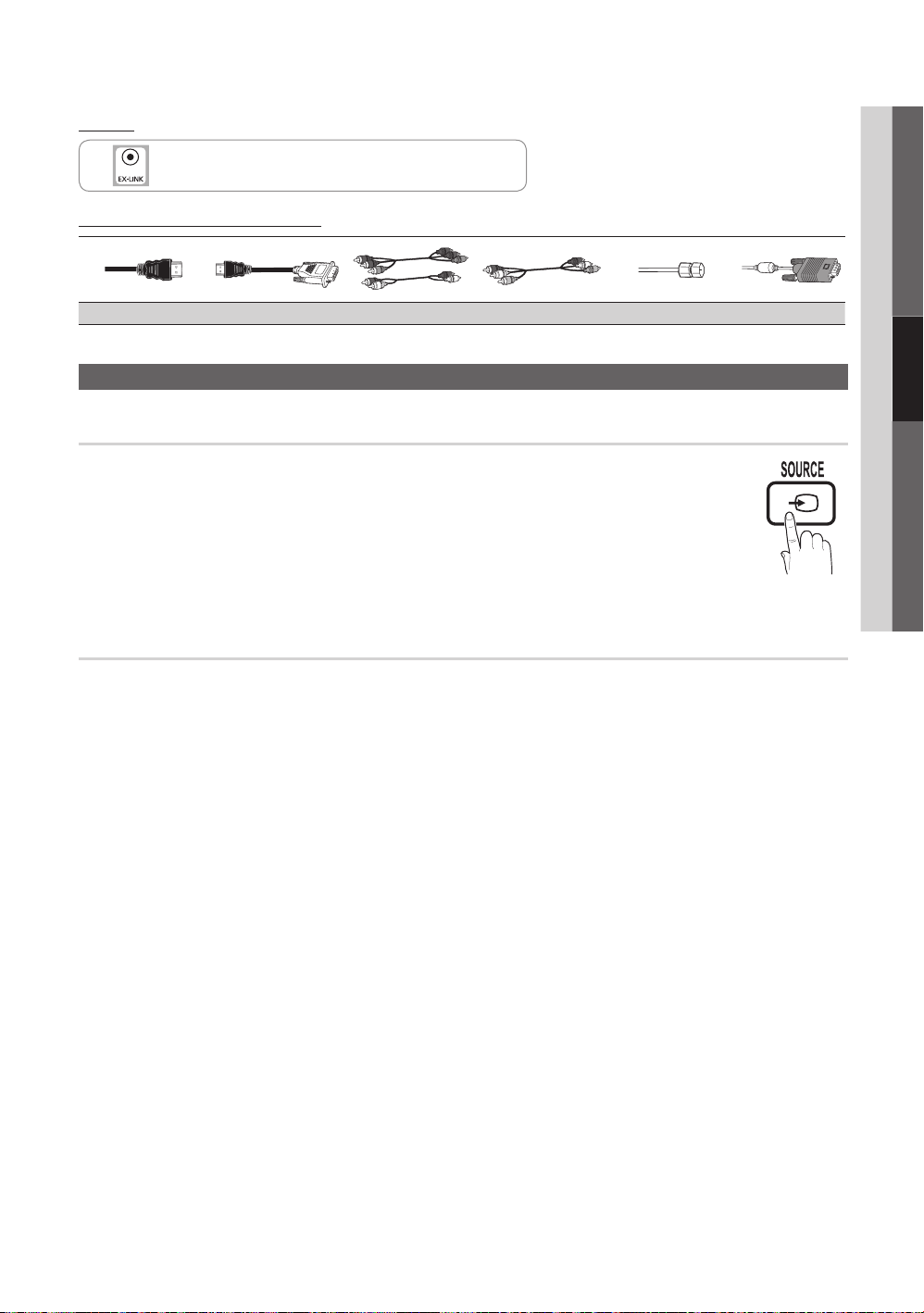

Changing the Input source y ...................................... 11
Basic Features
How to Navigate Menus y .......................................... 12
Channel Menu y ........................................................ 12
Seeing Channels 12
Using Favorite Channels 13
Memorizing channels 13
Editing channels 13
Other Features 13
Picture Menu y .......................................................... 14
Changing the Preset Picture Mode 14
Adjusting picture settings 15
Economical Solutions 15
Setting up the TV with your PC 15
Changing the Picture Options 16

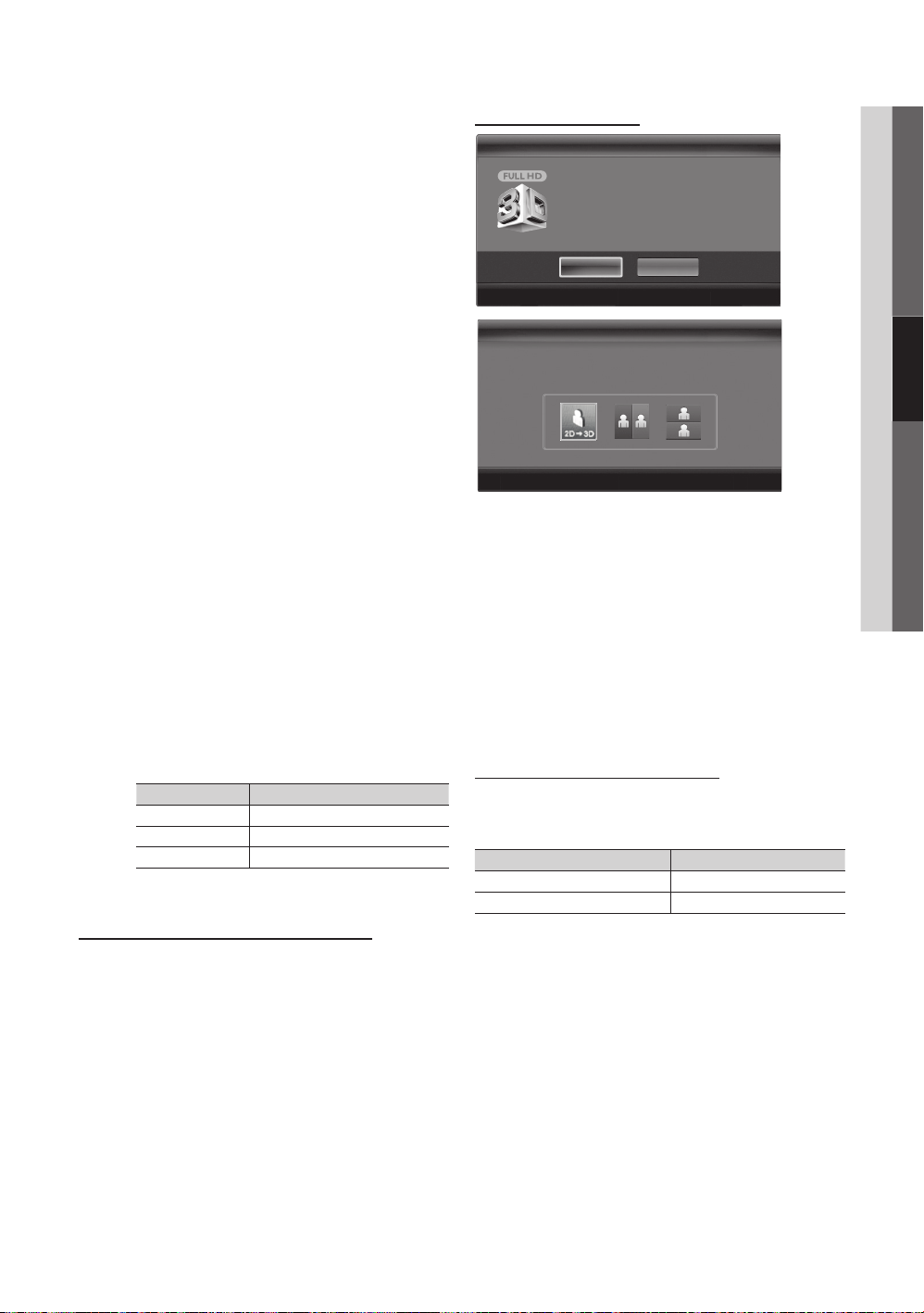

Viewing TV using the 3D function 18
Sound Menu y .......................................................... 20
Setup Menu y ............................................................ 21
Setting the Time 21
Using the Sleep Timer 22
Setting the On/Off Timer 22
Locking Programs 22
Other Features 24
Picture In Picture (PIP) 25
Support Menu y ......................................................... 25
Advanced Features
Network Connection y ............................................... 27
Connecting to a Wired Network 27
Connecting to a Wireless Network 29

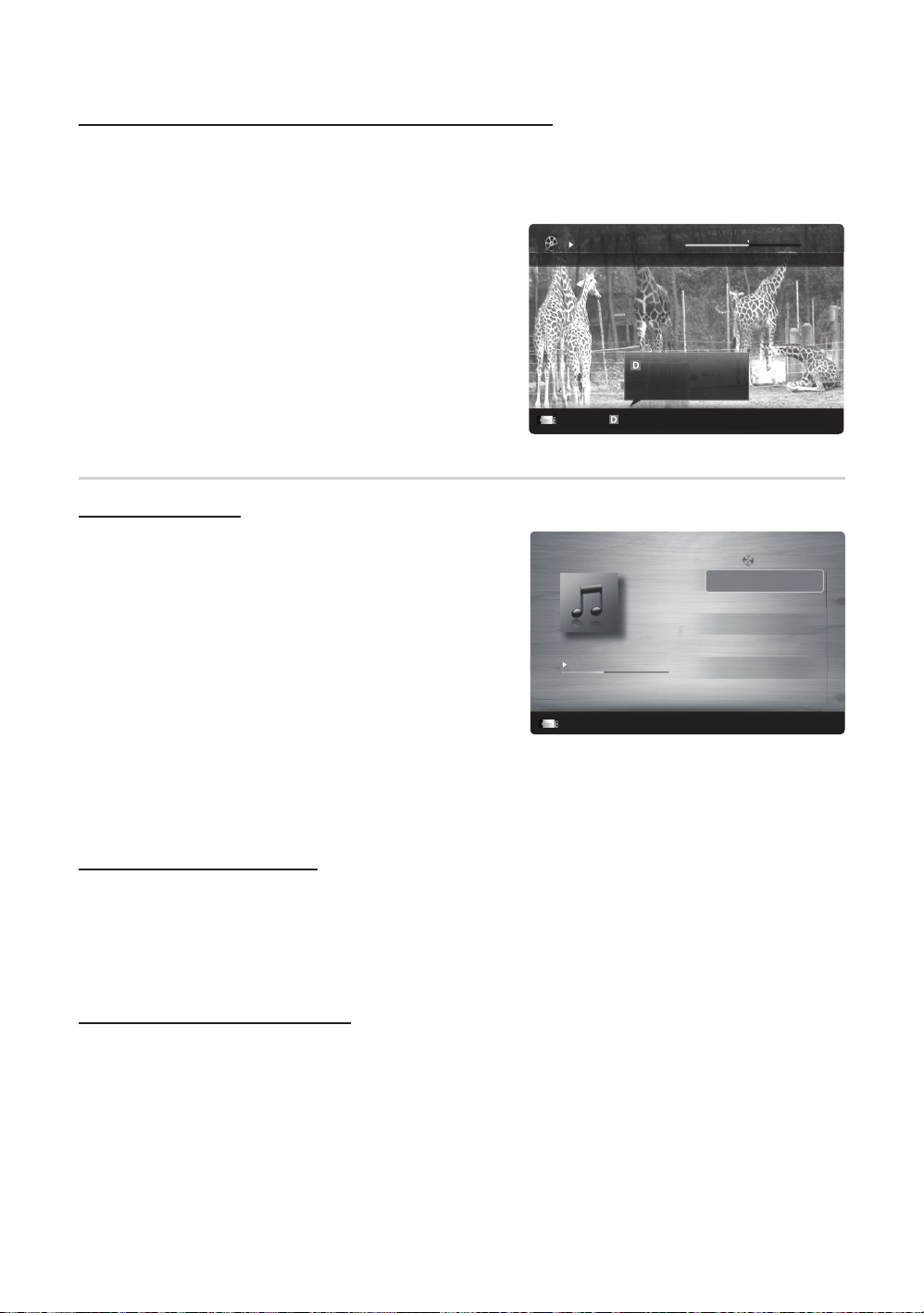

Media Play y .............................................................. 34

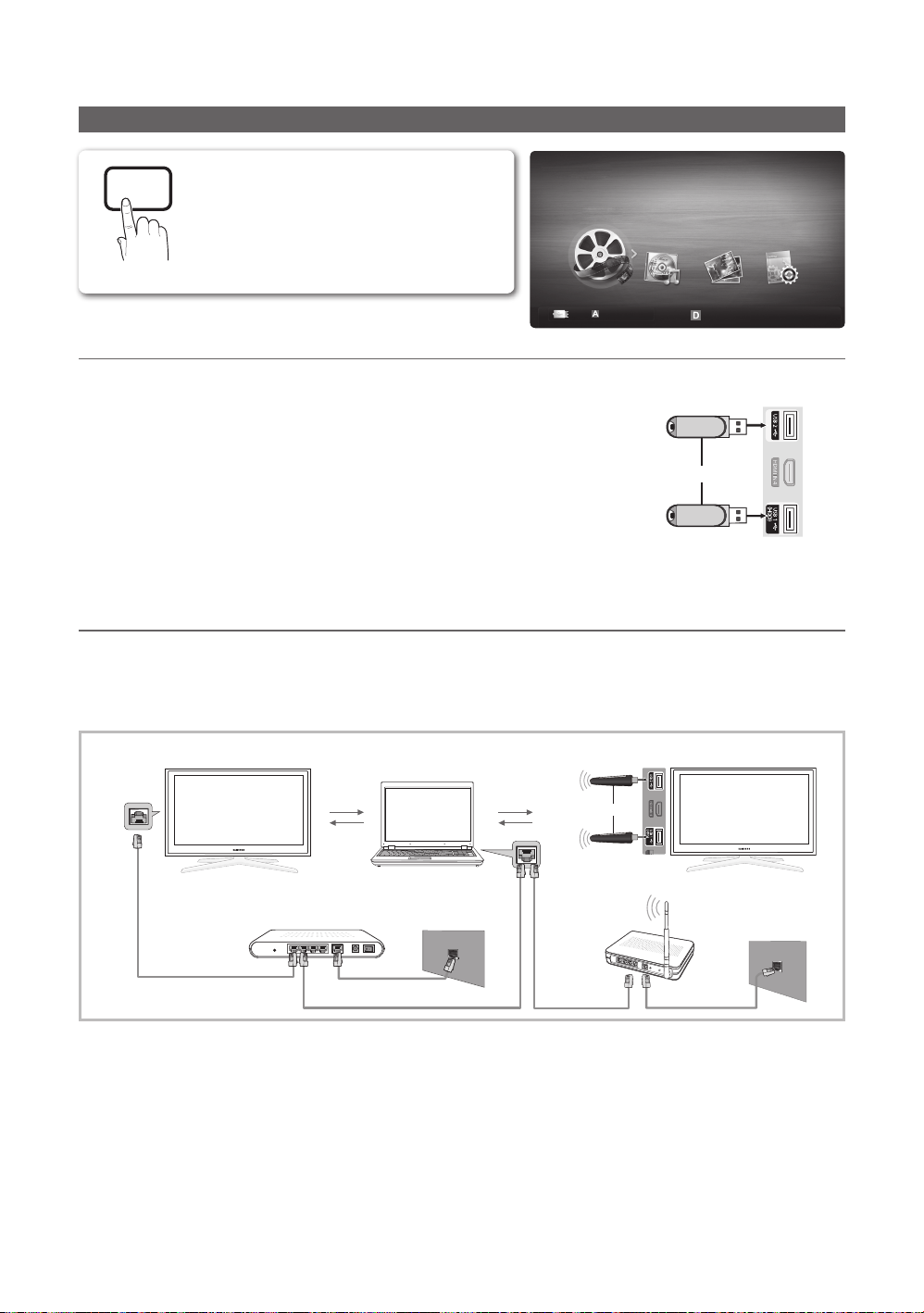

Connecting a USB Device 34
Connecting to the PC through network 34
Screen Display 36
Playing Multiple Files 39
Media Play - Additional Functions 39
Anynet+ y ................................................................. 41
Setting Up Anynet+ 42
Switching between Anynet+ Devices 42
Recording 42
Listening through a Receiver 43
Troubleshooting for Anynet+ 43
Internet@TV y ............................................................ 44
Getting Started with Internet@TV 44
Setting up Internet@TV 45
Using the Internet@TV service 47
Troubleshooting for Internet@TV 50
AllShare y ..................................................................51
About AllShare 51
Setting Up AllShare 51
Other Information

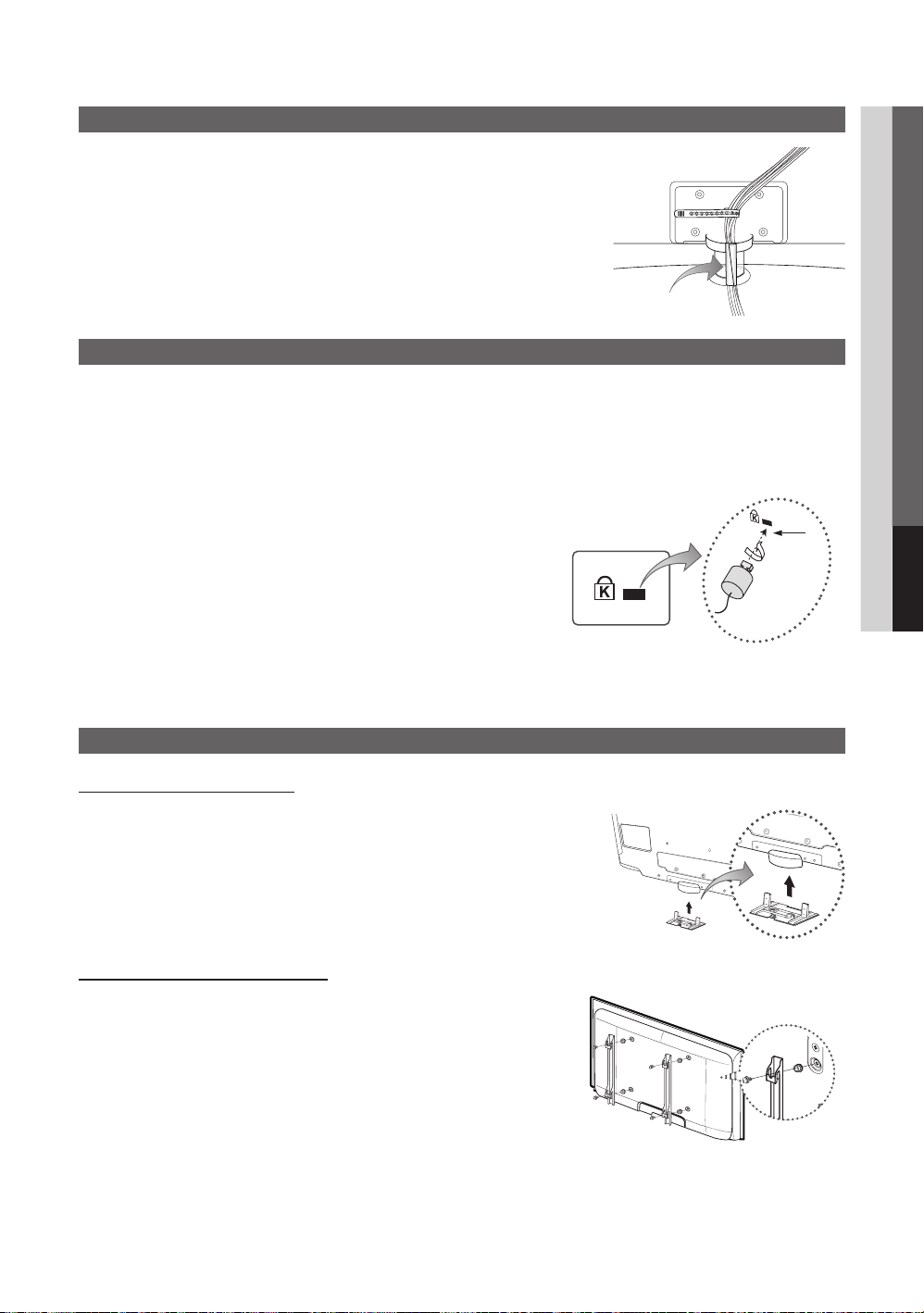

Assembling the Cables y ........................................... 53
Anti-theft Kensington Lock y ...................................... 53

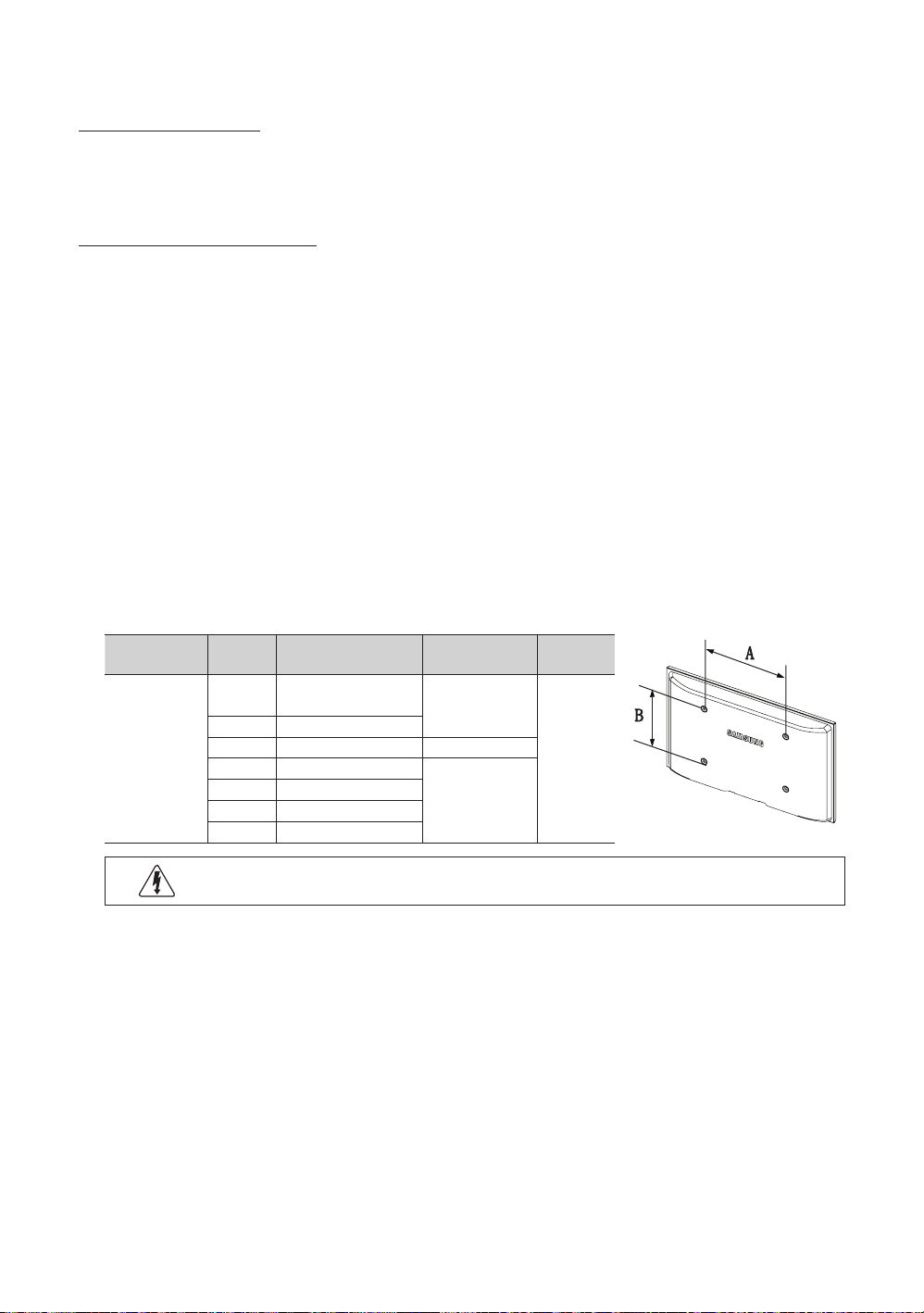

Installing the Wall Mount y ......................................... 53
Securing the TV to the Wall y ..................................... 55
Troubleshooting y ...................................................... 56

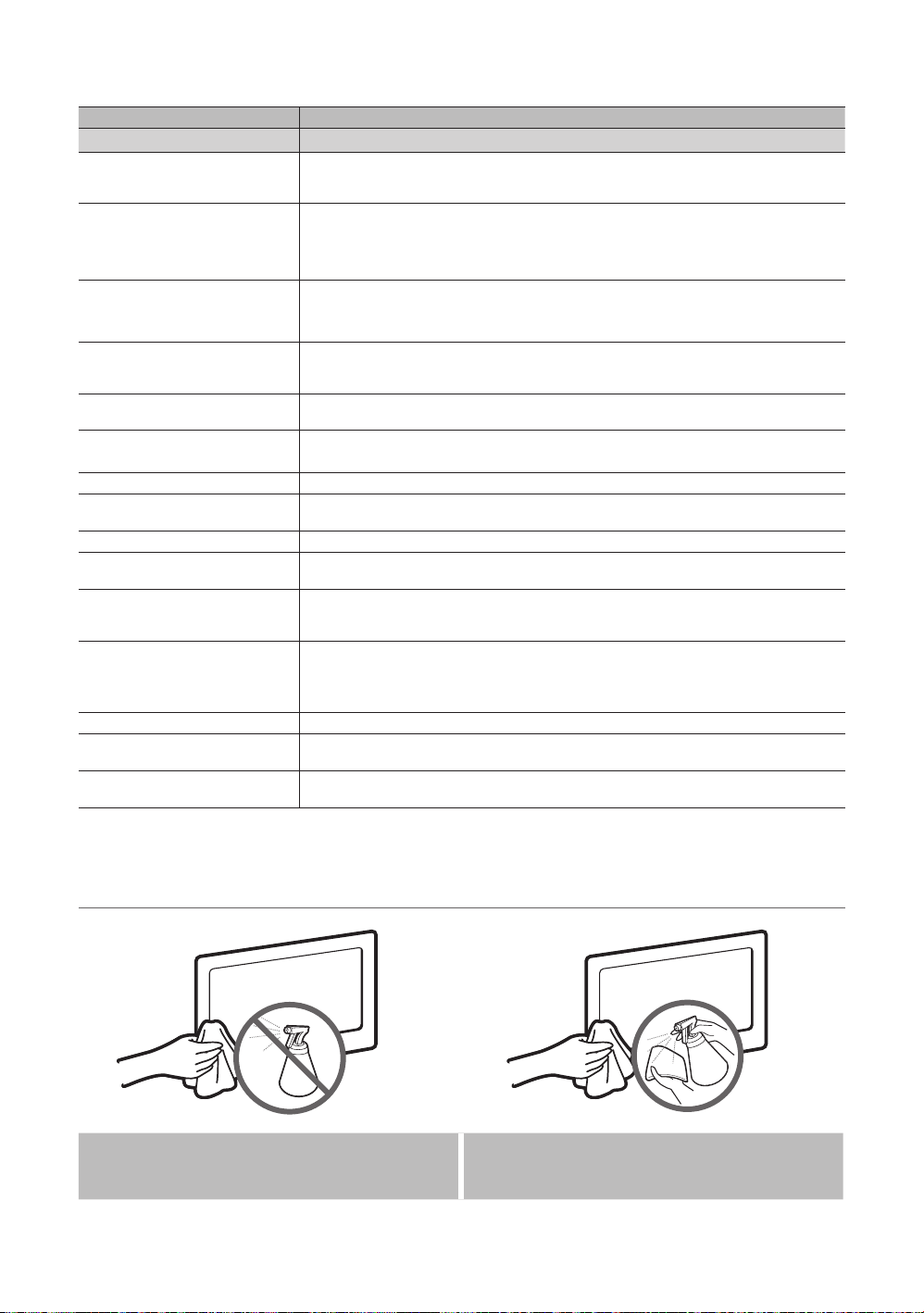

Storage and Maintenance 58
Specifications y ......................................................... 59
License 59
Index y ...................................................................... 60
ENGLSH
Check the Symbol!
t
This function can be used by pressing the
TOOLS button on the remote control.
✎
Note :
Important information
O
Step by step guide :
Informs you how to access
the menu.
English
3
Getting Started
List of Features
Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed y
without a cable box / STB (Set-Top-Box) satellite receiver.
Media Play y: Allows you to play music files, pictures, and movies saved on a USB or your PC. (P. 34)
Internet@TV y: You can use various Internet services and view useful information and entertaining content. (P. 44)
AllShare y: AllShare connects your TV and compatible Samsung mobile phones/devices through a network. (P. 51)
Self Diagnosis y: You can check picture and sound operation. (P. 26)
Accessories
Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
✎
The items' colors and shapes may vary depending on the models.
✎
Remote Control & Batteries (AAA x 2) y
Owner’s Instructions y
Warranty Card / Safety Guide / Quick Setup Guide y
Blanking Bracket yCable Tie yHolder-Ring (4ea) y

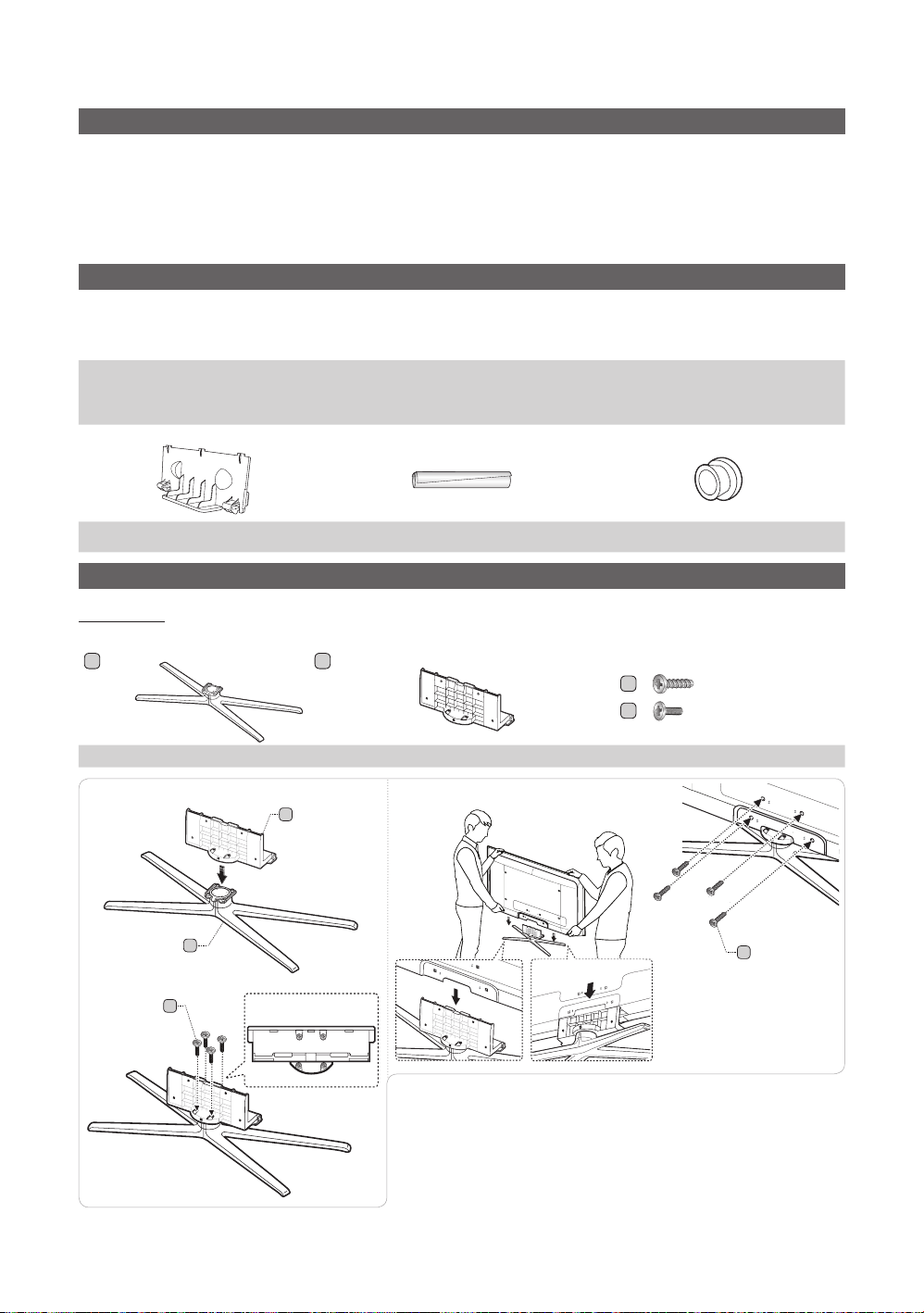

Installing the LCD TV Stand
Components
When installing the stand, use the provided components and parts.
AB
1 EA1 EA
StandGuide Stand Screws
Cleaning Cloth y
Power Cord y
C
D
4EA (M4 X L12)
4EA (M4 X L8)
4
1
English
D
4EA
B
A
Top View
Front
Rear
2
Bottom View
Make sure to distinguish between the front and back of the Stand
✎
and Guide Stand when assembling them.
Make sure that at least two persons lift and move the LCD TV.
✎
Stand the product up and fasten the screws. If you fasten the
✎
screws with the LCD TV placed down, it may lean to one side.
3
C
4EA
Viewing the Control Panel
The product color and shape may vary depending on the model.
✎
Speakers
01 Getting Started
Power IndicatorRemote control sensor
P
(Power)
Remote control sensorAim the remote control towards this spot on the TV.
SOURCE
MENUDisplays an on-screen menu, the OSD (on screen display), of your TV’s features.
y
z
Power IndicatorBlinks and turns off when the power is on and lights up in standby mode.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
E
Turns the TV on or off.
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTERE button on the remote control.
Adjusts the volume. In the OSD, use the
◄ and ► buttons on the remote control.
Changes the channels. In the OSD, use the
▼ and ▲ buttons on the remote control.
y
z
buttons as you would use the
buttons as you would use the
English
5
PRE-CH
CH
VOL
MENU
MUTE
@
TV
RETURN
CH LIST
EXIT
ABCD
CONTENTINTERNET
FA V. CH
MEDIA.P
CC
Y A HOO!
P . SIZE
TOOLS
INFO
Getting Started
Viewing the Remote Control
This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel,
✎
Volume buttons.
Turns the TV on and off.
Displays and selects the available video
Press to directly access channels.
Press to select additional channels (digital)
being broadcast by the same station. For
example, to select channel ‘54-3’, press
Displays the channel list on the screen. (P. 12)
Quickly select frequently used functions.
Use these buttons in Media Play and
‘54’, then press ‘-’ and ‘3’.
Adjusts the volume.
Displays the Content View, which
includes Channel List, Internet@TV,
Media Play, AllShare and 3D.
Returns to the previous menu.
(: controls recording on Samsung
recorders with the Anynet+ feature)
sources. (P. 11)
Anynet+ modes.
Turns the remote control light on and off.
When on, the buttons become illuminated for a
moment when pressed.
(Using the remote control with this button set to
off will reduce the battery usage time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the main on-screen menu.
Link to various Internet services. (P. 44)
Press to display information on the TV screen.
(P. 21)
Selects the on-screen menu items and
changes the values seen on the menu.
Exits the menu.
Buttons used in the Channel list,
Internet@TV, Media Play menu, etc.
MEDIA.P: Views Media Play. (P. 34)
YAHOO!: Runs Yahoo widget! (P. 48)
3D( ): Sets the 3D mode. (P. 18)
FAV.CH: Displays Favorite Channel Lists on the
screen. (P. 13)
P.SIZE: Choose the picture size. (P. 17)
CC: Controls the caption decoder. (P. 24)
Installing batteries (Battery size: AAA)
English
6
NOTE
✎
Use the remote control within 23 feet from the TV.
x
Bright light may affect the performance of the remote
x
control. Avoid use when nearby fluorescent lights or neon
signs.
The color and shape may vary depending on the model.
x
Connecting to an Antenna
P
POWER
INFO
CH LIST
When the TV is initially powered on, basic settings proceed automatically.
Connecting the mains and antenna.
✎
01 Getting Started
VHF/UHF Antenna
or
Power Input
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWERP button. Plug & Play is available only when the Input source is set to TV.
To return to the previous step, press the red button.
✎
Selecting a language
1
Selecting Store Demo
2
or Home Use
Selecting an antenna
3
Selecting a channelThe channel search will start automatically.
4
Setting the Clock
5
Mode
Viewing the HD
6
Connection Guide
Enjoy your TV.
Press the ▲ or ▼ button, then press the ENTERE button.
Select the desired OSD (On Screen Display) language.
Press the ◄ or ► button, then press the ENTERE button.
Select the yHome Use mode. Store Demo Mode is for retail
environments.
To return the unit’s settings from yStore Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume in the OSD, press and hold MENU for 5 sec.
Press the ▲ or ▼ button, then press the ENTERE button. Select Air, Cable or Auto.
In ✎Cable mode, you can select the correct signal source among STD, HRC, and IRC
by pressing the ▲, ▼, ◄ or ► button, then press the ENTERE button.
For more information, refer to Channel→Auto Program. (P. 13)
Press the ✎ENTERE button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
If you select the ✎Auto, set the daylight saving time.
Select the time zone which you live.
The connection method for the best HD screen quality is displayed.
Press the ENTERE button.
Cable
ANT OUT
7
If You Want to Reset This Feature...
MENU
Om
→Setup→Plug & Play→ENTER
E
Setup
Plug & Play
Time
Menu Language : English
Caption : Off
Security
Network
General
PIP : Off
English
7
R-AUDIO-L
P
RPBY
WW
BGRR
ConnectionsConnections
Connecting to an AV Device
Using an HDMI / DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB).
BD/DVD player/
HD cable/Sat. box
Red White
HDMI IN 1(DVI) ✎, 2(ARC), 3, 4 / PC/DVI AUDIO IN
For better picture and audio quality, connect to a digital device using an HDMI cable.
x
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
x
To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables. –
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
x
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
x
oc cur.
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the
x
ethernet function via HDMI.
This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the
x
ARC function is supported by the HDMI IN 2(ARC) port only.
If –3D Auto View is set to On, some functions such as Internet@TV may be disabled. In this case,
set 3D Auto View or 3D Mode to Off.
The ARC function allows digital audio to output via the xHDMI IN 2(ARC) port. It can be enabled only when the
TV is connected with an audio receiver that supports the ARC function.
HDMI OUT
Device
DVI OUT
AUDIO OUT
8
English
Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)
P
RPBY
R-AUDIO-L
P
RPBY
WY
WY
BGR
W
W
B
G
R
R
R
R
R
R-AUDIO-L
P
RPBY
WW
BGRRWY
R-AUDIO-L
P
RPBY
WW
BGRR
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎
02 Connections
When connecting to ✎AV IN 1, the
color of the AV IN 1 [Y/VIDEO] jack
(Green) does not match the color of
the video cable (Yellow).
For better picture quality, the
Component connection is
recommended over the A/V
connection.
VCR
VIDEO OUT
AUDIO OUT
AUDIO OUT
COMPONENT OUT
Connecting to an Audio Device
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, Home Theater
Red White
DIGITAL AUDIO OUT (OPTICAL)
✎
When a Digital Audio System is connected to the xDIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
x
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
AUDIO OUT ✎: Connects to the audio input jacks on your amplifier/home theater.
When connecting, use the appropriate connector (sold separately).
x
When an audio amplifier is connected to the xAUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier’s volume control.
Blu-ray player
Yellow Red White Red Blue Green
AUDIO IN
DVD
Home Theater
Digital audio system
OPTICAL
English
9
Connections
Using an HDMI/DVI Cable / a D-sub Cable
Connecting to a PC
AUDIO OUT
DVI OUT
PC OUT
AUDIO OUT
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920X1080@60Hz.
ModeResolutionHorizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM
MAC
VESA CVT
VESA DMT
VESA GTF
VESA DMT / DTV CEA 1920 x 1080p67,500 60,000148,500 +/+
NOTE
✎✎
640 x 35031,46970,08625,175+/720 x 40031,46970,08728,322-/+
640 x 48035,00066,66730,240-/832 x 62449,72674,55157,284-/-
1152 x 87068,68175,062100,000-/-
720 x 57635,91059,95032,750-/+
1152 x 86453,78359,95981,750-/+
1280 x 72056,45674,77795,750-/+
1280 x 96075,23174,857130,000-/+
640 x 48031,469 59,94025,175 -/-
640 x 48037,86172,80931,500-/-
640 x 48037,50075,00031,500-/-
800 x 60037,87960,31740,000+/+
800 x 60048,07772,18850,000+/+
800 x 60046,87575,00049,500+/+
1024 x 76848,36360,00465,000-/1024 x 76856,47670,06975,000-/1024 x 76860,02375,02978,750+/+
1152 x 86467,50075,000108,000+/+
1280 x 102463,98160,020108,000+/+
1280 x 102479,97675,025135,000+/+
1280 x 80049,70259,81083,500-/+
1280 x 80062,79574,934106,500-/+
1280 x 96060,00060,000108,000+/+
1280 x 72045,00060,00074,250+/+
1360 x 76847,71260,01585,500+/+
1440 x 90055,93559,887106,500-/+
1440 x 90070,63574,984136,750-/+
1680 x 105065,29059,954146,250-/+
1280 x 720 52,500 70,00089,040-/+
1280 x 102474,62070,000128,943-/-
For HDMI/DVI cable connection, you must use the xHDMI IN 1(DVI) jack.
The interlace mode is not supported.
x
The set might operate abnormally if a non-standard video format is selected.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
You can only choose external devices that are connected to the TV. In the ✎Source List,
connected inputs will be highlighted.
PC ✎ always stay activated.
E
02 Connections
Edit Name
MENU
Om
VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / ■
DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input
source selection easier.
→Input→Edit Name→ENTER
When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the ✎HDMI IN 1(DVI) port, you should set to
DVI PC mode under Edit Name.
When connecting an HDMI/DVI cable to the ✎HDMIIN 1(DVI) port, you should set to DVI PC or DVI Devices mode
under Edit Name.
E
English
11
Basic Features
PRE-
CH
CH
VO
L
MUT
E
@
C
H LI
ST
C
CONTEN
T
INTERNET
TOOL
S
INFO
MENU
RETURN
EXIT
ABCD
CH LIST
Basic Features
How to Navigate Menus
Before using the TV, follow the steps below to learn how to
navigate the menu and select and adjust different functions.
1
2
3
1 MENU button: Displays the main on-screen menu.
2 ENTERE / Direction button: Move the cursor and
select an item. Confirm the setting.
3 RETURN button: Returns to the previous menu.
4 EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
the ▲ or ▼ button.
Adjust the value of an item with the
◄ or ► button. The adjustment in
the OSD may differ depending on
the selected menu.
Press ENTERE to confirm the
E
selection.
Press EXIT.
e
1
2
3
4
5
6
7
MENU
▲ / ▼
ENTER
▲ / ▼
◄ / ►
ENTER
EXIT
4
Channel Menu
Seeing Channels¦
Channel List
MENU
Om
Add, delete or set Favorite channels and use
the program guide for digital broadcasts.
Select a channel in the All Channels, Added Channels, Favorite or Programmed
screen by pressing the ▲ / ▼ buttons, and
pressing the ENTERE button. Then you
can watch the selected channel.
Added Channels
Air A Antenna B Zoom C Select Page T Tools
■ All Channels: Shows all currently available
■ Added Channels: Shows all added channels.
*
■ Favorite: Shows all favorite channels.
■ Programmed: Shows all currently reserved
Using the color buttons with the ✎Channel List
xx
number.
x
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
c
x
T x (Tools): Displays the Channel List option menu.
(The Options menus may differ depending on the
situation.)
Channel Status Display Icons
IconsOperations
c
*
)
(
→Channel→Channel List→ENTER
6 Air
6-1 ♥ TV #6
7 Air
8 Air
9 Air
9-1 ♥ TV #9
10 Air
10-1 ♥ TV #10
11-1 ♥ TV #11
channels.
programs.
Red (Antenna): Switches to Air or Cable.
Green (Zoom): Enlarges or shrinks a channel
Yellow (Select): Selects multiple channel lists.
mark appears to the left of the selected channels.
(Page): Move to next or previous page.
A channel selected.
A channel set as a Favorite.
A reserved Program.
A program currently being broadcast.
E
12
English
P
POWER
FAV . CH
P.MODE
P.SIZE
MTS
INFO
SLEEP
CH LIST
Using Favorite Channels¦
MENU
Om
*
Add to Favorite / Delete from Favorite
Set channels you watch frequently as
Favorites.
1. Select a channel and press the TOOLS
button.
2. Add or delete a channel using the Add to
Favorite or Delete from Favorite menu
respectively.
Added Channels
Air A Antenna B Zoom C Select Page T Tools
→Channel→Channel List→ENTER
t
6 Air
6-1 ♥ TV #6
7 Air
8 Air
9 Air
9-1 ♥ TV #9
10 Air
10-1 ♥ TV #10
11-1 ♥ TV #11
Delete
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
E
Memorizing channels¦
MENU
Om
Antenna (Air / Cable)
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program
Air ■: Air antenna signal.
Cable ■: Cable antenna signal.
Auto ■: Air and Cable antenna.
NOTE ✎
When selecting the Cable TV system: Selects the
x
cable system. STD, HRC and IRC identify various
types of cable TV systems. Contact your local cable
company to identify the type of cable system that
exists in your particular area. At this point, the signal
source has been selected.
After all the available channels are stored, it starts
x
to remove scrambled channels. The Auto program
menu then reappears.
→Channel→ENTER
t
E
How to Stop Auto Programming
1. Press the ENTERE button.
2. A message will ask Stop Auto Program? Select Yes by
pressing the ◄ or ► button.
3. Press the ENTERE button.
Editing channels¦
MENU
Om
Channel Name Edit
1. Select a channel and press the TOOLS button.
2. Edit the channel name using the Channel Name Edit
menu.
Channel Name Edit■ (analog channels only): Assign your
own channel name.
→Channel→Channel List→ENTER
t
E
Other Features¦
MENU
Om
→Channel→ENTER
E
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20~30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTERE button to select Stop.
2. Press the ◄ button to select Yes .
3. Press the ENTERE button.
This function is only available in ✎Cable mode.
03 Basic Features
English
13
Basic Features
Channel List
MENU
Om
Channel List Option Menu
Set each channel using the Channel List menu options (Add/
Delete, Timer Viewing, Select All/ Deselect All). Option
menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
Add / Delete ■: Delete or add a channel to display the
channels you want.
Timer Viewing■: You can set a desired channel to be
displayed automatically at the intended time. Set the
current time first to use this function. (P. 21)
1. Press the ◄ / ► /▲ / ▼ buttons to select the
2. Press the TOOLS button, then select Timer Viewing.
3. Scroll up or down to adjust the settings in the box,
4.
Select All ■: Select all the channels in the channel list.
Deselect All ■: Deselect all the selected channels.
→ Channel → Channel List → ENTER
t
NOTE
✎
All deleted channels will be shown on the xAll
Channels menu.
A gray-colored channel indicates the channel
x
has been deleted.
The xAdd menu only appears for deleted
channels.
Delete a channel from the xAdded Channels or
Favorite menu in the same manner.
desired channel in Channel List.
or use the numeric buttons on your remote for
entering the date and time.
If you selected ✎Once, Every Week or Every Day
in Repeat, you can enter the date you want.
Select OK, then press the ENTERE button when done.
NOTE
✎
Only memorized channels can be reserved.
x
Reserved programs will be displayed in the
x
Programmed menu.
When a digital channel is selected, press the
x
► button to view the digital program.
You can only select ✎Deselect All when one or
more channels are selected.
E
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved to
watch.
1. Press the
2. Press the ◄ and ▼ button move to the Programmed
menu.
Change Info■: Change a show you have reserved to
watch.
Cancel Schedules■: Cancel a show you have reserved
to watch.
Information■: Display a show you have reserved
to watch. (You can also change the reservation
Information.)
Select All / Deselect All■: You can select or deselect all
channels in the channel list.
ENTERE
button to select Channel List.
Fine Tune
(analog channels only)
If the reception is clear, you do not have to fine tune the
channel, as this is done automatically during the search and
store operation. If the signal is weak or distorted, fine tune
the channel manually.
Select yFine Tune in the Channel menu.
Fine tuned channels that have been saved are marked
✎
with an asterisk “*” on the right-hand side of the
channel number in the channel banner.
To reset the fine-tuning, select ✎Reset.
Picture Menu
Changing the Preset Picture Mode¦
MENU
Om
Mode
Select your preferred picture type.
Dynamic ■: Suitable for a bright room.
Standard ■: Suitable for a normal environment.
Natural ■: Suitable for an eye comfortable display.
Movie ■: Suitable for watching movies in a dark room.
Your television has several setting options for picture quality
control.
NOTE
✎
When you make changes to xBacklight, Contrast,
Brightness, Sharpness, Color or Tint (G/R) the
OSD will be adjusted accordingly.
In PC mode, you can only make changes to
x
Backlight, Contrast and Brightness.
Settings can be adjusted and stored for each
x
external device connected to the TV.
Lowering picture brightness reduces power
x
consumption.
Economical Solutions¦
ECO Solution
MENU
Om
Energy Saving (Off / Low / Medium / High / Picture ■
Off / Auto): This adjust the brightness of the TV in order
to reduce power consumption. If you select Picture
Off, the screen is turned off , but the sound remains on.
Press any button to turn on the screen again.
Eco Sensor (Off / On)■: To enhance your power savings;
the picture settings will automatically adapt to the light
in the room.
Min Backlight: When ECO sensor is On, the minimum
screen brightness can be adjusted manually.
No Signal Power Off (Off / 15 min. / 30 min. / 60 min.)■:
Sets how quickly the TV switches to standby mode, if no
picture is being received.
→Picture→ECO Solution→ENTER
If you adjust the ✎Backlight, the Eco Sensor will
be set to Off.
If ✎Eco Sensor is On, the display brightness may
change (become slightly darker in most cases)
depending on the surrounding light intensity.
Disabled when the PC is in power saving mode.
✎
E
Set the input source to PC.
Auto Adjustment
MENU
Om
ENTER
Adjust frequency values/positions and fine tune the settings
automatically.
Not available when connecting through HDMI/DVI
✎
cable.
→ Picture→Auto Adjustment→
E
t
Screen
Coarse / Fine ■: Removes or reduces picture noise. If the
noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust
the picture so that it is aligned to the center of screen.
Position■: Adjust the PC’s screen positioning if it does
not fit the TV screen. Press the ▲ or ▼ button to adjust
the Vertical-Position. Press the ◄ or ► button to adjust
the Horizontal-Position.
Image Reset ■: Resets the image to default settings.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card,
the actual screens on your PC will probably look different, but
the same basic set-up information will apply in most cases.
(If not, contact your computer manufacturer or Samsung
Dealer.)
1. Click on “Control Panel” on the Windows start menu.
2. Click on “Appearance and Themes” in the “Control
Panel” window and a display dialog-box will appear.
3. Click on “Display” and a display dialog box will appear.
4. Navigate to the “Settings” tab on the display dialog-box.
The correct size setting (resolution) [Optimum: 1920 X y
1080 pixels]
If a vertical-frequency option exists on your display y
settings dialog box, the correct value is ‘60’ or ‘60 Hz’.
Otherwise, just click ‘OK’ and exit the dialog box.
English
15
Basic Features
Changing the Picture Options¦
Advanced Settings
MENU
Om
ENTER
(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have
more precise pictures.
In ✎PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.
Black Tone : Off ►
Dynamic Contrast : Medium
Shadow Detail : 0
Gamma : 0
Expert Pattern : Off
RGB Only Mode : Off
Color Space : Native
Black Tone (Off / Dark / Darker / Darkest)■: Select the
black level to adjust the screen depth.
Dynamic Contrast (Off / Low / Medium / High)■:
Adjust the screen contrast.
Shadow Detail ■: Increase the brightness of dark images.
Gamma ■: Adjust the primary color intensity.
Expert Pattern ■ (Off / Pattern 1 / Pattern 2): By
running the Expert Pattern function, the picture can be
calibrated without a generator or filter. If the OSD menu
disappears or a menu other than the Picture menu is
opened, the calibration is saved and the Expert Pattern
window disappears.
RGB Only Mode (Off / Red / Green / Blue)■: Displays
the Red, Green and Blue color for making fine
adjustments to the hue and saturation.
Color Space (Auto / Native / Custom)■: Adjust the
range of colors available to create the image. To adjust
Color, Red, Green, Blue and Reset, set Color Space
to Custom.
→Picture→Advanced Settings→
E
Advanced Settings
▼
U Move E Enter R Return
Disabled under ✎PC mode.
While the ✎Expert Pattern is running, sound is not
output.
Only enabled on DTV / Component / HDMI.
✎
White Balance■: Adjust the color temperature for a more
natural picture.
Reset: Resets the White Balance to it's default
settings.
10p White Balance (Off / On)■: Controls the white
balance in 10 point interval by adjusting the red, green,
and blue brightness.
Available when the picture mode is set to ✎Movie
and when the external input is set to all input.
Some external devices may not support this
✎
function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default
Digital Noise Filter (Off / Low / Medium / High / Auto ■
/ Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise
Filter feature to reduce any static and ghosting that may
appear on the screen.
When the signal is weak, try other options until the
✎
best picture is displayed.
Auto Visualization: When changing analog channels,
displays signal strength.
Only available for analog channels.
✎
When bar is green, you are receiving the best
✎
possible signal.
MPEG Noise Filter (Off / Low / Medium / High / ■
Auto): Reduces MPEG noise to provide an improved
picture quality.
Disabled under PC mode.
✎
HDMI Black Level (Normal / Low)■: Selects the black
level on the screen to adjust the screen depth.
Available only in HDMI mode.
✎
Film Mode (Off / Auto1 / Auto2)■: Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
Available in TV, AV, COMPONENT (480i / 1080i)
✎
and HDMI (480i / 1080i).
16:9, Zoom1,
Zoom2, 4:3
16:9, 4:3, Wide Fit,
Screen Fit
03 Basic Features
English
17
Basic Features
MEDIA.P
P.MODE
P.SIZE
CC
MTS
INFO
MEDIA.P
CH LIST
D
IMPORTANT HEALTH AND SAFETY INFORMATION FOR
3D PICTURES. Read and understand the following safety
information before using the TV’s 3D function.
Auto Motion ■Plus (Off / Clear / Standard / Smooth
/ Custom / Demo): Enhances motion in fast moving
scenes.
The info screen on your TV displays the resolution
✎
and frequency of the incoming video signal
(60Hz). This displayed frequency is not what the
TV is displaying by using the Auto Motion Plus
function.
■
Auto Protection Time (2 hours / 4 hours / 8 hours
/ 10 hours / Off): If the screen remains idle with a still
image for a certain period of time defined by the user,
the screen saver is activated to prevent the formation of
ghost images on the screen.
Viewing TV using the 3D function¦
MENU
Om
WARNING
[
Some viewers may experience discomfort while
x
viewing 3D TV such as dizziness, nausea and
headaches. If you experience any such symptom,
stop viewing 3D TV, remove 3D Active Glasses and
rest.
Watching 3D images for an extended period of time
x
may cause eye strain. If you feel eye strain, stop
viewing 3D TV, remove your 3D Active Glasses and
rest.
A responsible adult should frequently check on
x
children who are using the 3D function. If there are
any reports of tired eyes, headaches, dizziness, or
nausea, have the child stop viewing 3D TV and rest.
Do not use the 3D Active Glasses for other purposes
x
(such as general eyeglasses, sunglasses, protective
goggles, etc.)
Do not use the 3D function or 3D Active Glasses
x
while walking or moving around. Using the 3D
function or 3D Active Glasses while moving around
may result in injuries due to running into objects,
tripping, and/or falling.
→Picture→3D→ENTER
E
3D
This exciting new feature enables you to
view 3D content. In order to fully enjoy
this feature, you must purchase a pair of
Samsung 3D Active Glasses (SSG-2100AB,
SSG-2200AR, SSG-2200KR) to view 3D
video.
Samsung 3D Active Glasses are sold separately. For more
detailed purchasing information, contact the retailer where
you purchased this TV.
3D emitter
If there is any obstacle between the emitter and 3D
✎
Active Glasses, the proper 3D effect may not be
obtained.
3D Mode
■: Select the 3D input format.
If you want to feel the 3D effect fully, please wear
✎
the 3D Active Glasses first, and then select 3D Mode from the list below that provides the best
3d viewing experience.
When watching 3D images, turn on 3D Active
✎
Glasses.
3D ModeOperation
OffTurns the 3D function off.
2D → 3D
Side by SideDisplays two images next to
Top & BottomDisplays one image above
Line by LineDisplays the images for the
Vertical StripeDisplays the images for the
Checker Board Displays the images for the
Frame
Sequential
Changes a 2D image to 3D.
each other.
another.
left and right eye alternately
in rows.
left and right eye alternately in
columns.
left and right eye alternately
in pixels.
Displays the images for the
left and right eye alternately in
frames.
English
18
“Side by Side” and “Top & Bottom” are available
✎
when the resolution is 720p, 1080i and 1080p in
DTV, HDMI and USB mode or when set to PC
and the PC is connected through an HDMI/DVI
cable.
“Vertical Strip”, “Line by Line” and “Checker
✎
Board” are available when the resolution is set to
PC and the PC is connected through an HDMI/
DVI cable.
“Frame Sequential” displays the frequency (60Hz
✎
only) when the resolution is set to PC.
3D
■ → 2D (Off / On): Displays the image for the left eye
only.
This function is deactivated when
✎
to “2D → 3D” or Off.
■: The overall adjustment of 3D
3D View point
perspective.
This function is deactivated when
✎
to “2D → 3D” or Off.
■: Adjusts focus / depth in “2D → 3D” mode.
Depth
This function is only activated when the
✎
is “2D → 3D ”.
■: Adjusts the images for the left and
Picture Correction
right eye.
3D Auto View (Off / On)
■: If 3D Auto View is set to On,
a “Side-By-Side” format HDMI signal with one of the
resolutions below is automatically switched to 3D. Here,
correct 3D information must be sent from the Standard
HDMI 3D Format.
If a 3D failure occurs due to a 3D information error,
✎
set 3D Auto View to Off and manually select a 3D Mode using the 3D( ) button or corresponding
menu.
Support resolution (16:9 only)
✎
ResolutionFrequency (Hz)
1280 x 720p60 Hz
1920 x 1080i60 Hz
1920 x 1080p24 / 30 / 60 Hz
■: The overall adjustment of 3D effect.
3D Optimize
3D Mode is set
3D Mode is set
3D Mode
How to watch the 3D image
3D
To watch in 3D, wear 3D glasses and press the
power button on the glasses.
Watching 3D picture for a long time may cause
eye fatigue and/or dizziness.
OK
Cancel
U
Move E Enter e Exit
3D3D
Using the LEFT / RIGHT keys on the remote control,
Using the LEFT / RIGHT keys on the remote control,
select the icon suitable for the picture on screen.
select the icon suitable for the picture on screen.
U
Move E Enter e Exit
U
Move E Enter e Exit
1. Press the CONTENT button, then the Content View
menu will appear.
2. Press the ◄ or ► button, then select 3D.
To watch in 3D, wear 3D Active Glasses and press the
power button on the glasses.
3. Select OK, then press the ENTERE button.
4. Using the ◄ or ► buttons on your remote control,
selects the 3D Mode of the image you want to view.
Some 3D modes may not be available depending
✎
on the format of the image source.
Supported formats and operating specifications for
Standard HDMI 3D
✎
The 3D formats indicated below are recommended by
the HDMI association and must be supported.
Source signal formatStandard HDMI 1.4 3D
1920x1080p@24Hz x 21920x2205p@24Hz
1280x720p@60Hz x 21280x1470p@60Hz
03 Basic Features
Resolution supported for HDMI PC mode
The resolution for HDMI PC mode is optimized to 1920 x
1080 input.
An input resolution other than 1920 x 1080 may not be
displayed properly in 3D display or full screen mode.
English
19
Basic Features
The mode is automatically switched to 3D mode for the 3D
video input in one of the formats above.
For the Standard HDMI 3D format with 24Hz, the TV is
optimized as follows:
Resolution First Display Mode –: If Auto Motion Plus
is set to Off, Clear or Standard, you can watch the
video at a high resolution optimized to the resolution of
the source video.
Judder Reduction Display Mode –: When Auto Motion
Plus is set to Smooth or Custom, you can watch a
smooth picture without judder.
Before using 3D function...
NOTE
✎
You m xay notice a small amount of screen flickering
when watching 3D images in poor light conditions
(from a strobe light, etc.), or under a fluorescent lamp
(50Hz ~ 60Hz) or 3 wavelength lamp. If so, dim the
light or turn the lamp off.
3D mode is automatically disabled in following cases:
x
when changing a channel or the input source, or
accessing Media Play or Internet@TV.
Some Picture functions are disabled in x3D mode.
PIP x is not supported in 3D mode.
3D Active Glasses from other manufacturers may not
x
be supported.
When the TV is initially powered on, may take some
x
time until the 3D display is optimized.
The 3D Active Glasses may not work properly if there
x
is any other 3D product or electronic devices turned
on near the glasses or TV. If there is a problem, keep
other electronic devices as far away as possible from
the 3D Active Glasses.
Photos x of Media Play are shown in “2D → 3D”
mode only.
If you lie on your side while watching TV with 3D
x
Active Glasses, the picture may look dark or may not
be visible.
Be sure to stay within the viewing angle and optimum
x
TV viewing distance when watching 3D pictures.
Otherwise, you may not be able to enjoy proper –
3D effects.
The ideal viewing distance should be three times
x
or more the height of the screen. We recommend
sitting with viewer's eyes on a level with the screen.
Picture Reset (OK / Cancel)
Resets your current picture mode to its default settings.
Sound Menu
Changing the Preset Sound Mode¦
MENU
Om
ENTER
SRS TheaterSound
Standard ■: Selects the normal sound mode.
Music ■: Emphasizes music over voices.
Movie ■: Provides the best sound for movies.
Clear Voice ■: Emphasizes voices over other sounds.
Amplify ■: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
→Sound→SRS TheaterSound→
E
t
Adjusting sound settings¦
MENU
Om
→Sound→Equalizer→ENTER
E
Equalizer
Adjusts the sound mode (standard sound mode only).
Balance L/R■: Adjusts the balance between the right and
left speaker.
100Hz / 300Hz / 1kHz / 3kHz / 10kHz■ (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
Reset ■: Resets the equalizer to its default settings.
Sound Settings¦
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers or headphones using
HRTF (Head Related Transfer Function) technology.
t
20
SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
English
Preferred Language
(digital channels only)
Digital-TV broadcasts are capable of simultaneous
transmission of many audio tracks (for example,
simultaneous translations of the program into foreign
languages).
You can only select a language among the ones being
✎
broadcasted.
Multi-Track Sound (MTS)
(analog channels only)
Mono■: Choose for channels that are broadcasting in
mono or if you are having difficulty receiving a stereo
signal.
Stereo■: Choose for channels that are broadcasting in
stereo.
SAP■: Choose to listen to the Separate Audio Program,
which is usually a foreign-language translation.
Depending on the particular program being
✎
broadcasted, you can listen to Mono, Stereo or SAP.
t
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal.
Night ■: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.
Speaker Select
(External Speaker / TV Speaker)
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
When ✎Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
When ✎Speaker Select is set to External Speaker, you
should use these settings.
TV Speaker: Off, External Speaker: On
x
When ✎Speaker Select is set to TV Speaker, you
should use these settings.
TV Speaker: On, External Speaker: On
x
If there is no video signal, both speakers will be mute.
✎
SPDIF Output
SPDIF (Sony Philips Digital Interface) is used to provide digital
sound, reducing interference going to speakers and various
digital devices such as a DVD player.
Audio Format■: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF) format from the options PCM or Dolby Digital.
By connecting to 5.1ch speakers in a dolby
✎
digital setup, maximize your interactive 3D sound
experience.
Audio Delay■: Correct audio-video mismatch, when
watching TV or video, and listening to digital audio
output using an external device such as an AV receiver
(0ms ~ 250ms).
Sound Reset(OK / Cancel)
Reset all sound settings to the factory defaults.
Setup Menu
Setting the Time¦
MENU
Om
→Setup→Time→ENTER
E
Time
The current time will appear every time you press the
✎
INFO button.
Clock ■: Setting the clock is for using various timer
features of the TV.
If you disconnect the power cord, you have to set
✎
the clock again.
Clock Mode: Set up the current time manually or
automatically.
Auto –: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to set
✎
the time automatically.
Manual –: Set the current time manually.
Depending on the broadcast station and signal,
✎
the auto time set up may not be correct. In this
case, set the time manually.
Clock Set: Set the Month, Day, Year, Hour, Minute
and am/pm.
Available only when ✎Clock Mode is set to
Manual.
You can set the month, day, year, hour and minute
✎
directly by pressing the number buttons on the
remote control.
03 Basic Features
English
21
Basic Features
DST (Off / On): Switches the DST(Daylight Saving Time
function) on or off.
This function is only available when the ✎Clock
Mode is set to Auto.
Time Zone: Select your time zone.
This function is only available when the ✎Clock
Mode is set to Auto.
Using the Sleep Timer¦
MENU
Om
ENTER
Sleep Timer ■
after a preset period of time. (30, 60, 90, 120, 150 and
180 minutes).
→Setup→Time→Sleep Timer→
E
t
To cancel the ✎Sleep Timer, select Off.
: Automatically shuts off the TV
Setting the On/Off Timer¦
MENU
Om
ENTER
Timer 1 / Timer 2 / Timer 3 ■: Three different on / off
timer settings can be made. You must set the clock first.
On Time
Off Time
Volume
Repeat
On Time / Off Time: Set the hour, minute, am/pm and
activate/inactivate. (To activate the timer with the setting
you have chosen, set to Activate.)
Volume: Set the desired volume level.
Source: Select TV or USB content to be played when
the TV is turned on automatically. (USB can be selected
only when a USB device is connected to the TV)
Antenna (when the Source is set to TV): Select Air or
Cable.
Channel (when the Source is set to TV): Select the
desired channel.
Contents (when the Source is set to USB): Select a
folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.
→Setup→Time→Timer 1→
E
Timer 1
▲
Inactivate1200am
▼
Inactivate1200am
Source
10TVAir3
Once
If there is no music file on the USB device or the
✎
folder containing a music file is not selected, the
Timer function does not operate correctly.
Sun Mon Tu e Wed Thu Fri Sat
L Move U Adjust E Enter R Return
AntennaChannel
When there is only one photo file in the USB, the
✎
Slide Show will not play.
A folder with too long of a name cannot be
✎
selected.
Each USB you use is assigned its own folder.
✎
When using more than one of the same type of
USB, make sure the folders assigned to each USB
have different names.
Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you
select Manual, you can set up the day you want to
activate the timer.
The
✎c
Auto Power Off (available only when the TV is turned
✎
on by the Timer): The TV will be automatically turned off
after 3 hours of being left idle to prevent overheating.
mark indicates the day is selected.
Locking Programs¦
MENU
Om
→Setup →Security→ENTER
E
Security
The PIN input screen appears, Enter your 4 digit PIN number.
V-Chip■: The V-Chip feature automatically locks out
programs that are deemed inappropriate for children.
The user must enter a PIN (personal identification
number) before any of the V-Chip restrictions are set up
or changed.
NOTE
✎
V-Chip x is not available in HDMI, Component
or PC mode.
The default PIN number of a new TV set is
x
“0-0-0-0”.
Allow all x: Press to unlock all TV ratings.
Block all x: Press to lock all TV ratings.
V-Chip Lock (Off / On): You can block rated TV
Programs.
TV Parental Guidelines: You can block TV programs
depending on their rating. This function allows you to
control what your children are watching.
TV-Y –: Young children / TV-Y7: Children 7 and over /
TV-G: General audience / TV-PG: Parental guidance /
TV-14: Viewers 14 and over / TV-MA: Mature
audience
22
English
ALL –: Lock all TV ratings. / FV: Fantasy violence /
V: Violence / S: Sexual situation / L: Adult Language /
D: Sexually Suggestive Dialog
The ✎V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the T V-Y category,
then T V-Y7 will automatically be blocked.
Similarly, if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work similarly. So,
if you block the L sub-rating in TV-PG, then
the L sub-ratings in T V-14 and TV-MA will
automatically be blocked.
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children.
G –: General audience (no restrictions). / PG: Parental
guidance suggested. / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NC-17: No children
under age 17. / X: Adults only. / NR: Not rated.
The ✎V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PG-13 category,
then R, NC-17 and X will automatically be
blocked.
Canadian English: You can block TV programs
depending on their Anglophone Canadian.
C –: Programming intended for children under age 8. /
C8+: Programming generally considered acceptable
for children 8 years and over to watch on their own. /
G: General programming, suitable for all audiences. /
PG: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming.
The ✎V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the G category, then
PG, 14+ and 18+ will automatically be blocked.
Canadian French: You can block TV programs
depending on their French Canadian rating.
G –: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. /
16 ans+: Programming is not suitable for children
under the age of 16. / 18 ans+: Programming
restricted to adults.
The ✎V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the 8 ans+ category,
then 13 ans+, 16 ans+ and 18 ans+ will
automatically be blocked also.
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
NOTE
✎
If information is not downloaded from the
x
broadcasting station, the Downloadable U.S. Rating menu is deactivated.
Parental restriction information is automatically
x
downloaded while watching DTV channels. It
may take several seconds.
The xDownloadable U.S. Rating menu
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
Parental restriction levels differ depending on
x
the broadcasting station. The default menu
name and Downloadable U.S. Rating change
depending on the downloaded information.
Even if you set the on-screen display to another
x
language, the Downloadable U.S. Rating
menu will appear in English only.
The rating will automatically block certain
x
categories that deal with more sensitive
material.
The rating titles (For example: Humor Level..etc)
x
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
Change PIN■: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter them. As
soon as the 4 digits are entered, the Confirm New PIN screen appears. Re-enter the same 4 digits. When
the Confirm screen disappears, your PIN has been
memorized.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the V-Chip
will block it. The screen will go blank and the following
message will appear:
This channel is blocked by V-Chip. Please enter the
PIN to unblock.
If you forget the PIN, press the remote-control
✎
buttons in the following sequence, which resets
the pin to “0-0-0-0” : POWER (off) →MUTE→ 8
→ 2 → 4 →POWER (on).
03 Basic Features
English
23
Basic Features
MEDIA.P
P.MODE
P.SIZE
CC
MTS
INFO
CH LIST
Other Features¦
MENU
Om
→Setup→ENTER
E
Menu Language
Set the menu language.
1. Select Menu Language and press the ENTERE button.
2. Choose desired language and press the ENTERE
button.
Choose between ✎English, Español and Français.
Caption
(On-Screen Text Messages)
Caption (Off / On)■: You can switch the
caption function on or off. If captions
are not available, they will not be
displayed on the screen.
The ✎Caption feature does not
work in Component, HDMI or PC
modes.
Caption Mode■: You can select the desired caption
mode.
The availability of captions depends on the
✎
program being broadcasted.
Default / CC1~CC4 / Text1~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the TV. (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels.)
Default / Service1~Service6 / CC1~CC4 /
Text1~Text4: (digital channels only) The Digital Captions
function works with digital channels.
Digital Caption Options ■: (digital channels only)
Size: Options include Default, Small, Standard and
Large. The default is Standard.
Font Style: Options include Default and Styles 0 to 7.
The default is Style 0.
Foreground Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan. You
can change the color of the letter. The default is White.
Background Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan.
You can change the background color of the caption.
The default is Black.
Foreground Opacity: This adjusts the opacity of text.
Options include Default, Transparent, Translucent, Solid
and Flashing.
Se rvice1~6 ✎ may not be available in digital caption
mode depending on the broadcast.
Background Opacity: This adjusts the opacity of
the caption background. Options include Default,
Transparent, Translucent, Solid and Flashing.
Return to Default: This option sets each Size, Font
Style, Foreground Color, Background Color, Foreground
Opacity and Background Opacity to its default.
NOTE
✎
Digital Caption Options x are available only
when Default and Service1 ~ Service6 can be
selected in Caption Mode.
The availability of captions depends on the
x
program being broadcasted.
The xDefault setting follow the standards set by
the broadcaster.
The Foreground and Background cannot be set
x
to have the same color.
You cannot set both the xForeground Opacity
and the Background Opacity to Transparent.
Network (Network Type / Network Setup
/ Network Test / SWL(Samsung Wireless
Link) / SWL connect )
For details on set up options, refer to the “Network
Connection” instructions. (P. 27~33)
General
Game Mode (Off / On) ■: When connecting to a game
console such as PlayStation™ or Xbox™, you can enjoy
a more realistic gaming experience by selecting the
game menu.
NOTE
✎
Precautions and limitations for game mode
x
To disconnect the game console and connect –
another external device, set Game Mode to Off in
the setup menu.
If you display the TV menu in –Game Mode, the
screen shakes slightly.
Game Mode x is not available when the input source
is set to TV or PC.
After connecting the game console, set xGame Mode
to On. Unfortunately, you may notice reduced picture
quality.
If xGame Mode is On:
Picture – mode is set to Standard and Sound mode
is set to Movie.
Equalizer – is not available.
24
English
BD Wise (Off / On)■: Provides the optimal picture quality
for Samsung DVD, Blu-ray and Home Theater products
which support BD Wise. When BD Wise is turned On,
the picture mode is automatically changed to the optimal
resolution.
Available when connecting Samsung products
✎
that support BD Wise through a HDMI cable.
Menu Transparency (Bright / Dark)■: Set the
Transparency of the menu.
Melody (Off / Low / Medium / High)■: Set so that a
melody plays when the TV is turned on or off.
NOTE
✎
Only available when the Input source is set to TV.
x
To turn the melody off, set Melody to Off.
The xMelody does not play.
When no sound is output from the TV because the –
MUTE button has been pressed.
When no sound is output from the TV because the –
volume has been reduced to minimum with the
VOL – button.
When the TV is turned off by –Sleep Timer function.
Melody x is disabled when FastStart is On.
FastStart (Off / On) ■: When the TV is powered on, the
screen will come on quickly with this feature.
PIP (Off / On) ■: Activate or deactivate the PIP function.
Air/Cable (Air / Cable) ■: Select either Air or Cable as the
input source for the sub-screen.
Channel ■: Select the channel for the sub-screen.
Size ( ■
Õ
picture.
Position (■
sub-picture.
Sound Select (Main / Sub)■: You can choose the
desired sound (Main or Sub) in PIP mode.
/ à / À / Œ): Select a size for the sub-
Ã
/ – / — / œ): Select a position for the
In Double (
✎À
selected.
, Œ) mode, Position cannot be
Wireless Remote Control (Off / On)
Turn on/off or give permission to Samsung mobile phones/
devices.
You must have a Samsung Mobile phone/device which
supports Wireless Remote Control. For more details, refer to
each device's manual.
Support Menu
MENU
Om
→ Support→ENTER
E
03 Basic Features
Picture In Picture (PIP)¦
t
PIP
MENU
Om
You can watch the TV tuner and one external video source
simultaneously. PIP (Picture-in-Picture) does not function in
the same mode.
NOTE
✎
For PIP sound, refer to the xSound Select
instructions.
If you turn the TV off while watching in PIP mode, the
x
PIP window will disappear.
You may notice that the picture in the PIP window
x
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
While xV-Chip or Internet@TV is in operation, the PIP
function cannot be used.
PIP Settings
x
→Setup→PIP→ENTER
Main pictureSub picture
Component1, Component2,
HDMI1/DVI, HDMI2, HDMI3,
HDMI4, PC
E
TV
Legal Notice
You can view legal notice and general disclaimer regarding
third party contents and services.
The General Disclaimer may differ depending on the
✎
countr y.
You can move the previous or next page by pressing
✎
the ◄ or ► button.
English
25
Basic Features
Self Diagnosis
Picture Test ■: Use to check for picture problems. If the
problem continues to occur, check the Color pattern.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes. There may be a
problem with the TV. Contact Samsung’s Call Center for
assistance.
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
Sound Test■: Use the built-in melody sound to check for
sound problems.
If you hear no sound from the TV’s speakers,
✎
before performing the sound test, make sure
Speaker Select is set to TV speaker in the
Sound menu.
The melody will be heard during the test even if
✎
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the TV. Contact Samsung’s Call Center for
assistance.
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
Signal Information ■(Digital channels only): An HD
channel’s reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
Troubleshooting■: If the TV seems to have a problem,
refer to this description.
If none of these troubleshooting tips apply, contact
✎
the Samsung customer service center.
Software Upgrade
Software Upgrade can be performed by network
connection or downloading the latest firmware from “www.
samsung.com,” to a USB memory device.
Current Version - the software already installed in the TV.
Software is represented as ‘Year/Month/Day_Version’.
✎
Software Upgrade
Current Version 2010/01/18_000001
Installing the Latest Version
By USB ■: Insert a USB drive
containing the firmware
upgrade file, downloaded
from www.samsung.com,
into the TV. Please be careful
not to disconnect the power
or remove the USB drive
until upgrades are complete.
The TV will be turned off
and on automatically after
completing the firmware upgrade. When software is
upgraded, video and audio settings you have made will
return to their default settings. We advise you to write
down your settings so that you can easily reset them
after the upgrade.
By Online■: Upgrade the software using the Internet.
First, configure your network. For detailed
✎
procedures on using the Network Setup, refer to
the “Network Connection” instructions.
If the Internet connection does not operate
✎
properly, the connection may be broken. Please
retry downloading. If the problem persists,
download by USB and upgrade.
Alternative Software■ (backup): Displays the Software
version downloaded through By Online. During the
software upgrading, When the Upgrade will discontinue
from last step, this function be activated.
USB Drive
or
TV Side Panel
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
Contact Samsung
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
By USB ►
By Online
Alternative Software - --- / --/ --_- - ---
U
Move E Enter R Return
English
26
Advanced Features
Network Connection
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
Connecting to a Wired Network¦
You can attach your TV to your LAN using cable in three ways:
You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat y
5 cable. See the diagram below.
04 Advanced Features
The Modem Port on the Wall
You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected y
to an external modem. Use Cat 5 cable for the connection. See the diagram below.
The Modem Port on the Wall
Modem Cable
Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN y
port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall
outlet is attached to a modem or router elsewhere in your house.
The LAN Port on the Wall
External Modem
(ADSL / VDSL / Cable TV)
External Modem
(ADSL / VDSL / Cable TV)
(having DHCP server)
LAN Cable
LAN CableModem Cable
IP Sharer
LAN Cable
TV Rear Panel
TV Rear Panel
TV Rear Panel
LAN Cable
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration
Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway,
and DNS values your TV needs to access the Internet so you do not have to enter them manually. Most home networks
are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address,
subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that
✎
support DHCP also let you use Static IP addresses.
English
27
Advanced Features
Network Setup (Auto)
Use the Automatic Network Setup when connecting your
TV to a network that supports DHCP. To set up your TV’s
cable network connection automatically, follow these steps:
How to set up automatically
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your TV, press the MENU button on your
remote, use the ▲ or ▼ button to select Setup, and
then press the ENTERE button.
3. Use the ▲ or ▼ button to select Network in the Setup
menu, and then press the ENTERE button. The
Network screen appears.
Network Type : Wired ►
Network Setup
Network Test
SWL(Samsung Wireless Link)
SWL connect
4. On the Network screen, select Network Type.
5. Set Network Type to Wired.
6. Select Network Setup. The Network Setup screen
appears.
Network
:
Off
U Move E Enter R Return
Network Setup (Manual)
Use the Manual Network Setup when connecting your TV to
a network that requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The
Network connection values are displayed.
How to set up manually
To set up your TV’s cable network connection manually,
follow these steps:
1. Follow Steps 1 through 6 in the “How to set up
automatically” procedure.
2. Set Internet Protocol Setup to Manual.
3. Press the ▼ button on your remote to go to the first
entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and
DNS Server values. Use the number buttons on your
remote to enter numbers and the arrow buttons to move
from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.
Network Setup
Internet Protocol Setup : Auto ►
IP Address :
Subnet Mask :
Gateway :
DNS: Auto
DNS Server :
7. Set Internet Protocol Setup to Auto.
8. Auto acquires and enters the needed Internet values
automatically.
9. Wait two minutes, and then press the RETURN button
on your remote.
10. If the Network Function has not acquired the network
connection values, go to the directions for Manual.
English
28
U Move E Enter R Return
Connecting to a Wireless Network¦
To connect your TV to your network wireless, you need a wireless router or modem and a Samsung Wireless LAN Adapter
(WIS09ABGN, WIS09ABGN2, WIS10ABGN) , which you connect to your TV’s back or side panel USB jack. See the illustration below.
To use the ✎SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.
04 Advanced Features
The LAN Port on
the Wall
Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.
com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung
recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.
NOTE
✎
You must use the x“Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless
network.
Samsung Wireless LAN Adapter and the USB extension Cable are sold separately and are offered by select retailers,
x
Ecommerce sites and Samsungparts.com.
To use a wireless network, your TV must be connected to a wireless IP sharer (either a router or a modem). If the
x
wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
x
is currently being used by another device nearby, this will result in interference and communication failure.
If you apply a security system other than the systems listed below, it will not work with the TV.
x
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or
x
TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi
certification specifications.
If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
x
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in
either mode.
Keep the Samsung Wireless LAN Adapter at a distance from the TV. If you watch the TV with the Adapter connected
x
nearby, images may appear corrupted for some channels.
If your router, modem, or device is not certified, it may not connect to the TV via the “Samsung Wireless LAN
x
Ad apter.”
Connection Methods x: You can setup the wireless network connecti
Samsu –
ng Auto Configuration - For non-Samsung devices.
PBC(WPS) –
Auto Setup (Using the Auto Network Search function) –
Manual Setup –
SWL(Samsung Wireless Link) –- For Samsung devices only.
Ad-Hoc –
The Samsung Wireless LAN Adapter may not be recognized when using a connection via a USB hub or via a USB
x
extension cable other than the cable supplied.
Wireless IP sharer
(AP having DHCP Server)
Samsung Wireless
LAN Adapter
LAN Cable
on on six ways.
TV Side Panel
or
English
29
Advanced Features
Notice
The picture may appear corrupted or have static for some
channels when the TV is connected to the Samsung Wireless
LAN Adapter. In such a case, establish a connection using one
of the following methods or connect the Samsung Wireless LAN
Adapter using a USB cable in a place that is not affected by
radio interference.

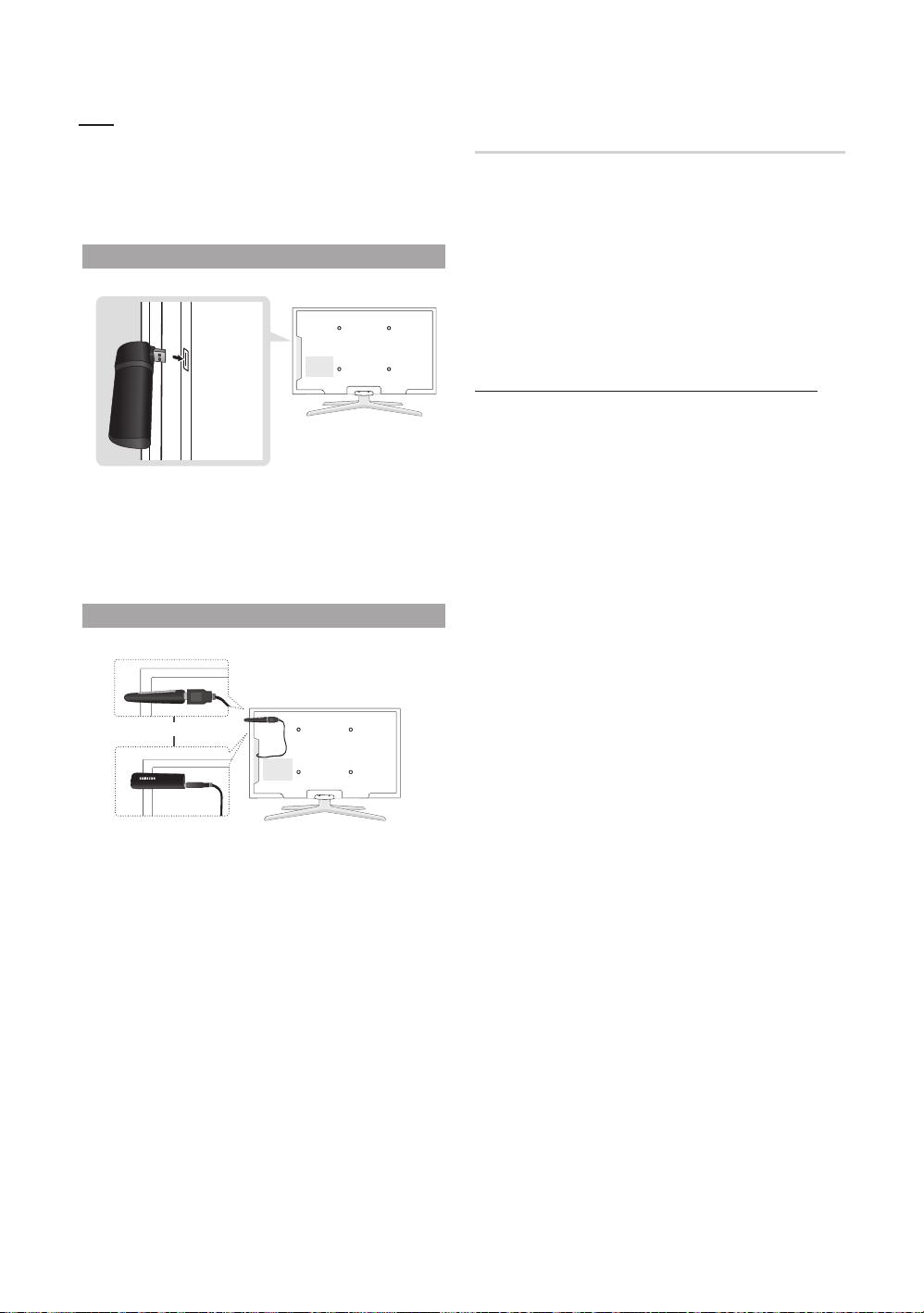

Method 1
Connect using the USB right angle adapter
To connect the Samsung Wireless LAN Adapter using the
USB right angle adapter, follow these steps:
1. Connect the USB right angle adapter to the Samsung
Wireless LAN Adapter.
2. Connect the other end of the right angle adapter to the
USB 1 (HDD) port.
Method 2
Connect via an extension cable
or
To reconnect the Samsung Wireless LAN Adapter using the
extension cable, follow these steps:
1. Connect the extension cable to the USB 1 (HDD) port.
2. Connect the extension cable and Samsung Wireless LAN
Adapter.
3. Attach the Samsung Wireless LAN Adapter to the back of
the TV near the top, using double-sided adhesive tape.
Network Setup
(Samsung Auto Configuration)
The Samsung Auto Configuration function lets you connect
your Samsung TV automatically to non-Samsung wireless
APs. If your non-Samsung AP does not support Samsung
Auto Configuraton, you must connect using one of the
other methods: PBC(WPS), auto configuration, or manual
configuration.
To use this function, you must set ✎SWL(Samsung
Wireless Link) to Off in the TV’s on-screen menu.
You can check for equipment that supports Samsung
✎
Auto Configuration on www.samsung.com.
How to set up using Samsung Auto Configuration
1. Place the AP and TV next to each other and turn them on.
Because AP booting times vary, you may have to wait
✎
approximately two minutes for your AP to boot up.
Ensure the LAN cable is connected to the WAN
✎
port of the AP during Samsung Auto Configuration.
If it is not connected, Samsung Auto Configuration
only confirms that the TV is connected to the AP,
but does not confirm it is connected to the Internet.
2. After 2 minutes, connect the Samsung Wireless LAN
Adapter to the TV. When the Samsung Wireless LAN
Adapter establishes a connection with your TV, a pop-up
window appears.
3. As soon as a connection is established, place the AP
parallel to the Samsung Wireless LAN Adapter and not
farther than than 9 and 7/8s inches (25cm) from it.
4. Wait until the connection is automatically established.
If Samsung Auto Configuration does not connect
✎
your TV to your AP, a pop-up window appears on
the screen notifying you of the failure. If you want
to try using Samsung Auto Configuration again,
reset the AP, disconnect the Samsung Wireless
LAN Adapter and then try again from Step 1. You
can also choose one of the other connection
setup methods: PBC (WPS), auto, or manual.
5. Place the AP in a desired location.
If the AP settings change or you install a new AP,
✎
you must perform the Samsung Auto Configuration
procedure again, beginning from Step 1.
30
English
Loading...
+ 91 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
