SAMSUNG LN46B530P7R User Manual [en, es]

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Comuníquese con SAMSUNG WORLD WIDE

Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.

Country

ARGENTINE 0800-333-3733 www.samsung.com/ar

BRAZIL

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl COLOMBIA 01-8000112112 www.samsung.com.co COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin HONDURAS 800-7919267 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin NICARAGUA 00-1800-5077267 www.samsung.com/latin MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin VENEZUELA 0-800-100-5303 www.samsung.com/latin

IMPORTADO POR: AV. PRESIDENTE MASARIK #111 INT701 COL. CHAPULTEPEC MORALES C.P.11570 DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL Tel: 01-55-5747-5100 / 01-800-726-7864

Customer Care Center

0800-124-421 4004-0000

Web Site

www.samsung.com.br

LCD TV

user manual

BN68-01984B-00

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

Precautions When Displaying a Still Image

❑

A still image may cause permanent damage to the TV screen

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image

●

retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

●

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

●

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left,

right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

CONTENTS

English

GENERAL INFORMATION

List of Features .....................................................................2

■

Accessories ..........................................................................2

■

Viewing the Control Panel ....................................................3

■

Viewing the Connection Panel ..............................................4

■

Remote Control ....................................................................5

■

Installing Batteries in the Remote Control ............................5

■

CONNECTIONS

Connecting VHF and UHF Antennas ....................................6

■

Connecting Cable TV ...........................................................6

■

Connecting a DVD / Blu-ray player / Cable Box /

■

Satellite receiver (Set-Top Box) via HDMI ..................................7

Connecting a DVD / Blu-ray player / Cable Box /

■

Satellite receiver (Set-Top Box) via DVI ...............................8

Connecting a DVD / Blu-ray player / Cable Box /

■

Satellite receiver (Set-Top Box) via Component cables ............................8

Connecting a VCR ................................................................9

■

Connecting an Amplier / DVD Home Theater .....................9

■

Connecting a Camcorder....................................................10

■

Connecting a PC ................................................................11

■

OPERATION

Viewing the menus .............................................................12

■

Plug & Play Feature............................................................13

■

CHANNEL CONTROL

Conguring the Channel Menu ...........................................14

■

Managing Channels............................................................15

■

PICTURE CONTROL

Conguring the Picture Menu .............................................16

■

Using Your TV as a Computer (PC) Display .......................18

■

Setting up the TV with your PC ..........................................19

■

SOUND CONTROL

Conguring the Sound Menu ..............................................20

■

SETUP

Conguring the Setup Menu ...............................................21

■

Viewing Picture-in-Picture ..................................................23

■

INPUT

Conguring the Input Menu ................................................23

■

ANYNET

■

Connecting Anynet+ Devices .............................................24

Setting Up Anynet+ .............................................................25

Switching between Anynet+ Devices ..................................25

Recording ...........................................................................26

Listening through a Receiver (Home theater).....................27

Troubleshooting for Anynet

...............................................

APPENDIX

Troubleshooting ..................................................................28

■

Installing the Stand .............................................................29

■

Disconnecting the Stand.....................................................29

■

Wall Mount Kit Specications (VESA) ................................30

■

Using the Anti-Theft Kensington Lock ................................30

■

Securing the TV to the Wall ................................................31

■

Specications .....................................................................32

■

License

❑

TruSurround HD, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround HD

Symbol

❑

N O T

Note One-Touch Button TOOL Button

technology is incorporated under license from SRS Labs, Inc.

English - 1

GENERAL INFORMATION

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specications may be changed without notice in order to enhance product performance.

List of Features

Adjustable picture settings that can be stored in the TV’s memory.

●

Automatic timer to turn the TV on and off.

●

A special sleep timer.

●

HDMI/DVI connection of your PC to this TV.

●

Excellent Picture Quality

●

SRS TruSurround HD provides a virtual surround system.

●

Accessories

Remote Control &

Batteries (AAA x 2)

Stand Screw (M4 X L16) Screw (M4 X L18)

Warranty Card / Safety Guide (Not available in all locations)

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

The items color and shape may vary depending on the model.

Power Cord Cover-Bottom

Owner’s Instructions

(32 inch model only)

Cleaning Cloth

English - 2

English - 3

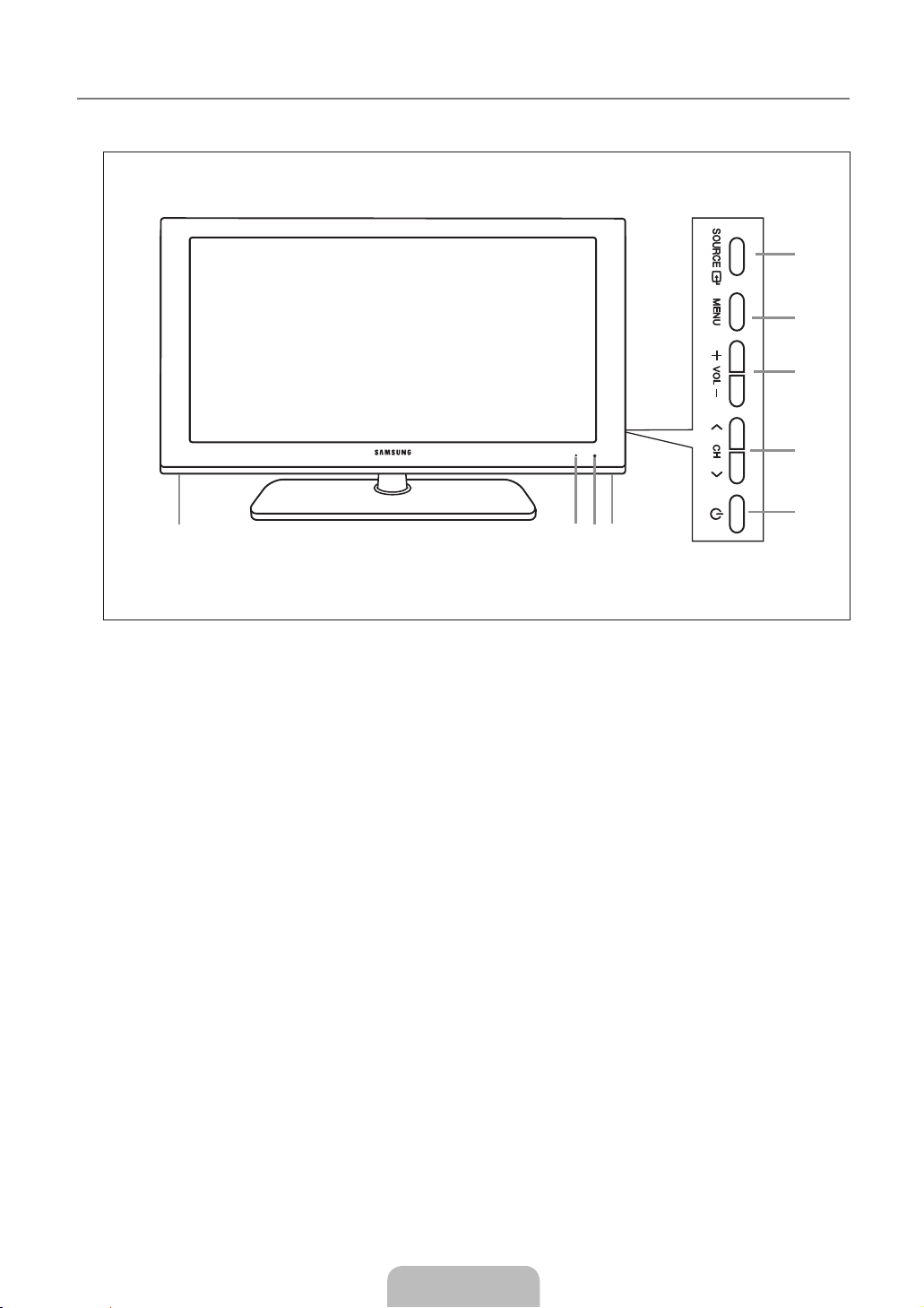

Viewing the Control Panel

6 8 7 6

The product color and shape may vary depending on the model.

You can use a button by pressing the side panel buttons.

SOURCEE: Toggles between all the available input sources. In the on-screen menu, use this button as you use the

ENTERE button on the remote control.

MENU: Press to see an on-screen menu of your TV’s features.

3 y

◄ and ► buttons on the remote control.

4 Z

on the remote control.

5 P 6

SPEAKERS

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.

POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

: Press to increase or decrease the volume. In the on-screen menu, use the

: Press to change channels. In the on-screen menu, use the

(POWER): Press to turn the TV on and off.

buttons as you would use the ▼ and ▲ buttons

buttons as you would use the

Viewing the Connection Panel

1 2 3 4 5

69 78

[TV Rear Panel] [TV Side Panel]

The product color and shape may vary depending on the model.

HDMI IN 1(DVI), 2, 3

Connects to the HDMI jack of a device with an HDMI output.

–

No sound connection is needed for an HDMI to HDMI connection.

Use the HDMI IN 1 (DVI) jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI

adapter (DVI to HDMI) for video connection and the PC/DVI AUDIO IN jacks for audio. When using an HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.

You can also use the ports to connect to a PC.

PC/DVI AUDIO IN

Connect to the audio output jack on your PC.

–

DVI audio outputs for external devices.

–

PC IN

Connects to the video output jacks on your PC.

–

ANT IN

Connects to an antenna or cable TV system.

–

5 H

(HEADPHONE)

Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from

–

the built-in speakers will be disabled.

Using the sound function is restricted when connecting headphones to the TV.

Prolonged use of headphones at a high volume may damage your hearing.

You will not hear sound from the speakers when you connect headphones to the TV.

The headphone volume and TV volume are adjusted separately.

AUDIO OUT [R-AUDIO-L]

Connects to the audio input jacks on your Amplier/Home theater.

–

SERVICE

Connector for service only.

–

COMPONENT IN 1, 2

Connects Component video / audio.

–

Connect the video cable to the COMPONENT IN 1 jack and the audio cable to the COMPONENT IN 1 [R-AUDIO-L] jacks.

AV IN 1, 2

Video and audio inputs for external devices, such as a camcorder or VCR.

–

SERVICE

Connector for service only.

–

KENSINGTON LOCK

The Kensington Lock (optional) is a device used to physically x the system when used in a public place. If you want to

–

use a locking device, contact the dealer where you purchased the TV.

The location of the Kensington Lock may be different depending on its model.

POWER INPUT

Connects the supplied power cord.

–

English - 4

English - 5

Remote Control

& *

(

)

b c d

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

The product color and shape may vary depending on the model.

POWER: Turns the TV on and

off.

NUMERIC BUTTONS: Press to

change the channel.

_: Use to select a channel over

100. For example, for channel 122, press _, then “2”, then “2”.

MUTE M: Press to temporarily

cut off the sound.

5 y

: Press to increase or

decrease the volume.

CH LIST: Used to display

Channel Lists on the screen.

TOOLS: Use to quickly select

frequently used functions.

INFO: Press to display

information on the TV screen.

P.MODE: Press to select the

picture mode.

MTS: Press to choose stereo,

mono or Separate Audio Program (SAP broadcast).

Use these buttons in the DMA

and Anynet+ modes. (∏: This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

TV: Selects the TV mode directly

PRE-CH: Enables you to return

to the previous channel you were watching.

% z

: Press to change

channels.

SOURCE: Press to display

and select the available video sources.

HDMI: Selects the HDMI mode

directly.

MENU: Displays the main on-

screen menu.

(

RETURN: Returns to the

previous menu.

)

 UP▲/DOWN▼/LEFT◄/

RIGHT►/ENTERE: Use to

select on-screen menu items and change menu values.

EXIT: Press to exit the menu.

P.SIZE: Picture size selection.

MEDIA.P: Not available.

S.MODE: Press to select the

sound mode.

SRS: Selects SRS TruSurround

HD mode.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the gure.

Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the

compartment.

Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the

remote control for a long time. (Assuming typical TV usage, the batteries should last for about one year.)

If the remote control doesn’t work, check the following:

Is the TV power on?

●

Are the plus and minus ends of the batteries reversed?

●

Are the batteries drained?

●

Is there a power outage or is the power cord unplugged?

● Is there a special uorescent light or neon sign nearby?

●

CONNECTIONS

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see ‘Antennas with 300

Ω Flat Twin Leads’ below.

If your antenna has one lead that looks like the diagram to the right, see ‘Antennas with 75 Ω

Round Leads’. If you have two antennas, see ‘Separate VHF and UHF Antennas’.

Antennaswith300ΩFlatTwinLeads

❑

If you are using an off-air antenna (such as a roof antenna or ‘rabbit ears’) that has 300Ω twin at leads, follow the directions below.

Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not

supplied). Use a screwdriver to tighten the screws.

Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennaswith75ΩRoundLeads

❑

Plug the antenna lead into the ANT IN terminal on the back of the TV.

ANT IN

Separate VHF and UHF Antennas

❑

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

Connect both antenna leads to the combiner.

Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

❑

Plug the incoming cable into the ANT IN terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable

channels.

Connecting to a Cable Box that Descrambles All Channels

❑

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled ‘ANT OUT’, ‘VHF OUT’ or simply, ‘OUT’.

Connect the other end of this cable to the ANT IN terminal on the back of the TV.

UHF

VHF

ANT IN ANT OUT

UHF

VHF

ANT IN

English - 6

English - 7

Connecting to a Cable Box that Descrambles Some Channels

❑

If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a twoway splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)

ANT IN

Incoming cable

Splitter

Cable Box

RF (A/B) Switch

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.

This terminal might be labeled ‘ANT IN’, ‘VHF IN’ or simply, ‘IN’.

Connect this cable to a two-way splitter.

Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.

Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.

Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.

Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV. After you have made this connection, set the A/B switch to the ‘A’ position for normal viewing. Set the A/B switch to the ‘B’

position to view scrambled channels. (When you set the A/B switch to ‘B’, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

DVD / Blu-ray player / Cable Box /

TV Rear Panel

Satellite receiver (Set-Top Box)

TV Rear

TV Side Panel

HDMI Cable (Not supplied)

1. Connect an HDMI Cable between the HDMI IN 1 (DVI), 2 or 3 jack on the TV and the HDMI jack on the DVD / Blu-ray Player

or Cable Box / Satellite receiver (Set-Top Box). What is HDMI?

HDMI(High-Denition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals

●

using a single cable. The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital

●

Copy Protection) coding feature installed.

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel conguration.

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.

TV Rear Panel

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

DVI to HDMI Cable (Not supplied)

Audio Cable (Not supplied)

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 1 (DVI) jack on the TV and the DVI jack on the

DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).

Connect Audio Cables between the PC/DVI AUDIO IN jack on the TV and the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel conguration.

When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection

terminal to the cable. When using an HDMI / DVI cable connection, you must use the HDMI IN 1 (DVI) jack.

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via Component cables

The rear panel jacks on your TV make it easy to connect a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) to your TV.

TV Rear Panel

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

Component Cable (Not supplied)

1. Connect a Component Cable between the COMPONENT IN (1 or 2) [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB,

PR] jacks on the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).

Connect Audio Cables between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box).

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.

Be sure to match the component video and audio connections. For example, if connecting a Component video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel conguration.

When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection

terminal to the cable.

English - 8

English - 9

Connecting a VCR

TV Rear Panel

VCR Rear Panel

Audio Cable (Not supplied)

Video Cable (Not supplied)

1. Connect a Video Cable between the AV IN (1 or 2) jack on the TV and the VIDEO OUT jack on the VCR.

Connect Audio Cables between the AV IN (1 or 2) jacks on the TV and the AUDIO OUT jacks on the VCR.

If you have a ‘mono’ (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks

of the TV. Alternatively, connect the cable to the ‘R’ jack. If your VCR is stereo, you must connect two cables.

Each VCR has a different back panel conguration.

When connecting a VCR, match the color of the connection terminal to the cable.

ConnectinganAmplier/DVDHomeTheater

TV Rear Panel

TV Side Panel

Amplier/DVDHomeTheater

Audio Cable (Not supplied)

1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and Audio Input jacks on the Amplier / DVD

Home Theater.

When an audio amplier is connected to the AUDIO OUT [R-AUDIO-L] jacks: Decrease the volume of the TV and adjust

the volume level with the Amplier’s volume control. Each Amplier/DVD Home Theater has a different back panel conguration.

When connecting an Amplier/DVD Home Theater, match the color of the connection terminal to the cable.

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV.

Using a Video Cable

❑

TV Side Panel

Camcorder

1. Connect a Video Cable between the AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.

Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.

Each Camcorder has a different back panel conguration.

When connecting a Camcorder, match the color of the connection terminal to the cable.

Using an HDMI Cable

❑

Video Cable (Not supplied)

Audio Cable (Not supplied)

TV Side Panel

HD Camcorder

HDMI Cable (Not supplied)

1. Connect an HDMI Cable between the HDMI IN 3 jack on the TV and the HDMI OUT jack on the camcorder.

English - 10

English - 11

Connecting a PC

4&37*$&4&37*$&

Using a D-Sub Cable

❑

TV Rear Panel

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied)

1. Connect a D-Sub Cable between PC IN connector on the TV and the PC output connector on your computer.

Connect a PC Audio Cable between the PC/DVI AUDIO IN jack on the TV and the Audio Out jack of the sound card on your computer.

When connecting a PC, match the color of the connection terminal to the cable.

Using an HDMI/DVI Cable

❑

TV Rear Panel

HDMI/DVI Cable (Not supplied)

3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)

1. Connect an HDMI/DVI cable between the HDMI IN 1 (DVI) jack on the TV and the PC output jack on your computer.

Connect a 3.5 mm Stereo miniplug / 2RCA Cable between the PC/DVI AUDIO IN jack on the TV and the Audio Out jack of the sound card on your computer.

When using an HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) terminal.

Using an HDMI Cable

❑

HDMI Cable (Not supplied)

TV Rear Panel

TV Side Panel

1. Connect an HDMI cable between the HDMI IN 1 (DVI), 2 or 3 jack on the TV and the PC output jack on your computer.

Each PC has a different back panel conguration.

OPERATION


Sound

Channel

Setup

Input


Sound

Channel

Setup

Input


Sound

Channel

Setup

Input

Viewing the menus

Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

Press the MENU button. The main menu is displayed on the screen. Its left side has the following icons: Picture,

Sound, Channel , Setup, Input.

Press the ▲ or ▼ button to select one of the icons. Press the ◄ or ► button to access the icon’s sub-menu.

Press the ▲ or ▼ button to move to items in the menu.

Press the ENTERE button to enter items in the menu.

Press the ▲/▼/◄/► button to change the selected items.

Press the RETURN button to return to the previous menu.

Press the EXIT button to exit from the menu.

Using the remote control buttons

Button Operations Button Operations

RETURN

EXIT

Example: Setting the TV’s Brightness in the Picture Menu

❑

Adjusting the Brightness to 80



Press the MENU button to display the menu.

Press the ENTERE button to select Picture.

Press the ▲ or ▼ button to select Brightness.

Press the ENTERE button.

Press the ◄ or ► button until the Brightness changes to 80.

Press the ENTERE button.

Press the EXIT button to exit from the menu.

Display the main on-screen menu. ▲/▼/◄/► Move the cursor and select an item.

Return to the previous menu.

Exit the on-screen menu.

ENTER

Mode : Standard  Backlight 8 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint (G/R) G50 R50 Advanced Settings  Picture Options  Reset : OK


UMove EEnter R



Select the currently selected item.

Conrm the setting.

Mode : Standard  Backlight 8 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint (G/R) G50 R50 Advanced Settings  Picture Options  Reset : OK

Brightness 45

U Move lr Adjust R

Brightness 80

U Move lr Adjust R


UMove EEnter R






Return

English - 12

English - 13

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

Press the POWER P button on the remote control.

You can also use the POWER P button on the TV.

The message Sets the menu language. is displayed.

Press the ▲ or ▼ button to select the language, then press the ENTERE button. The message Select Home Use when installing this TV in your home is displayed.

Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTERE button.

We recommend setting the TV to Home Use mode for the best picture in your home environment.

Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and

you want to return to Home Use (Standard): Press the volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

The message Check antenna input. is displayed with OK selected. Press the ENTERE button.

Press the ▲ or ▼ button to select Air, STD, HRC, or IRC, then press the ENTERE button.

Press the ENTERE button to select Start. The TV will begin memorizing all of the available channels.

To stop the search before it has nished, press the ENTERE button with Stop selected.

After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then

reappears. Press the ENTERE button when channel memorization is complete.

The Clock Set menu is displayed. Press the ◄ or ► button to move to the Month, Day, Year, Hour, Minute or am/pm. Set

the Month, Day, Year, Hour, Minute or am/pm by pressing the ▲ or ▼ button. Press the ENTERE button. (Refer to ‘Time’ on page 21)

You can set the month, day, year, hour, and minute directly by pressing the number buttons on the remote control.

The message Enjoy your TV is displayed. When you have nished, press the ENTERE button.

If you want to reset this feature...

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTERE button.

Press the ENTERE button again to select Plug & Play.

The Plug & Play feature is only available in the TV mode.

CHANNEL CONTROL


Sound

Channel

Setup

Input

ConguringtheChannelMenu

Antenna→Air/STD/HRC/IRC

❑

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

STD, HRC and IRC identify various types of cable TV systems. Contact your local cable

Antenna : Auto Program  Channel List  Fine Tune Color System :

Channel

Air



Auto

company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.

Auto Program

❑

UMove EEnter R

First, select the correct signal source (Air, STD, HRC, or IRC).

The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two

minutes. Press the ENTERE button at any time to interrupt the memorization process and return to the Channel menu.

To stop the search before it has nished, press the ENTERE button with Stop selected.

Channel List

❑

For detailed procedures on using the Channel List, refer to the ‘Managing Channels’ instructions.

You can select these options by simply pressing the CH LIST button on the remote control.

Fine Tune

❑

Use ne tuning to manually adjust a particular channel for optimal reception.

If you do not store the ne-tuned channel in memory, adjustments are not saved.

* will appear next to the name of ne-tuned channels.

To reset the ne tuning setting, press the ▼ button to select Reset, then press the ENTERE button.

ColorSystem→Auto / PAL-M / PAL-N / NTSC

❑

Normally the TV can receive image and sound with good quality when in the mode auto. This mode detects the signal color system automatically. In case of some signal reception with color unsatisfactory, select the Color System Mode to PAL-M, PAL-N or NTSC.

Return



English - 14

English - 15

Managing Channels

Using the Channel List, you can conveniently lock/unlock or add/delete channels.

Add / Delete

❑

Air 6

Using the Channel List, you can add channels.

Press the CH LIST button.

Move to the # eld by pressing the ▲, ▼, ◄ or ► button, select a channel to be added, and press the ENTERE button to add the channel.

If you press the ENTERE button again, the c symbol next to the channel disappears

and the channel is not added.

Lock / Unlock

❑

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

\ is active when Child Lock is selected to On. (refer to page 21)

Press the CH LIST button.

Move to the \ eld by pressing the ▲, ▼, ◄ or ►button, select a channel to be locked,

# Add \

and press the ENTERE button. The PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN, by selecting Change PIN from the menu.

If you press the ENTERE button again, the c symbol next to the channel disappears and the channel lock is cancelled.

A blue screen is displayed when Child Lock is activated.

Select On or Off in Child Lock to easily turn the channels which selected on \ to be active or inactive.

Channel List

Ch. Air 2 Air 3 Air 4 Air 5 Air 6 Air 7 Air 8 Air 9 Air 10 Air 11

Lock

Move Enter Page Return

1 / 10

# \ c

c c

PICTURE CONTROL


Sound

Channel

Setup

Input


Sound

Channel

Setup

Input

ConguringthePictureMenu

Mode

❑

You can select the type of picture which best corresponds to your viewing requirements.

Press the P.MODE button on the remote control repeatedly to select the desired picture

mode.

Dynamic



Selects the picture for increased denition in a bright room.

Standard



Mode : Standard  Backlight 8 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint (G/R) G50 R50 Advanced Settings  Picture Options  Reset : OK


UMove EEnter R

Selects the picture for the optimum display in a normal environment.

Movie



Selects the picture for viewing movies in a dark room.

Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

❑

Your television has several setting options that allow you to control the picture quality.

Backlight: Adjusts the brightness of LCD back light.

●

Contrast: Adjusts the contrast level of the picture.

●

Brightness: Adjusts the brightness level of the picture

●

Sharpness: Adjusts the edge denition of the picture.

●

Color: Adjusts color saturation of the picture.

●

Tint (G/R): Adjusts the color tint of the picture.

●

When you make changes to Backlight, Contrast, Brightness, Sharpness, Color or Tint (G/R) the OSD will be adjusted

accordingly. In PC mode, you can only make changes to Backlight, Contrast and Brightness.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

The energy consumed during use can be signicantly reduced if the brightness level of the picture is lowered, which will

reduce the overall running cost.

Advanced Settings

❑

Samsung’s new TVs allow you to make even more precise picture settings than previous models.

Advanced Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Gamma and White Balance from among the

Advanced Settings items.

BlackTone→Off/Dark/Darker/Darkest



You can select the black level on the screen to adjust the screen depth.

DynamicContrast→Off/Low/Medium/High



Advanced Settings

Black Tone : Off  Dynamic Contrast : Medium Gamma : 0 Color Space : Native White balance  Flesh Tone : 0 Edge Enhancement : On

UMove EEnter R



You can adjust the screen contrast so that the optimal contrast is provided.

Gamma



You can adjust the primary color (red, green, blue) Intensity. (-3 ~ +3)

Color Space



Color space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most natural color.

Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.

●

Native: Native Color Space offers deep and rich color tone.

●

White Balance



You can adjust the color temperature for more natural picture colors.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: You can adjust the Color ‘temperature’ in the light areas by

●

changing the values of R, G, B. Recommended for advanced users only. Reset: The previously adjusted white balance will be reset to the factory defaults.

●

Changing the adjustment value will refresh the adjusted screen.



Return



Return



English - 16

English - 17

Flesh Tone


Sound

Channel

Setup

Input



You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen.

EdgeEnhancement→Off/On



You can emphasize object boundaries in the picture.

Picture Options

❑

In PC mode, you can only make changes to the Color Tone and Size from among the

items in Picture Options.

ColorTone→Cool/Normal/Warm1/Warm2



Warm1

N N

Size



or Warm2 is only activated when the picture mode is Movie.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Picture Options

Color Tone : Normal  Size : 16:9 Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

UMove EEnter R



Occasionally, you may want to change the size of the image on your screen. Your TV comes with screen size options, each

designed to work best with specic types of video input. Your cable box/satellite receiver may have its own set of screen sizes as

well. In general, though, you should view the TV in 16:9 mode as much as possible.

Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size.

16:9 : Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

●

Wide Zoom : Magnify the size of the picture more than 4:3.

●

Zoom : Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

●

4:3 : This is the default setting for a video movie or normal broadcasting.

●

Screen Fit : Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component

●

(1080i/1080p) signals are input. Temporary image retention may occur when viewing a static image on the set for more than two hours.

After selecting Zoom mode: Select by pressing the ◄ or ► button. Use the ▲ or ▼ button to move the picture up and

down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTERE

button. After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select by pressing the ◄ or ►

button. Use the ▲, ▼, ◄ or ► button to move the picture. Press the ENTERE button. Reset : Press the ◄ or ► button to select Reset, then press the ENTERE button. You can initialize the setting.

HD (High Denition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720)

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Input Source Picture Size

TV, AV, Component (480i, 480p) 16:9, Wide Zoom, Zoom, 4:3 Component (1080i, 1080p), HDMI (720p, 1080i, 1080P) 16:9, 4:3, Wide Zoom, Zoom, Screen Fit PC 16:9, 4:3



Return

DigitalNR→Off/Low/Medium/High/Auto



If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

HDMIBlackLevel→Normal/Low



You can select the black level on the screen to adjust the screen depth.

This function is active only when an external device is connected to the TV via HDMI. The HDMI Black Level function may not

be compatible with all external devices.

FilmMode→Off/Auto



The TV can be set to automatically sense and process lm signals from all sources and adjust the picture for optimum quality.

Film Mode is supported in TV, Video, Component (480i / 1080i) and HDMI (480i / 1080i).

Reset→OK/Cancel

❑

Resets all picture settings to the default values.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

❑

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on ‘Control Panel’ in the Windows start menu.

When the control panel window appears, click on ‘Appearance and Themes’ and a display dialog-box will appear.

When the control panel window appears, click on ‘Display’ and a display dialog-box will appear.

Navigate to the ‘Settings’ tab on the display dialog-box. The correct size setting (resolution): Optimum: 1920 X 1080 pixels If a vertical frequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click

OK and exit the dialog box.

Display Modes

❑

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing.



D-Sub and HDMI/DVI Input

Mode Resolution

IBM 640 x 350 31,469 70,086 25,175 +/-

MAC 640 x 480 35,000 66,667 30,240 -/-

VESA CVT

VESA DMT

VESA GTF

VESA DMT /

DTV CEA

720 x 400 31,469 70,087 28,322 -/+

832 x 624 49,726 74,551 57,284 -/-

1152 x 870 68,681 75,062 100,000 -/-

720 x 576 35,910 59,950 32,750 -/+ 1152 x 864 53,783 59,959 81,750 -/+ 1280 x 720 44,772 59,855 74,500 -/+ 1280 x 960 75,231 74,857 130,000 -/+ 1280 x 720 56,456 74,777 95,750 -/+

640 x 480 31,469 59,940 25,175 -/-

640 x 480 37,861 72,809 31,500 -/-

640 x 480 37,500 75,000 31,500 -/-

800 x 600 37,879 60,317 40,000 +/+

800 x 600 48,077 72,188 50,000 +/+

800 x 600 46,875 75,000 49,500 +/+ 1024 x 768 48,363 60,004 65,000 -/1024 x 768 56,476 70,069 75,000 -/1024 x 768 60,023 75,029 78,750 +/+ 1152 x 864 67,500 75,000 108,000 +/+

1280 x 1024 63,981 60,020 108,000 +/+ 1280 x 1024 79,976 75,025 135,000 +/+

1280 x 800 49,702 59,810 83,500 -/+ 1280 x 800 62,795 74,934 106,500 -/+ 1280 x 960 60,000 60,000 108,000 +/+

1360 x 768 47,712 60,015 85,500 +/+ 1440 x 900 55,935 59,887 106,500 -/+ 1440 x 900 70,635 74,984 136,750 -/+

1680 x 1050 65,290 59,954 146,250 -/+

1280 x 720 52,500 70,000

1280 x 1024 74,620 70,000 128,943 -/-

1920 x 1080p 67,500 60,000 148,500 +/+

Horizontal Frequency

(KHz)

Vertical Frequency

(Hz)

Pixel Clock Frequency

(MHz)

89,040

Sync Polarity

(H / V)

-/+

When using an HDMI / DVI cable connection, you must use the HDMI IN 1(DVI) jack.

English - 18

English - 19

Setting up the TV with your PC


Sound

Channel

Setup

Input

Preset: Press the SOURCE button to select PC mode.

Auto Adjustment

❑

Use the Auto Adjust function to have the TV set automatically adjust the video signals it

receives. The function also automatically ne-tunes the settings and adjusts the frequency

values and positions.

Press the TOOLS button to display the Tools menu. You can also set the Auto

Adjustment by selecting Tools→AutoAdjustment. This function does not work in DVI-HDMI mode.

Screen

❑

Mode : Standard  Backlight 8 Contrast 95 Brightness 45

Sharpness 50

Auto Adjustment Screen

Advanced Settings

Picture Options  Reset : OK


UMove EEnter R



The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by ne tuning alone, then make the vertical frequency adjustments on your PC and ne tune again. After the noise has been reduced, re-adjust the

picture so that it is aligned on the center of the screen.

Coarse / Fine



The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

PC Position



Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ►button to adjust the Horizontal-Position.

Image Reset



You can replace all image settings with the factory default values.



Return

+ 46 hidden pages
