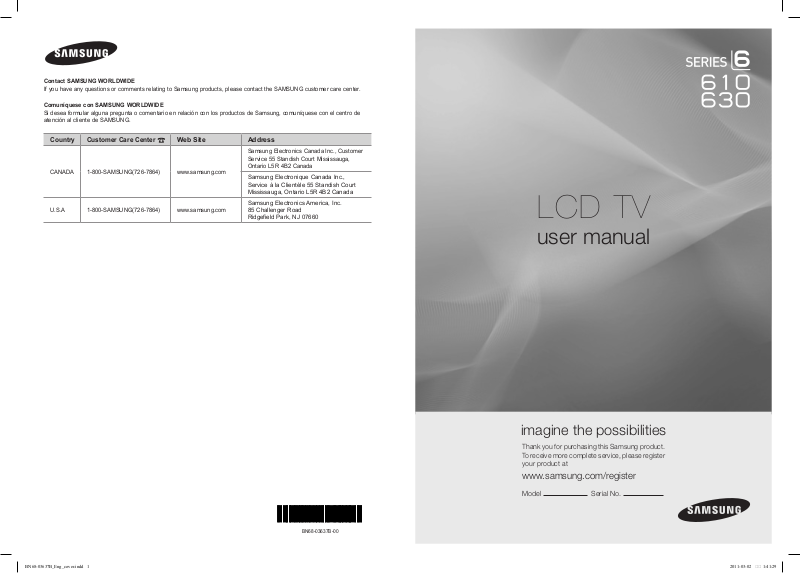

Samsung LN46D630, LN40D630M3F QUICK GUIDE [es]
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Comuníquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de
atención al cliente de SAMSUNG.
Country Customer Care Center
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com
Web Site Address
Samsung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga,
Ontario L5R 4B2 Canada
Samsung Electronique Canada Inc.,
Service à la Clientèle 55 Standish Court
Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
LCD TV
user manual
BN68-03637B-00
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model Serial No.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock
or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image
quality. To reduce risk of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display any image on full screen, use TV set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout
process.
• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

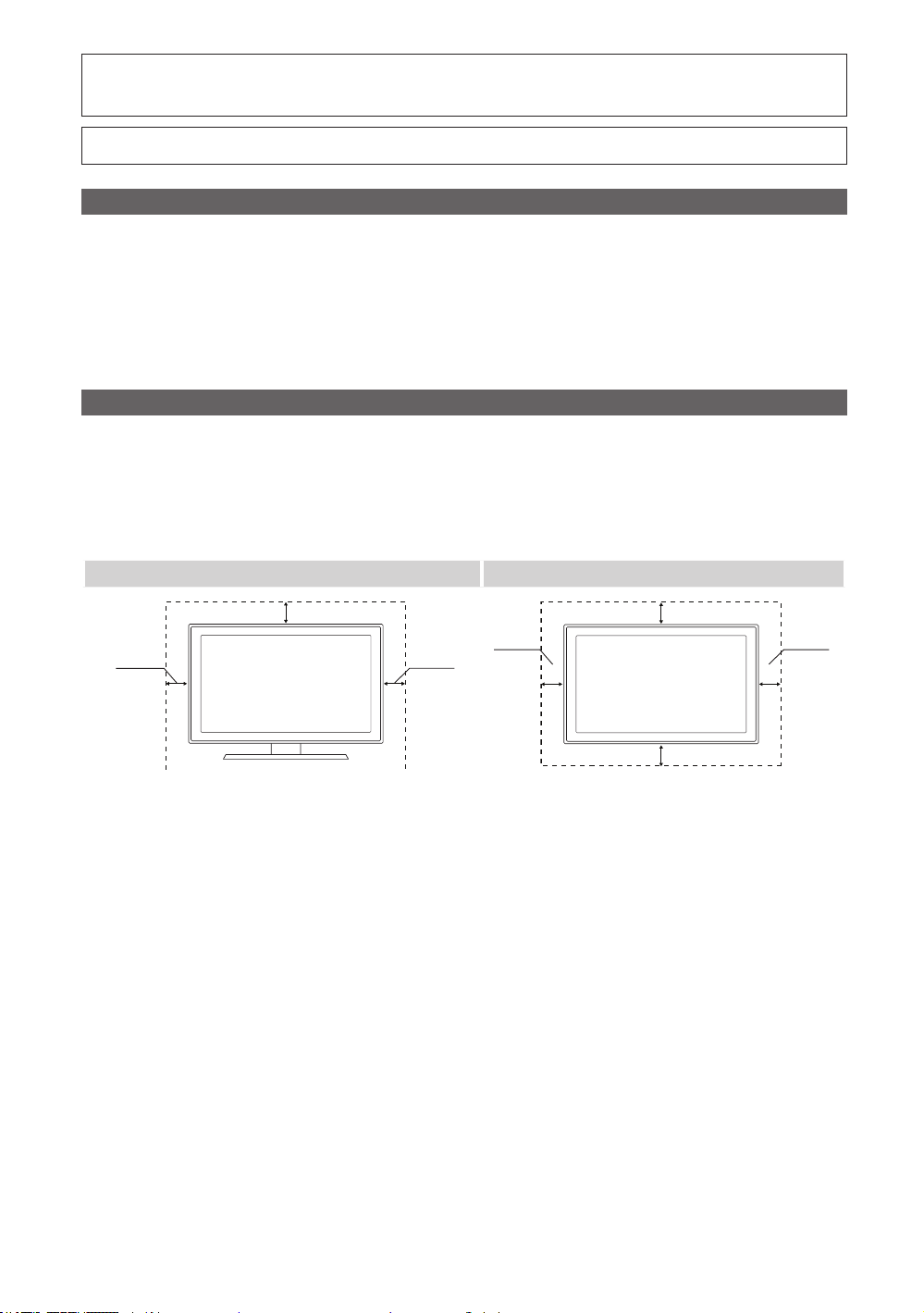

Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
When using a stand or wall-mount, use parts provided by Samsung Electronics only.
✎
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
x
The appearance may differ depending on the product.
✎
Be careful when you contact the TV because some parts can be somewhat hot.
✎
Installation with a stand. Installation with a wall-mount.
4inches
4inches
© 2011 Samsung Electronics Co., Ltd. All rights reserved.
4inches
4inches
4inches
4inches
4inches
2
English
Contents
P
POWER
FAV.CH
MEDIA.P
P.MODE
S.MODE
P.SIZE
CC
MTS
INFO
SLEEP
CH LIST
D
Getting Started
y List of Features ......................................................... 4
y Accessories .............................................................. 4
y Installing the LCD TV Stand ...................................... 4
y Viewing the Control Panel ......................................... 5
y Viewing the Remote Control ...................................... 6
y Connecting to an Antenna ........................................7
y Plug & Play (Initial Setup) ........................................... 7
Connections

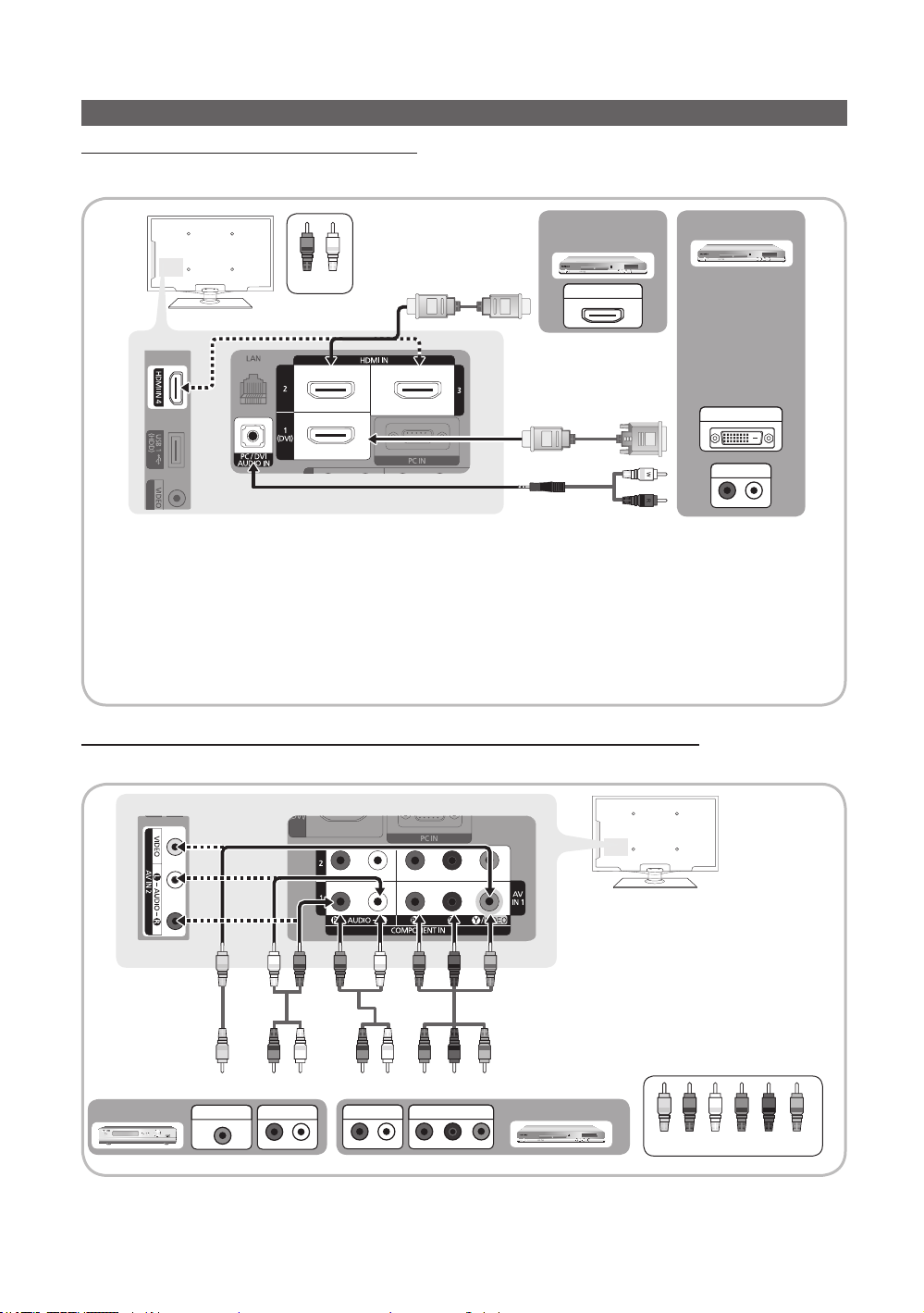

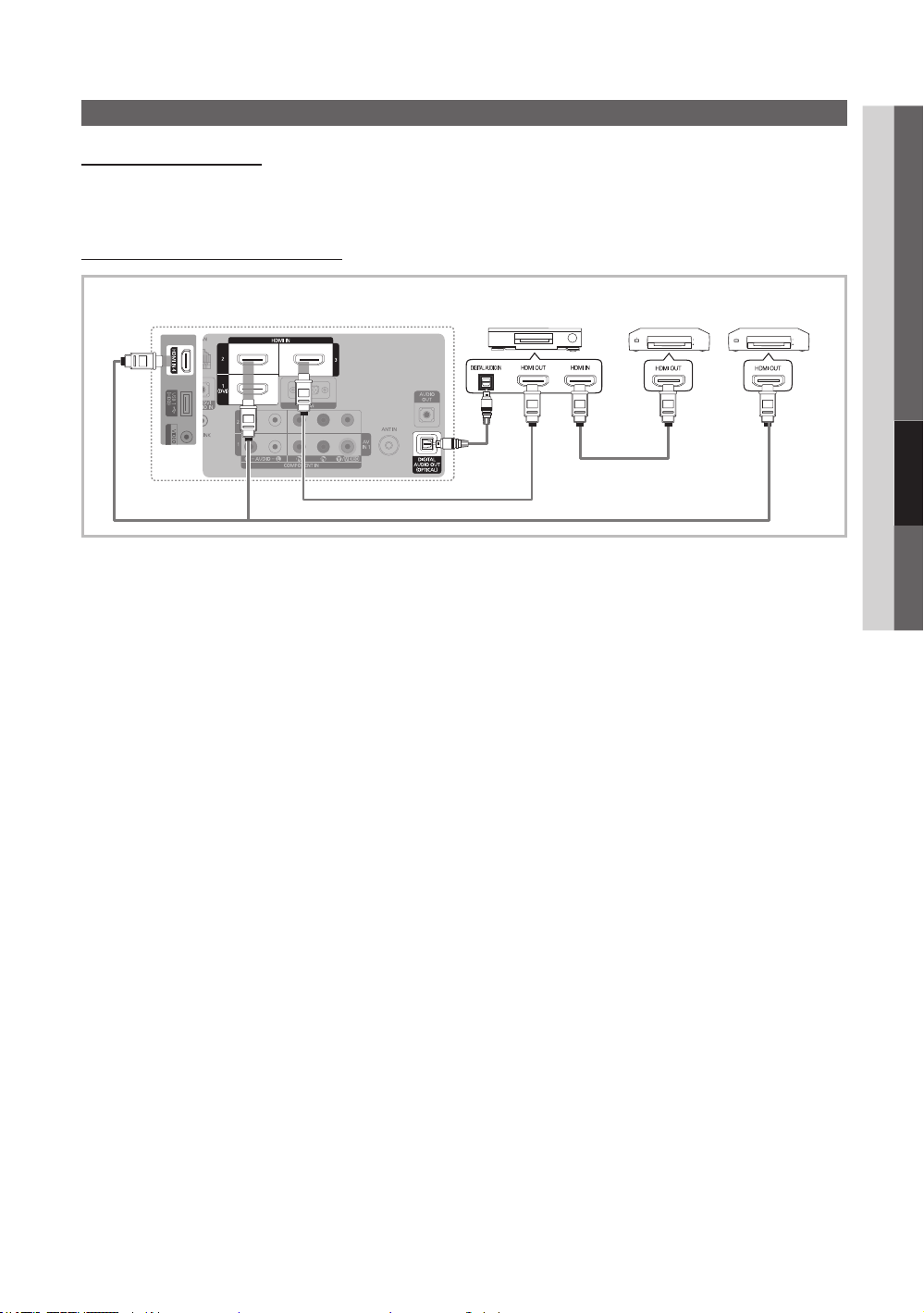

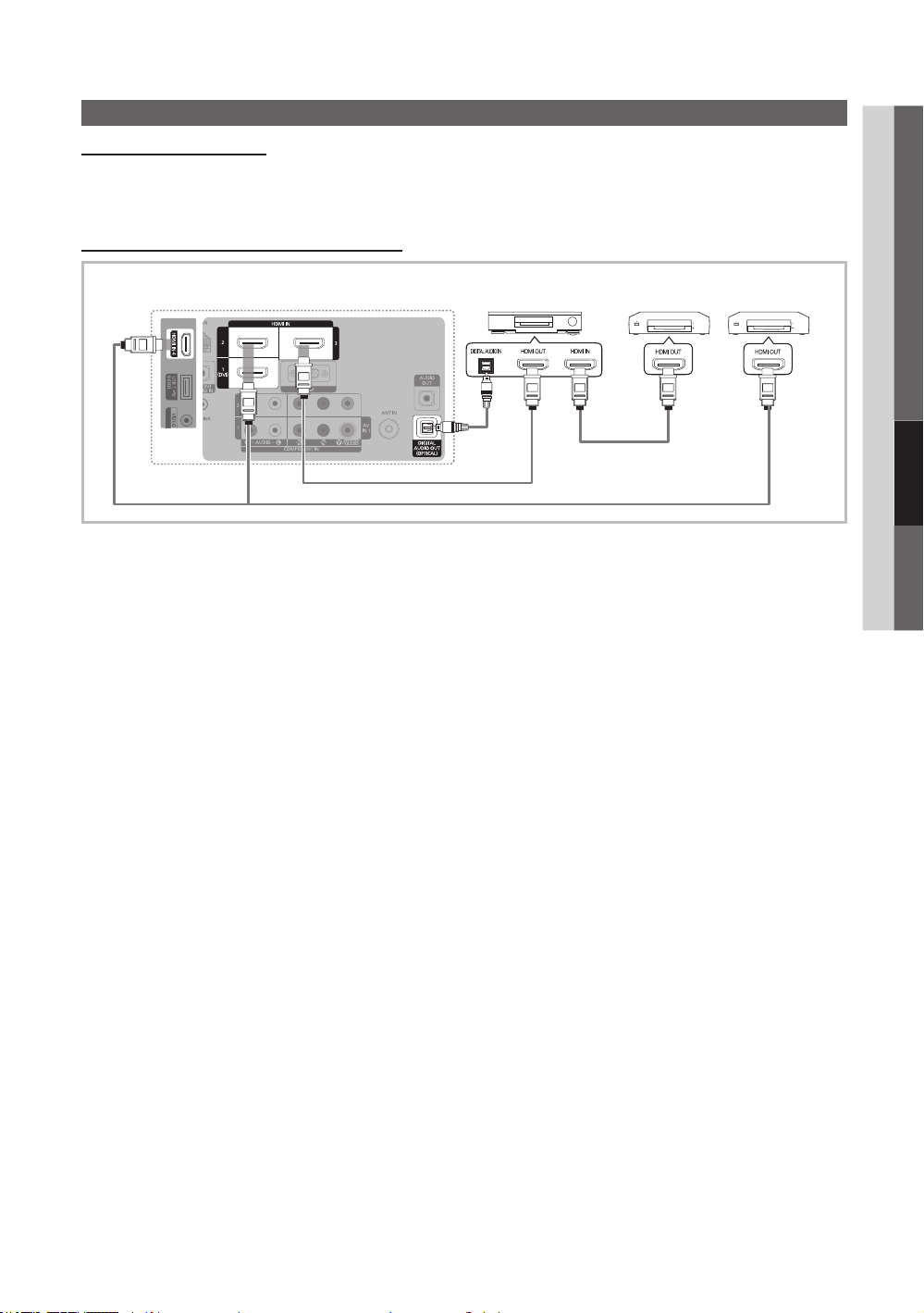

y Connecting to an AV Device ......................................8

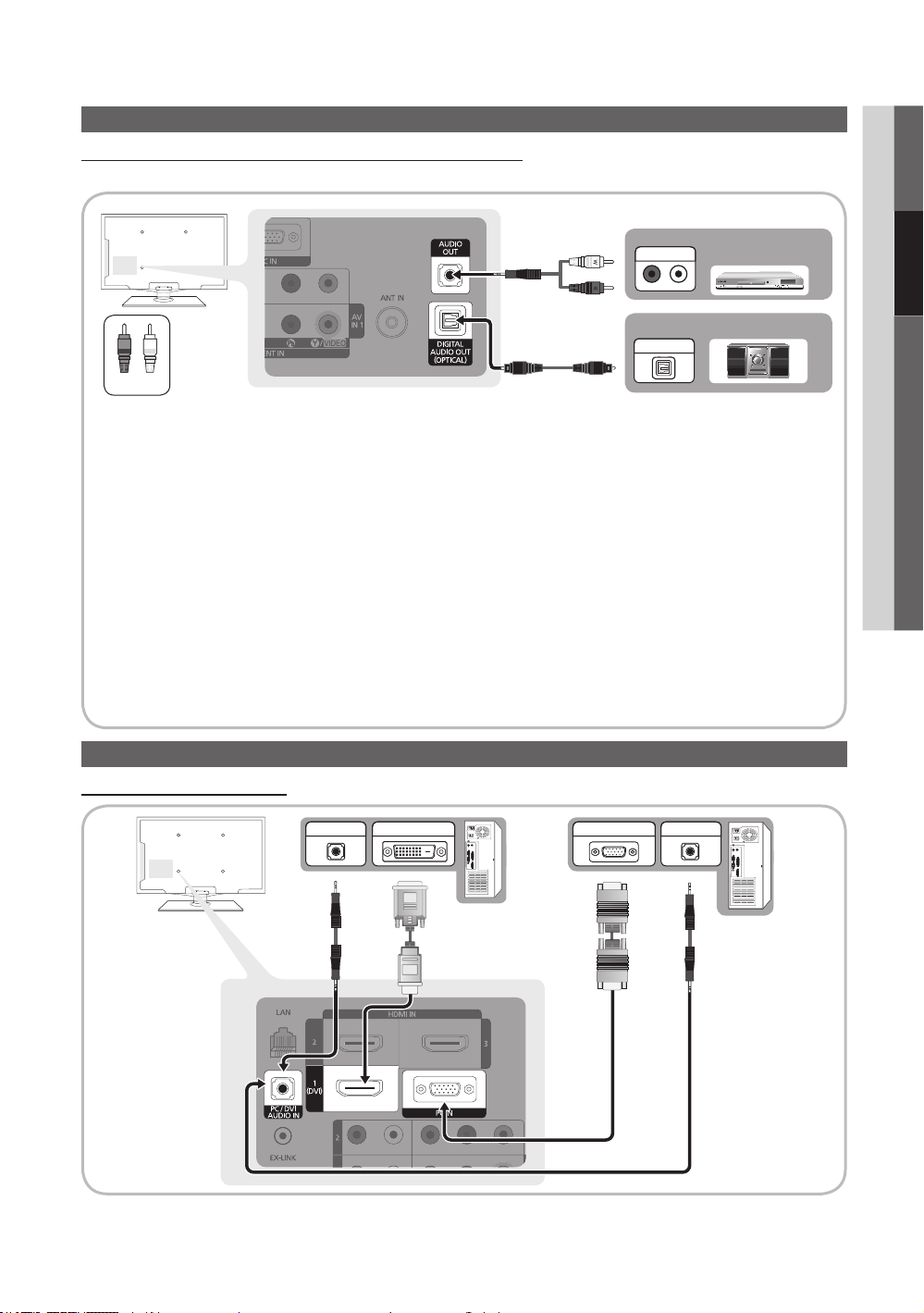

y Connecting to an Audio Device ................................. 9
y Connecting to a PC ..................................................9

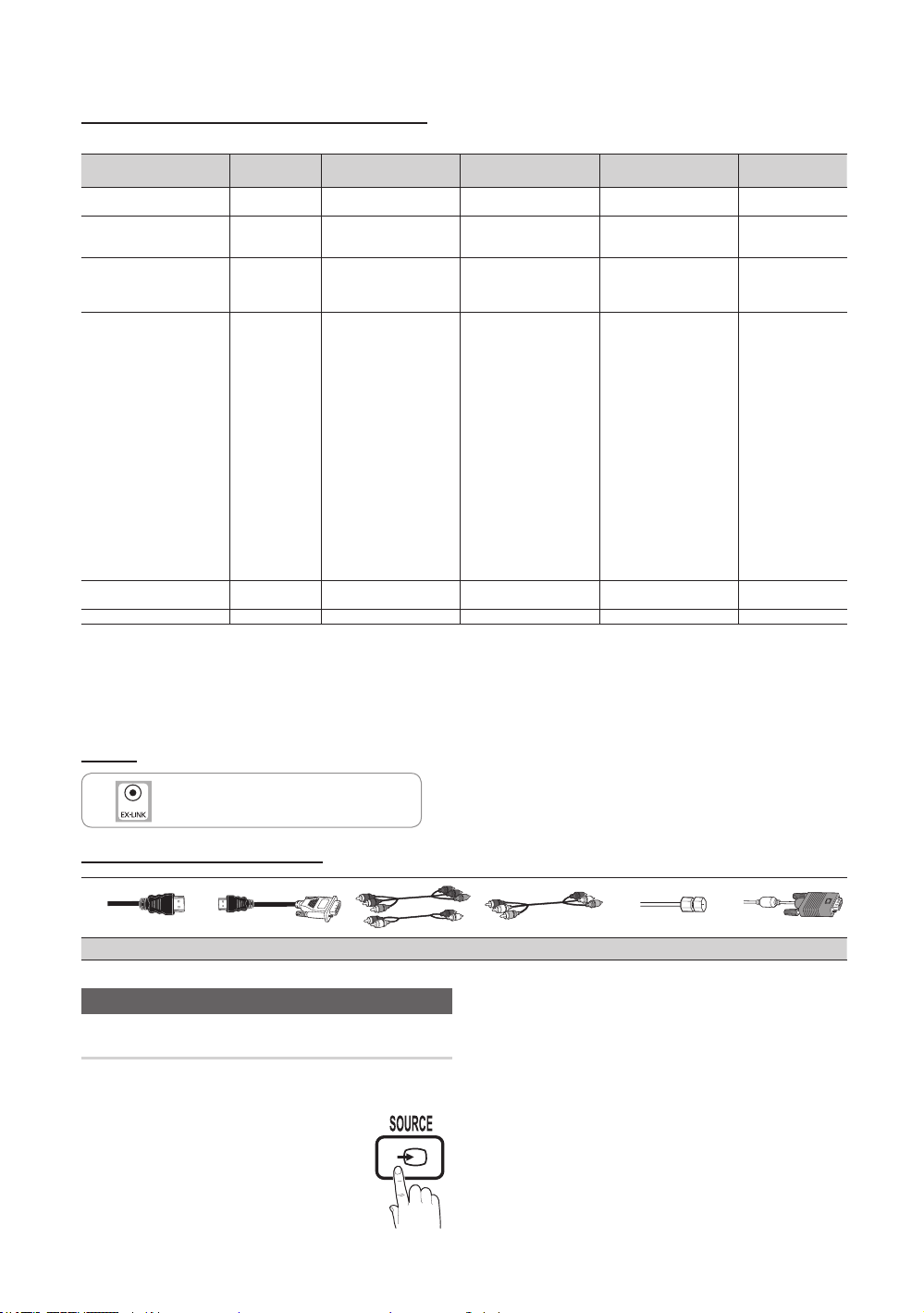

y Changing the Input source ...................................... 10
Basic Features

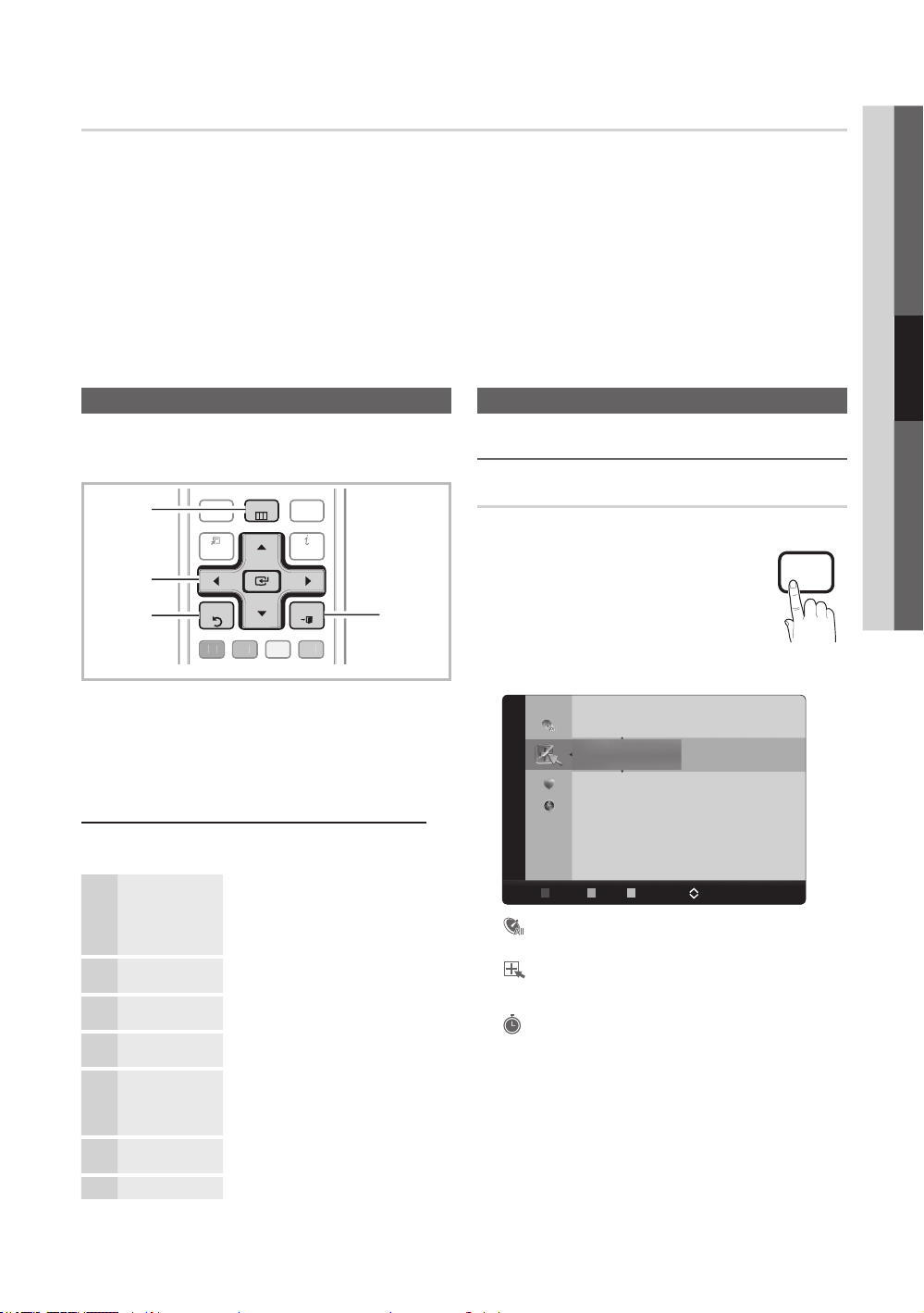

y How to Navigate Menus .......................................... 11
y Channel Menu ........................................................ 11
Seeing Channels 11
Using Favorite Channels 12
Memorizing channels 12
Editing channels 12
Other Features 12
y Picture Menu ..........................................................13
Changing the Preset Picture Mode 13
Adjusting picture settings 14
Economical Solutions 14
Setting up the TV with your PC 14
Changing the Picture Options 15
y Sound Menu ........................................................... 17
Changing the Preset Sound Mode 17
Adjusting sound settings 17
Sound Systems, Etc. 17
y Setup Menu ............................................................ 18
Setting the Time 18
Using the Sleep Timer 18
Setting the On/Off Timer 18

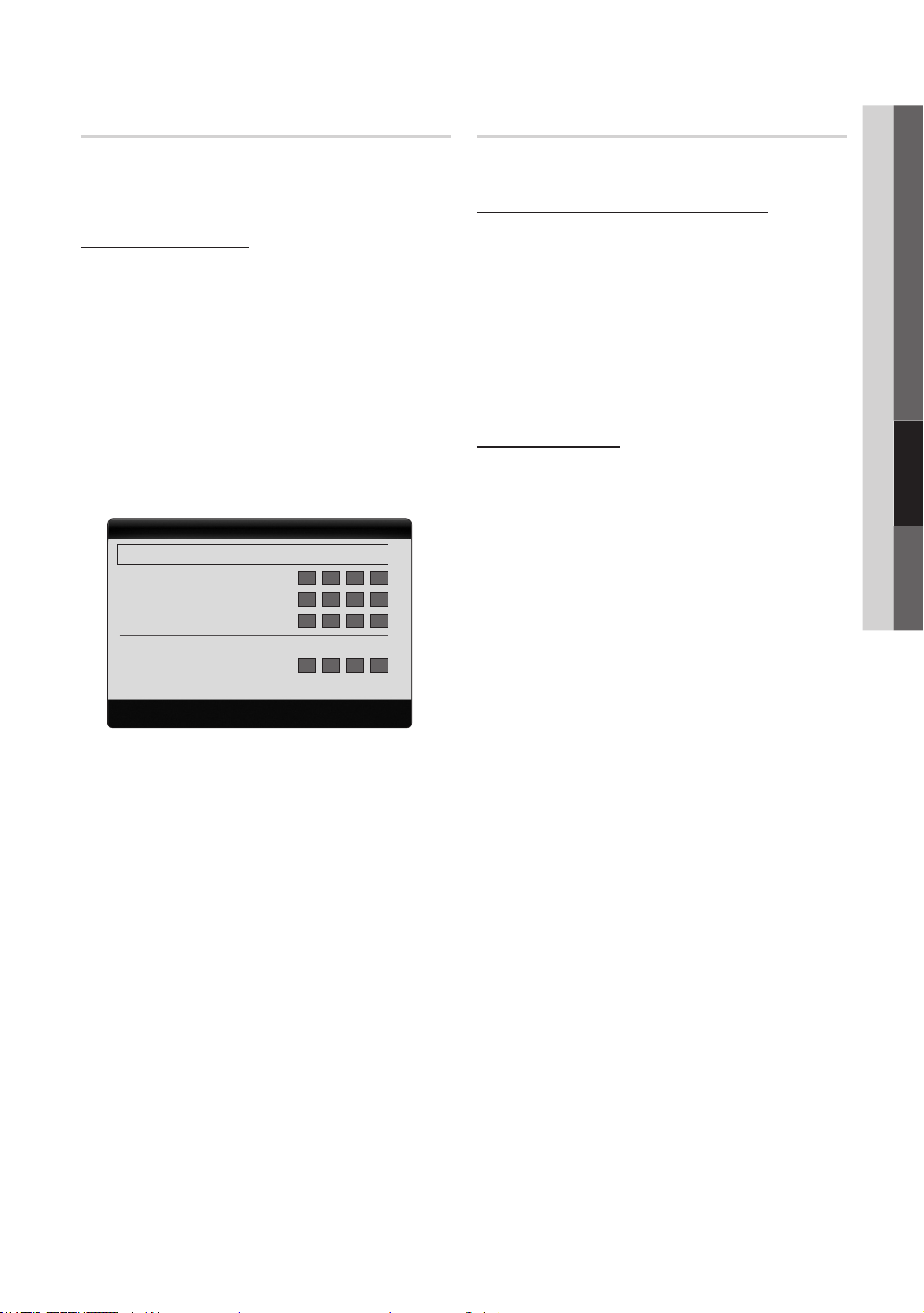

Locking Programs 19
Other Features 20
Picture In Picture (PIP) 22
y Support Menu ......................................................... 22
Advanced Features
y Network Connection ............................................... 24

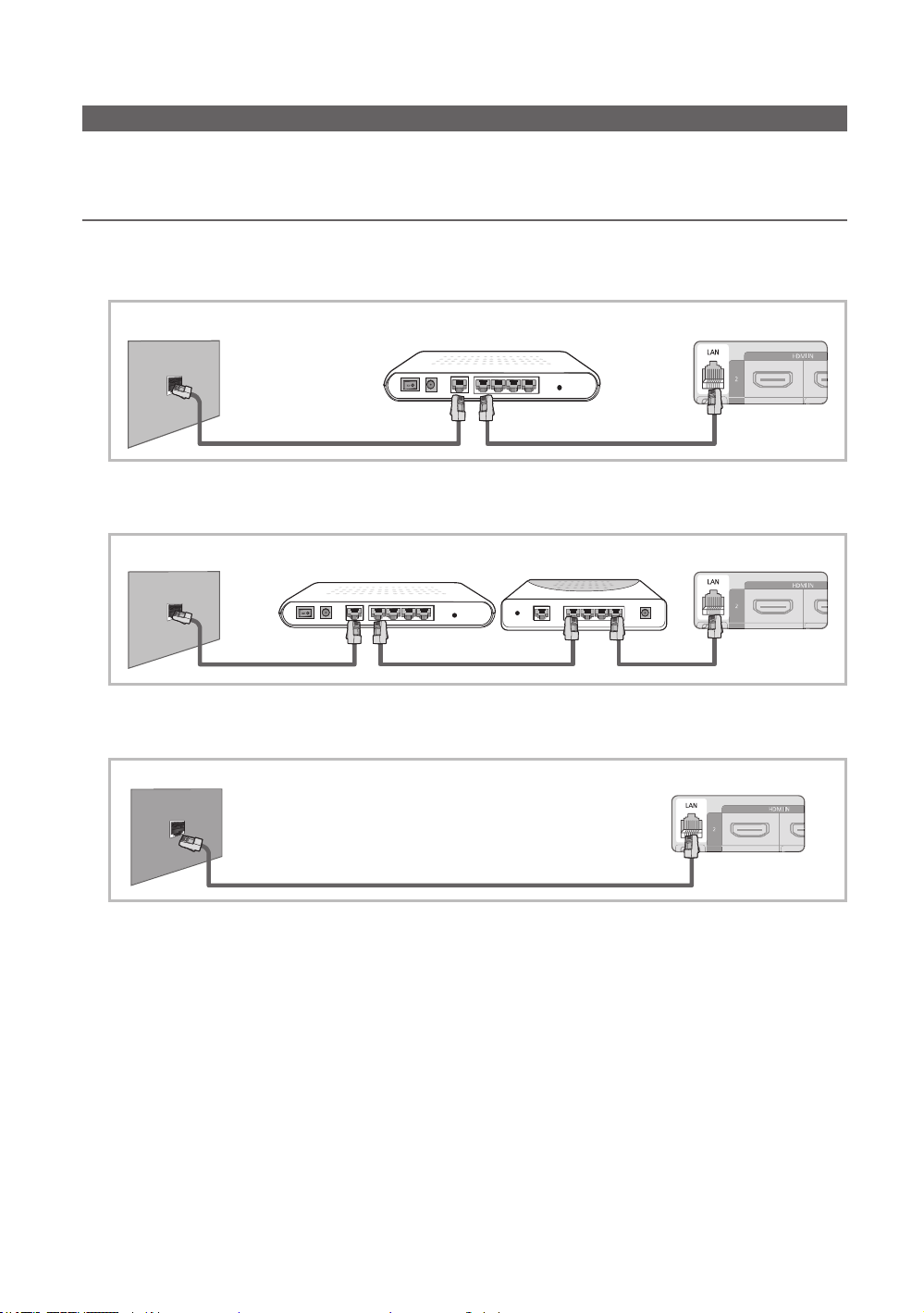

Connecting to a Wired Network 24

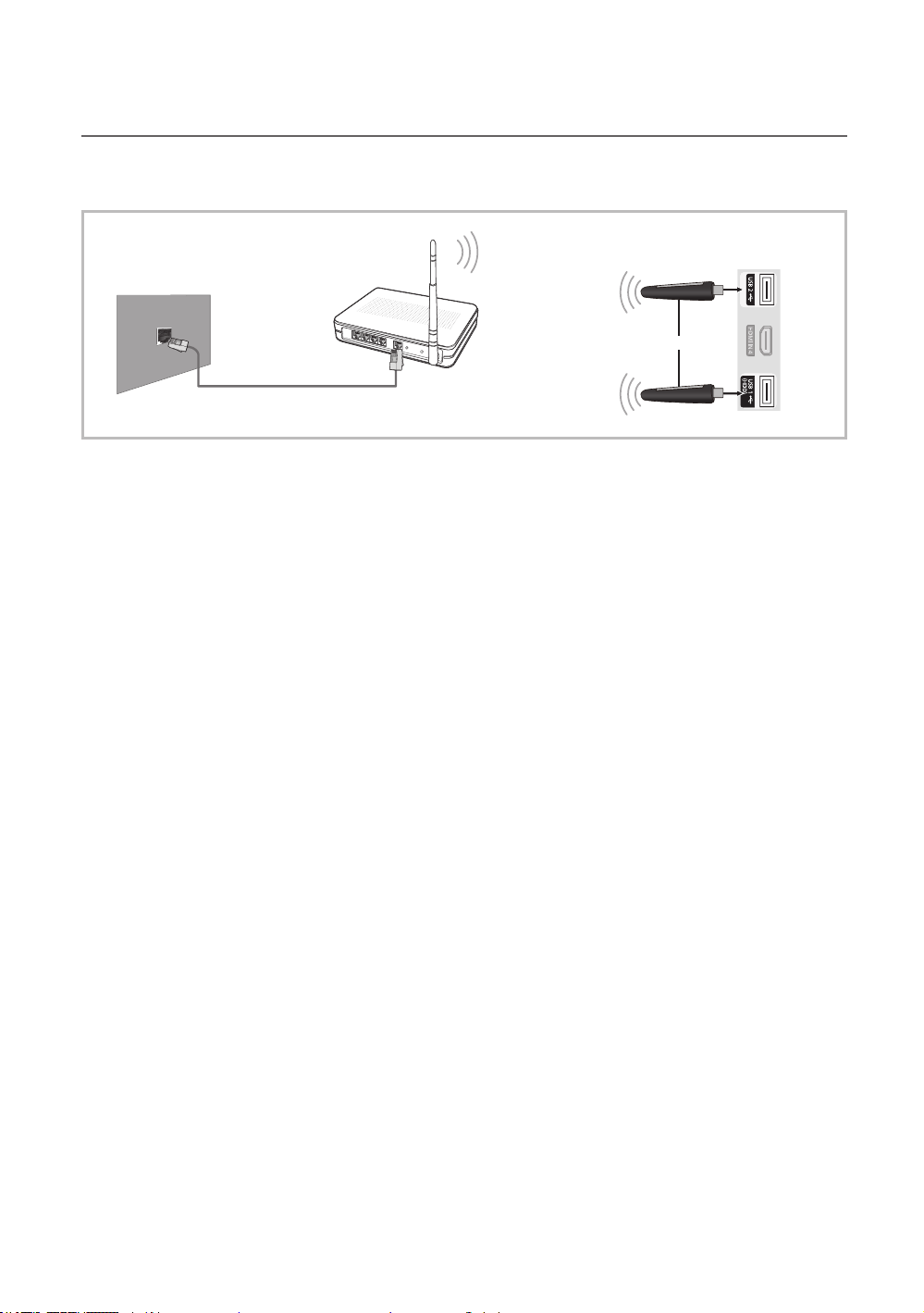

Connecting to a Wireless Network 26

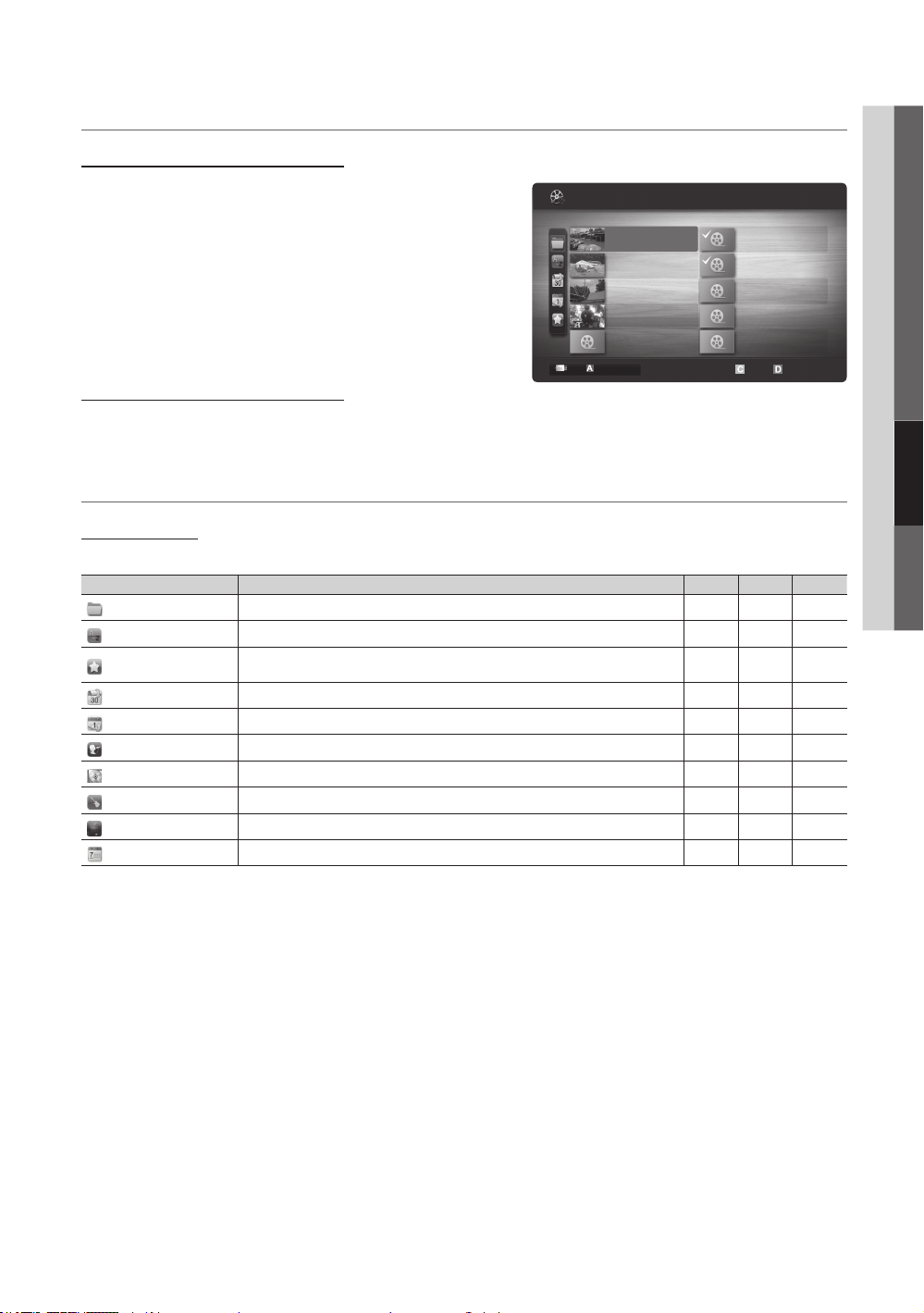

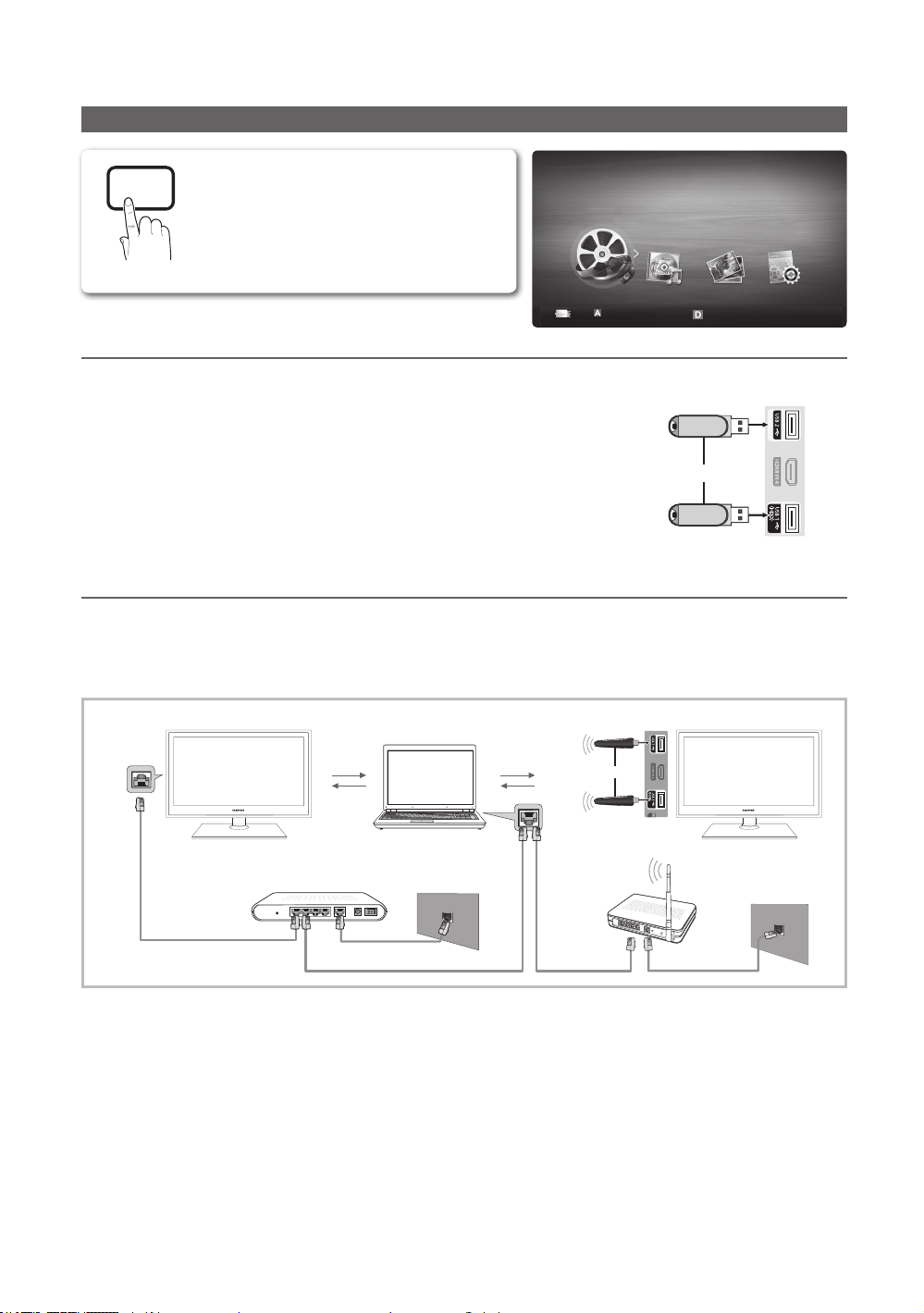

y Media Play .............................................................. 30
Connecting a USB Device 30
Connecting to the PC through network 30

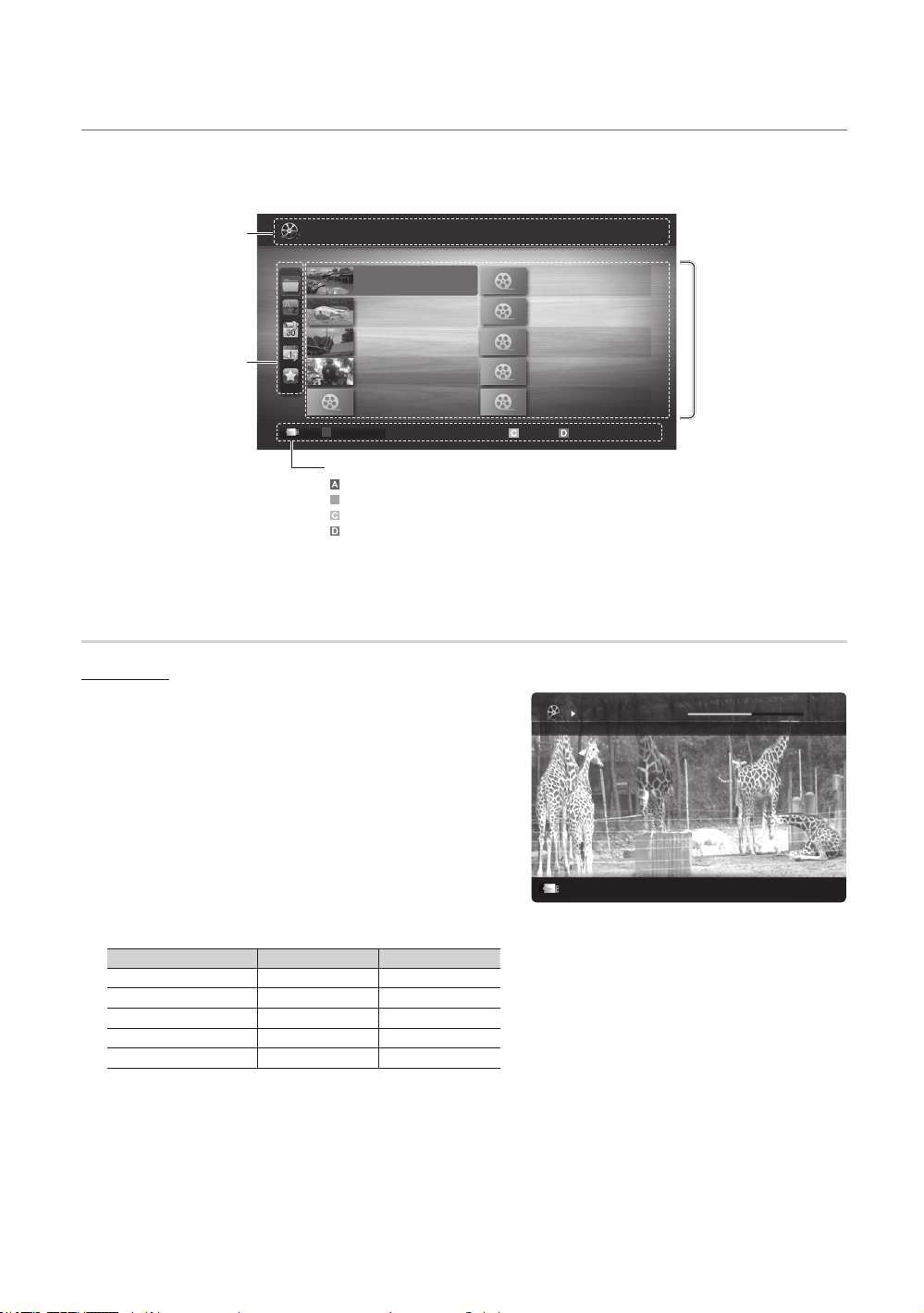

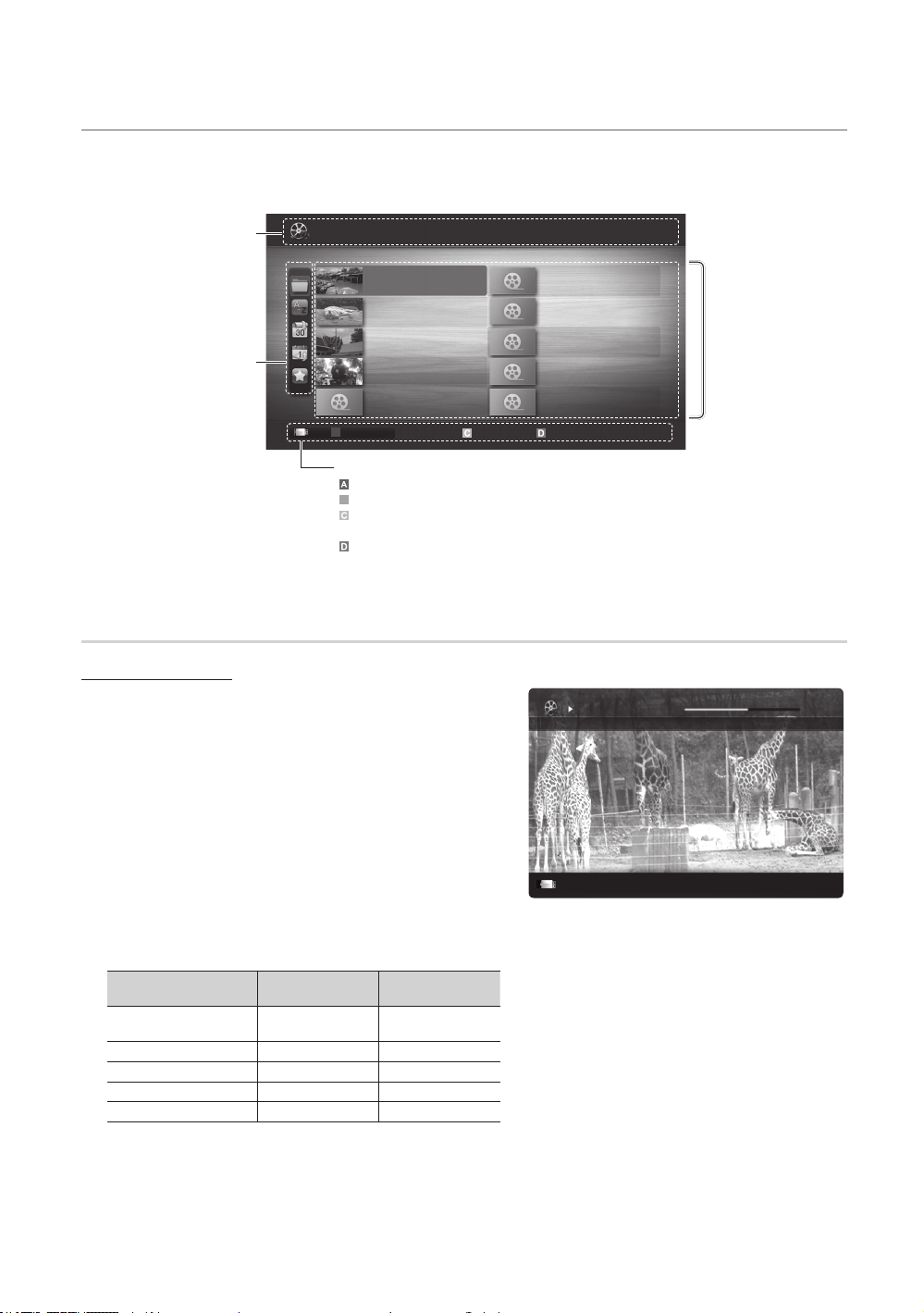

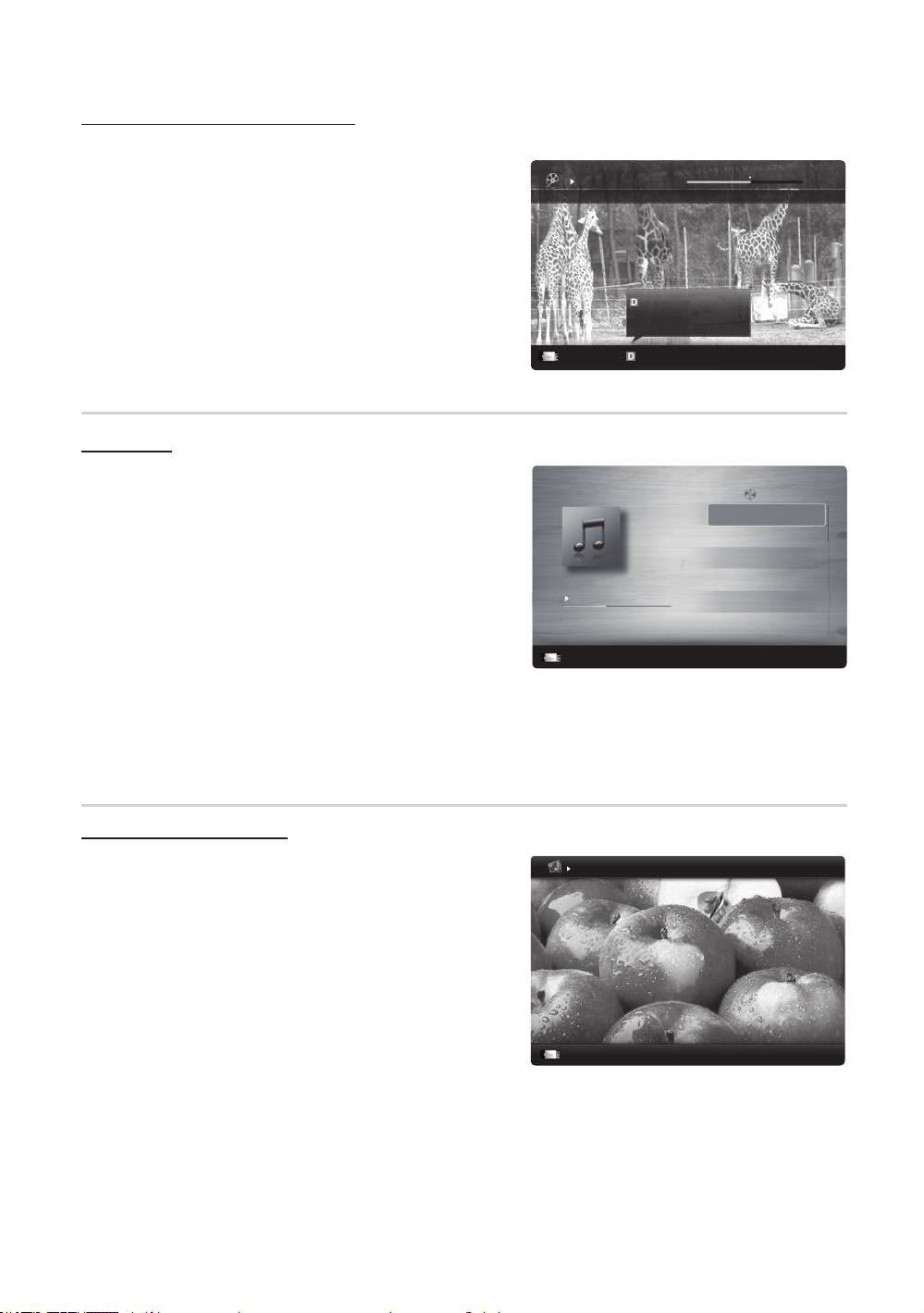

Screen Display 32
Playing Multiple Files 35
Media Play - Additional Functions 35
y Anynet+ ................................................................. 37
Setting Up Anynet+ 38
Switching between Anynet+ Devices 38
Recording 38
Listening through a Receiver 39
Troubleshooting for Anynet+ 39
y AllShare .................................................................. 40
About AllShare 40
Setting Up AllShare 40
Other Information

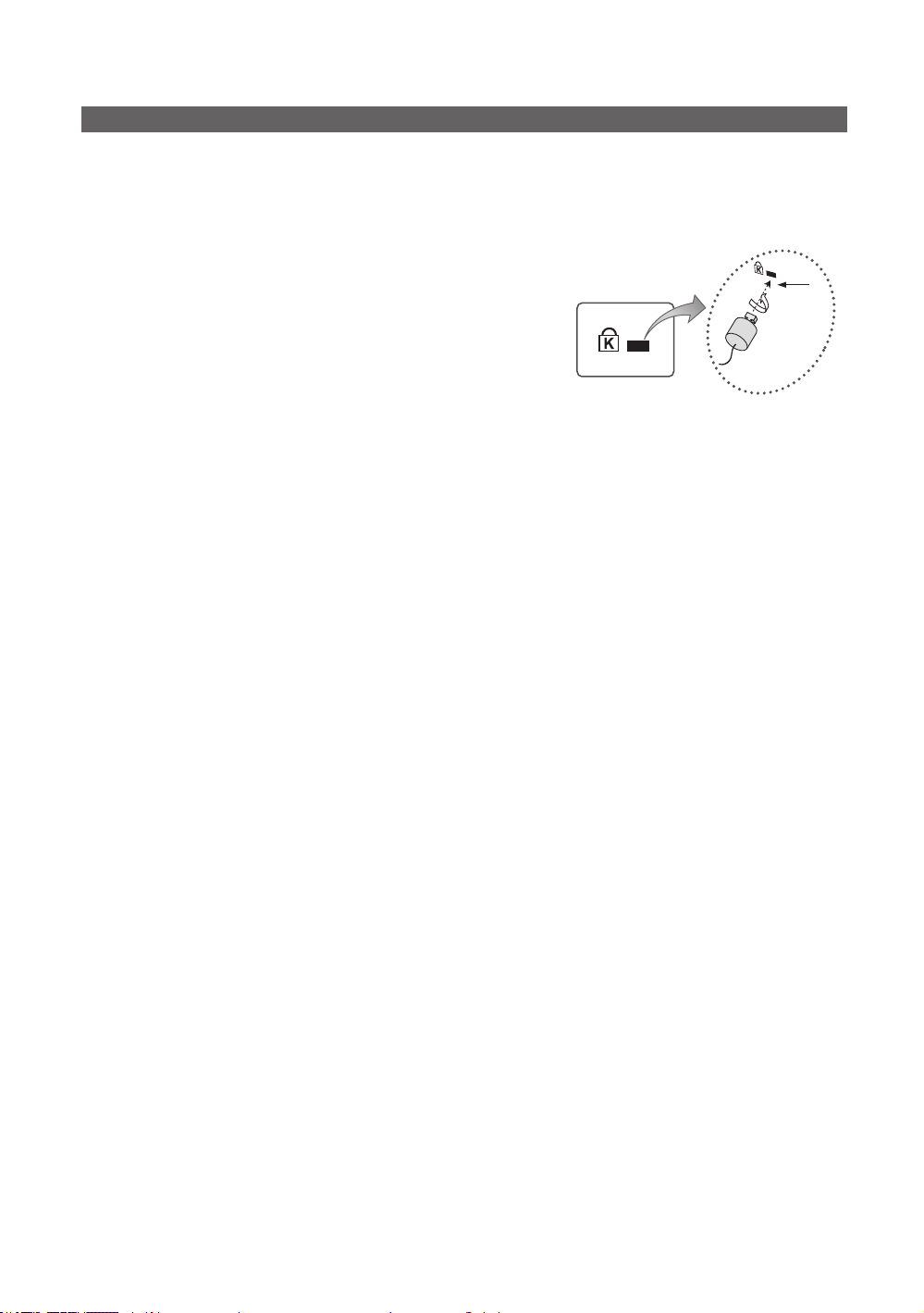

y Anti-theft Kensington Lock ...................................... 42

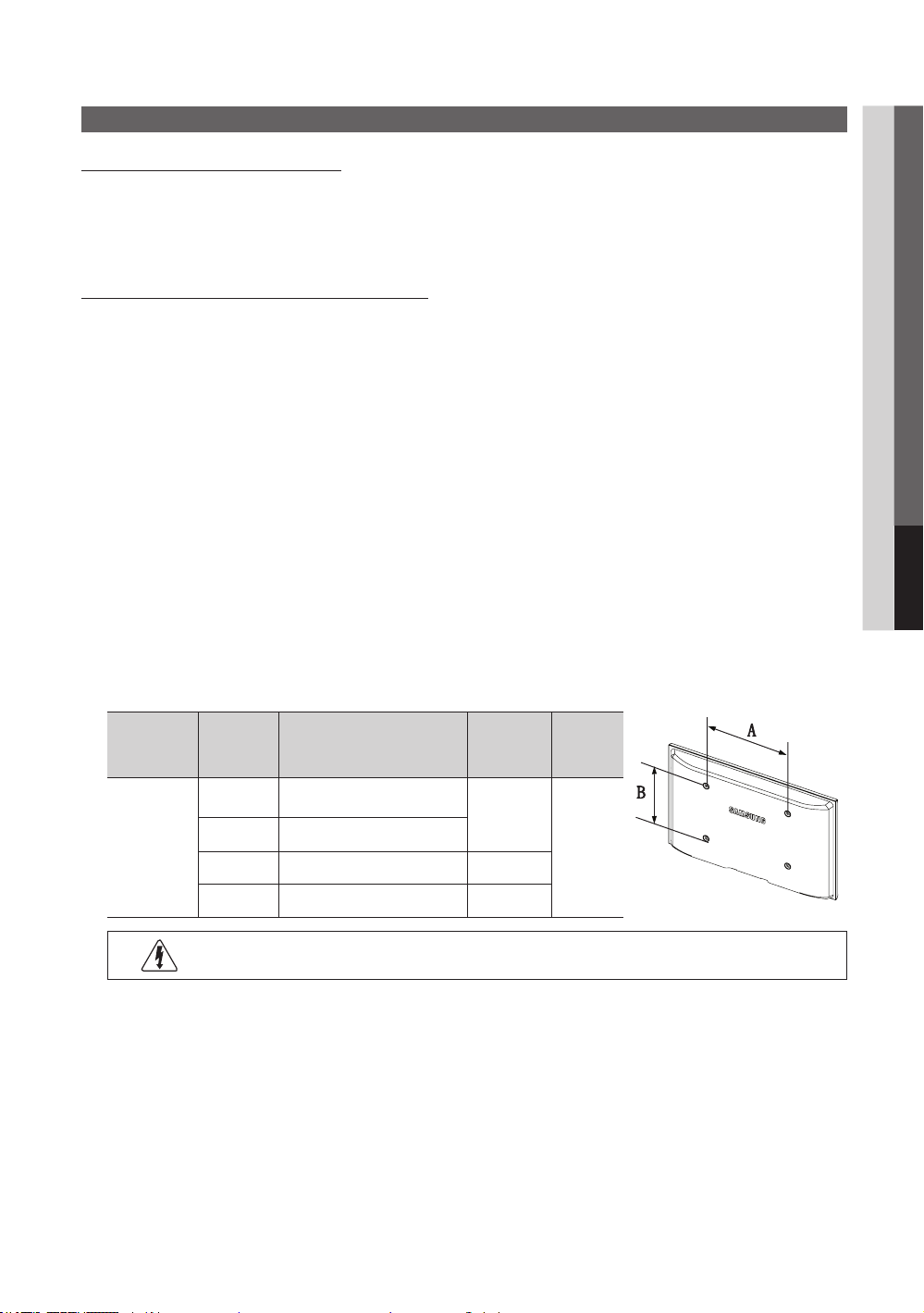

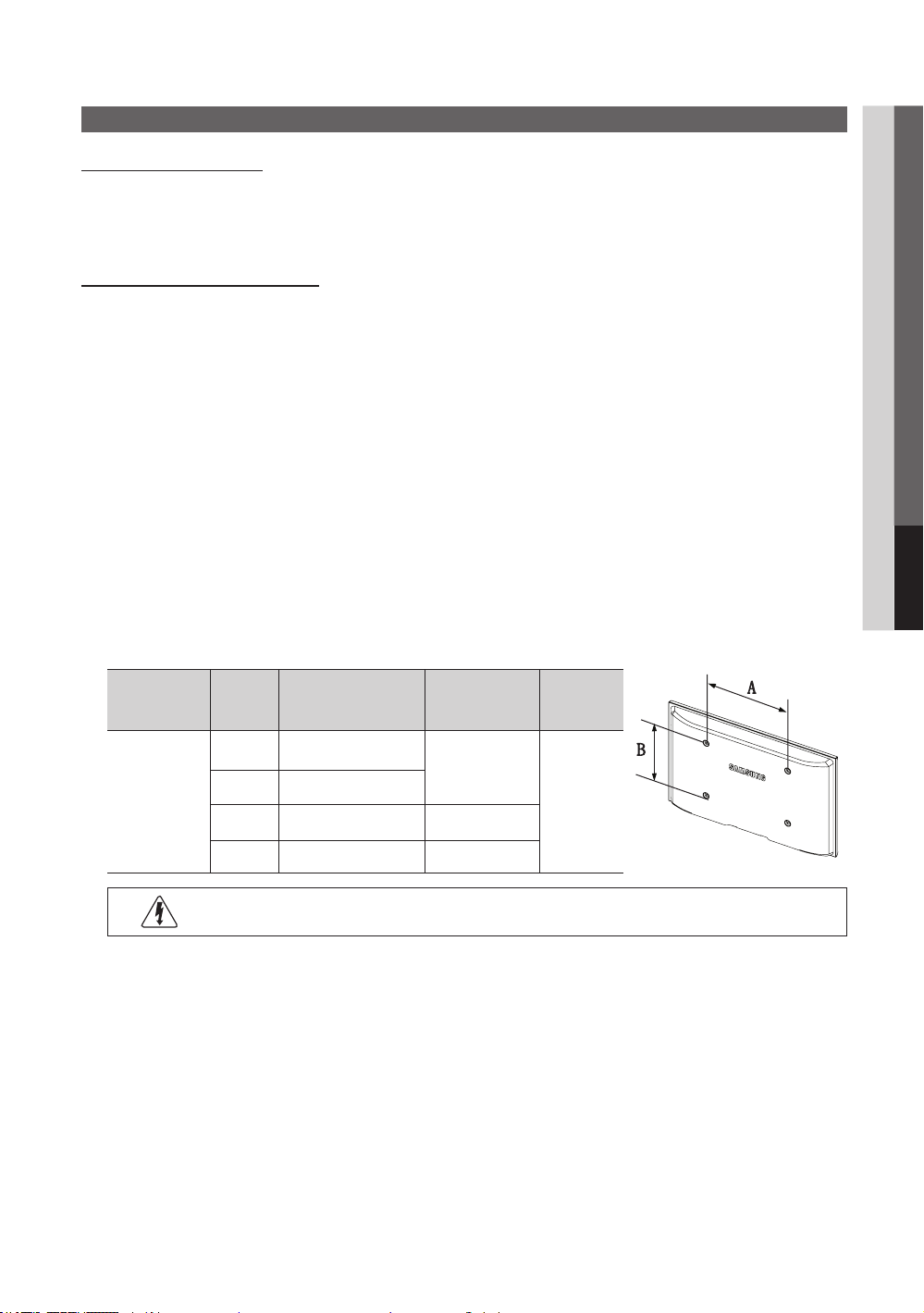

y Installing the Wall Mount .........................................43

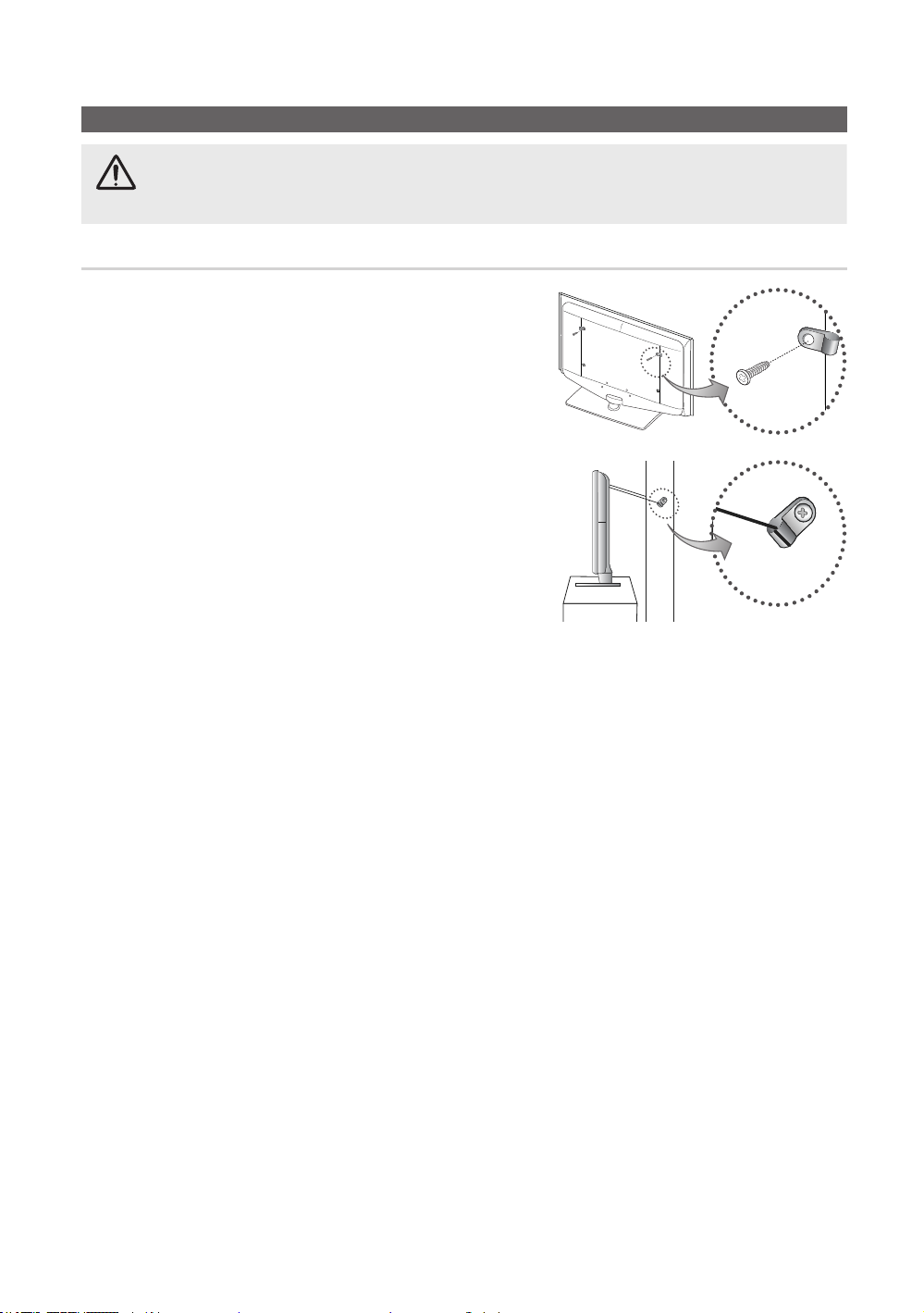

y Securing the TV to the Wall ..................................... 44
y Troubleshooting ...................................................... 45

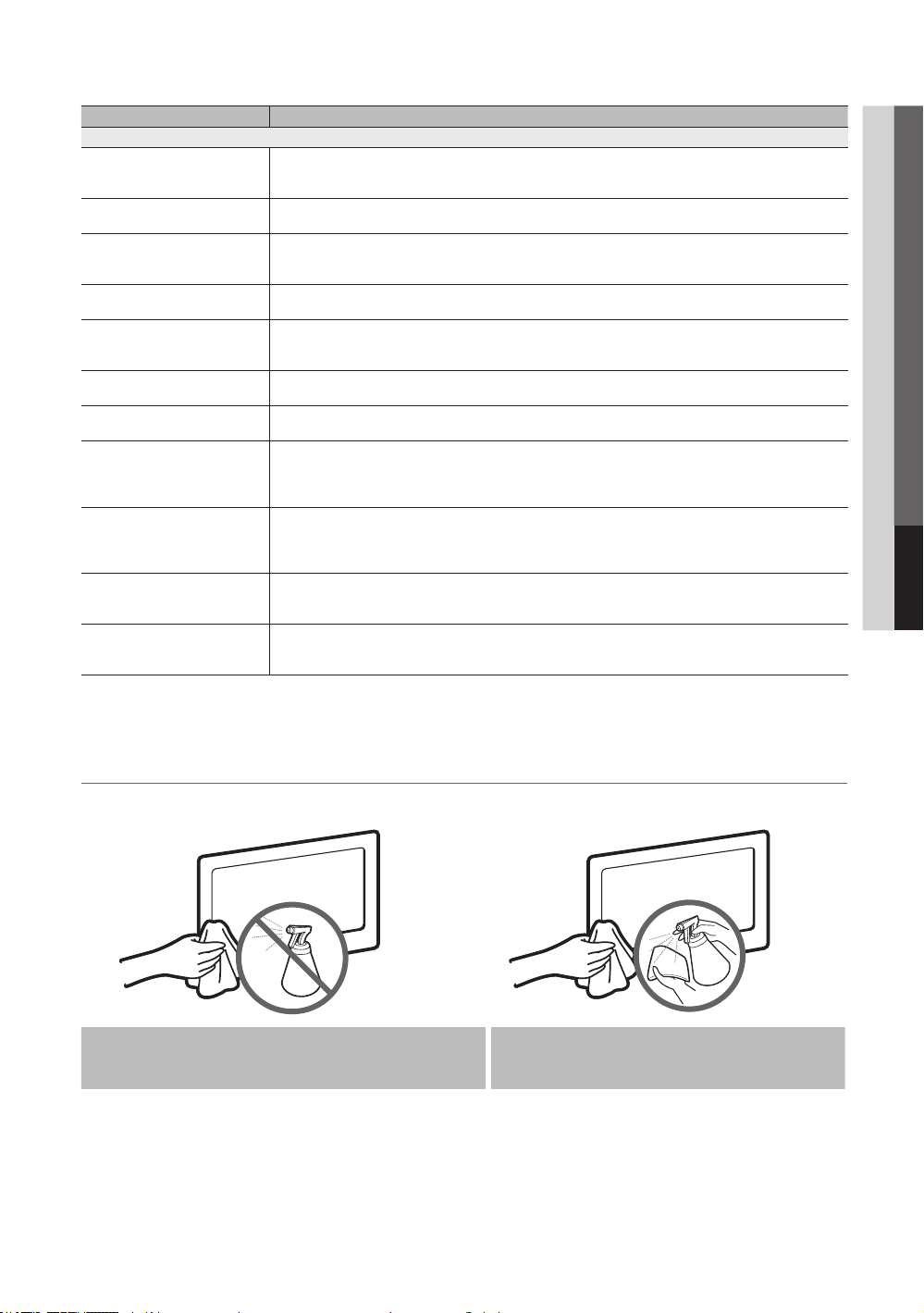

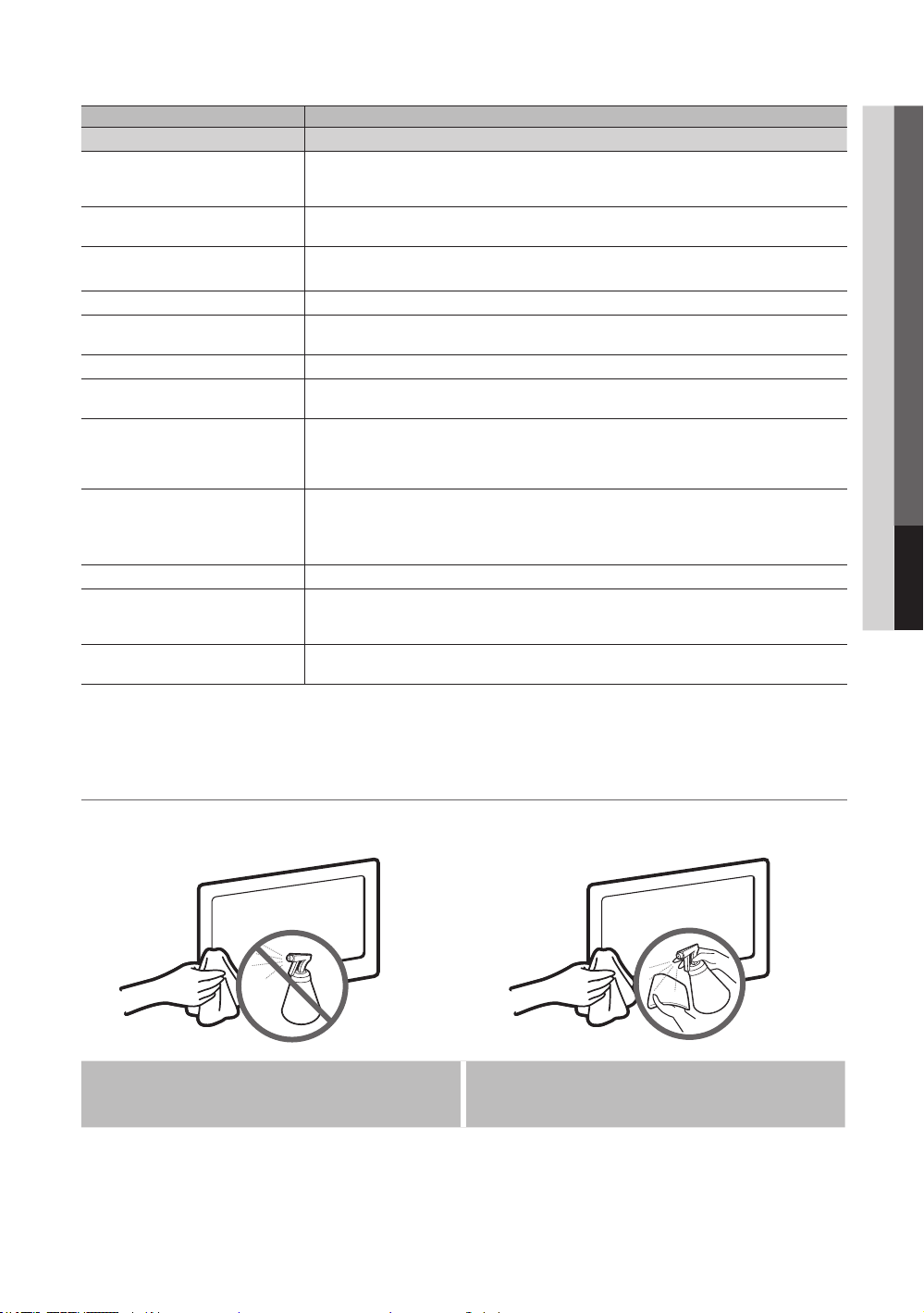

Storage and Maintenance 47
y Specifications ......................................................... 48
License 49
y Index ...................................................................... 50
ENGLISH
TOOLS
Check the Symbol!
This function can be used by pressing the
TOOLS button on the remote control.
✎
Note :
Important information
Step by step guide :
Informs you how to access
the menu.
English
3
Getting Started
List of Features
y Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver.
y Media Play: Allows you to play music files, pictures, and movies saved on a USB or your PC. (P. 30)
y AllShare: AllShare connects your TV and compatible Samsung mobile phones/devices through a network. (P. 40)
y Self Diagnosis: You can check picture and sound operation. (P. 22)
Accessories
✎
Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
✎
The items' colors and shapes may vary depending on the models.
y Remote Control (BN59-01041A) & Batteries (AAA x 2)
y Owner’s Instructions
y Warranty Card / Safety Guide / Quick Setup Guide

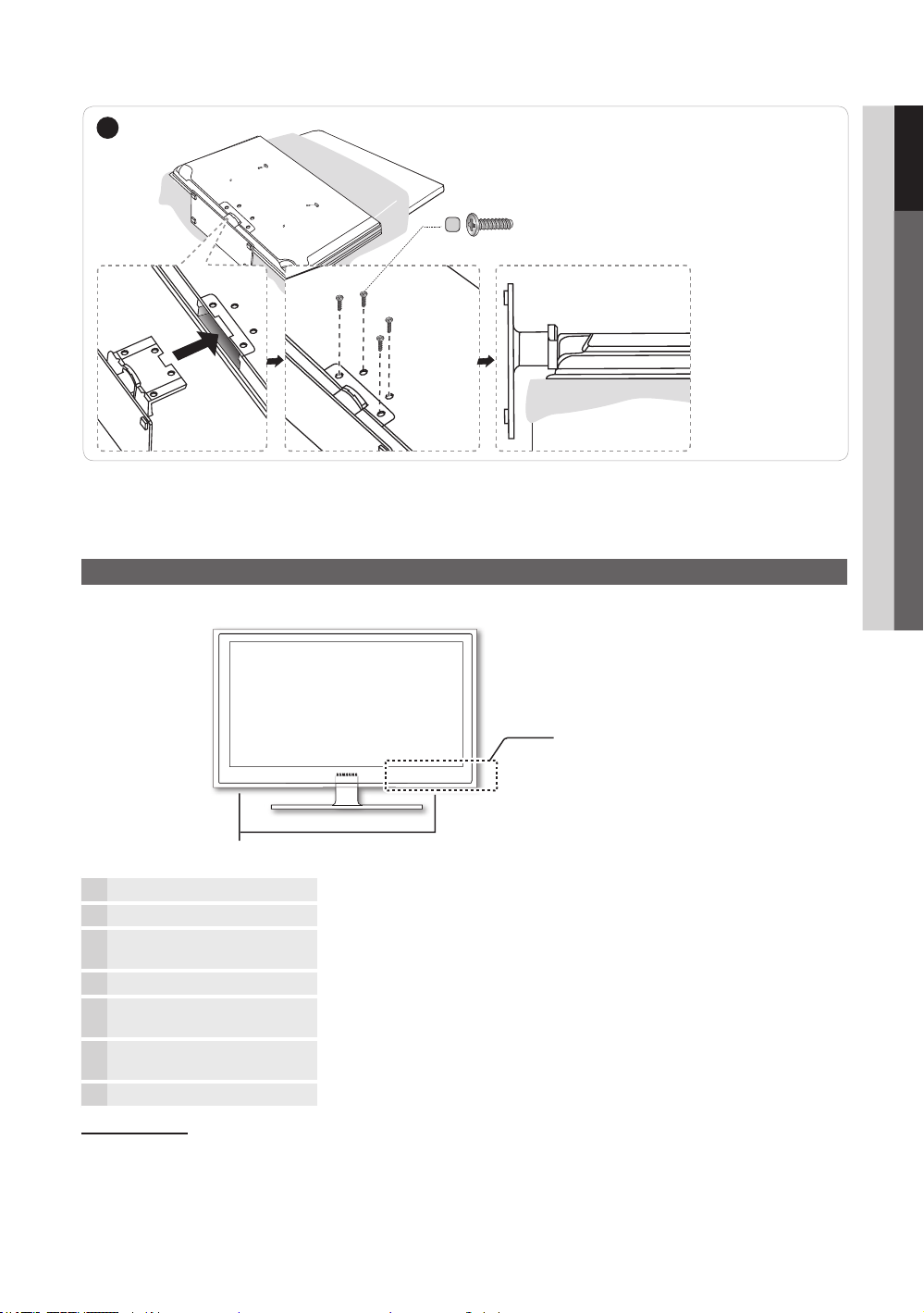

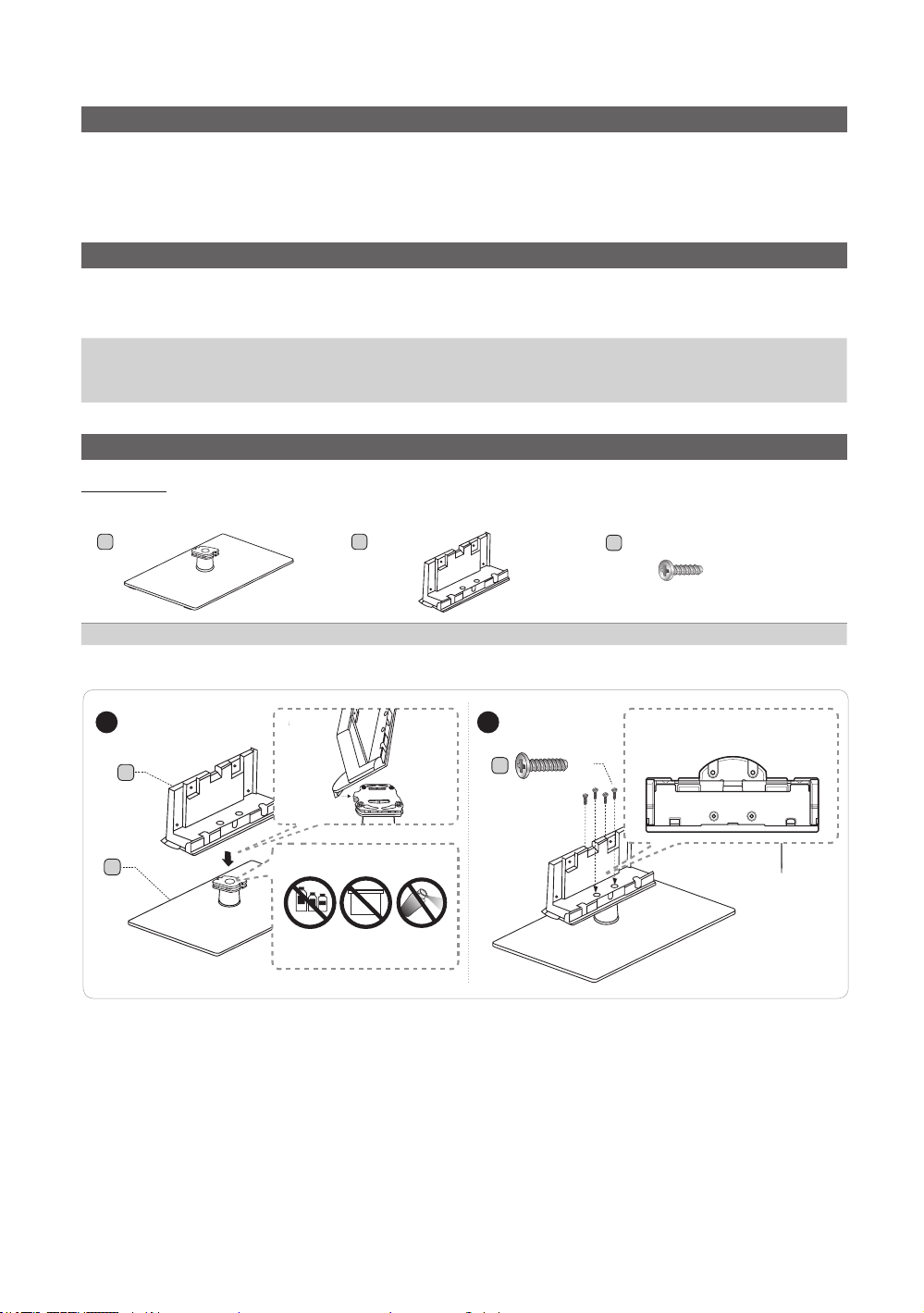

Installing the LCD TV Stand
Components
When installing the stand, use the provided components and parts.
A B
1 EA 1 EA
Stand Guide Stand Screws
1 2
B
A
Rear
ATTENTION
y Cleaning Cloth (BN63-01798B)
y Power Cord
C
C
x4
(M4 X L12)
x8 (M4 X L12)
Top View
4
English
Front
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
3
✎
Place a soft cloth over the table to protect
the TV, and then place the TV on the cloth
screen side down.
✎
C
(M4 X L12)
✎
Make sure to distinguish between the front and back of each component when assembling them.
✎
Make sure that at least two persons lift and move the TV.
Insert the Stand Guide into the slot of TV
x4
bottom side.
Side View
Viewing the Control Panel
✎
The product color and shape may vary depending on the model.
01 Getting Started
Control Panel
Speakers
(Power)
Remote control sensor Aim the remote control towards this spot on the TV.
SOURCE
MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
Turns the TV on or off.
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTER button on the remote control.
Adjusts the volume. In the OSD, use the
◄ and ► buttons on the remote control.
Changes the channels. In the OSD, use the
▼ and ▲ buttons on the remote control.
buttons as you would use the
buttons as you would use the
English
5
Getting Started

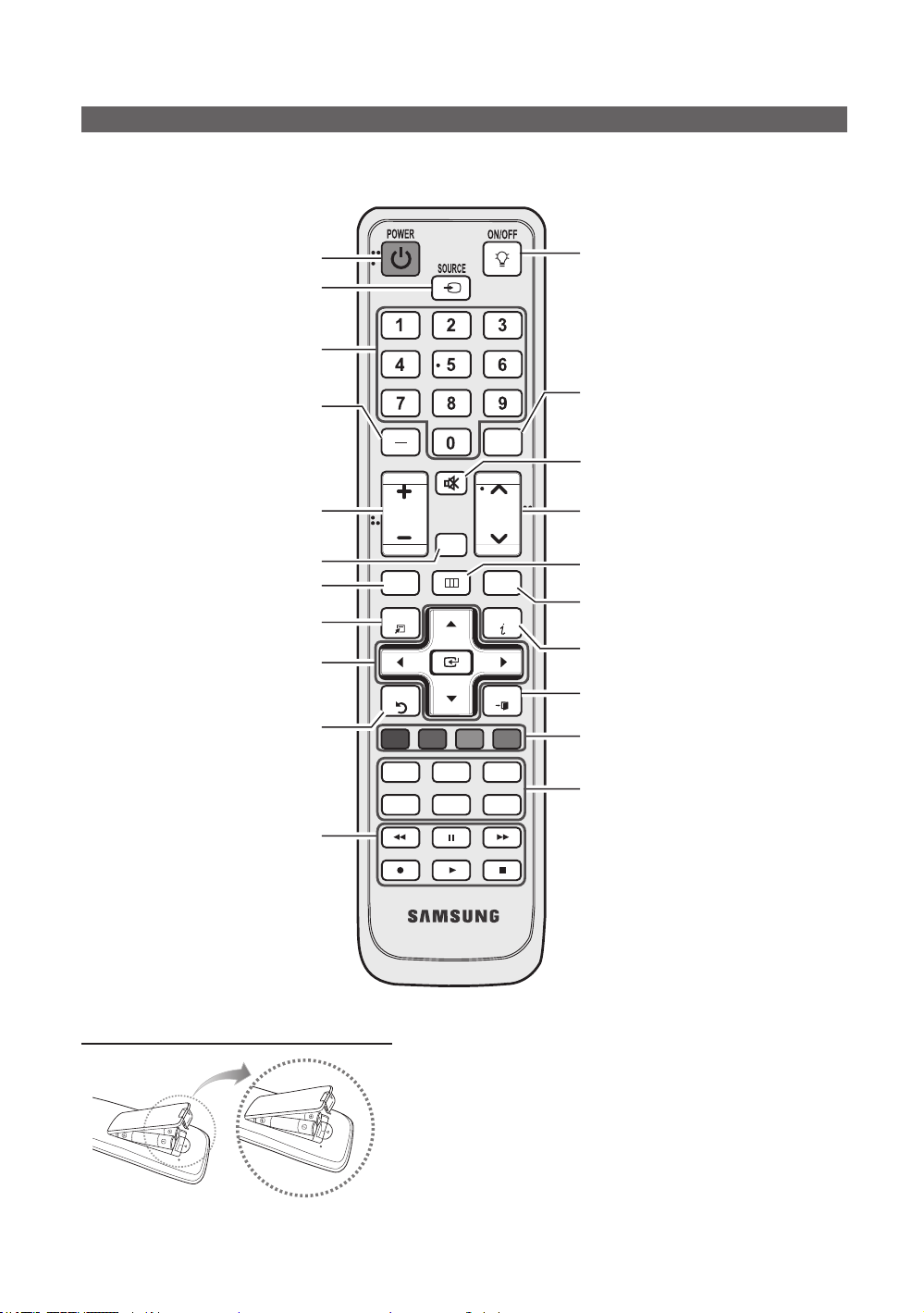

Viewing the Remote Control
✎
This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel,
Volume buttons.
Turns the TV on and off.
Displays and selects the available video
sources. (P. 10)
Press to directly access channels.
Press to select additional channels (digital)
being broadcast by the same station. For
example, to select channel ‘54-3’, press
‘54’, then press ‘-’ and ‘3’.
Adjusts the volume.
Displays the channel list on the screen. (P. 11)
Views Media Play. (P. 30)
Quickly select frequently used functions.
Selects the on-screen menu items and
changes the values seen on the menu.
Returns to the previous menu.
Use these buttons in Media Play and
Anynet+ modes.
(: controls recording on Samsung
recorders with the Anynet+ feature)
PRE-CH
MUTE
VOL
MEDIA.P FAV.CH
TOOLS
RETURN
A B C D
S.MODE
P.MODE
CH LIST
MENU
SLEEP
P.SIZE
CH
INFO
EXIT
MTS
CC
Turns the remote control light on and off.
When on, the buttons become illuminated for a
moment when pressed.
(Using the remote control with this button set to
off will reduce the battery usage time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the main on-screen menu.
Displays Favorite Channel Lists on the screen.
(P. 12)
Press to display information on the TV screen.
(P. 18)
Exits the menu.
Buttons used in the Channel list, Media Play
menu, etc.
S.MODE: Selects the sound mode. (P. 17)
SLEEP: Automatically shuts off the TV at a
preset time. (P. 18)
MTS: Press to choose stereo, mono or Separate
Audio Program (SAP broadcast). (P. 17)
P.MODE: Selects picture mode. (P. 13)
P.SIZE: Choose the picture size. (P. 16)
CC: Controls the caption decoder. (P. 20)
Installing batteries (Battery size: AAA)
English
6
✎
NOTE
Use the remote control within 23-33 feet from the TV.
x
Bright light may affect the performance of the remote
x
control. Avoid use when nearby fluorescent lights or neon
signs.
The color and shape may vary depending on the model.
x

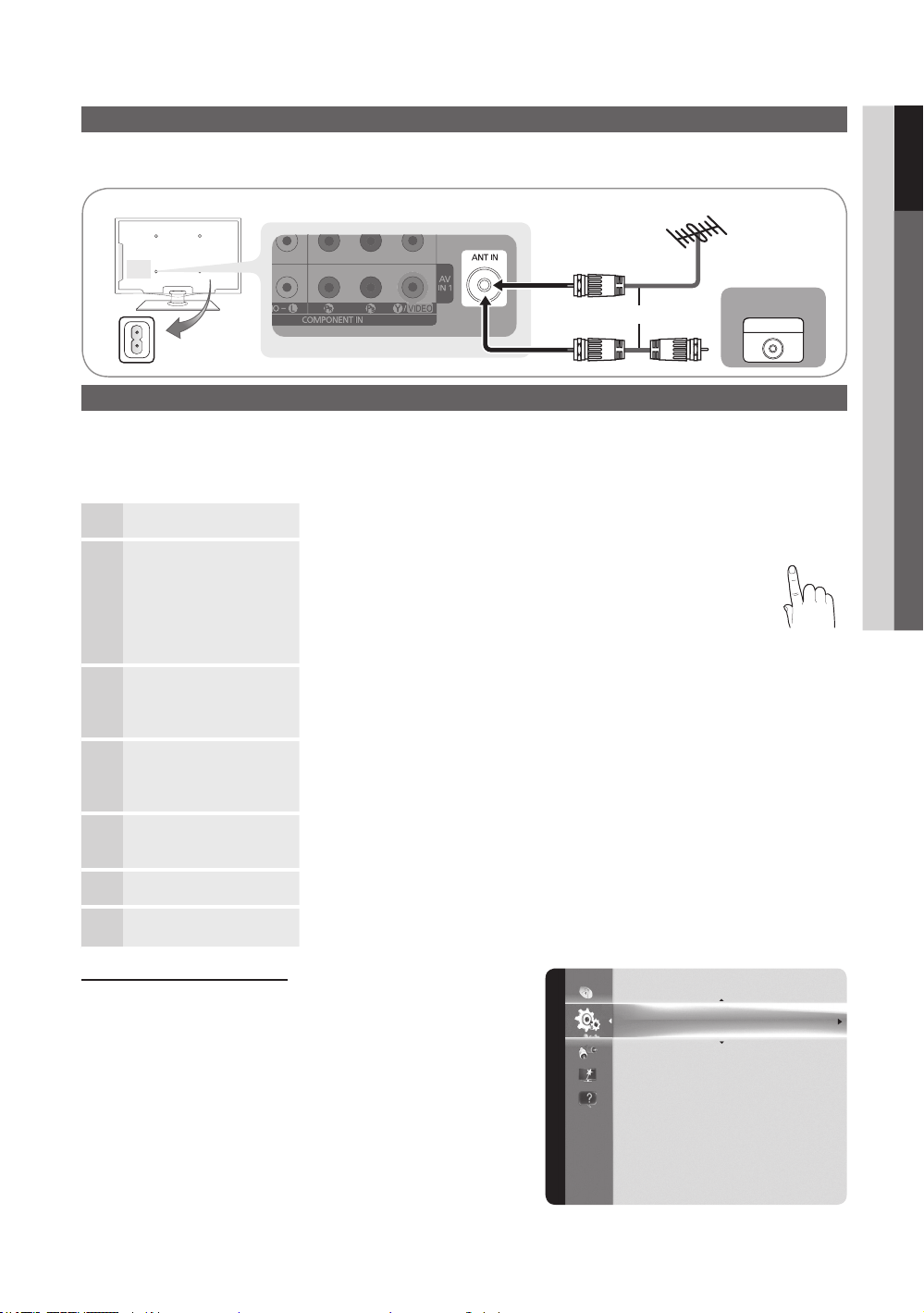

Connecting to an Antenna
INFO
CH LIST
When the TV is initially powered on, basic settings proceed automatically.
✎
Connecting the mains and antenna.
01 Getting Started
VHF/UHF Antenna
or
Power Input
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER button. Plug & Play is available only when the Input source is set to TV.
✎
To return to the previous step, press the red button.
Selecting a language
1
Selecting Store Demo
2
or Home Use
Selecting an antenna
3
Selecting a channel The channel search will start automatically.
4
Setting the Clock
5
Mode
Viewing the HD
6
Connection Guide
Enjoy your TV.
Press the ▲ or ▼ button, then press the ENTER button.
Select the desired OSD (On Screen Display) language.
Press the ◄ or ► button, then press the ENTER button.
y Select the Home Use mode. Store Demo Mode is for retail
environments.
y To return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume in the OSD, press and hold MENU for 5 sec.
Press the ▲ or ▼ button, then press the ENTER button. Select Air, Cable or Auto.
✎
In Cable mode, you can select the correct signal source among STD, HRC, and IRC
by pressing the ▲, ▼, ◄ or ► button, then press the ENTER button.
For more information, refer to Channel → Auto Program. (P. 12)
✎
Press the ENTER button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
✎
If you select the Auto, set the daylight saving time.
Select the time zone which you live.
The connection method for the best HD screen quality is displayed.
Press the ENTER button.
Cable
ANT OUT
POWER
P
7
If You Want to Reset This Feature...
MENU → Setup → Plug & Play → ENTER
Setup
Plug & Play
Time
Menu Language : English
Caption : On
Security
Network
General
PIP : Off
English
7
R-AUDIO-L
P
R PB Y
P
R PB Y
R-AUDIO-L
P
R PB Y
WY
W Y
BGR
W
W
B
G
R
R
R
R
R
R-AUDIO-L
P
R PB Y
BGR
ConnectionsConnections
Connecting to an AV Device
Using an HDMI / DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB).
BD/DVD player/
W W
R
Red White
✎
HDMI IN 1(DVI), 2, 3, 4 / PC/DVI AUDIO IN
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
x
HD cable/Sat. box
HDMI OUT
player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI
to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
x
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
x
occur.
Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Device
DVI OUT
AUDIO OUT
8
VCR
English
VIDEO OUT
AUDIO OUT
AUDIO OUT
COMPONENT OUT
Blu-ray player
✎
When connecting to AV IN 1, the
color of the AV IN 1 [Y/VIDEO] jack
(Green) does not match the color of
the video cable (Yellow).
✎
For better picture quality, the
Component connection is
recommended over the A/V
connection.
W W
Yellow Red White Red Blue Green
BGRRWY
Connecting to an Audio Device
R-AUDIO-L
P
R PB Y
BGR
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, Home Theater
02 Connections
AUDIO IN
W W
R
Red White
✎
DIGITAL AUDIO OUT (OPTICAL)
When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
x
OPTICAL
DVD
Home Theater
Digital audio system
of both the TV and the system.
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
x
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
✎
AUDIO OUT: Connects to the audio input jacks on your amplifier/home theater.
When connecting, use the appropriate connector (sold separately).
x
When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
x
volume level with the amplifier’s volume control.
Connecting to a PC
Using an HDMI/DVI Cable / a D-sub Cable
AUDIO OUT
DVI OUT
PC OUT
AUDIO OUT
English
9
Connections
P.SIZE
CH LIST
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920X1080@60Hz.
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM
MAC
VESA CVT
VESA DMT
VESA GTF
VESA DMT / DTV CEA 1920 x 1080p 67,500 60,000 148,500 +/+
✎✎
NOTE
For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
x
The interlace mode is not supported.
x
The set might operate abnormally if a non-standard video format is selected.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
x
EX-LINK
640 x 350 31,469 70,086 25,175 +/720 x 400 31,469 70,087 28,322 -/+
640 x 480 35,000 66,667 30,240 -/832 x 624 49,726 74,551 57,284 -/-
1152 x 870 68,681 75,062 100,000 -/-
720 x 576 35,910 59,950 32,750 -/+
1152 x 864 53,783 59,959 81,750 -/+
1280 x 720 56,456 74,777 95,750 -/+
1280 x 960 75,231 74,857 130,000 -/+
640 x 480 31,469 59,940 25,175 -/-
640 x 480 37,861 72,809 31,500 -/-
640 x 480 37,500 75,000 31,500 -/-
800 x 600 37,879 60,317 40,000 +/+
800 x 600 48,077 72,188 50,000 +/+
800 x 600 46,875 75,000 49,500 +/+
1024 x 768 48,363 60,004 65,000 -/1024 x 768 56,476 70,069 75,000 -/1024 x 768 60,023 75,029 78,750 +/+
1152 x 864 67,500 75,000 108,000 +/+
1280 x 1024 63,981 60,020 108,000 +/+
1280 x 1024 79,976 75,025 135,000 +/+
1280 x 800 49,702 59,810 83,500 -/+
1280 x 800 62,795 74,934 106,500 -/+
1280 x 960 60,000 60,000 108,000 +/+
1280 x 720 45,000 60,000 74,250 +/+
1360 x 768 47,712 60,015 85,500 +/+
1440 x 900 55,935 59,887 106,500 -/+
1440 x 900 70,635 74,984 136,750 -/+
1680 x 1050 65,290 59,954 146,250 -/+
1280 x 720 52,500 70,000 89,040 -/+
1280 x 1024 74,620 70,000 128,943 -/-
Connector for service only.
Input Cables (Sold Separately)
HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA
Changing the Input source
■ TV / AV1 / AV2 / Component1 / Component2 / PC /
HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB
✎
Source List
MENU → Input → Source List → ENTER
Use to select TV or an external input sources
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
You can only choose external devices that
are connected to the TV. In the Source List,
connected inputs will be highlighted.
✎
PC always stay activated.
✎
If the connected external devices are not
highlighted, press the red button. The TV will
search for connected devices.
English
10
PRE-
CH
CH
VO
L
MUT
E
C
H LI
ST
MEDIA.P
F
S
INFO
Edit Name
MENU → Input → Edit Name → ENTER
■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices /
TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection
easier.
✎
When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to
DVI PC mode under Edit Name.
✎
When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode
under Edit Name.
Basic Features
03 Basic Features
How to Navigate Menus
Before using the TV, follow the steps below to learn how to
navigate the menu and select and adjust different functions.
1
2
3
1 MENU button: Displays the main on-screen menu.
2 ENTER / Direction button: Move the cursor and
select an item. Confirm the setting.
3 RETURN button: Returns to the previous menu.
4 EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
MENU
1
▲ / ▼ Select an icon with the ▲ or ▼
2
ENTER
3
▲ / ▼
4
◄ / ►
5
ENTER
6
EXIT
MENU
AV.CH
TOOL
RETURN
The main menu options appear on
the screen:
Picture, Sound, Channel, Setup,
Input, Application, Support.
button.
Press ENTER to access the
sub-menu.
Select the desired submenu with
the ▲ or ▼ button.
Adjust the value of an item with the
◄ or ► button. The adjustment in
the OSD may differ depending on
the selected menu.
Press ENTER to confirm the
selection.
Press EXIT.
EXIT
C
7
4
Channel Menu
Seeing Channels
Channel List
MENU → Channel → Channel List → ENTER
Add, delete or set Favorite channels and use
the program guide for digital broadcasts.
Select a channel in the All Channels, Added
Channels, Favorite or Programmed
screen by pressing the ▲ / ▼ buttons, and
pressing the ENTER button. Then you
can watch the selected channel.
6 Air
Added Channels
Air A Antenna B Zoom C Select Page Tools
■ All Channels: Shows all currently available
■ Added Channels: Shows all added channels.
■ Favorite: Shows all favorite channels.
■ Programmed: Shows all currently reserved
6-1 ♥ TV #6
7 Air
8 Air
9 Air
9-1 ♥ TV #9
10 Air
10-1 ♥ TV #10
11-1 ♥ TV #11
channels.
programs.
CH LIST
English
11
A B C D
P
POWER
P.MODE
P.SIZE
MTS
INFO
SLEEP
CH LIST
Basic Features
✎

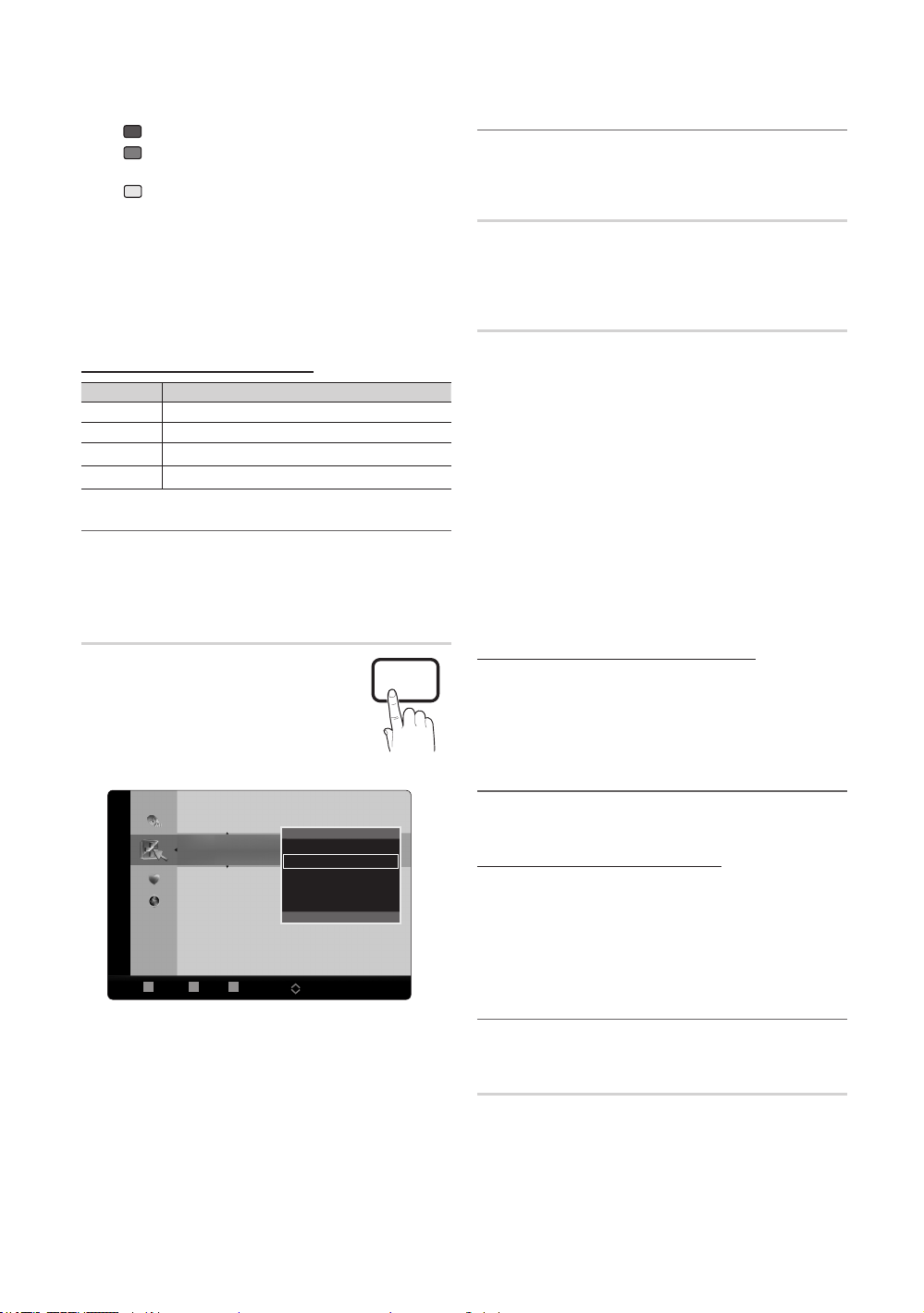

Using the color buttons with the Channel List
Red (Antenna): Switches to Air or Cable.
x
Green (Zoom): Enlarges or shrinks a channel
x
number.
Yellow (Select): Selects multiple channel lists.
x
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
mark appears to the left of the selected channels.
(Page): Move to next or previous page.
x
(Tools): Displays the Channel List option menu.
x
(The Options menus may differ depending on the
situation.)
Channel Status Display Icons
Icons Operations
Using Favorite Channels
Add to Favorite / Delete from Favorite
Set channels you watch frequently as
Favorites.
1. Select a channel and press the TOOLS
button.
2. Add or delete a channel using the Add to
Favorite or Delete from Favorite menu
respectively.
Added Channels
Air A Antenna B Zoom C Select Page Tools
A channel selected.
A channel set as a Favorite.
A reserved Program.
A program currently being broadcast.
MENU → Channel → Channel List → ENTER
6 Air
6-1 ♥ TV #6
7 Air
8 Air
9 Air
9-1 ♥ TV #9
10 Air
10-1 ♥ TV #10
11-1 ♥ TV #11
Delete
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
FAV.CH
Memorizing channels
MENU → Channel → ENTER
Antenna (Air / Cable)
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program
■ Air: Air antenna signal.
■ Cable: Cable antenna signal.
■ Auto: Air and Cable antenna.
✎
NOTE
When selecting the Cable TV system: Selects the
x
cable system. STD, HRC and IRC identify various
types of cable TV systems. Contact your local cable
company to identify the type of cable system that
exists in your particular area. At this point, the signal
source has been selected.
After all the available channels are stored, it starts
x
to remove scrambled channels. The Auto program
menu then reappears.
How to Stop Auto Programming
1. Press the ENTER button.
2. A message will ask Stop Auto Program? Select Yes by
pressing the ◄ or ► button.
3. Press the ENTER button.
Editing channels
MENU → Channel → Channel List → ENTER
Channel Name Edit
1. Select a channel and press the TOOLS button.
2. Edit the channel name using the Channel Name Edit
menu.
■ Channel Name Edit (analog channels only): Assign your
own channel name.
Other Features
12
English
MENU → Channel → ENTER
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20~30 minutes.
How to Stop Searching Scrambled Channels
P.SIZE
INFO
CH LIST
1. Press the ENTER button to select Stop.
2. Press the ◄ button to select Yes.
3. Press the ENTER button.
✎
This function is only available in Cable mode.
Channel List
MENU → Channel → Channel List → ENTER
Channel List Option Menu
Set each channel using the Channel List menu options (Add/
Delete, Timer Viewing, Select All/ Deselect All). Option
menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
■ Add / Delete: Delete or add a channel to display the
channels you want.
✎
NOTE
All deleted channels will be shown on the All
x
Channels menu.
A gray-colored channel indicates the channel
x
has been deleted.
The Add menu only appears for deleted
x
channels.
Delete a channel from the Added Channels or
x
Favorite menu in the same manner.
■ Timer Viewing: You can set a desired channel to be
displayed automatically at the intended time. Set the
current time first to use this function. (P. 18)
1. Press the ◄ / ► /▲ / ▼ buttons to select the
desired channel in Channel List.
2. Press the TOOLS button, then select Timer Viewing.
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote for
entering the date and time.
✎
If you selected Once, Every Week or Every Day
in Repeat, you can enter the date you want.
4.
Select OK, then press the ENTER button when done.
✎
NOTE
Only memorized channels can be reserved.
x
Reserved programs will be displayed in the
x
■ Select All: Select all the channels in the channel list.
■ Deselect All: Deselect all the selected channels.
Programmed menu.
When a digital channel is selected, press the
x
► button to view the digital program.
✎
You can only select Deselect All when one or
more channels are selected.
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved to
watch.
1. Press the
2. Press the ◄ and ▼ button move to the Programmed
menu.
■ Change Info: Change a show you have reserved to
watch.
■ Cancel Schedules: Cancel a show you have reserved
to watch.
■ Information: Display a show you have reserved
to watch. (You can also change the reservation
Information.)
■ Select All / Deselect All: You can select or deselect all
channels in the channel list.
ENTER
button to select Channel List.
Fine Tune
(analog channels only)
If the reception is clear, you do not have to fine tune the
channel, as this is done automatically during the search and
store operation. If the signal is weak or distorted, fine tune
the channel manually.
y Select Fine Tune in the Channel menu.
✎
Fine tuned channels that have been saved are marked
with an asterisk “*” on the right-hand side of the
channel number in the channel banner.
✎
To reset the fine-tuning, select Reset.
Picture Menu
Changing the Preset Picture Mode
MENU → Picture → Mode → ENTER
Mode
Select your preferred picture type by pressing
the P.MODE button.
■ Dynamic: Suitable for a bright room.
■ Standard: Suitable for a normal
environment.
■ Natural : Suitable for an eye comfortable display.
✎
Natural is not available in PC mode.
■ Movie: Suitable for watching movies in a dark room.
03 Basic Features
P.MODE
English
13
Basic Features
Adjusting picture settings
MENU → Picture → Backlight → ENTER
Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Your television has several setting options for picture quality
control.
✎
NOTE
When you make changes to Backlight, Contrast,
x
Brightness, Sharpness, Color or Tint (G/R) the
OSD will be adjusted accordingly.
In PC mode, you can only make changes to
x
Backlight, Contrast and Brightness.
Settings can be adjusted and stored for each
x
external device connected to the TV.
Lowering picture brightness reduces power
x
consumption.
Economical Solutions
Eco Solution
MENU → Picture → Eco Solution → ENTER
■ Energy Saving (Off / Low / Medium / High / Picture
Off / Auto): This adjust the brightness of the TV in order
to reduce power consumption. If you select Picture
Off, the screen is turned off , but the sound remains on.
Press any button to turn on the screen again.
■ Eco Sensor (Off / On): To enhance your power savings;
the picture settings will automatically adapt to the light
in the room.
✎
If you adjust the Backlight, the Eco Sensor will
be set to Off.
Min Backlight: When Eco sensor is On, the minimum
screen brightness can be adjusted manually.
✎
If Eco Sensor is On, the display brightness may
change (become slightly darker in most cases)
depending on the surrounding light intensity.
■ No Signal Power Off (Off / 15 min. / 30 min. /
60 min.): Sets how quickly the TV switches to standby
mode, if no picture is being received.
✎
Disabled when the PC is in power saving mode.
Setting up the TV with your PC
Set the input source to PC.
Auto Adjustment
MENU → Picture → Auto Adjustment →
ENTER
Adjust frequency values/positions and fine tune the settings
automatically.
✎
Not available when connecting through HDMI/DVI
cable.
Screen
■ Coarse / Fine: Removes or reduces picture noise. If the
noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust
the picture so that it is aligned to the center of screen.
■ Position: Adjust the PC’s screen positioning if it does
not fit the TV screen. Press the ▲ or ▼ button to adjust
the Vertical-Position. Press the ◄ or ► button to adjust
the Horizontal-Position.
■ Image Reset: Resets the image to default settings.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card,
the actual screens on your PC will probably look different, but
the same basic set-up information will apply in most cases.
(If not, contact your computer manufacturer or Samsung
Dealer.)
1. Click on “Control Panel” on the Windows start menu.
2. Click on “Appearance and Themes” in the “Control
Panel” window and a display dialog-box will appear.
3. Click on “Display” and a display dialog box will appear.
4. Navigate to the “Settings” tab on the display dialog-box.
y The correct size setting (resolution)
[Optimum: 1920 X 1080 pixels]
y If a vertical-frequency option exists on your display
settings dialog box, the correct value is ‘60’ or ‘60 Hz’.
Otherwise, just click ‘OK’ and exit the dialog box.
14
English
Changing the Picture Options
Advanced Settings
MENU → Picture → Advanced Settings →
ENTER
(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have
more precise pictures.
✎
In PC mode, you can only make changes to Dynamic
Contrast, Gamma and White Balance.
Advanced Settings
Black Tone : Off ►
Dynamic Contrast : Medium
Shadow Detail : 0
Gamma : 0
Expert Pattern : Off
RGB Only Mode : Off
Color Space : Native
■ Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
■ Dynamic Contrast (Off / Low / Medium / High):
Adjust the screen contrast.
■ Shadow Detail: Increase the brightness of dark images.
✎
Disabled under PC mode.
■ Gamma: Adjust the primary color intensity.
■ Expert Pattern (Off / Pattern 1 / Pattern 2): By
running the Expert Pattern function, the picture can be
calibrated without a generator or filter. If the OSD menu
disappears or a menu other than the Picture menu is
opened, the calibration is saved and the Expert Pattern
window disappears.
✎
While the Expert Pattern is running, sound is not
output.
✎
Only enabled on DTV / Component / HDMI.
■ RGB Only Mode (Off / Red / Green / Blue): Displays
the Red, Green and Blue color for making fine
adjustments to the hue and saturation.
■ Color Space (Auto / Native / Custom): Adjust the
range of colors available to create the image. To adjust
Color, Red, Green, Blue and Reset, set Color Space
to Custom.
■ White Balance: Adjust the color temperature for a more
natural picture.
R-Offset / G-Offset / B-Offset: Adjust each color's
(red, green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each color's (red,
green, blue) brightness.
Reset: Resets the White Balance to it's default
settings.
▼
Move Enter Return
■ 10p White Balance (Off / On): Controls the white
balance in 10 point interval by adjusting the red, green,
and blue brightness.
✎
Available when the picture mode is set to Movie
and when the external input is set to all input.
✎
Some external devices may not support this
function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default
settings.
■ Flesh Tone: Emphasize pink “Flesh Tone.”
■ Edge Enhancement (Off / On): Emphasize object
boundaries.
■ xvYCC (Off / On): Setting the xvYCC mode on
increases detail and color space when watching movies
from an external device (e.g. DVD player) connected to
the HDMI or Component IN jacks.
✎
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
✎
Some external devices may not support this
function.
Picture Options
MENU → Picture → Picture Options →
ENTER
✎
In PC mode, you can only make changes to the Color
Tone, Size and Auto Protection Time.
Picture Options
Color Tone : Normal ►
Size : 16:9
Digital Noise Filter : Auto
MPEG Noise Filter : Auto
HDMI Black Level : Normal
Film Mode : Off
Auto Motion Plus : Standard
■ Color Tone (Cool / Normal / Warm1 / Warm2)
✎
Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.
✎
Settings can be adjusted and stored for each
external device connected to an input on the TV.
▼
Move Enter Return
English
03 Basic Features
15
Basic Features
CH LIST
■ Size: Your cable box/satellite receiver
may have its own set of screen sizes as
well. However, we highly recommend
you use 16:9 mode most of the time.
16:9: Sets the picture to 16:9 wide
mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
4:3: Sets the picture to basic (4:3) mode.
✎
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center
of the screen may cause image retention (screen
burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals are input.
✎
NOTE
After selecting Zoom1, Zoom2 or Wide Fit:
x
1. Press the ► button to select Position.
2. Press the ENTER button.
3. Press the ▲ or ▼ button to move the picture up
or down.
4. Press the ENTER button.
5. Press the ► button to select Reset.
6. Press the ENTER button to reset the picture
to its default position.
After selecting Screen Fit in HDMI (1080i/1080p) or
x
Component (1080i/1080p) mode, you may need to
center the picture:
1. Press the ◄ or ► button to select Position.
2. Press the ENTER button.
3. Press the ▲, ▼, ◄ or ► button to move the
picture.
4. Press the ENTER button.
5. Press the ◄ or ► button to select Reset.
6. Press the ENTER button.
HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
x
720p (1280x720)
Settings can be adjusted and stored for each
x
external device you have connected to an input on
the TV.
Input Source Picture Size
ATV, AV,
Component (480i, 480p)
DTV(1080i),
Component (1080i, 1080p),
HDMI (720p, 1080i, 1080p)
PC 16:9, 4:3
16:9, Zoom1,
Zoom2, 4:3
16:9, 4:3, Wide Fit,
Screen Fit
P.SIZE
■ Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualization): If the broadcast signal received
by your TV is weak, you can activate the Digital Noise
Filter feature to reduce any static and ghosting that may
appear on the screen.
✎
When the signal is weak, try other options until the
best picture is displayed.
Auto Visualization: When changing analog channels,
displays signal strength.
✎
Only available for analog channels.
✎
When bar is green, you are receiving the best
possible signal.
■ MPEG Noise Filter (Off / Low / Medium / High /
Auto): Reduces MPEG noise to provide an improved
picture quality.
✎
Disabled under PC mode.
■ HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.
✎
Available only in HDMI mode.
■ Film Mode (Off / Auto1 / Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
✎
Available in TV, AV, COMPONENT (480i / 1080i)
and HDMI (480i / 1080i).
■ Auto Motion Plus (Off / Clear / Standard / Smooth
/ Custom / Demo): Enhances motion in fast moving
scenes.
✎
The info screen on your TV displays the resolution
and frequency of the incoming video signal
(60Hz). This displayed frequency is not what the
TV is displaying by using the Auto Motion Plus
function.
■ Auto Protection Time (2 hours / 4 hours / 8 hours
/ 10 hours / Off): If the screen remains idle with a still
image for a certain period of time defined by the user,
the screen saver is activated to prevent the formation of
ghost images on the screen.
Picture Reset (OK / Cancel)
Resets your current picture mode to its default settings.
16
English
P.MODE
P.SIZE
INFO
CH LIST
P
POWER
FAV.CH
MEDIA.P
P.MODE
P.SIZE
CC
MTS
INFO
SLEEP
CH LIST
Sound Menu
Changing the Preset Sound Mode
MENU → Sound → SRS TheaterSound →
ENTER
SRS TheaterSound
■ Standard: Selects the normal sound
mode.
■ Music: Emphasizes music over voices.
■ Movie: Provides the best sound for
movies.
■ Clear Voice: Emphasizes voices over other sounds.
■ Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
S.MODE
Adjusting sound settings
MENU → Sound → Equalizer → ENTER
Equalizer
Adjusts the sound mode (standard sound mode only).
■ Balance L/R: Adjusts the balance between the right and
left speaker.
■ 100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
■ Reset: Resets the equalizer to its default settings.
Sound Systems, Etc.
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers or headphones using
HRTF (Head Related Transfer Function) technology.
SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog
canbe heard more clearly.
Preferred Language
(digital channels only)
Digital-TV broadcasts are capable of simultaneous
transmission of many audio tracks (for example,
simultaneous translations of the program into foreign
languages).
✎
You can only select a language among the ones being
broadcasted.
Multi-Track Sound (MTS)
(analog channels only)
■ Mono: Choose for channels that are
broadcasting in mono or if you are
having difficulty receiving a stereo signal.
■ Stereo: Choose for channels that are
broadcasting in stereo.
■ SAP: Choose to listen to the Separate
Audio Program, which is usually a foreign-language
translation.
✎
Depending on the particular program being
broadcasted, you can listen to Mono, Stereo or SAP.
MTS
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal.
■ Night: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.
Speaker Select
(External Speaker / TV Speaker)
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
✎
When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
✎
When Speaker Select is set to External Speaker, you
should use these settings.
TV Speaker: Off, External Speaker: On
x
✎
When Speaker Select is set to TV Speaker, you
should use these settings.
TV Speaker: On, External Speaker: On
x
✎
If there is no video signal, both speakers will be mute.
03 Basic Features
English
17
Basic Features
P
POWER
P.MODE
P.SIZE
INFO
CH LIST
SPDIF Output
SPDIF (Sony Philips Digital Interface) is used to provide digital
sound, reducing interference going to speakers and various
digital devices such as a DVD player.
■ Audio Format: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF) format from the options PCM or Dolby Digital.
✎
By connecting to 5.1ch speakers in a dolby
digital setup, maximize your interactive 3D sound
experience.
■ Audio Delay: Correct audio-video mismatch, when
watching TV or video, and listening to digital audio
output using an external device such as an AV receiver
(0ms ~ 250ms).
Sound Reset (OK / Cancel)
Reset all sound settings to the factory defaults.
Setup Menu
Setting the Time
MENU → Setup → Time → ENTER
Time
✎
The current time will appear every time you press the
INFO button.
■ Clock: Setting the clock is for using various timer
features of the TV.
✎
If you disconnect the power cord, you have to set
the clock again.
Clock Mode: Set up the current time manually or
automatically.
– Auto: Set the current time automatically using the
time from a digital channel.
✎
The antenna must be connected in order to set
the time automatically.
– Manual: Set the current time manually.
✎
Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually.
Clock Set: Set the Month, Day, Year, Hour, Minute
and am/pm.
✎
Available only when Clock Mode is set to
Manual.
✎
You can set the month, day, year, hour and minute
directly by pressing the number buttons on the
remote control.
DST (Off / On): Switches the DST(Daylight Saving Time)
function on or off.
✎
This function is only available when the Clock
Mode is set to Auto.
Time Zone: Select your time zone.
✎
This function is only available when the Clock
Mode is set to Auto.
Using the Sleep Timer
MENU → Setup → Time → Sleep Timer →
ENTER
■ Sleep Timer
shuts off the TV after a preset period
of time. (30, 60, 90, 120, 150 and 180
minutes).
✎
To cancel the Sleep Timer, select
Off.
: Automatically
SLEEP

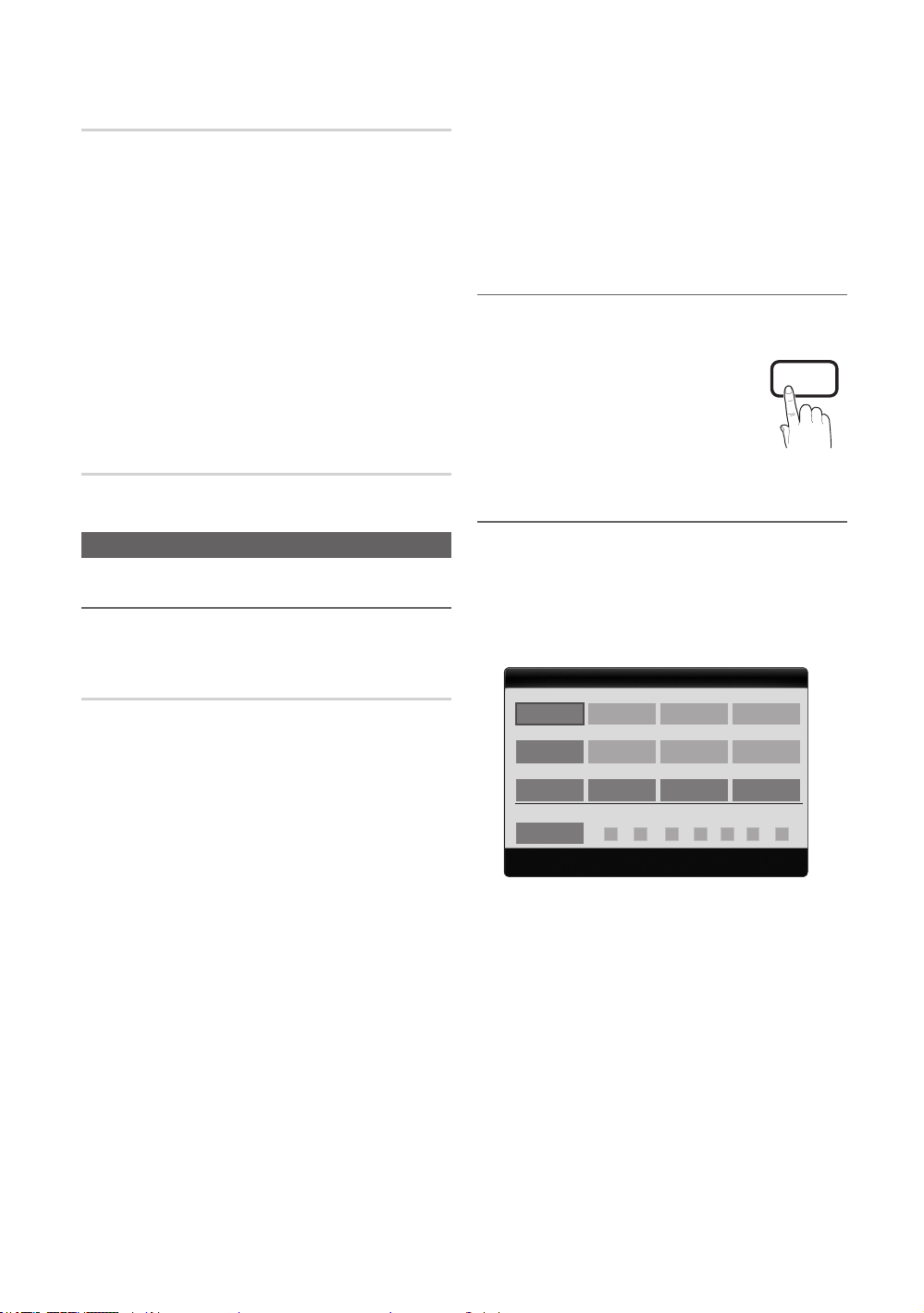

Setting the On/Off Timer
MENU → Setup → Time → Timer 1 →
ENTER
■ Timer 1 / Timer 2 / Timer 3: Three different on / off
timer settings can be made. You must set the clock first.
On Time
▲
Inactivate 12 00 am
▼
Off Time
Inactivate 12 00 am
Volume
10 TV Air 3
Repeat
Once
On Time / Off Time: Set the hour, minute, am/pm and
activate/inactivate. (To activate the timer with the setting
you have chosen, set to Activate.)
Volume: Set the desired volume level.
Source: Select TV or USB content to be played when
the TV is turned on automatically. (USB can be selected
only when a USB device is connected to the TV)
Antenna (when the Source is set to TV): Select Air or
Cable.
Timer 1
Source
Sun Mon Tue Wed Thu Fri Sat
Move Adjust Enter Return
Antenna Channel
18
English
Channel (when the Source is set to TV): Select the
desired channel.
Contents (when the Source is set to USB): Select a
folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.
✎
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
✎
When there is only one photo file in the USB, the
Slide Show will not play.
✎
A folder with too long of a name cannot be
selected.
✎
Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each USB
have different names.
Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you
select Manual, you can set up the day you want to
activate the timer.
✎
The mark indicates the day is selected.
✎
Auto Power Off (available only when the TV is turned
on by the Timer): The TV will be automatically turned off
after 3 hours of being left idle to prevent overheating.
Locking Programs
MENU → Setup → Security → ENTER
Security
The PIN input screen appears, Enter your 4 digit PIN number.
■ V-Chip: The V-Chip feature automatically locks out
programs that are deemed inappropriate for children.
The user must enter a PIN (personal identification
number) before any of the V-Chip restrictions are set up
or changed.
✎
NOTE
V-Chip is not available in HDMI, Component
x
or PC mode.
The default PIN number of a new TV set is
x
“0-0-0-0”.
Allow all: Press to unlock all TV ratings.
x
Block all: Press to lock all TV ratings.
x
V-Chip Lock (Off / On): You can block rated TV
Programs.
TV Parental Guidelines: You can block TV programs
depending on their rating. This function allows you to
control what your children are watching.
– TV-Y: Young children / TV-Y7: Children 7 and over /
TV-G: General audience / TV-PG: Parental guidance /
TV-14: Viewers 14 and over / TV-MA: Mature
audience
– ALL: Lock all TV ratings. / FV: Fantasy violence /
V: Violence / S: Sexual situation / L: Adult Language /
D: Sexually Suggestive Dialog
✎
The V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the TV-Y category,
then TV-Y7 will automatically be blocked.
Similarly, if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work similarly. So,
if you block the L sub-rating in TV-PG, then
the L sub-ratings in TV-14 and TV-MA will
automatically be blocked.
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children.
– G: General audience (no restrictions). / PG: Parental
guidance suggested. / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NC-17: No children
under age 17. / X: Adults only. / NR: Not rated.
✎
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PG-13 category,
then R, NC-17 and X will automatically be
blocked.
Canadian English: You can block TV programs
depending on their Anglophone Canadian.
– C: Programming intended for children under age 8. /
C8+: Programming generally considered acceptable
for children 8 years and over to watch on their own. /
G: General programming, suitable for all audiences. /
PG: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming.
✎
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the G category, then
PG, 14+ and 18+ will automatically be blocked.
03 Basic Features
English
19
Basic Features
MEDIA.P
P.MODE
P.SIZE
MTS
INFO
CH LIST
Canadian French: You can block TV programs
depending on their French Canadian rating.
– G: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. /
16 ans+: Programming is not suitable for children
under the age of 16. / 18 ans+: Programming
restricted to adults.
✎
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the 8 ans+ category,
then 13 ans+, 16 ans+ and 18 ans+ will
automatically be blocked also.
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
✎
NOTE
If information is not downloaded from the
x
broadcasting station, the Downloadable U.S.
Rating menu is deactivated.
Parental restriction information is automatically
x
downloaded while watching DTV channels. It
may take several seconds.
The Downloadable U.S. Rating menu
x
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
Parental restriction levels differ depending on
x
the broadcasting station. The default menu
name and Downloadable U.S. Rating change
depending on the downloaded information.
Even if you set the on-screen display to another
x
language, the Downloadable U.S. Rating
menu will appear in English only.
The rating will automatically block certain
x
categories that deal with more sensitive
material.
The rating titles (For example: Humor Level..etc)
x
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
■ Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter it in Enter
New PIN. Re-enter the same 4 digits in Confirm New
PIN. When the Change PIN screen disappears, press
the OK button. The TV has memorized your new PIN.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the V-Chip
will block it. The screen will go blank and the following
message will appear:
This channel is blocked by V-Chip. Please enter the
PIN to unblock.
✎
If you forget the PIN, press the remote-control
buttons in the following sequence, which resets
the pin to “0-0-0-0” : POWER (off) → MUTE → 8
→ 2 → 4 → POWER (on)
Other Features
MENU → Setup → ENTER
Menu Language
Set the menu language.
1. Select Menu Language and press the ENTER button.
2. Choose desired language and press the ENTER
button.
✎
Choose between English, Español and Français.
Caption
(On-Screen Text Messages)
■ Caption (Off / On): You can switch the
caption function on or off. If captions are
not available, they will not be displayed
on the screen.
✎
The Caption feature does not
work in Component, HDMI or PC
modes.
■ Caption Mode: You can select the desired caption
mode.
✎
The availability of captions depends on the
program being broadcasted.
Default / CC1~CC4 / Text1~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the TV. (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels.)
Default / Service1~Service6 / CC1~CC4 /
Text1~Text4: (digital channels only) The Digital Captions
function works with digital channels.
✎
Service1~6 may not be available in digital caption
mode depending on the broadcast.
CC
20
English
■ Digital Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and
Large. The default is Standard.
Font Style: Options include Default and Styles 0 to 7.
The default is Style 0.
Foreground Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan. You
can change the color of the letter. The default is White.
Background Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan.
You can change the background color of the caption.
The default is Black.
Foreground Opacity: This adjusts the opacity of text.
Options include Default, Transparent, Translucent, Solid
and Flashing.
Background Opacity: This adjusts the opacity of
the caption background. Options include Default,
Transparent, Translucent, Solid and Flashing.
Return to Default: This option sets each Size, Font
Style, Foreground Color, Background Color, Foreground
Opacity and Background Opacity to its default.
✎
NOTE
Digital Caption Options are available only
x
when Default and Service1 ~ Service6 can be
selected in Caption Mode.
The availability of captions depends on the
x
program being broadcasted.
The Default setting follow the standards set by
x
the broadcaster.
The Foreground and Background cannot be set
x
to have the same color.
You cannot set both the Foreground Opacity
x
and the Background Opacity to Transparent.
Network
For details on set up options, refer to the “Network
Connection” instructions. (P. 24~29)
General
■ Game Mode (Off / On): When connecting to a game
console such as PlayStation™ or Xbox™, you can enjoy
a more realistic gaming experience by selecting the
game menu.
✎
NOTE
Precautions and limitations for game mode
x
– To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
– If you display the TV menu in Game Mode, the
screen shakes slightly.
Game Mode is not available when the input source
x
is set to TV or PC.
After connecting the game console, set Game Mode
x
to On. Unfortunately, you may notice reduced picture
quality.
If Game Mode is On:
x
– Picture mode is set to Standard and Sound mode
is set to Movie.
– Equalizer is not available.
■ BD Wise (Off / On): Provides the optimal picture quality
for Samsung DVD, Blu-ray and Home Theater products
which support BD Wise. When BD Wise is turned On,
the picture mode is automatically changed to the optimal
resolution.
✎
Available when connecting Samsung products
that support BD Wise through a HDMI cable.
■ Menu Transparency (Bright / Dark): Set the
Transparency of the menu.
■ Melody (Off / Low / Medium / High): Set so that a
melody plays when the TV is turned on or off.
✎
NOTE
Only available when the Input source is set to TV.
x
To turn the melody off, set Melody to Off.
The Melody does not play.
x
– When no sound is output from the TV because the
MUTE button has been pressed.
– When no sound is output from the TV because the
volume has been reduced to minimum with the
VOL – button.
– When the TV is turned off by Sleep Timer function.
03 Basic Features
English
21
Basic Features
Picture In Picture (PIP)
PIP
MENU → Setup → PIP → ENTER
You can watch the TV tuner and one external video source
simultaneously. PIP (Picture-in-Picture) does not function in
the same mode.
✎
NOTE
For PIP sound, refer to the Sound Select
x
instructions.
If you turn the TV off while watching in PIP mode, the
x
PIP window will disappear.
You may notice that the picture in the PIP window
x
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
While V-Chip operation, the PIP function cannot be
x
used.
PIP Settings
x
Main picture Sub picture
Component1, Component2,
HDMI1/DVI, HDMI2, HDMI3,
HDMI4, PC
■ PIP (Off / On): Activate or deactivate the PIP function.
■ Air/Cable (Air / Cable): Select either Air or Cable as the
input source for the sub-screen.
■ Channel: Select the channel for the sub-screen.
■ Size ( / ): Select a size for the sub-picture.
■ Position ( / / / ): Select a position for the
sub-picture.
■ Sound Select (Main / Sub): You can choose the
desired sound (Main or Sub) in PIP mode.
TV
Support Menu
MENU → Support → ENTER
Self Diagnosis
■ Picture Test: Use to check for picture problems. If the
problem continues to occur, check the Color pattern.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes. There may be a
problem with the TV. Contact Samsung’s Call Center for
assistance.
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■ Sound Test: Use the built-in melody sound to check for
sound problems.
✎
If you hear no sound from the TV’s speakers,
before performing the sound test, make sure
Speaker Select is set to TV speaker in the
Sound menu.
✎
The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the TV. Contact Samsung’s Call Center for
assistance.
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■ Signal Information (Digital channels only): An HD
channel’s reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
■ Troubleshooting: If the TV seems to have a problem,
refer to this description.
✎
If none of these troubleshooting tips apply, contact
the Samsung customer service center.
22
English

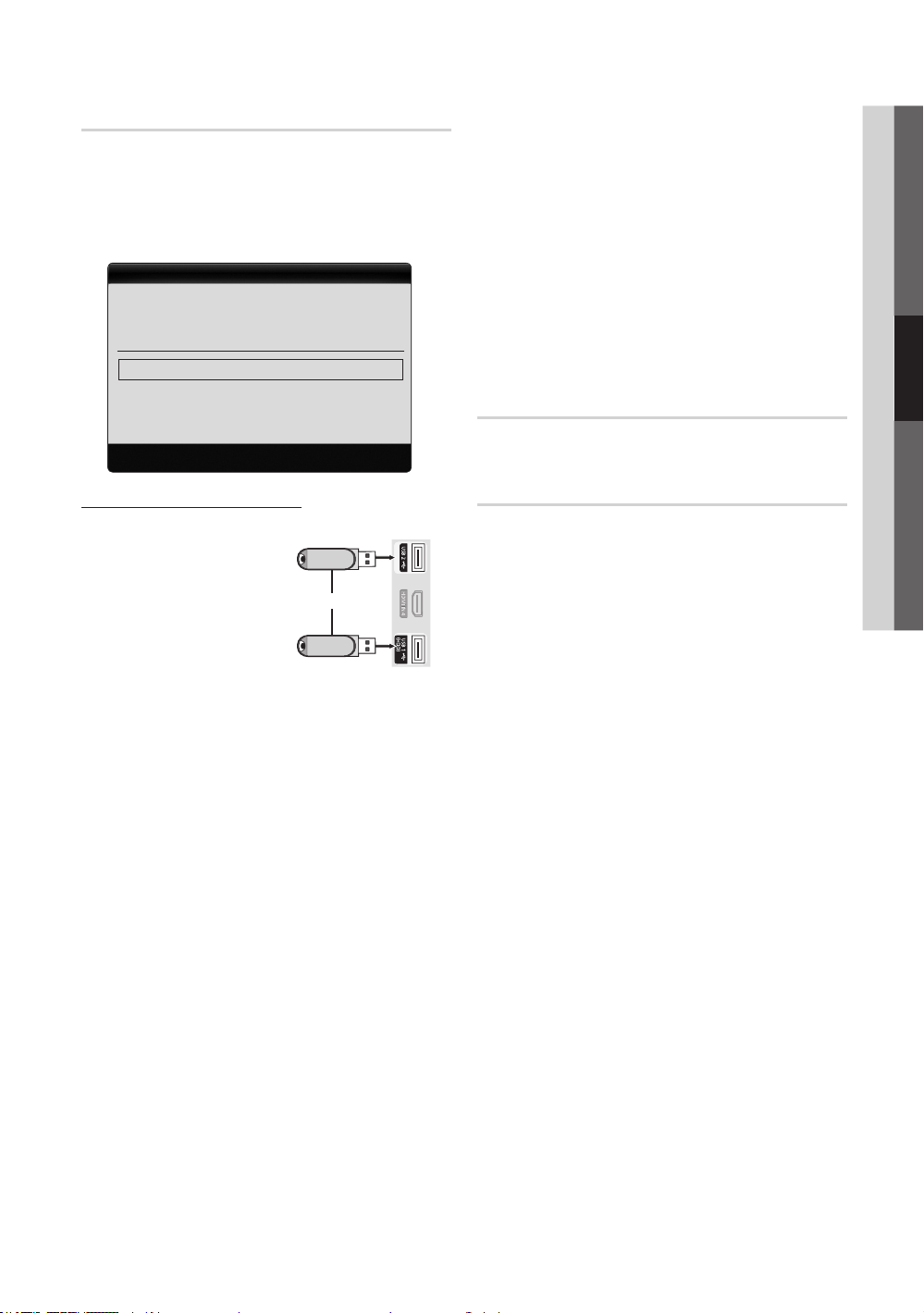

Software Upgrade
Software Upgrade can be performed by network
connection or downloading the latest firmware from “www.
samsung.com,” to a USB memory device.
Current Version - the software already installed in the TV.
✎
Software is represented as ‘Year/Month/Day_Version’.
Software Upgrade
Current Version 2011/01/18_000001
By USB ►
By Online
Alternative Software - - - - / - - / - - _ -----
Move Enter Return
Installing the Latest Version
■ By USB: Insert a USB drive
containing the firmware
upgrade file, downloaded
from www.samsung.com,
into the TV. Please be
careful not to disconnect
the power or remove the
USB drive until upgrades
are complete. The TV will
be turned off and on automatically after completing the
firmware upgrade. When software is upgraded, video
and audio settings you have made will return to their
default settings. We advise you to write down your
settings so that you can easily reset them after the
upgrade.
USB Drive
or
TV Side Panel
■ By Online: Upgrade the software using the Internet.
✎
First, configure your network. For detailed
procedures on using the Network Setup, refer to
the “Network connection” instructions.
✎
If the Internet connection does not operate
properly, the connection may be broken. Please
retry downloading. If the problem persists,
download by USB and upgrade.
■ Alternative Software (backup): Displays the Software
version downloaded through By Online. During the
software upgrading, When the Upgrade will discontinue
from last step, this function be activated.
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
Contact Samsung
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
03 Basic Features
English
23
Advanced Features
Network Connection
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
¦¦ Connecting¦to¦a¦Wired¦Network
You can attach your TV to your LAN using cable in three ways:
y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat
5 cable. See the diagram below.
The Modem Port on the Wall
y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected
to an external modem. Use Cat 5 cable for the connection. See the diagram below.
The Modem Port on the Wall
Modem Cable
y Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN
port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall
outlet is attached to a modem or router elsewhere in your house.
The LAN Port on the Wall
External Modem
(ADSL / VDSL / Cable TV)
External Modem
(ADSL / VDSL / Cable TV)
(having DHCP server)
LAN Cable
LAN CableModem Cable
IP Sharer
LAN Cable
TV Rear Panel
TV Rear Panel
TV Rear Panel
LAN Cable
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration
Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway,
and DNS values your TV needs to access the Internet so you do not have to enter them manually. Most home networks
are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address,
subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
✎
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that
support DHCP also let you use Static IP addresses.
English
24
Network Setup (Auto)
Use the Automatic Network Setup when connecting your
TV to a network that supports DHCP. To set up your TV’s
cable network connection automatically, follow these steps:
How to set up automatically
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your TV, press the MENU button on your
remote, use the ▲ or ▼ button to select Setup, and
then press the ENTER button.
3. Use the ▲ or ▼ button to select Network in the Setup
menu, and then press the ENTER button. The
Network screen appears.
4. On the Network screen, select Network Type.
5. Set Network Type to Wired.
6. Select Network Setup. The Network Setup screen
appears.
Network Setup
Internet Protocol Setup : Auto ►
IP Address :
Subnet Mask :
Gateway :
DNS : Auto
DNS Server :
Move Enter Return
Network Setup (Manual)
04 Advanced Features
Use the Manual Network Setup when connecting your TV to
a network that requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The
Network connection values are displayed.
How to set up manually
To set up your TV’s cable network connection manually,
follow these steps:
1. Follow Steps 1 through 6 in the “How to set up
automatically” procedure.
2. Set Internet Protocol Setup to Manual.
3. Press the ▼ button on your remote to go to the first
entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and
DNS Server values. Use the number buttons on your
remote to enter numbers and the arrow buttons to move
from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.
7. Set Internet Protocol Setup to Auto.
8. Auto acquires and enters the needed Internet values
automatically.
9. Wait two minutes, and then press the RETURN button
on your remote.
10. If the Network Function has not acquired the network
connection values, go to the directions for Manual.
English
25
Advanced Features
Connecting to a Wireless Network
To connect your TV to your network wireless, you need a wireless router or modem and a Samsung Wireless LAN Adapter
(WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV’s side panel USB jack. See the illustration below.
The LAN Port on
the Wall
Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.
com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung
recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.
✎
NOTE
You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless
x
network.
Samsung Wireless LAN Adapter and the USB extension Cable are sold separately and are offered by select retailers,
x
Ecommerce sites and Samsungparts.com.
To use a wireless network, your TV must be connected to a wireless IP sharer (either a router or a modem). If the
x
wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
x
is currently being used by another device nearby, this will result in interference and communication failure.
If you apply a security system other than the systems listed below, it will not work with the TV.
x
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or
x
TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi
certification specifications.
If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
x
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in
either mode.
Keep the Samsung Wireless LAN Adapter at a distance from the TV. If you watch the TV with the Adapter connected
x
nearby, images may appear corrupted for some channels.
If your router, modem, or device is not certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.”
x
Connection Methods: You can setup the wireless network connection on four ways.
x
– PBC(WPS)
– Auto Setup (Using the Auto Network Search function)
– Manual Setup
– Ad-Hoc
The Samsung Wireless LAN Adapter may not be recognized when using a connection via a USB hub or via a USB
x
extension cable other than the cable supplied.
Wireless IP sharer
(AP having DHCP Server)
Samsung Wireless
LAN Adapter
LAN Cable
TV Side Panel
or
26
English

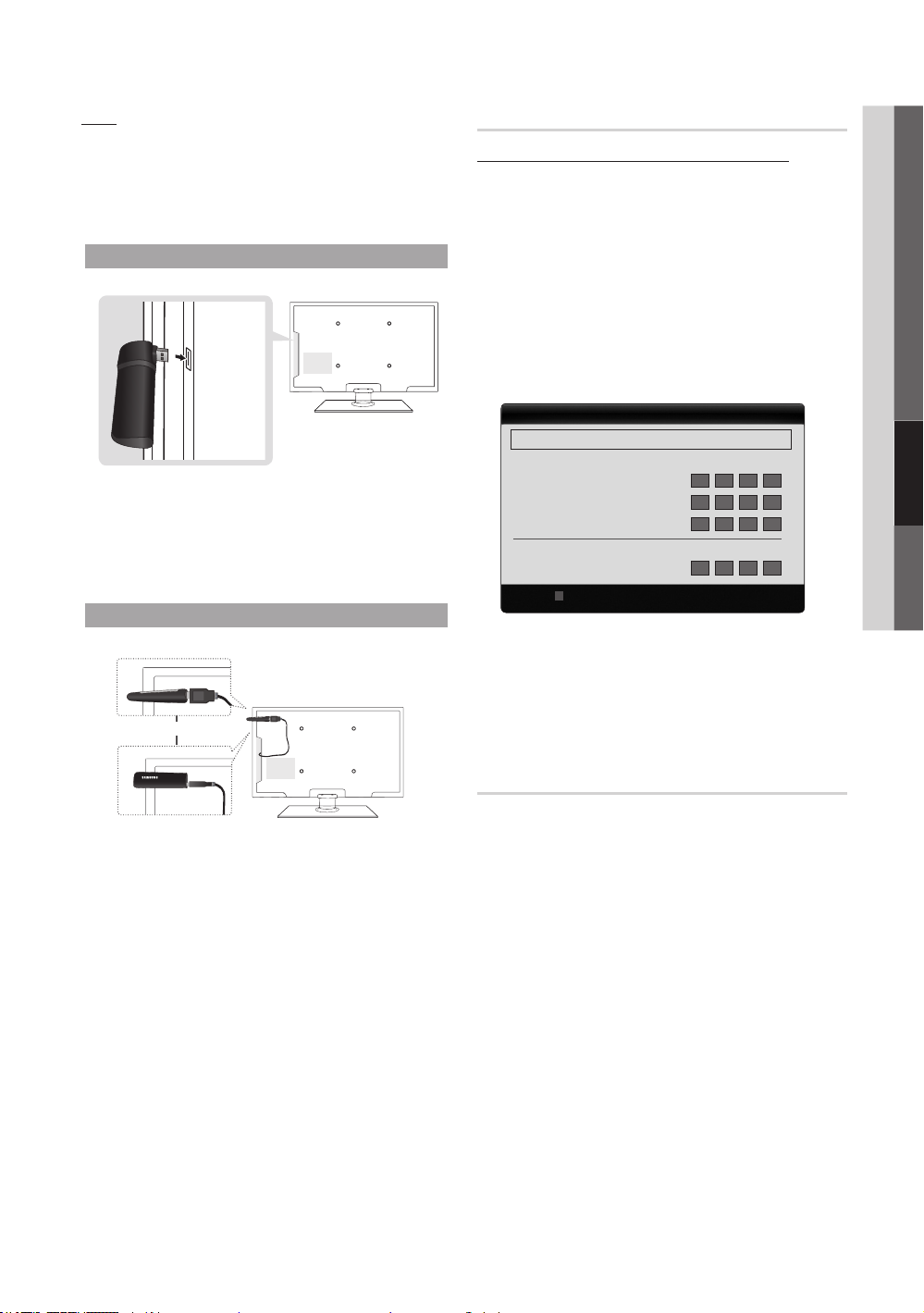

Notice
The picture may appear corrupted or have static for some
channels when the TV is connected to the Samsung Wireless
LAN Adapter. In such a case, establish a connection using one
of the following methods or connect the Samsung Wireless LAN
Adapter using a USB cable in a place that is not affected by
radio interference.
Method 1
Connect using the USB right angle adapter
To connect the Samsung Wireless LAN Adapter using the
USB right angle adapter, follow these steps:
1. Connect the USB right angle adapter to the Samsung
Wireless LAN Adapter.
2. Connect the other end of the right angle adapter to the
USB 1 (HDD) port.
Method 2
Connect via an extension cable
or
Network Setup (PBC(WPS))
How to set up using PBC(WPS)
If your router has a PBC(WPS) button, follow these steps:
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your TV, press the MENU button on your
remote, use the ▲ or ▼ button to select Setup, and
then press the ENTER button.
3. Use the ▲ or ▼ button to select Network in the Setup
menu, and then press the ENTER button.
4. On the Network screen, select Network Type.
5. Set Network Type to Wireless.
6. Select Network Setup. The Network Setup screen appears.
Network Setup
Select a network : Not Selected ►
Internet Protocol Setup : Auto
IP Address :
Subnet Mask :
Gateway :
DNS : Auto
DNS Server :
A
PBC(WPS) Move Enter Return
7. Press the Red button on your remote.
8. Press the PBC(WPS) button on your router within 2
minutes. Your TV player automatically acquires all the
network setting values it needs and connects to your
network.
9. After the network connection is set up, press the
RETURN button to exit the Network Setup screen.
04 Advanced Features
To reconnect the Samsung Wireless LAN Adapter using the
extension cable, follow these steps:
1. Connect the extension cable to the USB 1 (HDD) port.
2. Connect the extension cable and Samsung Wireless LAN
Adapter.
3. Attach the Samsung Wireless LAN Adapter to the back of
the TV near the top, using double-sided adhesive tape.
Network Setup (Auto)
Most wireless networks have an optional security system
that requires devices that access the network to transmit
an encrypted security code called an Access or Security
Key. The Security Key is based on a Pass Phrase, typically
a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for
your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your
wireless network, you will have to enter the Pass Phrase
during the setup process.
English
27
Advanced Features

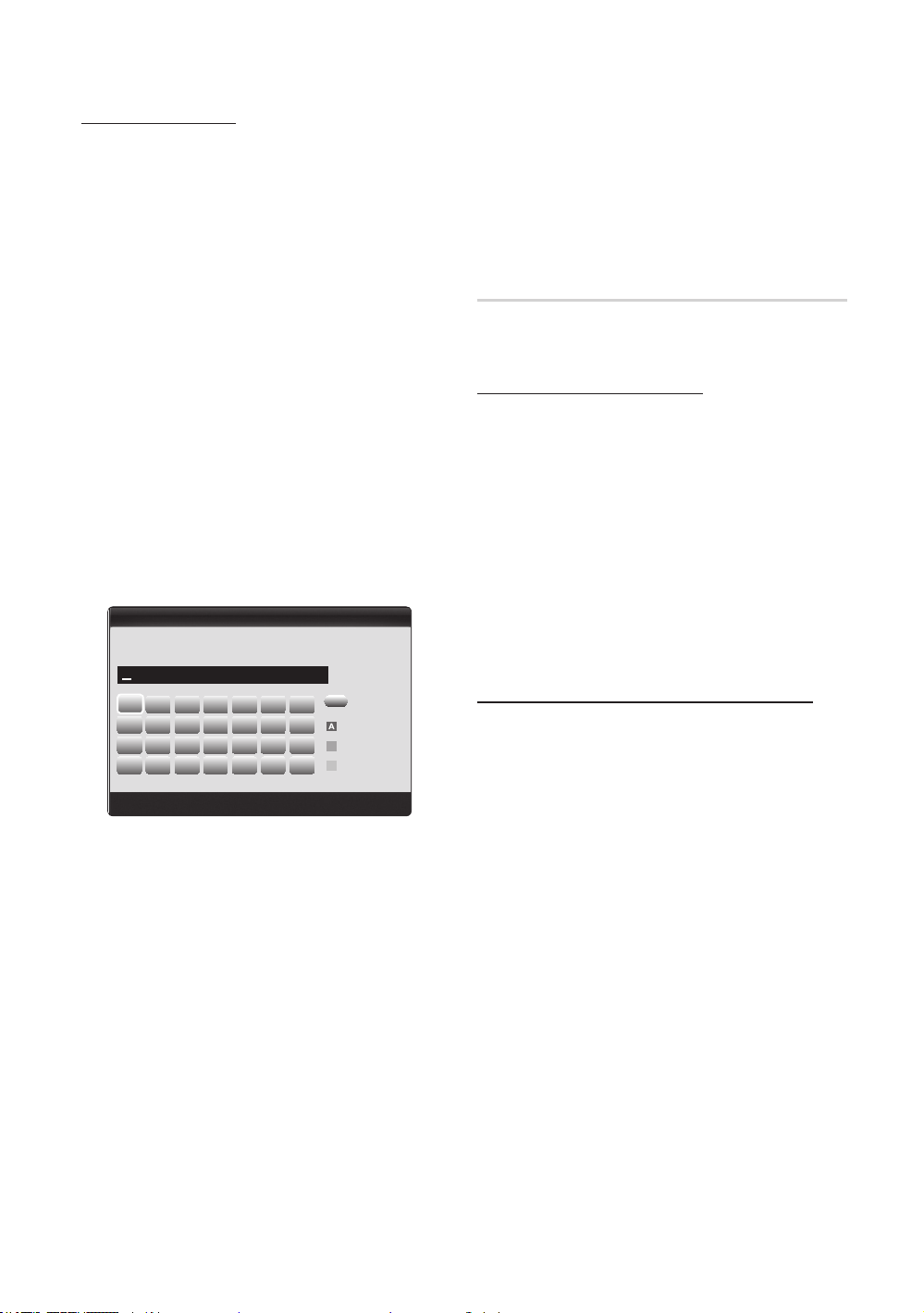

A B C D E F G
H I J K L M N
O P Q R S T U
V W X Y Z
0~9
Security Key
0 entered
Number
Lower case
B
Delete
Space
C
How to set up automatically
To set up the wireless connection automatically, follow these
steps:
1. Follow Steps 1 through 6 in the “How to set up using
PBC(WPS)”. (P. 27)
2. Press the ▼ button to select Internet Protocol Setup,
and then press the ENTER button.
Press the ▲ or ▼ button to select Auto, and then press
the ENTER button.
3. Press the ▲ button to go to Select a Network, and
then press the ENTER button. The Network function
searches for available wireless networks. When done, it
displays a list of the available networks.
4. In the list of networks, press the ▲ or ▼ button to select
a network, and then press the ENTER button.
✎
If the AP is set to Hidden (Invisible), you have
to select Add Network and enter the correct
Network Name (SSID) and Security Key to
establish the connection.
5. If the Security/PIN pop-up appears, go to Step 6. If the
Network Connecting Screen appears, go to Step 10.
6. Press the ▲ or ▼ button to select Security or PIN. For
most home networks, you would select Security (for
Security Key). The Security Screen appears.
Select a network
9. When done, press the Blue button on your remote. The
Network Connecting screen appears.
10. Wait until the connection confirmation message is
displayed, and then press the ENTER button. The
Network Setup screen re-appears.
11. To test the connection, press the RETURN button to
select Network Test, and then press the ENTER
button.
Network Setup (Ad-Hoc)
You can connect to a mobile device without an access point
through the “Samsung Wireless LAN Adapter” by using a
peer to peer network.
How to connect to new Ad-hoc
1. Follow Steps 1 through 6 in the “How to set up using
PBC(WPS)”. (P. 27)
2. Choose Select a network. A list of devices/networks
appears.
3. While in the device list, press the Blue button on the
remote.
✎
The message "Ad-hoc is a direct WI-Fi
connection with cellphone or PC. The existing
network system may have limited functionality.
Do you want to change the network
connection?" is displayed.
4. Input the generated Network Name (SSID) and
Security Key into the device you want to connect.
7. On the Security screen, enter your network’s Pass
Phrase.
✎
You should be able to find the Pass Phrase on
one of the set up screens you used to set up your
router or modem.
8. To enter the Pass Phrase, follow these general
directions:
– Press the number buttons on your remote to enter
numbers.
– Use the direction buttons on your remote to move
from button to button on the Security Key screen.
– Press the Red button to change case or display
symbols/characters.
– To a enter letter or symbol, move to the letter or
symbol, and then press the ENTER button.
– To delete the last letter or number you entered,
press the Green button on your remote.
28
English
Move Enter Return
How to connect an existing Ad-hoc device
1. Follow Steps 1 through 6 in the “How to set up using
PBC(WPS)”. (P. 27)
2. Choose Select a network. Then, the device list will be
displayed.
3. Select the device you want in the Device list.
4. If security key was applied, input the security key.
✎
If network does not operate normally, check
the Network Name (SSID) and Security Key
again. An incorrect Security Key may cause a
malfunction.
Network Setup (Manual)
If the other methods do not work, you need to enter the
Network setting values manually.
Getting the Network Connection Values
To get the Network setting values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The
Network settings are displayed.
How to set up manually
To enter the Network connection values manually, follow
these steps:
1. Follow Steps 1 through 6 in the “How to set up using
PBC(WPS)”. (P. 27)
2. Press the ▼ button to select Internet Protocol Setup,
and then press ENTERbutton. Press the ▲ or ▼
button to select Manual, and then press ENTER
button.
3. Press the ▼ button to go to the first entry field (IP
Address).
4. Use the number buttons to enter numbers.
5. When done with each field, use the ► button to move
successively to the next field. You can also use the other
arrow buttons to move up, down, and back.
6. Enter the IP Address, Subnet Mask, and Gateway
values.
7. Press the ▲ or ▼ button to go to DNS.
8. Press the ▼ button to go to the first DNS entry field.
Enter the numbers as above.
9. When done, press the ▲ button to go to Select
a Network. Select your network, and then press
ENTERbutton.
10. Go to Step 4 in the "How to set up automatically" (P. 28),
and follow the directions from that point on.
04 Advanced Features
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet
because your ISP has permanently registered the
MAC address (a unique identifying number) of your
PC or modem, which it then authenticates each time
you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC
address, your ISP can not authenticate its MAC address,
and your TV can not connect.
To resolve this problem, ask your ISP about the procedures
required to connect devices other than a PC (such as your
TV) to the Internet.
If your Internet service provider requires an ID or password
to connect to the Internet, your TV may not be able to
connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.
The Internet connection may fail because of a firewall
problem. If this is the case, contact your Internet service
provider.
If you cannot connect to the Internet even after you have
followed the procedures of your Internet service provider,
please contact Samsung Electronics.
English
29
Advanced Features
CHLIST
P.SIZE
SUM
Media Play
Enjoy photos, music and/or movie files saved on
MEDIA.P
a USB Mass Storage Class (MSC) device and/or
your PC.
MENU → Application → Media Play
→ ENTER
MediaPlay
Videos
Change Device
View Devices Enter Return
Connecting a USB Device
1. Turn on your TV.
2. Connect a USB device containing photo, music and/or movie files to the
USB 1 (HDD) or USB 2 jack on the side of the TV.
3. When USB is connected to the TV, popup window appears. Then you can select
Media Play.
USB Drive
or
TV Side Panel
Connecting to the PC through network
You can play pictures, music and videos saved on your PC or on your TV through a network connection in the Media Play
mode.
✎
If you want to use Media Play to play files saved on your PC over your TV, you should download “PC Share Manager”
and users manual from “www.samsung.com.”
LAN
PC
TV Side Panel
or
Samsung
Wireless
External Modem
(ADSL/VDSL/Cable TV)
LAN Cable
1. For more information on how to configure your network, refer to ‘Network Connection’.
– You are recommended to locate both TV and PC in same subnet. The first 3 parts of the subnet address of the TV and
the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:
123.456.789.**)
2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager
program will be installed.
– You can connect the TV to the PC directly without connecting it through a Sharer (Router).
English
30
Modem Cable
LAN
Adapter
LAN CableLAN Cable
Wireless IP
sharer
LAN Cable
Loading...
