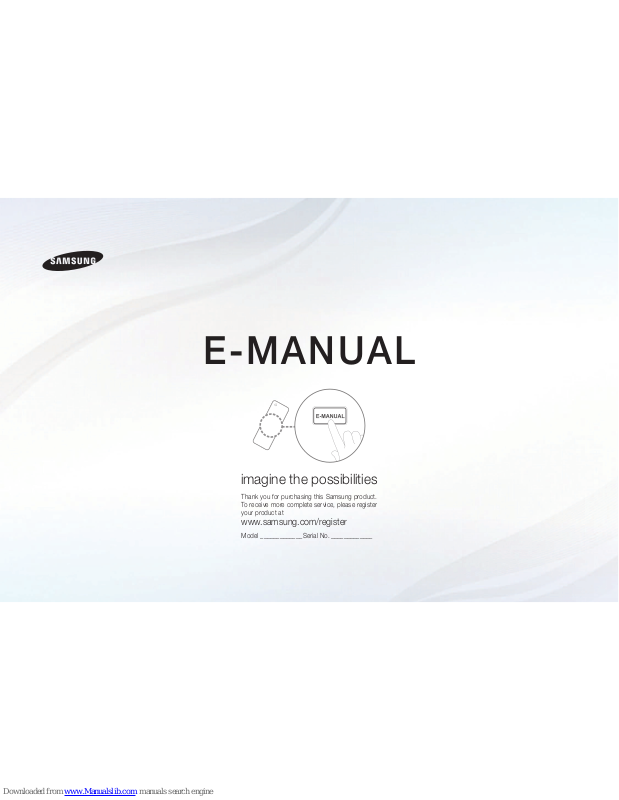

Samsung LN40D550K E-manual

E-MANUAL

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

Contents

Channel Setting

•

UsingtheINFObutton(Now&Nextguide)1

• UsingtheChannelmenu(WatchTV) 2

• Memorizingchannels 16

• OtherFeatures 19

Basic Features

•

PictureMenu 21

• SoundMenu 38

Preference Features

• Network



forLCD550series

 47

•

SystemMenu 74

• SupportMenu 95

Advanced Features

•

MyContents 104

• Anynet+(HDMI-CEC) 132

• AllShare™



forLCD550series

 145

Other Information

• Troubleshooting 150

•

Anti-theftKensingtonLock 169

• License 171

▶

Eng lish

❑❑ Using❑the❑INFO❑button❑(Now❑&❑Next❑guide)

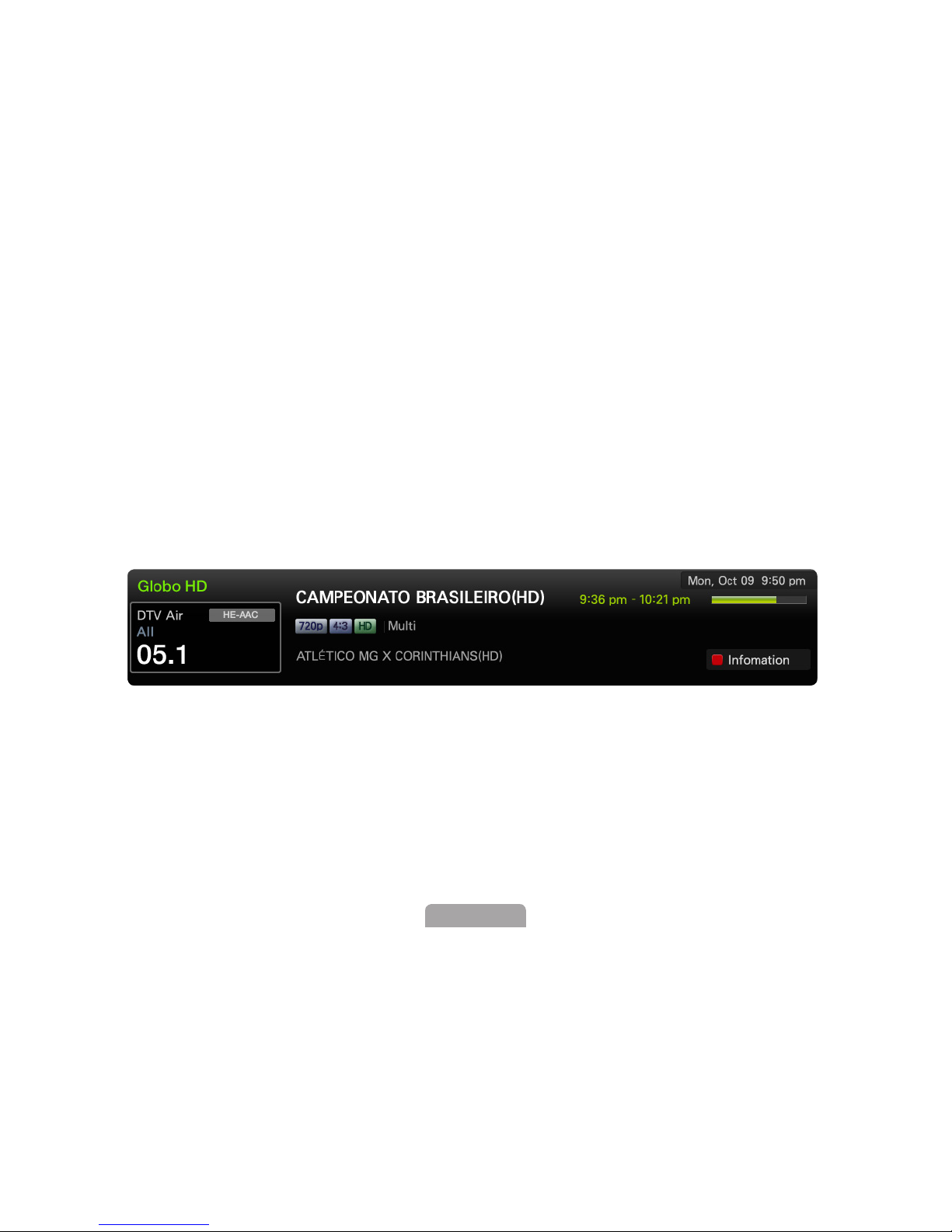

The display identifies the current channel and the status of certain audio-video
settings.

The Now & Next guide shows daily TV program information for each channel
according to the broadcasting time.

●

Scroll ◄, ► to view information for a desired program while watching the
current channel.

*

It may differ depending on the country.



◀ ▶

Eng lish

◀

Eng lish

❑❑ Using❑Channel❑menu❑(Watch❑TV)

❑



MENUm❑→❑Support❑→ Contents❑Home❑→ ENTER

E

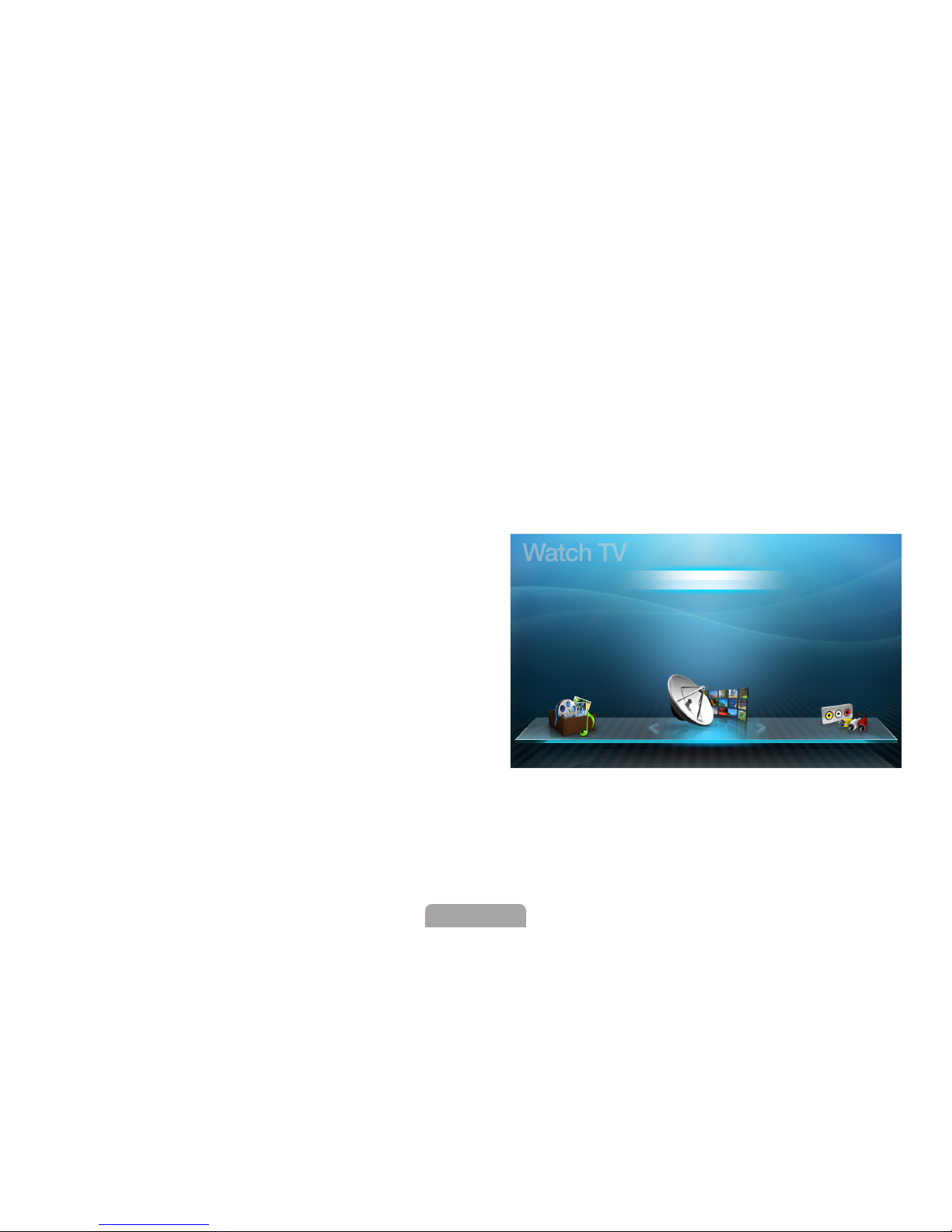

Press the CONTENT button to select Watch❑TV, then select the desired menu.
Each screen will be displayed.

❑■Guide

The EPG (Electronic Program Guide)
information is provided by broadcasters.
Using program schedules provided by
broadcasters, you can specify programs
you want to watch in advance so that
the channel automatically changes to
the selected program channel at the
specified time. Program entries may
appear blank or out of date depending
on a channel status.

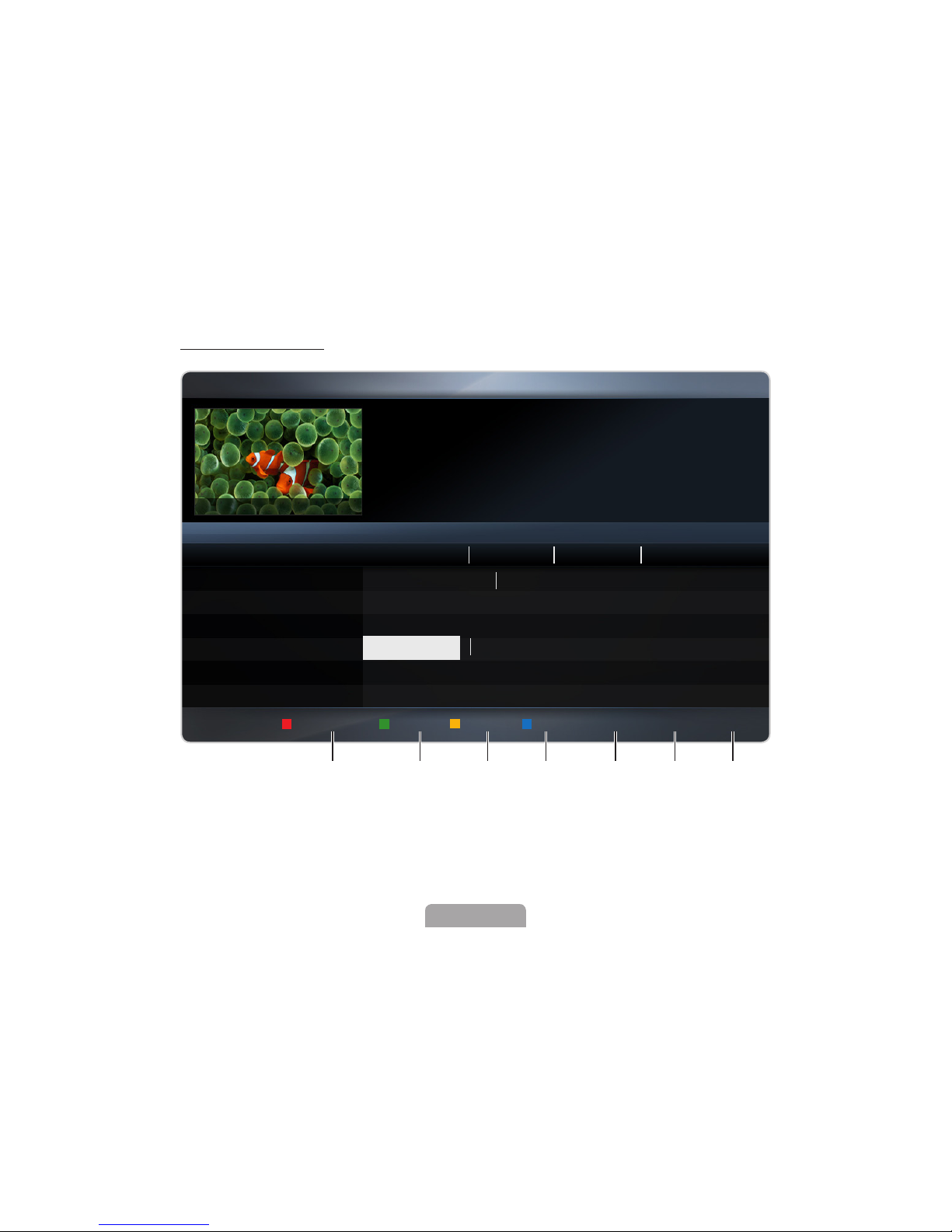

Guide

Schedule❑Manager

Channel❑List

Channel❑Manager

My❑Contents

Watch TV

Source

◀ ▶

Eng lish

Using❑Guide

A

Schedule❑Mgr

B

D

-2❑Hours

ACB D

+2❑HoursD Exit

j Information k Page E Schedule

DTV Air 08.1 Rede TV!HD
Home and Away
9:48 pm - 12:05 am

ATLÉTICO MG X CORINTHIANS(HD)

Today

12:00❑am❑

12:30❑am 1:00❑am 1:30❑am

No❑Information

No❑Information

❑QVC❑Selection

No❑Information

05.1❑❑❑❑❑❑❑Globo❑HD

05.1❑❑❑❑❑❑❑Globo❑HD

08.1❑❑❑❑❑❑❑Rede❑TV!HD

07.1❑❑❑❑❑❑❑TVN❑DIGITAL❑HD

09.1❑❑❑❑❑❑❑QVC

11.1❑❑❑❑❑❑❑R4DTT

▼

Tine❑Team

❑No❑Information

JORNAL❑DA❑GLOBAL

08.1 Rede TV!HD

Guide

❑Wed,❑6❑Oct❑10:54❑pm

Channel❑View❑-❑All

1 2 3 54 6 7

Home and...

*

It may differ depending on the country.

◀ ▶

Eng lish

◀

Eng lish

1

A

Red (Schedule❑Mgr): Moves to the Schedule❑List in Schedule❑Manager.

2

B

D

Green (-2❑Hours): Viewing the list of programs to be broadcasted before 2 hours.

3

ACB D

Yellow (+2❑Hours): Viewing the list of programs to be broadcasted after 2 hours.

4

D

Blue (EXIT): Exits the guide.

5 j (Information): Displays details of the selected program.
6 k (Page): Move to previous or next page.
7 E (Watch❑/❑Schedule)

●

When selecting the current program, you can watch the selected program.

●

When selecting the future program, you can reserve to watch the selected pro­gram. To cancel the schedule, press the❑ ENTERE button again and select

Cancel❑Schedules.

◀ ▶

Eng lish

❑■Schedule❑Manager

Cancel or set the Timer❑Viewing to display the channel you want at the intended
time.

Using❑Timer❑Viewing

You can set a desired channel to be displayed automatically at the intended time.
Set the current time first to use this function.

1. Press the ENTER

E

button on the Schedule❑Manager screen.

2. Press the ENTER

E

button to add manual booking.

3. Press the

◄/►/▲/▼

button to set the Antenna, Channel, Repeat, Date,

Start❑Time.

●

Antenna: Select the desired broadcasting signal.

●

Channel: Select the desired channel.

◀ ▶

Eng lish

◀

Eng lish

●

Repeat: Select Once, Manual, Sat~Sun,❑Mon~Fri or Everyday to set at

your convenience. If you select Manual, you can set the day you want.



The (c) mark indicates the day is selected.

●

Date: You can set desired date.



It is available when you select Once in Repeat.

●

Start❑Time: You can set start time you want.



If you want to edit or cancel the schedule, select the reserved schedule on
the Schedule❑List, and select the Edit or Cancel❑Schedules.

◀ ▶

Eng lish

❑■Channel❑List

You can view channel information, Added❑Channels or Favorites❑1-5.



When you press the CH❑LIST button on the remote control, Channel❑List
screen will be displayed at once.

●

Added❑Channels: Shows all

added channels.

●

Favorites❑1-5: Shows all favorite

channels.



Favorites❑1-5 will be

displayed when you set Add❑

to❑Favorites.



If you want to view Favorites
channels you added, press the

CH❑LIST button and use





(CH❑Mode) button to move Favorites❑1-5.❑

Air

AC B D

Antenna

AC B D

Program View  CH Mode E Watch k Page

Channel❑List

Added❑Channels

02 Air

04.1 TV#4

a

05 Air

07.1 TV#7

09.1 TV#9

11.1 TV#11

a

13 Air

a

14 Air

*

It may differ depending on the country.

◀ ▶

Eng lish

◀

Eng lish



Using the color buttons with the Channel❑List.

●

A

Red (Antenna): Switches to Air or Cable.

●

ACB D

Yellow (Program❑View❑/❑Channel❑View):

Displays the program when digital channel is selected. Returns to the
channel view.



●



(CH❑Mode❑/❑Channel): Move to the Favorites❑1-5 when Add❑to

Favorites❑is set.



When you press the

AC B D

(Program❑View) button, you can move to

other channels using L(Channel) button.

●

●

E

(Watch❑/❑Information): Watches the channel you select. / Displays

details of the selected program.

●

k●

(Page): Move to next or previous page.

◀ ▶

Eng lish

Channel❑Status❑Display❑Icons

Icon Operations

a

An analog channel.

)

A reserved program.

\

A locked channel.

◀ ▶

Eng lish

◀

Eng lish

How❑to❑use❑Timer❑Viewing❑in❑Channel❑List❑(digital❑channels❑only)❑

When you set the Timer❑Viewing in Channel❑List, you can only set the program in

Program❑View.

1. Press the CH❑LIST button, then select a desired digital channel.

2. Press the

ACB D

(Program❑View) button.

3. Press the ▲ / ▼ buttons to select the desired program, then press the

ENTER

E●

or INFO button.

4. Select Timer❑Viewing, then press the ENTER

E

button when done.



If you want to cancel Timer❑Viewing, follow steps 1 through 3. Select Cancel❑

Schedules.

◀ ▶

Eng lish

❑■Channel❑Manager

Add or edit the Favorites channel and set the channels to Delete, Deselect❑All or

Select❑All. You can edit the channel name only for analog channels.

●

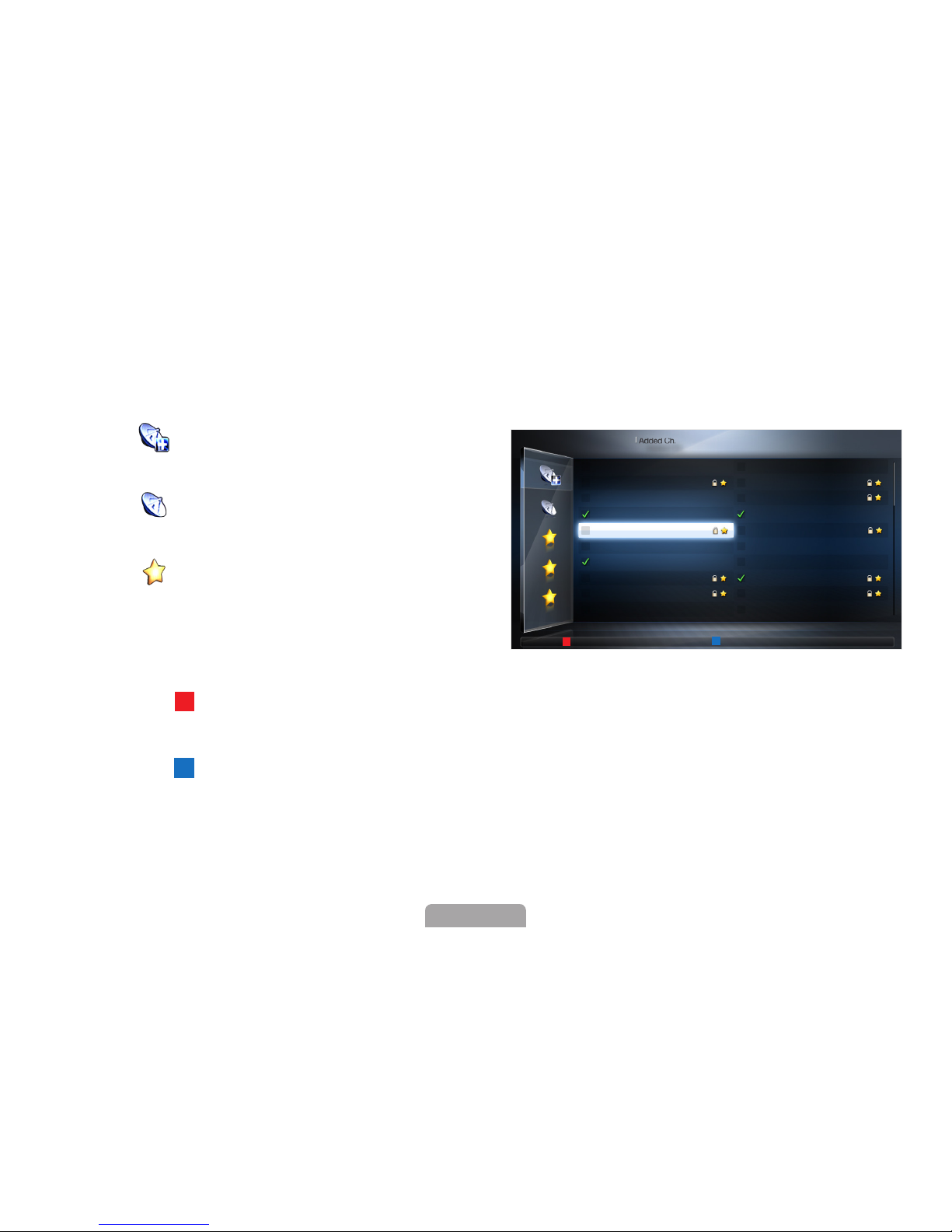

( ) Added❑Ch.: Shows all
added channels.

●

( ) All❑Channels: Shows all
currently available channels.

●

( ) Favorites❑1-5: Shows
Favorites channels.



Using the color buttons with the

Channel❑Manager.

●

A

Red (Antenna): Switches

to Air or Cable.

●

D

Blue (Sorting): Changes the list ordered by number or name.

Air❑

AC B D

❑Antenna❑

❑Sorting❑❑❑E❑Select❑❑❑T❑Tools❑❑❑R❑Return

Channel❑Manager

Added❑Ch.

Selected❑items:❑4❑ Channel❑Number

a

3 ----❑Air

a

4 ----❑Air

a

5 ----❑Air

6.1 TV❑#6

7.1 TV❑#7

a

8 ----❑Air

9.1 TV❑#9

a

10 ----❑Air

a

11 ----❑Air

11.1 TV❑#11

a

12 ----❑Air

a

13 ----❑Air

14.1 TV❑#14

a

15 ----❑Air

a

16 ----❑Air

a

17 ----❑Air

*

It may differ depending on the country.

◀ ▶

Eng lish

◀

Eng lish

Channel❑Status❑Display❑Icons

Icon Operations

a

An analog channel.

c

A channel selected.



A channel set as a Favorites.

\

A locked channel.

T

Displays the Channel❑Manager option menu.

Channel❑Manager❑Option❑Menu❑

t

Set each channel using the Channel❑Manager menu options (Watch, Add❑to❑

Favorites❑/Edit❑Favorites,❑Lock/Unlock,❑Channel❑Name❑Edit,❑Add/Delete,❑
Deselect❑All,❑Select❑All). Option menu items may differ depending on the channel

status.

◀ ▶

Eng lish

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

●

Watch: Watch the selected channel.

●

Add❑to❑Favorites❑/❑Edit❑Favorites: Set channels you watch frequently as

Favoritess.

1. Select the Add❑to❑Favorites❑/ Edit❑Favorites, then press the ENTER

E

button.



If the channel is already added to Favorites channel, Edit❑Favorites❑will
be shown.

2. Press the ENTER

E

button to select Favorites❑1-5, then press the OK

button.



One Favorites channel can be added in several of Favorites among

Favorites❑1-5.

◀ ▶

Eng lish

◀

Eng lish

●

Lock❑/❑Unlock: Lock a channel so that the channel cannot be selected and

viewed.



This function is available only when the Channel❑Lock is set to On.



The PIN input screen appears. Enter your 4-digit PIN, the default of which is
“0-0-0-0”. Change the PIN using the Change❑PIN option.



If you want to lock the channel you are currently watching, select the Lock❑

Current❑Channel in Tools menu.

●

Channel❑Name❑Edit (analog channels only): Assign your own channel name.

◀ ▶

Eng lish

●

Add❑/❑Delete: Delete or add a channel to display the channels you want.



NOTE

●

All deleted channels will be shown on the All❑Channels menu.

●

A gray-colored channel indicates the channel has been deleted.

●

The Add menu only appears for deleted channels.

●

Deselect❑All: Deselect all the selected channels.



You can only select Deselect❑All when one or more channels are selected.

●

Select❑All: Select all the channels in the channel list.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Memorizing❑channels

❑



MENUm❑→❑Channel❑→❑ENTER

E

❑■Antenna❑(Air❑/❑Cable)❑

t

Before your television can begin memorizing the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or a

Cable system).

◀ ▶

Eng lish

❑■Auto❑Program❑

Scans for a channel automatically and stores in the TV.

●

Air: Air antenna signal.

●

Cable: Cable antenna signal.



NOTE

●

Automatically allocated program numbers may not correspond to actual
or desired program numbers. If a channel is locked, the PIN input window
appears.

●

If the antenna is connected to ANT 2 IN (CABLE), select Cable and if it is
connected to ANT 1 IN (AIR), select Air.

●

If both ANT 1 IN and ANT 2 IN are connected, select both Air and Cable.

◀ ▶

Eng lish

◀

Eng lish

How❑to❑Stop❑Auto❑Programming

1. Press the ENTER

E

button.

2. A message will ask Stop❑Auto❑Program? Select Yes by pressing the  or 
button.

3. Press the ENTER

E

button.

◀ ▶

Eng lish

❑❑ Other❑Features

❑■Fine❑Tune❑

(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as this is done

automatically during the search and store operation. If the signal is weak or
distorted, fine tune the channel manually.

●

Select Fine❑Tune in the Channel menu.



Fine tuned channels that have been saved are marked with an asterisk “*” on
the right-hand side of the channel number in the channel banner.



To reset the fine-tuning, select Reset.

◀ ▶

Eng lish

❑■Color❑System❑(Auto❑/❑PAL-M❑/❑PAL-N❑/❑NTSC)❑

Normally the TV can receive image and sound with good quality in Auto
mode. This mode detects the color signal sources automatically. If the color
implementation is unsatisfactory, select any of PAL-M, PAL-N or NTSC.

◀ ▶

Eng lish

❑❑ Changing❑the❑Preset❑Picture❑Mode

❑



MENUm❑→❑Picture❑→❑Picture❑Mode❑→❑ENTER

E

❑■Picture❑Mode❑

Select your preferred picture type.



When connecting a PC, you can only make changes to the Entertain❑and

Standard.

●

Dynamic: Suitable for a bright room.

●

Standard: Suitable for a normal environment.

●

Natural

for LCD 550 series

: Suitable for an eye comfortable display.

●

Movie: Suitable for watching movies in a dark room.

●

Entertain: Suitable for watching movies and games.



It is only available when connecting a PC.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Adjusting❑picture❑settings

❑



MENUm❑→❑Picture❑→❑Backlight❑→❑ENTER

E

❑■Backlight❑/❑Contrast❑/❑Brightness❑/❑Sharpness❑/❑Color❑/❑Tint❑(G/R)❑

Your television has several setting options for picture quality control.



NOTE

●

When you make changes to Backlight,❑Contrast,❑Brightness,❑

Sharpness,❑Color or Tint❑(G/R) the OSD will be adjusted accordingly.

●

When connecting a PC, you can only make changes to Backlight,❑

Contrast,❑Brightness and Sharpness.

●

Settings can be adjusted and stored for each external device connected
to the TV.

◀ ▶

Eng lish

❑■Screen❑Adjustment

Set the various picture options such as picture size and aspect ratio.

●

Picture❑Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode most of the
time.

16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide❑Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
4:3: Sets the picture to basic (4:3) mode.



Do not watch in 4:3 format for a long time. Traces of borders displayed
on the left, right and center of the screen may cause image retention

(screen burn) which are not covered by the warranty.

◀ ▶

Eng lish

◀

Eng lish

Screen❑Fit: Displays the full image without any cut-off when HDMI (720p /

1080i / 1080p) or Component (1080i / 1080p) signals are input.

Smart❑View1❑

for LCD 550 series

: Reduces original screen by 50%.

Smart❑View2❑

for LCD 550 series

: Reduces original screen by 25%.



NOTE

●

Smart❑View1 is enabled only in HDMI mode.

●

Smart❑View2 is enabled only in DTV and HDMI modes.

●

The picture size can vary depending on the input resolution when
content is played using Videos under My❑Contents.

◀ ▶

Eng lish

●

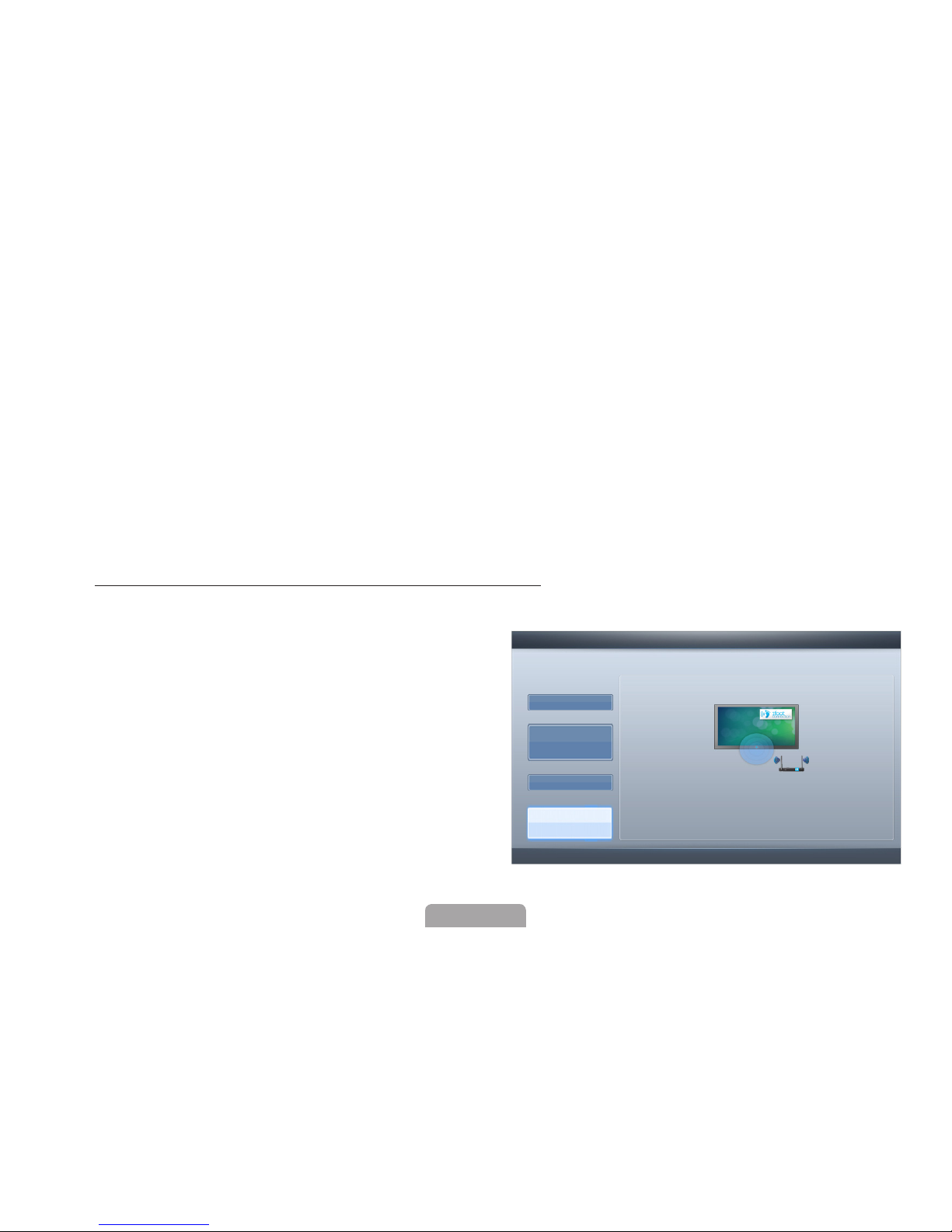

Position: Adjust the picture position. It is only available in Zoom1, Zoom2,
Wide❑Fit or Screen❑Fit.



After selecting Zoom1,❑Zoom2 or Wide❑Fit, select Position. Follow the
steps below in the Position screen.

1.❑ Select the Position, press the ENTER

E

button.

2. Press the ▲ or ▼ button to move the picture up or down.

3. Press the ENTER

E

button.

◀ ▶

Eng lish

◀

Eng lish



After selecting Screen❑Fit in HDMI (1080i/1080p) or Component
(1080i/1080p) mode, you may need to center the picture. Select

Position, then follow the steps below in the Position screen.

1.❑ Select the Position, press the ENTER

E

button.

2. Press the

▲, ▼, ◄

or ► button to move the picture.

3. Press the ENTER

E

button.



If you want to reset the position you adjusted, select Reset in the

Position screen. The picture will be set to its default position.

◀ ▶

Eng lish



HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720)



Settings can be adjusted and stored for each external device you have
connected to an input on the TV.

Input Source Picture Size

ATV, AV 16:9,❑Zoom1,❑Zoom2,❑4:3
Component (480i, 480p, 576i, 576p) 16:9,❑Zoom1,❑Zoom2,❑4:3

DTV (720p, 1080i, 1080p)

16:9,❑Wide❑Fit,❑4:3,❑Screen❑Fit,❑
Smart❑View2

Component (720p, 1080i, 1080p) 16:9,❑Wide❑Fit,❑4:3,❑Screen❑Fit

HDMI (720p, 1080i, 1080p)

16:9,❑Wide❑Fit,❑4:3,❑Screen❑Fit,❑
Smart❑View1,❑Smart❑View2

PC 16:9,❑4:3

◀ ▶

Eng lish

◀

Eng lish

●

PC❑Screen❑Adjustment



It is available in PC mode.

Coarse❑/❑Fine: Removes or reduces picture noise. If the noise is not removed

by Fine-tuning alone, then adjust the frequency as best as possible (Coarse)
and Fine-tune again. After the noise has been reduced, readjust the picture so
that it is aligned to the center of screen.

Position: Adjust the PC’s screen positioning if it does not fit the TV screen.

Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ►
button to adjust the Horizontal-Position.

Image❑Reset: Resets the image to default settings.

◀ ▶

Eng lish

❑■Auto❑Adjustment❑

t

❑



MENUm❑→ Picture❑→❑Auto❑Adjustment❑→❑ENTER

E

Adjust frequency values/positions and fine tune the settings automatically.



It is available in PC mode.



Not available when connecting through HDMI/DVI cable.

Using❑Your❑TV❑as❑a❑Computer❑(PC)❑Display

Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card, the actual screens on

your PC will probably look different, but the same basic set-up information will
apply in most cases. (If not, contact your computer manufacturer or Samsung
Dealer.)

◀ ▶

Eng lish

◀

Eng lish

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control Panel” window and a

display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

●

The correct size setting (resolution)

●

If a vertical-frequency option exists on your display settings dialog box,
the correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the
dialog box.

◀ ▶

Eng lish

❑❑ Changing❑the❑Picture❑Options

❑■Advanced❑Settings

❑



MENUm❑→❑Picture❑→❑Advanced❑Settings❑→❑ENTER

E

(available in Standard❑/❑Movie mode)
Compared to previous models, new Samsung TVs have more precise pictures.



When connecting a PC, you can
only make changes to Gamma❑and❑

White❑Balance.

●

Black❑Tone❑(Off❑/❑Dark❑/❑Darker❑/❑
Darkest): Select the black level to

adjust the screen depth.

U

Move E Enter R Return

Advanced❑Settings

Black Tone : Off

►

Dynamic Contrast : Medium

Shadow Detail : 0

Gamma : 0

RGB Only Mode : Off

Color Space : Native

White Balance

▼

◀ ▶

Eng lish

◀

Eng lish

●

Dynamic❑Contrast❑(Off❑/❑Low❑/❑Medium❑/❑High): Adjust the screen contrast.

●

Shadow❑Detail: Increase the brightness of dark images.

●

Gamma: Adjust the primary color intensity.

●

RGB❑Only❑Mode❑(Off❑/❑Red❑/❑Green❑/❑Blue): Displays the Red, Green and

Blue color for making fine adjustments to the hue and saturation.

●

Color❑Space❑(Auto❑/❑Native): Adjust the range of colors available to create

the image.

◀ ▶

Eng lish

●

White❑Balance: Adjust the color temperature for a more natural picture.
R-Offset❑/❑G-Offset❑/❑B-Offset: Adjust each color’s (red, green, blue)

darkness.

R-Gain❑/❑G-Gain❑/❑B-Gain: Adjust each color’s (red, green, blue) brightness.
Reset: Resets the White❑Balance to it’s default settings.

●

Flesh❑Tone: Emphasize pink “Flesh Tone”.

●

Edge❑Enhancement❑(Off❑/❑On): Emphasize object boundaries.

●

Motion❑Lighting❑(Off❑/❑On): Reduce power consumption by brightness

control adapted motion.

◀ ▶

Eng lish

◀

Eng lish

❑■Picture❑Options

❑



MENUm❑→❑Picture❑→❑Picture❑Options❑→❑ENTER

E



When connecting a PC, you can only make changes to the Color❑Tone.

●

Color❑Tone❑(Cool❑/❑Standard❑/❑
Warm1❑/❑Warm2)



Warm1 or Warm2 will be

deactivated when the picture
mode is Dynamic.



Settings can be adjusted and
stored for each external device

connected to an input on the TV.

U

Move E Enter R Return

Picture❑Options

Color Tone : Standard

►

Digital Noise Filter : Auto

MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

◀ ▶

Eng lish

●

Digital❑Noise❑Filter❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Auto❑/❑Auto❑Visualization):

If the broadcast signal received by your TV is weak, you can activate the

Digital❑Noise❑Filter feature to reduce any static and ghosting that may appear

on the screen.



When the signal is weak, try other options until the best picture is
displayed.

Auto❑Visualization: When changing analog channels, displays signal strength.



Only available for analog channels.



When bar is green, you are receiving the best possible signal.

●

MPEG❑Noise❑Filter❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Auto): Reduces MPEG

noise to provide an improved picture quality.

◀ ▶

Eng lish

◀

Eng lish

●

HDMI❑Black❑Level❑(Low❑/❑Normal): Selects the black level on the screen to

adjust the screen depth.



Available only in HDMI mode (RGB signals).

●

Film❑Mode❑(Off❑/❑Auto1❑/❑Auto2): Sets the TV to automatically sense and

process film signals from all sources and adjusts the picture for optimum
quality.



Available in ATV, AV, COMPONENT (480i / 1080i) and HDMI (1080i).



If the screen does not seem natural, change its option to Off / Auto1/

Auto2 in Film❑Mode.

◀ ▶

Eng lish

❑■Reset❑Picture❑(OK❑/❑Cancel)

Resets your current picture mode to its default settings.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Changing❑the❑Preset❑Sound❑Mode

❑



MENUm❑→❑Sound❑→❑Sound❑Mode❑→❑ENTER

E

❑■Sound❑Mode❑

t

❑

●

Standard: Selects the normal sound mode.

●

Music: Emphasizes music over voices.

●

Movie: Provides the best sound for movies.

●

Clear❑Voice: Emphasizes voices over other sounds.

●

Amplify: Increase the intensity of high-frequency sounds to allow a better

listening experience for the hearing impaired.

◀ ▶

Eng lish

❑❑ Sound❑Settings

❑



MENUm❑→❑Sound❑→ Sound❑Effect

→

ENTER

E

❑■Sound❑Effect

(standard sound mode only)
Use the up and down arrow keys to select an option, and then press ENTER

E

.

●

SRS❑TruSurround❑HD❑(Off❑/❑On)

This function provides a virtual 5.1 channel surround sound experience
through a pair of speakers or headphones using HRTF (Head Related Transfer
Function) technology.

●

SRS❑TruDialog❑(Off❑/❑On)

This function allows you to increase the intensity of a voice over background
music or sound effects so that dialog can be heard more clearly.

◀ ▶

Eng lish

◀

Eng lish

●

Equalizer

Use Equalizer to customize sound setting for each speaker.

Balance❑L/R: Adjusts the balance between the right and left speaker.
100Hz❑/❑300Hz❑/❑1kHz❑/❑3kHz❑/❑10kHz (Bandwidth Adjustment): Adjusts the

level of specific bandwidth frequencies.

Reset: Resets the equalizer to its default settings.

◀ ▶

Eng lish

❑❑ Adjusting❑Sound❑Settings

❑■Broadcast❑Audio❑Options

●

Audio❑Language

(digital channels only)
Change the default value for audio languages.



The available language may differ depending on the broadcast.

◀ ▶

Eng lish

◀

Eng lish

●

Multi-Track❑Sound❑(MTS)❑

t

(analog channels only)

Mono: Choose for channels that are broadcasting in mono or if you are

having difficulty receiving a stereo signal.

Stereo: Choose for channels that are broadcasting in stereo.

SAP: Choose to listen to the Separate Audio Program, which is usually a

foreign-language translation.



Depending on the particular program being broadcast, you can listen to

Mono,❑Stereo or SAP.

◀ ▶

Eng lish

❑■SPDIF❑Output

SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing
interference going to speakers and various digital devices such as a DVD player.

●

Audio❑Format: You can select the Digital Audio output (SPDIF) format. The

available Digital Audio output (SPDIF) format may differ depending on the
input source.



By connecting to 5.1ch speakers in a dolby digital setup, maximize your
interactive 3D sound experience.

●

Audio❑Delay: Correct audio-video mismatch, when watching TV or video,

and listening to digital audio output using an external device such as an AV
receiver (0ms ~ 250ms).

◀ ▶

Eng lish

◀

Eng lish

❑■Speaker❑Settings

●

Speaker❑Select❑(External❑Speaker❑/❑TV❑Speaker)

A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to External❑

Speaker.



When Speaker❑Select is set to External❑Speaker, the volume and
MUTE buttons will not operate and the sound settings will be limited.



When Speaker❑Select is set to External❑Speaker, you should use these
settings.

●

TV❑Speaker: Off, External❑Speaker: On

◀ ▶

Eng lish



When Speaker❑Select is set to TV❑Speaker, you should use these
settings.

●

TV❑Speaker: On, External❑Speaker: On



If there is no video signal, both speakers will be mute.

●

Auto❑Volume❑(Off❑/❑Normal❑/❑Night)

To equalize the volume level on each channel, set to Normal.

Night: This mode provides an improved sound experience compared to
Normal mode, making almost no noise. It is useful at night.



To use the volume control on the source device connected to the TV,
set Auto❑Volume to Off on the TV. Otherwise, a change to the volume

control of the source device may not be applied.

◀ ▶

Eng lish

❑■Reset❑Sound❑(OK❑/❑Cancel)

Reset all sound settings to the factory defaults.

◀ ▶

Eng lish

❑❑ Setting❑the❑Network❑ for LCD 550 series

❑■Network❑Settings❑

❑



MENUm❑→❑Network❑→❑Network❑Settings❑→❑ENTER

E

Set the network connection to use AllShare™ and perform software upgrade.

❑■Network❑Status❑

❑



MENUm❑→❑Network❑→❑Network❑Status❑→❑ENTER

E

❑

You can check the current network and Internet status.

❑■AllShare❑Settings

❑



MENUm❑→❑Network❑→❑AllShare❑Settings❑→❑ENTER

E

Selects whether to use media functions on the network. For details on set up
options, refer to the “AllShare™” instructions.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Connecting❑to❑a❑Wired❑Network

You can attach your TV to your LAN using cable in three ways:

●

You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to an external modem using a LAN cable. See the diagram below.

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

LAN Cable

Modem Cable

◀ ▶

Eng lish

●

You can attach your TV to your LAN by connecting the LAN port on the back

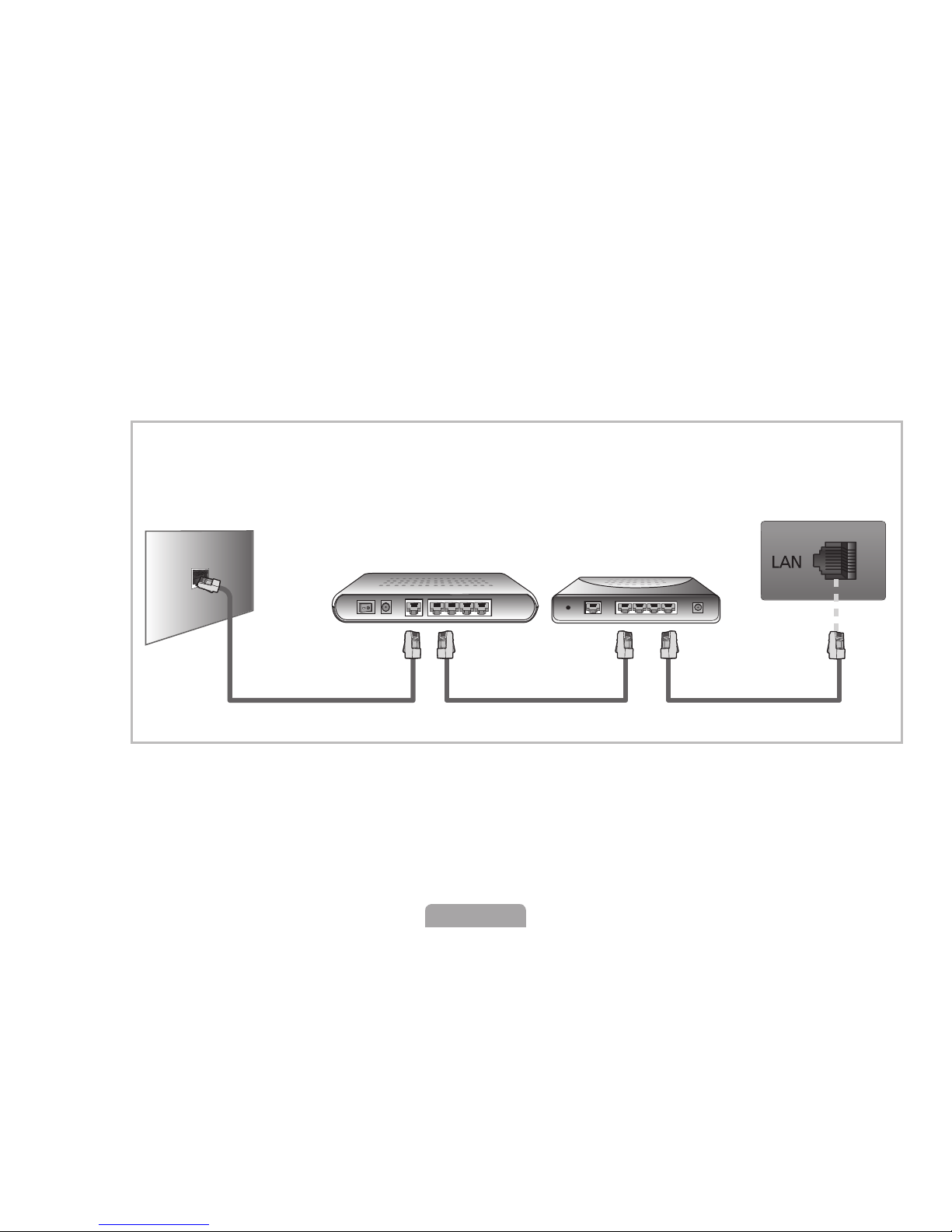

of your TV to a IP Sharer which is connected to an external modem. Use LAN
cable for the connection. See the diagram below.

The Modem Port
on the Wall

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer

(having DHCP server)

TV Rear Panel

LAN Cable

LAN Cable

Modem Cable

◀ ▶

Eng lish

◀

Eng lish

●

Depending on how your network is configured, you may be able to attach
your TV to your LAN by connecting the LAN port on the back of your TV

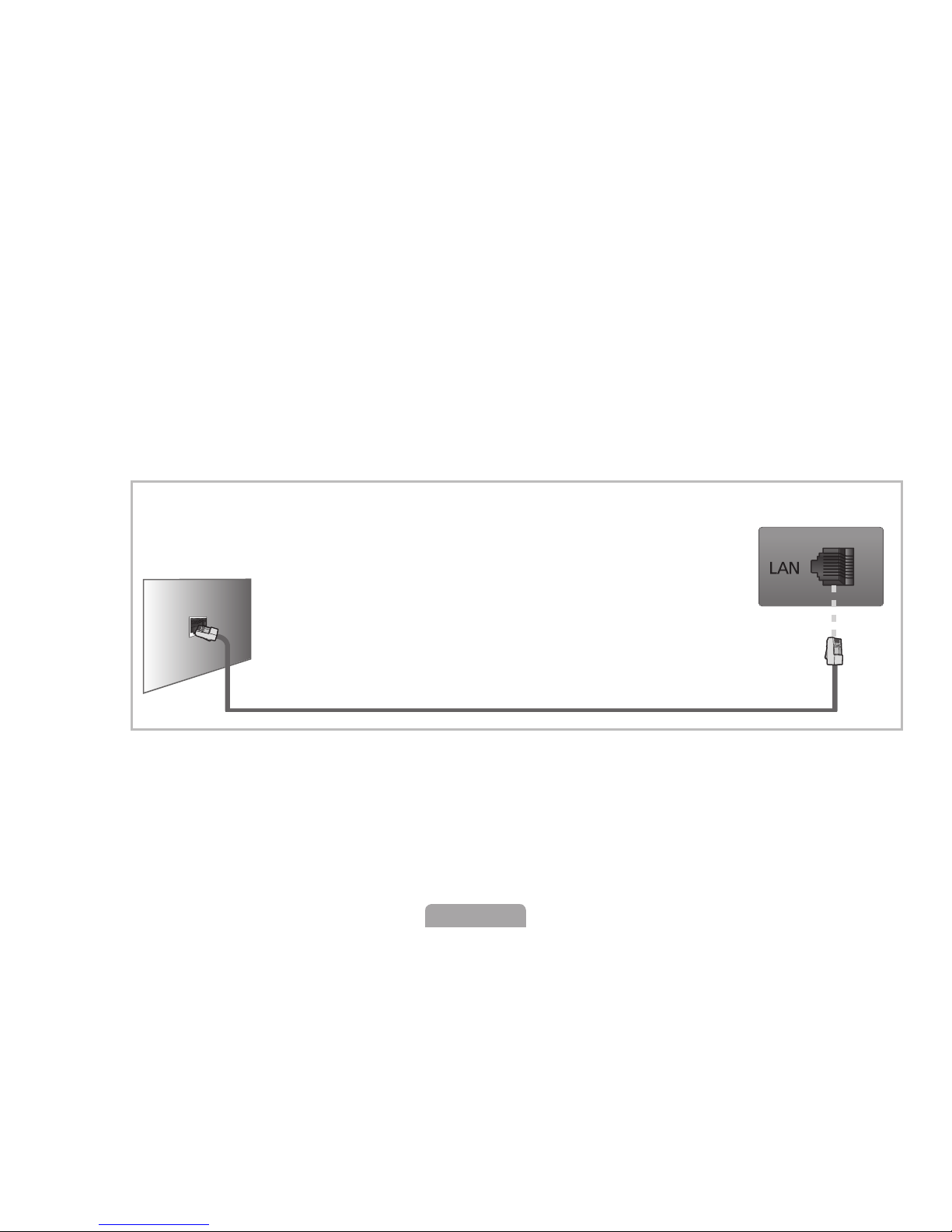

directly to a network wall outlet using a LAN cable. See the diagram below.
Note that the wall outlet is attached to a modem or router elsewhere in your
house.

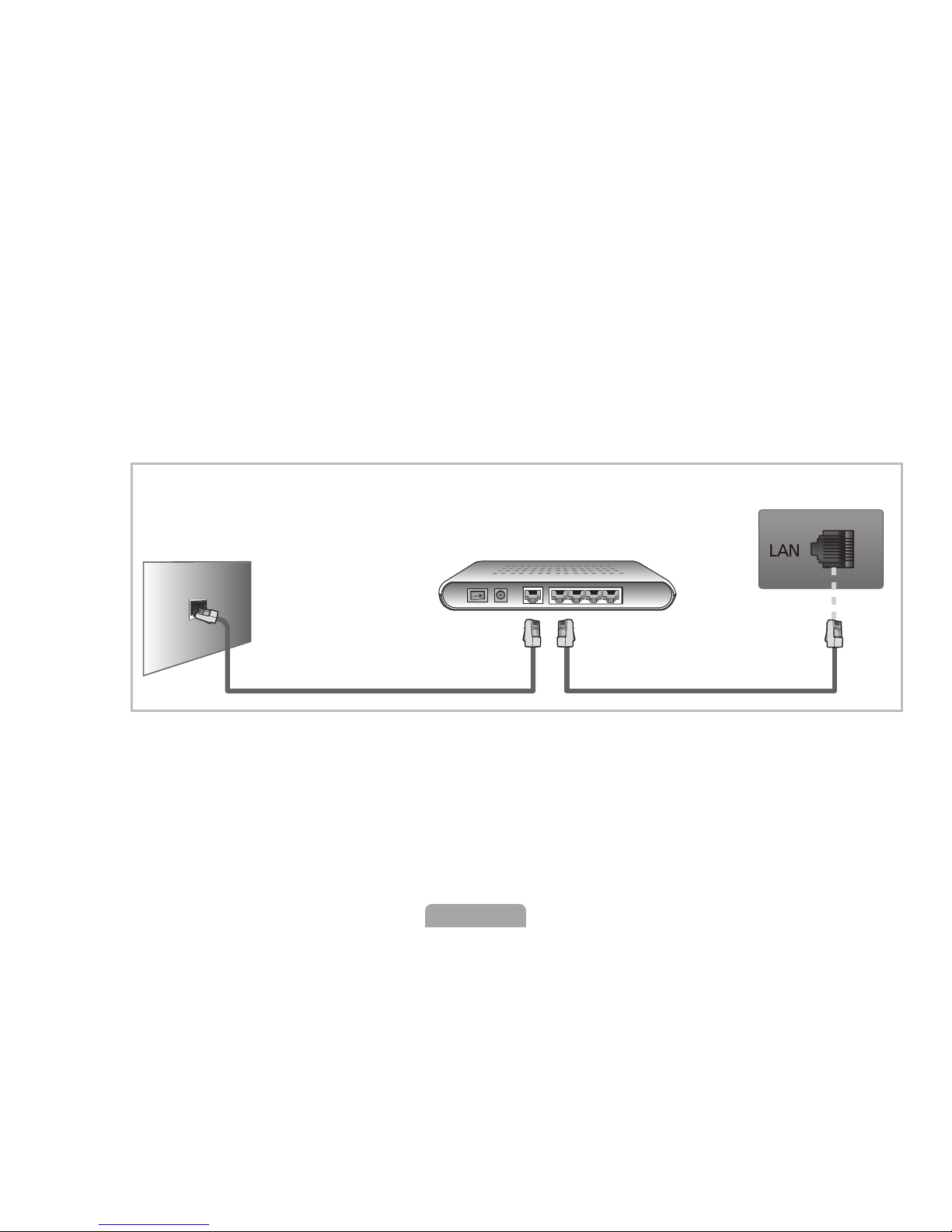

The LAN Port on the Wall

TV Rear Panel

LAN Cable

◀ ▶

Eng lish

●

If you have a Dynamic Network, you should use an ADSL modem or router
that supports Dynamic Host Configuration Protocol (DHCP). Modems and
routers that support DHCP automatically provide the IP address, subnet mask,
gateway, and DNS values your TV needs to access the Internet so you do not
have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static
IP address, you must enter the IP address, subnet mask, gateway, and DNS
values manually on your TV’s Cable Setup Screen when you set up the
network connection. To get the IP address, subnet mask, gateway, and DNS
values, contact your Internet Service Provider (ISP). If you have a Windows
computer, you can also get these values through your computer.



You can use ADSL modems that support DHCP if your network requires
a Static IP address. ADSL modems that support DHCP also let you use

Static IP addresses.



A network speed of lower than 10 Mbps is not supported.

◀ ▶

Eng lish

◀

Eng lish

❑■Network❑Setup❑(Auto)

Use the Automatic Network Setup when connecting your TV to a network that
supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:

How❑to❑set❑up❑automatically

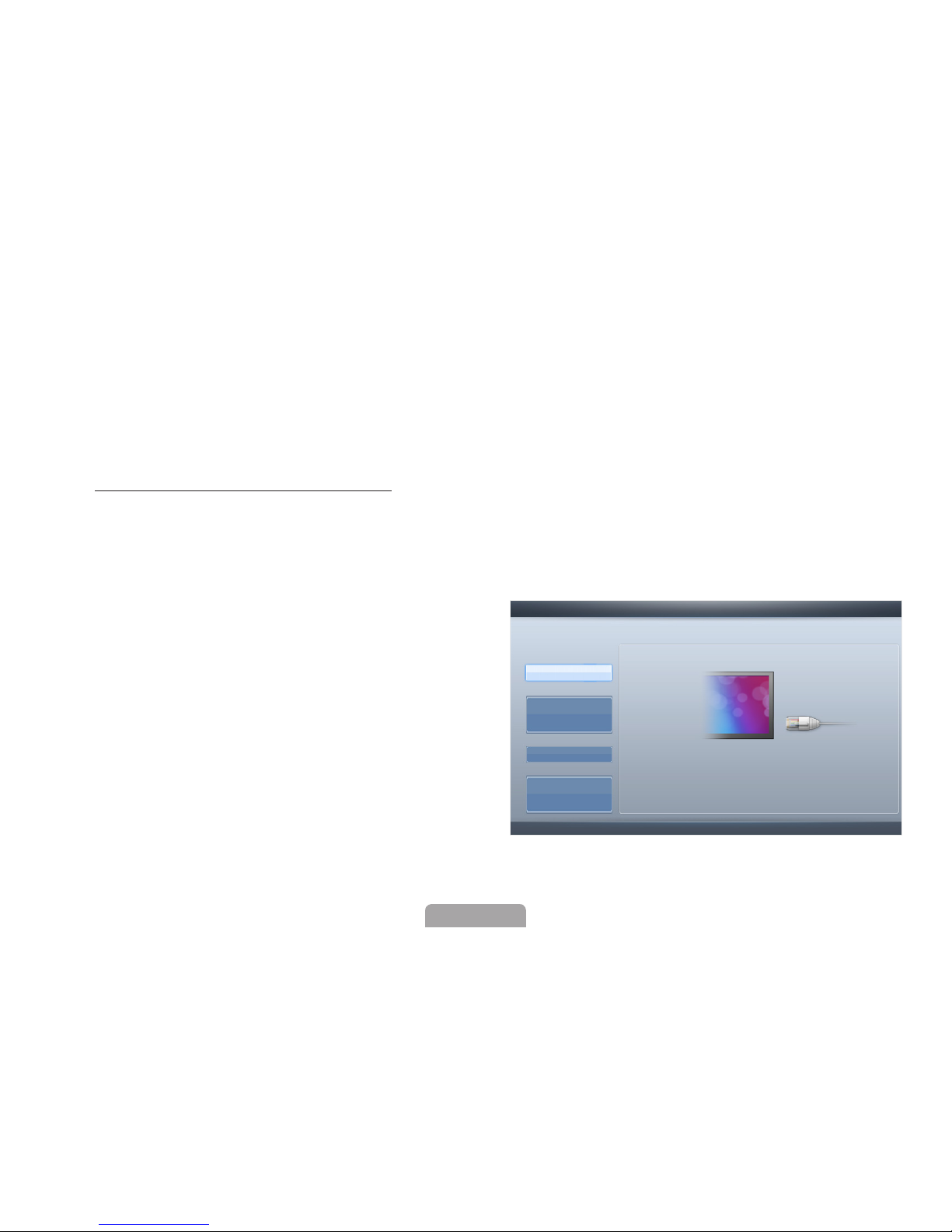

1. Go to Network❑Settings screen. To enter it, follow the directions of Network❑

Settings.

2. Select the Wired.

3. The network connection screen

appears, and network setting is
done.

U

Move E Enter R Return

Network❑Settings

Select❑a❑network❑connection❑type.

Wired

Wireless❑

(General)

WPS(PBC)

One❑Foot❑
Connection

Connect❑to❑the❑network❑using❑the❑LAN❑cable.❑Please❑make❑
sure❑that❑the❑LAN❑cable❑is❑connected.

◀ ▶

Eng lish



If it fails to set automatically, check
the connection of LAN port.



If you cannot find network
connection values or if you want

to set connection manually, set it
to Manual. Refer to following “How
to set up manually”.

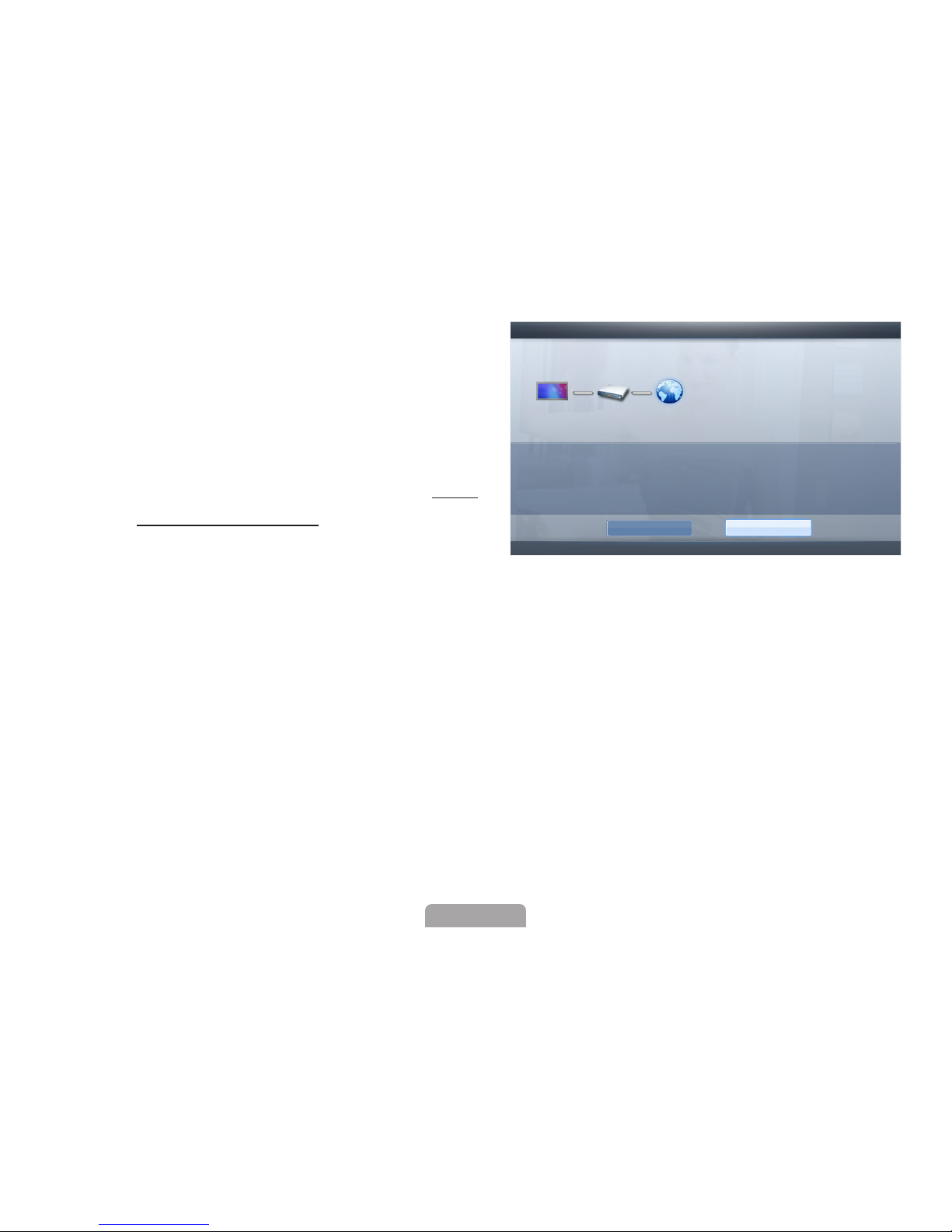

a

Previous L Move E Enter R Return

Network❑Settings

IP❑Settings OK

MAC❑Address 00:40:30:30:20:10

IP❑Address 192.168.10.21

Subnet❑Mask 255.255.255.0

Gateway 192.168.10.1

DNS❑Server 203.248.252.2

Internet❑is❑connected❑successfully.
If❑you❑have❑a❑problem❑using❑any❑Internet❑services,❑contact❑your❑Internet❑service❑
provider.

◀ ▶

Eng lish

◀

Eng lish

❑■Network❑Setup❑(Manual)

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.

Getting❑the❑Network❑Connection❑Values

To get the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

◀ ▶

Eng lish

How❑to❑set❑up❑manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 2 in the “How to set up automatically” procedure.

2. Select the❑IP❑Settings on network connection screen.

3. Set IP❑Mode to Manual.

4. Press the ▼ button on your

remote control to go to the first
entry field.

U

Move E Enter R Return

IP❑Settings

IP Mode Manual

►

IP Address

. . .

Subnet Mask

. . .

Gateway

. . .

DNS Mode Manual

DNS Server

. . .

OK

◀ ▶

Eng lish

◀

Eng lish

5. Enter the IP❑Address, Subnet❑Mask, Gateway, and DNS❑Server values.

Use the number buttons on your remote control to enter numbers and the
arrow buttons to move from one entry field to another.

6. When done, select the OK.

7. The network connection screen appears, and network setting is done.

◀ ▶

Eng lish

❑❑ Connecting❑to❑a❑Wireless❑Network❑ for LCD 550 series

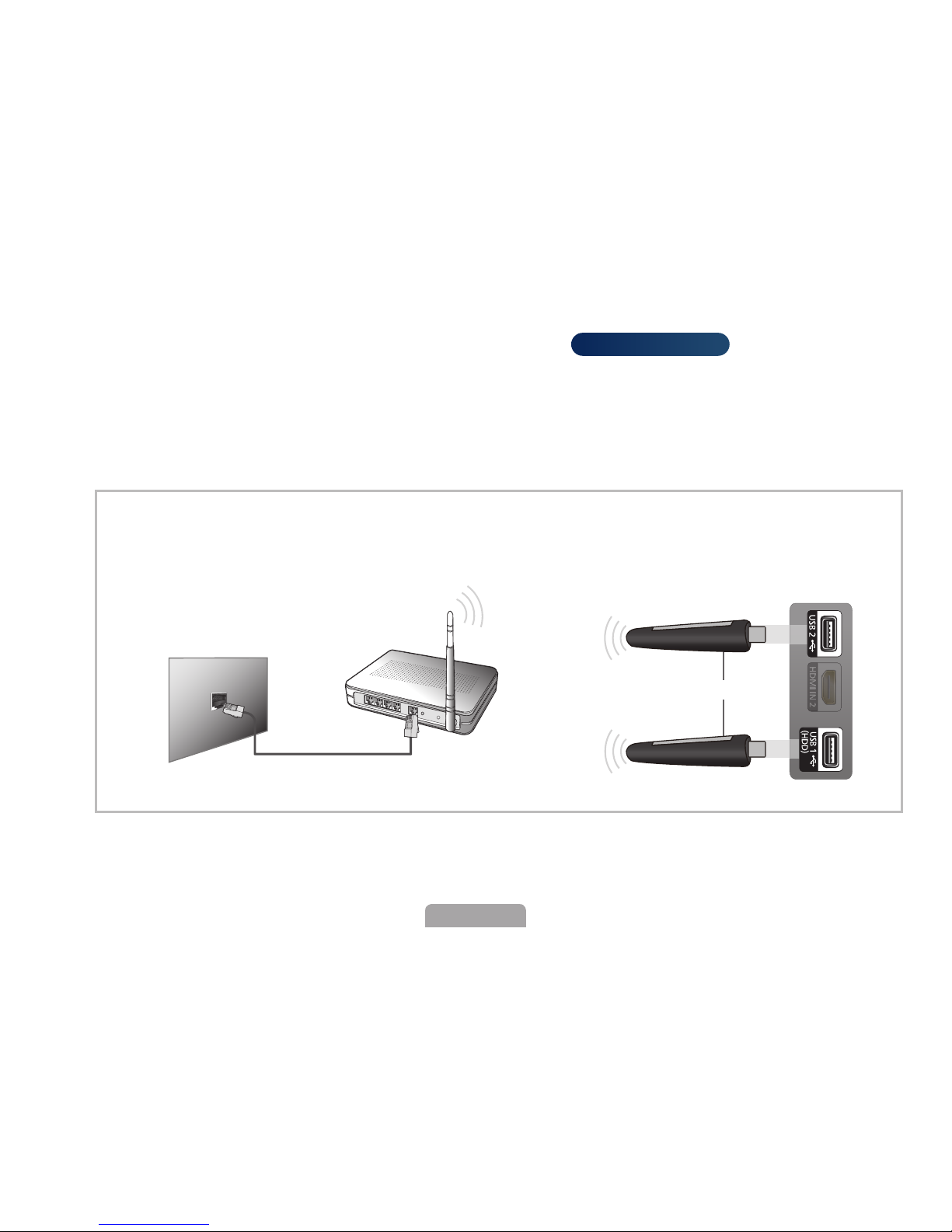

To connect your TV to your wireless network, you need a wireless router or
modem and a Samsung Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2,
WIS10ABGN), which you connect to your TV’s back or side panel USB port. See
the illustration below.

LAN Cable

Wireless IP sharer

(wireless router having

DHCP Server)

Samsung Wireless

LAN Adapter

TV Side Panel

or

The LAN Port on the Wall

◀ ▶

Eng lish

◀

Eng lish

Samsung’s Wireless LAN adapter is sold separately and is offered by selected
retailers, Ecommerce sites and Samsungparts.com. Samsung’s Wireless LAN
adapter supports the IEEE 802.11a/b/g and n communication protocols.
Samsung recommends using IEEE 802.11n. When you play video over a network
connection, the video may not be played smoothly.



NOTE

●

You must use the

“Samsung Wireless LAN Adapter” (WIS09ABGN,

WIS09ABGN2, WIS10ABGN) to use a wireless network.

●

Samsung Wireless LAN Adapter and The USB extension Cable are sold
separately and are offered by selected retailers, Ecommerce sites and
Samsungparts.com.

●

To use a wireless network, your TV must be connected to a wireless IP
sharer (either a router or a modem). If the wireless IP sharer supports
DHCP, your TV can use a DHCP or static IP address to connect to the
wireless network.

◀ ▶

Eng lish

●

Select a channel for the wireless IP sharer that is not currently being used.
If the channel set for the wireless IP sharer is currently being used by
another device nearby, this will result in interference and communication
failure.

●

If you apply a security system other than the systems listed below, it will
not work with the TV.

●

If HIGH PURE THROUGHPUT (Greenfield) 802.11n mode is selected
and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed)
for your wireless router, Samsung TVs will not support a connection in
compliance with new Wi-Fi certification specifications.

●

If your wireless router supports WPS (Wi-Fi Protected Setup), you can
connect to the network via PBC (Push Button Configuration) or PIN
(Personal Identification Number). WPS will automatically configure the
SSID and WPA key in either mode.

◀ ▶

Eng lish

◀

Eng lish

●

If your router, modem, or device is not certified, it may not connect to the
TV via the “Samsung Wireless LAN Adapter.”

●

Ensure the TV is turned off before you connect the Samsung Wireless
LAN Adapter.

●

Connection Methods: You can setup the wireless network connection on
four ways.

–

Auto Setup (Using the Auto Network Search function)

–

Manual Setup

–

WPS❑(PBC)

–

One❑Foot❑Connection

●

The Samsung Wireless LAN Adapter may not be recognized when using
a connection via a USB hub or via a USB extension cable other than the
cable supplied.

◀ ▶

Eng lish

Notice

The picture may appear corrupted or have static for some channels when the TV is
connected to the Samsung Wireless LAN Adapter. In such a case, establish a connection
using one of the following methods or connect the Samsung Wireless LAN Adapter using a
USB cable in a place that is not affected by radio interference.

Method 1

Connect using the USB right angle adapter.
To connect the Samsung Wireless LAN Adapter

using the USB right angle adapter, follow these
steps:

1. Connect the USB right angle adapter to the
Samsung Wireless LAN Adapter.

2. Connect the other end of the right angle
adapter to the USB 1 (HDD) port.

◀ ▶

Eng lish

◀

Eng lish

Method 2

Connect via an extension cable.
To reconnect the Samsung Wireless LAN

Adapter using the extension cable, follow these
steps:

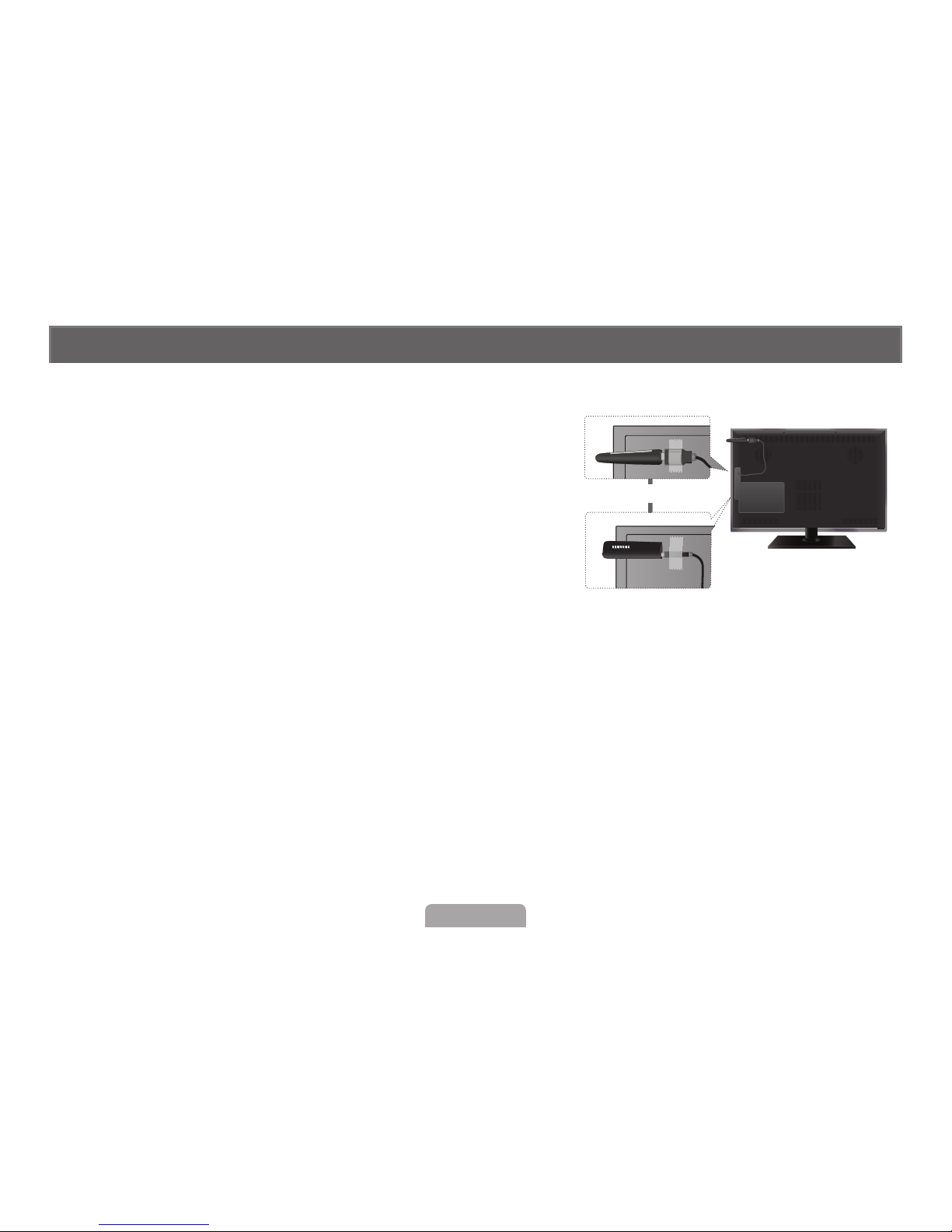

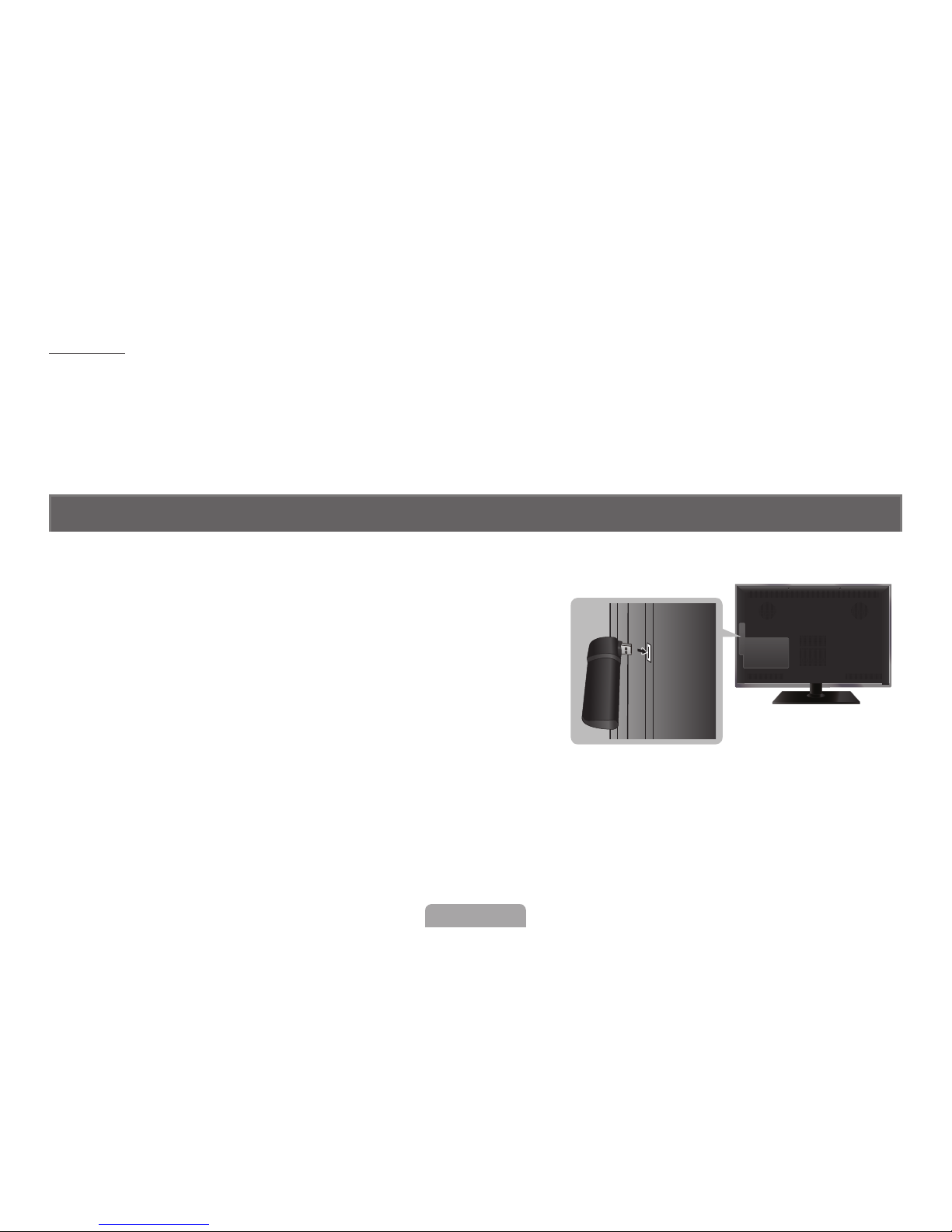

1.❑ Connect the extension cable to the USB 1
(HDD) port.

2.❑ Connect the extension cable and Samsung
Wireless LAN Adapter.

3. Attach the Samsung Wireless LAN Adapter to the back of the TV near the top,
using double-sided adhesive tape.

or

◀ ▶

Eng lish

❑■Network❑Setup❑(Auto)

Most wireless networks have an optional security system that requires devices
that access the network to transmit an encrypted security code called an Access
or Security Key. The Security Key is based on a Pass Phrase, typically a word or a
series of letters and numbers of a specified length you were asked to enter when
you set up security for your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your wireless network, you
will have to enter the Pass Phrase during the setup process.

How❑to❑set❑up❑automatically

1. Go to Network❑Settings screen.

To enter it, follow the directions of

Network❑Settings.

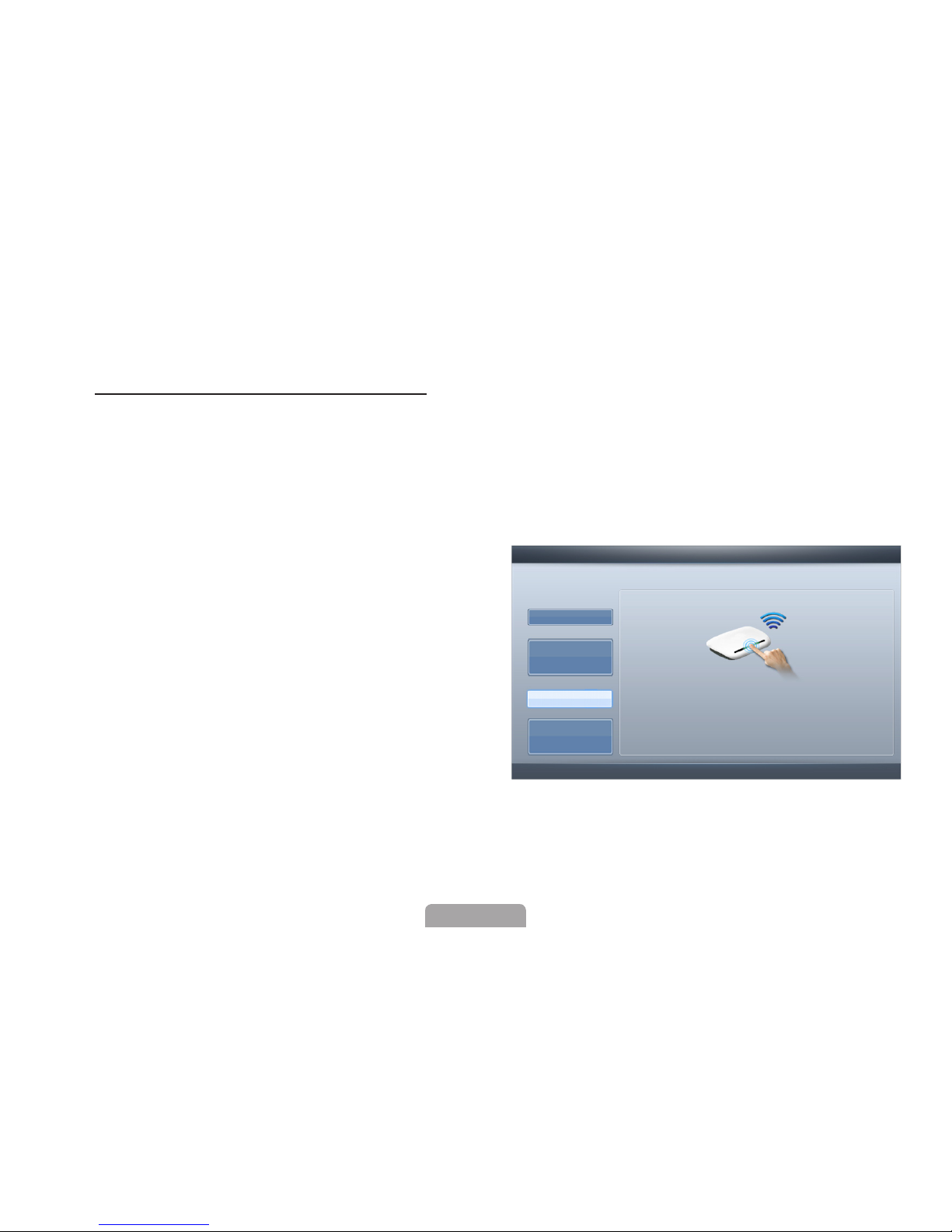

2. Select the Wireless❑(General).

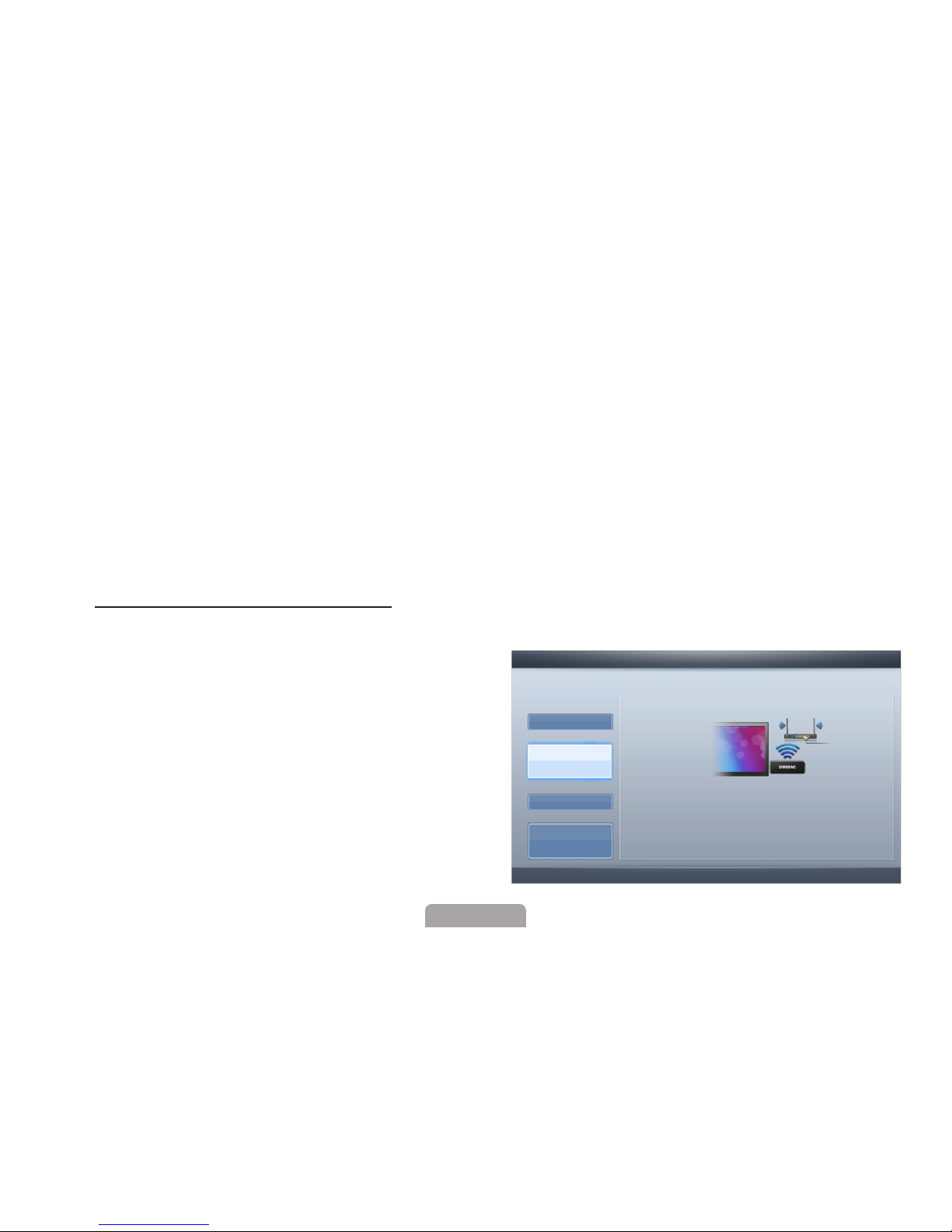

U

Move E Enter R Return

Network❑Settings

Select❑a❑network❑connection❑type.

Wired

Wireless❑

(General)

WPS(PBC)

One❑Foot❑
Connection

Set❑up❑wireless❑network❑by❑selecting❑your❑Wireless❑
Router.❑You❑may❑need❑to❑enter❑security❑key❑depending❑
on❑the❑setting❑of❑the❑Wireless❑Router.

◀ ▶

Eng lish

◀

Eng lish

3. The Network function searches for available wireless networks. When done, it

displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to select a network, and then
press the ENTER

E

button.



If the wireless router is set to Hidden (Invisible), you have to select Add❑

Network and enter the correct network❑Name❑(SSID) and Security key to

establish the connection.

5. If the Security screen pop-up appears, go to step 6. If you select the wireless
router which does not have security, go to step 7.

◀ ▶

Eng lish

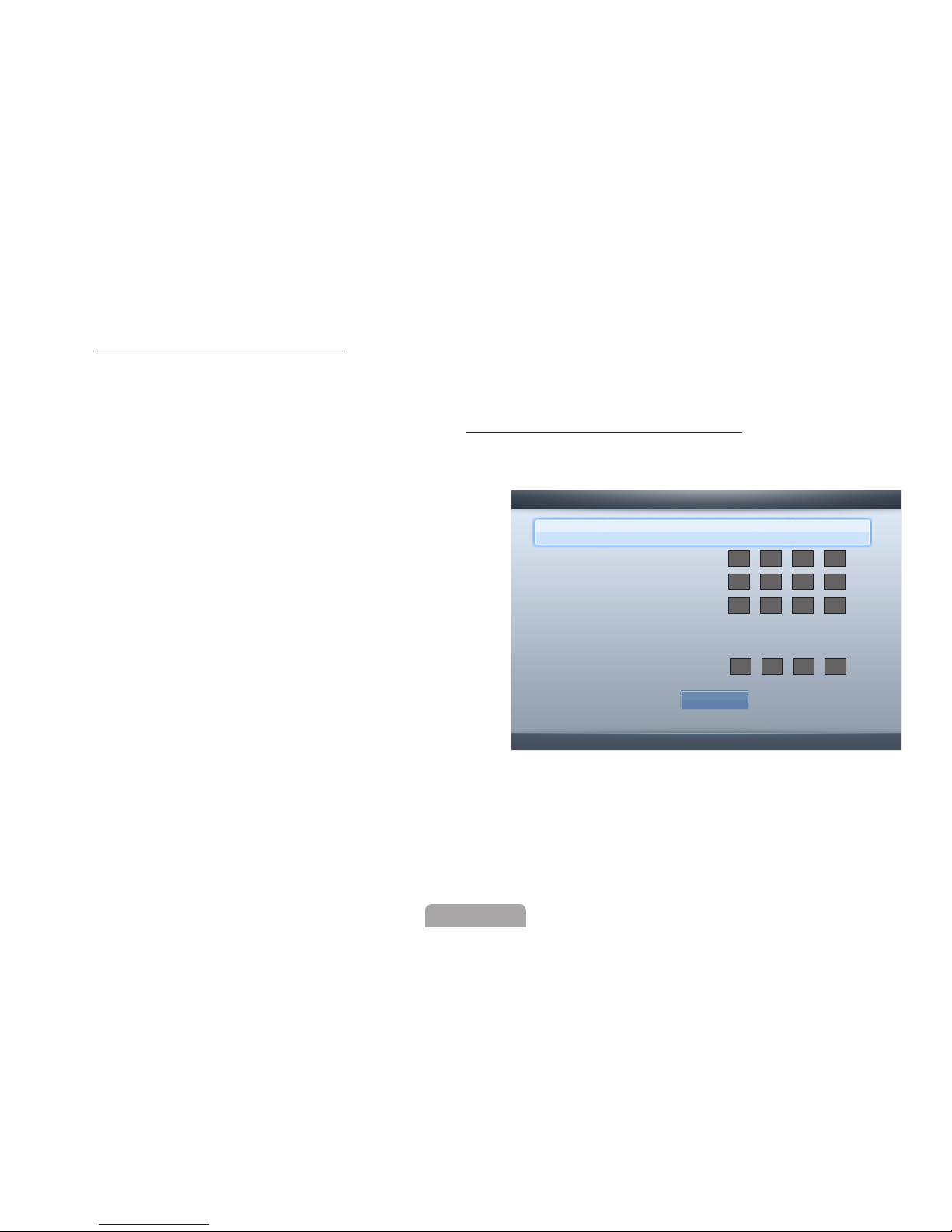

6. If the wireless router has security, enter

the security key(Security or PIN), then
select Done.



When you enter the security
key(Security or PIN), use ▲/▼/◄

/► buttons on your remote control
to select number/characters.



You should be able to find the
Pass Phrase on one of the set up

screens you used to set up your router or modem.

7. The network connection screen appears, and network setting is done.



If it fails to set security key(Security or PIN), select Retry or IP❑Settings.



If you want to set connection manually, select the IP❑Settings. Refer to
following “How to set up manually”.

a

Previous n Move E Enter R Return

Network❑Settings

Enter❑security❑key.

0❑entered

a

g

m

s

a/A

b

h

n

t

c

i

o

u

F

d

j

p

v

e

k

q

w

Delete

f

l

r

x

Space

1

4

7

y

2

5

8

z

Done

3

6

9

0

◀ ▶

Eng lish

◀

Eng lish

❑■Network❑Setup❑(Manual)

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.

Getting❑the❑Network❑Connection❑Values

To get the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3.❑ On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

◀ ▶

Eng lish

How❑to❑set❑up❑manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 2 in the “How to set up automatically” procedure.

2. Select the IP❑Settings on network connection screen.

3. Set IP❑Mode❑to Manual.

4. Press the ▼ button on your remote control to go to the first entry field.

5. Enter the IP❑Address,❑Subnet❑Mask, Gateway, and DNS❑Server values.

Use the number buttons on your remote control to enter numbers and the
arrow buttons to move from one entry field to another.

6. When done, select the OK.

7. The network connection screen appears, and network setting is done.

◀ ▶

Eng lish

◀

Eng lish

❑■Network❑Setup❑(WPS(PBC))

How❑to❑set❑up❑using❑WPS(PBC)

If your router has a PBC (WPS) button, follow these steps:

1. Go to Network❑Settings screen. To enter it, follow the directions of Network❑

Settings.

2. Select the WPS(PBC).

3. Press the WPS(PBC) button on

your router within 2 minutes. Your
TV automatically acquires all the
network setting values it needs
and connects to your network.

4. The network connection screen
appears, and network setting is
done.

U

Move E Enter R Return

Network❑Settings

Select❑a❑network❑connection❑type.

Wired

Wireless❑

(General)

WPS(PBC)

One❑Foot❑
Connection

Connect❑to❑the❑Wireless❑Router❑easily❑by❑pressing❑the❑
WPS(PBC)❑button.❑Choose❑this❑if❑your❑Wireless❑Router❑
supports❑Push❑button❑configuration(PBC).

◀ ▶

Eng lish

❑■Network❑Setup❑(One❑Foot❑Connection)

The One❑Foot❑connection make you easy to connect samsung TV and samsung
wireless router by placing samsung wireless router within 1foot(25cm) from
samsung TV. If your wireless router does not support One❑Foot❑Connection, you
must connect using one of the other methods.



You can check for equipment that supports One❑Foot❑Connection on www.
samsung.com.

How❑to❑set❑up❑using❑One❑Foot❑Connection❑

Turn on the power of wireless router and TV.

1. Go to Network❑Settings screen.
To enter it, follow the directions of

Network❑Settings.

2. Select the One❑Foot❑Connection.

U

Move E Enter R Return

Network❑Settings

Select❑a❑network❑connection❑type.

Wired

Wireless❑

(General)

WPS(PBC)

One❑Foot❑
Connection

Connect❑to❑wireless❑network❑automatically❑if❑your❑
Wireless❑Router❑supports❑One❑Foot❑Connection.❑Select❑
this❑connection❑type❑after❑placing❑the❑Wireless❑Router❑
within❑10❑inches(25❑cm)❑of❑your❑TV.

◀ ▶

Eng lish

◀

Eng lish

3. Place the wireless router in parallel with the Samsung Wireless LAN Adapter

giving a gap no larger than 25cm.

4. Wait until the connection is automatically established.

5. The network connection screen appears, and network setting is done.

6.❑ Place the wireless router in a desired location.



If the wireless router settings change or you install a new wireless router,
you must perform the One❑Foot❑Connection procedure again, beginning

from Step 1.

◀ ▶

Eng lish

❑■Network❑Setup❑(Ad-Hoc)

You can connect to a mobile device supporting Ad-hoc without an wireless router
through the “Samsung Wireless LAN Adapter”. When connecting mobile device,
you can use files on device.

How❑to❑connect❑to❑new❑Ad-hoc

1. Go to Network❑Settings screen. To enter it, follow the directions of Network❑

Settings.

2. Select the Wireless❑(General).

3. When select the Ad❑hoc,❑the message "Ad❑hoc❑service❑supports❑a❑direct❑

connection❑with❑Wi-Fi❑compatible❑devices❑like❑a❑cell❑phone❑or❑PC.❑The❑
existing❑network❑system❑may❑have❑limited❑functionality.❑Do❑you❑want❑to❑
change❑the❑network❑connection?". is displayed.

◀ ▶

Eng lish

◀

Eng lish

4. Input the generated Network❑Name❑(SSID) and Security❑Key into the

device you want to connect.



If network does not operate normally, check the Network❑Name❑(SSID)
and Security❑Key again. An incorrect Security❑Key may cause a

malfunction.



If a device is connected once, it is displayed in network setting list. When
you connect it again, you can find it in network setting list.

◀ ▶

Eng lish

If❑Your❑TV❑Fails❑to❑Connect❑to❑the❑Internet

Your TV may not be able to connect to the Internet because your ISP has permanently
registered the MAC address (a unique identifying number) of your PC or modem, which it
then authenticates each time you connect to the Internet as a way of preventing unauthorized
access. As your TV has a different MAC address, your ISP can not authenticate its MAC
address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices
other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your
TV may not be able to connect to the Internet. If this is the case, you must enter your ID or
password when connecting to the Internet.

The internet connection may fail because of a firewall problem. If this is the case, contact your
Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your
Internet service provider, please contact Samsung Electronics.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Setting❑the❑Time

❑



MENUm❑→❑System❑→❑Time❑→❑ENTER

E

❑■Time❑



The current time will appear every time you press the INFO button.

●

Clock: Setting the clock is for using various timer features of the TV.



If you disconnect the power cord, you have to set the clock again.

Clock❑Mode: Set up the current time manually or automatically.

- Auto: Set the current time automatically using the time from a digital
channel.



The antenna must be connected in order to set the time automatically.

◀ ▶

Eng lish

- Manual: Set the current time manually.



Depending on the broadcast station and signal, the auto time set up may
not be correct. In this case, set the time manually.

Clock❑Set: Set the Day, Month, Year, Hour, Minute and am/pm.



Available only when Clock❑Mode is set to Manual.



You can set the day, month, year, hour and minute directly by pressing
the number buttons on the remote control.

Time❑Zone❑

for Brazil, Chile

: Select your time zone.



This function is only available when the Clock❑Mode is set to Auto.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Using❑the❑Sleep❑Timer

❑



MENUm❑→❑System❑→❑Time❑→❑Sleep❑Timer❑→❑ENTER

E

●

Sleep❑Timer

t

: Automatically shuts off the TV after a preset period of time.

(30, 60, 90, 120, 150 and 180 minutes).



To cancel the Sleep❑Timer, select Off.

◀ ▶

Eng lish

❑❑ Setting❑the❑On/Off❑Timer

❑



MENUm❑→❑System❑→❑Time❑→❑ENTER

E

●

On❑Timer: Three different on timer settings

can be made. You must set the clock first.

Setup: Select Off,❑Once,❑Everyday,❑
Mon~Fri,❑Mon~Sat,❑Sat~Sun or Manual❑

to set at your convenience. If you select

Manual, you can set up the day you want

to activate the timer.



The c mark indicates the day is
selected.

On❑Time: Set the hour, minute, am/pm.
Volume: Set the desired volume level.

U

Adjust L Move ●E Enter R Return

On❑Timer❑1

Setup

Once

Source

VolumeOn Time

Antenna Channel

TV

2004 00 am

Cable 3

Sun Mon Tue Wed Thu Fri Sat

◀ ▶

Eng lish

◀

Eng lish

Source: Select TV or USB content to be played when the TV is turned on

automatically. (USB can be selected only when a USB device is connected to the
TV)

Antenna (when the Source is set to TV): Select Air or Cable.
Channel (when the Source is set to TV): Select the desired channel.
Music❑/❑Photo (when the Source is set to USB): Select a folder in the USB

device containing music or photo files to be played when the TV is turned on
automatically.



If there is no music file on the USB device or the folder containing a music file
is not selected, the Timer function does not operate correctly.



When there is only one photo file in the USB, the Slide Show will not play.



A folder with too long of a name cannot be selected.



Each USB you use is assigned its own folder. When using more than one of
the same type of USB, make sure the folders assigned to each USB have

different names.

◀ ▶

Eng lish



It is recommended that you use a USB memory stick and a multi card reader
when using On❑Timer.



The On❑Timer function may not work with USB devices with a built-in battery,
MP3 players, or PMPs made by some manufacturers because these devices

take a long time to be recognized.

●

Off❑Timer: Three different off timer settings

can be made. You must set the clock first.

Setup: Select Off,❑Once,❑Everyday,❑
Mon~Fri,❑Mon~Sat,❑Sat~Sun or Manual

to set at your convenience. If you select
Manual, you can set up the day you want
to activate the timer.



The c mark indicates the day is
selected.

Off❑Time: Set the hour, minute, and am/

pm.

L

Move ●U Adjust E Enter R Return

Off❑Timer❑1

Setup

Once

Off Time

04 00 am

Sun Mon Tue Wed Thu Fri Sat

◀ ▶

Eng lish

◀

Eng lish

❑❑ Locking❑Programs

❑



MENUm❑→❑System❑→❑Security❑→❑ENTER

E

❑■Security



The PIN input screen appears before the setup screen.



Enter your 4-digit PIN, the default of which is 0-0-0-0. Change the PIN using
the Change PIN option.

●

Channel❑Lock❑(Off❑/❑On): Lock channels in Channel❑Manager, to prevent

unauthorized users, such as children, from watching unsuitable program.

●

Program❑Rating❑Lock: Prevent unauthorized users, such as children, from

watching unsuitable program with a user defined 4-digit PIN code.



It is only available in Brazil signal.

◀ ▶

Eng lish

●

Change❑PIN: The Change❑PIN screen will appear. Choose any 4 digits for

your PIN and enter it in the Enter❑New❑PIN. Re-enter the same 4 digits in the

Confirm❑New❑PIN. When the Confirm screen appears, press the OK button.

Your PIN has been memorized.



If you forget the PIN code, press the remote control buttons in the
following sequence in Standby mode, which resets the PIN to “0-0-0-0” :

MUTE → 8 → 2 → 4 → POWER (on)

◀ ▶

Eng lish

◀

Eng lish

❑❑ Picture❑In❑Picture❑(PIP)❑

❑



MENUm❑→❑System❑→❑PIP❑→❑ENTER

E

❑■PIP

t

You can watch the TV tuner and one external video source simultaneously. PIP
(Picture-in-Picture) does not function in the same mode.



NOTE

●

For PIP sound, refer to the Sound❑Select instructions.

●

If you turn the TV off while watching in PIP mode, the PIP window will
disappear.

●

You may notice that the picture in the PIP window becomes slightly
unnatural when you use the main screen to view a game or karaoke.

◀ ▶

Eng lish

●

PIP Settings

Main picture Sub picture

Component, HDMI, PC TV

●

PIP❑(Off❑/❑On): Activate or deactivate the PIP function.

●

Air/Cable❑(Air❑/❑Cable): Select either Air or Cable as the input source

for the sub-screen.

●

Channel: Select the channel for the sub-screen.

●

Size (

Õ

/

Ã

): Select a size for the sub-picture.

●

Position (

Ã

/

–

/

—

/

œ

): Select a position for the sub-picture.

●

Sound❑Select❑(Main❑/❑Sub): You can choose the desired sound (Main

or Sub) in PIP mode.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Economical❑Solutions

❑■Eco❑Solution

●

Energy❑Saving❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Picture❑Off)❑

t

: This
adjust the brightness of the TV in order to reduce power consumption. If you
select Picture❑Off, the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.

●

Eco❑Sensor❑(Off❑/❑On)❑

for LCD 550 series

: To enhance your power savings; the

picture settings will automatically adapt to the light in the room.



If you adjust the Backlight, the Eco❑Sensor will be set to Off.

Min❑Backlight: When Eco❑sensor is On, the minimum screen brightness can

be adjusted manually.



If Eco❑Sensor is On, the display brightness may change (become slightly
darker in most cases) depending on the surrounding light intensity.

◀ ▶

Eng lish

●

No❑Signal❑Power❑Off❑(Off❑/❑15❑min.❑/❑30❑min.❑/❑60❑min.): Sets how quickly

the TV switches to standby mode, if no picture is being received.



Disabled when the PC is in power saving mode.

●

Auto❑Power❑Off❑(Off❑/❑On): The TV will be automatically turned off when no

user operation is received for 4 hours.

◀ ▶

Eng lish

◀

Eng lish

❑❑ Other❑Features

❑



MENUm❑→❑System❑→❑ENTER

E

❑■Menu❑Language

Set the menu language.

1. Select Menu❑Language and press the ENTER

E

button.

2. Choose desired language and press the ENTER

E

button.



Choose between English, Português and Español.

◀ ▶

Eng lish

❑■Caption

(On-Screen Text Messages)

●

Caption❑(Off❑/❑On): You can switch the caption function on or off. If captions

are not available, they will not be displayed on the screen.



The Caption feature does not work in Component, HDMI or PC modes.

●

Caption❑Mode: You can select the desired caption mode.



The availability of captions depends on the program being broadcasted.

CC1~CC4❑/❑Text1~Text4: (analog channels only) The Analog Caption function

operates in either analog TV channel mode or when a signal is supplied from
an external device to the TV. (Depending on the broadcasting signal, the
Analog Caption function may or may not work with digital channels.)

◀ ▶

Eng lish

◀

Eng lish

❑■Auto❑Protection❑Time❑

●

Auto❑Protection❑Time❑(Off❑/❑2❑hours❑/❑4❑hours❑/❑8❑hours❑/❑10❑hours): If the

screen remains idle with a still image for a certain period of time defined by the
user, the screen saver is activated to prevent the formation of ghost images
on the screen.

◀ ▶

Eng lish

❑■General

●

Game❑Mode❑(Off❑/❑On): When connecting to a game console such as

PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience
selecting the game menu.



NOTE

●

Precautions and limitations for game mode

–

To disconnect the game console and connect another external
device, set Game❑Mode❑to Off in the setup menu.

–

If you display the TV menu in Game❑ Mode, the screen shakes
slightly.

◀ ▶

Eng lish

◀

Eng lish

●

Game❑Mode is not available when the input source is set to TV or

PC.

●

After connecting the game console, set Game❑Mode to On.
Unfortunately, you may notice reduced picture quality.

●

If Game❑Mode is On:

–

Picture Mode is set to Standard and Sound Mode is set to
Movie.

◀ ▶

Eng lish

●

Menu❑Transparency❑(Bright❑/❑Dark): Set the Transparency of the menu.

●

Boot❑Logo❑(Off❑/❑On): Display Samsung logo when the TV is turned on.

●

AV❑Color❑System❑(Auto❑/❑PAL-M❑/❑PAL-N❑/❑NTSC): Normally the TV can

receive image and sound with good quality when in the mode Auto. This
mode detects the signal color system automatically. In case of some signal
reception with color unsatisfactory, select the AV❑Color❑System Mode to

PAL-M,❑PAL-N or NTSC.

●

TV❑name

for LCD 550 series

: Make changes the TV❑name.



If you select User❑Input, you can make TV name manually.

◀ ▶

Eng lish

◀

Eng lish

❑■Anynet+(HDMI-CEC)

For details on set up options, refer to the “Anynet+(HDMI-CEC)” instructions.

◀ ▶

Eng lish

❑■DivX®❑Video❑On❑Demand

Shows the registration code authorized for the TV. If you connect to the DivX web
site and register, you can download the VOD registration file. If you play the VOD
registration using My❑Contents, the registration is completed.



For more information on DivX® VOD, visit “http://vod.divx.com”.

◀ ▶

Eng lish

❑■Network❑Remote❑Control❑(On❑/❑Off)❑

for LCD 550 series

Turn on/off or give permission to Samsung mobile phones devices.
You must have a Samsung Mobile phone/device which supports Network❑

Remote❑Control. For more details, refer to each device’s manual.

◀ ▶

Eng lish

❑❑ Support❑Menu

❑



MENUm❑→❑Support❑→❑ENTER

E

❑■e-Manual

You can read the introduction and instructions about the TV features stored in
your TV.



For the detailed information about e-Manual Screen, refer to “How to view the
e-Manual” in User Manual.

◀ ▶

Eng lish

◀

Eng lish

❑■Self❑Diagnosis

●

Picture❑Test❑(Yes❑/❑No): Use to check for picture problems. If the problem

continues to occur, check the Color pattern.

Yes: If the test picture does not appear or there is noise in the test picture,

select Yes. There may be a problem with the TV. Contact Samsung’s Call
Center for assistance.

No: If the test picture is properly displayed, select No. There may be a

problem with your external equipment. Please check your connections. If the
problem persists, refer to the external device’s user manual.

◀ ▶

Eng lish

●

Sound❑Test❑(Yes❑/❑No): Use the built-in melody sound to check for sound

problems.



If you hear no sound from the TV’s speakers, before performing the
sound test, make sure Speaker❑Select is set to TV❑Speaker in the

Sound menu.



The melody will be heard during the test even if Speaker❑Select is set to

External❑Speaker or the sound is muted by pressing the MUTE button.

Yes: If you can hear sound only from one speaker or not at all during the

sound test, select Yes. There may be a problem with the TV. Contact
Samsung’s Call Center for assistance.

No: If you can hear sound from the speakers, select No. There may be a

problem with your external equipment. Please check your connections. If the
problem persists, refer to the external device’s user manual.

◀ ▶

Eng lish

◀

Eng lish

●

Signal❑Information: (digital channels only) An HD channel’s reception quality

is either perfect or the channels are unavailable. Adjust your antenna to
increase signal strength.

●

Troubleshooting: If the TV seems to have a problem, refer to this description.



If none of these troubleshooting tips apply, contact the Samsung
customer service center.
