Samsung LN40C560J2FXZA User Manual

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Comuníquese con SAMSUNG WORLDWIDE

Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.

Country Customer Care Center

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com

U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com

Web Site Address

Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada

Samsung Electronique Canada Inc., Service à la Clientèle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada

Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660-2112

LCD TV

user manual

BN68-03017A-02

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

See the warranty card for more information on warranty terms.

✎

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format fullmotion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to ﬁll the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.

SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT•

Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally speciﬁed, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally speciﬁed provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG –

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same TV channel for long periods.•

Always try to display any image on full screen, use TV set picture format menu for best possible match.•

Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout • process.

Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

✎

Installation with a stand. Installation with a wall-mount.

4inches

English

4inches

Contents

English

ENGLISH

POWER

F A V . CH

MEDIA.P

P . MODE

S.MODE

P . SIZE

MTS

INFO

SLEEP

TOOLS

CH LIST

Getting Started

List of Features y ......................................................... 4

Accessories y .............................................................. 4

Installing the LCD TV Stand y ...................................... 4

Viewing the Control Panel y ......................................... 5

Viewing the Remote Control y ...................................... 6

Connecting to an Antenna y ........................................ 7

Plug & Play (Initial Setup) y ........................................... 7

Connections

Connecting to an AV Device y ......................................8

Connecting to an Audio Device y ................................. 9

Connecting to a PC y .................................................. 9

Changing the Input source y ...................................... 10

Basic Features

How to Navigate Menus y .......................................... 11

Channel Menu y ........................................................ 11

Seeing Channels 11 Using Favorite Channels 12 Memorizing channels 12 Editing channels 12 Other Features 12

Picture Menu y .......................................................... 13

Changing the Preset Picture Mode 13 Adjusting picture settings 14 Economical Solutions 14 Setting up the TV with your PC 14 Changing the Picture Options 15

Sound Menu y ........................................................... 17

Changing the Preset Sound Mode 17 Adjusting sound settings 17 Sound Systems, Etc. 17

Setup Menu y ............................................................ 18

Setting the Time 18 Using the Sleep Timer 18 Setting the On/Off Timer 18 Locking Programs 19 Other Features 20 Picture In Picture (PIP) 22

Support Menu y ......................................................... 22

Advanced Features

Network Connection y ............................................... 24

Connecting to a Wired Network 24 Connecting to a Wireless Network 26

Media Play y .............................................................. 31

Connecting a USB Device 31 Connecting to the PC through network 31 Screen Display 33 Playing Multiple Files 36 Media Play - Additional Functions 36

Anynet+ y ................................................................. 38

Setting Up Anynet+ 39 Switching between Anynet+ Devices 39 Recording 39 Listening through a Receiver 40 Troubleshooting for Anynet+ 40

Internet@TV y ............................................................ 41

Getting Started with Internet@TV 41 Setting up Internet@TV 42 Using the Internet@TV service 44 Troubleshooting for Internet@TV 47

AllShare y ..................................................................48

About AllShare 48 Setting Up AllShare 48

Other Information

Assembling the Cables y ........................................... 50

Anti-theft Kensington Lock y ...................................... 50

Installing the Wall Mount y .........................................51

Securing the TV to the Wall y ..................................... 52

Troubleshooting y ...................................................... 53

Storage and Maintenance 55

Speciﬁcations y ......................................................... 56

License 56

Dimensions y ............................................................. 57

Index y ...................................................................... 58

Check the Symbol!

This function can be used by pressing the

TOOLS button on the remote control.

✎

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

Getting Started

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed y without a cable box / STB (Set-Top-Box) satellite receiver.

Media Play y : Allows you to play music ﬁles, pictures, and movies saved on a USB or your PC. (P. 31) Internet@TV y : You can use various Internet services and view useful information and entertaining content. (P. 41) AllShare y : AllShare connects your TV and compatible Samsung mobile phones/devices through a network. (P. 48) Self Diagnosis y : You can check picture and sound operation. (P. 22)

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

✎

Remote Control (BN59-01042A) & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide / Quick Setup Guide y

Blanking Bracket y

(BN63-06339B)

Cable Tie y

(BN61-05596A)

Installing the LCD TV Stand

Components

When installing the stand, use the provided components and parts.

A B

1 EA 1 EA

Stand Guide Stand Screws

Cleaning Cloth (BN63-01798B) y Power Cord y

9EA (M4 X L12)

Top View

4EA

English

Rear

Front

1EA

01 Getting Started

English

Bottom View

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

✎

Make sure that at least two persons lift and move the LCD T V.

✎

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to

✎

one side.

4EA

Viewing the Control Panel

The product color and shape may vary depending on the model.

✎

Power IndicatorRemote control sensor

Speakers

(Power)

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Turns the TV on or off.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the ▼ and ▲ buttons on the remote control.

buttons as you would use the

Getting Started

CH LIST

MUTE

POWER

SOURCE

ON/OFF

PRE-CH

@TV

INTERNET

CONTENT

TOOLS

RETURN

MEDIA.P YAHOO!

FAV.CH P. SIZE

ABCD

MTS

EXIT

INFO

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel,

✎

Volume buttons.

Turns the TV on and off.

Displays and selects the available

Press to directly access channels.

video sources. (P. 10)

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to off will reduce the battery usage time.)

Press to select additional channels

(digital) being broadcasted by the

same station. For example, to select

channel “54-3”, press “54”, then press

“–” and “3”.

Adjusts the volume.

Displays the main on-screen menu.

Displays the Content View, which

includes Channel List, Internet@TV,

Media Play, and AllShare.

Quickly select frequently used

Returns to the previous menu.

functions.

Buttons used in the Channel List,

Internet@TV, Media Play menu, etc.

recorders that have the Anynet+ feature)

Use these buttons in Media Play and

(: Controls recording for Samsung

Anynet+ modes.

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays the channel list on the screen. (P. 13)

Link to various internet services. (P. 41)

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

MEDIA.P: Displays Media Play. (P. 31) YAHOO!: Runs Yahoo widget. (P. 45) MTS: Press to choose stereo, mono or

Separate Audio Program (SAP broadcast). (P. 17)

FAV.CH: Displays Favorite Channel Lists

on the screen. (P. 12)

P.SIZE: Selects the picture size. (P. 16) CC: Controls the caption decoder. (P. 20)

Installing batteries (Battery size: AAA)

English

NOTE

✎

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon signs.

The color and shape may vary depending on the model.

01 Getting Started

English

Connecting to an Antenna

POWER

INFO

CH LIST

When the TV is initially powered on, basic settings proceed automatically.

Connecting the mains and antenna.

✎

VHF/UHF Antenna

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWERP button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the red button.

✎

Selecting a language

Selecting Store Demo

or Home Use

Selecting an antenna

Selecting a channel The channel search will start automatically.

Setting the Clock

Mode

Viewing the HD

Connection Guide Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTERE button. Select the desired OSD (On Screen Display) language.

Press the ◄ or ► button, then press the ENTERE button.

Select the y Home Use mode. Store Demo Mode is for retail environments.

To return the unit’s settings from y Store Demo to Home Use (standard): Press the volume button on the TV. When you see the volume in the OSD, press and hold MENU for 5 sec.

Press the ▲ or ▼ button, then press the ENTERE button. Select Air, Cable or Auto.

In ✎Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the ▲, ▼, ◄ or ► button, then press the ENTERE button.

For more information, refer to Channel → Auto Program. (P. 12)

Press the ✎ENTERE button at any time to interrupt the memorization process.

Set the Clock Mode automatically or manually.

If you select the ✎Auto, set the daylight saving time. Select the time zone which you live.

The connection method for the best HD screen quality is displayed.

Press the ENTERE button.

Cable

ANT OUT

If You Want to Reset This Feature...

O m

→ Setup → Plug & Play → ENTER

Setup

Plug & Play

Time

Menu Language : English

Caption : On

Security

Network

General

PIP : Off

R-AUDIO-L

R PB Y

R-AUDIO-L

R PB Y

W Y

BGR

R-AUDIO-L

R PB Y

W W

BGRRWY

W W

BGRR

ConnectionsConnections

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB).

BD/DVD player/

HD cable/Sat. box

Red White

HDMI IN 1(DVI) ✎, 2, 3, 4 / PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the xHDMI IN 1(DVI) jack for video. A DVD, Blu-ray player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio. The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

Using a Component (up to 1080p), Using an Audio/Video Cable (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Device

HDMI OUT

DVI OUT

AUDIO OUT

VCR

English

VIDEO OUT

AUDIO OUT

COMPONENT OUT

Blu-ray player

When connecting to ✎AV IN 1, the color of the AV IN 1 [ Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

For better picture quality,

✎

the Component connection is recommended over the A/V connection.

Yellow Red White Red Blue Green

Connecting to an Audio Device

R-AUDIO-L

R PB Y

W W

BGRR

English

02 Connections

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, Home Theater

Red White

DIGITAL AUDIO OUT (OPTICAL)

✎

When a Digital Audio System is connected to the xDIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

AUDIO OUT ✎: Connects to the audio input jacks on your amplifier/home theater.

When connecting, use the appropriate connector (sold separately).

When an audio amplifier is connected to the xAUDIO OUT jacks: Decrease the volume of the TV and adjust the volume level with the amplifier’s volume control.

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

AUDIO IN

Digital audio system

OPTICAL

DVD

Home Theater

AUDIO OUT

DVI OUT

PC OUT

AUDIO OUT

Connections

P . SIZE

CH LIST

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920X1080@60Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT / DTV CEA 1920 x 1080p 67.500 60.000 148.500 +/+

NOTE

✎✎

For HDMI/DVI cable connection, you must use the xHDMI IN 1(DVI) jack. The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not suppor ted.

EX-LINK

640 x 350 31.469 70.086 25.175 +/720 x 400 31.469 70.087 28.322 -/+ 640 x 480 35.000 66.667 30.240 -/832 x 624 49.726 74.551 57.284 -/-

1152 x 870 68.681 75.062 100.000 -/-

720 x 576 35.910 59.950 32.750 -/+ 1152 x 864 53.783 59.959 81.750 -/+ 1280 x 720 56.456 74.777 95.750 -/+ 1280 x 960 75.231 74.857 130.000 -/+

640 x 480 31.469 59.940 25.175 -/-

640 x 480 37.861 72.809 31.500 -/-

640 x 480 37.500 75.000 31.500 -/-

800 x 600 37.879 60.317 40.000 +/+

800 x 600 48.077 72.188 50.000 +/+

800 x 600 46.875 75.000 49.500 +/+ 1024 x 768 48.363 60.004 65.000 -/1024 x 768 56.476 70.069 75.000 -/1024 x 768 60.023 75.029 78.750 +/+ 1152 x 864 67.500 75.000 108.000 +/+

1280 x 1024 63.981 60.020 108.000 +/+ 1280 x 1024 79.976 75.025 135.000 +/+

1280 x 800 49.702 59.810 83.500 -/+ 1280 x 800 62.795 74.934 106.500 -/+ 1280 x 960 60.000 60.000 108.000 +/+ 1280 x 720 45.000 60.000 74.250 +/+ 1360 x 768 47.712 60.015 85.500 +/+ 1440 x 900 55.935 59.887 106.500 -/+ 1440 x 900 70.635 74.984 136.750 -/+

1680 x 1050 65.290 59.954 146.250 -/+

1280 x 720 52.500 70.000 89.040 -/+

1280 x 1024 74.620 70.000 128.943 -/-

Connector for service only.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

Changing the Input source

Source List

O m

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

→ Input → Source List → ENTER

English

TV / AV1 / AV2 / Component1 / Component2 / PC / ■ HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

You can only choose external devices that

✎

are connected to the TV. In the Source List, connected inputs will be highlighted.

PC ✎ always stay activated.

Edit Name

CH LIST

H LI

MUTE

POWER

SOURCE

ON/O

RE-C

@TV

NTENT

TOOLS

RETURN

BCD

EXIT

INF

O m

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / ■ TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection

easier.

→ Input → Edit Name → ENTER

When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the ✎HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name.

When connecting an HDMI/DVI cable to the ✎HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name.

Basic Features

03 Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 MENU button: Displays the main on-screen menu. 2 ENTERE / Direction button: Move the cursor and

select an item. Conﬁrm the setting.

3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

▲ / ▼ Select an icon with the ▲ or ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

button.

Press ENTERE to access the sub-menu.

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTERE to conﬁrm the selection.

Press EXIT.

Channel Menu

Seeing Channels ¦

Channel List

O m

Add, delete or set Favorite channels and use the program guide for digital broadcasts.

Select a channel in the All Channels, Added Channels, Favorite or Programmed screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button. Then you can watch the selected channel.

Added Channels

Air A Antenna B Zoom C Select Page T Tools

■ All Channels: Shows all currently available

■ Added Channels: Shows all added channels.

■ Favorite: Shows all favorite channels.

■ Programmed: Shows all currently reserved

→ Channel → Channel List → ENTER

6 Air

6-1 ♥ TV #6

7 Air

8 Air 9 Air

9-1 ♥ TV #9

10 Air

10-1 ♥ TV #10 11-1 ♥ TV #11

channels.

programs.

English

Basic Features

ABCD

POWER

FAV . CH

P . MODE

P . SIZE

MTS

INFO

SLEEP

CH LIST

Using the color buttons with the ✎Channel List

Red (Antenna): Switches to Air or Cable.

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Selects multiple channel lists.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The

mark appears to the left of the selected channels.

(Page): Move to next or previous page.

T x (To o ls): Displays the Channel List option menu.

(The Options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations

A channel selected.

A channel set as a Favorite.

A reserved Program.

)

A program currently being broadcast.

(

Using Favorite Channels ¦

O m

Add to Favorite / Delete from Favorite

Set channels you watch frequently as Favorites.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel using the Add to Favorite or Delete from Favorite menu

respectively.

Added Channels

Air A Antenna B Zoom C Select Page T Tools

→ Channel → Channel List → ENTER

6 Air

6-1 ♥ TV #6

7 Air

8 Air 9 Air

9-1 ♥ TV #9

10 Air

10-1 ♥ TV #10 11-1 ♥ TV #11

Delete Add to Favorite Timer Viewing Channel Name Edit Select All

Memorizing channels ¦

O m

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

→ Channel → ENTER

Auto Program

Air ■ : Air antenna signal.

Cable ■ : Cable antenna signal.

Auto ■ : Air and Cable antenna.

NOTE ✎

When selecting the Cable T V system: Selects the

cable system. STD, HRC and IRC identif y various types of cable T V systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.

After all the available channels are stored, it starts

to remove scrambled channels. The Auto program menu then reappears.

How to Stop Auto Programming

1. Press the ENTERE button.

2. A message will ask Stop Auto Program? Select Yes by

pressing the ◄ or ► button.

3. Press the ENTERE button.

Editing channels ¦

O m

Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu.

Channel Name Edit ■ (analog channels only): Assign your own channel name.

Other Features ¦

→ Channel → Channel List → ENTER

English

O m

→ Channel → ENTER

Clear Scrambled Channel

This function is used to ﬁlter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

English

03 Basic Features

How to Stop Searching Scrambled Channels

1. Press the ENTERE button to select Stop.

2. Press the ◄ button to select Yes .

3. Press the ENTERE button.

This function is only available in ✎Cable mode.

Channel List

O m

Channel List Option Menu

Set each channel using the Channel List menu options (Add / Delete, Timer Viewing, Select All, Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

Add / Delete ■ : Delete or add a channel to display the

channels you want.

Timer Viewing ■ : You can set a desired channel to be displayed automatically at the intended time. Set the current time ﬁrst to use this function. (P. 18)

1. Press the ◄ / ► /▲ / ▼ buttons to select the

2. Press the TOOLS button, then select Timer Viewing.

3. Scroll up or down to adjust the settings in the box,

Select All ■ : Select all the channels in the channel list.

Deselect All ■ : Deselect all the selected channels.

→ Channel → Channel List → ENTER

NOTE

✎

All deleted channels will be shown on the xAll Channels menu.

A gray-colored channel indicates the channel

has been deleted. The xAdd menu only appears for deleted

channels. Delete a channel from the xAdded Channels or

Favorite menu in the same manner.

desired channel in Channel List.

or use the numeric buttons on your remote for entering the date and time.

If you selected ✎Once, Every Week or Every Day in Repeat, you can enter the date you want.

Select OK, then press the ENTERE button when done.

NOTE

✎

Only memorized channels can be reserved.

Reserved programs will be displayed in the

Programmed menu. When a digital channel is selected, press the

► button to view the digital program.

You can only select ✎Deselect All when one or more channels are selected.

Programmed

(in Channel List) You can view, modify or delete a show you have reserved to

watch.

1. Press the

2. Press the ◄ and ▼ button move to the Programmed

menu.

Change Info ■ : Change a show you have reserved to

watch.

Cancel Schedules ■ : Cancel a show you have reserved to watch.

Information ■ : Display a show you have reserved to watch. (You can also change the reservation Information.)

Select All / Deselect All ■ : You can select or deselect all channels in the channel list.

ENTERE

button to select Channel List.

Fine Tune

(analog channels only) If the reception is clear, you do not have to ﬁne tune the

channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually.

Select y Fine Tune in the Channel menu.

Fine tuned channels that have been saved are marked

✎

with an asterisk “*” on the right-hand side of the channel number in the channel banner.

To reset the fine-tuning, select ✎Reset.

Picture Menu

Changing the Preset Picture Mode ¦

O m

Mode

Select your preferred picture type.

Dynamic ■ : Suitable for a bright room.

Standard ■ : Suitable for a normal environment.

Natural ■ : Suitable for an eye comfortable display.

Movie ■ : Suitable for watching movies in a dark room.

→ Picture → Mode → ENTER

Natural ✎ is not available in PC mode.

Basic Features

Adjusting picture settings ¦

O m

→ Picture → Backlight → ENTER

Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

✎

When you make changes to xBacklight, Contrast, Brightness, Sharpness, Color or Tint (G/R) the OSD will be adjusted accordingly.

In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV. Lowering picture brightness reduces power

consumption.

Economical Solutions ¦

ECO Solution

O m

Energy Saving (Off / Low / Medium / High / Picture ■ Off / Auto): This adjust the brightness of the TV in order

to reduce power consumption. If you select Picture Off, the screen is turned off , but the sound remains on.

Press any button to turn on the screen again.

Eco Sensor (Off / On) ■ : To enhance your power savings; the picture settings will automatically adapt to the light in the room.

Min Backlight: When ECO sensor is On, the minimum screen brightness can be adjusted manually.

No Signal Power Off (Off / 15 min. / 30 min. / ■ 60 min.): Sets how quickly the TV switches to standby

mode, if no picture is being received.

→ Picture → ECO Solution → ENTER

If you adjust the ✎Backlight, the Eco Sensor will be set to Off.

If ✎Eco Sensor is On, the display brightness may change (become slightly darker in most cases) depending on the surrounding light intensity.

Disabled when the PC is in power saving mode.

✎

Setting up the TV with your PC ¦

Set the input source to PC.

Auto Adjustment

O m

ENTER

Adjust frequency values/positions and ﬁne tune the settings automatically.

Not available when connecting through HDMI/DVI

✎

cable.

→ Picture → Auto Adjustment →

Screen

Coarse / Fine ■ : Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen.

Position ■ : Adjust the PC’s screen positioning if it does not ﬁt the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

Image Reset ■ : Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) y [Optimum: 1920 X 1080 pixels]

If a vertical-frequency option exists on your display y settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

English

03 Basic Features

Changing the Picture Options ¦

Advanced Settings

O m

ENTER

(available in Standard / Movie mode) Compared to previous models, new Samsung TVs have

more precise pictures.

In ✎PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

Black Tone : Off ►

Dynamic Contrast : Medium

Shadow Detail : 0

Gamma : 0

Expert Pattern : Off

RGB Only Mode : Off

Color Space : Native

Black Tone (Off / Dark / Darker / Darkest) ■ : Select the black level to adjust the screen depth.

Dynamic Contrast (Off / Low / Medium / High) ■ : Adjust the screen contrast.

Shadow Detail ■ : Increase the brightness of dark images.

Gamma ■ : Adjust the primary color intensity.

Expert Pattern ■ (Off / Pattern 1 / Pattern 2): By

running the Expert Pattern function, the picture can be calibrated without a generator or ﬁlter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.

RGB Only Mode (Off / Red / Green / Blue) ■ : Displays the Red, Green and Blue color for making ﬁne adjustments to the hue and saturation.

Color Space (Auto / Native / Custom) ■ : Adjust the range of colors available to create the image. To adjust Color, Red, Green, Blue and Reset, set Color Space to Custom.

White Balance ■ : Adjust the color temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness.

Reset: Resets the White Balance to it's default settings.

→ Picture → Advanced Settings →

Advanced Settings

▼

U Move E Enter R Return

Disabled under ✎PC mode.

While the ✎Expert Pattern is running, sound is not output.

Only enabled on DTV / Component / HDMI.

✎

10p White Balance (Off / On) ■ : Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

Available when the picture mode is set to ✎Movie and when the external input is set to all input.

Some external devices may not support this

✎

function.

Interval: Select interval to adjust. Red: Adjust the red level. Green: Adjust the green level. Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default

settings.

Flesh Tone ■ : Emphasize pink “Flesh Tone.”

Edge Enhancement (Off / On) ■ : Emphasize object

boundaries.

xvYCC (Off / On) ■ : Setting the xvYCC mode on increases detail and color space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks.

Available when the picture mode is set to ✎Movie and when the external input is set to HDMI or Component.

Some external devices may not support this

✎

function.

Picture Options

O m

ENTER

In PC mode, you can only make changes to the ✎Color

Ton e, Size and Auto Protection Time.

Color Tone (Cool / Normal / Warm1 / Warm2) ■

→ Picture → Picture Options →

Picture Options

Color Tone : Normal ►

Size : 16:9

Digital Noise Filter : Auto

MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

Auto Protection Time : 2 hours

U Move E Enter R Return

Warm1 ✎ or Warm2 will be deactivated when the

picture mode is Dynamic. Settings can be adjusted and stored for each

✎

external device connected to an input on the TV.

Basic Features

P . SIZE

CH LIST

Size ■ : Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide mode.

Zoom1: Use for moderate magniﬁcation. Zoom2: Use for a stronger magniﬁcation. Wide Fit: Enlarges the aspect ratio of the picture to ﬁt

the entire screen. 4:3: Sets the picture to basic (4:3) mode.

Do not watch in 4:3 format for a long time. Traces

✎

of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are input.

NOTE

✎

After selecting xZoom1, Zoom2 or Wide Fit:

1. Press the ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲ or ▼ button to move the picture up

or down.

4. Press the ENTERE button.

5. Press the ► button to select Reset.

6. Press the ENTERE button to reset the picture

to its default position.

After selecting xScreen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲, ▼, ◄ or ► button to move the

picture.

4. Press the ENTERE button.

5. Press the ◄ or ► button to select Reset.

6. Press the ENTERE button.

HD (High Definition): 16:9 - 1080i/1080p (1920x1080),

720p (1280x720) Settings can be adjusted and stored for each

external device you have connected to an input on the TV.

Input Source Picture Size

ATV, AV, Component (480i, 480p) DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p) PC 16:9, 4:3

16:9, Zoom1, Zoom2, 4:3

16:9, 4:3, Wide Fit, Screen Fit

Digital Noise Filter (Off / Low / Medium / High / Auto ■ / Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may

appear on the screen.

When the signal is weak, try other options until the

✎

best picture is displayed.

Auto Visualization: When changing analog channels, displays signal strength.

Only available for analog channels.

✎

When bar is green, you are receiving the best

✎

possible signal.

MPEG Noise Filter (Off / Low / Medium / High / ■ Auto): Reduces MPEG noise to provide an improved

picture quality.

Disabled under ✎PC mode.

HDMI Black Level (Normal / Low) ■ : Selects the black level on the screen to adjust the screen depth.

Available only in HDMI mode.

✎

Film Mode (Off / Auto1 / Auto2) ■ : Sets the TV to automatically sense and process ﬁlm signals from all sources and adjusts the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i)

✎

and HDMI (480i / 1080i).

Auto Protection Time (2 hours / 4 hours / 8 hours ■ / 10 hours / Off): If the screen remains idle with a still

image for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

English

03 Basic Features

Sound Menu

P . MODE

P . SIZE

MTS

INFO

CH LIST

P . MODE

P . SIZE

MTS

INFO

CH LIST

Changing the Preset Sound Mode ¦

O m

ENTER

SRS TheaterSound

Standard ■ : Selects the normal sound mode.

Music ■ : Emphasizes music over voices.

Movie ■ : Provides the best sound for movies.

Clear Voice ■ : Emphasizes voices over other sounds.

Amplify ■ : Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.

→ Sound → SRS TheaterSound →

Adjusting sound settings ¦

O m

→ Sound → Equalizer → ENTER

Preferred Language

(digital channels only) Digital-TV broadcasts are capable of

simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).

You can only select a language among

✎

the ones being broadcasted.

Multi-Track Sound (MTS)

(analog channels only)

Mono ■ : Choose for channels that are broadcasting in mono or if you are having difﬁculty receiving a stereo signal.

Stereo ■ : Choose for channels that are broadcasting in stereo.

SAP ■ : Choose to listen to the Separate Audio Program, which is usually a foreign-language translation.

Depending on the particular program being

✎

broadcasted, you can listen to Mono, Stereo or SAP.

Equalizer

Adjusts the sound mode (standard sound mode only).

Balance L/R ■ : Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1kHz / 3kHz / 10kHz ■ (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

Reset ■ : Resets the equalizer to its default settings.

Sound Systems, Etc. ¦

SRS TruSurround HD (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

SRS TruDialog (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog canbe heard more clearly.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

Night ■ : This mode provides an improved sound

experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

When ✎Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

When ✎Speaker Select is set to External Speaker, you should use these settings.

TV Speaker: Off, External Speaker: On

When ✎Speaker Select is set to TV Speaker, you should use these settings.

TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

✎

Basic Features

SPDIF Output

SPDIF (Sony Philips Digital Interface) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format ■ : During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

By connecting to 5.1ch speakers in a dolby

✎

digital setup, maximize your interactive 3D sound experience.

Audio Delay ■ : Correct audio-video mismatch, when watching TV or video, and listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

Setup Menu

Setting the Time ¦

O m

→ Setup → Time → ENTER

Time

The current time will appear every time you press the

✎

INFO button.

Clock ■ : Setting the clock is for using various timer

features of the TV.

If you disconnect the power cord, you have to set

✎

the clock again.

Clock Mode: Set up the current time manually or automatically.

Auto – : Set the current time automatically using the time from a digital channel.

The antenna must be connected in order to set

✎

the time automatically.

Manual – : Set the current time manually.

Depending on the broadcast station and signal,

✎

the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm.

Available only when ✎Clock Mode is set to Manual.

You can set the month, day, year, hour and minute

✎

directly by pressing the number buttons on the remote control.

DST (Off / On): Switches the DST(Daylight Saving Time) function on or off.

This function is only available when the ✎Clock

Mode is set to Auto.

Time Zone: Select your time zone.

This function is only available when the ✎Clock

Mode is set to Auto.

Using the Sleep Timer ¦

O m

ENTER

Sleep Timer ■

after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

→ Setup → Time → Sleep Timer →

To cancel the ✎Sleep Timer, select Off.

: Automatically shuts off the TV

Setting the On/Off Timer ¦

O m

ENTER

Timer 1 / Timer 2 / Timer 3 ■ : Three different on / off

timer settings can be made. You must set the clock ﬁrst.

On Time

Off Time

Volume

Repeat

On Time / Off Time: Set the hour, minute, am/pm and activate/inactivate. (To activate the timer with the setting you have chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select Air or Cable.

→ Setup → Time → Timer 1 →

Timer 1

▲

Inactivate 12 00 am

▼

Inactivate 12 00 am

Source

10 TV Air 3

Once

Sun Mon Tue Wed Thu Fri Sat

L Move U Adjust E Enter R Return

Antenna Channel

English

03 Basic Features

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

NOTE

✎

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB,

the Slide Show will not play. A folder with too long of a name cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

The

✎ c

Auto Power Off (available only when the TV is turned

✎

on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

mark indicates the day is selected.

Locking Programs ¦

O m

→ Setup → Security → ENTER

Security

The PIN input screen appears, Enter your 4 digit PIN number.

V-Chip ■ : The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal identiﬁcation number) before any of the V-Chip restrictions are set up or changed.

NOTE

✎

V-Chip x is not available in HDMI, Component

or PC mode. The default PIN number of a new TV set is

“0-0-0-0”.

Allow all x: Press to unlock all TV ratings.

Block all x: Press to lock all TV ratings.

V-Chip Lock (Off / On): You can block rated TV

Programs.

TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching.

TV-Y – : Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature

audience

ALL – : Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog

The ✎V-Chip will automatically block certain categories dealing with more sensitive material. For example, if you block the T V-Y category, then T V-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, T V-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in T V-14 and TV-MA will automatically be blocked.

MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which ﬁlms are appropriate for children.

G – : General audience (no restrictions). / PG: Parental guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG -13 category, then R, N C -17 and X will automatically be blocked.

Canadian English: You can block TV programs depending on their Anglophone Canadian.

C – : Programming intended for children under age 8. / C8+: Programming generally considered acceptable

for children 8 years and over to watch on their own. /

G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming

contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then PG, 14+ and 18+ will automatically be blocked.

Basic Features

MEDIA.P

P . MODE

P . SIZE

MTS

INFO

CH LIST

Canadian French: You can block TV programs depending on their French Canadian rating.

G – : General / 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels.

NOTE

✎

If information is not downloaded from the

broadcasting station, the Downloadable U.S. Rating menu is deactivated.

Parental restriction information is automatically

downloaded while watching DTV channels. It may take several seconds.

The xDownloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

Parental restriction levels differ depending on

the broadcasting station. The default menu name and Downloadable U.S. Rating change depending on the downloaded information.

Even if you set the on-screen display to another

language, the Downloadable U.S. Rating menu will appear in English only.

The rating will automatically block certain

categories that deal with more sensitive material.

The rating titles (For example: Humor Level..etc)

and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.

Change PIN ■ : The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Conﬁrm New PIN screen appears. Re-enter the same 4 digits. When the Conﬁrm screen disappears, your PIN has been memorized.

How to watch a restricted channel

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

This channel is blocked by V-Chip. Please enter the PIN to unblock.

If you forget the PIN, press the remote-control

✎

buttons in the following sequence, which resets the pin to “0-0-0-0” : POWER (off) → MUTE → 8 → 2 → 4 → POWER (on)

Other Features ¦

O m

→ Setup → ENTER

Menu Language

Set the menu language.

1. Select Menu Language and press the ENTERE button.

2. Choose desired language and press the ENTERE

button.

Choose between ✎English, Español and Français.

Caption

(On-Screen Text Messages)

Caption (Off / On) ■ : You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen.

The ✎Caption feature does not work in Component, HDMI or PC modes.

Caption Mode ■ : You can select the desired caption mode.

The availability of captions depends on the

✎

program being broadcasted.

Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.)

Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions

function works with digital channels.

Se rvic e1~6 ✎ may not be available in digital caption

mode depending on the broadcast.

English

03 Basic Features

Digital Caption Options ■ : (digital channels only) Size: Options include Default, Small, Standard and

Large. The default is Standard. Font Style: Options include Default and Styles 0 to 7.

The default is Style 0. Foreground Color: Options include Default, White,

Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White.

Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black.

Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.

Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing.

Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its

default.

NOTE

✎

Digital Caption Options x are available only

when Default and Service1 ~ Service6 can be selected in Caption Mode.

The availability of captions depends on the

program being broadcasted. The xDefault setting follow the standards set by

the broadcaster. The Foreground and Background cannot be set

to have the same color. You cannot set both the xForeground Opacity

and the Background Opacity to Transparent.

Network (Network Type / Network Setup / Network Test / SWL(Samsung Wireless Link) / SWL connect)

For details on set up options, refer to the “Network Connection” instructions. (P. 24~30)

General

Game Mode (Off / On) ■ : When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game menu.

NOTE

✎

Precautions and limitations for game mode

To disconnect the game console and connect – another external device, set Game Mode to Off in the setup menu.

If you display the TV menu in – Game Mode, the screen shakes slightly.

Game Mode x is not available when the input source

is set to TV or PC. After connecting the game console, set xGame Mode

to On. Unfortunately, you may notice reduced picture qu alit y.

If xGame Mode is On:

Picture – mode is set to Standard and Sound mode is set to Movie.

Equalizer – is not available.

BD Wise (Off / On) ■ : Provides the optimal picture quality

for Samsung DVD, Blu-ray and Home Theater products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

Available when connecting Samsung products

✎

that support BD Wise through a HDMI cable.

Menu Transparency (Bright / Dark) ■ : Set the Transparency of the menu.

Melody (Off / Low / Medium / High) ■ : Set so that a melody plays when the TV is turned on or off.

NOTE

✎

Only available when the Input source is set to TV.

To turn the melody off, set Melody to Off. The xMelody does not play.

When no sound is output from the TV because the –

MUTE button has been pressed.

When no sound is output from the TV because the – volume has been reduced to minimum with the

VOL – button.

When the TV is turned off by – Sleep Timer function.

Wireless Remote Control (Off / On)

Turn on/off or give permission to Samsung mobile phones/ devices. You must have a Samsung Mobile phone/device which

supports Wireless Remote Control. For more details, refer to each device's manual.

Basic Features

Picture In Picture (PIP) ¦

PIP

O m

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

NOTE

✎

PIP (Off / On) ■ : Activate or deactivate the PIP function.

Air/Cable (Air / Cable) ■ : Select either Air or Cable as the

input source for the sub-screen.

Channel ■ : Select the channel for the sub-screen.

Size ( ■

Position ( ■

sub-picture.

Sound Select (Main / Sub) ■ : You can choose the desired sound(Main or Sub) in PIP mode.

→ Setup → PIP → ENTER

For PIP sound, refer to the xSound Select instructions.

If you turn the T V off while watching in PIP mode, the PIP window will disappear.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

While xV-Chip or Internet@TV is in operation, the PIP function cannot be used.

PIP Settings

Main picture Sub picture Component1, Component2,

HDMI1/DVI, HDMI2, HDMI3, HDMI4, PC

/ Ã): Select a size for the sub-picture.

/ – / — / œ): Select a position for the

Support Menu

O m

→ Support → ENTER

Legal Notice

You can view legal notice and general disclaimer regarding third party contents and services.

The General Disclaimer may differ depending on the

✎

co untr y.

You can move the previous or next page by pressing

✎

the ◄ or ► button.

Self Diagnosis

Picture Test ■ : Use to check for picture problems. If the

problem continues to occur, check the Color pattern. Yes: If the test pattern does not appear or there is

noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

Sound Test ■ : Use the built-in melody sound to check for sound problems.

If you hear no sound from the TV’s speakers,

✎

before per forming the sound test, make sure

Speaker Select is set to TV speaker in the Sound menu.

The melody will be heard during the test even if

✎

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for

assistance (1-800-SAMSUNG). No: If you can hear sound from the speakers, select No.

There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

Signal Information ■ (Digital channels only): An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

Troubleshooting ■ : If the TV seems to have a problem, refer to this description.

If none of these troubleshooting tips apply, contact

✎

the Samsung customer service center.

English

03 Basic Features

Software Upgrade

Software Upgrade can be performed by network

connection or downloading the latest ﬁrmware from “www. samsung.com,” to a USB memory device.

Current Version - the software already installed in the TV.

Software is represented as ‘Year/Month/Day_Version’.

✎

Software Upgrade

Current Version 2010/01/18_000001

By USB ►

By Online

Alternative Software ----/ - - / - - _ - - - - -

Move E Enter R Return

Installing the Latest Version

USB Drive

TV Side Panel

TV Rear Panel

By USB ■ : Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from www.samsung.com, into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

By Online ■ : Upgrade the software using the Internet.

First, configure your network. For detailed

✎

procedures on using the Network Setup, refer to the “Network connection” instructions.

If the Internet connection does not operate

✎

properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade.

Alternative Software ■ (backup): Displays the Software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centers and how to download products and software.

Advanced Features

Network Connection

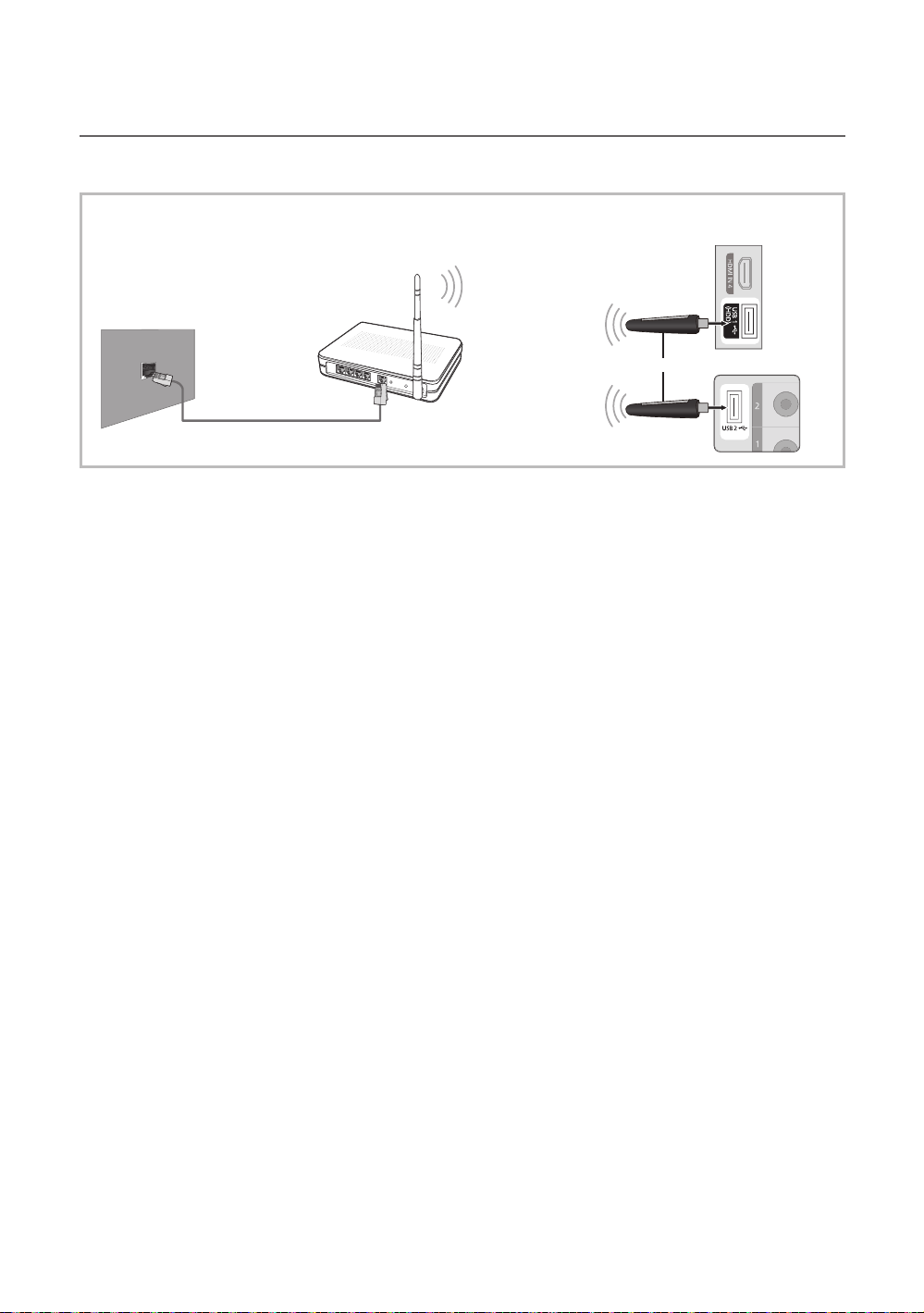

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

Connecting to a Wired Network ¦

You can attach your TV to your LAN using cable in three ways:

You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat y 5 cable. See the diagram below.

The Modem Port on the Wall

You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected y to an external modem. Use Cat 5 cable for the connection. See the diagram below.

The Modem Port on the Wall

Modem Cable

Depending on how your network is conﬁgured, you may be able to attach your TV to your LAN by connecting the LAN y port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The LAN Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

External Modem

(ADSL / VDSL / Cable TV)

(having DHCP server)

LAN Cable

LAN CableModem Cable

IP Sharer

LAN Cable

TV Rear Panel

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your T V needs to access the Internet so you do not have to enter them manually. Most home networks are Dynamic Networks. Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that

✎

support DHCP also let you use Static IP addresses.

English

04 Advanced Features

Network Setup (Auto)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTERE button. The Network screen appears.

Network Type : Wired ►

Network Setup

Network Test

SWL(Samsung Wireless Link)

SWL connect

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

appears.

Network

Off

U Move E Enter R Return

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the ﬁrst

entry ﬁeld.

4. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move from one entry ﬁeld to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

Network Setup

Internet Protocol Setup : Auto ►

IP Address :

Subnet Mask :

Gateway :

DNS : Auto

DNS Server :

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

automatically.

9. Wait two minutes, and then press the RETURN button on your remote.

10. If the Network Function has not acquired the network connection values, go to the directions for Manual.

U Move E Enter R Return

Advanced Features

Connecting to a Wireless Network ¦

To connect your TV to your network wireless, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, WIS10ABGN) which you connect to your TV’s back or side panel USB jack. See the illustration below.

To use the ✎SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

TV Side Panel

The LAN Port on

the Wall

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts. com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.

NOTE

✎

You must use the “Samsung Wireless L AN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless

network. Samsung Wireless LAN Adapter and the USB extension Cable are sold separately and are offered by select retailers,

Ecommerce sites and Samsungparts.com. To use a wireless network, your TV must be connected to a wireless IP sharer (either a router or a modem). If the

wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communication failure. If you apply a security system other than the systems listed below, it will not work with the TV.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or

TKIPAES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

Keep the Samsung Wireless LAN Adapter at a distance from the TV. If you watch the TV with the Adapter connected

nearby, images may appear corrupted for some channels. If your router, modem, or device is not certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.”

Connection Methods x: You can setup the wireless network connection on six ways.

Samsung Auto Conﬁguration - For non-Samsung devices. – PBC(WPS) – Auto Setup (Using the Auto Network Search function) – Manual Setup –

SWL(Samsung Wireless Link) – - For Samsung devices onl Ad-Hoc –

Samsung Wireless LAN Adapter and The USB extension Cable are sold separately and are offered by select retailers,

Ecommerce sites and Samsungparts.com.

Wireless IP sharer

(AP having DHCP Server)

LAN Cable

Samsung Wireless

LAN Adapter

TV Rear Panel

English

04 Advanced Features

Notice

The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference.

Method 1

Connect using the USB right angle adapter

To connect the Samsung Wireless LAN Adapter using the USB right angle adapter, follow these steps:

1. Connect the USB right angle adapter to the Samsung Wireless LAN Adapter.

2. Connect the other end of the right angle adapter to the

USB 1 (HDD) port.

Method 2

Connect via an extension cable

To reconnect the Samsung Wireless LAN Adapter using the extension cable, follow these steps:

1. Connect the extension cable to the USB 1 (HDD) port.

2. Connect the extension cable and Samsung Wireless LAN

Adapter.

3. Attach the Samsung Wireless LAN Adapter to the back of the TV near the top, using double-sided adhesive tape.

Network Setup (Samsung Auto Conﬁguration)

The Samsung Auto Conﬁguration function lets you connect your Samsung TV automatically to non-Samsung wireless APs. If your non-Samsung AP does not support Samsung Auto Conﬁguraton, you must connect using one of the other methods: PBC(WPS), auto conﬁguration, or manual conﬁguration.

To use this function, you must set ✎SWL(Samsung Wireless Link) to Off in the TV’s on-screen menu.

You can check for equipment that supports Samsung

✎

Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Conﬁguration

1. Place the AP and TV next to each other and turn them on.

Because AP booting times var y, you may have to wait

✎

approximately two minutes for your AP to boot up. Ensure the L AN cable is connected to the WAN

✎

port of the AP during Samsung Auto Configuration. If it is not connected, Samsung Auto Configuration only confirms that the TV is connected to the AP, but does not confirm it is connected to the Internet.

2. After 2 minutes, connect the Samsung Wireless LAN Adapter to the TV. When the Samsung Wireless LAN Adapter establishes a connection with your TV, a pop-up window appears.

3. As soon as a connection is established, place the AP parallel to the Samsung Wireless LAN Adapter and not farther than than 9 and 7/8s inches (25cm) from it.

4. Wait until the connection is automatically established.

If Samsung Auto Configuration does not connect

✎

your TV to your AP, a pop-up window appears on the screen notifying you of the failure. If you want to try using Samsung Auto Configuration again, reset the AP, disconnect the Samsung Wireless LAN Adapter and then try again from Step 1. You can also choose one of the other connection setup methods: PBC (WPS), auto, or manual.

5. Place the AP in a desired location.

If the AP settings change or you install a new AP,

✎

you must perform the Samsung Auto Configuration procedure again, beginning from Step 1.

Advanced Features

A B C D E F G

H I J K L M N

O P Q R S T U

V W X Y Z

0~9

Security Key

0 entered

Number

Lower case

Delete Space

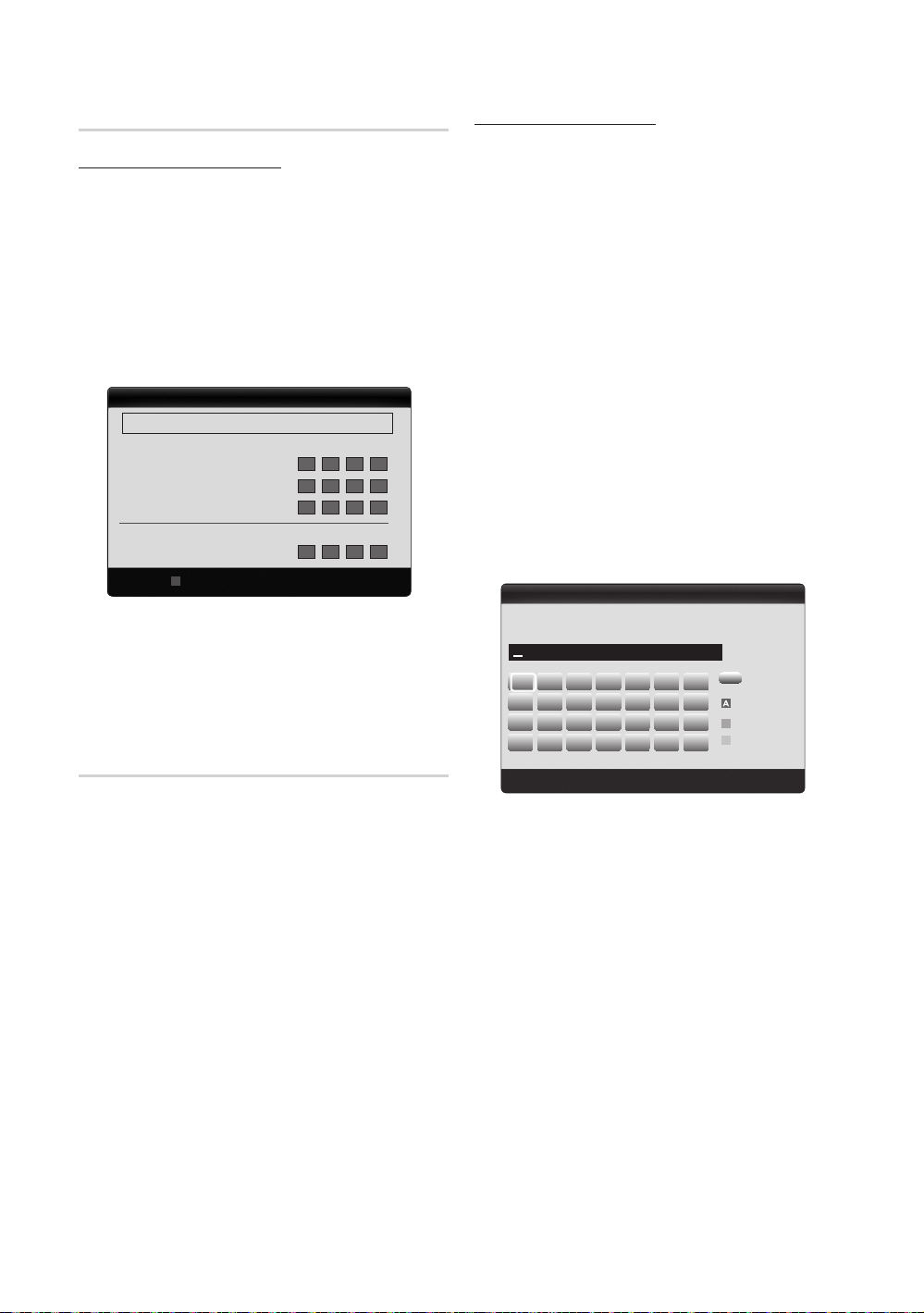

Network Setup (PBC(WPS))

How to set up using PBC(WPS)

If your router has a PBC(WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTERE button.

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTERE button.

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen appears.

Network Setup

Select a network : Not Selected ►

Internet Protocol Setup : Auto

IP Address :

Subnet Mask :

Gateway :

DNS : Auto DNS Server :

PBC(WPS) U Move E Enter R Return

7. Press the Red button on your remote.

8. Press the PBC(WPS) button on your router within 2

minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

RETURN button to exit the Network Setup screen.

How to set up automatically

To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using PBC(WPS)” above.

2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTERE button. Press the ▲ or ▼ button to select Auto, and then press the ENTERE button.

3. Press the ▲ button to go to Select a Network, and then press the ENTERE button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTERE button.

If the AP is set to Hidden (Invisible), you have

✎

to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN. For most home networks, you would select Security (for Security Key). The Security Screen appears.

Select a network

Network Setup (Auto)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a speciﬁed length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

English

n Move E Enter R Return

7. On the Security screen, enter your network’s Pass Phrase.

You should be able to find the Pass Phrase on

✎

one of the set up screens you used to set up your router or modem.

8. To enter the Pass Phrase, follow these general directions:

Press the number buttons on your remote to enter – numbers.

Use the direction buttons on your remote to move – from button to button on the Security Key screen.

Press the Red button to change case or display – symbols/characters.

To a enter letter or symbol, move to the letter or – symbol, and then press the ENTERE button.

To delete the last letter or number you entered, – press the Green button on your remote.

English

04 Advanced Features

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection conﬁrmation message is displayed, and then press the ENTERE button. The

Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTERE button.

Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network.

This function is available when ✎SWL(Samsung Wireless Link) is set to Off in the TV’s on-screen menu.

How to connect to new Ad-hoc

1. Follow Steps 1 through 6 in the “How to set up using

PBC(WPS)”. (P. 28)

2. Choose Select a network. A list of devices/networks appears.

3. While in the device list, press the Blue button on the remote.

The message ✎"Ad-hoc is a direct WI-Fi

connection with cellphone or PC. The existing network system may have limited functionality. Do you want to c hange the network connection?" is displayed.

4. Input the generated Network Name (SSID) and Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC(WPS)”. (P. 28)

2. Choose Select a network. Then, the device list will be displayed.

3. Select the device you want in the Device list.

4. If security key was applied, input the security key.

If network does not operate normally, check

✎

the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction.

Network Setup (Manual)

If the other methods do not work, you need to enter the Network setting values manually.

Getting the Network Connection Values

To get the Network setting values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

How to set up manually

To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using PBC(WPS)”. (P. 28)

2. Press the ▼ button to select Internet Protocol Setup, and then press ENTERE button. Press the ▲ or ▼ button to select Manual, and then press ENTER button.

3. Press the ▼ button to go to the ﬁrst entry ﬁeld (IP Address).

4. Use the number buttons to enter numbers.

5. When done with each ﬁeld, use the ► button to move

successively to the next ﬁeld. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway values.

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the ﬁrst DNS entry ﬁeld.

Enter the numbers as above.

9. When done, press the ▲ button to go to Select a Network. Select your network, and then press

ENTERE button.

10. Go to Step 4 in the "How to set up automatically" (P. 28),

and follow the directions from that point on.

Advanced Features

SWL(Samsung Wireless Link)

This function lets you connect your TV to a Samsung device (router, etc.) that supports PBC (WPS). You can connect devices to the TV even if a sharer is not connected to the TV.

To use the ✎ Internet on the TV, the AP (access point) must be connected to the wireless network.

If a Samsung Wireless Lan Adapter is connected to the

✎

USB 2 port, the network may not operate normally. We

recommend connecting it to USB 1 (HDD) port.

Only sharers using the 2.4 Ghz band are supported.

✎

Sharers using the 5 Ghz band are not supported.

SWL connect

You can directly connect the TV to a Samsung device that supports PBC (WPS).

This function is available when ✎SWL(Samsung Wireless Link) is set to On.

To use the ✎SWL(Samsung Wireless Link) function, connect the Samsung Wireless LAN Adpater to the

USB 1 (HDD) port.

How to connect using Samsung Wireless link

To connect using Samsung Wireless Link, follow these steps:

1. Follow Steps 1 through 5 in the “How to set up using PBC(WPS)”. (P. 28)

2. Select Samsung Wireless Link by using the ▼ button and press the ENTERE button to turn it On.

3. Select SWL connect by using the ▼ button and press the ENTERE button.

4. If the “Press the PBC button on the PBC(WPS) supported device to connect within 120 seconds.”

message appears, press the PBC button on the device to connect.

For more information, refer to the wireless network

✎

setup manual of the device to be connected.

5. If the TV connects properly to the device after the count in the message box starts, then the message box disappears automatically.

If the connection fails, please retry after 2 minutes.

✎

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet.

The Internet connection may fail because of a ﬁrewall problem. If this is the case, contact your Internet service

provider. If you cannot connect to the Internet even after you have

followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.

English

04 Advanced Features

Media Play

CHLIST

MEDIA.P

P . SIZE

SUM

Enjoy photos, music and/or movie ﬁles saved on

MediaPlay

a USB Mass Storage Class (MSC) device and/or your PC.

O m

→ Application → Content View

→ Media Play → ENTER

Videos

Change Device

View Devices E Enter R Return

Connecting a USB Device ¦

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁles to the

USB 1 (HDD) or USB 2 jack on the side or rear of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

If an external USB device connected to the TV’s ✎USB port draws an excessive amount of current from the port, the message "USB Power overload" appears on the screen. This is not a problem with the TV, which provides the standard current from its USB ports, but a problem with the external device. Please contact the manufacturer of the device for support.

USB Drive

TV Side Panel

TV Rear Panel

Connecting to the PC through network ¦

You can play pictures, music and videos saved on your PC or on your TV through a network connection in the Media Play mode.

If you want to use ✎Media Play to play files saved on your PC over your T V, you should download “PC Share Manager” and users manual from “www.samsung.com.”

Samsung

Wireless

LAN

Adapter

LAN CableLAN Cable

TV Side Panel

TV Rear Panel

Wireless IP

LAN Cable

LAN

LAN Cable

External Modem

(ADSL/VDSL/Cable TV)

Modem Cable

1. For more information on how to conﬁgure your network, refer to ‘Network Connection’.

You are recommended to locate both TV and PC in same subnet. The ﬁrst 3 parts of the subnet address of the TV and – the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager program will be installed.

You can connect the TV to the PC directly without connecting it through a Sharer (Router). –

sharer

Advanced Features

Functions that are not supported when connecting to a PC through a network:

✎

The xBackground Music and Background Music Setting functions. Sorting files by preference in the xPhotos, Music, and Videos folders. The x

(REW) or µ (FF) button while a movie is playing.

The Divx DRM, Multi-audio, embedded caption does not supported.

✎

Samsung PC Share manager should be permitted by the firewall program on your PC.

✎

When you use ✎Media Play mode through a network connection, According to functions of the provided server:

The sorting method may vary.

The scene search function may not be supported.

The xPlay Continuously function, which resumes playing of a video, may not be supported.

The – Play Continuously function does not support multiple users. (It will have only memorized the point where the most recent user stopped playing.)

The x

(REW), µ (FF) or  (Pause) buttons may not work depending on the content information.

If you experience any file stuttering issue while playing a video over a wireless network, we recommend using a wired

✎

network.

It might not work properly with unlicensed multimedia files.

✎

Need-to-Know List before using ✎Media Play

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the T V’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Connect a USB HDD to the dedicated port, xUSB 1 (HDD) port. Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported. If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in xAuto Protection Time, the Screensaver will run. The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

English

04 Advanced Features

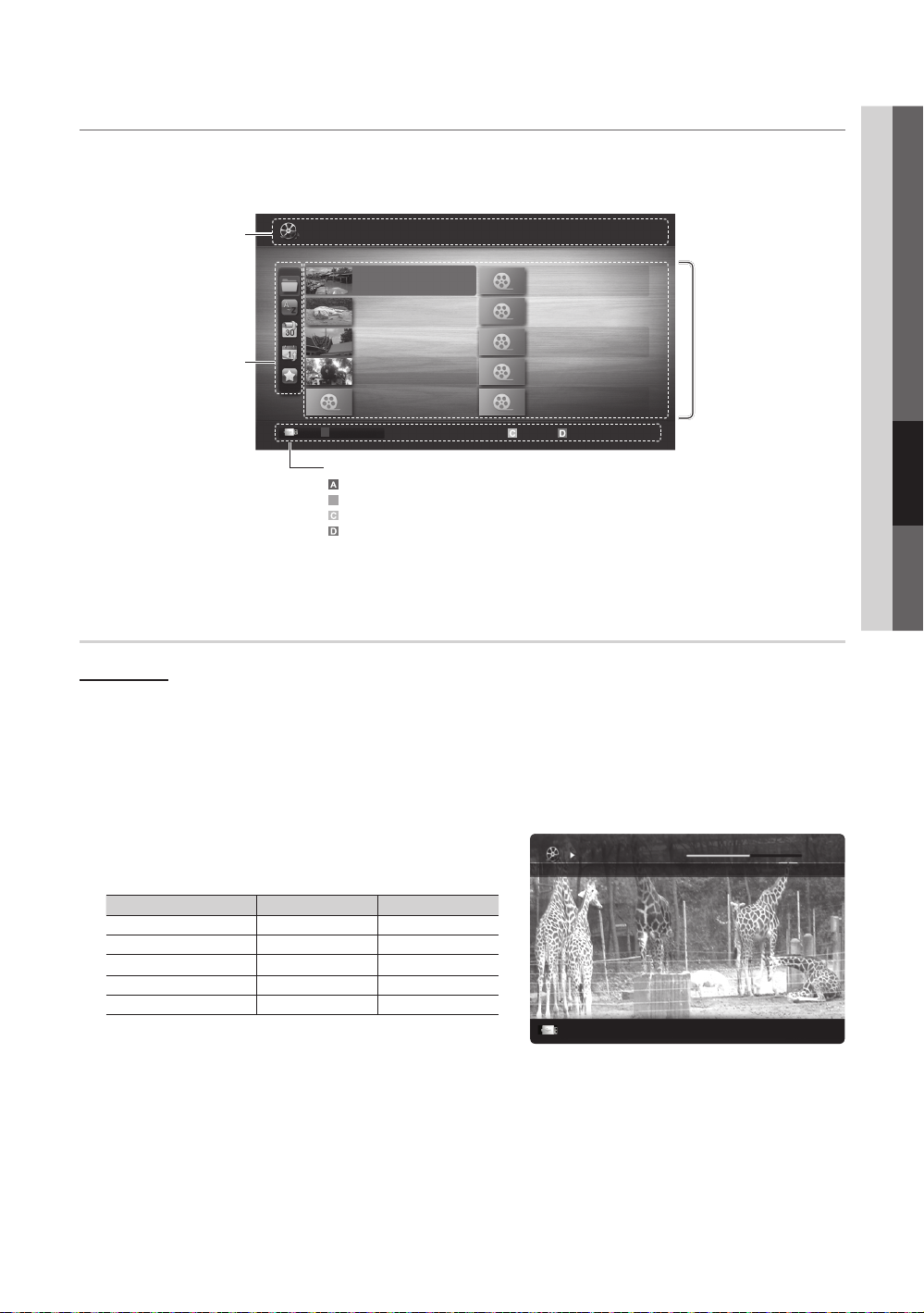

Screen Display ¦

Jan.10.2010

/Movie 01.avi 1/1

Movie 01.avi

SUM

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Move to the desired ﬁle using the up/down/right/left buttons and then press the ENTERE or  (Play) button. The ﬁle is played.

Supports the ✎View Devices and Contents Mode in Media Play homepage.

You can ascertain the selected

ﬁle name and the number of

Displays the sorting standard.

The sorting standard is

✎

different depending on the contents.

Information:

ﬁles and page.

Sort List Section:

Videos

Page

File List Section: You can conﬁrm the ﬁles and groups that are sorted by category.

Change Device

Select Sorting T Tools

Operation Buttons

Red (Change Device): Selects a connected device. Green (Preference): Sets the ﬁle preference. (not supported in Basic view) Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol. Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Using the ✎

or µ button, ﬁle list can move to next or previous page.

Videos

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired video in the ﬁle list.

3. Press the ENTERE button or  (Play) button.

The selected ﬁle is displayed on the top with its playing time. – If video time information is unknown, play time and progress bar are not displayed. – During video playback, you can search using – ◄ and ► button.

In this mode, you can enjoy movie clips contained on a Game,

✎

but you cannot play the Game itself. Supported Subtitle Formats y

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based

SubViewer .sub string-based Micro DVD .sub or .txt string-based

Chaptering

L Jump T Tools R Return

Advanced Features

Supported Video Formats y

File

Extention

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

Container Video Codec Resolution

Divx 3.11/4.x/5.1/6.0 1920x1080 6 ~ 30 8

AVI

MKV

VRO VOB

XviD 1920x1080 6 ~ 30 8

H.264 BP/MP/HP 1920x1080 6 ~ 30 25

MPEG4 SP/ASP 1920x1080 6 ~ 30 8

Motion JPEG 800x600 6 ~ 30 8

Divx 3.11/4.x/5.1/6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP/MP/HP 1920x1080 6 ~ 30 25

MPEG4 SP/ASP 1920x1080 6 ~ 30 8

Motion JPEG 800x600 6 ~ 30 8

H.264 BP/MP/HP 1920x1080 6 ~ 30 25

MPEG4 SP/ASP 1920x1080 6 ~ 30 8

XVID 1920x1080 6 ~ 30 8

H.264 BP/MP/HP 1920x1080 6 ~ 30 25

MPEG4 SP/ASP 1920x1080 6 ~ 30 8

MPEG2 1920x1080 24/25/30 30 MPEG1 1920x1080 24/25/30 30 MPEG1 1920x1080 24/25/30 30 MPEG2 1920x1080 24/25/30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24/25/30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Other Restrictions

NOTE

✎

If there are problems with the contents of a codec, the codec will not be supported.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above.

Frame rate

(fps)

Bit rate

(Mbps)

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AAC

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AAC

AC3 / AAC / MP3 / DD+ /

Audio Codec

HE-AAC

Video Decoder Audio Decoder

Supports up to H.264, Level 4.1• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are • not supported. XVID, MPEG4 SP, ASP :• – Below 1280 x 720: 60 frame max – Above 1280 x 720: 30 frame max H.263 is not supported.• GMC 2 is not support. • Only Samsung Techwin MJEPG is supported.•

English

Supports up to WMA 7, 8, 9, STD• WMA 9 PRO does not support 2 channel excess multi • channel or lossless audio. WMA sampling rate 22050Hz mono is not supported.•

English

04 Advanced Features

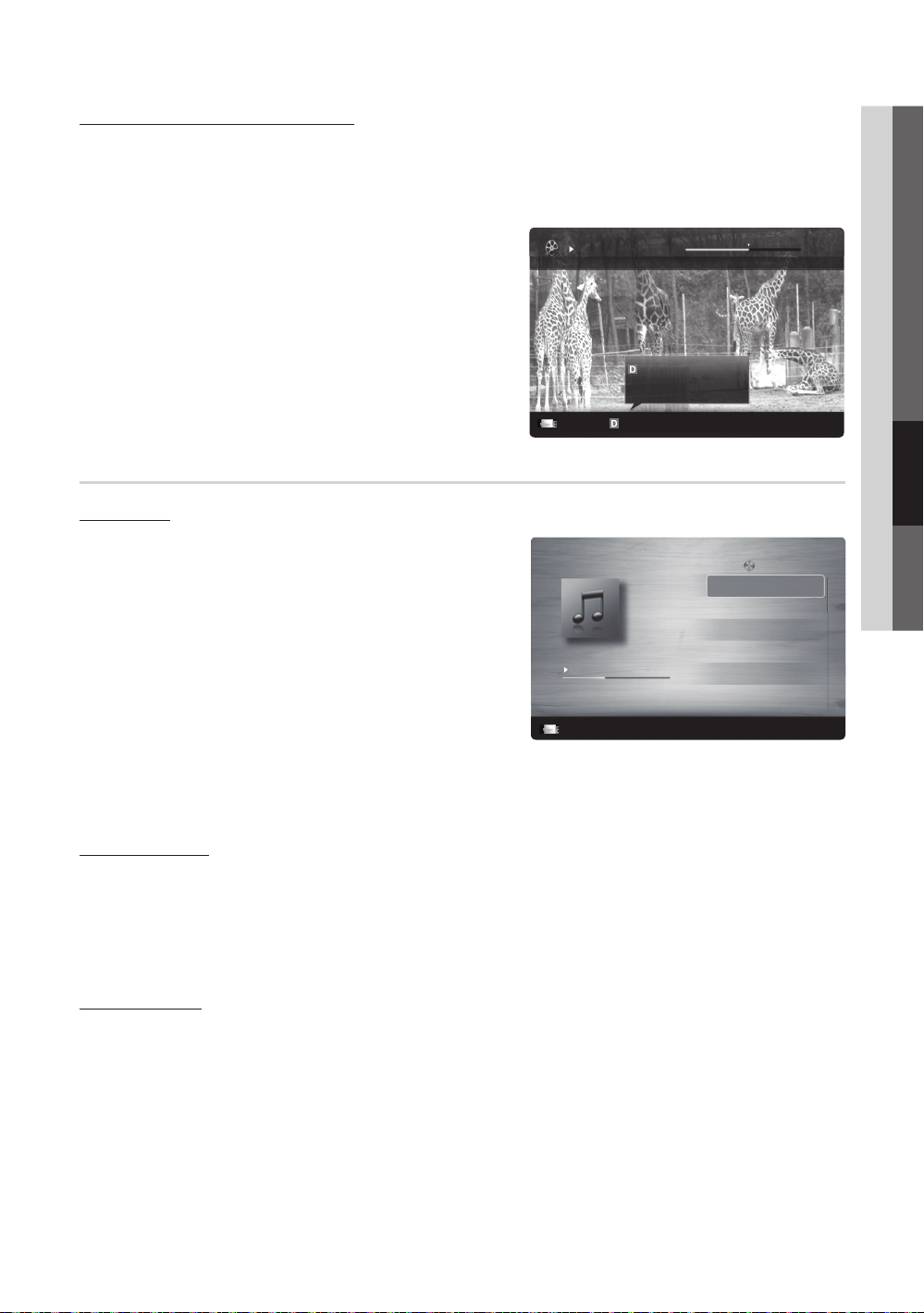

Playing movie continuously (Resume Play)

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

3/15

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

I Love You

Jhon

1st Album Pop 2010

4.2MB

01:10 / 04:02

SUM

If you exit the playing movie function, the movie can be played later from the point where it was stopped.

If you press the ✎ENTERE button (Chaptering) during playing the file, you can explore scene divided into 5 chapters you want.

If the index information is damaged or unsupported, you will not be able to use the ✎Chaptering function.

1. Select the movie ﬁle you want to play continuously by pressing the ◄ or ► button to select it from the ﬁle list section.

2. Press the  (Play) / ENTERE button.

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.

The Blue button is available when resuming play.

✎

If the ✎Continuous Movie Play Help function is set to On in the Settings menu, a pop-up message will appear when you resume play a movie file.

Play continuously

Resumes playing from the last viewed scene.

Play continuously E Chaptering

Jump T Tools R Return

Music

Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired Music in the

ﬁle list.

3. Press the ENTERE button or  (Play) button.

During music playback, you can search using the – ◄ and ► button.

� – (REW) and µ (FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other

✎

file extensions are not displayed, even if they are saved on the same USB device.

If the sound is abnormal when playing MP3 files, adjust the

✎

Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

Playlist

Pause L Jump T Tools R Return

Creating My Playlist

1. Press the ◄/►/▲/▼ button to select the tracks you want to add and press the TOOLS button.

2. Select Add My Playlist.

3. When the Add My Playlist menu appears, select New My Playlist.

To add to an old play list, simply select the play list you want to add music to.

✎

4. The newly created or updated playlist will be in the main Music page.

Playing My Playlist

Select the My Playlist folder and it will play automatically. Press the ▲ or ▼ button to select a different music ﬁle within the play list.

Advanced Features

1/1

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Image1024.jpg 1024x768 2010/2/1 3/15

SUM

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

Normal

ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired photo in the

ﬁle list.

3. Press the ENTERE button or  (Play) button.

While a photo list is displayed, press the –



(Play) /

ENTERE button on the remote control to start the slide

show. All ﬁles in the ﬁle list section will be displayed in the slide show. – During the slide show, ﬁles are displayed in order. –

Music files can be automatically played during the Slide Show if the ✎Background Music is set to On.

The ✎BGM Mode cannot be changed until the BGM has finished loading.

Playing Multiple Files ¦

Playing selected video/music/photo ﬁles

1. Press the Yellow button in the ﬁle list to select the desired ﬁle.

2. Repeat the above operation to select multiple ﬁles.

NOTE

✎

The xc

mark appears to the left of the selected files.

To cancel a selection, press the Yellow button again.

To deselect all selected files, press the xTOOLS button and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo ﬁle group

1. While a ﬁle list is displayed, move to any ﬁle in desired group.

2. Press the TOOLS button and select Play Current Group.

Videos

Change Device

Pause L Previous/Next T Tools R Return

2 les selected Page

Select Sorting T Tools

Media Play - Additional Functions ¦

Sorting the ﬁle list

Press the Blue button in the ﬁle list to sort the ﬁles.

Categories

PROFILE Widget

Set up user proﬁles through Proﬁle Widget. You can set up multiple proﬁles, each with its own list of widgets. Use the Switch Proﬁle option to switch to a different user proﬁle.

There must be at least two registered profiles. For

✎

instructions on adding a profile, refer to Administrative Controls.

Use the y Proﬁle Settings option to customize and protect your proﬁle.

User proﬁles can be – customized with a unique name and avatar (a picture used to represent your proﬁle).

Your proﬁle’s name and – avatar are displayed in the proﬁle snippet in the dock.

Protect your proﬁle using – the Create Proﬁle PIN option.

When setting up a new – PIN, you can set a Security Question.

The y Proﬁle Settings option limits access to the proﬁle’s widgets.

If you forget your Proﬁle PIN, answer your proﬁle’s – Security Question.

New widgets cannot be added to proﬁles with the – Limit Proﬁle indicator enabled.

Owner PIN must be set to use this feature.

✎

For instructions on setting Owner PIN, refer to

Administrative Controls.

System Settings y allows you to:

Change your – Location and Zip Code (US only) to tailor contents speciﬁc to your region.

Replay the tutorial that was shown during guided – setup.

Restore Factory Settings – resets all widget settings and information.

When you cannot run ✎Restore Factory Settings normally or you can not install/run the specific widgets normally, press the remote control buttons in the following sequence, which resets the Yahoo Service: POWER (on) → MUTE → 9 → 4 → 8 → EXIT → POWER (off ) → POWER (on) → YAHOO! (If Yahoo Service is displayed on T V Screen, You should stop the Yahoo Service using EXIT button in advance.).

From the y Administrative Controls menu you can:

Conﬁgure Screen Saver timeout to avoid screen – burn-in.

Create Owner PIN – and set a Security Question to control other proﬁles.

Create and conﬁgure a new proﬁle with a unique set – of widgets.

Delete an existing proﬁle. –

Sign into Yahoo! y Yahoo! ID.

If you have a – Yahoo! ID, you can access personalized content using Yahoo! TV widgets.

You will be automatically signed-in to all installed – Yahoo! TV widgets with your proﬁle’s Yahoo! ID.

If you do not have a Yahoo! account, visit "www. – yahoo.com" to create one.

You may not be able to log in with an ID created – through a Yahoo website in a country that does not support Internet@TV.

About Proﬁle Widget: Press the green button to view y a brief description of Proﬁle Widget, Copyright Policy, Terms of Service, and Privacy Policy.

from PROFILE Widget using your

Widget Gallery

Use Yahoo!® Widget Gallery to add more widgets to your TV. View available TV widgets in the following categories:

Featured ■ : Displays recomended widgets.

Latest ■ : Displays the most recent widgets.

All widgets ■ : Displays all widgets.

Categories ■ : Displays all widgets by category.

To install a widget, navigate to

✎

the detail screen and select Add Widget to My Profile and press ENTERE. The widget will be installed and become available in the dock.

Widget Gallery Settings ■ : Press the Green button.

About Yahoo! Widget Gallery... – : You can view brief

information for the Widget Gallery, Copyright Policy, Terms of Service, and Privacy Policy.

TV Widget Software – : Displays the current version of the system software, and installed widgets.

Create your own widgets through the – Developer Settings menu. For more information, visit our developer site at http://connectedtv.yahoo.com/.

English

04 Advanced Features

Troubleshooting ¦ for Internet@TV

Problem Possible Solution

Some application contents only have English. How can I change the language?

Some application services do not work. Check with the service provider.

When a network error occurred, I can not use other menus except setting menu.

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE DEVICE IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE AND ACCURACY IS WITH YOU. THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE DEVICE AND ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY, OF QUIET ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT WARRANT THAT THE DEVICE, CONTENT OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF THE DEVICE, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or service made available through this device. Samsung may impose limits on the use of or access to certain services or content, in any case and without notice or liability. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

The Widget content language may be different from the widget user interface language.

It depends on service provider.

Refer to the help website for application service provider information.

If network connection does not work, your service might be limited, as all functions except the setting menu are needed to connect to the Internet.

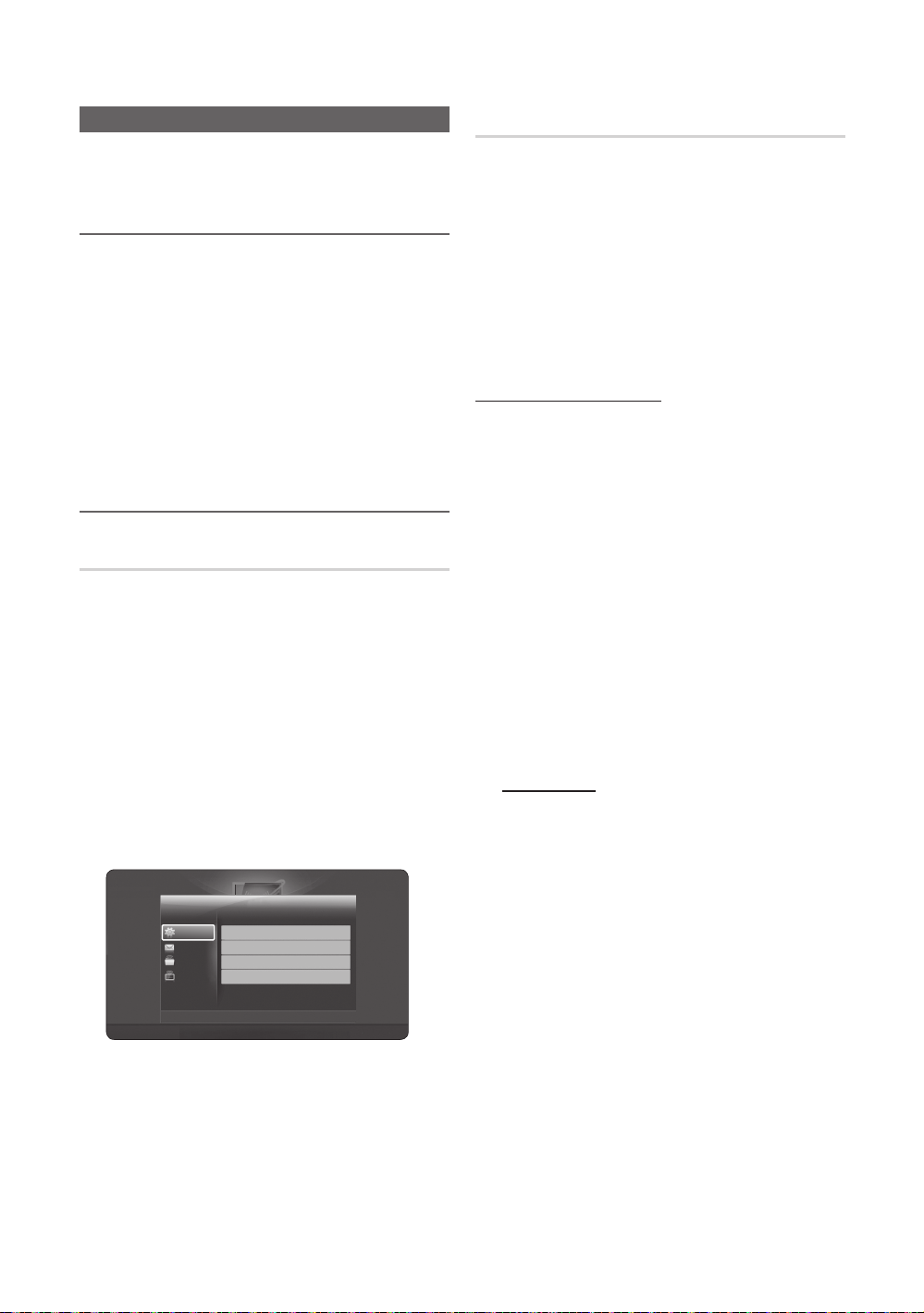

Advanced Features

AllShare

3/7

AllShare

O m

AllShare → ENTER

→ Application → Content View →

About AllShare ¦

AllShare connects your TV and compatible Samsung mobile

phones/devices through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV for browsing web pages in your mobile phones.

For more information, visit “www.samsung.com” or

✎

contact the Samsung call center. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide.

Setting Up AllShare ¦

Setup

Message (On / Off) ■ : Enables or disables the message

function (for call arrivals SMS messages and schedules set on your mobile phones).

Media (On / Off) ■ : Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare.

ScreenShare (On / Off) ■ : Enables or disables the ScreenShare function for using mobile phone as a remote control.

TV name ■ : Sets the TV name so you can ﬁnd it easily on a mobile device.

If you select ✎User Input, you can type on the TV using the OSK (On Screen Keyboard).

Setup

Messange : On

Media : On

Messange

Media

ScreenShare : On

TV name : Home TV

ScreenShare

Message / Media / ScreenShare

Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message, Media, or ScreenShare function.

The ✎Media function is available in all mobile devices which support AllShare.

Allowed / Denied ■ : Allows/Blocks the mobile phone.

Delete ■ : Deletes the mobile phone from the list.

This function only deletes the name of the mobile

✎

from the list. If the deleted mobile device is turned on or trieds to connect to the TV, it may appear on the list again.

Using the Message Function

Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV.

NOTE

✎

To disable the alarm window, set xMessage to Off in Setup of AllShare.

If xOK is selected, or if OK is not selected after the message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone.

The alarm window can be displayed while using

some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode.

When a message from an unknown mobile phone is

displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone.

Message View

If a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed.

You can configure the viewing settings for SMS

✎

messages on your mobile phones. For the procedures, refer to the mobile phone manual.

Some types of characters may be displayed as

✎

blank or broken characters.

English

Select R Return e Exit

Setup R Return

English

04 Advanced Features

Call Arrival Alarm

My Mobile

Contacts Calendar Doc viewer

If a call arrives while you are watching TV, the alarm window appears.

Schedule Alarm

While you are watching TV, the alarm window appears to display the registered event.

You can configure viewing settings for schedule

✎

contents on your mobile phones. For the procedures, refer to the mobile phone manual.

Some special characters may be displayed as

✎

blank or broken characters.

Using the Media Function

An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played.

NOTE

✎

If the media function executes for the first time,

the warning popup windows appears. Press the

ENTERE button to select Allow, then you can use

Media function on that device.

"Unknown Device 0" is requesting that the media ﬁle be allowed to play. If you wish to allow the media ﬁle to be played at your device, please press "Allow", otherwise press "Deny". You can also change the setting (or resetting) of this feature at "AllShare Setup".

Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content's appropriateness, we strongly recommend that you do not "Allow" the request to play.

Allow

Deny

Using ScreenShare Function

Using ScreenShare, you can browse various web contents provided by the mobile phone. For example, the image below displays an access page for contents on a mobile.

You can read the mobile’s ﬁles and view the phone book and calendar on the TV. Also, in the phone book, you can make a call to another person, or send to SMS.

NOTE

✎

You must have ScreenShare installed on your

Samsung Mobile phone/device to use this feature.

Doc Viewer x can read files in doc format, but cannot

modify them. The screen display may differ depending on the

connected device.

E Select C Return

Using your Samsung Phone to Operate Your TV

Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, are supported.

Even if you keep pressing down on a control button

✎

(channel or volume) on the mobile phone the value will only go up or down by one unit.

y, z

and MUTE buttons

To turn off the media contents transmission from

the mobile phone, set Media to Off in the AllShare setup.

Contents may not be played on your TV depending

on their resolution and format. The xENTERE and ◄ / ► buttons may not work

depending on the type of media content. Using the mobile device, you can control the media

playing. For details, refer to each mobile’s user’s guide.

When you want to play media contents from

your PC, select the PC icon on the main display of AllShare. Then the TV’s Media Play menu automatically changes. For more detail information, refer to Media Play. (P. 31)

Other Information

Assembling the Cables

Enclose the cables in the Cable tie so that the cables are not visible through the transparent stand.

Overly rigid or thick cables can damage input jacks over long term use.

Cable tie

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically ﬁx the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

Please find a “ ✎K” icon on the rear of the TV. A kensington slot is beside the “K” icon.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as desk or chair.

2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product (1).

4. Lock the lock.

These are general instructions. For exact instructions, see the User

✎

manual supplied with the locking device.

The locking device has to be purchased separately.

✎

The location of the Kensington slot may be different depending on the T V model.

✎

English

05 Other Information

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Blanking Bracket

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount items. Contact a

technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Speciﬁcations (VESA)

The wall mount kit is not supplied, but sold separately.

✎

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

✎

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

depending on the wall mount specifications. Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal

injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions. Do not mount the TV at more than a 15 degree tilt.

Always use two people to mount the T V to a wall.

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

75 X 75

100 X 100

LCD-TV

19~22

23~29 200 X 100 30~40 200 X 200 M6 46~55 400 X 400 57~65 600 X 400 70~80 800 X 400

80~ 1400 X 800

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Other Information

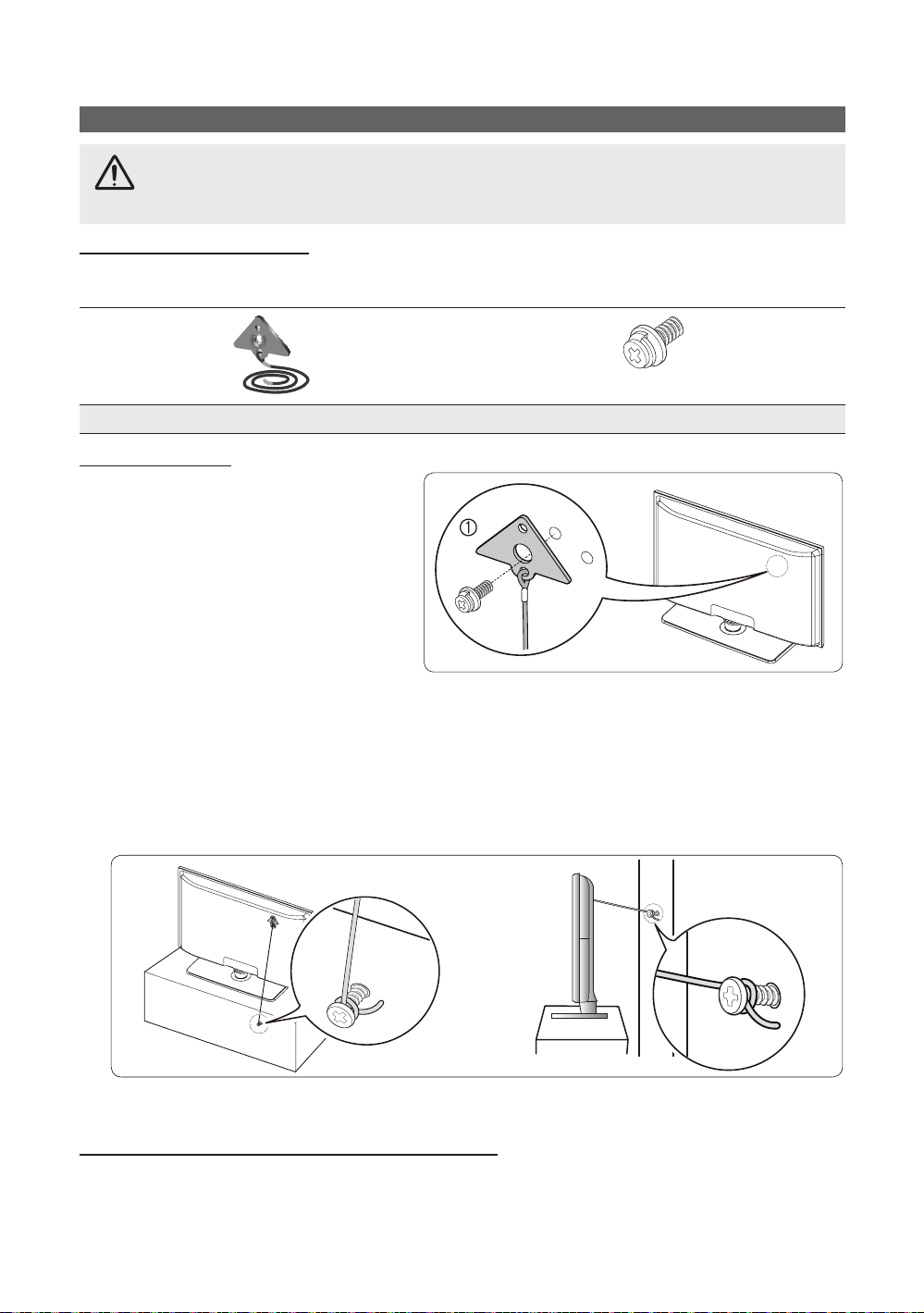

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device as described below.

The TV-Holder Kit (Sold Separately)

The parts below are included in the TV Holder kit. In addition, you need to provide a wood screw, screw and molly, or other screw appropriate for the wall or cabinet you intend to secure the TV-Holder string to. We recommend a size M4xL20 wood screw.

(M6 X 16)

TV-Holder (BN96-15753A)

Installing the TV-Holder

1. Remove the screw attached to the back of your

TV, and then connect the TV-Holder to the TV with the screw included in the TV Holder Kit that is designated for your TV.

Make sure to use only the appropriate

✎

supplied screw. If you use a different screw, you can damage your T V.

2. Firmly fasten the screw you provided (size M4xL20 or similar) to the wall or cabinet where the TV is to be installed.

If you fasten the screw to the wall, we recommend you drive the screw into a stud. If that is not possible, use a

✎

molly to anchor the screw.

3. Tie the TV-Holder cord to the screw fastened to the wall or cabinet so that the TV is ﬁxed. See the illustrations below.

Install the TV close to the wall so that it does not fall.

✎

When attaching the TV Holder cord to the wall, tie the cord level with the ground or slanted downwards for safety purposes.

✎

Check the cord occasionally to make sure it is secure.

✎

Before moving the TV, separate the connected cord first.

✎

Screw 1

Wall

4. Verify all connections are properly secured. Periodically check the connections for any sign of fatigue or failure. If you have any doubt about the security of your connections, contact a professional installer.

To purchase the TV-Holder Kit, contact Samsung Customer Care

– In the United States: 1-800-Samsung (1-800-726-7864) – In Canada: 1-800-Samsung (1-800-726-7864)

English

05 Other Information

Troubleshooting

If the TV seems to have a problem, ﬁrst try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit samsung.com, then click on Support, or call Samsung customer service at 1-800-SAMSUNG.

Issues

Poor picture First of all, please perform the Picture Test and conﬁrm that your TV is properly displaying test image.

The TV image does not look as good as it did in the store.

The picture is distorted: macroblock error, small block, dots, pixelization.

Color is wrong or missing. If you’re using a component connection, make sure the component cables are connected to the •

There is poor color or brightness. Adjust the Picture options in the TV menu. •

There is a dotted line on the edge of the screen.

The picture is black and white. If you are using an AV composite input, connect the video cable (yellow) to the Green jack of •

When changing channels, the picture freezes or is distorted or delayed.

Sound Problem First of all, please perform the Sound Test to conﬁrm that your TV audio is properly operating.

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound.

The speakers are making an inappropriate noise.

Solutions and Explanations

go to • MENU - Support - Self Diagnosis - Picture Test (P. 22)

If the test image is properly displayed, the poor picture may be caused by the source or signal.

If you have an analog cable/satellite box, upgrade to a digital set top box. Use HDMI or • Component cables to deliver HD (high deﬁnition) picture quality.

Cable/Satellite subscribers: Try HD stations from the channel line up.•

Air/Cable Antenna connection: Try HD stations after performing Auto program.•

Many HD channels are upscaled from SD(Standard Deﬁnition) contents.

✎

Adjust the Cable/Sat box video output resolution to 1080i or 720p.•

Compression of video contents may cause picture distortion, especially in fast moving pictures • such as sports and action movies.

Low signal level can cause picture distortion. This is not a TV problem.•

Mobile phones used close to the TV (up to 3.3 ft) may cause noise in picture on analog and • digital TV.

correct jacks. Incorrect or loose connections may cause color problems or a blank screen.

(go to Picture mode / Color / Brightness / Sharpness) (P. 14)

Adjust • Energy Saving option in the TV menu (go to MENU - Picture - ECO Solution - Energy Saving) (P. 14)

Try resetting the picture to view the default picture setting. • (go to MENU - Picture - Picture Reset) (P. 16)

If the picture size is set to • Screen Fit, change it to 16:9.

Change cable/satellite box resolution.•

component input 1 on the TV.

If connected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable • box reboots. It may take up to 20 minutes)

Set output resolution of cable box to 1080i or 720p.•

go to • MENU - Support - Self Diagnosis - Sound Test (P. 22)

If the audio is OK, the sound problem may caused by the source or signal.

Please check the volume the of device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV. •

Set the • Speaker Select option to TV speaker in the Sound menu. (P. 17)

If you are using an external device, check the device’s audio output option (ex. you may need to • change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).

If you are using a DVI to HDMI cable, a separate audio cable is required.•

Reboot the connected device by reconnecting the device’s power cable.•

Check the cable connections. Make sure a video cable is not connected to an audio input.•

For Antenna or Cable connections, check the signal information. Low signal level may cause • sound distortion.

Perform the • Sound Test as explained above.

Other Information

Issues

No Picture, No Video

The TV will not turn on. Make sure the AC power cord is securely plugged in to the wall outlet and the TV.•

The TV turns off automatically. Ensure the • Sleep Timer is set to Off in the Setup menu. (P. 18)

There is no picture/video. Check cable connections. (remove and reconnect all cables connected to the TV and external •

RF(Cable/Antenna) Connection

The TV is not receiving all channels. Make sure the coaxial cable is connected securely.•

No Caption on digital channels. Check Caption Setup menu. Try changing • Caption Mode Service 1 to CC1. (P. 20)

The picture is distorted: macroblock, error, small block, dots, pixelization.

PC Connection

A “Mode Not Supported” message appears.

“PC” is always shown on the source list, even if a PC is not connected.

The video is OK but there is no audio. If you are using a HDMI connection, check the audio output setting on your PC.•

Network Connection

The wireless network connection failed. Samsung Wireless USB dongle is required to use a wireless network.•

Software Upgrade over the network fails.

Others

Purple/green rolling horizontal bars and buzzing noise from the TV speakers with Component cable connection.

The picture will not display in full screen.

Solutions and Explanations

Make sure the wall outlet is working.• Try pressing the • POWER button on the TV to make sure the problem is not the remote.

If the TV turns on, refer to ‘Remote control does not work’ below.

If your PC is connected to the TV, check your PC power settings.• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.• When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 •

minutes if there is no signal.

devices). Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the •

connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

Make sure your connected devices are powered on.• Be sure to select the TV’s correct source by pressing the • SOURCE button on the remote

control. Reboot the connected device by reconnecting the device’s power cable.•

Please try • Auto Program to add available channels to the channel list. go to MENU - Channel - Auto Program then select Auto and make sure correct Cable TV signal type is set in the menu. There are 3 options. (STD, HRC and IRC) (P. 12)

Verify the Antenna is positioned correctly.•

Some channels may not have caption data.•

Compression of video contents may cause picture distortion. especially on fast moving pictures • such as sports and action movies.

A low signal can cause picture distortion. This is not a TV problem.•

Set your PC’s output resolution so it matches the resolutions supported by the TV.•

This is normal; “PC” is always shown on the source list, regardless of whether a PC is • connected.

Make sure the Network Connection is set to • Wireless. (P. 26) Make sure the TV is connected to a wireless IP sharer (Router).•

Try network test in • Setup menu. (P. 25, 27) If you have latest SW version, SW upgrade will not proceed.•

Remove the left and right audio connections from the set-top-box. If the buzzing stops, this • indicates that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI connection.

HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) • contents.

Black bars on Top & Bottom will be shown on movies that have aspect ratios different from your • T V.

Adjust picture size option on your external device or TV to full screen.•

English

05 Other Information

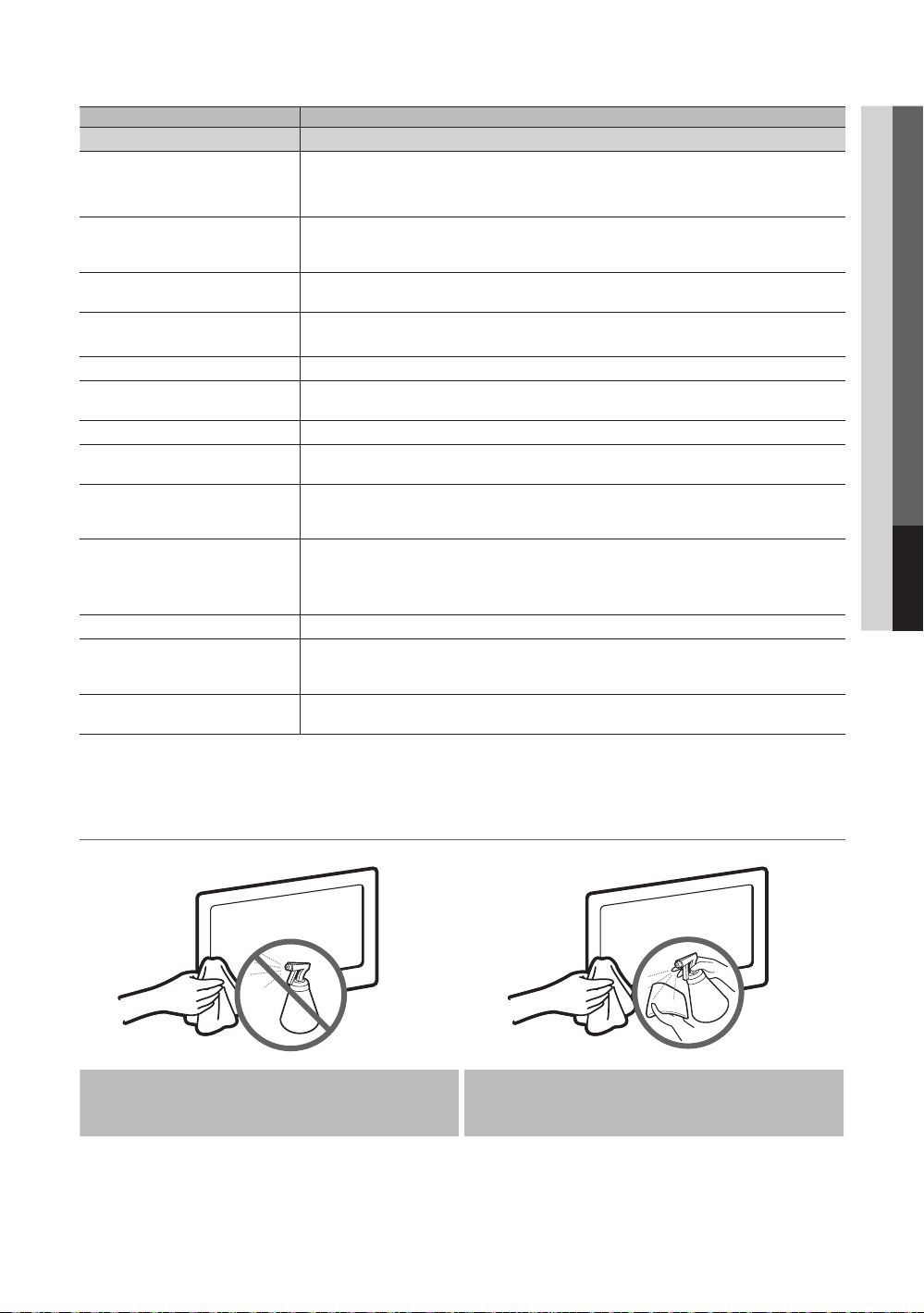

Issues

Others

The remote control does not work. Replace the remote control batteries with correct polarity (+/–).•

The cable/set top box remote control does not turn the TV on or off, or adjust the volume.

A “Mode Not Supported” message appears.

Caption on TV menu is greyed out. Caption• can not be selected in the TV menu when connected via HDMI or Component.

There is a plastic smell from the TV. This smell is normal and will dissipate over time.•

TV Signal information is unavailable in the Self Diagnosis Test menu.

TV is tilted to right or left side. Remove the stand base from TV and reassemble it.•

The Channel menu is greyed out (unavailable).

Your settings are lost after 30 minutes or every time TV is turned off.

You have intermittent loss of audio or video.

The PIP menu is not available. PIP functionality is only available when you are using a HDMI, PC or components source.•

You see small particles when you look closely at the edge of the frame of the TV.

POP (TV’s internal banner ad) appears on the screen.

Solutions and Explanations

Clean the transmission window located on the top of the remote.•

Try pointing the remote directly at the TV from 5~6 feet away.•

Program the Cable/Sat remote control to operate the TV. Refer to Cable/Sat user manual for • SAMSUNG TV code.

Check the supported resolution of the TV and adjust the external device’s output resolution • accordingly. Refer to resolution settings in this manual.

Caption• must be activated on the external device.

This function is only available with digital channels from an Antenna / RF/Coax connection. • (P. 22)

The • Channel menu is only available when the TV source is selected.

If TV is in the • Store Demo mode, it will reset audio and picture settings every 30 minutes. Please change from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the

SOURCE button to select TV mode, go to MENU → Setup → Plug & Play → ENTERE.

Check the cable connections and reconnect them.•

Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables • are ﬂexible enough for long term use. mounting the TV to the wall, we recommend using cables with 90 degree connectors.

This is part of the product’s design and is not a defect.•

Select • Home Use under Plug & Play mode. For details, refer to Plug & Play (Initial Setup). (P. 7)

This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,

✎

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Storage and Maintenance ¦

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a

failure, re, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water.

Other Information

Speciﬁcations

Display Resolution 1920 x 1080

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right) -20˚ ~ 20˚

Model Name LN40C560

Screen Size (Diagonal)

Sound Output 10 W X 2

Dimensions (WxDxH) Body

With stand

Weight Without Stand With Stand

Design and specifications are ✎ subject to change without prior notice. This device is a Class B digital apparatus.

✎

For information about power supply ✎, and more about power consumption, refer to the label attached to the product.

License ¦

50°F to 104°F (10°C to 40°C)

10% to 80%, non-condensing

-4°F to 113°F (-20°C to 45°C) 5% to 95%, non-condensing

40 inches

(40.0 inches measured diagonally)

38.6 X 3.2 X 23.5 inches

(980.2 X 80.3 X 597 (mm))

38.6 X 10 X 26 inches

(980.2 X 255 X 660.9 (mm))

32.6 Ibs (14.8 kg)

40.8 Ibs (18.5 kg)

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DivX Certiﬁed to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an ofﬁcial DivX Certiﬁed device that plays DivX video. Visit www.divx.com for more information and software tools to convert your ﬁles into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed® device must be registered in order to play DivX Video-onDemand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under license from SRS Labs, Inc.

Open source license notice

In the case of using open source software, Open Source Licenses are available on the product menu.

English

05 Other Information

Dimensions

Front view / side view ■

Model name

1 2 3 4 5 6 7 8

LN40C560 38.6 35 19.7 20.5 23.5 26 3.2 10

Jack panel detail / rear view ■

(Unit: inches)

Model name

1 2 3 4 5 6

LN40C560 13.2 3.7 4.0 27.6 7.9 7.9

NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.

Other Information

Index

AllShare 48 Antenna 7 Anynet+ 38

AUDIO OUT 9

Auto Adjustment 14 Auto Program 12

Blanking Bracket 51 Balance 17

Cables 10 Cable Tie 50 Caption 20 Clear Scrambled Channel 12 Clear Voice 17 Component 8 Composite 10

HD 16 HDMI 8 Home theater 9, 38

Internet Protocol Setup 28 Internet@TV 41

License 56

Media Play 31 Melody 21 Menu Language 20 MP3 Play 35 MTS 6, 17

Device List 39

DIGITAL AUDIO OUT 9, 38

DST (Daylight Saving Time) 18 D-sub 9 DVD home theater 9 Dynamic Contrast 15

Network Connection 24 Network Setup 25

ON/OFF button 6

Optimal resolution 10

Editing channels 12 Energy Saving 14 Equalizer 17 External Speaker 17

Photo view 36 Picture Reset 16 PIN number 19 PIP 22 Position 14 Power Indicator 5

FAV.CH button 6, 12

Favorite Channel 12

Remote Control 6 RGB 15

Screen Fit 16 Sleep Timer 18 Slide Show 36 Software Upgrade 23 Source List 10 Speaker Select 17 Standby mode 5 Supported Subtitle Formats 33 Supported Video Formats 34

Timer 18

Video play 33 Volume 5, 6, 18

Wall Mount 51 White Balance 15 Wide Fit 16 Widget 45 Wireless 26

xvYCC 15

English

This page is intentionally

left blank.

Samsung LN40C560J2FXZA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
