SERVICE

LN32C550J1M(FHD) LN40C550J1M(FHD) LN46C550J1M(FHD)

Manual

TFT-LCD TV Contents

LN22C450E1M/LN26C450E1M/LN32C450E1M LN32C530F1M/LN37C530F1M/LN40C530F1M/

LN46C530F1M/LN52C530F1M

LN32C550J1M/LN40C550J1M/LN46C550J1M

1. Precautions

2. Product specications

3. Disassembly and Reassembly

4. Troubleshooting

5. Exploded View & Part List

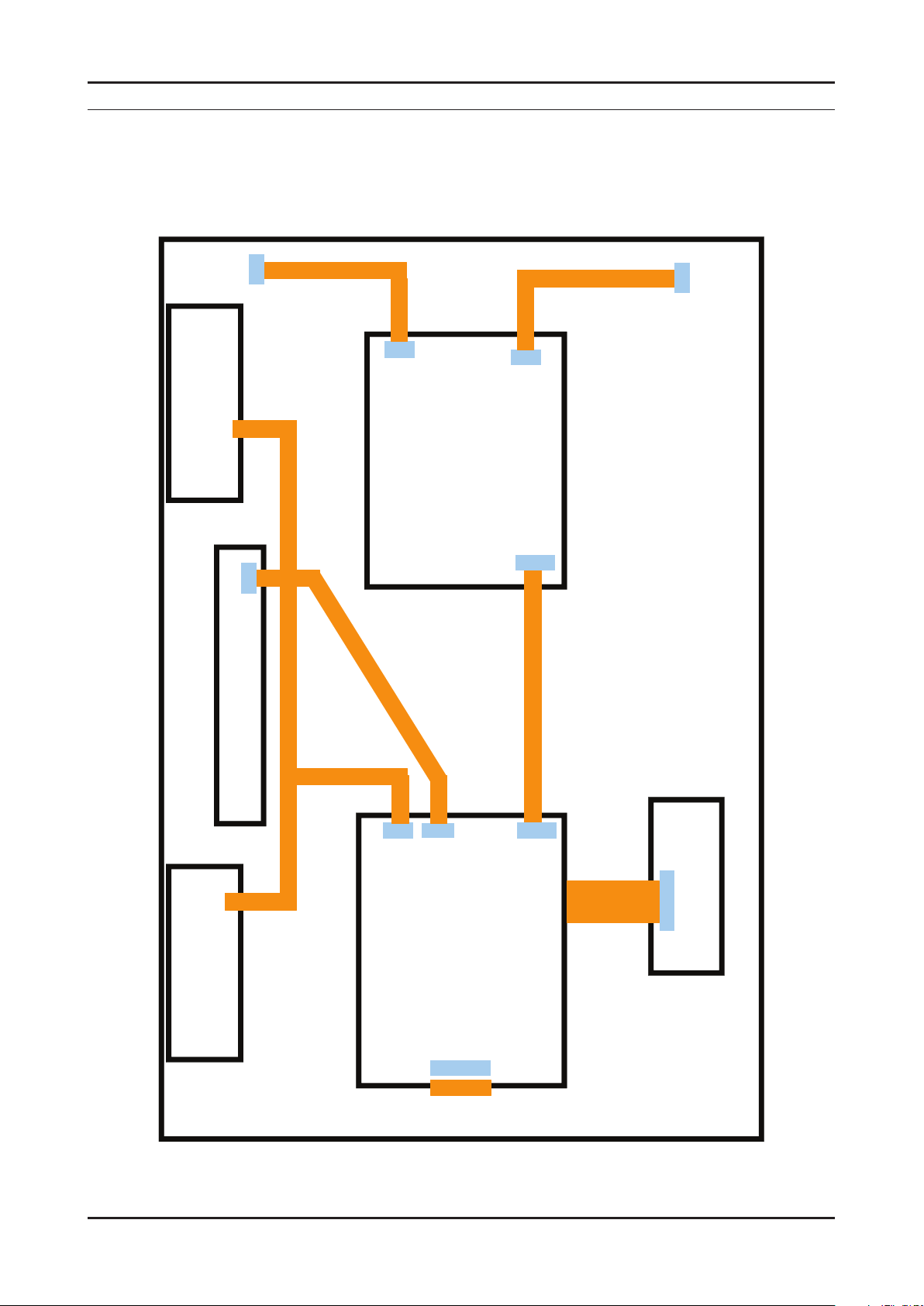

6. Wiring Diagram

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Contents

1. Precautions .............................................................................................................. 1-1

1-1. Safety Precautions ......................................................................................................... 1-1

1-2. Servicing Precautions .....................................................................................................1-2

1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2

1-4. Installation Precautions .................................................................................................. 1-3

2. Product specications ............................................................................................ 2-1

2-1. Feature & Specications ................................................................................................. 2-1

2-2. Specication Comparison to Old Models ...................................................................... 2-14

2-3. Accessories .................................................................................................................. 2-15

3. Disassembly and Reassembly ............................................................................... 3-1

3-1. Disassembly and Reassembly ....................................................................................... 3-1

4. Troubleshooting ...................................................................................................... 4-1

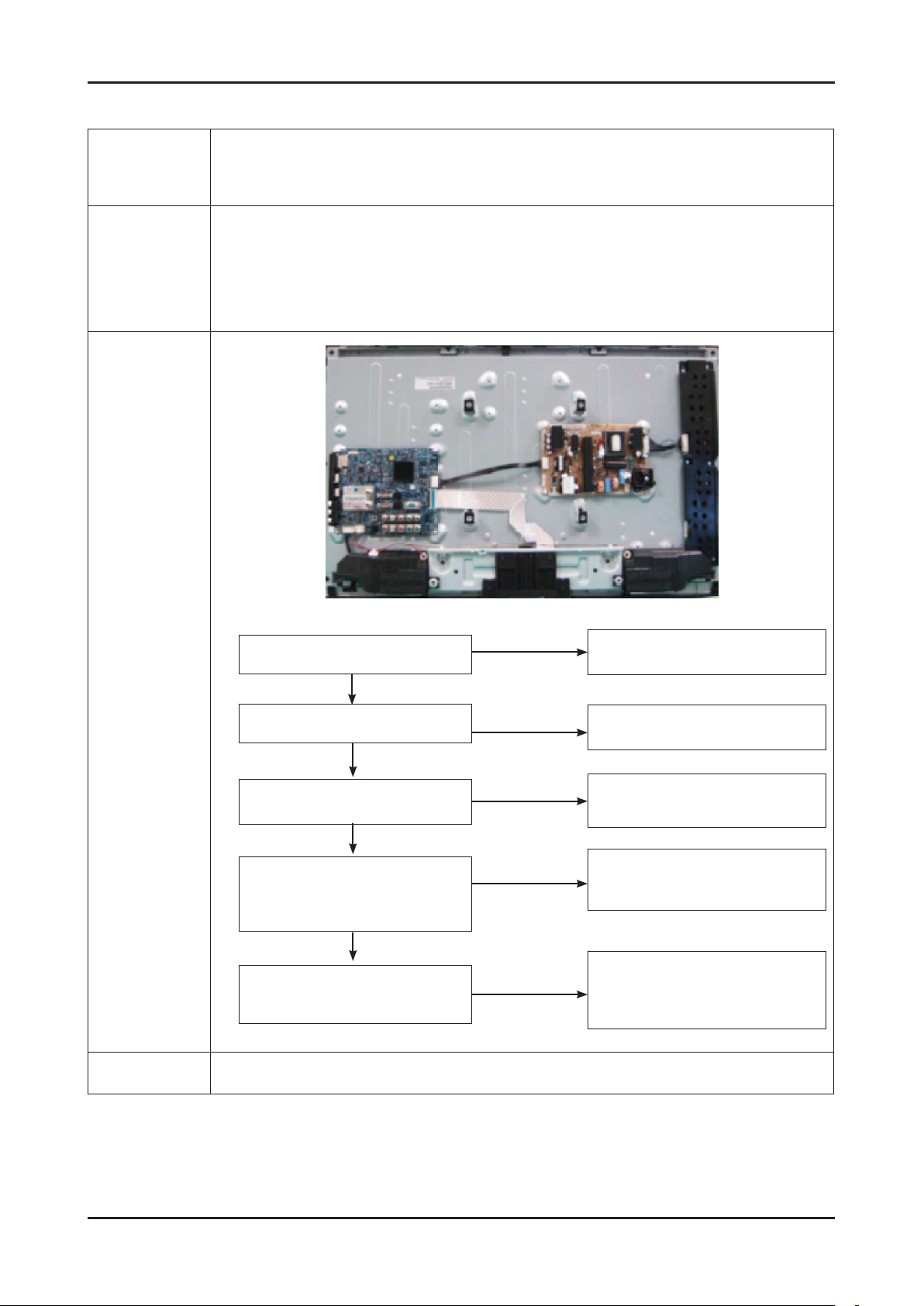

4-1. Troubleshooting .............................................................................................................. 4-1

4-2. Alignments and Adjustments ........................................................................................ 4-14

4-3. Factory Mode Adjustments ........................................................................................... 4-15

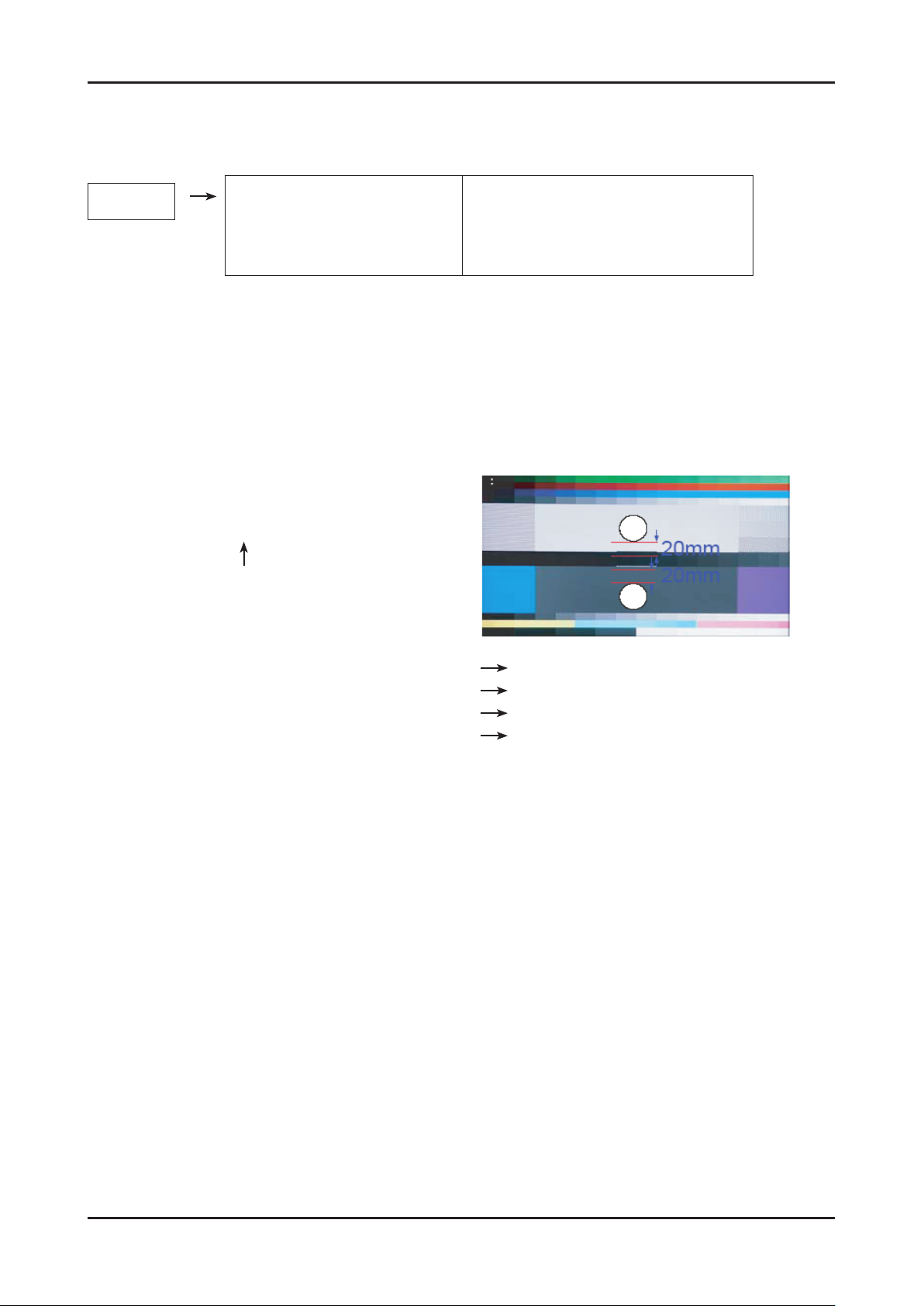

4-4. White Balance - Calibration .......................................................................................... 4-25

4-5. White Ratio (Balance) Adjustment ................................................................................ 4-27

4-6. Servicing Information .................................................................................................... 4-28

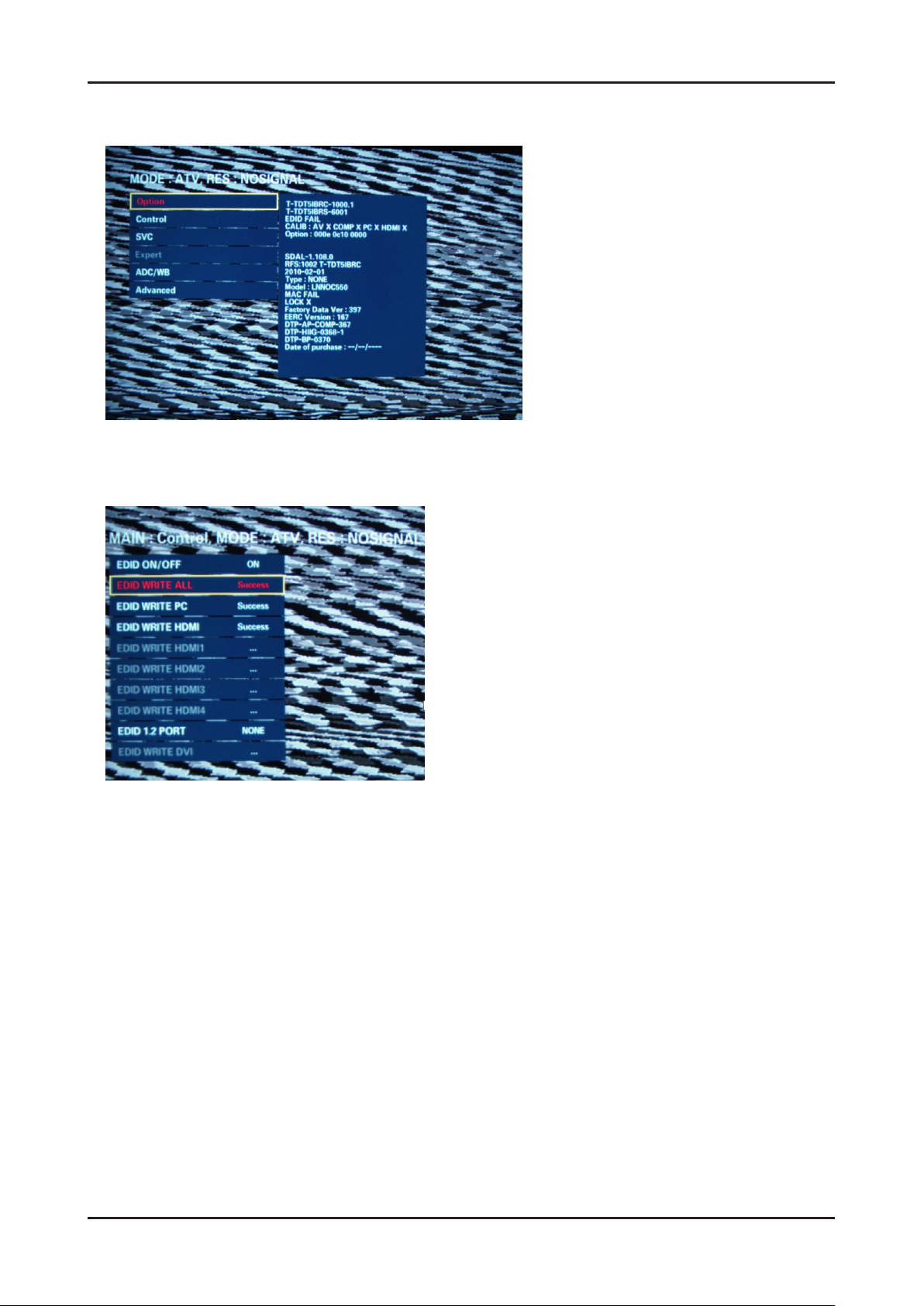

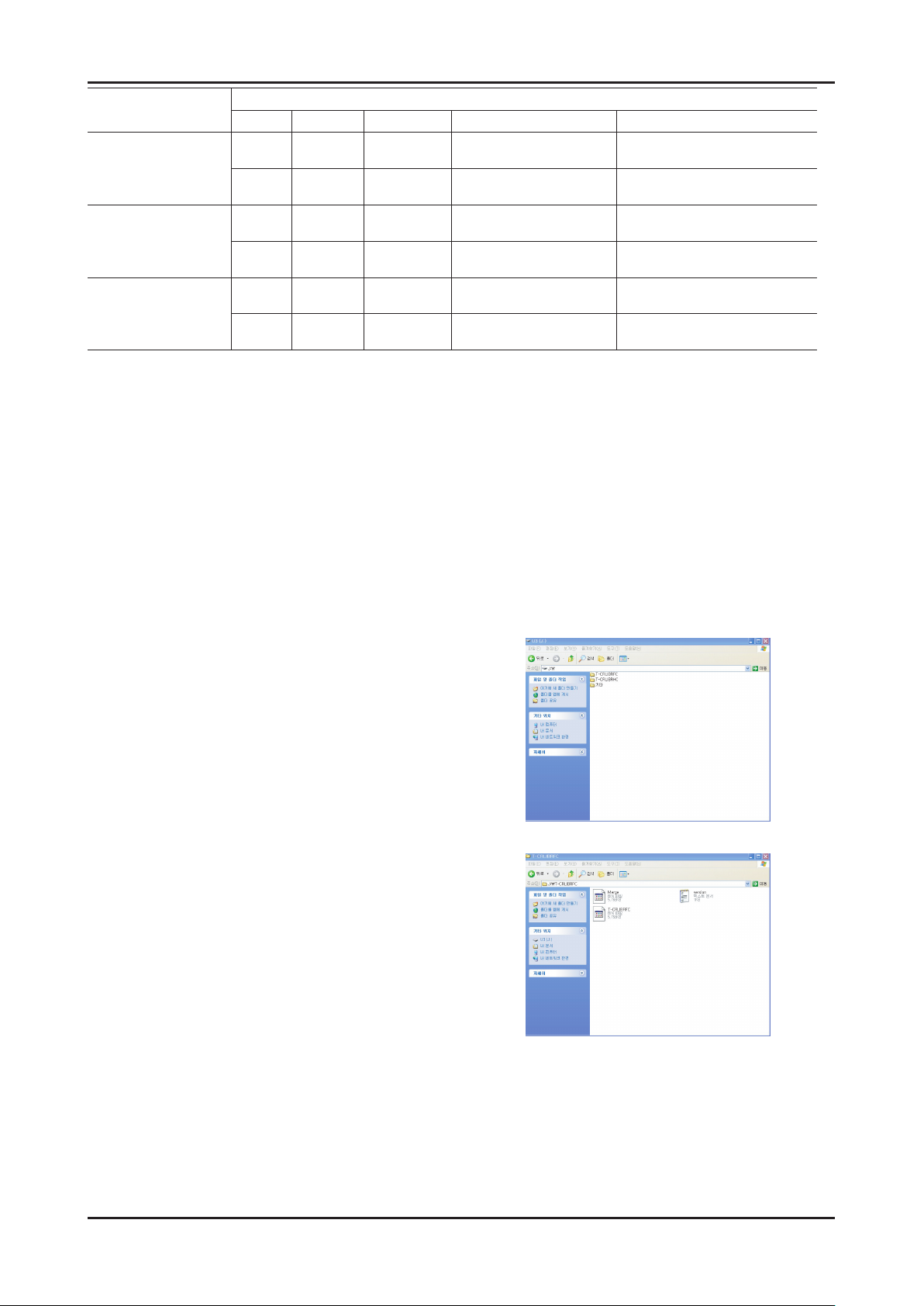

4-7. EDID Self-Write Method ............................................................................................... 4-30

5. Exploded View & Part List ...................................................................................... 5-1

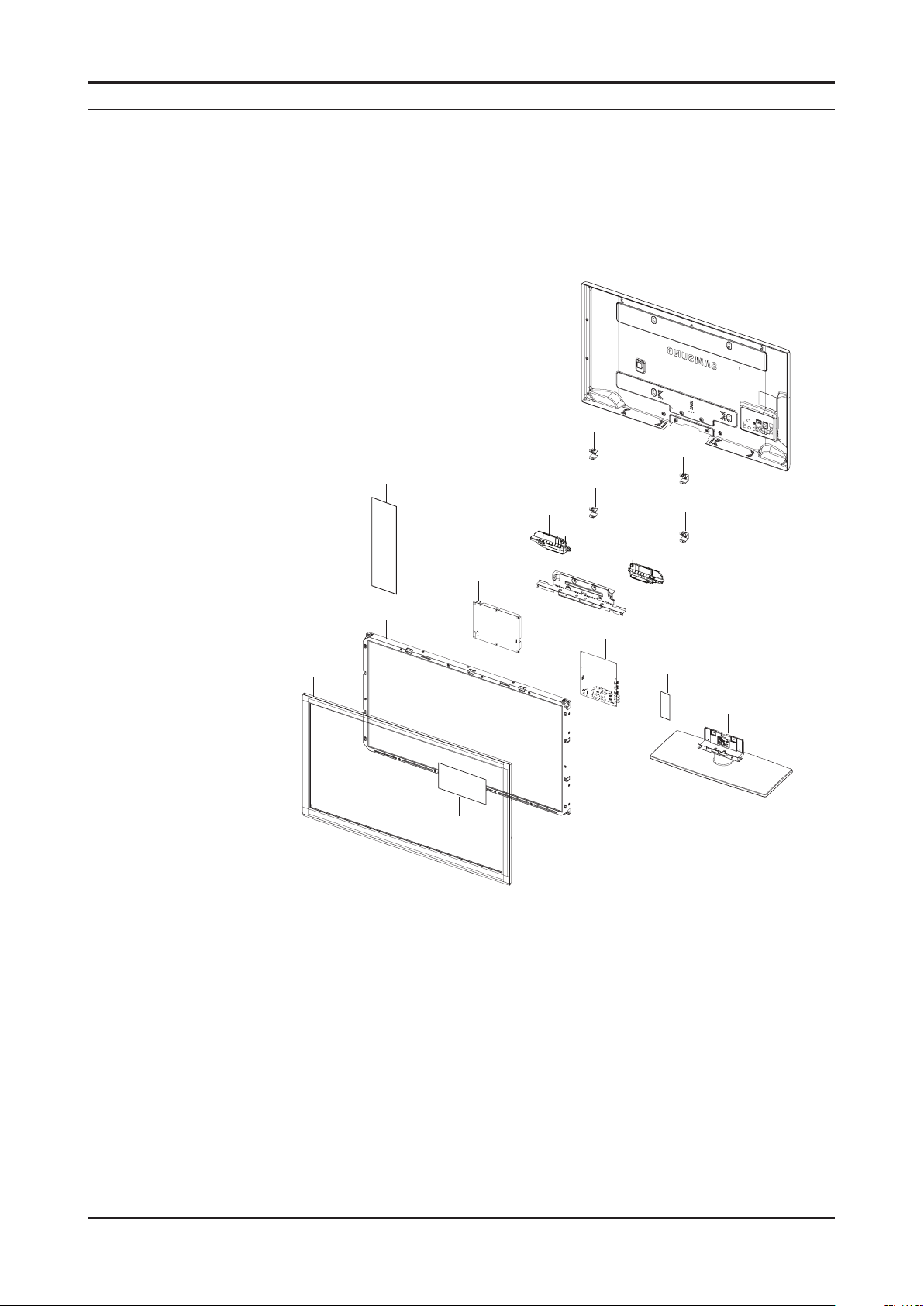

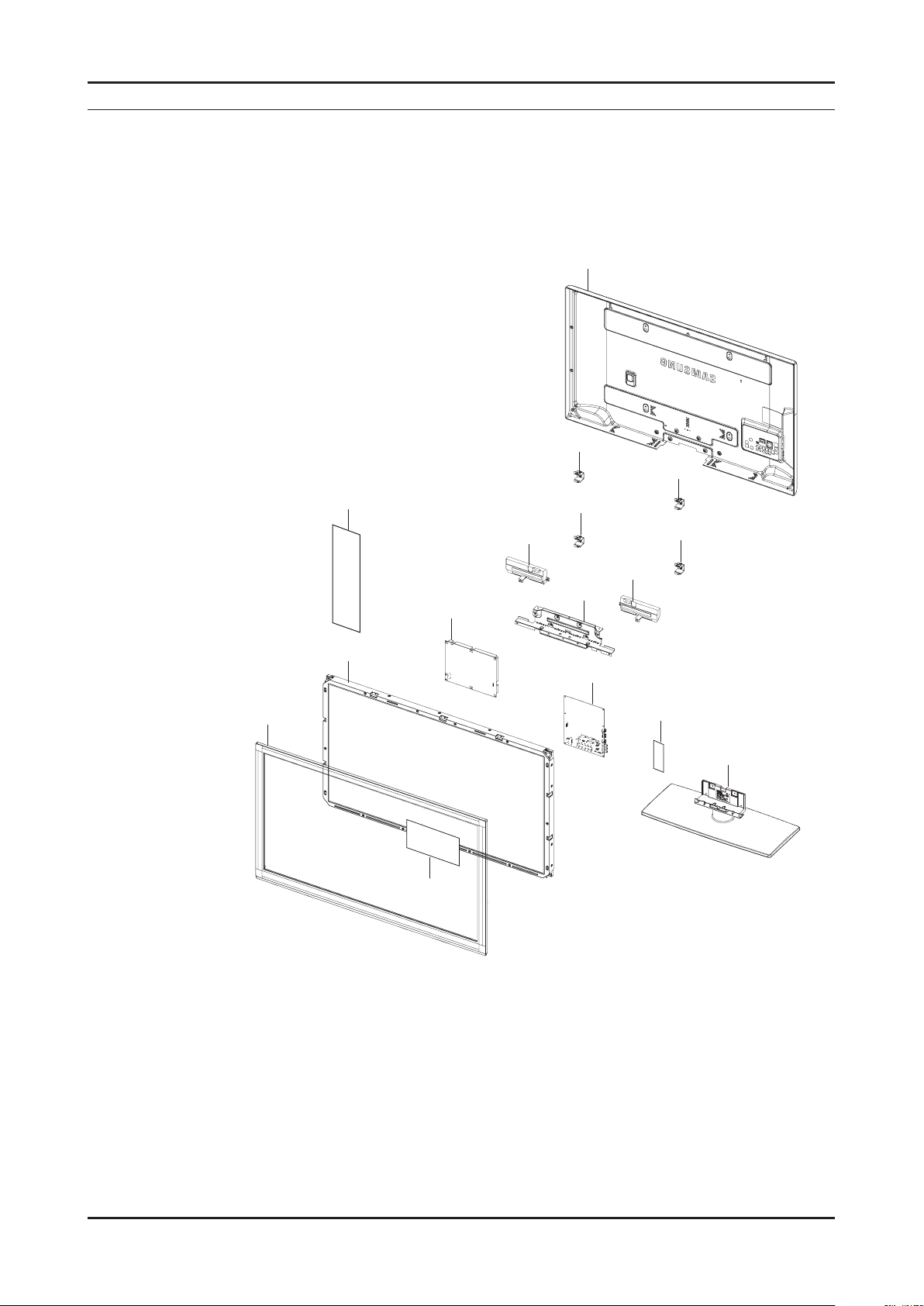

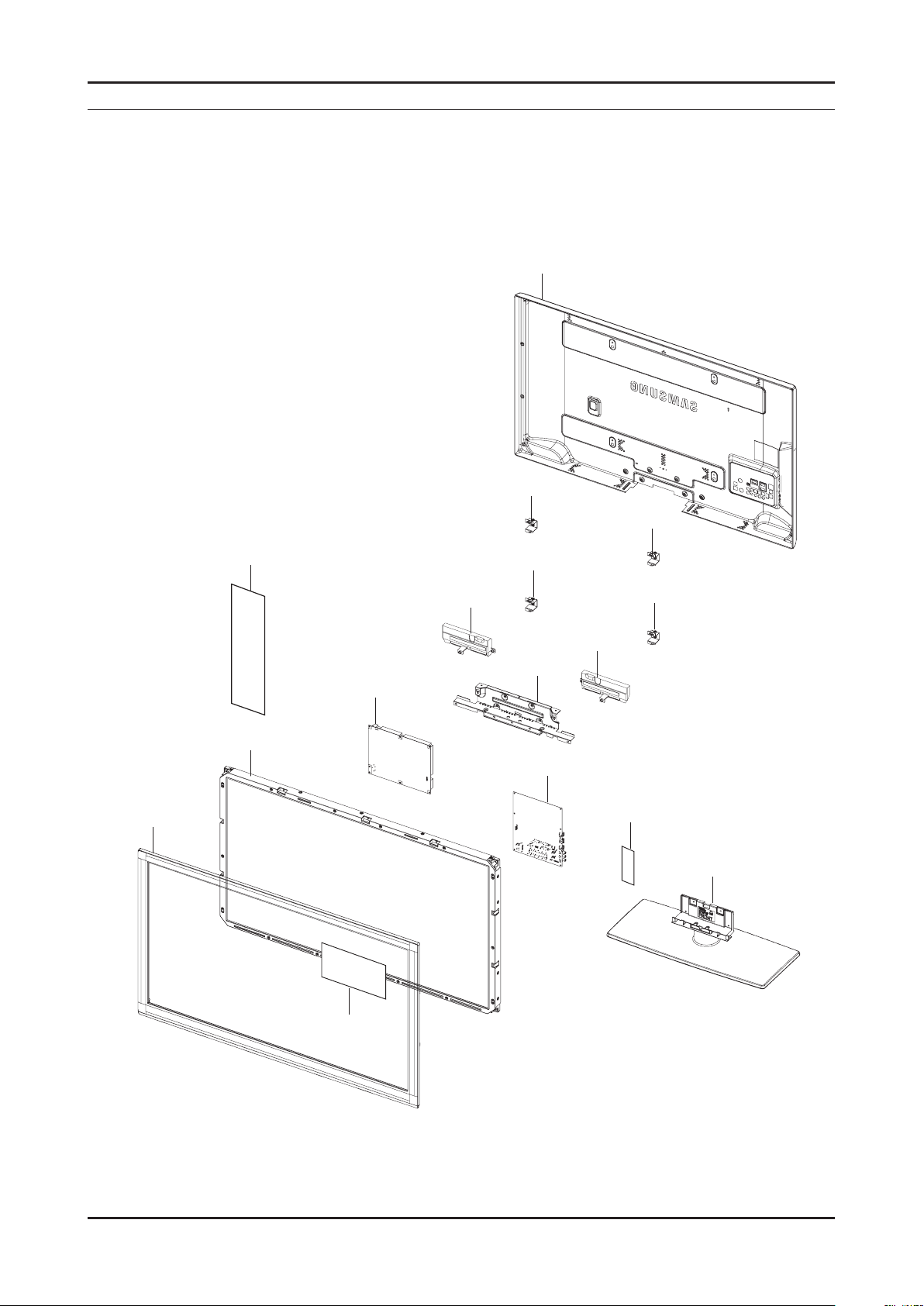

5-1. LExploded View .............................................................................................................. 5-1

5-2. Parts List ......................................................................................................................... 5-2

6. Wiring Diagram ........................................................................................................ 6-1

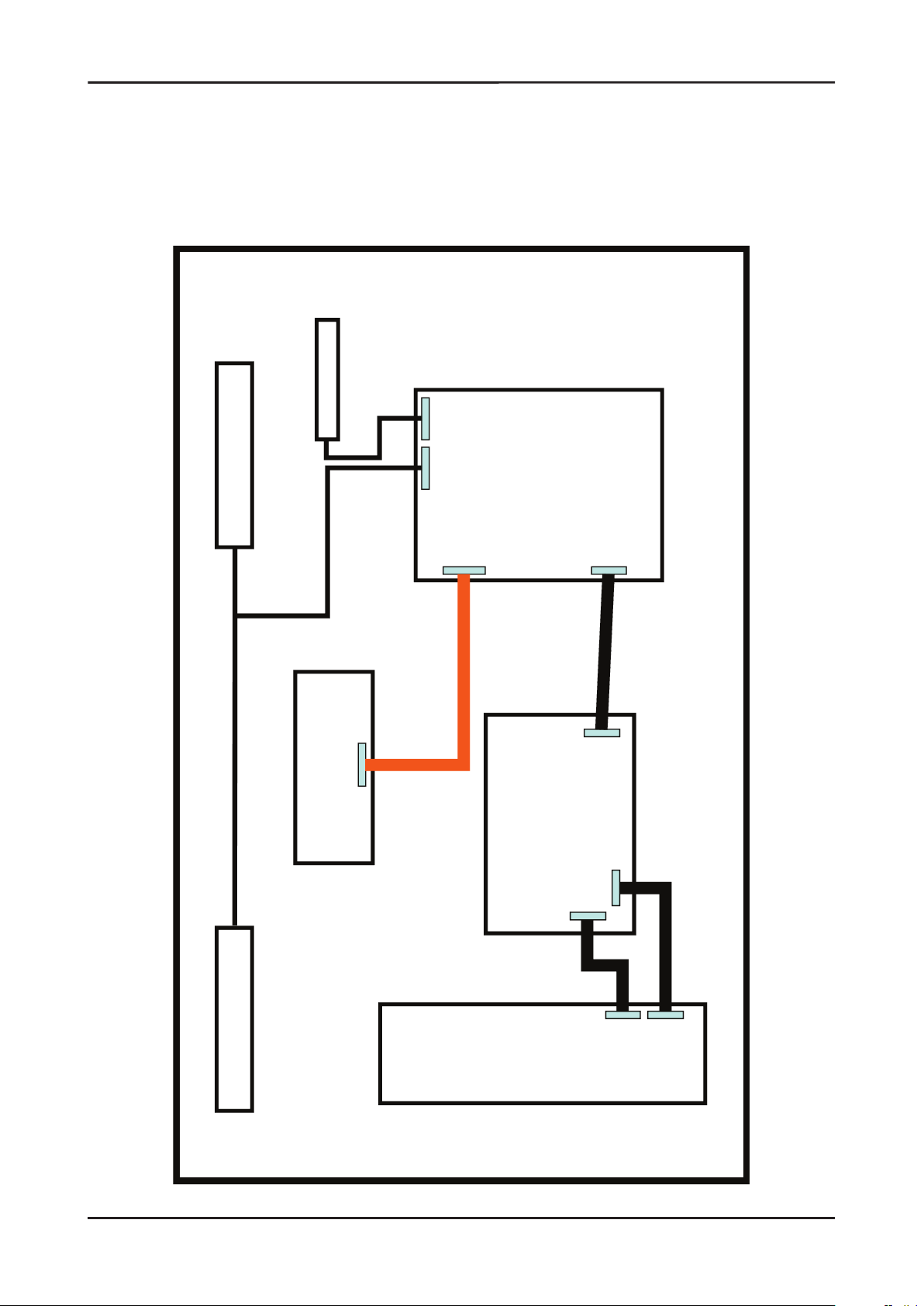

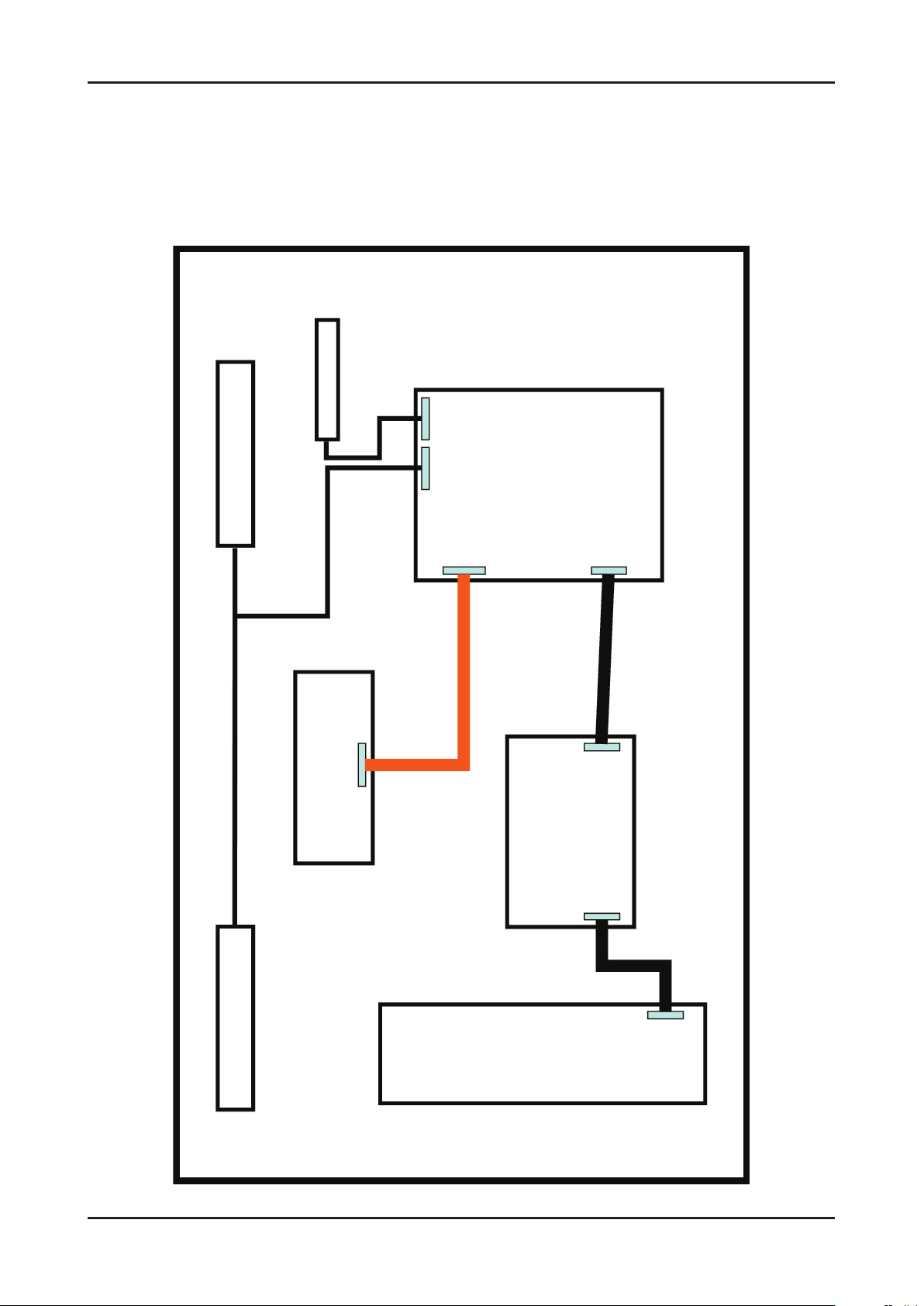

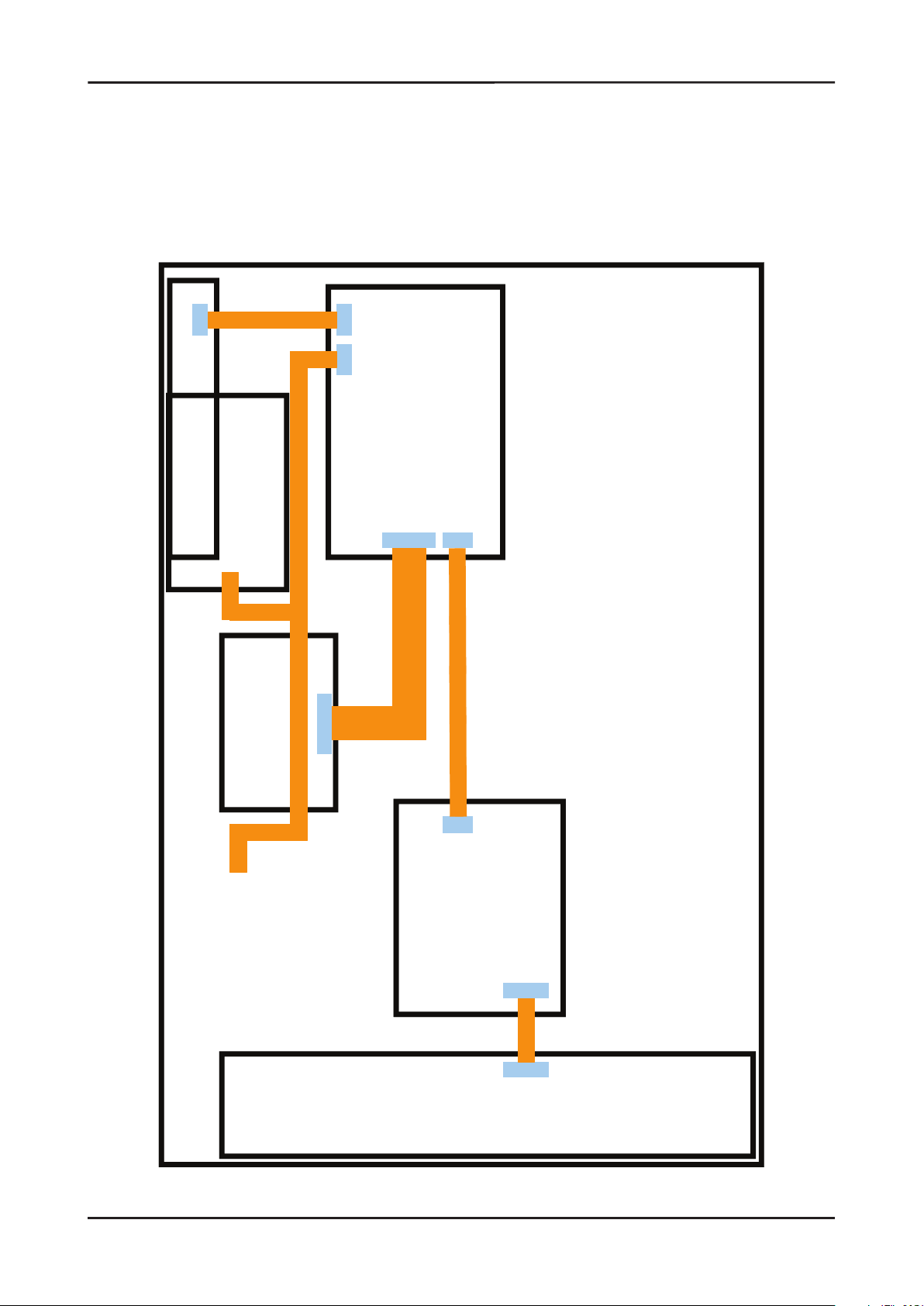

6-1. HD Model Wiring Diagram .............................................................................................. 6-1

6-2. Wiring Picture ................................................................................................................. 6-9

6-3. Connector Functions .................................................................................................... 6-10

6-4. Cables .......................................................................................................................... 6-11

GSPN (Global Service Partner Network)

Area Web Site

North America http://service.samsungportal.com

Latin America http://latin.samsungportal.com

CIS http://cis.samsungportal.com

Europe http://europe.samsungportal.com

China http://china.samsungportal.com

Asia http://asia.samsungportal.com

Mideast & Africa http://mea.samsungportal.com

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

Printed in Korea P/N: BN82-00749A-00

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing, and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify any circuitry.1.

1-1-2. Servicing the LCD TV

When servicing the LCD TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. 2. Check the calibration of this meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the LCD TV to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1. chassis and other metal parts in the LCD TV.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2. compartment covers or shields, isolation resistor capacitor networks, mechanical insulators, etc.

Leakage Current Hot Check (Figure 1-1): 3. WARNING : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch 4.

(READING SHOULD) NOT BE ABOVE 0.5mA

DEVICE UNDER TEST

2-WIRE CORD

*ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE CURRENT TESTER

EARTH

GROUND

Figure 1-1. Leakage Current Test Circuit

rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,

etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safety related characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

1-1

1-2

1. Precautions

1-2. Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of

this manual.

Note: If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-2-1 General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1. attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes 2. used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3. the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, 4. input terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. 5. Connect an insulation resistance meter (500 V) to the blades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 mega ohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6. always remove the instrument’s ground lead last.

1-3. Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1. body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the LCD TV.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2. accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5. electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.

are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective 7. material to the chassis or circuit assembly into which the device will be installed. Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, 8. or lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-3

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal 3.

temperature may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5. the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6. antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

1. Precautions

Memo

1-4

2. Product specications

2-1. Feature & Specications

Model LN22C450E1M(HD)

2. Product specications

Feature

Digital-TV, RF, 1-HDMI, 1Component, 2-A/V, USB (Download port), D-sub ሪ Brightness : 450cd/m ሪ Contrast Ratio : 3000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 22-inch viewable,

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1366 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 575.769(H) x 323.712(V) mm

2

Specications

0.4215mm Pixel Pitch

Vertical : 56 Hz ~ 75 Hz (Automatic)

Vertical : 768 Pixels

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption < 80W(<1W, stand by)

Dimensions

Set (W x D x H)

Weight (Set) 18.52lbs(8.4Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

Note: Anynet+

669.7 x 216x 495.1mm_with stand

669.7 x 75.3 x 455.0mm_without stand

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

2-1

2-2

2. Product specications

Model LN26C450E1M(HD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 450cd/m ሪ

2

Contrast Ratio : 3000:1 ሪ Response time : 8.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 26-Inch viewable,

0.17025(H) x 0.51075 (V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 697.6845(H) x 392.256(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <130W ( < 1W, stand by )

Dimensions

Set (W x D x H)

797.7 x 252 x 576.5mm_with stand

797.7 x 84.8 x 530.5mm_without stand

Weight (Set) 25.13lbs(11.4Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-3

2. Product specications

Model LN32C450E1M(HD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 450cd/m ሪ

2

Contrast Ratio : 3000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 32-Inch viewable,

0.51075 (H) x 0.51075 (W) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 819.6(H) x 460.8(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <140W ( < 1W, stand by )

Dimensions

Set (W x D x H)

913.2 x 300 x 656.2mm_with stand

913.2 x 93.3 x 605.3mm_without stand

Weight (Set) 30.20lbs(13.7Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-4

2. Product specications

Model LN32C530F1M(FHD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 5000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 32-Inch viewable,

0.36375(V) x 0.36375(W) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 698.4(H) x 392.85(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <130W(<1W, stand by)

Dimensions

Set (W x D x H)

810.0 x 220.2 x 562.5 mm_with stand

801.0 x 76.8 x 518.1 mm_without stand

Weight (Set) 26.0lbs(11.8Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-5

2. Product specications

Model LN37C530F1M(FHD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 2500:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 37-Inch viewable,

0.42675(H) x 0.42675(W) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 819.36(H) x 460.89(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <140W(<1W, stand by)

Dimensions

Set (W x D x H)

918.0 x 300 x 650mm_with stand

918.0 x 77.3 x 597.3 mm _without stand

Weight (Set) 33.lbs(15.3Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-6

2. Product specications

Model LN40C530F1M(FHD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 5000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 40-Inch viewable,

0.15375(H) x 0.46125(V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 685.6(H) x 498.15(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <180W(<1W, stand by)

Dimensions

Set (W x D x H)

998 x 260.1 x 686mm_with stand

998.0 x 78.4 x 620.8 mm_without stand

Weight (Set) 39.7lbs(18Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-7

2. Product specications

Model LN46C530F1M(FHD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub, FM-Transmitter ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 4000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 46-Inch viewable,

0.53052 (H) x 0.53052 (V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 1018.08(H) x 572.67(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <230W(<1W, stand by)

Dimensions

Set (W x D x H)

1127.0 x 260.0 x 766.0mm_with stand

1127.0 x 77.8 x 712.1 mm_without stand

Weight (Set) 52.3lbs(23.7Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-8

2. Product specications

Model LN52C530F1M(FHD)

Feature

Digital-TV, RF, 3-HDMI, 2Component, 2-A/V, USB, D-sub ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 4000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 46-Inch viewable,

0.53052 (H) x 0.53052 (V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 1018.08(H) x 572.67(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <230W(<1W, stand by)

Dimensions

Set (W x D x H)

1127.0 x 260.0 x 766.0mm_with stand

1127.0 x 77.8 x 712.1 mm_without stand

Weight (Set) 52.3lbs(23.7Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-9

2. Product specications

Model LN32C550J1M(FHD)

Feature

Digital-TV, RF, 4-HDMI, 2Component, 2-A/V, 2USB, D-sub ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 5000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 32-Inch viewable,

0.36375(V) x 0.36375(W) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 698.4(H) x 392.85(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <130W(<1W, stand by)

Dimensions

Set (W x D x H)

810.0 x 220.2 x 562.5 mm_with stand

801.0 x 76.8 x 518.1 mm_without stand

Weight (Set) 26.0lbs(11.8Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-10

2. Product specications

Model LN40C550J1M(FHD)

Feature

Digital-TV, RF, 4-HDMI, 2Component, 2-A/V, 2USB, D-sub ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 5000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 40-Inch viewable,

0.15375(H) x 0.46125(V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 685.6(H) x 498.15(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <180W(<1W, stand by)

Dimensions

Set (W x D x H)

998 x 260.1 x 686mm_with stand

998.0 x 78.4 x 620.8 mm_without stand

Weight (Set) 39.7lbs(18Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-11

2. Product specications

Model LN46C550J1M(FHD)

Feature

Digital-TV, RF, 4-HDMI, 2Component, 2-A/V, USB, D-sub ሪ Brightness : 500cd/m ሪ

2

Contrast Ratio : 4000:1 ሪ Response time : 6.5ms ሪ Dynamic contrast ሪ

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 46-Inch viewable,

0.53052 (H) x 0.53052 (V) mm Pixel Pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M colors

Maximum resolution Horizontal : 1920 Pixels

Vertical : 1080 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 310MHz

Active Display Horizontal/Vertical 1018.08(H) x 572.67(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <230W(<1W, stand by)

Dimensions

Set (W x D x H)

1127.0 x 260.0 x 766.0mm_with stand

1127.0 x 77.8 x 712.1 mm_without stand

Weight (Set) 52.3lbs(23.7Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System ISDB-T, PAL-M/NTSC/PAL-N

Sound Stereo, SRS Surround HD

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Audio spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-12

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 1 1 A-8 72. 00 A-8 73. 25 2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25 3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25 4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25 5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25 6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25 7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25 8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25 9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25

10 10 195 193.25 V-H 10 1

93.25 V-H 10 192.00 10 193.25 11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25 12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25 13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25 14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25 15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25 16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25 17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25 18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25 19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25 20 20 509

507.25 UHF G 157.25 MID G 156.00 G 157.25 21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25 22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25 23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25 24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25 25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25 26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25 27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25 28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25 29 29 563 561.25 UHF P 253.25 SUPER P 252.00

P 253.25 30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25 31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25 32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25 33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25 34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25 35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25 36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25 37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25 38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25 39 39 623 62

1.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25 40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25 41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25 42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25 43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25 44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25 45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25 46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25 47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25 48 48

677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25 49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25 50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25 51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25 52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25 53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25 54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25 55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25 56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.2

5 57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25 58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25 59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25 60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25 61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25 62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25 63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25 64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25 65 65 779 777.25 UHF CCC 469.25 ULTRA CCC

468.00 CCC 469.25 66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25 67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25 68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25 69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25

CHANNEL FREQUENCY TABLE

OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz1.

TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz2.

2-13

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC

70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25 71 71 III 505.25 ULTRA III 504.00 III 505.25 72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25 73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25 74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25 75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25 76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25 77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25 78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25 79 79 79 553.25 ULTRA 79 552.00 79 553.25 80 80 80 559.25 ULTRA 80 558.00 80 559.25 81 81 81 565.25 ULTRA 81 564.00 81 565.25 82 82 82 571.25 ULTRA 82 570.00 82 571.25 83 83 83 577.25 ULTRA 83 576.00 83 577.25 84 84 84 583.25 ULTRA 84 582.00 84 583.25 85 85 85 589.25 ULTRA 85 588.00 85 589.25 86 86 86 595.25 ULTRA 86 594.00 86 595.25 87 87 87 601.25 ULTRA 87 600.00 87 601.25 88 88 88 607.25 ULTRA 88 606.00 88 607.25 89 89 89 613.25 ULTRA 89 612.00 89 613.25 90 90 90 619.25 ULTRA 90 618.00 90 619.25 91 91

91 625.25 ULTRA 91 624.00 91 625.25 92 92 92 631.25 ULTRA 92 630.00 92 631.25 93 93 93 637.25 ULTRA 93 636.00 93 637.25 94 94 94 643.25 ULTRA 94 642.00 94 643.25 95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25 96 96 A-4 97.25 FM A-4 96.00 A-4 97.25 97 97 A-3 103.25 FM A-3 102.00 A-3 103.25 98 98 A-2 109.25 MID A-2 108.00 A-2 109.25 99 99 A-1 115.25 MID A-1 114.00 A-1 115.25

100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25 101 101 101 655.25 ULTRA 101 654.00 101 655.25 102 102 102 661.25 ULTRA 102 660.00 102 661

.25 103 103 103 667.25 ULTRA 103 666.00 103 667.25 104 104 104 673.25 ULTRA 104 672.00 104 673.25 105 105 105 679.25 ULTRA 105 678.00 105 679.25 106 106 106 685.25 ULTRA 106 684.00 106 685.25 107 107 107 691.25 ULTRA 107 690.00 107 691.25 108 108 108 697.25 ULTRA 108 696.00 108 697.25 109 109 109 703.25 ULTRA 109 702.00 109 703.25 110 110 110 709.25 ULTRA 110 708.00 110 709.25 111 111 111 715.25 ULTRA 111 714.00 111 715.25 112 112 112 721.25 ULTRA 112 720.00 112 721.25 113 113 113 727.25 UL

TRA 113 726.00 113 727.25 114 114 114 733.25 ULTRA 114 732.00 114 733.25 115 115 115 739.25 ULTRA 115 738.00 115 739.25 116 116 116 745.25 ULTRA 116 744.00 116 745.25

. .

. . .

. . . .

. .

. . .

. . . .

125 125 125 799.25 ULTRA 125 798.00 125 799.25

. . . . . . . . .

2-14

2. Product specications

2-2. Specication Comparison to Old Models

LC4E / LC5F / LC5K

(LN22C450E1M/LN26C450E1M/LN32C450E1M/

Model

Design

Display Type LCD TV LCD TV

Built-in Tuner O O

Resolution 1920 x 1080 1920 x 1080

LN32C530F1M/LN37C530F1M/LN40C530F1M/

LN46C530F1M/LN52C530F1M

LN32C550J1M/LN40C550J1M/LN46C550J1M)

(LN32B550K1MXZD/LN40B550K1MXZD

/LN46B550K1MXZD/LN52B550K1MXZD)

LB5K

LCD Panel

Screen Size

Picture ratio

Dimensions (W x H x D)

Weight 39.7lbs(set)

Brightness 500 nit 500 nit

Contrast Ratio 50,000:1 50000:1

Picture Enhacer X DNIe (FBE3)

Equalizer 5 Band 5 Band

Movie Plus(MJC) X O

Surround Sound 3 Way SRS TruSurround Dolby Digital 3 Way SRS TruSurround Dolby Digital

Speaker Output 10W + 10W 10W + 10W

TFT LCD Panel 60Hz

HD : 26”/32”/37”/40”

FHD : 32”/37”/40”/46”

16 : 9

39.3 x 10.2 x 27 inches_with stand

982.4 x 78.6 x 626.3 mm_without stand

TFT LCD Panel 60Hz

40”

16 : 9

982.4 x 255.0 x 675.8 mm_with stand

18 Kg_with stand

14.9 Kg_without stand

Antenna 1(Cable/Air) 1 (Cable/Air)

HDMI

DLNA X X

3

4

2-15

2. Product specications

2-3. Accessories

Product Description Code. No Remark

Remote Control & Batteries

(AAA x 2)

Power Cord 3903-000195

Cover-Bottom

Owner’s Instructions

Cleaning Cloth BN63-01798B

Warranty Card/

Safety Guide Manual

(Not available in all locations)

HD : BN59-01011A

FHD : BN59-01020A

32” : BN63-06389A

37”40”46” : BN63-06339A

C450 22”:BN68-02736A

C450 26”32”:BN68-02736B

C530 : BN68-02639A C550 : BN68-02741A

FHD

Samsung Electronics

Service center

HD

FHD

AA68-03242L AA68-03533A

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LCD TV.

WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly

Cautions: 1. Disconnect the LCD TV from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

C450 22"

Description Picture Description Screws

1. Place the TV face down on cushioned table. Remove the screws from the Stand. Remove stand.

O x 6

2. Lift up rear cover and remove the stand.

O x 3

3-1

3-2

3. Disassembly and Reassembly

Description Picture Description Screws

3. Remove the left and right speaker.

4. Remove Screw from the stand BRKT and lift up the stand BRKT.

5. Remove 3 screws from the Panel.

O x 7

O x 1

6. Disonnect cable from the boards.

3-3

3. Disassembly and Reassembly

Description Picture Description Screws

7. Remove screws and Lift up the Lod panel.

8. Remove the screws on Panel.

Reassembly procedures are in the reverse order of disassembly procedures. ※

3-4

3. Disassembly and Reassembly

C530 / C550

Description Picture Description Screws

1. Place the TV face down on cushioned table. Remove the screws from the Stand. Remove stand.

O x 7

2. Lift up rear cover and remove the stand.

O x 4

3-5

3. Disassembly and Reassembly

Description Picture Description Screws

3. Remove the left and right speaker.

4. Remove Screw from the stand BRKT and lift up the stand BRKT.

O x 3

5. Remove 3 screws from the Panel.

6. Disonnect cable from the boards.

O x 2

O x 3

O x 8

O x 1

3. Disassembly and Reassembly

Description Picture Description Screws

7. Remove screws and Lift up the Lod panel.

8. Remove the screws on Panel.

Reassembly procedures are in the reverse order of disassembly procedures. ※

3-6

5. Exploded View & Part List

5-1. LN32C530F1M Exploded View

5. Exploded View & Part List

R001A

T0101

R001A

INVER

PANEL

T0764

TCON

SP01A

T0101

SP01A

T0910

M0014

M0254

M0027

5-1

5. Exploded View & Part List

5-2. LN32C530F1M Parts List

Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark

F001A BN96-12783C ASSY COVER P-FRONT;32,LC530,BRAZIL,ABS+P 1 SA

INVER BN81-04167A A/S-INVERTER LTF320HM01;LTF320HM01 1 SA

M0014 BN94-03320Q ASSY PCB MAIN;BN96-13022B 1 SNA

M0027 BN96-09131A ASSY STAND P-BASE;32,LB530,ABS+PMMA,HB,B 1 SA

M0254 BN61-06296A HOLDER-SIDE AV;LC530,SO,PMMA+ABS HB,BK00 1 SNA

PANEL BN07-00808A LCD-PANEL;LTF320HM01,SSCZMS,8bit,31.5,16 1 SA

R001A BN96-12765F ASSY COVER P-REAR;32,LC530,BRAZIL,PCM,T0 1 SA

SP01A BN98-02407A ASSY K/D-SPEAKER;BN96-12871A,SEDA,Brazil 1 SA

T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA

T0764 BN44-00339A SMPS-LCD TV;P3237F1_ASM,P3237F1_ASM,AC/D 1 SA

T0910 BN96-13341A ASSY BRACKET P-STAND LINK;LC530 32,SECC, 1 SNA

T0920 BN61-06020A GUIDE-STAND;32,LC530,PC+GF,20%,V2,BK0007 1 SNA

TCON BN81-04151A A/S-T CON LTF320HM01;LTF320HM01 1 SA

5-2

5. Exploded View & Part List

5-2-1. LN32C530F1M Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

LN32C530F1MXXT LCD TV,LN32C530F1M,22,THAILAND,N88A/

0.1 BN68-02379A LABEL-STICKER;Brazila,PET,T0.05,30,100 1 SNA

0.1 R001A BN90-02446F ASSY COVER REAR;32,LC530,BRAZIL 1 SNA

..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 9 SA

..2 R001A BN96-12765F ASSY COVER P-REAR;32,LC530,BRAZIL,PCM,T0 1 SA

...3 M0006 BN63-06392E COVER-REAR;32,LC530,SO,PCM,T0.5,BLK 1 SNA

...3 T0071 BN64-01228F INLAY-TERMINAL;LC450,ZD,PS SHEET,T0.5,BL 1 SNA

...3 BN64-01270E INLAY-AV;LC530,SO,PS SHEET,T0.5 1 SNA

...3 T0139 BN65-00003A CLAMPER BAG;42C7,LDPE,HB,BLK 1 SNA

...3 BN60-00162X SPACER-FOAM;FOAM,30000mm,Dark Gray,1T,15 1.77 SNA

...3 AH358 BN61-06544A HOLDER-REAR;LC650 32,PP,BLK 1 SNA

0.1 BN90-02459C ASSY COVER FRONT;32,LC530,BRAZIL 1 SNA

..2 F001A BN96-12783C ASSY COVER P-FRONT;32,LC530,BRAZIL,ABS+P 1 SA

...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 4 SNA

...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.04,900mm,20 0.52 SNA

...3 BN96-12789A ASSY DECORATION P-BOTTOM;32,LC530,PC,CLE 1 SNA

....4 BN61-04731B BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.46 SNA

....4 AD070 BN64-01240A DECORATION-BOTTOM;32,LC530,PC,CLEAR,V2,T 1 SNA

....4 BN61-06617A BOSS-TAPE;LC530,ACRYL,T1.1,W4.0mm,L135.0 1 SNA

...3 FB09A BN98-02486A ASSY K/D-BOARD P-TOUCH FUNCTION&IR;BN96- 1 SA

....4 M0014 BN94-03320Q ASSY PCB MAIN;BN96-13022B 1 SNA

.....5 EC13 BN39-01281A LEAD CONNECTOR;LC650,UL1061 #28,10 to 8p 1 SA

.....5 BN83-01715A CKD-TAPE;SJ09-01-042A,#350LSE-3 1 SNA

.....5 BN97-04044N ASSY SMD;BN96-13022A 1 SNA

......6 0403-001339 DIODE-ZENER;UDZS6.2B,6.06-6.33V,200mW,SO 2 SA

......6 0406-001253 DIODE-TVS;VESD05A1-02V,6.0/6.8/7.5V,SOD- 2 SNA

......6 L0405 0601-001915 LED;SMD,RED,1.6x0.8x0.6mm,660nm,1.6x0.8x 1 SA

......6 D0254 0609-001346 MODULE REMOCON;SMD-H(R),5.9mm,0.590g 1 SNA

......6 IS01A 1209-001900 IC-SENSOR;TOUCHCORE3.2-ML24IP,MLF,24P,4x 1 SA

......6 IS01A 1209-001929 IC-SENSOR;CT802FN,6P,2x2x0.65mm,PLASTIC, 1 SA

......6 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 2 SA

......6 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 3 SNA

......6 CER02 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 2 SNA

......6 AR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2 SA

......6 RR2 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 7 SA

......6 FAR22 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 2 SNA

......6 AHR40 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608 2 SNA

......6 MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

......6 R320 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA

......6 AC14 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 2 SNA

......6 EC9 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 SA

......6 C234 2203-006378 C-CER,CHIP;4700nF,10%,6.3V,X5R,TP,1608 1 SNA

......6 AD480 2203-006399 C-CER,CHIP;1000nF,10%,6.3V,X5R,1005 1 SA

......6 XE1 2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 SA

......6 CN906 3711-007091 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-S, 1 SA

......6 BN41-01382A PCB-TOUCH;LC5F,FR-4,2,1.6T,165.0 x 138.0 1 SNA

......6 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 0.08 SNA

5-3

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...3 BN60-00162V SPACER-FOAM;FOAM,50000mm,Dark Gray,0.5T, 2.18 SNA

...3 BN64-01245A DECORATION-IN;46,LC530,PC,V2,RD0045(RED) 1 SNA

...3 F001 BN63-06394C COVER-FRONT;32,LC530,BRAZIL,ABS+PMMA,HB, 1 SNA

..2 SP01A BN98-02407A ASSY K/D-SPEAKER;BN96-12871A,SEDA,Brazil 1 SA

...3 BN83-01520A CKD-SPEAKER;LCD350 22inch Speaker label, 1 SNA

...3 BN83-01615A CKD-SPEAKER;speaker unit,96mmx30mm, 6ohm 2 SNA

...3 BN83-01616A CKD-SPEAKER;CASE_L_TOP,195.2 x 36.7 x 37 1 SNA

...3 BN83-01617A CKD-SPEAKER;CASE_L_Bottom,173.1 x 36.7 x 1 SNA

...3 BN83-01618A CKD-SPEAKER;CASE_R_top,195.2 x 36.7 x 37 1 SNA

...3 BN83-01619A CKD-SPEAKER;CASE_R_bottom,173.1 x 36.7 x 1 SNA

...3 BN83-01620A CKD-SPEAKER;Wire ASS'Y,4pin, L530 / R 17 1 SNA

...3 BN83-01621A CKD-SPEAKER;Rubber Ring,4ea / set 4 SNA

...3 BN83-01622A CKD-SPEAKER;Screw,8ea / set 8 SNA

...3 BN83-01623A CKD-SPEAKER;Back Gasket,96 x 30 x 1t, E. 2 SNA

...3 BN83-01624A CKD-SPEAKER;Duct,59.3 x 9 x 1mm 2 SNA

...3 BN83-01625A CKD-SPEAKER;E.V.A_1,77mm x 13mmx 2t 4 SNA

...3 BN83-01626A CKD-SPEAKER;E.V.A_2,41mm x 9mmx 2t 8 SNA

...3 BN83-01627A CKD-SPEAKER;FELT_1,30mm x 7mmx 0.3t 4 SNA

...3 BN83-01628A CKD-SPEAKER;FELT_2,105mm x 13mmx 0.5t 2 SNA

...3 BN83-01629A CKD-SPEAKER;FELT_3,47mm x 25mmx 0.3t 2 SNA

...3 BN83-01804A CKD-SPEAKER;Clamp,20 x16mm 1 SNA

...3 BN83-01849A CKD-SPEAKER;P.E_Foam_5,40 x30 x3t 2 SNA

0.1 S001A BN90-02464C ASSY STAND;32,LC530,W/W,BLACK 1 SNA

..2 SG03A BN96-12794C ASSY STAND P-GUIDE;32,LC530,W/W,PC+G/F,2 1 SA

...3 T0524 6902-001048 BAG PE;LDPE,T0.05,W160,L300,TRP,4g 1 SNA

...3 BN81-02301A A/S-LABEL-E PASS;SEDA,ART PAPER,W42,L12, 1 SNA

...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 4 SA

...3 M0081 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 3 SNA

...3 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA

...3 T0920 BN61-06020A GUIDE-STAND;32,LC530,PC+GF,20%,V2,BK0007 1 SNA

...3 GSN01 BN61-05213A GUIDE-STAND NECK;32,LB530,ABS+PMMA,BK000 1 SA

..2 M0027 BN96-09131A ASSY STAND P-BASE;32,LB530,ABS+PMMA,HB,B 1 SA

...3 M0081 6003-001239 SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR 6 SNA

...3 T0010 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 SNA

...3 T0010 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 SNA

...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 SNA

...3 BN61-02932B BRACKET-STOPPER NUT;L450,M4,OD8,L24,MOLD 3 SNA

...3 BN61-03707A BRACKET-STAND BOTTOM;PEARL 32,SECC,T2.0 1 SNA

...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.04,680mm,20 0.4 SNA

...3 BN63-05520A COVER-STAND BASE;32,LB530,ABS+PMMA,HB,BK 1 SNA

...3 M0019 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 6 SNA

...3 T0524 6902-000241 BAG PE;HDPE/NITRON,T0.5/T0.012,W600,L600 1 SNA

...3 T0920 BN61-03872A GUIDE-STAND BOTTOM;32,L450,PC+GF,20% V2, 1 SNA

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 SA

...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.4 SNA

0.1 BN91-04886A ASSY LCD-AMLCD;BN07-00808A 1 SNA

..2 PANEL BN07-00808A LCD-PANEL;LTF320HM01,SSCZMS,8bit,31.5,16 1 SA

...3 TCON BN81-04151A A/S-T CON LTF320HM01;LTF320HM01 1 SA

...3 INVER BN81-04167A A/S-INVERTER LTF320HM01;LTF320HM01 1 SA

0.1 M0017 BN91-04999A ASSY CHASSIS;LN46C530F1MXZD 1 SNA

..2 M0014 BN94-03320A ASSY PCB MAIN;LN46C530F1MXZD 1 SA

5-4

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA

...3 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 SA

...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA

...3 L-PQS BH68-00424A LABEL-MICOM;ALL,PAPER100G,60,30,WHITE 1 SNA

...3 L-PQS BH68-00424B LABEL-MICOM;ALL,PAPER100G,60,20,WHITE 1 SNA

...3 ET01 BN40-00167A TUNER;DNVS223VL161A,ISDB-T,191CH,38.9MHz 1 SA

...3 BN97-04044A ASSY SMD;LN46C530F1M 1 SNA

....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 18 SA

....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 9 SNA

....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA

....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 6 SNA

....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 8 SA

....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 9 SA

....4 Q409 0505-002560 FET-SILICON;AO6415,P,-20V,-3.3A,0.15ohm, 1 SA

....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA

....4 1006-001474 IC-LINE DRIVER;DRV604PWP,HPSSOP,28P,9.8x 1 SA

....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA

....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA

....4 T0124 1201-002993 IC-POWER AMP;TAS5715,HTQFP,48P,7x7mm,DUA 1 SA

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA

....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA

....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA

....4 T0087 1203-005134 IC-POSI.FIXED REG.;RT9167A-33PB,SOT-23-5 1 SNA

....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA

....4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 1 SA

....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA

....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA

....4 1204-003117 IC-AUDIO PROCESSOR;MSP3455G,PMQFP,44P,13 1 SA

....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA

....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA

....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA

....4 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 2 SA

....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 23 SA

....4 ZR24 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SNA

....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 32 SNA

....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 9 SNA

....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 40 SNA

....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 15 SNA

....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 6 SA

....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA

....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 7 SNA

....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA

....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 8 SNA

....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 3 SNA

....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 2 SNA

....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 16 SNA

....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 4 SNA

....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 10 SNA

....4 MR9 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 2 SA

....4 ER13 2007-000669 R-CHIP;2Kohm,1%,1/10W,TP,1608 1 SNA

....4 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608 1 SA

5-5

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 3 SNA

....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA

....4 AAR20 2007-001002 R-CHIP;510ohm,5%,1/10W,TP,1608 2 SNA

....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 2 SA

....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA

....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 12 SNA

....4 2007-002906 R-CHIP;200Kohm,1%,1/10W,TP,1608 3 SA

....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA

....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 28 SNA

....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 8 SNA

....4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005 2 SA

....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 12 SNA

....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 19 SNA

....4 2007-008134 R-CHIP;12.4Kohm,1%,1/16W,TP,1005 1 SC

....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 4 SA

....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 1 SA

....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 7 SNA

....4 AC1 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 4 SA

....4 C4N08 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 5 SNA

....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 3 SA

....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 8 SA

....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA

....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 6 SNA

....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA

....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 10 SA

....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 SNA

....4 AC124 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 2 SNA

....4 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 6 SA

....4 C637 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 3 SNA

....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 16 SNA

....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 8 SNA

....4 AD480 2203-005052 C-CER,CHIP;0.0033nF,0.25pF,50V,NP0,1005 2 SA

....4 AC611 2203-005194 C-CER,CHIP;.22nF,10%,50V,X7R,TP,1608 1 SA

....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 12 SNA

....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 2 SNA

....4 AD480 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 2 SA

....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 2 SNA

....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 3 SNA

....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 105 SNA

....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA

....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 13 SA

....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 52 SC

....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 25 SNA

....4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA

....4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 3 SNA

....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 10 SA

....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 6 SA

....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 1 SA

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 2 SA

....4 T0052 2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 1 SA

....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA

5-6

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 X202 2801-004300 CRYSTAL-SMD;18.432MHz,30ppm,28-ABX,13pF, 1 SA

....4 T0568 3301-001082 BEAD-SMD;60ohm,3225,TP,43ohm/40MHz,83ohm 1 SNA

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 7 SNA

....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 34 SA

....4 T0313 3404-001207 SWITCH-TACT;12V,50mA,160gf,6.2X6.2,SPST 1 SA

....4 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 2 SNA

....4 3709-001287 CONNECTOR-CARD SLOT;10P,1.5mm,SMD-A,AU10 1 SA

....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA

....4 BN41-01338A PCB MAIN;LC550,FR-4,4,1.0,1.2,192*158,1 1 SNA

....4 BN97-04065A ASSY MICOM;T-TDT5IBRC,2009.11.20,IC1201, 1 SNA

.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA

....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 2.437 SNA

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 2 SA

....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA

....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 SA

....4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 3 SNA

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA

....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA

....4 1203-006133 IC-POSI.ADJUST REG.;AP1117D-25-GZ-13-89, 1 SA

....4 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA

....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA

....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA

....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 2 SNA

....4 2011-001448 R-NETWORK;10ohm,5%,1/16W,L,4P,T,1010 4 SA

....4 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 1 SNA

....4 2704-000029 INDUCTOR-SMD-ARRAY;5.6uH,2300mA,2,0.08oh 2 SNA

....4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,Hi 1 SNA

....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA

....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 1 SA

....4 3701-001693 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A 1 SA

....4 0403-000489 DIODE-ZENER;MMSZ5228B,5%,500MW,SOD-123,T 1 SA

....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA

....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 SA

....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA

....4 2007-001317 R-CHIP;910ohm,5%,1/16W,TP,1005 1 SNA

....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 1 SNA

....4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 SNA

....4 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA

....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 2 SA

....4 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA

....4 AD480 2203-006144 C-CER,CHIP;4700nF,10%,16V,X7R,3216 1 SA

....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 2 SA

....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA

....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA

....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA

....4 BN97-04311A ASSY MICOM-SUB;2010.01.19,1107-001580 1 SNA

.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA

....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 SA

....4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA

....4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA

....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 1 SNA

5-7

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 1 SNA

....4 R945 2007-000726 R-CHIP;300ohm,1%,1/10W,TP,1608 1 SA

....4 2007-007222 R-CHIP;6.04Kohm,1%,1/10W,TP,1608 1 SA

....4 DRP29 2011-001396 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,8P,TP, 1 SA

....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 1 SA

....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 1 SNA

...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA

...3 M0412 BN96-11826C ASSY BRACKET P-PCB;LB450 40,SPTE T0.5 + 1 SNA

....4 BN61-04928C BRACKET-SUPPORT PCB;SPTE,T 0.5,SCREW-M4 1 SNA

....4 BN61-05262B HOLDER-BOSS PCB;52,LB550(EO),PBT+G/F(30% 1 SNA

...3 3722-003037 JACK-USB;4P/1C W/L,AU/NI,BLK,ANGLE,A 1 SA

...3 JA330 3722-003038 JACK-PHONE;7P/1C W/L,SN,BLK 2 SA

...3 JA333 3722-003040 JACK-PIN;3P W/L,SN,BLK/YEL/WHT/RED,ANGLE 1 SA

...3 JA333 3722-003052 JACK-PIN;5P+Shield W/L,NI/SN,GN/BL/RD/WH 2 SA

...3 CN906 3707-001096 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA

...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 1 SNA

0.1 BN91-05004G ASSY SHIELD;LN32C530F1MXZD 1 SNA

..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 7 SA

..2 M0081 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 7 SA

..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 7 SA

..2 M2893 BN39-01274A LEAD CONNECTOR;LC5F,UL 1007 #26,14P,80mm 1 SA

..2 T0764 BN44-00339A SMPS-LCD TV;P3237F1_ASM,P3237F1_ASM,AC/D 1 SA

..2 M0254 BN61-06296A HOLDER-SIDE AV;LC530,SO,PMMA+ABS HB,BK00 1 SNA

..2 M0523 BN96-12973A ASSY BRACKET P-WALL;32,37,40,LC650,SECC, 4 SNA

...3 BN60-00188B SPACER-FOAM;LCD,FELT,20,3.0,20,Center : 4 SNA

...3 T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA

...3 BN81-02301A A/S-LABEL-E PASS;SEDA,ART PAPER,W42,L12, 4 SNA

..2 T0910 BN96-13341A ASSY BRACKET P-STAND LINK;LC530 32,SECC, 1 SNA

...3 BN61-02429K STUD-PEM;PNB,M3.8,D7,L14.9,ZPC(SIL),SUM2 4 SNA

...3 BN61-05281A HOLDER-CLAMP;LCD,NYLON 66,WHT 2 SNA

...3 M0115 BN61-06024A BRACKET-STAND LINK;LC550 32",SECC,T1.2 1 SNA

..2 FL06 BN96-13171N ASSY CABLE P-FFC;LE32C530F1WXXC,FFC,0.5m 1 SA

..2 BN61-06441A HOLDER-INLET;LC530,ABS,V0 1 SNA

..2 M2893 BN39-01267A LEAD CONNECTOR;LA32B450,UL 2651 AWG#26,1 1 SA

..2 BN73-00273B SILICON/RUBBER-GAPPAD;UE32C6500,SILICON+ 1 SNA

..2 M0081 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC 1 SNA

0.1 ACCE1 BN92-05748E ASSY ACCESSORY;LN32C530F1MXZD 1 SNA

..2 ACCE2 BN96-13169E ASSY ACCESSORY-CABLE;LN32C530F1MXZD 1 SNA

...3 T0268 3903-000438 CBF-POWER CORD;DT,BR,BP3/YES,IEC320 C13- 1 SA

...3 T0120 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,HOLDER,7. 2 SNA

...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA

...3 T0531 BN63-06389A COVER-BOTTOM;32,LC530,HIPS,HB,BK0020 1 SA

...3 REMO2 BN98-02497A ASSY K/D-REMOCON;BN59-01020A 1 SA

....4 M0014 BN94-03320V ASSY PCB MAIN;BN59-01020A 1 SNA

.....5 BN83-01764A CKD-CASE-TOP;ABS+PMMA SF-0507TR BLACK 1 SNA

.....5 BN83-01765A CKD-CASE-BOTTOM;ABS H B H F- 0 6 8 0 K 2 1 SNA

.....5 BN83-01766A CKD-CASE-REAR SUB;ABS H B H F- 0 6 8 0 K 1 SNA

.....5 BN83-01767A CKD-KNOB NAVI;ABS H B H F- 0 6 8 0 K 2 1 1 SNA

.....5 BN83-01768A CKD-KNOB ENTER;ABS H B H F- 0 6 8 0 K 2 1 SNA

.....5 BN83-01770A CKD-RUBBER KEY PAD;SILICONE 49 KEY 1 SNA

.....5 BN83-01771A CKD-COMMON SPRING;NICO SUS 0.5 1 SNA

5-8

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

.....5 BN97-04044V ASSY SMD;BN59-01020A 1 SNA

......6 BN83-01774A CKD-IC-MCU;GC49C501G3 1 SNA

......6 BN83-01775A CKD-PCB;TM1060,1050-RMXXX, REV:00 1 SNA

......6 BN83-01777A CKD-CHIP-CAPACITOR;0603/Y5V/+80~-20%/25V 1 SNA

......6 BN83-01778A CKD-TANTALUM-CAPACITOR;3216 SIZE / 6.3V 1 SNA

......6 BN83-01779A CKD-TACT-SWITCH;ST-1187 1 SNA

......6 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 0.08 SNA

.....5 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.3 SNA

.....5 L0405 BN83-01257A CKD-IR-LED;SI-5312H 1 SNA

.....5 BN83-01772A CKD-SPRING-REMOCON(+);NICO SUS 0.5 1 SNA

.....5 BN83-01773A CKD-SPRING-REMOCON(-);NICO SUS 0.5 1 SNA

.....5 PE-RMC AC69-30137A BAG PE;LDPE,T0.08,80,270,WHT,-,-,- 1 SNA

...3 T0952 BN59-00994A MODULE;FM-Transmitter module,KSR-MX028,1 1 SA

..2 BN96-13170D ASSY ACCESSORY-MANUAL;LN32C530F1MXZD 1 SNA

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA

...3 ACCESS BN68-00844A MANUAL FLYER-01, LEAFLET;LCD/CDT Leaet 1 SNA

...3 BN68-02639A MANUAL USERS-IB;Comm,Samsung,Eng/BP,Braz 1 SNA

...3 BN81-02301A A/S-LABEL-E PASS;SEDA,ART PAPER,W42,L12, 1 SNA

0.1 BN92-05750P ASSY LABEL;LN46C530F1MXZD 1 SNA

..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA

..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA

0.1 BN92-05779C ASSY BOX;32,LC530,BRAZIL 1 SNA

..2 AH68-00509A LABEL BAR CODE;YP-NDP32SK,TETRON,0.15T,5 1 SNA

..2 BN69-04610B BOX-SET;32LC530,CB,A-01,SW2,YEL,W1008,D1 2 SNA

0.1 BN92-05784A ASSY P/MATERIAL;32,LC530 1 SNA

..2 P-CASE 0203-001228 TAPE-OPP MASKING;373,T0.066,W72,L914000, 2.32 SNA

..2 T0524 6902-000358 BAG PE;HDPE/NITRON,T0.015/T0.5,W900,L700 1 SNA

..2 T0246 BN69-04351A CUSHION-01,SET;32LC530,EPS,16.7g/l 1 SNA

..2 6902-000621 BAG SHEET;HDPE/NITRON,T0.015/T1,W1000,L2 1 SNA

5-9

5. Exploded View & Part List

5-1. LN37C530F1M Exploded View

5. Exploded View & Part List

R001A

T0101

F001A

INVER

M0215

T0764

TCON

SP01A

T0101

SP01A

T0910

M0014

M0254

M0027

5-1

5. Exploded View & Part List

5-2. LN37C530F1M Parts List

Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark

F001A BN96-12784C ASSY COVER P-FRONT;37,LC530,BRAZIL,ABS+P 1 SA

INVER BN81-04438A A/S-INV T370HW03 VG;T370HW03 VG 1 SA

M0014 BN94-03320Q ASSY PCB MAIN;BN96-13022B 1 SNA

M0027 BN96-12799A ASSY STAND P-BASE;37,40,LC530,ABS+PMMA,H 1 SA

M0254 BN61-06296A HOLDER-SIDE AV;LC530,SO,PMMA+ABS HB,BK00 1 SNA

PANEL BN07-00828A LCD-PANEL;T370HW03 VG,AU37H3G,8bit,37,16 1 SA

R001A BN96-12766F ASSY COVER P-REAR;37,LC530,BRAZIL,PCM,T0 1 SA

SP01A BN98-02407B ASSY K/D-SPEAKER;BN96-12871B,SEDA,Brazil 1 SA

T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA

T0764 BN44-00339A SMPS-LCD TV;P3237F1_ASM,P3237F1_ASM,AC/D 1 SA

T0910 BN96-13342A ASSY BRACKET P-STAND LINK;LC530 37/40/46 1 SNA

TCON BN81-04409A A/S-T CON T370HW03_VG;T370HW03 VG 1 SA

5-2

5. Exploded View & Part List

5-2-1. LN37C530F1M Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

LN37C530F1MXZD LCD TV,LN37C530F1M,22,THAILAND,N88A/

0.1 BN68-02379B LABEL-STICKER;Brazila,PET,T0.05,45,150 1 SNA

0.1 R001A BN90-02447F ASSY COVER REAR;37,LC530,BRAZIL 1 SNA

..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 13 SA

..2 R001A BN96-12766F ASSY COVER P-REAR;37,LC530,BRAZIL,PCM,T0 1 SA

...3 R001 BN63-06336E COVER-REAR;37,LC530,SO,PCM,T0.5,BLK 1 SNA

...3 T0071 BN64-01228F INLAY-TERMINAL;LC450,ZD,PS SHEET,T0.5,BL 1 SNA

...3 BN64-01270E INLAY-AV;LC530,SO,PS SHEET,T0.5 1 SNA

...3 T0139 BN65-00003A CLAMPER BAG;42C7,LDPE,HB,BLK 1 SNA

...3 BN60-00162X SPACER-FOAM;FOAM,30000mm,Dark Gray,1T,15 2.03 SNA

...3 AH358 BN61-06545A HOLDER-REAR;LC650 37/40/46,PP,BLK 1 SNA

..2 T0081 6001-001947 SCREW-MACHINE;BH,+,WSP,M6,L16,ZPC(WHT),S 4 SA

0.1 BN90-02460C ASSY COVER FRONT;37,LC530,BRAZIL 1 SNA

..2 F001A BN96-12784C ASSY COVER P-FRONT;37,LC530,BRAZIL,ABS+P 1 SA

...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 5 SNA

...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.04,900mm,20 0.57 SNA
