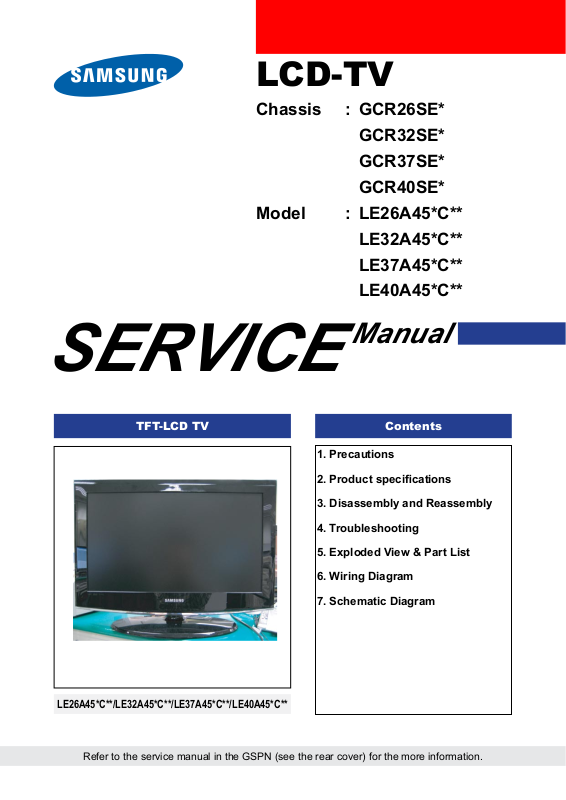

Samsung LE**A45*C Schematic

LCD-TV

Chassis : GCR26SE*

GCR32SE*

GCR37SE*

GCR40SE*

Model : LE26A45*C**

LE32A45*C**

LE37A45*C**

LE40A45*C**

Manual

SERVICE

TFT-LCD TV Contents

1. Precautions

2. Product specications

3. Disassembly and

4. Troubleshootin

5. Exploded View & Part Lis

6. Wiring Diagra

7. Schematic Diagra

Reassembly

g

t

m

LE26A45*C**/LE32A45*C**/LE37A45*C**/LE40A45*C**

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Contents

1. Precautions .............................................................................................................. 1-1

1-1. Safety Precautions ......................................................................................................... 1-1

1-2. Servicing Precautions .....................................................................................................1-2

1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2

1-4. Installation Precautions .................................................................................................. 1-3

2. Product specications ............................................................................................ 2-1

2-1. Feature & Specications ................................................................................................. 2-1

2-3. Spec Comparison to the Old Models .............................................................................. 2-7

2-4. Accessories .................................................................................................................... 2-8

3. Disassembly and Reassemble ............................................................................... 3-1

3-1. Disassembly ................................................................................................................... 3-1

4. Troubleshooting ...................................................................................................... 4-1

4-1. Troubleshooting .............................................................................................................. 4-1

4-2. Alignments and Adjustments ........................................................................................ 4-13

4-3. Factory Mode Adjustments ........................................................................................... 4-14

4-4. White Balance - Calibration .......................................................................................... 4-21

4-5. White Ratio (Balance) Adjustment ................................................................................ 4-23

4-6. HOW TO UPGRADE ....................................................................................4-24

5. Exploded View & Part List ...................................................................................... 5-1

5-1. LE26A45*C** Exploded View ......................................................................................... 5-1

5-2. LE32A45*C** Exploded View ......................................................................................... 5-3

5-3. LE37A45*C** Exploded View ......................................................................................... 5-5

5-4. LE40A45*C** Exploded View ......................................................................................... 5-7

5-5. LE26A45*C** Parts List .................................................................................................. 5-9

5-6. LE32A45*C** Parts List ................................................................................................ 5-41

5-7. LE37A45*C** Parts List ................................................................................................ 5-73

5-8. LE40A45*C** Parts List .............................................................................................. 5-106

6. Wiring Diagram ........................................................................................................ 6-1

6-1. Wiring Diagram ............................................................................................................... 6-1

6-2. Wiring Picture ................................................................................................................. 6-4

6-2-3. LE26/32/37A451C* ...................................................................................................... 6-5

6-3. Connector Functions ...................................................................................................... 6-6

6-4. Cables ............................................................................................................................ 6-7

7. Schematic Diagram ................................................................................................. 7-1

7-1. Block Diagram ................................................................................................................ 7-1

7-3. Schematic Diagrams for iDTV ........................................................................................ 7-2

7-4. Schematic Diagrams for Ready ...................................................................................... 7-9

GSPN (Global Service Partner Network)

Area Web Site

North America

Latin America

CIS http://cis.samsungportal.com

Europe http://europe.samsungportal.com

China http://china.samsungportal.com

Asia http://asia.samsungportal.com

Mideast & Africa

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

http://service.samsungportal.com

http://latin.samsungportal.com

http://mea.samsungportal.com

Printed in Korea P/N: BN82-00340A-00

GSPN (Global Service Partner Network)

Area Web Site

North America

Latin America

CIS http://cis.samsungportal.com

Europe http://europe.samsungportal.com

China http://china.samsungportal.com

Asia http://asia.samsungportal.com

Mideast & Africa

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

http://service.samsungportal.com

http://latin.samsungportal.com

http://mea.samsungportal.com

Printed in Korea P/N: BN82-00340A-00

2. Product specications

2-1. Feature & Specications

Model LE26A45*C**

Feature

Digital TV(LE26A457C**), RF, 3-HDMI, 1-Component, 1-AV, 1-S-Video, D-SUB

�

Brightness : 500cd/m

�

Contrast Ratio : 2000:1

�

Response time : 8ms

�

Dynamic contrast, BN07-00510A AMVA, BN07-00528A PVA)

�

Item Description

2

Specications

2. Product specications

LCD Panel TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Display Colors 16.7 million colors

Maximum resolution Horizontal : 1366 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 80MHz

Active Display Horizontal/Vertical 575.77(H) x 323.712(V) mm

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <120 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

Weight (Set) 21.38lbs (9.7Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

26-Inch viewable, 0.4215(H) x 0.4215(W) x 3 mm pixel pitch

Vertical : 56 Hz ~ 75 Hz (Automatic)

Vertical : 768 Pixels

26.37 x 8.50 x 19.7 inches (669.7 x 216 x 500.4 mm) with stand

26.37 x 2.96 x 17.74 inches (669.7 x 75.1 x 450.7mm) without stand

System DVB-T, PAL, SECAM, NT4.43

Sound BG, DK, NICAM, MPEG1

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 5W, Left => 5W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-1

2. Product specications

Model LE32A45*C**

Feature

Digital TV(LE32A457C**), RF, 3-HDMI, 1-Component, 1-AV, 1-S-Video, D-SUB

�

Brightness : BN07-00511A(AUO)=450cd/m2, BN07-00521A/538A(AMLCD)=500cd/m

�

Contrast Ratio : BN07-00511A(AUO)=2000:1, BN07-00521A/538A(AMLCD)=3000:1

�

Response time : BN07-00511A(AUO)=6.5ms, BN07-00521A/538A(AMLCD)=8ms

�

Dynamic contrast

�

Specications

Item Description

2

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 32-Inch viewable,

0.51075(H) x 0.51075(W) x 3 mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7 million colors

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 80MHz

Active Display Horizontal/Vertical

27.47 x 15.44 inches (697.68(H) x 392.26(V)mm)

AC power voltage & Frequency AC 110V ~ 240V, 50/60 Hz

Power Consumption <180 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

31.48 x 9.92 x 22.7 inches (799.6 x 252 x 576.6mm) with stand

31.48 x 3.11 x 20.67 inches (799.6 x 79 x 525.2 mm) without stand

Weight (Set) 28.87 lbs (13.1Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T, PAL, SECAM, NT4.43

Sound BG, DK, NICAM, MPEG1

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-2

Model LE37A45*C**

Feature

Digital TV(LE37A457C**), RF, 3-HDMI, 1-Component, 1-AV, 1-S-Video, D-SUB

�

Brightness : 450cd/m

�

Contrast Ratio : 2500:1

�

Response time : 8ms

�

Dynamic contrast

�

2

Specications

Item Description

2. Product specications

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 37-Inch viewable,

0.6(H) x 0.6(W) x 3 mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7 million colors

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 80MHz

Active Display Horizontal/Vertical 32.27 x 18.14 inches (819.6(H) x 460.8(V)mm)

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <190 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

36.08 x 11.81 x 25.91 inches(916.4 x 300 x 658.1mm)

36.08 x 3.22 x 23.66 inches (916.4 x 81.7 x 601.0 mm)

Weight (Set) 40.33 lbs (18.3Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T, PAL, SECAM, NT4.43

Sound BG, DK, NICAM, MPEG1

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-3

2. Product specications

Model LE40A45*C**

Feature

Digital TV(LE40A457C**), RF, 3-HDMI, 1-Component, 1-AV, 1-S-Video, D-SUB

�

Brightness : 450cd/m

�

Contrast Ratio : BN07-00515A(AUO)=2000:1, BN07-00523A(AMLCD)=3000:1

�

Response time : 8ms

�

Dynamic contrast

�

2

Specications

Item Description

LCD Panel TFT-LCD panel, RGB vertical stripe, normaly black, 40-Inch viewable,

0.648(H) x 0.648(W) x 3 mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 56 Hz ~ 75 Hz (Automatic)

Display Colors 16.7 million colors

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 307MHz

Active Display Horizontal/Vertical 34.85 x 19.60 (885.2 (H) x 497.7 (V) mm)

AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz

Power Consumption <200 W ( < 1W, stand by )

Dimensions

Set (W x D x H)

38.97 x 11.81 x 27.33 inches (989.8 x 300 x 694.3 mm)_with stand

38.97 x 3.22 x 25.22 inches (989.8 X 81.7 X 640.7 mm)_without stand

Weight (Set) 45.41lbs (20.6Kg)

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T, PAL, SECAM, NT4.43

Sound BG, DK, NICAM, MPEG1

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C) Storage Humidity : 5% ~ 95%, non-condensing

Environmental Considerations - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz

A/V : 80 Hz ~ 20 kHz

Note: Anynet+

2-4

CHANNEL FREQUENCY TABLE

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 1 1 A-8 72. 00 A-8 73. 25 2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25 3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25 4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25 5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25 6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25 7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25 8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25 9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25

10 10 195 193.25 V-H 10 193.25 V-H 10 192.00 10 193.25 11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25 12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25 13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25 14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25 15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25 16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25 17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25 18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25 19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25 20 20 509 507.25 UHF G 157.25 MID G 156.00 G 157.25 21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25 22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25 23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25 24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25 25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25 26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25 27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25 28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25 29 29 563 561.25 UHF P 253.25 SUPER P 252.00 P 253.25 30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25 31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25 32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25 33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25 34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25 35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25 36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25 37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25 38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25 39 39 623 621.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25 40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25 41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25 42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25 43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25 44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25 45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25 46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25 47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25 48 48 677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25 49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25 50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25 51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25 52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25 53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25 54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25 55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25 56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.25 57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25 58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25 59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25 60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25 61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25 62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25 63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25 64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25 65 65 779 777.25 UHF CCC 469.25 ULTRA CCC 468.00 CCC 469.25 66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25 67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25 68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25 69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25

OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz

1.

2.

TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz

2. Product specications

2-5

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC

70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25 71 71 III 505.25 ULTRA III 504.00 III 505.25 72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25 73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25 74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25 75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25 76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25 77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25 78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25 79 79 79 553.25 ULTRA 79 552.00 79 553.25 80 80 80 559.25 ULTRA 80 558.00 80 559.25 81 81 81 565.25 ULTRA 81 564.00 81 565.25 82 82 82 571.25 ULTRA 82 570.00 82 571.25 83 83 83 577.25 ULTRA 83 576.00 83 577.25 84 84 84 583.25 ULTRA 84 582.00 84 583.25 85 85 85 589.25 ULTRA 85 588.00 85 589.25 86 86 86 595.25 ULTRA 86 594.00 86 595.25 87 87 87 601.25 ULTRA 87 600.00 87 601.25 88 88 88 607.25 ULTRA 88 606.00 88 607.25 89 89 89 613.25 ULTRA 89 612.00 89 613.25 90 90 90 619.25 ULTRA 90 618.00 90 619.25 91 91 91 625.25 ULTRA 91 624.00 91 625.25 92 92 92 631.25 ULTRA 92 630.00 92 631.25 93 93 93 637.25 ULTRA 93 636.00 93 637.25 94 94 94 643.25 ULTRA 94 642.00 94 643.25 95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25 96 96 A-4 97.25 FM A-4 96.00 A-4 97.25 97 97 A-3 103.25 FM A-3 102.00 A-3 103.25 98 98 A-2 109.25 MID A-2 108.00 A-2 109.25

99 99 A-1 115.25 MID A-1 114.00 A-1 115.25 100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25 101 101 101 655.25 ULTRA 101 654.00 101 655.25 102 102 102 661.25 ULTRA 102 660.00 102 661.25 103 103 103 667.25 ULTRA 103 666.00 103 667.25 104 104 104 673.25 ULTRA 104 672.00 104 673.25 105 105 105 679.25 ULTRA 105 678.00 105 679.25 106 106 106 685.25 ULTRA 106 684.00 106 685.25 107 107 107 691.25 ULTRA 107 690.00 107 691.25 108 108 108 697.25 ULTRA 108 696.00 108 697.25 109 109 109 703.25 ULTRA 109 702.00 109 703.25 110 110 110 709.25 ULTRA 110 708.00 110 709.25 111 111 111 715.25 ULTRA 111 714.00 111 715.25 112 112 112 721.25 ULTRA 112 720.00 112 721.25 113 113 113 727.25 ULTRA 113 726.00 113 727.25 114 114 114 733.25 ULTRA 114 732.00 114 733.25 115 115 115 739.25 ULTRA 115 738.00 115 739.25 116 116 116 745.25 ULTRA 116 744.00 116 745.25

. .

. . .

. . . .

. .

. . .

. . . .

125 125 125 799.25 ULTRA 125 798.00 125 799.25

. . . . . . . . .

2-6

2. Product specications

2-3. Spec Comparison to the Old Models

Model CORAL (LE26/32/37/40A457C1D) JASMINE(LE26/32/37/40S86BD)

Design

Display Type LCD TV LCD TV

Built-in Tuner O O

Resolution 1366 x 768 1366 x 768

LCD Panel TFT LCD Panel 50Hz TFT LCD Panel 50Hz

Screen Size 26”/32”/37”/40” 26”/32”/37”/40”

Picture ratio 16 : 9 16 : 9

26.37 x 8.5 x 19.70 inches_with stand

26

26.37 x 2.97 x 17.74 inches_without stand

31.48 x 9.92 x 22.70 inches_with stand

32

31.48 x 3.11 x 20.68 inches_without stand

Dimensions (W x H x D)

36.08 x 11.81 x 25.91 inches_with stand

37

36.08 x 3.22 x 23.66 inches_without stand

38.97 x 11.81 x 27.33 inches_with stand

40

38.97 x 3.22 x 25.22 inches_without stand

26

Weight

32

37

40

Brightness 450 ~ 500 nit 500 nit

Contrast Ratio 2000 ~ 3000 : 1 8000:1

Picture Enhacer DNIe (FBE3) DNIe (FBE2)

Equalizer O O

21.38 lbs (set)

28.87 lbs (set)

40.33 lbs (set)

45.41 lbs (set)

29.29 x 9.13 x 19.94 inches_with stand

26

29.29 x 3.18 x 17.61 inches_without stand

34.42 x 11.47 x 22.72 inches_with stand

32

34.42 x 3.18 x 20.90 inches_without stand

39.90 x 11.81 x 25.65 inches_with stand

37

39.90 x 3.65 x 23.71 inches_without stand

42.66 x 11.81 x 27.16 inches_with stand

40

42.66 x 3.73 x 25.13 inches_without stand

26

32

37

40

23.14 lbs (set)

30.86 lbs (set)

45.18 lbs (set)

47.39 lbs (set)

Surround Sound SRS TruSurround Dolby Digital SRS TruSurround Dolby Digital

Speaker Output 10W + 10W 10W + 10W

Antenna

1 1

2-7

2. Product specications

2-4. Accessories

Product Description Code. No Remark

Remote Control & Batteries

(AAA x 2)

Power Cord 3903-000145

Cover-Bottom

Owner’s Instructions BN68-01424A

Cleaning Cloth BN63-01798A

Warranty Card / Registration

Card / Safety Guide Manual

(Not available in all locations)

BN59-00684A

26”, 32” = BN63-04269B 37”, 40” = BN63-04243B

Samsung Electronics

Service center

-

Stand Screw x 4 6002-001294

26” = BN90-01511A

Stand

32” = BN90-01580A 37” = BN90-01575A 40” = BN90-01572A

2-8

5. Exploded View & Part List

5-1. LE26A45*C** Exploded View

5. Exploded View & Part List

M0013

M0014

T0175

T0764

M0107

T0447

M0027

M0146

M0215

T0003

5-1

5. Exploded View & Part List

5-1-2. LE26A45*C** Parts List

Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark

T0003 BN96-06783D ASSY COVER P-FRONT;26L450,EO(iDTV),ABS+P 1 S.A

M0215 BN07-00510A LCD-PANEL;T260XW02 VL,8bit,26inch,16.7M, 1 S.A

T0175 BN96-06822B ASSY SPEAKER P;8ohm,CORAL,LCD 26”,5W,4pi 1 S.A

M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A

M0254 BN61-03699A HOLDER-SIDE AV;32L450,EO,HIPS,V0,-,-,-,B 1 S.N.A

T0447 BN96-06957A ASSY BRACKET P-PANEL;26A450C,SECC,T1.0,C 1 S.N.A

M0146 BN61-03682A BRACKET-PANEL TOP;L450 26INCH,SECC,T1.0 1 S.N.A

M0014 BN94-01672A ASSY PCB MAIN-AUO;LE26A456C1DXXC,N50A 1 S.A

T0764 BN44-00214A SMPS-LCDTV;MK32P5B,DYREL,AC/DC,137W,AC10 1 S.A

M0013 BN96-07209B ASSY COVER P-REAR;26L450,EO(iDTV),HIPS,H 1 S.A

M0027 BN96-06463A ASSY STAND P-BASE;26L450,,ABS+PMMA,HB,BK 1 S.A

5-2

5-2. LE32A45*C** Exploded View

5. Exploded View & Part List

M0013

M0014

M0254

T0175

M0115

T0764

M0258

T0447

M0027

M0146

M0215

T0003

5-3

5. Exploded View & Part List

5-2-1. LE32A45*C** Parts List

Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark

T0003 BN96-06784E ASSY COVER P-FRONT;32L456,EO(iDTV),ABS+P 1 S.A

M0215 BN07-00511A LCD-PANEL;T315XW02 VL,8bit,32inch,16.7M, 1 S.A

T0175 BN96-06818C ASSY SPEAKER P;8ohm,CORAL,L450,10W,550/3 1 S.A

M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A

M0254 BN61-03699A HOLDER-SIDE A V ;32L450,EO,HIPS,V0,-,-,-,B 1 S.N.A

T0447 BN96-06958B ASSY BRACKET P-PANEL;32A450C,SECC,T1.0,C 1 S.N.A

M0146 BN61-03678B BRACKET -PANEL TOP;L450 32INCH,SECC,T1.2, 1 S.N.A

T0764 BN44-00221A SMPS-LCDTV;MK32P5B,DELTA,AC/DC,137W,AC10 1 S.A

M0014 BN94-01672B ASSY PCB MAIN-AUO;LE32A456C1DXXC,N50A 1 S.A

M0013 BN96-07208B ASSY COVER P-REAR;32L450,EO(iDTV),HIPS,H 1 S.A

M0027 BN96-07211A ASSY STAND P-BASE;32L450,W/W,ABS+PMMA,HB 1 S.A

5-4

5-3. LE37A45*C** Exploded View

M0013

5. Exploded View & Part List

M0014

M0254

T0764

T0047

M0146

M0115

M0027

M0258

T0175

M0215

T0003

5-5

5. Exploded View & Part List

5-3-1. LE37A45*C** Parts List

Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark

T0003 BN96-06785D ASSY COVER P-FRONT;37L450,EO(iDTV),ABS+P 1 S.A

M0215 BN07-00513A LCD-PANEL;T370XW02 VC,8bit,37inch,16.7M, 1 S.A

T0175 BN96-06818C ASSY SPEAKER P;8ohm,CORAL,L450,10W,550/3 1 S.A

M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.A

M0254 BN61-03699A HOLDER-SIDE A V ;32L450,EO,HIPS,V0,-,-,-,B 1 S.N.A

T0447 BN96-06959B ASSY BRACKET P-PANEL;37L450,AUO,,SECC,T1 1 S.N.A

M0146 BN61-03684A BRACKET -PANEL TOP;37L450,SECC,T1.0,-,-,- 1 S.N.A

M0014 BN94-01672C ASSY PCB MAIN-AUO;LE37A456C1DXXC,N50A 1 S.A

T0764 BN44-00217A SMPS-LCDTV;MK37P5B,SEM,AC/DC,171W,AC100 1 S.A

M0013 BN96-07207B ASSY COVER P-REAR;37L450,EO(iDTV),HIPS,H 1 S.A

M0027 BN96-06259A ASSY STAND P-BASE;37,40L450,,ABS+PMMA,HB 1 S.A

5-6

5-4. LE40A45*C** Exploded View

M0174

5. Exploded View & Part List

M0013

T0447

M0146

M0014

M0125

M0254

M0027

M0215

T0175

T0003

5-7

5. Exploded View & Part List

5-4-1. LE40A45*C** Parts List

Location No. Code No. Description & Speciﬁ cation Q’ty S.A/S.N.A Remark

T0003 BN96-06786E ASSY COVER P-FRONT;40L456,EO(iDTV),ABS+P 1 S.A

M0215 BN07-00515A LCD-PANEL;T400XW01 V5,8bit,40inch,16.7M, 1 S.A

T0175 BN96-06818D ASSY SPEAKER P;8ohm,CORAL,L450,10W,400/6 1 S.A

M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.A

T0447 BN96-06960A ASSY BRACKET P-PANEL;40A450C,SECC,T1.0,C 1 S.N.A

M0146 BN61-03415A BRACKET -PANEL TOP;PEONY 46,SECC T1.2 2 S.N.A

M0014 BN94-01672D ASSY PCB MAIN-AUO;LE40A456C1DXXC,N50A 1 S.A

M0125 BN96-04938B ASSY INLET P;UL1617#22,250/250mm 1 S.A

M0254 BN61-02952K HOLDER-SIDE A V ;32S81,EO(HOTEL),HIPS,V0,- 1 S.N.A

M0013 BN96-07204B ASSY COVER P-REAR;40L450,EO(iDTV),HIPS,H 1 S.A

M0027 BN96-06259A ASSY STAND P-BASE;37,40L450,,ABS+PMMA,HB 1 S.A

5-8

5. Exploded View & Part List

5-5. LE26A45*C** Parts List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

LE26A457C1DXXC

0.1 M0001 BN90-01500D ASSY COVER FRONT;26L450,EO(iDTV) 1 S.N.A ..2 T0003 BN96-06783D ASSY COVER P-FRONT;26L450,EO(iDTV),ABS+P 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A ...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ...3 T0069 AA60-00091K SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.35, 2 S.N.A ...3 T0069 AA60-00091N SPACER-FELT;-,FELT,70X10,-,-,BLK,T1.0,-, 1 S.N.A ...3 T0069 BN60-00048A SPACER-FELT;50Q9,FELT,620L,BLK,0.35T,10W 2 S.N.A ...3 BN61-03676B HOLDER-BOSS BOTTOM;26L450,EO,HIPS,HB,-,- 1 S.N.A ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.559 S.N.A ...3 M0112 BN63-04168D COVER-FRONT;26L450,EO(iDTV),ABS+PMMA,-,- 1 S.N.A ...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A ...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A ...3 T0022 BN64-00755A KNOB-CONTROL;32L450,ABS,V0,BK07 1 S.N.A ...3 BN64-00757A DECORATION-BOTTOM;L450 26INCH,PC,-,-,-,- 1 S.N.A ...3 M0145 BN96-07269A ASSY BOARD P-FUNCTION;LN40A450C1D,CT5000 1 S.A ...3 M0146 BN96-07270D ASSY BOARD P-POWER & IR;LN32A450C1D,CT50 1 S.A ...3 BN61-03261B BOSS-TAPE;Tulip,ACRYL,T1.1,W20mm,GRAY,TA 0.8 S.N.A

..2 T0175 BN96-06822B ASSY SPEAKER P;8ohm,CORAL,LCD 26”,5W,4pi 1 S.A

LE26A457C1D,N50A/26AC1-GCR,26,LCD-TV,SPA

0.1 M0216 BN90-01511A ASSY STAND;26L450,UO,,, 1 S.N.A ..2 M0027 BN96-06463A ASSY STAND P-BASE;26L450,,ABS+PMMA,HB,BK 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A ...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A ...3 T0920 BN61-03680A GUIDE-STAND;22,26L450,ABS HB,-,-,-,BK500 1 S.N.A ...3 T0004 BN63-03122A COVER-STAND BASE;23,26R81,ABS+PMMA,-,-,- 1 S.N.A ...3 BN61-02954A BRACKET-STAND BOTTOM;23,26 BORDEAUX PLUS 1 S.N.A ...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5 4 S.N.A

..2 T0524 6902-000561 BAG PE;HDPE+NITRON(DOUBLE),T0.015+T0.5,W 1 S.N.A

0.1 M0002 BN90-01578B ASSY COVER REAR;26L450,EO(iDTV) 1 S.N.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 11 S.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A ..2 M0013 BN96-07209B ASSY COVER P-REAR;26L450,EO(iDTV),HIPS,H 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A ...3 T0101 BN61-03346A BRACKET-WALL;LCD TV,SECC,T1.2 4 S.N.A ...3 M0006 BN63-04244B COVER-REAR;26L450,EO(iDTV),HIPS,HB,BK500 1 S.N.A ...3 T0071 BN64-00758A INLAY-TERMINAL;26,32,37L450,PS SHEET,T0. 1 S.N.A ...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A

0.1 M0017 BN91-02045A ASSY CHASSIS;LE26A456C1DXXC,N50A 1 S.N.A ..2 M0014 BN94-01672A ASSY PCB MAIN-AUO;LE26A456C1DXXC,N50A 1 S.A

...3 0202-001557 SOLDER-CREAM;LST57-A,D38-63,42SN/57BI/1A 11 S.N.A ...3 JA3003_3H 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A ...3 JA3004 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A ...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A

5-9

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

...3 JA7201_OP 3709-001508 CONNECTOR-CARD SLOT;68P,1.27mm,PIN,PCMCI 1 S.A ...3 CN330 3711-000012 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST 1 S.A ...3 CN330 3711-003846 HEADER-BOARD TO CABLE;BOX,8P ,1R,2mm,ANGL 1 S.A ...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 S.A ...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A ...3 JA330 3722-001055 JACK-PHONE;5P/2C,AG,BLK,ANGLE 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 CN3214 3722-002275 JACK-DIN;4P,-,SN,BLK,- 1 S.A ...3 JA3201 3722-002681 JACK-SCART;42P,SN,BLK 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 S.A ...3 JA333 3722-002704 JACK-PIN;3P,Sn,YEL/WHT/RED,ANGLE 1 S.A ...3 CIS3 BN40-00120A TUNER;TDHG6-K10A,TDHG6-K10A,DVB-T,181CH, 1 S.A ...3 M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 S.N.A ...3 HDCP BN97-00688A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,GENE 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 T0174 BN97-02055A ASSY SMD;LE26A456C1DXXC,AUO 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##,96.5Sn/ 2.772 S.N.A

....4 D2002 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2003 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2004 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2009 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2012 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2019 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D3244 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3008 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3016 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3017 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3019 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3021 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3022 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3024 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3025 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3026 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

5-10

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 D3027 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3030_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3031_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3034_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3035_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3036_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3037_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3038_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3039_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3040_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3041_3H 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3045 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3046 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3047 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3061 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3062 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3064 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3066 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3203 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3204 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3206 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3217 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3218 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3219 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3230 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D3236 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D2001 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D3063 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D3065 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D3067 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D0254 0402-001019 DIODE-SCHOTTKY;MBRS340,40V,3000mA,DO-214 1 S.A

....4 D2008 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3020 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3033_3H 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3048 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3049 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3050 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3051 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3052 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3074 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D5001 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A

....4 D3070 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D3216 0403-000607 DIODE-ZENER;VLZ16C,15.69/16.51V,500mW,SO 1 S.N.A

....4 D3229 0403-000607 DIODE-ZENER;VLZ16C,15.69/16.51V,500mW,SO 1 S.N.A

....4 D3002 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3015 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3029_3H 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3042 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A

....4 D3001 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

5-11

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 D3014 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D3028_3H 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D3208 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D5201 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1005 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 S.A

....4 D3053 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3054 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3055 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3056 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3057 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3058 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3068 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3069 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3212_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3213 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3214_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3215 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3220 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3221 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3222_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3223 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3224 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3225 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3226 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3227_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3228_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3231 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3232 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3233 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3237 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3238 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3239 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D3240 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A

....4 D2013 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D3071 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D3072 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7201 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7202 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7203 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7204 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7205 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D7206 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q7001 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A

....4 Q7002 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A

....4 Q7402 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q1001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1002_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

5-12

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 Q2004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2007 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2008 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2009 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3006 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3007 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3207 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3208 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5201 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q5202 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q6003_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2005 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q2006 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q3202 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q3205 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q1004_LCD 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3201 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3203 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3204 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q3206 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A

....4 IC104 0801-002432 IC-CMOS LOGIC;74LVC244,8BIT BUFFER/DRIVE 1 S.N.A

....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 S.A

....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A

....4 IC2002 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC5203 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 1 S.A

....4 IC3011 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A

....4 IC106 1001-001440 IC-VIDEO SWITCH;SiI9185CTU,QFP,80P,3.3V, 1 S.A

....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

5-13

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A

....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC5201 1105-001838 IC-DDR SDRAM;EM6A9160TS0A-5G,DDR SDRAM,1 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP ,ST,8P ,150MIL,DUAL,10 1 S.A

....4 DU410 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV ,P 1 S.A

....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P ,3x3mm,DUAL 1 S.A

....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 IC7206 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC5002 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A

....4 IC2005 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 IC7402 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 T0087 1203-004816 IC-POSI.FIXED REG.;KIA78D015F,DPAK,3P,6. 1 S.A

....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A

....4 IC7001 1204-002861 IC-DECODER;UPD61211GM-104-GAA-A,QFP,216P 1 S.A

....4 IC5204 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC5205 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC5206 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC5207 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A

....4 IC109 1205-003432 IC-LCD CONTROLLER;SEMS01,LQFP,256P,30x30 1 S.A

....4 IC3012 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3013 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 IC3014_3H 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 R110 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000137 R-CHIP;2KOHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-14

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

5-15

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

5-16

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A

5-17

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A

5-18

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000153 R-CHIP;22KOHM,5%,1/16W,TP,1005 1 S.A

5-19

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000153 R-CHIP;22KOHM,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A

5-20

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A

5-21

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.A

5-22

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

5-23

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000242 R-CHIP;1.5KOHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-000775 R-CHIP;33KOHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000831 R-CHIP;39Kohm,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-000932 R-CHIP;470OHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

5-24

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R110 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-001217 R-CHIP;82OHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001285 R-CHIP;5.6OHM,5%,1/16W,TP,1005 1 S.A

....4 R110 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

5-25

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001307 R-CHIP;180ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001317 R-CHIP;910OHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-001333 R-CHIP;18KOHM,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-002906 R-CHIP;200Kohm,1%,1/10W,TP,1608 1 S.A

5-26

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 R110 2007-002906 R-CHIP;200Kohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007297 R-CHIP;110ohm,1%,1/10W,TP,1608 1 S.A

....4 R110 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007319 R-CHIP;390OHM,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-007791 R-CHIP;9.1KOHM,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 S.N.A

....4 R110 2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 1 S.N.A

....4 RA5009 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5010 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5011 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5012 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5013 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5014 2011-000585 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA6007 2011-000686 R-NETWORK;56ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5021 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5022 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5023 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5201 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5202 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5203 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5204 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

5-27

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 RA5205 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7203 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7204 2011-000881 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5006 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

....4 RA6004_

FBE

....4 RA6005_

FBE

....4 RA6006_

FBE

....4 RA5001 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5002 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5003 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5004 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5015 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5024 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5025 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5030 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5031 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5034 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7009 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7010 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7011 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7012 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7209 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7001 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7002 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7003 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7004 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7005 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7006 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7007 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7008 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7205 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA7210 2011-001087 R-NETWORK;75ohm,5%,1/16W,L,CHIP,8P,TP,3. 1 S.A

....4 RA5005 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5007 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5008 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5016 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5017 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5018 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5019 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5020 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5026 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5027 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5028 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5029 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5032 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA5033 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7201 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

....4 RA7202 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 S.A

2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 S.A

5-28

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 S.A

....4 C120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A

....4 C120 2203-000357 C-CER,CHIP;0.15nF,5%,50V,C0G,1608 1 S.A

....4 C120 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,1005 1 S.A

....4 C120 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005 1 S.A

....4 C120 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,1005 1 S.A

....4 C120 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,1005 1 S.N.A

....4 C120 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

5-29

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C120 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C120 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A

....4 C120 2203-001153 C-CER,CHIP;0.068nF,5%,50V,NP0,1005 1 S.A

....4 C120 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C120 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 S.N.A

....4 C120 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 C120 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C120 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

5-30

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 1 S.A

....4 C120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C120 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C120 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C120 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,3216 1 S.A

....4 C120 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,2012 1 S.A

....4 C120 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 1 S.A

....4 C120 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 1 S.N.A

....4 C120 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C120 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

5-31

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 S.N.A

....4 C120 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1005 1 S.A

....4 C120 2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 1 S.N.A

....4 C120 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-32

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

5-33

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 1 S.N.A

....4 C120 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

5-34

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C120 2203-006513 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1005 1 S.N.A

....4 C120 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,1005 1 S.N.A

....4 C120 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-35

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

5-36

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 C120 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 1 S.N.A

....4 C120 2203-006842 C-CER,CHIP;0.47nF,5%,50V,C0G,1005 1 S.N.A

....4 C120 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,1005 1 S.N.A

....4 C120 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A

....4 C1015 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C3056 2402-001150 C-AL,SMD;47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A

....4 C1025 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C1005 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C1039 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C1010 2402-001259 C-AL,SMD;220uF,20%,16V,WT,REEL,8X10 1 S.A

....4 C2014 2402-001330 C-AL,SMD;330uF,20%,25V,TP,10x10mm 1 S.N.A

....4 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 S.A

5-37

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001334 INDUCTOR-SMD;1.5uH,10%,2012 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 L2001 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 L2002 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 X202 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16p 1 S.A

....4 X202 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 F103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 G101 3301-000316 CORE-FERRITE BEAD;120ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001163 BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001278 BEAD-SMD;120ohm,1608,200mA,TP,169ohm/174 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

5-38

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 JA3001 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA3002 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 CN6001_

FFC

....4 T0077 BN41-00981A PCB MAIN;Coral iDTV Reverse,FR-4,4,1.6T, 1 S.N.A

....4 M0018 BN97-02084A ASSY MICOM;T-PERLDEUC-0010,N50A,2007.12. 1 S.N.A

.....5 IC115 1107-001415 IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS 1 S.N.A

....4 M0018 BN97-02084B ASSY MICOM;T-CRL32PEUMD-0008.0,N50A,2007 1 S.N.A

.....5 IC115 1107-001709 IC-FLASH MEMORY;MX25L1605A,16Mbit,2Mx8,S 1 S.A

....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 1 S.A

...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A

3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 S.A

0.1 BN91-02051A ASSY SHIELD-AAN;LE26A456C1DXXC,N50A 1 S.N.A ..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A ..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A ..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A ..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A ..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A ..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.N.A ..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A ..2 M2893 BH39-00362B LEAD CONNECTOR;RE32**,UL1007#26,5P,150mm 1 S.A ..2 M2893 BN39-00802A LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C 1 S.A ..2 T0764 BN44-00214A SMPS-LCDTV;MK32P5B,DYREL,AC/DC,137W,AC10 1 S.A ..2 M0146 BN61-02207A BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2 2 S.N.A ..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 3 S.N.A ..2 M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32”,SECC,T1.6 1 S.A ..2 M0254 BN61-03699A HOLDER-SIDE AV;32L450,EO,HIPS,V0,-,-,-,B 1 S.N.A

5-39

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

..2 M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A ..2 M0125 BN96-05490A ASSY INLET P;LE52M87BDX,XEC,300,300,150m 1 S.A ..2 T0447 BN96-06957A ASSY BRACKET P-PANEL;26A450C,SECC,T1.0,C 1 S.N.A

...3 M0146 BN61-03682A BRACKET-P ANEL TOP;L450 26INCH,SECC,T1.0 1 S.N.A ...3 BN61-03687A BRACKET-PANEL BOTTOM;L450 26INCH,SECC,T1 1 S.N.A ...3 BN61-03688A BRACKET-GUIDE MAIN;L450 26INCH,SECC,T1.0 1 S.N.A ...3 BN61-03690A BRACKET-GUIDE POWER;L450 26INCH,SECC,T1. 1 S.N.A ...3 BN61-03694A BRACKET-GUIDE POWER;L450 26INCH,SECC,T1. 1 S.N.A ...3 M0131 BN63-03370A GASKET;LE37M86BDX,Conductive Fabric,10,7 1 S.N.A ...3 M0131 BN63-03392A GASKET;BORDEAUX PLUS,Conductive Fabric,1 2 S.N.A

..2 M0214 BN96-07158D ASSY CABLE P-FLAT;CORAL,FFC CABLE,196mm, 1 S.A ..2 M2893 BN39-00603B LEAD CONNECTOR;RE32**,UL1007#26,14P,200m 1 S.A

0.1 BN91-02064A ASSY LCD-AUO;LE26A456C1DXXC 1 S.N.A ..2 M0215 BN07-00510A LCD-PANEL;T260XW02 VL,8bit,26inch,16.7M, 1 S.A

0.1 M0003 BN92-03167B ASSY BOX;26L450,EO,,C1 1 S.N.A ..2 BN69-02285D BOX-SET;L450-26,CB,DY-01,A,YEL,A1,EUROPE 1 S.N.A

0.1 M0019 BN92-03280A ASSY LABEL;LE26A456C1DXXC,N50A 1 S.N.A

0.1 M0045 BN92-03322A ASSY ACCESSORY ;LE26A456C1XXC 1 S.N.A ..2 M0045 BN96-07319A ASSY ACCESSORY -MANUAL;LE26A456C1DXXC 1 S.A

...3 T0210 AA68-03242K MANUAL FLYER-01,SAFETY GUIDE;comm,Samsun 1 S.N.A ...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY

...3

ACCESSORY ...3 T0511 BN68-01424A MANUAL USERS;COMM,SAMSUNG,8Langs,W.Europ 1 S.N.A ...3 T0091 HA83-00047A LP-TAPEACETATE;T0.1MM,W20MM,L200MM 0.05 S.N.A

..2 M0045 BN96-07319B ASSY ACCESSORY-CABEL;LE26A456C1DXXC 1 S.A ...3 T0268 3903-000145 CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R 1 S.A ...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A ...3 T0074 BN59-00684A REMOCON;TM-96B,49,EUROPE_DTV-450 1 S.A ...3

ACCESSORY ...3 T0531 BN63-04269B COVER-BOTTOM;22,26,32L450,HIPS,HB,BK500 1 S.N.A ...3 T0091 HA83-00047A LP-TAPEACETATE;T0.1MM,W20MM,L200MM 0.05 S.N.A

AA68-03575A MANUAL FLYER-02,REGISTRATION C;XEU,ENG,U 1 S.N.A

AA68-03575B MANUAL FLYER-02,REGISTRATION C;XEG,GERMA 1 S.N.A AA68-03575C MANUAL FLYER-02,REGISTRATION C;XEF,FRENC 1 S.N.A AA68-03575D MANUAL FLYER-03,REGISTRATION C;XEC,SPANI 1 S.N.A AA68-03575E MANUAL FLYER-04,REGISTRATION C;XET,ITALY 1 S.N.A AA68-03575F MANUAL FLYER-02,REGISTRATION C;XEN,DUTCH 1 S.N.A AA68-03575G MANUAL FLYER-02,REGISTRATION C;XEP,PORTU 1 S.N.A BN68-00514E MANUAL FLYER-00,WARRANTY CARD;comm,Samsu 1 S.N.A

BN63-01798A CLOTH-CLEAN;RE40**,CLOTH,180,200,RHCM 1 S.N.A

0.1 M0113 BN92-03173B ASSY P/MATERIAL;26L450,W/W 1 S.N.A ..2 T0524 6902-000358 BAG PE;HDPE/NITRON,T0.015/T0.5,W900,L700 1 S.N.A ..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 1.81 S.N.A

....4 C2741_LCD 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

5-40

5. Exploded View & Part List

5-6. LE32A45*C** Parts List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

LE32A456C2DXXU LE32A456C2D,N50A/32AC2-GCR,32,LCD-TV,UNI

0.1 M0001 BN90-01501K ASSY COVER FRONT;LE32A456C2DXXH 1 S.N.A ..2 T0003 BN96-06784K ASSY COVER P-FRONT;32L456,EO(iDTV),Squar 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A ...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A ...3 BN61-03261B BOSS-TAPE;Tulip,ACRYL,T1.1,W20mm,GRAY,TA 0.57 S.N.A ...3 BN61-03675B HOLDER-BOSS BOTTOM;32L450,EO,HIPS,HB,-,- 1 S.N.A ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.74 S.N.A ...3 M0112 BN63-04166E COVER-FRONT;32L456,EO(iDTV),ABS+PMMA,-,- 1 S.N.A ...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A ...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A ...3 T0022 BN64-00755A KNOB-CONTROL;32L450,ABS,V0,BK07 1 S.N.A ...3 BN64-00793A DECORATION-BOTTOM;L450 32INCH,PC,-,-,-,- 1 S.N.A ...3 M0145 BN96-07269A ASSY BOARD P-FUNCTION;LN40A450C1D,CT5000 1 S.A ...3 M0146 BN96-07270D ASSY BOARD P-POWER & IR;LN32A450C1D,CT50 1 S.A ...3 M0279 AA63-01637A FELT;50P9,FELT,0.5,10,80 1 S.N.A ...3 T0069 AA60-00171L SPACER-FELT;46L3,FELT,460,T0.5,10 2 S.N.A ...3 T0069 BP60-00015D SPACER-FELT;617W,FELT,L760,T0.5,W10 2 S.N.A

..2 T0175 BN96-06818C ASSY SPEAKER P;8ohm,CORAL,L450,10W,550/3 1 S.A

0.1 M0002 BN90-01577B ASSY COVER REAR;32L450,EO(iDTV) 1 S.N.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A ..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 11 S.A ..2 M0013 BN96-07208B ASSY COVER P-REAR;32L450,EO(iDTV),HIPS,H 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A ...3 T0101 BN61-03348A BRACKET-W ALL;LCD TV 32,SECC T1.2,-,-,-,- 4 S.N.A ...3 M0006 BN63-04245B COVER-REAR;32L450,EO(iDTV),HIPS,HB,BK500 1 S.N.A ...3 T0071 BN64-00758A INLAY-TERMINAL;26,32,37L450,PS SHEET,T0. 1 S.N.A ...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A

0.1 M0216 BN90-01580A ASSY STAND;32L450,W/W 1 S.N.A ..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A ..2 M0027 BN96-07211A ASSY STAND P-BASE;32L450,W/W,ABS+PMMA,HB 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A ...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A ...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A ...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A ...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A ...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A ...3 T0920 BN61-03679A GUIDE-STAND;32L450,PC+GF 20%,-,-,-,BK500 1 S.N.A ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A ...3 T0004 BN63-03102A COVER-STAND BASE;32R81,ABS+PMMA,-,-,-,HB 1 S.N.A ...3 M0126 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 4 S.N.A

0.1 M0017 BN91-02045F ASSY CHASSIS;LE32A457C1DXXC 1 S.N.A ..2 M0014 BN94-01672F ASSY PCB MAIN-SST;LE32A457C1DXXC 1 S.A

...3 0202-001557 SOLDER-CREAM;LST57-A,D38-63,42SN/57BI/1A 11 S.N.A

5-41

5. Exploded View & Part List

Level Location No. Code No. Description & Speciﬁ cation Q’ty SA/SNA Remark

...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A ...3 JA3003_3H 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A ...3 JA3004 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A ...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A ...3 JA7201_OP 3709-001508 CONNECTOR-CARD SLOT;68P,1.27mm,PIN,PCMCI 1 S.A ...3 CN330 3711-000012 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST 1 S.A ...3 CN330 3711-003846 HEADER-BOARD TO CABLE;BOX,8P ,1R,2mm,ANGL 1 S.A ...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A ...3 CN330 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 S.A ...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A ...3 CN3214 3722-002275 JACK-DIN;4P,-,SN,BLK,- 1 S.A ...3 JA3201 3722-002681 JACK-SCART;42P,SN,BLK 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A ...3 JA333 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 S.A ...3 JA333 3722-002704 JACK-PIN;3P,Sn,YEL/WHT/RED,ANGLE 1 S.A ...3 CIS3 BN40-00120A TUNER;TDHG6-K10A,TDHG6-K10A,DVB-T,181CH, 1 S.A ...3 M0107 BN63-01847A SHIELD-COVER;ROME,SPTE,T0.3,49.5,79.5,HE 1 S.N.A ...3 HDCP BN97-00688A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,GENE 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 BN97-02055F ASSY SMD-SST;LE32A457C1DXXC 1 S.N.A
