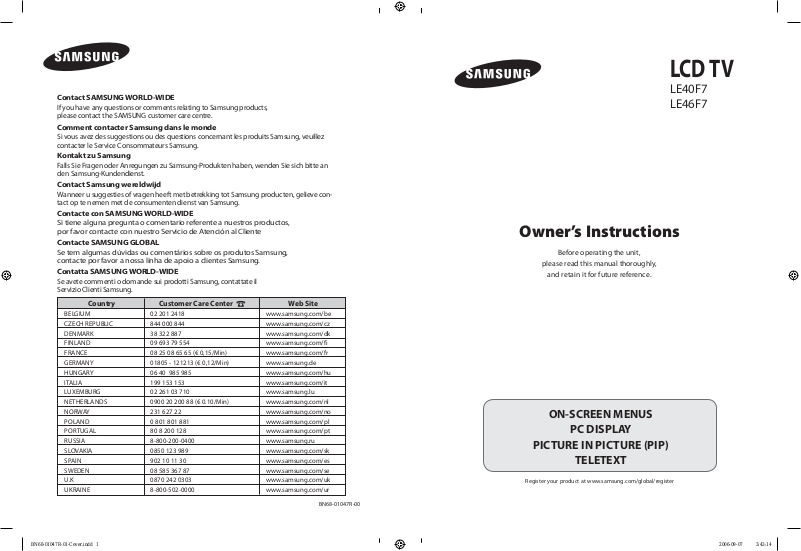

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Comment contacter Samsung dans le monde

Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs Samsung.

Kontakt zu Samsung

Falls Sie Fragen oder Anregungen zu Samsung-Produkten haben, wenden Sie sich bitte an den Samsung-Kundendienst.

Contact Samsung wereldwijd

Wanneer u suggesties of vragen heeft met betrekking tot Samsung producten, gelieve contact op te nemen met de consumenten dienst van Samsung.

Contacte con SAMSUNG WORLD-WIDE

Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al Cliente

Contacte SAMSUNG GLOBAL

Se tem algumas dúvidas ou comentários sobre os produtos Samsung, contacte por favor a nossa linha de apoio a clientes Samsung.

Contatta SAMSUNG WORLD-WIDE

Se avete commenti o domande sui prodotti Samsung, contattate il Servizio Clienti Samsung.

Country

BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL RUSSIA SLOVAKIA SPAIN SWEDEN U.K UKRAINE

Customer Care Center

02 201 2418 844 000 844 38 322 887 09 693 79 554 08 25 08 65 65 (€ 0,15/Min) 01805 - 121213 (€ 0,12/Min) 06 40 985 985 199 153 153 02 261 03 710 0900 20 200 88 (€ 0.10/Min) 231 627 22 0 801 801 881 80 8 200 128 8-800-200-0400 0850 123 989 902 10 11 30 08 585 367 87 0870 242 0303 8-800-502-0000

Web Site

www.samsung.com/be www.samsung.com/cz www.samsung.com/dk www.samsung.com/fi www.samsung.com/fr www.samsung.de www.samsung.com/hu www.samsung.com/it www.samsung.lu www.samsung.com/nl www.samsung.com/no www.samsung.com/pl www.samsung.com/pt www.samsung.ru www.samsung.com/sk www.samsung.com/es www.samsung.com/se www.samsung.com/uk www.samsung.com/ur

BN68-01047R-00

LE40F7 LE46F7

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Précautions à prendre lors de l’affichage d’une image fixe

Une image fixe peut causer des dommages irrémédiables à l’écran du téléviseur.

• N’affichez pas une image fixe sur l’écran LCD plus de 2 heures. Cela pourrait provoquer une rémanence de l’image à l’écran. Cette rémanence de l’image est également appelée “brûlure de l’écran”. Pour éviter une telle rémanence de l’image à l’écran, réduisez la luminosité et le contraste de l’écran lorsque vous laissez une image fixe affichée.

•

• L’affichage d’images fixes de jeux vidéo et d’ordinateurs pendant plus longtemps qu’une période spécifique peut provoquer des rémanences. Pour éviter cela, réduisez la “luminosité” et le “contraste” lors de l’affichage d’images fixes.

Vorsichtsmaßnahmen beim Anzeigen von Standbildern

Ein Standbild kann zu einer dauerhaften Beschädigung des Fernsehbildschirms führen.

• Zeigen Sie kein Standbild länger als 2 Stunden auf dem LCD-Monitor an, da das Bild auf diese Weise einbrennen kann. Das Einbrennen von Standbildern wird auch als “Bildkonservierung” bezeichnet. Sie können das Einbrennen vermeiden, indem Sie die Helligkeit und den Kontrast des Monitors beim Anzeigen von Standbildern verringern.

• Bei Wiedergabe im Format 4:3 über einen längeren Zeitraum können bedingt durch die unterschiedliche Lichtemission Nachbilder der

• Die kontinuierliche Anzeige von Standbildern von Videospielen oder vom PC über einen gewissen Zeitraum hinaus kann partielle Nachbilder verursachen. Um diesen Effekt zu verhindern, verringern Sie Helligkeit und Kontrast, wenn Sie Standbilder anzeigen möchten.

Voorzorgsmaatregelen bij weergave van stilstaand beeld

Stilstaande beelden kunnen permanente schade aan uw TV-scherm toebrengen.

• Laat niet langer dan 2 uur een stilstaand beeld op het LCD-scherm staan, dat kan namelijk beeldretentie veroorzaken. Beeldretentie wordt ook wel inbranden genoemd. Verlaag bij de weergave van een stilstaand beeld de helderheid en het contrast om beeldretentie te voorkomen.

•

• Het gedurende langere tijd weergeven van stilstaande beelden van dvd’s of computerspellen kan (gedeeltelijke) scherminbranding tot gevolg hebben. Om dit te voorkomen kunt u tijdens het weergeven van stilstaande beelden de helderheid en het contrast verminderen.

Precauciones al mostrar en la pantalla una imagen fija

La imagen fija puede causar daños permanentes en la pantalla del televisor.

• No deje una imagen fija en la pantalla LCD durante más de dos horas ya que se podría producir una retención de la imagen en la pantalla. Este fenómeno de retención de imágenes también se denomina “quemadura de pantalla”. Para evitar que se produzca esa persistencia de la imagen, reduzca el nivel de luminosidad y de contraste de la pantalla cuando muestre imágenes fijas.

• El uso del televisor LCD en formato 4:3 durante un tiempo prolongado puede dejar rastros de bordes en las partes izquierda,

• Ver imágenes fijas de videojuegos y PC durante más tiempo del indicado puede producir imágenes fantasma parciales. Para evitar este efecto, reduzca el ‘brillo’ y el ‘contraste’ cuando vea imágenes fijas.

Precauções a ter quando se vêem imagens fixas

Uma imagem fixa pode danificar permanentemente o ecrã do televisor.

• Uma imagem fixa não deve permanecer no painel LCD durante mais de 2 horas ecrã porque pode provocar o efeito de retenção de imagem no ecrã. Esta retenção de imagem também é conhecida como “queimadura de ecrã”. Para evitar a retenção de imagem, diminua o grau de luminosidade e de contraste do ecrã quando visualizar uma imagem fixa.

• Utilizar o televisor LCD em formato 4:3 durante um longo período de tempo pode deixar vestígios de margens na parte esquerda, direita e

• Visualizar imagens fixas de jogos de vídeo ou de PC durante um longo período de tempo pode produzir imagens parciais depois da visualização. Para evitar este efeito, reduza a “luminosidade” e o “contraste” quando visualizar imagens fixas.

Precauzioni da adottare quando si visualizza un’immagine fissa

Un’immagine fissa può causare danni permanenti allo schermo TV.

• Non visualizzare un’immagine fissa sul pannello LCD per oltre 2 ore poiché può causare la ritenzione dell’immagine sullo schermo. Il fenomeno di ritenzione dell’immagine è anche noto come “bruciatura dello schermo”. Per evitare il fenomeno di ritenzione dell’immagine, ridurre il grado di luminosità e di contrasto dello schermo quando si visualizza un’immagine fissa.

• Su un TV LCD, l’uso del formato 4:3 per un periodo prolungato può lasciare traccia dei bordi sulla parte sinistra, destra e

• La visualizzazione prolungata di immagini fisse da videogiochi e PC può causare la visualizzazione di immagini residue parziali. Per evitare questo problema, ridurre la ‘luminosità’ e il ‘contrasto’ mentre si visualizzano immagini fisse.

caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Regarder l’écran LCD du téléviseur en format 4:3 pendant une longue période peut laisser des traces de bordures à gauche, à droite et au centre de l’écran, à cause de la différence d’émission de lumière sur l’écran. La lecture d’un DVD ou l’utilisation d’une console de jeu peut avoir un effet similaire sur l’écran. Les dommages provoqués par les effets qui précèdent ne sont pas couverts par la garantie.

Ränder links, rechts und in der Mitte des Bildschirms auftreten. DVD- oder Spielekonsole-Wiedergabe können einen ähnlichen Effekt verursachen. Schäden, die durch die o. g. Effekte verursacht wurden, unterliegen nicht der Garantie.

Als u gedurende langere tijd naar uw LCD-tv kijkt terwijl het beeld in 4:3-formaat wordt weergegeven, kunnen aan de linker- en rechterkant en in het midden van het scherm randen achterblijven. Dit wordt veroorzaakt door de verschillen in lichtemissie op het scherm. Het afspelen van een dvd of een computerspel kan hetzelfde effect hebben. Schade ontstaan door het bovengenoemde effect valt niet onder de garantie.

derecha y central de la pantalla debido a las diferencias en la emisión lumínica de la pantalla. Reproducir un DVD o una videoconsola puede causar un efecto similar en la pantalla. La garantía no cubre estos daños.

frontal do televisor devido a diferenças de emissão de luz do ecrã. Reproduzir um DVD ou ligar uma consola de jogos pode causar efeitos semelhantes no ecrã. Os danos causados pelo efeito acima mencionado não estão cobertos pela garantia.

centrale del video a causa delle differenti emissioni luminose dello schermo. La riproduzione di un DVD o l’uso di una console per videogiochi può causare effetti analoghi sullo schermo. Questo tipo di danni non è coperto dalla Garanzia.

English

CONNECTING AND PREPARING YOUR TV

List of Parts....................................................................................... 2

Installing the Wall Mount Kit ................................................ 2

Viewing the Control Panel ......................................................... 3

Viewing the Connection Panel ................................................. 4

Viewing the Remote Control ..................................................... 6

Installing Batteries in the Remote Control ........................... 6

Switching On and Off .................................................................. 7

Placing Your Television in Standby Mode ............................. 7

Plug & Play ....................................................................................... 7

SETTING THE CHANNELS

Storing Channels Automatically .............................................. 8

Storing Channels Manually ........................................................ 8

Setting the Channel Manager .................................................. 9

Activating the Child Lock ...................................................... 10

Sorting the Stored Channels ..................................................... 10

Assigning Channels Names ....................................................... 11

Fine Tuning Channel Reception ............................................... 11

Using the LNA (Low Noise Amplifier) Feature .................... 12

SETTING THE PICTURE

Changing the Picture Standard ................................................ 12

Adjusting the Custom Picture................................................... 12

Changing the Colour Tone ......................................................... 13

Adjusting the Color Tone with the Preferred Color

Component...................................................................................... 13

Resetting the Picture Settings to the

Factory Defaults ............................................................................. 13

Changing the Picture Size .......................................................... 14

Changing the Auto Wide (4:3) .................................................. 14

Freezing the Current Picture ..................................................... 15

Digital Noise Reduction .............................................................. 15

DNIe Demo (Digital Natural Image engine) ........................ 15

Viewing the Picture In Picture (PIP) ........................................ 16

SETTING THE SOUND

Changing the Sound Standard ........................................... 17

Adjusting the Sound Settings ............................................. 17

Setting the TruSurround XT (SRS TSXT ) ........................... 17

Adjusting the Volume Automatically ................................ 18

Selecting the Internal Mute .................................................. 18

Listening to the Sound of the Sub Picture...................... 18

Resetting the Sound Settings to the

Factory Defaults ........................................................................ 19

Connecting Headphones ...................................................... 19

Selecting the Sound Mode ................................................... 19

SETTING THE OTHERS

Choosing Your Language ...................................................... 21

Using Game Mode ................................................................... 21

Setting the Blue Screen Mode /

Selecting the Melody ............................................................. 22

Using the Energy Saving Feature ....................................... 22

Selecting the Source ............................................................... 23

Editing the Input Source Names ........................................ 23

WISELINK

Using the WISELINK Function .............................................. 24

Using the WISELINK Menu .................................................... 25

Using the PHOTO (JPEG) List ................................................ 25

Viewing Photo File Information .......................................... 27

Selecting a Photo and Slide Show ..................................... 27

Rotating ....................................................................................... 28

Zooming-in ................................................................................. 29

Copying Image Files ................................................................ 30

Deleting Image Files................................................................ 30

Printing a Photo ........................................................................ 31

Using the MP3 List ................................................................... 31

Copying Music Files ................................................................. 32

Deleting Music Files ................................................................ 32

Using the Setup Menu ........................................................... 33

USING THE TELETEXT FEATURE

Teletext Decoder ...................................................................... 34

Displaying the Teletext Information .................................. 34

Selecting a Specific Teletext Page ...................................... 35

Using Fastext to Select a Teletext Page ............................ 35

Setting Up Your Remote Control ........................................ 36

Remote Control Codes ........................................................... 38

SETTING THE PC

Setting up Your PC Software

(Based on Windows XP) ......................................................... 41

Display Modes ........................................................................... 41

Setting the PC ............................................................................ 42

RECOMMENDATIONS FOR USE

Using the Anti-Theft Kensington Lock ............................. 43

Troubleshooting:

Before Contacting Service Personnel ............................... 43

Technical and Environmental Specifications ................ 44

SETTING THE TIME

Setting and Displaying the Current Time ........................ 19

Setting the Sleep Timer.......................................................... 20

Switching the Television

On and Off Automatically ..................................................... 20

Symbol Press Important Note One-Touch

English-1

Button

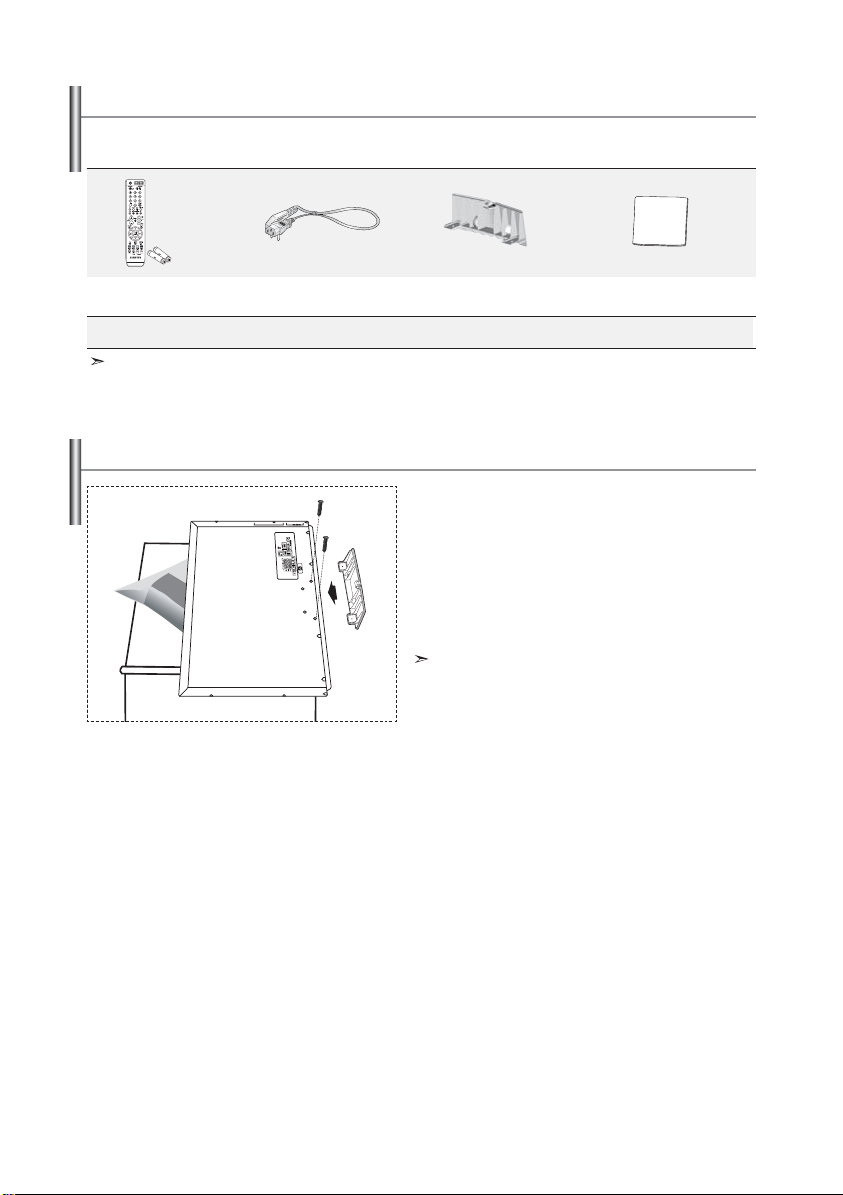

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

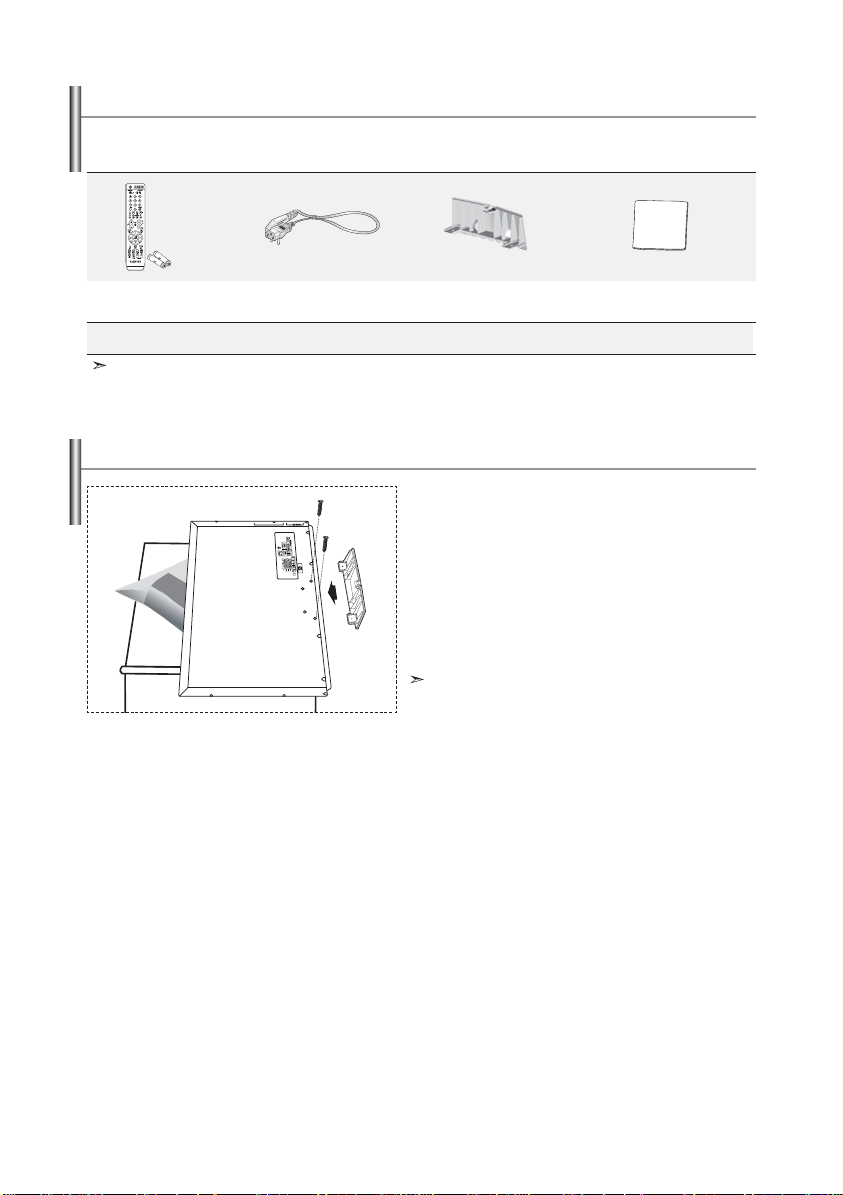

Remote Control & Batteries

(AAA x 2)



Owner’s Instructions

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

Power Cord Cover-Bottom Cleaning Cloth

 Warranty card  Safety Guide  Registration Cards

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

English-2

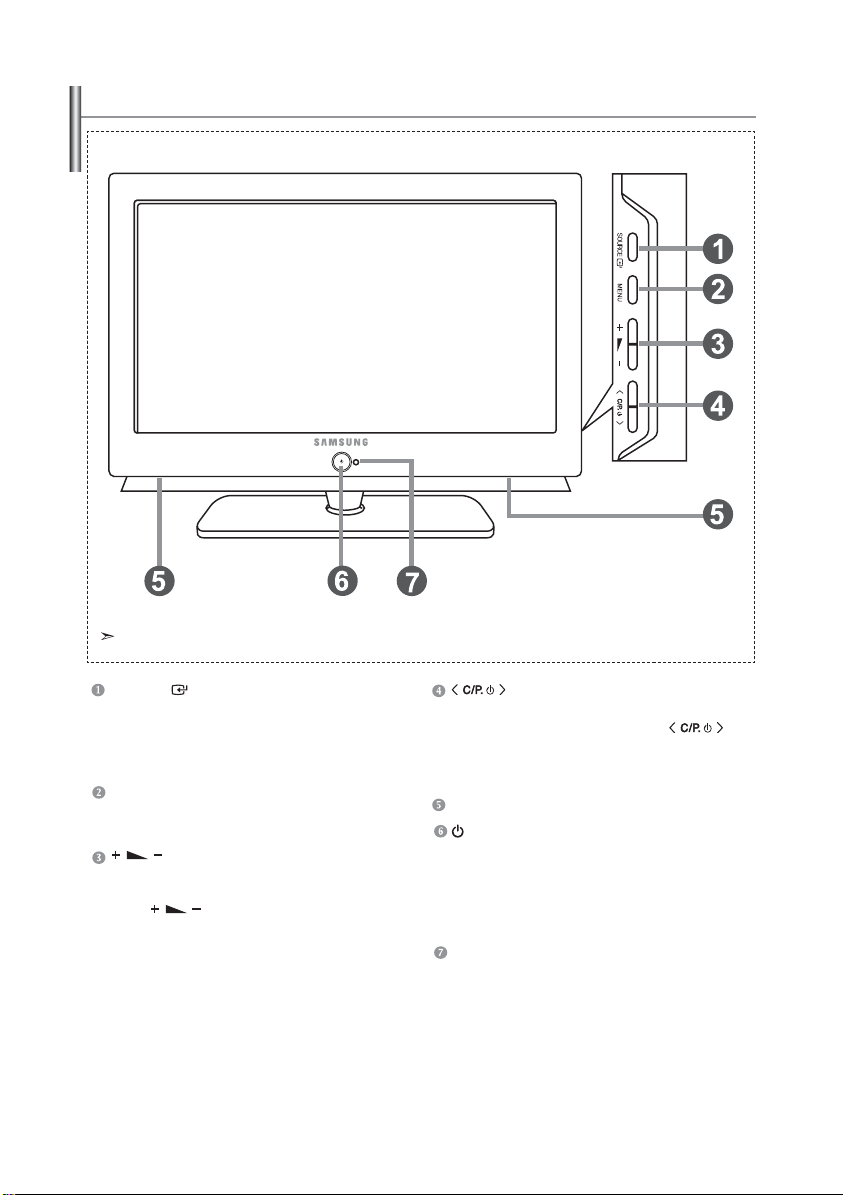

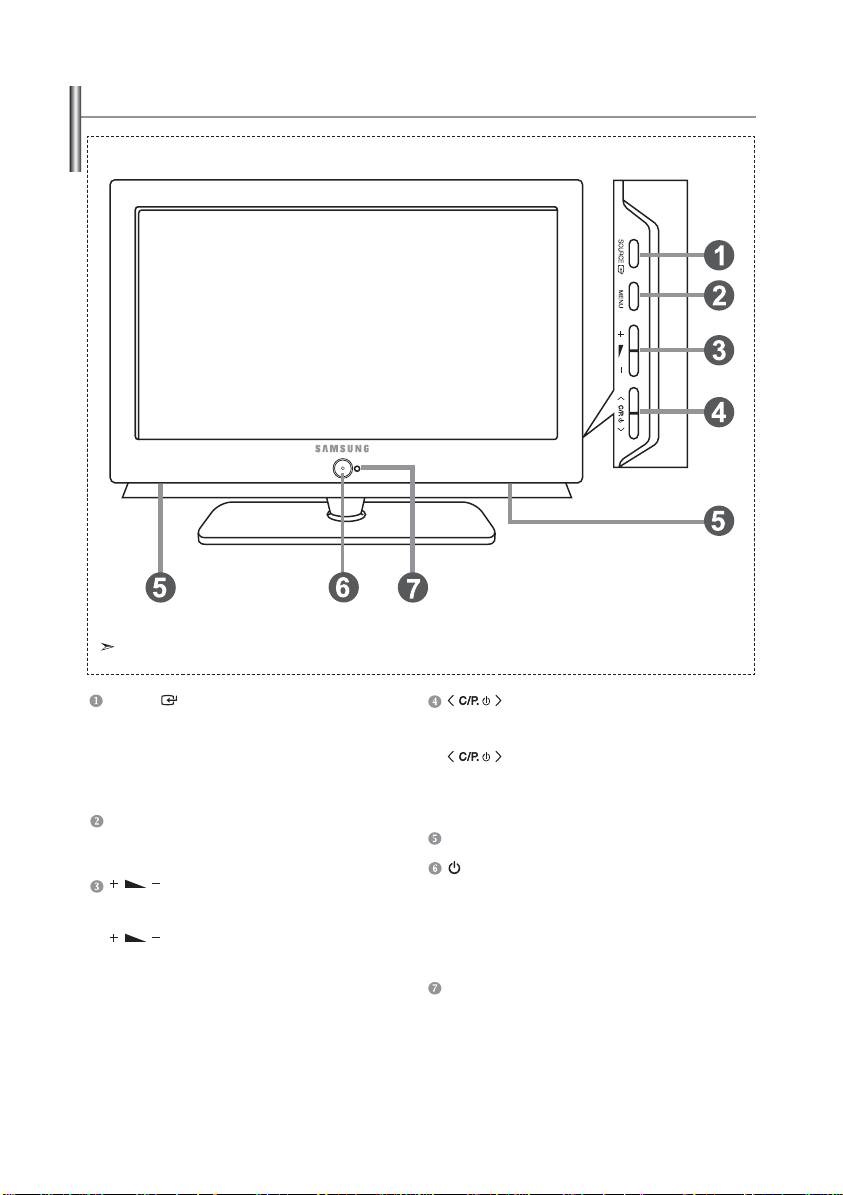

Viewing the Control Panel

The product colour and shape may vary depending on the model.

SOURCE

Toggles between all the available input soures (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2). In the on-screen menu, use this button as you use the ENTER on the remote control.

button

Press to change channels. In the on-screen menu, use the as you use the  and  buttons on the remote control. on the TV by using the Channel buttons.)

(Without the Remote Control, you can turn

buttons

Press to see an on-screen menu of your TV’s features.

Press to decrease or increase the volume. In the on-screen menu, use the as you use the  and  buttons on the remote control.

buttons

Speakers

(

Power)

Press to turn the TV on and off.

Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

English-3

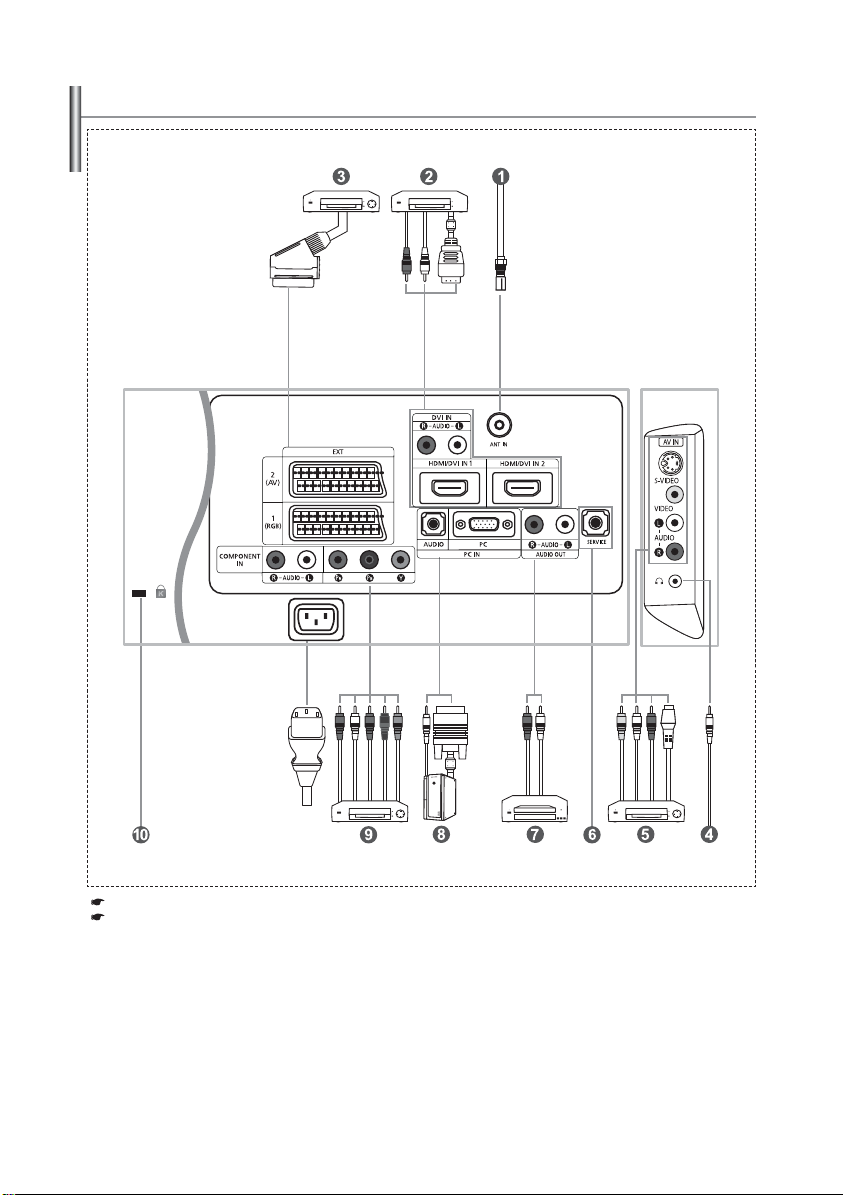

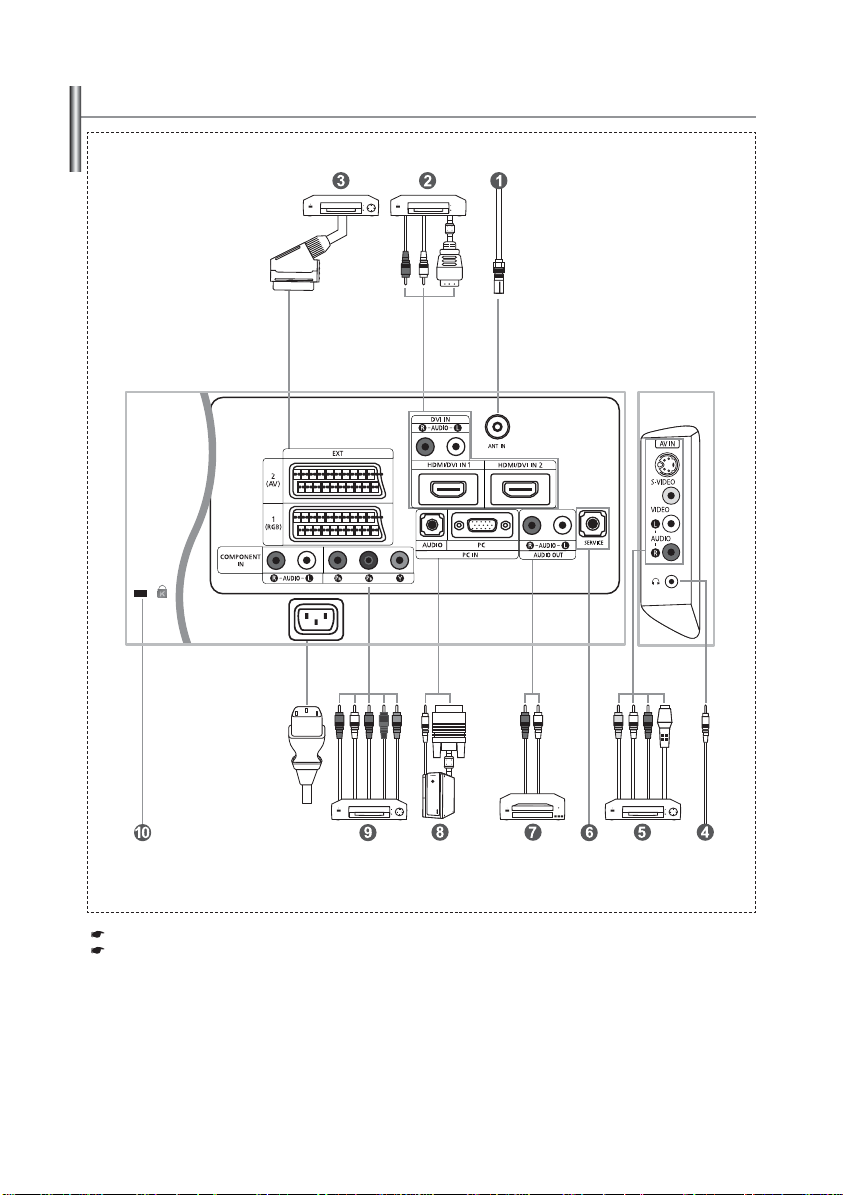

Viewing the Connection Panel

[Rear Panel Jacks]

Power Input

Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.

[Side Panel Jacks]

English-4

Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

Connecting HDMI/DVI

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

- No additional Audio connection is needed for an HDMI to HDMI connection. What is HDMI?

- “High Definition Multimedia Interface” allows the transmission of high definition digital video data and multiple

channels of digital audio ( 5.1 channels).

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the “R - AUDIO - L” terminal

on DVI for sound output.

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that

it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.

Supported modes for DVI or HDMI

480i 50 Hz 60 Hz

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed)

- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output (

Component

Connecting Set-Top Box, VCR or DVD

Connect the VCR or DVD SCART cable to the SCART connector of the VCR or DVD.

Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

X X O

480p

O O O

While the headphone is connected, the sound from the built-in speakers will be disabled.

SERVICE

- Service connection for qualified service engineer.

Connecting AUDIO

- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio in

connectors on the Amplifier or DVD Home Theater.

Connecting Computer

Connect the D- Sub cable (optional) to “PC (PC IN)” on the rear of your set and the other end to the Video Card of your computer.

- Connect the stereo audio cable (optional) to “AUDIO (PC IN)” on the rear of your set and the other end to “Audio Out” of the sound card on your computer.

Connecting Component Devices (DTV/DVD)

- Connect component video cables (optional) to component connector (“P

ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (“P

The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

- Connect RCA audio cables (optional) to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

- This LCD TV displays its optimum picture resolution in 1080p mode.

- This LCD TV displays its maximum picture resolution in 1080p mode.

Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

- If you want to use a locking device, contact the dealer where you purchased the TV.

The place of the Kensington Lock may be different depending on its model.

576i

X X O

) on the rear of your set.

R”, “ P B”, “Y”) on your set.

576p

O X O

R”, “ P B”, “Y”) on the rear of your set and the other

720p

O O O

1080i

O O O

1080p

O O O

English-5

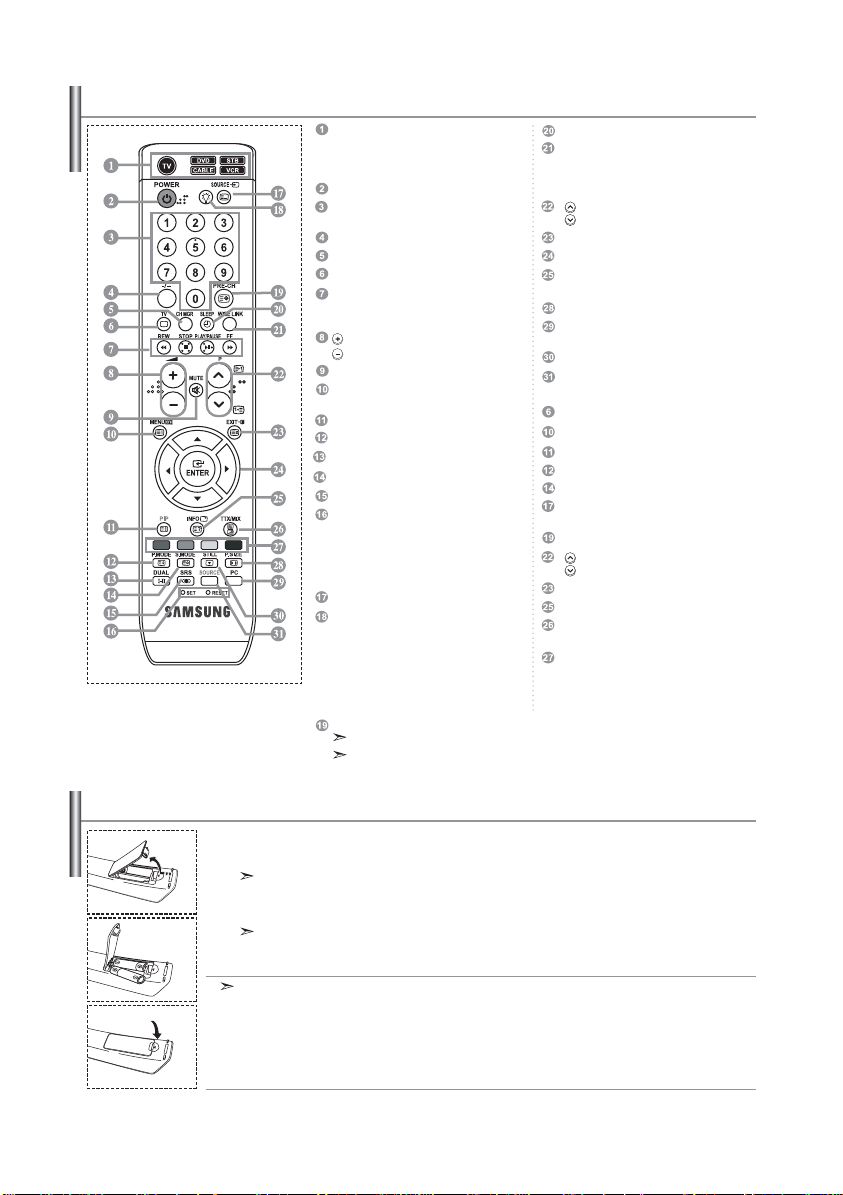

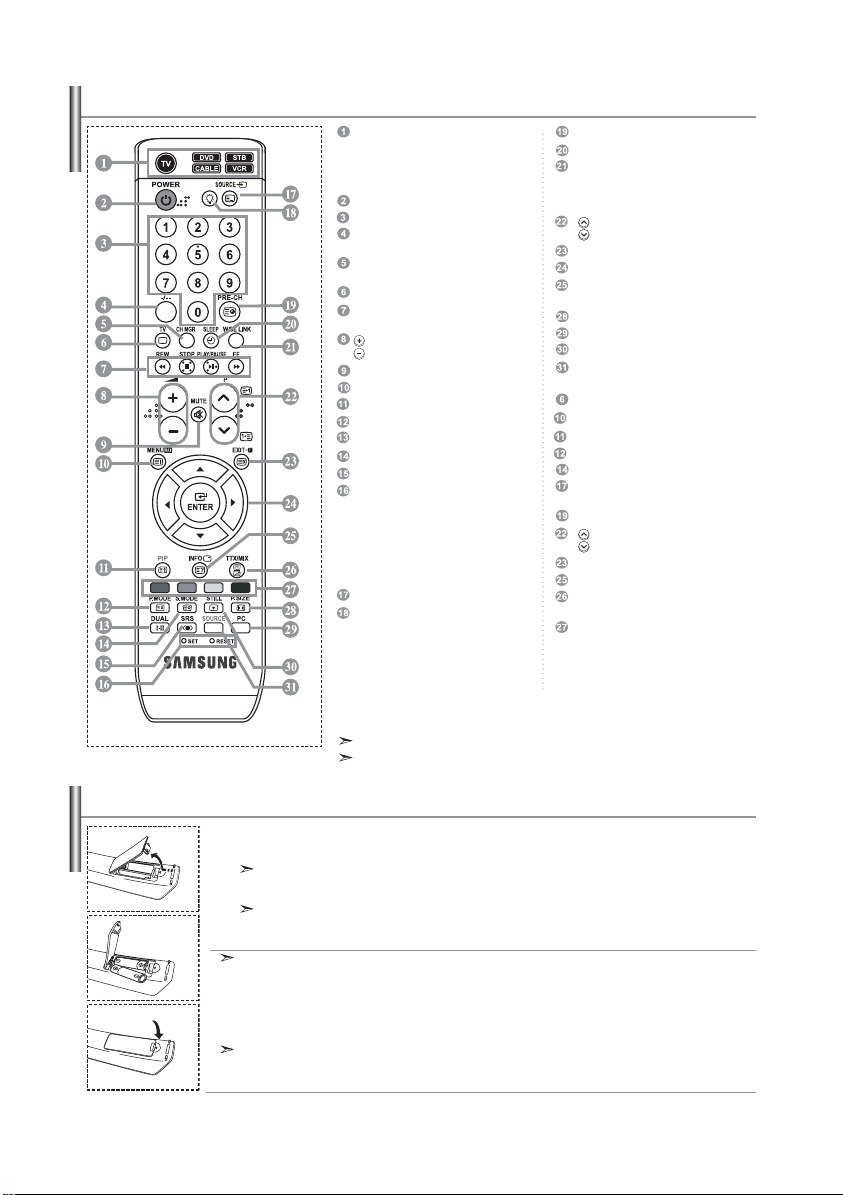

Viewing the Remote Control

Selects a target device to be controlled by the Samsung remote

control

(TV, DVD, STB, CABLE, VCR)

(Refer to page 36~40)

Television Standby button Number buttons for direct

channel access One/Two-digit channel selection

It displays "Channel Manager" on the screen.

Selects the TV mode directly

VCR/DVD Functions Rewind, Stop, Play/Pause,

Fast/Forward

Volume increase

Volume decrease Temporary sound switch-off

Menu display and change confirmation

Picture-In-Picture On / Off Picture effect selection Sound effect selection Sound mode selection SRS TSXT selection SET: Adjusts 5 separate devices - TV,

DVD, STB, CABLE, or VCR.

RESET: When your remote does not work, change the batteries and press the “RESET” button for 2-3 seconds before use.

Available source selection When pressing this button, a number of

buttons on the remote control (e.g.

Selects a target device, volume, channel and MUTE buttons) light up for a few seconds and then turn off to save power. This function is to conveniently use the remote control at night or when dark.

The performance of the remote control may be affected by bright light. This is a special remote control for the visually impaired, and has Braille points

on the Power, Channel and Volume buttons.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batterie

Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

English-6

Previous channel Automatic Power-off This function enables you to load saved

photo (JPEG) and audio files (MP3)

and to view or play them on the TV.

P : Next channel P

: Previous channel

Exit the OSD Control the cursor in the menu Use to see information on the

current broadcast Picture size selection Selects the PC mode directly Picture freeze

Input source selection

Teletext Functions

Exit from the Teletext display Teletext index

Teletext hold Teletext size selection Teletext store Teletext mode selection (LIST/FLOF) Teletext sub page P : Teletext next page

: Teletext previous page Teletext cancel Teletext reveal Alternately select Teletext, Double, or Mix. Fastext topic selection

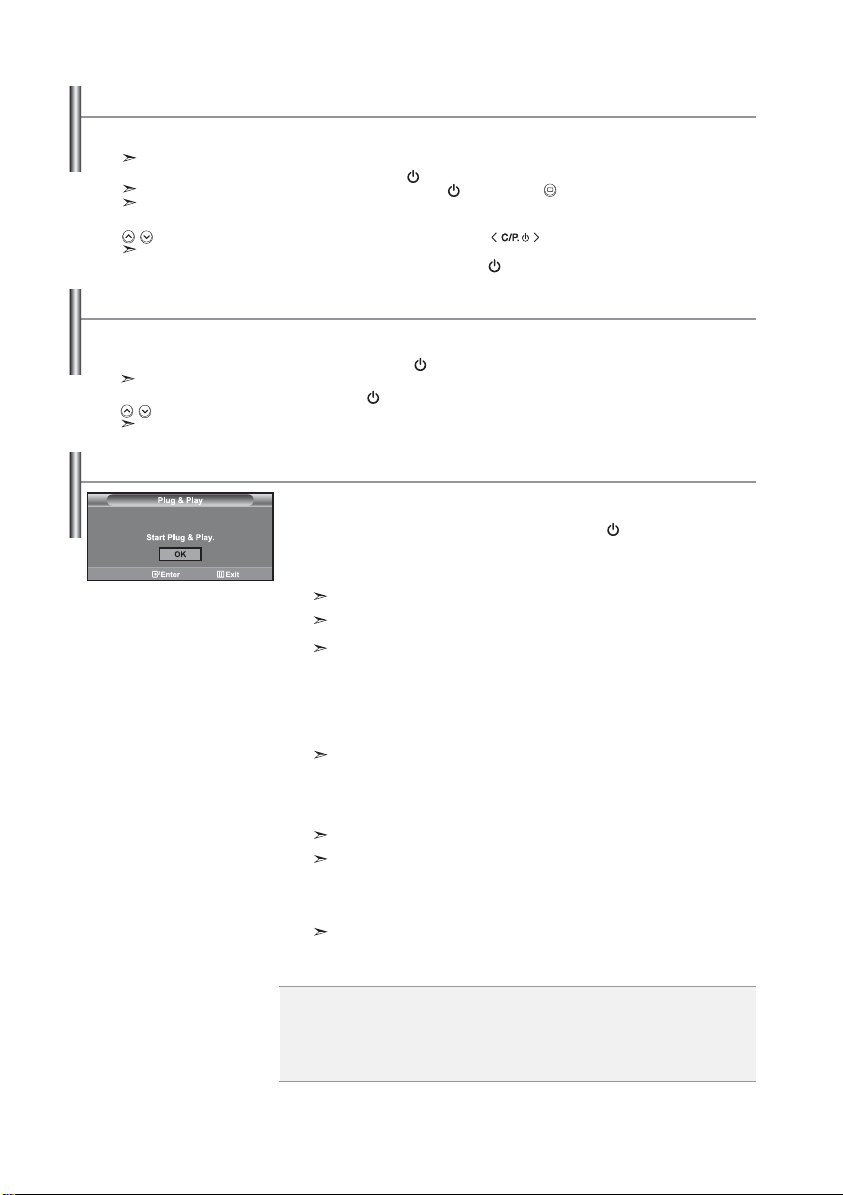

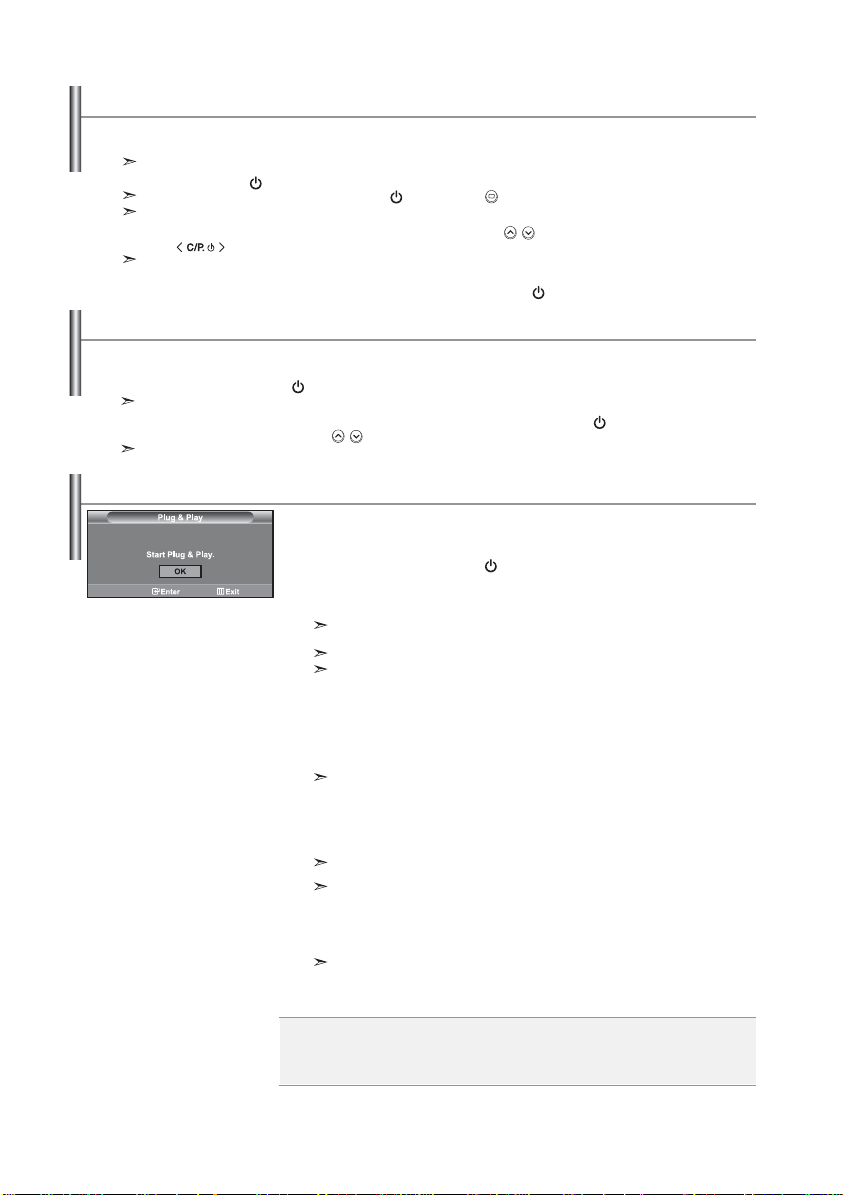

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

2. Press the button on the front of the set.

You also can press the POWER button or the

The programme that you were watching last is reselected automatically.

( ) button on the remote control to turn the TV on.

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or button on the right side of the set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

4. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER

The screen is turned off and a blue standby indicator appears on the front of your set.

button on the remote control.

2. To switch your set back on, simply press the POWER , numeric buttons (0~9) or channel up/down (

It is best to unplug the set from the mains and aerial.

/ ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control. The message “Start Plug & Play” is displayed with “OK” selected.

Press the  or  buttons to select “Shop” or “Home”, then the ENTER button.

We recommend setting the TV to Home mode for the best picture in your home envronment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop Mode, press and hold the MENU button on the side

panel of the TV for five seconds to return to Dynamic (Home) mode.

3. Select the appropriate language by pressing the  or  button. Press the ENTER button to confirm your choice.

4. The message “Check antenna input.” is displayed with “OK” selected. Press the ENTER button.

Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the  or  button. Press the ENTER button to confirm your choice.

6. The “Auto Store” menu is displayed with the “Start” selected. Press the ENTER button.

The channel search will start and end automatically. After all the available channels are stored, the “Clock Set” menu appears. Press the

ENTER

7. Press the ENTER button.

Select the “Hour” or “Minute” by pressing the

Set the “Hour” or “Minute” by pressing the

You can also set the hour and minute by pressing the number buttons on the remote control.

8. Press the ENTER button to confirm your setting.

 Language: Select your language.  Country: Select your country.  Auto Store: Automatically scans for and stores channels available in the local area.  Clock Set: Sets the current time for the TV clock.

button at any time to interrupt the memorization process.

 or 

 or 

English-7

button.

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the  or 

button

to select “Setup”, then press the

ENTER

button.

2. Press the ENTER button again, to select “Plug & Play”.

3. The message to “Start Plug & Play” is displayed.

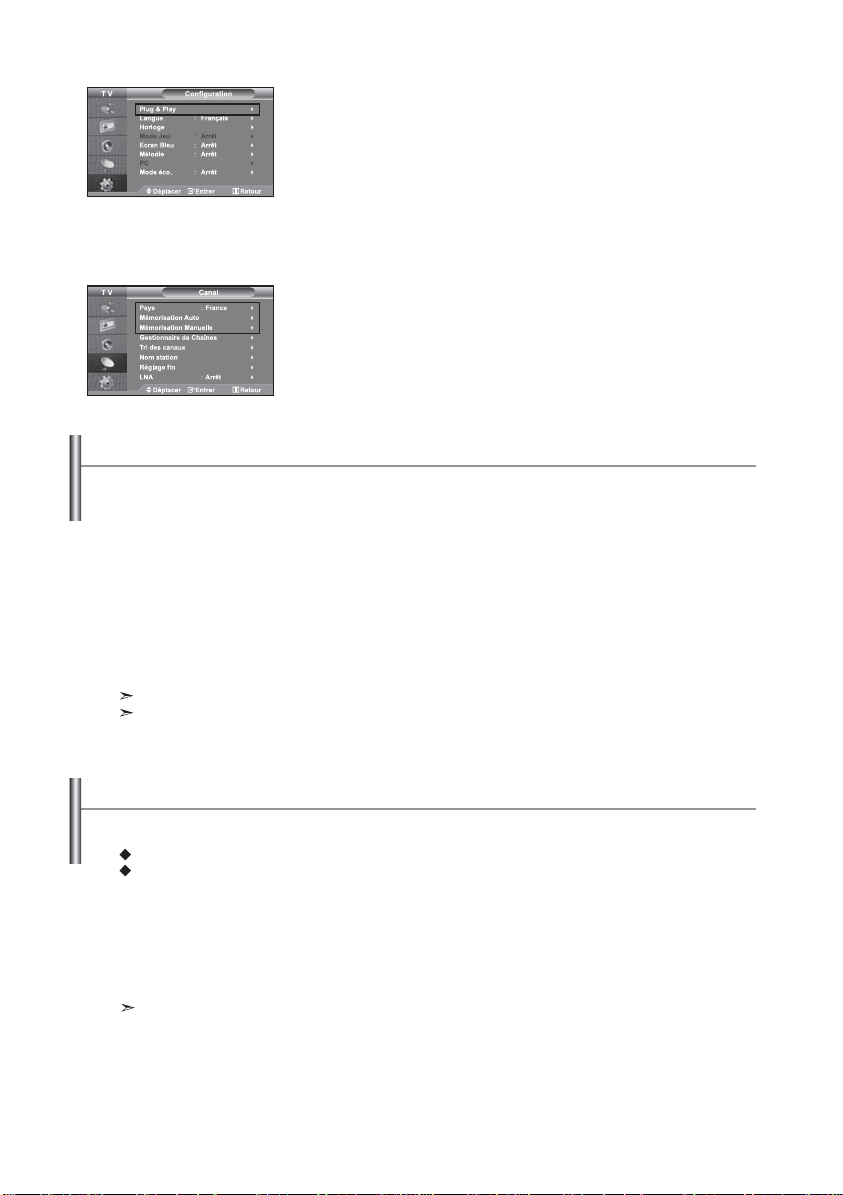

- Storing Channels Automatically

- Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

2. Press the ENTER button to select “Country”.

3. Select the appropriate country by pressing the  or  button.

Press the ENTER button to confirm your choice.

4. Press the  or  button to select “Auto Store”, then press the

5. Press the ENTER button.

The TV will begin memorizing all of the available channels. Press the

ENTER

button at any time to interrupt the memorization process and return to the “Channel” menu.

6. After all the available channels are stored, the “Sort” menu appears.

ENTER button.

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose:

Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

2. Press the  or  button to select “Manual Store”, then press the

3. Press the

ENTER button to select “Programme”.

4. To assign a programme number to a channel, find the correct number by pressing the  or  button and then press the

You can also set a programme number by pressing the number buttons on the remote control.

ENTER button.

English-8

5. Press the  or  button to select “Colour System”, then press the ENTER button.

6. Select the colour standard required by pressing the  or  button then, press the

7. Press the  or  button to select “Sound System”, then press the

ENTER button.

8. Select the sound standard required by pressing the  or  button, then press the

If there is an abnormal sound or no sound, re-select the sound system required.

If you know the number of the channel to be stored, press the  or  button to select “Channel”. Press the ENTER button.

ENTER button.

Select C (Air channel) or S (Cable channel) by pressing the  or  button. Press the  button to select channel. Select the required number by pressing the  or  button and then press the

Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode) You can also set a channel number by pressing number buttons on the remote control.

ENTER button.

10. If you do not know the channel numbers, press the  or  button to select “Search”. Press the ENTER button. Search by pressing the  or  button and then press the ENTER button.

11. Press the  or  button to select “Store”. Press the ENTER button to select “OK”.

12. Repeat steps 3 to 11 for each channel to be stored.

 Programme: Selects a program number for the channel.  Colour System: Sets the colour supporting system.  Sound System: Sets the sound supporting system.

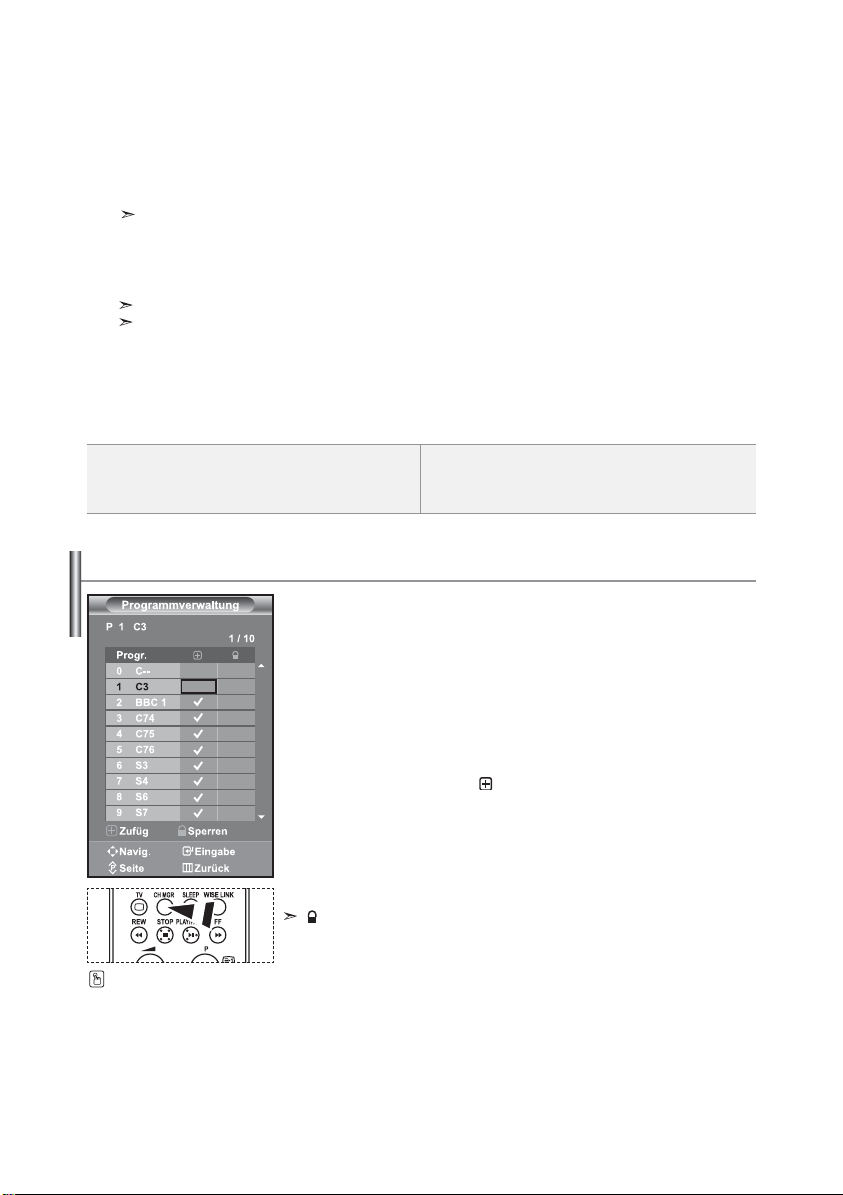

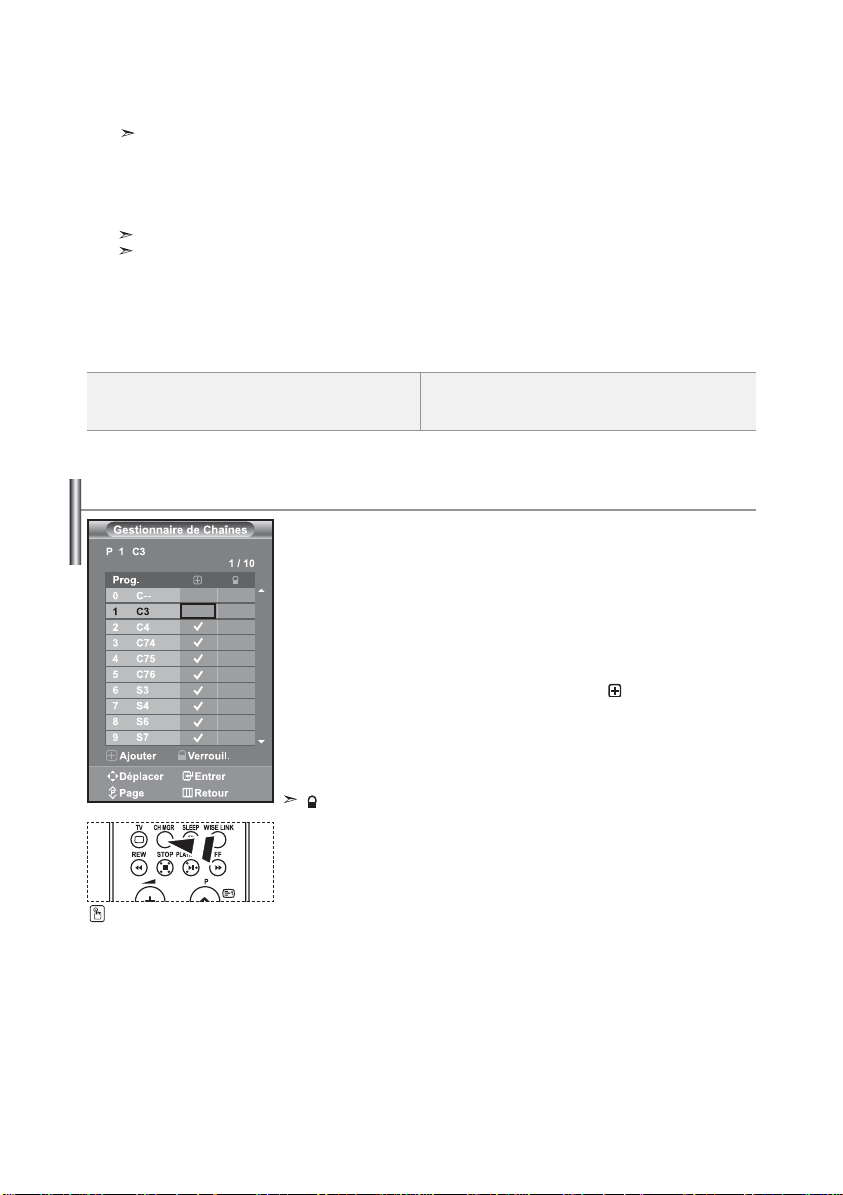

Setting the Channel Manager

Set the channels according to your preference. You can easily delete, add, or lock the channel you want.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

Press the  or  button to select “Channel Manager”,

then press the ENTER button.

Press the ENTER button again, to select “Channel Manager”.

Press the  button to select “ ” line.

Press the  or  button to select the undesired channel,

then press the ENTER button to cancel.

6. Repeat steps 5 for each channel to be selected or canceled

7. Press the EXIT button to exit.

“ ”

is active when “Child Lock” is selected to “On”.

You can select these options by simply pressing the CH MGR button on the remote control.

 Channel: Selects a channel.  Search: Scans for the frequency value for the channel.  Store: Saves your settings.

ENTER button.

English-9

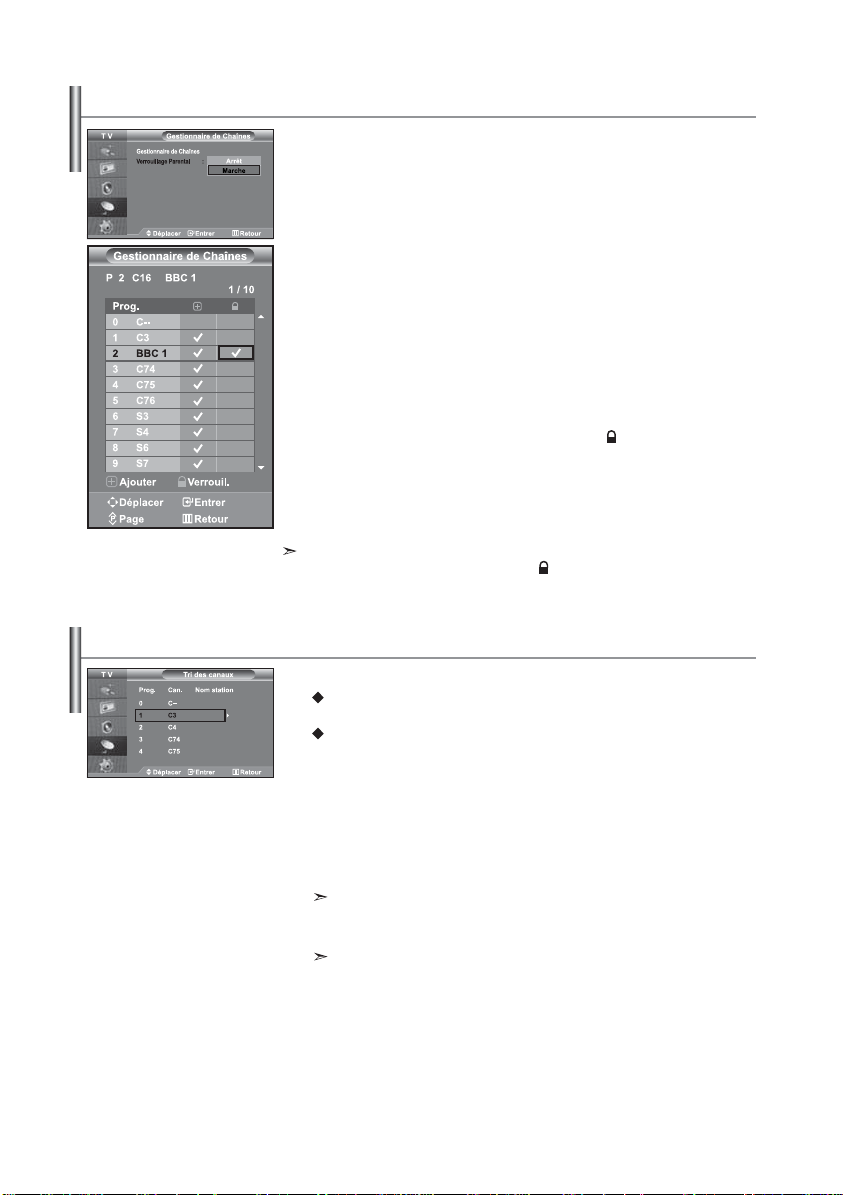

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

then press the ENTER button.

button.

then press the ENTER button.

8. Repeat steps 7 for each channel to be locked or unlocked.

9. Press the EXIT button to exit.

selected on

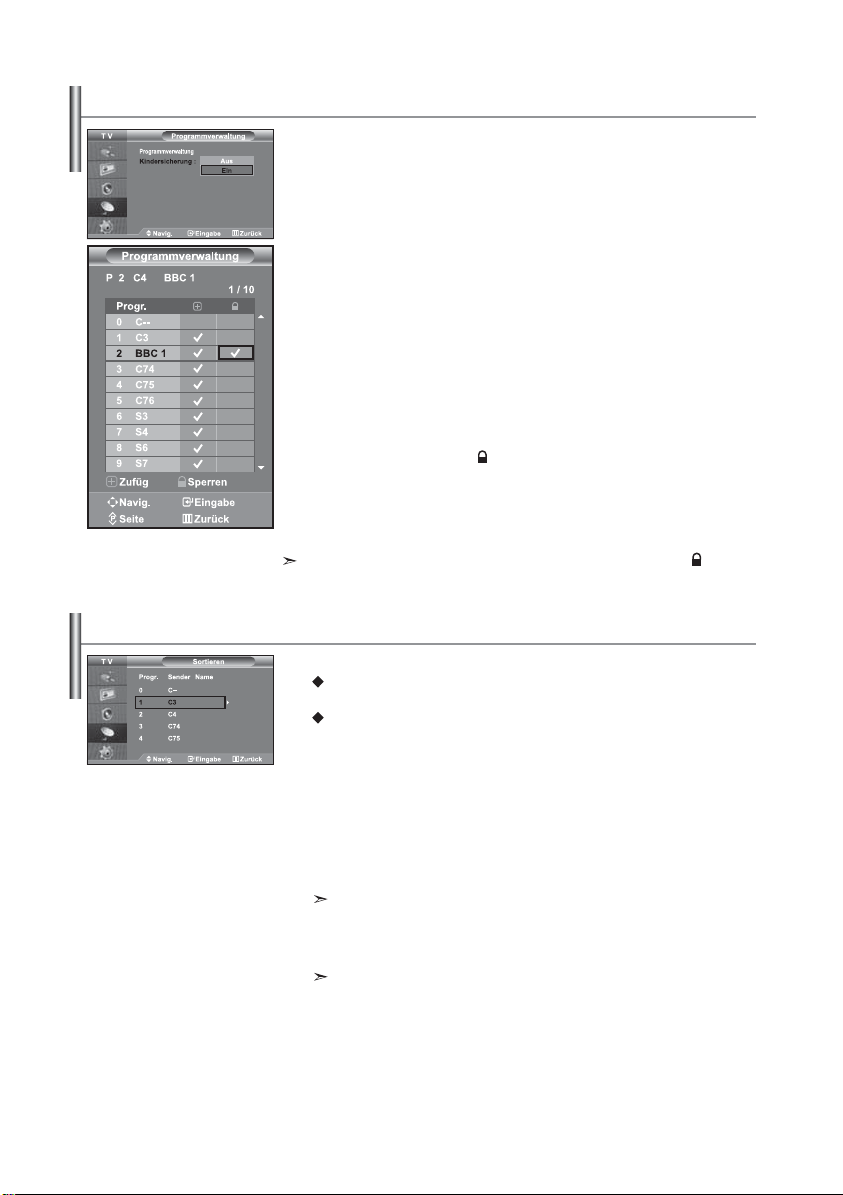

Sorting the Stored Channels

You can exchange the numbers of two channels, in order to:

automatically stored.

most often.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

 or  button repeatedly. Press the ENTER button.

change and then press the

ENTER button.

Press the  or  button to select “Channel Manager”,

Press the  or  button to select “Child Lock”, then press the ENTER button.

Press the  or  button to select “On”. Press the

ENTER

button.

Press the  or  button to select “Channel Manager”, then press the ENTER

Press the  button to select “ ” line.

Press the  or  button to select the channels you want to lock,

Select “On” or “Off ” in “Child Lock” to easily turn the channels which

Press the  or  button to select “Sort”, then press the

“ ”

to be active or inactive.

Modify the numeric order in which the channels have been

Give easily remembered numbers to the channels that you watch

ENTER button.

ENTER

button.

Select channel number that you wish to change by pressing the

The selected channel number and name are moved to right side.

Press the

 or 

button to move to the position in which you would like to

ENTER

The selected channel is exchanged with the one previously stored to the chosen number.

button.

Repeat steps 3 to 4 for another channel to be sorted. Press the EXIT button to exit.

English-10

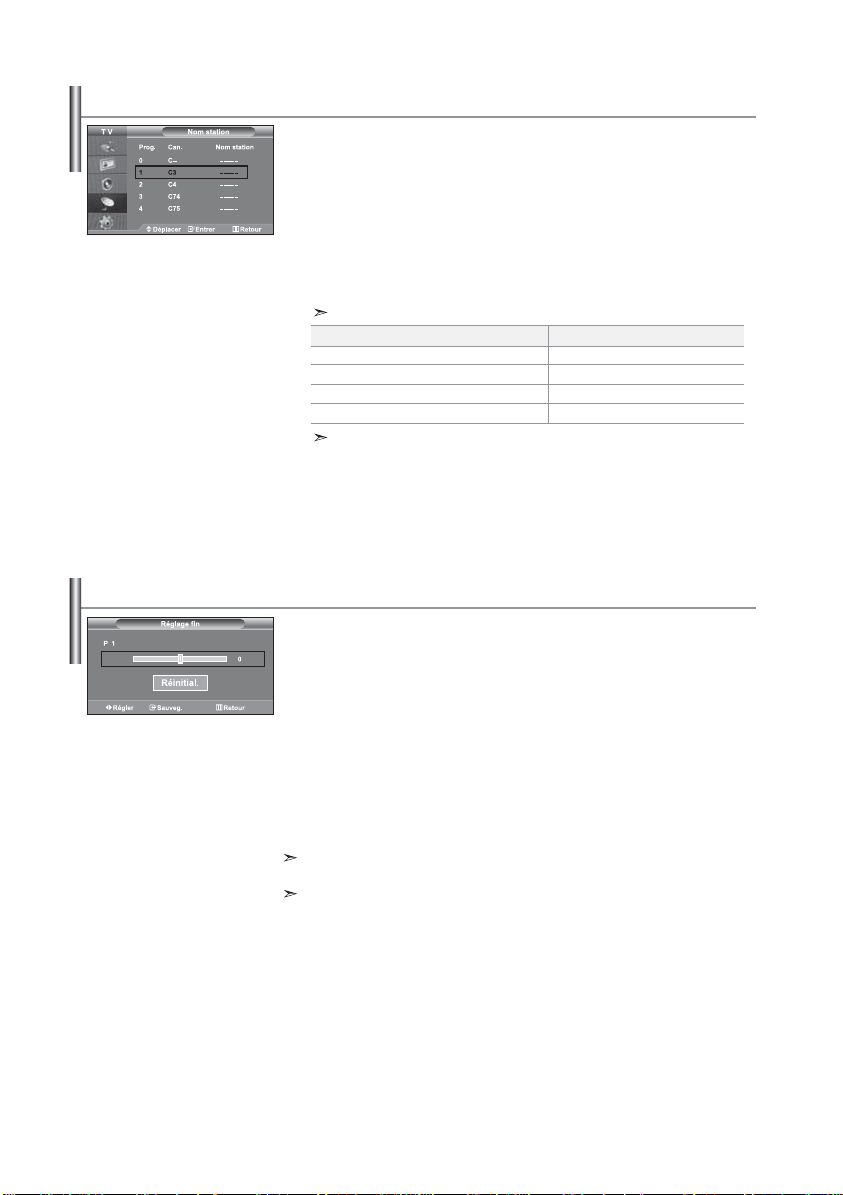

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

Press the  or  button to select “Name”, then press the

If necessary, select the channel to be assigned to a new name by

pressing the

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Press the EXIT button to exit.

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.

2. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

3. Press the  or  button to select “Fine Tune”, then press the

4. Press the  or  button to adjust the fine tuning.

Press the

5. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand

side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select “Reset” by pressing the  or  button and then press the

ENTER button.

ENTER

button.

 or 

The selection bar is displayed around the name box.

To. ..

Select a letter, number or symbol Move on the next letter Move back the previous letter Confirm the name

The characters available are : Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters ( -, space)

ENTER

button. Press the ENTER button.

button.

Then...

Press the

 or  Press the  button Press the Press the ENTER button

button



button

ENTER button.

English-11

Using the LNA (Low Noise Amplifier) Feature

This function is very useful in the situation that the TV is used in a weak signal area. LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal.

1. Press the MENU button to display the menu. Press the  or  button to select “Channel”, then press the

Press the  or  button to select “LNA”, then press the ENTER button.

Select “Off“ or “On“ by pressing the  or  button.

Press the ENTER button.

Press the EXIT button to exit.

If the picture is noisy with the LNA set to On, select Off. LNA setting must be set for each individual channel.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the  or  button to select “Picture”, then press the

Press the ENTER button again, to select “Mode”.

ENTER button again.

Press the

 or 

button to select the desired picture effect.

ENTER

button.

Press the EXIT button to exit.

(Refer to “Adjusting the Custom Picture”)

The Picture mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the “Reset”.

You can also press the P.MODE button on the remote control to select one of the picture settings.

Press the

 Dynamic: Selects the picture for high-definition in a bright room.  Standard: Selects the picture for optimum display in a normal environment.  Movie: Selects the picture for comfortable display in a dark room.  Custom: Select to view your favorite display settings.

(Refer to “Resetting the Picture Settings to the Factory Defaults” on page 13)

ENTER button.

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3.

Press the

particular item.

Press the EXIT button to exit.

 Contrast: Adjusts the lightness and darkness between objects and the background.  Brightness: Adjusts the brightness of the whole screen.  Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.  Colour: Adjusts the colours, making them lighter or darker.  Tint (NTSC only):

The adjusted values are stored according to the selected Picture mode. In PC Mode, Only “Contrast”, “Brightness” and “Colour” can be adjusted

 or  button

ENTER

 or  button

to select a particular item.

button.

to decrease or increase the value of a

Press the ENTER button.

Adjusts the colour of objects, making them more red or green for a more natural look.

English-12

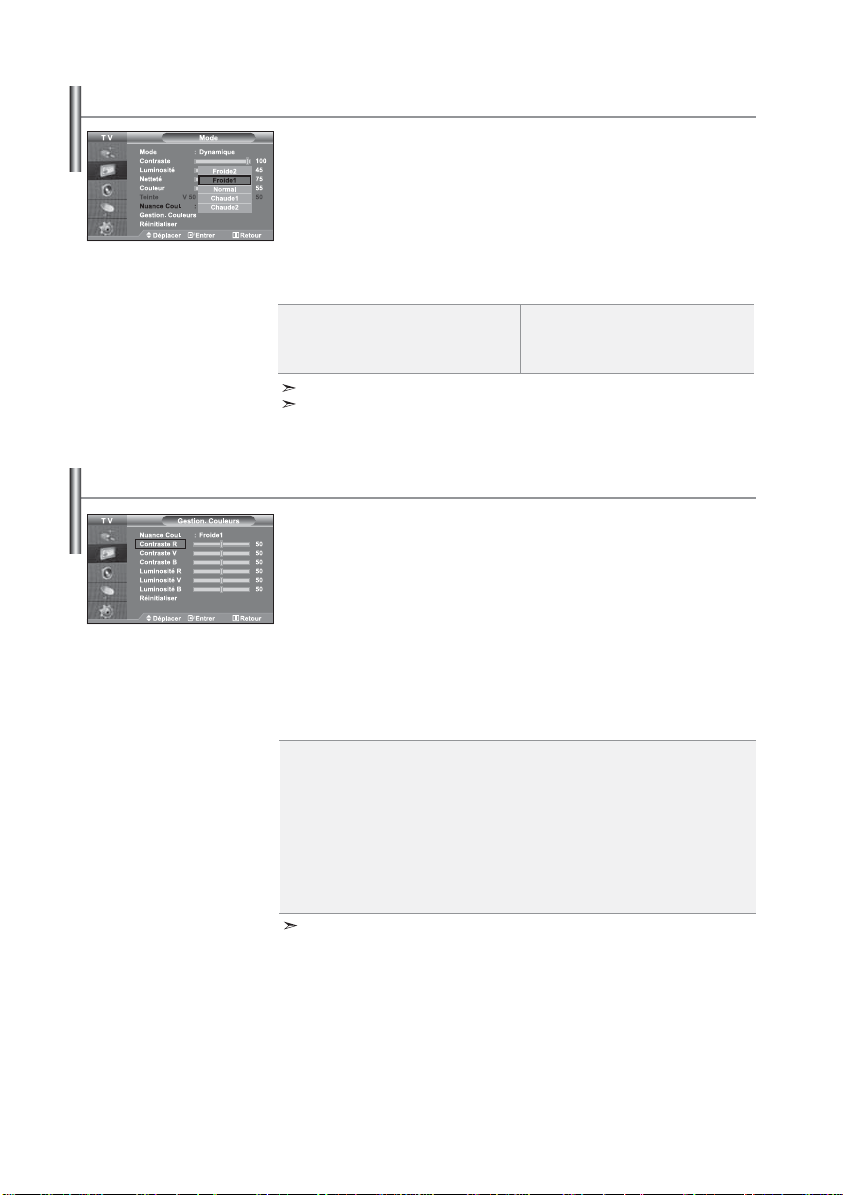

Changing the Colour Tone

You can select the most comfortable colour tone to your eyes.

1. To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3 on page 12.

Press the  or  button to select “Colour Tone”, then press the ENTER button.

Press the

 or  button

Press the

 Cool2: Makes the colour temperature bluer than “Cool1” menu.

 Cool1: Makes whites bluish.  Normal: Keeps whites white.

ENTER

Press the EXIT button to exit.

The adjusted values are stored according to the selected Picture mode.

to select the desired colour tone setting.

button.

 Warm1: Makes whites reddish.  Warm2: Makes the colour temperature

redder than “Warm1” menu.

Adjusting the Color Tone with the Preferred Color Component

You can adjust a picture’s color tone with your preferred color component.

1. To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3 on page 12.

Press the  or  button to select “Colour Manager”, then press the ENTER

button.

Press the

 or  button

Press the

item.

 R Contrast: the background.  G Contrast: and the background.  B Contrast: the background.

 R Brightness:  G Brightness:  B Brightness:  Reset:

You cannot select a "Colour Tone" in the "Colour Manager".

ENTER

Press the

 or  button

Press the ENTER button.

Press the EXIT button to exit.

Lightens or intensifies the red component of the border between objects and

Lightens or intensifies the green component of the border between objects

Lightens or intensifies the blue component of the border between objects and

Adjusts the brightness of the red component for the entire screen. Adjusts the brightness of the green component for the entire screen. Adjusts the brightness of the blue component for the entire screen.

Resets all settings to the defaults.

to select a particular item.

button.

to decrease or increase the value of a particular

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3 on page 12.

2. Press the  or  button to select “Reset”, then press the ENTER button. Press the EXIT button to exit.

The “Reset” will be set for each picture mode.

English-13

Changing the Picture Size

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the  or  button to

select “Picture”, then press the ENTER button.

2. Press the  or  button to select “Size”, then press the ENTER button.

3. Select the required option by pressing the  or  button.

 Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

You can select these options by simply pressing the P.SIZE button on the remote control.

 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.  WIDE 4:3 : Magnify the size of the picture more than 4:3.  Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.  4:3: This is the default setting for a video movie or normal broadcasting.

Zoom : Select by pressing the  or  buttons. Use the  or  button to move the picture up and down. After selecting , use the  or  button to magnify or reduce the picture size in the vertical direction.

WIDE 4:3 : Move the screen up/down using the  or  button after selecting the by pressing the  or ENTER button.

Changing the Auto Wide (4:3)

Press the

ENTER

button.

Press the EXIT button to exit.

“Auto Wide” function is available only in "TV", "Ext1", "Ext2", "AV", and "S-Video" mode. In PC Mode, only “16:9” and “4:3” mode can be adjusted.

Adjusts the display picture size to 4:3 appropriate for input signal

1. Press the MENU button to display the menu. Press the  or  button to select “Picture”, then press the ENTER button.

2. Press the  or  button to select “Auto Wide(4:3)”, then press the ENTER button.

3. Select the required option by pressing the  or  button.

Press the

ENTER

Press the EXIT button to exit.

These functions don’t work in "Component", "PC", "HDMI1", "HDMI2" mode.

button.

English-14

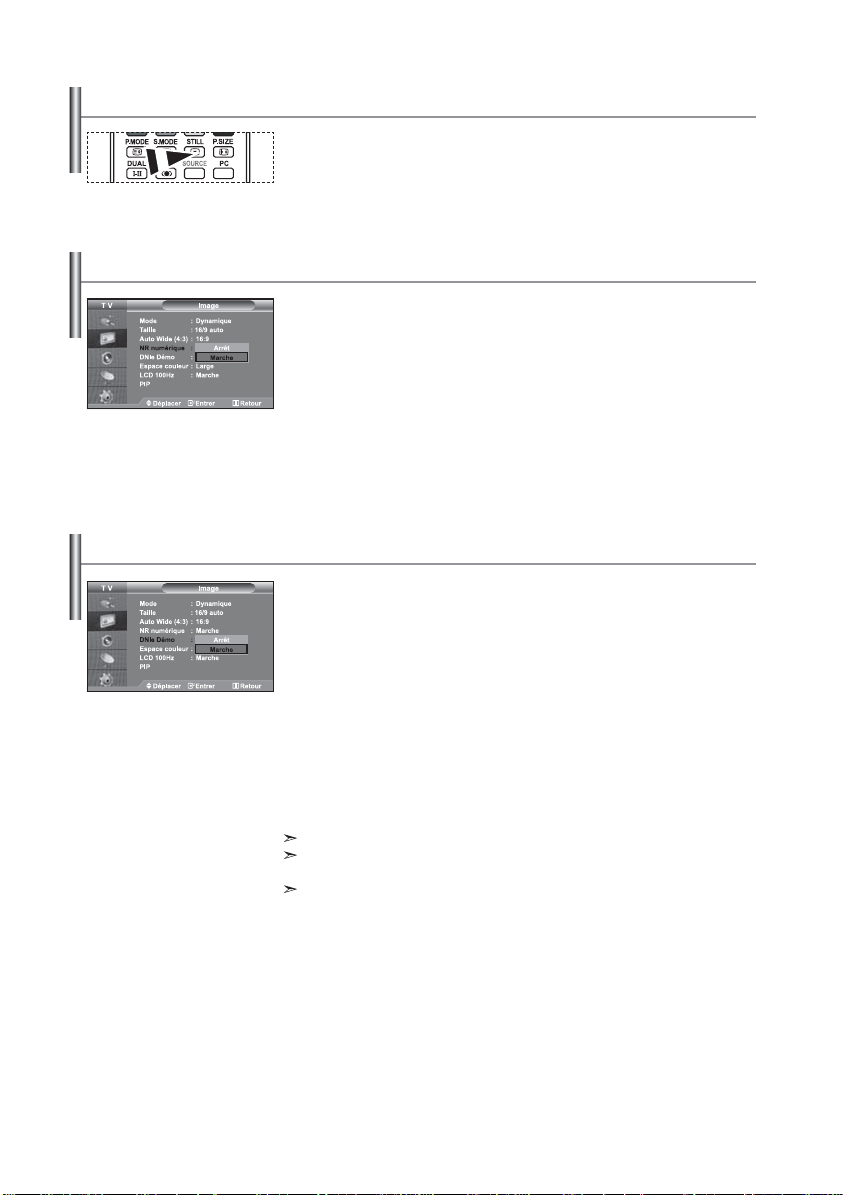

Freezing the Current Picture

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Press the MENU button to display the menu. Press the  or  button to select “Picture”, then press the ENTER button.

2. Press the  or  button to select “Digital NR”, then press the ENTER button.

Press the  or  button to select “On” or “Off”. Press the

4. Press the EXIT button to exit.

DNIe Demo (Digital Natural Image engine)

Samsung’s new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNIe technology will match every signal to your eyes. You can see how DNIe improves the picture by setting DNIe Demo mode to On.

1. Press the MENU button to display the menu. Press the  or  button to select “Picture”, then press the ENTER button.

2. Press the  or  button to select “DNIe Demo”, then press the ENTER button.

Press the  or  button to select “On” or “Off”. Press the

4. Press the EXIT button to exit.

These functions don’t work in PC mode. The DNle Demo is designed to show the difference between the regular and

DNIe pictures.

By default, the product displays the picture with DNle applied.

ENTER

button.

English-15

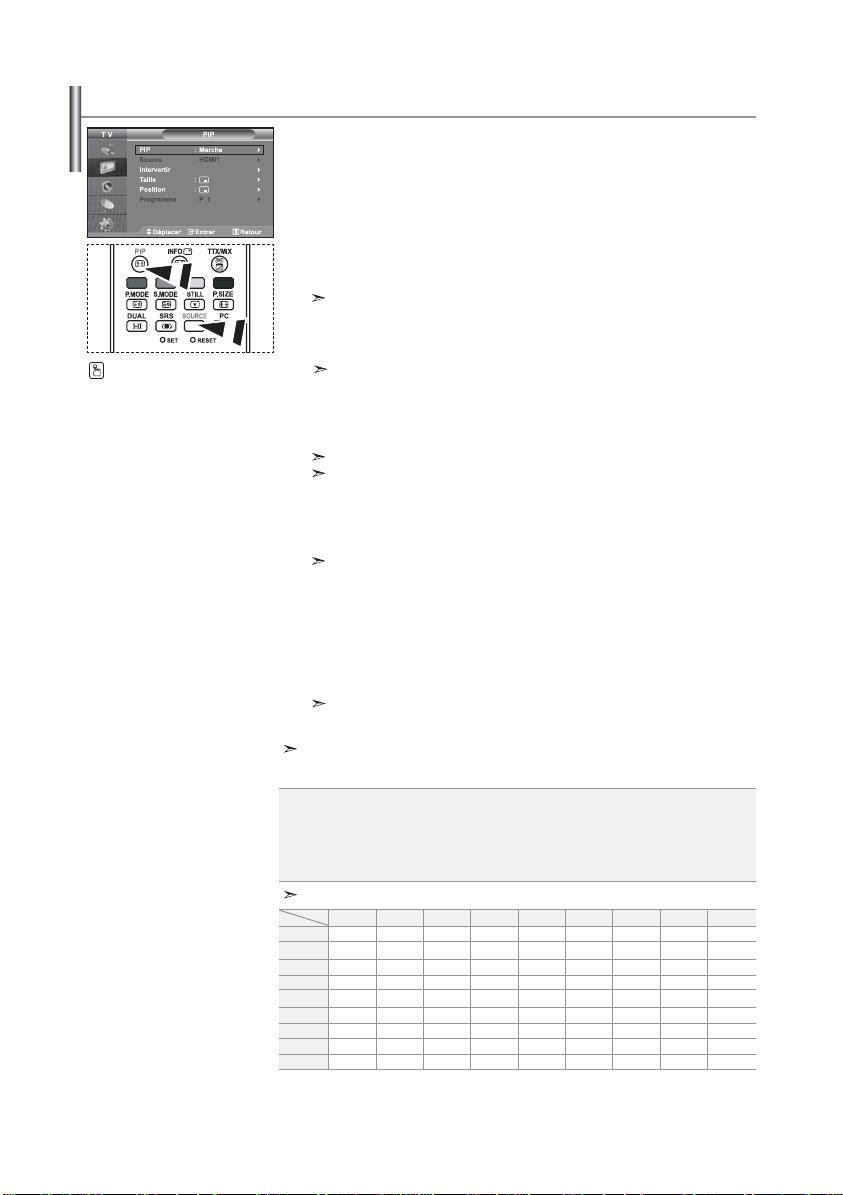

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu. Press the  or  button to select “Picture”, then press the ENTER button.

Press the  or  button to select “PIP”, then press the

3. Press the ENTER button again.

Press the  or  button to select “On”, then press ENTER button.

If the PIP is activated, the size of the main picture turns to “16:9”.

4. Press the  or  button to select “Source”,

Press the PIP button on the remote control repeatedly to acti vate or deactivate the “PIP”.

then press ENTER button. Select a source of the sub picture by pressing the  or  button and press the ENTER button.

The sub picture can serve different source selections based on what the main picture is set to.

5. Press the  or  button to select “Swap”. To interchange the main picture and the sub picture, select “Swap” option and press the ENTER button.

The main picture and the sub picture are interchanged. I

f main picture is in “PC” mode, “Swap” is not available.

6. Press the  or  button to select “Size” of the sub picture and then press the ENTER button. Select a size of the sub picture by pressing the  or  button and then press the ENTER button.

If main picture is in “PC” mode, “Size” is not available.

7. Press the  or  button to select “Position”, then press the ENTER button. Select the position of the sub picture by pressing the  or  button and then press the ENTER button.

8. Press the  or  button to select “Programme” and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the  or  button. Press the ENTER button.

The “Programme” can be active when the sub picture is set to TV.

9. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use

the main screen to view a game or karaoke.

 Source: Used to select a source of the sub picture.  Swap: Used to interchange the main picture and the

sub picture.

PIP Settings

Sub

Ext.1 Ext.2

S-Video

HDMI1 HDMI2

TV X X X X X X O O O

Main

Component

(O: PIP operates, X: PIP doesn’t operate)

Ext.1

Ext.2

ENTER

 Size: Used to select a size of the sub picture.  Position: Used to move the sub picture.  Programme: Used to Change the sub picture.

S-Video X X X X X X O O O

Component X X X X X X X O O

PC X X X X X X X O O

X X X X X X X X X

button.

HDMI1

HDMI2

English-16

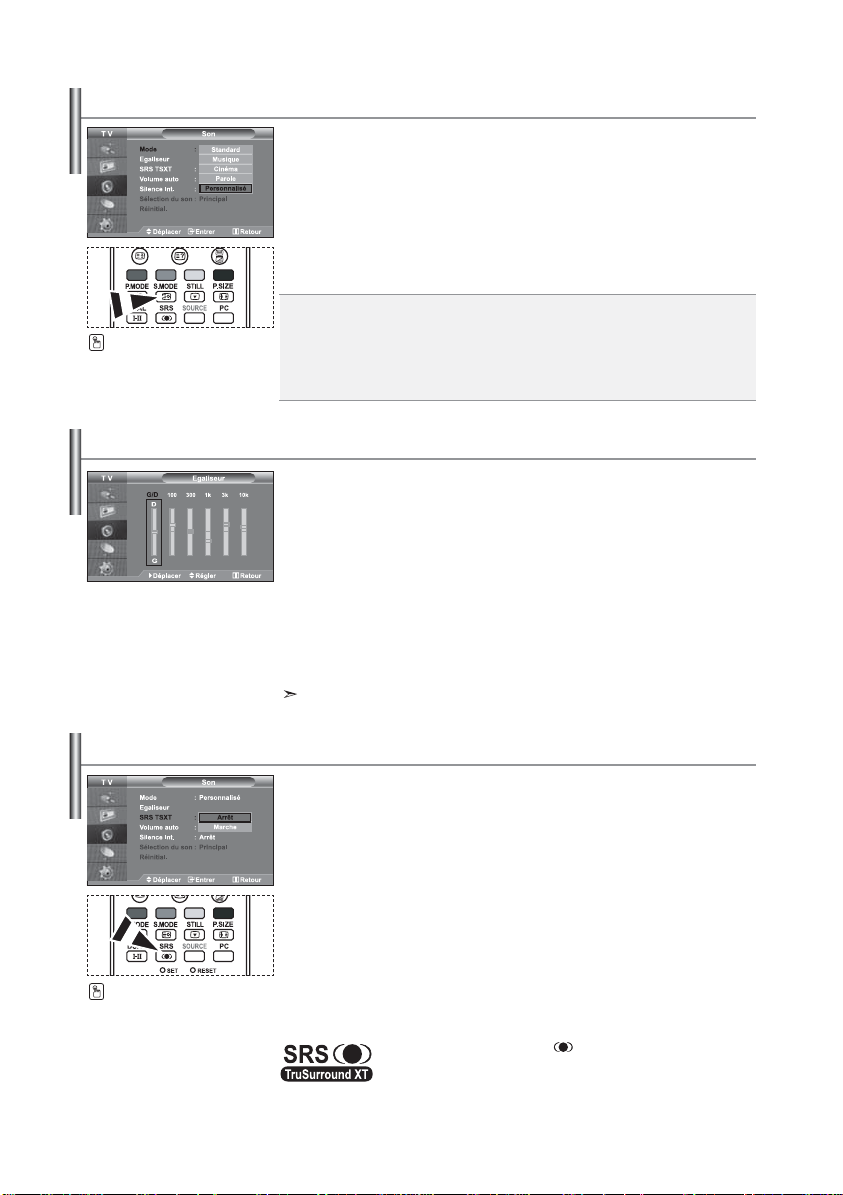

Changing the Sound Standard

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER button.

2. Press the

3. Select the required sound effect by pressing the  or  button repeatedly

and then press the ENTER button.

4. Press the EXIT button to exit.

 Standard: Selects the normal sound mode.

You can also select these options by

simply pressing the S.MODE button on the remote control.

 Music: Emphasizes music over voices.  Movie: Provides live and full sound for movies.  Speech: Emphasizes voices over other sounds.

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER button.

2. Press the  or  button to select “Equalizer”, then press the ENTER button.

Press the

4. Press the  or  button to reach the required setting. Press the ENTER button.

5. Press the EXIT button to exit.

If you make any changes to these settings, the Sound Mode is automatically switched to “Custom”.

ENTER button again, to select “Mode”.

 Custom: Selects your custom sound settings.

 or  button

ENTER

to select a particular item.

button.

(Refer to “Adjusting the Sound Settings”)

Setting the TruSurround XT (SRS TSXT)

TruSurround XT is a patented SRS technology that solves the problem of playing

5.1 multichannel content over two speakers. TruSurround delivers a compelling,virtual surround sound experience through any two-speaker playback systems, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTERbutton.

2. Press the  or  button to select “SRS TSXT”, then press the ENTER button.

Press the  or  button to select “On” or “Off”. Press the

4. Press the EXIT button to exit.

You can also set these options simply by pressing the SRS button on remote control.

TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

English-17

ENTER

button.

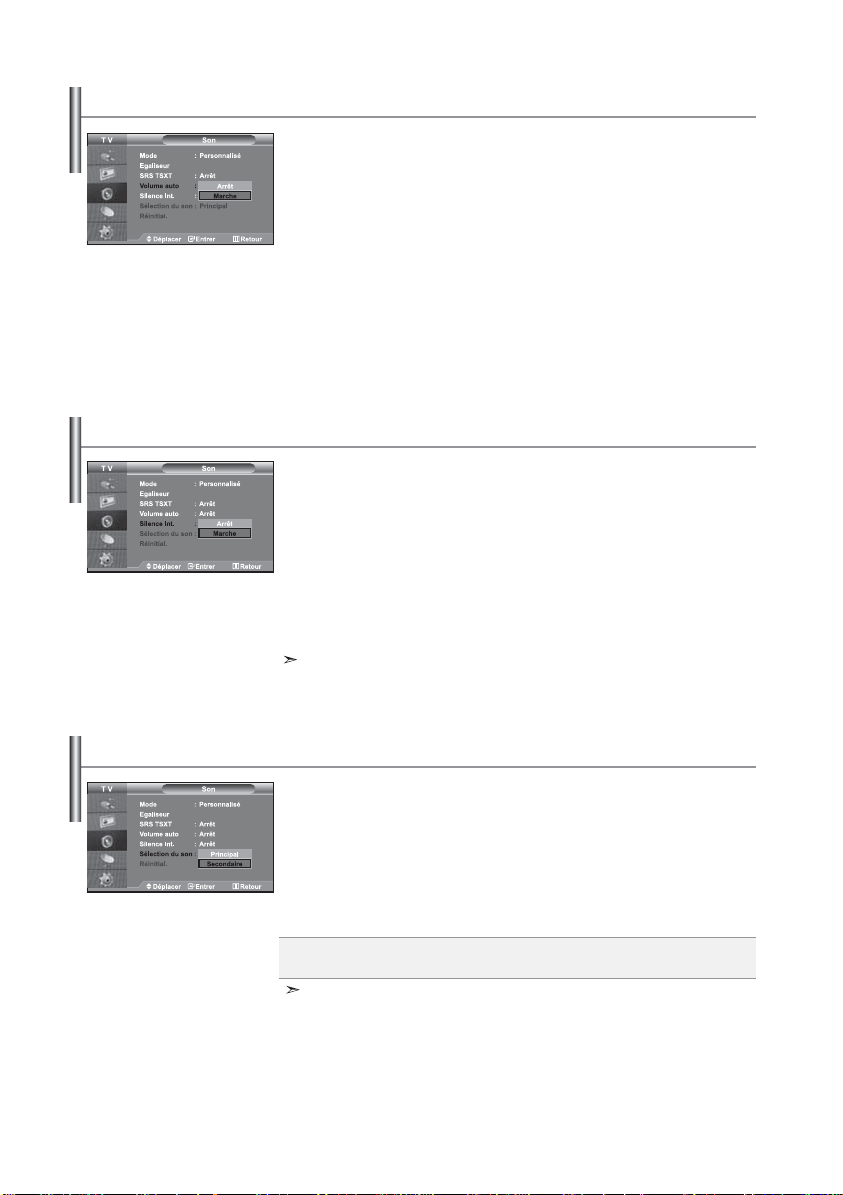

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER

2. Press the  or  button to select “Auto Volume”, then press the ENTER

Press the  or  button to select “On” or “Off”. Press the

4. Press the EXIT button to exit.

Selecting the Internal Mute

If you want to hear the sound through separate speakers, cancel the internal amplifier.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER

2. Press the  or  button to select “Internal Mute”, then press the ENTER

Press the  or  button to select “On” or “Off”. Press the

4. Press the EXIT button to exit.

When “Internal Mute” is set to “On’, the Sound menus except for “Sound Select”

(in PIP mode) cannot be adjusted.

button.

ENTER

button.

Listening to the Sound of the Sub Picture

During the PIP features activation, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER button.

2. Press the  or  button to select “Sound Select”, then press the ENTER button.

3. Press the  or  button to select “Sub”. Press the ENTER button.

4. Press the EXIT button to exit.

 Main: Used to listen to the sound of the main picture. 

Sub: Used to listen to the sound of the sub picture.

You can select this option when the “PIP” is set to “On”.

English-18

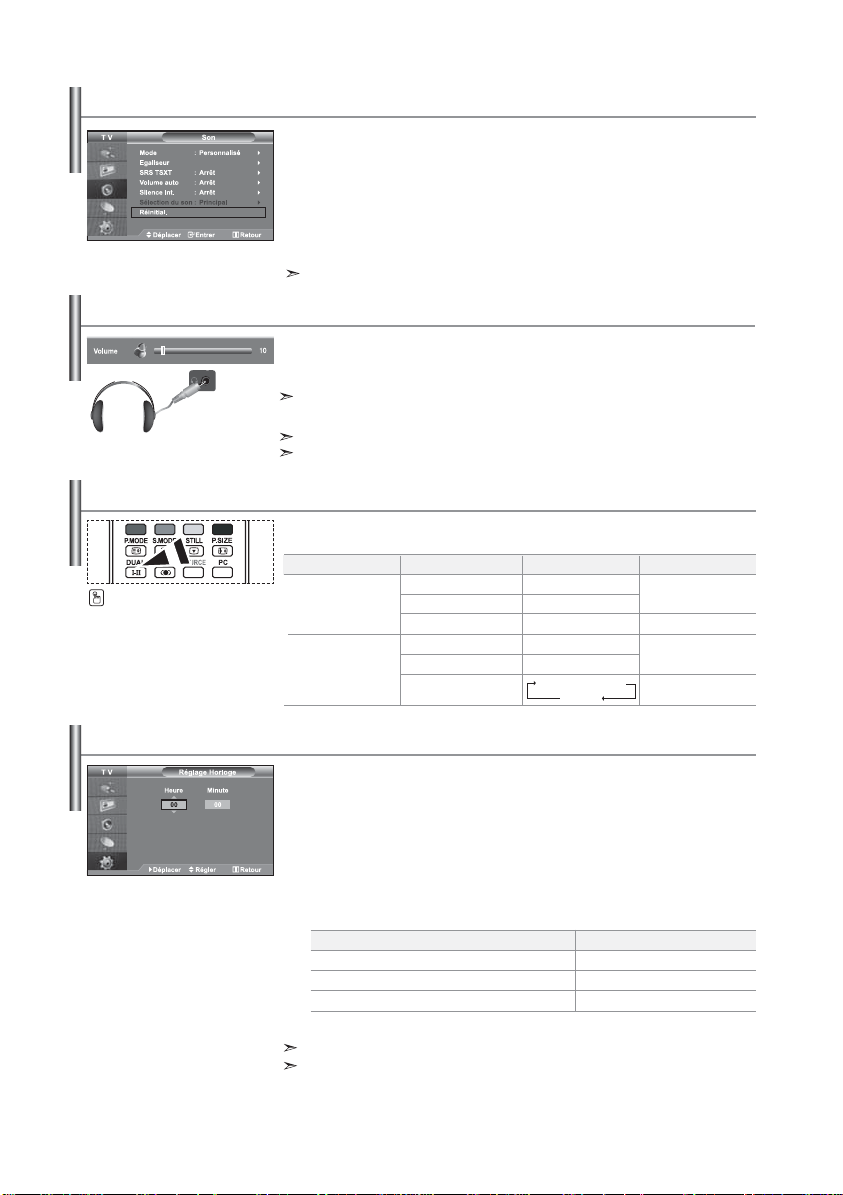

Resetting the Sound Settings to the Factory Defaults

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu. Press the  or  button to select “Sound”, then press the ENTER button.

2. Press the  or  button to select “Reset”, then press the ENTER button.

3. Press the EXIT button to exit.

You can select this option when the “Game Mode” is set to “On”.

Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Internal Mute" and "Sound Select" (in PIP mode) in Sound menu. (Refer to “Selecting the Internal Mute” on page 18)

Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system.

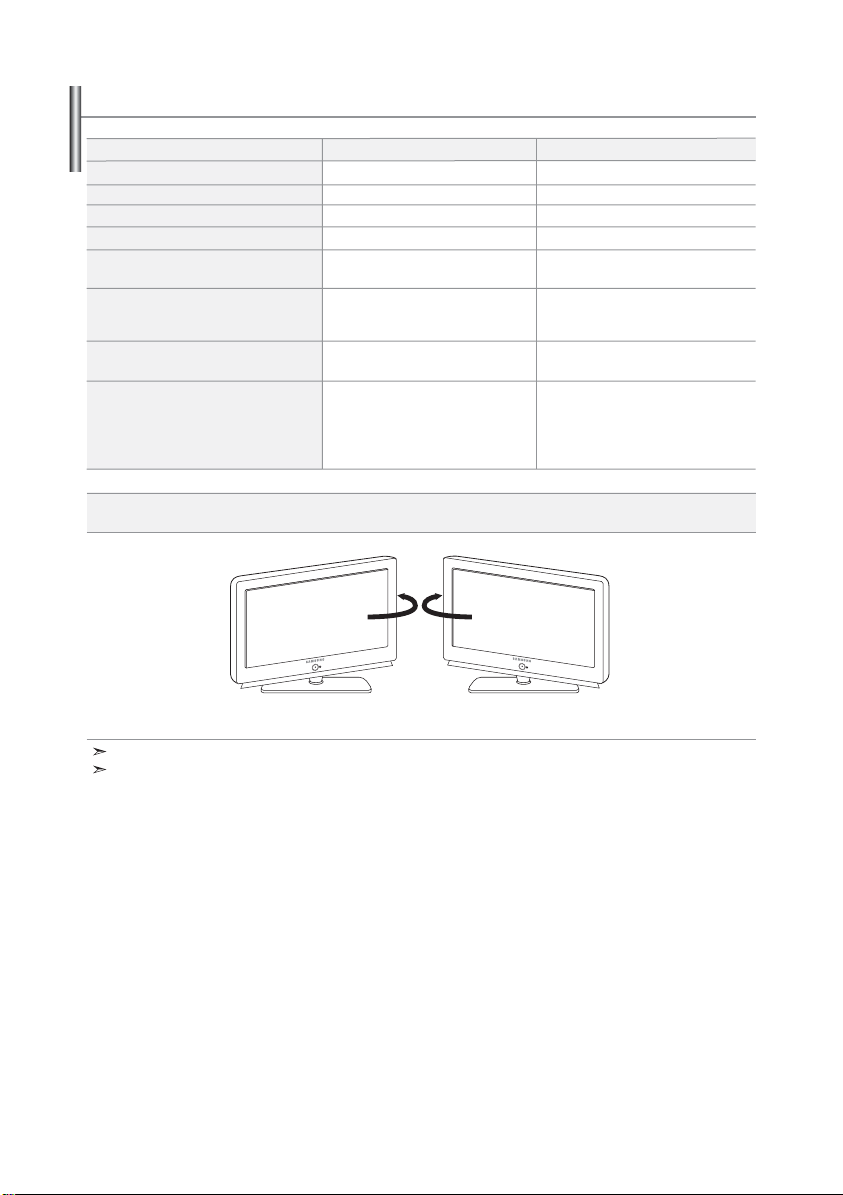

Selecting the Sound Mode

You can set the sound mode by pressing the “DUAL” button. When you press it, the current sound mode is displayed on the screen.

Audio Type

You can also set these options

simply by pressing the DUAL button on remote control.

Stereo

NICAM

Stereo

Mono Stereo

Dual Mono Stereo

Dual

DUAL 1/2

MONO STEREO ↔ MONO DUAL 1 ↔ DUAL 2

MONO

MONO ↔ STEREO MONO ↔ DUAL 1

DUAL 2

Default

Automatic

change

DUAL 1

Automatic

change

DUAL 1

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER button.

Press the  or  button to select “Time”, then press the

3. Press the ENTER button to select “Clock Set”.

To. ..

Move to “Hour” or “Minute” Set the “Hour” or “Minute” Press the ENTER button.

5. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.

You can also set hour and minute by pressing the number buttons on the remote control.

English-19

ENTER

button.

Press the...

 or  button.  or  button.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER button.

Press the  or  button to select “Time”, then press the

3. Press the  or  button to select “Sleep Timer”, then press the ENTER button.

4. Press the  or  button repeatedly until the desired time appears

(Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

Press the SLEEP button on the

remote control repeatedly until the appropriate time interval appears.

5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0.

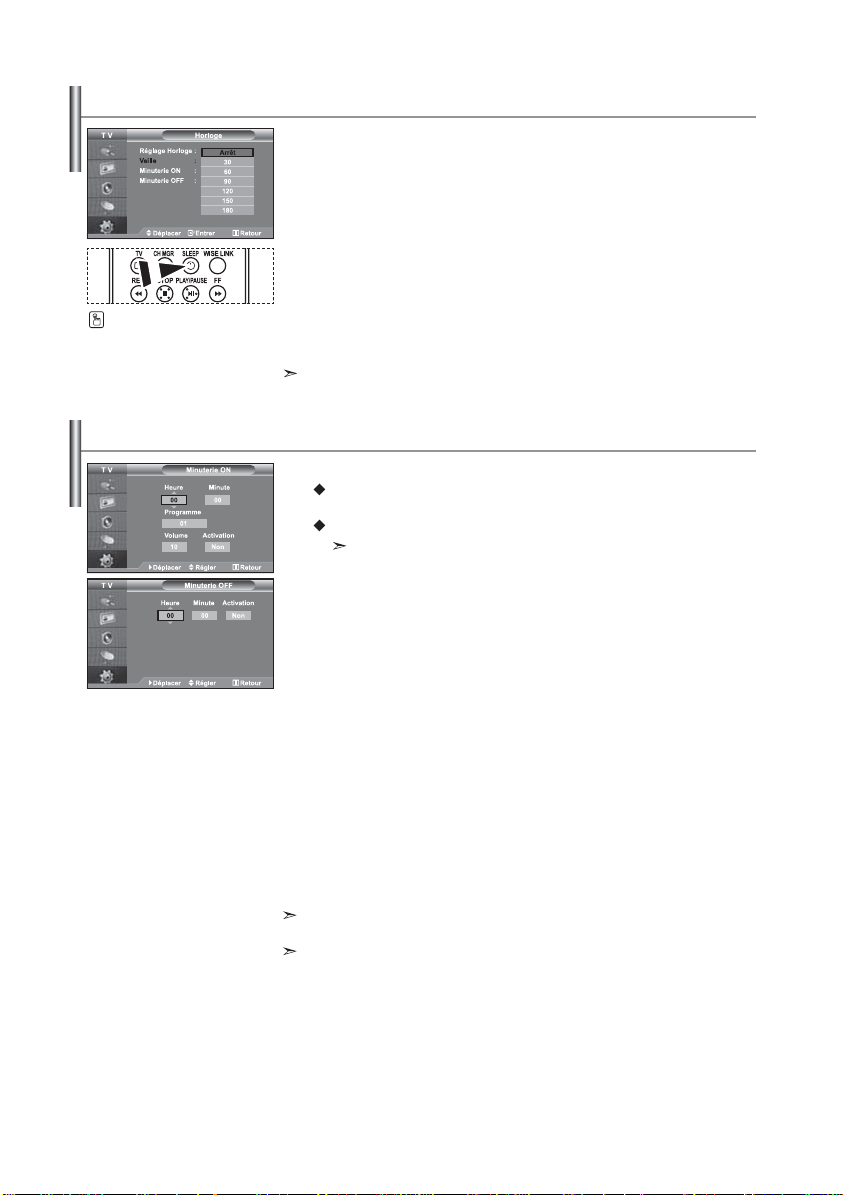

Switching the Television On and Off Automatically

You can set the On/Off timers so that the set will:

Switch on automatically and tune to the channel of your choice at

the time you select.

Switch off automatically at the time you select.

The first step is to set the television’s clock.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER

2. Press the  or  button to select “Time”, then press the ENTER

3. Press the  or  button to select “On Timer”, then press the ENTER

4. Press the  or  button to adjust “Hour”, then press the  button to

move to the next step. Set other items using the same method as above. When finished, press the ENTER

5. Press the  or  button to select “Off Timer”, then press the ENTER

6. Press the  or  button to adjust “Hour”, then press the  button to

move to the next step. Set other items using the same method as above. When finished, press the ENTER

7. Press the EXIT button to exit.

You can also set hour and minute by pressing the number buttons on the remote control. The "Activation" setting must be set to "Yes" in order for the timers to work.

button.

button to return.

ENTER

button.

English-20

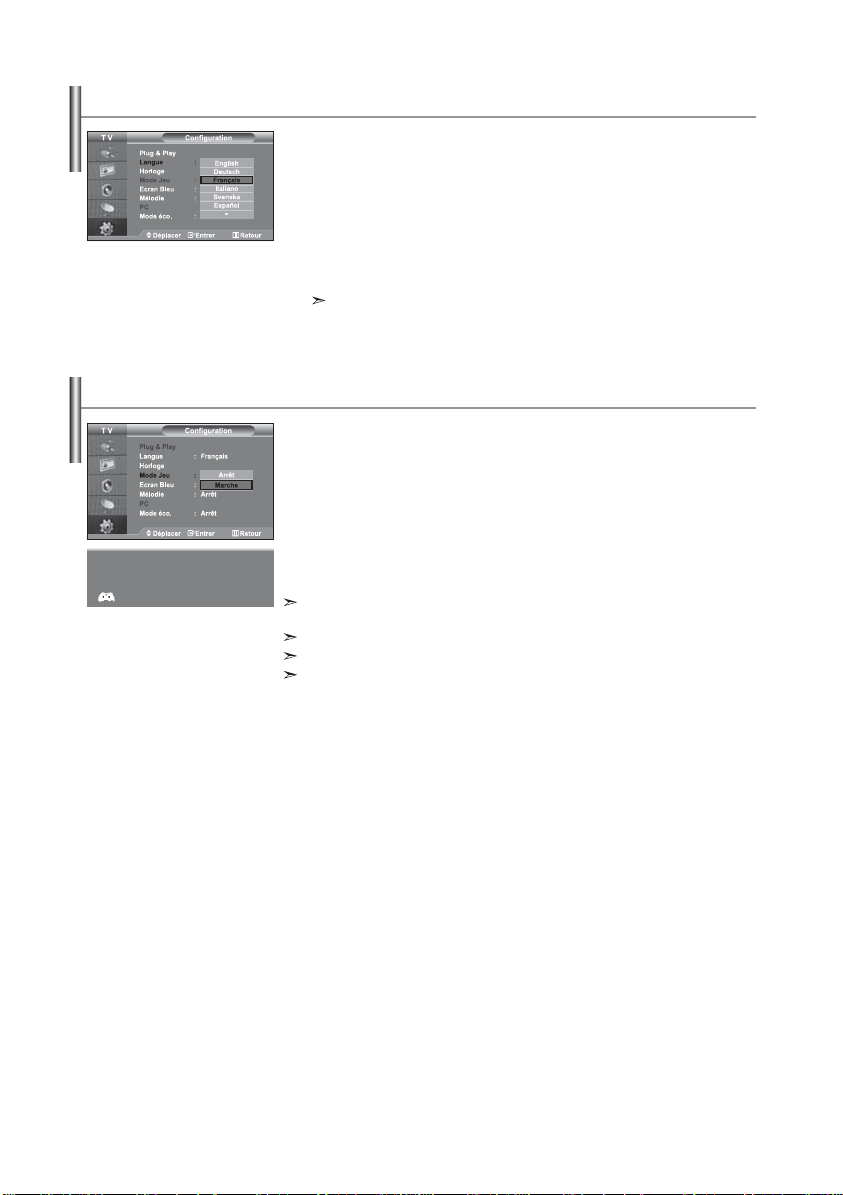

Choosing Your Language

Using Game Mode

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the  or  button to select “Setup”, then press the

2. Press the  or  button to select “Language”, then press the

ENTER button.

3. Select a particular language by pressing the  or  button repeatedly. Press the

ENTER button.

You can choose one of 21 languages.

4. Press the EXIT button to exit.

When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER button.

2. Press the  or  button to select “Game Mode”, then press the ENTER button.

Press the  or  button to select “On” or “Off”. Press the

ENTER

button.

4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, set Game to Off in the

setup menu.

If you display the TV menu in Game mode, the screen shakes slightly.

Game Mode is not available in TV mode.

If Game Mode is On:

• Picture Mode and Sound Mode are automatically changed to Custom and users can not change the mode.

• Adjust the sound using the equalizer.

• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

English-21

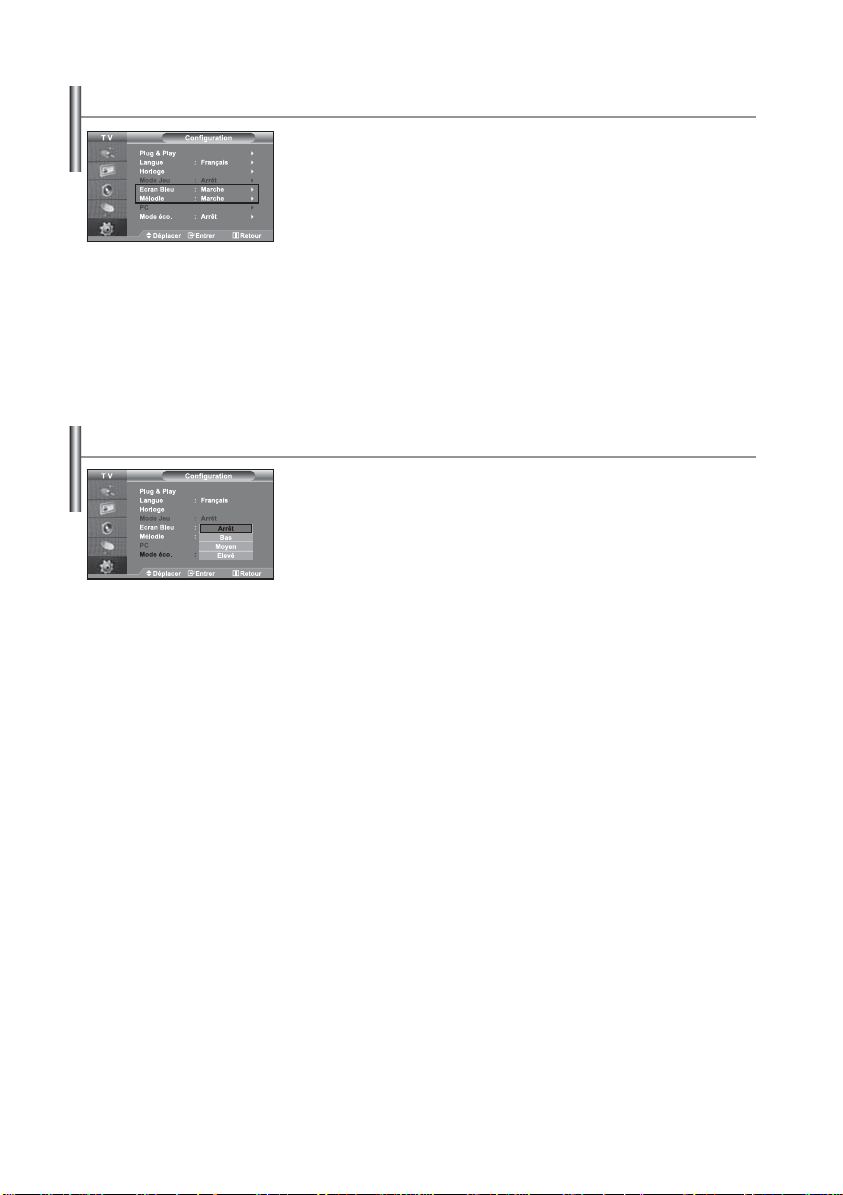

Setting the Blue Screen Mode / Selecting the Melody

Blue Screen: If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody: You can hear melody sound when the television is powered on or off.

1. Press the MENU button to display the menu. Press the  or  button to select “Setup”, then press the ENTER button.

2. Press the  or  button to select “Blue Screen” or “Melody”. Press the ENTER button.

Press the  or  button to select “On” or “Off”.

Press the

ENTER

button.

4. Press the EXIT button to exit.

Using the Energy Saving Feature

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu. Press the  or  button to select “Setup”, then press the

2. Press the  or  button to select “Energy Saving”, then press the

3. Select the required option (Off, Low, Medium, High) by pressing the  or  button. Press the

4. Press the EXIT button to exit.

ENTER button.

English-22

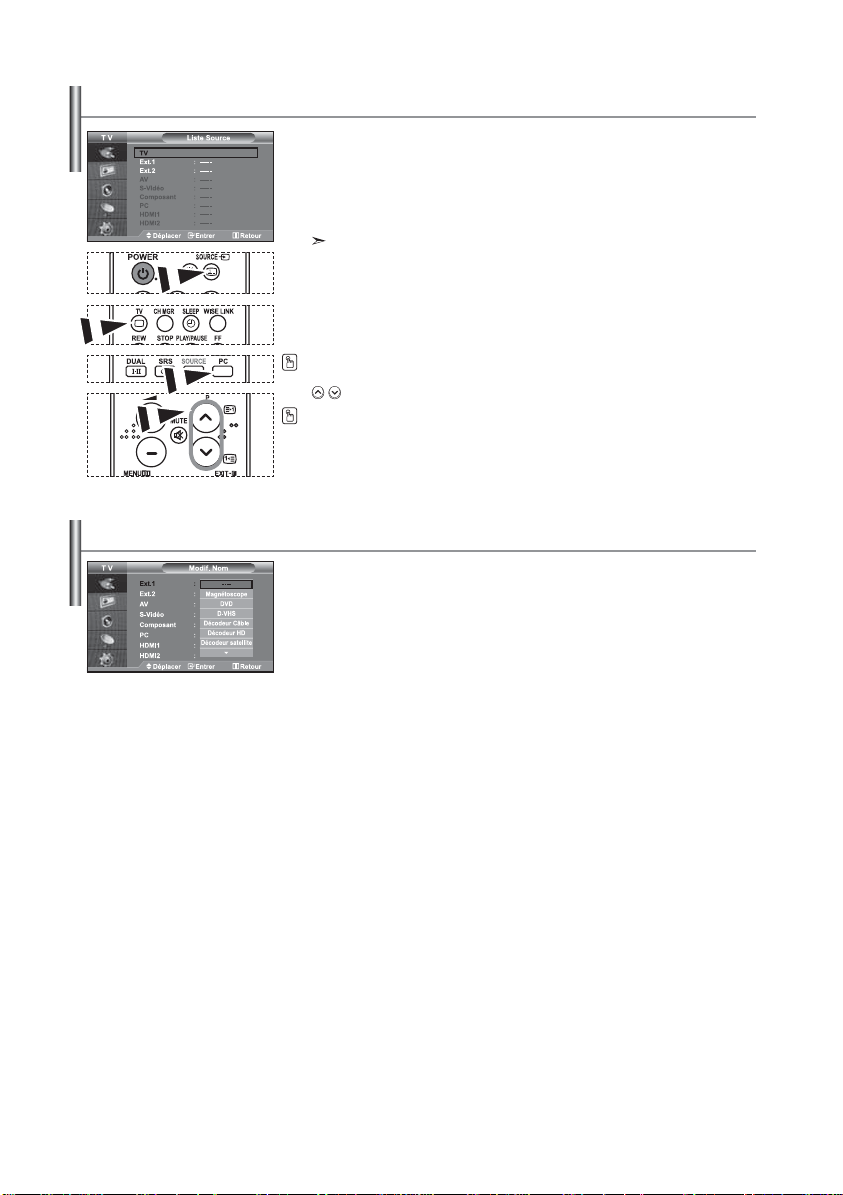

Selecting the Source

You can select among external sources connected to your TV’s input jacks.

1. Press the MENU button to display the menu. Press the ENTER button, to select “Input”.

2. Press the

activated in the “Source List”. “AV”, “S-Video”, “Component”, “PC”, “HDMI1” , “HDMI2” are activated only when they are connected to your set.

ENTER button again, to select “Source List”.

When no external device is connected to your set, only “TV”, “Ext.1”, “Ext.2” are

3. Select the required device by pressing the  or  button. Press the ENTER button.

Press the SOURCE button on the remote control to toggel between all the available source.

TV mode can be selected by pressing the TV button, number buttons(0~9), and the P

You can select PC mode by simply pressing the PC button on the remote control.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. Press the ENTER button, to select “Input”.

2. Press the  or  button to select “Edit Name”, then press the ENTER button.

3. Press the  or  button to select the device that you wish to edit.

Press the ENTER

4. Press the  or  button to select the required device. Press the ENTER button.

5. Press the EXIT button to exit.

button on the remote control. But it cannot be selected using the SOURCE button.

button.

English-23

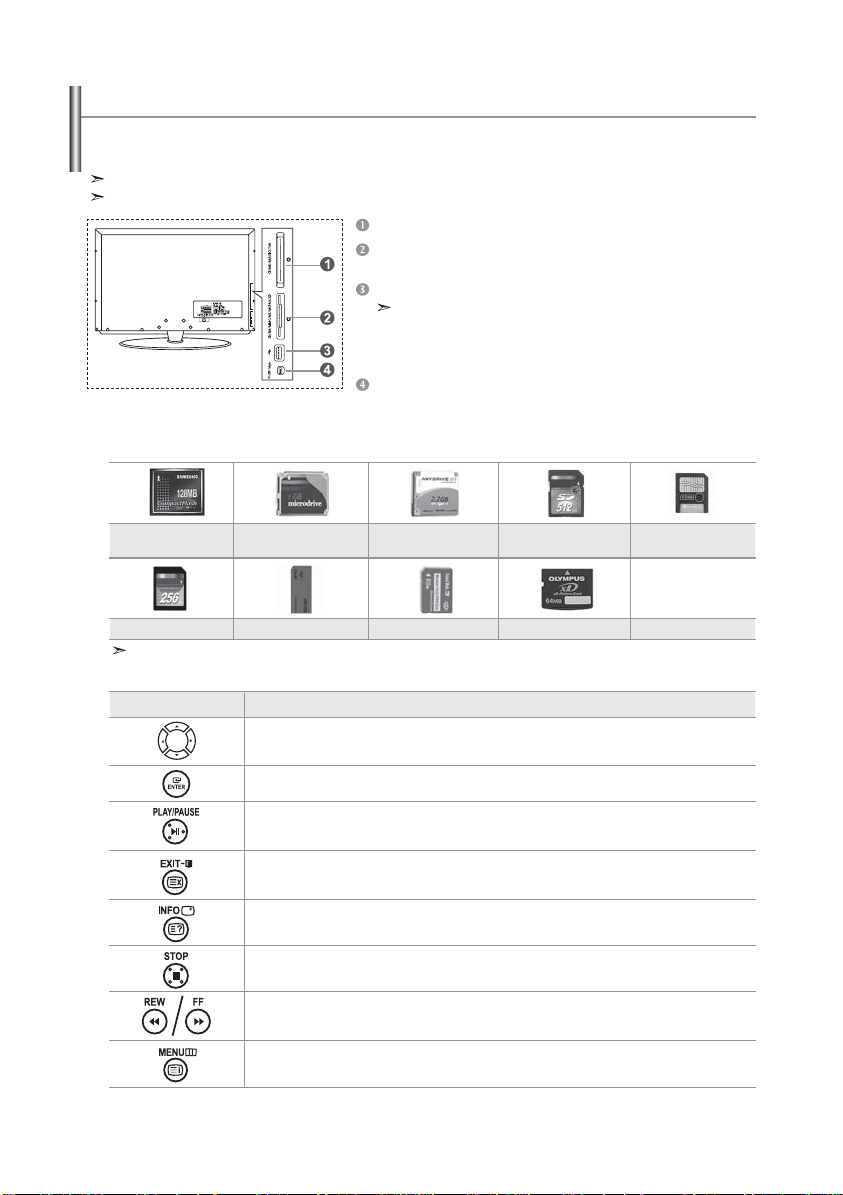

Using the WISELINK Function

You can view stored photos (JPEG files) or play music files (MP3) using a memory card or USB storage media.

The "Photo" menu supports image files in the JPEG format only. The "Music" menu supports sound files in the MP3 format only.

Compact Flash (CF) / Micro Driver (MD) / MAGICSTOR

Secure Digital Card (SD Card) / Smart Media Card (SM) /

Multimedia Card (MMC) / Memory Stick / MSPRO / XD

USB Mass Storage Class

The USB hub type is not available becuase using the Half-Speed USB can cause the hardware limitation. (Only the Full-Speed USB is available.)

Photo Printer

1. First, connect the memory card or USB storage media containing your files to the WISELINK terminal on the side of the TV.

Supported Memory Cards

Compact Flash (CF) Micro Driver (MD) MAGICSTOR Secure Digital Card

Multimedia Card (MMC) Memory Stick MSPRO XD

Some types of Memory Cards or USB hosts, depending on the manufacturer, may not be supported.

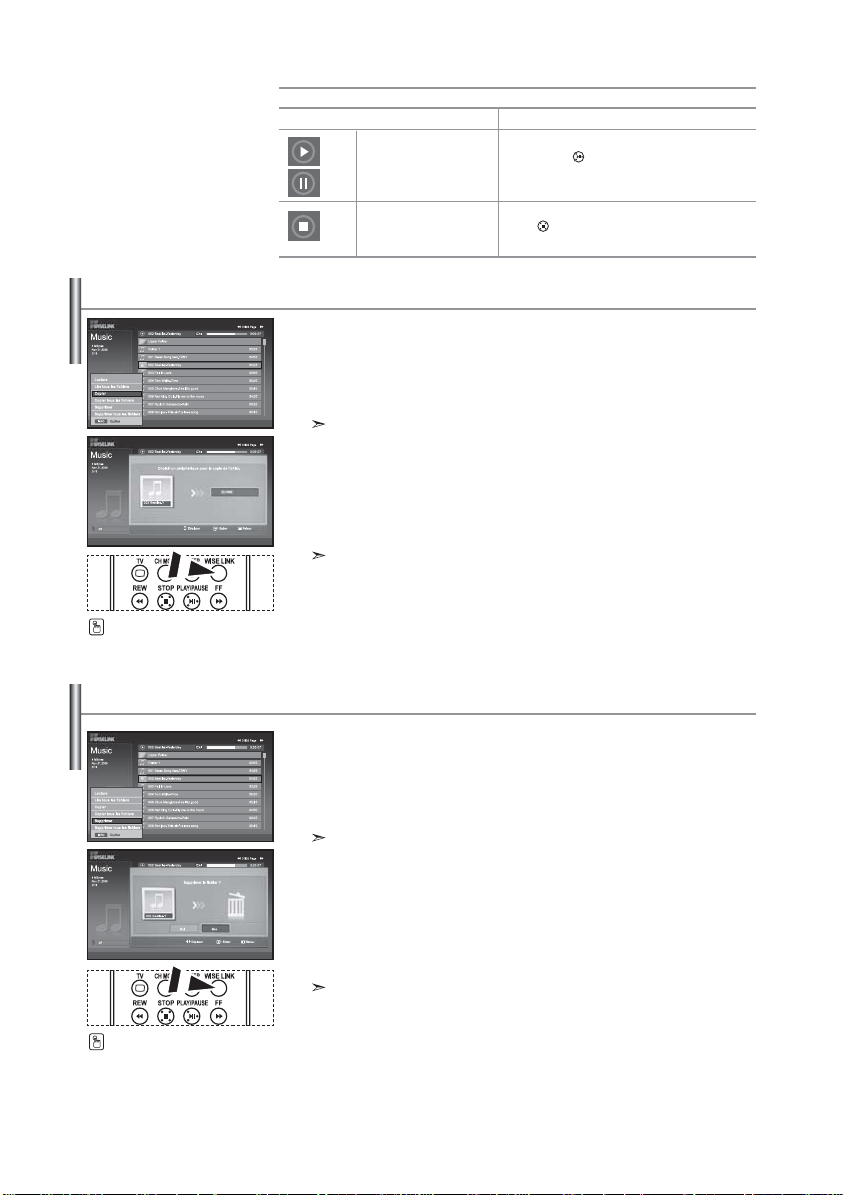

2. Using the Remote Control Button in WISELINK Menu

Button Operations

Move the cursor and select an item.

Select the currently selected item.

Play or pause the Slide Show or MP3 file.

Stop the current function and return to the previous high-level menu.

Run various functions from the Photo and Music menus.

Stop the current slide show or MP3 file.

Page Up or Down (file list item)

Return to the previous menu

(SD Card)

Smart Media Card

English-24

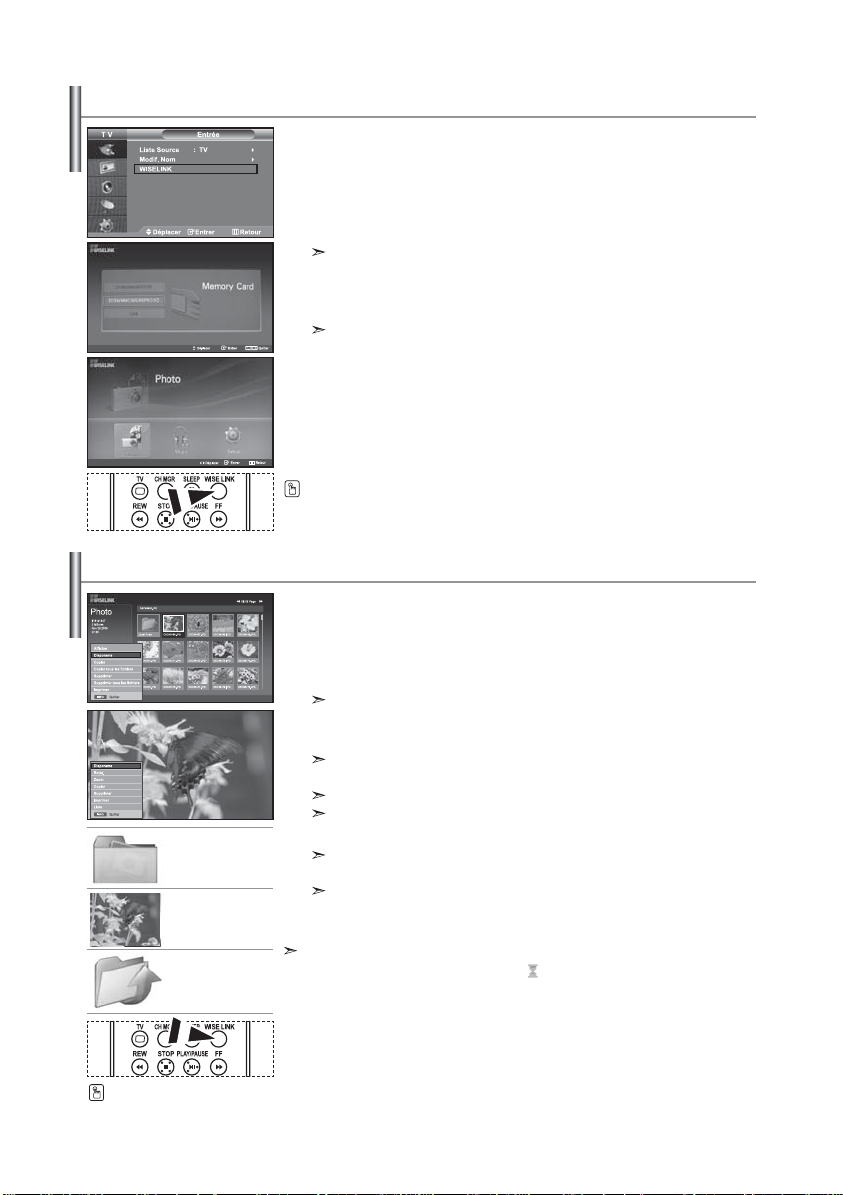

Using the WISELINK Menu

This menu shows JPEG and MP3 files and folders saved on a memory card.

1. Press the MENU button to display the menu. Press the ENTER button, to select “Input”.

2. Press the  or  button to select “WISELINK”, then press the ENTER button.

is correctly inserted into the WISELINK terminal on the side of the TV.

3. Press the  or  button to select the corresponding Memory Card, then press the ENTER button.

Memory Card will be displayed.

4. Press the  or  button to move to an item, then press the ENTER button.

5. To exit WISELINK, press the WISELINK button on the remote control.

You can select these options by simply pressing the WISELINK button on the remote control.

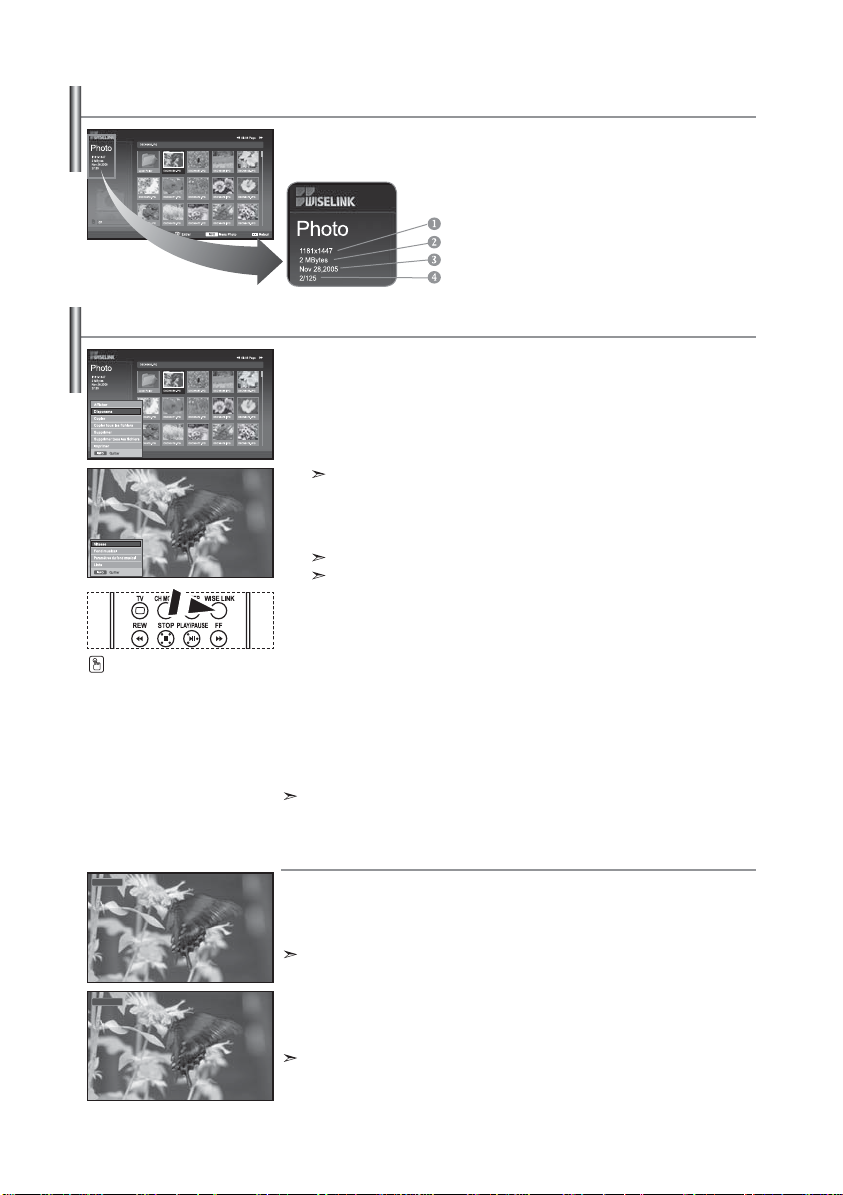

Using the PHOTO (JPEG) List

This menu shows JPEG files and folders saved on a memory card.

1. Complete Steps 1 to 4 of "Using the WISELINK Menu".

2. Press the  or  button to select “Photo”, then press the ENTER button.

3. Press the ,, and  buttons to select a file, then

press the ENTER button.

photo in full screen.

4. Press the INFO button to configure the options.

"View", "Slide Show", "Copy", "Copy All files",

folder icon

photo icon

Move to the previous folder stage icon

You can select these options by simply pressing the WISELINK button on the remote control.

"Delete", "Delete All Files", "Print" When a full screen is displayed: "Slide Show", "Rotate", "Zoom", "Copy", "Delete", "Print", "List"

5. To exit WISELINK, press the WISELINK button on the remote control.

At this point, the icon will appear at the top left of the screen.

• This menu only shows files whose file extension is JPEG. Files of other formats such as bmp or tiff will not be displayed.

• The files are displayed on a page. 15 thumbnail photos are displayed per page.

•

• Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order.

If the "Insert memory cards." message is displayed, check whether the memory card

A menu for selecting the format of the files saved on the selected

The saved file information is displayed as a folder or file.

Pressing the button over a photo icon shows the currently selected

Pressing the button over a folder icon shows the JPEG files included in the folder. The Menu is displayed. Select the View option to display a photo in the aspect ratio.

When the Photo List screen is displayed:

• Moving to another photo may take a few seconds to load the file.

The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.

English-25

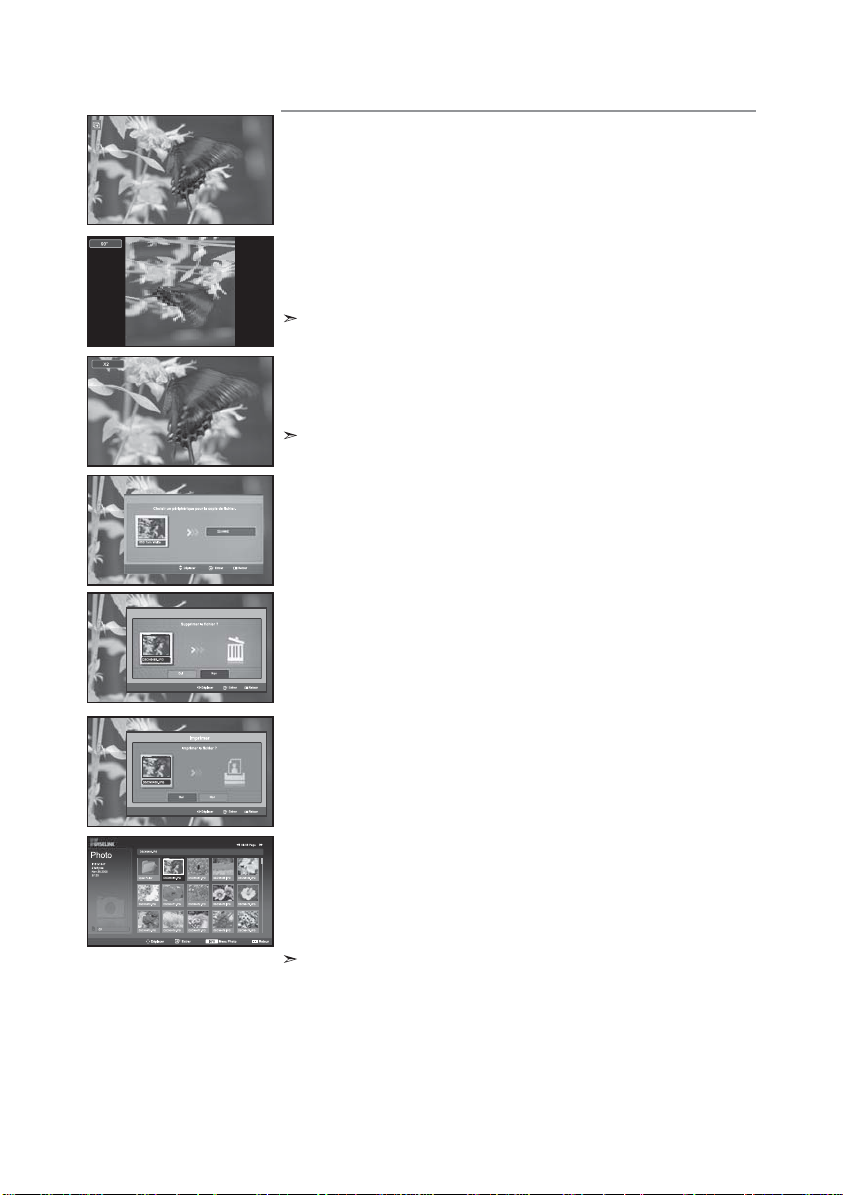

Using the Options Menu

"Slide Show":

Starts a slide show.

(Refer to “Selecting a Photo and Slide Show” on page 27)

"Rotate":

You can rotate images in full screen mode. Images are rotated in the order of 90°, 180°, 270° and 0° (original state).

(Refer to “Rotating” on page 28)

You cannot save a rotated image.

"Zoom":

You can zoom into images in full screen mode. Images are zoomed in on in the order of X2, X3, X4 and X1 (original size).

(Refer to “Zooming-in” on page 29)

You cannot save a zoomed-in on image.

"Copy", "Copy All files":

You can copy image files to a different memory card.

(Refer to “Copying Image Files” on page 30)

"Delete", " Delete All Files":

You can delete selected image files.

(Refer to “Deleting Image Files” on page 30)

"Print":

You can print image files directly with your printer.

(Refer to “Printing a Photo” on page 31)

"List":

Displays the stored files and folders and file info.

The “File Error” message appears on the screen in the following situations:

When the file actually has an error

•

If the target memory cannot be writtien to when copying files

•

If the target memory has not enough space when copying files

•

English-26

Viewing Photo File Information

When selecting a photo file, the photo file information is displayed on the left in the TV screen, such as the resolution, the date modified and the order of the file in the current directory.

Selecting a Photo and Slide Show

This menu shows JPEG files and folders saved on a memory card.

1. Complete Steps 1 to 4 of "Using the WISELINK Menu".(Refer to page 25)

2. Press the  or  button to select “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file.

3. Press the INFO button.

4. Press the  or 

The Menu is displayed. Select the View option to display a photo in the aspect ratio.

• Slide Show all files in the selected folder at a predetermined interval.

•

During the Slide Show, files are displayed in order from the currently shown file.

5. Press the INFO button during “Slide Show” to set the option ("Speed", "Background Music, "Background Music Setting", "List"). Press the

6. To change the sub option, press the INFO button again to open the options window and select option you want to change, then press the ENTER

You can select these options by simply pressing the WISELINK button on the remote control.

button. Whenever you do this, the sub option on the screen is changed.

7. To exit WISELINK, press the WISELINK button on the remote control.

If the Slide Show feature is selected when a photo is displayed in full screen,

other photos are also in the full screen size during the Slide Show.

Such as the resolution File size Date modified Order of the file in the current directory

button to select “Slide Show”, then press the ENTER button.

 or 

button to select the option, then press the

ENTER

button.

Using the Menu during a Slide Show

Normal

"Speed":

Select to control the slide show speed. Press the ENTER button to select the option "Normal", "Slow", or "Fast".

When the Speed feature is set to the Fast option, usually it takes about 7 seconds to slide to the

next photo. The loading time may be longer depends on the size of the file.

"Background Music":

Select to determine whether to play an MP3 file during a slide show. Press the ENTER button to select the option "On" or "Off".

Set the Background Music Seetings first to use the “On” or “Off ” function in this menu.

English-27

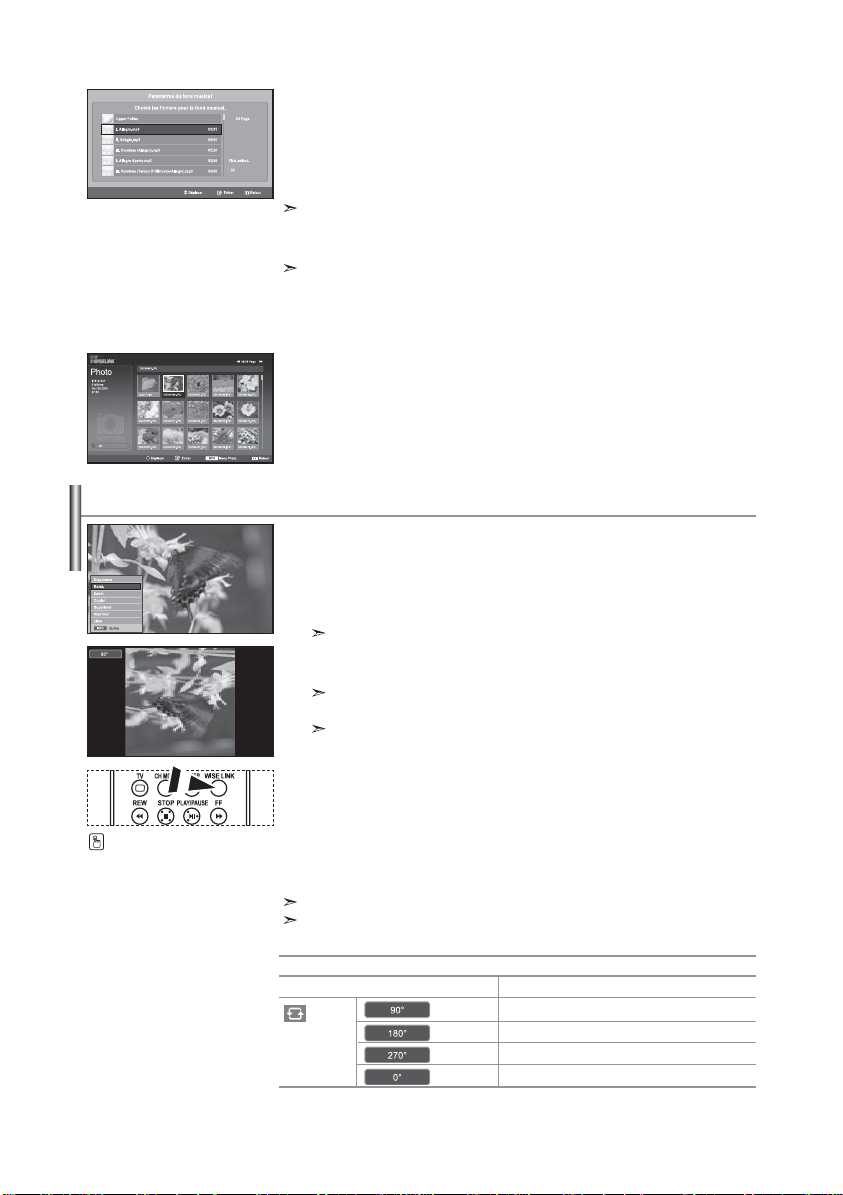

Rotating

You can select these options by simply pressing the WISELINK button on the remote control.

"Background Music Setting":

The saved file information is displayed as folder or MP3 file.

1. Select the "Background Music Settings" and press the ENTER button. Navigate to the folder that contains the MP3 files to use as the background music. Select an MP3 file and press ENTER button.

The selected file is displayed in yellow.

2. MENU button again to return to the Slide Show screen. The selected background music is played.

• If you turn Off the Background Music, even if the Background Music Settings

have been set up, the background music will not be played.

• MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder.

"List":

Displays the stored files and folders and file info.

Displays a 90°, 180°, or 270° rotated image in full screen mode.

1. Complete Steps 1 to 4 of "Using the WISELINK Menu". (Refer to page 25)

2. Press the  or  button to select “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file.

3. Press the ,, and  buttons to select a file, then press the ENTER button.

Pressing the button over a photo thumbnail displays the photo in full screen.

The Menu is displayed. Select the View option to display a photo in the aspect ratio.

4. Press the INFO button to display the option ("Slide Show", "Rotate", "Zoom", "Copy", "Delete", "Print", "List"). Press the  or  button to select “Rotate”, then press the ENTER button. Press the ENTER button to select the option (90°, 180°, 270°, 0°(Original)) To rotate a photo, press the INFO button to open the options window, select the “Rotate” option and press the ENTER button. Whenever you do this, the photo on the screen is gradually rotated.

5. To exit WISELINK, press the WISELINK button on the remote control.

The rotated file is not saved. This feature is also available for the photo in the aspect ratio.

The Rotating function information

Current OSD

English-28

Function

To rotate a photo by 90 degrees

To rotate a photo by 180 degrees

To rotate a photo by 270 degrees

To rotate a photo by original

+ 282 hidden pages

Samsung LE46F71B User Manual [en, de, es, fr, it]

Contents

List of Parts

Installing the Wall Mount Kit

Viewing the Control Panel

Viewing the Connection Panel

Viewing the Remote Control

Installing Batteries in the Remote Control

Placing Your Television in Standby Mode

Plug & Play

Storing Channels Automatically

Storing Channels Manually

Setting the Channel Manager

Sorting the Stored Channels

Assigning Channels Names

Fine Tuning Channel Reception

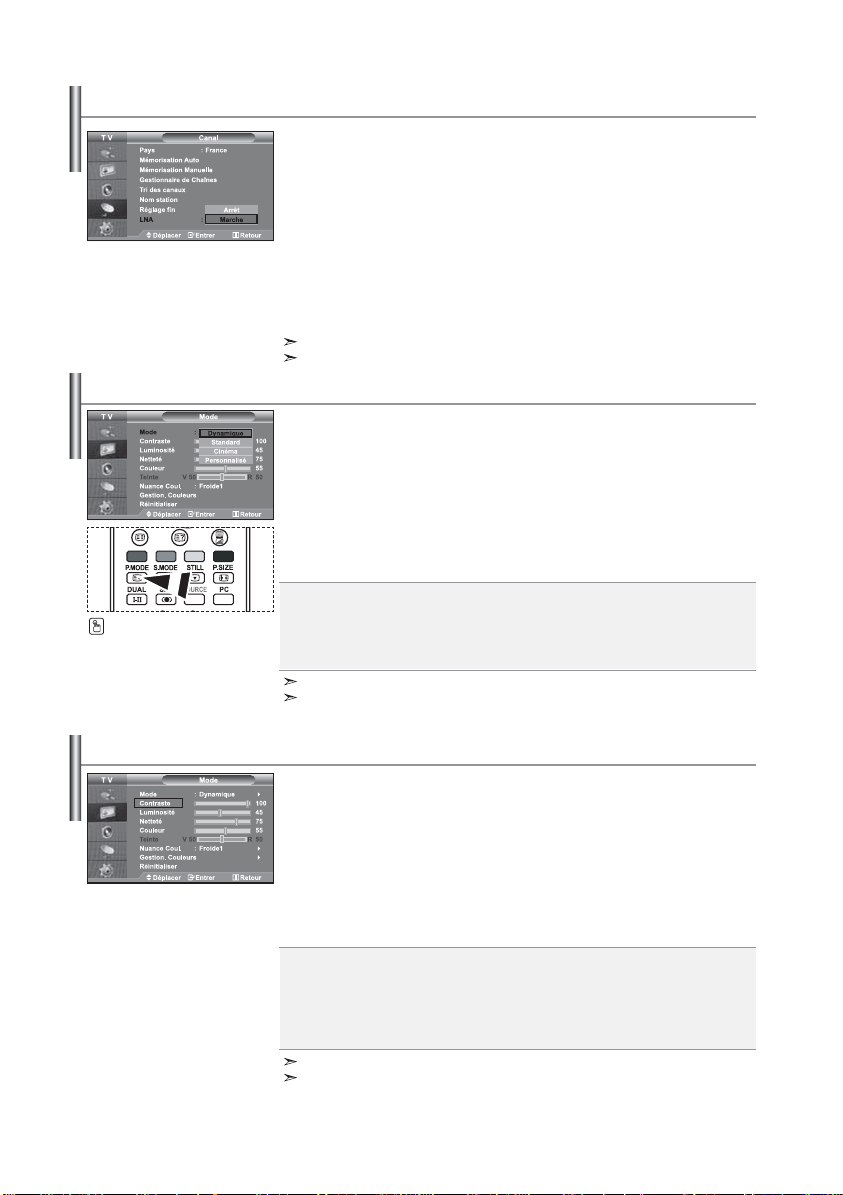

Using the LNA (Low Noise Amplifier) Feature

Changing the Picture Standard

Adjusting the Custom Picture

Changing the Colour Tone

Adjusting the Color Tone with the Preferred Color Component

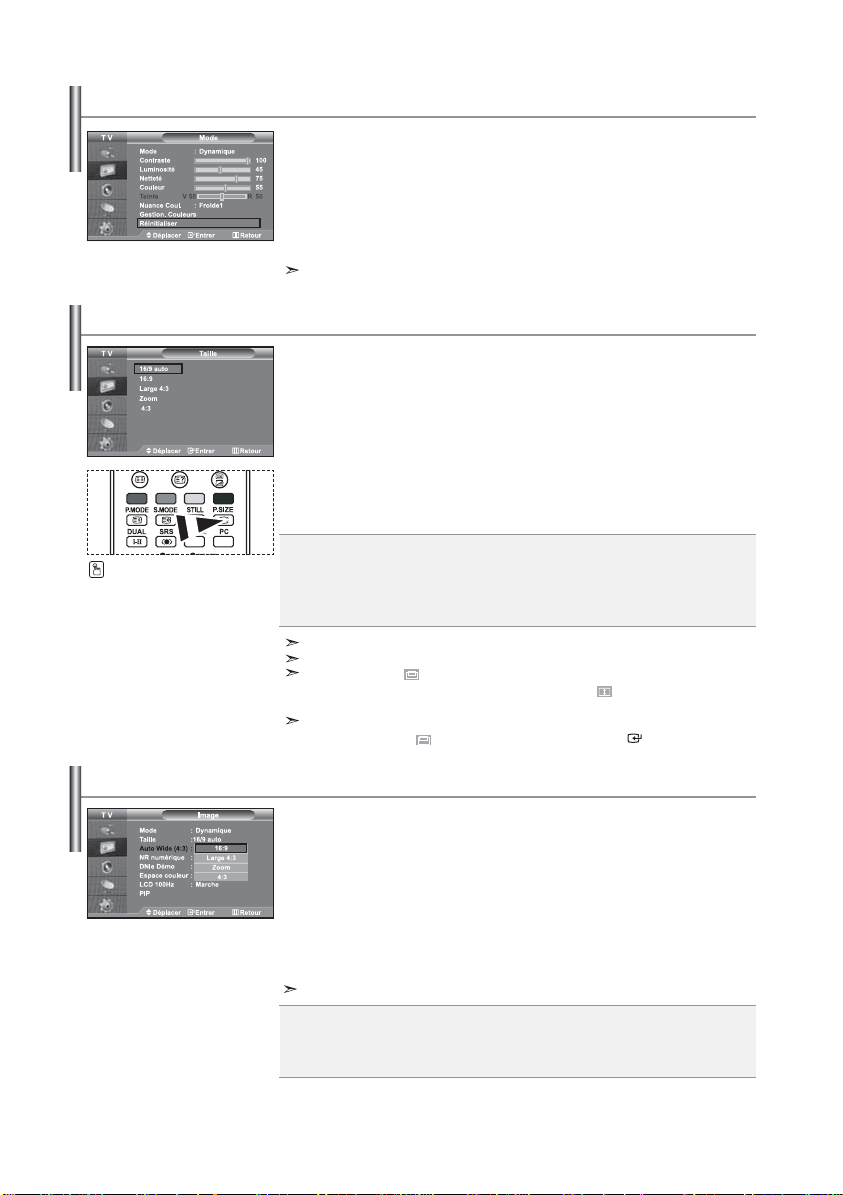

Resetting the Picture Settings to the Factory Defaults

Changing the Picture Size

Changing the Auto Wide (4:3)

Freezing the Current Picture

Digital Noise Reduction

DNIe Demo (Digital Natural Image engine)

Viewing the Picture In Picture (PIP)

Changing the Sound Standard

Adjusting the Sound Settings

Setting the TruSurround XT (SRS TSXT)

Adjusting the Volume Automatically

Selecting the Internal Mute

Listening to the Sound of the Sub Picture

Resetting the Sound Settings to the Factory Defaults

Connecting Headphones

Selecting the Sound Mode

Setting and Displaying the Current Time

Switching the Television On and Off Automatically

Choosing Your Language

Using Game Mode

Using the Energy Saving Feature

Selecting the Source

Editing the Input Source Names

Using the WISELINK Function

Using the PHOTO (JPEG) List

Viewing Photo File Information

Selecting a Photo and Slide Show

Rotating
