Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0800-SAMSUNG (726-7864) www.samsung.com/at BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be

CZECH REPUBLIC

DENMARK 70 70 19 70 www.samsung.com/dk EIRE 0818 717 100 www.samsung.com/ie FINLAND 030-6227 515 www.samsung.com/

FRANCE

GERMANY 01805 - SAMSUNG (726-7864) (€ 0,14/Min) www.samsung.com HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com ITALIA 800-SAMSUNG (726-7864) www.samsung.com LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be NETHERLANDS 0900-SAMSUNG (726-7864) (€ 0,10/Min) www.samsung.com/nl NORWAY 815-56 480 www.samsung.com/no

POLAND

PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com SWEDEN 0771-400 200 www.samsung.com/se SWITZERLAND 0800-SAMSUNG (726-7864) www.samsung.com/ch U.K 0845 SAMSUNG (7267864) www.samsung.com TURKEY 444 77 11 www.samsung.com ESTONIA 800-7267 www.samsung.ee LATVIA 800-7267 www.samsung.com/lv LITHUANIA 8-800-77777 www.samsung.lt KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz KYRGYZSTAN 00-800-500-55-500 RUSSIA 8-800-555-55-55 www.samsung.ru TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.com UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz

Customer Care Centre

844 000 844 www.samsung.com/cz

Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min)

0 801 801 881 022-607-93-33

Web Site

www.samsung.com

www.samsung.com/pl

LCD TV

user manual

BN68-01604Q-00

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

(See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image

•

retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the

screen when displaying a still image.

•

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left,

right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Contents

English

Connecting and Preparing Your TV

List of Parts ........................................................................2

■

Installing the Wall Mount Kit ..............................................2

■

Viewing the Control Panel .................................................3

■

Viewing the Connection Panel ...........................................4

■

Remote Control .................................................................7

■

Installing Batteries in the Remote Control .........................8

■

Switching On and Off .........................................................8

■

Placing Your Television in Standby Mode ..........................8

■

Viewing the Menus ............................................................9

■

Using the TOOLS Button ...................................................9

■

Plug & Play Feature ...........................................................9

■

Channel Control

Storing Channels Automatically .......................................11

■

Storing Channels Manually ..............................................11

■ Viewing the EPG (Electronic Programme Guide)

■

Information .......................................................................13

Setting the Default Guide ................................................14

■

Managing Channels .........................................................15

■

Setting the Channel Mode ...............................................22

■

Activating the Child Lock .................................................22

■

Fine Tuning Analogue Channels ......................................23

■

Checking the Digital-Signal Information ..........................23

■

LNA (Low Noise Amplier) ...............................................24

■

Picture Control

Changing the Picture Standard .......................................25

■

Customizing the Picture Settings .....................................25

■

Adjusting the Detailed Settings ........................................26

■

Conguring Picture Options .............................................27

■

Resetting the Picture Settings to the Factory Defaults ....28

■

Viewing Picture-in-Picture ...............................................29

■

Sound Control

Changing the Sound Standard ........................................30

■

Selecting the Sound Mode ..............................................32

■

Connecting Headphones (Sold separately) .....................32

■

Time Setting

Setting the Clock .............................................................33

■

Setting the Sleep Timer ...................................................34

■

Switching the Television On and Off Automatically ..........35

■

Function Description

Selecting a Menu Language ............................................36

■

Setting Up Your Personal ID Number (PIN) .....................36

■

Setting up the Parental Lock ...........................................37

■

Setting the Subtitle ..........................................................38

■

Selecting a Teletext Language ........................................39

■

Selecting a Preference Language ...................................39

■

Melody/Entertainment/Energy Saving .............................40

■

Upgrading the Software ...................................................41

■

Viewing Common Interface .............................................42

■

Selecting the CI (Common Interface) Menu ....................42

■

To Select the Source .......................................................43

■

To Edit the Input Source Name ........................................43

■

PC Display

Using Your TV as a Computer (PC) Display ....................44

■

Display Modes .................................................................44

■

Setting up the TV with your PC .......................................45

■

WISELINK

Using the WISELINK Function ........................................46

■

Using the Photo List ........................................................47

■

Sorting Photo List ............................................................49

■

Viewing a Photo or Slide Show ......................................53

■

Using the Music List ........................................................57

■

Sorting Music List ............................................................58

■

Playing a Music File .........................................................62

■

Using the Setup Menu .....................................................64

■

About Anynet

What is Anynet+?.............................................................65

■

Connecting Anynet+ Devices...........................................65

■

Setting Up Anynet+ .........................................................66

■

Scanning and Switching between Anynet+ Devices ........66

■

Recording ........................................................................67

■

Listening through a Receiver (Home theater) ..................68

■

Troubleshooting for Anynet+ ...........................................68

■

Recommendations for Use

Teletext Feature ...............................................................69

■

Auto Wall-Mount Adjustment (Sold separately) ..............70

■ Using the Anti-Theft Kensington Lock

■

(depending on the model) ................................................72

Securing the TV to the Wall .............................................73

■ Troubleshooting: Before Contacting Service Personnel ..74

■

Specications ..................................................................75

■

Symbol Press Note One-Touch Button

English - 1

Connecting and Preparing Your TV

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries

•

➣

(AAA x 2)

Owner’s Instructions

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

Power Cord Cover-Bottom Cleaning Cloth

Warranty card

•

Safety Guide

•

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may

result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with

➣

two screws.

Registration Cards

•

English - 2

English - 3

Viewing the Control Panel

8 87

5 6

Front Panel buttons

Touch each button to operate.

The product colour and shape may vary depending on the model.

➣

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3). In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Press to see an on-screen menu of your TV’s features.

– +

Press to increase or decrease the volume. In the on-screen menu, use the –

would use the ◄ and ► buttons on the remote control.

+ buttons as you

C/P.

Press to change channels. In the on-screen menu, use the C/P. buttons as you would use the ▼ and ▲ buttons on the remote control.

POWER INDICATOR

Blinks and turns off when the power is on and lights up

in stand-by mode.

(Power)

Press to turn the TV on and off.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

SPEAKERS

Viewing the Connection Panel

[TV Rear Panel]

[TV Side Panel]

Power Input

The product colour and shape may vary depending on the model.

➣

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

➣

When connecting an external device, match the colour of the connection terminal to the cable.

PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

COMPONENT IN

- Connect component video cables (optional) to component connector (“PR”, “PB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (“PR”, “PB”, “Y”) on your set.

- The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

- Connect RCA audio cables (optional) to “R - AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

HDMI IN 1, HDMI IN 2, HDMI IN 3

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

- No additional Audio connection is needed for an HDMI to HDMI connection.

- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

English - 4

English - 5

What is HDMI?

➣

- “High Denition Multimedia interface” allows the transmission of high denition digital video data and multiple channels

of digital audio.

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth

Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/

➣

Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable

and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to conrm the HDMI version, then request a rmware update. HDMI cables that are not 1.3 may cause annoying icker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

- DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component.

➣

480i 480p 576i 576p 720p 1080i 1080p

HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O

Component O O O O O O O

ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

SERVICE

- Connector for SERVICE only.

- Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using

your remote control.

COMMON INTERFACE Slot

- When not inserting “CI CARD” in some channels,”Scrambled Signal” is displayed on the screen.

- The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

- When the channel information conguration has nished, the message “Updating Completed” is displayed, indicating

that the channel list is now updated.

You must obtain a CI CARD from a local cable service provider. Remove the CI

➣

CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it.

Insert the CI-Card in the direction marked on it.

➣

The place of the COMMON INTERFACE Slot may be different depending on its

➣

model.

WISELINK

Connect a USB mass storage device to view photo les (JPEG) and play audio les (MP3).

S-VIDEO or VIDEO / R-AUDIO-L

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to “R-AUDIO-L” on your set and the other ends to corresponding audio out connectors on the A/V device.

HEADPHONES JACK

Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound

from the built-in speakers will be disabled.

AUDIO OUT [R-AUDIO-L]

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding

audio in connectors on the Amplier or DVD Home Theatre.

DIGITAL AUDIO OUT (OPTICAL)

- Connects a set of external headphones for private listening.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel

➣

audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable/Satellite Box directly to an Amplier or Home Theater, not the TV.

EXT 1, EXT 2

Connector

Video Audio (L/R) RGB Video + Audio (L/R)

Input Output

EXT 1 O O O Only TV or DTV output is available. EXT 2 O O Output you can choose.

- Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

KENSINGTON LOCK (depending on the model)

- The Kensington Lock (optional) is a device used to physically x the system when used in a public place.

- If you want to use a locking device, contact the dealer where you purchased the

TV.

- The location of the Kensington Lock may be different depending on its model.

English - 6

English - 7

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

Television Standby button.

Selects the TV mode

directly.

Number buttons for direct

channel access

One/Two-digit channel

selection

+: Volume increase

–: Volume decrease

Available source selection

Electronic Program Guide

(EPG) display

Use to quickly select

frequently used functions.

Use to see information on

the current broadcast

Colour buttons: Use these

buttons in the Channel list and WISELINK, etc.

Press to select the optional

display and sound modes for sports, cinema and games.

Use these buttons in the

DMA, WISELINK and Anynet+. ( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

Press to backlight the

buttons on the remote. This function is convenient for using at night or when

the room is dark. (Using

the remote control with the ON/OFF light button set to On will reduce the battery usage time.)

Previous channel

Temporary sound switch-

off

P : Next channel

P : Previous channel

Displays the main on-

screen menu

(

This function enables you

to view and play photo

and music les from an

external device.

)

Returns to the previous

Control the cursor in the

Exit the on-screen menu

Use this when connecting

a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when

“Anynet+(HDMI-CEC)” is “On” (see page 66)

Picture size selection

Digital subtitle display

It display “Channel List” on

the screen.

Teletext Functions

Exit from the teletext

display

Teletext mode selection

(LIST/FLOF)

Teletext store

Teletext size selection

Teletext reveal

Fastext topic selection

Alternately select Teletext,

Double, or Mix.

Teletext sub page

P : Teletext next page

P : Teletext previous

* ) b

page

Teletext index

Teletext hold

Teletext cancel

The performance of the remote control may be affected by bright light.

➣

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram inside the

➣

compartment.

Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the

➣

remote control for a long time.

Using the remote control with the ON/OFF

➣

battery usage time.

If the remote control doesn’t work, check the following:

➣

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

light button set to On will reduce the

Switching On and Off

The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

➣

Press the button on your set.

You also can press the POWER

➣

The programme that you were watching last is reselected automatically.

➣

Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or C/P. button on

your set.

When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to

➣

be displayed.

To switch your set off, press the POWER button again.

button or the TV/DTV button on the remote control to turn the TV on.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

➣

To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down

( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is

➣

best to unplug the set from the mains and aerial.

English - 8

English - 9

Viewing the Menus

1. With the power on, press the MENU button. The main menu appears on the screen.

The menu’s left side has icons: Picture, Sound, Channel, Setup, Input,

Application.

Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s sub-menu.

3. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

➣


Mode

Backlight : 7 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint (G/R) : G50/R50

Detailed Settings

Standard

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

Press the TOOLS button.

The “Tools” menu will appear.

Press the ▲ or ▼ button to select a menu.

3. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Device List

Tools

EnterMove

Device List: see page 66

•

Picture Mode: see page 25

•

Sound Mode: see page 30

•

Sleep Timer: see page 34

•

SRS TS XT: see page 30

•

Energy Saving: see page 40

•

Dual l ll: see page 32

•

PIP: see page 29

•

Auto Adjustment: see page 45

•

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l ll : Mono

Exit

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

Press the POWER button on the remote control.

The message “Les menus Langue, Enr. démo, Canaux et Heure seront dénis.” is displayed.

Press the ENTER button, then “Sélectionnez la langue de l'OSD.” menu is

automatically displayed. Press the ENTER button.

3. Select the appropriate language by pressing the ▲ or ▼ button. Press the

ENTER button to conrm your choice.

Les menus Langue, Enr. démo, Canaux et Heure seront définis.

Sélectionnez la langue de l’OSD.

Langue : Français ►

Plug & Play

Entrer

Plug & Play

Entrer

4. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the

ENTER button.

We recommend setting the TV to “Home Use” mode for the best picture in

➣

your home environment.

“Store Demo” mode is only intended for use in retail environments.

➣

If the unit is accidentally set to “Store Demo” mode and you want to return

➣

to “Home Use” (Standard): Press the Volume button on the TV. When the

volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Press the ▲ or ▼ button to select the channel source to memorize. Press the

ENTER button to select “Start”.

➣

Digital & Analogue: “Digital” and “Analogue” channels. Digital: “Digital” channels. Analogue: “Analogue” channels.

➣

The channel search will start and end automatically.

➣

Press the ENTER

button at any time to interrupt the memorization

process.

➣

After all the available channels are stored, the message “Set the Clock Mode.” is displayed.

Press the ENTER button to select the “Clock Mode”.

Press the ▲ or ▼ button to select “Manual”, then Press the ENTER

button.

➣

If you select “Auto”, The message “Enjoy your viewing” is displayed. If you have received a digital signal, the time will be set automatically.

Select the “Day”, “Month”, “Year”, “Hour”, or “Minute” by pressing the ◄ or ►

button. Set the “Day”, “Month”, “Year”, “Hour”, or “Minute” by pressing the ▲ or ▼ button.

➣

You can also set the “Month”, “Day”, “Year”, “Hour” and “Minute” by

pressing the number buttons on the remote control.

8. The message “Enjoy your viewing” is displayed. When you have nished, press the ENTER button.

Plug & Play

Select ‘Home Use’ when installing this TV in your home.

Store Demo

Select the channel source to memorize.

Digital & Analogue

Digital

Analogue

Auto Store in progress. Channel 69

Digital Channels: 29 Analogue Channels: 0

Auto Store is completed.

Digital Channels : 45 Analogue Channels : 32

Set the Clock Mode.

Clock Mode : Auto

Set current date and time

Day

Hour

Move

Enjoy your viewing

Plug & Play

Move

Plug & Play

Stop

Plug & Play

Auto

Manual

Plug & Play

Month

Minute

Adjust

Plug & Play

Home Use

Start

Enter

EnterMove Skip

Year

20 08

Enter

EnterMove

SkipEnter

20%

Skip

If you want to reset this feature...

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ENTER button again to select “Plug & Play”.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is

“0-0-0-0”.

➣

If you want to change PIN number, refer to 36 page.

➣

For further details on setting up options, refer to the pages 9~10.

➣

The “Plug & Play” feature is only available in the TV mode.

English - 10

Setup

Plug & Play  ►

Language : English

Time

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Plug & Play

The Menu Language, Store Demo, Channels, and Time will be set.

0~9

Enter PIN

Return

English - 11

Channel Control

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Auto Store”, then press the ENTER

button.

Press the ▲ or ▼ button to select the channel source to memorize.

Press the ENTER button to select “Start”.

Digital & Analogue: “Digital” and “Analogue” channels.

➣

Digital: “Digital” channels. Analogue: “Analogue” channels.

Scans for all channels with active broadcast stations and stores them in

➣

the TV’s memory.

If you want to stop Auto Store, press the ENTER

➣

button.

The “Stop Auto Store?” message will be displayed. Select “Yes” by pressing the ◄ or ► button, then press the ENTER button.

4. Press the EXIT button to exit.

If a channel is locked using the “Child Lock” function, the PIN input window appears (refer to page 22).

➣

Channel

Auto Store

Manual Store

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

 ►

Storing Channels Manually

You can store television channels, including those received via cable networks. When storing channels manually, you can choose:

•

Whether or not to store each of the channels found.

•

The programme number of each stored channel which you wish to identify.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Manual Store”, then press the ENTER

button.

Digital Channel

Press the ▲ or ▼ button to select “Digital Channel”, then press the

ENTER button.

➣

If a channel is locked using the “Child Lock” function, the PIN input

window appears (refer to page 22).

Press the ◄ or ► button to select the required option.

− Channel : Set the Channel number using the ▲, ▼ or number buttons.

− Frequency : Set the frequency using the number buttons.

− Bandwidth : Set the bandwidth using the ▲, ▼ or number buttons.

Press the ENTER button to start the scan for digital services.

➣

When it has nished, channels are updated in the channel list.

When it has nished, the number of scanned services will be displayed.

7. Press the EXIT button to exit.

Auto Store

Channel

Manual Store  ►

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Auto Store

Channel

ManualStore  ►

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Manual Store

Channel

Frequency

554000 KHz

Digital Channel

Analogue Channel

Bandwidth

8MHz

Move

Adjust

ReturnSearch

Analogue Channel

Press the ▲ or ▼ button to select “Analogue Channel”, then press the

ENTER button.

If a channel is locked using the “Child Lock” function, the PIN input

➣

window appears (refer to page 22).

Press the ◄ or ► button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satised.

5. Press the EXIT button to exit.

Auto Store

Channel

ManualStore  ►

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Digital Channel

Analogue Channel

Programme (Programme number to be assigned to a channel)



Press the ▲ or ▼ button until you nd the correct number.

You can also select the channel number directly by pressing the numeric

➣

buttons (0~9).



Colour System: Auto/PAL/SECAM/NTSC4.43

Press the ▲ or ▼ button to select the required colour standard.



Sound System: BG/DK/I/L

Press the ▲ or ▼ button to select the required sound standard.



Channel (When you know the number of the channel to be stored)

Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the ▲ or ▼ button to select the required

number.

➣

You can also select the channel number directly by pressing the numeric buttons (0~9).

➣

If there is abnormal sound or no sound, reselect the sound standard required.



Search (When you do not know the channel numbers)

Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the rst channel or the channel

that you selected is received on the screen.



Store (When you store the channel and associated programme number) Set to OK by pressing the ENTER

Channel mode

➣

button.

- P (Programme mode): When completing tuning, the broadcasting stations

in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

- C (Air channel mode): You can select a channel by entering the assigned

number to each air broadcasting station in this mode.

- S (Cable channel mode): You can select a channel by entering the assigned

number for each cable channel in this mode.

Programme

Channel C

Manual Store

Colour SystemBGSound System

Au to

Search 62 MHz

Move

Adjust

Store

Return

English - 12

English - 13

Viewing the EPG (Electronic Programme Guide) Information

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank

or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER

button.

Press the ▲ or ▼ button to select “Full Guide” or “Mini Guide” then press the

ENTER button.

Mini Guide



The information of each program is displayed by each line on the current channel Mini Guide screen from the current program onwards according to the program starting time order.

Full Guide



Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled

forwards or backwards in time.

To... Then...

Watch a programme in the EPG list

Select a programme by pressing the

▲, ▼, ◄, ► button.

Exit the guide Press the blue button

If the next program is selected, it is scheduled with the clock

➣

icon displayed. If the ENTER

button is pressed again, press

the ◄, ► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone. For details about scheduling

programmes, refer to the next page.

View programme

information

Select a programme of your choice by

•

pressing the ▲, ▼, ◄, ► button.

Then press the INFO button when the

• programme of your choice is highlighted.

The programme title is on the upper part

• of the screen center.

Please click on INFO button for the detailed information. Channel

➣

Number, Running Time, Status Bar, Parental Level, Video

Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information.

“...” will be appeared if the summary is long.

Toggle between the “Mini

Press the red button repeatedly.

Guide” or “Full Guide”

In Full Guide

Scrolls backwards

•

Press the green button repeatedly.

•

quickly (24 hours). Scrolls forwards quickly

•

Press the yellow button repeatedly.

•

(24 hours).

In Mini Guide

Display next page

•

Press the green button.

•

quickly.

Display previous page

•

Press the yellow button.

•

quickly.

You can also display the guide menu simply by pressing the GUIDE button.

(To congure the “Default Guide”, refer to the descriptions on page 14.)

Auto Store

Manual Store

Channel

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

Full Guide

900 f tn

901 ITV Play

902 Kerrang! 903 Kiss 903 oneword 903 Smash Hits!

▼

Watch

Channel

Mini Guide DTV Cable 900 f tn

2:00 2:30

▼

5:00

Watch

DTV Cable 900 f tn 2:10 Tue 1 Jun

Freshmen On Campus

2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Freshmen O..

Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

Information



Information

Mini Guide +24 Hours Exit

Manual Store

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

Freshmen On Campus Street Hypnosis Booze Britain



Full Guide Next Page Exit

No Information

No Information Kisstory No Information

Setting the Default Guide

You can decide whether to display either the “Mini Guide” or the “Full Guide” when the GUIDE button on the remote control is pressed.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Default Guide”, then press the ENTER

button.

Full Guide

Mini Guide

Channel

Default Guide : Mini Guide ►

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

3. Select “Mini Guide” or “Full Guide” using the ▲ or ▼ button, and press the

ENTER button.

4. Press the EXIT button to exit.

You can select these options by simply pressing the GUIDE button on the

remote control.

Full Guide

Mini Guide

Channel

DefaultGuide :MiniGuide ►

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

Mini Guide

Full Guide

English - 14

English - 15

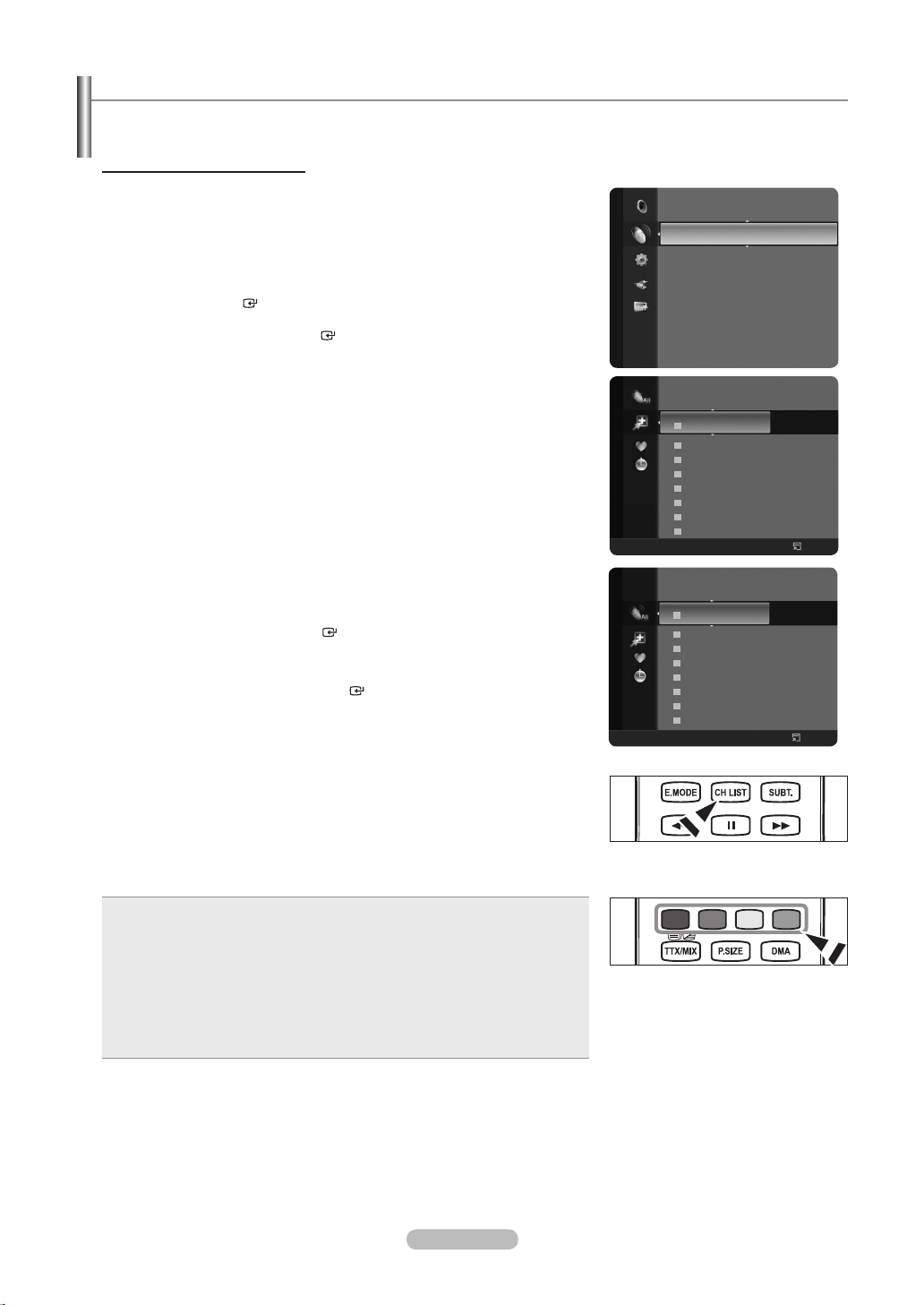

Managing Channels

Using this menu, you can Add/Delete or set Favourite channels and use the program guide for digital broadcasts.

Viewing All Channels

Show all currently available channels.

To use the Channel List function, operate the “Auto Store” rst.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Press the ◄ button to select “Added Channels”.

3. Press the ▲ or ▼ button to select “All Channels”.

Shows all currently available channels.

➣

Press the ENTER button.

4. Press the ▲ or ▼ button to select a channel to view, then press the

ENTER button. You can watch the selected channel.

Added Channels

All Channels

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Option

Press the CH LIST button on the remote control to bring up the channel lists.

Using the Colour buttons on the Remote with the Channel List

Red (Channel Type): Toggle between your “TV”, “Radio”, “Data/Other” and

•

“All”. Green (Zoom): Enlarges or shrinks a channel number.

•

Yellow (Select): Selects multiple channel lists.

•

TOOLS (Option): Displays the “Delete”(or “Add”), “Add to Favourite”(or

•

“Delete from Favourite”), “Lock”, “Timer Viewing”, “Edit Channel Name”, “Sort”, “Edit Channel Number”, “Select All”, “Deselect All” or “Auto Store”

menu. (The Options menus may differ depending on the situation.)

A gray-coloured channel indicates the channel has been deleted.

➣

The “Add” menu only appears for deleted channels. A channel marked with the “♥” mark means the channel has been set as a Favourite.

➣

The “Delete from Favourite” menu only appears for channels with the “♥” mark.

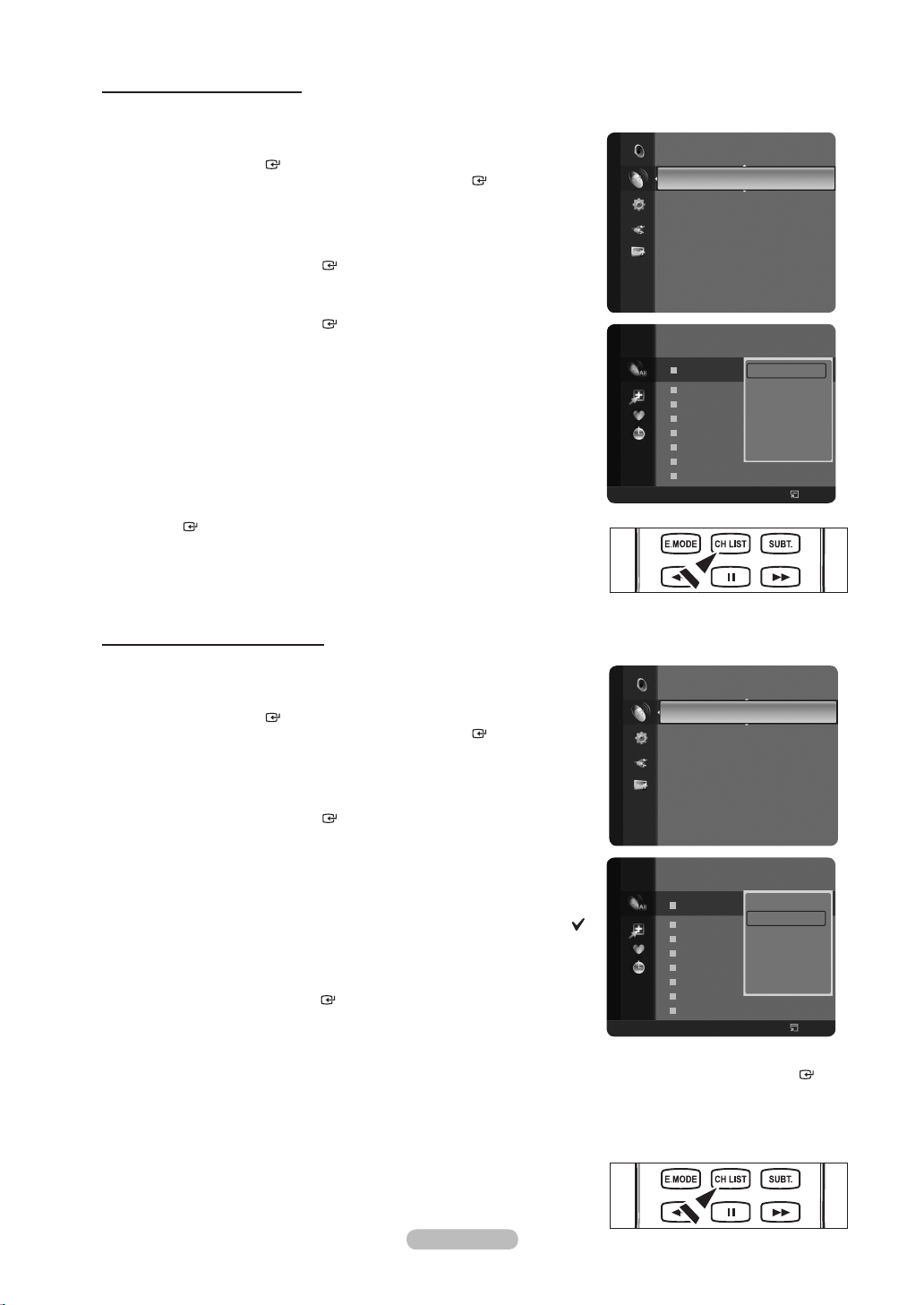

Erasing and Adding Channels

You can delete or add a channel to display the channels you want.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the

ENTER button.

2. Press the ◄ button to select “Added Channels”.

3. Press the ▲ or ▼ button to select “All Channels”.

Shows all currently available channels.

➣

Press the ENTER button.

4. Press the ▲ or ▼ button to select a channel to delete, then press the

TOOLS button.

Press the ENTER button to select “Delete”.

➣

All deleted channels will be shown on “All Channels” menu.

Press the EXIT button to exit.

You can also add a channel to the “Added Channels” menu in the same

➣

manner.

A channel must be deleted before it can be added back to the “Added

➣

Channels” list. To Add (Restore) a channel back to the Added Channel List, follow steps

➣

1-3 above, press the ▲ or ▼ button to select a channel to add, the press

the TOOLS button. Press the ENTER

Press the CH LIST button on the remote control to bring up the channel

button to select Add.

lists.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

All Channels

825 UKTV style

A 1 C --

A 2 C A 3 C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete

Add to Favourite

Lock Timer Viewing

Edit Channel Name

Sort

▼

Option

Setting Your Favourite Channels

You can set channels you watch frequently as favourites.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the

ENTER button.

2. Press the ◄ button to select “Added Channels”.

3. Press the ▲ or ▼ button to select “All Channels”.

Shows all currently available channels.

➣

Press the ENTER button.

4. Press the ▲ or ▼ button to select a channel as a favourite channel.

Adding multiple channels to Favourites

➣

Press the ▲ or ▼ button to select the desired channel in the channel

list. Then press the yellow button. Repeat the above operation to select multiple channels. The mark appears to the left of the selected channels.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Add to Favourite”, then press the

ENTER button. The “♥” symbol will be displayed and the channel will be set as a favourite.

To cancel your favourite channel selection, press the TOOLS button when a

favourite channel is selected.

Press the ▲ or ▼ button to select “Delete from Favourite”, then press the

ENTER button.

The channel is deleted from “Favourites” and the “♥” mark also disappears.

Press the EXIT button to exit.

You can also Add or Delete a channel from Favourites in the “Added

➣

Channels” menu in the same manner. All favourite channels will be shown on “Favourite” menu.

➣

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

All Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete

Add to Favourite

Lock Timer Viewing

Edit Channel Name

Sort

▼

Option

Press the CH LIST button on the remote control to bring up the channel

lists.

English - 16

English - 17

Locking and Unlocking Channels

This function is available only when the “Child Lock” is set to “on”. (see page22)

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

2. Press the ◄ button to select “Added Channels”.

3. Press the ▲ or ▼ button to select “All Channels”.

Shows all currently available channels.

➣

Press the ENTER button.

Locking channels

Press the ▲ or ▼ button to select the channels you want to lock, then

press the TOOLS button.

Press the ▲ or ▼ button to select “Lock”, then press the ENTER button.

6. Enter your 4 digit PIN number.

➣

The “ ” symbol will be displayed and the channel will be locked.

➣

The default PIN number of a new TV set is “0-0-0-0”.

➣

If you want to change PIN number, refer to 36 page.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

All Channels

825 UKTV style

A 1 C --

A 2 C A 3 C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete

Add to Favourite

Lock Timer Viewing

Edit Channel Name

Sort

▼

Option

Unlocking channels

Press the ▲ or ▼ button to select the channels you want to Unlock, then

press the TOOLS button.

Press the ▲ or ▼ button to select “Unlock”, then press the ENTER

button.

Enter your 4 digit PIN number.

➣

The channel is unlocked and the “ ” mark also disappears.

➣

The default PIN number of a new TV set is “0-0-0-0”.

➣

If you want to change PIN number, refer to 36 page.

10.

Press the EXIT button to exit.

824 UKTV Gold

All Channels

825 UKTV style

A 1 C --

A 2 C A 3 C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete

Add to Favourite

Unlock Timer Viewing

Edit Channel Name

Sort

▼

Option

Reserving a Program (Timer Viewing)

If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel

List; even when you are watching another channel. To reserve a program, set the current time rst. See pages 33~34.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Press the ▲ or ▼ button to select a channel, then press the TOOLS button.

Press the ▲ or ▼ button to select “Timer Viewing”, then press the ENTER

button. The Reserve a Program (Timer Viewing) screen appears.

4. Press the ▲/▼/◄/► buttons to reserve a program and then press the

ENTER button. Reserving a program has been completed.

Press the EXIT button to exit.

You can also reserve a program in the “All Channels” or “Favourite” menus

➣

using the same procedures. For information on how to conrm a viewing reservation, refer to page 19.

➣

Only memorized channels can be reserved.

You can set the channel, month, day, year, hour and minute directly by

➣

pressing the number buttons on the remote control.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Antenna

DT V

Date

01 - 0 1 - 200 8

Move

Delete

Add to Favourite

Lock

Timer Viewing

Edit Channel Name

Sort

Timer Viewing

Channel

80 0

Adjust

▼

Repeat

On ce

Start Time

10 :0 0

Option

ReturnEnter

Press the CH LIST button on the remote control to bring up the channel lists.

Digital Program Guide and Viewing Reservation

When a digital channel is selected, and you press the ► button, the Program

Guide for the channel appears. You can reserve a program according to the procedures described above.

: A program currently being broadcast. : A reserved program

824

Added Channels

825

908

2 C

3 ♥ C

4 C

5 C

6 C

7 C

8 C

All



Channel Type Zoom

1/1/2008

1:59 LA ROSE DES ....

2:59 WS MUSIC

3:21

Gralness de stars

Option Watch

English - 18

English - 19

ConrmingaViewingReservation

You can view, modify or delete a reservation.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the

ENTER button.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

2. Press the ◄ button to select “Added Channels”.

3. Press the ▲ or ▼ button to select “Programmed”.

Shows all current reserved programs.

➣

Press the ENTER button.

Modifying a viewing reservation

To select a reservation item to be modied, press the ▲ or ▼ button and

then press the TOOLS button.

Press the ENTER button to select “Change Info”.

6. Press the ▲/▼/◄/► buttons to change a reservation setting and then

press the ENTER button. The reservation modication is applied.

Canceling a reservation

To select a reservation item to be canceled, press the ▲ or ▼ button, and

then press the TOOLS button.

Press the ▲ or ▼ button to select “Cancel Schedules”, then press the

ENTER button.

6. Press the ◄ or ► button to select “OK”, then press the ENTER button.

The viewing reservation has been canceled.

Press the EXIT button to exit.

Programmed Option

Change Info: Select to change a viewing reservation.

•

Cancel Schedules: Select to cancel a viewing reservation.

•

Information: Select to view a viewing reservation.

•

Select All: Select all reserved programs.

•

Programmed

1/1/2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer 20:59 2 TV3 McMillan & Wife 21:59 2 TV3 M.Spillane’s mike Hammer

All



Channel Type Zoom Select

Programmed

1/1/2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer 20:59 2 TV3 McMillan & Wife 21:59 2 TV3 M.Spillane’s mike Hammer

All



Channel Type Zoom Select

Option Information

Change Info

Cancel Schedules

Information

Select All

Option Information

Press the CH LIST button on the remote control to bring up the channel

lists.

Edit Channel Name-Analogue

Channels can labeled so that their call letters appear whenever the channel is selected.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

2. Press the ▲ or ▼ button to select the channel to be assigned a new name,

then press the TOOLS button.

Press the ▲ or ▼ button to select “Edit Channel Name”, then press the

ENTER button.

4. Press the ▲/▼/◄/► button to select a letter, then press the ENTER

button.

Numeric buttons: You can enter numbers.

•

Red button: You can switch between English and Characters.

•

Green button: You can delete an already entered character.

•

Yellow button: You can enter a blank space.

•

Blue button: You can nish renaming a channel.

•

5. When you have nished, press the blue button to assign the new name.

Press the EXIT button to exit.

The names of digital broadcasting channels are automatically assigned

➣

and cannot be labelled.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

803

B C D E F G

I J K L M NH

P Q R S T UO

W X Y ZV

Delete

Add to Favourite

Lock

Timer Viewing

Edit Channel Name

Sort

Edit Channel Name

▼

Option

0~9

Number

Character



Delete



Blank



Done



Enter ReturnMove

Sorting the Stored Channels-Analogue

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Press the ▲ or ▼ button to select a channel, then press the TOOLS button.

Press the ▲ or ▼ button to select “Sort”, then press the ENTER button.

4. Press the ▲ or ▼ button to move to the position in which you would like to

change and then press the ENTER button.

5. Repeat steps 2 to 4 for another channel to be sorted.

6. Press the EXIT button to exit.

English - 20

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch. Child Lock : On

Fine Tune

Signal Information

LNA : Off

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

802 abc1

803 BBC Radio 1

804 BBC Radio 2

805 BBC Radio 3

806 BBC Radio 4

807 BBC World

Move

Add to Favourite

Lock Timer Viewing

Edit Channel Name

Sort

Select All

Sort

▲

▼

Option

▼

ReturnEnter

English - 21

Editing the Channel Number-Digital

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Select the channel number that you wish to edit by pressing the ▲ or ▼

button repeatedly, then press the TOOLS button.

Press the ▲ or ▼ button to select “Edit Channel Number”, then press the

ENTER button.

4. Then you can edit the Channel Number pressing the ▲ or ▼ button

repeatedly. You can also edit the channel number by pressing the number buttons on the remote control.

824 Television X

Added Channels

825 UKTV style

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Edit Channel Number

Channel

803

Delete

Add to Favourite

Lock

Timer Viewing

Edit Channel Number

Select All

BBC Radio 1

Name

▼

Option

Selecting and Deselecting All Channels

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Press the ▲ or ▼ button to select the channel, then press the TOOLS

button.

Press the ▲ or ▼ button to select “Select All” or “Deselect All”, then press

the ENTER button.

You can select(or Deselect) all channel in the channel list.

➣

The

➣

mark appears to the left of the selected channels.

Storing Channels in Memory (Auto Store)

Press the MENU button.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. Press the ▲ or ▼ button to select “Channel List”, then press the ENTER button.

Press the ▲ or ▼ button to select the channel to be assigned a new name,

then press the TOOLS button.

Press the ▲ or ▼ button to select “Auto Store”, then press the ENTER

button.

➣

For further details on setting up options, refer to page 11.

➣

If a channel is locked using the “Child Lock” function, the PIN input window

appears (refer to page 22).

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C

A 4 C

A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Move

ReturnEnter

Delete Add to Favourite

Lock

Deselect All Select All Auto Store

Option

▲

Lock Timer Viewing

Edit Channel Name

Sort

Select All

Auto Store

Option

Setting the Channel Mode

You can display either the added channels list or the favourite channels list when the CH LIST button on the remote control is pressed.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Default Guide : Mini Guide

Channel List

Channel

Channel Mode : Added Ch. ►

Child Lock : On

Fine Tune

Signal Information

LNA : Off

Press the ▲ or ▼ button to select “Channel Mode”, then press the ENTER

button.

3. Press the ▲ or ▼ button to select “Added Ch.” or “Favourite Ch.”.

Press the ENTER button.

4. Press the EXIT button to exit.

Default Guide : Mini Guide

Channel List

Channel

Channel Mode : Added Ch.►

Child Lock : On

Fine Tune

Signal Information

LNA : Off

Added Ch.

Favourite Ch.

Activating the Child Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Child Lock”. Press the ENTER button.

3. Enter your 4 digit PIN number.

The default PIN number of a new TV set is “0-0-0-0”.

➣

If you want to change PIN number, refer to 36 page.

➣

Channel List

Channel Mode : Added Ch.

Channel

Child Lock :On ►

Fine Tune

Signal Information

LNA : Off

Child Lock

Enter PIN

* *

Press the ▲ or ▼ button to select “On”. Press the ENTER button.

5. Press the EXIT button to exit.

You can lock some channels in Channel List. (refer to page 17)

➣

“Child Lock” is available only in TV mode.

➣

“Child Lock” is not available when PIP is set to on.

➣

If a channel is locked using the “Child Lock” function, the PIN input

➣

window appears when “Auto Store” or “Plug & Play” is selected.

English - 22

0~9

Channel List

Channel Mode : Added Ch.

Channel

ChildLock :Off ►

Fine Tune

Signal Information

LNA : Off

Enter PIN

Return

Off

English - 23

Fine Tuning Analogue Channels

1. Use the number buttons to directly select the channel that you want to ne

tune.

Press the MENU button to display the menu. Press the ▲ or ▼ button to

select “Channel”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Fine Tune”, then press the ENTER

button.

Press the ◄ or ► button to adjust the ne tuning. Press the ENTER

button.

Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk “*”

➣

on the right-hand side of the channel number in the channel banner.

To reset the ne-tuning, select “Reset” by pressing the ▲ or ▼ button and

➣

then press the ENTER

➣

Only Analogue TV channels can be ne tuned.

button.

Checking the Digital-Signal Information

You can get information about the signal status.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Channel Mode : Added Ch. Child Lock : On

Channel

FineTune  ►

Signal Information

LNA : Off

Fine Tune

ATV 6 * Fine Tuned

Reset

Move

Adjust

Child Lock : On

Fine Tune

Channel

Signal Information  ►

LNA : Off

ReturnSave

+ 3

Press the ▲ or ▼ button to select “Signal Information”, then press the

ENTER button.

3. Press the EXIT button to exit.

If the signal status is poor, the “No signal.” message is displayed.

➣

While viewing a Digital channel, this function can be selected.

➣

Signal Information

Service ID : 0401 Multiplex : (TSID 0004, ONID 20fa) Network : (ID 20fa)

Bit error level 0

Signal Strength 88

ReturnEnter

LNA(LowNoiseAmplier)

If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplier boosts the

incoming signal).

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “LNA”, then press the ENTER button.

Fine Tune

Signal Information

Channel

LNA : Off ►

3. Press the ▲ or ▼ button to select “Off” or “On”. Press the ENTER button.

4. Press the EXIT button to exit.

➣

While viewing an Analogue channel, this function can be selected.

Fine Tune

Signal Information

Channel

LNA : On ►

Off

English - 24

English - 25

Picture Control

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

Press the MENU button to display the menu.

Press the ENTER button to select “Picture”.

2. Press the ENTER button to select “Mode”. Press the ▲ or ▼ button to select “Dynamic”, “Standard” or “Movie”. Press the ENTER button.

Dynamic: Selects the picture for high-denition in a bright room.

•

Standard: Selects the picture for the optimum display in a normal

• environment.

Movie: Selects the picture for viewing movies in a dark room.

•

3. Press the EXIT button to exit.

Easy Setting

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select “Picture Mode”.

3. Press the ◄ or ► button to select the required option.

4. Press the EXIT or TOOLS button to exit.


Mode

Backlight : 7 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint (G/R) : G50/R50

Detailed Settings


Mode

Backlight : 7 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50 Tint (G/R) : G50/R50

Detailed Settings

Tools

Device List

Picture Mode ◄ Standard ► Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l ll : Mono

Move Adjust e Exit

Standard

Dynamic

Standard

Movie

►

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.

To select the desired picture mode, follow the “Changing the Picture

Standard” instructions numbers 1 and 2.

Press the ▲ or ▼ button to select “Backlight”, “Contrast”, “Brightness”,

“Sharpness”, “Colour” or “Tint(G/R)”, then press the ENTER button.

3. Press the ◄ or ► button to decrease or increase the value of a particular

item. Press the ENTER button. Press the EXIT button to exit.

➣

When you make changes to “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Colour” or “Tint(G/R)”, the OSD will be adjusted accordingly.

➣

In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the “Tint” Function.

➣

In PC mode, you can only make changes to “Backlight”, “Contrast” and “Brightness”.

➣

Settings can be adjusted and stored for each external device you have

connected to an input of the TV.

➣

The energy consumed during use can be signicantly reduced if the level

of brightness of the picture is reduced, and that this will reduce the overall running cost.

Backlight: Adjusts the brightness of LCD back light.

•

Contrast: Adjusts the contrast level of the picture.

•

Brightness: Adjusts the brightness level of the picture.

•

Sharpness: Adjusts the edge denition of the picture.

•

Colour: Adjusts colour saturation of the picture.

•

Tint(G/R): Adjusts the colour tint of the picture.

•

Mode : Standard


Backlight : 7

Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint (G/R) : G50/R50

Detailed Settings

Picture Options

AdjustMove

►

7Backlight

Enter Return

Adjusting the Detailed Settings

Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust

detailed picture settings.

Activating Detailed Settings

Press the MENU button to display the menu.

Press the ENTER button to select “Picture”.

2. Press the ENTER button to select “Mode”. Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the

ENTER button.

“Detailed Settings” is available in “Standard” or “Movie” mode.

➣

Press the ▲ or ▼ button to select “Detailed Settings”, then press the

ENTER button.

In PC mode, you can only make changes to “Dynamic Contrast”,

➣

“Gamma” and “White Balance” from among the “Detailed Settings” items.


Mode

Backlight : 7 Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50

Tint (G/R) : G50/R50

Detailed Settings

Standard

Black adjust: Off/Low/Medium/High



You can select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High



You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ +3



You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Colour Space: Auto/Native/Custom



Colour Space is a colour matrix composed of red, green and blue colours.

Black Adjust : Off ► Dynamic Contrast : Low Gamma : 0 Colour Space : Native

White Balance

Flesh Tone : 0 Edge Enhancement : On

Detailed Settings

EnterMove

Select your favourite Colour Space to experience the most natural colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

• Native: Native Colour Space offers deep and rich colour tone.

• Custom: Adjusts the colour range to suit your preference.

•

Customizing the Colour Space

➣

Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.

Press the ENTER

button.

Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select “Red”, “Green” or “Blue” to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button.

Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset



You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER

button.

Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15



You can emphasize the pink ‘esh tone’ in the picture. Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

➣

Return

Edge Enhancement: Off/On



You can emphasize object boundaries in the picture.

xvYCC: Off/On



Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie.

DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this

feature.

“xvYCC” is available when the picture mode is set to “Movie”, and the external input is set to “HDMI” or

➣

“Component” mode.

If xvYCC function is active, PIP cannot be selected.

➣

English - 26

English - 27

ConguringPictureOptions

Activating Picture Options

Press the MENU button to display the menu.

Press the ENTER button to select “Picture”.

2. Press the ▲ or ▼ button to select “Picture Options”, then press the

Tint (G/R) : G50/R50

Detailed Settings


PictureOptions  ►

Picture Reset

ENTER button. Press the ▲ or ▼ button to select a particular item. Press the ENTER

➣

button. When you are satised with your setting, press the ENTER

➣

In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”.



Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

➣

The adjusted values are stored according to the selected “Picture” mode.

➣

“Warm1” or “Warm2” is only activated when the picture mode is “Movie”.



Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the “16:9” aspect ratio.

•

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

•

Wide Zoom: Magnify the size of the picture more than 4:3.

•

Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

•

4:3: This is the default setting for a video movie or normal broadcasting.

•

Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component

button.

Picture Options

Colour Tone : Normal ► Size : Auto Wide Screen Mode : 16:9 Digital NR : Auto

DNle : Off HDMI Black Level : Medium

100Hz Motion Plus : Medium

▼

Move

(1080i/1080p) signals are input.

➣

“Auto Wide” function is available only in “TV”, “Ext.1”, “Ext.2”, “AV”, and “S-Video” mode.

➣

In PC Mode, only “16:9” and “4:3” mode can be adjusted.

➣

Settings can be adjusted and stored for each external device you have connected to an input of the

➣

Temporary image retention may occur when viewing a static image on the set for more than two hours.

➣

“Wide Zoom”: Press the ► button to Select “Position”, then press the ENTER

button. Press the ▲ or ▼ button

to move the screen up/down. Then press the ENTER button.

➣

“Zoom”: Press the ► button to Select “Position”, then press the ENTER button. Press the ▲ or ▼ button to move the picture up and down. Then press the ENTER button. Press the ► button to Select “Size”, then press the ENTER button. Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the ENTER button.

➣

When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

➣

After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode:

Select “Position” by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.

➣

If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the

overscan function.

You can select these options by simply pressing the P.SIZE button on the

remote control.

ReturnEnter

TV.

Screen Mode: 16:9/Wide Zoom/Zoom/4:3



When setting the picture size to “Auto Wide” in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so

this function is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.

•

Wide Zoom: Magnify the size of the picture more than 4:3.

•

Zoom: Magnify the size of the picture vertically on screen.

•

4:3: Sets the picture to 4:3 normal mode.

This function is available in “Auto Wide” mode.

➣

This function is not available in “PC”, “Component” or “HDMI” mode.

➣

Digital NR: Off/Low/Medium/High/Auto



If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help

reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

➣

DNIe: Off/Demo/On



This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen

with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

➣

DNIe™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you.

DNIe™ technology will t every signal into your eyes.

➣

This function is not available in “Movie” and “Standard” mode.



HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

➣

This function is active only when the external input connects to HDMI (RGB signals).



100Hz Motion Plus: Off/Low/Medium/High/Demo

Removes drag from fast scenes with a lot of movement to provide a clearer picture.

➣

This function is not available in PC mode.

➣

If you enable “100 Hz Motion Plus”, noise may appear on the screen. If this occurs, set “100Hz Motion Plus” to “of

or select one of the other options.



Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red

and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of

video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

➣

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

f”

Resetting the Picture Settings to the Factory Defaults

1. To select the desired picture mode, follow the “Changing the Picture Standard” instructions numbers 1 and 2. (see page 25)

Press the ▲ or ▼ button to select “Picture Reset”, then press the

ENTER button.

3. Press the ▲ or ▼ button to select “OK” or “Cancel”, then press the

ENTER button.

Press the EXIT button to exit.

Each mode can be reset.

➣


Detailed Settings

Picture Options

PictureReset  ►

Cancel

English - 28

English - 29

Viewing Picture-in-Picture

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “PIP”, then press the ENTER button.

3. Press the ENTER button.

Press the ▲ or ▼ button to select “On”, then press the ENTER button.

4. Select the required option by pressing the ▲ or ▼ button, then press the

ENTER button.

5. When you are satised with your setting, press the ENTER button.

6. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural

➣

when you use the main screen to view a game or karaoke.

PIP: On/Off



You can activate or deactivate the PIP function.

Main picture Sub picture

Component

HDMI 1, HDMI/DVI 2, HDMI 3

TV, Ext.1, Ext.2, AV

Entertainment : Off Energy Saving : Off

Setup

PIP  ►

Software Upgrade

Common Interface

PIP

PIP : On Source : TV Size : Position : Channel : ATV 11

Move

ReturnEnter

Easy Setting

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “PIP”, then press the ENTER

button.

3. Press the ◄ or ► button to select “On”.

4. Press the ▲ or ▼ button to select a particular item.

5. Press the ◄ or ► button to select the required option.

6. Press the EXIT or TOOLS button to exit.



Source

You can select a source of the sub-picture.

Size:

/ /



You can select a size of the sub-picture.

If main picture is in “HDMI” mode, “Size” is available.

➣

Position:



/ / /

You can select a position of the sub-picture.



In Double (

➣

Channel

, ) mode, “Position” cannot be selected.

You can select a channel of the sub-picture only when the “Source” is set to “TV”.

Tools

Device List

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

PIP

Energy Saving : Off

Move Enter e Exit

PIP

PIP ◄ Off ►

Source : TV Size : Posion : Channel : ATV 11

Adjust

Return

Sound Control

Changing the Sound Standard

You can select the sound mode to best suit the programming you’re watching.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Sound”, then press the ENTER button.

2. Select the required option by pressing the ▲ or ▼ button, then press the

ENTER button.

3. When you are satised with your setting, press the ENTER button.

4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom



You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sound Mode”.

3. Press the ◄ or ► button to select the required option.

4. Press the EXIT or TOOLS button to exit.

Sound

Mode :Custom ►

Equalizer

SRS TruSurround XT : Off

Audio Language : ---Audio Format : ----

Audio Description

Auto Volume : Off TV Speaker : On

Tools

Device List

Picture Mode : Standard Sound Mode ◄ Custom ► Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l ll : Mono

Move Adjust e Exit

Equalizer: Mode/Balance/100Hz/300Hz/1kHz/3kHz/10kHz/Reset



The sound settings can be adjusted to suit your personal preferences.

The adjusted values are stored according to the selected “Sound” mode.

➣

Reset: Resets the equalizer settings to the default values.

➣

SRS TruSurround XT: Off/On



TruSurround XT is a patented SRS technology that solves the problem of

playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible

with all multichannel formats.

Easy Setting

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “SRS TS XT”.

3. Press the ◄ or ► button to select the “Off” or “On”.

4. Press the EXIT or TOOLS button to exit.

Mode : Custom

Balance L R

100Hz - +

300Hz - +

1kHz - + 3kHz - + 10kHz - +

Device List

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT ◄ Off ► Energy Saving : Off Dual l ll : Mono

Equalizer

Move

Move Adjust e Exit

▼

Adjust

Tools

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.



Audio Language

You can change the default value for audio languages. Displays the language information for the incoming stream.

➣

While viewing a Digital channel, this function can be selected.

➣

You can only select the language among the actual languages being broadcast.

ReturnEnter

English - 30

English - 31

Audio Format: MPEG/Dolby Digital



When sound is emitted from both the main speaker and the audio receiver, a around echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker

function.

While viewing a Digital channel, this function can be selected.

➣

You can only select the language among the actual languages being broadcast.

➣

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.



Audio Description

This is an auxiliary audio function that provides an additional audio track for visually challenged persons.

This

function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

− Audio Description : On/Off

− Volume : 0~100

➣

“Volume” is active when “Audio Description” is set to “On”.

➣

While viewing a Digital channel, this function can be selected.



Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.



TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplier

➣

The

+, – and MUTE buttons do not operate when the “TV Speaker” is set to “Off”.

➣

When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) and “Sound Reset” in Sound

menu.

TV's Internal Speakers Audio Out (Optical, L/R Out) to Sound System

TV Speaker On TV Speaker Off

Video No Signal

RF AV, S-Video

Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output

Mute Mute Mute Sound Output Sound Output Sound Output

Mute Mute Mute Mute Mute Mute

Component, PC, HDMI

RF AV, S-Video

Component, PC, HDMI



Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

− Main: Used to listen to the sound of the main picture.

− Sub: Used to listen to the sound of the sub picture.



Sound Reset: Reset All/Reset Sound Mode/Cancel

You can restore the Sound settings to the factory defaults.

Selecting the Sound Mode

You can set the sound mode in the “Tools” menu. When you set to “Dual I II”, the current

sound mode is displayed on the screen.

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select “Dual I II”.

3. Press the ◄ or ► button to select required option.

4. Press the ENTER button.

Audio Type Dual 1/2 Default

Mono MONO

A2 Stereo

NICAM Stereo

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

➣

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

➣

This function is only available in Analogue TV mode.

➣

Stereo STEREO ↔ MONO

Dual DUAL 1 ↔ DUAL 2 DUAL 1

Mono MONO

Stereo MONO ↔ STEREO

Dual

MONO ↔ DUAL 1

DUAL 2

Automatic change

DUAL 1

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l ll ◄ Mono ►

Tools

Device List

Move Adjust e Exit

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the

room.

When you insert the headphone’s plug into the headphone jack, you can not

➣

operate “Mode”, “Equalizer”, “SRS TruSurround XT” and “TV Speaker” in

Sound menu.

Prolonged use of headphones at a high volume may damage your hearing.

➣

You will not hear sound from the speakers when you connect headphones to

➣

the TV. The headphone volume and TV volume are adjusted separately.

➣

TV Side Panel

English - 32

English - 33

Time Setting

Setting the Clock

Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)

If you disconnect the power cord, you have to set the clock again.

➣

Option 1: Setting the Clock Manually

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. Press the ▲ or ▼ button to select “Time”, then press the ENTER button.

Plug & Play

Language : English

Setup

Time  ►

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off

2. Press the ENTER button to select “Clock”.

3. Press the ENTER button to select “Clock Mode”.

Press the ▲ or ▼ button to select “Manual”, then press the ENTER

button.

Press the ▲ or ▼ button to select “Clock Set”, then press the ENTER

button.

Press the ◄ or ► button to move to “Day”, “Month”, “Year”, “Hour” or

“Minute”. Set the date and time you want by pressing the ▲ or ▼ button, then

press the ENTER button.

Press the EXIT button to exit.

The current time will appear every time you press the INFO button.

➣

You can set the month, day, year, hour and minute directly by pressing the

➣

number buttons on the remote control.

Time

Clock : -- : -- ► Sleep Timer : Off

Timer 1 : Inactivated Timer 2 : Inactivated Timer 3 : Inactivated

Move

Clock

Clock Mode : Auto

Clock Set

Clock Mode : Manual Clock Set ►

Day

Hour

Move

Auto

Manual

Move

Clock

Move

Clock Set

Month

Minute

Adjust

ReturnEnter

Year

20 08

ReturnEnter

Option 2: Setting the Clock Automatically

The Clock can be set automatically if you are receiving a digital signal.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. Press the ▲ or ▼ button to select “Time”, then press the ENTER button.

Plug & Play

Language : English

Setup

Time  ►

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off

Move

Time

ReturnEnter

Clock

Auto

Manual

ReturnEnter

2. Press the ENTER button to select “Clock”.

3. Press the ENTER button to select “Clock Mode”.

Press the ▲ or ▼ button to select “Auto”, then press the ENTER button.

4. Press the EXIT button to exit.

Clock : 10 : 00 ► Sleep Timer : Off Timer 1 : Inactivated Timer 2 : Inactivated Timer 3 : Inactivated

Clock Mode : Auto

Clock Set

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Time”, then press the ENTER button.

Plug & Play

Language : English

Setup

Time  ►

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off

3. Press the ▲ or ▼ button to select “Sleep Timer”, then press the ENTER button.

Press the ▲ or ▼ button repeatedly until the desired time appears

(Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer

➣

reaches 0.

Easy Setting

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

English - 34

Time

Clock : -- : -- --

Sleep Timer : Off

Timer 1 : Inactivated Timer 2 : Inactivated Timer 3 : Inactivated

Device List

Picture Mode : Standard Sound Mode : Custom Sleep Timer ◄ Off ► SRS TS XT : Off Energy Saving : Off Dual l ll : Mono

Move Adjust e Exit

Off

30 min

60 min

90 min

120 min

150 min

▼

Move

Tools

ReturnEnter

English - 35

Switching the Television On and Off Automatically

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Time”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Timer 1”, “Timer 2”, “Timer 3”, then press

the ENTER button. Three different On/Off Timer Settings can be made.

You must set the clock rst.

➣

Press the ◄ or ► button to select the desired item below.

Press the ▲ or ▼ button to adjust to the setting satised.

On Time: Set the Hour, Minute, and Activate/Inactivate.

•

(To activate timer with the setting you’ve chosen, set to “Activate”.)

Off Time: Set the Hour, Minute, and Activate/Inactivate.

•

(To activate timer with the setting you’ve chosen, set to “Activate”.) Volume: Set the required volume level.

•

Contents: When the “On Timer” is active, you can turn on a specic

•

channel or play back contents such as photo or audio les.

TV/USB: Select TV or USB. (Make sure that an USB device is

–

connected to your TV.) Antenna: Select “ATV” or “DTV”.

–

Channel: Select the desired channel.

–

Music: Select the folder containing MP3 les on the USB device.

–

Photo: Select the folder containing JPEG les on the USB device.

– Repeat: Select “Once”, “Everyday”, “Mon~Fri”, “Mon~Sat”, “Sat~Sun”,

•

or “Manual”.

When “Manual” is selected, press the ► button to select the

➣

desired day of the week. Press the ENTER desired day and the mark will appear.

Press the EXIT button to exit.

You can set the hour, minute and channel by pressing the number buttons

➣

on the remote control.

➣

Auto Power Off

When you set the timer On, the television will eventually turn off, if no

controls are operated for 3 hours after the TV was turned on by the timer.

This function is only available in timer On mode and prevents overheating,

which may occur if a TV is on for too long time.

button over the

Plug & Play

Language : English

Setup

Time  ►

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off

Time

Clock : 10 : 00 Sleep Timer : Off Timer 1 : Inactivated ► Timer 2 : Inactivated Timer 3 : Inactivated

On Time

Off Time

Volume

Repeat

Once

TV/USB

Move

Timer 1

Move

Contents

TV ATV 3

Sun Mon Tue Wed Thu Fri Sat

Adjust

Contents

Antenna

ATV

Music

None


None

Adjust

Inactivate

ReturnEnter

Channel

ReturnEnter

Function Description

Selecting a Menu Language

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. Press the ▲ or ▼ button to select “Language”, then press the ENTER

button.

Select a particular language by pressing the ▲ or ▼ button repeatedly.

Press the ENTER button.

3. Press the EXIT button to exit.

Setting Up Your Personal ID Number (PIN)

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Change PIN”, then press the ENTER button. The “Enter PIN” is displayed.

Plug & Play

Setup

Language : English ►

Time

Change PIN

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Language : English

Time

Setup

ChangePIN  ►

Parental Lock

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off Entertainment : Off

Change PIN

Enter your current 4-digit PIN code by using the numeric buttons (0~9).

The “Enter New PIN” is displayed.

➣

Enter your new PIN code by using the numeric buttons (0~9)

The “Conrm New PIN” is displayed.

➣

Re-enter your new PIN code to conrm by using the numeric buttons (0~9).

The “PIN is changed successfully” message is displayed.

➣

Press the EXIT button to exit.

If you forget the PIN code, press the remote control buttons in the

➣

following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8,

2, 4, POWER (On).

Enter PIN

Enter New PIN

Confirm New PIN

* *

Enter PIN

0~9

Change PIN

Enter PIN

0~9

Return

English - 36

English - 37

Setting up the Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit

PIN (Personal Identication Number) code that is dened by the user.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Parental Lock”, then press the

ENTER button.

The “Enter PIN” is displayed.

➣

Enter your current 4-digit PIN code by using the numeric buttons (0~9).

The default PIN code for a new TV set is 0000. If you want to change PIN

➣

number, refer to 36 page.

Press the ENTER button.

6. Press the ▲ or ▼ button to select the age rating you want to lock out. Press

the ENTER button.

The “ ” symbol will be displayed.

➣

Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

Press the EXIT button to exit.

Time

Change PIN

Setup

ParentalLock  ►

Subtitle

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off Entertainment : Off Energy Saving : Off

Parental Lock

Enter PIN

* *

Enter PIN

0~9

Parental Lock

Parental Rating ►

Parental Rating

▼

Move

Return

ReturnEnter

Allow All

Block All

ReturnEnter

Setting the Subtitle

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. “Normal” under the menu is the basic subtitle and “Hard of hearing” is the subtitle for a hearing-impaired person.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Subtitle”, then press the ENTER button.

Change PIN

Parental Lock

Setup

Subtitle  ►

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off Entertainment : Off Energy Saving : Off

PIP

Press the ENTER button again, then press the ▲ or ▼ button to select

“On”. Press the ENTER button.

5. Press the ▲ or ▼ button to select “Mode”, then press the ENTER button.

6. Press the ▲ or ▼ button to select “Normal” or “Hard of hearing”.

Press the ENTER button.

If the programme you are watching does not support the “Hard of hearing”

➣

function, “Normal” automatically activates even though “Hard of hearing”

mode is selected.

Press the ▲ or ▼ button to select “Subtitle Language”, then press the

ENTER button.

8. Select the appropriate language by pressing the ▲ or ▼ button. Press the

ENTER button to conrm your choice.

➣

English is the default in cases where the selected language is unavailable in the broadcast.

Press the EXIT button to exit.

You can select these options simply by pressing the SUBT. button on the

remote control.

Subtitle

Subtitle : Off ►

Mode : Normal Subtitle Language : ----

Move

ReturnEnter

English - 38

Selecting a Teletext Language

You can set the Teletext language by selecting the language type.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Teletext Language”, then press the

ENTER button.

3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

English is the default in cases where the selected language is unavailable

➣

in the broadcast.

Press the EXIT button to exit.

Parental Lock

Subtitle

Setup

TeletextLanguage :---- ►

Preference

Wall-Mount Adjustment

Melody : Off Entertainment : Off Energy Saving : Off

PIP

Software Upgrade

Selecting a Preference Language

This menu consists of 6 sub-menus: Primary Audio Language, Secondary Audio Language, Primary Subtitle Language,

Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language.

Using this feature, users can select one of the languages. The language selected here is the default when the user selects a channel.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Preference”, then press the ENTER button.

Press the ▲ or ▼ button to select required menu (Primary Audio Language,

Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language).

Press the ENTER button.

4. Select the appropriate language by pressing the ▲ or ▼ button. Press the

ENTER button to conrm your choice.

Subtitle

Teletext Language : ----

Setup

Preference  ►

Wall-Mount Adjustment

Melody : Off Entertainment : Off Energy Saving : Off

PIP

Software Upgrade

Common Interface

5. Press the EXIT button to exit.

➣

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are automatically changed to the selected language.

➣

The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

English - 39

Melody/Entertainment/Energy Saving

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Select the required option by pressing the ▲ or ▼ button, then press the

ENTER button.

3. When you are satised with your setting, press the ENTER button.

4. Press the EXIT button to exit.



Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

➣

The Melody does not play

− When no sound is output from the TV because the MUTE button has been pressed.

− When no sound is output from the TV because the – (Volume) button has been pressed.

−

When the TV is turned off by Sleep Timer function.

Entertainment: Off/Sports/Cinema/Game



The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games.

Off: Switches the “Entertainment” function off.

•

Sports: Provides the optimal picture and sound quality for sports.

•

Cinema: Provides the optimal picture and sound quality for movie watching. Y

• and enhanced sound.

•

Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you

➣

want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off. If you set any of the three “Entertainment” modes to On, “SRS TruSurround XT” function is not available.

➣

The “Entertainment” settings are saved for each input source.

➣

Preference

Wall-Mount Adjustment

Setup

Melody : Off ►

Entertainment : Off Energy Saving : Off

PIP

Software Upgrade

Common Interface

ou can experience a richer picture

You can press the E.MODE button on the remote control repeatedly to

change the “Entertainment” setting.

Energy Saving: Off/Low/Medium/High/Auto



This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the “Energy Saving” mode option to “High” to reduce eye fatigue as well as power consumption.

Off: Turns off the energy saving function.

•

Low: Sets the TV to low energy saving mode.

•

Medium: Sets the TV to medium energy saving mode.

•

High: Sets the TV to high energy saving mode.

•

Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

•

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the “Off”, “Low”, “Medium”, “High”, “Auto” or

“On”.

4. Press the EXIT or TOOLS button to exit.

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving ◄ Off ► Dual l ll : Mono

Tools

Device List

Move Adjust e Exit

English - 40

English - 41

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as

part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

Insert a USB drive containing the rmware upgrade into the WISELINK port

on the side of the TV.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Software Upgrade”, then press the

ENTER button.

4. Press the ▲ or ▼ button to select “BY USB”, “BY Channel” or “Standby Mode Upgrade”. Press the ENTER button.

BY USB :



- Preset : Insert a USB drive containing the rmware upgrade into TV.

Please be careful to not disconnect the power or remove the USB

➣

drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the rmware upgrade. Please check the rmware version after the upgrades are complete. When software is

upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

BY Channel :



Upgrades the software using the broadcasting signal.

Standby Mode Upgrade :



To continue software upgrade with master power on, Select On by pressing

the ▲ or ▼ button. 45 minutes after entering standby mode, a manual

upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

Alternative Software :



To display the software version information.

Setup

Current Version 2008/01/01_000075

BY USB ►

BY Channel

Standby Mode Upgrade : On

Alternative Software ----/--/--_--------

TV Side Panel

USB Drive

Energy Saving : Off

PIP

SoftwareUpgrade  ►

Common Interface

Software Upgrade

Move

ReturnEnter

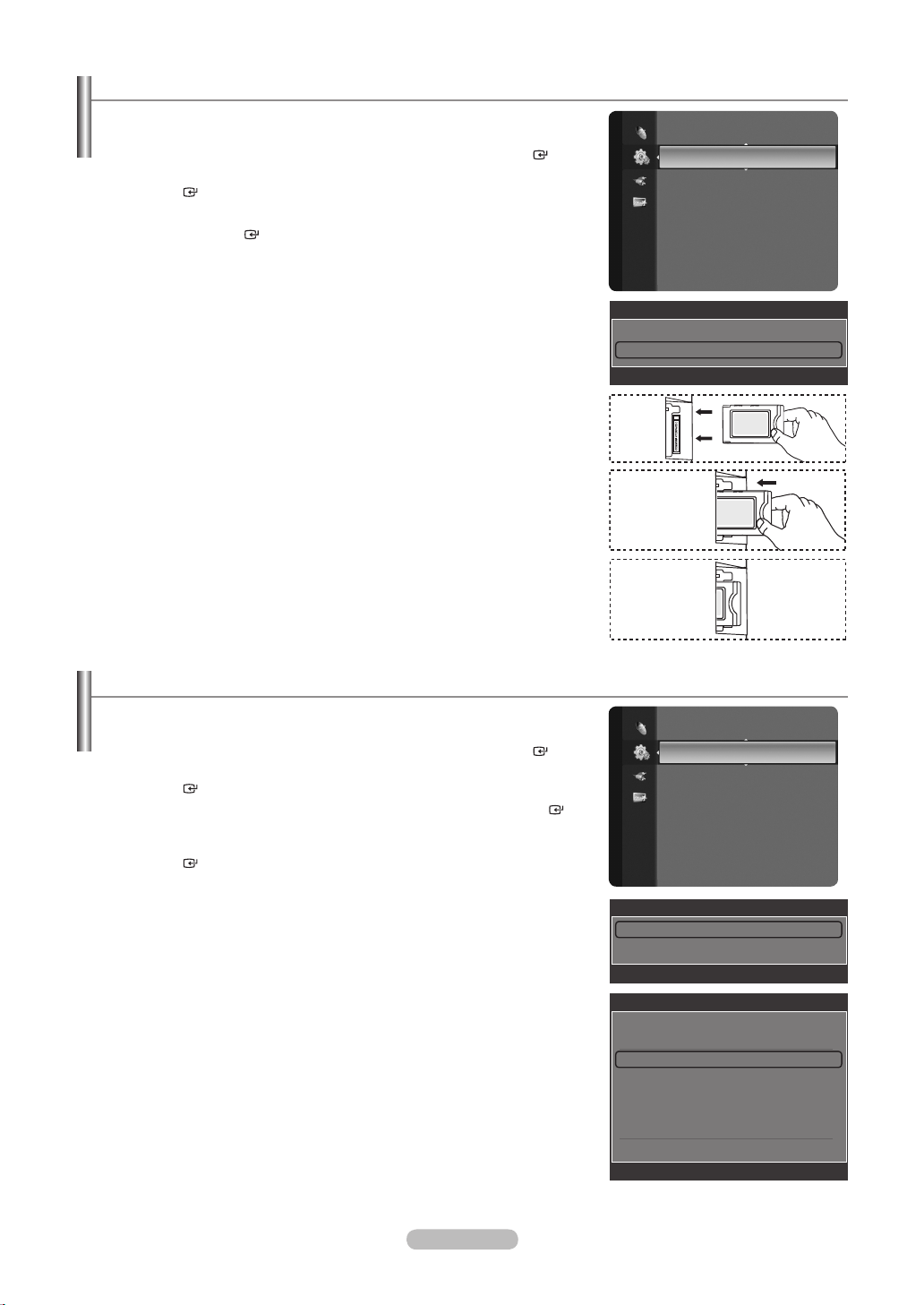

Viewing Common Interface

This contains information on CAM inserted in the CI slot and displays it.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Common Interface”, then press the

ENTER button.

3. Press the ▲ or ▼ button to select “Application Info.”

Press the ENTER button to display the information for your application.

4. Press the EXIT button to exit.

➣

The Application Info inserting is about the CI CARD. You can install the CAM

anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.

2. Insert the CI CARD into the CAM in the direction of the arrow until it ts.

3. Insert the CAM with the CI CARD installed into the common interface slot.

(Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

4. Check if you can see a picture on a scrambled signal channel.

PIP

Software Upgrade

Setup

CommonInterface  ►

Common Interface

CI Menu ►

Application Info.

U Move

Enter e Exit

Selecting the CI (Common Interface) Menu

This enables the user to select from the CAM-provided menu.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “Common Interface”, then press the

ENTER button.

3. Press the ▲ or ▼ button to select “CI Menu”, then press the ENTER button.

Press the ▲ or ▼ button to select the required option, then press the

ENTER button.

5. Press the EXIT button to exit.

Select the CI Menu based on the menu PC Card.

➣

PIP

Software Upgrade

Setup

CommonInterface  ►

Common Interface

CI Menu ►

Application Info.

U Move

Enter e Exit

CI Menu

Main menu

Module information

Smart card information

Language

Software Download

Press Ok to select, or Exit to quit.

U Move

Enter e Exit

English - 42

English - 43

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input

source of your choice.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Input”, then press the ENTER button.

2. Press the ENTER button to select “Source List”. Press the ▲ or ▼ button to select signal source, then press the ENTER

button.

Available signal sources: TV, Ext.1, Ext.2, AV, S-Video, Component, PC,

➣

HDMI1, HDMI2/DVI, HDMI3, USB. You can choose only those external devices that are connected to the TV.

➣

In the “Source List”, connected inputs will be highlighted and sorted to the

top. Inputs that are not connected will be sorted to the bottom.

Using the Colour buttons on the remote with the Source list

➣

Red (Refresh): Refreshes the connecting external devices.

•

TOOLS (Option)

•

Press the SOURCE button on the remote control to view an external signal

source. TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P / button on the remote control.

: Displays the “Edit Name” and “Information” menus.

Input

Source List

Edit Name

Ext.1 ----

Ext.2 ----

AV ---S-Video ----

Component ----

PC ----

Refresh

Option

To Edit the Input Source Name

Name the device connected to the input jacks to make your input source selection

easier.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Input”, then press the ENTER button. Press the ▲ or ▼ button to select “Edit Name”, then press the ENTER

button.

Press the ▲ or ▼ button to select “Ext.1”, “Ext.2”, “AV”, “S-Video”,

“Component”, “PC”, “HDMI1”, “HDMI2/DVI” or “HDMI3” input jack, then press

the ENTER button.

Press the ▲ or ▼ button to select “VCR”, “DVD”, “Cable STB”,

“Satellite STB”, “PVR STB”, “AV Receiver”, “Game”, “Camcorder”, “PC”, “TV”, “IPTV”, “Blu-Ray”, “HD DVD” or “Digital Media Adapter” input source,

then press the ENTER button. Press the EXIT button to exit.

When a PC with a resolution of 1920 x 1080@60Hz is connected to the

➣

HDMI IN 2 port, you should set the “HDMI2/DVI” mode to “PC” in the “Edit Name” of the “Input” mode.

Source List

Input

Edit Name  ►

Edit Name

Ext.1 : ---- ► Ext.2 : ---AV : ---S-Video : ---Component : ---PC : ---HDMI1 : ----

Ext.1 : ----

Ext.2 : ---- AV : ---- S-Video : ---- Component : ---- PC : ---- HDMI1 : ----

▼

Enter ReturnMove

Edit Name

----

VCR DVD

Cable STB

Satellite STB

PVR STB

Enter ReturnMove

PC Display

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual

screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer

manufacturer or Samsung Dealer.)

First, click on “Control Panel” on the Windows start menu.

2. When the control panel window appears, click on “Appearance and Themes” and

a display dialog-box will appear.

When the control panel window appears, click on “Display” and a display dialog-

box will appear.

Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution)

Optimum: 1920 X 1080 pixels

If a vertical-frequency option exists on your display settings dialog box, the

correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

Mode Resolution

IBM

VESA

CVT 1920 x 1080RB 66.587 59.934 138.500 + / -

640 x 350 720 x 400

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768

1280 x 1024 1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

75.000

Vertical

Frequency (Hz)

70.086

70.087

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

Pixel Clock

Frequency (MHz)

25.175

28.322

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

85.500

162.000

Sync Polarity

(H/V)

+ / -

- / +

- / -

- / + / + + / + + / +

- / -

- / + / + + / + + / + + / + + / +

HDMI/DVI Input

Mode Resolution

640 x 480 800 x 600

VESA

CEA 1920 x 1080p 67.500 60.000 148.500 + / +

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

➣

The interlace mode is not supported.

➣

The set might operate abnormally if a non-standard video format is selected.

➣

Separate and Composite modes are supported. SOG is not supported.

➣

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

➣

1024 x 768

1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.879

48.363

63.981

47.712

75.000

English - 44

Vertical

Frequency (Hz)

59.940

60.317

60.004

60.020

60.015

60.000

Pixel Clock

Frequency (MHz)

25.175

40.000

65.000

108.000

85.500

162.000

Sync Polarity

(H/V)

- / + / +

- / + / + + / + + / +

English - 45

Setting up the TV with your PC

Preset: Press the SOURCE button to select PC mode.

➣

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Picture”, then press the ENTER button.

Select the required option by pressing the ▲ or ▼ button, then press the

ENTER button.

3. When you are satised with your setting, press the ENTER button.

4. Press the EXIT button to exit.

How to Auto Adjust

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC

video signal. The values of ne, coarse and position are adjusted automatically.

This function does not work in DVI-HDMI mode.

➣

Easy Setting

Press the TOOLS button on the remote control.

Press the ▲ or ▼ button to select “Auto Adjustment”, then press the ENTER

button.

Adjusting the Screen Quality

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced,

readjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select “Coarse” or “Fine”, then press the ENTER

button.

Press the ◄ or ► button to adjust the screen quality.

Press the ENTER

button.

Position

Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

Press the ENTER

button.

Brightness : 45

Sharpness : 50


Auto Adjustment

Screen Adjustment

Detailed Settings

Picture Options

Picture Reset

Auto Adjustment in progress. Please Wait.

Tools

Device List

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

PIP

Energy Saving : Off

Auto Adjustment

Move Enter e Exit

Screen Adjustment

Coarse 52

Fine 24

Position

Image Reset

EnterMove

Position

►

Return

Image Reset

You can replace all image settings with the factory default values.

Adjust

Screen Adjustment

Coarse 52

Fine 24

Position Image Reset ►

EnterMove

Image Reset is completed.

ReturnEnter

Return

WISELINK

Using the WISELINK Function

Connecting a USB Device

This function enables you to view and listen to photo (JPEG) and audio les (MP3)

saved on a USB Mass Storage Class

1. Press the POWER button on the remote control or front panel.

The TV is powered on.

➣

Connect a USB device containing JPEG and/or MP3 les to the WISELINK

jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message “No external storage device found.

➣

Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again.

MTP (Media Transfer Protocol) is not supported.

➣

The le system only supports FAT16/32 (The NTFS le system is not supported).

➣

Certain types of USB Digital camera and audio devices may not be compatible with this

➣

Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only

device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

➣

Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB

Compatibility problem.

➣

Before connecting your device to the TV, please back up your les to prevent them from damage or loss of data. SAMSUNG is not responsible for any data le damage or data loss.

➣

Do not disconnect the USB device while it is loading.

➣

MSC supports MP3 and JPEG les, while a PTP device supports JPEG les only.

➣

The sequential jpeg format is supported.

➣

Photo and audio les must be named in English, French or Spanish. If not, the les can not be played. Change the le

names to English, French or Spanish if necessary.

➣

The higher the resolution of the image, the longer it takes to display on the screen.

➣

The maximum supported JPEG resolution is 15360x8640 pixels.

➣

For unsupported or corrupted les, the “Not Supported File Format” message is displayed.

Using the Remote Control Button in WISELINK Menu

(MSC) device.

TV Side Panel

USB Drive

TV.

Transport

Button Operations

(▲/▼/◄/►) Move the cursor and select an item.

Select the currently selected item. During a Slide Show or Music Play:

ENTER

RETURN Return to the previous menu.

TOOLS Run various functions from the Photo and Music menus.

W.LINK Exit WISELINK mode.

PRE-CH

- Pressing the ENTER

- Pressing the ENTER button during pause resumes the play.

INFO Show le information.

EXIT Stop the current function and return to the WISELINK main menu.

Play or pause the Slide Show or Music le.

Pause the Slide Show / Stop the Playing Music le.

Jump to previous group / Jump to next group.

Stop WISELINK mode and Returns to TV mode.

button during play pauses the play.

English - 46

English - 47

Using the WISELINK Menu

Press the MENU button. Press the ▲ or ▼ button to select “Application”,

then press the ENTER button.

2. Press the ▲ or ▼ button to select “WISELINK”, then press the ENTER

button.

The “WISELINK” menu is displayed.

➣

WISELINK


SUM

851.98MB/995.00MB Free

Press the W.LINK button on the remote control to display the “WISELINK”


SUM

Music Setup

 Device Return

menu.

Press the SOURCE button on the remote control repeatedly to select

“USB”, then press the ENTER

button.

3. Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device (i.e. if connected

through a hub). Press the ENTER button.

This function differs depending on the USB Memory Device connected to TV.

➣

The selected USB device name appears at the bottom left of the screen.

➣

Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press the ENTER button.

➣

To exit “WISELINK” mode, press the W.LINK button on the remote control.

Using the Photo List

This menu shows Photo les saved on an USB memory device.

Photo List

★ ★ ★

SUM

▲

 Select

851.98MB/995.00MB Free



Device e Exit

Jump

Option

Press the W.LINK button on the remote control to display the “WISELINK”

menu.

Press the ◄ or ► button to select “Photo”, then press the ENTER

button.

Photo les are displayed.

➣

This menu only shows les whose le extension is jpg. Files of other

➣

formats such as bmp or tiff will not be displayed.

Press the

➣

To move to the previous / next group, press the (REW) or

(Play) / ENTER button to start the Slide Show.

(FF) button.

➣

When moving to a photo, loading may take a few seconds. At this

point, the loading icon will appear at the screen.

➣

It may take some time to load photo les as Thumbnail images.

➣

Photos without EXIF information may not be displayed as thumbnail images in the Photo List depending on the picture quality and resolution.

WISELINK


SUM


Preference

Monthly

Timeline

SUM


Music Setup


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

Jan Nov

 Device

 Favourites Setting

Screen Display



Month : Jan

Date : Color : Gray Composition : Folder : P-other Favourite :

Jan.01.2008

★ ★ ★

1File(s) Selected

Preference

Monthly

Timeline

SUM

Currently selected photo

Shows the currently selected photo.

Photo Information Window

Shows information about the currently selected photo. You can change the “Color”, “Composition”, and “Favourite”.

Current Sort Standard

Press the ▲ or ▼ button to change the standard for sorting photos. (“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”)

The item that is selected as the sorting standing is highlighted in the Photo Information Window.

View Groups

Shows the sorting groups. The sorting group including the currently selected photo is highlighted.

Current Device

Shows the currently selected device name. Press the Red button to select a device.

Item Selection Information

Shows the number of photos that are selected by pressing the Yellow button.

Help Items

Red(Device) button: Selects a connected device.

•

Green(Favourites Setting) button: Changes the favourites setting for the selected photo. Press this button

• repeatedly until the desired value appears. (Refer to page 51)

Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a symbol

•

(Jump) button: Jumps to the previous sorting group / Jumps to the next sorting group.

•

TOOLS(Option) button: Displays the “Slide Show”, “Play Current Group”, “Delete”, “Change Group” (in “Color” or “Composition” group), “Information” or “Remove Safely” menus.

3 4

Jan Nov

 Device

 Favourites Setting

▲

 Select

Jump

Option

on the left.

English - 48

English - 49

Sorting Photo List

You can sort photos in the Photo List by a particular standard.

Press the W.LINK button on the remote control to display the

“WISELINK” menu.

Press the ◄ or ► button to select “Photo”, then press the ENTER

button.

Photo les are displayed.

➣

Press the ▲ or ▼ button to select a sorting standard.

(“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”)

The photos are sorted according to the newly selected sorting

➣

standard.

Press the ENTER button to start the Slide Show in the order selected

by the user.

Wiselink identies the color and composition of images and groups

➣

them accordingly by analyzing the images on the USB device.

The “Composition” and “Color” information extracted from a photo le

➣

may be different from what you selected.

Photo information is automatically set. You can change the “Color”,

➣

“Composition”, and “Favourite”.

Photos for which information cannot be displayed are set as

➣

“Unclassied”.

PTP does not support folder sort mode.

➣

Monthly

Sorts photos by month.

It sorts and shows photos in the le by month. It sorts only by month

➣

(from January to December) regardless of year.

Select “Monthly” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

Month.

To move to the previous / next group, press the

➣

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.

(REW) or

WISELINK


SUM


Preference

Monthly

Timeline

SUM


Preference

Monthly

Timeline

SUM

851.98MB/995.00MB Free

SUM


Music Setup



Device e Exit


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

★ ★ ★

Jan Nov

 Device

 Favourites Setting

Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

Jan Nov

 Device

 Favourites Setting


★ ★ ★

▲

 Select

Jump

Slide Show Play Current Group Delete Information

▼

▲

 Select

Jump

Option

Timeline

Sorts photos by time.

It sorts and shows photos by date. It sorts by year and month from the

➣

earliest photo.

Select “Timeline” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

Timeline.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.


Timeline

SUM


Month : Jan

Date : Jan.01.2008

Color : Gray Composition : Folder : P-other Favourite :

★ ★ ★

Monthly

Jan Nov

Color

2008 2008

 Device

 Favourites Setting

Slide Show Play Current Group Delete Information

▼

▲

 Select

Jump

Option

Color

Sorts photos by color.

You can change the photo color information.

➣

Select “Color” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

color.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.

Changing the color information

Select “Color” as the sorting standard in the Photo List and press the

◄ or ► button to select a photo.

➣

Changingtheinformationofmultipleles

Press the ◄ or ► button to select the desired photo in the Photo list.

Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Change Group”.

Press the ENTER button.

4. Press the ◄ or ► button to select the desired option, then press the

ENTER button.

➣

The group information of the current le is updated and the le is

moved to the new group.

➣

“Color” options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassied.

Composition

Sorts photos by composition.

➣

You can change the compositional information of photos.

Select “Composition” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

compositon.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.

Changing the composition information

Select “Composition” as the sorting standard in the Photo List and press

the ◄ or ► button to select a photo.

➣

Changingtheinformationofmultipleles

Press the ◄ or ► button to select the desired photo in the Photo list.

Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Change Group”.

Press the ENTER button.

4. Press the ◄ or ► button to select the desired option, then press the

ENTER button.

➣

The group information of the current le is updated and the le is

moved to the new group.

➣

“Composition” options:

(horizontal), (vertical), (object),

(perspective), (pattern), Unclassied


Timeline

Color

Composition

SUM


Timeline

Color

Composition

SUM


Color

Composition

Folder

SUM


Color

Composition

Folder

SUM


Month : Jan Date : Jan.01.2008

Color : Gray

Composition : Folder : P-other Favourite :

 Device

 Favourites Setting

Month : Jan Date : Jan.01.2008

Color : Gray

Composition : Folder : P-other Favourite :

 Device

 Favourites Setting

Month : Jan Date : Jan.01.2008 Color : Gray

Composition :

Folder : P-other Favourite :

Unclassified

▲

 Device

 Favourites Setting

Month : Jan Date : Jan.01.2008 Color : Gray

Composition :

Folder : P-other Favourite :

Unclassified

▲

 Device

 Favourites Setting

★ ★ ★

▲


★ ★ ★

▲


★ ★ ★


★ ★ ★

Slide Show Play Current Group Delete Change Group

▼

 Select

Jump

 Select

Jump

Slide Show Play Current Group Delete Change Group

▼

 Select

Jump

Unclassified

 Select

Jump

Option

English - 50

English - 51

Folder

Sorts photos by folder.

If there are many folders in USB, the photos les are shown in order

➣

in each folder. The photo le in the Root folder is shown rst and the

others are shown in alphabetical order by name.

Select “Folder” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

folder.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.

Preference

Sorts photos by preference. (Favourite)

You can change the photo preferences.

➣

Select “Preference” as the sorting standard in the Photo List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

preference.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button. Press the ▲ or ▼ button to select “Play Current Group”.

Press ENTER to play the selected group of photo les from the

sublist.


Composition

Preference

SUM


Preference

SUM


Month : Jan Date : Jan.01.2008 Color : Gray Composition :

Folder : P-other

Favourite :

★ ★ ★

P-other Photo-1

Folder

 Device

 Favourites Setting


Month : Jan Date : Jan.01.2008 Color : Gray Composition : Folder : P-other

Favourite :

★ ★ ★

Folder

★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

▲

Monthly

 Device

 Favourites Setting

Slide Show Play Current Group Delete Information

▼

▲

 Select

Jump

Slide Show Play Current Group Delete Information

▼

 Select

Jump

Option

Changing the Favourites setting

Press the ◄ or ► button to select the desired photo in the Photo list.

➣

Changingtheinformationofmultipleles

Press the ◄ or ► button to select the desired photo in the Photo list.

Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo.

Press the Green button repeatedly until the desired setting appears.

➣

Favourites settings change completed.

➣

“Favourite” options:

➣

Users can select the number of stars (up to 3) according to their

★ ★ ★, ★ ★ ★, ★ ★ ★, ★ ★ ★

preference.

DeletingthePhotole

1. Press the ◄ or ► button to select the desired photo in the Photo list.

2. Press the TOOLS button.

Press the ▲ or ▼ button to select “Delete”, then press the ENTER

button.

The “Delete this le?” message appear.

➣

Press the ◄ or ►button to select “OK”, then press the ENTER button.

The photo is deleted.

➣

When a read-only le is deleted, the “This File is read-only le. Delete

➣

it?” message appear. If you select “Cancel”, the deletion is cancelled.

➣

To exit “WISELINK” mode, press the W.LINK button on the remote

control.

You cannot remove the PTP-connected digital camera picture les.

➣

While removing les, don’t remove the USB memory device.

➣

You cannot recover a deleted photo le.

➣

Deleting Multiple Photos

Press the ◄ or ► button to select the desired photo in the Photo list.

Then press the yellow button.

➣

Repeat the above operation to select multiple photos.

➣

The

mark appears to the left of the selected photo.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Delete selected File”, then press the

ENTER button.

➣

The “Delete the selected les?” message appear.

Press the ◄ or ► button to select “OK”, then press the ENTER button.

➣

The selected photos are deleted.

➣

If you select “Cancel”, the deletion is cancelled.

To exit “WISELINK” mode, press the W.LINK button on the remote

control.

➣

You cannot remove the read-only les from the selected ones.

➣

You cannot recover a deleted photo le.


Preference

Monthly

Timeline

SUM

Selected File(s) : image... 1 File(s)


Preference

Monthly

Timeline

SUM

Selected File(s) : image... 2 File(s)


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

Jan Nov

 Device

 Favourites Setting

Delete

Delete this file?

Cancel


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

Jan Nov

 Device

 Favourites Setting

Delete

Delete the selected files?

Cancel

Slide Show Play Current Group Delete Information

★ ★ ★

▲

 Select

Slide Show Delete selected File Deselect All

★ ★ ★

Remove Safely

▲

 Select

▼

Jump

2File(s) Selected

Jump

Option

Viewing the Photo Information

The photo le information including the order of the le in the current directory, the name, the size, the resolution, the date modied and the path is displayed.

Press the ◄ or ► button to select the desired photo in the Photo list.

2. Press the TOOLS button.

Press the ▲ or ▼ button to select “Information”, then press the ENTER

button.

➣

The information on the selected photo appears.

Press the INFO button to viewing the information.

English - 52


Preference

Monthly

Timeline

SUM

Name : image_1.jpg Size : 2.0MB Resolution : 440x440 Date : Jan.1.2008 Path : /Photo/

Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

Jan Nov

 Device

 Favourites Setting

Photo Info


★ ★ ★

▲

Play Current Group Delete Information Remove Safely

▲

 Select

Jump

Option

English - 53

Viewing a Photo or Slide Show

Viewing a Slide Show

Press the W.LINK button on the remote control to display the “WISELINK”

menu.

Press the ◄ or ► button to move to “Photo”, then press the ENTER

button.

Photo les are displayed.

➣

3. Press the ◄ or ► button to select the desired photo in the Photo list.

4. Press the TOOLS button.

Press the ▲ or ▼ button to select “Slide Show”, then press the

ENTER button.

➣

All les in the photo list will be used for the Slide Show.

During the slide show, les are displayed in order from the currently

➣

shown le.

The Slide Show progresses in the order sorted in the Photo list.

➣

Music les can be automatically played during the Slide Show if the

➣

“Background Music” is set to “On”. (Refer to page 55).


Preference

Monthly

Timeline

SUM

►

Normal20/22 image_1.jpg 440x440 2.0KB 2008/1/1

SUM


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

★ ★ ★

Jan Nov

 Device

 Favourites Setting

E Pause Previous Next Option Return

Slide Show Play Current Group Delete Information

▼

▲

 Select

Jump

Option

While a photo list is displayed, press the

(Play) / ENTER

button on the remote control to start slide show.

ToperformaSlideShowwithonlytheselectedles

1. Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos.

The

➣

Press the (Play) / ENTER button.

➣

mark appears to the left of the selected photo.

If you select one le, the SlideShow will not be performed.

The selected les will be used for the Slide Show. If you have selected les, only the selected les will be used for the Slide Show

Playing current group

Press the ▲ or ▼ button to select a sorting standard.

(“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”)

Press the ◄ or ► button to select the desired photo in the Photo list.

To move to the previous / next group, press the (REW) or

➣

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”, then press the

ENTER button. Only the photos in the sorting group including the

selected les will be used for the Slide Show.

To exit “WISELINK” mode, press the W.LINK button on the remote control.


Preference

Monthly

SUM


Month : Jan

Date : Jan.01.2008 Color : Gray Composition : Folder : P-other Favourite :

★ ★ ★

Jan Nov

Timeline

 Device

 Favourites Setting

Slide Show Play Current Group Delete Information

▼

▲

 Select

Jump

Option

Slide show function information icon (Displayed at the top left of the screen)

Icon Current OSD Function

► (Photo) SlideShow Photo Slide Show is in progress.

You can pause a Slide Show by pressing the

❙❙

Photo Pause

on the remote control during a Slide Show.

To resume the Slide Show, press the remote control again.

(Pause)/ENTER button

(Play)/ENTER button on the

Viewing a photo

Press the W.LINK button on the remote control to display the “WISELINK”

menu.

Press the ◄ or ► button to move to “Photo”, then press the ENTER

button.

Photo les are displayed.

➣

Press the ◄ or ► button to select the desired photo in the Photo list.

Then Press the Yellow button to select only one le.

Press the ENTER button over a photo icon.

The currently selected photo is displayed in full screen.

➣

SUM

Using the option menu during a slide show (or Viewing a Photo)

During a slide show(or viewing a photo), Press the TOOLS button to set the option.

Press the ▲ or ▼ button to select the desired option. Then press the ENTER button.

Start Slide Show (or Stop Slide Show)

You can start or stop a Slide Show.

Press the ▲ or ▼ button to select “Start Slide Show” (or “Stop Slide Show”),

then press the ENTER

You can select the SlideShow speed only during a slide show.

➣

You can also change the speed of the Slide Show by pressing the

➣

button.

(REW) or (FF) button during the Slide Show.

Rotate

You can rotate images in full screen mode.

Press the ▲ or ▼ button to select “Rotate”, then press the ENTER

button.

Press the ◄ or ► button repeatedly to rotate the photo by the desired amount.

➣

Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚.

➣

Whenever you press the ► button, it rotates by 90˚, 180˚, 270˚, and 0˚.

➣

If you have select “Zoom”, the “Rotate” deactivated.

➣

The rotated le is not saved.

➣

The Rotating function information icon is displayed at the top right of the screen

Icon Current OSD Function

0˚

Rotating (0°)

90˚

Rotating (90°) This rotates a photo by 90 degrees

180˚

Rotating (180°) This rotates a photo by 180 degrees

270˚

Rotating (270°) This rotates a photo by 270 degrees

This rotates a photo to its original position

20/22 image_1.jpg 440x440 2.0KB 2008/1/1

E Slide Show Previous Next Option Return

Tools

Stop Slide Show Rotate Zoom

Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom

Information

EnterMove

Rotate

Exit

90˚

English - 54

English - 55

Zoom

You can zoom into images in full screen mode.

Press the ▲ or ▼ button to select “Zoom”, then press the ENTER

button.

Press the ◄ or ► button repeatedly to increase or decrease the Zoom effect. (x1 → x2 → x4)

To move the enlarged photo image, press the ENTER

button, then press

the ▲/▼/◄/► buttons.

➣

Note that when the enlarged picture is smaller than the original screen

size, the location change function doesn’t work.

➣

The enlarged le is not saved.

➣

If you have select “Zoom”, the “Rotate” deactivated.

➣

Zoom function information icon is displayed at the top right of the screen.

Icon Current OSD Function

Zoom (x 2) Zoom-into a photo at 2x.

Zoom (x 4) Zoom-into a photo at 4x.

Zoom (x 1) Restore a photo to its original size.

Pan Down

Pan Up

Pan Right

Pan Left

Pan down to view the lower part of a zoomed-in photo.

Pan up to view the upper part of a zoomed-in photo.

Pan right to view the right side of a zoomed-in photo.

Pan left to view the left side of a zoomed-in photo.

Move

Zoom

Enter Return

Slide Show Speed

You can select the slide show speed.

Press the ▲ or ▼ button to select “Slide Show Speed”. Press the ◄ or ► button to select the desired option. (Fast → Slow → Normal)

➣

You can select the SlideShow speed only during a slide show.

Background Music

If you set ”Background Music” to On, the background music will be played

when viewing photos one by one or in a Slide Show.

Press the ▲ or ▼ button to select “Background Music”. Press the ◄ or ► button to select “On” or “Off”.

If you set ”Background Music” to On, a screen appears immediately where

➣

you can set the Background Music.

On: When the background music is available, if you select On, the music

•

is played back. To use this feature, there must be music and photo les

stored on the USB device.

Off: Background music is not played.

•

Tools

Stop Slide Show Rotate Zoom

Slide Show Speed ◄ Normal ► Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom

Information

Adjust

Move

Stop Slide Show Rotate Zoom

Slide Show Speed : Normal Background Music ◄ Off ► Background Music Setting Picture Mode : Standard Sound Mode : Custom

Information

Move

Tools

Adjust

Exit

Background Music Setting

You can set the background music. Press the ▲ or ▼ button to select “Background Music Setting”, then press the

ENTER

➣

button.

If you turn off the “Background Music”, even if the “Background Music Settings” have been set up, the background music will not be played.

Loading music les is needed to change BGM mode. Play music les in

➣

music category to load.

“Background Music setting” menu is displayed.

➣

Press the ◄ or ► button to select the desired BGM (Background music)

mode. (Shufe, Selected le, Mood)

Shufe: Plays music les in random order.

•

Selectedle: Plays a selected music le.

•

Mood: Plays music les of a particular mood only.

➣

Selectigthebackgroundmusicle

Press the ◄ or ► button to set “BGM Mode” to “Selected le”. Press the ▲ or ▼ button to select “Select Music File”, then press the

ENTER button.

Press the ▲ or ▼ button to select a music le, then press the yellow

button. The mark appears to the left of the selected music. Repeat the above operation to select multiple music les. Press the ENTER button.

➣

Selectingthebackgroundmusiclemood

Press the ◄ or ► button to set “BGM Mode” to “Mood”. Press the ▲ or ▼ button to select “BGM Mood”. Then press ◄ or ►

button to select the desired BGM mood. Press the ENTER button.

BGM mode option: Energetic, Rhythmical, Sad, Exciting, Calm

➣

WISELINK identies the mood of the music les and groups them accordingly by analyzing the music les on the USB device.

Tools

Stop Slide Show Rotate Zoom

Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom

Information

EnterMove

Background Music setting

BGM Mode ◄ Shuffle ►

BGM Mood : Calm

Select Music File

Move

Adjust

Background Music setting

BGM Mode ◄ Selected file ►

BGM Mood : Calm

Select Music File

Move

Background Music setting

../Music/ 2 File(s) Selected

Music

Thanks

I Love You

Better than yesterday



BGM Mode : Mood BGM Mood ◄ Calm ►

Select Music File

Move

Select

Background Music setting

Enter

ReturnEnter

Return

Exit

▼

Picture Mode

Move

Adjust

ReturnEnter

You can set the Picture mode. (Refer to page 25)

Sound Mode

You can set the Sound mode. (Refer to page 30)

Information

The photo le information including the order of the le in the current directory, the name, the size, the resolution, the date modied and the path is displayed. (Refer to page 52)

Remove Safely

You can remove the device safely from the TV. Press the ▲ or ▼ button to select “Remove Safely”, then press the ENTER

button.

Remove the USB device from the TV.

English - 56

English - 57

Using the Music List

This menu shows MP3 les from among the les saved on a USB memory device.

Press the W.LINK button on the remote control to display the “WISELINK”

menu.

WISELINK

MUSIC

SUM

851.98MB/995.00MB Free

Press the ◄ or ► button to select “Music”, then press the ENTER

button.

Music les are displayed.

➣

Press the

➣

(Play) / ENTER button over a music icon to play

the music.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

Screen Display

Music

Thanks

Jee

Album 1 2005 Blues

Energetic ★ ★ ★

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

SUM

Music

Energetic ★ ★ ★

Preference

Title

Artist

SUM

1File(s) Selected

Better than yesterday

Catherine

Album 3 2005 Pop

Calm ★ ★ ★


Thanks

Jee

Album 1 2005 Pop

F G H I J L P S T V

▲

Sad ★ ★ ★

 Device

 Favourites Setting

Music Setup

I Love You

Darby

Album 2 2005 Pop

Calm ★ ★ ★

 Select



Device e Exit

Better than yesterday

Catherine

Album 3 2005 Pop

Jump

Option

Currently selected music

SUM

Preference

Title

Artist

2 3

G H I J ▲

 Device

 Favourites Setting

L P S T V

 Select

Jump

Option

Shows the currently selected music.

Current Sort Standard

Press the ▲ or ▼ button to change the standard for sorting music les. (“Title”, “Artist”, “Mood”, “Genre”, “Folder”, “Preference”)

View Groups

Shows the sorting groups. The sorting group including the currently selected music le is highlighted.

Current Device

Shows the currently selected device name. Press the Red button to select a device.

Item Selection Information

Shows the number of music les that are selected by pressing the Y

Help Items

Red(Device) button: Selects a connected device.

•

Green(Favourites Setting) button: Changes the favourites setting for the selected music. Press this button

•

ellow button.

repeatedly until the desired value appears. (Refer to page 60)

Yellow(Select) button: Selects music les from the music list. Selected music les are marked with a symbol

• the left.

•

(Jump) button: Jumps to the previous sorting group / Jumps to the next sorting group.

•

TOOLS(Option) button: Displays the “Play Current Group”, “Delete”, “Change Group” (in “Mood” group), “Information” or “Remove Safely” menus.

Sorting Music List

You can sort music les in the Music List by a particular standard.

Press the W.LINK button on the remote control to display the WISELINK

menu.

Press the ◄ or ► button to select “Music”, then press the ENTER

button.

Music les are displayed.

➣

Press the ▲ or ▼ button to select a sorting standard.

(“Title”, “Artist”, “Mood”, “Genre”, “Folder”, “Preference”)

Music les are sorted according to the newly selected sorting

➣

standard.

Press the ENTER button to start playing music in the order selected by

the user.

Music information is set automatically and you can change the

➣

Favourite information.

Music les for which information cannot be displayed are set to

➣

“Unclassied”. If there is no title information for a music le, the lename is displayed.

➣

If no information is available for the Genre, Artist, Album, or Year, the

➣

corresponding item is displayed as blank.

WISELINK


SUM

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

Title

Artist

SUM

MUSIC

Music Setup

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

F G H I J L P S T V

▲

 Device

 Favourites Setting

SUM

Calm ★ ★ ★

 Select

851.98MB/995.00MB Free



Device e Exit

Better than yesterday

Catherine

Album 3 2005 Pop

Jump

Option

Title

Sorts music les by the title.

It sorts the Music titles in alphabetical order, and shows the music le.

➣

Select “Title” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped in

alphabetical order.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

English - 58

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

Title

Artist

SUM

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

F G H I J L P S T V

▲

 Device

 Favourites Setting

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Option

English - 59

Artist

Sorts music les by the artist.

It sorts the music le by artist in alphabetical order.

➣

Select “Artist” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped in

alphabetical order.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

Mood

Sorts music les by the mood.

➣

You can change the music mood information.

Select “Mood” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

mood.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

Changing the Mood information

Select “Mood” as the sorting standard in the Music List and press the

◄ or ► button to select a music le.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Change Group”. Press the ENTER

button.

➣

Wiselink identies the mood of the music les and groups them accordingly by analyzing the music les on the USB device.

➣

“Mood” information extracted from a music le may not always match the Mood option. For example, a le you think is “Energetic” may be extracted to the “Exciting” mood option.

Press the ◄ or ► button to select the desired option, then press the

ENTER button.

➣

The group information of the current le is updated and the le is

moved to the new group.

➣

“Mood” options: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassied

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Title

Artist

Mood

SUM

Catherine Darby Darby Darby Darby Jee Jee

▲

Sad ★ ★ ★

 Device

 Favourites Setting

I Love You

Darby

Album 2 2005 Pop

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Artist

Mood

Genre

SUM

Rhythmical Sad Exciting Calm ...

▲

Sad ★ ★ ★

 Device

 Favourites Setting

I Love You

Darby

Album 2 2005 Pop

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Energetic Rhythmical Sad Exciting Calm Unclassified

Artist

Rhythmical Sad Exciting Calm ...

Mood

▲

Genre

SUM

Sad ★ ★ ★

 Device

 Favourites Setting

I Love You

Darby

Album 2 2005 Pop

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Change Group

Pop

Information

▼

Calm ★ ★ ★

 Select

Jump

Better than yesterday

Catherine

Album 3 2005 Pop

Calm ★ ★ ★

 Select

Jump

Option

Genre

Sorts music les by the genre.

Select “Genre” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

Genre.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

Folder

Sorts music les by the folder.

If there are many folders in USB, the les are shown in order in each

➣

folder. The music le in the Root folder is shown rst and the others are

shown in alphabetical order by name.

Select “Folder” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

Folder.

To move to the previous / next group, press the

➣

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

Music

Thanks

Jee

Album 1 2005

Pop

Energetic ★ ★ ★

Mood

Genre

Folder

SUM

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Genre

Folder

Preference

SUM

I Love You

Darby

Album 2 2005

Pop

Sad ★ ★ ★

Other Pop R&B Soundtr... Top 40 Acid Jazz Ball..

▲

 Device

 Favourites Setting

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

Other Music Other2

▲

 Device

 Favourites Setting

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Option

Preference

Sorts music les by preference. (Favourite)

➣

You can change the music les preferences.

Select “Preference” as the sorting standard in the Music List.

2. Press the ◄ or ► button to select from the sublist of les grouped by

Preference.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”.

5. Press ENTER to play the selected group of music les from the

sublist.

Changing the Favourites setting

Press the ◄ or ► button to select the desired music in the music list.

➣

Changingtheinformationofmultipleles

Press the ◄ or ► button to select the desired music in the music list.

Then press the yellow button. Repeat the above operation to select multiple musics. The

mark appears to the left of the selected music.

Press the Green button repeatedly until the desired setting appears.

➣

Favourites settings change completed.

➣

“Favourite” options:

➣

Users can select the number of stars (up to 3) according to their

★ ★ ★, ★ ★ ★, ★ ★ ★, ★ ★ ★

preference.

Press the ENTER button to start playing music.

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Folder

Preference

Title

SUM

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★

▲

 Device

 Favourites Setting

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Option

English - 60

English - 61

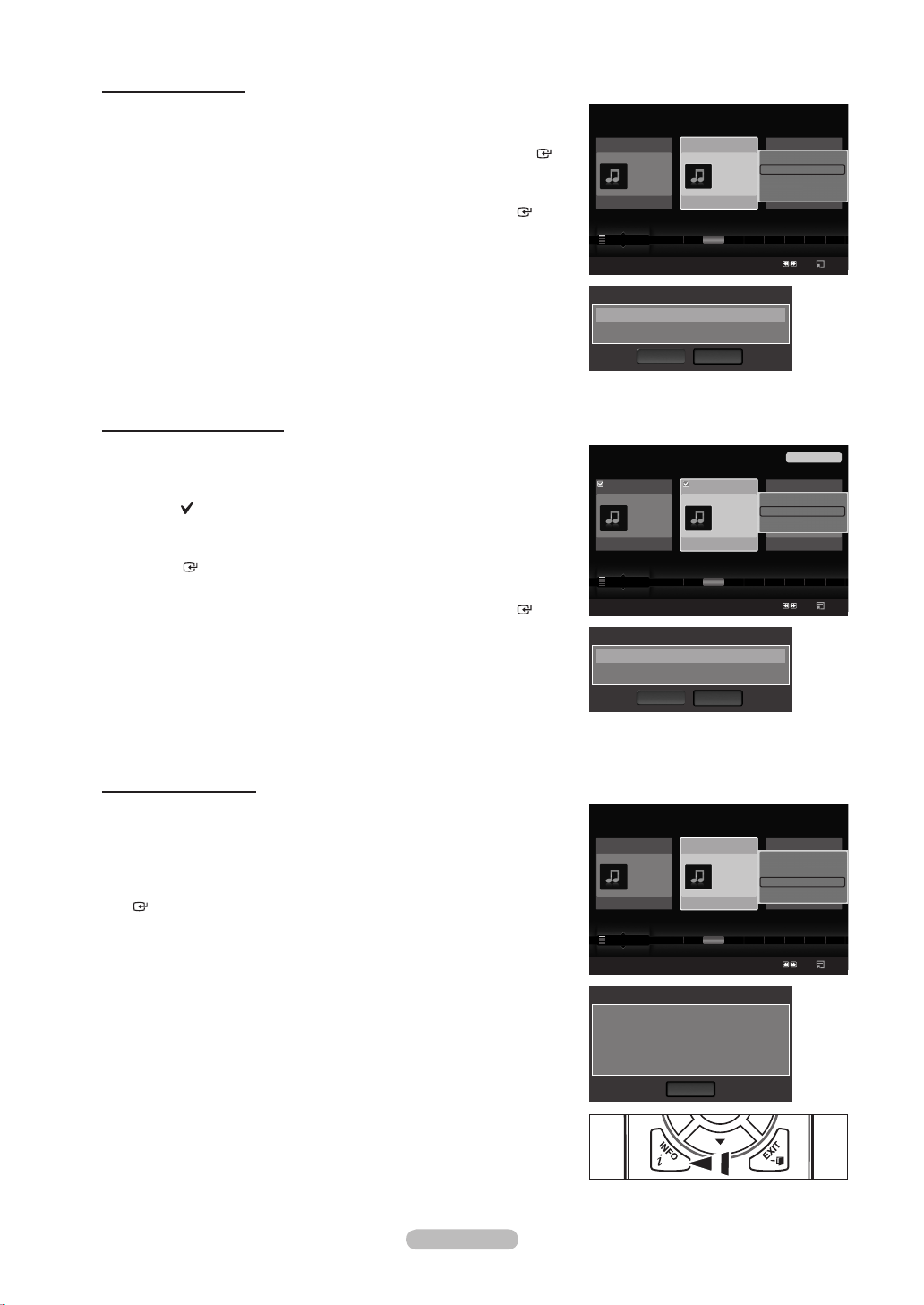

DeletingtheMusicle

1. Press the ◄ or ► button to select the desired music le in the music list.

2. Press the TOOLS button.

Press the ▲ or ▼ button to select “Delete”, then press the ENTER

button.

The “Delete this le?” message appear.

➣

Press the ◄ or ► button to select “OK”, then press the ENTER button.

The music is deleted.

➣

When a read-only le is deleted, the “This File is read-only le. Delete

➣

it?” message appear. If you select “Cancel”, the deletion is cancelled.

➣

To exit “WISELINK” mode, press the W.LINK button on the remote

control.

While removing les, don’t remove the USB memory device.

➣

You cannot recover deleted music les.

➣

DeletingMultipleMusicles

1. Press the ◄ or ► button to select the desired music in the music list.

Then press the yellow button.

➣

Repeat the above operation to select multiple music les.

➣

The

mark appears to the left of the selected music les.

Press the TOOLS button.

Press the ▲ or ▼ button to select “Delete selected File”, then press the

ENTER button.

➣

The “Delete the selected les?” message appear.

Press the ◄ or ► button to select “OK”, then press the ENTER button.

➣

The selected music les are deleted.

➣

If you select “Cancel”, the deletion is cancelled.

To exit “WISELINK” mode, press the W.LINK button on the remote

control.

➣

You cannot remove the read-only les from the selected ones.

➣

You cannot restore the deleted music les.

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

F G H I J L P S T V

Title

▲

Artist

SUM

Selected File(s) :I Love Y... 1 File(s)

Sad ★ ★ ★

 Device

 Favourites Setting

Delete

Delete this file?

I Love You

Darby

Album 2 2005 Pop

Cancel

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

F G H I J L P S T V

Title

▲

Artist

SUM

Selected File(s) :I Love Y... 2 File(s)

Delete the selected files?

 Device

Delete

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

 Favourites Setting

Cancel

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

2File(s) Selected

Better than yesterday

Delete selected File

Catherine

Deselect All

Album 3 2005

Remove Safely

Pop

Calm ★ ★ ★

 Select

Jump

Option

Viewing the Information

The music le information including the order of the le in the current directory, the name, the size, the date modied and the path is displayed.

Press the ◄ or ► button to select the desired music in the music list.

2. Press the TOOLS button.

Press the ▲ or ▼ button to select “Information”, then press the ENTER

button.

➣

The information on the selected le appears.

Press the INFO button to viewing the information.

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

F G H I J L P S T V

Title

▲

Artist

SUM

Name : I Love You.mp3 Size : 5.2MB Date : Jan.1.2008 Path : /Music/

 Device

Music Info

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

 Favourites Setting

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Option

Playing a Music File

Playingamusicle

1. Press the W.LINK button on the remote control to display the “WISELINK”

menu.

Press the ◄ or ► button to select “Music”, then press the ENTER

button.

Music les are displayed.

➣

Pressing the ◄ or ► button to select a music le to be played, then press

the ENTER button.

This menu only shows les with the MP3 le extension. Files with

➣

other le extensions are not displayed, even if they are saved on the

same USB device.

Press the

➣

the music.

➣

(REW) or (FF) buttons do not function during play.

➣

Press the (Pause) / ENTER button while playing a music le to pause the le. Press the (Stop) button to exit Play mode.

➣

The selected le is displayed at the top with its playing time.

➣

To adjust the music volume, press the VOL – or VOL + button on the remote control. To mute the sound, press the MUTE button on the remote control.

➣

The playing duration of a music le may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the le.

To exit “WISELINK” mode, press the W.LINK button on the remote control.

(Play) / ENTER button over a music icon to play

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

Title

Artist

SUM



I Love You

SUM

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

F G H I J L P S T V

▲

 Device

 Favourites Setting

7/14 00:01:15 00:05:41

Pause Previous Next Option Return

Better than yesterday

Calm ★ ★ ★

 Select

Jump

Catherine

Album 3 2005 Pop

Option

Playing the music group

Press the W.LINK button on the remote control to display the WISELINK

menu.

Press the ◄ or ► button to select “Music”, then press the ENTER

button.

➣

To move to the previous / next group, press the

(REW) or

(FF) button.

3. Press the ◄ or ► button to select the desired music le.

4. Press the TOOLS button.

Press the ▲ or ▼ button to select “Play Current Group”, then press the

ENTER button.

➣

The music les in the sorting group including the selected le are played.

To exit “WISELINK” mode, press the W.LINK button on the remote control.

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

Title

Artist

SUM

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

F G H I J L P S T V

▲

 Device

 Favourites Setting

Better than yesterday

Play Current Group

Catherine

Delete

Album 3 2005

Information

Pop

Remove Safely

Calm ★ ★ ★

 Select

Jump

Option

English - 62

English - 63

Playingtheselectedmusicles

1. Press the W.LINK button on the remote control to display the WISELINK menu.

Press the ◄ or ► button to select “Music”, then press the ENTER

button.

Press the ◄ or ► button to select the desired music le, then press the

yellow button. Repeat the above operation to select multiple music les.

The

➣

Press the (Play) / ENTER button.

➣

mark appears to the left of the selected music le.

Only the selected le is played.

Press the

(Stop) button while playing to stop the current item and

to return to the music list.

To exit “WISELINK” mode, press the W.LINK button on the remote

control.

Music function information icon (Displayed at the top left of the screen)

Icon Current OSD Function

(Music) Repeat

(Music) Once

► / ❙❙ (Music) Play/Pause

When all music les in the folder(or the selected le) are repeated. “Repeat Mode” is “On”.

When all music les in the folder(or the selected le) are played once. “Repeat Mode” is “Off”.

When pressing the

(Play)/ (Pause)/ENTER button on the

remote control while music is playing.

Music

Thanks

Jee

Album 1 2005 Pop

Energetic ★ ★ ★

Preference

Title

Artist

SUM



I Love You

SUM

2File(s) Selected

I Love You

Darby

Album 2 2005 Pop

Sad ★ ★ ★

F G H I J L P S T V

▲

 Device

 Favourites Setting

7/14 00:01:15 00:05:41

Pause Previous Next Option Return

Better than yesterday

Calm ★ ★ ★

 Select

Jump

Catherine

Album 3 2005 Pop

Option

Repeating Music Play

While a Music le is playing, press the TOOLS button.

Press the ▲ or ▼ button to select “Repeat Mode”.

3. Press the ◄ or ► button to select “On” or “Off”.

On: Plays back all music les in the folder(or the selected le)

• repeatedly.

Off: Doesn’t play back repeatedly.

•

4. To exit “WISELINK” mode, press the W.LINK button on the remote

control.

Tools

Repeat Mode

◄ On ► Picture Mode : Standard Sound Mode : Custom

Information Remove Safely

Adjust

Move

Exit

Using the Setup Menu

Setup displays the user settings of the WISELINK menu.

Press the W.LINK button on the remote control to display the WISELINK

menu.

Press the ◄ or ► button to select “Setup”, then press the ENTER

button.

Press the ▲ or ▼ button to select the desired option.

(Slide Show Speed, Music Repeat Mode, Screen Saver Run Time, Information, Remove Safely)

Press the ◄ or ► button to select the option, then press the ENTER

button.

WISELINK


SUM

SETUP

Music Setup

851.98MB/995.00MB Free



Device e Exit

Slide Show Speed

Select to control the slide show speed.

Press the ▲ or ▼ button to select “Slide Show Speed”. Press the ◄ or ► button to select “Fast”, “Normal” or “Slow”.

Music Repeat Mode

Select to repeatedly play music les. Press the ▲ or ▼ button to select “Music Repeat Mode”. Press the ◄ or ► button to select “On” or “Off”.

Screen Saver Run Time

Select to set the waiting time before the screen saver appears.

Press the ▲ or ▼ button to select “Screen Saver Run Time”. Press the ◄ or ► button to select “1 min”, “3 min” or “5 min”.

Setup

Slide Show Speed ◄ Normal ► Music Repeat Mode : On Screen Saver Run Time : 3 min

Information

Remove Safely

SUM

 Device Move Adjust Return

Setup

Slide Show Speed : Normal Music Repeat Mode ◄ On ► Screen Saver Run Time : 3 min

Information

Remove Safely

SUM

 Device Move Adjust Return

Setup

Slide Show Speed : Normal Music Repeat Mode : On Screen Saver Run Time ◄ 3 min ►

Information

Remove Safely

Information

Select to viewing the information of the connected device.

Press the ▲ or ▼ button to select “Information”, then press the ENTER

button.

Remove Safely

You can remove the device safely from the TV. (Refer to page 56)

To exit WISELINK mode, press the W.LINK button on the remote control.

English - 64

SUM

Device Type : USB Device : SUM Available Memory : 852.90MB Total Memory : 995.00MB

 Device Move Adjust Return

Device Info

About Anynet

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung

TV’s remote.

Connecting Anynet+ Devices

The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung

device has this feature, check if there is an Anynet+ logo on it.

To connect to a TV

HDMI 1.3 Cable

To connect to Home Theater

Anynet+ Device 1

HDMI 1.

HDMI 1.3 Cable

Optical Cable

HDMI 1.3 Cable

Anynet+ Device

3 Cable

Anynet+ Device 2 Anynet+ Device 3

HDMI 1.3 Cable

Home Theater Anynet+ Device 1

HDMI 1.3 Cable

2 Anynet+ Device 4

HDMI 1.3 Cable

Connect the [HDMI 1], [HDMI 2] or [HDMI 3]

jack on the TV and the HDMI OUT jack of the

corresponding Anynet+ device using an HDMI cable.

1. Connect the [HDMI 1], [HDMI 2] or [HDMI 3]

jack on the TV

and the HDMI

OUT jack of the

corresponding Anynet+ device using an HDMI cable.

2. Connect the

HDMI IN jack of

the home theater and the HDMI

OUT jack of the

corresponding Anynet+ device using an HDMI cable.

Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the

➣

Home Theater.

When following the connection above, the Optical jack only outputs 2 channel audio.

➣

You will only hear sound from the Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the Digital Audio Out (Optical) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplier or Home Theater, not the TV.

➣

Connect only one Home Theater.

➣

You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.

➣

Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.

➣

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

English - 65

Setting Up Anynet+

The following settings help set the Anynet+ functions.

To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On

Press the MENU button. Press the ▲ or ▼ button to select “Application”,

then press the ENTER button.

2. Press the ▲ or ▼ button to select “Anynet

ENTER

button.

3. Press the ENTER button to select “Anynet

Press the ▲ or ▼ button to select “On”, then press the ENTER button.

The “Anynet+ (HDMI-CEC)” function is enabled.

➣

If you select Off, “Anynet+ (HDMI-CEC)” is disabled.

➣

When the “Anynet+ (HDMI-CEC)” function is disabled, all the Anynet+

➣

related operations are deactivated.

Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off

Press the ▲ or ▼ button to select “Auto Turn Off”, then press the ENTER

button.

Press the ▲ or ▼ button to select “Yes”, then press the ENTER button.

➣

The “Auto Turn Off” function is enabled.

➣

If you select “No”, the “Auto Turn Off” function is canceled.

Press the EXIT button to exit.

The active source on the TV remote must be set to TV to use the Anynet+

➣

function.

If you set “Auto Turn Off” to “Yes”, connected external devices are also turned

➣

off when the TV is turned off. If an external device is still recording, it may or

may not turn off.

(HDMI-CEC)”, then press the

(HDMI-CEC)”.

Application

WISELINK

Anynet+(HDMI-CEC) ►

Anynet+ (HDMI-CEC)

Anynet+ (HDMI-CEC) : ON

Auto Turn Off :

Anynet+ (HDMI-CEC)

Anynet+ (HDMI-CEC) : On

Auto Turn Off :

Off

Yes

ReturnEnterMove

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Press the ▲ or ▼ button to select “Device List”, then press the ENTER button.

Anynet+ devices connected to the TV are listed.

➣

If you cannot nd a device you want, press the red button to scan for devices.

➣

2. Press the ▲ or ▼ button to select to a particular device and press the ENTER

button. It is switched to the selected device.

Only when you set “Anynet+ (HDMI-CEC)” to On in the “Application” menu, the

➣

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

“Device List” menu appears.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching

➣

operation.

The time required to scan for devices is determined by the number of connected devices.

➣

When the device scan is complete, the number of devices found are not displayed.

➣

Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when

➣

the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search

devices.

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make

➣

sure to switch to an Anynet+ device by using the TOOLS button.

English - 66

Tools

Device List

Record

Timer Recording

Receiver : Off

▼

EnterMove

Exit

English - 67

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

View TV Switches from Anynet+ to TV broadcast mode. Device List Displays the Anynet+ device list. Record Starts a recording. (This menu works only for a device supporting recording.) Menu on Device Shows the menu of the connected device.

Example: When a DVD Recorder is connected, the DVD Recorder’s title menu

appears.

Device Operation Shows the play control menu of the connected device.

Example: When a DVD Recorder is connected, the play control menu of the DVD

Recorder appears.

Timer Recording Allows reserving a recording. (This menu works only for a device supporting

recording reservations.) Stop Recording Stops recording. Receiver Sound is output through the receiver (home theater). Setup You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for

using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type Operating Status Available Buttons

After switching to the device, when the menu of the corresponding device is

Anynet+ Device

displayed on the screen.

After switching to the device, while

playing a le

Device with built-in Tuner

After switching to the device, when you

are watching a TV program

Audio Device When Receiver is activated –

The Anynet+ function only works when the active source on the TV remote control is set to TV.

➣

The

➣

You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV

button works only while in the recordable state.

Numeric buttons

▲/▼/◄/►/ENTER

buttons

Colour buttons / EXIT button

(Backward search) / (Forward search)

(Stop) / (Play) / (Pause)

/ P button

+ / MUTE button

remote control.

➣

The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device.

➣

The Anynet+ functions do not operate with other manufacturers’ products.

➣

The

, operations may differ depending on the device.

Recording

You can make a recording of a TV program using a Samsung recorder.

Press the TOOLS button.

Press the ▲ or ▼ button to select Recording Immediately and press the ENTER

button. Recording begins.

When there is more than one recording device

When multiple recording devices are connected, the recording devices are listed.

Press the ▲ or ▼ button to select a recording device and press the ENTER

button. Recording begins.

When the recording device is not displayed

Select “Device List” and press the red button to search devices.

Press the EXIT button to exit.

You can record the source streams by selecting “Record” after pressing the TOOLS button.

➣

Pressing the

➣

button will record whatever you are currently watching. If you are watching video from another

device, the video from the device is recorded.

➣

Before recording, check whether the antenna jack is properly connected to the recording device.

an antenna to a recording device, refer to the recording device’s users manual.

Tools

Device List

Record

Timer Recording

Receiver : Off Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

▼

EnterMove

To properly connect

Exit

Listening through a Receiver (Home theater)

You can listen to sound through a receiver instead of the TV speaker.

Press the TOOLS button. Press the ▲ or ▼ button to select “Receiver”.

Press the ◄ or ► button to select to “On”.

Now you can listen to sound through the receiver.

Press the EXIT button to exit.

If your receiver supports audio only, it may not appear in the device list.

➣

The receiver will work when you have properly connected the Optical IN jack of the

➣

receiver to the Optical Out jack of the TV.

When the receiver (home theater) is set to On, you can hear sound output from the

➣

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1

channel sound to the Home theater receiver. When the source is a digital component

such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be

heard from the Home Theater receiver.

When using the WISELINK feature, sound may not output properly through the receiver.

➣

When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred

➣

language) menus.

If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a

➣

power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 31)

Tools

Device List

Record

Timer Recording

Receiver ◄ Off ►

▼

Move

Adjust

Troubleshooting for Anynet+

Symptom Solution Anynet+ does not work. Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+

I want to start Anynet+. Check if the Anynet+ device is properly connected to the TV and check if the

I want to exit Anynet+. Select View TV in the Anynet+ menu.

The message Connecting to Anynet+ device... appears on the screen.

The Anynet+ device does not play. You cannot use the play function when Plug & Play is in progress. The connected device is not

displayed.

The TV program cannot be recorded.

The TV sound is not output through the receiver.

• devices only.

•

Connect only one receiver (home theater).

•

Check if the Anynet+ device power cord is properly connected.

•

Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections.

•

Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

•

Check whether the TV remote control is in TV mode.

•

Check whether it is Anynet+ exclusive remote control.

•

Anynet+ doesn’t work in certain situations. (Searching channels, Operating WISELINK, Plug & Play, etc.)

•

When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or turn your TV off and on again.

•

Check if the Anynet+ Function of Anynet+ device is set on.

• Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.

Press the TV/DTV button on the TV remote control to switch to TV. Then press

• the TOOLS button to show the Anynet+ menu and select a menu you want.

• Press the SOURCE button on the TV remote control and select a device other

• than Anynet+ devices.

Press P

•

/ and PRE-CH to change the TV mode.

(Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)

You cannot use the remote control when you are conguring Anynet+ or

• switching to a view mode.

Use the remote control when the Anynet+ setting or switching to view mode is

• complete.

•

Check whether or not the device supports Anynet+ functions.

•

Check whether or not the HDMI 1.3 cable is properly connected.

•

Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

•

Search Anynet+ devices again.

•

You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions.

•

If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.

Check whether the antenna jack on the recording device is properly connected.

Connect the optical cable between TV and the receiver.

English - 68

Exit

English - 69

Recommendations for Use

Teletext Feature

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be

➣

missing or some pages may not be displayed.

(exit)

Exit from the teletext display.

6 (index)

Used to display the index (contents) page at any time while you are viewing teletext.

8 (store)

Used to store the teletext pages.

4 (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

5 (reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

/ (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

1 (sub-page)

Used to display the available sub-page.

2 (page up)

Used to display the next teletext page.

3 (page down)

Used to display the previous teletext page.

0 (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button.

9 (hold)

Used to hold the display on a given page if the selected page is linked

with several secondary pages which follow on automatically. To resume, press it again.

7 (cancel)

Used to display the broadcast when searching for a page.

Colour buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

9 0

➣

You can change teletext pages by pressing the numeric buttons on the remote control.

The teletext pages are organized according to six categories:

Part Contents

A Selected page number. B Broadcasting channel identity. C Current page number or search indications. D Date and time. E Text. F Status information.

FASTEXT information.

➣

Teletext information is often divided between several pages displayed

in sequence, which can be accessed by:

- Entering the page number

- Selecting a title in a list

- Selecting a coloured heading (FASTEXT system)

➣

Press the TV/DTV button to exit from the teletext display.

Auto Wall-Mount Adjustment (Sold separately)

Once the auto wall mount is installed, your TV’s position can be easily adjusted.

TV Rear Panel Auto Wall-Mount

SERVICE Cable (Not supplied)

Entering the menu

Press the ▲, ▼, ◄ or ► button on your remote control.

The Wall Mount Adjustment screen is displayed.

➣

If the Auto Wall-Mount screen is not displayed when clicking on a direction

➣

button while watching your TV, use the menu to display that screen.

Press the MENU button to display the menu. Press the ▲ or ▼ button to

•

select “Setup”, then press the ENTER

•

Press the ▲ or ▼ button to select “Wall-Mount Adjustment”, then press

button.

the ENTER button.

English - 70

Setup

Teletext Language : ----

Preference

Wall-Mount Adjustment

Melody : Off Entertainment : Off Energy Saving : Off

PIP

Software Upgrade

Common Interface

►

English - 71

Remembering the Position

Adjust to the desired position using the ▲,▼,◄,► buttons.

If you press an arrow button when no OSD is displayed on the TV

➣

screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button to select

➣

“Yes”, then press the ENTER

button. The position is initialized to

the default setting.

Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from either Position 1,

Position 2 or Position 3 in order to save the current position.

To not save the current position, press the RETURN button.

➣

When selecting a save mode, you cannot use the Colour buttons.

➣

Press the ENTER button to save.

When Position1 is selected, the message “Current position saved as

➣

Position1” is displayed.

Press the ENTER button.

The saved Position appears on the left side of the OSD.

➣

Moving to the remembered position

Complete Step 1 of “Entering the menu”.

2. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount

to the saved position.

You can move the wall mount to one of the 3 pre-set positions by

➣

pressing the Red (Position 1), Green (Position 2) or Yellow (Position

3) buttons.

If you adjust the Position after moving to a pre-set position, the

➣

position display will disappear.

For installation, refer to the Installation Manual provided with the wall

➣

mount.

For product installation and the installation and moving of the wall mount,

➣

make sure to consult a specialized installation company.

This installation manual is to be used when attaching the wall mount to

➣

a wall. When attaching to other building materials, please contact your nearest dealer.

The auto wall mount will not work when Anynet+ or WISELINK is operating.

➣

37, 40 and 46 models are not compatible with the older wall mount model

➣

(WMN5090A).

Wall-Mount Adjustment

Position 1 2 3

Position1

Position 1 2 3

Adjust Save Center

Save

Select a mode to save.

Position1

Position2

Position3

Move Enter Return

Wall-Mount Adjustment

Adjust Save Center

Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington Lock is a device used to physically x the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

Cable

Figure 2

Figure 1

The location of the Kensington Lock may be different depending on its model.

➣

Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction (Figure 2).

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

English - 72

English - 73

Securing the TV to the Wall

주의

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death.

Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling:

Put the screws into the clamps and rmly fasten them onto the wall. Conrm that the screws have been rmly installed onto the wall.

You may need additional material such a s an anchor depending on the type of

➣

wall.

Since the necessary clamps, screws, and string are not supplied, please

➣

purchase these additionally.

Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the

➣

screws of the following specications. Screw Specications

- For a 17 ~ 29 Inch LCD TV: M4 X 15

- For a 32 ~ 40 Inch LCD TV: M6 X 15

Wall

Connect the clamps xed onto the TV and the clamps xed onto the wall with a

strong string and then tie the string tightly.

Install the TV near to the wall so that it does not fall backwards.

➣

It is safe to connect the string so that the clamps xed on the wall are equal to

➣

or lower than the clamps xed on the TV. Untie the string before moving the TV.

➣

Verify all connections are properly secured. Periodically check connections for

any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer.

Wall

Troubleshooting: Before Contacting Service Personnel

No sound or picture Check that the mains lead has been connected to a wall socket.

Normal picture but no sound Check the volume.

Screen is black and power indicator light blinks steadily

No picture or black and white picture Adjust the colour settings.

Sound and picture interference Try to identify the electrical appliance that is affecting the set and move it

Blurred or snowy picture, distorted sound

Remote control malfunctions Replace the remote control batteries.

‘Check signal cable.’ message is

displayed

On PC mode, ‘Not Supported Mode.’ message is displayed

The damaged picture appears in the corner of the screen

The ‘Resets all settings to the default values.’ message appears.

You may see small particles if you

look closely at the edge of the bezel surrounding the TV screen.

The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce.

However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of

the product.

•

Check that you have pressed the button on your set.

•

Check the picture contrast and brightness settings.

•

Check the volume.

•

Check whether the MUTE

•

Check if “TV Speaker” is on. On your computer check; Power, Signal Cable.

•

The TV is using its power management system.

•

Move the computer’s mouse or press any key on the keyboard.

•

Check that the broadcast system selected is correct.

•

• further away.

Plug your set into a different mains socket.

•

Check the direction, location and connections of your aerial.

• This interference is often due to the use of an indoor aerial.

•

• Clean the upper edge of the remote control (transmission window).

•

Check the battery terminals.

•

Check that the signal cable is rmly connected to the PC or video sources.

•

Check that the PC or video sources are turned on.

•

Check the maximum resolution and the frequency of the video adaptor.

• Compare these values with the data in the Display Modes.

•

If “Just Scan” is selected in some external devices, the damaged picture

may appear in the corner of the screen. This symptom is caused by external

devices, not TV.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

This is part of the product’s design and is not a defect.

button has been pressed on the remote control.

English - 74

English - 75

Specications

Model Name LE37A626 LE40A626

Screen Size

(Diagonal) 37 inches 40 inches

PC Resolution

(Optimum) 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

Sound

Output 10W x 2 10W x 2

Dimensions (WxDxH)

Body With stand

Weight

With Stand 18 kg 20 kg

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel

(Left / Right) -20˚ ~ 20˚

Design and specications are subject to change without prior notice.

➣

This device is a Class B digital apparatus.

➣

For the power supply and Power Consumption, refer to the label attached to the product.

➣

923 x 84 x 597 mm

923 x 300 x 658 mm

998 x 83 x 638 mm

998 x 300 x 698 mm

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

This page is intentionally

left blank.

Comment contacter Samsung dans le monde

Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service

Consommateurs Samsung. (Voir la quatrième de couverture pour plus d’informations.)

Précautionsàprendrelorsdel’afchaged’uneimagexe

Une image xe peut causer des dommages irrémédiables à l’écran du téléviseur.

N’afchez pas une image xe sur l’écran LCD plus de 2 heures. Cela pourrait provoquer une rémanence de l’image à l’écran.

•

Cette rémanence de l’image est également appelée “brûlure de l’écran”. Pour éviter une telle rémanence de l’image à l’écran, réduisez la luminosité et le contraste de l’écran lorsque vous laissez une image xe afchée.

•

L’afchage d’images xes de jeux vidéo et d’ordinateurs pendant plus longtemps qu’une période spécique peut provoquer des rémanences. Pour éviter cela, réduisez la “luminosité” et le “contraste” lors de l’afchage d’images xes.

Regarder l’écran LCD du téléviseur en format 4:3 pendant une longue période peut laisser des traces de

bordures à gauche, à droite et au centre de l’écran, à cause de la différence d’émission de lumière sur l’écran. La lecture d’un DVD ou l’utilisation d’une console de jeu peut avoir un effet similaire sur l’écran. Les dommages provoqués par les effets qui précèdent ne sont pas couverts par la garantie.

Sommaire

Branchement et installation de votre televiseur

Liste des pièces .................................................................2

■

Installation du support mural .............................................2

■

Présentation du panneau de comman ...............................3

■

Présentation du panneau de branchement .......................4

■

Télécommande ..................................................................7

■

Insertion des piles dans la télécommande ........................8

■

Mise en marche et arrêt .....................................................8

■

Mise en mode veille de votre téléviseur ............................8

■

Afchage des menus .........................................................9

■

Utilisation du bouton TOOLS .............................................9

■

Fonction Plug & Play .........................................................9

■

Gestion des canaux

Mémorisation automatique des canaux ........................... 11

■

Mémorisation manuelle des canaux ................................11

■ Afchage des informations relatives au Guide de

■

programme électronique (GPE) .......................................13

Congurer le Guide par défaut ........................................14

■

Gestion des chaînes ........................................................15

■

Réglage du gestionnaire de chaînes ...............................22

■

Activation du Verrouillage Enfant .....................................22

■

Syntonisation ne des chaînes analogiques ...................23

■

Vérication des informations relatives au signal ..............23

■

LNA (Amplicateur à faible bruit) .....................................24

■

Réglage de l’image

Changement de la norme Image .....................................25

■

Personnalisation des paramètres d’image ......................25

■

Réglage des paramètres détaillés ...................................26

■

Conguration des option d’image ....................................27

■ Reinitialisation des paramètres d’image à leur

■

valeur par défaut. .............................................................28

Visualisation d’une image dans l’image ...........................29

■

Réglage du son

Changement de la norme Son .........................................30

■

Sélection du mode Son ...................................................32

■

Branchement du casque (vendu séparément) ................32

■

Description des fonctions

Sélection d’une langue de menu .....................................36

■ Réglage de votre numéro d’identication personnel

■

(NIP) ................................................................................36

Conguration du contrôle parental ..................................37

■

Conguration des sous-titres ...........................................38

■

Sélection d’une langue de télétexte .................................39

■

Sélection d’une langue de préférence .............................39

■

Mélodie/Divertissement/Mode éco. .................................40

■

Mise à jour du logiciel ......................................................41

■

Visualisation de l’interface commune ..............................42

■

Sélection du Menu CI (Interface commune) ....................42

■

Sélection de la source .....................................................43

■

Modication du nom de la source d’entrée ......................43

■

Ecran du PC

Utilisation de votre télévision comme écran PC ..............44

■

Modes d’afchage ...........................................................44

■

Conguration du téléviseur avec le PC ...........................45

■

WISELINK

Utilisation de la fonction WISELINK ................................46

■

Utilisation de la liste de photos ........................................47

■

Tri de la liste des photos ..................................................49

■

Visualisation d’un diaporama ..........................................53

■

Utilisation de la liste de musiques ...................................57

■

Tri de la liste de musiques ...............................................58

■

Lecture d’un chier musical .............................................62

■

Utilisation du menu Conguration ...................................64

■

Annexe

Qu’est-ce que Anynet+? ..................................................65

■

Connexion d’appareils Anynet+ ......................................65

■

Conguration d’Anynet+ .................................................66

■

Recherche d’appareils Anynet+ et basculement entre des

■

appareils ..........................................................................66

Enregistrement ................................................................67

■

Ecoute via un récepteur (Home cinéma) .........................68

■

Dépannage d’Anynet+ ....................................................68

■

Français

Réglage de l’heure

Réglage de l’horloge ........................................................33

■

Réglage du minuteur de mise en veille ...........................34

■

Mises en marche et arrêt automatiques de votre

■

téléviseur .........................................................................35

Symboles Appuyer Remarque Bouton d’accès rapide

Français - 1

Recommendations for UseConseils d’utilisation

Fonction de télétexte .......................................................69

■

Ajustement xation murale (vendu séparément) ............70

■

Utilisation du verrouillage Kensington antivol

■

(en fonction du modèle) ...................................................72

Montage mural du téléviseur ...........................................73

■ Dépannage : Avant de contacter le personnel

■

du service d’assistance ...................................................74

Spécications techniques et environnementa .................75

■

Branchement et installation de votre televiseur

Liste des pièces

Vériez que les éléments suivants sont inclus avec votre téléviseur LCD. S’il manque des éléments, contactez votre revendeur.

Télécommande /

Piles (AAA x 2)

Manuel d’utilisation

•

Carte de garantie/ Manuel de sécurité / Cartes d’enregistrement (Non disponibles dans tous les pays)

➣

Cordon d’alimentation Bouchon - Base

Carte de garantie

•

Manuel de sécurité

•

Installation du support mural

Les élements du support mural (vendus séparément) permettent de xer le téléviseur au mur. Pour plus d’informations sur l’installation du support mural, reportez-vous aux instructions fournies avec les élements du support mural. Faites appel à un technicien pour installer la xation murale.

Samsung Electronics ne saurait être tenu responsable de tout dommage sur le produit ni de toute blessure subie par vous ou par d’autres personnes si vous choisissez d’effectuer l’installation murale.

N’installez pas votre kit de montage mural lorsque votre téléviseur est

en fonctionnement. Une blessure par choc électrique pourrait en résulter.

Enlevez le support, bouchez l’orice de la base et fermez à l’aide de deux vis.

➣

Chiffon de nettoyage

Cartes d’enregistrement

Français - 2

Français - 3

Présentation du panneau de comman

8 87

5 6

Boutons en façade

Touchez les boutons pour les actionner.

La couleur et la forme du produit peuvent varier en fonction du modèle.

➣

SOURCE

Afche un menu de toutes les sources d’entrée disponibles (TV, Ext.1, Ext.2, AV, S-Vidéo, Composant, PC, HDMI1, HDMI2/DVI, HDMI3). Dans le menu à l’écran, untilisez ce bouton de la même façon que le bouton ENTER de votre télécommande.

Permet d’afcher le menu des fonctions de votre téléviseur sur l’écran.

– +

Permet d’augmenter ou de baisser le volume. Dans le menu à l’écran, utiliser les boutons

–

+ de la même façon que les boutons ◄ et ► de

la télécommande.

C/P.

Permet de changer de canal. Dans le menu à l’écran,

utiliser les boutons C/P. de la même façon que

les boutons ▼ et ▲ de la télécommande.

Témoin d’alimentation

Clignote et s’éteint lorsqu’il est sous tension et s’allume en mode Veille.

(Alimentation)

Permet d’allumer et d’éteindre le téléviseur.

Capteur de la télécommande

Dirigez la télécommande vers ce point du téléviseur.

Haut-parleurs

Présentation du panneau de branchement

[Panneau arrière du téléviseur]

Entrée de

l’alimentation

[Prises du panneau latéral]

La couleur et la forme du produit peuvent varier en fonction du modèle.

➣

Lorsque vous branchez un périphérique externe à votre téléviseur, assurez-vous que celui-ci est éteint.

➣

Lorsque vous branchez un périphérique externe, faites correspondre les couleurs de la borne de connexion et du

câble.

PC IN [PC] / [AUDIO]

Pour raccorder la prise de sortie vidéo et audio de votre PC.

COMPONENT IN

- Branchez les câbles composants vidéo (en option) au connecteur de composant (“PR”, “PB”, “Y”) à l’arrière de votre téléviseur et les autres extrémités aux connecteurs de sortie vidéo du composant correspondants sur le téléviseur numérique ou le lecteur DVD.

- Si vous souhaitez brancher à la fois le boîtier décodeur et le téléviseur numérique (ou lecteur DVD), vous devez brancher le boîtier décodeur au téléviseur numérique (ou lecteur DVD) et le téléviseur numérique (ou lecteur DVD) au connecteur de composant (“PR”, “PB”, “Y”) de votre téléviseur.

- Les connecteurs PR, PB ou Y et de vos appareils composants (téléviseur numérique ou lecteur DVD) sont parfois désignés par les lettres Y, B-Y et R-Y ou Y, Cb et Cr.

- Branchez les câbles audio RCA (en option) sur la prise “R - AUDIO - L” située à l’arrière du téléviseur et leurs autres extrémités sur les prises de sortie audio correspondantes du téléviseur numérique ou du lecteur DVD.

HDMI IN 1, HDMI IN 2, HDMI IN 3

- Prend en charge les connexions entre des périphériques audio/vidéo compatibles HDMI (boîtiers décodeurs, lecteurs DVD).

- Aucune connexion audio supplémentaire n’est nécessaire pour une connexion HDMI - HDMI.

- Lorsque vous utilisez une connexion avec câble HDMI/DVI, vous devez utiliser la borne HDMI IN 2.

Français - 4

Français - 5

Qu’est-ce que HDMI ?

➣

- “High Denition Multimedia interface” permet la transmission de données vidéo numériques haute dénition et plusieurs canaux de son numérique.

- Le terminal HDMI/DVI prend en charge la connexion DVI vers un périphérique raccordé avec le câble adéquat (non fourni). La différence entre HDMI et DVI est que le périphérique HDMI est plus petit, est équipé de la fonction de codage HDCP (High Bandwidth Digital Copy Protection), et gère le son numérique multicanal.

Le téléviseur peut n’émettre aucun son et les images peuvent s’afcher avec une couleur anormale lorsque des

➣

lecteurs DVD/décodeurs/récepteurs satellite avec des versions du mode HDMI antérieures à HDMI 1.3 sont branchés. Lorsque vous branchez un câble HDMI doté d’une version antérieure et qu’aucun son n’est émis, branchez le câble HDMI à la prise HDMI IN 2 et les câbles audio aux prises DVI IN (HDMI2) [R-AUDIO-L] situées à l’arrière du téléviseur Dans ce cas, contactez la société qui fournit le lecteur DVD/décodeur câble/récepteur satellite an de conrmer votre version HDMI, puis demandez une mise à jour du micrologiciel. Les câbles HDMI d’une version autre que 1.3 peuvent provoquer des nuisances à l’écran ou une absence d’image.

DVI IN(HDMI2) [R-AUDIO-L]

- Sorties audio DVI pour périphériques externes.

Modes pris en charge pour HDMI/DVI et Composant

➣

480i 480p 576i 576p 720p 1080i 1080p

HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O

Composant O O O O O O O

ANT IN

An de retransmettre correctement les canaux de télévision, le téléviseur doit recevoir un signal depuis l’une des sources suivantes :

- une antenne extérieure / un réseau de télévision câblée / un réseau par satellite.

SERVICE

- Prise pour MAINTENANCE uniquement.

- Connectez-le à la prise du support de montage mural en option. Cette fonction vous permet d’ajuster l’angle de visualisation du téléviseur à l’aide de la télécommande.

Emplacement pour COMMON INTERFACE

- Si vous n’insérez pas la carte d’interface commune dans certains canaux, “Signal brouillé” s’afche sur l’écran.

- Les informations de pairage contenant un numéro de téléphone, l’ID de la CI CARD, l’ID de l’hôte et d’autres informations s’afcheront dans 2 ou 3 minutes. Si un message d’erreur s’afche, contactez votre prestataire de

service.

- Lorsque la conguration des informations sur les canaux est terminée, le message “Mise à jour terminée” s’afche, indiquant que la liste des chaînes est dorénavant mise à jour.

Vous devez obtenir une CI CARD provenant d’un fournisseur local de diffusion

➣

par câble. Retirez la CI CARD en la tirant délicatement avec vos mains. Sa chute pourrait l’endommager.

Insérez la carte d’interface commune (CI-Card) dans le sens indiqué sur

➣

celle-ci.

L’emplacement du logement pour COMMON INTERFACE peut varier en

➣

fonction du modèle.

WISELINK

Connectez un périphérique de stockage de masse USB pour afcher les chiers photo (JPEG) et écouter des chiers

audio (MP3).

S-VIDEO ou VIDEO / R-AUDIO-L

- Branchez un câble RCA ou S-VIDEO à un périphérique audio/vidéo externe approprié tel qu’un magnétoscope, un lecteur DVD ou un Caméscope.

- Branchez les câbles audio RCA sur la prise “R - AUDIO – L” du téléviseur et leurs autres extrémités sur les prises de sortie audio correspondantes du périphérique audio/vidéo.

PRISE CASQUE

Vous pouvez brancher un casque à la prise casque du téléviseur. Lorsque le casque est branché, les haut-parleurs intégrés n’émettent plus de son.

AUDIO OUT [R-AUDIO-L]

Branchez les câbles audio RCA au connecteur AUDIO OUT [R-AUDIO-L] situé à l’arrière de votre poste et aux connecteurs d’entrée audio correspondants sur l’amplicateur ou le système Home Cinema.

DIGITAL AUDIO OUT (OPTICAL)

- A connecter à un composant audio numérique.

Lorsque les prises HDMI IN sont branchées, la prise DIGITAL AUDIO OUT (OPTICAL) du téléviseur alimente

➣

uniquement un périphérique audio 2 canaux. Pour écouter des chaînes audio 5.1, branchez la prise optique du lecteur DVD ou du décodeur câble/récepteur satellite directement sur un amplicateur ou sur un système home cinéma, et non sur le téléviseur.

EXT 1, EXT 2

Connecteur

Vidéo Audio (L/R) RGB Vidéo + Audio (L/R)

Entrée Sortie

EXT 1 O O O Seule la sortie TV ou DTV est disponible. EXT 2 O O Sortie que vous pouvez sélectionner.

- Entrées ou sorties pour périphériques tels que des magnétoscopes, des lecteurs DVD, des consoles de jeux vidéo ou des lecteurs de vidéodisques.

VERROUILLAGE KENSINGTON (en fonction du modèle)

- Le verrouillage Kensington (en option) est un dispositif utilisé pour xer physiquement le système dans le cas d’une

utilisation dans un endroit public.

- Si vous désirez utiliser un dispositif de verrouillage, contactez le revendeur où vous avez acheté le téléviseur.

- L’emplacement du verrou Kensington peut varier en fonction du modèle.

Français - 6

Français - 7

Télécommande

Vous pouvez utiliser la télécommande à une distance maximale du téléviseur d’environ 7 m.

Bouton de mise en veille

du téléviseur.

Permet de sélectionner

directement le mode TV.

Pavé numérique pour

l’accès direct aux canaux.

Sélection de canaux à 1

ou 2 chiffres.

+: Augmentation du

volume.

–: Réduction du volume.

Sélection de la source

disponible.

Afchage EPG (Guide

électronique des

programmes).

Permet de sélectionner

rapidement les fonctions

fréquemment utilisées.

Afche les informations

relatives au programme en cours.

Boutons de couleur :

utilisez ces boutons dans la liste des canaux, WISELINK, etc.

Permet de sélectionner

l’afchage et les modes

son en option pour le

sport, le cinéma et les

jeux.

Utilisez ces boutons en

mode DMA, WISELINK et Anynet+. ( : cette télécommande

peut être utilisée pour contrôler les enregistreurs

Samsung avec la fonction Anynet+.)

Permet d’activer le

rétroéclairage des boutons de la télécommande.

Cette fonction est pratique la nuit ou lorsqu’il fait

sombre dans la pièce. (Utiliser la télécommande

avec le bouton ON/OFF

réglé sur Marche

permet de réduire la durée

d’utilisation de la pile.)

Chaîne précédente.

Arrêt temporaire du son.

P : chaîne suivante.

P : chaîne précédente.

Pour afcher le menu

principal à l’écran.

(

Cette fonction vous permet

de visualiser des photos

et d’écouter des chiers musicaux à partir d’un périphérique externe.

)

Revient au menu

précédent.

Permet de commander le

curseur dans le menu.

Permet de quitter le menu

afché à l’écran.

Utilisez ce paramètre

lorsque vous connectez un appareil SAMSUNG DMA (Digital Media Adapter) via une interface HDMI et basculez en mode DMA. (Le bouton DMA est en option.) Pour plus d’informations

sur les procédures

de fonctionnement, reportez-vous au manuel d’utilisation de l’appareil DMA. Ce bouton est disponible si la fonction

“Anynet+ (HDMI-CEC)” est “Marche” (voir page 66)

Sélection de la taille de

l’image.

Afchage numérique des

sous-titres.

Afche le menu “Liste des

chaînes” à l’écran.

Fonctions télétexte

Quitte l’afchage télétexte.

Sélection du mode

télétexte. (LIST/FLOF)

Mémorisation télétexte.

Sélection de la taille du

télétexte.

Activation du télétexte.

Sélection des rubriques

Fastext.

Choisissez Teletext,

Double, ou Mix.

Page secondaire télétexte.

P : page télétexte

suivante.

P : page télétexte

* ) b

précédente. Index télétexte. Pause télétexte. Annulation du télétexte

Une lumière intense peut affecter le bon fonctionnement de la télécommande.

➣

Insertion des piles dans la télécommande

1. Soulevez le couvercle situé à l’arrière de la télécommande comme indiqué sur la gure.

2. Placez-y deux piles AAA.

Assurez-vous que les pôles “+” et “-” des piles correspondent au schéma situé à

➣

l’intérieur du compartiment.

Remettez le couvercle en place.

Retirez les piles et stockez-les dans un endroit frais et sec si vous n’utilisez pas la

➣

télécommande pendant longtemps. Utiliser la télécommande avec le bouton ON/OFF

➣

réduire la durée d’utilisation de la pile.

Si la télécommande ne fonctionne pas :

➣

1. Le téléviseur est-il sous tension ?

2. Les bornes + et - des piles ne sont-elles pas inversées ?

3. Les piles sont-elles déchargées ?

4. Le cordon d’alimentation est-il débranché ou y a-t-il une panne de courant ?

5. Une lampe uorescente ou néon est-elle allumée à proximité ?

réglé sur Marche permet de

Mise en marche et arrêt

Le câble relié au secteur est xé à l’arrière du téléviseur/moniteur.

Branchez le cordon d’alimentation sur une prise secteur appropriée.

Le voyant de veille s’allume sur le téléviseur.

➣

Appuyez sur le bouton de votre téléviseur.

Vous pouvez également appuyer sur le bouton POWER

➣

allumer le téléviseur. Le dernier programme que vous avez regardé est automatiquement re-sélectionné.

➣

Appuyez sur le bouton numérique (de 0 à 9) ou le bouton canal suivant/précédent ( / ) de la télécommande ou sur

le bouton C/P. de votre téléviseur.

Lorsque vous allumez le téléviseur pour la première fois, vous devrez choisir la langue dans laquelle vous

➣

souhaitez que les menus s’afchent.

Pour éteindre votre téléviseur, appuyez de nouveau sur le bouton POWER .

ou sur le bouton TV/DTV de votre télécommande pour

Mise en mode veille de votre téléviseur

Vous pouvez mettre votre téléviseur en mode Veille an de réduire la consommation électrique. Le mode veille peut être utile si vous souhaitez éteindre votre téléviseur temporairement (pendant un repas par exemple).

Appuyez sur le bouton POWER de la télécommande.

L’écran s’éteint et un voyant de veille rouge apparaît sur votre téléviseur.

➣

Pour rallumer le téléviseur, appuyez de nouveau sur le bouton POWER , les boutons numériques (de 0 à 9), le

bouton TV/DTV ou les boutons canal suivant/précédent ( / ).

Ne laissez pas le téléviseur en mode Veille pendant de longues périodes (lorsque vous êtes en vacances par

➣

exemple). Il est conseillé de débrancher le téléviseur du secteur et de l’antenne.

Français - 8

Français - 9

Afchagedesmenus

1. Une fois l’appareil allumé, appuyez sur le bouton MENU. Le menu principal apparaît à l’écran. Plusieurs icônes s’afchent sur le côté gauche du menu: Image, Son, Canal, Conguration, Entrée, Application.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner l’une des icônes.

Appuyez ensuite sur le bouton ENTER pour accéder au sous-menu de

l’icône.

Appuyez sur le bouton EXIT pour quitter le menu.

Les menus disparaissent de l’écran après environ une minute.

➣


Mode

Rétroéclairage : 7 Contraste : 95 Luminosité : 45 Netteté : 50 Couleur : 50

Teinte (V/R) : G50/R50

Réglages des détails

Standard

Utilisation du bouton TOOLS

Vous pouvez utiliser le bouton TOOLS pour sélectionner simplement et rapidement les fonctions que vous utilisez le plus souvent. Le menu “Outils” change en fonction du mode d’entrée externe afché.

Utilisation du bouton TOOLS.

Le menu “Outils” s’afche.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner un menu.

3. Appuyez sur les boutons ▲/▼/◄/►/ENTER pour afcher, changer ou utiliser les éléments sélectionnés. Pour une description plus détaillée de chaque fonction, reportez-vous à la page correspondante.

Liste d’appareils: Reportez-vous aux pages 66

•

Mode Image: Reportez-vous aux pages 25

•

Mode Son: Reportez-vous aux pages 30

•

Veille: Reportez-vous aux pages 34

•

SRS TS XT: Reportez-vous aux pages 30

•

Mode éco.: Reportez-vous aux pages 40

•

Dual l ll: Reportez-vous aux pages 32

•

PIP: Reportez-vous aux pages 29

•

Réglage Automatique: Reportez-vous aux pages 45

•

Mode Image : Standard Mode Son : Personnalisé Veille : Arrêt SRS TS XT : Arrêt Mode éco. : Arrêt Dual l ll : Mono

Outils

Liste d’appareils

Déplacer

Entrer

Quitter

Fonction Plug & Play

Lorsque vous allumez le téléviseur pour la première fois, des réglages de base s’effectuent l’un après l’autre de manière

automatique.

Appuyez sur le bouton POWER de la télécommande.

Le message “Les menus Langue, Enr. démo, Canaux et Heure seront dénis.” s’afche.

Appuyez sur le bouton ENTER . Le menu “Sélectionnez la langue de

l’OSD.” s’afche automatiquement. Appuyer sur le bouton ENTER .

3. Sélectionnez la langue souhaitée en appuyant sur le bouton ▲ ou ▼.

Appuyez sur le bouton ENTER pour conrmer votre choix.

Les menus Langue, Enr. démo, Canaux et Heure seront définis.

Sélectionnez la langue de l’OSD.

Langue : Français ►

Plug & Play

Entrer

Plug & Play

Entrer

4. Appuyez sur les boutons ◄ ou ► pour sélectionner “Enr. démo” ou “Util. domicile”, puis sur le bouton ENTER .

Nous vous recommandons de régler le téléviseur sur le mode “Util.

➣

domicile” pour une meilleure qualité d’image dans votre environnement personnel

Le mode “Enr. démo” n’est prévu que pour un usage en magasins.

➣

Si l’unité est accidentellement dénie sur le mode “Enr. démo” et que vous

➣

souhaitez revenir au mode “Util. domicile” (Standard): Appuyez sur le bouton Volume du téléviseur. Lorsque l’OSD du volume s’afche, appuyez pendant 5 secondes sur le bouton MENU du téléviseur.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner la source de chaîne à

mémoriser. Appuyez sur le bouton ENTER pour sélectionner “Démarrer”.

Numérique & Analogique : Chaînes “Numérique” et “Analogique”.

➣

Numérique: Chaînes “Numérique”. Analogique: Chaînes “Analogique”.

La recherche de canaux démarrera et se terminera automatiquement.

➣

Appuyez sur le bouton ENTER

➣

à tout moment pour interrompre la

mémorisation.

➣

Une fois que tous les canaux disponibles sont mémorisés, le message “Régler le mode horloge.” s’afche.

Appuyez sur le bouton ENTER pour sélectionner “Mode Horloge”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Manuel”, puis appuyez sur

le bouton ENTER .

➣

Si vous sélectionnez “Auto.”, le message “Protez de votre visionnage” s’afche. Si vous avez reçu un signal numérique, l’heure sera automatiquement réglée.

Sélectionnez “Date”, “Mois”, “Année”, “Heure”, ou “Minute” en appuyant sur

le bouton ◄ ou ►. Sélectionnez les “Date”, “Mois”, “Année”, “Heure”, ou “Minute” en appuyant sur le bouton ▲ ou ▼.

➣

Vous pouvez également dénir les paramètres “Mois”, “Date”, “Année”, “Heure” et “Minute” à l’aide du pavé numérique de la télécommande.

8. Le message “Protez de votre visionnage” s’afche. Lorsque vous avez terminé, appuyez sur le bouton ENTER .

Plug & Play

Sélectionner “Util. domicile” pour installation à domicile.

Enr. démo

Sélectionnez le canal source à mémoriser.

Numérique & Analogique Numérique

Analogique

Ajustement automatique en cours. Canal 69

Chaîne numérique: 29 Chaîne analogique: 0

Enregistrement automatique terminé.

Chaîne numérique : 45

Chaîne analogique : 32

Régler le mode horloge.

Mode Horloge : Auto.

Régler la date et l'heure du jour.

Date

Heure

Déplacer

Profitez de votre visionnage

Plug & Play

Déplacer

Plug & Play

Arrêter

Plug & Play

Mois

Minute

Régler

Plug & Play

Util. domicile

Démarrer Démarrer Démarrer

Entrer

Auto.

Manuel

EntrerDéplacer Ignorer

Entrer

EntrerDéplacer

Ignorer

20%

Ignorer

IgnorerEntrer

Année

20 08

Skip

Si vous souhaitez réinitialiser cette fonction...

Appuyez sur le bouton MENU pour afcher le menu.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Conguration”, puis

appuyez sur le bouton ENTER .

2. Appuyez de nouveau sur le bouton ENTER pour sélectionner le mode “Plug & Play”.

Entrez votre code PIN à quatre chiffres. Le code PIN par défaut d’un

nouveau téléviseur est réglé sur “0-0-0-0”.

➣

Si vous souhaitez changer ce code PIN, reportez-vous à la page 36.

➣

Pour plus d’informations concernant le réglage des options, reportez-vous

aux pages 9 et 10.

➣

La fonction “Plug & Play” est uniquement disponible en mode TV.

Français - 10

Conguration

Plug & Play  ►

Langue : Français

Horloge

Modifier PIN

Verrouillage parental

Sous-titres

Langue du télétexte : ----

Préférence

Plug & Play

Les menus Langue, Enr.démo, Canaux et Heure seront définis.

Saisir le code PIN

0~9

Retour

Français - 11

Gestion des canaux

Mémorisation automatique des canaux

Vous pouvez chercher les plages de fréquence disponibles par balayage (leur disponibilité dépend de votre pays). Il est possible que les numéros de programme attribués automatiquement ne correspondent pas aux numéros de programme souhaités ou réels. Vous pouvez toutefois trier les numéros manuellement et supprimer les canaux que vous ne souhaitez

pas regarder.

Appuyez sur le bouton MENU pour afcher le menu.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur

le bouton ENTER .

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Mémorisation Auto”, puis

appuyez sur le bouton ENTER .

3. Appuyez sur le bouton ▲ ou ▼ pour sélectionner la source de chaîne à mémoriser. Appuyez sur le bouton ENTER pour sélectionner “Démarrer”.

Numérique & Analogique : Chaînes “Numérique” et “Analogique”.

➣

Numérique: Chaînes “Numérique”. Analogique: Chaînes “Analogique”.

Cherche toutes les chaînes avec des stations de diffusion active et les

➣

enregistre dans la mémoire du téléviseur. Si vous voulez arrêter la mémorisation automatique, appuyez sur le bouton ENTER

➣

programme automatique?” s’afche. Sélectionnez “Oui” en appuyant sur le bouton ◄ ou ►, puis appuyez sur le bouton ENTER .

4. Appuyez sur le bouton EXIT pour quitter le menu.

Si une chaîne est verrouillée par la fonction “Verrouillage Enfant”, la fenêtre de saisie du code PIN s’afche (voir

➣

page 22).

Canal

Mémorisation Auto  ►

Mémorisation Manuelle

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche

. Le message “Arrêter le

Mémorisation manuelle des canaux

Vous pouvez mémoriser les canaux de télévision, y compris ceux reçus via les réseaux câblés. Lors de la mémorisation manuelle des canaux, vous pouvez choisir :

de mémoriser ou non chaque canal trouvé ;

•

le numéro du programme qui vous servira à identier chaque canal mémorisé.

•

Appuyez sur le bouton MENU pour afcher le menu.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur

le bouton ENTER .

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Mémorisation Manuelle”,

puis appuyez sur le bouton ENTER .

Chaîne numérique

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Chaîne numérique”, puis

appuyez sur le bouton ENTER .

Si une chaîne est verrouillée par la fonction “Verrouillage Enfant”, la

➣

fenêtre de saisie du code PIN s’afche (voir page 22).

Appuyez sur le bouton ◄ ou ► pour sélectionner l’option de votre choix.

− Canal : Sélectionnez le numéro de chaîne à l’aide des boutons ▲, ▼ ou

des chiffres.

− Fréquence : Sélectionnez la fréquence à l’aide des chiffres.

− Bande passante : Sélectionnez la bande passante à l’aide des boutons

▲, ▼ ou des chiffres.

Appuyez sur le bouton ENTER pour lancer la recherche de services

numériques.

Au terme de la recherche, les chaînes de la liste sont mises à jour.

➣

Lorsque c’est terminé, le nombre de services balayés s’afche.

7. Appuyez sur le bouton EXIT pour quitter le menu.

Mémorisation Auto

Canal

Mémorisation Manuelle

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Mémorisation Auto

Canal

MémorisationManuelle ►

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Mémorisation Manuelle

Canal

Déplacer

Fréquence

554000 KHz

Régler

 ►

Chaîne numérique

Chaîne analogique

Bande passante

8MHz

RetourRecherche

Chaîne analogique

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Chaîne analogique”, puis

appuyez sur le bouton ENTER .

Si une chaîne est verrouillée par la fonction “Verrouillage Enfant”, la

➣

fenêtre de saisie du code PIN s’afche (voir page 22).

Appuyez sur le bouton ◄ ou ► pour sélectionner l’élément désiré ci-

dessous.

Appuyez sur le bouton ▲ ou ▼ pour valider le réglage.

5. Appuyez sur le bouton EXIT pour quitter le menu.

Programme (numéro de programme à attribuer à une chaîne)



Appuyez sur le bouton ▲ ou ▼ jusqu’à ce que vous trouviez le numéro

correct.

Vous pouvez également sélectionner le numéro de canal directement en

➣

appuyant sur le pavé numérique (0~9).

Système de Couleur



: Auto./PAL/SECAM/NTSC4.43

− Appuyez sur le bouton ▲ ou ▼ pour sélectionner la norme de couleurs

désirée.



Système Sonore: BG/DK/I/L

Appuyez sur le bouton ▲ ou ▼ pour sélectionner la norme audio désirée.



Canal (si vous connaissez le numéro de la chaîne à mémoriser) Appuyez sur le bouton ▲ ou ▼ pour sélectionner C (canal hertzien) ou S (canal câblé).

Appuyez sur le bouton ►, puis sur le bouton ▲ ou ▼ pour sélectionner le numéro de votre choix.

➣

Vous pouvez également sélectionner le numéro de canal directement en appuyant sur le pavé numérique (0~9).

➣

S’il n’y a aucun son ou si le son est anormal, re-sélectionnez la norme son désirée.

Mémorisation Auto

Canal

Mémorisation Manuelle

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Mémorisation Manuelle

Programme

Système de CouleurBGSystème Sonore

Canal

Au to .

Recherche?Store

62 MHz

Déplacer

Chaîne numérique

Chaîne analogique

Régler

Retour

►



Recherche (lorsque vous ne connaissez pas les numéros de chaîne)

Appuyez sur le bouton ▲ ou ▼ pour démarrer la recherche. Le syntoniseur balaie la plage de fréquences jusqu’à ce que vous receviez la première chaîne ou la chaîne que vous avez sélectionnée à l’écran.



Mémoriser (permet de mémoriser la chaîne et le numéro de programme correspondant) Sélectionnez “OK” en appuyant sur le bouton ENTER

Canal mode

➣

- P (Mode Programme) : A la n du réglage, des numéros de position compris

entre P00 et P99 sont attribués aux stations de radiodiffusion de votre zone. Dans ce mode, vous pouvez sélectionner un canal en saisissant son numéro de position.

- C (mode chaîne hertzienne) : dans ce mode, vous pouvez sélectionner

un canal en saisissant le numéro attribué à chacune des stations de télédiffusion.

- S (mode chaîne câblée) : dans ce mode, vous pouvez sélectionner un canal

en saisissant le numéro attribué à chacun des canaux câblés.

Français - 12

Français - 13

AfchagedesinformationsrelativesauGuidedeprogrammeélectronique(GPE)

Les informations relatives au Guide de programme électronique (GPE) sont fournies par les émetteurs. Les entrées de programmes peuvent apparaître en blanc ou ne pas être à jour en raison de l’information diffusée sur un canal donné. L’afchage fera une mise à jour automatique dès qu’une nouvelle information sera disponible.

Appuyez sur le bouton MENU pour afcher le menu.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur

le bouton ENTER .

3. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Guide Complet” ou “Mini Guide”, puis appuyez sur le bouton ENTER .

Mini Guide



Les informations de chaque programme sont afchées ligne par ligne sur l’écran Mini-guide de la chaîne actuelle, en commençant par le programme en cours, dans l’ordre des heures de début des programmes.

Guide Complet



Afche les informations relatives au programme toutes les heures. Des informations sur deux heures de programme sont afchées et peuvent être

parcourues en avançant ou en remontant dans le temps.

Pour… Alors…

Regarder un programme de la liste EPG

Sélectionnez un programme en appuyant sur le bouton ▲, ▼, ◄, ►.

Quitter le guide Appuyez sur le bouton bleu.

Si le programme suivant est sélectionné, il est réglé avec

➣

l’icône de l’horloge afché. Si vous appuyez à nouveau sur le

bouton ENTER

, puis sur ◄, ► pour sélectionner Annuler

les programmations, la programmation est annulée et l’icône de

l’horloge disparaît. Pour plus d’informations sur les programmes

réglés, voir page suivante.

Voir les informations

relatives aux programmes

Sélectionnez un programme de votre

•

choix en appuyant sur le bouton ▲, ▼, ◄, ►.

Appuyez sur le bouton INFO lorsque le

•

programme souhaité est surligné.

Le titre du programme se trouve sur la

•

partie haute du centre de l’écran.

Appuyez sur le bouton INFO pour plus d’informations. Numéro

➣

de canal, temps de fonctionnement du programme, barre d’état, niveau de contrôle parental, informations sur la qualité vidéo

(HD/SD), modes sonores, sous-titres ou Teletext, Langue des

sous-titres ou du Teletext et bref résumé du programme surligné font partie des informations supplémentaires. “...” apparaîtra si le résumé est long.

Choisissez entre “Mini Guide” ou “Guide Complet”

Appuyez à plusieurs reprises sur le

bouton rouge.

Dans le Guide complet

Permet de reculer

• rapidement (24 heures).

Permet d’avncer

• rapidement (24 heures)

Appuyez à plusieurs reprises sur le

• bouton vert.

Appuyez à plusieurs reprises sur le

• bouton jaune.

Dans le Mini-guide

Afcher rapidement la

• page suivante.

Afcher rapidement la

•

page précédente.

Vous pouvez aussi afcher le guide en appuyant tout simplement sur le

Appuyez à plusieurs reprises sur le

• bouton vert.

Appuyez à plusieurs reprises sur le

• bouton jaune.

bouton GUIDE. (Pour la conguration du guide par défaut, se reporter aux

instructions à la page 14.)

Mémorisation Auto Mémorisation Manuelle

Canal

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

Guide Complet

900 f tn

901 ITV Play

902 Kerrang! 903 Kiss 903 oneword 903 Smash Hits!

▼

Voir

Canal

Mini Guide DTV Cable 900 f tn

2:00 2:30

▼

5:00

Voir

DTV Cable 900 f tn 2:10 Tue 1 Jun

Freshmen On Campus

2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Freshmen O..

Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

Information



Information

Mini Guide +24Heures Quitter

Mémorisation Manuelle

Guide Complet

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche

Réglage fin

Informations de signal

LNA : Arrêt

Freshmen On Campus Street Hypnosis Booze Britain



Guide Complet Page suiv. Quitter

No Information

No Information Kisstory No Information

CongurerleGuidepardéfaut

Vous pouvez choisir d’afcher soit le “Mini Guide” soit le “Guide Complet” lorsque vous appuyez sur le bouton GUIDE de la télécommande.

Appuyez sur le bouton MENU pour afcher le menu.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur

le bouton ENTER .

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Par défaut”, puis appuyez

sur le bouton ENTER .

Guide Complet

Mini Guide

Canal

Par défaut : Mini Guide ►

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

3. Sélectionnez “Mini Guide” ou “Guide Complet” à l’aide du bouton ▲ ou ▼,

puis sur le bouton ENTER .

4. Appuyez sur le bouton EXIT pour quitter le menu.

Vous pouvez sélectionner ces options en appuyant sur le bouton GUIDE de

votre télécommande.

Guide Complet

Mini Guide

Canal

Pardéfaut :MiniGuide ►

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

Mini Guide

Guide Complet

Français - 14

Français - 15

Gestion des chaînes

Ce menu permet d’ajouter/supprimer ou dénir des chaînes favorites et d’utiliser le guide des programmes pour les émissions numériques.

Afchagedetoutesleschaînes

Afche toutes les chaînes actuellement disponibles. Pour utiliser la fonction “Liste des chaînes”, effectuez d’abord une mémorisation

automatique des programmes (“Mémorisation Auto”).

1. Appuyez sur le bouton MENU.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur le bouton ENTER . Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Liste des chaînes”, puis appuyez sur le bouton ENTER .

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

Chaînes ajoutées

2. Appuyez sur le bouton ◄ pour sélectionner “Chaînes ajoutées”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Tous les canaux”.

Afche toutes les chaînes actuellement disponibles.

➣

Tous les canaux

Appuyez sur le bouton ENTER .

4. Appuyez sur le bouton ▲ ou ▼ pour sélectionner une chaîne à visualiser, puis appuyez sur le bouton ENTER . Vous pouvez regarder la chaîne

sélectionnée.

Appuyez sur le bouton CH LIST de la télécommande pour afcher les listes

de chaînes.

Utilisation des boutons de couleur de la télécommande dans la liste des chaînes

Rouge (Type de canal): Permet de basculer entre “TV”, “Radio”, “Donn/

•

autre” et “Tous”. Vert (Zoom): Agrandit ou réduit une chaîne.

•

Jaune (Sélection): Sélectionne des listes de chaînes.

•

TOOLS (Option): Afche le menu “Supprimer”(ou “Ajouter”), “Ajouter aux favoris”(ou “Supprimer des favoris”), “Verrouil.”, “Ecoute programmée”,

“Modi. nom du chaîne”, “Tri des canaux”, “Modi. numéro chaîne”, “Sélectionner tout”, “Désélectionner tout” ou “Mémorisation Auto”. (Les options de menus peuvent différer selon la situation.)

Une chaîne grisée est une chaîne qui a été supprimée.

➣

Le menu “Ajouter” apparaît uniquement pour les chaînes supprimées. Une chaîne marquée “♥” est une chaîne qui a été dénie comme Favoris.

➣

Le menu “Supprimer des favoris” apparaît uniquement pour les chaînes marquées “♥”.

Tous

Type de canal



Type de canal



824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 ♥ C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C



Zoom Sélection

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 ♥ C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C



Zoom Sélection

Option

Effacement et ajout de chaînes

Vous pouvez supprimer ou ajouter une chaîne an d’afcher les chaînes de votre choix.

Appuyez sur le bouton MENU.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur le bouton ENTER . Appuyez sur le bouton ▲ ou ▼ pour sélectionner

Canal

“Liste des chaînes”, puis appuyez sur le bouton ENTER .

2. Appuyez sur le bouton ◄ pour sélectionner “Chaînes ajoutées”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Tous les canaux”.

Afche toutes les chaînes actuellement disponibles.

➣

Appuyez sur le bouton ENTER .

4. Appuyez sur le bouton ▲ ou ▼ pour sélectionner une chaîne à supprimer, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ENTER pour sélectionner “Supprimer”.

Toutes les chaînes supprimées apparaîtront dans le menu “Tous les

➣

Tous les canaux

canaux”.

Appuyez sur le bouton EXIT pour quitter le menu.

De la même manière, vous pouvez également ajouter une chaîne au menu

➣

“Chaînes ajoutées”. Une chaîne doit être supprimée avant de pouvoir être rajoutée à la liste

➣

“Chaînes ajoutées”. Pour rajouter une chaîne à la liste Chaînes ajoutées, suivez les étapes 1 à

➣

3 ci-dessus, appuyez sur le bouton ▲ ou ▼ pour sélectionner une chaîne à

ajouter, puis appuyez sur le bouton TOOLS. Appuyez sur le bouton ENTER

Appuyez sur le bouton CH LIST de la télécommande pour afcher les listes

pour sélectionner Ajouter.

de chaînes.

Mini Guide

Par défaut : Mini Guide

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C



Zoom Sélection

Tous

Type de canal



Supprimer

Ajouter aux favoris

Verrouil. Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

▼

Option

Sélection de vos chaînes favorites

Vous pouvez dénir comme favorites les chaînes que vous regardez souvent.

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ◄ pour sélectionner “Chaînes ajoutées”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Tous les canaux”.

Afche toutes les chaînes actuellement disponibles.

➣

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

Appuyez sur le bouton ENTER .

4. Appuyez sur le bouton ▲ ou ▼ pour désigner une chaîne comme chaîne favorite.

Ajout de plusieurs chaînes aux favoris

➣

Appuyez sur le bouton ▲ ou ▼ pour sélectionner la chaîne voulue dans la liste des chaînes. Appuyez ensuite sur le bouton jaune. Répétez l’opération ci-dessus pour sélectionner plusieurs chaînes. La marque s’afche à gauche des chaînes sélectionnées.

Appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Ajouter aux favoris”, puis

appuyez sur le bouton ENTER . Le symbole “♥” s’afche et la chaîne est

dénie comme favorite.

Pour annuler la sélection d’une chaîne favorite, appuyez sur le bouton

824 UKTV Gold

Tous les canaux

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



Supprimer

Ajouter aux favoris

Verrouil.

Ecoute programmée

Modifi. nom du chaîne

Tri des canaux



Zoom Sélection

▼

Option

TOOLS alors qu’une chaîne favorite est sélectionnée.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Supprimer des favoris”, puis appuyez sur le bouton ENTER .

La chaîne est alors effacée de la liste “Favoris” et la marque “♥” correspondante disparaît.

Appuyez sur le bouton EXIT pour quitter le menu.

Vous pouvez également ajouter ou supprimer une chaîne de la liste Favorites de la même manière dans le menu

➣

“Chaînes ajoutées”. Toutes les chaînes favorites apparaîtront dans le menu “Favoris”.

➣

Appuyez sur le bouton CH LIST de la télécommande pour afcher les listes

de chaînes.

Français - 16

Français - 17

Verrouillage et déverrouillage de chaînes

Cette fonction n’est disponible que lorsque la fonction “Verrouillage Enfant” est à “Marche”. (Voir page 22)

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ◄ pour sélectionner “Chaînes ajoutées”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Tous les canaux”.

Afche toutes les chaînes actuellement disponibles.

➣

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

Appuyez sur le bouton ENTER .

Verrouillage de chaînes

Appuyez sur le bouton ▲ ou ▼ pour sélectionner les chaînes à verrouiller, puis

appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Verrouil.”, puis appuyez sur

le bouton ENTER .

6. Entrez votre code PIN à quatre chiffres.

➣

Le symbole “ ” s’afche et la chaîne est verrouillée.

➣

Le code PIN par défaut d’un nouveau téléviseur est réglé sur “0-0-0-0”.

➣

Si vous souhaitez changer ce code PIN, reportez-vous à la page 36.

Tous les canaux

Type de canal

Tous



824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C



Supprimer

Ajouter aux favoris

Verrouil. Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

Zoom Sélection

▼

Option

Déverrouillage de chaînes

Appuyez sur le bouton ▲ ou ▼ pour sélectionner les chaînes à déverrouiller,

puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Déverrouillé”, puis appuyez

sur le bouton ENTER .

9. Entrez votre code PIN à quatre chiffres.

➣

La chaîne est alors déverrouillée et la marque “ ” correspondante

disparaît.

➣

Le code PIN par défaut d’un nouveau téléviseur est réglé sur “0-0-0-0”.

➣

Si vous souhaitez changer ce code PIN, reportez-vous à la page 36.

10.

Appuyez sur le bouton EXIT pour quitter le menu.

Tous les canaux

Type de canal

Tous



824 UKTV Gold 825 UKTV style

A 1 C --

A 2 C

A 3 C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C



Zoom Sélection

Supprimer

Ajouter aux favoris

Déverrouillé Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

▼

Option

Réservation d’un programme (Ecoute programmée)

Si vous réservez un programme que vous souhaitez regarder, la chaîne bascule automatiquement vers la chaîne réservée dans la liste de chaînes, même lorsque vous êtes en train de regarder une autre chaîne. Pour réserver un programme, réglez d’abord l’heure actuelle. (Voir pages 33~34)

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner une chaîne, puis appuyez sur le bouton TOOLS.

3. Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Ecoute programmée”, puis

appuyez sur le bouton ENTER . L’écran de réservation d’un programme (Ecoute programmée) apparaît.

Appuyez sur le bouton ▲/▼/◄/► pour réserver un programme, puis

appuyez sur le bouton ENTER . La réservation d’un programme est

terminée.

Appuyez sur le bouton EXIT pour quitter le menu.

Vous pouvez également réserver un programme dans les menus “Tous les

➣

canaux” ou “Favoris” en suivant les mêmes procédures. Pour des informations sur la façon de vérier une réservation, reportez-vous

➣

à la page 19. Seules des chaînes mémorisées peuvent être réservées. Vous pouvez régler directement la chaîne, le mois, le jour, l’heure et les

➣

minutes à l’aide du pavé numérique de la télécommande.

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

824 UKTV Gold

Chaînes ajoutées

825 UKTV style

A 1 C --

A 2 C

A 3 ♥ C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C

Type de canal

Tous



Antenne

DT V

01 - 0 1 - 200 8

Déplacer



Zoom Sélection

Ecoute programmée

Canal

80 0

Date

Régler

Supprimer

Ajouter aux favoris

Verrouil. Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

▼

Option

Répétition

Un e f oi s

Heure démarrage

10 :0 0

RetourEntrer

Appuyez sur le bouton CH LIST de la télécommande pour afcher les listes

de chaînes.

Guide des programmes numérique et affichage des réservations

Lorsqu’une chaîne numérique est sélectionnée et que vous appuyez sur le bouton ►, le Guide des programmes de la chaîne apparaît. Vous pouvez réserver un programme en suivant les procédures décrites ci-dessus.

: Un programme en cours de diffusion. : Un programme réservé.

824

Chaînes ajoutées

825

908

2 C

3 ♥ C

4 C

5 C

6 C

7 C

8 C

Type de canal

Tous



1/1/2008

1:59 LA ROSE DES ....

2:59 WS MUSIC

3:21

Zoom

Gralness de stars

Option Voir



Français - 18

Français - 19

Véricationd’uneréservation

Vous pouvez voir, modier ou supprimer une réservation.

Appuyez sur le bouton MENU.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Canal”, puis appuyez sur le bouton ENTER . Appuy ez sur le bouton ▲ ou ▼ pour sélectionner “Liste des chaînes”, puis appuyez sur le bouton ENTER .

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

2. Appuyez sur le bouton ◄ pour sélectionner “Chaînes ajoutées”.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Programmé”.

Afche tous les programmes actuellement réservés.

➣

Appuyez sur le bouton ENTER .

Modification d’une réservation

Appuyez sur le bouton ▲ ou ▼ pour sélectionner la réservation à modier,

puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ENTER pour sélectionner “Infos sur les

modications”.

Appuyez sur les boutons ▲/▼/◄/► pour modier un paramètre de

réservation, puis appuyez sur le bouton ENTER . La réservation est modiée.

Annulation d’une réservation

Appuyez sur le bouton ▲ ou ▼ pour sélectionner la réservation à modier,

puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Annuler les

programmations”, puis appuyez sur le bouton ENTER .

6. Appuyez sur le bouton ◄ ou ► pour sélectionner “OK”, puis appuyez sur le bouton ENTER . La réservation de visionnage est annulée.

Appuyez sur le bouton EXIT pour quitter le menu.

Option programmée

Infossurlesmodications : Permet de modier une réservation.

•

Annuler les programmations : Permet d’annuler une réservation.

•

Information : Permet de visualiser une réservation.

•

Sélectionner tout : Sélectionner tous les programmes réservés.

•

Programmé

1/1/2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer 20:59 2 TV3 McMillan & Wife 21:59 2 TV3 M.Spillane’s mike Hammer

Type de canal

Tous



Zoom Sélection

Programmé

1/1/2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer 20:59 2 TV3 McMillan & Wife 21:59 2 TV3 M.Spillane’s mike Hammer

Type de canal

Tous



Zoom Sélection

Option Information

Infos sur les modifications

Annuler les programmations

Information

Sélectionner tout

Option Information

Appuyez sur le bouton CH LIST de la télécommande pour afcher les listes

de chaînes.

Modierlenomd’unechaîne-Analogique

Les chaînes peuvent recevoir un libellé qui s’afchera chaque fois que la chaîne est sélectionnée.

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner la chaîne à laquelle vous souhaitez attribuer un nouveau nom, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Modi. nom du chaîne”,

puis appuyez sur le bouton ENTER .

4. Appuyez sur le bouton ▲/▼/◄/► pour sélectionner une lettre, puis appuyez sur le bouton ENTER .

Touches numériques : Permettent d’entrer des chiffres.

•

Bouton rouge : Permet de basculer entre English et Characters.

•

Bouton vert : Permet d’effacer un caractère déjà introduit.

•

Bouton jaune : Permet d’insérer un espace.

•

Bouton bleu : Valide le nouveau nom.

•

5. Lorsque vous avez terminé, appuyez sur le bouton bleu pour attribuer le nouveau nom.

Appuyez sur le bouton EXIT pour quitter le menu.

Les chaînes numériques ont des noms qui leur sont automatiquement

➣

attribués et ne peuvent pas être modiés.

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

824 UKTV Gold

Chaînes ajoutées

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



803

B C D E F G

I J K L M NH

P Q R S T UO

W X Y ZV

Supprimer

Ajouter aux favoris

Verrouil.

Ecoute programmée

Modifi. nom du chaîne

Tri des canaux



Zoom Sélection

Modifi. nom du chaîne

▼

Option

0~9

Number

Character



Supprimer



Blank



Done



Entrer RetourDéplacer

Tri des chaînes mémorisées - Analogique

Cette opération vous permet de changer les numéros de programme des canaux mémorisés. Cette opération peut s’avérer nécessaire après l’utilisation de la mémorisation automatique.

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner une chaîne, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Tri des canaux”, puis

appuyez sur le bouton ENTER .

4. Appuyez sur le bouton ▲ ou ▼ pour passer à la position que vous souhaitez modier puis appuyez sur le bouton ENTER .

5. Répétez les étapes 2 à 4 pour enregistrer un autre canal.

6. Appuyez sur le bouton EXIT pour quitter le menu.

Français - 20

Mini Guide

Par défaut : Mini Guide

Canal

Liste des chaînes

Mode Canal : Chaînes ajoutées Verrouillage Enfant : Marche Réglage fin

Informations de signal

LNA : Arrêt

824 UKTV Gold

Chaînes ajoutées

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



802 abc1

803 BBC Radio 1

804 BBC Radio 2

805 BBC Radio 3

806 BBC Radio 4

807 BBC World

Déplacer

Ajouter aux favoris

Verrouil. Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

Sélectionner tout



Zoom Sélection

Tri des canaux

▲

▼

Option

▼

RetourEntrer

Français - 21

Modicationd’unnumérodechaîne-Numérique

1. Appuyez sur le bouton MENU.

2. Sélectionnez le numéro de chaîne à modier en appuyant plusieurs fois sur le bouton ▲ ou ▼, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Modi. numéro chaîne”,

puis appuyez sur le bouton ENTER .

4. Vous pouvez également modier le numéro de chaîne en appuyant plusieurs fois sur le bouton ▲ ou ▼. Vous pouvez également modier le numéro de chaîne à l’aide du pavé numérique de la télécommande.

824 Television X

Chaînes ajoutées

825 UKTV style

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



Canal

803

Supprimer

Ajouter aux favoris

Verrouil.

Ecoute programmée

Modifi. numéro chaîne

Sélectionner tout



Zoom Sélection

Modifi. numéro chaîne

Nom

BBC Radio 1

▼

Option

Sélection et désélection de toutes les chaînes

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner la chaîne, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Sélectionner tout” ou

“Désélectionner tout”, puis appuyez sur le bouton ENTER . Vous pouvez sélectionner (ou désélectionner) toutes les chaînes de la liste

➣

des chaînes.

La marque

➣

s’afche à gauche des chaînes sélectionnées.

Enregistrement des chaînes dans la mémoire (Mémorisation automatique)

Appuyez sur le bouton MENU.

2. Appuyez sur le bouton ▲ ou ▼ pour sélectionner la chaîne à laquelle vous souhaitez attribuer un nouveau nom, puis appuyez sur le bouton TOOLS.

Appuyez sur le bouton ▲ ou ▼ pour sélectionner “Mémorisation Auto”, puis

appuyez sur le bouton ENTER .

➣

Pour plus d’informations concernant le réglage des options, reportez-vous à

la page 11.

➣

Si une chaîne est verrouillée par la fonction “Verrouillage Enfant”, la fenêtre de saisie du code PIN s’afche (voir page 22).

824 UKTV Gold

Chaînes ajoutées

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C

A 4 C

A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



824 UKTV Gold

Chaînes ajoutées

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

Type de canal

Tous



Déplacer



Zoom Sélection



Zoom Sélection

RetourEntrer

Supprimer

Ajouter aux favoris

Verrouil. Désélectionner tout Sélectionner tout Mémorisation Auto

Option

▲

Verrouil. Ecoute programmée

Modifi. nom du chaîne

Tri des canaux

Sélectionner tout Mémorisation Auto

Option

SAMSUNG LE37A626A3M, LE40A626 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Connecting and Preparing Your TV

List of Parts

Installing the Wall Mount Kit

Viewing the Control Panel

Viewing the Connection Panel

Remote Control

Installing Batteries in the Remote Control

Switching On and Off

Placing Your Television in Standby Mode

Viewing the Menus

Using the TOOLS Button

Plug & Play Feature

Channel Control

Storing Channels Automatically

Storing Channels Manually

Viewing the EPG (Electronic Programme Guide) Information

Setting the Default Guide

Managing Channels

Setting the Channel Mode

Activating the Child Lock

Checking the Digital-Signal Information

Picture Control

Changing the Picture Standard

Customizing the Picture Settings

Adjusting the Detailed Settings

Resetting the Picture Settings to the Factory Defaults

Viewing Picture-in-Picture

Sound Control

Changing the Sound Standard

Selecting the Sound Mode

Connecting Headphones (Sold separately)

Time Setting

Setting the Clock

Setting the Sleep Timer

Switching the Television On and Off Automatically

Function Description

Selecting a Menu Language

Setting the Subtitle

Selecting a Teletext Language

Selecting a Preference Language

Melody/Entertainment/Energy Saving

Upgrading the Software

Viewing Common Interface

Selecting the CI (Common Interface) Menu

To Select the Source

To Edit the Input Source Name

PC Display

Using Your TV as a Computer (PC) Display

Display Modes

Setting up the TV with your PC

WISELINK

Using the WISELINK Function

Using the Photo List

Sorting Photo List

Viewing a Photo or Slide Show

Using the Music List

Sorting Music List

Playing a Music File

Using the Setup Menu

Connecting Anynet+ Devices

Scanning and Switching between Anynet+ Devices

Recording

Troubleshooting for Anynet+

Recommendations for Use

Teletext Feature

Auto Wall-Mount Adjustment (Sold separately)

Using the Anti-Theft Kensington Lock (depending on the model)

Securing the TV to the Wall

Troubleshooting: Before Contacting Service Personnel
