Samsung LE40A552P3R, LE37A552P3R, LE52A552P3R User Manual

Download

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

EIRE 0818 717 100 www.samsung.com/ie U.K 0845 SAMSUNG (7267864) www.samsung.com

Customer Care Centre

Web Site

LCD TV

user manual

BN68-01410C-00

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

WARNINGS:

Image retention, commonly known as screen burn-in, can occur on most types of television if the same image is displayed continuously. The most common causes of image retention are logos that remain stationary on the TV screen. These logos are common on many programmes received via a Setop Box. To reduce this risk, avoid displaying still images for long durations and lower the brightness or contrast settings to decrease the intensity of the picture. Extended viewing of movies and programs in aspect ratios that are different from the aspect ratio of the TV may cause image retention. Always endeavour to avoid black borders top or bottom by using the zoom function. This will help eliminate the black

borders and t the picture to the entire area of the screen. Using a video game console may cause

image retention and is not recommended. When using a PC input, avoid displaying still images for long durations and reduce the brightness or contrast settings to decrease the intensity of the picture.

IMPORTANT:

Image retention issues are not covered by your Samsung® warranty.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care centre. (See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image

• retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders

•

caused by the above effect are not covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce

• partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages

Contents

CONNECTING AND PREPARING YOUR TV

List of Parts ........................................................ 2



Installing the Stand ............................................. 2



Installing the Wall Mount Kit ............................... 2



Viewing the Control Panel .................................. 3



Viewing the Connection Panel ........................... 4



Viewing the Remote Control ............................... 6



Installing Batteries in the Remote Control .......... 7



Switching On and Off ......................................... 7



Placing Your Television in Standby Mode........... 7



Viewing the Menus ............................................. 8



Using the TOOLS Button .................................... 8



Plug & Play ......................................................... 9



SETTING THE CHANNELS

Storing Channels Automatically ....................... 10



Storing Channels Manually ...............................11



Adding / Locking Channels .............................. 12



Sorting the Stored Channels ............................ 13



Assigning Channels Names ............................. 13



Fine Tuning Channel Reception ....................... 14



FUNCTION DESCRIPTION

Choosing Your Language ................................. 24



Setting the Light Effect



(depending on the model) ................................ 25

Melody / Entertainment / Energy Saving ......... 25



Selecting the Source ........................................ 27



Editing the Input Source Names ...................... 27



SETTING THE PC

Setting up Your PC Software



(Based on Windows XP) .................................. 28

Display Modes .................................................. 28



Setting up the TV with your PC ........................ 29



WISELINK

Using the WISELINK Function ......................... 30



Using the WISELINK Menu .............................. 31



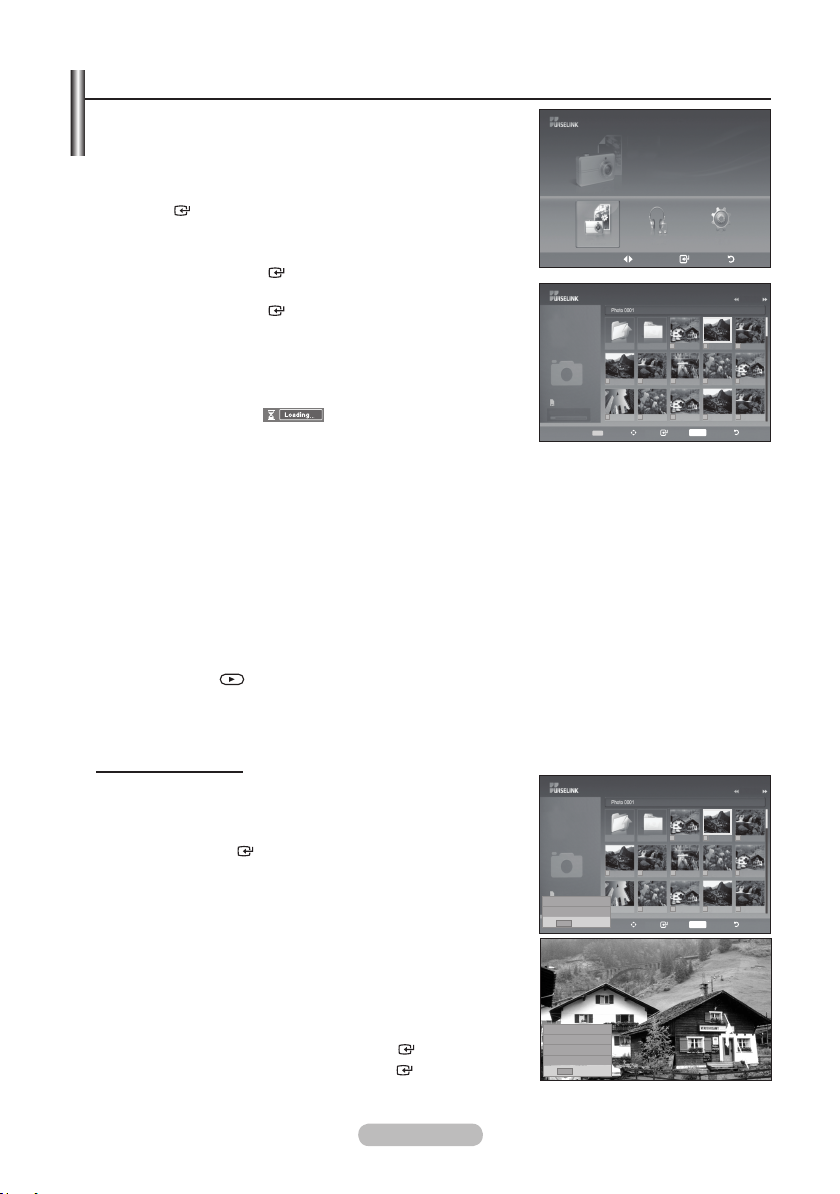

Using the PHOTO (JPEG) List ......................... 32



Using the MP3 List ........................................... 35



Using the Setup Menu ...................................... 36



SETTING THE PICTURE

Changing the Picture Standard ........................ 15



Adjusting the Custom Picture ........................... 16



Conguring Detailed Settings on the Picture ... 16



Resetting the Picture Settings to the Factory



Defaults ............................................................ 17

Conguring Picture Option ............................... 18



Viewing the Picture In Picture (PIP) ................. 20



SETTING THE SOUND

Sound Features ................................................ 21



Selecting the Sound Mode ............................... 22



Connecting Headphones (Sold separately) ..... 22



SETTING THE TIME

Setting and Displaying the Current Time .......... 23



Setting the Sleep Timer .................................... 23



Switching the Television On and Off



Automatically .................................................... 24

Symbol Press Note One-Touch

ABOUT ANYNET

What is Anynet+? ............................................ 37



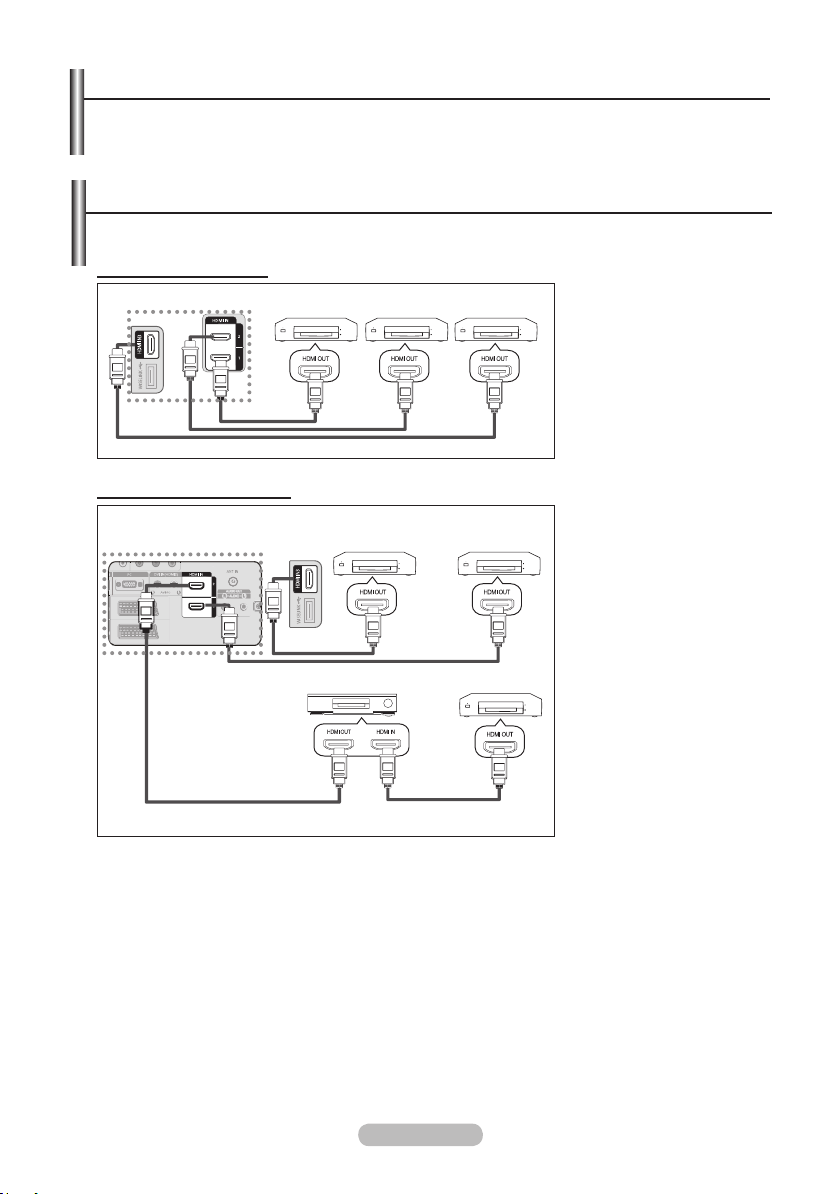

Connecting Anynet+ Devices ........................... 37



Setting Up Anynet+ .......................................... 38



Scanning and Switching between Anynet+



Devices ............................................................ 39

Recording ......................................................... 41



Listening through a Receiver ........................... 41



Check Points before Requesting Service ......... 42



RECOMMENDATIONS FOR USE

Teletext Feature ............................................... 43



Auto Wall-Mount (Sold separately) ................... 45



Using the Anti-Theft Kensington Lock



(depending on the model) ................................ 46

Troubleshooting: Before Contacting Service



Personnel ......................................................... 47

Technical and Environmental Specications ... 48



Warning! Important Safety Instructions



Wiring the Mains Power Supply Plug (UK Only)



Warranty Card



Button

English - 1

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

M4 X L16

Remote Control

& Batteries

(AAA x 2)

Registration Cards (Not available in all locations)

➣

Power Cord Cover-Bottom

Owner’s Instructions

•

Stand Screw

X 4

Installing the Stand

Stand Cleaning Cloth

Registration Cards

•

1. Connect your LCD TV and the stand. Two or more people should carry the TV.

➣

Make sure to distinguish between the front and back of the stand when assembling them.

➣

2. Fasten two screws at position 1 and then fasten two screw at position 2. Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed

➣

down, it may lean to one side. The stand is installed for models with the screen size of 37 inch and above.

➣

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a

➣

cap and fasten with two screws.

English - 2

Viewing the Control Panel

8 8

5 6

58 8

Front Panel buttons Touch each button to operate.

Side Panel buttons

The product colour and shape may vary depending on the model.

➣

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu,

use this button as you use the

ENTER

button

on the remote control.

Press to see an on-screen menu of your TV’s features.

Press to decrease or increase the volume. In the on-screen menu, use the buttons as you

use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

English - 3

Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

Press to turn the TV on and off.

Remote Control Sensor

(Power)

Aim the remote control towards this spot on the TV.

Speakers

Viewing the Connection Panel

1 2 3 4 5

[Side Panel Jacks]

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off

➣

When connecting an external device, match the colour of the connection terminal to the cable.

➣

1 PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

2 COMPONENT IN

Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of

your set and the other ends to corresponding component video out connectors on the DVD. If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the

DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set. The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and

R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to

corresponding audio out connectors on the DVD.

3 HDMI IN 1, HDMI IN 2, HDMI IN 3

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

No additional Audio connection is needed for an HDMI to HDMI connection.

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

➣

“High Denition Multimedia interface” allows the transmission of high denition digital video data

and multiple channels of digital audio.

The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate

cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

Power Input

English - 4

The TV may not output sound and pictures may be displayed with abnormal colour when DVD

➣

players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the

HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of

the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite

receiver to conrm the HDMI version, then request a rmware update. HDMI cables that are not

1.3 may cause annoying icker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component

➣

HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O

Component O O O O O O O

480i 480p 576i 576p 720p 1080i 1080p

4 ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

An outdoor aerial / A cable television network / A satellite network

5 SERVICE

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

6 WISELINK

Connect a USB mass storage device to view photo les (JPEG) and play audio les (MP3)

7 S-VIDEO or VIDEO / R-AUDIO-L

Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or

Camcorder.

Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio

out connectors on the A/V device.

8 Headphones jack

Headphone may be connected to the headphone output on your set. While the head phone is

connected, the sound from the built-in speakers will be disabled.

9 AUDIO OUT [R-AUDIO-L]

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to

corresponding audio in connectors on the Amplier or DVD Home Theatre.

0 EXT 1, EXT 2

Connector

EXT 1 O O O Only TV output is available. EXT 2 O O Output you can choose.

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Video Audio (L/R) RGB Video + Audio (L/R)

Input Output

! Kensington Lock (depending on the model)

The Kensington lock (optional) is a device used to physically x the system when used in a public

place.

If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the kensington lock may be different depending on its model.

English - 5

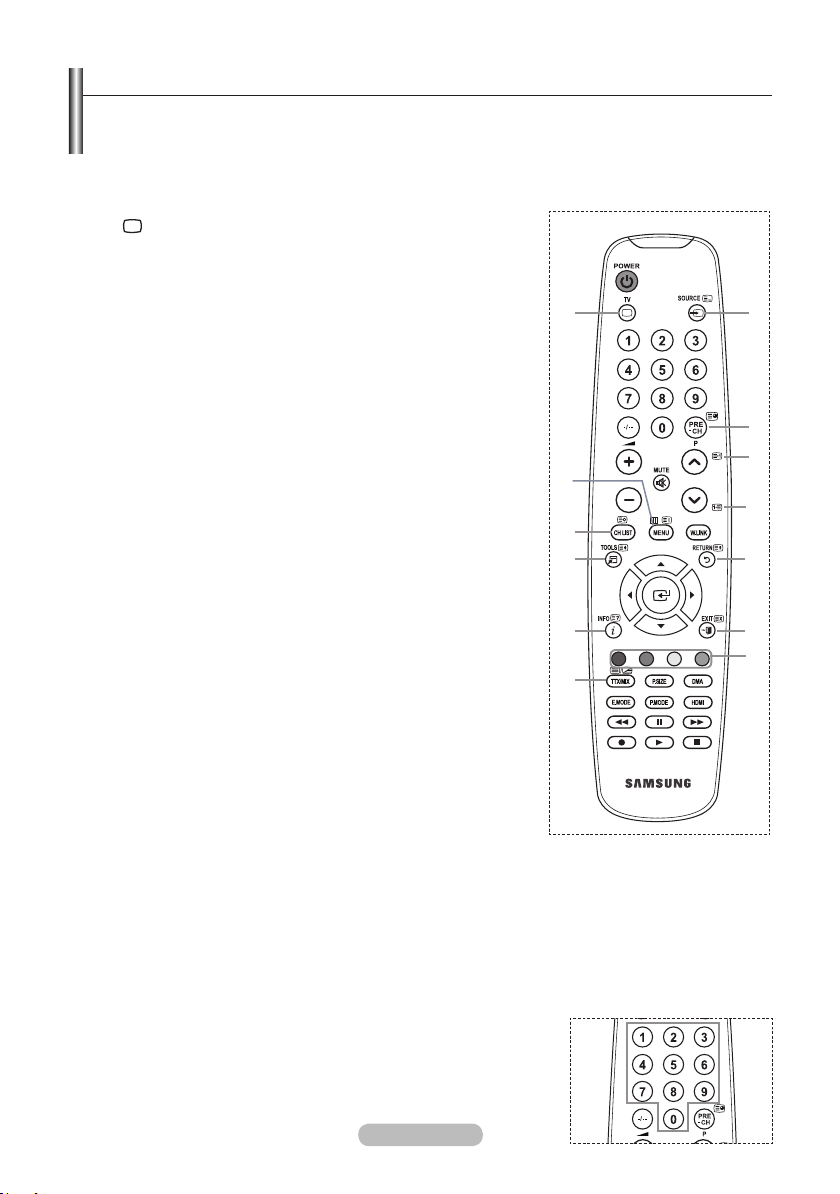

Viewing the Remote Control

1 Television Standby button

2 Selects the TV mode

directly

3 Number buttons for directNumber buttons for direct

channel access

4 One/Two-digit channel

selection

5 +: Volume increase

-: Volume decrease

6 Temporary sound switch-Temporary sound switch-

off

7 It display "Channel List"

on the screen.

8 Use to quickly selectUse to quickly select

frequently used functions.

9 Use to see information onUse to see information on

the current broadcast

0 Colour buttons :Colour buttons :

Use these buttons in

the Channel list and

WISELINK, etc.

@ Press to select the optionalPress to select the optional

display and sound modes for sports, cinema and games.

# Use these buttons in theUse these buttons in the

DMA, WISELINK, and

Anynet+. ( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

$ Available source selectionAvailable source selection % Previous channel ^ P<: Next channel

P>: Previous channel & Displays the main on-Displays the main on-

screen menu

* This function enables youThis function enables you

to view and play photo and music files from an external device.

( Returns to the previousReturns to the previous

The performance of the remote control may be affected by bright light.

➣

) Control the cursor in theControl the cursor in the

a Exit the on-screen menuExit the on-screen menu b Use this when connecting

a SAMSUNG DMA

(Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 38)

c Picture size selectionPicture size selection d Selects the HDMI mode

directly.

e Picture effect selection

Teletext Functions

2 Exit from the teletext display

7 Teletext store

8 Teletext size selection

9 Teletext reveal

0 Fastext topic selection

! Alternately select Teletext,

Double, or Mix.

$ Teletext mode selection (LIST/FLOF)

% Teletext sub page

^ P<: Teletext next page

P>: Teletext previous page

& Teletext index

( Teletext hold

a Teletext cancel

English - 6

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the

gure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the

➣

diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be

➣

using the remote control for a long time.

If the remote control doesn’t work, check the following:

➣

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up

➣

2. Press the P button

You also can press the POWER button or the TV button on the remote control to turn the TV

➣

on. The programme that you were watching last is reselected automatically.

➣

3. Press the numeric button (0~9) or channel up/down (</>) button on the remote control or

button

on your set.

When you switch the set on for the very rst time, you will be asked to choose language in which the

➣

menus are to be displayed.

4. To switch your set off, press the POWER button again.

on your set.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

➣

2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or channel

up/down (</>) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for

➣

example). It is best to unplug the set from the mains and aerial.

English - 7

Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side has

icons: Picture, Sound, Channel, Setup, Input.

2. Press the ▲ or ▼ button to select one of the icons.

Then press the

ENTER

button to access the icon’s sub-menu.

3. Press the EXIT button to exit. The on-screen menus disappear from the screen after about

➣

one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.

The “Tools” menu will appear.

2. Press the ▲ or ▼ button to select a menu.

3. Press the ▲/▼/◄/►/

use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC), see page 38

♦

Picture Mode, see page 15

♦

Sound Mode, see page 21

♦

Sleep Timer, see page 23

♦

SRS TS XT, see page 21

♦

Energy Saving, see page 26

♦

Dual l-ll, see page 22

♦

PIP, see page 20

♦

Auto Adjustment, see page 29

♦

ENTER

buttons to display, change, or

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G50 R50

Detailed Settings  sMore

Move Enter Return

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Enter Exit


Tools

English - 8

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

The Screen Saver is activated if there is no remote control key

➣

input for longer than 1 minute while "Plug & Play" is running. The Screen Saver is activated if there is no operating signal for

➣

longer than 15 minutes.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼ button.

Press the

3. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the

➣

➣ ➣

4. The message "Check antenna input." is displayed with "OK" selected.

Press the

➣

5. Select the appropriate country by pressing the▲ or ▼ button.

Press the

The "Auto Store" menu is displayed with the "Start" selected. Press the

➣ ➣ ➣

7. Press the

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button.

➣

8. Press the

When you have nished, press the

➣

♦ ♦ ♦ ♦

ENTER

We recommend setting the TV to "Home Use" mode for the best picture in your home

environment. "Store Demo" mode is only intended for use in retail environments.

If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use”

(Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

ENTER

Please check that the antenna cable is connected correctly.

ENTER

The channel search will start and end automatically. Press the After all the available channels are stored, the "Clock Set" menu appears.

ENTER

You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons

on the remote control.

ENTER

Even if the several seconds.

Language: Select your language. Country: Select your country. Auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock.

button to conrm your choice.

button.

button to conrm your choice.

ENTER

button at any time to interrupt the memorization process.

button.

button to conrm your setting. The message “Enjoy your viewing” is displayed.

ENTER

button is not pressed, the message will automatically disappear after

button.

Plug & Play

Start Plug & Play.

Enter

ENTER

button.

English - 9

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

2. Press the

button.

ENTER

button again, to select "Plug & Play".

For further details on setting up options, refer to the page 9.

The “Plug & Play” feature is only available in the TV mode.

➣

Storing Channels Automatically

Storing Channels Manually

Plug & Play  Language : English  Time  Light Effect :

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Start Plug & Play.

Enter Return

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Setup

In Watching TV

Plug & Play

Enter Return

Channel

United Kingdom 



Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

2. Press the

ENTER

button to select "Country".

3. Select the appropriate country by pressing the ▲ or ▼ button.

Press the

ENTER

button to conrm your choice.

4. Press the ▲ or ▼ button to select "Auto Store", then press the

5. Press the

➣ ➣

ENTER

button.

The TV will begin memorizing all of the available channels. Press the

ENTER

button at any time to interrupt the memorization process and return to the

"Channel" menu.

6. After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

ENTER

button.

English - 10

Storing Channels Manually

You can store television channels, including those received via cable networks. When storing channels manually, you can choose:

♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish

to identify.

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Manual Store", then press

the

ENTER

button.

3. Select the required option by pressing the ▲ or ▼ button, then

press the

ENTER

button.

Move Enter Return

Programme : P 2 Colour System : Auto  Sound System : BG  Channel : C 3 Search : 77 MHz Store : ?

4. When you are satised with your setting, press the

ENTER

5. Press the EXIT button to exit.

Programme (Programme number to be assigned to a channel)

♦

➣

Colour System: Auto/PAL/SECAM/NTSC4.43

♦

Sound System: BG/DK/I/L

♦

Channel (When you know the number of the channel to be stored)

♦

➣ ➣

Search (When you do not know the channel numbers)

♦

button.

Move Enter Return

Press the ▲ or ▼ button until you nd the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

Press the ▲ or ▼ button to select the required colour standard.

Press the ▲ or ▼ button to select the required sound standard.

Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required.

Press the ▲ or ▼ button to start the search.

The tuner scans the frequency range until the rst channel or the channel that you selected is

received on the screen.

Store (When you store the channel and associated programme number)

♦

Set to "OK" by pressing the

Channel mode

➣

P (Programme mode): When completing tuning, the broadcasting stations in your area have been

ENTER

button.

assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

C (Air channel mode): You can select a channel by entering the assigned number to each air

broadcasting station in this mode.

S (Cable channel mode): You can select a channel by entering the assigned number for each cable

channel in this mode.

Channel

Manual Store

United Kingdom 

English - 11

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER

2. Press the ▲ or ▼ button to select "Channel Manager", then

press the

♦ Adding channels

Using the Channel List, you can add channels.

3. Select Channel List by pressing the

4. Move to the ( ) eld by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the

ENTER

➣

button.

ENTER

button.

ENTER

button.

button to add the channel.

If you press the

ENTER

button again, the ( ) symbol next to the channel disappears and the channel is not added. “ ” is active when "Child Lock" is selected to "On".

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Channel List  Child Lock : Off 

Move Enter Return

Channel

Channel Manager

United Kingdom 

♦ Locking channels

This feature allows you to prevent unauthorized users, such as

children, from watching unsuitable programmes by muting out video and audio.

5. Press the ▲ or ▼ button to select "Child Lock", then press the

ENTER

button.

6. Select "On" by pressing the ▲ or ▼ button, then press the

ENTER

button.

7. Press the ▲ or ▼ button to select "Channel List", then press

the

ENTER

button.

8. Move to the ( ) eld by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the

ENTER

button.

If you press the

➣

ENTER

button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled. A blue screen is displayed when "Child Lock" is activated.

➣

Channel List

P 1 C3

Prog.

0 C--

1 C3

2 BBC 1

3 C74

4 C75

5 C76

6 S3

7 S4

8 S6

9 S7

Add Lock

Move Enter

Page Return

9. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active

➣

or inactive.

You can select these options by simply pressing the CH LIST

button on the remote control

1 / 10

English - 12

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Sort", then press the

ENTER

button.

3. Select the channel number that you wish to change by

pressing the ▲ or ▼ button repeatedly. Press the

➣

ENTER

button. The selected channel number and name are moved to right side.

4. Press the ▲ or ▼ button to move to the position in which you

would like to change and then press the

The selected channel is exchanged with the one

➣

ENTER

button.

previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

6. Press the EXIT button to exit.

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Prog. Ch. Name  0 C--

1 C23 

2 C16 3 C3 4 S1 s

Move Enter Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed,

allowing you to assign new names.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Name", then press the

ENTER

button.

3. If necessary, select the channel to be assigned to a new

name by pressing the ▲ or ▼ button. Press the

ENTER

button

The selection bar is displayed around the name box.

➣

To... Then...

Select a letter, number or symbol Press the ▲ or ▼ button

Move on the next letter Press the ► button

Move back the previous letter Press the ◄ button

Conrm the name

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special

➣

Press the

ENTER

button

characters (+, -, *, /, space)

5. Repeat steps 3 to 4 for each channel to be assigned to a new name.

6. Press the EXIT button to exit.

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Prog. Ch. Name  0 C-- -----

1 C23 -----

2 C16 ----3 C3 ----4 S1 ---- s

Move Enter Return

Channel

United Kingdom 

Sort

Channel

United Kingdom 

Name

English - 13

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that

you want to ne tune.

2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER

3. Press the ▲ or ▼ button to select "Fine Tune", then press

the

4. Press the ◄ or ► button to adjust the ne tuning.

Press the

5. Press the EXIT button to exit. Fine tuned channels that have been saved are marked with

➣

an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the ne-tuning, select "Reset" by pressing the ▲ or ▼

➣

button and then press the

ENTER

button.

ENTER

button.

ENTER

button.

Fine Tune

Reset

Channel

United Kingdom 

Country : Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

P 1

Adjust Save Return

English - 14

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the

2. Press the

3. Press the ▲ or ▼ button to select the desired picture effect.

Press the

4. Press the EXIT button to exit.

♦

➣

You can also press the P.MODE button on the remote control to

select one of the picture settings.

ENTER ENTER

ENTER

button, to select "Picture". button again, to select "Mode".

button.

Dynamic: Selects the picture for high-definition in a bright room.

Standard: Selects the picture for optimum display in a normal environment.

Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G50 R50

Detailed Settings  sMore

Move Enter Return

Mode : Standard

Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G50 R50

Detailed Settings sMore

Move Enter Return


Dynamic

Standard

Movie

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Picture Mode”.

3. Press the ◄ or ► button to select the desired picture mode.

4. Press the EXIT or TOOLS button to exit.

English - 15

Anynet+ (HDMI-CEC) Picture Mode ◄ Standard ► Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

Tools

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

2. Press the ▲ or ▼ button to select a particular item. Press the ENTER

button.

3. Press the ◄ or ► button to decrease or increase the value of a

particular item. Press the

ENTER

button.

4. Press the EXIT button to exit.

Backlight: Adjusts the screen brightness by adjusting the LCD

♦

backlight brightness. (0~10)

♦

Contrast: Adjusts the lightness and darkness between objects and the background.

♦

Brightness: Adjusts the brightness of the whole screen. Sharpness: Adjusts the outline of objects to either sharpen them

♦

or make them more dull. Colour: Adjusts the colours, making them lighter or darker.

♦

Tint: Adjusts the colour of objects, making them more red or

♦

green for a more natural look.

The adjusted values are stored according to the selected Picture mode.

➣

In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”.

➣

TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.

➣

You can return to the factory defaults picture settings by selecting the "Reset".

➣

(Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G50 R50

Detailed Settings  sMore

Move Enter Return

▲

Backlight

▼

Move Adjust Return

Conguring Detailed Settings on the Picture

You can set detailed picture settings.

1. Press the MENU button to display the menu.

Press the

2. Press the

ENTER ENTER

button, to select "Picture".

button to select “Mode”.

Press the ▲ or ▼ button to select “Standard” or “Movie”, then

press the

ENTER

button.

3. Press the ▲ or ▼ button to select "Detailed Settings", then press

the

ENTER

button.

4. Select the required option by pressing the ▲ or ▼ button, then

press the

5. When you are satised with your setting, press the

ENTER

button.

ENTER

button.

6. Press the EXIT button to exit. "Detailed Settings" is available in "Standard" or "Movie" mode.

➣

In PC mode, you can only make changes to “Dynamic Contrast”,

➣

“Gamma” and “White Balance” from among the “Detailed Settings” items.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G50 R50

Detailed Settings  sMore

Move Enter Return

Black Adjust : Off  Dynamic Contrast Gamma : 0  Colour Space : Custom White Balance  Flesh Tone : 0  Edge Enhancement

xvYCC

Move Enter Return


Detailed Settings

: Medium 



: On 

: Off 

Black Adjust: Off/Low/Medium/High

♦

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

♦

You can adjust the screen contrast so that the optimal contrast is provided.

English - 16

Gamma: -3 ~ +3

♦

You can adjust the Primary Colour (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting.

Colour Space: Auto/Native/Custom

♦

Colour space is a Colour matrix composed of “Red”, “Green” and “Blue” Colours.

Select your favourite Colour space to experience the most natural Colour.

♦ Auto: Auto Color Space automatically adjusts to the most natural color tone based on program

sources.

♦ Native: Native Color Space offers deep and rich color tone. ♦ Custom: Adjusts the color range to suit your preference.

Customizing the Colour Space

➣

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

“Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.

Press the ENTER button. Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour.

Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the ENTER button.

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the

ENTER button. Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

♦

You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the

adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the

ENTER

button.

Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15

♦

You can emphasize the pink 'flesh tone' in the picture.

Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

➣

Edge Enhancement: Off/On

♦

You can emphasize object boundaries in the picture.

xvYCC: Off/On

♦

Setting the xvYCC mode to On increases detail and colour space when watching movies from an

external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the

Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.

➣

If xvYCC function is active, PIP cannot be selected.

➣

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the

Picture Standard" instructions number 1 to 3 (On page 15).

2. Press the ▲ or ▼ button to select "Reset", then press the

ENTER

button.

3. Press the ▲ or ▼ button to select "OK" or "Cancel".

Press the

ENTER

button.

4. Press the EXIT button to exit.

The "Reset" will be set for each "Picture" mode.

➣

English - 17

More Picture Options

Reset : OK

Move Enter Return


Cancel

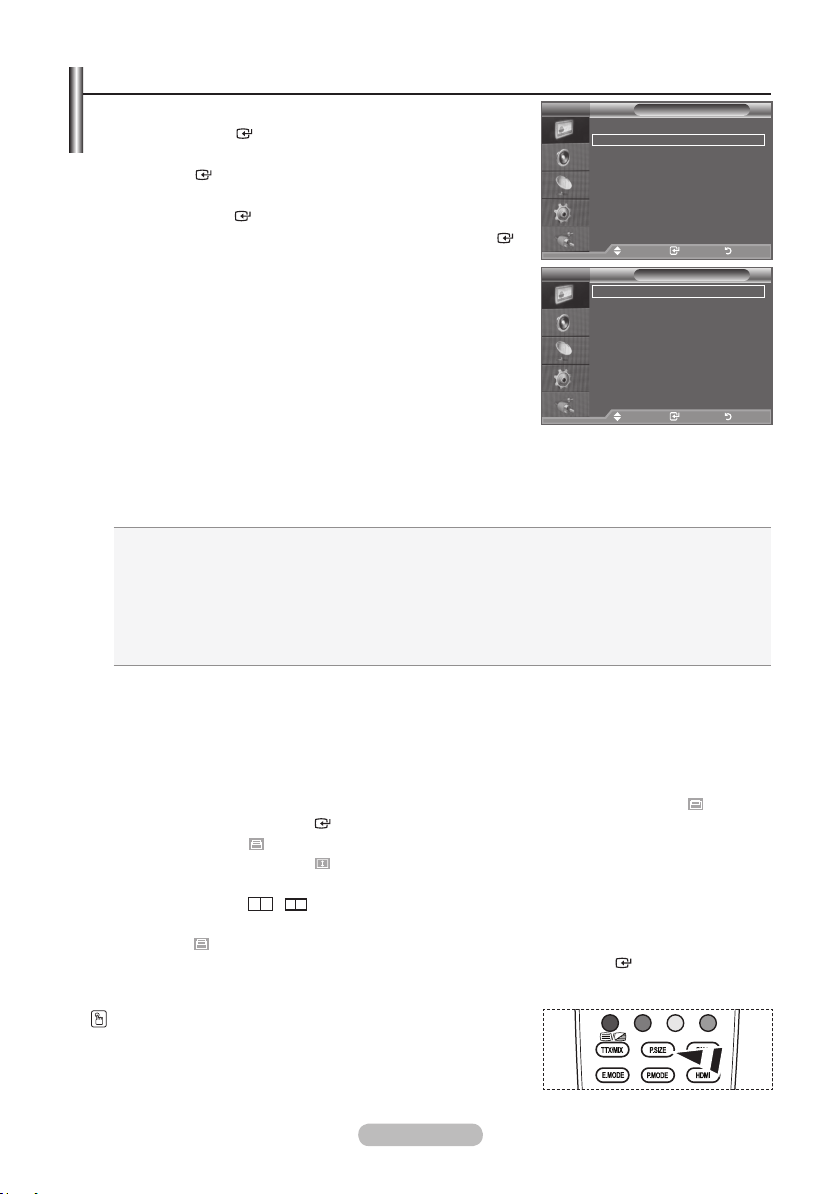

Conguring Picture Option

1. Press the MENU button to display the menu.

Press the

ENTER

button, to select "Picture".

2. Press the ▲ or ▼ button to select "Picture Options", then press

the

ENTER

button.

More Picture Options  Reset : OK 

3. Select the required option by pressing the ▲ or ▼ button, then

press the

4. When you are satised with your setting, press the

button.

5. Press the EXIT button to exit.

➣

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

♦

You can select the most comfortable colour tone to your eyes.

➣

ENTER

button.

ENTER

In PC mode, you can only make changes to the “Colour

Tone” and “Size” from among the items in “Picture Options”.

The adjusted values are stored according to the selected

Move Enter Return

Colour Tone : Normal  Size Screen Mode : 16:9  Digital NR : Auto 

DNIe HDMI Black Level

Movie Plus Blue Only Mode

Move Enter Return

"Picture" mode.

“Warm1” or “Warm2” is only activated when the picture mode is "Movie".

➣

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

♦

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

♦

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

♦

Wide Zoom: Magnify the size of the picture more than 4:3.

♦

Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

♦

4:3: This is the default setting for a video movie or normal broadcasting.

♦

Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/

♦

1080p) or Component (1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.

➣

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

➣

Settings can be adjusted and stored for each external device you have connected to an input of

➣

the TV. Temporary image retention may occur when viewing a static image on the set for more than two

➣

hours. "Wide Zoom": Move the screen up/down using the ▲ or ▼ button after selecting the by

➣

pressing the ► or ENTER button. "Zoom": Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up

➣

and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

➣

After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode:

➣

Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.


Picture Options

: Auto Wide 

: Off 

: Normal 

: Low 

: Off 

You can select these options by simply pressing the P.SIZE button on the remote control.

English - 18

Screen Mode: 16:9/Wide Zoom/Zoom/4:3

♦

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.

♦

Wide Zoom: Magnify the size of the picture more than 4:3.

♦

Zoom: Magnify the size of the picture vertically on screen.

♦

4:3: Sets the picture to 4:3 normal mode.

♦

This function is available in "Auto Wide" mode.

➣

This function is not available in "PC", "Component" or "HDMI" mode.

➣

Digital NR: Off/Low/Medium/High/Auto

♦

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction

feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

➣

DNIe: Off/ Demo/On

♦

This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view

the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

➣

This feature brings you more detailed image with 3D noise reduction, detail enhancement,

contrast enhancement and white enhancement. New image compensation Algorithm gives

brighter, clearer, more detailed image to you. eyes. This function is not available in "Movie" and "Standard" mode.

➣

HDMI Black Level: Normal/Low

♦

You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

➣

Movie Plus: Off/Low/Medium/High/Demo

♦

You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.

➣

This function is not available in “Wide Zoom” and “Zoom” modes.

➣

This function is not available when "PIP" is set to "On".

➣

It is not supported in HDMI 1080p/24Hz mode.

➣

Blue Only Mode: Off/On

♦

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns,

without using an additional Blue Filter.

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

➣

DNIe™ technology will t every signal into your

English - 19

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

2. Press the▲ or ▼ button to select "PIP", then press the

ENTER

3. Select the required option by pressing the ▲ or ▼ button, then

press the

4. When you are satisfied with your setting, press the

button.

5. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes

➣

slightly unnatural when you use the main screen to view a game or karaoke.

button.

ENTER

button.

ENTER

Plug & Play 

Language : English  Time  Light Effect :

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off  PIP 

Move Enter Return

Mode : Custom 

Equalizer  PIP : On 

SRS TS XT : Off  Source : TV 

Auto Volume : Off  Size : 

Internal Mute : Off  Position : 

Reset Programme : P 1 

Move Enter Return

Setup

In Watching TV

PIP



Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “PIP”, then press the

ENTER

button.

3. Press the ▲ or ▼ button to select a particular item.

4. Press the ◄ or ► button to select the required option.

5. Press the EXIT or TOOLS button to exit.

PIP: On/Off

♦

You can activate or deactivate the PIP function.

Main picture Sub picture

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP

Move Enter Exit

PIP : ◄ On ► Source : TV Programme : P 1 Size : Position :

Component TV, Ext.1, Ext.2, AV

HDMI 1, 2, 3 TV, Ext.1, Ext.2, AV

Move Adjust Return

PC TV, Ext.1, Ext.2, AV

Source

♦

You can select a source of the sub-picture.

Size: / /

♦

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

➣

Position: / / /

♦

You can select a position of the sub-picture.

In Double ( , ) mode, "Position" cannot be selected.

➣

Programme

♦

You can select a channel of the sub-picture only when the "Source" is set to "TV".

Tools

PIP

English - 20

Sound Features

1. Press the MENU button to display the menu. Press the ▲ or ▼

button to select "Sound", then press the

2. Select the required option by pressing the ▲ or ▼ button, then

press the

ENTER

button.

3. When you are satised with your setting, press the

button.

4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom

♦

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Sound Mode".

3. Press the ◄ or ► button to select the desired sound mode.

4. Press the EXIT or TOOLS button to exit.

ENTER

button.

ENTER

Mode : Custom  Equalizer  SRS TS XT : Off  Auto Volume : Off  TV Speaker : On 

Sound Select : Main 

Move Enter Return

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode ◄ Custom ► Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

Sound

Tools

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

♦

The sound settings can be adjusted to suit your personal preferences.

If you make any changes to these settings, the sound mode

➣

is automatically switched to "Custom".

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Equalizer

Move Adjust Return

SRS TS XT: Off/On

♦

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “SRS TS XT”.

3. Press the ◄ or ► button to select the "Off" or "On".

4. Press the EXIT or TOOLS button to exit.

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT ◄ Off ► Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

Tools

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs,

Inc.

Auto Volume: Off/On

♦

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the

desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

English - 21

TV Speaker: Off/On

♦

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The +, - and MUTE buttons do not operate when the "TV Speaker" is set to Off.

➣

When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound

➣

menu.

Sound Select: Main/Sub

♦

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

− Main: Used to listen to the sound of the main picture.

− Sub: Used to listen to the sound of the sub picture.

Selecting the Sound Mode

You can set the sound mode in the "Tools" menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Dual I-II".

3. Press the ◄ or ► button to select required option.

4. Press the

Stereo

NICAM Stereo

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

➣

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

➣

This function is only available in TV mode.

➣

ENTER

button.

Audio Type Dual

Mono MONO

Stereo STEREO

Dual DUAL

Mono MONO

Stereo MONO

Dual

MONO

↔

1 ↔

↔

DUAL

1/2

MONO

DUAL

STEREO

DUAL

Default

Automatic

change

DUAL 1

Automatic

change

DUAL 1

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll ◄ Mono ►

Move Adjust Exit

Tools

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you

➣

can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu.

Prolonged use of headphones at a high volume may damage your

➣

hearing. You will not receive sound from the speakers when you connect headphones to the system.

➣

The headphone volume and TV volume are adjusted differently.

➣

English - 22

TV Side Panel

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Time", then press the ENTER

3. Press the

To... Press the....

Move to "Month", "Day", "Year", "Hour" or "Minute"

Set the "Month", "Day", "Year", "Hour" or "Minute"

Conrm the setting

button.

ENTER

button to select "Clock Set".

◄ or ► button.

▲ or ▼ button.

ENTER

button

5. Press the EXIT button to exit. The current time will appear every time you press the INFO button.

➣

You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the

➣

remote control.

Mode : Custom 

Equalizer  Plug & Play 

SRS TS XT : Off  Language : English  Auto Volume : Off  Time  Internal Mute : Off 

Light Effect : Reset

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Move Adjust Return

Clock Set

Month01Day

Hour00Minute

Setup

In Watching TV

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Time", then press the ENTER

button.

3. Press the ▲ or ▼ button to select "Sleep Timer", then press

the

ENTER

button.

4. Press the ▲ or ▼ button repeatedly until the desired time

appears (Off, 30, 60, 90, 120, 150, 180). Press the

ENTER

button.

5. Press the EXIT button to exit. The TV automatically switches to standby mode when the

➣

timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

Mode : Custom 

Equalizer  Plug & Play 

SRS TS XT : Off  Language : English  Auto Volume : Off  Time  Internal Mute : Off 

Light Effect : Reset

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Clock Set : 00:00

Sleep Timer :

Timer 1 : Timer 2 : Timer 3 :

Move Enter Return

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer ◄ Off ► SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

Setup

In Watching TV

Move Enter Return

Time

Tools

Off

30 60

90 120 150 180



Year

2008



English - 23

Switching the Television On and Off Automatically

Once

Setup

In Watching TV

Timer 1

Inactivate

Programme

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Time", then press the

ENTER

button.

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the

ENTER

button. Three different On/Off Timer Settings can be made. You must set the clock first.

➣

4. Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satised.

On Time : Select hour, minute and "Activate"/"Inactivate".

♦

(To activate timer with the setting satised, set to "Activate".)

Off Time : Select hour, minute and "Activate"/"Inactivate".

♦

(To activate timer with the setting satised, set to "Activate".)

Volume : Select the desired turn on volume level.

♦

Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun".

♦

Programme : When the On Timer is active, you can turn on a specic channel.

♦

You can set the hour and minute directly by pressing the number buttons on the remote control.

➣

Auto Power Off

➣

Plug & Play  Language : English  Time  Light Effect :

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

On Time

Off Time

Volume

Repeat

► Move Adjust Return

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Language", then press the

ENTER

button.

3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the

ENTER

button.

4. Press the EXIT button to exit.

Plug & Play  Language : English  Time  Light Effect :

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Setup

In Watching TV



English - 24

Setting the Light Effect (depending on the model)

You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

1. Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER

button.

2. Press the ▲ or ▼ button to select "Light Effect", then press the ENTER

button.

3. Press the ▲ or ▼ button to select "Off", "In Standby", "In Watching TV" or "Always".

Press the

➣

ENTER

Off: LED will not come on.

♦

In Standby: Turns the LED on in standby mode.

♦

In Watching TV: Turns the LED on while watching TV.

♦

Always: LED is always on.

♦

button.

Set the "Light Effect" to "Off" to reduce the power consumption.

4. Press the EXIT button to exit.

Mode : Custom 

Equalizer  Plug & Play 

SRS TS XT : Off  Language : English  Auto Volume : Off  Time  Internal Mute : Off 

Light Effect : Reset

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Melody / Entertainment / Energy Saving

Mode : Custom 

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

3. When you are satised with your setting, press the ENTER

button.

4. Press the EXIT button to exit.

Equalizer  Plug & Play 

SRS TS XT : Off  Language : English  Auto Volume : Off  Time  Internal Mute : Off 

Light Effect : Reset

Auto Wall-Mount 

Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Setup

In Watching TV

LED

Setup

In Watching TV



Melody: Off/Low/Medium/High

♦

The TV power on/off melody sound can be adjusted.

The Melody does not play

➣

− When no sound is output from the TV because the MUTE button has been pressed.

− When no sound is output from the TV because the - (Volume) button has been pressed.

− When the TV is turned off by the Sleep Timer function.

English - 25

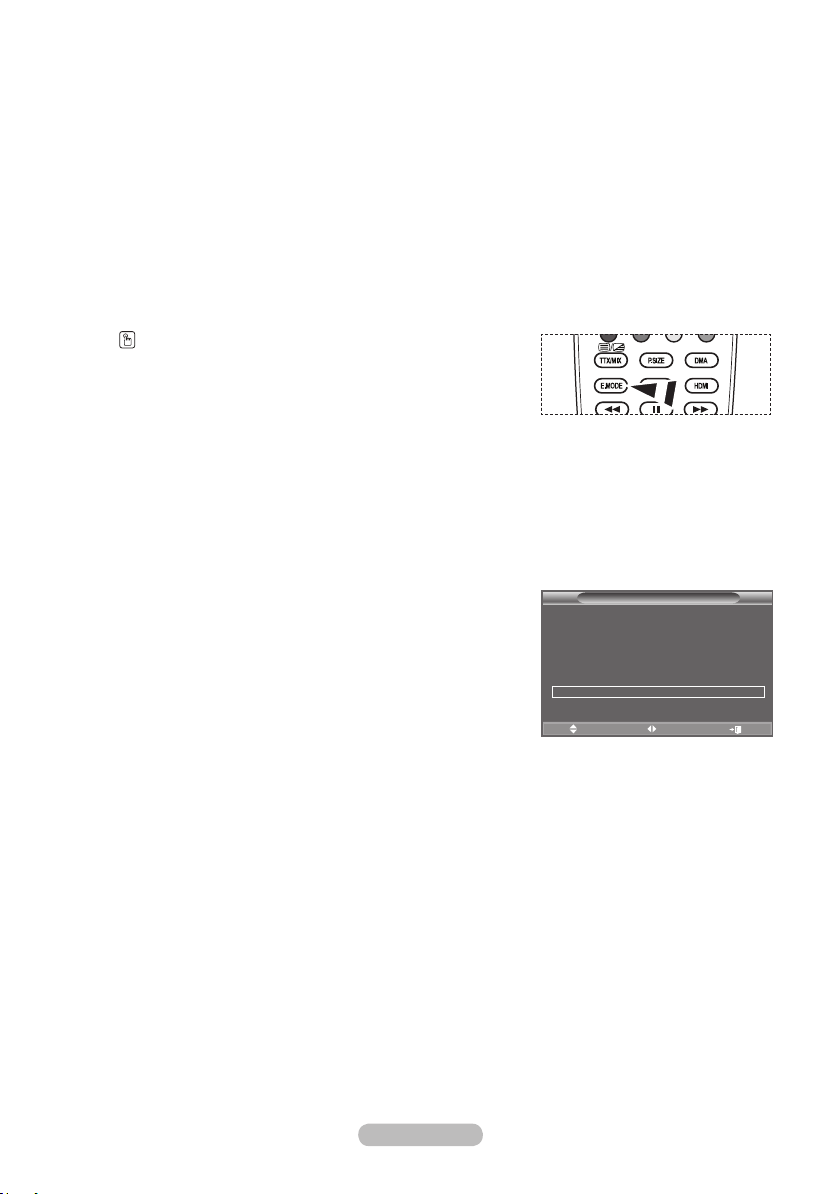

Entertainment: Off/Sports/Cinema/Game

♦

The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema

and games.

− Off: Switch the "Entertainment" function off.

− Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling

− Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer

− Game: Provides the optimal picture and sound quality for games. This mode accelerates the

➣

➣ ➣

You can press the E.MODE button on the remote control

Energy Saving: Off/Low/Medium/High/Auto

♦

colour and sound.

picture and enhanced sound.

playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode

must be turned off.

The “Entertainment” settings are saved for each input source. If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available.

repeatedly to change the “Entertainment” setting.

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

− Off: Turns off the energy saving function.

− Low: Sets the TV to low energy saving mode.

− Medium: Sets the TV to medium energy saving mode.

− High: Sets the TV to high energy saving mode.

− Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the "Off", "Low", "Medium",

"High" or "Auto".

4. Press the EXIT or TOOLS button to exit.

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving ◄ Off ► Dual l-ll : Mono

Move Adjust Exit

Tools

English - 26

Selecting the Source

You can select among external sources connected to your TV’s input jacks.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2. Press the ENTER button again, to select "Source List".

When no external device is connected to your set, only "TV",

➣

"Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2","HDMI3" are activated only when they are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button. Press the ENTER button.

Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons(0~9), and the P</> button on the remote control. You can also watch HDMI mode simply by pressing the HDMI button on the remote control.

Mode : Custom 

Equalizer  Source List : TV 

SRS TS XT : Off  Edit Name  Auto Volume : Off  Anynet+(HDMI-CEC)

Internal Mute : Off 

WISELINK Reset

Move Enter Return

Mode : Custom 

Equalizer  TV

SRS TS XT : Off  Ext.1 : ----

Auto Volume : Off  Ext.2 : ----

Internal Mute : Off 

AV : ----

Reset

S-Video : ---Component : ---PC : ----

sMore

Source List

Move Enter Return

Input

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.

3. Press the ▲ or ▼ button to select the device that you wish to

edit. Press the ENTER button.

4. Press the ▲ or ▼ button to select the required device. Press the ENTER button.

5. Press the EXIT button to exit.

When a PC with a resolution of 1920 x 1080@60Hz is

➣

connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input"

mode.

English - 27

Mode : Custom 

Equalizer  Source List : TV 

SRS TS XT : Off  Edit Name  Auto Volume : Off  Anynet+(HDMI-CEC)

Internal Mute : Off 

WISELINK Reset

Move Enter Return

Mode : Custom 

Equalizer 

Ext.1 : ----

SRS TS XT : Off  Ext.2 : ----

Auto Volume : Off  AV : ----

Internal Mute : Off  S-Video : ----

Reset Component : ----

PC : ---- HDMI1 : ---- HDMI2 : ---HDMI3 : ----

Edit Name

Move Enter Return

Input

Satellite STB

AV Receiver

----

VCR DVD

Cable STB

PVR STB

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.

2. When the control panel window appears, click on "Appearance and Themes"

and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

➣

Mode Resolution

IBM

VESA

CVT 1920 x 1080RB 66.587 59.934 138.500 + / -

HDMI/DVI Input

➣

Mode Resolution

VESA

CEA 1920 x 1080p 67.500 60.000 148.500 + / +

➣

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported.

➣

The set might operate abnormally if a non-standard video format is selected.

➣

Separate and Composite modes are supported. SOG is not supported.

➣

Too long or low quality VGA cable can cause picture noise at high resolution modes

➣

640 x 350 720 x 400

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768

1280 x 1024 1280 x 1024

1360 x 768

1600 x 1200

640 x 480

800 x 600 1024 x 768

1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

75.000

Horizontal

Frequency (kHz)

31.469

37.879

48.363

63.981

47.712

75.000

(1920x1080 or 1600x1200).

Vertical

Frequency (Hz)

70.086

70.087

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

Vertical

Frequency (Hz)

59.940

60.317

60.004

60.020

60.015

60.000

Pixel Clock

Frequency (MHz)

25.175

28.322

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

85.500

162.000

Pixel Clock

Frequency (MHz)

25.175

40.000

65.000

108.000

85.500

162.000

Sync Polarity

(H/V)

+ / -

- / +

- / -

- / + / + + / + + / +

- / -

- / + / + + / + + / + + / + + / +

Sync Polarity

(H/V)

- / + / +

- / + / + + / + + / +

English - 28

Setting up the TV with your PC

Press the SOURCE button to select PC mode.

➣

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satised with your setting, press the ENTER

button.

4. Press the EXIT button to exit.

Auto Adjustment

♦

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45

Sharpness 50

Auto Adjustment  Screen Adjustment  Detailed Settings  sMore

Move Enter Return

Auto Adjustment in progress


Please wait.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Auto Adjustment”, then

press the ENTER button.

Screen Adjustment:

♦

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

Press the ▲ or ▼ button to select "Coarse" or "Fine", then press

the ENTER button.

Press the ◄ or ► button to adjust the screen quality.

Press the ENTER button.

Position

Adjust the PC’s screen positioning if it does not fit the TV screen.

Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

Press the ENTER button.

Image Reset

You can replace all image settings with the factory default values.

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Auto Adjustment

Move Enter Exit

Tools

Screen Adjustment

Coarse 50 Fine 93 Position  Image Reset 

Move Enter Return

Position

Move Enter Return

Screen Adjustment

Coarse 50 Fine 93 Position  Image Reset 

English - 29

Move Enter Return

Using the WISELINK Function

This function enables you to view and listen to photo (JPEG) and audio les (MP3) saved on a USB Mass Storage Class

(MSC) device. Press the POWER button on the remote control or

Connect a USB device containing JPEG and/or MP3 les to the WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by

pressing the W.LINK button on the remote control and enter

the WISELINK screen again.

Only alphanumeric characters must be used as a folder name or filename (photo, music).

The file system only supports FAT16/32 (The NTFS file system is not supported)

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

Before connecting your device to the TV, please back up your files to prevent them from damage or loss

of data.SAMSUNG is not responsible for any data file damage or data loss.

Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.

Only MP3 and JPEG file formats are supported.

The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz).

We recommend the sequential jpeg format. Progressive jpeg uses a lot of memory and decoding may fail.

Do not disconnect the USB device while it is loading.

MTP (Media Transfer Protocol) is not supported.

The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file.

The higher the resolution of the image, the longer it takes to display on the screen.

The Photo or Music List displays up to 300 folders or files.

Loading may take some time depending on the size of the file.

your set

TV Side Panel

USB Drive

English - 30

Using the WISELINK Menu

1. Press the MENU button. Press the ▲ or ▼ button to select “Input”, then press the ENTER button.

2. Press the ▲ or ▼ button to select “WISELINK”, then press the ENTER button.

3. Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the ENTER button.

The "WISELINK" menu differs depending on the USB

➣

Memory Device connected to TV. Some devices may not be supported due to compatibility

➣

problems.

Input

Source List : TV ► Edit Name ► Anynet+ (HDMI-CEC) WISELINK

Move Enter Return

STORAGE DEVICE

Move Enter Exit

SUM

4. Press the ◄ or ► button to move to an icon, then press the ENTER button.

To exit WISELINK mode, press the W.LINK button on the

➣

remote control.

Photo Music Setup

Press the W.LINK button on the remote control to display a

WISELINK menu.

Using the Remote Control Button in WISELINK Menu

Button Operations

▲/ ▼/ ◄/ ► Move the cursor and select an item.

ENTER

Select the currently selected item.

Play the Slide Show or MP3 file.

Pause the Slide Show or MP3 file.

RETURN Return to the previous menu.

INFO Run various functions from the Photo and Music menus.

Stop the current slide show or MP3 file.

Page Up or Down (file list item)

EXIT Stop the current function and return to the previous high-level menu.


SUM

861MB/994MBFree

Move Enter Return

English - 31

Using the PHOTO (JPEG) List

This menu shows JPEG les and folders saved on an USB memory

device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

(Refer to page 31)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button. The saved le information is displayed as a

folder or le.

3. Press the ▲, ▼, ◄ and ► buttons to select a le.

• Pressing the ENTER button over a photo icon shows the

currently selected photo in full screen.

• Pressing the ENTER button over a folder icon shows the

JPEG les included in the folder.


580*440 47KB

Jun 1,2008

3/23

To exit WISELINK mode, press the W.LINK button on the remote control.

Moving to a photo may take a few seconds to load the le.

➣

At this point, the icon will appear at the top left

SUM

895MB/993MB

of the screen.

It takes time to show JPEG les as Thumbnail images.

➣

This menu only shows les whose le extension is jpg. Files of other formats such as bmp or tiff

➣

will not be displayed.

The les are displayed on a page. 15 thumbnail photos are displayed per page.

➣

The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.

➣

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

➣

Folders are displayed rst and they are followed by all JPEG les in the current folder. The

➣

folders and JPEG les are sorted in alphabetical order.

If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen.

➣

While a full screen is displayed, ◄ or ► button will let you see another photo image in the same

➣

folder. Press the button when a Photo icon is selected to start a Slide Show.

➣

Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST

➣

depending on the picture quality and resolution.


SUM

861MB/994MBFree

Photo Music Setup

Move Enter Return

Upper Folder

Forder1

Photo 0001 Photo 0001 None

File 4 File 5 File 6 File 7 File 8

File 9 File 10 File 11 File 12 File 13

Select Move Enter

INFO

1/10 Page

Option Return

Viewing a Slide Show

4. Press the INFO button to display the option("Start Slide Show",

"Select All").

5. Press the ▲ or ▼ button to select “Start Slide Show” then press the ENTER button.

During the slide show, les are displayed in order from the

➣

currently shown le. MP3 les can be automatically played during the Slide

➣

Show if the Default Background Music is set to On. To

enable this function, MP3 les and other photo les must be located in the same folder on the USB Memory Device.

6. Press the INFO button during the slide show to set the following options ("Slide Show Speed", "Background Music",

"Background Music Setting", "List"). Press the ▲ or ▼ button

to select the option, then press the ENTER button.

• After setting the option press the ENTER button to make a

change.

English - 32


580*440 47KB

Jun 1,2008

3/23

Start Slide Show

895MB/993MB

Select All

INFO

Exit

Select Move Enter

Slide Show Speed Nomal►

Background Music

On ►

Background Music Setting

List

INFO

Exit

Upper Folder

Forder1

Photo 0001 Photo 0001 None

File 4 File 5 File 6 File 7 File 8

File 9 File 10 File 11 File 12 File 13

INFO

Option Return

1/10 Page

Using the Menu during a Slide Show

Slide Show Speed:

Select to control the slide show speed.

Press the ▲ or ▼ button to select the required option ("Fast", "Normal", "Slow"), then press the ENTER button.

Slide Show Speed Nomal

Background Music

Background Music Setting

List

INFO

Background Music:

Select to choose whether you want to play an MP3 le during a

slide show.

Press the ▲ or ▼ button to select the required option("On", "Off"),

then press the ENTER button.

Slide Show Speed Nomal►

Background Music

Background Music Setting

List

INFO

Background Music Setting:

While the slide show is in progress, MP3 les and folders under the

same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTER

button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played.

If you turn Off the Background Music, even if the Background

➣

Music Settings have been set up, the background music will not be played.

Fast

Nomal

On ►

Slow

Exit

Off

Exit

Background Music Setting

Choose file for background music

Upper Folder

01-001

02-002

03-003

04-004

05-005

◄◄ 1/1 Page ►►

Select

Move Enter Return

List:

The le information is displayed as a folder or JPEG le.

To exit WISELINK mode, press the W.LINK button on the remote

control.

When selecting a photo le, the photo le information is

➣

displayed on the left side of the TV screen, such as the

resolution, the date modied and the order of the le in the

current directory (e.g. 10th out of 15).

: Folder icon

Such as the resolution

: Photo icon

: Move to the previous

folder stage icon

English - 33

Date modified

Order of the file in the


580*440 47KB

Jun 1,2008

3/23

Upper Folder

File 4 File 5 File 6 File 7 File 8

SUM

895MB/993MB

File 9 File 10 File 11 File 12 File 13

Select Move Enter


580*440 47KB

Jun 1,2008

3/23

Upper Folder

File 4 File 5 File 6 File 7 File 8

SUM

895MB/993MB

File 9 File 10 File 11 File 12 File 13

Select Move Enter

File Size

current directory

Forder1

Photo 0001 Photo 0001 None

INFO

Option Return

Photo 0001 Photo 0001 None

INFO

Option Return


580*440

47KB

Jun 1,2008

3/23

1/10 Page

Using the Option Menu

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

(Refer to page 31)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button. The saved le information is displayed as a

folder or le.

3. Press the ▲, ▼, ◄ and ► button to select a le, then press

the ENTER button. Pressing the button over a photo

Start Slide Show

Zoom X1

Rotate 0

List

INFO

Exit

►

thumbnail displays the photo in full screen.

4. Press the INFO button to display the option("Start Slide Show" , "Zoom", "Rotate", "List")

Zoom:

Press the ▲ or ▼ button to select “Zoom”, then press the

• ENTER button.

Select the required option by pressing the ▲ or ▼ button, then

• press the ENTER button. (X1, X2, X4) To pan up/down/left/right in the zoomed-in photo, press the

➣

INFO button to exit option menu, then press the ▲, ▼, ◄ and ► buttons.

"Start Slide Show" or "Rotate" is disabled when the "Zoom"

➣

option is selected.

" x1 " : Restore a photo to its original size.

➣

" x2 " : Zoom-in to a photo x2.

" x4" : Zoom-in to a photo x4.

/ / / : Move the zoomed-in photo up/down/right/left.

Rotate:

• Press the ▲ or ▼ button to select “Rotate”, then press the

ENTER button.

• Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button. (0°,

The rotated le is not saved.

➣

"Start Slide Show" or "Zoom" is disabled when the “Rotate”

➣

90°

, 180°, 270°)

option is selected.

"0°" : This rotates a photo to its original position

➣

90°

" : This rotates a photo by 90 degrees

180°

" : This rotates a photo by 180 degrees

270°

" : This rotates a photo by 270 degrees

X 1

Start Slide Show

Zoom X1

Rotate 0

List

INFO

Exit

0°

Start Slide Show

Zoom X1

Rotate 0

List

INFO

Exit

x 1

►

x 2

x 4

►

180

270

English - 34

Using the MP3 List

This menu shows MP3 les from among the les saved on a USB

memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

(Refer to page 31)

2. Press the ◄ or ► button to move to “Music”, then press the ENTER button. The saved le information is displayed as a

folder or le.

3. Press the ▲ or ▼ button to move to an icon, then press the ENTER button.

Pressing the ENTER button over a musical note icon

•

immediately plays the music le.

Pressing the ENTER button over a folder icon shows the

•

music les included in the folder. To select a le on the next page, press the or button

• to move to the next page.

4. To select all les or a le, press the INFO button to display the Music menus. Press the ENTER button to select “Play”,

“Repeat Music” or “Select All”. To exit WISELINK mode, press the W.LINK button on the remote

control.

Play

Repeat Music Off

Select All

Music

SUM

861MB/994MBFree

Photo Music Setup

Move Enter Return

Music

5MB

Jun 1,2008

3/23

006-006

Upper Folder

Folder 1

001-001

002-002

003-003

004-004

005-005

006-006

007-007

►

INFO

Select Move Enter

008-008

Exit

: Folder icon

: Music icon

INFO

Option Return

1/10 Page

00:04:00

00:04:01

00:04:28

00:04:12

00:05:39

00:04:30

00:03:54

00:05:25

Using the Option Menu

Play:

: Move to the previous

folder stage icon

Select to play MP3 files.

Press the button while playing an MP3 le to pause the le.

➣

Press the button to exit Play mode.

➣

This menu only shows les with the MP3 le extension. Files with other le extensions are not

➣

displayed,even if they are saved on the same USB device. The selected le is displayed on the top with its playing time.

➣

To adjust the music volume, press the VOL +, VOL - button on the remote control. To mute the

➣

sound, press the MUTE button on the remote control.

Repeat Music:

Select to repeatedly play MP3 les in the current folder.

You can select On or Off.

Music function information icon

: When all music les are being played.

: When a music le is being played.

When pressing the

button on the remote control while music is playing.

: When pressing the button on the remote control when music is stopped.

English - 35

Using the Setup Menu

Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 31)

2. Press the ◄ or ► button to move to “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select an item you want, then press the ENTER button. (“Slide Show

Speed”, “Background Music”, “Background Music Setting”, “Repeat Music”, “Screen Saver”)

4. Press the ▲ or ▼ button to select the option, then press the ENTER button.

To exit WISELINK mode, press the W.LINK button on the remote control.

Slide Show Speed:

Select to control the slide show speed. You can select “Fast”, “Normal” or “Slow”.

Background Music :

Select to determine whether to play an MP3 file during a slide show.

You can select Music “On” or Music “Off”.

Background Music Setting:

While a slide show is in progress, use the "Background Music Setup" to select a music file to listen to. Select an MP3 file as the background music.

Repeat Music :

Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played.

Slide Show Speed Normal

Setup

Background Music On ►

Background Music Setting

Repeat Music Off ►

Screen Saver 1min. ►

Slide Show Speed Normal ►

Setup

Background Music On

Background Music Setting

Repeat Music Off ►

Screen Saver 1min. ►

Background Music Setting

Choose file for background music

Upper Folder

01-001

02-002

03-003

04-004

05-005

Select

Slide Show Speed Normal ►

Setup

Background Music On ►

Background Music Setting

Repeat Music Off

Screen Saver 1min. ►

◄◄ 1/1 Page ►►

Fast

Normal

Slow

Move Enter Return

Off

Move Enter Return

Off

Screen Saver:

Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes.

English - 36

Slide Show Speed Normal ►

Setup

Background Music On ►

Background Music Setting

Repeat Music Off ►

Screen Saver 1min.

Move Enter Return

1min.

5min.

10min.

Move Enter Return

What is Anynet+?

SERSE

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV

Anynet+ Device 1 Anynet+ Device 2 Anynet+ Device 3

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack

of the corresponding Anynet+ device using the HDMI cable.

HDMI 1.3 Cable

To connect to Home Theater

1. Connect the [HDMI 1],

Anynet+ Device 1 Anynet+ Device 2

[HDMI 2] or [HDMI 3]

jack on the TV and the

HDMI OUT jack of the

corresponding Anynet+ device using the HDMI cable.

HDMI 1.3 Cable

Home Theatre

HDMI 1.3 Cable

Anynet+ Device 3

2. Connect the HDMI IN jack

of the home theatre and

the HDMI OUT jack of the

corresponding Anynet+ device using the HDMI cable.

HDMI 1.3 Cable

➣

Connect only one receiver.

➣

You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.

➣

Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total.

➣

English - 37

Setting Up Anynet+

The following settings are to use Anynet+ functions.

Using the Anynet+ Function

1. Press The TOOLS button. Then Press the ENTER button to

select "Anynet+(HDMI-CEC)". Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button.

3. Press the ▲ or ▼ button to select "On", then press the ENTER button.

The "Anynet+ (HDMI-CEC)" function is enabled.

➣

If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.

➣

When the "Anynet+ (HDMI-CEC)" function is disabled, all the

➣

Anynet+ related operations are deactivated.

Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Enter Exit

TV P9

View TV

Select Device 

Record 

Menu on Device 

Device Operation 

Receiver :Off 

Setup 

Move Enter Return

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections

Move Enter Return

Tools

Setup

: Off

Off

Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the ▲ or ▼ button to select "Auto Turn Off", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Yes", then press the ENTER button.

The Auto turn off function is enabled.

➣

If you select "No", the Auto turn off function is cancelled.

➣

Press the EXIT button to exit.

The Select Device setting of the TV remote control is to be set

➣

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections

Move Enter Return

Setup

: On

: Off

to TV to use the Anynet+ function.

If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is

➣

turned off. However, if the device is recording, it may not be turned off.

English - 38

Yes

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Then press the ENTER button to select "Anynet+(HDMICEC)".

2. Press the ▲ or ▼ button to select "Select Device", then press the ENTER button.

3. Press the ▲ or ▼ button to select to a particular device and press the ENTER button. It is switched to the selected device.

4. If you cannot nd a device you want, press the ▲ or ▼ button to select "Setup", then press the ENTER button.

5. Press the ▲ or ▼ button to select "Searching Connections", then press the ENTER button.

The message "Conguring Anynet+ connection..." is displayed.

When searching devices completes, the connected devices are listed in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes.

➣

You cannot cancel the operation during the switching operation.

The time required to scan for devices is determined by the number of connected devices.

➣

When the device scan is complete, the number of found devices is not displayed.

➣

Although the TV automatically scans devices when it is turned on using the POWER button, devices

➣

connected when the TV is on or under a specic circumstance are not displayed in the device list.

Therefore select "Searching Connections" menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the

➣

Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

TV P9

View TV

Select Device 

Record 

Menu on Device 

Device Operation 

Receiver :Off 

Setup 

Move Enter Return

Setup

Anynet+ (HDMI-CEC)

Auto Turn Off

Searching Connections 

Move Enter Return

: On

: Yes



English - 39

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

View TV Switches from Anynet+ to TV broadcast mode. Select Device Your TV connects to the corresponding device. Record Starts a recording. (This menu works only for a device supporting

Menu on Device Shows the menu of the connected device.

Device Operation Shows the play control menu of the connected device.

Receiver Sound is output through the receiver. Setup You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type Operating Status Available Buttons

Anynet+ Device

Device with built-in Tuner

Audio Device When Receiver is activated

The Anynet+ function only works when the remote control is set to TV.

➣

The button works only while in the recordable state.

➣

You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices

➣

only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+

➣

device. The Anynet+ functions don’t operate for the products from other manufacturers.

➣

In Anynet+ mode, the colour buttons may not work properly.

➣

The , operations may differ depending on the device.

➣

recording.)

Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears.

Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.

After switching to the device, when the menu of the corresponding device is displayed on the screen.

After switching to the device, while playing a file

After switching to the device, when you are watching a TV programme

Numeric buttons ▲/▼/◄/►/ENTER buttons

Colour buttons EXIT button

(Backward search)/ (Forward search)/ (Stop)/ (Play)/ (Pause)

</>

button

+/-

VOL MUTE button

button

English - 40

Recording

You can make a recording of a TV programme using a recorder.

Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from

➣

another device, the video from the device is recorded. You can also record the source streams by selecting Record after pressing the TOOLS button.

➣

Before recording, check whether the antenna jack is properly connected to the recording device.

➣

For the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Then Press the ENTER button to

select "Anynet+(HDMI-CEC)".

Press the ▲ or ▼ button to select "Receiver", then press the

ENTER button.

2. Press the ◄ or ► button to select to "On", then press the

ENTER button.

Now you can listen to sound through the receiver.

3. Press the EXIT button to exit. When the receiver is set to On, you can listen to the TV sound

➣

through the 2-channel receiver. If the receiver is exclusively for a home theatre only

➣

(supporting audio only), it may not appear in the device list. In case of a content with copyright problem, listening through the receiver may not properly operate.

➣

If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the

➣

power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again.

(see page 22)

TV P9

View TV

Select Device 

Record 

Menu on Device 

Device Operation 

Receiver :Off 

Setup 

Move Enter Return

English - 41

Check Points before Requesting Service

Symptom Solution

Anynet+ does not work.

I want to start Anynet+.

I want to exit Anynet+. ■ Select View TV in Anynet+ menu.

The Configuring Anynet+ connection message appears on the screen. The Anynet+ device does not play. The connected device is not displayed.

The TV programme cannot be recorded.

■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+

devices only.

■ Connect only one receiver.

■ Check if the Anynet+ device power cord is properly connected.

■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Check whether the TV remote control is in TV mode.

■ Check whether it is Anynet+ exclusive remote control.

■ Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.)

■ When connecting or removing the HDMI 1.3 cable, please make sure to search

devices again or restart your TV.

■ Check if the Anynet+ Function of Anynet+ device is set on.

■ Check if the Anynet+ device is properly connected to the TV and check if the

Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.

■ Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.

■ Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.

■ Press any of P / , CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded

Anynet+ device is not connected.)

■ You cannot use the remote control when you are configuring Anynet+ or

switching to a view mode.

■ Use the remote control when the Anynet+ setting or switching to view mode is

complete.

You cannot use the play function when Plug & Play is in progress.

■ Check whether or not the device supports Anynet+ functions.

■ Check whether or not the HDMI 1.3 cable is properly connected.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Search Anynet+ devices again.

■ You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI

cables may not support Anynet+ functions.

■ If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3

cable or power cord or a power failure, please repeat the device scan.

Check whether the antenna jack on the recording device is properly connected.

English - 42

Teletext Feature

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise,

➣

information may be missing or some pages may not be displayed.

1. (exit)

Exit from the teletext display

2 6 (index)

Used to display the index (contents) page at any time while you

are viewing teletext.

3 8 (store)

Used to store the teletext pages.

4 4 (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

5 5 (reveal)

Used to display the hidden text (answers to quiz games, for

example). To display normal screen, press it again.

6 / (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

7 0 (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button.

8 1 (sub-page)

Used to display the available sub-page.

9 2 (page up)

Used to display the next teletext page.

0 3 (page down)

Used to display the previous teletext page.

! 9 (hold)

Used to hold the display on a given page if the selected page is

linked with several secondary pages which follow on automatically. To resume, press it again.

@ 7 (cancel)

Used to display the broadcast when searching for a page.

# Colour buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

@ #

You can change teletext pages by pressing the numeric buttons on

➣

the remote control.

English - 43

The teletext pages are organized according to six categories:

Part Contents

A B C D E F

Teletext information is often divided between several pages

➣

displayed in sequence, which can be accessed by:

  Entering the page number   Selecting a title in a list   Selecting a coloured heading (FASTEXT system)

Press the TV button to exit from the teletext display.

➣

Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information.

English - 44

Auto Wall-Mount (Sold separately)

Once the auto wall mount is installed, your TV’s position can be easily adjusted.

TV Rear Panel

SERVICE Cable (Not supplied)

Entering the menu

1. Press the ▲, ▼, ◄ or ► button on your remote control.

The Auto Wall-Mount screen is displayed.

➣

If the Auto Wall-Mount screen is not displayed when

➣

clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU butt on to display the menu.

Press the ▲ or ▼ button to select “Setup”, then press the

ENTER button.

• Press the ▲ or ▼ button to select “Auto Wall-Mount”, then

press the ENTER button.

Remembering the Position

2. Adjust to the desired position using the ▲,▼,◄,► buttons.

If you press an arrow button when no OSD is displayed on

➣

the TV screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button to

➣

select “Yes”, then press the ENTER button. The position is initialized to the default setting.

3. Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from either

Position 1, Position 2 or Position 3 in order to save the current position.

To not save the current position, press the RETURN button.

➣

When selecting a save mode, you cannot use the Colour

➣

buttons.

4. Press the ENTER button to save. When Position1 is selected, the message "Current position

➣

saved as Position1" is displayed.

5. Press the ENTER button. The saved Position appears on the left side of the OSD.

➣

Auto Wall-Mount

Plug & Play  Language : English  Time  Light Effect : Auto Wall-Mount  Melody : Off  Entertainment : Off  Energy Saving : Off 

PIP 

Move Enter Return

Position1

Auto Wall-Mount

Position 1 2 3

Adjust Save Center

Select a mode to Save.

Adjust Enter Return

Position1

Position2

Position3

Save

Setup

In Watching TV

INFO



English - 45

Moving to the remembered position

1. Complete Step 1 of “Entering the menu”.

2. Pressing a Colour (Red, Green, Yellow) button moves the auto

wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set

➣

positions by pressing the Red (Position 1),

Green (Position 2) or Yellow (Position 3) buttons.

If you adjust the position after moving to a pre-set position,

➣

the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.

➣

For product installation and the installation and moving of the wall mount, make sure to consult a

➣

specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to

➣

other building materials, please contact your nearest dealer.

The auto wall mount will not work when Anynet+ and WISELINK are operating.

➣

37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model

➣

(WMN5090A*).

Position1

Auto Wall-Mount

Position 1 2 3

Adjust Save Center

INFO

Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington lock is a device used to physically x the system when using it in a public

place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot

on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

2. Connect the Kensington lock cable.

3. Fix the Kensington lock to a desk or a heavy

stationary object. The place of the Kensington Lock may be different

➣

depending on its model.

English - 46

Cable

Figure 2

Figure 1

Troubleshooting: Before Contacting Service Personnel

No sound or picture

Normal picture but no sound

Screen is black and power indicator light blinks steadily

No picture or black and white


Sound and picture interference

Blurred or snowy picture, distorted sound

Remote control malfunctions

"Check signal cable." message is displayed

On PC mode, "Not

Supported Mode." message is displayed

The damaged picture appears in the corner of the screen

The "Resets all settings to the default values" message appears.

The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Check that the mains lead has been connected to a wall socket.

♦

Check that you have pressed the button on your set.

♦

Check the picture contrast and brightness settings.

♦

Check the volume.

♦

Check the volume.

♦

Check whether the MUTE button has been pressed on the remote control.

♦

Check if "TV Speaker" is on

♦

On your computer check; Power, Signal Cable.

♦

The TV is using its power management system.

♦

Move the computer’s mouse or press any key on the keyboard.

♦

Adjust the colour settings.

♦

Check that the broadcast system selected is correct.

♦

Try to identify the electrical appliance that is affecting the set and move it

♦

further away. Plug your set into a different mains socket.

♦

Check the direction, location and connections of your aerial.

♦

This interference is often due to the use of an indoor aerial.

Replace the remote control batteries.

♦

Clean the upper edge of the remote control (transmission window).

♦

Check the battery terminals.

♦

Check that the signal cable is rmly connected to the PC or video sources.

♦

Check that the PC or video sources are turned on.

♦

Check the maximum resolution and the frequency of the video adaptor.

♦

Compare these values with the data in the Display Modes.

♦

If "Just Scan" is selected in some external devices, the damaged picture

may appear in the corner of the screen. This symptom is caused by external devices, not TV.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

English - 47

Technical and Environmental Specications

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE32A550 LE37A550 LE40A550

32 inch 37 inch 40 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2 10 W X 2

865 x 79 x 500 mm

865 x 220 x 561 mm

14 kg

LE46A550 LE52A550

46 inch 52 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2

1186 x 111 x 686 mm

1186 X 260 X 749 mm

27 kg

984 x 87 x 572 mm

984 x 240 x 637 mm

18 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

1330 x 120 x 779 mm

1330 X 291 X 842 mm

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

1058 x 91 x 608 mm

1058 X 240 X 672 mm

19 kg

33 kg

English - 48

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE32A551 LE37A551 LE40A551

32 inch 37 inch 40 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2 10 W X 2

801 X 88 X 526 mm

801 X 252 X 574 mm

13 kg

918 X 92 X 608 mm

918 X 300 X 650 mm

18 kg

997 X 92 X 641 mm

997 X 300 X 686 mm

21 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE46A551 LE52A551

46 inch 52 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2

1127 X 100 X 716 mm 1127 X 280 X 767 mm

28 kg

1269 X 109 X 806 mm 1269 X 326 X 857 mm

32 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)

5 % to 95 %, non-condensing

-20˚ ~ 20˚

English - 49

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE32A552 LE37A552 LE40A552

32 inch 37 inch 40 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2 10 W X 2

801 X 88 X 514 mm

801 X 252 X 574 mm

13 kg

918 X 92 X 592 mm

918 X 300 X 650 mm

18 kg

997 X 92 X 628 mm

997 X 300 X 686 mm

21 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE46A552 LE52A552

46 inch 52 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2

1127 X 100 X 700 mm 1127 X 280 X 767 mm

28 kg

1269 X 109 X 791 mm 1269 X 326 X 857 mm

32 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

English - 50

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

LE32A553 LE37A553 LE40A553

32 inch 37 inch 40 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2 10 W X 2

801 X 88 X 524 mm

801 X 252 X 574 mm

13 kg

918 X 92 X 601 mm

918 X 300 X 650 mm

18 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

997 X 92 X 638 mm

997 X 300 X 686 mm

21 kg

Model Name

Screen Size (Diagonal)

PC Resolution

Sound

Output

Dimensions (WxDxH)

Body With stand

Weight With stand

Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right)

Design and specifications are subject to change without prior notice.

➣

This device is a Class B digital apparatus.

➣

For the power supply and Power Consumption, refer to the label attached to the product.

➣

LE46A553 LE52A553

46 inch 52 inch

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10 W X 2 10 W X 2

1127 X 100 X 710 mm 1127 X 280 X 767 mm

28 kg

10 °C to 40 °C (50 °F to 104 °F)

10 % to 80 %, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing

-20˚ ~ 20˚

1269 X 109 X 800 mm 1269 X 326 X 857 mm

32 kg

English - 51

Warning! Important Safety Instructions

Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Do not cover the slots and openings with a cloth or other materials.

- Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

- Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is

provided.

- Give your product 10 cm (4 inch) clearance from the wall.

• Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.

• Do not place heat generating items such as candles, ashtrays, incense, flammable gas or explosive materials near the product.

• Do not place a water containing vessel on this apparatus, as this can result in a risk of fire or electric shock.

• Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately. Make sure to pull out the power cord from the outlet before cleaning.

• This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly under environmental considerations. Please contact your local authorities for disposal or recycling information.

• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

• Never insert anything metallic into the open parts of this apparatus. Doing so many create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it

- unplug it immediately and contact an authorized dealer or service center.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially when children, elderly or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate

sparks and heat or the insulation to deteriorate.

• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures,high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc. Failure to do so may cause serious damage to your set.

• Use only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Do not allow children to hang onto the product.

• Store the accessories (battery, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.

• Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

WARNING - TO PREVENT THE SPREAD OF FIRE,

•

KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Wiring the Mains Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BSI1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required,

it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitabl y approved extension lead or consult your dealer for assistance. However, if there is no alternative but to cut off the plug, remove the fuse and then safely dispose of the plug.

Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows :

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING:

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL, WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

Warranty Card

UNITED KINGDOM

This Samsung product is warranted for a period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from:

Samsung Electronics U.K. Ltd.

Customer Care Centre

PO Box 17243

Edinburgh, EH11 4YB

Tel: 0870 SAMSUNG (7267864)(UK & Northern Ireland)

Tel: 0818 717 100 (Republic of Ireland Only)

United Kingdom

Fax: +44 (0)870 7221127

Web : www.samsung.com/uk

WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced.

2. Samsung’s obligations are limited to the repair or, at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres.

No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work

and damage to the products caused by such repair work will not be covered by this warranty.

4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured.

This page is intentionally

left blank.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Samsung LE40A552P3R, LE37A552P3R, LE52A552P3R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

List of Parts

Installing the Stand

Installing the Wall Mount Kit

Viewing the Control Panel

Viewing the Connection Panel

Viewing the Remote Control

Installing Batteries in the Remote Control

Switching On and Off

Placing Your Television in Standby Mode

Viewing the Menus

Using the TOOLS Button

Plug & Play

Storing Channels Automatically

Storing Channels Manually

Adding / Locking Channels

Sorting the Stored Channels

Assigning Channels Names

Fine Tuning Channel Reception

Changing the Picture Standard

Adjusting the Custom Picture

Resetting the Picture Settings to the Factory Defaults

Viewing the Picture In Picture (PIP)

Sound Features

Selecting the Sound Mode

Connecting Headphones (Sold separately)

Setting and Displaying the Current Time

Setting the Sleep Timer

Switching the Television On and Off Automatically

Choosing Your Language

Setting the Light Effect (depending on the model)

Melody / Entertainment / Energy Saving

Selecting the Source

Editing the Input Source Names

Setting up Your PC Software (Based on Windows XP)

Display Modes

Setting up the TV with your PC

Using the WISELINK Function

Using the WISELINK Menu

Using the PHOTO (JPEG) List

Using the MP3 List

Using the Setup Menu

What is Anynet+?

Connecting Anynet+ Devices

Setting Up Anynet+

Scanning and Switching between Anynet+ Devices

Recording

Listening through a Receiver

Check Points before Requesting Service

Teletext Feature

Auto Wall-Mount (Sold separately)

Using the Anti-Theft Kensington Lock (depending on the model)

Troubleshooting: Before Contacting Service Personnel

Warning! Important Safety Instructions

Wiring the Mains Power Supply Plug (UK Only)

Warranty Card
