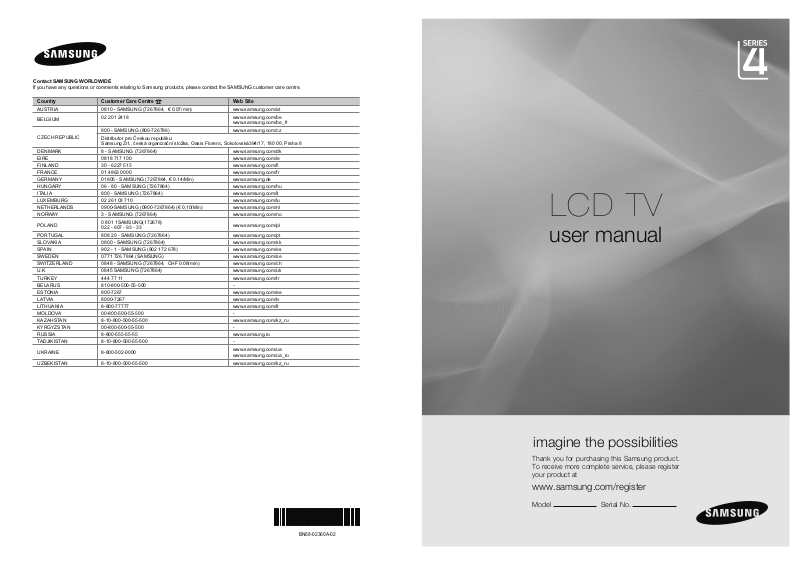

SAMSUNG LE-32B450 User Manual

BN68-02360A-02

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com/at

BELGIUM

02 201 2418 www.samsung.com/be

www.samsung.com/be_fr

CZECH REPUBLIC

800 - SAMSUNG (800-726786) www.samsung.com/cz
Distributor pro Českou republiku:

Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

DENMARK 8 - SAMSUNG (7267864) www.samsung.com/dk
EIRE 0818 717 100 www.samsung.com/ie

FINLAND 30 - 6227 515 www.samsung.com/fi
FRANCE 01 4863 0000 www.samsung.com/fr

GERMANY 01805 - SAMSUNG (7267864, € 0.14/Min) www.samsung.de
HUNGARY 06 - 80 - SAMSUNG (7267864) www.samsung.com/hu
ITALIA 800 - SAMSUNG (7267864) www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.com/lu
NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com/nl

NORWAY 3 - SAMSUNG (7267864) www.samsung.com/no

POLAND

0 801 1SAMSUNG(172678)
022 - 607 - 93 - 33

www.samsung.com/pl

PORTUGAL 808 20 - SAMSUNG (7267864) www.samsung.com/pt
SLOVAKIA 0800 - SAMSUNG (7267864) www.samsung.com/sk
SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com/es
SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/se
SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) www.samsung.com/ch

U.K 0845 SAMSUNG (7267864) www.samsung.com/uk
TURKEY 444 77 11 www.samsung.com/tr
BELARUS 810-800-500-55-500 -

ESTONIA 800-7267 www.samsung.com/ee
LATVIA 8000-7267 www.samsung.com/lv
LITHUANIA 8-800-77777 www.samsung.com/lt
MOLDOVA 00-800-500-55-500 -

KAZAHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500 ­RUSSIA 8-800-555-55-55 www.samsung.ru
TADJIKISTAN 8-10-800-500-55-500 -

UKRAINE 8-800-502-0000

www.samsung.com/ua
www.samsung.com/ua_ru

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru

LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model Serial No.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

License

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is

incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

Digital TV Notice

1. Functionalities related to Digital TV(DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital

terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C(MPEG2 and MPEG4 AAC) cable-

TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-

C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric

Programme Guide), VOD (Video on Demand) and so on, are not included in this specification. So, they cannot be workable at

this moment.

3.
Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T

digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4.
Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a

service and you may be required to agree to terms and conditions of their business.

5.
Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some

cable service providers.

6.
For more information, please contact your local Samsung customer care centre.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

Do not display a still image and partially still on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and

contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the

left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or

a game console may cause a similar effect to the screen. Damages caused by the above effect are not

covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To

prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

R

R

R

●

●

●

Symbol

Note One-Touch Button TOOLS Button Press

R

GENERAL INFORMATION

Viewing the Control Panel ....................................................2

Accessories ..........................................................................2

Viewing the Connection Panel ..............................................3

Remote Control ....................................................................5

Installing Batteries in the Remote Control ............................5

OPERATION

Viewing the menus ...............................................................6

Placing Your Television in Standby Mode .............................7

Plug & Play Feature..............................................................7

Viewing the Display ..............................................................8

CHANNEL CONTROL

Configuring the Channel Menu .............................................8

Managing Channels ...........................................................11

PICTURE CONTROL

Configuring the Picture Menu .............................................13

Using Your TV as a Computer (PC) Display .......................15

Setting up the TV with your PC ..........................................16

■

■

■

■

■

■

■

■

■

■

■

■

■

■

SOUND CONTROL

Configuring the Sound Menu ..............................................17

Selecting the Sound Mode .................................................18

SETUP

Configuring the Setup Menu ...............................................19

INPUT / SUPPORT

Configuring the Input Menu ................................................22

Configuring the Support Menu............................................22

RECOMMENDATIONS FOR USE

Teletext Feature ..................................................................24

Installing the Stand .............................................................25

Installing the Wall Mount Kit ...............................................25

Using the Anti-Theft Kensington Lock ................................26

Securing the Installation Space ..........................................26

Securing the TV to the Wall ................................................27

Troubleshooting ..................................................................28

Specifications .....................................................................31

■

■

■

■

■

■

■

■

■

■

■

■

■

CONTENTS

English

English - 1

N O T

4

1

2

3

5

6887

1

SOURCE

E

: Toggles between all the available input sources. In the on-screen menu, use this button as you would use the

ENTER

E

button on the remote control.

2

MENU: Press to see an on-screen menu of your TV’s features.

3

Y

: Press to increase or decrease the volume.

In the on-screen menu, use the

Y

buttons as you would use the ◄ and ► buttons on the remote control.

4

Z

: Press to change channels. In the on-screen menu, use the

Z

buttons as you would use the ▼ and ▲ buttons

on the remote control.

5

P

(POWER): Press to turn the TV on and off.

6

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.7 POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

8

SPEAKERS

Accessories

(M4 X L16) (M4 X L14)

Remote Control &

Batteries (AAA x 2)

Power Cord Cover-Bottom Stand Screw X 4

Stand Screw X 3

(32inch model only)

Cleaning Cloth

Owner’s Instructions

●

Warranty card

●

Safety Guide

●

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Warranty card / Safety Guide (Not available in all locations)

The items colour and shape may vary depending on the model.

¦

N

N

¦

N

N

N

GENERAL INFORMATION

Viewing the Control Panel

The product colour and shape may vary depending on the model.

You can use a button by pressing the side panel buttons.

English - 2

¦

9

7

6

8

1 2 3 4 5 6

0! @

[TV Side Panel]

[TV Rear Panel]

Power Input

5

AUDIO OUT [R-AUDIO-L]

–

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding

audio in connectors on the Amplifier or DVD Home Theatre.

4

PC / DVI AUDIO IN

–

–

–

Connects to an antenna or cable TV system.

Connect to the audio output jack on your PC.

DVI audio outputs for external devices.

PC IN

ANT IN

–

Connect to the video output jack on your PC.

directly to an Amplifier or Home Theatre, not the TV.

2

3

1

DIGITAL AUDIO OUT (OPTICAL)

N

–

only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD / Blu-ray player or Cable / Satellite Box

Connects to a Digital Audio component such as a Home theatre receiver.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

N

N

N

English - 3

Viewing the Connection Panel

@

SERVICE

–

–

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Connector for software upgrades.

EXT O O O Only TV or DTV output is available.

!

EXT (RGB)

Connector

–

–

and Cr.

Connect RCA audio cables (optional) to [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio

out connectors on the DTV or DVD.

The P

R, PB and Y connectors on your component devices (DTV or DVD) are sometimes labelled Y, B-Y and R-Y or Y, Cb

0

COMPONENT IN

–

–

to corresponding component video out connectors on the DTV or DVD.

If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD)

and connect the DTV (or DVD) to component connector (P

Connect component video cables (optional) to component connector (P

9

KENSINGTON LOCK (depending on the model)

N

–

The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to

use a locking device, contact the dealer where you purchased the TV

The location of the Kensington Lock may be different depending on its model.

8

AV IN [VIDEO] / [R-AUDIO-L]

N

–

–

CAM is not supported in some countries and regions, check with your authorized dealer

Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the

A/V device.

N

N

N

the channel list is now updated.

You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your

hands since dropping the CI CARD may cause damage to it.

Insert the CI-Card in the direction marked on it.

The place of the COMMON INTERFACE Slot may be different depending on its model.





When the channel information configuration has finished, the message ‘Updating Completed’

The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in

about 2~3 minutes. If an error message is displayed, please contact your service provider

7

COMMON INTERFACE Slot



receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying

flicker or no screen display.

When not inserting ‘CI CARD’ in some channels, ‘Scrambled Signal’ is displayed on the screen.

N

N

N

on the back of the TV. If this happens, contact the company that provided the DVD / Blu-ray player / Cable Box / Satellite

The TV may not output sound and pictures may be displayed with abnormal colour when DVD / Blu-ray player / Cable Boxes

/ Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and

there is no sound, connect the HDMI cable to the HDMI IN 1(DVI) jack and the audio cables to the PC / DVI AUDIO IN jacks

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital

Copy Protection) coding feature installed, and supports multi - channel digital audio.

N

You can also use the ports to connect to a PC.

What is HDMI?

‘High Definition Multimedia interface’ allows the transmission of high definition digital video data and multiple channels of

digital audio.

The HDMI / DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

Use the HDMI IN 1(DVI) jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter

(DVI to HDMI) for video connection and the PC / DVI AUDIO IN jacks for audio.

6

HDMI IN 1(DVI), 2, 3

N

–

Connects to the HDMI jack of a device with an HDMI output.

No sound connection is needed for an HDMI to HDMI connection.

Video Audio (L / R) RGB Video + Audio (L / R)

Input Output

English - 4

R, PB, Y) on your set.

R, PB, Y) on the rear of your set and the other ends

.

.

.

is displayed, indicating that

¦

1

2

4

3

5

6

7

8

9

0

!

@

#

$

&

*

(

)

a

%

^

N

3.
Replace the cover.

If the remote control doesn’t work, check the following:

N

●

●

●

●

●
Remove the batteries and store them in a cool, dry place if you won’t be using the

remote control for a long time.

Is the TV power on?

Are the plus and minus ends of the batteries reversed?

Are the batteries drained?

Is there a power outage or is the power cord unplugged?

Is there a special fluorescent light or neon sign nearby?

2. Install two AAA size batteries.

N

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the

compartment.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

%

MENU : Displays the main on-

screen menu

MUTE

P

channels.

off the sound.

<

/P

>

: Press to change

watching.

M

: Press to temporarily cut

#

$

!

COLOURS BUTTONS : Use these

TV : Selects the TV mode directly.@ PRE-CH : Enables you to return

etc.

to the previous channel you were

buttons in the Channel list menus

TOOLS : Use to quickly select

CH LIST : Displays the Channel List

on screen.

on the TV screen.

frequently used functions.

7

8

9

6

INFO : Press to display information

SOURCE : Press to display and

decrease the volume.

Y

select the available video sources.

screen.

: Press to increase or

NUMERIC BUTTONS : Press to

FAV.CH : Used to display

change the channel.

Favourites Channel Lists on the

2

3

4

5

¦

Remote Control

N

N

N

1

POWER : Television Standby

button.

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

The product colour and shape may vary depending on the model.

(

6

9

7

: Teletext index

: Teletext hold

English - 5

: Teletext cancel

1

2

3

: Teletext sub page

: Teletext next page

: Teletext previous page

/

:

Double, or Mix.

: Exit from the Teletext display

: Alternately select Teletext,

Fastext topic selection

4

8

: Teletext size selection

: Teletext store

0

5

FLOF)

: Teletext mode selection (LIST /

: Teletext reveal

Teletext Functions

5

6

7

8

9

0

!

@

$

%

&

)

a

SUBT. : Digital subtitle display

AD : Audio Description selection.

*

(

UP▲ / DOWN▼ / LEFT◄ / RIGHT► /

EXIT : Press to exit the menu.

menu items and change menu values.

ENTER

E

: Use to select on-screen

^

&

GUIDE : Electronic Programme Guide

RETURN : Returns to the previous menu

(EPG) display

5. Press the ◄ or ► button until the brightness becomes 80.

Mode : Standard ►

Backlight : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50


Mode : Standard ►

Backlight : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50


Backlight : 7

Contrast : 95

Brightness : 45 ►

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50

Advanced Settings

Picture Options

Picture Reset


U

Move

L

Adjust

E

Enter

R

Return

45

Brightness

U

Move

L

Adjust

E

Enter

R

Return

80

Brightness

Mode : Standard ►

Backlight : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50


6.

Press the ENTER

N

4.

Press the ENTER

3.

Press the ▲ or ▼ button to select Brightness.

Press the EXIT button to exit from the menu.

E

button.

E

button.

2.

Press the ENTER

E

button to select Picture.

Example: Setting the TV’s Brightness in the Picture Menu

¢

Adjusting the Brightness to 80

1.
Press the MENU button to display the menu.

RUTURN

EXIT

e

R

Return to the previous menu.

Exit the on-screen menu.

Using the remote control buttons

MENU

Button Operations Button Operations

m

Display the main on-screen menu.

5.

4. Press the ▲/▼/◄/► button to change the selected items.

Press the EXIT button to exit from the menu.

N

Press the ENTER

2.

3.
Press the ▲ or ▼ button to move to items in the menu.

Press the ▲ or ▼ button to select one of the icons.

Press the ◄ or ► button to access the icon’s sub-menu.

1.

The main menu is displayed on the screen. Its left side has icons:

Channel , Setup, Input, Application, Support.

Press the MENU button.

Press the RETURN button to return to the previous menu.

E

button to enter items in the menu.

¦

OPERATION

Viewing the menus

Before using the TV, follow the steps below to learn how to navigate the menu in order to select

and adjust different functions.

English - 6

▲/▼/◄/►/

ENTER

E

Picture, Sound,

Move the cursor and select an item.

Select the currently selected item.

Confirm the setting.

If you want to reset this feature...

1.

2.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is 0-0-0-0.

N

N

The Plug & Play feature is only available in the TV mode.

If you want to change PIN number, use the Change PIN function. (refer to page 21)

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER

Press the ENTER

9.
The message Enjoy your TV! is displayed. When you have finished, press the ENTER

8. The connection method to provide the best quality HD is offered. After confirming the method, press the ENTER

19)

7
.

N

N

N

Press the ENTER

If you select Manual, Set current date and time is displayed.

If you have received a digital signal, the time will be set automatically. If not, select

After all the available channels are stored, the message Set the Clock Mode. is displayed.

6.
Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER

N

N

N

When setting the antenna source to Cable, a step appears allowing you to set a value for the digital channel search. For

more information, refer to Channel → Auto

Press the ENTER

The channel search will start and end automatically.

N

Digital & Analogue

Digital

Analogue: Analogue channels.

5.

4.

Press the ENTER

Press the ▲ or ▼ button to select Air or Cable, then press the ENTER

N

confirm your choice.

Air: Air antenna signal.

Cable: Cable antenna signal.

N

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume

3.

2.
Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER

button to confirm your choice.

Press the ◄ or ► button to select Store Demo or Home Use, then the ENTER

N

N

We recommend setting the TV to Home Use

Store Demo mode is only intended for use in retail environments.

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1.
Press the POWER button on the remote control. The message You can set the menu

language. is displayed.

: Digital channels.

¦

Plug & Play Feature

N

Do not leave your set in standby mode for long periods of time (when you are away on holiday

unplug the set from the mains and aerial.

1. Press the POWER

2.
To switch your set back on, simply press the POWER

N

The screen is turned off and a standby indicator appears on your set.

¦

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you

wish to interrupt viewing temporarily (during a meal, for example).

English - 7

E

button again to select Plug & Play.

E

button.

E

button.

E

button.

E

button. Press the ▲ or ▼ button to select Auto, then Press the ENTER

E

button at any time to interrupt the memorization process.

Store.

Manual to set the clock. (refer to page

E

button.

E

button. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER

: Digital and Analogue channels.

E

button.

E

button to select Start.

E

button to

P

button on the remote control.

mode for the best picture in your home environment.

P

button again.

E

E

button.

You can set the menu language.

Menu Language : English ►

, for example). It is best to

Plug & Play

E

Enter

When selecting ‘Cable → Digital & Analogue’ or ‘Cable → Digital’

Country ►

Auto Store

Manual Store

Cable Search Option

Now & Next Guide

Full Guide

Default Guide

: Full Guide

Channel

DTV Air

15

abc1

18:00 ~ 6:00

18:11 Thu 6 Jan

Life On Venus Ave nue

Unclassif ied

No Detai ld Informa tion

'

INFO

N

N

Select Yes

The Stop Auto Store? message will be displayed.

Scans for all channels with active broadcast stations and stores them in the TV’s memory.

If you want to stop Auto Store, press the

–

–

–

–

Network ID: Displays the network identification code.

Frequency: Displays the frequency for the channel. (Differs in each country)

Modulation

by pressing the ◄ or ► button, then press the

Symbol Rate: Displays available symbol rates.

Provide a value to scan for cable channels.

●

N

Search Mode → Full / Network / Quick

Quick

●

●

Digital

Analogue: Analogue channels.

: Digital channels.

¢

Air / Cable

Antenna source to memorize

●

Digital & Analogue

N

If a channel is locked using the Child Lock function, the PIN input window appears.

R

Auto Store

You can scan for the frequency ranges available to you (and availability depends on your

country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers.

¦

R

¢

¢

Analogue Channel

You can change the country for analogue channels.

Digital Channel

You can change the country for digital channels.

N

Country

Configuring the Channel Menu

CHANNEL CONTROL

The PIN number input screen appears. Enter your 4 digit PIN number.

¦

Viewing the Display

Press the INFO button on the remote control. The TV will display the channel, the type of

sound, and the status of certain picture and sound settings.

●

●

N

▲, ▼: You can view other channel’s information. If you want to move to the currently

selected channel, press ENTER

◄, ►: You can view the desired program’s information at the current channel.

Press the INFO button once more or wait approximately 10 seconds and the display

disappears automatically.

The display identifies the current channel and the status of certain audio-video settings.

O

Press the INFO button to viewing the information.

: Displays available modulation values.

: Digital and Analogue channels.

E

button.

ENTER

E

English - 8

button.

ENTER

E

button.

¢

¢

Now & Next Guide

For the six channels indicated in the left-hand column, displays the Current progra

Full Guide

Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which

may be scrolled forwards or backwards in time.

N

O

For detailed procedures on using Now & Next Guide and Full Guide, refer to the descriptions on page 10.

descriptions.)

You can also display the guide menu simply by pressing the GUIDE button. (To configure the Default Guide, refer to the

R

Now & Next Guide / Full Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out

of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information

becomes available.

●
Symbol Rate: Displays available symbol rates.

Sets additional search options such as the frequency and symbol rate for cable network searches.

●

●

Frequency (Start ~ Stop): Displays the frequency for the channel.

Modulation: Displays available modulation values.

R

Cable Search Option (depending on the country)

–

–

C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this

mode.

S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

N

●

●

N

Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the

frequency range until the first channel or the channel that you selected is receive

Store (When you store the channel and associated programme number): Set to OK by pressing the

Channel mode

–

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position

numbers from P00 to P99. You can select a channel by entering the position number in this mode.

If there is abnormal sound or no sound, reselect the sound standard required.

¢

Analogue Channel

Manual store for analogue channel.

●

●

●

●
Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number (0~9)

buttons.

N

You can also select the channel number directly by pressing the number (0~9) buttons.

Colour System → Auto

Sound System → BG / DK / I /

Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or

S (Cable channel). Press the ► button, then press the ▲, ▼ or number (0~9) buttons to select the required number.

/ PAL / SECAM /

L: Sets the sound system value using the ▲ or ▼ button.

NTSC4.43: Sets the colour system value using the ▲ or ▼ button.

N

When it has finished, channels are updated in the channel list.

●

●

●

Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons.

Frequency: Set the frequency using the number buttons.

Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons.

¢

Digital Channel

Manual store for digital channels.

N

Digital Channel is only available in DTV mode.

R

N

N

Manual Store

Scans for a channel manually and stores it in the TV’s memory.

If a channel is locked using the Child Lock function, the PIN input window appears.

English - 9

mme and the Next programme information.

d on the screen.

ENTER

E

button.

Full Guide

DTV Cable 900 f tn 2:10 Tue 1 Jun

Freshmen On Campus

2:00 - 2:30

No Detailed Information

Now Next

Mint Extra

Loaded

Fresh 40 with Dynamite MC

The Distillery

Smash Hits! Sunday

1 f tn

2 ITV Play

3 Kerrang!

4 Kiss

5 oneword

6 Smash Hits!

▼

Street Hypn..

Kisstory

No Information

No Information

No Information

Watch

INFO

Information ■ Full Guide ■ Exit

Full Guide

DTV Cable 900 f tn 2:10 Tue 1 Jun

Freshmen On Campus

2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Mint Extra

Loaded

Fresh 40 with Dynamite MC

The Distillery

Smash Hits! Sunday

1 f tn

2 ITV Play

3 Kerrang!

4 Kiss

5 oneword

6 Smash Hits!

▼

No Information

Freshmen O..

Watch

INFO

Information ■ Now/Next ■ +24 Hours ■ Exit

In Full Guide

Scrolls backwards quickly (24 hours).

Scrolls forwards quickly (24 hours).

Please click on INFO button for detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality

Information (HD / SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted

programme are included on the detailed information. ‘...’ will be appeared if the summary is long.

Toggle between the Now & Next Guide

View programme information Select a programme of your choice by pressing the ▲, ▼, ◄, ► button.

the ◄, ► button to select Cancel Schedules, the scheduling is cancelled with the clock icon gone.

and

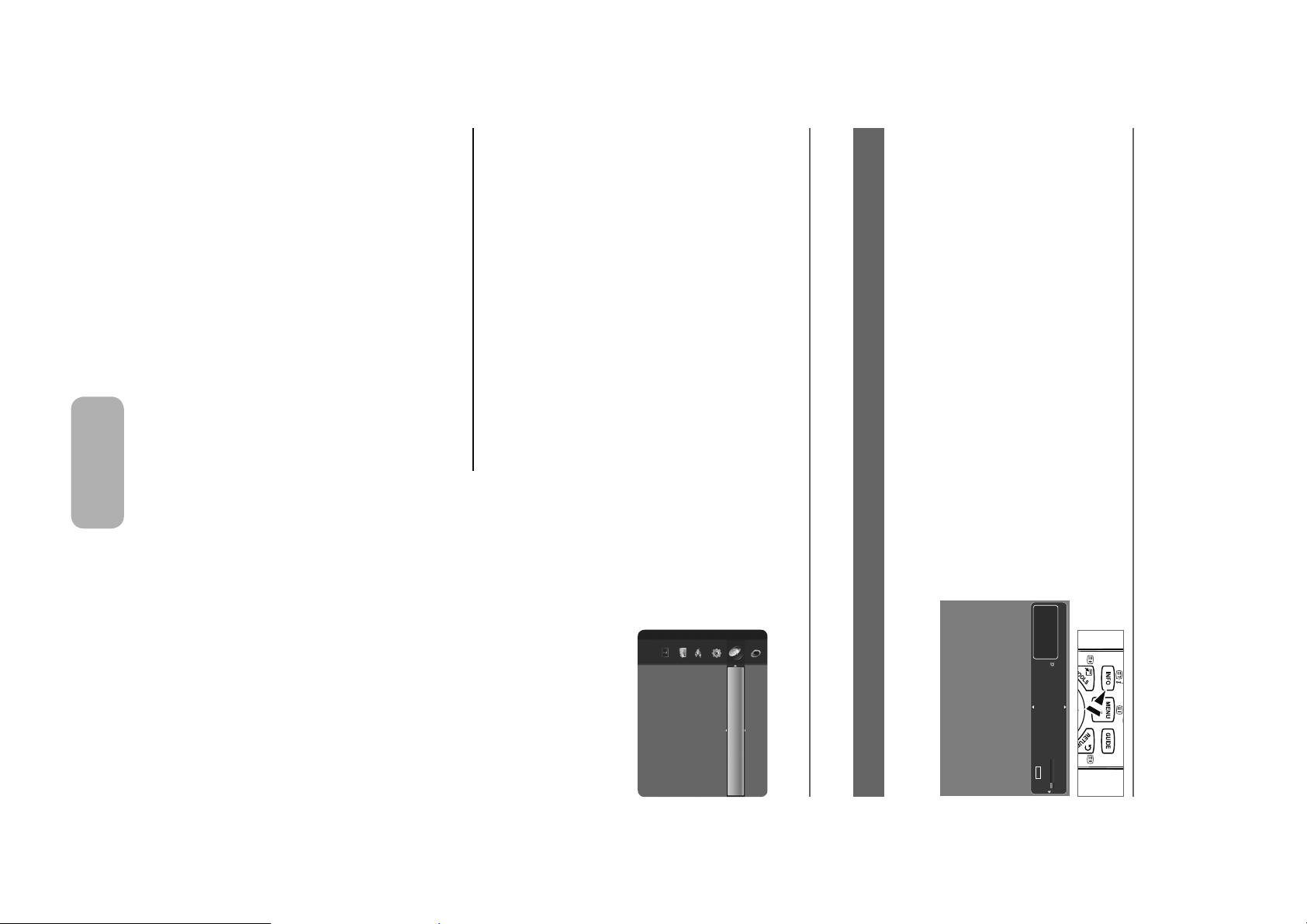

Using the Now & Next Guide / Full Guide

N

N

To... Then...

Watch a programme in the EPG list Select a programme by pressing the ▲, ▼, ◄, ► button.

Exit the guide Press the blue button

If the next programme is selected, it is scheduled with the clock icon displayed. If

Now & Next Guide

N

Fine tuned channels that have been saved are marked with an asterisk ‘*’ on the right-hand side of the channel number in the

channel banner.

To reset the fine-tuning, select Reset

Only Analogue TV channels can be fine tuned.

R

Channels will be switched within the favourite channel list.

Fine Tune

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store

operation. If the signal is weak or distorted, you may have to fine tune the channel manually.

¢

¢

Added Ch.

Channels will be switched within the memorized channel list.

Favourite Ch.

When press the P

>

/

by pressing the ▲ or ▼ button and then press the ENTER

<

button, Channels will be switched within the selected channel list.

R

Channel Mode

R

O

Channel List

For detailed procedures on using the Channel List, refer to the ‘Managing Channels’ instructions.

is pressed.

You can decide whether to display either the Now & Next Guide or the Full Guide when the GUIDE button on the remote control

You can select these options by simply pressing the CH LIST button on the remote control.

R

Default Guide → Now & Next Guide / Full Guide

English - 10

Press the yellow button repeatedly.

Then press the INFO button when the programme of your choice is

highlighted. The programme title is on the upper part of the screen

centre.

the ENTER

Press the red button repeatedly.

Press the green button repeatedly.

E

button is pressed again, press

E

button.

English - 11

824 UKTV Gold

825 UKTV style

A

1 C --

A

2 C --

A

3 ♥ C --

A

4 C --

A

5 C --

A

6 C --

A

7 C --

Added Channels

All ■ Channel Type ■ Zoom ■ Select T Tools

824 UKTV Gold

825 UKTV style

A

1 C --

A

2 C --

A

3 ♥ C --

A

4 C --

A

5 C --

A

6 C --

A

7 C --

Added Channels

All ■ Channel Type ■ Zoom ■ Select T Tools

Delete

Add to Favourite

Lock

Timer Viewing

Edit Channel Name

Sort

▼

¢

N

Add / Delete

You can delete or add a channel to display the channels you want.

All deleted channels will be shown on All Channels menu.

N

N

The ‘

All favourite channels will be shown on Favourites menu.

¢

T

Add to Favourite / Delete from Favourite

You can set channels you watch frequently as favourites.

Press the TOOLS button to display the Tools menu. You can also set the add to (or delete from) Favourite by selecting Tools

→
Add to Favourite (or

N

N

N

same manner.

A gray-coloured channel indicates the channel has been deleted.

You can also delete a channel from the Added Channels

The Add menu only appears for deleted channels.

*

’ symbol will be displayed and the channel will be set as a favourite.

Channel List Option Menu (in All Channels / Added Channels / Favourites)

N

N

Option menu items may differ depending on the channel status.

Press the TOOLS button to use the option menu.

●

●

●

(

\

)

: A reserved programme

: A programme currently being broadcast.

: A locked channel.

Delete from Favourite).

or Favourites menu in the

N

Channel Status Display Icons

●

●

●
Options menus may differ depending on the situation.)

A

c

*

: An analogue channel.

: A channel selected by pressing the yellow button.

: A channel set as a Favourite.

Timer Viewing, Edit Channel Name, Sort, Edit Channel Number, Select All (or Deselect All), Auto Store menu. (The

–

–

Yellow (Select): Selects multiple channel lists. You can perform the add / delete, add to Favourites / delete from

Favourites, or lock / unlock function for multiple channels at the same time. Select the required channels and press the

yellow button to set all the selected channels at the same time. The

TOOLS (Tools): Displays the

N

Select a channel in the All Channels, Added Channels or Favourites screen by pressing the ▲ / ▼ buttons, and pressing

the ENTER

Using the Colour buttons with the Channel List

–

–

Red (Channel Type): Toggle between your TV, Radio, Data / Other and All.

Green (Zoom): Enlarges or shrinks a channel number.

Shows all current reserved programmes.

N

E

button. Then you can watch the selected channel.

Delete (or Add), Add to Favourite (or Delete from Favourite), Lock (or Unlock),

c

mark appears to the left of the selected channels.

¢

¢

Programmed

¢

Added Channels

Shows all added channels.

Favourites

Shows all favourite channels.

O

¢

All Channels

Shows all currently available channels.

¦

Managing Channels

Using this menu, you can Add / Delete or set Favourite channels and use the programme guide

for digital broadcasts.

To select the Favourites channels you have set up, press the

FAV.CH button on the remote control.

English - 12

1 / 1 / 2009

13:59 5 TV1

Quincy, M.E

18:59 2 TV3

The Equalizer

20:59 2 TV3

McMillan & Wife

Programmed

All ■ Zoom ■ Select T Tools E Information

Change Info

Cancel Schedules

Information

Select All

N

¢

¢

¢

¢

Press the TOOLS button to use the option menu.

Change Info

Select to change a viewing reservation.

Cancel Schedules

Select to cancel a viewing reservation.

Information

Select to view a viewing reservation. (You can also change the reservation information.)

Select All

Select all reserved programmes.

Channel List Option Menu (in Programmed )

You can view, modify or delete a reservation.

¢

Auto Store

N

N

If a channel is locked using the Child Lock function, the PIN input window appears.

N

You can only select

For further details on setting up options, refer to page 8.

¢

Select All / Deselect All

●

●

Select All: You can select all the channels in the channel list.

Deselect All: You can deselect all the selected channels.

the auto store.

This operation allows you to change the programme numbers of the stored channels.

¢

¢

Edit Channel Number (digital channels only)

You can also edit the channel number by pressing the number buttons on the remote control.

Sort (analogue channels only)

Deselect All when there is a selected channel.

¢

N

N

N

N

Edit Channel Name (analogue channels only)

Channels can labelled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cann

N

Reserving a programme will be shown in the Programmed menu.

Only memorized channels can be reserved.

You can set the channel, day, month, year, hour and minute directly by pressing the number buttons on the remote control.

Digital Programme Guide and Viewing Reservation

When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears.

reserve a programme according to the procedures described above.

¢

N

N

N

Timer Viewing

If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel List;

even when you are watching another channel. To reserve a programme, set the current time first. (See page 19)

The PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN, by selecting Change PIN from the menu.

The ‘

\

’ symbol will be displayed and the channel will be locked.

¢

set to On. (see page 21)

Lock / Unlock

You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is

This operation may be necessary after using

ot be labelled.

You can

English - 13

Mode : Standard ►

Backlight : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50


Colour : 50

Tint (G / R) : G50 / R50

Advanced Settings ►

Picture Options

Picture Reset


¢

¢

¢

¢

Black Tone → Off / Dark / Darker /

You can select the black level on the screen to adjust the screen depth.

Dynamic Contrast → Off / Low / Medium / High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Colour Space

Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the

most natural colour.

●

●

Native: Native Colour Space offers deep and rich colour tone.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

N

In PC mode, you can only make changes to Gamma and White Balance from among the Advanced Settings items.

Darkest

R

N

Advanced Settings is available in Standard or Movie mode.

Advanced Settings

Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed

picture settings.

reduce the overall running cost.

N

N

N

The energy consumed during use can be significantly reduced if the brightness level of the picture is reduced, which will

In PC mode, you can only make changes to Backlight, Contrast and Brightness.

Settings can be adjusted and stored for each external device you have connected to an input of the

N

N

N

Select a picture mode to be adjusted first. The adjusted values are saved for each picture mode.

When you make changes to Backlight, Contrast, Brightness, Sharpness, Colour or Tint (G/R), the OSD will be adjusted

In analogue TV, Ext., AV modes of the PAL system, you cannot use the Tint (G/R) Function.

accordingly.

R

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options that allow you to control the picture quality.

●

●

●

●

●

●

Tint (G/R): Adjusts the colour tint of the picture.

Sharpness: Adjusts the edge definition of the picture.

Colour: Adjusts colour saturation of the picture.

Backlight: Adjusts the brightness of LCD back light.

Contrast: Adjusts the contrast level of the picture.

Brightness: Adjusts the brightness level of the picture

¢

Selects the picture for the optimum display in a normal environment.

Movie

Selects the picture for viewing movies in a dark room.

¦

¢

¢

Dynamic

Selects the picture for high-definition in a bright room.

Standard

selecting Tools → Picture Mode.

R

T

Mode

You can select the type of picture which best corresponds to your viewing requirements.

Press the TOOLS button to display the Tools menu. You can also set the picture mode by

PICTURE CONTROL

Configuring the Picture Menu

TV.

English - 14

¢

N

N

This function is not available in PC, Component or HDMI mode.

●

●

Zoom: Magnify the size of the picture vertically on screen.

4:3: Sets the picture to 4:3 normal mode.

This function is available in Auto Wide mode.

intended for users to select it.

●

●

Wide Zoom: Magnify the size of the picture more than 4:3.

16:9: Sets the picture to 16:9 wide mode.

Screen Mode → 16:9 / Wide Zoom / Zoom /

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS

(Wide Screen Service) image or nothing. Each individual European country requires dif

4:3

N

N

▲, ▼, ◄ or ► button to move the picture.

If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the Overscan

function.

Reset: Press the ◄ or ► button to select Reset, then press the ENTER

the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the ENTER

After selecting Screen Fit in HDMI (1080i) or Component (1080i) mode: Select Position by pressing the ◄ or ► button. Use the

N

up and down. Then press the ENTER

Zoom: Press the ► button to Select Position, then press the ENTER

E

button. Press the ► button to Select Size, then press the ENTER

N

N

N

N

picture up / down. Then press the ENTER

Settings can be adjusted and stored for each external device you have connected to an input of the

Temporary image retention may occur when viewing a static image on the set for more than two hours.

Wide Zoom: Press the ► button to Select Position, then press the ENTER

In PC Mode, only 16:9 and 4:3 mode can be adjusted.

E

button.

¢

N

N

●
Screen Fit: Use the function to see the full image without any cut-off when HDMI (720p / 1080i) or Component (1080i) signals

are input.

Depending on the input source, the picture size options may vary.

The items available may differ depending on the selected mode.

●

●

●

Wide Zoom: Magnify the size of the picture more than 4:3.

Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

4:3: This is the default setting for a video movie or normal broadcasting.

T

Size

You can select the picture size which best corresponds to your viewing requirements.

●

●

Auto Wide

Press the TOOLS button to display the Tools menu. You can also set the size by selecting Tools → Picture Size.

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

: Automatically adjusts the picture size to the 16:9 aspect ratio.

R

¢

N

N

N

You can select the most comfortable colour tone to your eyes.

Settings can be adjusted and stored for each external device you have connected to an input of the

Warm1 or Warm2 is only activated when the picture mode is Movie.

Picture Options

Colour Tone → Cool / Normal / Warm1 / Warm2

In PC mode, you can only make changes to the Colour Tone and Size from among the items in Picture Options.

¢

Edge Enhancement → Off /

You can emphasize object boundaries in the picture.

¢

Flesh Tone

You can emphasize the pink ‘flesh tone’ in the picture.

N

Changing the adjustment value will refresh the adjusted screen.

●

changing the values of R, G, B. Recommended for advanced users only.

Reset: The previously adjusted white balance will be reset to the factory defaults.

¢

White Balance

You can adjust the colour temperature for more natural picture colours.

●
R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: You can adjust the Colour ‘temperature’ in the light areas by

On

E

button. You can initialize the setting.

E

button. Press the ▲ or ▼ button to move the picture

E

button. Press the ▲ or ▼ button to move the

ferent picture size so this function is

E

button.

E

button. Press

TV.

TV.

English - 15

Setting Up Your PC Software (Based on Windows XP)

¦

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different,

depending upon your particular version of Windows and your particular video card. However, even if your actual screens look

different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung

4.

3. When the control panel window appears, click on ‘Display’ and a display dialogbox will appear.

Navigate to the ‘Settings’ tab on the display dialog-box.

The correct size setting (resolution): Optimum-1360 x 768 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct value is ‘60’

‘OK’ and exit the dialog box.

Dealer.)

1. First, click on ‘Control Panel’ on the Windows start menu.

2.
When the control panel window appears, click on ‘Appearance and Themes’

and a display dialog-box will appear.

Using Your TV as a Computer (PC) Display

R

Picture Reset → Reset Picture Mode / Cancel

Resets all picture settings to the default values.

N

●
Select a picture mode to be reset. The reset is performed for each picture mode.

Reset Picture Mode: Current picture values return to default settings.

¢

Film Mode → Off /

N

The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

Film Mode

is supported in TV, AV, COMPONENT(480i / 1080i) and HDMI(480i / 1080i).

Auto

¢

You can directly select the black level on the screen to adjust the screen depth.

HDMI Black Level → Normal /

N

This function is active only when the external input connects to HDMI (RGB signa

N

When the signal is weak, select one of the other options until the best picture is di

Low

¢

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static

and ghosting that may appear on the screen.

Digital NR → Off / Low / Medium / High / Auto

or ‘60 Hz’. Otherwise, just click

ls).

splayed.

English - 16

Brightness : : 45

Sharpness : 50

Auto Adjustment ►

Screen

Advanced Settings

Picture Options

Picture Reset


R

¢

Image Reset

You can replace all image settings with the factory default values.

¢

PC Position

Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press

the ◄ or ► button to adjust the Horizontal-Position.

¢

been reduced, readjust the picture so that it is aligned on the centre of screen.

not removed by Fine-tuning alone, then adjust the frequency as best as possible

Screen

Coarse / Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is

T

N

Press the TOOLS button to display the Tools menu. You can also set the Auto Adjustment

by selecting Tools → Auto

This function does not work in DVI-HDMI mode.

R

Auto Adjustment

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video signal.

The values of fine, coarse and position are adjusted automatically.

¦

N

Setting up the TV with your PC

Preset

: Press the SOURCE button to select PC mode.

Adjustment.

(Coarse) and Fine-tune again. After the noise has

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are

N

N

N

N

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

VESA GTF 1280 x 720 52.500 70.000 89.040 -/+

1360 x 768 47.712 60.015 85.500 +/+

1024 x 768 60.023 75.029 78.750 +/+

1024 x 768 48.363 60.004 65.000 -/-

1024 x 768 56.476 70.069 75.000 -/-

800 x 600 46.875 75.000 49.500 +/+

800 x 600 48.077 72.188 50.000 +/+

800 x 600 37.879 60.317 40.000 +/+

VESA DMT 640 x 480 31.469 59.940 25.175 -/-

VESA CVT 720 x 576 35.910 59.950 32.750 -/+

MAC 640 x 480 35.000 66.667 30.240 -/-

1280 x 720 44.772 59.855 74.500 -/+

1280 x 720 56.456 74.777 95.750 -/+

640 x 480 37.500 75.000 31.500 -/-

640 x 480 37.861 72.809 31.500 -/-

832 x 624 49.726 74.551 57.284 -/-

720 x 400 31.469 70.087 28.322 -/+

Mode Resolution

IBM 640 x 350 31.469 70.086 25.175 +/-

recommended.

¢

D-Sub and HDMI/DVI Input

Horizontal Frequency

(KHz)

Vertical Frequency

(Hz)

Pixel Clock Frequency

Display Modes

(MHz)

Sync Polarity

(H / V)

¦

Mode : Custom ►

Equalizer

SRS TruSurround HD : Off

Audio Language : - - -

Audio Format : - - -

Audio Description

Auto V

olume : Off

Sound

R

N

N

While viewing a digital channel, this function can be selected.

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed

difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

The Audio Format appears according to the broadcasting signal.

N

Audio Format → MPEG / Dolby Digital (digital channels only)

While viewing a digital channel, this function can be selected.

R

N

You can change the default value for audio languages. Displays the language information for the incoming stream.

You can only select the language among the actual languages being broadcast.

including internal television speakers. It is fully compatible with all multichannel formats.

Audio Language (digital channels only)

R

Resets the equalizer settings to the default values.

SRS TruSurround HD → Off / On

SRS TruSurround HD is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two

speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system,

¢

¢

100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment)

To adjust the level of different bandwidth frequencies

Reset

R

¢

¢

Equalizer

The sound settings can be adjusted to suit your personal preferences.

Mode

You can select a sound mode to suit your personal preferences.

Balance

Controls the balance between the right and left speakers.

¢

Emphasizes voice over other sounds.

Custom

Recalls your customized sound settings.

¢

¢

Emphasizes music over voices.

Movie

Provides the best sound for movies.

Clear Voice

¢

¢

Standard

Selects the normal sound mode.

Music

mode by selecting Tools → Sound Mode.

R

T

Mode → Standard / Music / Movie / Clear Voice / Custom

You can select a sound mode to suit your personal preferences.

Press the TOOLS button to display the Tools menu. You can also configure the sound

SOUND CONTROL

Configuring the Sound Menu

English - 17

N

N

N

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

NICAM

Stereo

A2 Stereo

¦

Selecting the Sound Mode

You can set the sound mode in the Tools menu. When you set to Dual l ll, the current sound mode is displayed on the screen.

R

Sound Reset → Reset All / Reset Sound Mode / Cancel

You can restore the Sound settings to the factory defaults.

N

If you select External Speaker in the Speaker Select menu, the sound settings will be limited.

N

The volume and MUTE buttons do not operate when the Speaker Select is set to External Speaker.

R

Speaker Select → External Speaker / TV Speaker

If you want to hear the sound through separate speakers, cancel the internal amplifier.

R

Auto Volume → Off / On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is

changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the

modulation signal is high or by raising the sound output when the modulation signal is low.

N

Volume is active when Audio Description is set to On.

¢

¢

Turn the audio description function on or off.

O

Volume

You can adjust the audio description volume.

Audio Description On or Off and control the volume.

Audio Description → Off /

Press the AD button on the remote control to select Off or On.

R

Audio Description (digital channels only)

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the

Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the

English - 18

Stereo MONO ↔ STEREO

Dual

MONO ↔ DUAL

DUAL 2

1

Automatic change

DUAL 1

Mono MONO

Dual DUAL

1 ↔ DUAL 2 DUAL 1

Stereo STEREO ↔ MONO

Audio Type Dual 1 / 2 Default

Mono MONO

Automatic change

On

English - 19

Plug & Play

Menu Language : English ►

Time

Broadcast

Security

General

Setup

¢

Three different on / off timer settings can be made. You must set the clock first.

N

N

turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is

on for too long time.

You can set the hour, minute and channel by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the

●

●

Channel: Select the desired channel.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.

N

When Manual is selected, press the ► button to select the desired day of the week. Press the ENTER

desired day and the

●

●

●

Volume: Select the desired turn on volume level.

Off Time

Antenna: Select Air or Cable.

Timer 1 / Timer 2 / Timer 3

●
On Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)

: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)

c

mark will appear.

R

Setting the clock is necessary in order to use the various timer features of the TV

N

The current time will appear every time you press the INFO button.

¢

Clock

Time

¢

T

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

N

Press the TOOLS button to display the Tools menu. You can also set the sleep timer by selecting Tools → Sleep Timer.

The TV automatically switches to standby mode when the timer reaches 0.

To cancel the

N

You can set the day, month, year, hour and minute directly by pressing the number buttons on the remote control.

N

Set up this item when you have set Clock Mode to Manual.

●

Clock Set

You can set the current time manually.

N

N

The Antenna or cable must be connected in order to set the time automatically.

manually.

–

–

Auto: Set the current time automatically using the time from the digital broadcast.

Manual: Set the current time to a manually specified time.

Depending on the broadcast station and signal, the auto time may not be set correctly

Sleep Timer → Off / 30 min / 60 min / 90 min / 120 min / 150 min / 180 min

N

N

●
If you disconnect the power cord, you have to set the clock again.

Clock Mode

You can set up the current time manually or automatically.

Sleep Timer function, select Off.

.

¦

R

SETUP

Configuring the Setup Menu

Menu Language

You can set the menu language.

TV was

E

button over the

. If this occurs, set the time

¢

Common Interface

●

●

N

3. Insert the CAM with the ‘CI CARD’ installed into the common interface slot.

(Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

4. Check if you can see a picture on a scrambled signal channel.

CAM is not supported in some countries and regions, check with your authorized dealer

N

This contains information on CAM inserted in the CI slot and displays it.

The Application Info inserting is about the ‘CI CARD’. You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.

2. Insert the ‘CI CARD’ into the CAM in the direction of the arrow until it fits.

CI Menu

This enables the user to select from the CAM-provided menu. Select the CI Menu

Application Info.

The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages

supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is

only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary

Audio Language, or the Primary Teletext Language of the Preference menu.

Using this feature, users can select one of the languages. The language selected here is the default when the user selects a

channel.

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language

menu are automatically changed to the selected language.

¢

Preference

●

Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language /

Primary Teletext Language / Secondary Teletext Language

¢

N

Teletext Language

You can set the Teletext language by selecting the language type.

English is the default in cases where the selected language is unavailable in the b

¢

N

and network games.

VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the

MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video

files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including

O

Digital Text → Disable /

If the programme is broadcast with digital text, this feature is enabled.

You can select these options simply by pressing the

N

N

English is the default in cases where the selected language is unavailable in the broadcast.

●

●
Mode → Normal / Hard of hearing: Sets the subtitle mode.

Subtitle Language: Set the subtitle language.

If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even

though Hard of hearing mode is selected.

Enable (UK only)

R

¢

Broadcast

Subtitle

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle

and Hard of hearing is the subtitle for a hearing-impaired person.

●

Subtitle → Off /

On : Switches subtitles on or off.

English - 20

SUBT. button on the remote control.

based on the menu PC Card.

roadcast.

.

¢

T

N

A melody sound can be set to come on when the TV is powered On or Off.

Melody → Off / Low / Medium /

The Melody does not play

–

–

–

When no sound is output from the TV because the MUTE button has been pressed.

When no sound is output from the TV because the (–) Volume button has been pressed.

When the TV is turned off by Sleep Timer function.

High

N

In the Tools menu, Picture Off function is not supported.

Press the TOOLS button to display the Tools menu. You can also set the Energy Saving option by selecting Tools →

Energy Saving.

¢

Energy Saving → Off / Low / Medium / High / Picture Off /

Energy Saving mode option to High to reduce eye fatigue as well as power consumption.

If you select Picture Off, the screen is turned off and you can only hear the sound. Press any button to get out of Picture Off.

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the

N

The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer settings to

the factory defaults.

N

If Game Mode is On:

–

–

equalizer.

Picture mode is automatically changed to Standard and users cannot change the mode.

Sound mode is automatically changed to Custom and users cannot change the mode. Adjust the sound using the

N

N

N

To disconnect the game console and connect another external device, cancel game mode in the setup menu.

If you display the TV menu in Game Mode, the screen shakes slightly.

Game Mode is not available in regular TV and PC mode.

¢

When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by

selecting the game menu.

Game Mode → Off / On

R

General

POWER(Off) → MUTE

→ 8 → 2 → 4 → POWER

N

You can change your personal ID number that is required to set up the TV.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0

¢

N

N

Change PIN

When the Parental Lock is set, the ‘

Allow All: Press to unlock all TV ratings.

Block All: Press to lock all TV ratings.

\

’ symbol is displayed.

¢

Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by a 4-digit PIN

N

The Parental Lock item differs depending on the country.

(Personal Identification Number) code that is defined by the user.

N

N

You can lock some channels in Channel List. (refer to page 12)

Child Lock is available only in TV mode.

¢

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by muting out video

and audio.

Child Lock → Off / On

R

Security

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.

English - 21

(On).

Auto

:

English - 22

Source List

Edit Name

Input

Self Diagnosis ►

Software Upgrade

HD Connection Guide

Contact Samsung

Support

¢

Signal Information (digital channels only)

Unlike analogue channels, which can vary in reception quality from ‘snowy’ to clear

reception quality or you will not receive them at all. So, unlike analogue channels, you cannot fine tune a digital channel. You can,

however, adjust your antenna to improve the reception of available digital channels.

N

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.

Continue to adjust the antenna until you find the best position with the strongest signal.

, digital (HDTV) channels have either perfect

●

your connections. If the problem still persists, refer to the external device’s user manual.

No
: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check

N

●

the TV. Contact Samsung’s call centre for assistance.

in the Sound menu.

Yes

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing

the MUTE button.

: If during the sound test you can hear sound only from one speaker or not at all, select Yes. There may be a problem with

¢

Sound Test

If you think you have a sound problem, please perform the sound test. Y

sound by playing a built-in melody sound through the TV. ‘Does the problem still exist with this sound test?’ appears on the screen.

N

If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker

ou can check the

●

external equipment. Please check your connections. If the problem still persists, refer to

the external device’s user manual.

No
: If the test pattern is properly displayed, select No. There may be a problem with your

¦

R

¢

Self Diagnosis

Picture Test

If you think you have a picture problem, perform the picture test. Check the colour pattern on

the screen to see if the problem still exists.

●

There may be a problem with the TV. Contact Samsung’s call centre for assistance.

Yes
: If the test pattern does not appear or there is noise in the test pattern, select Yes.

Configuring the Support Menu

N

When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set the HDMI1/DVI mode to DVI or DVI PC in

the Edit Name of the Input mode. In this case, a separate sound connection is required.

R

¢

Edit Name

Name the device connected to the input jacks to make your input source selection easier.

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI / DVI PC / TV / IPTV / Blu-ray

/ HD DVD / DMA

N

N

Ext. and PC always stay activated.

TOOLS (Tools): Displays the

Edit Name and Information menus.

¢

TV / Ext. / AV / Component / PC / HDMI1/DVI / HDMI2 / HDMI3

O

Use to select TV or other external input sources such as DVD / Blu-ray players / Satellite

N

You can choose only those external devices that are connected to the TV. In the

Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not

connected will be sorted to the bottom.

receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

Press the SOURCE button on the remote control to vi7ew an external signal source. TV

mode can be selected by pressing the TV button.

¦

R

Configuring the Input Menu

Source List

INPUT / SUPPORT

English - 23

TV Rear Panel

USB Drive

R

This menu presents the connection method that provides the optimal quality for the HD TV.

Refer to this information when connecting external devices to the TV

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software.

You can view the information regarding the call centre, product and software file download method.

.

R

HD Connection Guide

¢

Alternative Software

To display the software version information.

¢

Standby Mode Upgrade

To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby

mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally

slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

N

The time required to download the software is determined by the signal status.

Upgrades the software using the broadcasting signal.

N

If the function is selected during the software transmission period, this function searches for available software and downloads

the software.

¢

firmware version after the update is completed. When software is upgraded, video and audio settings you have made will return to

their default (factory) settings.

We recommend you write down your settings so that you can easily reset them after the upgrade.

BY Channel

¢

BY USB

Insert a USB drive containing the firmware upgrade into TV. Please be careful to not

disconnect the power or remove the USB drive while upgrades are being applied.

turn off and turn on automatically after completing the firmware upgrade. Please check the

The TV will

are periodically broadcast as part of the normal Television signal. It will automatically detect

these signals and display the software upgrade banner. You are given the option to install the

upgrade.

R

Software Upgrade

To keep your product up-to-date with new Digital Television features then software upgrades

, the screen may be on

C Current page number or search indications.

1

2

3

4

5

6

8

9

0

!#@

7

D Date and time.

E Text.

F Status information.

FASTEXT information.

B Broadcasting channel identity.

The Teletext pages are organized according to six categories:

Part Contents

A Selected page number.

corresponding coloured button.

required. The page is displayed with

other coloured information that can be

selected in the same way. To display

the previous or next page, press the

topics covered on a Teletext page are

colour-coded and can be selected by

pressing the coloured buttons. Press

one of them corresponding to the

5

Colour buttons (red/green/yellow/

blue)

If the FASTEXT system is used by a

broadcasting company, the different

4

8

Used to store the Teletext pages.

lower half of the screen, press it again.

To display normal screen, press it once

again.

(store)

3

4

Press to display the double-size letters

in the upper half of the screen. For

(size)

2

8

5

Used to display the hidden text (answers

to quiz games, for example). To display

normal screen, press it again.

save Teletext page into list using the

(store) button.

(reveal)

Press to select the Teletext mode

(LIST/FLOF). If you press it in the LIST

mode, it switches into the List save

mode. In the List save mode, you can

¦

Teletext Feature

Most television stations provide written information services via Teletext. The index page of the Teletext service gives you

information on how to use the service. In addition, you can select various options to suit your requirements by using the remote

control buttons.

N

N

1

You can change Teletext pages by pressing the numeric buttons on the remote control.

0

(mode)

For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or

some pages may not be displayed.

RECOMMENDATIONS FOR USE

English - 24

#

7

Used to display the broadcast when

searching for a page.

(cancel)

@

6

automatically. To resume, press it again.

Used to display the index (contents)

page at any time while you are viewing

Teletext.

(index)

!

9

Used to hold the display on a given

page if the selected page is linked with

several secondary pages which follow on

(hold)

0

3

Used to display the previous Teletext

page.

(page down)

9

2

Used to display the available sub-page.

Used to display the next Teletext page.

(page up)

:

1

(sub-page)

screen.

Exit from the Teletext display.

(exit)

Press to activate Teletext mode after

selecting the channel providing the

Teletext service. Press it twice to overlap

the Teletext with the current broadcasting

7

8

6

/

(Teletext on/mix)

English - 25

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal

injury due to electric shock.

N

–

–

–

N

N

N

N

O

N

¦

N

N

N

N

N

¦

Back

Front

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the

Wall Mount items. Contact a technician for assistance when installing the wall mounted

bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or

others if you elect to install the TV on your own.

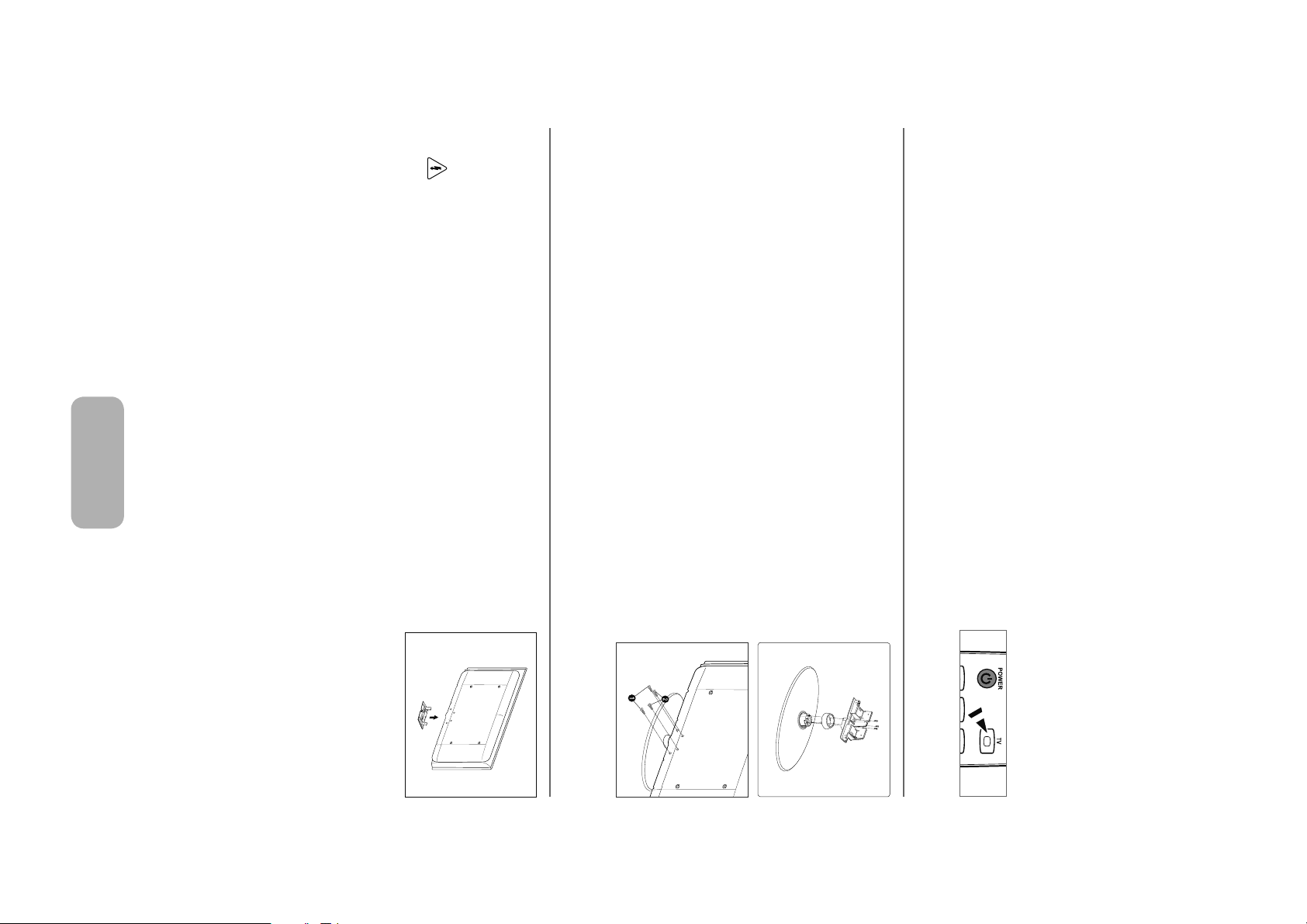

Installing the Wall Mount Kit

2.
Fasten two screws at position

them.

To make sure the TV is installed on the stand at a proper level, do not apply excess

downward pressure to the upper left of right sides of the TV.

Stand the product up and fasten the screws. If you fasten the screws with the LCD

placed down, it may lean to one side.

1

and then fasten two screw at position

2

.

1. Attach your LCD TV to the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling

Installing the Stand

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the

screws. Applicable to 32inch models only.

Teletext 16:9, picture is 16:9

Older TV’s which do not support version 2.5 are not capable of displaying any additional graphics or text, regardless of the

Teletext transmission.

Press the TV button to exit from the Teletext display.

Teletext level supported by the TV is version 2.5 which is capable of displaying additional graphics or text.

Depending upon the transmission, blank side panels can occur when displaying T

In these cases, additional graphics or text is not transmitted.

Selecting a coloured heading (FASTEXT system)

eletext.

Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

Entering the page number

Selecting a title in a list

TV

English - 26

3

1

2

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

Install the product so the required distances shown in the figure are kept.

When using a stand or wall-mount, use parts provided by Samsung Electronics only

.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the

product falling.

If you use parts provided by another manufacturer, it may result in a problem with the product or fire due to an increase in

the internal temperature of the product due to poor ventilation.

The appearance may differ depending on the product.

When installing the product with a stand When installing the product with a wall-mount

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

10 cm

¦

¦

N

Ҟ

Ҟ

N

<Optional>

2. Connect the Kensington Lock cable (

3. Fix the Kensington Lock to a desk or a heavy stationary object.

different depending on its model.

1.
Insert the locking device into the Kensington slot on the LCD TV (

locking direction (

Using the Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically fix the system when using it in a public

place. The appearance and locking method may differ from the illustration depending on the

manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The

locking device has to be purchased separately. The location of the Kensington Lock may be

2

).

3

).

1

) and turn it in the

¦

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do

contact a professional installer.

4.
Verify all connections are properly secured. Periodically check connections for any

sign of fatigue for failure. If you have any doubt about the security of your connections,

¢

3.
Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong

string and then tie the string tightly.

N

N

N

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the wall are equal to or

lower than the clamps fixed on the TV.

Untie the string before moving the TV.

N

–

–

Screw Specifications

For a 17 ~ 29 Inch LCD TV: M4 X L15

For a 32 ~ 40 Inch LCD TV: M6 X L15

2.
Remove the screws from the centre back of the TV, put the screws into the clamps, and

then fasten the screws onto the TV again.

N

Screws may not be supplied with the product. In this case, please purchase the

screws of the following specifications.

N

N

You may need additional material such as an anchor depending on the type of wall.

Since the necessary clamps, screws, and string are not supplied, please purchase

these additionally.

To avoid the TV from falling:

1.
Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the

screws have been firmly installed onto the wall.

for safety purposes, as follows.

not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death.

Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device

English - 27

ERROR: rangecheck

OFFENDING COMMAND: .buildshading2

STACK:

-dictionary-

-dictionary-
