Samsung LE23R71B-W Schematic

SERVICE

Manual

LCD-TV

Features

LCD-TV

Chassis GBU23HEU
Model LE23R71B

LE23R71W

- HDMI/DVI, PC(Analog), 1 Component,
2 SCART, 1 Composite, S-Video, RF

- Brightness : 450cd/

- Contrast Ratio : 1200:1

- Response time : 8ms

ii

Copyright

©2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to
any electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.

LE23R71B / LE23R71W Service Manual
First edition March 2006.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung
Electronics Co., Ltd.

LE23R71B / LE23R71W and MacMaster Cable
Adapter are trademarks of Samsung Electronics Co.,
Ltd.

Macintosh, Power Macintosh are trademarks of Apple
Computer, Inc.

All other trademarks are the property of their respective
owners.

Contents

Contents

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00139Y-00
URL : http://itself.sec.samsung.co.kr/

-This Service Manual is a property of Samsung
Electronics Co., Ltd.
Any unauthorized use of Manual can be punished
under applicable International and/or domestic law.

1 Precautions

1-1

1-1-1 Warnings

1. For continued safety, do not attempt to modify the circuit
board.

2. Disconnect the AC power and DC power jack before
servicing.

1-1-2

Ser vicing the LCD Monitor

1. When servicing the LCD Monitor, Disconnect the AC
line cord from the AC outlet.

2. It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the
following safety checks:

1. Inspect each lead dress to make certain that the leads
are not pinched or that hardware is not lodged between
the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields, isolation
resistor-capacitor networks, mechanical insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING : Do not use an isolation

transformer during this test.

Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,

59.7).

Figure 1-1. Leakage Current Test Circuit

4. With the unit completely reassembled, plug the AC line
cord directly into a 120V AC outlet. With the unit’s AC
switch first in the ON position and then OFF, measure
the current between a known earth ground (metal water
pipe, conduit, etc.) and all exposed metal parts,
including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and

repeat the test.

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special
safety-related characteristics which are often not evident
from visual inspection. The protection they give may not be
obtained by replacing them with components rated for higher
voltage, wattage, etc. Parts that have special safety
characteristics are identified by on schematics and parts
lists. A substitute replacement that does not have the same
safety characteristics as the recommended replacement part
might create shock, fire and/or other hazards. Product safety
is under review continuously and new instructions are issued
whenever appropriate.

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1 Precautions

1-2

1-2-1 General Ser vicing

Precautions

1. Always unplug the unit’s AC power cord from the AC
power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit
board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to
prevent contact with thermally hot components. Reinstall
all such elements to their original position.

3. After servicing, always check that the screws,
components and wiring have been correctly reinstalled.
Make sure that the area around the serviced part has not
been damaged.

1. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic charge
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist-strap device. To
avoid a shock hazard, be sure to remove the wrist strap
before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it on a
conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or
desolder ESDs.

5. Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.

4. Check the insulation between the blades of the AC plug
and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch ON.
Connect an insulation resistance meter (500 V) to the
blades of the AC plug.

The insulation resistance between each blade of the AC
plug and accessible conductive parts (see above) should
be greater than 1 megohm.

6. Always connect a test instrument’s ground lead to the
instrument chassis ground before connecting the positive
lead; always remove the instrument’s ground lead last.

6. Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.

7. Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.

Caution:Be sure no power is applied to the

chassis or circuit and observe all
other safety precautions.

8. Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.

1-3

Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Ser vicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section

of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety

precautions, always follow the safety precautions.

1 Precautions

1-3

1-4 Installation Precautions

1. For safety reasons, more than two people are
required for carrying the product.

2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.

3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.

4. "Bend the external antenna cable when connecting it to
the product. This is a measure to protect it from being
exposed to moisture."

5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.

6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the highvoltage
cable or the antenna falling over may
cause fire or electric shock.

7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may cause fire.

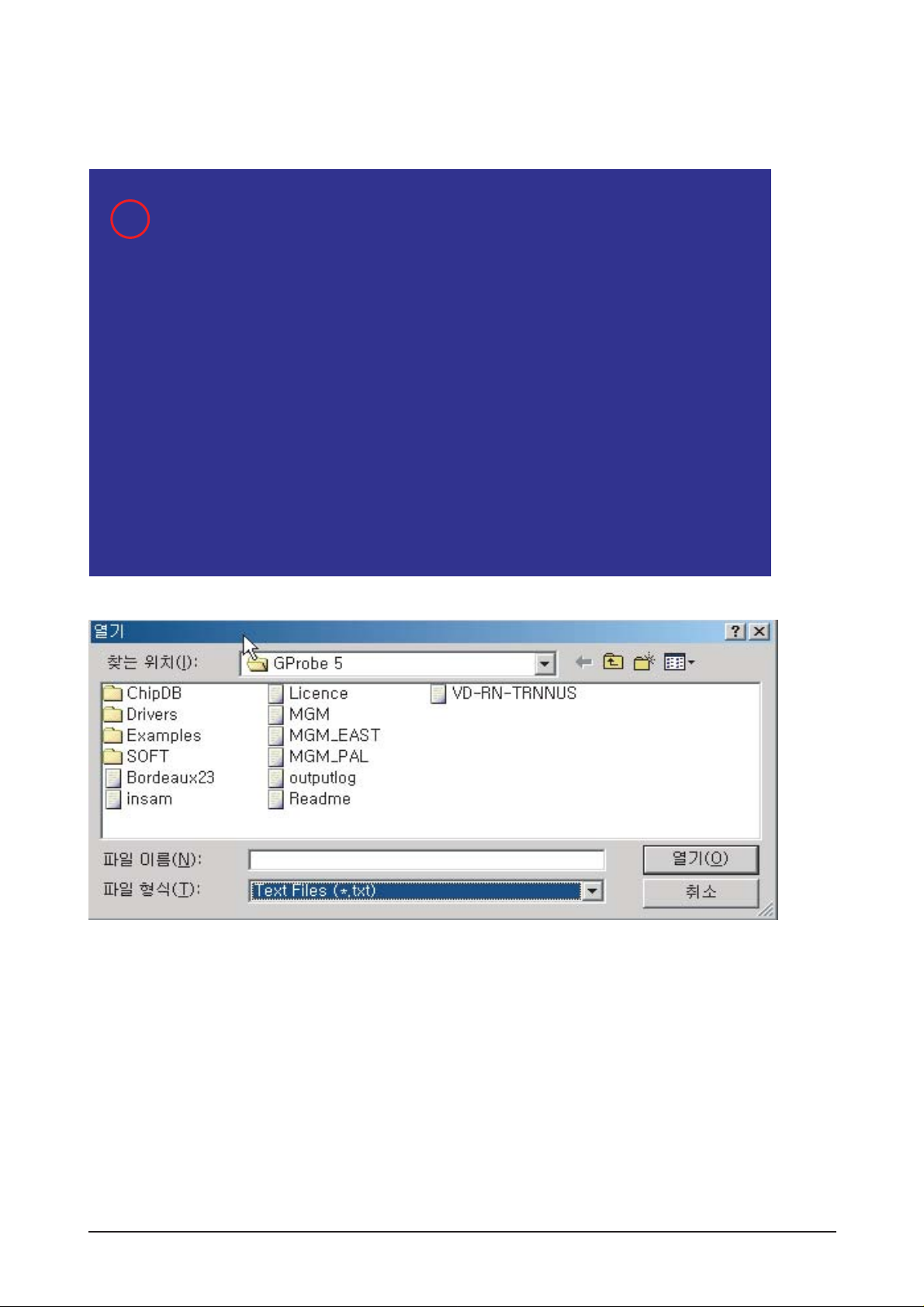

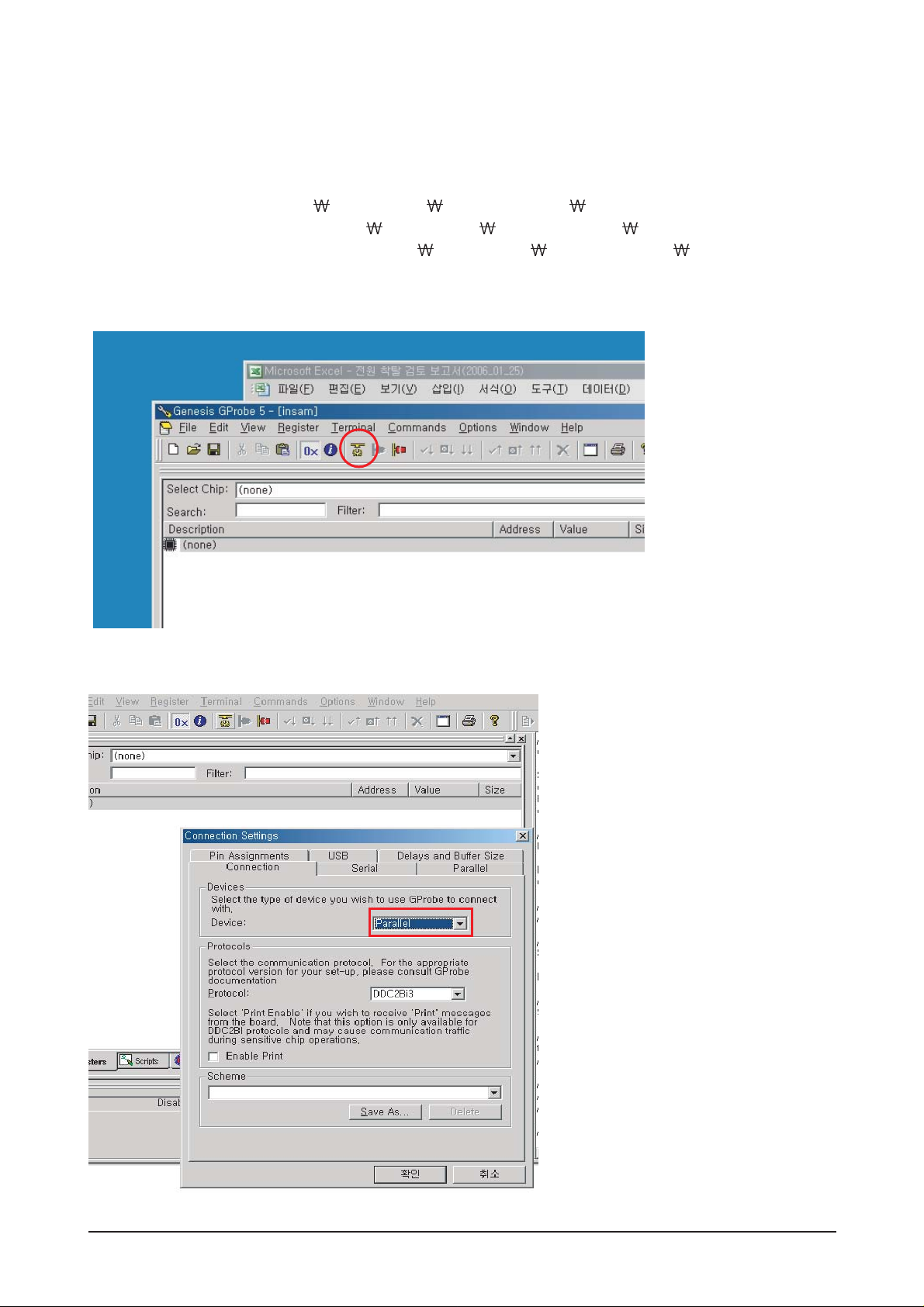

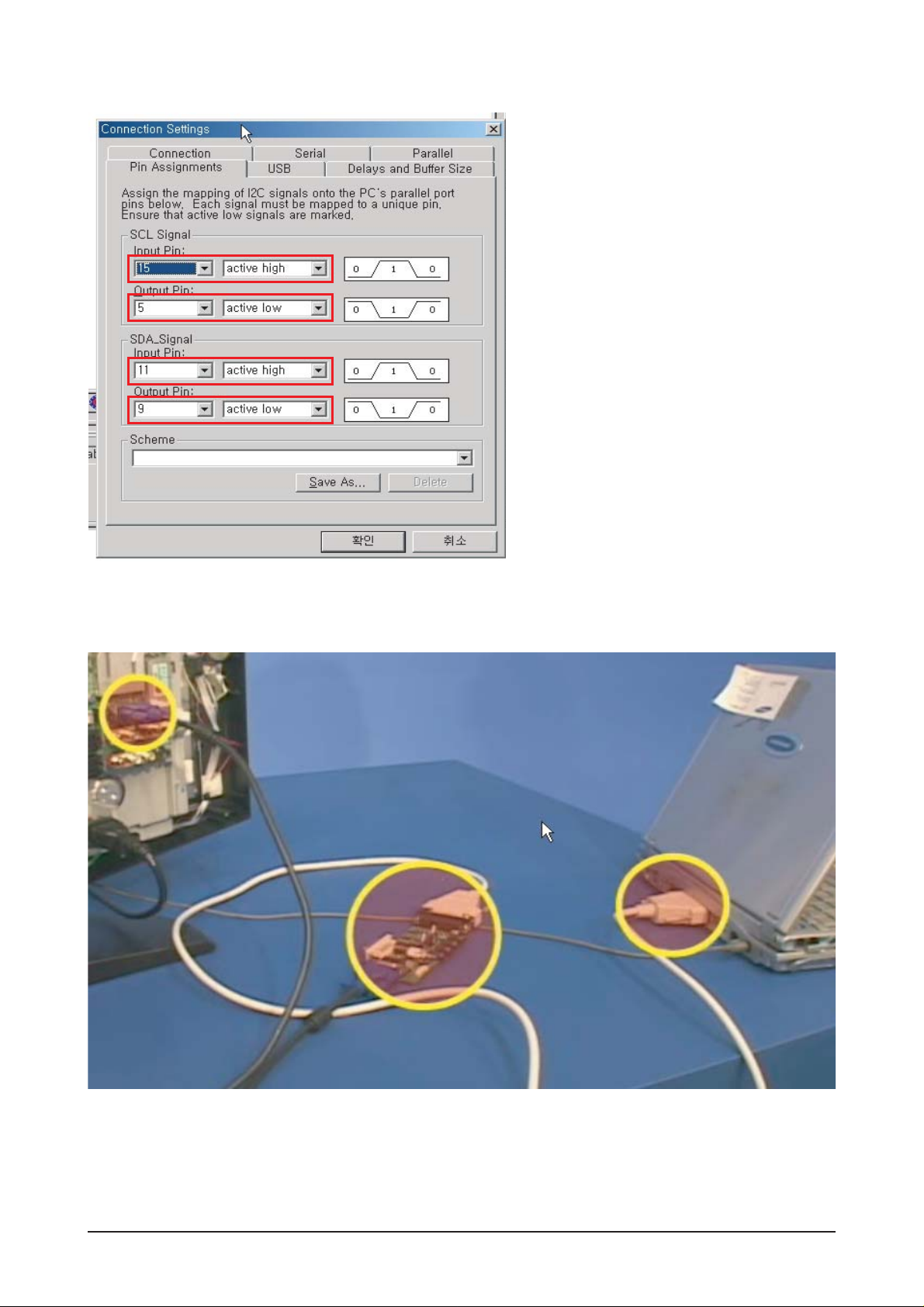

Execute the command list file. For it enter 'batch file name.txt'.
If you can get 'Batch: command Successful' message Download

1 Precautions

1-4

Memo

- AC Adapter

Device that converts AC(90V~240V) to DC(+12V

or 14V)

- ADC(Analog to Digital Converter)

This is a circuit that converts from analog signal to
digital signals.

- Auto Configuration(Auto adjustment)

This is an algorithm to adjust monitor to optimum

condition by pushing one key.

- BTSC

Broadcast Television System Committee
The stereo broadcasting system that is used in
most of the countries that have adopted the NTSC
system, including the United States, Canada,
Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote
its development and management.

- Cable TV

Whereas the terrestrial broadcasting is delivered
via frequency signals through the air, cable broad­casting is transmitted via a cable network. In order
to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.

- CATV

"CATV" refers to the broadcasting service offered
at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF
broadcasting by terrestrial broadcasters. The
CATV programs may include movies, entertain­ment and educational programs. (Different from
cable TV.)
CATV can be viewed only within the area in which
the CATV service is offered.

- Channel Fine Tuning

This feature allows the viewer to fine-tune the TV
channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual
channel fine-tuning features to enable the viewer
to adjust their desired settings.

- COARSE

This is a adjustment by tuning with Video clock

and PLL clock.

- DDC(Display data channel)

It is a communication method between Host
Computer and related equipment.
It can make it Plug and Play between PC and
Monitor.

- Dot Pitch

The image on a monitor is composed of red,
green and blue dots. The closer the dots, the high­er the resolution. The distance between two dots
of the same color is called the 'Dot Pitch'. Unit: mm

- DVI (Digital Visual Interface)

The Digital Visual Interface uses transition
minimized differential signaling for the base electri­cal interconnection.

- EDID

Extended Display Identification Data PC can
recognize the monitor information as Product data,
Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicat­ing with PC and Monitor.

14 Reference Infomation

14-1

14 Reference Infomation

14-1 Technical Terms

14 Reference Infomation

14-2

- EIAJ

Electronic Industries Association of Japan.

- External Device Input

External device input refers to video input from
such external video devices as VCRs, camcorders
and DVD players, separate from a TV broadcast.

- FINE

"Fine" adjustment is used to adjust visibility by

control phase difference.

- FRC(Frame Rate Controller)

Technology that changes image frame quantity

displayed on screen for one second.

Actually TFT-LCD panel require 60 pcs of frame
for one second.
so,this technology is needed to convert input
image to 60 pcs regardless input frame quantity.

- Horizontal Frequency

The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz

- Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from
the top to the bottom in order is called the Non­Interlace method while showing odd lines and then
even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.

- Inverter

Device that supplies Power to LCD panel lamp.

this device gernerate about 1,500~2,000V.

- Image Lock

This means " Manual Fineness adjustment".
use " Fine" and "Coarse"

- Image Scaler

Technology that converts various input resolution

to other resolution.(ex. 640* 480 to 1024*768)

- L.V.D.S.(Low Voltage Differential Signaling)

a kind of transmission method for Digital.It can be

used from Main PBA to Panel.

- OSD(On Screen Display)

On screen display. customer can control the

screen easily with this.

- PLL(Phase Locked Loop)

During progressing ADC, Device makes clock

synchronizing HSYNC with Video clock

- Plug & Play
This is a function that provides the best quality

screen for the user by allowing the computer and
the monitor to exchange information automatically.
This monitor follows the international standard
VESA DDC for the Plug & Play function.

- Resolution

The number of horizontal and vertical dots used to

compose the screen image is called 'resolution'.
This number shows the accuracy of the display.
High resolution is good for performing multiple
tasks as more image information can be shown on
the screen.
Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).

- RF Cable

A round signal cable generally used for TV

antennas.

- Satellite Broadcasting

Broadcasting service provided via satellite.
Enables high picture quality and clear sound
throughout the country regardless of the location of
the viewer.

- SMPS(Switching Mode Power Supply)

Switching Mode Power supply. This design tech­nology is used to step up/down the input power by
switching on/off

- Sound Balance

Balances the levels of the sound coming from

each speaker in televisions with two speakers.

- S-Video

Short for "Super Video." S-Video allows up to 800
lines of horizontal resolution, enabling high-quality
video.

- TFT-LCD
(Thin film Transistor Liquid Crystal Display)

- T.M.D.S
(Transition minimized Differential Signaling)

a kind of transmission method for Digital.

It can be used from Video card to Main PBA.

- Vertical Frequency

The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per sec­ond is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.

- VHF/UHF

VHF indicates TV channels 2 to 13, and UHF indi­cates channels 14 through 69.

14 Reference Infomation

14-3

14 Reference Infomation

14-4

14-2-1 HDMI

14-2 Pin Assignments

Type A pin

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

Singnal Name

TMDS Data2+

TMDS Data2 Shield

TMDS Data2-

TMDS Data1+

TMDS Data2 Shield

TMDS Data1-

TMDS Data0+

TMDS Data0 Shield

TMDS Data0­TMDS Clock+

TMDS Clock Shield

TMDS Clock-

CEC

Reserved (in cable but N.C on device)

SCL

SDA

DDC/CEC Ground

+5V Power

Hot Plug Delect

Wire

TMDS Signal wire

TMDS Shield
TMDS Signal wire
TMDS Signal wire

TMDS Shield
TMDS Signal wire
TMDS Signal wire

TMDS Shield
TMDS Signal wire
TMDS Signal wire

TMDS Clock Shield

TMDS Shield

Control
Control
Control
Control
Control

5 Volts Power wire

Control

14 Reference Infomation

14-5

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

- The interlace mode is not supported.

- The set might operate abnormally if a non-standard video format is selected.

- DVI does not support PC function.

Pin

Separate

1
2
3
4
5

GND

Y

C
GND
GND

RCA Green

RCA Blue

RCA Red

RCA White

RCA Red

Y

GND

Pb (Cb)

GND

Pr (Cr)

GND

Audio L

GND

Audio R

GND

14-2-3 S-Video

Pin

Separate

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

Red

Green

Blue
GND
GND

GND Red

GND Green

GND Blue

DDC Input power(+5V)

IDENT PC

GND

DDC Data(SDA)

H SYNC
V SYNC

DDC Clock(SCL)

14-2-5 D-SUB

14-2-2 Component

RCA White

RCA Red

CVBS

Audio L

GND

Audio R

GND

14-2-4 A/V

RCA Yellow

14-2-6 PC Display mode

Mode

IBM

VESA

Resolution

640 x 480
720 x 400

640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1360 x 768

Horizontal

Frequency (kHz)

31.469

31.469

37.861

37.500

37.879

48.077

46.875

48.364

56.476

60.023

47.712

Vertical

Frequency (Hz)

59.940

70.087

72.809

75.000

60.317

72.188

75.000

60.000

70.069

75.029

60.015

Pixel Clock

Frequency (MHz)

25.175

28.322

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

85.800

Sync Polarity

(H/V)

- / -

- / +

- / -

- / ­+ /+
+ /+
+ /+

- / -

- / ­+ /+
+ /+

14 Reference Infomation

14-6

Pin Signal

1 Audio output R
2 Audio input R
3 Audio output L
4 Audio common GND
5 Video GND (RGB blue)
6 Audio input L
7 RGB blue input
8 Switching voltage
9 Video GND (RGB green)
10 NC
11 RGB green input

Pin Signal

12 NC
13 Video GND (RGB red)
14 GND
15 RGB red input
16 Fast Blanking signal (RGB switching)
17 Video output GND
18 Video input GND
19 Video output (CVBS out)
20 Video input (CVBS in)
21 Common GND

14-2-7 Scart 1

Pin Signal

1 Audio output R
2 Audio input R
3 Audio output L
4 Audio common GND
5 Video GND (RGB blue)
6 Audio input L
7 RGB blue input
8 Switching voltage
9 Video GND (RGB green)
10 NC
11 RGB green input

Pin Signal

12 NC
13 Video GND (RGB red)
14 GND
15 RGB red input
16 NC
17 Video output GND
18 Video input GND
19 Video output (CVBS out)
20 Video input (CVBS in)
21 Common GND

14 Reference Infomation

14-7

14-3 Timing Chart

This section of the service manual describes the timing that the computer industry recognizes as standard for computer­generated video signals.

14-3-1 LCD Panel Mode1 mode

14 Reference Infomation

14-8

14-3-2 Supported Modes (1)

14 Reference Infomation

14-9

14-3-3 Supported Modes (2)

14 Reference Infomation

14-10

14-3-4 Supported Modes (3)

14 Reference Infomation

14-11

14-4 Panel Description

SEC LT140X1-002 BN07-00004A SA BN68-00239H ­SEC LT150XS-L01 BN07-00009A SB ­SEC LT150XS-L01-B BN07-00022A SC ­SEC LTM150XS-L02 BN07-00005A SD ­SEC LT181E2-132 BN07-00001A SE ­SEC LT150XS-T01 BN07-00010A SF ­SEC LTM181E3-132 BN07-00019A SG ­SEC LT170E2-131 BN07-10001D SH ­SEC LT181E2-131 BN07-10001E SJ ­SEC LTM170E4-L01 BN07-00018A SK ­SEC LTM240W1-L01 BN07-00015A SL ­SEC LTM213U3-L01 BN07-00016A SM ­SEC LTM150XH-L01 BN07-00026A SN ­SEC LTM150XH-L03 BN07-00027A SP ­SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD)
SEC LTM181E4-L01 BN07-00034A SR PVA
SEC LTM170EH-L01 BN07-00036A SS TN
SEC LTM170E5-L01 BN07-00037A SU PVA
SEC LTM150XH-L11 BN07-00041A SV ­SEC LTM213U4-L01 BN07-00039A SW PVA
SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD
SEC LTM150XH-L04 BN07-00046A SY New panel with high brightness
SEC LTM170W1-L01 BN07-00047A SZ Panel for TV
SEC LTM150XH-L06 BN07-00053A EA

Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL
SEC LTM170EH-L05 BN07-00055A EC Panel EOS proj. for high brightness of 17" EH-L05
SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4. EH mechanical Compatible
SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP
SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS
SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL
SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV
SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN
SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM
SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV
SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVA mode
SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel
SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel
SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel
SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel
SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel
SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel
SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel
SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel
SEC LTM150XH-L06 BN07-00091A EW Color coordinates change for LCD TV
SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10
SEC LTM170W1-L01 BN07-00100A EY Color Coordinates change code management
SEC LTM170EH-L05 BN07-00097A EZ LTM170E5-L05 Color Coordinates Change Panel Code
SEC LTA400W1-L01 BN07-00109A S1 PANEL of AMLCD 40" TV
SEC LTM153W1-L01 BN07-00110A S2 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM150XH-L06 BN07-00111A S3 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM170W1-L01 BN07-00112A S4 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM170EH-L05 BN07-00113A S5 Color coordinates change 0.280/0.290, 10000k & ZPD Panel

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

After replacing panel check Panel Code.

14 Reference Infomation

14-12

SEC LTM220W1-L01 BN07-00114A S6 ZPD Panel for AMLCD 22" TV
SEC LTM150XH-L06 BN07-00117A S7 ZPD Panel code
SEC LTM153W1-L01 BN07-00118A S8 ZPD Panel code
SEC LTM170WP-L01 BN07-00119A S9 PVA Panel for NIKE
SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW
SEC LTA260W1-L01 BN07-00121A E2 VENUS
SEC LTA220W1-L01 BN07-00074B E3 "Panel B-level panel code for 22"" TV Panel "
SEC LTA320W1-L01 BN07-00108A E4 "Panel for AMLCD 32"" TV"
SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL
SEC LTM170E6-L04 BN07-00129A E6 "HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel
SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel
SEC LTA170V1 BN07-00139A E9 "17"" Panel for Muse 4:3 VGA TV"
SEC LTM190E1-L02 BN07-00128A E10 "New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC LTM170EX-L01 BN07-00143A E11 "Development new Panel from AMLCD"
SEC LTM170E8-L01 BN07-00144A E12 "Development new Panel from AMLCD"
SEC LTM170E6-L04 BN07-00129B E13 "ZPD panel for AMLCD (Panel only for TCO03)"
SEC LTA320W1-L02 BN07-00108B E14 "Creat B-level Panel code for AMLCD 32"" TV"
SEC LTM190E1-L03 BN07-00151A E15 "Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134A E16 "AMLCD 24"" panel development"
SEC LTM190E1-L02 BN07-00128B E17 "New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC LTM190E4-L01 BN07-00145A E18 "AMLCD 24"" new panel development"
SEC LTM170E8-L01 BN07-00158A E19 "ZPD code derivation"
SEC LTM170EX-L01 BN07-00159A E20 "ZPD code derivation"
SEC LTM190E1-L03 BN07-00151B E21 "Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC LTA460H1-L01 BN07-00157A E22 "creat panel code for AMLCD 46"" TV "
SEC LTM170EU-L11 BN07-00160A E23 "creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134B E24 "24"" panel ZPD code derivation"
SEC LTM190E4-L01 BN07-00145B E25 "AMLCD 19"" ZPD Panel code derivation"
SEC LTM240W1-L03 BN07-00134B E26 "24"" panel ZPD code derivation"
SEC LTM150XO-L01 BN07-00164A E27 "AMLCD 15"" XO-L01 new panel development"
SEC LTM150XO-L01 BN07-00164B E28 "AMLCD 15"" XO-L01 ZPD code derivation"
SEC LTM170EU-L11 BN07-00160B E29 "AMLCD 17"" NEW panel code derivation"
SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel
SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation
SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code derivation
SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code derivation
SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC new panel development
SEC LTM240W1-L04 BN07-00188B SPZ 24" A-DCC panel ZPD code derivation
SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN new Panel
SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN new Panel ZPD derivation
SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 new Panel
SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 new Panel
SEC LTM240M1-L01 BN07-00195A SPH 24" panel with high brightness deveiopment
SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 new Panel
SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code
SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code
SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD new code derivation
SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD new panel
SEC LTM240M1-L01 BN07-00195B SPZ 24" igh brightness panel ZPD code derivation
SEC M170EX-L21 BN07-00206A STZ AMLCD LTM170EX-L21 ZPD new code derivation
SEC LTA460H3-L01 BN07-00200A SPZ AMLCD 46" LED BLU panel

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-13

SEC LTM170EU-L15 BN07-00214A STZ AMLCD EU-L15 TV high brightness ZPD new code derivation
SEC LTM170E8-L21 BN07-00218A SPZ AMLCD LTM170E8-L21 PVA ZPD new code derivation
SEC LTM190EX-L21 BN07-00222A STZ DISPLAY LCD
SEC LTM201U1-L01 BN07-00190B SPZ AMLCD 20.1" Normal panel ZPD code derivation
SEC LTM190E4-L21 BN07-00223A SPZ HAYDN 17" PZD code PANEL derivation
SEC LTA570H1-L01 BN07-00196A SPZ AMLCD 57" new panel development
SEC LTM150XO-L21 BN07-00229A STZ AMLCD 15" XO-L21 8ms panel code
SEC LTA260W2-L11 BN07-00239A SPZ AMLCD 26" 16:9 7Line new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
SEC LTM213U6-L01 BN07-00231A SPZ AMLCD 21.3" PVA new Panel Code
SEC LTM213U6-L01 BN07-00231B SPH AMLCD 21.3" PVA Panel HPD Code
SEC LTA320WS-LH2 BN07-00244A SPZ AMLCD 32" 16:9 SPVA 90% new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
SEC LTM190M2-L01 BN07-00227A STZ AMLCD 19" TN Wide new Panel Code development
SEC LTM201UX-L01 BN07-00249A STZ AMLCD 20.1" TN new Panel Code development
SEC LTM240M1-L02-A05 BN07-00250A SPZ 24" High luminance Slim panel ZPD code
SEC LTA320W3-L02 BN07-00219A SPZ AMLCD 32" new Panel
SEC LTA320W2-L11 BN07-00259A SPZ AMLCD 32" 16:9 IP Board Panel
SEC LTA460WS-L02 BN07-00252A SPZ AMLCD 46" 16:9 SPVA 72% Panel
SEC LTA400WT-L01 BN07-00264A SPZ
SEC LTM240M2-L02 BN07-00267A SPZ LCD Monitor 24" wide SPVA ZPD new code
SEC LTM210M2-L02 BN07-00230A SPZ
SEC LTA320WT-L11 BN07-00257A SPZ
SEC LTM190EX-L21-G BN07-00274A STZ AMLCD 19" TN Glare new Panel Code
CPT CLAA150XG09 BN07-00141A PA CPT 15" Monitor new panel development
CPT CLAA170EA02 BN07-00148A PB "17"" CPT NEW development panel"
CPT CLAA170EA02 BN07-00148B PC "17"" CPT ZPD panel code derivation"
CPT CLAA150XG09 BN07-00141B PTZ "CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation
CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code
CPT CLAA170EA07 BN07-00174A PTH CPT 17" PSWG panel code derivation
CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type new Panel code
CPT CLAA170EA07Q BN07-00220A PTZ CPT 17" PSWG R/T 8msec code derivation
CPT CLAA170EA07Q BN07-00220B PTH CPT 17" PSWG R/T 8msec HPD code derivation
CPT CLAA150XP01F BN07-00236A PTZ CPT 15" PSWG panel ZPD & Lead free code derivation
TOSHIBA LTM15C419(A) BN07-00002A TA ­TOSHIBA LTM15C423(B) BN07-00006A TB ­TOSHIBA LTM18C161 BN07-00008A TC ­TOSHIBA LTM15C443 BN07-00031A TD ­TOSHIBA LTM15C458 BN07-00043A TE ­TOSHIBA LTM15C458S BN07-00077A TF "TSB 15"" high brightness Panel"
TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel
TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD )
HANNSTAR HSD150MX41A(A) BN07-00020A NA "TTL type"
HANNSTAR HSD150MX12 BN07-00030A NB "TTL type"
HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development
HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN new panel development ZPD code derivation
HANNSTAR HSD190ME12 BN07-00210A NTZ Hannstar 19" TN new panel development
HANNSTAR HSD150MX17-A BN07-00226A NTZ Hannstar 15" slim panel ZPD code derivation
HANNSTAR HSD190ME12-A10 BN07-00256A NTZ Hannstar 19" TN PSWG 8ms new panel development
HANNSTAR HSD190ME13-D11 BN07-00270A NTZ Hannstar 19" TN Slim 5ms new panel development
TORISAN TM150XG-22L03(A) BN07-00021A RA -

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-14

TORISAN TM150XG-26L06 BN07-00042A RB ­TORISAN TM181SX-76N01 BN07-00048A RC ­TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD)
TORISAN TM290WX-71N31 BN07-00063A RE "RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN TM396WX-71N31 BN07-00064A RF "RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN TM150XG-26L09 BN07-00073A RG "Panel for 15"" TV"
TORISAN TM150XG-26L10 BN07-00089A RH "L10(change except D/IC) ZPD"
TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL
TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel
TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code
TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code
TORISAN TM290WX-71N31 BN07-00115A RN "Color Coordinates change panel for TORISAN 29"" TV"
TORISAN TM396WX-71N31 BN07-00116A RP,Q "Color Coordinates change panel for TORISAN 40"" TV"
TORISAN TM22OWX-71N31 BN07-00125A RR "Development TORISAN 22"" TV PANEL (ZPD)"
TORISAN TM22OWX-71N31 BN07-00127A RS "Development TORISAN 22"" TV PANEL (HPD)"
TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel
TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation
TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation
TORISAN TM150XG-A01 BN07-00162A RTH Torisan 15" Narrow & Slim panel development
TORISAN TM150XG-A01 BN07-00162B RTZ Torisan 15" N&S panel ZPD code Derivation
SHARP LQ181E1DG11(A) BN07-10001C PA ­SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL
SHARP LQ370T3LZ41 BN07-00216A FAZ Rome2
HITACHI TX38D12VC0CAA(A) BN07-00003A HA ­HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE
HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel
HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW
HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW
HITACHI TX80D12VC0CAB BN07-00169A HIZ "Development new panel for Hitachi 32"" TV (ZPD)"
HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel
IBM ITSX94S BN07-00017A IA ­UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba
HYUNDAI HT15X13 BN07-00035A DA ­HYUNDAI HT17E11-200 BN07-00049A DB TN MODE
HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel
HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel
HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code
HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design )
HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code
HYUNDAI HT15X15-D00 BN07-00146A DH "Development for Ares 15"" Hydis TV"
HYUNDAI HT15X15-D01 BN07-00146B DJ "Derivation panel HPD for Ares 15"" Hydis TV "
HYUNDAI HT17E13-100 BN07-00167A DTH "PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
HYUNDAI HT17E13-100 BN07-00167B DTZ "PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
HYUNDAI HT170EX1-100 BN07-00240A DTZ 17" EX compatible Hydis Slim panel development
HYUNDAI HT201V01-100 BN07-00263A DTZ Hydis 20.1" 4:3 VGA Mode TN Panel
ACER L170E3 BN07-00044A AA TN(ADT)
ACER M170EN05 BN07-00076A AB AU 17" Panel ( Narrow & slim design )
ACER M170EN05 BN07-00102A AC ZPD Panel code
ACER M190EN02 BN07-00170A AMH "AU Monitor 19"" new panel development (P19-1S)"
ACER M190EN02 BN07-00170B AMZ "AU 19"" ZPD code derivation (ZPD)"
ACER M170EN06 BN07-00171A ATH "AU Monitor 17"" New panel development "
ACER T260XW01 BN07-00163A AMZ "AU 26"" new panel development (NF26EO)"

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

14 Reference Infomation

14-15

ACER A201SN01 BN07-00177A ATZ "AU TV panel 20.1"" TN SVGA new panel development"
ACER M170EN06 BN07-00171B ATZ AU Monitor 17" ZPD code derivation
ACER T315XW01 BN07-00194A AMZ AU 32" new
ACER M170EG01 BN07-00192A ATH AU TN PSWG type new Panel code
ACER M170EG01 BN07-00192B ATZ AU TN PSWG type NEW panel code derivation
ACER M190EN04 BN07-00203A ATH AU Monitor 19" ZPD new Panel code
ACER T260XW02 BN07-00208A AMZ AUO 26" ZPD panel
ACER M170EG01 V8 BN07-00221A ATZ AU TN PSWG type new Panel (8msec) ZPD code derivation
ACER T260XW02 BN07-00233A AMZ AUO 26" Panel new (Cosmetic spec down grade)
ACER T315XW01 BN07-00234A AMZ AUO 32" Grade new (Cosmetic spec down grade)
ACER M190EN03 BN07-00224A AMZ AU Monitor 19" MVA new code derivation
ACER T315XW01 BN07-00237A AMZ LCD TV VE project new
ACER T315XW01 BN07-00238A AMZ LCD TV VE project new
ACER M201UN02 V3 BN07-00168A AMZ
ACER M201UN02 V3 BN07-00168B AMH
ACER M190EN04 V7 BN07-00248A ATZ AU Monitor 19" TN Glare ZPD new code derivation
ACER A070VW01 BN07-00235A ATZ electonic Album new Panel code
ACER T315XW01 BN07-00253A AMZ LCD TV VE item model : T315XW01
ACER T260XW02 BN07-00254A AMZ AUO 26" VE item model
ACER M170EU01 BN07-00260A ATZ AUO 17" Slim TN ZPD Type ½Å±Ô code ÆÄ»ý
ACER T370XW01 BN07-00255A AMZ ROME 37" model
CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL
CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE
CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL
CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL
CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel
CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code
CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code
CHIMEI V296W1-L01 BN07-00120A CH MVA
CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL
CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL
CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel
CHIMEI M170E6-L01 BN07-00133A CM "2003-03-11 vendor change"
CHIMEI M170E6-L01 BN07-00133B CN ZPD derivation panel
CHIMEI V201V1-T01 BN07-00135A CP CHIMEI 20.1" panel development
CHIMEI M170E6-L02 BN07-00126B CQ "HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI M170E6-L05 BN07-00152A CR "CMO 17"" new panel development code"
CHIMEI M170E6-L05 BN07-00152B CS "CMO 17"" ZPD panel code derivation"
CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" new panel development code (GOYA2-PJT)
CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT)
CHIMEI V230W1-L02 BN07-00209A CMZ CMO 23" development
CHIMEI V320B1-L01 BN07-00207A CMZ CMO 32" development
CHIMEI V270W1-L01 BN07-00136A CMZ CHI MEI 27" panel development
CHIMEI M190E5-L0A BN07-00213A CTZ
CHIMEI M190E3-L0A BN07-00212A CMZ CMO M190E3-L0A MVA Type new code
CHIMEI M170E7-L01 BN07-00232A CTZ CMO 17" Slim TN ZPD Type new code
CHIMEI M190A1-L01 BN07-00228A CTZ CMO 19" Wide TN ZPD Type new code
NEC SVA150XG04TB BN07-00225A BTZ SVA NEC 15" panel ZPD code

Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks

Memo

14 Reference Infomation

14-16

2 Product Specifications

2-1

2 Product Specifications

2-1 Special Features

- HDMI/DVI, PC(Analog), 1 Component,
2 SCART, 1 Composite, S-Video, RF

- Brightness : 450cd/

- Contrast Ratio : 1200:1

- Response time : 8ms

2 Product Specifications

2-2

2-2 LE23R71B / LE23R71W Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normally white, 23-Inch viewable, 0.372 (H) x 0.124(W)*3mm pixel pitch

Scanning Frequency Horizontal : 43 kHz ~ 53kHz

Vertical : 60 Hz ( Automatic)

Display Colors 16.7 Million colors
Maximum Resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Video Signal Analog 0.7 Vp-p

5% positive at 75 , internally terminated

Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

84 MHz

Active Display
Horizontal/Vertical

AC power voltage & Frequency

AC100~260V 50/60Hz
Power Consumption <100 W ( < 1.5W, stand by )
Dimensions(W x D x H) 594.0 x 75.0 x 421.0 mm (Body)

Set 594.0 x 215.2 x 475.5 mm ( With Stand )

Weight
Set 7.6Kg ( with stand )

Environmental Considerations

Operating Temperature : 50

F ~ 104 F (10

C ~ 40 C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4

F ~ 113 F (-20 C ~ 45 C)

Storage Humidity : 5 % ~ 95 %

TV System

Antena Input

75

- MAX Internal speaker Out : Right => 3W, Left => 3W

Sound Characteristic

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz

System PAL/SECAM

Item

Description

508.125 mm / 285.696 mm

Tunning Frequency Synthesize

Sound NICAM , A2 STEREO

2 Product Specifications

2-3

2-3 Spec Comparison

LE23T51B

Model

Design

Frequency

Horizontal
Vertical
Display Color

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

PC Resolution

Maximum mode

Input Signal

Sync Signal
Video Signal

Power
Consumption

Normal
Power Saving

100W

< 2W

100W < 1.5W

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

1360 x 768 / 60 Hz 1360 x 768 / 60 Hz

Input source

Difference

DVI-D HDMI

PIP

PIP(PC Only) PIP(PC Only)

Sound

3W 3W

LE23R71B / LE23R71W

2 Product Specifications

2-4

Item Item Name

Remote Control &

Batteries (AAA x 2)

Power Cord

Cover-Bottom

Stand

Stand Screw (4 ea)

Owner's Instructions

LE23R71B :

BN59-00518A

LE23R71W:

BN59-00488A

3903-000144

BN63-02323A

BN96-03017A

6002-001294

-

Code.No Remark

Warranty Card /

Registration Card

/Safety Guide Manual

(Not available in all

locations)

-

2-4 Option Specification

10 Operating Instructions and Installation

10-1

10 Operating Instructions and Installation

10-1 Front

1. SOURCE

Toggles between all the available sources
(TV, AV1, AV2, S-Video, Component1, Component2,
PC, HDMI).
In the on-screen menu, use this button as you use the

ENTER button on the remote control.

2. MENU

Press to see an on-screen menu of your TV's features.

3.

Press to decrease or increase the volume.
In the on-screen menu, use the buttons as
you use the and buttons on the remote control.

4. CH

Press to change channels.
In the on-screen menu, use the CH buttons as
you use the and buttons on the remote control.

5. SPEAKERS

6. (POWER)

Press to turn the TV on and off.

POWER INDICATOR

Blinks and turns off when the power is on and lights
up in stand-by mode.

7. REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

- The product color and shape may vary depending on the model.

10 Operating Instructions and Installation

10-2

10-2 Connection Panel

- Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

- When connecting an external device, match the colour of the connection terminal to the cable.

10 Operating Instructions and Installation

10-3

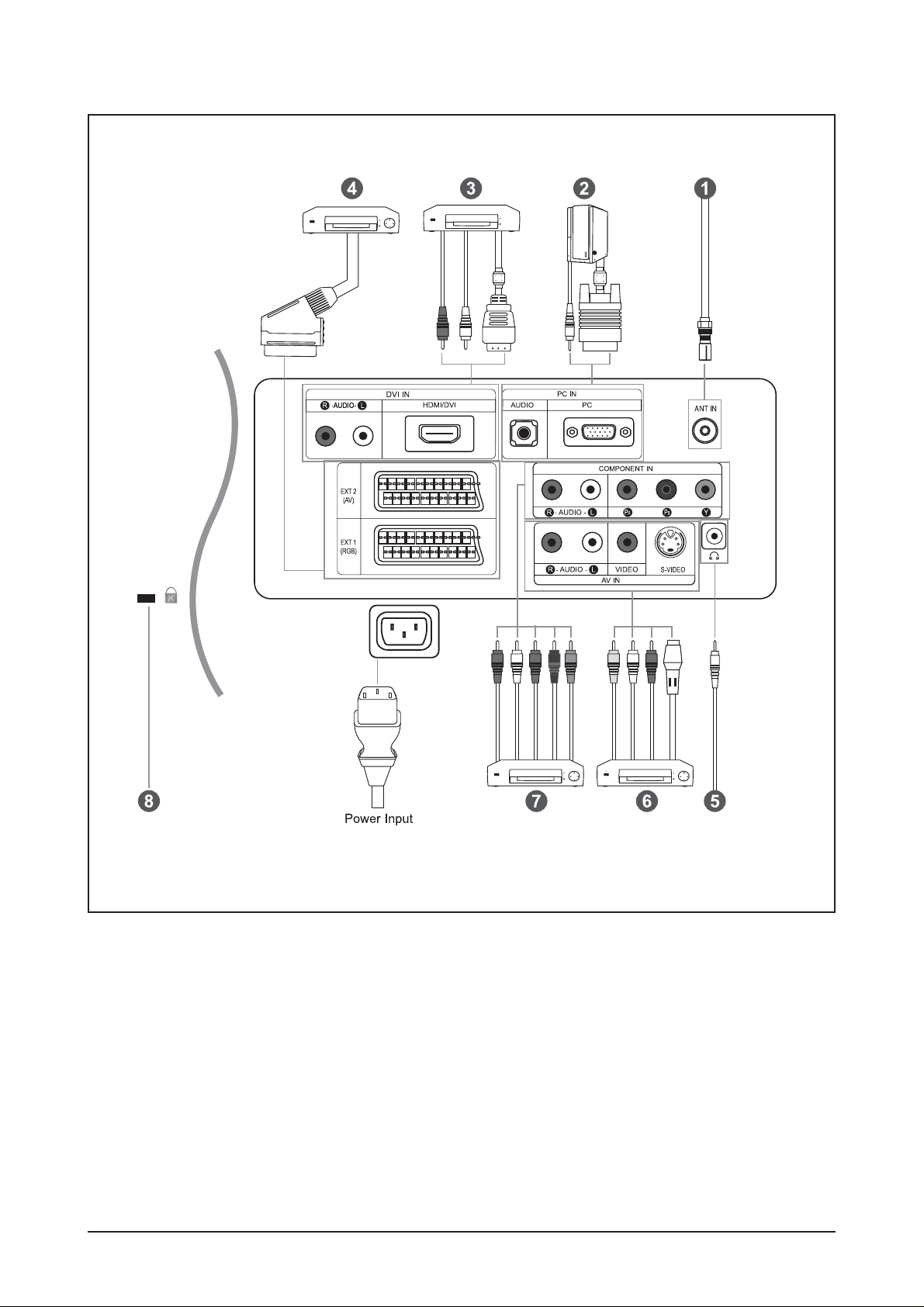

1. Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

2. Connecting Computer

- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the
Video Card of your computer.

- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to

"Audio Out" of the sound card on your computer.

3. Connecting DVI

- Connect the DVI connector to the DVD connector.

- Connect the stereo audio cable (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
the corresponding audio out connectors on the A/V device.

- DVI does not support PC function.

- This LCD TV displays the optimum picture in 720p mode.

4. Connecting Set-Top Box, VCR or DVD

- Connect the VCR or DVD SCART cable (optional) to the SCART connector of the VCR or DVD.

6. Connecting External A/V Devices

- Connect RCA (optional) or S-VIDEO cable (optional) to an appropriate external A/V device such as
VCR, DVD or Camcorder.

- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output ( 5 ) on the rear of your set. While the headphone
is connected, the sound from the built-in speakers will be disabled.

7. Connecting Component Devices (DTV/DVD)

- Connect component video cables (optional) to component connector ("P

R", "P

B", "Y") on the rear of your

set and the other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the
DTV (or DVD) and connect the DTV (or DVD) to component connector ("P

R", "PB", "Y") on your set.

- The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and
R-Y or Y, Cb and Cr.

- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the DTV or DVD.

- This LCD TV displays the optimum picture in 720p mode.

8. Kensington Lock

- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

- If you want to use a locking device, contact the dealer where you purchased the TV.

10 Operating Instructions and Installation

10-4

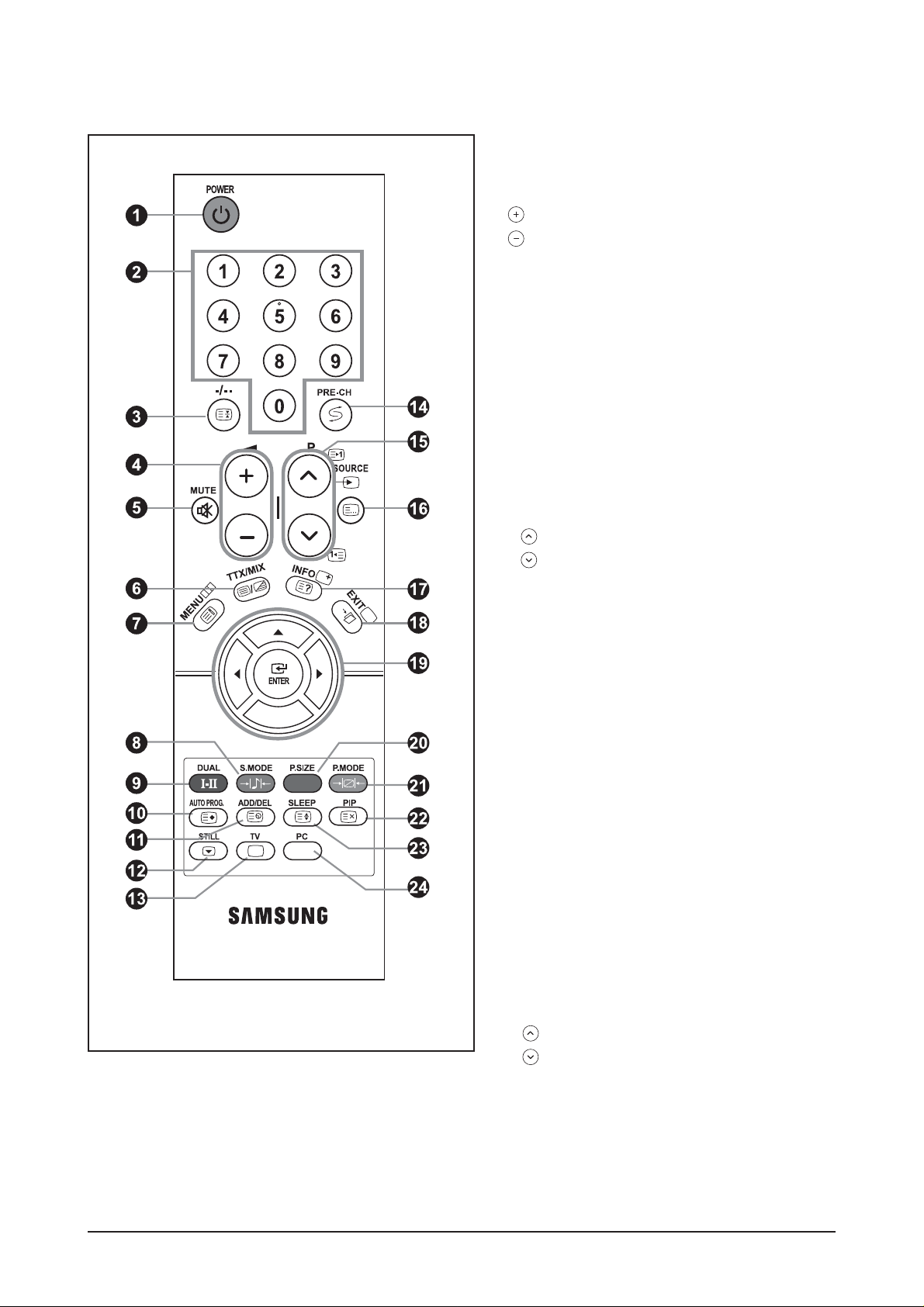

10-3 Remote Control

1. Television Standby button

2. Number buttons for direct channel access

3. One/Two-digit channel selection

4. Volume increase
Volume decrease

5. Temporary sound switch-off

7. Displays the main on-screen menu

8. Sound mode selection

9. Sound effect selection

10.Press to automatically store selected

TV/cable channels

11.Use to store and delete channels to/from

memory

12.Picture freeze

13.Selects the TV mode directly

14.Previous channel

15.P : Next channel

P : Previous channel

16.Available source selection

17.Use to see information on the current

broadcast

18.Exit the on-screen menu

19.Control the cursor in the menu

20.Picture size selection

21.Picture effect selection

22.Picture-In-Picture On/Off

23.Automatic Power-off

24.Selects the PC mode directly

Teletext Functions

3. Teletext hold

6. Teletext display/mix both teletext information

and the normal broadcast

7. Teletext index

10.Teletext store

11.Teletext sub page

13, 18. Exit from the teletext display

15.P : Teletext next page

P : Teletext previous page

16.Teletext mode selection (LIST/FLOF)

17.Teletext reveal

22.Teletext cancel

23.Teletext size selection

8,9,20,21. Fastext topic selection

10 Operating Instructions and Installation

10-5

10-4 Installing the Stand

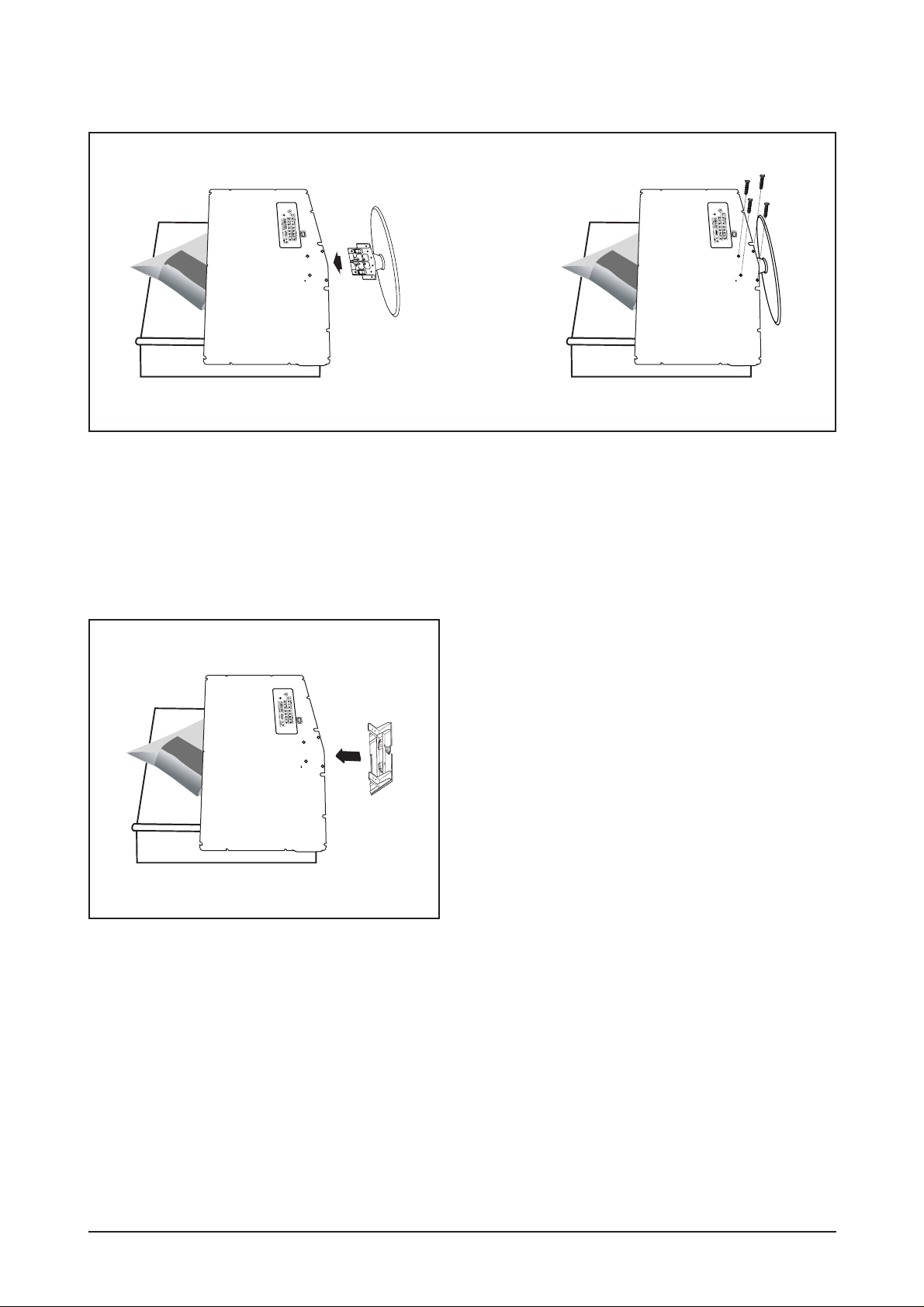

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten

10-5 Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on
installing the wall mount, see the instructions provided with the Wall Mount items.
Contact a technician for assistance when installing the wall mounted bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you
elect to install the TV on your own.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

Memo

10 Operating Instructions and Installation

10-6

11 Disassembly and Reassembly

11-1

11 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD TV.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

11-1 LE23R71B/LE23R71W Disassembly

Cautions: 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.

Description Picture Description

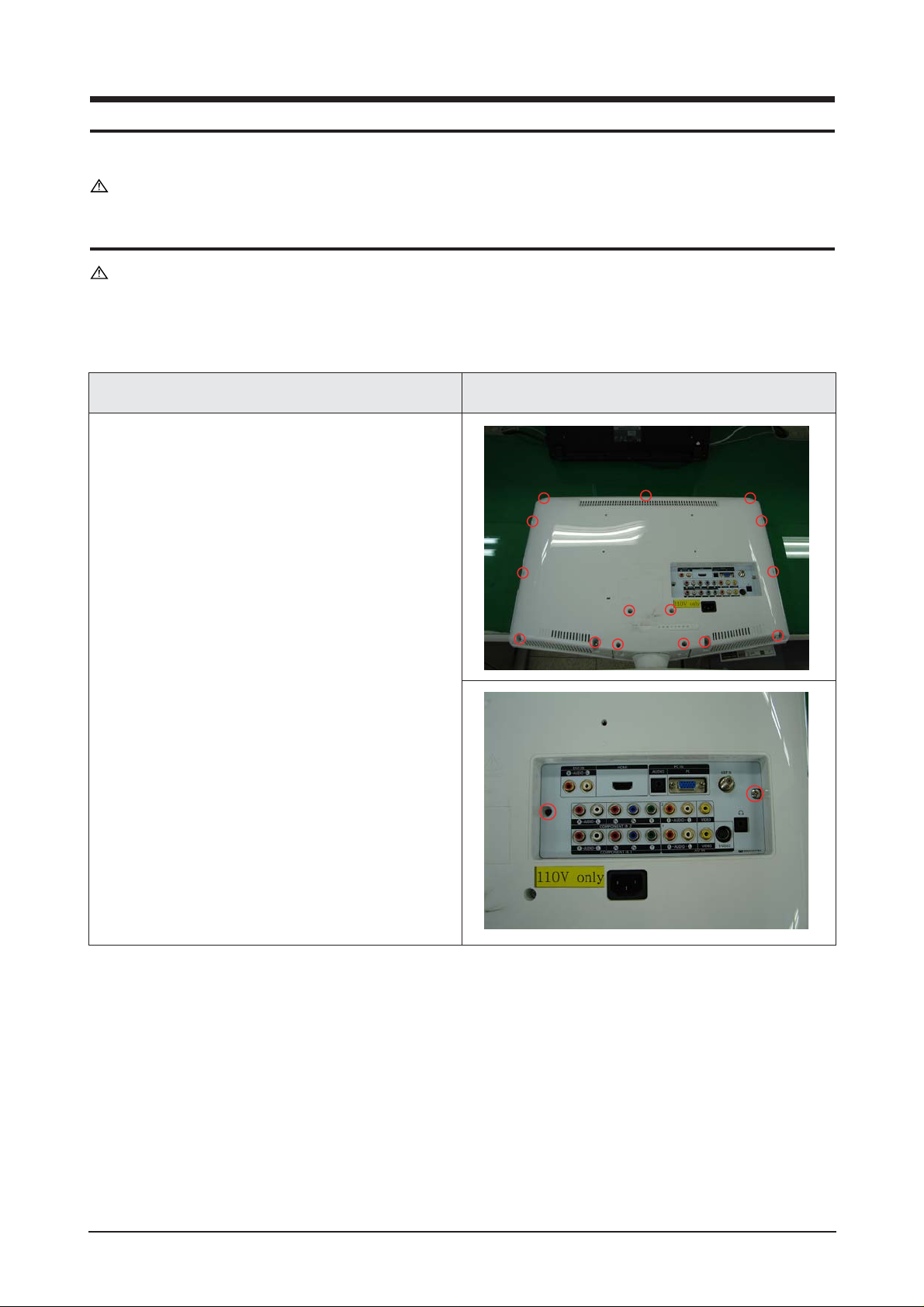

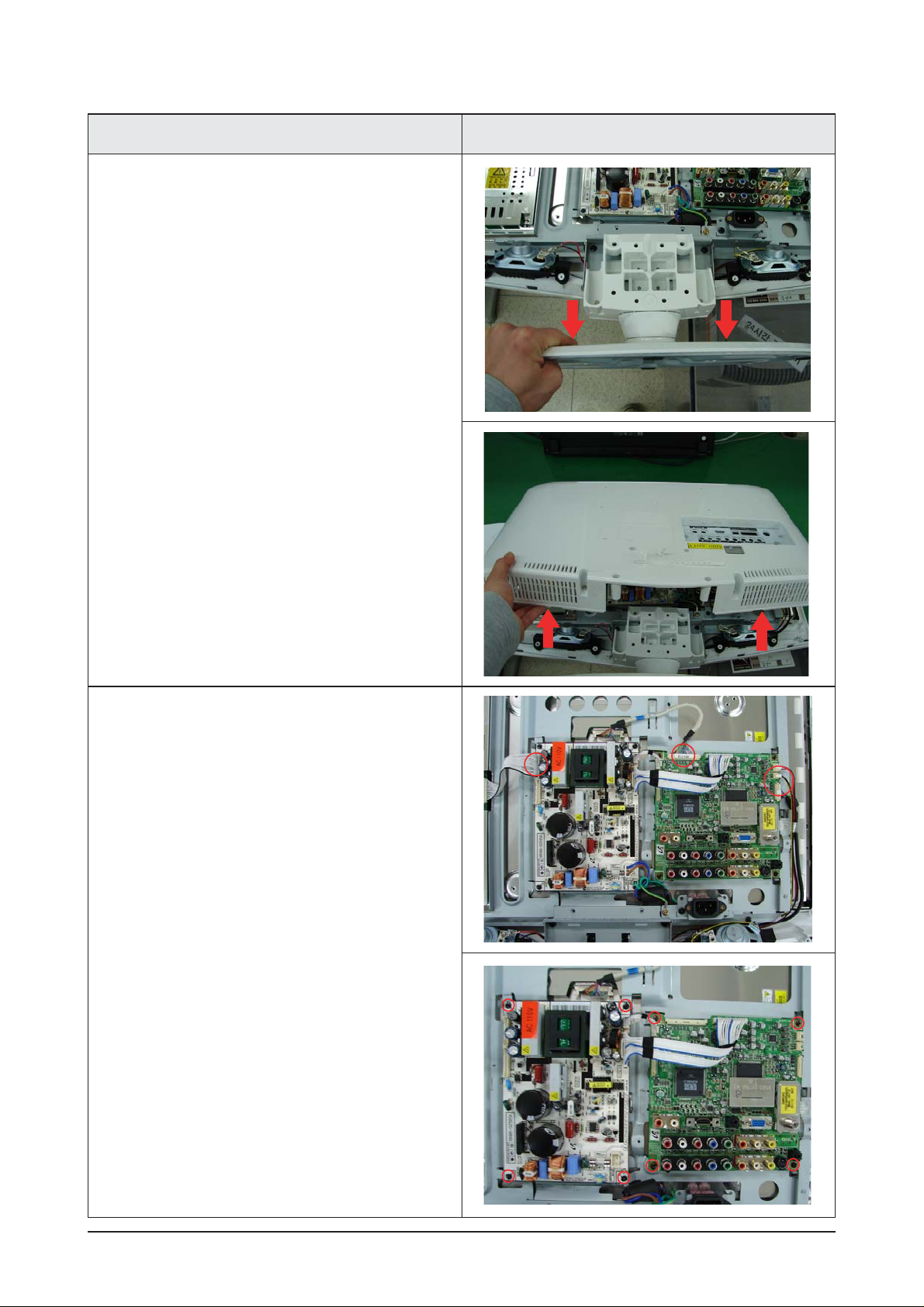

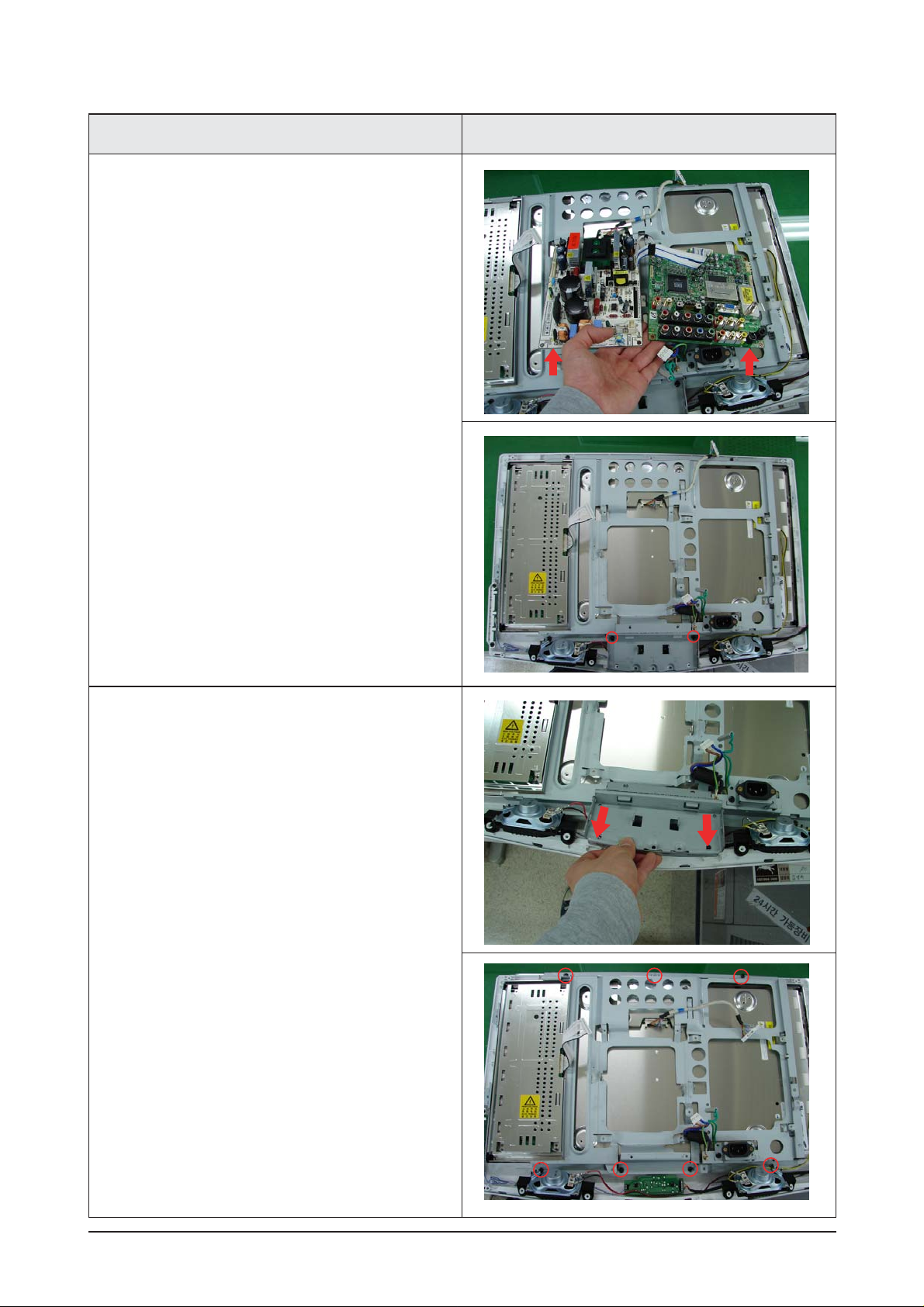

1. Place LCD TV face down on cushioned table.
Remove 15 screws from the rear cover.
Remove 2 screws from the jack cover

11 Disassembly and Reassembly

11-2

3. Disconnect cables and remove screws from the
boards

Description Picture Description

2. Remove stand and lift up the rear cover.

11 Disassembly and Reassembly

11-3

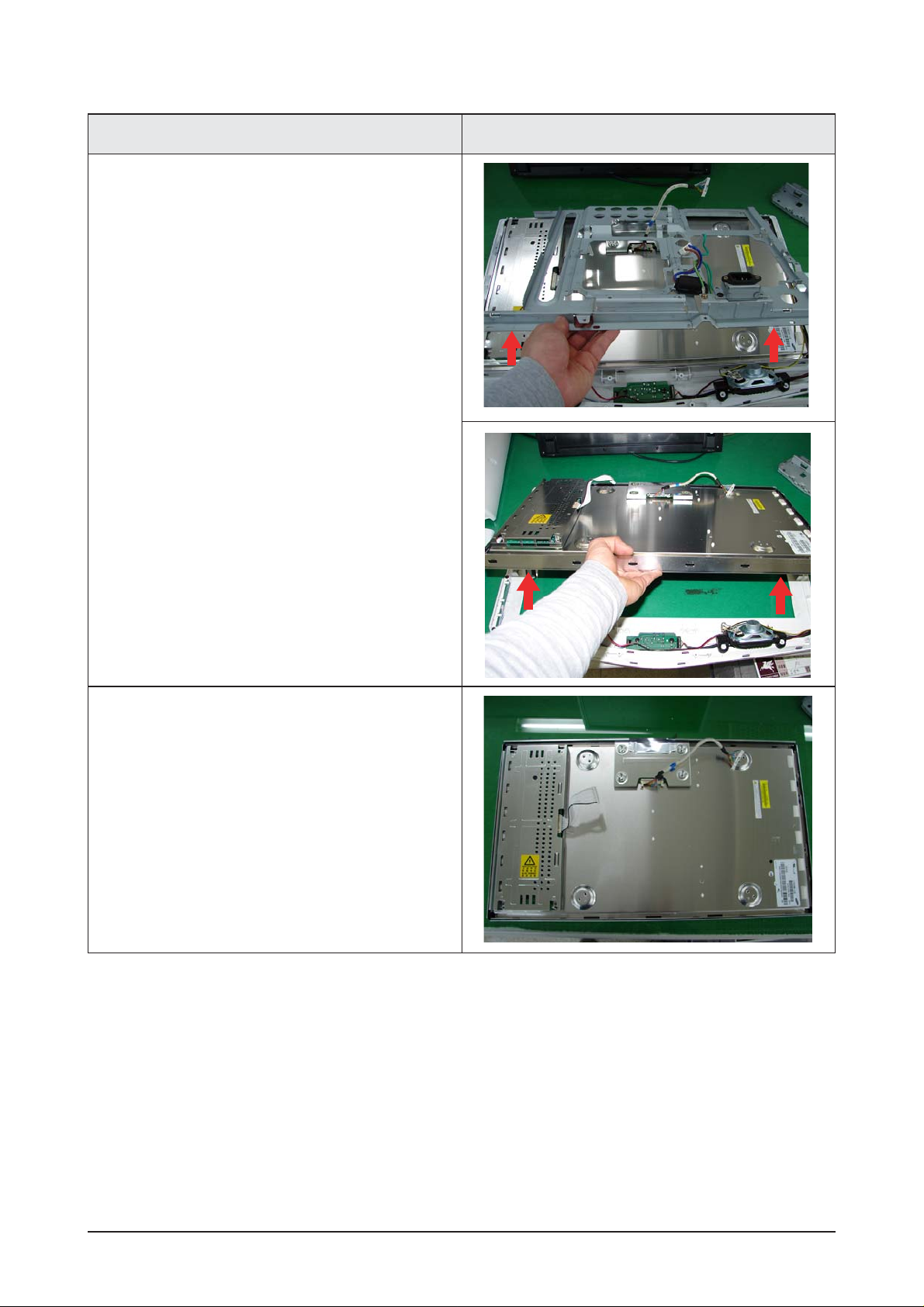

5. Lift up the stand brkt and remove 7 screws from
the panel brkt.

Description Picture Description

4. Lift up the boards and remove screws from the
stand brkt.

11 Disassembly and Reassembly

11-4

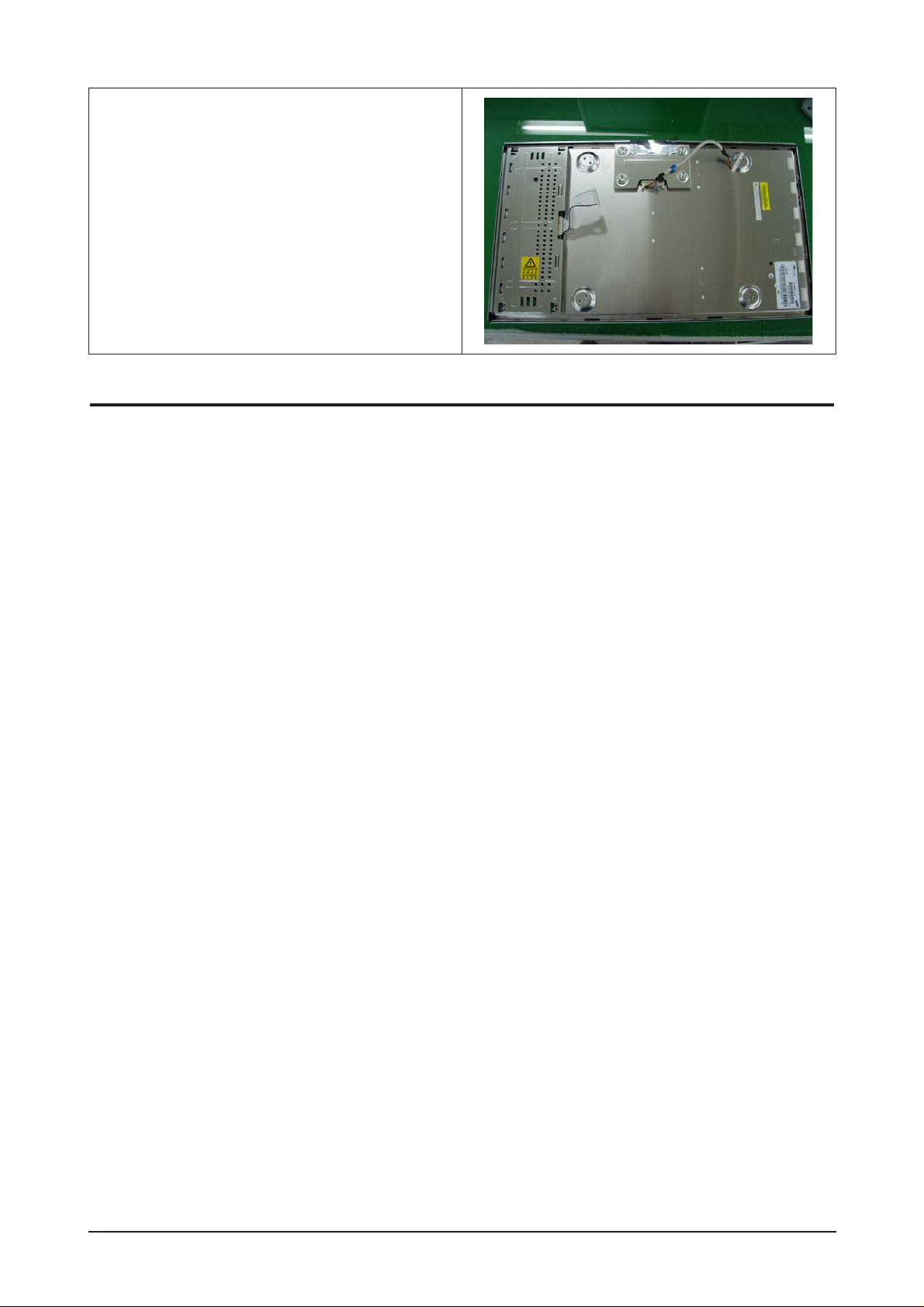

7. LCD panel

Description Picture Description

6. Lift up the brkt and LCD panel.

11 Disassembly and Reassembly

11-5

7. LCD panel

11-2 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.

Memo

11 Disassembly and Reassembly

11-6

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 General Alignment Instuction

1. Usually, a color LCD-TV needs only slight touch-up adjustment upon installation.

Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end

of the TV. When inserting signal markers, do not allow the marker generator to distort test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on

the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure

that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transformer.

3 Alignments and Adjustments

3-2

3-2 Factory Mode Adjustments

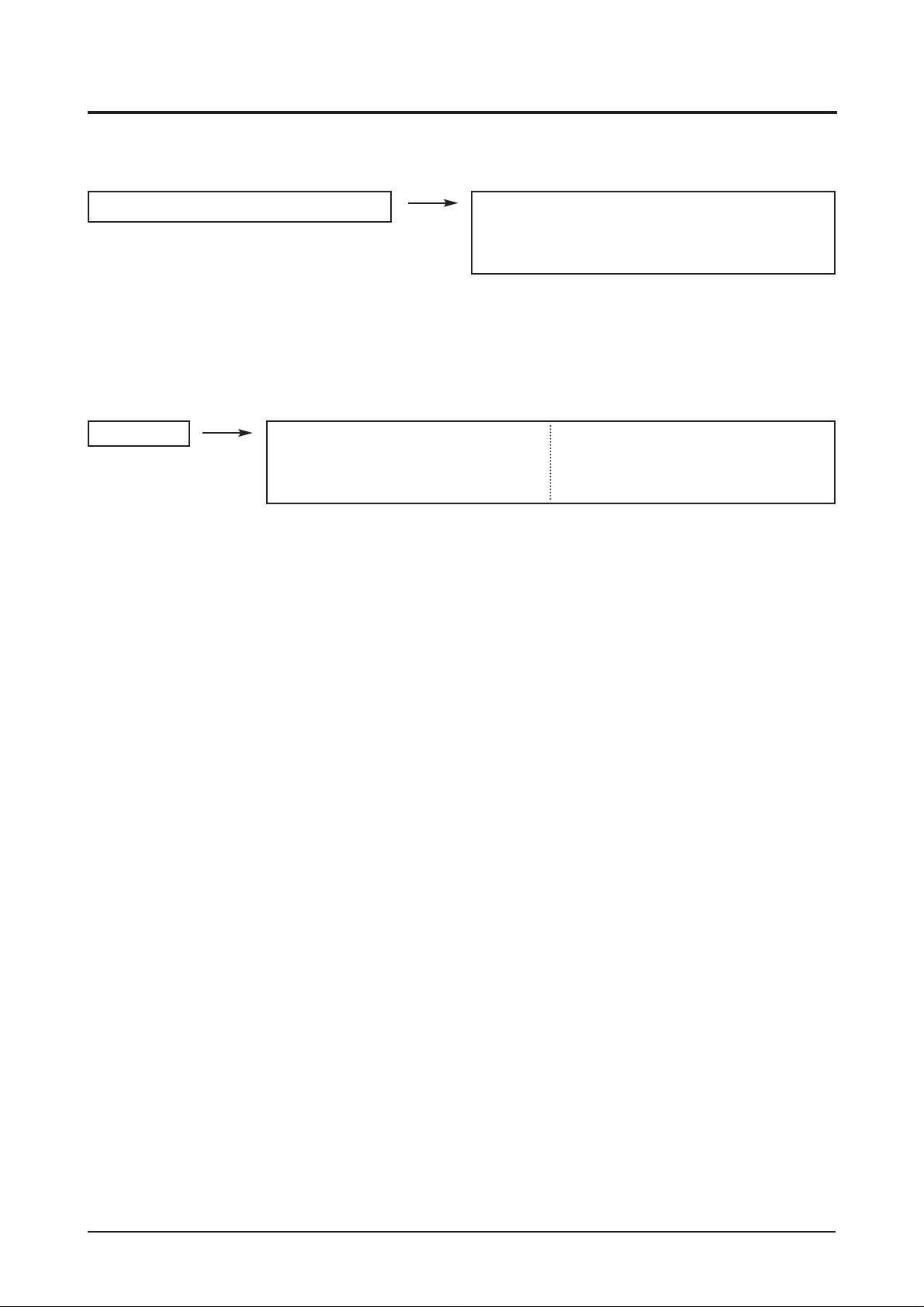

3-2-1 Entering Factory Mode

To enter 'Service Mode' Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

3-2-2 Factory Mode Tree

- If you have Factory remote - control

[INFO] -> [FACTORY]

INFO MUTE Power OnMENU

1. Calibration

2. Option Byte

3. W/B

4. VCTi

5. YC Delay

6. FLI 5928

7. Adjust

8. Test Pattern

9. Password

10. Check Sum 0000

11. Spread spectrum

12. HDCP

13. DownLoad : Off

14. WatchDog Timer

15. Reset
T_BRD23PEU-1000
Month/ Day / Year / Hour/ Min./Sec.
P_TRNPEU-1002

Panel On Time(Hour) XXXXX

1. Calibration
AV Calibration

DTV Calibration
PC Calibration

3. White Balance
Sub Bright : 128

R off set : 128
G off set : 128
B off set : 128
Sub contrast : 128
R gain : 128
G gain : 128
B gain : 128
Low Light : 274/274 1.0 +/- 0.15
High Light : 274/274 55 ÀÌ»ó

2. Option Byte
Panel option :

23" AM7

Dimming

: A_P3(AM7)
Gamma : On
Auto Power :

On
Video Mute : 8
Language : English
Hotel Mode : Off
V-Chip : Off

Auto FM : Off
High Dev. : Off
TTX List : Flof
MCC : Off
TTX Group : User OSD
Shop Mode : Off

------ : Off

4.

VCTi
VCTi Page 1

VCTi Page 2

3 Alignments and Adjustments

3-3

1. Calibration

2. Option Byte

3. W/B

4. VCTi

5. YC Delay

6. FLI 5928

7. Adjust

8. Test Pattern

9. Password

10. Check Sum 0000

11. Spread spectrum

12. HDCP

13. DownLoad : Off

14. WatchDog Timer

15. Reset
T_BRD23PEU-1000
Month/ Day / Year / Hour/ Min./Sec.
P_TRNPEU-1002

Panel On Time(Hour) XXXXX

5. YC Delay
RF PAL-B/G : 5

RF PAL-D/K : 6
RF PAL-I : 5
RF PAL-L/L' : 5
RF SECAM-B/G : 2
RF SECAM-D/K : 0
RF SECAM-I : 2
RF SECAM-L/L : 5
RF NTSC 3.58 : 5
RF NTSC 4.43 : 5
AV PAL : 5
AV SECAM : 2
AV NTSC 3.58 : 5
AV NTSC 4.43 : 5
AV PAL 60 : 5

6. FLI 5928

1.

Component Calibration--(ADC)

2. PC Calibration--(ADC)

3. ACC/ACM

4. TNR

5. Picture Enhance

6. Calibration Target

7. Adjust
User Control lnitial

LNA PLUS
Hotel Option

11. Spread Spectrum

Spread Spectrum : ON
Spread Spectrum Range : 3
Step : 12
LVDS_ICTRL : 0
Memc Clk Freq0 : 122
Memc Clk Freq1 : 180
Sdram Clk Delay : 81
Sdram Drive0 : 52
Sdram Drive1 : 51

8. Test Pattern ------------ 0

10. Check Sum : XXXX

12. HDCP : XXXX

13. DownLoad On/Off

14. WatchDog Timer Off

15. Reset

9. Password : 80 80 80 80

3 Alignments and Adjustments

3-4

3-3 White Balance - Calibr ation

3-3-2 White Balance - Adjustment

3-3-1 White Balance -Calibration

3-3-3 Conditions for Measurement

1. Calibration

AV Calibration
DTV Calibration
PC Calibration
(Calibration Condition refer to next page)

3. W/B

(low light) (high light)

1. On the basis of toshiba ABL pattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 2: 768 x 575@50Hz(PAL composite)

NO 6 : 1280 x 720@60 Hz (Component 720P)
NO 21 : 1024 x 768@60 Hz

*

Pattern

NO 24: chess pattern
NO 16 : Toshiba ABL Pattern
NO 17 : 16 gray

2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LE23R71BX.

(W/B adjustment Condition refer next page)

Sub Bright Sub Contrast
R offset R gain
G offset G gain
B offset B gain

3 Alignments and Adjustments

3-5

2. Adjust the white balance of AV, Component and DVI Modes.
a) Set the input to the mode in which the adjustment will be made (AV Component DVI).
* Input signal - VIDEO Mode : Model #1 (744*484 Mode), Pattern #16

- Component, DVI Mode : Model #6 (1280*720 Mode), Pattern #16

b) Enter factory W/B.
c) Adjust the low light.

- Adjust sub - Brightness to set the 'Y' value.

- Adjust red offset ('x') and blue offset ('y') to the color coordinates. ( x : 263, y : 267, Y : 1.3 ft)
* Do not adjust green offset data.

3-3-4 Method of Adjustment

1. Adjust the basic level of A/V and Component and PC input signals.

a) Set the input to the mode in which the adjustment will be made(A/V -> Component -> PC).
* Input signal - A/V Mode : Mode#2(768 x 575@50Hz), Pattern #24 ( picture 3-1 )

- Component Mode : Model # 6 ( 1280*720 @ 60Hz ) , Pattern #15 ( picture 3-2 ).

- PC Mode : Model #21 ( 1024*768 @ 60Hz ) , Pattern #17 ( picture 3-3 ).
b) Enter Factory Calibration ( A/V , DTV , PC Mode Only).
* AV Calibration -> Source change for Component -> DTV Calibration -> Source change for PC -> PC

Calibration

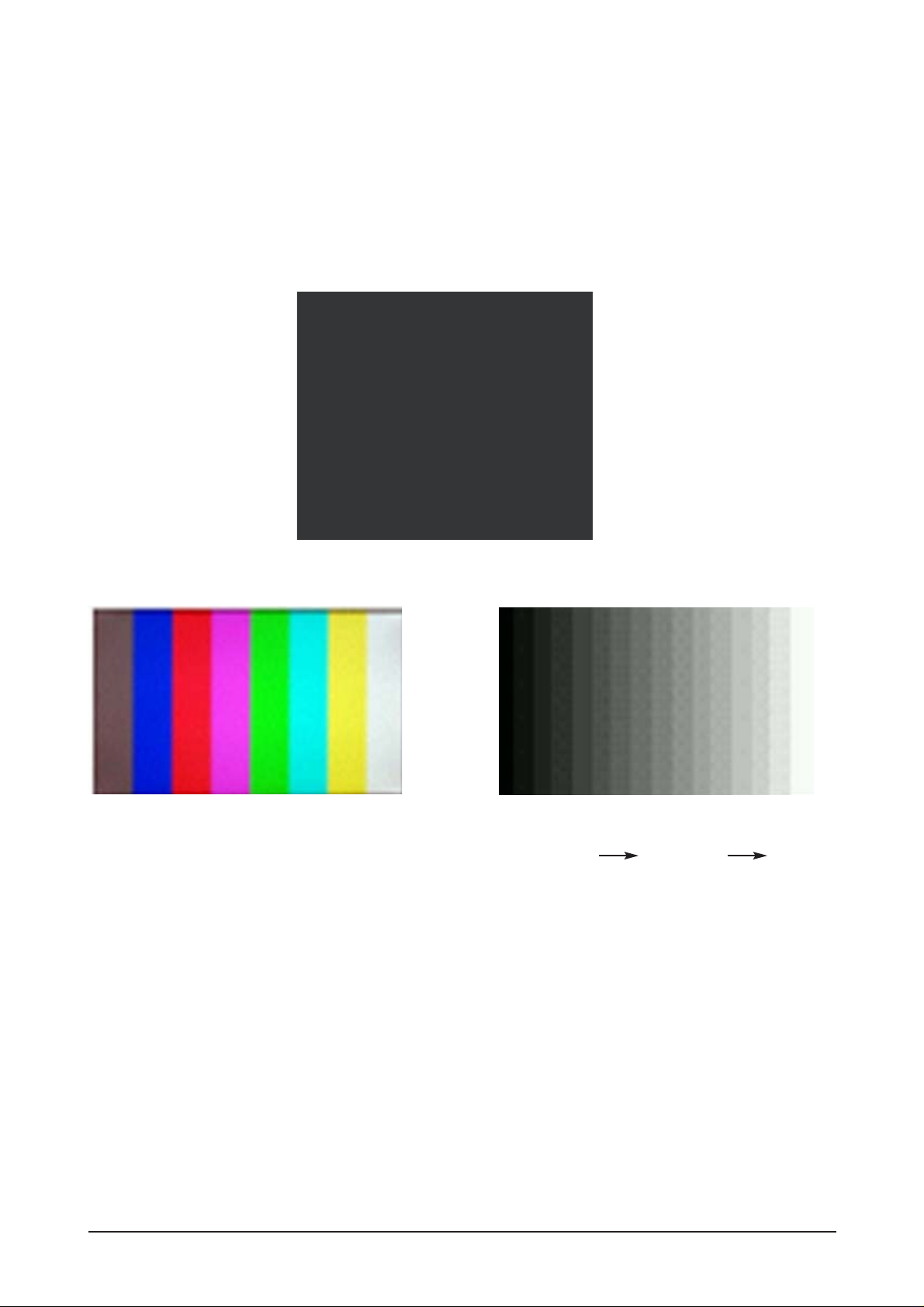

Picture 3-3 16gray

Picture 3-2 Color barPicture 3-2 Color bar

Picture 3-1 Chess pattern

3 Alignments and Adjustments

3-6

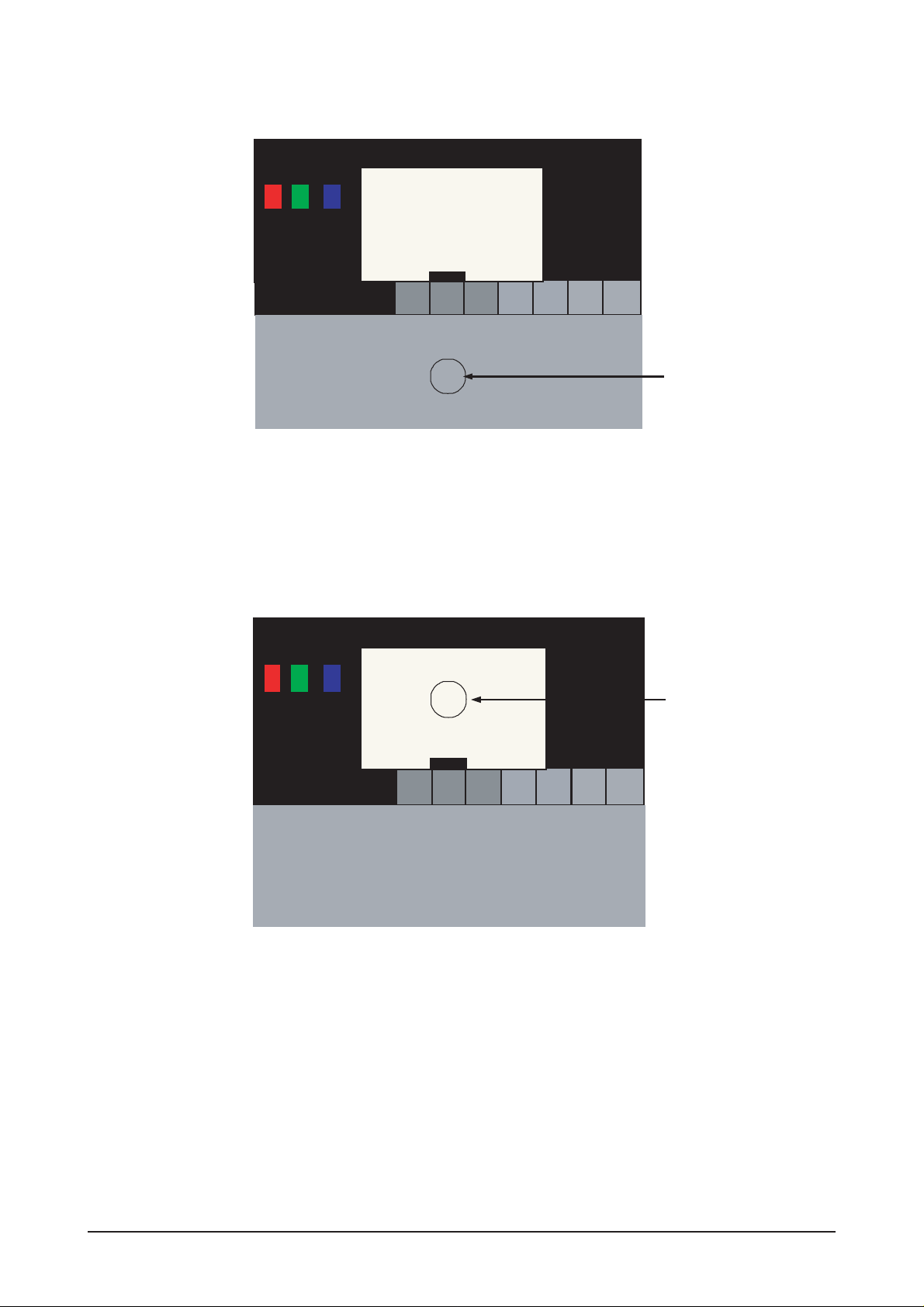

Picture 3-4 Toshiba ABL Pattern

High light
Measurement point

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust red gain ('x') and blue gain ('y') to the color coordinates. ( x : 263, y : 267 )
* Do not adjust the green gain and sub-contrast (Y) data.

Picture 3-3 Toshiba ABL Pattern

Low light
Measurement point

3 Alignments and Adjustments

3-7

3-4 Bordeaux Micom Update

3-4-1 Installing G-Probe

1. Uncompress GProbe5.1.0.18.zip.

2. Run GProbe5.1.0.18.exe.

3. The files are created in the C:

Program Files Genesis Microchip GProbe 5 folder.

4. Copy the ispoak_spi.hex file to the C:

Program Files Genesis Microchip GProbe 5 folder.

5. Copy the bordeaux.txt, torino.txt file to the C:

Program Files Genesis Microchip GProbe 5 folder.

(bordeaux.txt or torino.txt have the command list to download. The file name should be changed.)

6. Execute the 'Gprobe 5'

7. Click the 'connection settings' button.

8. Change the connection from 'Serial' to 'Parallel'

3 Alignments and Adjustments

3-8

9. Set the 'Pin assignments'

3-4-2 Connecting the download JIG to the MAIN PCB

Connect the DDC manager from Parallel of PC to D-sub of set.

3 Alignments and Adjustments

3-9

3-4-3 Update Procedures

1. Execute the 'Gprobe 5'

2. Open the command list file(ex. bordeaux.txt or torino.txt. The file name should be changed.)

1) Click the Button to open the file>

2) Open the command list file.

3 Alignments and Adjustments

3-10

3) You can see the file contents. It's command lists. (In this case the command file is insam.txt for
example.)

4) Check the the SOFT name and path to download. (For example T-BRD23US-0152.hex is used at
insam folder in C driver)

3. Enter to '13.download' mode in service menu.

4. Check the connection with 'test' command.

If you can get 'Test passed.' massage, the connection is OK or else check the Jig cable.

test

3 Alignments and Adjustments

3-11

5. Execute the command list file. For it enter 'batch file name.txt'.

If you can get 'Batch: command Successful' massage Download is all done.

3 Alignments and Adjustments

3-12

Memo

13 Circuit Descriptions

13-1

13 Circuit Descriptions

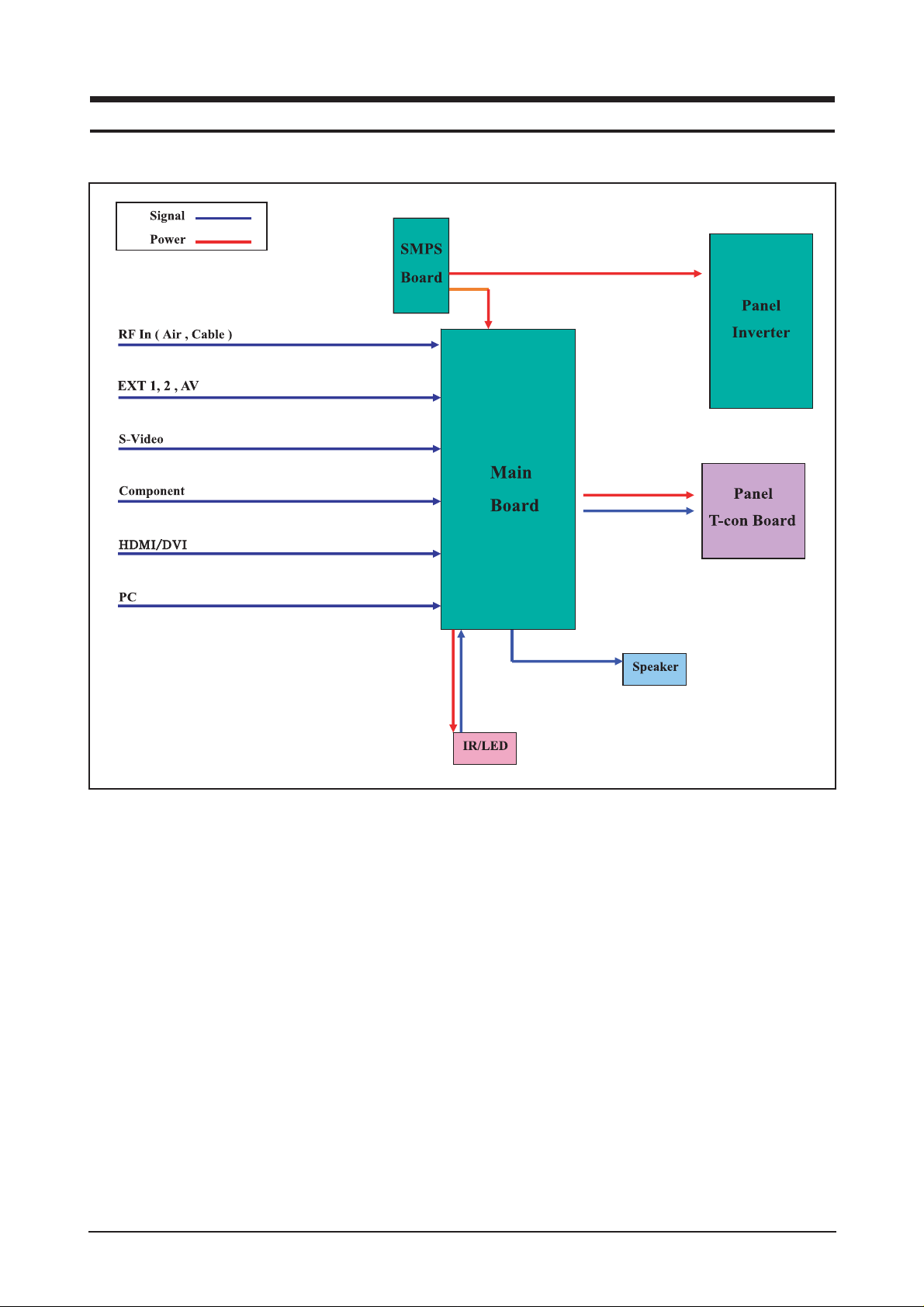

13-1 Block description

consists of three main blocks

1. Main board : Video signal processing

2. SMPS board : Power supply

3. Panel Inverter & T-con board : LCD Panel control

13 Circuit Descriptions

13-2

*

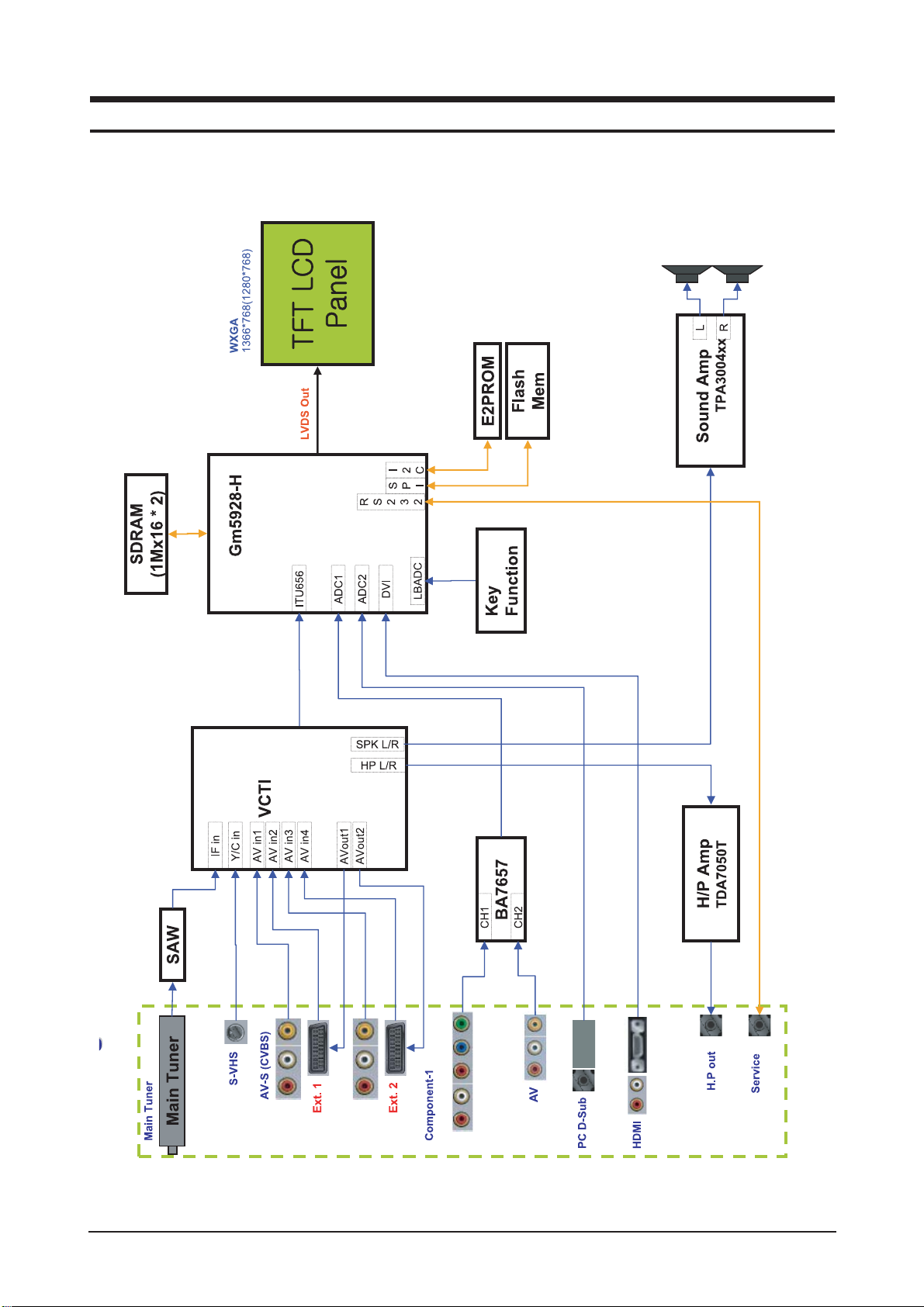

VCTi : IF AV1/2, S-Video input and video decoding, Audio signal processing.

*

FLI5928H : - Scaler IC.

- Component, PC, HDMI/DVI input and LVDS signal output.

*

BA7657 : component 1/2, Switching IC.

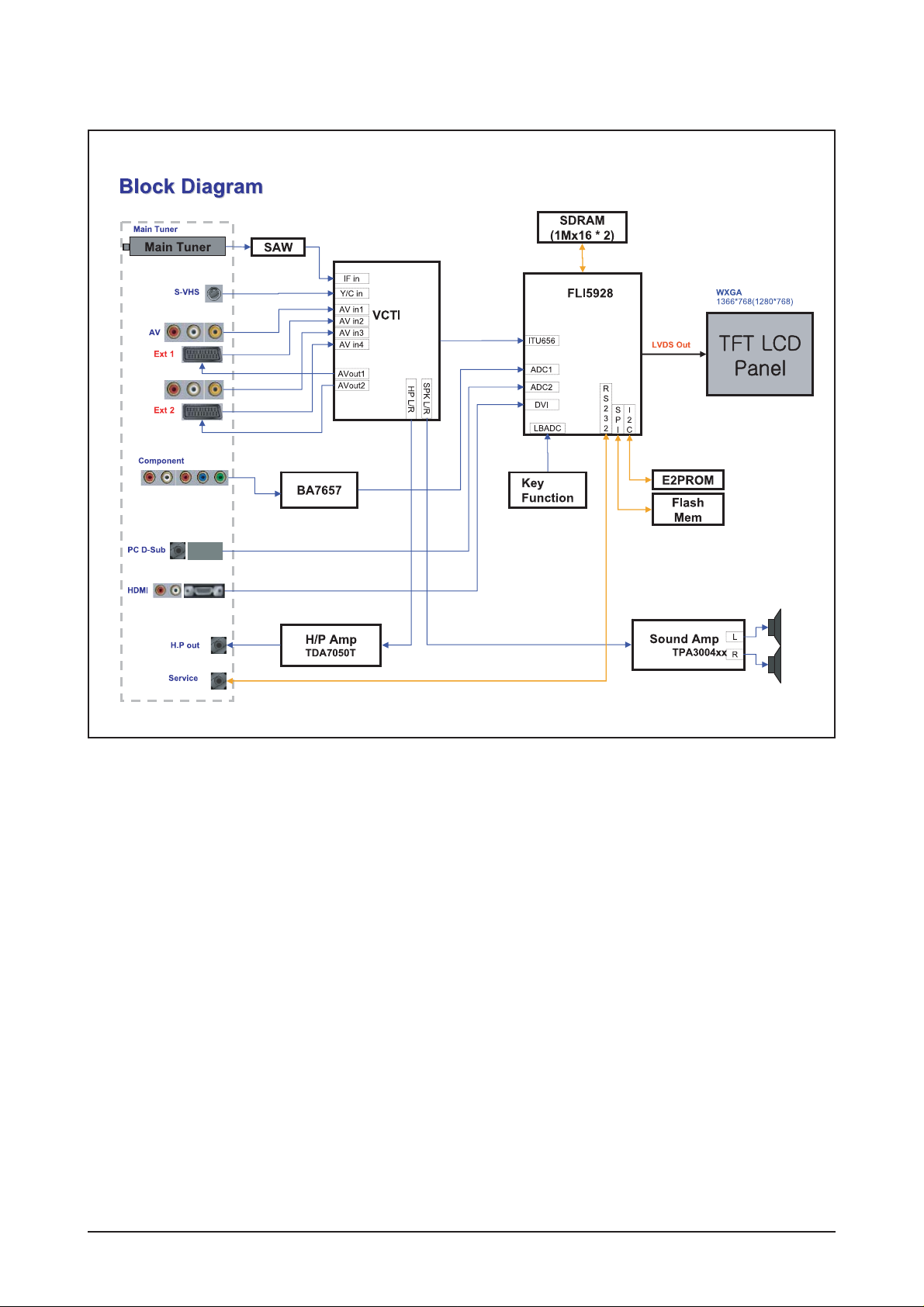

13-2 Main Block

13 Circuit Descriptions

13-3

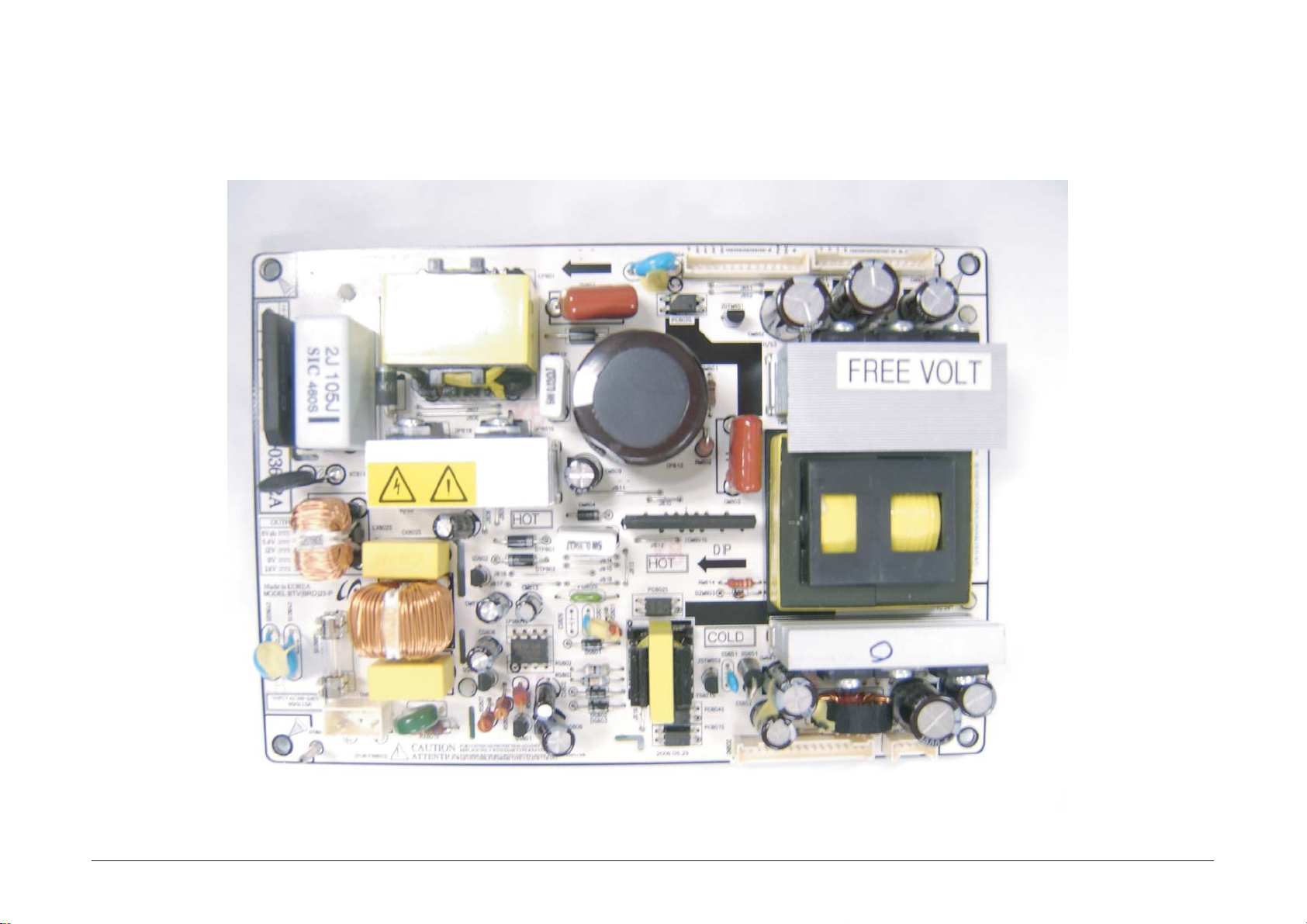

13-3 SMPS Board

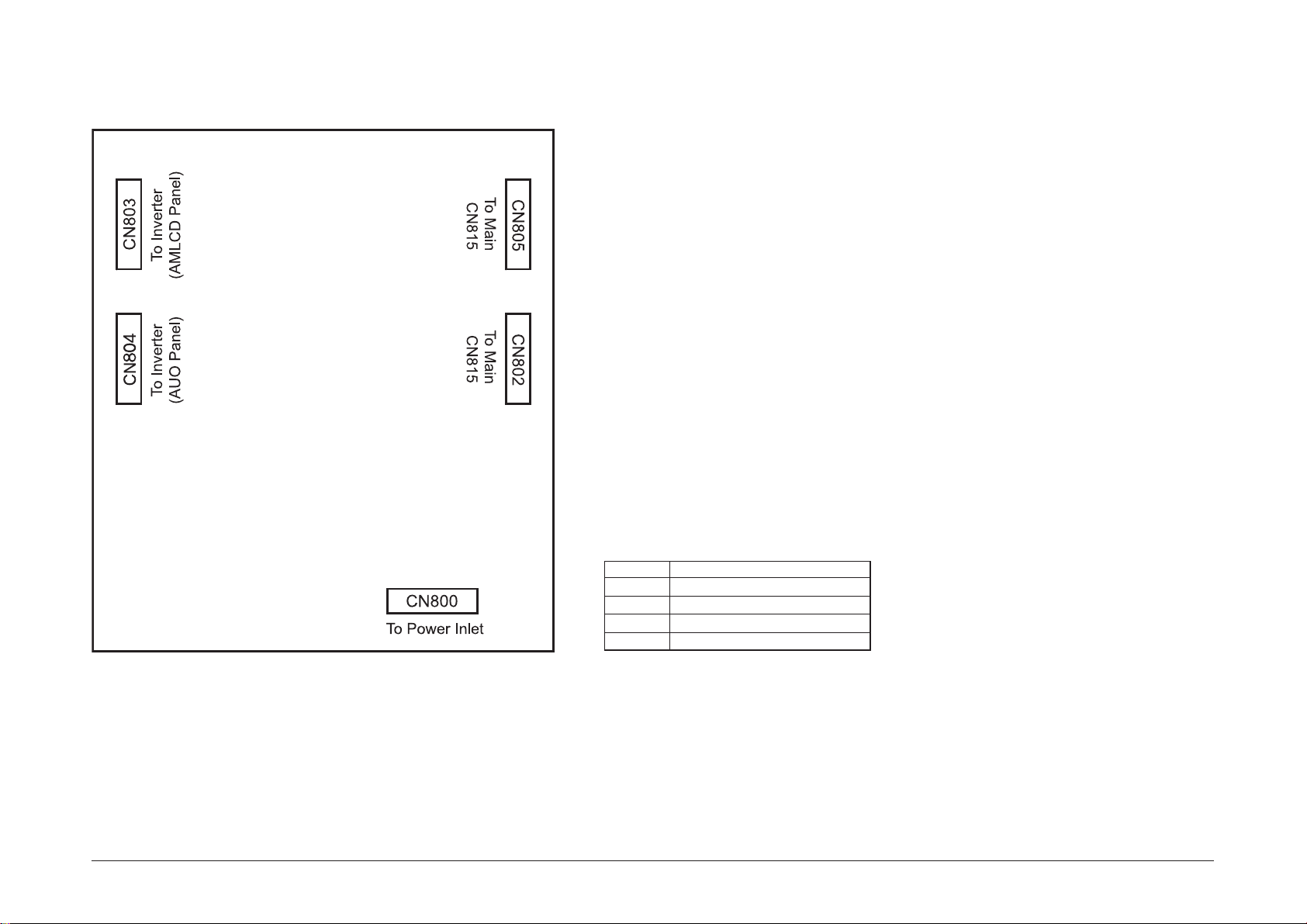

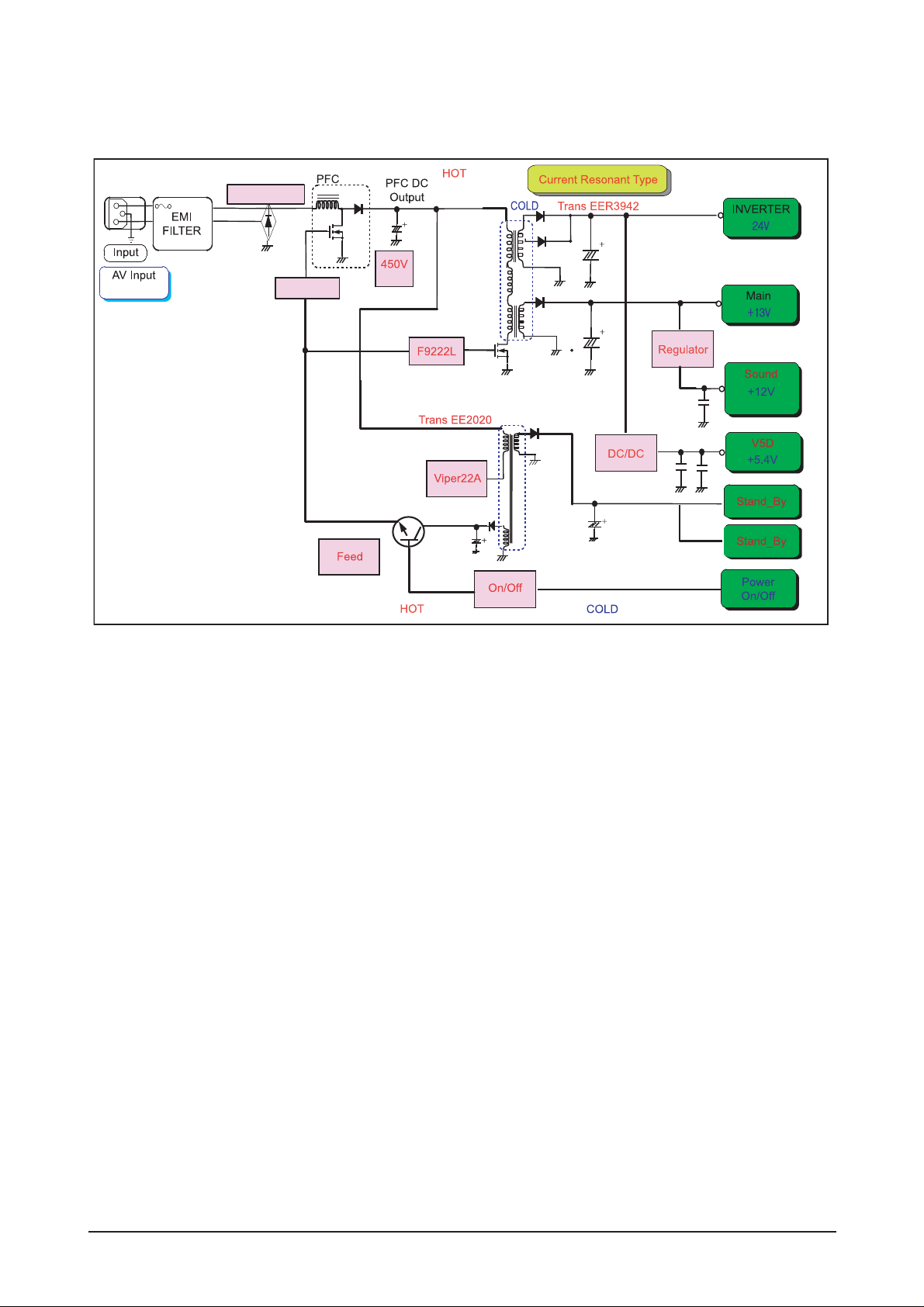

13-3-1 SMPS Diagram (Free_Volt)

Memo

13 Circuit Descriptions

13-4

4 Troubleshooting

4-1

4 Troubleshooting

4-1 No Power

Does proper DC 12V

appear at C820, C823?

Change Power PCB Assy .

Yes

Yes

No

Check power cable connection.

No

Does proper DC A3.3V,

A5V appear at

C834, C830?

Check IC816, IC815

Change main PCB ass'y .

Yes

No

Does proper DC 5V, 3.3V,

1.8V appear at C813, C811,
C816?

Check IC821, IC811

Change main PCB ass'y.

Yes

No

LAMP off, power indicator

LED red color?

Check the LVDS Cable.
And replace LCD Panel.

4 Troubleshooting

4-2

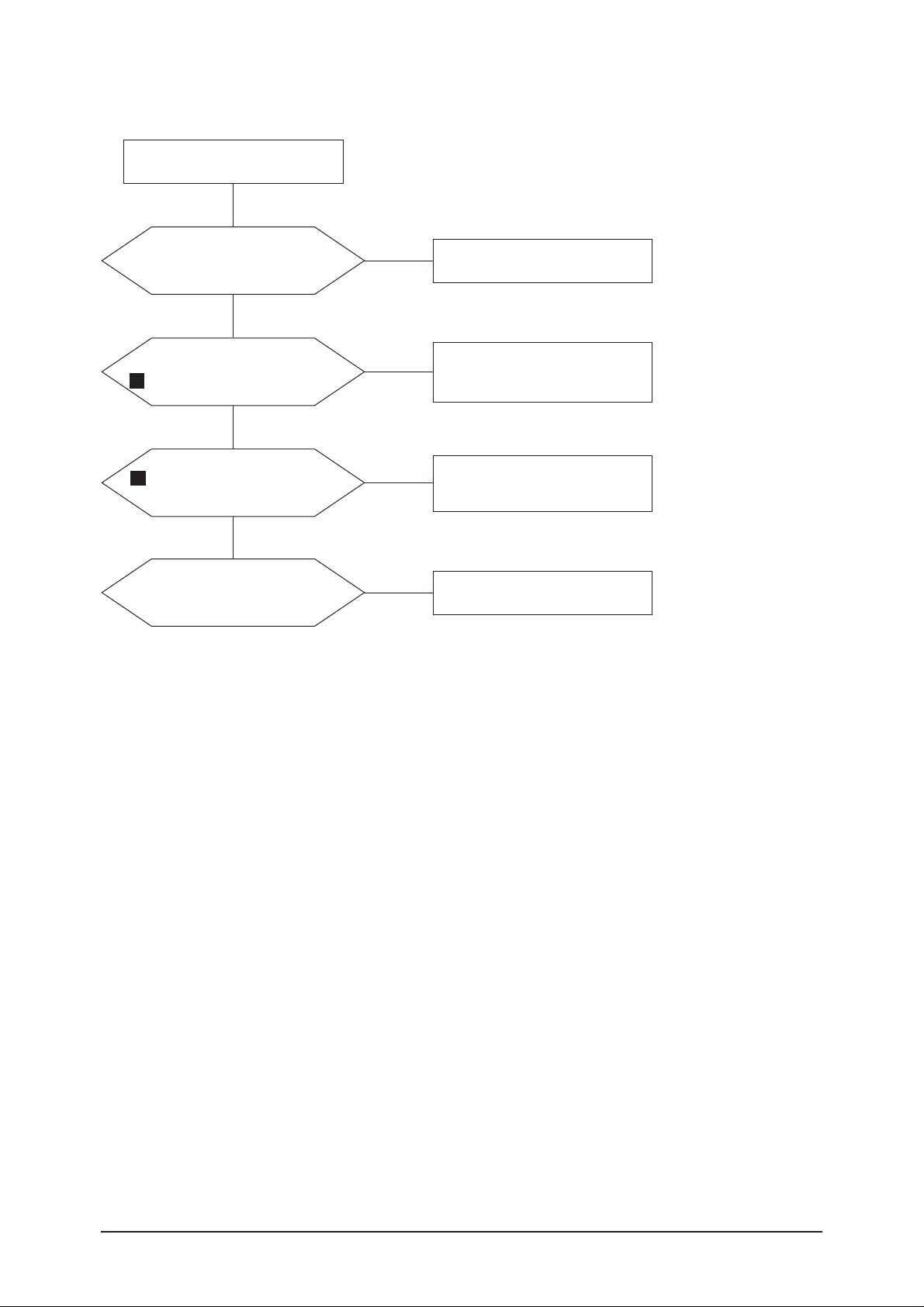

4-2 No Video (Analog PC Signal)

Check PC source and check

the connection of DSUB cable?

Input an analog PC signal and

connect cable.

Yes

Does the signal appear at

R781, R782, R783?

Change PC Cable.

Yes

Does the digital data appear

at output of

LVDS TX(R422~R425,

R430~R433)?

Check IC310.

Change main PCB ass'y.

Yes

Check LVDS cable?

Replace lcd panel?

Please call Samsung Co. LTD.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

No

No

1

3

4 Troubleshooting

4-3

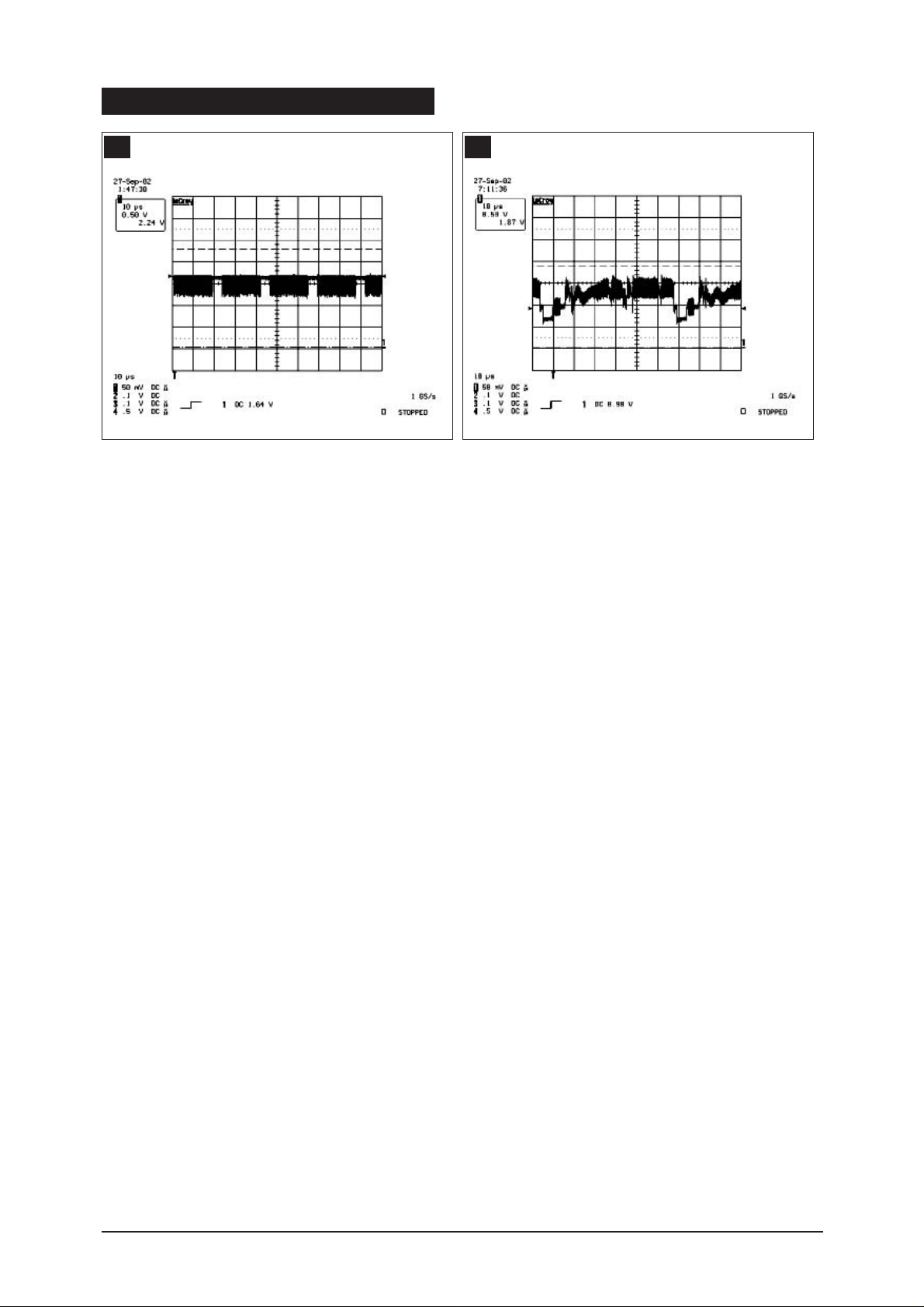

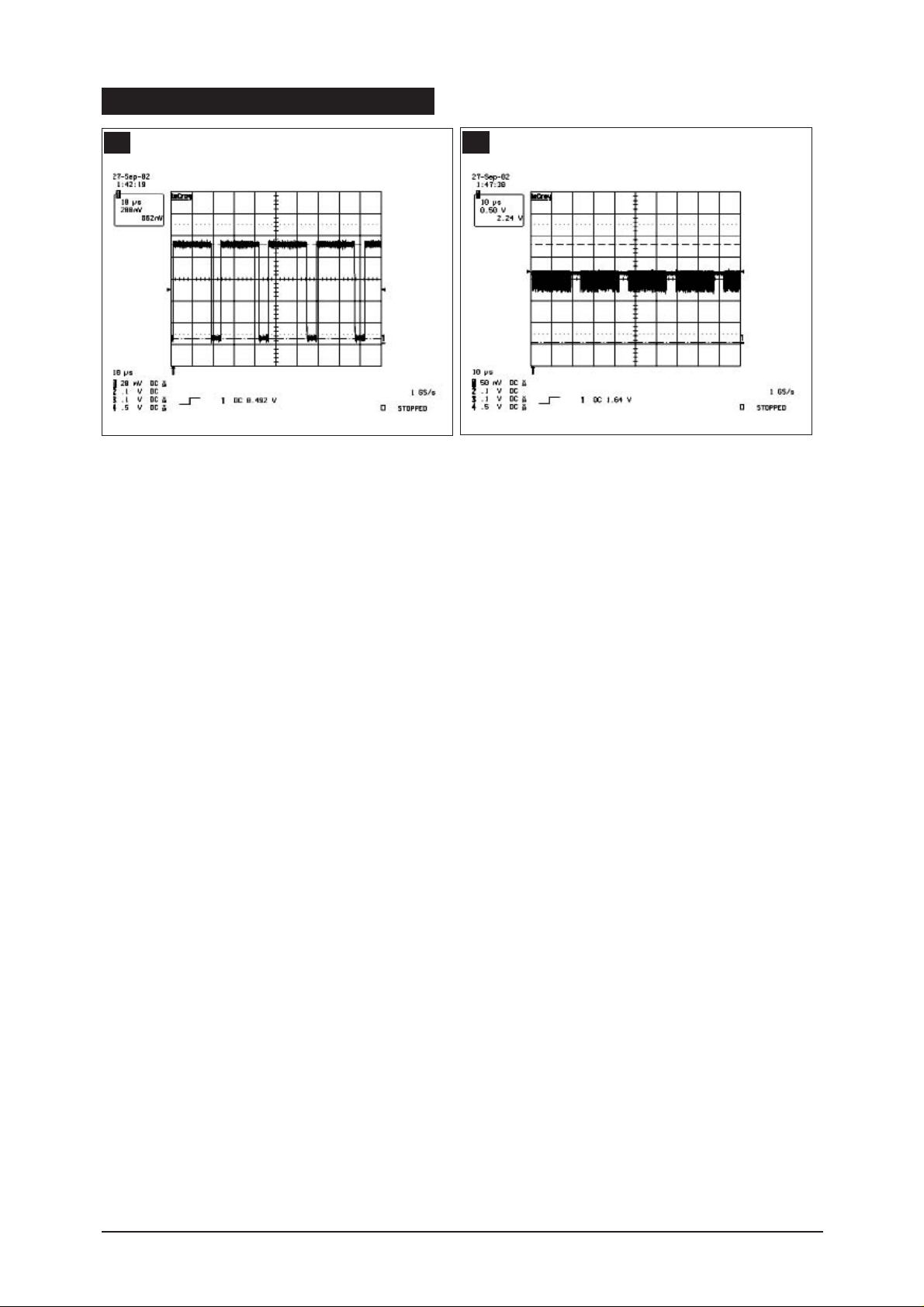

WAVEFORMS

1

R,G,B Output Signal

3

Digital Output Data of IC310

4 Troubleshooting

4-4

4-3 No Video (HDMI/DVI-Digital Signal)

Check the connectionn

of HDMI/DVI cable?

Input an HDMI/DVI Signal.

Yes

Does the digital data appear at

FT2704, 2705, 2706, 2708?

Change HDMI/DVI Cable.

Yes

Does the digital data

appear at output of IC310

LVDS(R422~R425, R430~R433)?

Check IC310.

Change main PCB ass'y.

Yes

Check LVDS cable?

Replace lcd panel?

Please call Samsung Co. LTD.

Yes

Power Indicator is off.

Lamp on, no video.

No

No

No

No

4

3

4 Troubleshooting

4-5

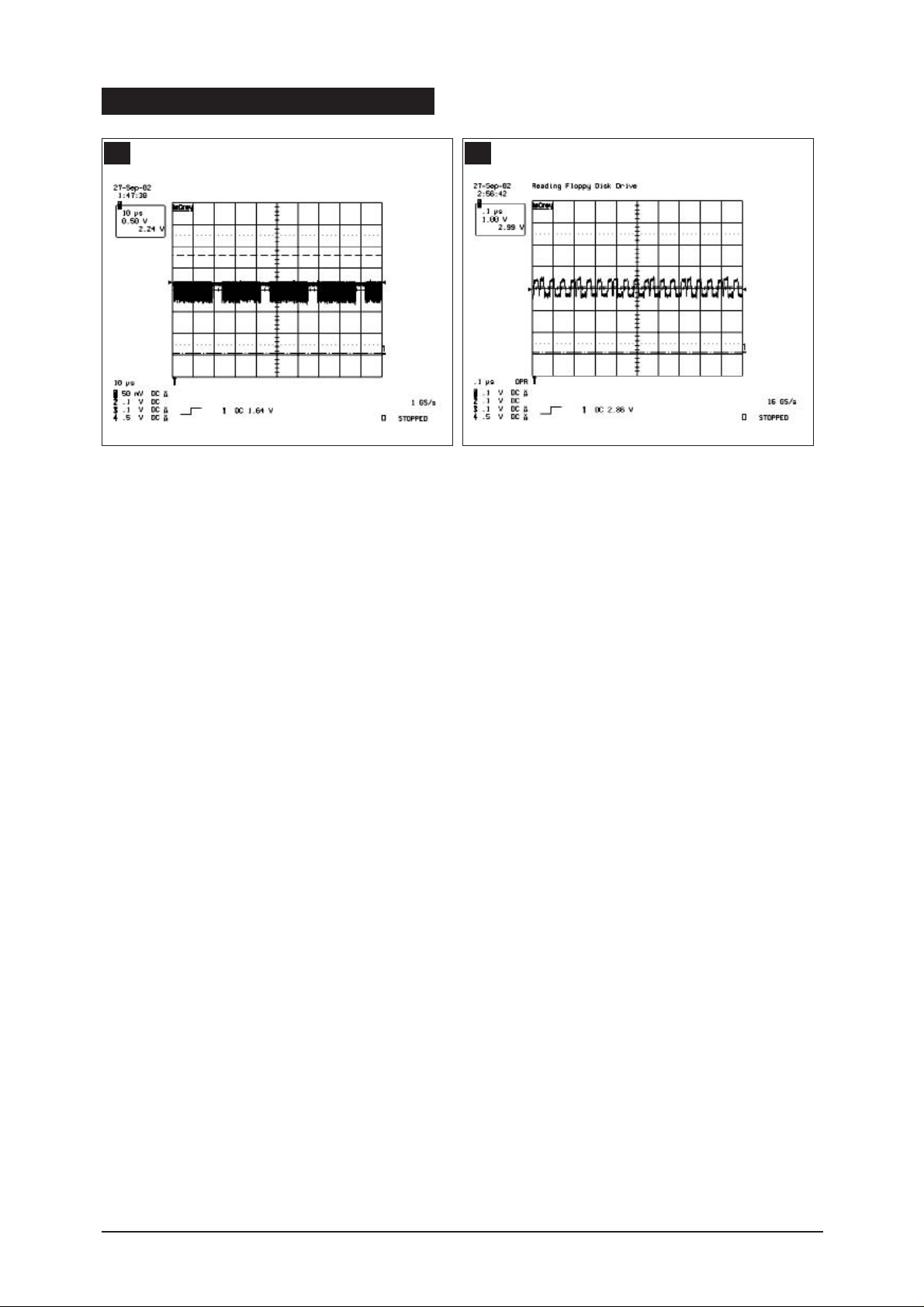

WAVEFORMS

3

Digital Output Data of IC310

4

Signal of DVI(Data)

4 Troubleshooting

4-6

4-4 No Picture (Tuner_CVBS)

Does the signal appear at

C268?

Check IC210.

Change main PCB ass'y.

Yes

Does the digital data appear

at output of R422~R425,

R430~R433?

Check IC310.

Change main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no picure.

Connect the RF cable and

check RF signal.

No

No

No

Yes

Check LVDS cable?

Replace lcd panel?

Please call Samsung Co. LTD.

No

5

3

4 Troubleshooting

4-7

WAVEFORMS

3

Digital Output Data of IC310

5

Tuner_CVBS Output Signal

4 Troubleshooting

4-8

4-5 No Picture (Video_CVBS)

Does the signal

appear at R7003?

Change A/V Cable.

Yes

Does the digital data appear

at output of R422~R425,

R430~R433?

Check IC310.

Change main PCB ass'y.

Yes

Power Indicator is off.

Lamp on, no picure.

No

Check A/V cable and video signal.

No

No

Yes

Check LVDS cable?

Replace lcd panel?

Please call Samsung Co. LTD.

No

5

3

4 Troubleshooting

4-9

WAVEFORMS

3

Digital Output Data of IC310

5

Tuner_CVBS Output Signal

4 Troubleshooting

4-10

4-6 No Picture (S-VIDEO_Y,C)

Does the signal appear at

R7001, R7002?

Change S-Video Cable.

Yes

Yes

Power Indicator is off.

Lamp on, no picure.

No

Check s-video cable connection.

Check Video Source.

No

Does the digital data appear

at Output of R422~R425,

R430~R433?

Check IC310.

Change main PCB ass'y.

No

Yes

Check LVDS cable?

Replace lcd panel?

Please call Samsung Co. LTD.

No

6

3

4 Troubleshooting

4-11

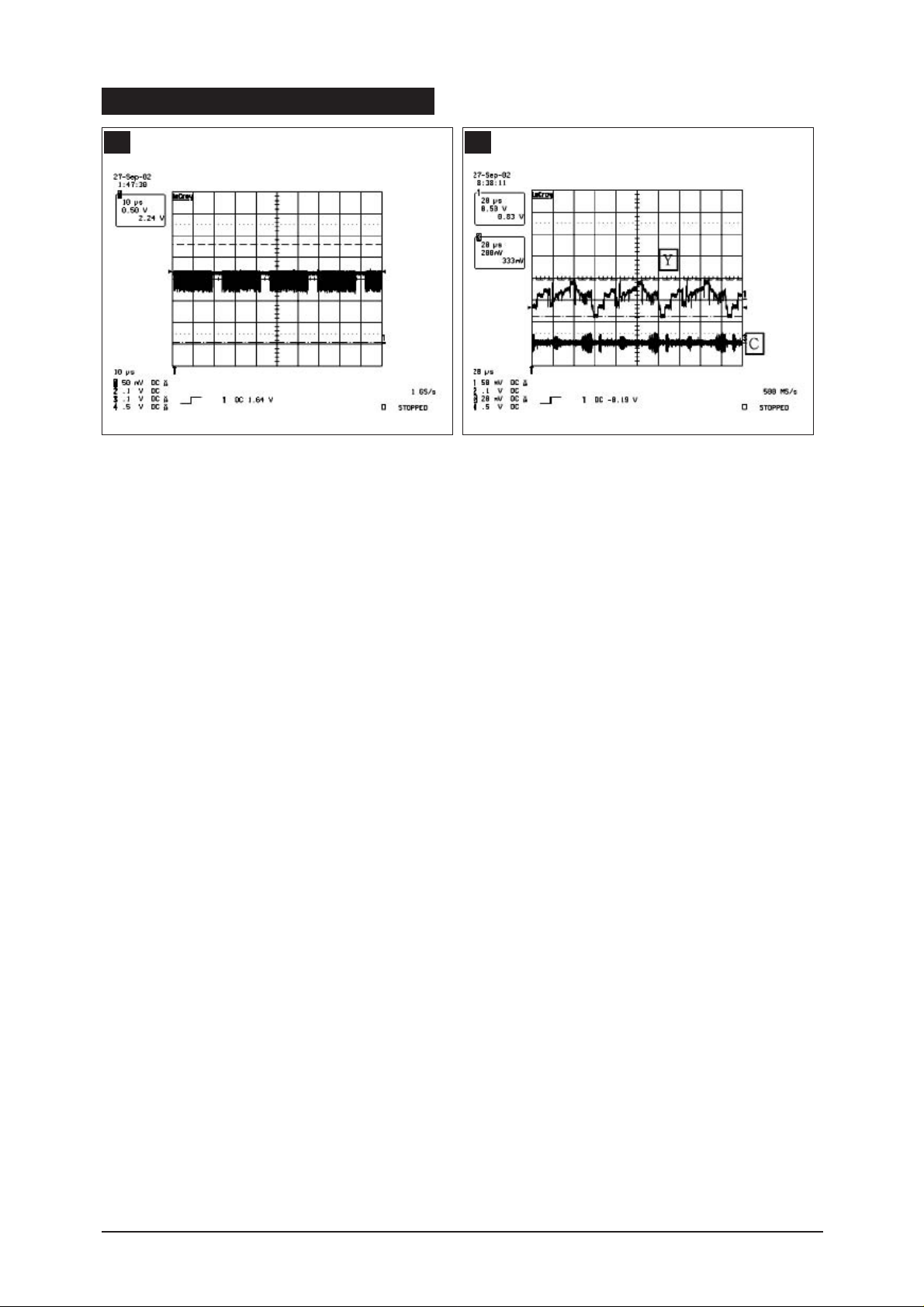

3

Digital Output Data of IC310

6

Analog Signal(Y,C)

WAVEFORMS

4 Troubleshooting

4-12

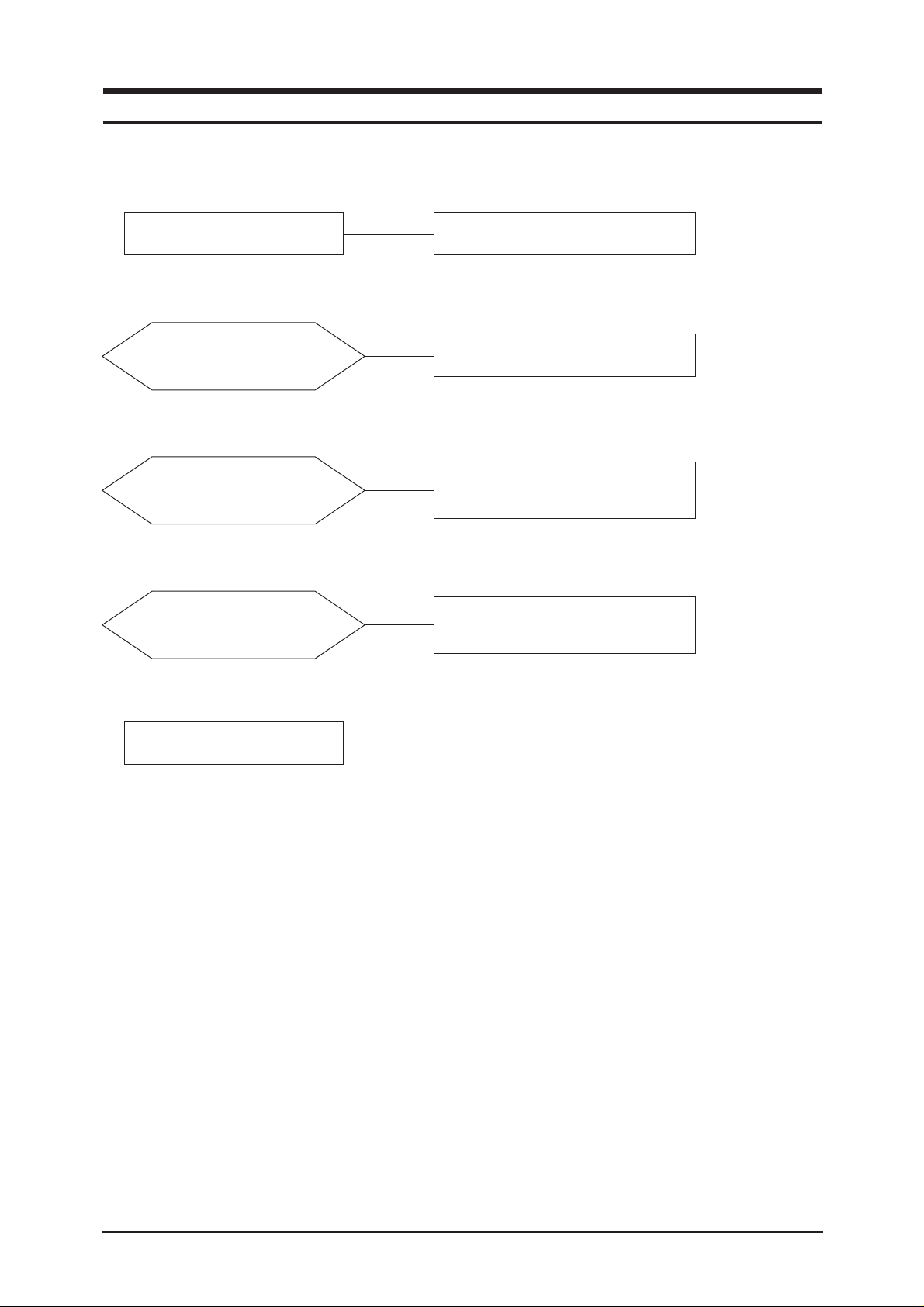

Does the signal appear at

Pin 12, 1(CH1_L, R Sound)

and Pin 15, 2

(CH2_L, R Sound)

of IC613?

Check connection harness and

headphone jack.

Yes

Yes

No

Does the DC 8V

appear at C653?

Check IC813.

Change main PCB ass'y.

Yes

No

Does the signal appear at

L624_OP, L625_OP?

Check IC611.

Change main PCB ass'y.

Yes

Replace the speaker ass'y?

No

4-7 No Sound

7

8

9

Check sound cable and

volume control.

Picture is displayed, no sound.

No

4 Troubleshooting

4-13

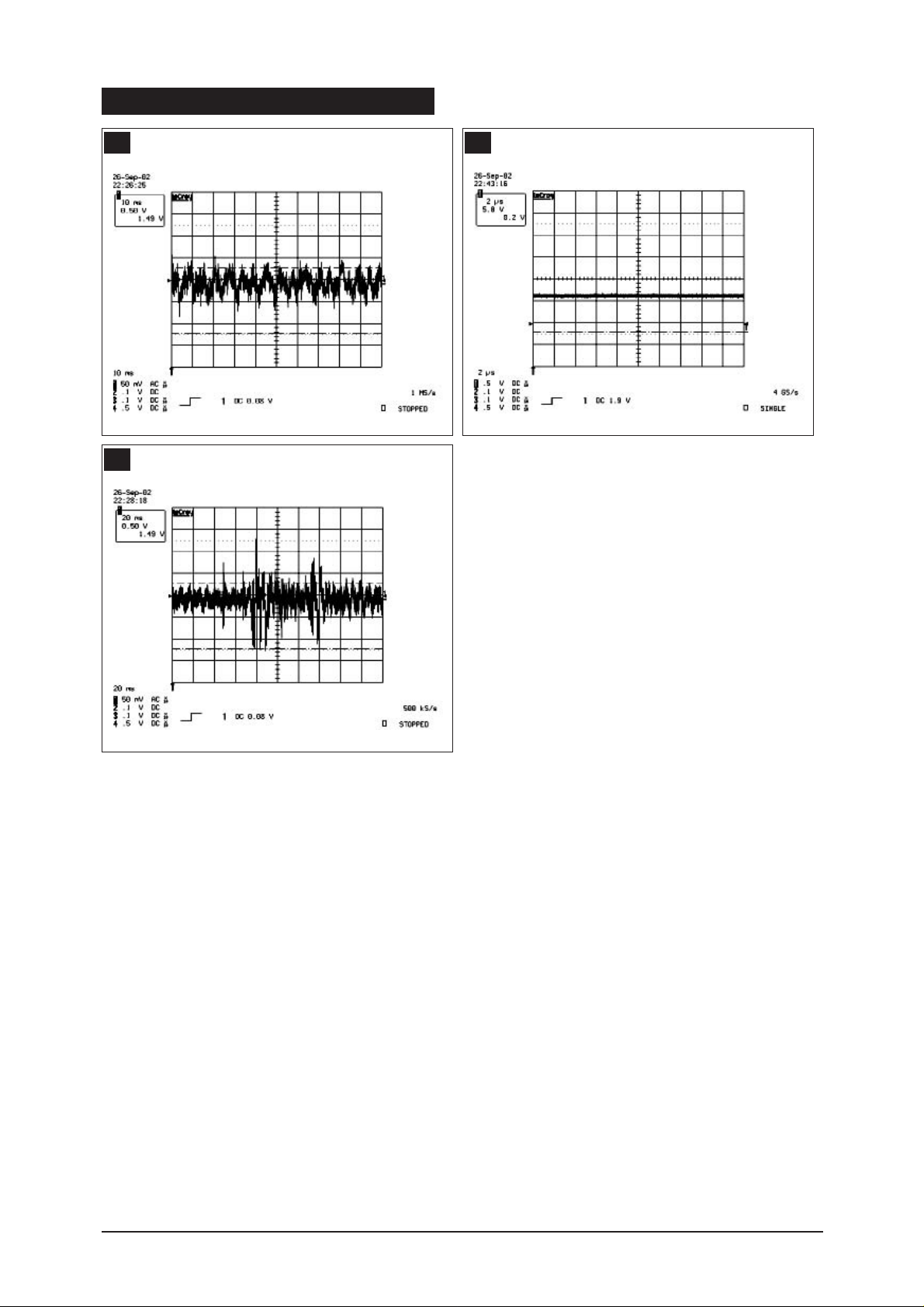

WAVEFORMS

7

The Signal are Inputed to IC610

8

DC +8V

9

Output WaveForm

Memo

4 Troubleshooting

4-14

5 Exploded View & Parts List

5-1

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/

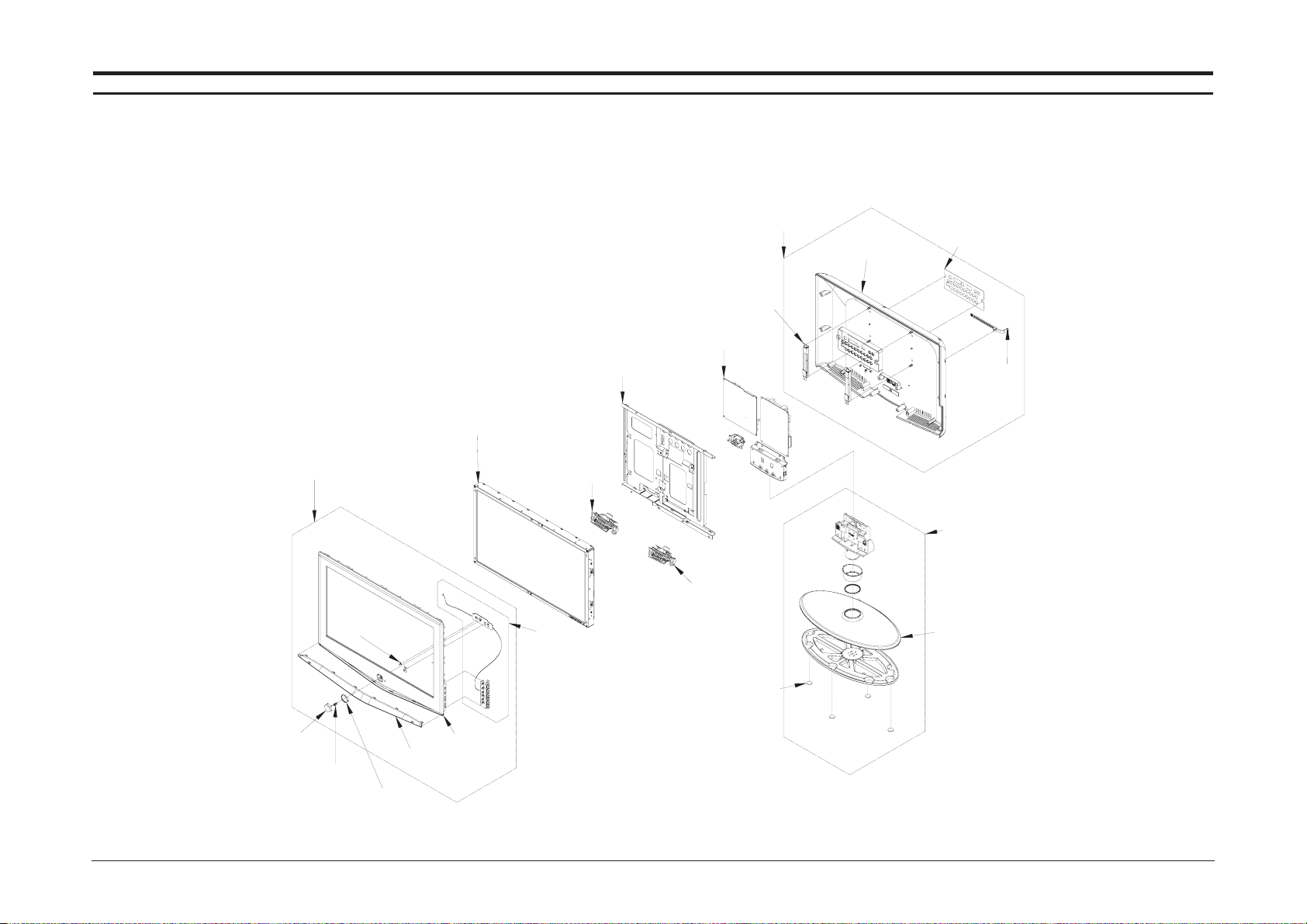

5-1 LE23R71B / LE23R71W Exploded View

M0019

M0107

M0014

T0101

M0013

M0006

T0071

T0064

T0023

T0003

T0060

5

T0054

T0056

M0112

.

T0175

M0013

T0175

T0004

T0132

5 Exploded View & Parts List

5-2

5-2 LE23R71B Parts List

Location.No

CODE-NO SPECIFICATION & DESCRIPTION Q'TY SA/SNA

T0003 BN96-03368E ASSY COVER P-FRONT;23R71,EO(HOTEL),ABS+P 1 S.A
T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
T0056 BN63-02464B COVER-DECORATION;23R71,HIPS,HB,GR503,BLM 1 S.N.A
M0112 BN63-02465E COVER-FRONT;23R71,EO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
M0145 BN96-03404A ASSY BOARD P-FUNCTION&KNOB;Bordeaux,CT50 1 S.A
M0019 BN92-01981H ASSY LABEL;LE23R71BX/* 1 S.N.A
T0175 BN96-03335A ASSY SPEAKER P;16ohm,Bordeuax, 23,Left,3 1 S.A
T0175 BN96-03336A ASSY SPEAKER P;16ohm,Bordeuax, 23,Right, 1 S.A
M0107 BN63-02176A SHIELD-COVER;MGM,SPTE,0.5 1 S.N.A
M0014 BN94-00847B ASSY PCB MAIN;LE23R71BX/* 1 S.A
M0013 BN96-04061A ASSY COVER P-REAR;23R71,EO,-,ABS+PMMA,HB 1 S.A
M0006 BN63-02714A COVER-REAR;23R71,EO,ABS+PMMA,-,-,-,HB,-, 1 S.N.A
T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 S.N.A
T0071 BN64-00514A INLAY-TERMINAL;BORDEAUX 23EO,PS SHEET,T0 1 S.N.A
T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 S.A
T0004 BN63-02335A COVER-STAND BASE;26R71,ABS+PMMA,HB,BK23, 1 S.N.A
T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A

5 Exploded View & Parts List

5-3

5-3 LE23R71W Parts List

Location.No

CODE-NO SPECIFICATION & DESCRIPTION Q'TY SA/SNA

T0003 BN96-03368E ASSY COVER P-FRONT;23R71,EO(HOTEL),ABS+P 1 S.A
T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
T0056 BN63-02464B COVER-DECORATION;23R71,HIPS,HB,GR503,BLM 1 S.N.A
M0112 BN63-02465E COVER-FRONT;23R71,EO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
M0145 BN96-03404A ASSY BOARD P-FUNCTION&KNOB;Bordeaux,CT50 1 S.A
M0019 BN92-01981H ASSY LABEL;LE23R71BX/* 1 S.N.A
T0175 BN96-03335A ASSY SPEAKER P;16ohm,Bordeuax, 23,Left,3 1 S.A
T0175 BN96-03336A ASSY SPEAKER P;16ohm,Bordeuax, 23,Right, 1 S.A
M0107 BN63-02176A SHIELD-COVER;MGM,SPTE,0.5 1 S.N.A
M0014 BN94-00847B ASSY PCB MAIN;LE23R71BX/* 1 S.A
M0013 BN96-04061A ASSY COVER P-REAR;23R71,EO,-,ABS+PMMA,HB 1 S.A
M0006 BN63-02714A COVER-REAR;23R71,EO,ABS+PMMA,-,-,-,HB,-, 1 S.N.A
T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 S.N.A
T0071 BN64-00514A INLAY-TERMINAL;BORDEAUX 23EO,PS SHEET,T0 1 S.N.A
T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 S.A
T0004 BN63-02335A COVER-STAND BASE;26R71,ABS+PMMA,HB,BK23, 1 S.N.A
T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A

5 Exploded View & Parts List

5-4

Memo

6 Electrical Parts List

6-1

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LE23R71BX/NWT LE23R71B,Q50K/23R70-GBU,23,LCD-TV,UKRAIN 0

0.1 M0216 BN90-00848A ASSY STAND;26R71,BORDEAUX 1 S.N.A
..2 M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 4 S.A
...3 T0920 BN61-02192A GUIDE-STAND;26,32R71,ABS,V0,BLK 1 S.A

....4 T0514 BN61-02367A BRACKET-SUPPORT;BORDEAUX 32,SECC,T2.0 1 S.N.A

...3 BN61-02202A BRACKET-STAND BOTTOM;BORDEAUX 26,SECC,T2 1 S.N.A
...3 BN61-02204A HOLDER-SWIVEL RING;26,32R71,ACETAL,BLK 1 S.N.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,B 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 BN63-02322A COVER-STAND SUB;32R71,ABS+PMMA,HB,BK23,H 1 S.N.A
...3 T0004 BN63-02335A COVER-STAND BASE;26R71,ABS+PMMA,HB,BK23, 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A

0.1 M0001 BN90-00911E ASSY COVER FRONT;23R71,EO,-,ABS+PMMA,HB, 1 S.N.A
..2 T0175 BN96-03335A ASSY SPEAKER P;16ohm,Bordeuax, 23,Left,3 1 S.A
..2 T0175 BN96-03336A ASSY SPEAKER P;16ohm,Bordeuax, 23,Right, 1 S.A
..2 T0003 BN96-03368E ASSY COVER P-FRONT;23R71,EO(HOTEL),ABS+P 1 S.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.94 S.N.A
...3 T0056 BN63-02464B COVER-DECORATION;23R71,HIPS,HB,GR503,BLM 1 S.N.A
...3 M0112 BN63-02465E COVER-FRONT;23R71,EO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 M0146 BN96-03405B ASSY BOARD P-POWER;BORDEAUX23,CT5000-414 1 S.A
...3 M0145 BN96-03404A ASSY BOARD P-FUNCTION&KNOB;Bordeaux,CT50 1 S.A

....4 T0022 BN64-00442A KNOB CONTROL;26,32,40R71,PC,BLK,ACRYL CL 1 S.N.A

....4 M0145 BN96-03045A ASSY BOARD P-FUNCTION;BORDEAUX,FUNCTION 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A

0.1 M0002 BN90-01034B ASSY COVER REAR;23R71,EO,ABS+PMMA,HB,BK2 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 11 S.A
..2 M0013 BN96-04061A ASSY COVER P-REAR;23R71,EO,-,ABS+PMMA,HB 1 S.A
...3 T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.5 S.N.A
...3 M0006 BN63-02714A COVER-REAR;23R71,EO,ABS+PMMA,-,-,-,HB,-, 1 S.N.A
...3 T0071 BN64-00514A INLAY-TERMINAL;BORDEAUX 23EO,PS SHEET,T0 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A

0.1 M0017 BN91-01005G ASSY CHASSIS;LE23R71BX/* 1 S.N.A
..2 M0014 BN94-00847B ASSY PCB MAIN;LE23R71BX/* 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.01 S.N.A
...3 FT230 2904-001179 FILTER-SAW;36.125MHz,-,32.65-39.6MHz/0.5 1 S.A
...3 JA722 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A
...3 JA710_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA711_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A

...3 JA332 3722-001734 JACK-VHS;4P,SN,BLK,STRAIGHT 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001938 JACK-PIN;3P,-,AU,GRN/BLU/RED,- 1 S.A
...3 JA333 3722-002063 JACK-PIN;3P,AU,YEL/WHT/RED,STRAIGHT 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A
...3 M0131 AA63-01304A GASKET;TORINO,Conductive Fabric,1mm,14mm 1 S.N.A
...3 CIS3 BN40-00072A TUNER;TECH0949PG46A(S),TECH0949PG46A(S), 1 S.A
...3 M0107 BN63-02176A SHIELD-COVER;MGM,SPTE,0.5 1 S.N.A

6 Electrical Parts List

You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

6-1 LE23R71B Parts List

6 Electrical Parts List

6-2

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 MICOM3 BN97-00688A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,GENE 1 S.N.A

....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A

...3 T0174 BN97-00807B ASSY SMD;LE23R71BX/* 1 S.N.A

....4 CIS5 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/ 8.48 S.N.A

....4 D120 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D210 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D211 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D212 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D213 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D214 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D215 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D216 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D217 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D218 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D219 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D220 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D221 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D222 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D316 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D317 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D318 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D612 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D613 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D614 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D615 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D616 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D617 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D618 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D619 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D621 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D710_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D711 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D712_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D713_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D714_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D715 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D716_NT 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7719 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7720 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7721 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7722 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7723 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7724 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7725 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7726 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7727 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7731 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7733 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7734 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7740 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7741 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7742 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D7743 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D910 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D911 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D912 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D913 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D800 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 D917 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A

....4 D620 0403-000314 DIODE-ZENER;RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

....4 D718_EU 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D7735 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D7736 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D7737 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D7738 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D7746 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D7747 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D7744 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D7745 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D7748 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D7749 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D7750 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D7751 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D121 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D314 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D319 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D610 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

6 Electrical Parts List

6-3

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q211 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q213 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q611 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q934 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23 1 S.A

....4 Q101 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q110_EU 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q111 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q212 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q214 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q310 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q420 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q421 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q612 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q613 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q614 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q803 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q908 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q910 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q932 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q935 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 S.A

....4 Q210 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 S.A

....4 IC613 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC107 1002-001399 IC-D/A CONVERTER;PCM1754,24BIT,SSOP,16P, 1 S.A

....4 IC310 1003-001920 IC-CRT CONTROLLER;FLI5928H,PQFP,256P,30. 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001279 IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001314 IC-EEPROM;24C16,2Kx8,SOP,8P,5x4mm,2.7/5. 1 S.A

....4 IC113 1105-001284 IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50 1 S.A

....4 IC113 1105-001284 IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50 1 S.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0085 1201-002136 IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,- 1 S.A

....4 T0085 1201-002274 IC-AUDIO AMP;TPA3008D2,HTQFP,48P,7x7mm,D 1 S.A

....4 T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 R225 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R257 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R258 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R261 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R262 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R321 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R341 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R343 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R344 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R355 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R356 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R612 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R816 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 C375 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 C377 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 C378 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R111 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R112 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R125 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R201 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R213 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R214 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R215 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R251 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R252 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R275 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R322 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R323 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R324 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R325 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R329 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R330 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R333 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R335 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-4

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R336 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R337 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R358 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R360_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R361_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R362_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R411_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R440 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R614 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R615 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R634 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R635 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R750_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R859 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9665_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9720 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9721 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9722 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R9749 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R716_EU 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R717_EU 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R718_EU 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R790 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R795 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R231 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R775 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R777 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R789 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R791 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R9739 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R9740 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R9745 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R9746 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R114 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R210 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R211 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R254 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R255 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R256 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R351 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R420 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R455 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R457 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R458 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R648 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R649 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R701_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R714_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R720_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R758 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R767 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R773 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R794 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R936 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R937 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9703 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9741 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R9742 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R328 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R439 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R126 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R232 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R366 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R712_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R713_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R732_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R734_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R266 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R271 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R417 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R728 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R729 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R733_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R735_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R754_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R755_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-5

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R768 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R769 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R774 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R776 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R798 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R799 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R901 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R218 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R219 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R224 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R326 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R345 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R413 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R419 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R463 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R645 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R646 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R743 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R778 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R779 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R917 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9716 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 U2121 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9696 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9697 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R263 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R264 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R414 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R416 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R418 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9701 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9702 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R212 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R220 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R259 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R310 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R311 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R346 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R365 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R415 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R647 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R650 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R660 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R661 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R662 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R803 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R804 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R805 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R812 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R813 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R819 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R820 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R821 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R913 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R920 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9699 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9700 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9706 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9714 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9717 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9735 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R216 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R217 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R622 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R625 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R719_EU 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R739_EU 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R110 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R230 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R269 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R274 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R302 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R421 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R443 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R445 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R447 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R449 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-6

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R456 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R460 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R462 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R7612 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R787 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R788 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R811 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R814 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9710 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9711 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9712 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9715 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9736 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9737 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9738 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R815 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R613 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R618 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 S.A

....4 R124 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R670 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R671 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R710_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R711_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R894 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R9734 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R637 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R638 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R639 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R640 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R641 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R642 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R643 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R644 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R651 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R652 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R653 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R654 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R655 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R656 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R657 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R658 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 S.A

....4 R119 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R127 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R611 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R619 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R810 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R629 2007-000103 R-CHIP;120Kohm,5%,1/10W,TP,1608 1 S.A

....4 R620 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A

....4 R817 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R910 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R911 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R912 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A

....4 R626 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A

....4 R627 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A

....4 R116_EU 2007-000234 R-CHIP;1.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R327 2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608 1 S.A

....4 R7001 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7002 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7003 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7012 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7013 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7014 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7015 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7016 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R7017 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R727_EU 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R738 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 S.A

....4 R229 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7004 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7005 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7006 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7007 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7008 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7009 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7010 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R7011 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R796 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-7

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R797 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R117_EU 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A

....4 R267 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A

....4 R272 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A

....4 R115_OP 2007-000416 R-CHIP;15ohm,5%,1/10W,TP,1608 1 S.A

....4 R265 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R270 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R715_EU 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R736_EU 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R268 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R273 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 R412 2007-000608 R-CHIP;240ohm,5%,1/10W,TP,1608 1 S.A

....4 R120_EU 2007-000659 R-CHIP;27ohm,5%,1/10W,TP,1608 1 S.A

....4 R123_EU 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R438 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 S.A

....4 R122_EU 2007-001002 R-CHIP;510ohm,5%,1/10W,TP,1608 1 S.A

....4 R338 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R339 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R340 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R780 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R781 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R782 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R783 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 1 S.A

....4 R818 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 S.A

....4 R121_EU 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 S.A

....4 R721_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R722 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R723 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R724 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R725_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R726_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R737_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R744 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R751 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R752 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R753 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R763 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R764 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R770 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R771 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 U2122 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R331 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R348 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R349 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R353 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R784 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R785 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R786 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R792 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R793 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R9751 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.A

....4 R9723 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9724 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9725 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9726 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9727 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9728 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9729 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9730 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9731 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9732 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 R9733 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA323 2011-000585 R-NET;47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA210 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA211 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 C701 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 1 S.A

....4 C213 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C220 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C223 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C227 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C230 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C233 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C236 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 S.A

....4 C119 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C201 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C214 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C248 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-8

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C250 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C251 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C252 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C253 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C255 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C259 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C260 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C261 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C262 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C263 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C264 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C265 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C266 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C271 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C616 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C622 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C627 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C637 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C642 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C643 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C702 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C812 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C818 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C823 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C827 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C841 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C880 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C901 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C912 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C925 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C926 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C927 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C935 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 U2123 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C114 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C115 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C710 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C711 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C712_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C713 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C714_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C715_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C716 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C717_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C719_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C721_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C729 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C733 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C745 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C746 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C110_EU 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C116_EU 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C117 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C118_EU 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C122 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C124 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C354 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C355 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C356 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C416 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C738 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C739 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C740 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C741 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C824 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C825 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C838 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C915 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C917 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C918 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C939 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C940 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C941 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C942 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C850 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 C301 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C610 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

6 Electrical Parts List

6-9

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C611 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C640 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C641 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C650 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C651 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C916 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C929 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C125 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C382 2203-000578 C-CER,CHIP;220nF,20%,50V,Y5V,TP,3216 1 S.A

....4 C384 2203-000578 C-CER,CHIP;220nF,20%,50V,Y5V,TP,3216 1 S.A

....4 C387 2203-000578 C-CER,CHIP;220nF,20%,50V,Y5V,TP,3216 1 S.A

....4 C257 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C258 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C840 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 S.A

....4 C707 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C725 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C726 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C730 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C731 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C732 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C736 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C742 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C747 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C748 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C722_EU 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C723_EU 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C724_EU 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C126 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C631 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C632 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C743 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C744 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C127 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C618 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A

....4 C621 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A

....4 C645 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A

....4 C646 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.A

....4 C202 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C203 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C718_EU 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C720_EU 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C373 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP0,1608 1 S.A

....4 C374 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP0,1608 1 S.A

....4 C613 2203-001391 C-CER,CHIP;150nF,10%,25V,X7R,TP,2012,- 1 S.A

....4 C615 2203-001391 C-CER,CHIP;150nF,10%,25V,X7R,TP,2012,- 1 S.A

....4 C648 2203-001391 C-CER,CHIP;150nF,10%,25V,X7R,TP,2012,- 1 S.A

....4 C649 2203-001391 C-CER,CHIP;150nF,10%,25V,X7R,TP,2012,- 1 S.A

....4 C123 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C638 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C623 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C626 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C212 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C219 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C222 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C226 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C229 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C232 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C235 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

....4 C628 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V,3216 1 S.A

....4 C366 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C410 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C652 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C700 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C810 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C814 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C822 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C829 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C831 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C833 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C835 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C837 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C844 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C846 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C848 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C911 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C931 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 R464 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-10

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C614 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C647 2203-005030 C-CER,CHIP;470nF,+80-20%,50V,Y5V,TP,3216 1 S.A

....4 C113 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C211 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C218 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C221 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C225 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C228 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C231 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C234 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C239 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C254 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C311 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C312 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C313 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C314 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C315 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C316 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C317 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C318 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C320 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C321 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C322 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C323 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C325 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C326 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C327 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C328 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C329 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C330 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C331 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C333 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C334 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C335 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C336 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C337 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C340 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C341 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C342 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C343 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C344 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C345 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C346 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C347 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C350 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C351 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C352 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C353 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C359 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C360 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C361 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C362 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C363 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C364 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C385 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C412 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C418 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C419 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C630 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C633 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C634 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C635 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C636 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C703 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C847 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C849 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C920 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C921 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C922 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C923 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C924 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C930 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C936 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C414 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C928 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C639 2203-006036 C-CER,CHIP;680NF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C678 2203-006036 C-CER,CHIP;680NF,+80-20%,16V,Y5V,TP,1608 1 S.A

6 Electrical Parts List

6-11

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C679 2203-006036 C-CER,CHIP;680NF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C380 2203-006170 C-CER,CHIP;220nF,10%,16V,X7R,1608 1 S.A

....4 C210 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C224 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C237 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C238 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C240 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C241 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C242 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C243 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C244 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C245 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C249 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C654 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C655 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C656 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C657 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C658 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C659 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C660 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C661 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C890 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C933 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C938 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.A

....4 C417 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C934 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

....4 C112 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C121 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C267 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C268 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C415 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C620 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C624 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C625 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C644 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C671 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C677 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C811 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C813 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C819 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C820 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C826 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C828 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C845 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C937 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C943 2402-001128 C-AL,SMD;100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C612 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C111_EU 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C413 2402-001178 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

....4 C365 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C653 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C821 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C830 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C834 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C932 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C270 2402-001222 C-AL,SMD;3.3UF,20%,50V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C246 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C247 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C256 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C120 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C816 2402-001257 C-AL,SMD;470uF,20%,16V,-,TP,8.3*10 1 S.A

....4 C832 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C843 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C836 2409-001065 C-ORGANIC;82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A

....4 T0052 2703-000185 INDUCTOR-SMD;3.3uH,10%,2012 1 S.A

....4 T0052 2703-000185 INDUCTOR-SMD;3.3uH,10%,2012 1 S.A

....4 T0052 2703-000185 INDUCTOR-SMD;3.3uH,10%,2012 1 S.A

....4 T0052 2703-000222 INDUCTOR-SMD;560nH,10%,2012 1 S.A

....4 T0052 2703-000392 INDUCTOR-SMD;10uH,5%,4532 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

6 Electrical Parts List

6-12

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-002327 INDUCTOR-SMD;3.9uH,5%,3225 1 S.A

....4 X710 2801-003667 CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16, 1 S.A

....4 X800 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 F103 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 JA719 3701-001311 CONNECTOR-HDMI;21P,2R,FEMALE,SMD-S,AU30U 1 S.A

....4 CN330 3711-005291 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,SMD- 1 S.A

....4 CN330 3711-005292 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- 1 S.A

....4 L805 BN27-00008A COIL CHOKE-SMD;SMD12*12*8.5,GH15/17PS,22 1 S.A

....4 L623_OP BN27-00017A COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10 1 S.A

....4 L624_OP BN27-00017A COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10 1 S.A

....4 L625_OP BN27-00017A COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10 1 S.A

....4 L626_OP BN27-00017A COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10 1 S.A

....4 T0077 BN41-00704A PCB MAIN;BORDEAUX 23inch,FR-4,4,MP1.0,1. 1 S.N.A

....4 M0018 BN97-00657D ASSY MICOM;P-TRNPEU-10020,20050810,BN09- 1 S.A

.....5 IC210 BN09-00014A IC MICOM MTP;VCT4973,VCT49X3F,XX,F2,144, 1 S.N.A

....4 M0018 BN97-01163A ASSY MICOM;T-BRD23PEU-1000,Q50K/R70R70,2 1 S.N.A

.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8Bi 1 S.N.A

....4 IC416 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 1 S.A

6 Electrical Parts List

6-13

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 CN330 3711-002046 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 S.A

....4 CN330 3711-005470 HEADER-BOARD TO CABLE;BOX,30P,1R,1.25mm, 1 S.A

....4 CN330 3711-005497 HEADER-BOARD TO CABLE;BOX,15P,1R,1.25MM, 1 S.A

...3 M0107 BN63-02302A SHIELD-COVER;TORINO,SPTE,T0.3,EMS 1 S.N.A

0.1 T0852 BN91-01058Y ASSY LCD-SPN;LE23R71BHX/* 1 S.N.A

..2 M0215 BN07-00258A LCD-PANEL;LTA230W2-L01,8bit,546*318.3*23 1 S.A

0.1 M0112 BN91-01178A ASSY SHIELD;LE23R71BX/* 1 S.N.A

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A

..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A

..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 6 S.N.A

..2 M2893 BH39-00362E LEAD CONNECTOR;Torino-23,UL1007#26,5P,50 1 S.A

..2 M2893 BN39-00588C LEAD CONNECTOR-LVDS;SO40UO,UL20276#30,30 1 S.A

..2 M2893 BN39-00603D LEAD CONNECTOR;RE26**,UL1007#26,14P,100m 1 S.A

..2 M2893 BN39-00615F LEAD CONNECTOR;Bordeaux23,1617#22,UL/CSA 1 S.A

..2 M2893 BN39-00691A LEAD CONNECTOR;Torino-32,UL1007#26,16P,1 1 S.A

..2 M0115 BN61-02201A BRACKET-STAND LINK;Bordeaux 32,SECC,T1.6 1 S.A

..2 M0107 BN61-02620A BRACKET-PCB;BORDEAUX 23,SECC,T1.0,EO,TOR 1 S.N.A

..2 T0159 BN96-03642A ASSY PCB P-SMPS;BRD23P,LE23,AC100V~AC240 1 S.N.A

..2 M0114 BP61-00871A HOLDER-WIRE;PJTV,NYLON 6.6,BLK 1 S.N.A

..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL) 1 S.N.A

0.1 M0003 BN92-01733F ASSY BOX;23R71,EO(NWT),BORDEAUX 1 S.N.A

..2 T0130 BN69-01329D BOX-00,SET;23R71(OVERSEA),SY-05,A,YEL,A1 1.02 S.N.A

0.1 M0113 BN92-01734A ASSY P/MATERIAL;23R71,BORDEAUX 1 S.N.A

..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, 0.015 S.N.A

..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-- 0.004 S.N.A

..2 T0524 6902-000520 BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.5(D 1 S.N.A

..2 T0081 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 3.05 S.N.A

0.1 M0019 BN92-01981H ASSY LABEL;LE23R71BX/* 1 S.N.A

0.1 M0045 BN92-02005C ASSY ACCESSORY;LE23R71BX/NWT 1 S.N.A

..2 M0045 BN96-04203C ASSY ACCESSORY;LE23R71BX/NWT 1 S.A

...3 T0268 3903-000145 CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R 1 S.A

...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2 2 S.N.A

...3 ACCESSORY AA68-03242E MANUAL FLYER-01,SAFETY GUIDE;All Model,S 1 S.N.A

...3 ACCESSORY AA68-03724A MANUAL FLYER-01,WARRANTY CARD;CS14Y510X, 1 S.N.A

...3 T0074 BN59-00488A REMOCON;TORINO-EO,TM79,Single Micom,39,E 1 S.A

...3 ACCESSORY BN63-01798A CLOTH-CLEAN;RE40**,CLOTH,310,320,RHCM 1 S.N.A

...3 T0531 BN63-02323A COVER-BOTTOM;23,26,32R71,ABS+PMMA,HB,BK2 1 S.A

...3 T0511 BN68-01074K MANUAL USERS;COMM,SAMSUNG,3Langs,CIS,W/P 1 S.N.A

...3 ACCESSORY BN69-01086A BOX ACCESSORY-00;COMM,SW1,YEL,-,W573,D63 1 S.N.A

...3 M0045 BN96-01800A ASSY ACCESSORY;ROME32,SCREW 1 S.N.A

....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

....4 ACCESSORY 6902-000128 BAG ZIPPER;LDPE,T0.05,W200,L150,TRP,8,2- 1 S.N.A

6 Electrical Parts List

6-14

Memo

7 Block Diagrams

7-1

7 Block Diagram

- This Document can not be used without Samsung’s authorization

7 Block Diagrams

7-2

Memo

12 PCB Diagram

12-1

12 PCB Diagram

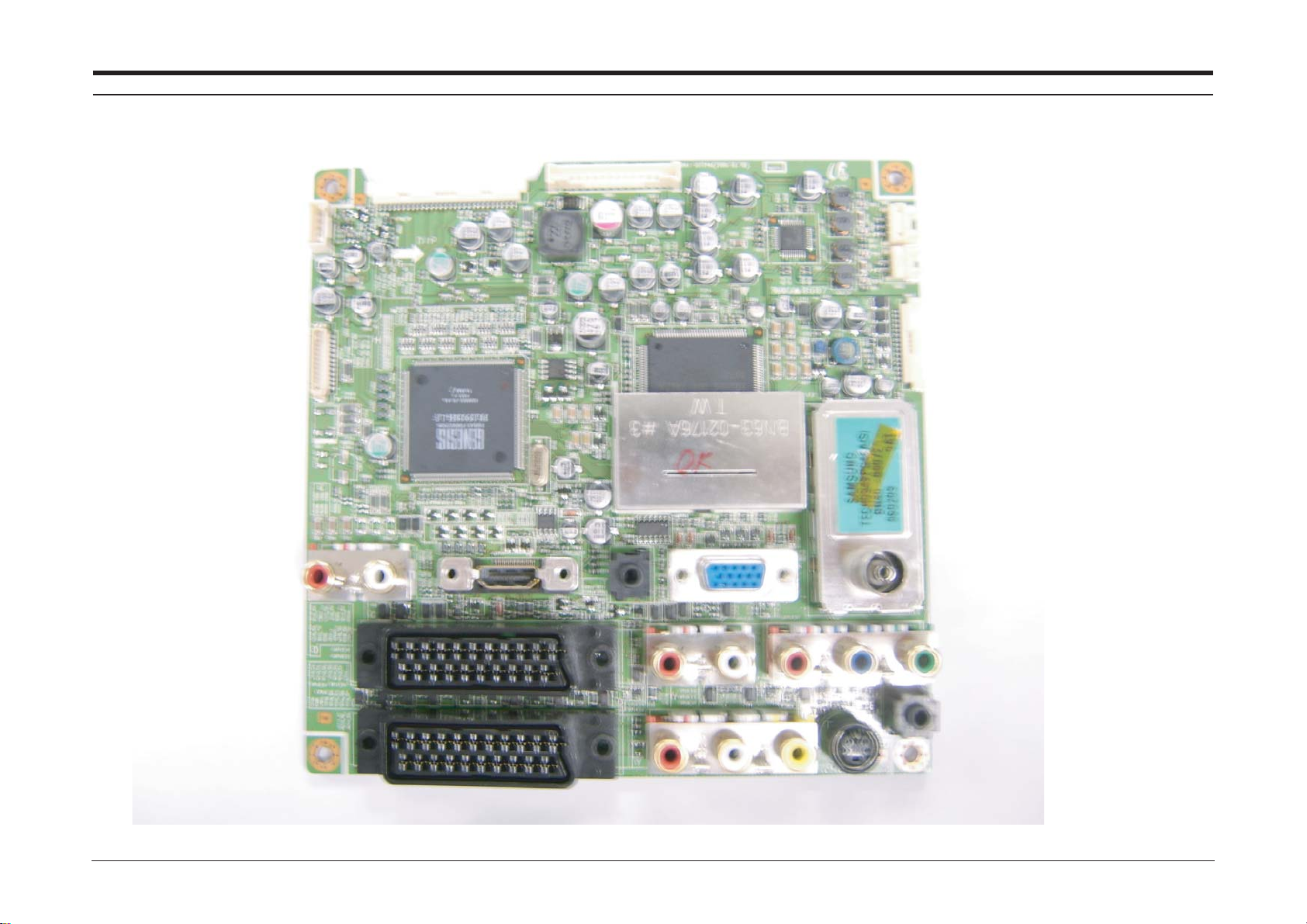

12-1 Main PCB Diagram

12 PCB Diagram

12-2

12-2 Power Inverter

8-1

8 Wiring Diagrams

RX2+

GND

RX2-

RX1+

GND

RX1-

RX0+

GND

RX0-

RXC+

GND

RXC-

HDMI_CECNCDDC_SCL_HDMI

DDC_SDA_HDMI

GND

IDENT_HDMI

HDMI_HPDNCGND

8 Wiring Diag ram

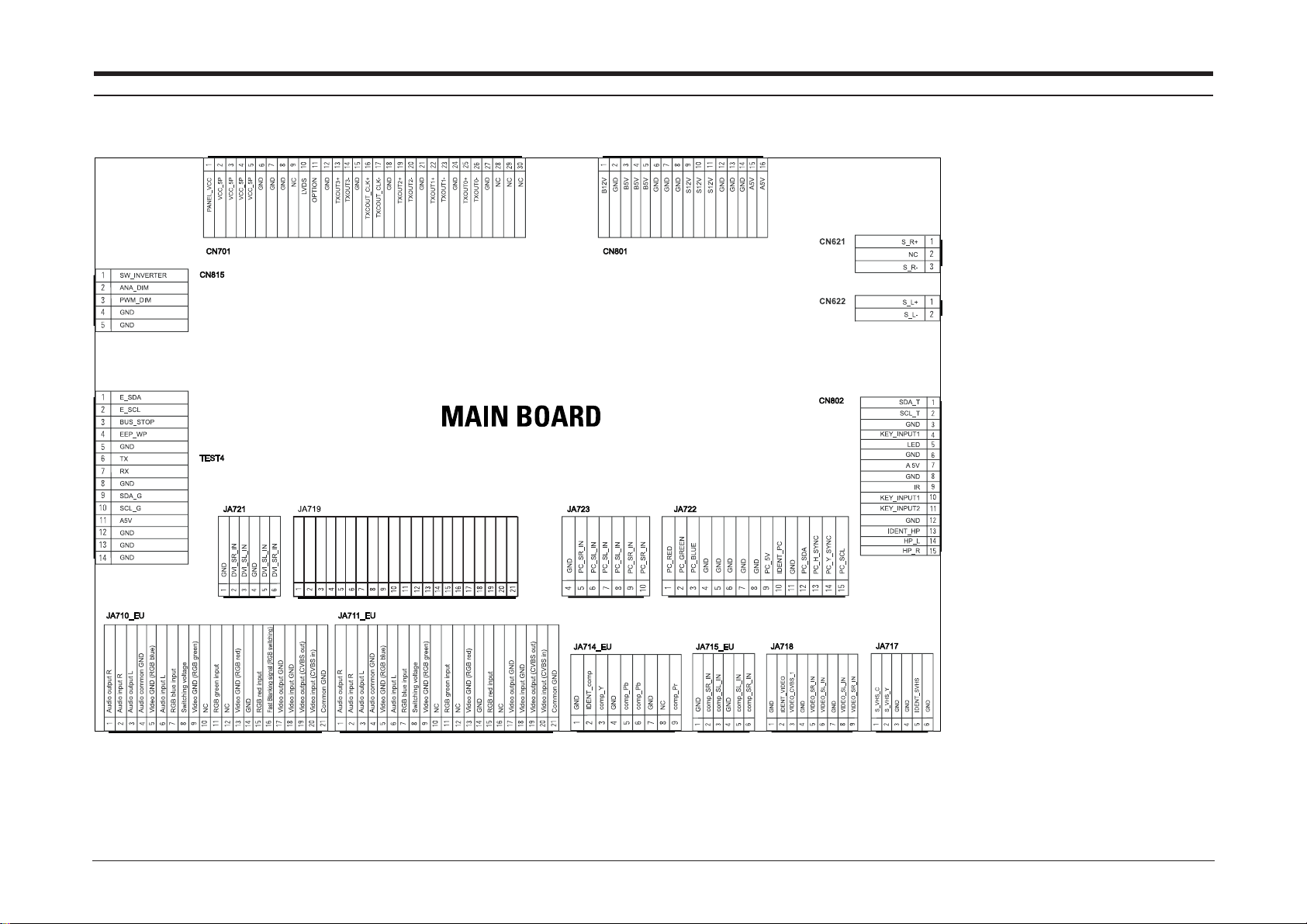

8-1 LE23R71B / LE23R71W Wiring Diagr am

8 Wiring Diagrams

8-2

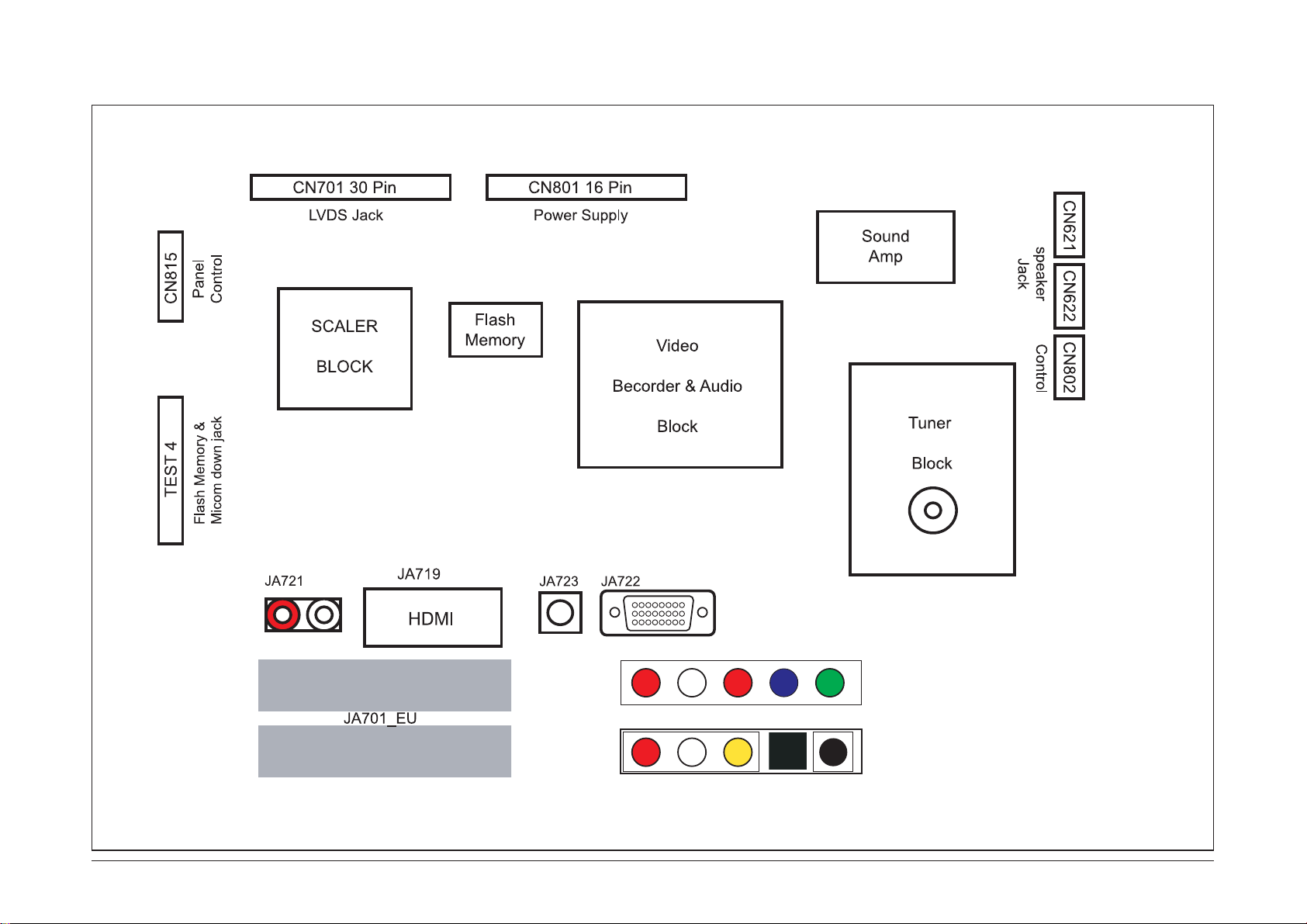

8-2 Main Board Layout

8-3

8 Wiring Diagrams

8-3 PIN characteristic

CN801 - Main Board power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME B12V GND B5V B5V B5V GND GND GND B12VSB12VS B12VS GND GND GND A5V A5V

Function Define

- B12V B8V, B5V-T

- B5V B5V-1, B5V, 5V-P, B1.8V

- B12VS B12VS

- A5V A5V, A3.3V-3, A3.3V, A3.3V-1, B3.3V, A1.8V

CN621 / CN622 - SPEAKER CONNECTOR

PIN 1 2 3

NAME R+ NC R-

PIN 1 2

NAME L+ L-

8 Wiring Diagrams

8-4

CN802 - Front control

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13

NAME GND GND A5V_1 GND KEY KEY GND IDENT IR HP HP LED GND

INPUT1 INPUT2

HP 7414

OUT_L OUT_R

Function Define

- A5V Front board Control Voltage.

- KEY INPUT1,2/SDA/SCL Key control, from the memu, change up/down Etc.

- IR Remote control signal

- LED Control the timing and stand by LED color

CN815 - Panel control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND GND

Function Define

- SW_inverter panel inverter control, about 3.3V

- Ana_dimming panel dimming control

- PWM_dimming panel PWM control, duty 40% ~ 90%

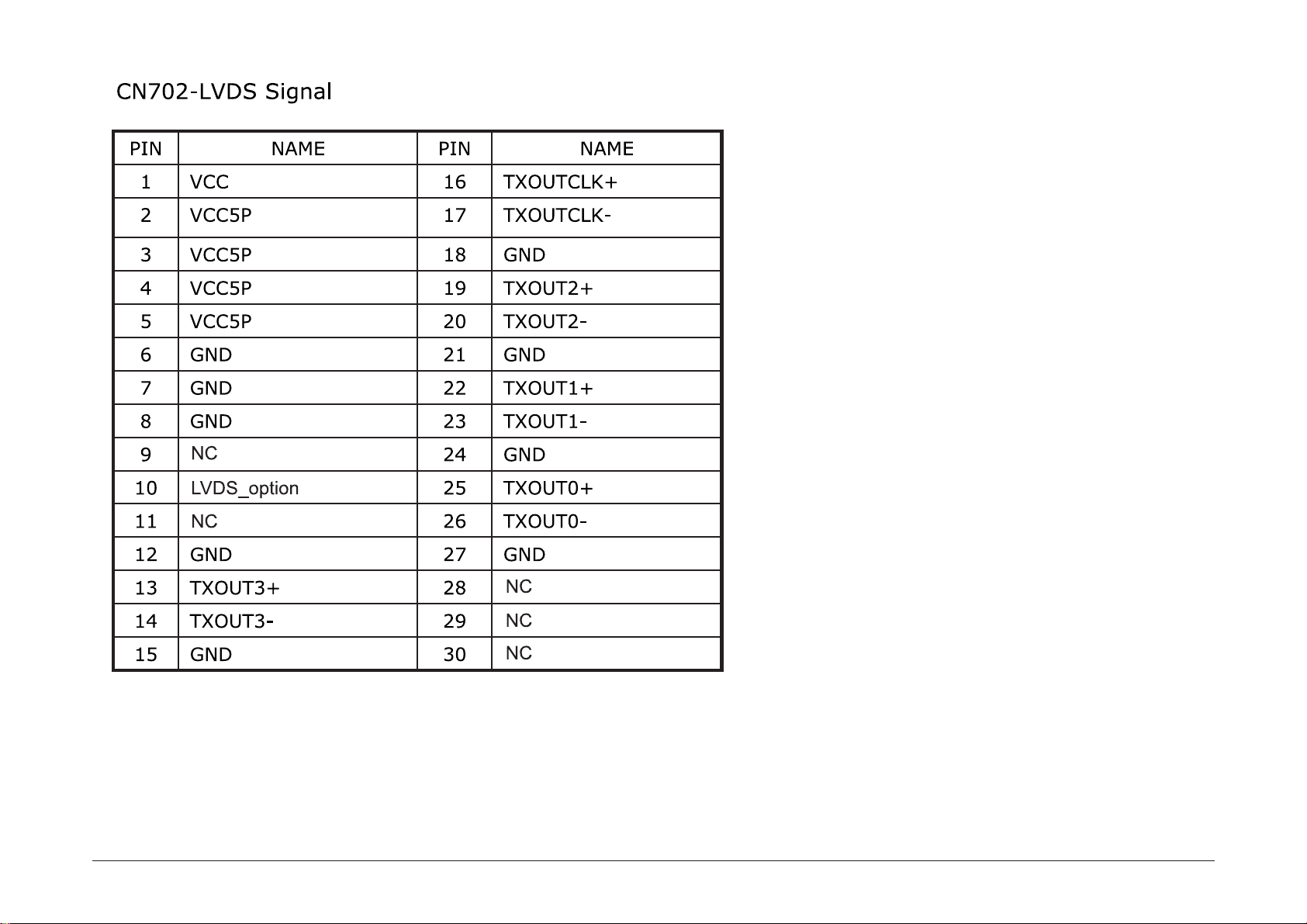

8-5

8 Wiring Diagrams

8 Wiring Diagrams

8-6

8-4 Power Board Layout

CN800 To Power Inlet
CN802 To Main CN815
CN803 To Inverter (AMLCD Panel)
CN804 To Inverter (AUO Panel)
CN805 To Main CN815

8-7

8 Wiring Diagrams

CN800 - AC Input

PIN I 2

NAME Live Netural

VOLTAGE AC AC

Function Define

- Refer to : AC Input

CN802 - Main Board Power supply

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

NAME 13V GND 5.4V 5.4V 5.4V GND GND GND 12V 12V 12V GND GND GND ST7V PWR

Function Define

- ST7V Stand-By Output

- PWR Power On/Off Control

- Refer to : CN801 function define

CN805 - Panel Control

PIN 1 2 3 4 5

NAME SW_inverter Ana_dimming PWM_dimming GND SENSOR POWER

Function Define

- Refer to : CN815 function define
