Samsung LE22A656A1C, LE19A656A1C, LE22A656, LE19A656 User Manual

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0800-SAMSUNG (726-7864) www.samsung.com/at BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be

CZECH REPUBLIC

DENMARK 70 70 19 70 www.samsung.com/dk EIRE 0818 717 100 www.samsung.com/ie FINLAND 030-6227 515 www.samsung.com/

FRANCE

GERMANY 01805 - SAMSUNG (726-7864) (€ 0,14/Min) www.samsung.com HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com ITALIA 800-SAMSUNG (726-7864) www.samsung.com LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be NETHERLANDS 0900-SAMSUNG (726-7864) (€ 0,10/Min) www.samsung.com/nl NORWAY 815-56 480 www.samsung.com/no

POLAND

PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com SWEDEN 0771-400 200 www.samsung.com/se SWITZERLAND 0800-SAMSUNG (726-7864) www.samsung.com/ch U.K 0845 SAMSUNG (7267864) www.samsung.com TURKEY 444 77 11 www.samsung.com ESTONIA 800-7267 www.samsung.ee LATVIA 800-7267 www.samsung.com/lv LITHUANIA 8-800-77777 www.samsung.lt KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz KYRGYZSTAN 00-800-500-55-500 RUSSIA 8-800-555-55-55 www.samsung.ru TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.com UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz

Customer Care Centre

844 000 844 www.samsung.com/cz

Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min)

0 801 801 881 022-607-93-33

Web Site

www.samsung.com

www.samsung.com/pl

LCD TV

user manual

BN68-01412N-00

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

This product is only applicable to Finnish, Swedish and Danish broadcasts. Broadcasts are not supported in other countries.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.(See back cover for more information)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of

effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar

Contents

CONNECTING AND PREPARING YOUR TV

List of Parts ........................................................ 2



Viewing the Control Panel .................................. 3



Viewing the Connection Panel ........................... 4



Viewing the Remote Control ............................... 6



Installing Batteries in the Remote Control .......... 7



Switching On and Off ......................................... 7



Placing Your Television in Standby Mode........... 7



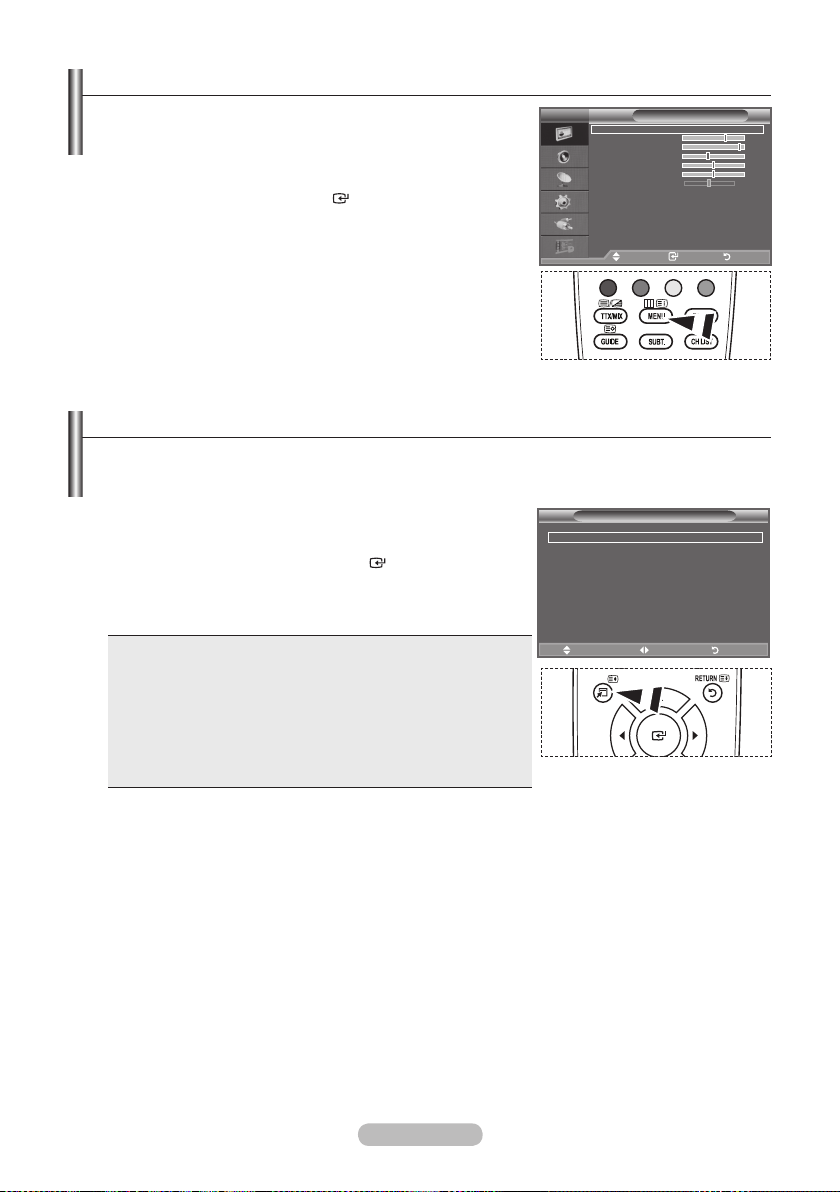

Viewing the Menus ............................................. 8



Using the TOOLS Button .................................... 8



Plug & Play ......................................................... 9



SETTING THE CHANNELS

Storing Channels Automatically ....................... 10



Storing Channels Manually ...............................11



Adding / Locking Channels .............................. 12



Sorting the Stored Channels ............................ 13



Assigning Channels Names ............................. 13



Fine Tuning Channel Reception ....................... 14



SETTING THE PICTURE

Changing the Picture Standard ........................ 15



Adjusting the Custom Picture ........................... 16



Resetting the Picture Settings to the Factory



Defaults ............................................................ 16

Changing the Picture Options .......................... 17



SETTING THE SOUND

Sound Features ................................................ 19



Selecting the Sound Mode ............................... 20



Connecting Headphones (Sold separately) ..... 20



SETTING THE TIME

Setting and Displaying the Current Time .......... 21



Setting the Sleep Timer .................................... 21



Switching the Television On and Off



Automatically .................................................... 22

FUNCTION DESCRIPTION

Choosing Your Language ................................. 22



Melody / Energy Saving .................................. 23



Selecting the Source ........................................ 24



Editing the Input Source Names ...................... 24



USING THE DTV FEATURE

Previewing the DTV Menu System .................. 25



Selecting the Country ....................................... 26



Updating the Channel List Automatically .......... 27



Updating the Channel List Manually ................ 28



Editing Your Favourite Channels ...................... 29



Selecting Channel List ..................................... 31



Displaying Programme Information .................. 31



Viewing the EPG (Electronic Programme



Guide) Information ........................................... 32

Using the Scheduled List ................................. 33



Setting the Default Guide ................................. 33



Viewing All Channels and Favourite Channels 34



Adjusting the Menu Transparency .................... 34



Setting up the Parental Lock ............................ 35



Setting the Subtitle ........................................... 36



Setting the Subtitle Mode ................................. 36



Selecting the Audio Format .............................. 36



Selecting the Audio Description ....................... 37



Viewing Product Information ............................ 37



Checking the Signal Information ...................... 38



Upgrading the Software ................................... 38



Viewing Common Interface .............................. 39



Selecting the CI (Common Interface) Menu ..... 39



Resetting .......................................................... 40



Selecting the Preferred Language (Subtitle,



Audio or Teletext) ............................................. 40

Preference ........................................................ 41



SETTING THE PC

Setting up Your PC Software



(Based on Windows XP) .................................. 42

Display Modes .................................................. 42



Setting up the TV with your PC ........................ 43



RECOMMENDATIONS FOR USE

Teletext Feature ............................................... 44



Using the Anti-Theft KENSINGTON LOCK



(depending on the model) .....................................45

Securing the TV to the Wall .............................. 46



How to Adjust the Stand (19 inch model only) . 47



How to Adjust the Angle of the TV



(19 inch model only) ......................................... 47

Installing the Wall Mount Kit



(19 inch model only) ......................................... 47

Installing VESA compliant mounting devices



(19 inch model only) ......................................... 47

Using the Decoration Covers



(19 inch model only) ......................................... 48

Installing the Stand ........................................... 48



Installing the Wall Mount Kit ............................. 48



Troubleshooting: Before Contacting Service



Personnel ......................................................... 49

Technical and Environmental Specications ... 50



Symbol Press Note One-Touch

Button

English

English - 1

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

M4XL16

Remote Control &

Batteries (AAA x 2)

Wall Mount kit Decoration Cover

♦ Owner’s Instructions ♦ Warranty card ♦ Safety Guide ♦ Registration Cards

Warranty card / Safety Guide /

➣

The stand, stand screw, Cover-Bottom, Wall Mount kit, and Decoration Cover may not be included

➣

depending on the model.

Power Cord Cover-Bottom Stand Screw X 4

Stand

Registration Cards (Not available in all locations)

Cleaning Cloth

English - 2

Viewing the Control Panel

8 87

5 6

The product colour and shape may vary depending on the model.

Front Panel buttons Touch each button to operate.

1 SOURCE Toggles between all the available input

sources (TV, Ext., AV, Component, PC, HDMI, DTV). In the on-screen menu, use this button as you use the ENTER button on the remote control.

2 MENU Press to see an on-screen menu of your TV’s features.

3 Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control.

4 Press to change channels. In the on-screen

menu, use the buttons as you use the ▲ and ▼ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

5 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

6 (Power) Press to turn the TV on and off.

7 Remote Control Sensor Aim the remote control towards this spot on the TV.

8 Speakers

English - 3

Viewing the Connection Panel

2 43 5

789

[TV Rear Panel]

Power Input

The product colour and shape may vary depending on the model.

➣

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

➣

When connecting an external device, match the colour of the connection terminal to the cable.

➣

1 EXT

Connector

EXT

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

2 DVI IN [HDMI/DVI IN]

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

➣

“High Denition Multimedia interface” allows the transmission of high denition digital video data and

Video Audio (L/R) RGB Video + Audio (L/R)

Input Output

O O O

Only TV or DTV output is available.

[TV Side Panel]

multiple channels of digital audio. The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable

(not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi

- channel digital audio.

DVI IN [R-AUDIO-L]

DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component

➣

HDMI/DVI 50Hz HDMI/DVI 60Hz

Component O O O O O O

3 SERVICE

Connector for SERVICE only.

4 PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

480i 480p 576i 576p 720p 1080i

X X X O O O X O X X O O

English - 4

5 ANT IN To view television channels correctly, a signal must be received by the set from one of the following

sources:

An outdoor aerial / A cable television network / A satellite network

6 COMMON INTERFACE Slot

When CI Card isn’t inserted in some channels, "Scrambled Signal" is displayed on the screen.

The pairing information containing a telephone number, CI Card ID, Host ID and other information will be

displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

When the channel information conguration has nished, the

message "Updating Completed" is displayed, indicating that the channel list is now updated.

You must obtain a CI Card from a local cable service provider.

➣

Remove the CI Card by carefully pulling it out with your hands since dropping the CI Card may cause damage to it. Insert the CI-Card in the direction marked on it.

➣

The place of the COMMON INTERFACE Slot may be different

➣

depending on its model.

7 Headphones jack

Headphone may be connected to the headphone output on your set. While the head phone is

connected, the sound from the built-in speakers will be disabled.

8 AV IN [VIDEO]/[R-AUDIO-L]

Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio

out connectors on the A/V device.

9 DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV

➣

outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on

the DVD player or Cable/Satellite Box directly to an Amplier or Home Theater, not the TV.

0 COMPONENT IN

Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of

your set and the other ends to corresponding component video out connectors on the DTV or DVD. If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to

the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set. The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y

and R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of your set and the other ends

to corresponding audio out connectors on the DTV or DVD.

! KENSINGTON LOCK (depending on the model)

The Kensington lock (optional) is a device used to physically x the system when used in a public place.

If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the kensington lock may be different depending on its model.

English - 5

TOOLS

Viewing the Remote Control

1 Television Standby button 2 Selects the TV and DTV

mode directly 3 Number buttons for direct

channel access

One/Two-digit channel selection

5 +: Volume increase

: Volume decrease

6 Temporary sound switch-off 7 Use to quickly select

frequently used functions.

8 Use to see information on the current broadcast

9 Colour buttons : Use these buttons in the

Channel list, etc.

! Electronic Program Guide (EPG) display

@ Available source selection # Previous channel $ P : Next channel

P : Previous channel % Returns to the previous

^ Control the cursor in the menu & Exit the on-screen menu * Picture size selection ( Displays the main on-screen

) Displays the Channel List on

screen

a Digital subtitle display

Teletext Functions

2 Exit from the teletext display 7 Teletext size selection 8 Teletext reveal 9 Fastext topic selection 0 Alternately select Teletext,

Double, or Mix.

! Teletext store @ Teletext mode selection

(LIST/FLOF)

# Teletext sub page $ P : Teletext next page

P : Teletext previous page

% Teletext hold & Teletext cancel ( Teletext index

The performance of the remote control may be affected by bright light.

➣

English - 6

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the

figure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the

➣

diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t

➣

be using the remote control for a long time.

If the remote control doesn’t work, check the following:

➣

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

➣

2. Press the button on your set. You also can press the POWER button or the TV/DTV button on the remote control to turn

➣

the TV on. The channel that you were watching last is reselected automatically.

➣

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

button on your set.

When you switch the set on for the very rst time, you will be asked to choose language in which the

➣

menus are to be displayed.

4. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

➣

2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday,

➣

for example). It is best to unplug the set from the mains and aerial.

English - 7

TOOLS

Viewing the Menus

TOOLS

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input, Digital Menu.

2. Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s sub-

menu.

3. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.

The “Tools” menu will appear.

2. Press the ▲ or ▼ button to select a menu.

3. Press the ▲/▼/◄/►/ENTER buttons to display, change, or

use the selected items. For a more detailed description of each function, refer to the corresponding page.

• Picture Mode, see page 15

• Sound Mode, see page 19

• Sleep Timer, see page 21

• SRS TS XT, see page 19

• Energy Saving, see page 23

• Dual l-ll, see page 20

• Auto Adjustment, see page 43

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options  Reset : OK 

Move Enter Return

Picture Mode ◄ Standard ►

Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit


Tools

English - 8

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

Any functions related to Digital TV (DVB) will only work in

countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

This product is only applicable to Finnish, Swedish and Danish broadcasts. Broadcasts are not

supported in other countries.

1. Press the POWER button on the remote control.

The message "Start Plug & Play." is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

3. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button.

We recommend setting the TV to "Home Use" mode for the best picture in your home

environment. "Store Demo" mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use”

(Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds

4. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button. Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

6. The “Auto Store” menu is displayed with the “Start” selected. Press the ENTER button. Press the ENTER button at any time to interrupt the memorization process. The channel search will start and end automatically.

The DTV channel scan menu appears.

♦ If the country is set to “Others”

“Clock Set” screen appears when searching for the analog channel is finished.

♦

If the country is set to “Finland”

Press the

♦

If the country is set to “Sweden”, or “Denmark”

Press the ▲ or ▼ button to select “Cable” or “Aerial”. Press the

ENTER

button to select “Start”.

ENTER

Aerial: scanning for aerial services Cable: scanning for cable services

For detailed descriptions about DTV channel update, refer to page 28 of this manual. If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV.

After all the available channels are stored, the “Clock Set” menu appears.

8. Press the ENTER button. Select the "Month", "Day", "Year", "Hour", or "Min" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Min" by pressing the ▲ or ▼ button. You can also set the “Month”, “Day”, “Year”, “Hour” and "Min" by pressing the number buttons on

the remote control.

Plug & Play

Start Plug & Play.

Enter

button.

English - 9

9. Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed.

When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after

several seconds.

 Language  Country  Auto Store  Clock Set

: Select your language.

: Select your country.

: Automatically scans for and stores channels available in the local area.

: Sets the current time for the TV clock.

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup" then press the

ENTER button.

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

Setup

2. Press the ENTER button again, to select "Plug & Play".

For further details on setting up options, refer to the page 9.

The “Plug & Play” feature is only available in the TV mode.

➣

Move Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

Move Enter Return

2. Press the ENTER button to select "Country".

3. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

Even though you have changed the country setting in this menu, the country setting for DTV is

➣

not changed. (Refer to page 26)

4. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.

5. Press the ENTER button.

The TV will begin memorizing all of the available channels.

➣

Press the ENTER button at any time to interrupt the memorization process and return to the

➣

"Channel" menu.

6. After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

Channel

English - 10

Storing Channels Manually

Not available in DTV or external input mode.

You can store television channels, including those received via cable networks. When storing channels manually, you can choose:

♦ Whether or not to store each of the channels found.

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Channel

♦ The programme number of each stored channel which you wish

to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Manual Store", then press

the ENTER button.

3. Select the required option by pressing the ▲ or ▼ button,

Move Enter Return

Programme : P 1 Colour System : Auto  Sound System : BG  Channel : S 6 Search : 140 MHz Store : ?

Manual Store

then press the ENTER button.

4. When you are satisfied with your setting, press the

ENTER button.

Press the EXIT button to exit.

Move Enter Return

♦ Programme (Programme number to be assigned to a channel)

− Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9).

♦ Colour System: Auto/PAL/SECAM/NTSC4.43

− Press the ▲ or ▼ button to select the required colour standard.

♦ Sound System: BG/DK/I/L

− Press the ▲ or ▼ button to select the required sound standard.

♦ Channel (When you know the number of the channel to be stored)

− Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

− Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required.

♦ Search (When you do not know the channel numbers)

− Press the ▲ or ▼ button to start the search.

− The tuner scans the frequency range until the first channel or the channel that you selected is

received on the screen.

♦ Store (When you store the channel and associated programme number)

− Set to "OK" by pressing the ENTER button.

Channel mode

− P (Programme mode): When completing tuning, the broadcasting stations in your area have been

assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

− C (Air channel mode): You can select a channel by entering the assigned number to each air

broadcasting station in this mode.

− S (Cable channel mode): You can select a channel by entering the assigned number for each

cable channel in this mode.

English - 11

Adding / Locking Channels

TOOLS

Not available in DTV or external input mode.

➣

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.

♦ Adding channels

Using the Channel List, you can add channels.

3. Select "Channel List" by pressing the ENTER button.

4. Move to the ( ) field by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the

ENTER button to add the channel.

If you press the ENTER button again, the ( ) symbol

➣

next to the channel disappears and the channel is not added.

" " is active when "Child Lock" is selected to "On".

➣

♦ Locking channels

This feature allows you to prevent unauthorized users, such

as children, from watching unsuitable programmes by muting out video and audio.

5. Press the ▲ or ▼ button to select "Child Lock", then press the ENTER button.

6. Select "On" by pressing the ▲ or ▼ button, then press the ENTER button.

7. Press the ▲ or ▼ button to select "Channel List",

then press the ENTER button.

8. Move to the " " field by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the ( ) symbol

➣

next to the channel disappears and the channel lock is cancelled. A blue screen is displayed when "Child Lock" is activated.

➣

9. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the

➣

channels which selected on " " to be active or inactive.

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Channel List  Child Lock : Off 

Move Enter Return

P 1 C3

Prog.

0 C-1 C3 2 BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7

Add Lock

Move Enter

Page Return

Channel

Channel Manager

Channel List

1 / 10

You can select these options by simply pressing the CH LIST

button on the remote control.

English - 12

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Not available in DTV or external input mode.

➣

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Sort", then press the ENTER button.

3. Select the channel number that you wish to change by

pressing the ▲ or ▼ button. Press the

➣

ENTER

button. The selected channel number and name are moved to right side.

4. Select the number of the programme to which the channel is to

be moved by pressing the ▲ or ▼ button.

5. Press the

ENTER

button. The channel is moved to its new

position and all other channels are shifted accordingly.

6. Repeat steps 3 to 5 for another channel to be sorted.

7. Press the EXIT button to exit.

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

Not available in DTV or external input mode.

➣

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Name", then press the ENTER button.

3. If necessary, select the channel to be assigned to a new

name by pressing the ▲ or ▼ button. Press the ENTER button.

The selection bar is displayed around the name box.

➣

4. To...

Select a letter, number or symbol Move on the next letter Move back the previous letter Confirm the name

The following characters are available: Letters of the alphabet (A~Z) / Numbers

➣

(0~9) / Special characters (+, -, *, /, space)

5. Repeat steps 3 to 4 for each channel to be assigned to a new name.

6. Press the EXIT button to exit.

Then...

Press the ▲ or ▼ button Press the ► button Press the ◄ button

Press the ENTER button

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Prog. Ch. Name  0 C-- ---- 1 C23 -----  2 S06 ---- 3 S07 ---- 4 S09 ---- 5 S12 ---- 6 S13 ---- 7 S14 ---- 8 S17 ---- 9 C21 ---- 

Move Enter Return

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

Prog. Ch. Name  0 C-- -----

1 C23 -----

2 S06 ---- 3 S07 ---- 4 S09 ---- 5 S12 ---- 6 S13 ---- 7 S14 ---- 8 S17 ---- 9 C21 ---- 

Move Enter Return

Channel

Sort

Name

English - 13

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

Not available in DTV or external input mode.

➣

1. Use the number buttons to directly select the channel that

you want to fine tune.

2. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

3. Press the ▲ or ▼ button to select "Fine Tune", then press

the ENTER button.

4. Press the ◄ or ► button to adjust the fine tuning.

Press the ENTER button.

5. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked

➣

with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the ne-tuning, select "Reset" by pressing the

➣

▲

or ▼ button and then press the ENTER button.

Country : Finland  Auto Store  Manual Store  Channel Manager  Sort  Name  Fine Tune 

Move Enter Return

P 1

Adjust Save Return

Channel

Fine Tune

Reset

English - 14

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2. Press the ENTER button again, to select "Mode".

3. Press the ▲ or ▼ button to select the desired picture effect.

Press the ENTER button.

4. Press the EXIT button to exit.

♦ Dynamic: Selects the picture for high-definition in a bright

room.

♦ Standard: Selects the picture for optimum display in a

normal environment.

♦ Movie: Selects the picture for comfortable display in a

dark room.

The Picture mode must be adjusted separately for each

input source.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options  Reset : OK 

Move Enter Return

Mode : Standard

Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options Reset : OK

Move Enter Return


Dynamic

Standard

Movie

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Picture Mode".

3. Press the ◄ or ► button to select the required option.

4. Press the EXIT or TOOLS button to exit.

Tools

Picture Mode ◄ Standard ►

Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

English - 15

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

(On page 15)

2. Press the ▲ or ▼ button to select a particular item. Press the

ENTER button.

3. Press the ◄ or ► button to decrease or increase the value of

a particular item. Press the ENTER button.

4. Press the EXIT button to exit.

♦ Backlight: Adjusts the screen brightness by adjusting the

LCD backlight brightness. (0~10)

♦ Contrast: Adjusts the lightness and darkness between

objects and the background.

♦ Brightness: Adjusts the brightness of the whole screen. ♦ Sharpness: Adjusts the outline of objects to either

sharpen them or make them more dull.

♦ Colour: Adjusts the colours, making them lighter or

darker.

♦ Tint:

Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.

In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness". In Analogue TV, Ext., AV modes of the PAL system, you cannot use the "Tint" Function. You can return to the factory defaults picture settings by selecting the "Reset".

(Refer to "Resetting the Picture Settings to the Factory Defaults" on page 16)

The energy consumed during use can be significantly reduced if the level of brightness of the picture

is reduced, and that this will reduce the overall running cost.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options  Reset : OK 

Move Enter Return

▲

Backlight

▼

Move Adjust Return


Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3

on page 15.

2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.

3. Press the ▲ or ▼ button to select "OK" or "Cancel".

Press the ENTER button.

4. Press the EXIT button to exit.

The "Reset" will be set for each Picture mode.

English - 16

Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options

Reset : OK

Move Enter Return


Cancel

Changing the Picture Options

TOOLS

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2. Press the ▲ or ▼ button to select “Picture Options”, then press the ENTER button.

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

4. When you are satisfied with your setting, press the

ENTER button.

5. Press the EXIT button to exit.

In PC mode, you can only make changes to the

➣

“Colour Tone” and “Size” from among the items in “Picture Options”.

♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected

➣

Picture mode.

“Warm1” or “Warm2” is only activated when the picture mode is "Movie".

➣

♦ Size: Auto Wide/Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. ♦ Wide: Adjusts the picture size to 16:10 appropriate for DVDs or wide broadcasting. ♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. ♦ 4:3: This is the default setting for a video movie or normal broadcasting. ♦ Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i)

or Component (1080i) signals are input.

"Auto Wide" function is available only in "TV", "DTV", "Ext." and "AV" mode.

➣

In PC Mode, only "Wide" and "4:3" mode can be adjusted.

➣

Settings can be adjusted and stored for each external device you have connected to an input of

➣

the TV. Temporary image retention may occur when viewing a static image on the set for more than two

➣

hours. Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the by

➣

pressing the ► or ENTER button.

Zoom: Select by pressing the ◄ or ►button.

➣

Use the ▲ or ▼button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

After selecting “Just Scan” in HDMI (1080i) or Component (1080i) mode:

➣

Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.

O You can select these options by simply pressing the P.SIZE

button on the remote control.

Mode : Standard  Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50

Tint G 50 R 50

Picture Options  Reset : OK 

Move Enter Return

Colour Tone : Normal  Size : Auto Wide  Screen Mode : Wide  Digital NR : Auto 

HDMI Black Level

Move Enter Return


Picture Options

: Normal 

English - 17

♦ Screen Mode

: Wide/16:9/Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size

you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

♦ Wide: Sets the picture to 16:10 wide mode. ♦ 16:9: Sets the picture to 16:9 wide mode. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnify the size of the picture vertically on screen. ♦ 4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode. This function is not available in "Component" or "HDMI" mode.

♦

Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction

feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

♦ HDMI Black Level: Normal/Low You can select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

English - 18

Sound Features

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the

ENTER button.

2. Select the required option by pressing the ▲ or ▼ button,

Mode : Custom  Equalizer  SRS TS XT : Off  Auto Volume : Off  TV Speaker : On 

Sound

then press the ENTER button.

3. When you are satisfied with your setting, press the ENTER

button.

4. Press the EXIT button to exit.

♦ Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used

when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.

Move Enter Return

Tools

Picture Mode : Standard

Sound Mode ◄ Custom ►

Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

2. Press the ▲ or ▼ button to select "Sound Mode".

3. Press the ◄ or ► button to select the desired sound mode.

4. Press the EXIT or TOOLS button to exit.

♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal

Move Adjust Exit

Equalizer

preferences.

If you make any changes to these settings, the sound

➣

mode is automatically switched to "Custom".

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Move Adjust Return

♦ SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel

content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "SRS TS XT".

3. Press the ◄ or ► button to select the "Off" or "On".

4. Press the EXIT or TOOLS button to exit.

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off

SRS TS XT ◄ Off ►

Energy Saving : Off Dual l-ll : Mono

Tools

Move Adjust Exit

TruSurround XT, SRS and Symbol are trademarks of SRS Labs,

Inc.TruSurround XT technology is incorporated under license from SRS Labs, Inc.

English - 19

♦ Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume

every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

♦ TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The +, - and MUTE buttons do not operate when the "TV Speaker" is set to "Off".

➣

When "TV Speaker" is set to "Off", the Sound menus cannot be adjusted.

➣

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Selecting the Sound Mode

You can set the sound mode in the "Tools" menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Dual I-II".

3. Press the ◄ or ► button to select required option.

4. Press the ENTER button.

Stereo

NICAM

Stereo

Audio Type Dual

Mono MONO

Stereo STEREO

Dual DUAL

Mono MONO

Stereo MONO

Dual

MONO

↔

1 ↔

↔

DUAL

1/2

MONO

DUAL

STEREO

DUAL

Default

Automatic

change DUAL 1

Automatic

change

DUAL 1

If the stereo signal is weak and an automatic switching occurs,

then switch to the Mono.

This function is only activated in stereo sound signal. It is

deactivated in mono sound signal.

This function is only available in Analogue TV mode.

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off

Dual l-ll ◄ Mono ►

Move Adjust Exit

Tools

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you

➣

can operate only “Auto Volume” in Sound menu.

Prolonged use of headphones at a high volume may damage your

➣

hearing. You will not receive sound from the speakers when you connect headphones to the system.

➣

The headphone volume and TV volume are adjusted differently.

➣

English - 20

TV Side Panel

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the

ENTER button.

3. Press the ENTER button to select "Clock Set".

To... Press the...

Move to "Month", "Day", "Year", "Hour" or "Minute" Set the "Month", "Day", "Year", "Hour" or "Minute"

Confirm the setting

◄ or ► button.

▲ or ▼ button.

ENTER button.

5. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again. You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on

the remote control.

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

Move Enter Return

Month01Day

Hour00Minute

Move Adjust Return

Setting the Sleep Timer

Setup

Clock Set

Year

2008

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the

ENTER button.

3. Press the ▲ or ▼ button to select "Sleep Timer", then press

the ENTER button.

4. Press the ▲ or ▼ button repeatedly until the desired time

appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.

5. Press the EXIT button to exit.

The TV automatically switches to standby mode when the

timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

English - 21

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

Move Enter Return

Clock Set : 00 : 00

Sleep Timer :

Timer 1 : Timer 2 : Timer 3 :

Move Enter Return

Picture Mode : Standard Sound Mode : Custom

Sleep Timer ◄ Off ►

SRS TS XT : Off Energy Saving : Off Dual l-ll : Mono

Move Adjust Exit

Tools

Setup

Time

Off

30 60

90 120 150 180

Switching the Television On and Off Automatically

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

ENTER button.

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER button. Three different On/Off Timer Settings can be made.

You must set the clock first.

➣

4. Press the ◄ or ► button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satisfied. ♦ On Time: Select hour, minute, and "On"/"Off". (To activate

timer with the setting satisfied, set to "On".)

♦ Off Time: Select hour, minute, and "On"/"Off". (To activate

timer with the setting satisfied, set to "On".)

♦ Repeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat",

Move Enter Return

On Time

00 00 Off

Off Time

00 Off

Repeat

Once

Volume

► Move Adjust Return

Timer 1

or "Sat~Sun".

♦ Volume: Select the desired turn on volume level.

You can set the hour and minute directly by pressing the number buttons on the remote control. Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language

Setup

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Language", then press the ENTER button.

3. Select a particular language by pressing the ▲ or ▼ button

repeatedly. Press the ENTER button.

4. Press the EXIT button to exit.

English - 22

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

Move Enter Return

Setup

Melody / Energy Saving

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2. Select the required option by pressing the ▲ or ▼ button,

Plug & Play  Language : English  Time  Melody : Off  Energy Saving : Off 

Setup

then press the ENTER button.

3. When you are satisfied with your setting, press the ENTER button.

4. Press the EXIT button to exit.

Move Enter Return

♦ Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

➣

- When no sound is output from the TV because the MUTE button has been pressed.

- When no sound is output from the TV because the (Volume) button has been pressed.

- When the TV is turned off by Sleep Timer function.

♦ Energy Saving: Off/Low/Medium/High

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

− Off: Turns off the energy saving function.

− Low: Sets the TV to low energy saving mode.

− Medium: Sets the TV to medium energy saving mode.

− High: Sets the TV to high energy saving mode.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the "Off","Low",

"Medium" or "High".

4. Press the EXIT or TOOLS button to exit.

Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off

Energy Saving ◄ Off ►

Dual l-ll : Mono

Tools

English - 23

Move Adjust Exit

Selecting the Source

You can select among external sources connected to your TV’s input jacks.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2. Press the ENTER button again, to select "Source List".

Available signal sources: TV, Ext., AV, Component, PC,

HDMI, DTV.

You can choose only those external devices that are

connected to the TV.

3. Select the required device by pressing the ▲ or ▼ button.

Press the ENTER button.

O Press the SOURCE button on the remote control to toggle

between all the available source. TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P / button on the remote control.

Source List : TV  Edit Name 

Move Enter Return

Ext. : ----

AV : ---Component : ---PC : ---HDMI : ----

DTV

Source List

Move Enter Return

Input

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2. Press the ▲ or ▼ button to select "Edit Name", then press

the ENTER button.

3. Press the ▲ or ▼ button to select the device that you wish to

edit. Press the ENTER button.

4. Press the ▲ or ▼ button to select the required device.

Press the ENTER button.

5. Press the EXIT button to exit.

English - 24

Source List : TV  Edit Name 

Move Enter Return

Ext. : ----

AV : ---- Component : ---- PC : ---- HDMI :

Edit Name

Move Enter Return

Input

----

VCR DVD

Cable STB

Satellite STB

PVR STB

AV Receiver

Game

Previewing the DTV Menu System

♦ This product is only applicable to Finnish, Swedish and Danish

broadcasts. Broadcasts are not supported in other countries.

♦ Available in DTV mode. Preset to the DTV mode by using the

TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the

ENTER button.

Guide Now & Next Guide

Full Guide Scheduled List Default Guide

Now/Next, Full Guide

Digital Channel Country

Auto Store Manual Store Edit Favourite Channels Channel List

All, Favourites, Default

Setup Menu Transparency

High, Medium, Low, Opaque Change PIN Parental Lock Subtitle Subtitle Mode Audio Format Audio Description

Common Interface System

Off, On

Normal, Hard of hearing

PCM, Dolby Digital

Audio Description Off, On

Volume

Application Info, CI Menu

Product Information

Signal Information

Software Upgrade

Reset

Language Audio Language

Subtitle Language Teletext Language Preference

Primary Audio Language

Secondary Audio Language

Primary Subtitle Language

Secondary Subtitle Language

Primary Teletext Language

Secondary Teletext Language (depending on the country)

Guide Digital Channel Setup Language

DTV

Now & Next Guide Full Guide Scheduled List  Default Guide : Full Guide 

DTV

Country :Finland  Auto Store  Manual Store  Edit Favourite Channels  Channel List 

DTV

Menu Transparency Change PIN  Parental Lock  Subtitle : Off 

Subtitle Mode 



DTV

Audio Language Subtitle Language Teletext Language Preference 

Digital Menu

Move Enter Return

Channel

Move Enter Return

Language

Move Enter Return

Guide

Setup : Medium



The sub-items of the CI Menu may vary depending on the CAM model.

➣

English - 25

Selecting the Country

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press

the ENTER button.

2. Press the

▲ or ▼

button to select "Digital Channel", then

press the ENTER button.

DTV

Country :Finland  Auto Store  Manual Store  Edit Favourite Channels  Channel List 

3. Press the ENTER button again, to select "Country".

4. Select the appropriate country by pressing the ▲ or ▼ button.

Press the

➣

ENTER

button to conrm your choice.

Even though you have changed the country setting in

Move Enter Return

this menu, the country setting for Analogue TV is not changed.(Refer to page 10)

5. Enter a PIN(Personal ID number) by pressing the number buttons on the remote control.

The “Auto Store” menu appears.

➣

If you change the “Country”, all previous settings will be reset.

➣

Channel

English - 26

Updating the Channel List Automatically

You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the

3. Press the ▲ or ▼ button to select “Auto Store”, then press the ENTER button.

4. The update procedures differ depending on the selected “Country”. Update the channel list by

selecting an appropriate option.

♦

When

Press the ▲ or ▼ button to select “Auto”, “Cable” or “Aerial”.

Press the ENTER button. Press the ENTER button to select “Start”.

➣

• Cable: Scans cable channels.

• Aerial: Scans aerial channels.

➣

♦

When the “Country” was set to “Sweden”, or “Denmark”

Press the ▲ or ▼ button to select “Cable” or “Aerial”.

Press the ENTER button.

▲ or ▼

button to select "Digital Channel", then press the ENTER button.

the “Country” was set to “Finland”

• Auto: Scans channels automatically.

This product cannot scan both cable and aerial channels at the same time.

When it has nished, the number of scanned services

will be displayed. The existing favourite channel list will not be deleted

when the channel list is updated.

DTV

Auto  Cable  Aerial 

DTV

Scanning for aerial digital services...

Services found: 0 Channel: 5

DTV

Cable  Aerial 

Auto Store

Choose system to scan

Move Enter Return

Auto Store

Stop

Enter Return

Auto Store

Choose system to scan

When selecting “Cable”:

- Frequency: Displays the frequency for the channel.

(Differs in each country)

- Modulation: Displays available modulation values.

- Symbol rate: Displays available symbol rates.

- Network ID: Displays the network identication code. Press the red button to start the scan for digital services.

When it has nished, channels are updated in the channel

list.

When selecting “Aerial”: Press the ENTER button to select “Start”.

5. Press the EXIT button to exit.

If the signal status is poor, the “No Service found! Check

➣

the aerial connection” message is displayed.

English - 27

Move Enter Return

DTV

Frequency Modulation Symbol rate Network ID

Enter freq. Move Return

DTV

Services found: 0 Channel: -

Enter Return

Auto Store

143000

64QAM

6875

100

Auto Store

Start

KHz

kS/s

Updating the Channel List Manually

You can specify the channel for a fast channel search.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the

3. Press the

4. The update procedures differ depending on the selected “Country”.

Update the channel list by selecting the appropriate option.

▲ or ▼

button to select "Digital Channel", then press the ENTER button.

▲ or ▼

button to select "Manual Store", then press the ENTER button.

♦

When

the “Country” was set to “Finland”

Press the ▲ or ▼ button to select “Cable” or “Aerial”, then

press the ENTER button.

When selecting “Cable”:

- Frequency: Displays the frequency for the channel. (Differs

in each country)

- Modulation: Displays available modulation values.

- Symbol rate: Displays available symbol rates. Press the red button to start the scan for digital services.

When it has finished, channels are updated in the channel list.

When selecting “Aerial”:

- Channel: Channel “21” to “69” in sequence are displayed

(depending on the country)

- Frequency: The frequency available in the Channel group

is displayed.

- Bandwidth: The available bandwidths are 8 MHz. Press the red button to start the scan for digital services.

When it has finished, channels are updated in the channel list.

♦

When the “Country” was set to “Sweden”, or “Denmark”

- Channel: Channel “21” to “69” in sequence are displayed

(depending on the country)

- Frequency: The frequency available in the Channel group

is displayed.

- Bandwidth: The available bandwidths are 8 MHz. Press the red button to start the scan for digital services.

When it has nished, channels are updated in the channel

list.

DTV

Cable  Aerial 

DTV

Channel

DTV

Channel

Manual Store

Choose system to scan

Move Enter Return

Manual Store

Frequency Modulation Symbol rate

Enter freq. Move Return

Manual Store

Frequency Bandwidth

▲

177500

▼

Adjust Move Return

Manual Store

Frequency Bandwidth

▲

177500

▼

Adjust Move Return

143000

64QAM

6875

KHz MHz

KHz

kS/s

5. When it has nished, the number of scanned services will be displayed.

6. Press the EXIT button to exit.

English - 28

+ 284 hidden pages
