液晶显示器

底板 LDP22WS 型号 225BW

液晶显示器

时尚特点

-高级 HAS 应用(抬起 80mm)

-内置电源、机器 S/W 应用

Page 2

版权

LDP22WS 维修手册

2006年6月第1版

中国印刷

商标

三星是三星电子有限公司的注册商标。

LDP22WS 和 MacMaster Cable Adatper 是三星电子有限公司的商标。

Macintosh、Power Macintosh 是 Apple 计算机公司的商标。

所有其他商标归各自所有人所有。

Page 3

1.	注意事项	1-1
	1-1 安全注意事项	1-1
	1-2 维修注意事项	1-2
	1-3 静电敏感器件注意事项	1-2
	1-4 安装注意事项	1-3
2.	产品规格	2-1
	2-1 时尚特点	2-1
	2-2 规格	2-1
	2-3 LSDP22WS 特点	2-2
	2-4 规格比较	2-3
	2-5 选装件规格	2-4
3.	调整和调节	3-1
	3-1 所需的设备	3-1
	3-2 自动色彩调整	3-1
	3-3 DDC EDID 数据输入	3-1
	3-4 维修功能规格	3-2
	3-5 隐藏键列表	3-3
	3-6 用 Windows 程序进行 EDID 安装	3-4
	3-7 更换主板后的执行项目	3-5
4.	故障排除	4-1
	4-1 未通电	4-1
	4-2 没有图像(PC 模拟信号)	4-3
	4-3 没有图像(PC 数字信号)	4-5
5.	分解图和零件清单	5-1
	5-1 LDP22WS 分解图	5-1
	5-2 LDP22WS 零件清单	5-2
6.	电气零件清单	6-1
	6-1 零件清单	6-1
7.	框图	7-1

Page 4

8.接线图	8-1
9.原理图
9-1 原理图(1)
9-2 原理图(2)
10.操作说明和安装	10-1
10-1 前部
10-2 后部
10-3 使用底座	10-3
11.拆卸和重新组装	11-1
11-1 拆卸	11-1
11-2 重新组装	11-3
12.印刷电路板图	12-1
13.电路说明	13-1
13-1 块说明
13-2 块运行	13-2
14.参考信息	14-1
14-1 技术术语
14-2 管脚分配
14-3 同步图
14-4 预设同步模式
14-5 面板说明

Page 5

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1-1-1 Warnings

1. For continued safety, do not attempt to modify the circuit board.
2. Disconnect the AC power and DC power jack before servicing.

1-1-2 Servicing the LCD Monitor

1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet.
2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

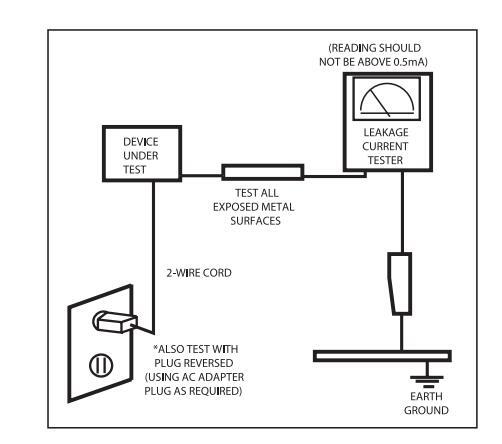

3. Leakage Current Hot Check (Figure 1-1):

WARNING : Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards Institute ( ANSI C101.1, Leakage Current for Appliances ), and Underwriters Laboratories ( UL Publication UL1410, 59.7).

Figure 1-1. Leakage Current Test Circuit

4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit's AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by △ on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

Page 6

1-2 Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode

Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

1-2-1 General Servicing Precautions

Always unplug the unit's AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly (b)

(a) remove or reinstant any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

6. Always connect a test instrument's ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument's ground lead last.

1-3 Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.
2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.
3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.
Use only a grounded-tip soldering iron to solder or desolder ESDs.
5. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ESDs.

6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.
7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

Page 7

1-4 Installation Precautions

1. For safety reasons, more than two people are required for carrying the product.

2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock.

7. When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes.A rise in temperature within the product may

cause fire.

Page 8

2 产品规格

2-1 时尚特点

-高级 HAS 应用(抬起 80mm) -内置电源、机器 S/W 应用

2-2 规格

项目	说明
液晶显示屏	薄膜晶体管液晶显示屏、RGB 竖条纹、正常白色传输、20 英寸可视, 0.258 (水平) X 0.258 (竖直) mm 像素点距
扫描频率	水平: 31 kHz~80 kHz(自动) 竖直: 56 Hz~75 Hz (WSXGA+: 60Hz)
显示颜色	16.7M 种颜色
最大分辨率	水平: 1680 像素竖直: 1050 像素
输入信号	模拟/数字
输入同步信号	单独分开的H/V同步,复合H/V,绿色同步,无需外部切换同步类型,自动同步电平:TTL 电平
最大像素时钟率	162 MHz(模拟/显示)
有效显示水平/竖直	477(水平)×300(宽)mm
交流电源电压和频率	AC 100~240 伏,60/50 Hz土 3Hz
功耗	70W(模拟/数字)
尺寸本机(宽×深×高) 仅机头(宽×深×高) 高度调节范围回转角倾斜角	504.7 x 219.8 x 408 mm(19.9 x 8.7 x 16.1英寸) 504.7 x 65.8 x 335.1 mm(19.9 x 2.6 x 13.2英寸) 80mm(仅限于在通常状态下!) 0~350 度 -4~18 度
重量(本机/包装)	6.8 Kg/9.2 Kg
环境因素	工作温度: 50°F~104°F(10℃~40℃) 工作湿度: 10%~80% 存放温度: -4°F~113°F(-20℃~45℃) 存放湿度: 5%~90%

-设计和规格可能有变动,恕不事先通知。

Page 9

2-3 LDP22WS 特点

序号	特点	特点
1	自动调节	225BW 首次以某些分辨率打开,可以自动进行调节,以获得高质量
2	自动开机/关机	225BW 可以自动检查来源是否改变,并将来源改为有效输入
3	墙上支座	225BW 支持墙上支座(100×100)
4	灰度系数和色温精细调节	225BW 支持对灰度系数和色温进行 3 步调节
5	魔幻亮度	225BW 支持 6 个不同的亮度模式 (文本/互联网/游戏/体育运动/电影/定制)
6	清晰度	调节清晰度

Page 10

2-4 规格比较

型号	LHA20WS 205BW	LSDP22WS 225BW
设计
屏幕尺寸	20.1"	22"
亮度	300cd /m ²	280cd /m ²
对比度	600:1	700:1
快速响应时间	8ms	5ms
魔幻转动	Х	Х
Magic tune	Ver 3.6	采用 3.6 版
清晰度	0 0
魔幻亮度	6 步文本、互联网、体育运动、电影、游戏、定制	6 步文本、互联网、体育运动、电影、游戏、定制

Page 11

2-5 选装件规格

物品名称	代号	备注
快速安装指南	BH68-00376L
保修卡 (在所有地点不提供)	BH68-00633A
使用说明书, 显示器驱动程序, MagicTune™软件	BN59-00520D
D-Sub(15 针) 电缆	BN39-00244B
电源线	3903-000042
DVI 电缆	BN39-00246F	单独出售

Page 12

3 调整和调节

维修手册本章说明如何使用 RS232 JIG。该功能为更换 AD 板所需。

3-1 所需的设备

以下设备为调整显示器所需。装有Windows 95、Windows 98、Windows NT、 Windows 2000或Windows XP的计算机。 MTI-2031 DDC 管理工具

3-2 自动颜色调节

对于模拟图像,在 16 级灰度图或使用黑色和白色的任何图案以及任何模式中。(推荐 16 级灰度图和 XGA 模式)

1. 推 OSD 菜单按钮,打开 OSD。
2. 选择语言"英语"。
3. 在5秒内按下确定按钮。
4. 看到屏幕闪烁。

3-3 DDC EDID数据输入

1. 在更换 AD 印刷电路板时,输入 DDC EDID 数据。

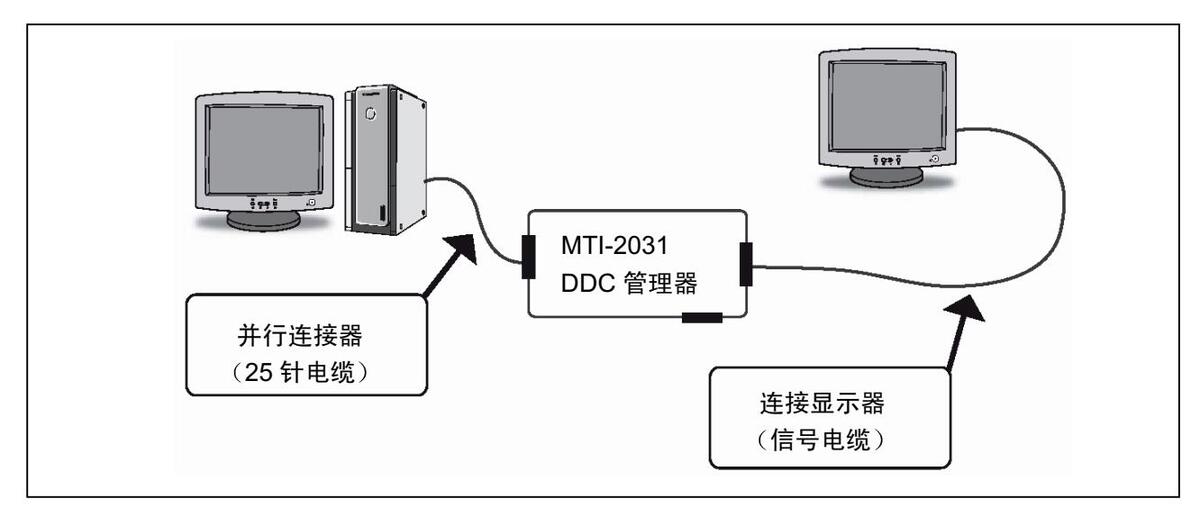

由 HQ 质量控制部门接收/下载适于该机型的 DDC 文件。安装以下装置(图 1)并输入数据。

图 1

Page 13

3-4 维修功能规格

3-4-1 如何显示维修功能OSD

1. 在将亮度和对比度都设为"0"后,按下"确定"按钮5秒以上。

2. 维修功能显示如下。

Service Function
Monitor On Time	•:	42Hr
Panel Cycle	: Time	13 Ch No
Panel: :	42Hr	165
Lower Lamp:	42Hr	165
Upper Lamp:	42Hr	165
Vorcion ITM Depater 22MAN 0620
Checksum :		2000-0020

图 2

3-4-2 如何控制维修功能OSD

1.显示器开机时间:开机时间

2.显示屏周期:显示屏开/关时间(关机、模式变化、DPMS 开/关…)

3.显示屏:显示屏开启时间

(每次更换显示屏时,按下菜单键 5 秒,以便添加到 Ch 数中,Ch 数表示更换显示屏的次数。)

4.上灯: 上灯开启时间

(当更换上灯时,按下菜单,以便添加到 Ch 数中, Ch 数表示更换灯的次数。)

5.下灯: 下灯开启时间

(当更换上灯时,按下菜单,以便添加到 Ch 数中,Ch 数表示更换灯的次数。)

6.自动调节:如果将自动调节菜单设置为开,当首次改变模式时,执行自动调节功能。默认状态为开启。

7.像素移动:未用

8.国家:用本菜单可以将 OSD 语言改为世界各地、韩语、汉语或日语。

可以用 "+" 键操纵菜单,并按下 "菜单键" 5 秒进行调节 (显示屏、上灯和下灯菜单)。按下 "-" 键,还可以控制自动调节、像素移动和国家菜单。

Page 14

3-5 隐藏键列表

序号	功能	措施方法
1	隐藏维修功能	在将亮度和对比度设为"0"后,按下"确定"按钮 5 秒以上。显示维修功能。
2	工厂预设	当打开菜单(任何菜单)时,按下"确定"键 5 秒以上。屏幕闪烁,然后所有菜单返回工厂默认值。
3	自动校准	对于模拟图像,在 16 级灰度图或使用黑色和白色的任何图案以及任何模式中。(推荐 16 级灰度图和 XGA 模式) 1. 推 OSD 菜单按钮,打开 OSD。 2. 选择语言"英语"。 3. 在 5 秒内按下确定按钮。 4. 屏幕闪烁,自动校准完成。
4	OSD 锁	按下菜单键 5 秒以上,然后锁定 OSD。如欲给 OSD 解锁,按下菜单键 5 秒以上。

Page 15

3-6 DDC输入方法(Windows程序)

在更换主板后,应通过 DDC 控制装置输入 DDC。连接方法参照下图。

1. 在计算机中安装 Winddc.exe 程序。
2. 点击 Winddc 图标。
3.打开文件。
4. 选择端口#1。
- 装载 DDC 文件名
- -. "SM225BWA.ddc"
- -. "SM225BWD.ddc"
- 点击下一步(确定)按钮。

Page 16

Elle & Week Config Help	ELEC.Co. [Ver: Exit	4.61.10s ]	Crea	ated: 20030707	7
Open[F6] 2003/01/01 WEEK[F6]	DDC 💡 Sy Inform Co	ns 💡 In/Ou config Tes
Write Stat	ion	Buyer	SAM	ISUNG	F	ile Name	SM9	30BA	-
Mfr. Name	SAM	Prod.	Code	CB00	Week	47th	n of 20	03	[EDID the othe	ers infomation ]	10
		1							DDC Version	4.61.	105
Upper S/No.									EDID Writed In
						-			Port no. or inte	nace(MTF2050)	#1 No CMS
Det. Timing		H	11 Δ	K50	000	20			Use USER-DF	LETE function?	No
S/No.				100	E				Recent DE	DC File
Sarial No. Input		ц	1 14	(500	D _		Che	ckSum	1 #1: 173MV	VA.DDC,#2
\| Senai No. Input		п	IAN	13000	010		(0	c6D	3
									4
									6
									8
Win DDC System Log	g On : [ Ok ]							^	9
	FU . 1701			_					11
[Load File] The Analog File: 173MWA.DDC [Week Input] 47th of 2003 (11/19)						12 13
									14
								7
Start				Scan		Error
Ready						Scann	ner: Keyb'd We	dge Type	Start signal type : No L	Jse PQS: No Use

5:输入显示器系列号,并按下确定键。在模拟输入后,在进行数字输入时请进行#2~5。

3-7更换主板后执行的项目

更换主板后

1. 自动校准
2. EDID 安装(模拟和数字)
3.工厂复位

Page 17

4 故障排除

4-1 未通电

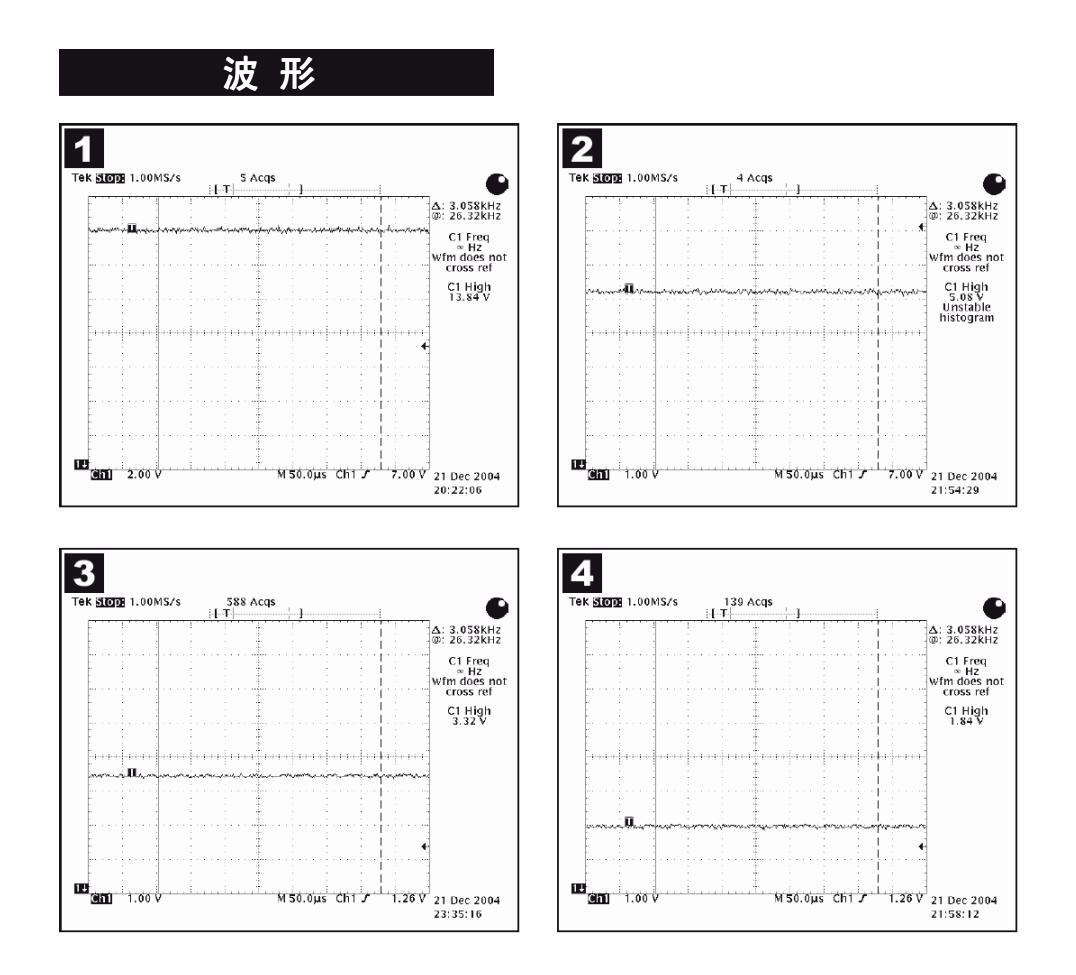

Page 18

Page 19

4-2 没有图像(PC 模拟信号)

Page 20

Page 21

4-3 没有图像(PC 数字信号)

Page 22

Page 23

5 Exploded View and Parts List

-You can search for updated part codes through ITSELF web site. URL : http://itself. sec. samsung.co.kr

5-1 LDP22WS Exploded View

Page 24

5-2 Parts List

Location.No	CODE-NO	SPECIFICATION & DESCRIPTION	Q'TY	SA/SNA
T0003	BN96-04006A	ASSY COVER P-FRONT;LS22DP,ABS HB,BK24	1	S.A
M0215	BN07-00346A	LCD-PANEL;LTM220M1-L01,Doppler,8BIT,493.	1	S.A
M0174	BN44-00127F	IP BOARD;45130A(W),225BW,3.0 ~5.0mA,6.6	1	S.A
M0014	BN94-01062L	ASSY PCB MAIN-CTZ,XSF;LS22DPW*/XSF	1	S.A
M0006	BN96-04009A	ASSY SHIELD P-COVER;LS22DP,SECC,T0.8	1	S.N.A
M0146	BN63-02505A	SHIELD-PCB SMPS;LS215TW,SPTE,T0.3	1	S.N.A
M0013	BN96-04007A	ASSY COVER P-REAR;LS22DP,HIPS,BK24	1	S.A
M0003	BN96-04008A	ASSY STAND P;LS22DP,HIPS HB,BK24	1	S.A

Page 25

6 Electrical Parts List

-You can search for updated part codes through ITSELF web site. URL : http://itself.sec.samsung.co.kr/

6-1 Parts List

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
0		LS22DPWCBQ/XSF	225BW,WSB1/S22B0-LDP,22,LCD-MO,CHINA
01	M0001	BN90-01026A	ASSY COVER FRONT I S22DPWCBO/XAA	1	SNA
2	T0003	BN96-04006A	ASSY COVER P-FRONT I S220P ABS HB BK24	1	SA
3	M0112	BN63-028184	COVER-ERONT-225BW ABS T2 0 HB BK24	1	SNA
3	T0022	BN64-005244	KNOB CONTROL 225BW ABS T1 2 HB CL B BL N-3	1	S N A
3	M0145	BN96-02474F	ASSY BOARD P-FUNCTION: S22DPWAR S.106-01-	1	SA
		BROO OF IT IT			0.71
0.1	M0002	BN90-01027A	ASSY COVER REAR;LS22DPWCBQ/XAA	1	S.N.A
2	M0013	BN96-04007A	ASSY COVER P-REAR;LS22DP,HIPS,BK24	1	S.A
3	M0006	BN63-02819A	COVER-REAR;225BW,HIPS,T2.3,HB,BK24	1	S.N.A

0.1	M0216	BN90-01028A	ASSY STAND;LS22DPWCBQ/XAA	1	S.N.A
2	M0003	BN96-04008A	ASSY STAND P;LS22DP,HIPS HB,BK24	1	S.A
3	T0081	6001-001547	SCREW-MACHINE;BH,+,M4,L10(5),ZPC(BLK),SW	2	S.A
3	M0081	6003-000282	SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW	2	S.N.A
3	M0081	6003-001001	SCREW-TAPTITE;FH,+,B,M3,L8,ZPC(BLK),SWRC	1	S.N.A
3	M0081	6003-001003	SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR	2	S.N.A
3	M0081	6003-001119	SCREW-TAPTITE;FH,+,-,S,M4,L10,ZPC(BLK),S	9	S.N.A
3	HC+CW	6009-001370	SCREW-SPECIAL;PWH,+,-,M4,L8,ZPC(YEL),SWR	1	S.N.A
3	CIS4	BN61-01438A	HOLDER-STAND;MATISSE HAS-STAND,SWRCH18A	1	S.N.A
3		BN61-02736A	BRACKET-STAND BOTTOM;225BW,SECC,T2.0	1	S.N.A
3		BN61-02737A	BRACKET-STAND LIFT;225BW,SECC,T2.0	1	S.N.A
3		BN61-02738A	BRACKET-STAND FRAME;225BW,SECC,T2.0	1	S.N.A
3		BN61-02739A	BRACKET-GUIDE STAND;225BW,AI D/C,T3.0	1	S.N.A
3		BN61-02743A	HOLDER SPRING;225BW,P.O.M,T2.0	1	S.N.A
3		BN61-02755A	SPRING ETC-SPIRAL;225BW,SUS,22.0,T0.35,W	2	S.N.A
3		BN61-02757A	GUIDE-STAND RETAINER;225BW,NYLON,T2.0	2	S.N.A
3		BN61-02769A	HOLDER-SWIVEL RING;XL20,ACETAL,T1.2	1	S.N.A
3		BN63-02820A	COVER-STAND FRONT;225BW,HIPS,T2.5,HB,BK2	1	S.N.A
3		BN63-02821A	COVER-STAND REAR;225BW,HIPS,T2.5,HB,BK24	1	S.N.A
3		BN63-02822A	COVER-STAND LIFT FRONT;225BW,HIPS,T2.5,H	1	S.N.A
3		BN63-02823A	COVER-STAND LIFT REAR;225BW,HIPS,T2.5,HB	1	S.N.A
3	T0004	BN63-02824A	COVER-STAND BASE;225BW,HIPS,T2.5,HB,BK24	1	S.N.A
3	M0412	BN63-02825A	COVER-SWIVEL BASE;225BW,HIPS,T2.5,HB,BK2	1	S.N.A
3		BN63-02826A	COVER-STAND TOP;225BW,HIPS,T2.5,HB,BK24	1	S.N.A
3		BN63-02827A	COVER-STAND VESA;225BW,HIPS,T2.5,HB,BK24	1	S.N.A
3	T0081	BN73-00085A	RUBBER CUSHION;MATISSE,"4.5(IN SIDE),CL	1	S.N.A
3		BN73-40003A	RUBBER-STAND;LSA820,CR,PMS452U,65~70HB,-	4	S.N.A
3	M0007	BN96-01524A	ASSY STAND P-STOPPER;MJ17BS,SUS T1.0,L26	1	S.N.A
3	T0054	BN96-04012A	ASSY HINGE P;225BW,ZNDC II	1	S.N.A
3	T0081	6002-001294	SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)	1	S.A
3	M0279	BN63-00869A	FELT;AS17UO,FELT,0.3,10,10	2	S.N.A

0.1	M0106	BN91-01035Z	ASSY LCD-STZ;LS22DPWCSQ/EDC	1	S.N.A
2	M0215	BN07-00346A	LCD-PANEL;LTM220M1-L01,Doppler;8BIT,493.	1	S.A

0.1		BN91-01149B	ASSY SHIELD-AMLCD;LS22DPWCSQ/EDC	1	S.N.A
2	M0081	6003-000275	SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S	3	S.N.A
2		BN63-02828A	SHIELD-LAMP;225BW,SPTE,T0.3	1	S.N.A

Page 26

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
0.1	M0017	BN91-01183L	ASSY CHASSIS-CTZ,XSF;LS22DPW*/XSF	1	S.A
2	M0081	6003-000282	SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW	4	S.N.A
2	M0081	6003-001439	SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL)	1	S.N.A
2	T0562	6046-001013	STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40	4	S.N.A
2	M2893	BN39-00664A	LEAD CONNECTOR-LVDS;LS19BIC,UL1571#30,30	1	S.A
2	M0174	BN44-00127F	IP BOARD;45130A(W),225BW,3.0 ~5.0mA,6.6	1	S.A
2	M0146	BN63-02505A	SHIELD-PCB SMPS;LS215TW,SPTE,T0.3	1	S.N.A
2	M0014	BN94-01062L	ASSY PCB MAIN-CTZ.XSF:LS22DPW*/XSF	1	S.A
3	T0245	0202-001492	SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S	0.003	S.N.A
3	CN102	3701-001173	CONNECTOR-DVI:24P.3R.FEMALE.ANGLE.AUF	1	S.A
3	CN101	3701-001219	CONNECTOR-DSUB;15P.3R.FEMALE.ANGLE.AUF	1	S.A
3	CN400	3711-005884	HEADER-BOARD TO BOARD:BOX.30P,2R,2mm,ANG	1	S.A
3	CN500	3722-001771	JACK-DC POWER;1P,-,SN,-,-	1	S.A
3	HDCP	BN97-00688A	ASSY HDCP:BN46-00018A.PS-42V6S.D73A.GENE	1	S.N.A
4		BN46-00018A	KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S.	1	S.N.A
3	T0174	BN97-01103R	ASSY SMD;LS22DPW*	1	S.N.A
4	SUB05	0202-001477	SOLDER-CREAM:LST309-MD20~45§96.5Sn/	0.15	S.N.A
4	D100	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D101	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D102	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D103	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D104	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D105	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D106	0401-001056	DIODE-SWITCHING-MMBD4148SE 100V 200mA SO	1	SA
4	D107	0401-001056	DIODE-SWITCHING:MMBD4148SE.100V.200mA.SO	1	S.A
4	D108	0401-001056	DIODE-SWITCHING:MMBD4148SE 100V 200mA SQ	1	SA
4	D110	0401-001056	DIODE-SWITCHING-MMBD4148SE 100V 200mA SO	1	SA
4	D125	0401-001056	DIODE-SWITCHING:MMBD4148SE 100V 200mA SQ	1	SA
4	D126	0401-001056	DIODE-SWITCHING-MMBD4148SE 100V 200mA SO	1	SA
4	D127	0401-001056	DIODE-SWITCHING-MMBD4148SE 100V 200mA SO	1	SA
4	D301	0402-001098	DIODE-RECTIFIER:SK34.40V.3A.SMC.TP	1	S.A
4	D109	0403-001411	DIODE-ZENER:5.49-5.73V.200mW.SOD-323.T	1	S.A
4	D123	0403-001411	DIODE-ZENER:5.49-5.73V.200mW.SOD-323.T	1	S.A
4	D124	0403-001411	DIODE-ZENER:-,5.49-5.73V.200mW,SOD-323,T	1	S.A
4	D220	0403-001411	DIODE-ZENER;-,5.49-5.73V.200mW,SOD-323,T	1	S.A
4	D230	0403-001411	DIODE-ZENER:- 5.49-5.73V.200mW.SOD-323.T	1	S.A
4	D231	0403-001411	DIODE-ZENER:5.49-5.73V.200mW.SOD-323.T	1	S.A
4	D221	0406-001061	DIODE-TVS:MMQA5V6T3,5.32/5.6/5.88V.24W.S	1	S.A
4	D232	0406-001061	DIODE-TVS:MMQA5V6T3.5.32/5.6/5.88V.24W.S	1	S.A
4	ZD200	0406-001061	DIODE-TVS:MMQA5V6T3.5.32/5.6/5.88V.24W.S	1	S.A
4	D502	0406-001172	DIODE-TVS:CDS3C30GTH.48V.0W.SMD	1	S.A
4	Q201	0501-000342	TR-SMALL SIGNAL:KSC1623-Y.NPN.200mW,SOT-	1	S.A
4	Q302	0501-002080	TR-SMALL SIGNAL:2SC2412K.NPN.200mW.SC-59	1	S.A
4	Q409	0505-001957	FET-SILICON:NTR2101P,P,-8V,-3.7A,0.0520h	1	S.A
4	IC112	1103-000129	IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x	1	S.A
4	IC112	1103-000129	IC-EEPROM:24C02,2Kbit,256x8Bit,SOP,8P,5x	1	S.A
4	IC112	1103-001023	IC-EEPROM:24C08,8Kbit,1Kx8Bit,SOP,8P,5x4	1	S.A
4	IC303	1203-001212	IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI	1	S.A
4	T0170	1203-003059	IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3	1	S.A
4	T0087	1203-003060	IC-POSI.FIXED REG.;AP1084,TO-263,3P,9.97	1	S.A
4	T0087	1203-003696	IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3	1	S.A
4	IC109	1205-003036	IC-LCD CONTROLLER;GM5766H-LF-AB,PQFP.128	1	S.A
4	R316	2007-000070	R-CHIP;0ohm,5%,1/10W,TP,1608	1	S.A
4	R333	2007-000070	R-CHIP;0ohm,5%,1/10W,TP,1608	1	S.A
4	R100	2007-000071	R-CHIP;220hm,5%,1/10W,TP,1608	1	S.A
4	R101	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R102	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
					1

Page 27

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
4	R103	2007-000071	R-CHIP:22ohm.5%.1/10W.TP.1608	1	S.A
4	R104	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R105	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R106	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R107	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R129	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R130	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R224	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R225	2007-000071	R-CHIP;22ohm,5%,1/10W,TP,1608	1	S.A
4	R125	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R126	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R134	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R136	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R138	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R142	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R143	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R144	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R212	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R213	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R222	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R223	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R233	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R234	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R309	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R313	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R328	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R329	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R332	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R604	2007-000074	R-CHIP;100ohm,5%,1/10W,TP,1608	1	S.A
4	R306	2007-000078	R-CHIP;1Kohm,5%,1/10W,TP,1608	1	S.A
4	R610	2007-000078	R-CHIP;1Kohm,5%,1/10W,TP,1608	1	S.A
4	R109	2007-000080	R-CHIP;2Kohm,5%,1/10W,TP,1608	1	S.A
4	R128	2007-000080	R-CHIP;2Kohm,5%,1/10W,TP,1608	1	S.A
4	R201	2007-000082	R-CHIP;3.3Kohm,5%,1/10W,TP,1608	1	S.A
4	R202	2007-000082	R-CHIP;3.3Kohm,5%,1/10W,TP,1608	1	S.A
4	R311	2007-000083	R-CHIP;3Kohm,5%,1/10W,TP,1608	1	S.A
4	R330	2007-000083	R-CHIP;3Kohm,5%,1/10W,TP,1608	1	S.A
4	R331	2007-000083	R-CHIP;3Kohm,5%,1/10W,TP,1608	1	S.A
4	R300	2007-000084	R-CHIP;4./Konm,5%,1/10W,TP,1608	1	S.A
4	R307	2007-000084	R-CHIP;4./Konm,5%,1/10W, IP,1608	1	S.A
4	R310	2007-000084	R-CHIP;4.7K0nm,5%,1/10W,1P,1608	1	S.A
4	R310	2007-000084	R-CHIP;4.7 K01111,5%,1710W,1P,1008	1	S.A
4	R319 P220	2007-000084	R-CHIP:4.7 Kollill, 5%, 1/10W, 1P, 1608	1	S.A S.A
4	R320 R321	2007-000064	R-CHIF:4.7 Kollill,3%,1/10W,1F,1000	1	S.A
4	R021	2007-000064	R-CHIF:4.7 Kollill,3%,1/10W,1F,1000	1	S.A
4	R322 P225	2007-000084	R-CHIP:4.7 Kollill, 5%, 1/10W, 1P, 1608	1	S.A S.A
4	R320 D226	2007-000064	R-CHIF:4.7 Kollill,3%,1/10W,1F,1000	1	S.A
4	R320 D227			1	S.A Q.A
4 A	R109	2007-000004	N-0111F, 44./ NU11111,379,1/ 1019,1 F, 1000 P_CHID-10Kohm 5%, 1/1019/ TD 1609	1	S.A Q A
4 A	R100	2007-000090	R-CHIP-10Kohm 5%, 1/10W, I F, 1000	1	O.A Q A
4	R121	2007-000090		1	S.A Q.A
4 A	R220	2007-000090	N-0111F, 101X011111,379,171049,17,1000	1	S.A Q A
	R230	2007-000090		1	S.A S.A
+	R231	2007-000030	R-CHIP-10Kohm 5% 1/10W TP 1608	1	S.A S.A
1	R232	2007-000030	R-CHIP:10Kohm 5% 1/10W TP 1608	1	S.A
4	R301	2007-000030	R-CHIP:10Kohm 5% 1/10W TP 1608	1	S A
	NOVI	2001 000030	י אסירא, איז	, i	0.4

Page 28

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
4	R304	2007-000090	R-CHIP:10Kohm.5%.1/10W.TP.1608	1	S.A
4	R305	2007-000090	R-CHIP:10Kohm.5%,1/10W.TP.1608	1	S.A
4	R308	2007-000090	R-CHIP;10Kohm,5%,1/10W,TP,1608	1	S.A
4	R315	2007-000090	R-CHIP;10Kohm,5%,1/10W,TP,1608	1	S.A
4	R323	2007-000090	R-CHIP;10Kohm,5%,1/10W,TP,1608	1	S.A
4	R324	2007-000090	R-CHIP;10Kohm,5%,1/10W,TP,1608	1	S.A
4	R210	2007-000092	R-CHIP;15Kohm,5%,1/10W,TP,1608	1	S.A
4	R211	2007-000092	R-CHIP;15Kohm,5%,1/10W,TP,1608	1	S.A
4	R214	2007-000092	R-CHIP;15Kohm,5%,1/10W,TP,1608	1	S.A
4	R302	2007-000102	R-CHIP;100Kohm,5%,1/10W,TP,1608	1	S.A
4	R303	2007-000124	R-CHIP;2.2Kohm,5%,1/10W,TP,1608	1	S.A
4	R131	2007-000491	R-CHIP;2.2Kohm,1%,1/10W,TP,1608	1	S.A
4	R132	2007-000491	R-CHIP;2.2Kohm,1%,1/10W,TP,1608	1	S.A
4	R314	2007-000608	R-CHIP;240ohm,5%,1/10W,TP,1608	1	S.A
4	R336	2007-000708	R-CHIP;3.9Kohm,1%,1/10W,TP,1608	1	S.A
4	R337	2007-000965	R-CHIP;5.1Kohm,5%,1/10W,TP,1608	1	S.A
4	R110	2007-001002	R-CHIP;510ohm,5%,1/10W,TP,1608	1	S.A
4	R145	2007-001164	R-CHIP;75ohm,1%,1/10W,TP,1608	1	S.A
4	R146	2007-001164	R-CHIP;/50nm,1%,1/10W,TP,1608	1	S.A
4	R147	2007-001164	R-CHIP;/50nm,1%,1/10W,TP,1608		S.A
4	R335	2007-007004	R-CHIP;12Konm,1%,1/10W, IP,1608	1	S.A
4	0302	2203-000041	C-CER, CHIP;0.01nF,0.25pF,50V,C0G,1608	1	S.A
4	0000	2203-000041		1	S.A
4	C203	2203-000189			S.A
4	0315	2203-000189		1	S.A
4	0500	2203-000189	C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608	1	S.A
4	C503	2203-000189			S.A
4	C126	2203-000230		1	S.A
4	C120	2203-000257		1	S.A S.A
4	C128	2203-000257		1	S.A
4	C120	2203-000257	C-CER CHIP:10/0,50/,X7R,1608	1	S.A
4	C130	2203-000257	C-CER CHIP:10nF 10% 50V X7R 1608	1	S A
4	C131	2203-000257	C-CER CHIP:10nF 10% 50V X7R 1608	1	S A
4	C201	2203-000257	C-CER CHIP:10nF 10% 50V X7R 1608	1	S A
4	C202	2203-000257	C-CER CHIP:10nF 10% 50V X7R 1608	1	S A
4	C300	2203-000257	C-CER.CHIP:10nF.10%.50V.X7R.1608	1	S.A
4	C313	2203-000257	C-CER.CHIP:10nF.10%.50V.X7R.1608	1	S.A
4	C316	2203-000257	C-CER.CHIP:10nF.10%.50V.X7R.1608	1	S.A
4	C319	2203-000257	C-CER.CHIP:10nF.10%.50V.X7R.1608	1	S.A
4	C501	2203-000257	C-CER,CHIP;10nF,10%,50V,X7R,1608	1	S.A
4	C121	2203-000384	C-CER,CHIP;0.015nF,5%,50V,C0G,1608	1	S.A
4	C103	2203-000440	C-CER,CHIP;1nF,10%,50V,X7R,1608	1	S.A
4	C122	2203-000626	C-CER,CHIP;0.022nF,5%,50V,C0G,1608	1	S.A
4	C317	2203-000975	C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-	1	S.A
4	C607	2203-001652	C-CER,CHIP;470nF,+80-20%,16V,Y5V,1608	1	S.A
4	C105	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C106	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C110	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C111	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C112	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C113	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C114	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C115	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C116	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C117	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C118	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A

Page 29

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
4	C119	2203-005005	C-CER.CHIP:100nF.10%.16V.X7R.1608	1	S.A
4	C123	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C210	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608		S.A
4	C220	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C230	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C307	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C308	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C310	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C322	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C610	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C611	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C615	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C616	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C617	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C618	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608		S.A
4	C619	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608		S.A
4	0000	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608		S.A
4	0622	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608		S.A
4	0023	2203-005005			S.A C.A
4	C625	2203-005005			S.A S.A
4	C635	2203-005005	C-CER, CHIP: 100/0F, 10%, 10V, X7R, 1000		S.A S.A
4	C636	2203-005005	C-CER CHIP-100nF 10% 16V X7R 1608		S.A S.A
4	C638	2203-005005	C-CER CHIP:100nF 10% 16V X7R 1608	1	S.A
4	C639	2203-005005	C-CER CHIP 100nF 10% 16V X7R 1608	1	S.A
4	C641	2203-005005	C-CER CHIP 100nF 10% 16V X7R 1608	1	SA
4	C642	2203-005005	C-CER CHIP 100nF 10% 16V X7R 1608	1	S.A.
4	C643	2203-005005	C-CER.CHIP:100nF.10%.16V.X7R.1608	1	S.A
4	C648	2203-005005	C-CER.CHIP:100nF.10%,16V.X7R.1608	1	S.A
4	C649	2203-005005	C-CER.CHIP:100nF.10%,16V.X7R.1608	1	S.A
4	C650	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C651	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C652	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C653	2203-005005	C-CER,CHIP;100nF,10%,16V,X7R,1608	1	S.A
4	C304	2203-005065	C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608	1	S.A
4	C305	2203-005065	C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608	1	S.A
4	C309	2203-005065	C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608	1	S.A
4	C311	2203-005065	C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608	1	S.A
4	C312	2203-005065	C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608	1	S.A
4	C614	2203-005437	C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216	1	S.A
4	C621	2203-005437	C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216	1	S.A
4	C634	2203-005437	C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216	1	S.A
4	C637	2203-005437	C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216		S.A
4	C502	2402-001081	C-AL,SMD;100uF,20%,25V,WT,1P,8.3x8.3x10		S.A
4	0306	2402-001128	C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM		S.A
4	C320	2402-001128	C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM		S.A
4	C600	2402-001128	C-AL,SMD,100UF,20%,10V,WT,1P,0.3A3./MIM		S.A C.A
4	C644	2402-001120			S.A S.A
4	C314	2402-001120	C-POI YMER CHIP:1001/20%, 25/- TP 8 3x8		S.A S.A
4	X300	2801-003667	CRYSTAL-SMD:14.31818MHz 30ppm 28-AAN 16	1	S.A.
4	T0568	3301-001145	BFAD-SMD:60ohm 4516 TP 70ohm/45MHz 82ohm		SNA
4	T0568	3301-001145	BEAD-SMD:60ohm,4516.TP.70ohm/45MHz.82ohm	1	S.N.A
4	T0568	3301-001145	BEAD-SMD:60ohm,4516,TP,70ohm/45MHz.82ohm	1	S.N.A
4	T0568	3301-001145	BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm	1	S.N.A
4	T0568	3301-001145	BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm	1	S.N.A
4	T0568	3301-001145	BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm	1	S.N.A
				\|

Page 30

Level	Loc. No.	Code No.	Description & Specification	Q'ty	SA/SNA
4	T0568	3301-001145	BEAD-SMD:60ohm.4516.TP.70ohm/45MHz.82ohm	1	S.N.A
4	CN330	3711-005503	HEADER-BOARD TO CABLE:BOX.9P.1R.2mm.SMD-	1	S.A
4	CN330	3711-005509	HEADER-BOARD TO CABLE:BOX.4P.1R.1.25mm.S	1	S.A
4	T0010	BN27-00009A	COIL CHOKE;SMD 12X12X6,EOS,33UH,15%,-,0.	1	S.A
4	МІСОМ	BN97-01164F	ASSY MICOM-CTZ,XSF;M-DP22W2BDa-1001,(6C7	1	S.N.A
5	IC115	1107-001561	IC-FLASH MEMORY;25VF010,128Kx8Bit,SOP,8P	1	S.N.A
4	T0077	BN41-00772B	PCB MAIN;Doppler,CEM-3,2L,1.0,1.6,118*78	1	S.N.A
2	M0006	BN96-04009A	ASSY SHIELD P-COVER;LS22DP,SECC,T0.8	1	S.N.A
3		BN63-01774A	SHIELD-INSULATOR;BI17/19BS,PET,T0.35	1	S.N.A
3	M0107	BN63-02829A	SHIELD-COVER;225BW,SECC,T0.8	1	S.N.A
3	M0131	AA63-01191A	GASKET;BE40TS,Conductive Fabric,1.0 mm,1	1	S.N.A

0.1	M0019	BN92-01781Y	ASSY LABEL;LS22DPWCBQ/XSF	1	S.N.A
0.1		BN92-01949R	ASSY P/MATERIAL-AMLCD;LS22DPW*	1	S.N.A
2	T0376	6902-000061	BAG AIR;LDPE,T0.2,L1000,W500,TRP,,,	0.013	S.N.A
2	T0376	6902-000379	BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,	0.003	S.N.A
2	T0524	6902-000584	BAG PE;HDPE/NITRON(DOUBLE),T0.015/T0.8,W	1	S.N.A
2	T0081	6902-000604	BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP,	2.21	S.N.A
2	M0081	6902-000609	BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,-	0.02	S.N.A

0.1	M0045	BN92-01997U	ASSY ACCESSORY;LS22DPWCBQ/XSF	1	S.N.A
2	M0114	BN39-00244B	CBF SIGNAL;MO15PS,15P/15P,20276-N,1830mm	1	S.A
2	M0125	BN39-00246F	CBF SIGNAL-DVI(D);1703FP,24P/24P,20276-D	1	S.A
2	M0045	BN96-04201K	ASSY ACCESSORY;LS22DPWCBQ/XSF	1	S.A
3	T0268	3903-000082	CBF-POWER CORD;DT,CN,IP3/YES(A),I(IEC C1	1	S.A
3	T0524	6902-000110	BAG PE;LDPE,T0.05,W250,L400,TRP,28,2	1	S.N.A
3	M0113	BH68-70455A	CARD-TESTED GOODS;ALL (CHINA),SAMAUNG,CH	1	S.N.A
3	ACCESSORY	BH75-00146B	UNIT-07,WARRANTY;CHINA,-,ASS'Y-W/CARD,BH	1	S.N.A
4	T0238	BH68-00297E	MANUAL FLYER-WARRANTY CARD;SAMSUNG BASIC	1	S.N.A
4	T0238	BH68-00297F	MANUAL FLYER-WARRANTY CARD;ENVELOPE,SAMS	1	S.N.A
3	M0215	BN96-03197D	ASSY MANUAL P-IB+QSG;225BW,W/W,BN59-0052	1	S.N.A
4	QSG	BH68-00376L	MANUAL FLYER-04,QSG;LCDQUICK SETUP GUIDE	1	S.N.A
4	IB	BN59-00520D	S/W DRIVER-00,IB;225BW,W/W,SyncMaster,Do	1	S.N.A

0.1	M0003	BN92-02033B	ASSY BOX;LS22DPWCBQ/XSF	1	S.N.A
2	T0130	BN69-01485C	BOX-00,SET;S/M225BW(LS22DPW),CB,SY-03,A,	1.01	S.N.A
				\|
				\|
				\|







				\|
				\|

Page 31

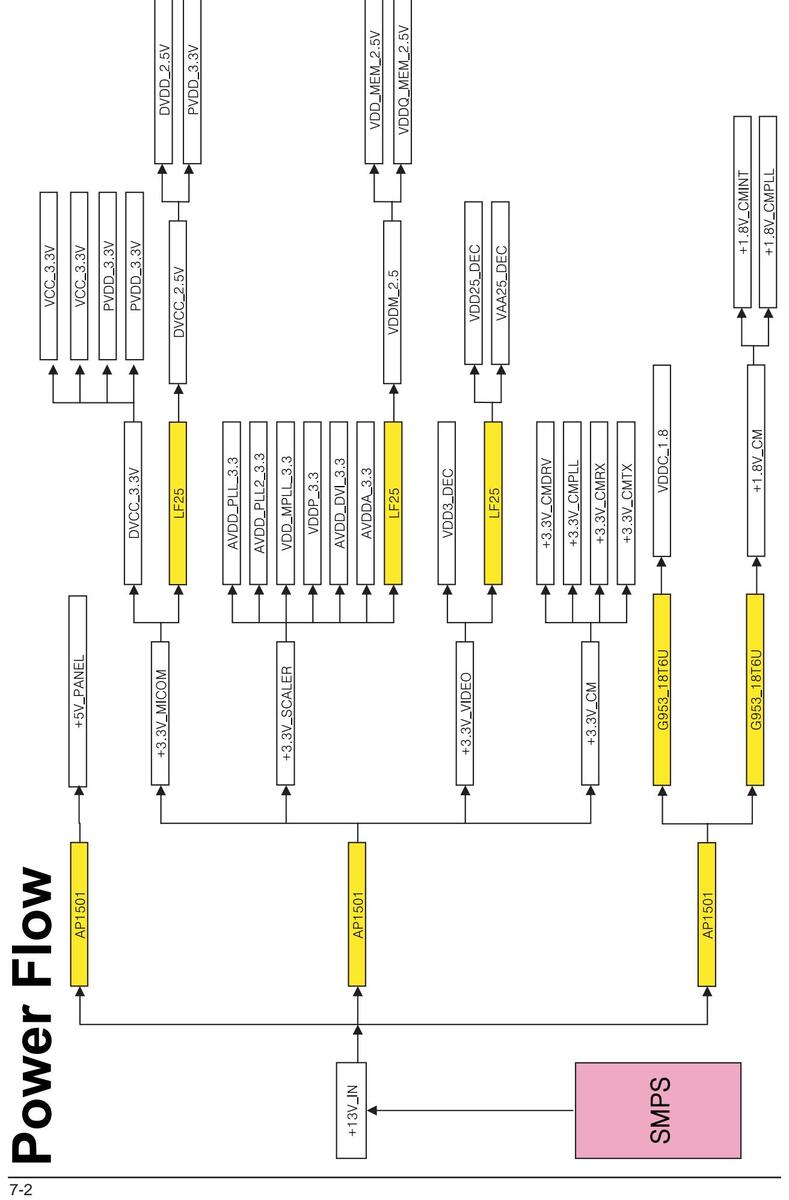

Block Diagram

Page 32

Page 33

Page 34

9 Schematic Diagrams

- This Document can not be used without Samsung s authorization.

9-1 Schematic Diagrams(1)

Page 35

9-2 Schematic Diagrams(2)

Page 36

9 Schematic Diagrams

Page 37

10 操作说明和安装

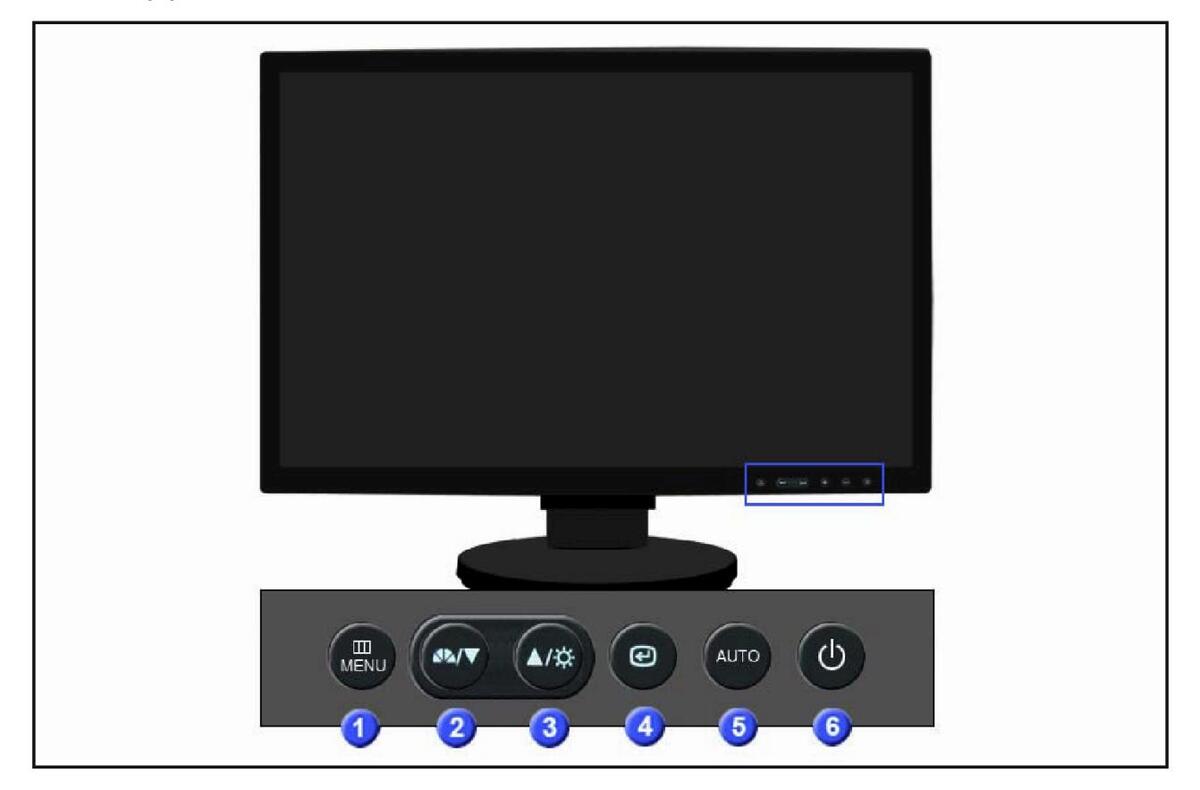

10-1 正面

1. 菜单按钮

打开 OSD 菜单。还用于退出 OSD 菜单或返回以前的菜单。

2. MagicBright 按钮

MagicBright 是依据正在观看的图片内容提供最佳观看环境的新功能。当前有六个不同的模式: 定制、文本、互联网、游戏、体育运动和电影。各模式有自己的预先录制的高度值。只需按下 MagicBright 控制按钮,即可轻松选择六个设置 ż-.

1) 定制

尽管本公司的工程师仔细洗择数值,但是预设值可能让您的眼睛不舒适,取决于您的偏好。如果出现这种情况,使用 OSD 菜单调节亮度和对比度。

2) 文本

适用于涉及大量文字的文档或作品

3) 互联网

适用于文字和图形等组合图像。

4) 游戏

适用于观看游戏等动画。

5) 体育运动适用干观看体育运动等动画。

6) 电影

话用干观看 DVD 或 VCD 等动画。

3. 高度按钮当屏幕上没有 OSD 时,按下该按钮调节亭度。

2.3.调节按钮调节菜单中的项目。

Page 38

4. 确定按钮/来源按钮

启用反白显示的菜单项。

按下"来源",然后在 OSD 关闭时选择视频信号。 (当按下来源按钮改变输入模式时,显示当前模式的屏幕的中部显示信息-模拟或数字输入信号。)

注意:如果选择数字模式,必须使用 DVI 电缆将显示器接到图形卡端口上。

5.自动按钮

使用这个按钮自动调节

6.电源按钮/电源指示器

使用该按钮打开和关闭显示器.在正常运行时该灯显示蓝色,在显示器存储你的调节时,该灯闪动一下蓝色.

(显示器背面的配置可能随产品而异。)

1. 电源输入: 电源线、插入显示器和墙上的插座。
2. DVI 输入端口:将 DVI 线接到显示器背面上的 DVI 输入端口上。
3. RGB 输入端口:将信号线接到显示器背面上的 RGB 输入端口上。
4. 电源开关: 打开和关闭显示器
5. Kensington 锁: Kensington 锁是当在公共场所中使用时用于固定系统的装置。(必须单独购买锁定位置。) 若要使用该锁定装置,请与你所购买产品的厂商联系

10-2 后部

Page 39

10-3 使用底座

10-3-1 拆除底座

1. 关闭显示器并拔下电源线。
2. 将液晶显示器面向下置于平坦的表面上,在显示器下铺上垫子,以保证显示屏。
3. 拆除四个螺钉,然后从液晶显示器拆除底座。

Page 40

10-3-2 安装底座

-本显示器可安装 100mm x 100mm 符合 VESA 标准的安装接口板。

A.显示器

B.安装接口板

1. 关闭显示器,并拔下电源线。
2. 将液晶显示器面向下置于平坦的表面上,在液晶显示器下面铺上垫子,以保护屏幕。
3. 拆除四个螺钉,然后从液晶显示器拆除底座。
将安装接口板与后盖安装板中的孔对准,并用随臂型底座、墙上安装的挂钩或其他底座提供的四个螺钉紧固。

Page 41

11 拆卸和重新组装

维修手册的这一章叙述 205BW 液晶显示器的拆卸和重新组装步骤。

▲ 警告:本显示器包含静电敏感器件。处理这些部件时应小心。

11-1 拆卸

▲ 小心: 1.拆卸显示器前,请断开电源。 2.在拆卸时请勿使用除提供的开启工具以外的其他开启工具。 3.请按下述步骤拆卸。 4.后盖开启工具: BH81-00001A

Page 42

说明
5. 断开 4 根灯电线和电线。 6. 从显示屏断开 LVDS 电线。
7. 从与印刷电路板支架相连的印刷电路板拆除 4 个六角螺钉。
8. 如图所示,从印刷电路板拆除5个螺钉,并从支架向上拉印刷电路板组件。 9. 完全拆卸印刷电路板。

Page 43

11-2 重新组装

重新组装步骤与拆卸步骤相反。

Page 44

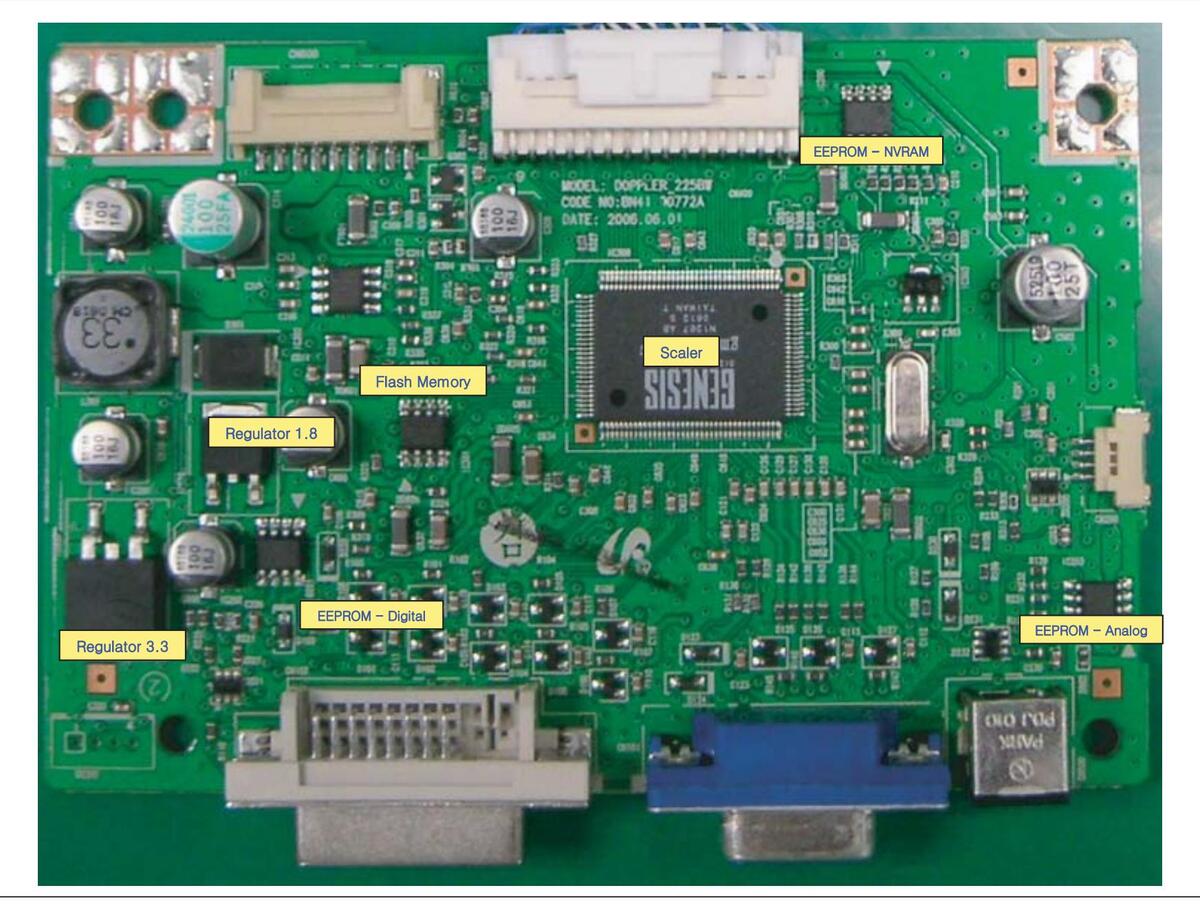

12 PCB Diagram

Page 45

13 电路说明

13-1 块说明

Page 46

13-2 块操作

序号	功能	说明
1	换算器	换算器集成了 ADC、TMDS、换算部分。
2	MICOM	微控制器。 Micom 控制显示器的所有功能。

使用换算器(MST6281)内置的 A/D 变换器将来自 PC 的模拟信号变为数字信号。换算器将该数字信号换算为最适于显示屏的信号,并对 LVDS 信号编码。该 LVDS 信号通过 LVDS 连接器进入显示屏,以显示图像。

如果是 DVI 信号,集成 TMDS 块运行并处理。

MICOM 控制显示器和 OSD 的所有功能。

DC/DC 块从 I/P 板的输出 14V 形成合适的电压,该电压将用于换算器、micom、存储器、显示屏等所有设备的功能。

IP 板同时向主板和显示屏供电,控制显示屏背景灯。

Page 47

14 Reference Infomation

14-1 Technical Terms

- TFT-LCD

(Thin film Transistor Liquid Crystal Display)

ADC(Analog to Digital Converter) This is a circuit that converts from analog signal to digital signals.

- PLL(Phase Locked Loop)

During progressing ADC, Device makes clock synchronizing HSYNC with Video clock

- Inverter

Device that supplies Power to LCD panel lamp. This device generates about 1,500~2,000V.

- SMPS(Switching Mode Power Supply)

Switching Mode Power supply. This design technology is used to step up/down the input power by switching on/off

- FRC(Frame Rate Controller)

Technology that change image frame quantity displayed on screen for one second.

Actually TFT-LCD panel require 60 pcs of frame for one second.

so,this technology is needed to convert input image to 60 pcs regardless input frame quantity.

- Image Scaler

Technology that convert various input resolution to other resolution.(ex. 640* 480 to 1024*768)

- Auto Configuration(Auto adjustment)

This is an algorithm to adjust monitor to optimum condition by pushing one key.

- OSD(On Screen Display)

On screen display. customer can control the screen easily with this.

- Image Lock

This means "Fineness adjustment" in LCD Monitor, the features are "Fine" and "Coarse"

- FINE

"Fine" adjustment is used to adjust visibility by control phase difference.

- COARSE

This is a adjustment by tuning with Video colck and PLL clock.

- DVI (Digital Visual Interface)

This provides a high speed digital connection for visual data types that is display technology independent. this interface is primarily forcused at providing a connection between a computer and its display device.

- L.V.D.S.(Low Voltage Differential Signaling)

a kind of transmission method for Digital. It can be used from Main PBA to Panel.

- DVI (Digital Visual Interface)

- T.M.D.S

(Transition minimized Differential Signaling)

a kind of transmission method for Digital. It can be used from Video card to Main PBA.

- DDC(Display data channel)

It is a communication method between Host Computer and related equipment.

It can make it Plug and Play between PC and Monitor.

- EDID

Extended Display Identification Data PC can recognize the monitor information as Product data, Product name,Display mode,Serial number and Signal source,etc through DDC Line communicating with PC and Monitor.

Page 48

- Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm

- Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

- Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

- Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.

- Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.

- Resolution

The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example : If the resolution is 1280 x 1024, this means the screen is composed of 1280 horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution).

- S-Video

Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality video.

- External Device Input

External device input refers to video input from such external video devices as VCRs, camcorders and DVD players, separate from a TV broadcast.

- DVD

A type of digital disk technology that takes up only the benefits of CD and LD, to implement a high resolution/quality, which enables the user to enjoy clearer images.

Page 49

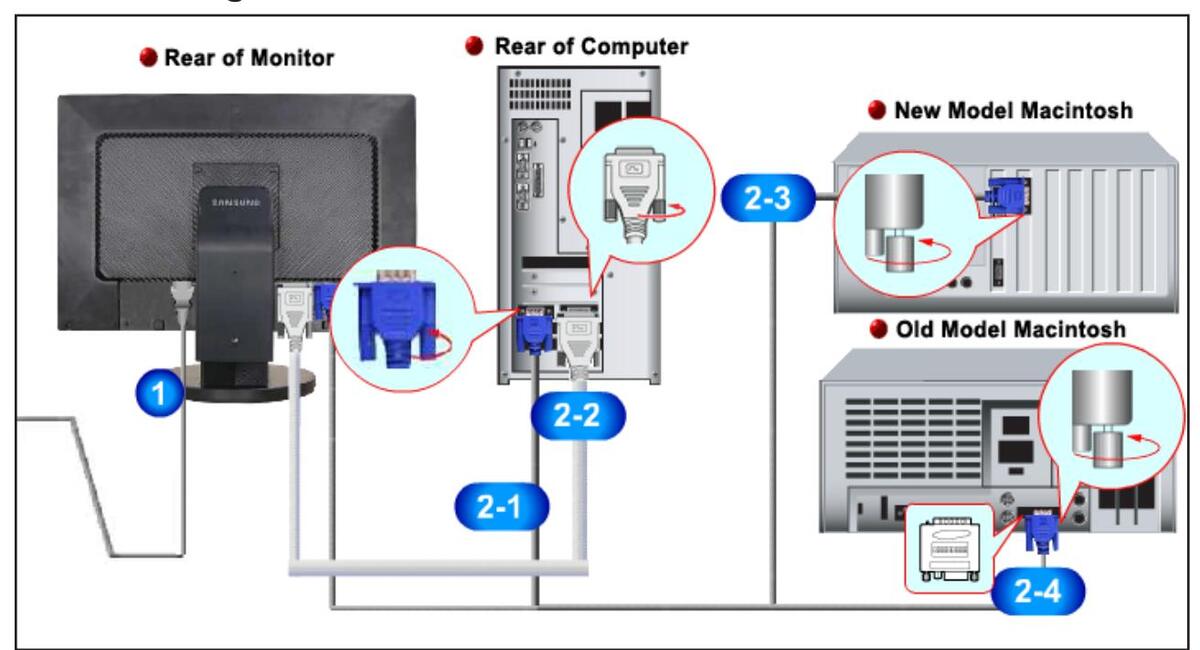

- Connecting the Monitor

1. Connect the DC adapter for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analog) connector on the video card.

Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

2-2. Using the DVI (Digital) connector on the video card.

Connect the DVI cable to the DVI port on the back of your monitor.

2-3. Connected to a Macintosh.

Connect the monitor to the Macintosh computer using the D-SUB connection cable.

2-4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.
3. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
- You may get a blank screen depending on the type of video card you are using, if you connect simultaneously both the D-Sub and DVI cables to one computer.
- If you properly connect your monitor using the DVI connector but get a blank screen, check to see if the monitor status is set to analog. Press power button to have the monitor double-check the input signal source.

Page 50

14-2 Pin Assignments

	15-Pii	n D-Sub Signal Cable Connector
Pin No.	Separate	Composite	Sync-on-green
1	Red	Red	Red
2	Green	Green	Green + H/V Sync.
3	Blue	Blue	Blue
4	GND	GND	GND
5	DDC Return (GND)	DDC Return (GND)	DDC Return (GND)
6	GND-R	GND-R	GND-R
7	GND-G	GND-G	GND-G
8	GND-B	GND-B	GND-B
9	DDC Power Input (+5V)	DDC Power Input (+5V)	DDC Power Input (+5V)
10	Self Raster	Self Raster	Self Raster
11	GND	GND	GND
12	Bi-Dr Data (SDA)	Bi-Dr Data (SDA)	Bi-Dr Data (SDA)
13	H-Sync.	H/V-Sync.	Not Used
14	V-Sync.	Not Used	Not Used
15	DDC Clock (SCL)	DDC Clock (SCL)	DDC Clock (SCL)

Sync Type Pin No.		24P DVI-D
1	Rx2-	13	No Connection
2	Rx2+	14	+5V_M
3	GND	15	Self Raster
4	No Connection	16	+5V_M
5	No Connection	17	Rx0-
6	DDC Clock (SCL)	18	Rx0+
7	DDC Data (SDA)	19	NC
8	NC	20	No Connection
9	Rx1-	21	No Connection
10	Rx1+	22	NC
11	NC	23	RxC+
12	No Connection	24	RxC-

Page 51

14-3 Timing Chart

- This section of the service manual describes the timing that the computer industry recognizes as standard for computer-generated video signals.

	de IBM		VESA
Timing	VGA2/ 70 Hz 720 x 400	VGA3/ 60 Hz 640 x 480	640/75 Hz 640x480	800/60 Hz 800x600	800/75 Hz 800x600	1024/60 Hz 1024x768	1024/75 Hz 1024x768	1280/60 Hz 1280x1024	1280/75 Hz 1280x1024
fH (kHz)	31.469	31.469	37.500	37.879	46.875	48.363	60.023	63.981	79.975
A µsec	31.777	31.778	26.667	26.400	21.333	20.677	16.660	11.852	12.504
B µsec	3.813	3.813	2.032	3.200	1.616	2.092	1.219	1.037	1.067
C µsec	1.589	1.589	3.810	2.200	3.232	2.462	2.235	2.296	1.837
D µsec	26.058	26.058	20.317	20.000	16.162	15.754	13.003	9.259	9.481
E µsec	0.318	0.318	0.508	0.000	0.323	0.369	0.203	0.000	0.119
fV (Hz)	70.087	59.940	75.000	60.317	75.000	60.004	75.029	60.020	75.025
O msec	14.268	16.683	13.333	16.579	13.333	16.666	13.328	16.005	13.329
P msec	0.064	0.064	0.080	0.106	0.064	0.124	0.050	0.047	0.038
Q msec	0.858	0.794	0.427	0.607	0.448	0.600	0.466	0.594	0.475
R msec	13.155	15.761	12.800	15.840	12.800	15.880	12.795	15.630	12.804
S msec	0.191	0.064	0.027	0.0261	0.021	0.062	0.017	0.016	0.013
Clock Freq. (MHz)	28.322	26.175	31.500	40.000	49.500	75.000	78.750	108.000	135.000
Polarity H.Sync	Negative	Negative	Negative	Positive	Positive	Negative	Positive	Positive	Positive
V.Sync	Positive	Negative	Negative	Positive	Positive	Negative	Positive	Positive	Positive
Remark	Separate	Separate	Separate	Separate	Separate	Separate	Separate	Separate	Separate

Table 14-1 Timing Chart

Page 52

14-4 Preset Timing Modes

- If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
MAC, 640 x 480	35.000	66.667	30.240	-/-
MAC, 832 x 624	49.726	74.551	57.284	-/-
IBM, 640 x 350	31.469	70.086	25.175	+/-
IBM, 640 x 480	31.469	59.940	25.175	-/-
IBM, 720 x 400	31.469	70.087	28.322	-/+
VESA, 640 x 480	37.500	75.000	31.500	-/-
VESA, 640 x 480	37.861	72.809	31.500	-/-
VESA, 800 x 600	35.156	56.250	36.000	+,-/+,-
VESA, 800 x 600	37.879	60.317	40.000	+/+
VESA, 800 x 600	46.875	75.000	49.500	+/+
VESA, 800 x 600	48.077	72.188	50.000	+/+
VESA, 1024 x 768	48.363	60.004	65.000	-/-
VESA, 1024 x 768	56.476	70.069	75.000	-/-
VESA, 1024 x 768	60.023	75.029	78.750	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79,976	75,025	135,00	+/+
VESA, 1600 x 1200	75.000	60.000	162.00	+/+

Table 1. Preset Timing

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

Page 53

14-5 Panel Description

Maker	VENDOR P/N	PANEL_CODE	PANEL_ABB	STICKER_CODE	Remarks
SEC	LT140X1-002	BN07-00004A	SA	BN68-00239H	-
SEC	LT150XS-L01	BN07-00009A	SB		-
SEC	LT150XS-L01-B	BN07-00022A	SC		-
SEC	LTM150XS-L02	BN07-00005A	SD		-
SEC	LT181E2-132	BN07-00001A	SE		-
SEC	LT150XS-T01	BN07-00010A	SF		-
SEC	LIM181E3-132	BN07-00019A	SG		-
SEC	LT170E2-131	BN07-10001D	SH		-
SEC	LT101E2-131	BN07-10001E	ek 21		-
SEC	LTM170E4-L01	BN07-00015A	SI
SEC	LTM213U3-L01	BN07-00016A	SM		_
SEC	LTM150XH-L01	BN07-00026A	SN		-
SEC	LTM150XH-L03	BN07-00027A	SP		-
SEC	LTM150XS-L01	BN07-00032A	SQ		DELL(ZPD)
SEC	LTM181E4-L01	BN07-00034A	SR		PVA
SEC	LTM170EH-L01	BN07-00036A	SS		TN
SEC	LTM170E5-L01	BN07-00037A	SU		PVA
SEC	LTM150XH-L11	BN07-00041A	SV		-
SEC	LTM213U4-L01	BN07-00039A	SW		PVA
SEC	LTM150XH-L01(ZPD)	BN07-00045A	SX		ZPD
SEC	LTM150XH-L04	BN07-00046A	SY 07		New panel with high brightness
SEC		BN07-00047A	SZ		Panel for TV // Link luminopos for 450od _ CONV&EOS Toom Dopol for
SEC TV	LIWIJUAH-LUO	BIN07-00055A	EA		Parlerior TV/ High luminarioe for 45000 _ SON F&EOS Team Parlerior
SEC	I TM153W1-L01	BN07-00054A	FB		Use NIKE MODEL
SEC	LTM170EH-L05	BN07-00055A	EC		Panel EOS proj. for high brightness of 17" EH-L05
SEC	LTM170E5-L03	BN07-00056A	ED		Dell 1702FP pro. E4. EH mechanicalCompatible
SEC	LTM190E1-L01	BN07-00057A	EE		DELL 1900 FP
SEC	LTM181E5-L01	BN07-00061A	EF		18" narrow bezel GH18PS
SEC	LTM150XP-L01	BN07-00065A	EG		AMLCD PVA PANEL
SEC	LTM240W1-L02	BN07-00062A	EH		Panel for 15" Wide TV
SEC	LTM170EU-L01	BN07-00071A	EJ		Slim design, TN
SEC	LTM170E5-L04	BN07-00072A	EK		E5-L04 6 bits FRC for IBM
SEC	LTA220W1-L01	BN07-00074A	EL		Panel for 22" IV
SEC	LTM170E6-L02	BN07-00075A	EM		AMLCD Narrow & slim design 1/" PVAmode
SEC		BIN07-00082A	EN		LTM170EH L01 ZPD panel
SEC	LTM170EH-L01	BN07-00081A	EF EO
SEC	LTM170E0 L01	BN07-00083A	FR		I TM170EH-I 05 ZPD panel
SEC	LTM170E5-L03	BN07-00084A	ES		LTM170E5-L03 ZPD panel
SEC	LTM170EU-L01	BN07-00085A	ET		LTM170EU-L01 ZPD panel
SEC	LTM170E5-L04	BN07-00086A	EU		LTM170E5-L04 ZPD panel
SEC	LTM170E6-L02	BN07-00087A	EV		LTM170E6-L02 ZPD panel
SEC	LTM150XH-L06	BN07-00091A	EW		Color coordinates change for LCD TV
SEC	LTM153W1-L01	BN07-00092A	EX		AMLCD WIDE 15",9/10
SEC	LTM170W1-L01	BN07-00100A	EY		Color Coordinates change code management
SEC	LTM170EH-L05	BN07-00097A	EZ		LTM170E5-L05 Color Coordinates Change Panel Code
SEC	LTA400W1-L01	BN07-00109A	S1		PANEL of AMLCD 40" TV
SEC		BN07-00110A	S2		Color coordinates change 0.280/0.290, 100000k & ZPD Panel
SEC		BN07-00111A BN07-001124	00 Q/		Color coordinates change 0.280/0.290, 100000K & ZPD Panel
SEC	LTM170FH-L05	BN07-001134	S5		Color coordinates change 0.280/0.290, 10000k & ZFD Panel
SEC	LTM220W1-I 01	BN07-00114A	S6		ZPD Panel for AMLCD 22" TV
SEC	LTM150XH-L06	BN07-00117A	S7		ZPD Panel code
SEC	LTM153W1-L01	BN07-00118A	S8		ZPD Panel code
SEC	LTM170WP-L01	BN07-00119A	S9		PVA Panel for NIKE
SEC	LTM213U4-L01	BN07-00039A	E1		21.3" NARROW
SEC	LTA260W1-L01	BN07-00121A	E2		VENUS
SEC	LTA220W1-L01	BN07-00074B	E3		Panel B-level panel code for 22" TV Panel
SEC	LTA320W1-L01	BN07-00108A	E4		Panel for AMLCD 32" TV
SEC	LTM213U4-L01	BN07-00124A	E5		NARROW BEZEL 21 " PANEL

Page 54

Maker	VENDOR P/N	PANEL_CODE	PANEL_ABB	Remarks
SEC	LTM170E6-L04	BN07-00129A	E6	HIGHLAND 17" LOW PANEL (Panel only for TCO03)
SEC	LTM190E1-L01	BN07-00088A	E7	LTM190E1-L01 ZPD panel
SEC	M150X4-L06	BN07-00137A	E8	15" Narrow & Slim panel
SEC	LTA170V1	BN07-00139A	E9	17" Panel for Muse 4:3 VGA TV
SEC	LTM190E1-L02	BN07-00128A	E10	New Panel from AMLCDI, Specification : 6bit Driver IC
SEC	LTM170EX-L01	BN07-00143A	E11	Development new Panel from AMLCD
SEC	LTM170E8-L01	BN07-00144A	E12	Development new Panel from AMLCD
SEC	LTM170E6-L04	BN07-00129B	E13	ZPD panel for AMLCD (Panel only for TCO03)
SEC	LTA320W1-L02	BN07-00108B	E14	Creat B-level Panel code for AMLCD 32" TV
SEC	LTM190E1-L03	BN07-00151A	E15	Development new 19" Panel form AMLCD (Panel only for
TCO03)
SEC	LTM240W1-L03	BN07-00134A	E16	AMLCD 24" panel development
SEC	LTM190E1-L02	BN07-00128B	E17	New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)
SEC	LTM190E4-L01	BN07-00145A	E18	AMLCD 24" new panel development
SEC	LTM170E8-L01	BN07-00158A	E19	ZPD code derivation
SEC	LTM170EX-L01	BN07-00159A	E20	ZPD code derivation
SEC	LTM190E1-L03	BN07-00151B	E21	Creat new panel code for AMLCD 19" (Panel only for TCO03)
SEC	LTA460H1-L01	BN07-00157A	E22	creat panel code for AMLCD 46" TV
SEC	LTM170EU-L11	BN07-00160A	E23	creat new panel code for AMLCD 17" (Panel only for TCO03)
SEC	LTM240W1-L03	BN07-00134B	E24	24" panel ZPD code derivation
SEC	LTM190E4-L01	BN07-00145B	E25	AMLCD 19" ZPD Panel code derivation
SEC	LTM240W1-L03	BN07-00134B	E26	24" panel ZPD code derivation
SEC	LTM150XO-L01	BN07-00164A	E27	AMLCD 15" XO-L01 new panel development
SEC	LTM150XO-L01	BN07-00164B	E28	AMLCD 15" XO-L01 ZPD code derivation
SEC	LTM170EU-L11	BN07-00160B	E29	AMLCD 17" NEW panel code derivation
SEC	LTA320W2-L01	BN07-00172A	SPZ	AMLCD 32" NEW panel
SEC	LTM213U4-L01	BN07-00124B	SPZ	21.3" Narrow PANEL ZPD Panel derivation
SEC	LTM170EU-L11	BN07-00189A	STH	AMLCD EU-L11 Pb free panel code derivtion
SEC	LIM170EU-L11	BN07-00189B	SIZ	AMLCD EU-L11 Pb free panel ZPD code derivation
SEC	LTM240W1-L04	BN07-00188A	SPH
SEC	L1M240W1-L04	BN07-00188B	SPZ	24" A-DCC panel ZPD code derivation
SEC		BN07-00191A	51H
SEC		BIN07-00191B	512
SEC		BIN07-00184A	5PZ	AMLOD 23 10:9 NEW Panel
SEC	LTA200VV2-L01	DN07-00100A	3PZ
SEC	LTM2400VVZ-L01	DINU7-00100A	3PZ 2DU	AMILOD 40 10.9 NEW Pallel
SEC		BN07-00195A	оги	AMI CD 15" XO L01. Bb free papel code
SEC		BN07-00197A	51H ST7	AMICO 15 XO-L01 Pb free panel ZPD code
SEC	LTM170ELLI 21	BN07-00197B	51Z ST7	AMICD FILL 21 ZPD NEW code derivation
SEC	LTΔ460W/2-L03	BN07-00202A	SP7
SEC	LTM240M1-L01	BN07-00107A	SP7	24" high brightness panel ZPD code derivation
SEC	M170FX-I 21	BN07-00206A	STZ
SEC	I TA460H3-I 01	BN07-00200A	SPZ	AMI CD 46" I ED BI U panel
SEC	LTM170FU-L15	BN07-00214A	STZ	High brightness For AMI CD FU-I 15 TV ZPD NFW code deri-
vation		2.137 0021171	0.2
SEC	LTM170E8-L21	BN07-00218A	SPZ	AMLCD LTM170E8-L21 PVA ZPD NEW code derivation
SEC	LTM190EX-L21	BN07-00222A	STZ	DISPLAY LCD
SEC	LTM201U1-L01	BN07-00190B	SPZ	AMLCD 20.1" Normal panel ZPD code derivation
SEC	LTM190E4-L21	BN07-00223A	SPZ	HAYDN 17" PZD code PANELderivation
SEC	LTA570H1-L01	BN07-00196A	SPZ	AMLCD 57" NEW Panel
SEC	LTM150XO-L21	BN07-00229A	STZ	AMLCD 15" XO-L21 8ms panel code
SEC	LTA260W2-L11	BN07-00239A	SPZ	AMLCD 26" 16:9 7Line NEW Panel
SEC	LTA400WS-LH1	BN07-00245A	SPZ	AMLCD 40" 16:9 SPVA 90% NEW Panel
SEC	LTM213U6-L01	BN07-00231A	SPZ	AMLCD 21.3" PVA NEW Panel Code
SEC	LTM213U6-L01	BN07-00231B	SPH	AMLCD 21.3" PVA Panel HPD Code
SEC	LTA320WS-LH2	BN07-00244A	SPZ	AMLCD 32" 16:9 SPVA 90% NEW Panel
SEC	LTA400WS-LH1	BN07-00245A	SPZ	AMLCD 40" 16:9 SPVA 90% NEW Panel
SEC	LTM190M2-L01	BN07-00227A	STZ	AMLCD 19" TN Wide NEW Panel Code
SEC	LTM201UX-L01	BN07-00249A	STZ	AMLCD 20.1" TN NEW Panel Code
SEC	LTM240M1-L02-A05	BN07-00250A	SPZ	24" High brightness Slim panel ZPD code derivation
SEC	LTA320W3-L02	BN07-00219A	SPZ	AMLCD 32" NEW FFL Panel
I

Page 55

Maker	VENDOR P/N	PANEL_CODE	PANEL_ABB	Remarks
SEC	LTA320W2-L11	BN07-00259A	SPZ	IP Board for AMLCD 32" 16:9 NEW Panel
SEC	LTA460WS-L02	BN07-00252A	SPZ	AMLCD 46" 16:9 SPVA 72% NEW Panel
SEC	LTA400WT-L01	BN07-00264A	SPZ	-
SEC	LTM240M2-L02	BN07-00267A	SPZ	All LCD Monitor 24" wide SPVA ZPD NEW code derivation
SEC	LTM210M2-L02	BN07-00230A	SPZ	-
SEC	LTA320WT-L11	BN07-00257A	SPZ	-
SEC	LTM190EX-L21-G	BN07-00274A	STZ	AMLCD 19" TN Glare NEW Panel Code
SEC	LTA320WT-L14	BN07-00247A	SPZ	-
SEC	LTM190M2-L01-D016	BN07-00280A	STZ	AMLCD 19" TN Wide change Gamma Panel Code
SEC	LTM190EX-L31	BN07-00279A	SIZ	AMLCD 19" IN NEW Panel Code
SEC		BN07-00287A	512	AMECD 19 TN WIde High brightness NEW Panel Code
SEC	LTA400005-L01	BN07-00240A BN07-00311A	3PZ SP7	Display-LCD (DIV) 07AH
SEC	LTA400W3-L01	BN07-003164	SPZ
SEC	LTM170EX-L31	BN07-00278A	STZ	AMI CD I TM170EX-I 31 7PD
SEC	LTA460HS-LH1	BN07-00291A	SPZ	AMLCD 46" 16:9 FHD / 60Hz / 8bit / SPVA 92%
SEC	LTA320WT-LF1	BN07-00323A	SPZ	-
SEC	LTA460WT-L02	BN07-00284A	SPZ	AMLCD 46" 16:9 HD / 60Hz / 8bit / SPVA 72% /
SEC	LTA400WH-LH1	BN07-00271A	SPZ	AMLCD 40" 16:9 SPVA 92% 10bit 120Hz
SEC	LTM240M1-L02-D015	BN07-00331A	SPZ	-
СРТ	CLAA150XG09	BN07-00141A	PA	CPT 15" Monitor new panel development
CPT	CLAA170EA02	BN07-00148A	PB	17" CPT NEW development panel
CPT	CLAA170EA02	BN07-00148B	PC	17" CPT ZPD panel code derivation
CPT	CLAA150XG09	BN07-00141B	PTZ	CPT 15" panel ZPD code derivation (GOYA-PJT)
CPT	CLAA150XP01	BN07-00173A	PTH	CPT 15" PSWG code derivation
CPT	CLAA150XP01	BN07-00173B	PTZ	CPT 15" PSWG panel ZPD code derivation
CPT	CLAA170EA07	BN07-00174A	PTH	CPT 17" PSWG code derivation
CPT	CLAA170EA07	BN07-00174B	PIZ	CPT 17" PSWG type New Panel code
CPT		BN07-00220A		CPT 17" PSWG R/T 8msec code derivation
CPT		BN07-00220B	PTT	CPT 15" PSWG Ranel ZPD & Lead free code derivation
CPT	CLAA201WA03O	BN07-00250A	PTZ	CPT 20 1" wide TN ZPD New code derivation
CPT	CLAA320WA01	BN07-00276A	PMZ	CPT 32" 16:9 MVA 8bit 60Hz / Panel brown
CPT	CLAA170ES01	BN07-00261A	PTZ	CPT 17" Slim TN ZPD Type New code derivation
СРТ	CLAA070VA02	BN07-00265A	PTZ	CPT Panel code derivation for Digital Album
TOSHIBA	LTM15C419(A)	BN07-00002A	ТА	-
TOSHIBA	LTM15C423(B)	BN07-00006A	ТВ	-
TOSHIBA	LTM18C161	BN07-00008A	TC	-
TOSHIBA	LTM15C443	BN07-00031A	TD	-
TOSHIBA	LTM15C458	BN07-00043A	TE	-
TOSHIBA	LTM15C458S	BN07-00077A	TF	TSB 15" high brightness Panel
TOSHIBA	LTM15C458	BN07-00078A	TG	Toshiba ZPD panel
TOSHIBA	LTM15C458S	BN07-00099A	TH	TSB LTM15C458S(ZPD)
HANNSTAR	HSD150MX41A(A)	BN07-00020A	NA	TTL type
HANNSTAR	HSD150MX12	BN07-00030A	NB	IIL type
HANNSTAR	HSD170ME13	BN07-00180A	NIH	Hannstar 17" IN new panel development
tion	HSD170ME13	BIN07-00180B	NIZ	Hannstar 17 TN new panel development ZPD code deriva-
HANNSTAR	HSD190ME12	BN07-00210A	NTZ	Hannstar 19" TN new panel development
HANNSTAR	HSD150MX17-A	BN07-00226A	NTZ	Hannstar 15" slim panel ZPD code derivation
HANNSTAR	HSD190ME12-A10	BN07-00256A	NTZ	Hannstar 19" TN PSWG 8ms new panel development
HANNSTAR	HSD190ME13-D11	BN07-00270A	NTZ	Hannstar 19" TN Slim 5ms new panel development
TORISAN	TM150XG-22L03(A)	BN07-00021A	RA
TORISAN	TM150XG-26L06	BN07-00042A	RB	-
TORISAN	TM181SX-76N01	BN07-00048A	RC	- \|
TORISAN	TM150XG-26L06	BN07-00059A	RD	15" XGA TN MODE(ZPD)
	TM290WX-71N31	BN07-00063A	RE	K524NS (TORISAN 29" NEW PANEL)
IURISAN	11VI390VVX-/11N31	BINU7-00064A	KF	RƏZ4193 (TURIJAN 40 NEW PANEL)

Page 56

Maker	VENDOR P/N	PANEL_CODE	PANEL_ABB	Remarks
TORISAN	TM150XG-26L09	BN07-00073A	RG	Panel for 15" TV
TORISAN	TM150XG-26L10	BN07-00089A	RH	L10(change except D/IC) ZPD
TORISAN	TM150XG-26L10	BN07-00090A	RJ	L10 NORMAL
TORISAN	TM190SX-70N01	BN07-00098A	RK	Torisan 19" Panel
TORISAN	TM181SX-76N01	BN07-00106A	RL	ZPD Panel code
TORISAN	TM190SX-70N01	BN07-00107A	RM	ZPD Panel code
TORISAN	TM290WX-71N31	BN07-00115A	RN	Color Coordinates change panel for TORISAN 29" TV
TORISAN	TM396WX-71N31	BN07-00116A	RP,Q	Color Coordinates change panel for TORISAN 40" TV
TORISAN	TM22OWX-71N31	BN07-00125A	RR	Development TORISAN 22" TV PANEL (ZPD)
TORISAN	TM22OWX-71N31	BN07-00127A	RS	Development TORISAN 22" TV PANEL (HPD)
TORISAN	TM396WX-71N32A	BN07-00150A	RT	120V inverter Exclusive panel
TORISAN	TM190SX-70N02	BN07-00154A	RMH	Torisan 6bit panel code Derivation
TORISAN	TM190SX-70N02	BN07-00154B	RMZ	Torisan 6bit panel code Derivation
TORISAN	TM150XG-A01	BN07-00162A	RTH	Torisan 15" Narrow & Slim panel development
TORISAN	TM150XG-A01	BN07-00162B	RTZ	Torisan 15" N&S panel ZPD code derivation
SHARP	LQ181E1DG11(A)	BN07-10001C	PA	-
SHARP	LQ150X1LW71	BN07-00067A	PB	SHARP 15" PVA PANEL
SHARP	LQ370T3LZ41	BN07-00216A	FAZ	Rome2
НІТАСНІ	TX38D12VC0CAA(A)	BN07-00003A	HA	-
HITACHI	TX43DVCOCAB	BN07-00060A	НВ	17" SXGA PVA MODE
HITACHI	TX43D15VC0CAB	BN07-00101A	HC	ZPD Panel
HITACHI	TX51D11VC0CAB	BN07-00122A	HD	20.1" NARROW
HITACHI	TX54D11VC0CAB	BN07-00123A	HE	21.3" NARROW
HITACHI	TX80D12VC0CAB	BN07-00169A	HIZ	Development new panel for Hitachi 32" TV (ZPD)
HITACHI	TX54D11VC0CAB	BN07-00123B	HIZ	Hitachi 21.3"ZPD panel
IBM	ITSX94S	BN07-00017A	IA	-
UNIPAC	UM170E0	BN07-00028A	UA	Loaded by cisdba
HYUNDAI	HT15X13	BN07-00035A	DA	-
HYUNDAI	HT17E11-200	BN07-00049A	DB	TN MODE
HYUNDAI	HT17E11-300	BN07-00093A	DC	HT17E11-300 ZPD panel
HYUNDAI	HT17E11-400	BN07-00094A	DD	HT17E11-400 normal panel
HYUNDAI	HT17E11-400	BN07-00095A	DE	HT17E11-400 ZPD panel code
HYUNDAI	HT17E12	BN07-00096A	DF	HT17E12 (Narow & slim Design)
HYUNDAI	HT17E12	BN07-00105A	DG	ZPD Panel code
HYUNDAI	HT15X15-D00	BN07-00146A	DH	Development for Ares 15" Hydis TV
HYUNDAI	HT15X15-D01	BN07-00146B	DJ	Derivation panel HPD for Ares 15" Hydis TV
HYUNDAI	HT17E13-100	BN07-00167A	DTH	PINEHURST-2(IBM) PJT 17" HYDIS PANEL Derivation
HYUNDAI	HT17E13-100	BN07-00167B	DTZ	PINEHURST-2(IBM) Hydis 17" ZPD code Derivation
HYUNDAI	HT170EX1-100	BN07-00240A	DTZ	17" EX compatible Hydis Slim panel development
HYUNDAI	HT201V01-100	BN07-00263A	DTZ	Hydis 20.1" 4:3 VGA Mode TN NEW Panel
HYUNDAI	HT170EX1-101	BN07-00266A	DTZ	17" EX compatible Hydis Slim panel multi channel IC NEW Derivation
ACER	L170E3	BN07-00044A	AA	TN(ADT)
ACER	M170EN05	BN07-00076A	AB	AU 17" Panel (Narrow & slim design)
ACER	M170EN05	BN07-00102A	AC	ZPD Panel code
ACER	M190EN02	BN07-00170A	AMH	AU Monitor 19" new panel development (P19-1S)
ACER	M190EN02	BN07-00170B	AMZ	AU 19" ZPD code derivation (ZPD)
ACER	M170EN06	BN07-00171A	ATH	AU Monitor 17" New panel development
ACER	1260XW01	BN07-00163A	AMZ	AU 26" new panel development (NF26EO)
	A2015N01	BN07-00177A	AIZ	AU IV panel 20.1" IN SVGA new panel development
		BN07-00171B	AIZ
ACER	1315XW01	BN07-00194A	AMZ	New AU 32"
		BN07-00192A	AIH	AU IN PSWG type New Panel Code
		BIN07-00192B	AIZ	AU IN FSWG type New Panel ZPD Derivation Code
		BINU/-UU2U3A	AIH
		DINU/-UU2U8A		AUU ZU
		DINU/-UUZZIA	AIZ	AU THIRSWU UPE NEW FAHEL (OTISEC) ZPD DELIVATION CODE

Page 57

Maker	VENDOR P/N	PANEL_CODE	PANEL_ABB	Remarks
ACER	T260XW02	BN07-00233A	AMZ	AUO 26" New Panel (Cosmetic spec down grade)
ACER	T315XW01	BN07-00234A	AMZ	AUO 32" New Grade (Cosmetic spec down grade)]
ACER	M190EN03	BN07-00224A	AMZ	AU Monitor 19" MVA New code Derivation
ACER	T315XW01	BN07-00237A	AMZ	New LCD TV VE project : delete DBEF sheet * Panel, model divi-
sion ve
ACER	T315XW01	BN07-00238A	AMZ	New LCD TV VE project : delete DBEF sheet + 'A-' grade *
Panel
ACER	M201UN02 V3	BN07-00168A	AMZ	-
	M2010N02 V3	BN07-00168B	AMH	-
		BN07-00240A	A1Z ATZ	AU MOTILUT 19 Th Glate ZPD New Code Derivation
ACER	T315XW01	BN07-00253A	AMZ	I CD TV/VE item model * Panel Model division add version: T315XW01
ACER	T260XW02	BN07-00254A	AMZ	AUQ 26" VE item apply model
ACER	M170EU01	BN07-00260A	ATZ	AUO 17" Slim TN ZPD Type New code Derivation
ACER	T370XW01	BN07-00255A	AMZ	for ROME 37" model development
ACER	T315XW02(V3),	BN07-00324A	AMZ	-

CHIMEI	M170E3-LO1	BN07-00050A	CA	TN PANEL
CHIMEI	M150X3-L01	BN07-00051A	CB	COMPATIBLE
CHIMEI	M170E4-L01	BN07-00052A	CC	MVA PANEL
CHIMEI	M150X2-L01	BN07-00066A	CD	CHIME 15"I PVA PANEL
CHIMEI	M150X3-L01	BN07-00079A	CE	Chimei ZPD panel
CHIMEI	M170E3-L01	BN07-00103A	CF CC
	W170E4-L01	BN07-00104A	CG
	M170E6-L02	BN07-00120A	CI	HIGHI AND 17" LOW PANEL
CHIMEI	M190E2-L01	BN07-00120A	СК	GH19AS BS CHIMEL PANEL
CHIMEI	M150X4-L06	BN07-00137A	CL	15" Narrow & Slim panel
CHIMEI	M170E6-L01	BN07-00133A	CM	2003-03-11 vendor change
CHIMEI	M170E6-L01	BN07-00133B	CN	ZPD derivation panel
CHIMEI	V201V1-T01	BN07-00135A	СР	CHIMEI 20.1" panel development
CHIMEI	M170E6-L02	BN07-00126B	CQ	HIGHLAND 17" LOW PANEL ZPD derivation panel
CHIMEI	M170E6-L05	BN07-00152A	CR	CMO 17" new panel development code
CHIMEI	M170E6-L05	BN07-00152B	CS	CMO 17" ZPD panel code derivation
CHIMEI	M150X4-L06	BN07-00137B	CT	Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI	M170E5-L05	BN07-00165A	CTH	CMO 17" new panel development code (GOYA2-PJT)
CHIMEI	M170E5-L05	BN07-00165B	CIZ	CMO 17" ZPD panel(GOYAZ-PJT)
	V230W1-L02 V320B1101	BN07-00209A	CMZ
CHIMEI	V270W1-L01	BN07-00207A BN07-00136A	CMZ
CHIMEI	M190E5-L0A	BN07-00213A	CTZ
CHIMEI	M190E3-L0A	BN07-00212A	CMZ	CMO M190E3-L0A MVA Type New code derivation
СНІМЕІ	M170E7-L01	BN07-00232A	CTZ	CMO 17" Slim TN ZPD Type New code derivation
CHIMEI	M190A1-L01	BN07-00228A	CTZ	CMO 19" Wide TN ZPD Type New code derivation
CHIMEI	V201V1-T03	BN07-00275A	CTZ	CMO 20.1" (V201V1-T01) VE model
CHIMEI	M201P1-L01	BN07-00268A	CTZ	CMO 20.1" TN ZPD derivation

NEC	SVA150XG04TB	BN07-00225A	BTZ	SVA NEC 15" panel ZPD code
NEC	SVA1/0SX011B	BN07-00272A	BIZ	SVA NEC 17" panel ZPD code Brown

Page 58

- 本维修手册归三星电子有限公司所有。未经允许擅自使用本手册,会受到适用的国际和/或国内法律的惩罚。

©三星电子有限公司

P/N: BN82-00137J-00 URL: http://itself.sec.samsung.co.kr/

Samsung LDP22WS User Manual

液晶显示器

液晶显示器

时尚特点

版权

商标

目 录

目 录

1 Precautions

1-1 Safety Precautions

1-1-1 Warnings

1-1-2 Servicing the LCD Monitor

1-1-3 Fire and Shock Hazard

WARNING : Do not use an isolation transformer during this test.

1-1-4 Product Safety Notices

1-2 Servicing Precautions

1-2-1 General Servicing Precautions

1-3 Electrostatically Sensitive Devices (ESD) Precautions

1-4 Installation Precautions

2 产品规格

2-1 时尚特点

2-2 规格

2-3 LDP22WS 特点

2-4 规格比较

2-5 选装件规格

3 调整和调节

3-1 所需的设备

3-2 自动颜色调节

3-3 DDC EDID数据输入

3-4 维修功能规格

3-4-1 如何显示维修功能OSD

3-4-2 如何控制维修功能OSD

3-5 隐藏键列表

3-6 DDC输入方法(Windows程序)

3-7更换主板后执行的项目

更换主板后

4 故障排除

4-1 未通电

4-2 没有图像(PC 模拟信号)

5 Exploded View and Parts List

5-1 LDP22WS Exploded View

5-2 Parts List

6 Electrical Parts List

6-1 Parts List

9 Schematic Diagrams

9-1 Schematic Diagrams(1)

9-2 Schematic Diagrams(2)

9 Schematic Diagrams

10 操作说明和安装

10-1 正面

1. 菜单按钮

2. MagicBright 按钮

1) 定制

2) 文本

3) 互联网

4) 游戏

5) 体育运动 适用干观看体育运动等动画。

6) 电影

3. 高度按钮 当屏幕上没有 OSD 时,按下该按钮调节亭度。

4. 确定按钮/来源按钮

5.自动按钮

6.电源按钮/电源指示器

10-2 后部

10-3 使用底座

10-3-1 拆除底座

10-3-2 安装底座

A.显示器

B.安装接口板

11 拆卸和重新组装

▲ 警告:本显示器包含静电敏感器件。处理这些部件时应小心。

11-1 拆卸

▲ 小心: 1.拆卸显示器前,请断开电源。 2.在拆卸时请勿使用除提供的开启工具以外的其他开启工具。 3.请按下述步骤拆卸。 4.后盖开启工具: BH81-00001A

11-2 重新组装

12 PCB Diagram

13 电路说明

13-1 块说明

13-2 块操作

14 Reference Infomation

14-1 Technical Terms

- TFT-LCD

目录

目录

5) 体育运动适用干观看体育运动等动画。

3. 高度按钮当屏幕上没有 OSD 时,按下该按钮调节亭度。
